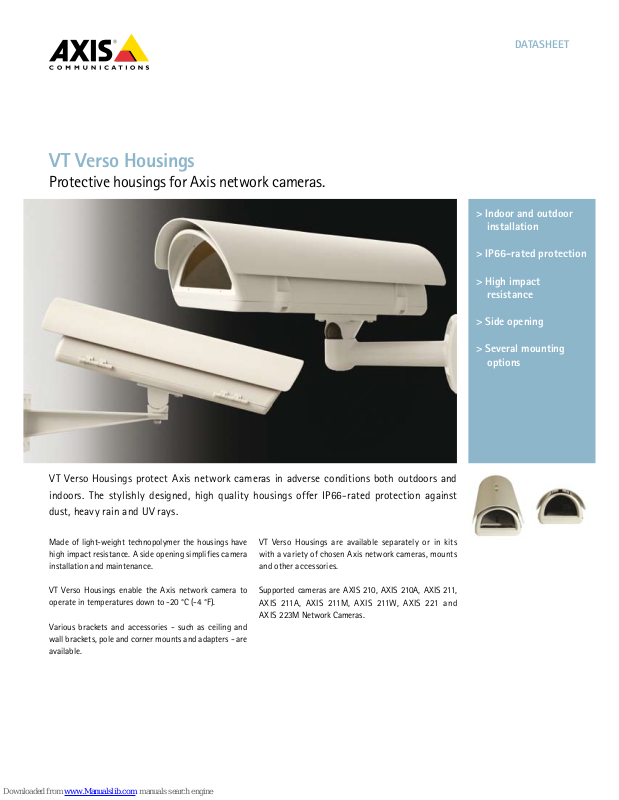

Axis Verso Housings Datasheet

DATASHEET

Made of light-weight technopolymer the housings have
high impact resistance. A side opening simplifies camera
installation and maintenance.

VT Verso Housings enable the Axis network camera to
operate in temperatures down to -20 °C (-4 °F).

Various brackets and accessories - such as ceiling and
wall brackets, pole and corner mounts and adapters - are
available.

VT Verso Housings protect Axis network cameras in adverse conditions both outdoors and
indoors. The stylishly designed, high quality housings offer IP66-rated protection against
dust, heavy rain and UV rays.

VT Verso Housings

Protective housings for Axis network cameras.

VT Verso Housings are available separately or in kits
with a variety of chosen Axis network cameras, mounts
and other accessories.

Supported cameras are AXIS 210, AXIS 210A, AXIS 211,
AXIS 211A, AXIS 211M, A XIS 211W, AXIS 221 and
AXIS 223M Network Cameras.

> Indoor and outdoor

installation

> IP66-rated protection

> High impact

resistance

> Side opening

> Several mounting

options

Technical specifications – VT Verso Housings

www.axis.com

©200 8 Axis Communications AB. AX IS COMMUNICATIONS, AXIS, ETR AX, ARTPEC and VA PIX are re gistered t rademarks or trademark applications of Axis AB
in various jurisdictions. All other company names and pr oducts are trademarks or registered tr ademark s of their respectiv e companies. We reser ve the right
to introduce modif ications without notice.

33511/EN/R1/0811

General

Models

VT Verso Housing
VT Verso Cool Outdoor Housing

Supported
cameras

AXIS 210*, AXIS 210A*, AXIS 211, AXIS 211A, AXIS 211M,
AXIS 211W**, AXIS 221 and AXIS 223M Network Cameras

*indoor u se only
**ex ternal antenna r ecommended

Casing

Technopolymer (polycarbonate)
Color: White grey RAL9002
3 removable cable glands (2xPG9 & 1xPG11)

Power

230 VAC / 44W

Operating
conditions

VT Verso Housing: -20°C to + 40°C (-4°F to 104°F)
VT Verso Cool Outdoor Housing: -20°C to + 50°C (-4°F to 122°F)

Environment

Indoor/outdoor

Protection rating

VT Verso Housing: IP66
VT Verso Cool Outdoor Housing: IP44

Approvals

CE: EN 60950, EN 50081-1, EN 50130-4
V1 fire-self extinguish compliance to UL94
Impact resistance IK10 according to EN50102

Weight

1.5 kg (3.3 lb) incl. sunshield

Included
accessories

Sunshield, heater and thermostat and
Installation Guide

159, 3

More information and a configuration tool is available at
www.axis.com/accessories

155,2

142 (5.6)

113 (4.4)

62 (2.4)

156 (6.1)

466 (18.3)

422 (16.6)

70 (2.8)

73 40

(1.6)

(2.9)

171 (6.7)

Dimensions

mm ( inc h)

Wall bracket accessories

Additional accessories

Optional accessories

Wall brackets

Ceiling brackets

Ball joint and internal
cable channel

Ball joint

Column mount
with ball joint

Integrated junction
box and ball joint

Ball joint

Ball joint Ball joint and internal

cable channel

Adapter
plate

Pole
adapter

Corner
mount

Power
supply

Waterproof
junction box

VT Verso Housings
