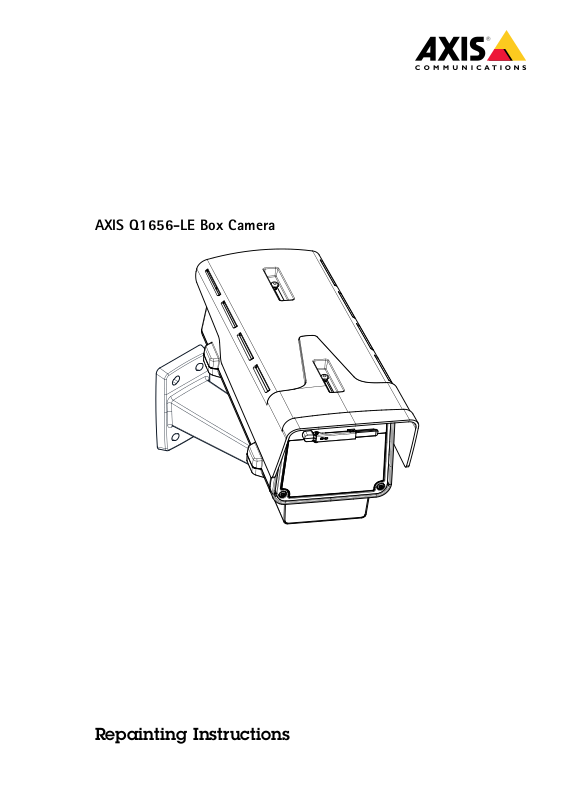

AXISQ1656-LEBoxCamera
RepaintingInstructions
Page 2
AXISQ1656-LEBoxCamera
Impactonwarranty
Impactonwarranty
ThisproductisapprovedforrepaintbyAxis,providedthatyoufollowtheinstructionsinthisdocumentandat
axis.com/warranty-implication-when-repainting.
Riskswithrepainting
ThereareseveralriskswhendisassemblingorassemblinganAxisproduct.Thereisalwaysacertainyieldlossduringassembly.Training
ofoperatorsandtheuseofcorrecttoolsmediatessomeoftheproblemsbuttheycanneverbefullyavoided.Someoftherisksinclude:
ESDDamage-AlwayshandletheproductinanESDsafeenvironment.EvenifprecautionsaretakenthereisalwaysariskofESD
damage.Thedamagecanremainundetectedandcauseproblemsduringthelifetimeoftheequipment.
Dustcontamination-Openingacameramayexposethelensandsensortodustorpaint.Dustwillaffecttheopticalperformance.
Lensesneedtobedisassembledinadust-freeenvironment,preferablyacleanroom.
Paintoverspray-Maskingthedifferentcomponentsoftheequipmentiscritical.Failuretomasksensitiveareascancauseproblems
withassemblingtheequipment.Anyareasthatarenotpaintedatfactoryorhaveadifferentsurfacetreatmentthantherestofthe
parts(threads,groundandelectricalcontactsurfaces)mustalsobemaskedtoensurefunction.
2
Page 3
AXISQ1656-LEBoxCamera
Repainttheproduct
Repainttheproduct
Preparations
•Ifapplicable,disassemblethedeviceaccordingtotheinstructionsinthisdocument.
•Cleanallpartstoberepaintedthoroughlytoremovegrease,dust,oroil.
•Toensurereassemblyandfunctionalityoftheproduct,maskanyopenings(forexampleforscrews,LEDindicators,
ormicrophones)beforeyoupaint.
Pretreatmentofparts
Dependingonthepartmaterialandtypeofpaintappliedatfactory,differentpretreatmentshouldbedoneforthenewpaintto
adhereaswellaspossible.Cleanthepartsproperlytoremoveoil,greaseanddust.
Formoreinformationonthematerialsusedintheproduct,seeitsdatasheetataxis.com.
Powdercoatedparts-Useaprimer.Alternatively,removetheoriginalpowdercoatingdowntothebasematerial,usingne
sandpaper,andcleanthepartsbeforepainting.
Anodisedandchromatedparts-Useaprimer .
Uncoatedstainlesssteel-Nospecialpretreatmentisneeded,butmakesurethatthesurfaceiscleanbeforepainting.
Plastic-Useaprimer.
Materialsusedinthisproduct
•Theweathershieldisplastic.
•Therestoftheproductispowdercoated.
Disassembly
Disassemblethehousing
1.Removethescrewsandthetopcoverfromthebottomchassis.
3
Page 4
AXISQ1656-LEBoxCamera
Repainttheproduct
1
ScrewT20(4x)
2
Bottomchassis
3
Topcover
2.Removethescrewsandtheweathershield.
4
Page 5
AXISQ1656-LEBoxCamera
Repainttheproduct
1
ScrewT20(2x)
2
Weathershield
Disassemblethewallmountbracket
1.Removethescrewatthebottomofthearm.
2.Separatethesocketandthesuqarenut.
3.Removethefourscrewsfromtheballjoint.
5
Page 6
AXISQ1656-LEBoxCamera
Repainttheproduct
1
ScrewT30
2
Arm
3
Socket
4
Squarenut
5
ScrewT20(4x)
6
Balljoint
Masking
Maskingthetopcover
Maskthefollowingpartsofthetopcover:
1.Thefrontwindowincludingtheblackareas.
2.Thescrewholes.
3.Everythingontheinside.
4.Theventmembrane.
5.Thelabel.
6
Page 7
AXISQ1656-LEBoxCamera
Repainttheproduct
1
2
3
4
5
Frontwindow
Screwholes(4x)
Inside
Ventmembrane
Label
Maskingthebottomchassis
Maskthefollowingpartsofthebottomchassis:
1.TheIlluminatorfrontglass.
2.Everythingonthetopsideofthebottomchassis,includingthegasketandthefourscrewholes.
3.Thesurfaceundertheadapterforthewallmount.
4.Theproductlabel.
5.Thefourscrewholes.
1
Illuminatorfrontglass
2
Topside
3
Wallmountsurface
4
Label
Maskingtheweathershield
Masktheblackpartoftheweathershield.
7
Page 8
AXISQ1656-LEBoxCamera
Repainttheproduct
1
Maskingthewallmountbracket
Black
Maskthefollowingparts:
1.Thefourscrewholes
2.Theballjoint.
3.Thesocketteeth.
4.Theslotforthesquarenut.
1
Screwhole(4x)
2
Balljoint
3
Socketteeth
4
Slot
Repainting
1.Applyathinandevenlayerofspraypaintaccordingtotheinstructionsofthepaintmanufacturer.
8
Page 9
AXISQ1656-LEBoxCamera
Repainttheproduct
2.Letthepaintdry.
3.Togetabettercoverageandclearercolor,applyasecondlayerofspraypaint.
4.Whenthepaintisdry,removethemaskingandreassembletheproduct.
Reassembly
Reassembletheproduct.
Formoreinformation,seetheInstallationGuideavailableataxis.com
9
Page 10
RepaintingInstructionsVer.M1.8
AXISQ1656-LEBoxCamera
©AxisCommunicationsAB,2021
Date:December2021
PartNo.T10174266
