About This Document

This manual is intended for integrators building the AXIS 282/AXIS 282A into a product or system, and administrators and users of the product or system that includes the AXIS 282/AXIS 282A as a component. The use of "AXIS 282/AXIS 282A" and "Video Server" throughout this manual refers to the AXIS 282/AXIS 282A as an integrated component of an end product or system. This manual applies to AXIS 282/AXIS 282A firmware release

4.47. It includes instructions for integrating, using and managing the AXIS 282/AXIS 282A on your network. Previous experience of networking will be of use when installing and using this product. Some knowledge of UNIX or Linux-based systems would also be beneficial for developing shell scripts and applications. Later versions of this document will be posted to the Axis Website (http://www.axis.com/techsup/index.htm) as required. Also, see the online help for the AXIS 282/AXIS 282A available via its Web-based interface.

Safety Notices Used In This Manual

Caution! - Indicates a potential hazard that can damage the product. Important! operation. Do not proceed beyond any of the above notices until you have fully understood the implications.

Indicates a hazard that can seriously impair

Intellectual Property Rights

Axis AB has intellectual property rights relating to technology embodied in the product described in this document. In particular, and without limitation, these intellectual property rights may include one or more of the patents listed at http://www.axis.com/patent.htm and one or more additional patents or pending patent applications in the US and other countries. This product contains licensed third-party software. See the

enu item “About” in the product’s user interface for more

m information.

Legal Considerations

Camera and audio surveillance can be prohibited by laws that vary from country to country. Check the laws in your local region before using this product for surveillance purposes. This product includes one (1) MPEG-4 decoder license. To purchase further licenses, contact your reseller.

Electromagnetic Compatibility (EMC)

This equipment generates, uses, and can radiate radio frequency energy. The AXIS 282/AXIS 282A is delivered as a component for the sole purpose of being integrated into an end product or system. The foregoing implies an obligation on behalf of the integrator (Buyer of the AXIS 282/AXIS 282A component) to obtain any approvals from authorities or governmental bodies that may be required for the lawful use of the finished product or system, which includes the AXIS 282/AXIS 282A as a component. Resale and use of the AXIS 282/AXIS 282A on a stand-alone basis is not allowed. For the final products and solutions, responsibility for fulfillment of safety, EMC, and other regulatory standards controlled by law, is therefore passed on to the integrator (Buyer of the AXIS 282/AXIS 282A component).

Liability

Every care has been taken in the preparation of this manual; Please inform your local Axis office of any inaccuracies or omissions. Axis Communications AB

cannot be held responsible for any technical or typographical errors and reserves the right to make changes to the product and manuals without prior notice. Axis Communications AB makes no warranty of any kind with regard to the material contained within this document, including, but not limited to, the implied warranties of merchantability and fitness for a particular purpose. Axis Communications AB shall not be liable nor responsible for incidental or consequential damages in connection with the furnishing, performance or use of this material.

Trademark Acknowledgments

Ethernet, Internet Explorer, Linux, Microsoft, Mozilla, OS/2, UNIX, Windows, WWW are registered trademarks of the respective holders. QuickTime™ is a trademark of Apple Computer, Inc., registered in the U.S. and other countries. Java and all Java-based trademarks and logos are trademarks or registered trademarks of Sun Microsystems, Inc. in the United States and other countries. Axis Communications AB is independent of Sun Microsystems Inc. UPnP™ is a certification mark of the UPnP™ Implementers Corporation.

Support Services

Should you require any technical assistance, please contact your Axis reseller. If your questions cannot be answered immediately, your reseller will forward your queries through the appropriate channels to ensure a rapid response. If you are connected to the Internet, you can:

• download user documentation and firmware updates

• find answers to resolved problems in the FAQ database. h by product, category, or phrases

Searc

• report problems to Axis support staff by logging in to your

te support area

priva

• visit the Axis Support Web at www.axis.com/techsup/

Safety Notice - Battery Replacement

The AXIS 282/AXIS 282A uses a 3.0V CR2032 Lithium battery as the power supply for its internal real-time clock (RTC). This battery will, under normal conditions, last for a minimum of 5 years. Low battery power affects the operation of the RTC, causing it to reset at every power-up. A log message will appear when battery replacement is required.

The battery should not be replaced unless required! If the battery does need replacing, observe the following points:

Caution!

• Danger of Explosion if battery is incorrectly replaced

• Replace only with the same or equivalent battery, as

recommended by the manufacturer.

• Dispose of used batteries according to the manufacturer's

instructions.

AXIS 282/AXIS 282A

Table of contents

Product Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Integration of the AXIS 282/282A into end products or systems. . . . . . . . . . . . . . . 8

Using the Video Server . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Accessing the Video Server . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Setting the root password . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

The Live View page . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Video and Audio Streams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Video Stream Types . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Audio Stream Types . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

MPEG-4 protocols and communication methods . . . . . . . . . . . . . . . . . . . . . . . . . . 14

How to stream MPEG-4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

The AXIS Media Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Other methods of accessing the video stream. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Configuring the Video Server. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Video & Image Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Image Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Video Source Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Advanced . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Overlay/Mask Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Audio - AXIS 282A only . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Live View Config . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Layout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27

HTML Examples. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

External Video. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Sequence Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Event Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Event Servers. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Event Types . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Camera Tampering . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Port Status . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

Pan Tilt Zoom . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

Installing PTZ Devices. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

PTZ Configuration. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

System Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

Security . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

AXIS 282/AXIS 282A

Date & Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

Network - Advanced TCP/IP Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

SOCKS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51

QoS (Quality of Service) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51

SMTP (email) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

SNMP. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

UPnP™ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

RTP/MPEG-4 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

Bonjour . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53

Ports & Devices. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53

Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53

Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53

Advanced. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

Resetting to the Factory Default Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55

Unit Connectors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56

The Terminal I/O Connector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56

Schematic Diagram - Terminal I/O Connector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56

The 34-Pin Header . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57

Schematic Diagram - 34 I/O Pins . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59

Checking the Firmware . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59

Upgrading the Firmware . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59

Technical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65

General performance considerations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68

Optimizing your system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68

Frame rates - Motion JPEG . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69

Frame rates - MPEG-4 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69

Bandwidth. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70

Glossary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71

Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73

AXIS 282/282A - Product Description

Product Description

This manual is applicable for the following Axis Video Servers:

• AXIS 282: 1-port bare board video server

• AXIS 282A: 1-port bare board video server

, including 2-way audio

The information provided in this manual applies to both indicated.

The AXIS 282/282A is a small form factor video server domes, fixed view cameras, PTZs, and analog devices, and is fully featured for security surveillance and remote monitoring needs. The AXIS 282/282A is based on the AXIS ETRAX 100LX network optimized system-on-a-chip (SOC), and the AXIS ARTPEC-2 compression chip. The AXIS 282/282A can digitize one analog video source and make it available on the network as real-time, full frame rate Motion JPEG and/or MPEG-4 video streams.

The AXIS 282/282A is equipped with RS-232 or PTZ systems. It also has 1 alarm input and 1 alarm output, which can be used to connect various third party devices, such as door sensors and alarm bells.

The AXIS 282A has a Line/Mic In (mono), via connecting an external microphone or other source producing a line level signal. An active speaker with a built-in amplifier can be connected to Line Out (mono) to enable two-way communication. Audio communication can be bi-directional (full-duplex), push to talk (half-duplex) or in one direction only (simplex).

Up to 20 viewers can access the AXIS 282/282A simultaneously when using Motio and MPEG-4 unicast. Each MPEG-4 viewer requires a separate MPEG-4 decoder license, of which one is included. Additional licenses can be purchased separately from your Axis dealer. If using other clients to view the MPEG-4 video stream, no further MPEG-4 decoder licenses are required.

RS-485 ports for connecting third party

the internal connector I/O pins, for

models, unless otherwise

board designed to be built into

n JPEG

Video can be viewed in 5 resolutions (up to 4CIF), and im The AXIS 282/282A contains support for video motion detection, which allows the unit to trigger on activity in the video image, and advanced scheduling tools which can also be used to trigger an event. As the AXIS 282/282A is designed for use in security systems, it is equipped with several security features, such as IP address filtering, several user levels with passwords and HTTPS.

The AXIS 282/282A has a built-in web server, providing full the use of a standard browser. The built-in scripting tool allows basic applications to be created, providing basic surveillance solutions. For advanced functionality, the Video Server can be integrated via the use of the AXIS HTTP API (see www.axis.com/developer).

age compression is configurable.

access to all features through

AXIS 282/282A - Product Description

34-pin header

Flash button

Terminal block

Control button

Network connector

AXIS 282/282A Top

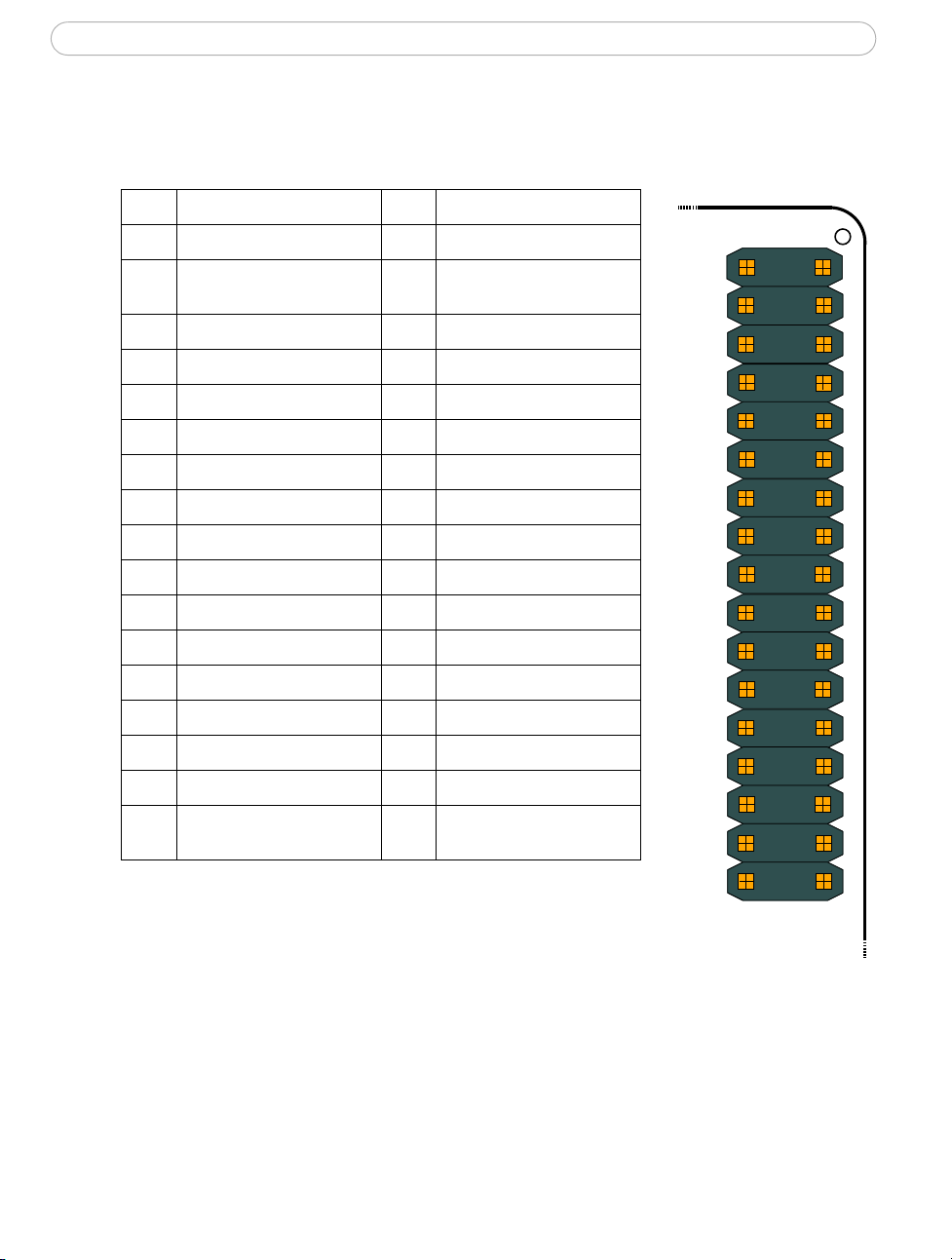

The AXIS 282/282A has 34-Pin Header for several connections including:

• Serial port, configurable as RS-232 or RS-485, which

is typically used for con-

necting Pan/Tilt/Zoom devices.

• Video in and out connections.

• Audio in and out connections.

• LED outputs

• An auxiliary connection po

See The Terminal I/O Connector,

int for DC power.

on page 56 and The 34-Pin Header, on page 57 for more

information.

AXIS 282/282A Front

Terminal block - The front of the AXIS 282/282A has one each in- and out connector, and a power and GND connection.

AXIS 282/282A - Product Description

Status LED

Network LED

Power LED

Control button - Press this button to restore the factory default settings, as described in Resetting to the Factory Default Settings, on p

age 55, or to install using AXIS Internet

Dynamic DNS Service (page 14).

Flash button -

The AXIS 282/282A has a flash button. However, it is only used for

firmware programming in the factory. It is not used when upgrading the firmware.

Network connector - The

AXIS 282/282A connects to the network via a standard network cable, and automatically detects the speed of the local network segment (10BaseT/100BaseTX Ethernet).

AXIS 282/282A Bottom

LED indicators - After completion of the startup and self-test routines, the multi-colored Status, Network, and Power indicators flash as follows:

Unlit When configured for “no flash” on camera access.

Green Steady for normal operation. Can be configured to flash

Status

Amber Steady during startup, reset to factory

Red Slow flash for failed upgrade.

Unlit No connection

Network

Power Green Normal operation

Green Steady for connection to a 100 Mbit/s network. Flashes for network activity.

Amber Steady for connection to a 10 Mbit/s net

Red Flashes rapid red for hardware error, toge

Amber Flashes green/amber during firmware upgrade

whenever the camera is accessed. See the online help for more information.

default or when restoring settings.

work. Flashes for network activity.

ther with the Status indicator

green at intervals

AXIS 282/282A - Product Description

Connector

79mm

82mm

Terminal Connector

Control button

19mm

Network connector

Integration of the AXIS 282/282A into end products or systems

Electrical integration of the AXIS 282/282A is done through any of the connectors described in the previous sections above.

Mechanical integration may be done through the 4

mounting holes on the AXIS 282/282A,

shown in the figure below.

The video server measures 82mm in

length from the outside edge of the Terminal

Connector, to the top of the AXIS 282/282A. The width of the AXIS 282/282A is 79mm.

The height of the AXIS 282/282A, from the top of the network connector to the b the control button is 19 mm as seen in the figure below.

ottom of

AXIS 282/282A - Installation

Installation

Installation Methods

The AXIS 282/282A is designed for installation on an Ethernet network. This involves assigning it an IP address, either manually or via an automated network service (DHCP). Select one of the following procedures depending on your network:

• In Windows, use AXIS IP Utility to discover a dynamic IP manually.

• If your network uses a DHCP server, view its administration address has been assigned to your AXIS 282/282A.

• If your network uses a DHCP server and your computer is running 282/282A will automatically be detected and displayed on your screen. See page 11.

• Assign an IP address manually using the ARP/Ping

• If your network has an Internet conn to assign IP addresses, use the One-Click installation procedure. See page 14.

Notes:

• The AXIS 282/282A has a default IP address: 192.168.0.90

• DHCP is enabled by default in the AXIS 282/282A

• UPnP™ is enabled by default in the AXIS 282/282A

ection (with no HTTP proxy) and uses a DHCP server

method, as described on page 12.

AXIS IP Utility

AXIS IP Utility is a free Windows application that discovers and displays Axis devices on your network. The application can also be used to manually set a static IP address. Download AXIS IP Utility from the support pages at: www.axis.com/techsup/software

address, or to set the IP address

pages to discover which IP

UPnP™, the AXIS

Automatic discovery

1. Check that the network and power cables

2. Start AXIS IP Utility. When the AXIS 282/282A appears in the window, double-click it to open the home page.

Set the IP address manually

If the AXIS 282/282A does not appear in the window, click the Refresh button to try again. If it still does not appear, set the IP

1. Acquire an unused IP address. AXIS IP Utility detects the subnet

are connected to the AXIS 282/282A.

address manually.

your computer is

AXIS 282/282A - Installation

The serial number (S/N) is located on the memory capsules on top off the AXIS 282/282A.

UPnPTM is a certification mark of the UPnP

Implementers Corporation.

connected to. The AXIS 282/282A must be installed on the same network segment.

2. Click the button “Set IP address using serial number” and enter the serial number and the IP address for the AXIS 282/282A. The serial number is located on the memory capsules on top of the AXIS 282/282A.

3. Click the Set IP button and then restart the AXIS 282/282A (within 2 minutes).

4. Click View Home Page to access the AXIS 282/282A Web pages.

5. Enter a password for the root user (administrator).

6. If required, accept the installation of AMC onto your workstation.

Notes: • AXIS IP Utility can also be used to change the IP address of a previously discovered Axis device.

• AMC (AXIS Media Control) must be installed to view live video in Microsoft Internet Explorer. If your working environment restricts additional software components, you can configure your AXIS 282/282A to use a Java applet for updating the images. See the help file Live View Config > Layout > Default Viewer for Internet Explorer, or use another supported Web browser, see Technical Specifications, on page 65.

7. The installation is now complete. Proceed to Using the Video Server, on page 9.

UPnP™

UPnP functionality is enabled by default in the AXIS 282/282A. If also enabled on your computer (Windows ME or XP), the video server will automatically be detected and a new icon will be added to “My Network Places.” Click this icon to access the AXIS 282/282A.

Note: :

To install the UPnP service on your computer, open the Control Panel from the Start Menu and select Add/Remove Programs. Select Add/Remove Windows Components and open the Networking Services section. Click Details and then select UPnP as the service to add.

AXIS 282/282A - Installation

arp -s <IP address> <Serial number> ping -l 408 -t <IP address>

Note: The ping command is followed by -l (lower case L)

ARP and Ping in Windows

Assign your product a unique IP address from a computer on your network as follows:

1. Acquire an unused IP address for the AXIS 282/282A from your

network

administrator.

2. Connect the AXIS 282/282A to the network using a standard network cable.

3. Find the serial number (S/N) located on the memory capsules on top of the AXIS 282/282A.

4. From a computer on your network, open a Command Prompt, i.e. from the Windows Start menu, select Run... and type cmd (command in Windows 98/ME). Click OK.

5. Enter the commands:

Syntax:

Example

6. Start/restart the AXIS 282/282A. This must be done no later than 2 minutes after entering the ARP and Ping commands.

7. When ‘Reply from 192.168.0.125: ...’ is displayed (approximately 10-15 seconds), type Ctrl+C to stop Ping.

8. Start a browser and enter the IP address in the Address/Location field.

9. Press Enter.

10. Enter a password for the root user (administrator).

11. If required, accept the installation of AMC onto your workstation.

Note:

AMC must be installed to view live video images in Microsoft Internet Explorer. If your working environment restricts additional software components, you can configure your AXIS 282/282A to use a Java applet for updating the images. See the help file under Live View Config > Layout > Default Viewer for Internet Explorer for information. Or use another supported Web browser, see Technical Specifications, on page 65.

12. The installation is now complete. Proceed to Using the Video Server, on page 9.

AXIS 282/282A - Installation

ARP and Ping in UNIX/Linux

Assign your product with a unique IP address from a computer on your network, as follows:

1. Acquire an unused IP address for the AXIS 282/282A from your network administrator.

2. Connect the AXIS 282/282A to the network using a standard network cable.

3. Find the serial number (S/N) located on the memory capsules on top of the AXIS 282/282A.

Syntax: arp -s <IP Address> <Serial number> temp

ping -s 408 <IP address>

Example: arp -s 192.168.0.125 00:40:8c:18:10:00 temp

ping -s 408 192.168.0.125

4. Start/restart the AXIS 282/282A. This must be done no later than 2 minutes after entering the ARP and Ping commands.

5. Close the ARP/Ping session when ‘Reply from 192.168.0.125: ...’ (or similar) is displayed (approximately 10-15 seconds).

6. Start a browser and enter the IP address in the Address/Location field.

7. Press Enter.

8. Enter a password for the root user (administrator).

9. The installation is now complete. Proceed to Using the Video Server, on page 9.

AXIS 282/282A - Installation

The serial number (S/N) is located on the memory capsules on top off the AXIS 282/282A.

AXIS Internet Dynamic DNS Service

The AXIS Internet Dynamic DNS Service is a free service provided by Axis. The service allows you to quickly and simply install your video server, which then receives a static name (DNS name) and a dynamic IP address. More information about the AXIS Internet Dynamic DNS Service is available at www.axiscam.net

The video server can be unregistered from the service

Please visit www.axiscam.net

for more details on the AXIS Internet Dynamic DNS Service.

at any time.

Requirements

Using the AXIS Internet Dynamic DNS Service require

s an Internet connection that does not require a proxy server for HTTP access. A DHCP server in the network for assigning IP addresses is recommended.

Installation Procedure

Please note that this procedure will send the AXIS 282/282A’s IP address, firmware version, product type and serial number to the Axis Internet Dynamic DNS Service. No personal information will be transferred.

1. Connect the AXIS 282/282A to your local network, using a standard network cable.

2. Connect power to the video server.

3. Wait for the Status indicator on the front of the video server to show a steady green,

whereupon it will have received a dynamic IP address from a DHCP server on your network.

4. Wait 60 seconds and push the control button on the front panel once

. The Status indicator on the front of the video server will flash green while it connects to the AXIS Internet Dynamic DNS service. When the registration process is complete, the indicator will return to steady green.

5. Visit www.axiscam.net where you will be guided through the remainder of the installation. Please have the serial number of your product ready and follow the instructions on the screen.

6. Enter a password for the root user (administrator).

7. If required, accept the installation of AMC onto your workstation.

Note:

AMC must be installed to view live images in Microsoft Internet Explorer. If your working environment restricts additional software components, you can configure your AXIS 282/282A to use a Java applet for updating the images. See the help file under Live View Config > Layout > Default Viewer for Internet Explorer for information. See also the Technical Specifications, on page 65.

8. The installation is now complete. Proceed to Using the Video Server, on page 9.

AXIS 282/AXIS 282A - Using the Video Server

Using the Video Server

The AXIS 282/AXIS 282A can be used with most standard operating systems and browsers. The recommended browser is Internet Explorer with Windows, and Firefox with other operating systems. See also the Technical Specifications, on page

65.

Note: For information on installing the Video Server, please

10.

refer to Installation, on page

Accessing the Video Server

1. Start your browser.

2. Enter the IP address or

host name of the AXIS 282/AXIS 282A in the Location/Address field of your browser.

3. If this is the first time the camera is accessed, see “Setting the root password”

(page -10). Otherwise enter the user name and password set by the administrator.

4. A video image is displayed in your browser.

Note:

You should have connected to an analogue camera before you can see the video image.

AXIS 282/AXIS 282A - Using the Video Server

Note: •To view streaming video in Microsoft Internet Explorer, you must set your browser to allow

the AXIS Media Control (AMC) to be installed on your computer. AMC also provides an MPEG-4 decoder for viewing MPEG-4 video streams. This decoder is installed the first time an MPEG-4 video stream is accessed. Please note that the product administrator may have disabled the installation of the decoder, as a license is required for each instance.

•If your computer restricts the use of additional software components, the AXIS 282/AXIS 282A can be configured to use a Java applet for updating JPEG images. Please see the online help for more information.

Setting the root password

1. When accessing the video server for the first time, the Configure Root Password dialog appears.

Note: Before you enter your password at this

point, you can password via HTTPS by creating a self-signed certificate. To do so, click the Create self-signed certificate... button in the Create Certificate window, and then proceed as follows.

secure configuration of the root

2. Enter a password and then

re-enter it, to

confirm the spelling. Click OK.

3. The Enter Network Password dialog will appear. Enter the User name: root

Note:

The default administrator user name root is permanent and cannot be deleted or altered.

4. Enter the password as set in step 2 above, and click OK. If the password is lost, the camera must be reset to the factory default settings. See Resetting to the factory default settings, on page 48.

5. If required, click Yes to install the AXIS Media Control (AMC). You will need administrator rights on the computer to do this.

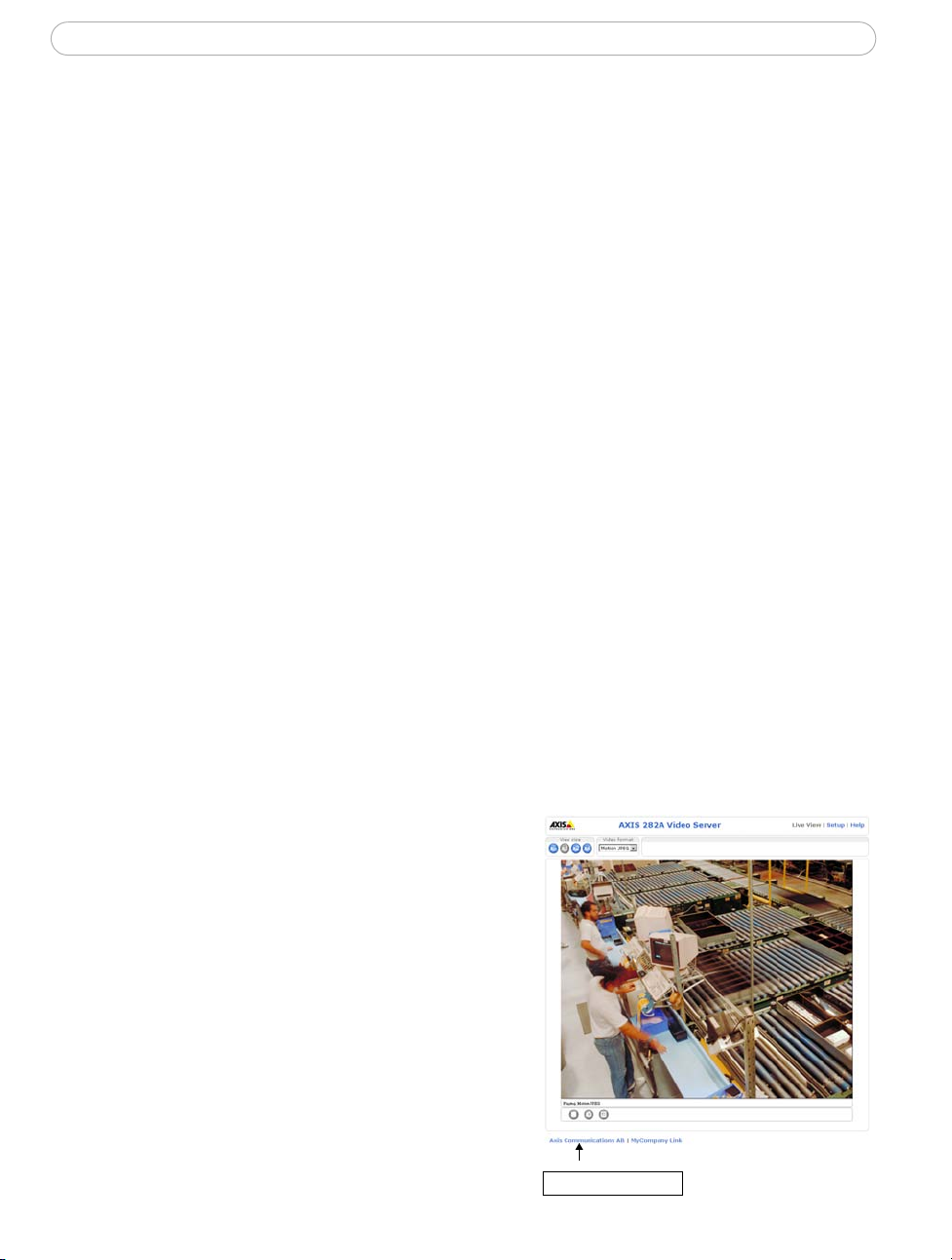

The Live View page

If your AXIS 282/AXIS 282A has been customized to meet specific requirements, the buttons and other items described below may or may not be displayed on the Live View page. Below you have an overview of each available button:

To resize the displayed image, click the View Size buttons: half-size

/2), full-size (x1), x2 or x4. This will not change the resolution of the

image (not available in Sequence Mode).

AXIS 282/AXIS 282A - Using the Video Server

The Video Format drop-down list allows the View page to be temporarily changed.

The Output buttons control an output directly from the Live View page. These buttons are configured under Setup > Live View Config > Layout.

- click this button to activate the port for a defined period of time, such

Pulse as to switch on a light for 20 seconds. Active/Inactive - click these buttons to man device, such as switching a light on/off.

These buttons start/stop the Sequence Mode. This mode is created in Setup > Live View Config > Sequence mode and automatically displays the view from 2 or more video sources at set intervals.

From the Source list, select the desired video image(s). The list can contain internal video sources, external video sources, or PTZ presets.

ually start and stop a connected

video format on the Live

The Action buttons trigger an event directly from the Live View page. These buttons are configured under Setup > Live View Config > Layout. Click these buttons to manually start and stop events.

Use the Snapshot button to capture a snapshot of the image displayed in the window. Right-click on the image to save it in on your computer.

The AMC viewer Explorer only and displays the following buttons:

The Sn function and the target directory for saving AMC (AXIS Media Control), which is available from the Windows Control Panel (Internet Explorer only).

Click the View Fu area. Press Esc

toolbar (AXIS Media Control) is available in Microsoft Internet

The Play/Stop buttons start and

apshot button takes a snapshot of the displayed image. The Snapshot

ll Screen button and the video image will fill the entire screen

(Escape) on your keyboard to cancel full screen view.

stop the media stream.

snapshots can be configured from

AXIS 282/AXIS 282A - Using the Video Server

Audio controls for AXIS 282A

Click the Speaker and Microphone buttons to switch the sound off and on for the speaker and microphone, respectively.

Use the slider to control the volume on the speaker and microphone. The volume can be set between 0 and 100.

When using Half-duplex mode this button toggles between allowing you to speak and listen. The first icon indicates that you can talk and the speaker attached to the Video Server will play your voice. The second indicates that you will hear audio

from the Video Server, but no audio will be sent to any web client. When in simplex talk mode, the icon toggles between allowing you to speak and is dimmed when you do not want other clients to receive any audio.

Note that these AMC toolbar functions can also be accessed by right-clicking in the image.

For information on using Pan/Tilt/Zoom controls,

please see page 37.

AXIS 282/AXIS 282A - Video and Audio Streams

Video and Audio Streams

The AXIS 282/AXIS 282A provides several different video and audio stream formats. The type to use depends on your requirements and on the properties of your network.

The Live View page in the AXIS 282/AXIS 282A provides MPEG-4 video and audio streams, as well as to single JPEG images. Other applications and clients can also access these video and audio streams/images directly, without going via the Live View page.

access to Motion JPEG and

Video Stream Types

Motion JPEG

This format uses standard JPEG still images in the vi displayed and updated at a rate sufficient to create a stream that shows constantly updated motion.

The Motion JPEG stream uses considerable excellent image quality and access to every individual image contained in the stream.

Note also that multiple clients settings.

MPEG-4

This is a video compression standard that makes good provide high-quality video streams at less than 1 Mbit/s.

The MPEG-4 standard provides scope for a large various applications in different situations, and the AXIS 282/AXIS 282A provides certain subsets of these tools. These are represented as Video object types, which are selected for use with different viewing clients. The supported video object types are:

accessing Motion JPEG streams can use different image

amounts of bandwidth, but also provides

deo stream. These images are then

use of bandwidth, and which can

range of different coding tools for use by

• Simple - sets the coding

• Ad

vanced Simple - in Axis products, this sets the coding type to MPEG-4 Part 2

AMC (AXIS Media Control) supports both object types, whilst QuickTime™ requires the Simple object type.

When using MPEG-4 it is also possible to control the bit rate, amount of bandwidth usage to be controlled. CBR (constant bit rate) is used to achieve a specific bit rate by varying the quality of the MPEG-4 stream. When using VBR (variable bit rate), the quality of the video stream is kept as constant as possible, at the cost of a varying bit rate.

type to H.263

for example,

which in turn allows the

AXIS 282/AXIS 282A - Video and Audio Streams

Notes: •MPEG-4 is licensed technology. The AXIS 282/AXIS 282A includes one license for the

decoder required for viewing in AMC. Installing additional unlicensed copies of this decoder is prohibited. To purchase more decoder licenses, contact your Axis reseller.

•All clients viewing the MPEG-4 stream must use the same image settings.

Audio Stream Types

The three stream types for audio are:

• G.711 - International standard for encoding wired-telephone audio. Uses to compress audio where higher signal values are compressed more than lower values. In Axis products, this sets the coding type to μ-law 64 kbit/s.

• G.726 - Uses PCM samples to code the difference between bandwidth without losing too much useful audio. In Axis products, this sets the coded bitrate to 24 or 32 kbit/s.

All stream types are ITU-T standards and

operate on frequencies up to 4 kHz.

samples (ADPCM). Reduces

PCM samples

MPEG-4 protocols and communication methods

To deliver live streaming video over IP networks, various combinations of transport protocols and broadcast methods are employed.

• RTP (Real-Time Transport Protocol) is a protocol real-time transmission of multimedia data, via unicast or multicast.

• RTSP (Real-Time Streaming Protocol) serves as transport protocol to use for the stream. RTSP is thus used by a viewing client to start a unicast session, see below.

• UDP (User Datagram Protocol) is a communications protocol that offers limited service for

exchanging data in a network that uses the Internet Protocol (IP). UDP is an alternative to the Transmission Control Protocol (TCP). required to deliver all data and may drop network packets when there is network congestion. This is suitable for live video, as th mation that will not be displayed anyway.

• Unicasting is communication between a single se work. This means that the video stream goes independently to e gets their own stream. A benefit of unicasting is that if one stream fails, it only affects one user.

• Multicast is bandwidth-conserving technology taneously delivering a single stream of information to mul technology is used primarily on delimited networks (intranets), as each user needs an uninterrupted data flow and should not rely on network routers.

that allows programs to manage the

a control protocol, to negotiate which

The advantage of UDP is that it is not

ere is no point in re-transmitting old infor-

nder and a single receiver over a net-

ach user, and each user

that reduces bandwidth usage by simul-

tiple network recipients. This

AXIS 282/AXIS 282A - Video and Audio Streams

How to stream MPEG-4

Deciding on the combination of protocols and methods to use depends on your viewing requirements, and on the properties of your network. Setting the preferred method(s) is done in the control applet for AMC, which is found in the Windows Control Panel. When this has been set, AMC will test all the selected methods in the specified order, until the first functioning one is found.

RTP+RTSP

This method (actually RTP over UDP and RTSP over TCP) should be your first consideration for live video, especially when even if some images get dropped. This can be configured as multicast or unicast.

it is important to always have an up-to-date video stream,

Multicasting provides the most effic large numbers of clients viewing simultaneously. Note however, that a multicast broadcast cannot pass a network router unless the router is configured to allow this. It is thus not possible to multicast over the Internet, for example.

Unicasting should be used for video-on-demand b traffic on the network until a client connects and requests the stream. However, if more and more unicast clients connect simultaneously, the server will at some point become overloaded. There is also a maximum of 20 simultaneous viewers to be considered.

RTP/RTSP

This unicast method is RTP tunneled over RTSP. This can be us is relatively simple to configure firewalls to allow RTSP traffic.

RTP/RTSP/HTTP or RTP/RTSP/HTTPS

These two methods can also be used to traverse firewall configured to allow the HTTP protocol, thus allowing RTP to be tunneled.

ient usage of bandwidth, especially when there are

roadcasting, so that there is no video

ed to exploit the fact that it

s. Firewalls are commonly

The AXIS Media Control

The recommended method of accessing live video and audio from the AXIS 282/AXIS 282A is to use the AXIS Media Control (AMC) in Microsoft Internet Explorer in Windows. This ActiveX component is automatically installed on first use, after which it can be configured by opening the AMC Control Panel applet from the Windows Control Panel. Alternatively, right-click the video image in Internet Explorer.

AXIS 282/AXIS 282A - Video and Audio Streams

Other MPEG-4 clients

Although it may be possible to use other clients to view the MPEG-4 stream, it is not guaranteed to work in all cases.

For some other clients, such as QuickTime™ the may also be necessary to adjust the advanced MPEG-4 settings.

Video Object Type must be set to Simple. It

push

To assess the video stream from QuickTime™ the followi

rtsp://<ip>/mpeg4/media.amp

This path is for all supported methods, and the client will 282/AXIS 282A to determine exactly which transport protocol to use.

Note:

<ip> = IP address.

Audio transmission methods

For the AXIS 282A, the audio stream can be acce either Motion JPEG or MPEG-4.

Using Motion JPEG

The basic transmission method of audio used in conjunction with streaming is transmission over HTTP. The video and audio streams are not synchronized when using Motion JPEG so the streams may be slightly out of sync. The latency in any stream should be low, but this will depend on the network infrastructure.

Using MPEG-4

ssed in the Live View page when viewing

ng path can be used:

negotiate with the AXIS

Motion JPEG video

AXIS 282/AXIS 282A - Video and Audio Streams

When using MPEG-4, audio is streamed using the same protocol as the video stream.

When audio is transmitted using MPEG-4, the Axis product information along with the streams to the client that is performing the synchronization.

Note:

Audio is streamed from the client to the server over HTTP when using Motion JPEG and MPEG-4.

sends synchronization

Accessing the Audio Streams

In addition to accessing audio in the Live View page using AMC, audio from the AXIS 282A can also be accessed in the following ways:

HTTP-API

You can read about accessing audio for the other protocols through http://www.axis.com/techsup

QuickTime/Windows Media Player

It is possible to use QuickTime and Windows Media Player using the same methods to access video streams.

to listen to the audio stream

the HTTP-API at

AXIS 282/AXIS 282A - Configuring the Video Server

Setup tools

Configuring the Video Server

This section describes how to configure the AXIS 282/AXIS 282A and is intended for:

• administrators, who

• operators, Configuration settings.

The AXIS 282/AXIS 282A is configured from the Setup link, in a standard browser also the Technical Specifications on page 65). Follow the instructions below to configure the AXIS 282/ AXIS 282A.

1. Start the browser and enter the IP address or host name of the AXIS 282/AXIS

2. The Live View page is now displayed. Click the Setup link to view the

who have access to the Video & Image, Audio, Live View Config and Event

282A in the location/address field.

configuration menus.

have unrestricted access to all the Setup tools

(see

AXIS 282/AXIS 282A - Video & Image Settings

Video & Image Settings

Find examples of available features in the AXIS 282/AXIS 282A below. For details of each setting, please refer to the online help available from each page. Click to access the online help.

Image Settings

Image Appearance

Modify the Image Appearance to optimize the video images according to your requirements.

All configuration of images and overlays will affect the performan depending on the usage and the available bandwidth.

• High resolution generates larger files

• Lower compression improves image quality

• Rotating the image 90 or 270 degrees will lower the maximum frame rate

• Black & White uses less bandwidth than

, but generates larger files

Color

ce of the Video Server,

AXIS 282/AXIS 282A - Video & Image Settings

Mirroring - Mirroring is the horizontal flipping of an image, that gives you another

image perspective. This is a useful function when you need a direct view of the image, for example, in ATMs and door phones. The mirroring settings should be defined before you define the parameters for privacy masks and motion detection.

See also the specifications for frame rates

and bandwidth on page 69.

Text Overlay Settings

Include date, time and/or text of your choice to be viewed on the image. The color of the text may be set to white or black; background color may be set to white, black, transparent or semitransparent. The position of the text can be the top or the bottom of the image.

Video Stream

The Maximum video stream time can be set as Unlimited, or a maximum stream time per session in seconds, minutes or hours can be defined. When the set time has expired, a new stream can be started by refreshing the page in the Web browser. Note that the maximum video stream time does not apply to clients connecting via multicast.

To avoid bandwidth problems on the network, the frame r also be limited. Select either Unlimited or define a maximum frame rate per viewer.

ate allowed to each viewer can

Test. For a preview of the image and overlay settings before saving, click Test. When you

are satisfied with the settings, click Save.

Video Source Settings

These settings allow you to:

• enter a descriptive name for the video source

• eliminate black borders surrounding the image, by making Offset adjustm online help for more information.

Select the physical connector the video source (s-video).

is connected to, composite video or Y/C

ents. See the

AXIS 282/AXIS 282A - Video & Image Settings

Date &

Time


Overlay

Mask

Advanced

MPEG-4 Settings

These settings are tools for adjusting the MPEG-4 settings and for controlling the video bit rate.

The MPEG-4 standard provides many different coding

tools for various applications in different situations. As most MPEG-4 clients do not support all of these tools, it is usual to instead define and use subsets for different clients or groups of clients. These settings allow you to define the type of viewing client to use.

Adjusting the maximum bit rate and setting it

to variable or constant is a good way of

controlling the bandwidth used by the MPEG-4 video stream.

MJPEG Settings

In some situation the image size may get quite large due to low light or complex scenery. Adjusting the maximum frame size is a good way of controlling the bandwidth and storage used by the MJPEG video stream in these situations. Leaving the frame size as Unlimited will provide consistently good image quality at the expense of increased bandwidth and storage usage during low light. Limiting the frame size will prevent excessive bandwidth and storage usage, but image quality will suffer. To prevent increase in bandwidth and storage usage, the maximum frame size should be set to an optimal amount.

For more information on these advanced settings

, please see the online help.

Overlay/Mask Settings

Overlay/Mask Type

Overlay/Mask Type allows you to place an overlay, or up to three privacy masks over the video image:

• Upload and place an image as

an ove provide extra information in the video image.

rlay - usually used to

• Place up to three privacy masks

up to 3 configurable masks

can be used to conceal different areas of the video image.

AXIS 282/AXIS 282A - Video & Image Settings

Selecting the overlay/mask type from the menu will display further settings available for the selected type. See the online help for further information.

Note:

If you need to see an area of the video that is covered by an overlay or mask, a privacy mask cannot be bypassed. An overlay image, however, can be bypassed with the help of the AXIS HTTP API.

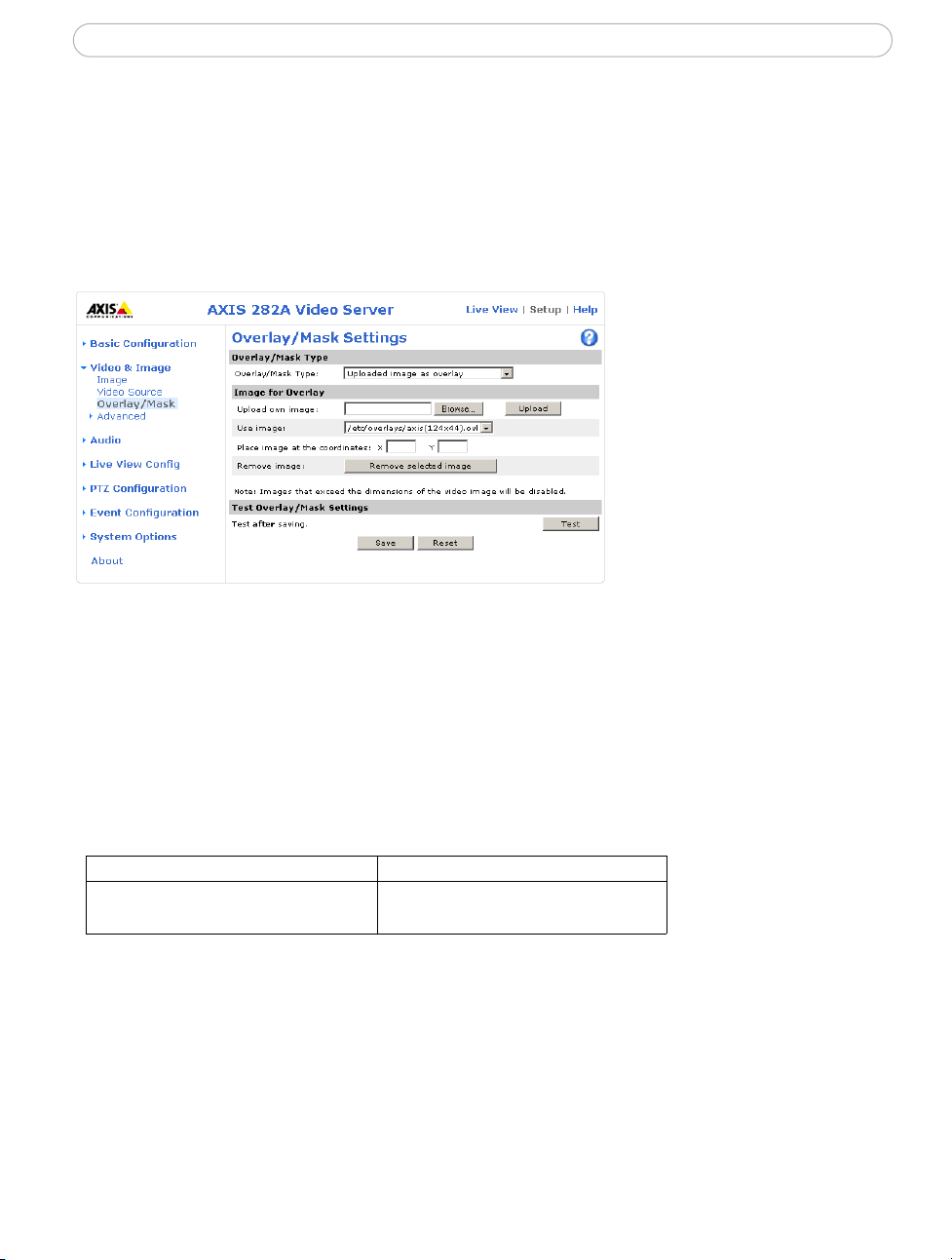

Upload and use an overlay

To upload an overlay image to the camera:

1.Select Uploaded im overlay in the drop-down list against Overlay/Mask Type. New options appear.

2.In the field Upload own image, click the Browse button and locate the image file on your computer or server.

3.Click the Upload button

and follow the on-screen instructions.

To use an already uploaded image:

1. Select an uploaded image from the Use ima

ge drop-down list.

2. Place the image at the required location by entering the x and y coordinates.

3. Click Save.

Overlay image requirements:

Image Formats Image Size

• Windows 24-bit BMP (full color)

• Windows 4-bit BMP (16 colors)

The height and width of the overlay image in pixels must be divisible by 4.

age as

Overlay image limitations:

• The maximum overlay image size supported by the AXIS 282/AXIS 282A

is the same as

the maximum image resolution. See Technical Specifications, on page 65.

• When a text overlay is also used, this reduces the

amount of space available to the overlay image. To keep the text readable at lower resolutions, the text overlay occupies proportionally more of the image at lower resolutions.

• If the overlay is initially positioned so that part

of it is outside the video image, it will be relocated so that it appears over the video image, that is, it is always the entire image that is displayed.

AXIS 282/AXIS 282A - Video & Image Settings

Please see the online help for more information.

Use a Privacy Mask

To use privacy masks to hide different areas of the video image:

1. Select

figurable

Con areas as privacy mask in the

drop-down list against

Overlay/Mask Type. New

options appear.

2. Enter the (x,y) coordinates of the top left hand corner of the mask, and the height and width to define the masks’ placement and size.

3. Select the privacy masks’ color: black, grey, white, or red.

4. Click in the box beside Enable to enable one or more of the masks you have defined and click on Save.

AXIS 282/AXIS 282A - Audio - AXIS 282A only

Audio - AXIS 282A only

The AXIS 282A can transmit audio to other clients using an external microphone and can play audio received from other clients by attaching a speaker. The Setup page for the AXIS 282A has an additional menu item called Audio, that allows different audio configurations to be set up, for example, full duplex, half duplex and simplex.

The speaker attached to the audio output of the AXIS 282A must have a built-in amplifier, such as PC

Note:

speakers.

Audio Settings

This section describes how to configure the basic audio settings for the AXIS 282A such as setting the communication mode and adjusting the sound levels in the microphone and speaker connected to the camera.

Enable Audio

This allows you to enable the audio functionality.

AXIS 282/AXIS 282A - Audio - AXIS 282A only

Audio Channels

Audio mode - This sets the type of audio transmission. The available options are:

• Full duplex - Simultaneous two-way audio. Transmit and receive audio (tal at the same time.

• Half-duplex - Non-simultaneous two-way audio. Half-duplex m audio in both directions, but only in one direction at a time. This means that you must actively transmit using the Talk button. When in Push-To-Talk mode, press this button to speak, and release it when finished speaking. You will now be receiving audio from the other end of the connection. In Toggle mode, press the button to switch between talking and listening.

• Simplex - Video Server speak audio transmitted from any web client. This could be used, e.g. to provide spoken instructions to a person seen in the network camera. This mode requires you to use the push to talk button.

• Simplex web clients. This can be used in remote monitoring, web attractions etc., to provide live audio from a monitored situation.

When using half-duplex, the Send the sound from the active client to all option transmits the audio signal from the talking client to all the other clients.

- Video Server microphone only - transmits audio from the AXIS 282 to any

er only - the speaker connected to the AXIS 282 will play

ode sends and receives

k and listen)

other clients

Audio Input

Source - Select Microphone for an external microphone or Line for a Line in device, for example, an audio mixer for multiple microphones or a microphone with a built-in amplifier.

Input sensitivity - When

• High for an ordinary microphone.

• Low for a

Enable microphone power - Microphone power microphones that have no battery. This setting should not be enabled when using a dynamic or battery powered microphone.

Input gain - Volume control of are volume settings made earlier in the audio path (see above).

Low Input sensitivity should never be compensated by a high Input gain, as this may cause unwanted noise.

Note:

Encoding - Select the digital audio encoding format to use.

Bit rate - Depending

higher the bit rate, the greater the bandwidth required.

microphone with a built-in line amplifier.

Microphone is selected for Source (see above), set this to:

(unamplified) microphone, e.g. a computer microphone or clip-on

should only be used with electric

the audio input. The Input sensitivity levels High and Low

on the selected encoding, set the required bit rate (audio quality). The

AXIS 282/AXIS 282A - Audio - AXIS 282A only

Alarm level - Event types in the AXIS 282 can be set to use this level as a trigger. Each

individual event type can be configured to trigger if the sound level rises above or falls below the set value.

The alarm level can be set in the range 0-100%, where 0% is the most sensitive and 100% the least sensitive.

Audio Output

Output gain - Volume control of the line audio output. The output can be used with high impedance headphones or connected to another amplifier with speakers.

When satisfied with the settings, click Sa settings.

ve, or click Reset to revert to the previously saved

Live View Config

Note that the setup address is http://<ip address>/operator/basic.shtml

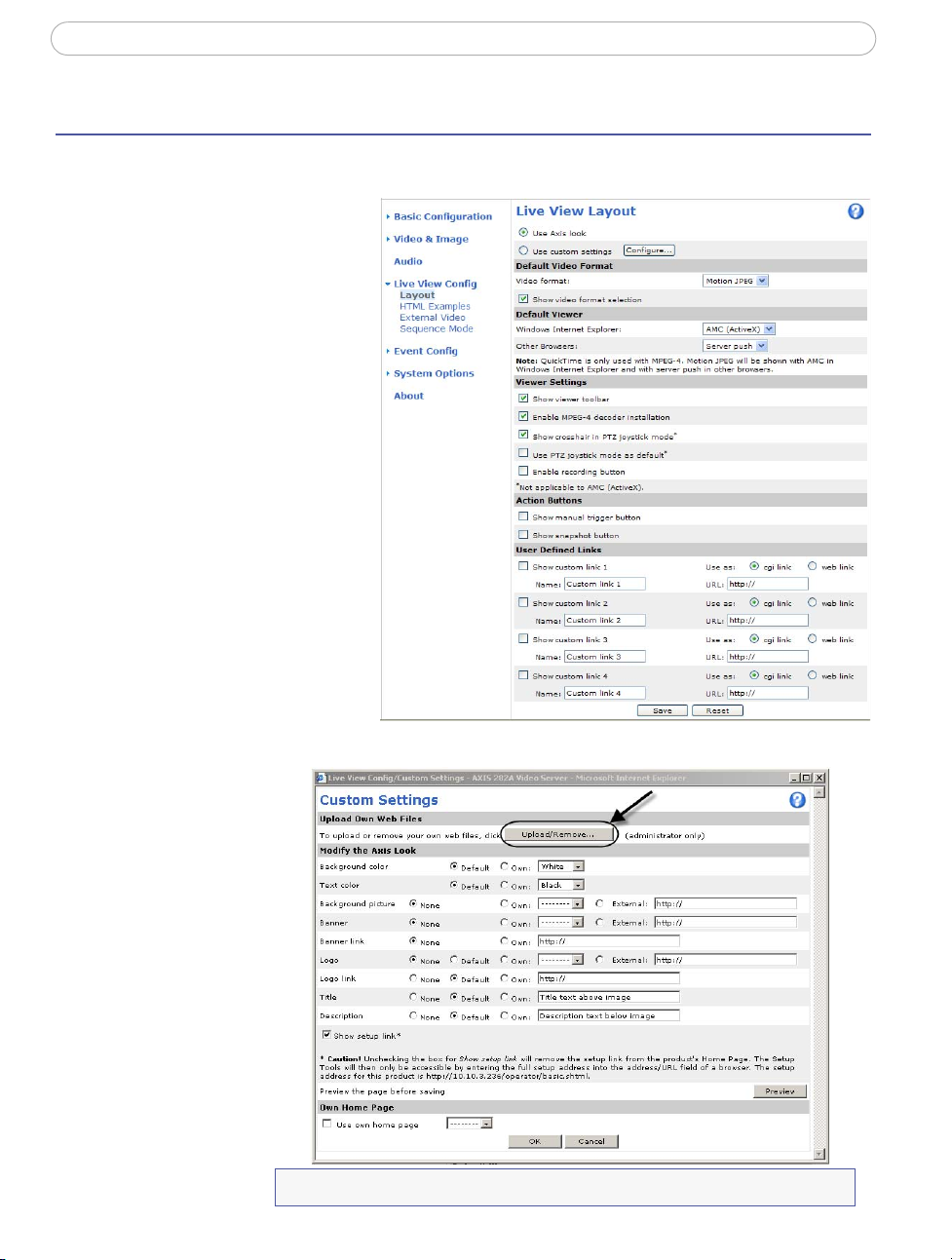

Layout

These are the tools for deciding the layout of the Live View page.

The layout can be set in 3 ways:

• Use Axis look - the layout is unchanged.

• Use custom settings - modify the default page with colors, and images. Click the Configure button and see the page to the right.

• Own Home Page - Upload and use your o page as the default web page. Click the Configure button and see the page to the right.

The other settings on this page

ern other features to include,

conc such as buttons and links. See page 29 for more information.

wn custom made

your own

AXIS 282/AXIS 282A - Live View Config

Customizing the default page

The appearance of the default AXIS 282/AXIS 282A Live View page can be customized to suit your own requirements in the page to the right.

AXIS 282/AXIS 282A - Live View Config

Upload Own Web Files

You can upload and use your own home page. To upload your own files, click the Upload/Remove button. The Upload/Remove Own Web Files dialog appears.

Your own web files, background pict 282/AXIS 282A in order to be available for selection in the Custom Settings dialog. Once uploaded, the files appear in the drop-down list.

1. Enter the path to the file located and find the path.

2. Select the user level for the uploaded file. Setting the user access level means that you have complete control over pages that specific users can view.

3. When the path is displayed correctly in the text field, click the Upload button.

All uploaded files are shown in the list in the lower section of this dialog. To check the box provided next to it and then click the Remove button.

• To use your uploaded file, click the radio button list against Own, in the Custom Settings page:

• To use an external file located somewhere other than in the the radio button and enter the URL in the External field in the Custom Settings page:

ure, color must first be uploaded to the AXIS

on your workstation or click the Browse button

remove a file,

and select the file from the drop-down

AXIS 282/AXIS 282A, click

Own Home Page

To use a previously uploaded web page as the default page, check the box against Use own home page, select the page from the drop-down list and click OK.

Default Video Format

Select the default format to use on the Live View page. Check the box against Show video format selection to view the drop-down list on the Live View page that allows you to

temporarily change the format.

Default Viewer

When using Microsoft Internet Explorer (IE) in Windows, select your preferred method of viewing moving images. The options are AMC, QuickTime, Java applet, and Still Image.

When using any browser other than Internet Explorer, select your viewing images. The available options are Server Push, QuickTime, Java applet, Still Image.

Please see the online help for more information.

preferred method of

AXIS 282/AXIS 282A - Live View Config

User Defined Links

Viewer Settings

Show viewer toolbar - - Check this box to display the viewer toolbar under the image

in your browser. The toolbar provides various controls for e.g. pausing the video stream, switching to full screen mode, etc.

Enable MPEG-4 decoder installation - - By checking/unchecking this box, the

administrator can en AMC. This is used to prevent the installation of unlicensed copies. Further decoder licenses can be purchased from your Axis dealer.

able or disable the installation of the MPEG-4 decoder included with

Show crosshair in PTZ joystick mode - - This cross indicates the c

when viewing the video stream in PTZ joystick mode.

Use PTZ joystick mode as default - - Enabling this sets the PTZ mode to joystick.

mode can be changed temporarily on the PTZ Control Panel, but will default to joystick if this is selected.

Enable recording button - - Enabling this button allows the user to st

directly from the Live View page. The recording is saved in the folder specified in the Recording tab in the AMC Control Applet. Note that this button is only available when viewing with AMC.

enter of the image

The

art a recording

Action Buttons

These buttons can be used to manually trigger and stop an event from the Live View page. See Event Servers, on page video stream and save it to a computer.

31. The snapshot button allows you to take a snapshot of the

User Defined Links

Enter a descriptive name for the link and enter the URL in the provided field. The link appears in the Live View page.

User defined CGI links can be used to issue HTTP

equests, such as PTZ commands. Example:

API r

1. Check Show Custom Link 1

2. Enter a descriptive name, such as CAM1 Start PTZ.

3. Enter the cgi link: http://192.168.0.125/axis-cgi/com/ptz.cgi?came ra=1&continuouspantiltmove=30,-30

4. Check Show Custom Link 2.

AXIS 282/AXIS 282A - Live View Config

5. Enter a descriptive name, such as CAM1 Stop PTZ.

6. Enter the cgi link: http://192.168.0.125/axis-cgi/com/ptz.cgi?camera=1&continuouspantiltmove=0,0

These links will appear in the web interface and can be used to control the PTZ camera

For more information on the Axis HTTP API, see Axis Web site at http://www.axis.com See also the section on PTZ, on page 37.

the Support / Developer pages on the

HTML Examples

You can add live video from your AXIS 282/AXIS 282A to your own web site. The AXIS 282/AXIS 282A can send Motion-JPEG or MPEG-4 images to up to 20 simultaneous connections, although an administrator can restrict this to fewer. This does not affect or include the number of multicast viewers.

Enter the Im

Update.

age Type, Image size and other settings to suit your web page and click

External Video

You can add links to other Axis network devices available over the network. These sources can be displayed on the Live View page, just as if they were video sources connected directly to the AXIS 282/AXIS 282A.

Click the Add make all the necessary settings.

Example of a path to an external video source:

button to open the External Video Source Setup dialog, which is used to

http://192.168.0.125/axis-cgi/mjpeg/video.cgi

Sequence Mode

The live view page can be configured to rotate through selected internal and/or external video sources, in order or at random. PTZ preset positions can also be included.

Select the desired video sources and enter the time in se 59 minutes). Click Save.

The Sequence buttons will appear on the Live to allow the viewer to start and stop the sequence mode.

Please see the online help

for more information.

View page

conds to display each source (up to

AXIS 282/AXIS 282A - Pan Tilt Zoom

Pan Tilt Zoom

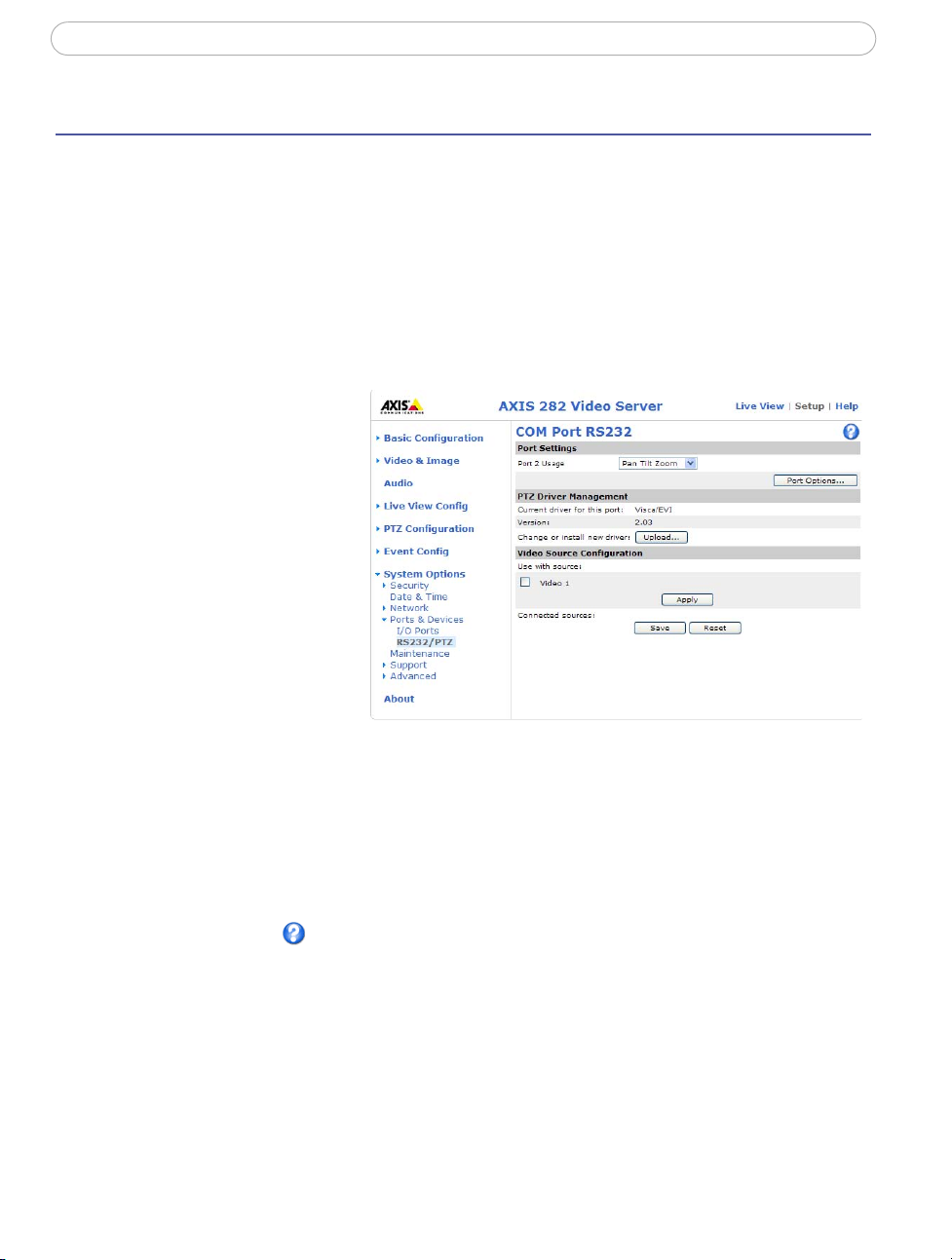

Installing PTZ Devices

The AXIS 282/AXIS 282A supports several PTZ devices. Please see www.axis.com for a complete list of supported devices, and to obtain the correct driver. Follow the instructions below to install a PTZ device:

1. Using an appropriate cable, connect the device to your selected port (RS-232 or RS-485). This configurable port is available via the 34 I/O pins. See pages 56 and 57 for more information.

2. From the Setup link, go to System Options > Ports & Devices and then select the port (RS-232/RS-485) to configure.

3. Select Pan Tilt Zoom from the Port 2 Usage drop-down list.

4. Click Upload to install a PTZ driver. (PTZ drivers are available from the Axis Web site at www.axis.com)

5. Click Port Options... to modify the port settings. The default values correspond to the values specified by the PTZ driver.

6. From System Options > Ports & Devices, select the port configured for PTZ and then select the video source to use with the device.

7. If required, click the Advanced Options button to make further settings and see the online help.

Note:

Advanced users and application developers can also use the Axis Application Programming Interface and HTTP specification for generic control of PTZ devices using CGI commands or a TCP/IP client. Please refer to the Axis Website at www.axis.com for further information.

AXIS 282/AXIS 282A - Pan Tilt Zoom

PTZ Configuration

Once PTZ has been installed for the AXIS 282/AXIS 282A, PTZ Configuration now appears in the menu to the left along with the following submenus.

Preset Positions

A preset position is a pre-defined camera view than can be used to quickly move the camera to a specific location.

In the Preset Position camera to the required position. When satisfied with the camera's position, enter a descriptive name. The camera position, iris and focus settings are then saved as a preset position.

The position can be assumed at any positions drop-down list. Preset positions can be selected in Live View, from events and in Sequence mode.

One position can be set as the Hom box beside Use current position as Home. The position's name will then have (H) added, e.g. Office Entrance (H).

Setup page, use the Pan, Tilt and Zoom (PTZ) controls to steer the

time, by selecting the preset's name from the Preset

e position, which is readily accessible by clicking in the

AXIS 282/AXIS 282A - Pan Tilt Zoom

Video sources

Preset positions

Tilt bar (relative)

PTZ Controls

If the AXIS 282/AXIS 282A has been appropriately configured, the Live View page will display the controls available for the installed Pan Tilt Zoom (PTZ) device. The administrator can enable/disable the controls for specified users.

The exact controls shown depends on the make

and model of PTZ device. There may be

Focus and Iris bars available as well among others, but the most common controls are;

• the Pan bar - moves the camera to the ri

ght and left

• the Tilt bar - tips the camera up and down

• the Zoom bar - zooms the view in and out. Note that this is only available if the camera is fitted with a zoom lens.

Clicking on the bars themselves or on the arrows camera to a new position. The type of movement and the location of this new position

at the end of the bars will move the

depends on the type of PTZ driver.

When controlling the camera using a relative PTZ dri

ver (see the bars in the illustration above) the new position will be relative to the previous position, e.g. left of, below, above, and so on. Clicking the bar further from the center results in a larger movement.

AXIS 282/AXIS 282A - Pan Tilt Zoom

In contrast, when using an absolute driver, each position on the bar (see right) represents a defined position in the device’s range of movement, with the center of the bar representing the point midway between the two extremes of movement.

Clicking a position directly on th one smooth movement. Clicking on the arrows at the ends of a bar causes a stepped, incremental change.

e bar moves the camera directly to the new position in

Using CGI links to control PTZ devices

User-defined CGI links on the Live View page can be used to issue HTTP API requests, such as PTZ commands. These links are configured in the Live View Layout settings, see page

28.

PTZ Control Modes

The PTZ device can also be controlled using click-in-image movement, which has two different types of navigation; Center and Joystick.

Center mode means that absolute position that was clicked.

Joystick mode moves the camera in the direction holding the mouse button down in the image, the PTZ device moves the camera in that direction, relative to the center of the image. The further from the center the image is clicked, the greater the movement. The camera stops moving when the button is released.

when clicking in the image, the camera view will center on the

of the mouse pointer. By clicking and

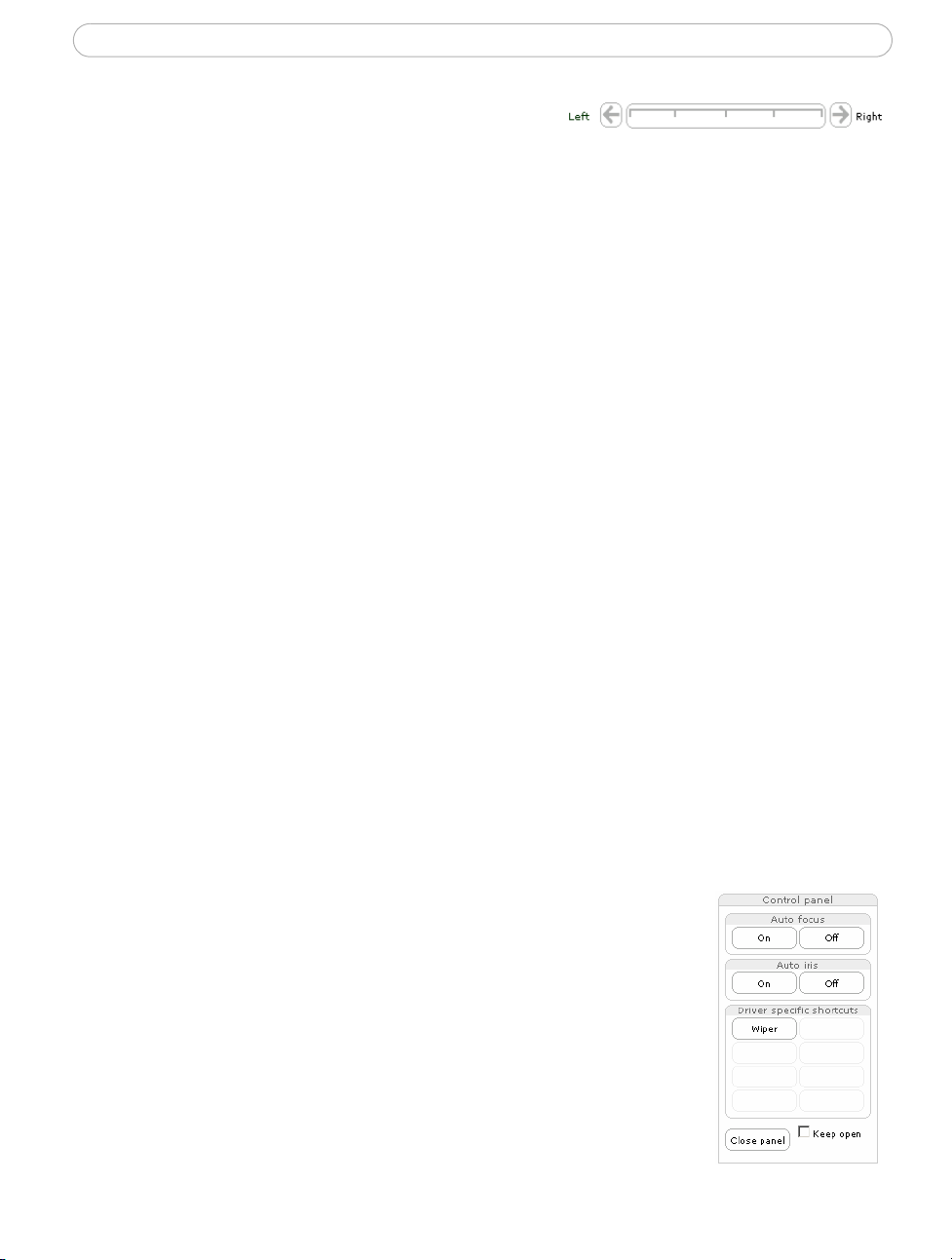

Control Panel

The Focus and Iris (image brightness) can be adjusted manually by using the control bars, or they can be set for automatic adjustment, by clicking the Auto Iris and Auto Focus buttons.

To access the Auto Iris and Auto Focus buttons, Panel button. the menu to the right then appears in the upper left hand corner of the screen.

There are also driver specific shortcuts that Panel. In the screen to the right, a driver has been installed that brings up the Wiper shortcut button, which allows the user to configure and use a windshield wiping action with the AXIS 282/AXIS 282A.

click on the Ctrl

can appear in the Control

AXIS 282/AXIS 282A - Pan Tilt Zoom

Preset Positions

Also available with many PTZ devices are Preset positions. These presets are selected from the drop-down Source list on the Live View page and will move and/or zoom the camera to a pre-defined position, i.e. to cover an area of particular interest. Events can also be configured to go to preset positions when triggered. For information on setting up preset positions, please see Preset Positions,

on page 38 and the online help.

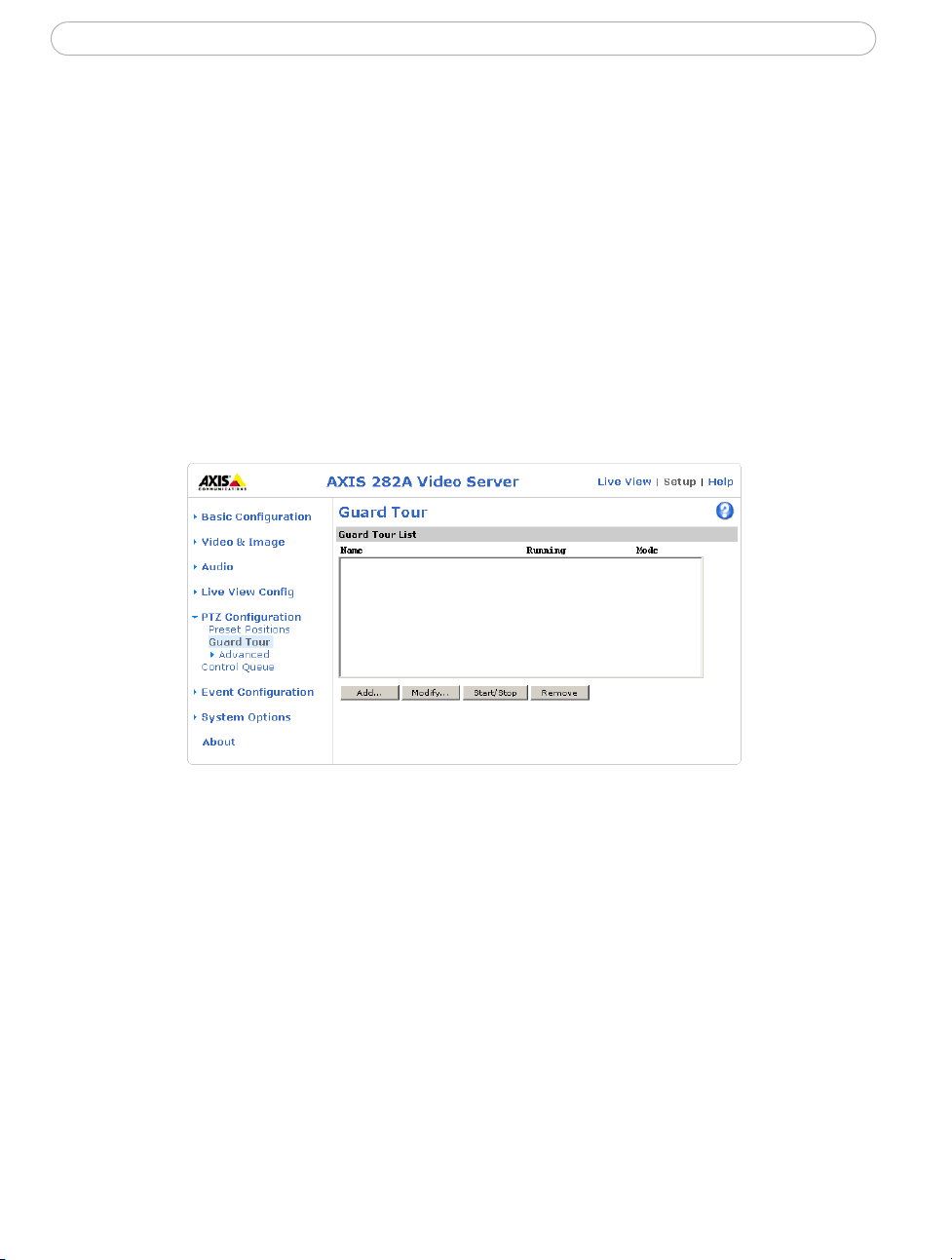

Guard Tour

A guard tour moves between chosen Preset Positions, one-by-one, in a pre-determined order or at random, and for configurable time periods. Unlike the Sequence Mode, which is a viewing application under Live View Config (see Live View Config, on page guard tour sequence will keep running browser.

after the user has logged off or closed the Web

27), the

Advanced

Device Settings - The device settings window is for driver specific settings, so the

appearance of this window can vary depending on the driver installed. Options that can be configured include: Driver Specific Settings for Video Source 1, Mechanical Limits for Moving Video Source 1, Light Control for Video Source 1, and Extended Driver Specific Settings for Video Source 1.

Control Settings - This page provides the tools for man

provided for PTZ. The Panel Shortcut Command Button list provides the controls for creating and saving Panel Shortcut Command Buttons. These buttons provide direct access to various built-in auxiliary commands provided by the PTZ driver. The buttons are displayed in the PTZ Panel, which is available on the Live View page by clicking the Ctrl panel button.

aging the different controls

AXIS 282/AXIS 282A - Pan Tilt Zoom

The PTZ panel also provides various buttons as standard, depending on the PTZ driver being used. Examples of these are Autoiris, and Autofocus. The list of shortcut command buttons displays the available information for each configured command button.

•The La

• In

• URL shows the path to the com

• Enable sh Enable/Disable button below the list.

To work with shortcut command buttons, click Add to create existing button from the list and click Modify or Remove.

The Enable/Disable controls, allow controls for PTZ. These settings are used on every page where PTZ controls are usually found.

bel is the text on the button itself

formation is the text displayed for the button when the cursor is held over the button

mand

ows whether the selected command is enabled or not. This is controlled by the

a new button, or select an

the administrator to enable or disable the different

AXIS 282/AXIS 282A - Pan Tilt Zoom

PTZ Control Queue

Use the PTZ Control Queue window to enable and disable PTZ queueing. This window allows you to set up a queue for viewers wanting to access the AXIS 282/AXIS 282A, and limits the number of viewers and the length of time each viewer can access and control the video stream. For more information on how to set up the control queue, please see the online help.

Note also that a viewer who belongs to a group PTZ priority can go before other users in the q 282A.

The order of priority for taking control of the queue is listed below:

1. Administrators - An administrator may tak currently first in queue. The administrator will be removed from queue 60 seconds after the their last PTZ control command.

2. Event - You can set up the AXIS 282/AXIS 282A to take control of the queue and move to a specific position for 20 seconds when triggered by an alarm. The event will immediately be place first in queue except when an administrator is in control. For more information see How to set up a triggered event, on page 32.

3. Operator - Same as administrator with lower priority.

4. Guard Tour - Guard tour has control of PTZ for an indefinite period of time. It may be overridden by, Operator, Event or administrator. Guard Tour will resume when higher priority groups leaves the queue. For more information see Guard Tour, on page 41.

5. Viewer - Multiple viewers will need to wait for their turn. The viewer has 60 seconds to control PTZ until control is passed to the next viewer in queue.

Note:

In order to be able to identify different users in the viewer group, cookies need to be enabled on the client.

(see Users, on page 44) that has a higher

ueue and take control of the AXIS 282/AXIS

e the PTZ control regardless of who is

AXIS 282/AXIS 282A - Event Configuration

Event Configuration

This section describes how to configure the AXIS 282/AXIS 282A for alarm handling. Pre-defined parameters, known as an Event or Event Type can trigger certain actions in the camera. A common event type is an alarm that prompts the camera to upload images. Many event types use an Event Server, to receive uploaded images.

An event that is triggered by a signal, such as

a door switch, motion detection, or system

event, is called a triggered event (see page 32)

A scheduled event runs at pre-programmed times

An Action refers to what happens

when the event occurs.

(see page 33).

Event Servers

Event Servers are used for receiving uploaded image files and/or notification messages. To set up Event server for your AXIS 282/AXIS 282A, go to Setup > Event Configuration > Event Servers and enter the required information according to the selected server type.

Server type Purpose Information required

FTP Server • receives uploaded images • Descriptive name of your choice

• User Name and Password (to FTP server)

• Upload path, e.g. images/

• Port number

• Use passive mode if there is a firewall between the Video Server and FTP server

• Use temporary file if your FTP server doesn’t allow an existing file to be overwritten by a new file with the same name.

HTTP Server • receives notification messages

• receives uploaded images

TCP Server • receives notification messages • Descriptive name of your choice

• Descriptive name of your choice

• URL (address)

• User Name and Password (to HTTP server)

• Proxy address/Proxy port (if required)

• Proxy User Name and Password (if required)

• User Name and Password (for TCP server)

• Port number

For details on each setting, please refer to the online help available from each web page.

Pre-trigger and Post-trigger buffers will be lost if the connection to the event server fails.

Note:

When the setup is complete, the connection can be tested by clicking the Test button (the connection test takes approximately 10 seconds).

AXIS 282/AXIS 282A - Event Configuration

Event Types

An Event Type is a set of parameters that define certain actions in the camera in response to specific triggers.

Example:

the connected camera, and an event has been configured to act on this, the Video Server can record and send video images to an FTP server, or send a notification email to a pre-configured email address with a pre-configured message. Video images can be sent as an attachment with the email.

If somebody walks past

Triggered Event

A triggered event can be activated by:

• a push button connected to an input port on the Video Server

• detected movement in a configured motion detection window

• a lost video signal

• a manually activated action, such as from

• on restart (reboot), such as after

power loss

an action button in the web interface

How to set up a triggered event

This example describes how to set the AXIS 282/AXIS 282A to upload

images when the

main door is opened:

1. Click A

dd triggered on the Event types page.

2. Enter a descriptive name for the event, such as Main door.

3. Set the priority - High, Normal or Low (see online help files).

4. Select which Video Source the event is to act on, for example, Video 1 on Main door.

5. Set the Respond to Trigger... parameters when the event is to be active, e.g. only after office hours

6. Select the trigger alternative from the Triggered by... drop-down list, e.g. an Input port with a connected sensor if the door is opened.

7. Set the When Triggered... parameters, i.e. set what the Video Server should do if the main door is opened. This could be uploading images to an FTP server or sending an email.

8. Click OK to save the event in the Event Types list.

Please see the online help for descriptions of each available option.

AXIS 282/AXIS 282A - Event Configuration

Pre-trigger and Post-trigger buffers

This function is useful when checking to see what happened immediately before and after a trigger, for example, two minutes before and after a door was opened. Check the Upload images checkbox under Event Types > Add Triggered... > Triggered by... to view available options.

Buffer size

The maximum length of time of the pre-/post-buffer

- Both the AXIS 282 and the AXIS 282A each have a 9 MB buffer. depends on the selected image size

and frame rate.

Include pre-trigger buffer

- images stored internally in the server from the time immediately preceding the trigger. Check the box to enable the pre-trigger buffer, enter the desired length of time and specify the required image frequency.

Include post-trigger buffer -

contains images from the time immediately after the trigger.

Configure as for pre-trigger.

Note:

• Pre-trigger and Post-trigger buffers will be lost if the connection to the event server fails.

• Maximum length of the pre-/post-buffer depends on the video image size and selected frame rate.

• If the pre- or post-buffer is too large for the AXIS 282/AXIS 282A's internal memory, the frame rate is reduced and no images will be uploaded. If this occurs, an entry will be created in the unit's log file.

Continue image upload (unbuffered) - enable the upload of images for a fixed length of time. Specify the length of time for the uploaded recording, in seconds, minutes or hours, or for as long as the trigger is active. Finally, set the desired image frequency to the maximum (the maximum available) or to a specified frame rate. The frame rate will be the best possible, but might not be as high as specified, especially if uploading via a slow connection.

Scheduled Event

A Scheduled event can be activated at

pre-set times, in a repeating pattern on selected weekdays. The following is a description about how to set to set up a scheduled event - to set up the Video Server to send an email notification with saved images at a set time:

1. Click Ad

d scheduled on the Event types page.

2. Enter a descriptive name for the event, e.g. Scheduled email.

3. Set the priority (High, Normal or Low).

4. Set the Activation Time parameters (24h clock) when the event should be active, e.g. start on Sundays at 13.00 with a duration of 12 hours.

5. Set the When Activated... parameters i.e. set what the Video Server should do at the specified time e.g. send uploaded images to an email address.

6. Click OK to save the Event in the Event Types list.

Please see the online help for descriptions of each available option.

AXIS 282/AXIS 282A - Event Configuration

Camera Tampering

The camera tampering application generates an alarm whenever the camera is repositioned, or when the lens is covered, sprayed or severely put out of focus. The tampering application will only become active and ready after the camera has not moved for at least 10 seconds. During this period the application sets up a Scene Model to use as a comparison to detect tampering in current images.

This means that PTZ movements will also reset the applicati too frequent there will be no tampering alarms. PTZ should be used sparingly when camera tampering is enabled. For the scene model to be set up properly make sure that the camera is in focus, the lighting conditions are correct, and the camera is not pointed at a scene that lacks contours, for example a blank wall.

Settings

Minimum duration - This parameter sets the minimum tamperin

will not be triggered until this period has elapsed, even if the tampering conditions are otherwise met. This can help prevent false alarms for known conditions that affect the image.

Alarm for dark images - If the camera lens is sprayed and the image is

will not be possible to distinguish this from other situations where the same effect is seen, i.e. when the lighting conditions change.

When this parameter is enabled, al turns dark or the lens is sprayed. If not enabled, no alarm will be sent.

Click Save after you define th

arms will be generated for all cases where the image

ese settings.

on - if the PTZ movements are

g period, i.e. an alarm

darkened, it

AXIS 282/AXIS 282A - Event Configuration

Motion Detection

In the Motion Detection menu, you can configure the video source(s) for motion detection. The motion detection feature is used to generate an alarm whenever movement occurs (or stops) in the image. The AXIS 282/AXIS 282A can use a maximum of 10 windows (Include and Exclude).

• Include win

• Ex

clude windows are areas to be ignored within the Include window

Once configured, the motion detection windows wi detection is selected to trigger an event. See How to set up a triggered event above.

Using the motion detection feature may decrease overall performance in the Video Server.

Note:

dows target specific areas within the image

ll appear in a list when motion

How to configure Motion Detection

This example describes how to configure motion detection:

1. Click Motion Detection in the Event Config menu.

2. Click the Configure Included Windows radio button.

3. Click New.

4. Enter a descriptive name of your choice under Windows name.

5. Adjust the size (drag the bottom right-hand corner) and position (click on the text at the top and drag to the desired position).

AXIS 282/AXIS 282A - Event Configuration

6. Adjust the Object size, History and Sensitivity profile sliders (see table below for details). Any detected motion within an active window is then indicated by red peaks in the Activity window (the active window has a red frame).

7. Click Save.

If there are parts of the Include window that you wish to exclude, click the Configure Excluded Windows radio button and repeat steps 1-8 above.

Please use the online help for descriptions of each available option.

Parameter Size History Sensitivity

High Only very large objects

Low Even very small objects

Default values Low Medium to High Medium to High

trigger motion detection

r motion detection

trigge

An object that appears in the region will trigger the motion detection for a long period

An object that appears in the region will trigger motion detection for only a very short period

Examples:

• Avoid triggering on small objects in the image by selecting a high size level.

• To trigger motion detection as long as there is activity in the area, select a high history level.

• To only detect flashing light, low sensitivity can be selected. In other cases, a high sensitivity level is recommended.

Ordinary colored objects against ordinary backgrounds will trigger the motion detection

Only very bright objects against a dark background will trigger motion detection

Port Status

Under Event Configuration > Port Status, there is a list that shows the status for the connected inputs and outputs of the AXIS 282/AXIS 282A. This is for the benefit of an operator, who cannot access the System Options section.

Example:

If the Normal state for a push button connected to an input is set to Open circuit, as long as the button

is not pushed, the state is inactive. If the button is pushed, the state of the input changes to active.

AXIS 282/AXIS 282A - System Options

System Options

Security

User access control is enabled by default, when the administrator sets the root password on first access. New users are authorized with user names and passwords, or the administrator can choose to allow anonymous viewer login to the Live View page, as described below:

Users

User list displays the authorized users and access levels:

Viewer Provides the lowest level of access, which only allows the user access to the Live View page Operator An Operator can view the Live View page, create and mo

settings. The Operator does not have access to the Systems Options configuration pages.

Administrator An administrator has unrestricted access to the Setup T

all other users.

To prevent unauthorized use of the product, the AXIS 241QA/AXIS 241SA network camera supports multi-user password protection, where

access can be restricted to a defined

number of users only (maximum of 20).

dify event types and adjust certain other

ools and can determine the registration of

The AXIS 282/AXIS 282A supports several methods

• HTTP Basic Authentication - This authen

ticates the user by requesting a user name and

of user authentication. These are:

a password. The exchange of network credentials is in simple base64 coding and is not encrypted.

• HTTP Digest Authentication - This method also requests

a user name and password, but the exchange of credentials is encrypted, which better secures it against eavesdropping.

User Settings - ch

• Anony

mous viewer login - allows any viewer direct access to the Live View page.

• Anonymous

eck the corresponding checkboxes to enable:

PTZ control login - allows any viewer access to the Pan Tilt Zoom con-

trollers on the Live View page (if Pan/Tilt/Zoom is available).

IP Address Filter

Checking the Enable IP address filtering box enables the IP address filtering function. Up to 256 IP address entries may be specified (a single entry can contain multiple IP addresses). Click the Add button to add new filtered addresses.

When the IP address filter is enabled, addresses denied addresses. All other IP addresses not in this list will then be allowed or denied access accordingly, i.e. if the addresses in the list are allowed, then all others are denied access, and vice versa. See also the online help for more information.

added to the list are set as allowed or

AXIS 282/AXIS 282A - System Options

Note that users from IP addresses that will be allowed must also be registered with the appropriate access rights (User, Operator or Administrator). This is done from Setup >

System Options > Security > Users.

Referrals - to pr

event unauthorized sources from including the video stream from the AXIS 282/AXIS 282A into external Web pages, check the Referrals box and enter the IP address or Host name of the computer that hosts the Web pages with the included video stream. Multiple IP addresses/host names can be defined and are separated by semicolons(;)

Notes:

• If the referrals feature is enabled and you wish to also allow normal access to the Live View page, the product's own IP address or host name must be added to the list of allowed referrers.

• Restricting referrers has no effect on an MPEG-4 video stream. To restrict an MPEG-4 stream, IP address filtering must be enabled.

• Restricting referrers is of greatest value when not address filtering is used, then the allowed referrers are automatically restricted to those allowed IP addresses.

using IP address filtering. If IP

HTTPS

For greater security, the AXIS 282/AXIS 282A can be configured to use HTTPS (Hypertext Transfer Protocol over SSL (Secure Socket Layer)). That is, all communication that would otherwise go via HTTP will instead go via an encrypted HTTPS connection.

Certificate - to use HTTPS for communication with must be created using one of these methods:

• A self-signed certificate can be created

in the Video Server, but this does not guarantee

the same level of security as an official certificate.

• An official certificate issued by a CA (Certificat

security credentials and public keys for message encryption.

1. Click either Crea

te self-signed certificate or Create Certificate Request and enter

the required information in the provided fields

the AXIS 282/AXIS 282A, a Certificate

e Authority). A CA issues and manages

2. Click OK.

3. Create self-signed certificate generates and installs a certificate which will be displayed under Installed Certificate. Create Certificate Request generates a PEM formatted request which you copy and send to a CA for signing. When the signed certificate is returned, click Install signed certificate... to install the certificate in the AXIS 282/AXIS 282A.

4. Set the HTTPS Connection Policy for the administrator, Operator and Viewer to enable HTTPS connection (set to HTTP by default)

Please refer to the home page of your preferre

d CA for information on where to send the

request. For more information, please see the online help

AXIS 282/AXIS 282A - System Options

IEEE 802.1X

IEEE 802.1x is an IEEE standard for port-based Network Admission Control. It provides authentication to devices attached to a network port (wired or wireless), establishing a point-to-point connection, or if authentication fails, preventing access on that port. 802.1x is based on EAP (Extensible Authentication Protocol).

In a 802.1x enabled network switch, clients equipped with the authenticated and allowed or denied network access at the Ethernet level.

Clients and servers in an 802.1x network may need to authenticate each other means. In the Axis implementation this is done with the help of digital certificates provided by a Certification Authority. These are then validated by a third-party entity, such as a RADIUS server, examples of which are Free Radius and Microsoft Internet Authentication Service.

To perform the authentication, the RADIUS server uses various EAP methods/protocols, of

hich there are many. The one used in the Axis implementation is EAP-TLS

w (EAP-Transport Layer Security).

The AXIS network video device presents its certificat forwards this to the RADIUS server. The RADIUS server validates or rejects the certificate and responds to the switch, and sends its own certificate to the client for validation. The switch then allows or denies network access accordingly, on a preconfigured port.

RADIUS

RADIUS (Remote Authentication Dial In User Service) is an AAA (Authentication Authorization and Accounting) protocol for applications such as network access or IP mobility. It is intended to work in both local and roaming situations.

CA servers

e to the network switch, which in turn

correct software can be

by some

In cryptography, a Certification Authority (CA) is certificates for use by other parties, and thus acts a trusted third party.

There are many commercial CAs that charge for th governments may have their own CA, and there are free CAs available.

an entity that provides signed digital

eir services. Institutions and

AXIS 282/AXIS 282A - System Options

Date & Time

Current Server Time - displays the current date and time (24h clock). The time can be displayed in 12h clock format in overlay images.

New Server Time - Select your

saving time changes, if desired.

From the Time Mode

• Synchronize

• Synchronize server every 60 minutes. Specify the NTP server's IP address or host name.

Note:

Note that if using a host name for the NTP server, a DNS server must be configured under TCP/IP settings. See Network > Advanced TCP/IP Settings below.

• Set manually - this option allows you to manually set the time and date.

Date & Time Format Used in Images - spec

24h) displayed in the Live View video streams.

Use the predefined formats or use your own custom date and Naming & Date/Time Formats in the online help for information on how to create your own file formats.

section, select the preferred method to use for setting the time:

with computer time - sets the time from the clock on your computer.

with NTP Server - the Video Server will obtain the time from an NTP

time zone from the drop-down list and check the daylight

ify the formats for the date and time (12h or

time formats. See File

AXIS 282/AXIS 282A - System Options

Network - Basic TCP/IP Settings

IP Address Configuration

Your Axis network camera supports both IP version 4 and IP version 6. Both versions may be enabled simultaneously, and at least one version must always be enabled.

When using IPv4, the IP address can be set automatically via DHCP,

or a static IP address

can be set manually.

If IPv6 is enabled, your camera will receive an IP address according to the con

figuration in

the network router.

There are also options for setting up notificatio

n of changes in the IP address, and for using the AXIS Internet Dynamic DNS Service. For more information on setting the IP address, please see the online help.

The IP address of the Video Server

can be set automatically via DHCP, or a fixed IP address can be set manually. DHCP is enabled by default. To use a fixed IP address, you must also enter the correct subnet mask and default router.

Notes:

•DHCP is a protocol for automatic IP address assignment on a network. IP address assignment via DHCP may lead to the situation where the IP address changes and you lose contact. Configure the options for notification of IP address change (under Services) to receive notification from the Video Server when the IP address changes.

•Alternatively, if your DHCP server can update a DNS server, you can access the AXIS 282/AXIS 282A by host name which is always the same, regardless of the IP address.

Services

Options for notification of IP address change - if the IP address for the Video Server changes, e.g. automatically by DHCP, you can choose to be notified of the change. Click Settings... and enter the required information.

AXIS Internet Dynamic DNS Service - If the AXIS 282/AXIS 282A Video Server has

been registered with the Axis Internet Dynamic DNS service and the IP address for the product changes, the service is updated to reflect the change. Check the box to enable/disable automatic updates.

The domain name currently registered at the Axis Internet Dynamic DNS service for your product can at any time be removed. To

do this click Settings... and follow the

instructions.

For more information, please refer to the online help.

AXIS 282/AXIS 282A - System Options

Network - Advanced TCP/IP Settings

DNS Configuration

DNS (Domain Name Service) provides the translation of host names to IP addresses on your network.

Obtain DNS server address via DHCP - au

by the DHCP server. Click the View button to see the current settings.

Use the following DNS server address following:

• Domain name - en 282/AXIS 282A. Multiple domains can be separated by semicolons (;). The host name is always the first part of a Fully Qualified Domain Name, e.g. myserver is the host name in the Fully Qualified Domain Name myserver.mycompany.com where mycom- pany.com is the Domain name.

• Primary vides the translation of host names

• Secondary DNS be used if the primary DNS server is unavailable.

DNS server - Enter the IP address of the primary DNS server. This server pro-

ter the domain(s) to search for the host name used by the AXIS

server - Specify the IP address of the secondary DNS server. This will

tomatically use the DNS server settings provided

- enter the desired DNS server by specifying the

to IP addresses on your network.

NTP Configuration

Obtain NTP server address via DHCP - use a DHCP server to automatically find an NTP server to synchronize clock of the AXIS 282/AXIS 282A with the other devices on the network

Use the following NTP server address - use server for time synchronization.

the host name or IP address of a specific NTP

Host Name Configuration

The AXIS 282/AXIS 282A can be accessed using a host name, instead of an IP address. The host name is usually the same as the assigned DNS Name.

For more information, please see the online help

Link-Local Address

This is enabled by default and assigns the AXIS 282/AXIS 282A an additional IP address for use with UPnP™. The AXIS 282/AXIS 282A can have both a Link-Local IP and a static/DHCP-supplied IP address at the same time - these will not affect each other.

AXIS 282/AXIS 282A - System Options

HTTP

The default HTTP port number (80) can be changed to any port within the range 1024-65535. This is useful for e.g. simple port mapping.

HTTPS

The default HTTP port number (443) can be changed to any port within the range 1024-65535. This is useful for e.g. simple port mapping.

NAT traversal (port mapping)

Use NAT traversal when your AXIS 282 Video Server is located on an intranet (LAN) and you wish to make it available from the other (WAN) side of a NAT router. When this is properly configured, all HTTP traffic to an external HTTP port in the NAT router will be forwarded to the video server.

Click the Enable button to start NAT configuration, whereby the AXIS will attempt to configure port mapping in a NAT router on your network, using UPnP™.

For more information, see the online help .

282 Video Server

FTP

Enable FTP server - The FTP server running in the AXIS 282 Video Server enables the upload of e.g. new firmware, user applications, etc. Check the box to enable the FTP server.

Note that this option has nothing to do with the unit's ability to transfer images other locations/servers.

via FTP to

RTSP

The RTSP protocol allows a connecting client to start an MPEG-4 stream. Enter the RTSP port number to use. The default setting is 554.

Network Traffic

The default setting is Auto-negotiate which means that the correct speed is automatically selected. If necessary, you can set the connection speed by selecting it from the drop-down list.

Maximum bandwidth Video Server is allowed to use on your network. This is a useful function when connecting your Video Server to busy or heavily loaded networks. The default setting is Unlimited.

- Specify, in Mbit/s or kbit/s, the maximum bandwidth that the

When using MPEG-4 as the video format, remember that setting a maximum bandwidth value here may

Note:

create problems for individual video streams if the maximum value is less than the sum of the bit rates set for the video streams.

AXIS 282/AXIS 282A - System Options

For more information, please see the online help

SOCKS

SOCKS is a networking proxy protocol. The AXIS 282/AXIS 282A can be configured to use a SOCKS server to reach networks on the other side of a firewall/proxy server. This functionality is useful if the Video Server is located on a local network behind a firewall, but notifications, uploads, alarms, etc., need to be sent to a destination outside the local network (e.g. to the Internet).

QoS (Quality of Service)

Quality of Service (QoS) provides the means to guarantee a certain level of a specified resource to selected traffic on a network. Quality can be defined as a maintained level of bandwidth, low latency, no packet losses, and so on. The main benefits of a QoS-aware network can be summarized as:

• the ability to prioritize traffic and thus allow with lesser priority.

• greater reliability in the network, thanks to application may use, and thus control over bandwidth races between applications.

The QoS in Axis network video products marks th network traffic originating from the product. This makes it possible for network routers and switches to reserve a fixed amount of bandwidth for these types of traffic, for example. The following types of traffic are marked:

• live video

• live audio

• event/alarm traffic

• management network traffic

It is important to remember that configured. If you are unsure as to whether your network is QoS aware, please check with your network administrator.

to be able to use QoS, your network must be properly

critical flows to be served before flows

the control of the amount of bandwidth an

e data packets for various types of

QOS Settings

For each type of network traffic supported by your Axis network video product, enter a DSCP (Differentiated Services Codepoint) value. This value is used to mark the traffic’s IP header. When the marked traffic reaches a network router or switch, the DSCP value in the IP header informs the router or switch of the type of treatment to apply to this type of traffic, for example, how much bandwidth to reserve for it.

Note that DSCP values can be entered are always shown in decimal.

in decimal or hexadecimal form, but saved values

AXIS 282/AXIS 282A - System Options

For more information on Quality of Service, please see the Axis support web at www.axis.com/techsup

SMTP (email)

Enter the host names or addresses for your primary and secondary mail servers in the fields provided, to enable event and error email messages from the Video Server to predefined addresses, via SMTP.

If the mail server requires SMTP au log in to this server and enter the user name and password used for logging in. Several different methods of authentication are available. See the online help for more information.

thentication, check the box for Use authentication to

SNMP

The Simple Network Management Protocol (SNMP) allows the remote management of network devices. Select the version of SNMP to use, depending on the level of security required. Select the version of SNMP to use, by checking the appropriate box. The three levels of security are:

• SNMP V1 - includes no security

• SNMP V2c - uses very simple security

• SNMP V3 - provides encryption and secure If using V1 and V2c, enter the community name for read-only access

SNMP objects (except the root password and other objects that require write access). Default value = public. You can also specify the community name for read/write access to all supported SNMP objects (except read-only objects). Default value = pass.

If using HTTPS enter the password if it has not already the AXIS 282/AXIS 282A must be reset to the factory default settings.

, e.g. community name as password

passwords. Use with HTTPS.

to all supported

been set. To set the password again,

UPnP™

The Video Server includes support for UPnP™ in Windows ME and Windows XP. UPnP™ is enabled by default.

Note:

UPnP™ must be installed on your workstation if running Windows XP. To do this, open the Control Panel from the Start Menu and select Add/Remove Programs. Select Add/Remove Windows Components and open the Networking Services section. Click Details and then select UPnP™ as the service to add.

RTP/MPEG-4

These settings are the IP address, port numbers, and Time-To-Live values to use for the media stream(s) in the MPEG-4 format. Only certain IP addresses and port numbers should be used for these streams. For more information, please see the online help.

AXIS 282/AXIS 282A - System Options

Bonjour

Your Axis network camera includes support for Bonjour. When enabled, the camera is automatically detected by operating systems and clients that support this protocol.

Ports & Devices

I/O Ports - the pinout, interface support and the control and monitoring functions provided by this connector are described in Unit Connectors,

on page 56.

RS-232/RS-485 -

RS-232 or RS-485, supports several operational modes listed on this page. For more information, please see the online help.

The COM port on the AXIS 282/AXIS 282A, which can be configured as

Maintenance

• Restart - The unit is restarted without changing any of the settings. Use this method if the unit is not behaving as expected.

• Restore - The ues. The settings that will not be reset are as follows:

• the boot protocol (DHCP or static)

•

the static IP address

• the default router

•the subnet mask

• the system time

• Default the Video Server's settings to the factory default values (including the IP address)

Upgrade Server - See Upgrading t

Backup - To

button. If necessary, it is then possible to return to a previous configuration if settings are changed and there is unexpected behavior.

unit is restarted and most current settings are reset to factory default val-

- The default button should be used with caution. Pressing this will return all of

he Firmware, on page 59.

take a backup of all of the parameters, and any user-defined scripts, click this

Restore the Restore button. The settings will be restored to the previous configuration.

Note:

- click the Browse button to locate the saved backup file (see above) and then click

Backup and Restore can only be used on the same unit running the same firmware. This feature is not intended for multi-configurations or for firmware upgrades.

Support

The Support Overview page provides valuable information on troubleshooting and contact information, should you require technical assistance.

ystem Overview gives a quick look over the status of the camera.

The S

AXIS 282/AXIS 282A - System Options

Logs & Reports - when contacting Axis support, please be sure to provide a valid Server

Report with your query.

Information - The Log report and the Parameter List also for troubleshooting and when contacting Axis’ support service.

Configuration: Log Level for Log Files - from the drop-down list, select the level of

added to the Log file

Log Level for Email - from the drop-do email and enter the destination email address.

wn list, select the level of information to send as

provide valuable information

information to be

Advanced

Scripting is an advanced function that provides the possibility to customize and use scripts. This function is a very powerful tool.

Caution!

Improper use may cause unexpected behavior or even cause If a script does cause problems, reset the unit to its factory default settings. A backup file may be of use to return the unit to its latest configuration).

Axis strongly recommends that you do not understand the consequences. Note that Axis support does not provide assistance for

problems with customized scripts.

For more information, please visit the Developer pages

use this function unless you fully

loss of contact with the unit.

at www.axis.com/developer

Plain Config - this configuration. All parameters can be set and modified from this page, including the audio encoding format. Help is available from the standard help pages.

function is for the advanced user with experience of Axis Video Server

AXIS 282/AXIS 282A - System Options

Control button

Status Indicator

Resetting to the Factory Default Settings

To reset the AXIS 282/AXIS 282A to the original default settings, go to the System Options > Maintenance web page (described in Maintenance,

control button on the AXIS 282/AXIS 282A, as described below:

Using the Control Button

Follow the instructions below to reset the AXIS 282/AXIS 282A to the factory default settings using the Control Button.

1. Switch off the AXIS 282/AXIS 282A by disconnecting power.

2. Press and hold the Control button while reconnecting the power.

3. Keep the Control button pressed until the Status Indicator displays yellow (this may take up to 15 seconds).

on page 53) or use the

4. Release the Control button.

5. When the Status Indicator changes to Green (may take up to 1 minute), the process is complete and the AXIS 282/AXIS 282A has been reset.

6. Re-install the AXIS 282/AXIS 282A, as described in Installation, on page 10.

AXIS 282/AXIS 282A - Unit Connectors

+3.3V

Pin 1 Power in/out (8 - 20V)

Pin 2 GND

Pin 3 I/O In

Pin 4 I/O Out

Note: The gray box shows components located on the Axis 282/282A.

Pin 2Pin 1 Pin 3 Pin 4

Unit Connectors

The following connectors are described in this section:

• The Terminal I/O Connector, on page

• The 34-Pin Header,

on page 57

The Terminal I/O Connector

The AXIS 282/AXIS 282A provides one 4-pin terminal I/O connector.

Pin Function

1 Power in/out (8 - 20V)

2 GND

3 I/O In

4 I/O Out

If the AXIS 282/AXIS 282A has been configured to I/O pins see Schematic Diagram - 34 I/O Pins, on out through pin 1of the Terminal I/O

Connector.

have power going in through the 34

page 58, power can be configured to go

Schematic Diagram - Terminal I/O Connector

AXIS 282/AXIS 282A - Unit Connectors

The 34-Pin Header

This section describes the pinout and interface support provided by the 34-pin I/O terminal connector:

Pin Function Pin Function

1 Network LED green 18 Mic/Line in GND

2 Network LED red 19 •AXIS 282: Not used

282A Line out (Audio)

•AXIS

3 Status LED green 20 Line out GND

4 Status LED red 21 RS-485 B

5 Flash LED 22 RS-485 A

6 Power LED 23 Serial port RTS (RS-232)

7 Control button 24 Serial port CTS (RS-232)

8 I/O IN 25 Serial port TXD (RS-232)

9 I/O OUT 26 Serial port RXD (RS-232)

10 I/O GND 27 Serial port GND

11 Y/C Video in (Y) 28 Power GND

12 Y/C GND 29 Power GND

13 Y/C Video in (C) 30 Power I/O

14 Y/C GND 31 Power GND

15 Composite video in 32 Power IN

16 Composite Video Source GND 33 Power IN

17 •AXIS 282: Not used

AXIS 282A MIC/Line in

•

34 Power IN

AXIS 282/AXIS 282A - Unit Connectors

Schematic Diagram - 34 I/O Pins

Switch Mode

Power Supply

+3.3V

GND

Y/C

Video Source

Composite

Video Source

Amp

RS 485

External Device

RS 232 Device

+3.3V

Microphone

Power I/O

Power 8 - 20V

Note: The gray box shows components located on the Axis 282/282A.

AXIS 282/AXIS 282A - Troubleshooting

Troubleshooting

Checking the Firmware

Firmware is software that determines the functionality of the AXIS 282/AXIS 282A. One of your first actions when troubleshooting a problem should be to check the currently installed version. The latest version may contain a correction that fixes your particular problem. The current firmware version in your AXIS 282/AXIS 282A can be seen under

Setup > Basic Configuration.

Upgrading the Firmware

When you download firmware from the Axis Web site, your Axis product will receive the latest available functionality. Always read the upgrade instructions and release notes available with each new release, before updating the firmware.

New firmware can be downloaded to the AXIS 28

Pre-configured and customized settings will be retained for use when the new firmware is running (pro-

Note:

vided the features are available in the new firmware) although this is not guaranteed by Axis Communications.

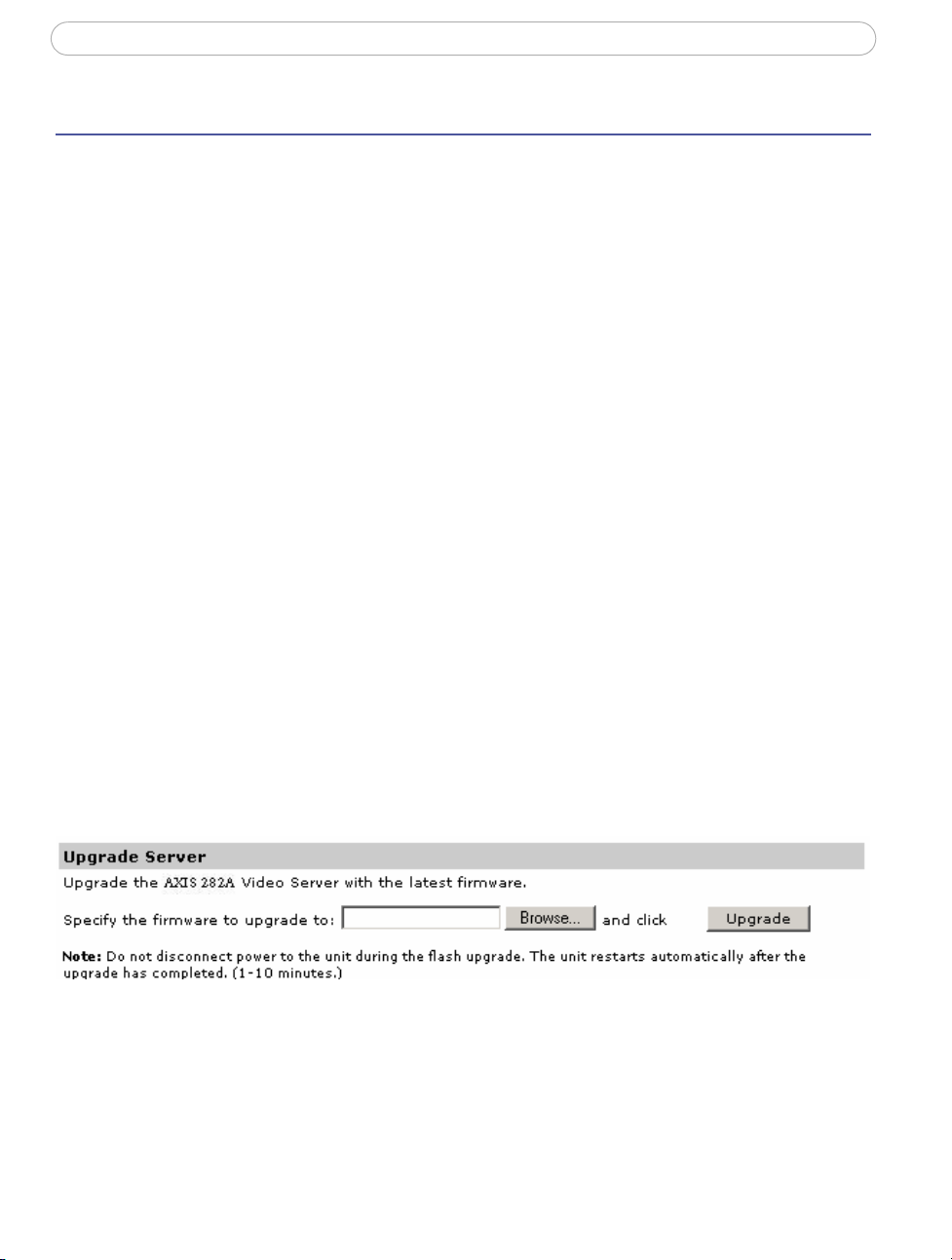

1. Save the firmware file to your computer. The latest version of the AXIS 282/AXIS 282A firmware is available free of charge from the Axis Web site at www.axis.com/techsup or from your local distributor.

2. Go to Setup > System Options > Maintenance in the Video Server’s Web pages.

3. In the Upgrade Server section and browse to the desired firmware file on your computer. Click Upgrade.

Notes:

• Always read the upgrade instructions available with each new release, before updating the firmware.

• After starting the process, you should always wait at least 20 minutes before restarting the AXIS 282/AXIS 282A, even if you suspect the procedure has failed.

• Your dealer reserves the right to charge for any repair attributable to faulty updating by the user.

2/AXIS 282A over the network.

AXIS 282/AXIS 282A - Troubleshooting

Emergency Recovery Procedure

If power or the network connection to the AXIS 282/AXIS 282A is lost during the upgrade, the process will fail and the unit will become unresponsive. A flashing red Status LED indicates a failed upgrade. To recover the unit, follow the steps below. The serial number is located on the memory capsules on top of the AXIS 282/282A.

1. Unix/Linux - From the command line, arp -s <IP address of AXIS 282/AXIS 282A> <Serial number> temp ping -s 408 <IP address of AXIS 282/AXIS 282A>

Windows - From a command/DOS prompt, type the following: arp -s <IP address of AXIS 282/AXIS 282A> <Serial number> ping -l 408 -t <IP address of AXIS 282/AXIS 282A>

2. If the unit does not reply within a few seconds, restart it and wait for a reply. Press CTRL+C to stop Ping.

3. Open a browser and type in the AXIS 282/AXIS 282A’s IP address. In the page that appears, use the Browse button to select the upgrade file to use, e.g. axis282qa.bin or axis282sa.bin. Then click the Load button to restart the upgrade process.

4. After the upgrade has completed (1-10 minutes), the unit will automatically restart and show a steady green on the Power and Status LEDs and flashing green or amber on the Network LED.

5. Reinstall the AXIS 282/AXIS 282A.

If the emergency recovery procedure does running again, please contact Axis support at www.axis.com/techsup/

type the following:

not get the AXIS 282/AXIS 282A up and

AXIS 282/AXIS 282A - Troubleshooting

Support

If you contact Axis support, please help us help you resolve your problems expediently by providing a server report, log file and a brief description of the problem.

Server Report - go

contains important information about the server and its software, as well as a list of the current parameters.

Log file - go to Setup > Syst within the unit since the last restart of the system and can prove a useful diagnostic tool for troubleshooting.

Logs and Reports

When contacting Axis support, please be sure to query. The Access Log is automatically included in the server report.

Information

This page gives you access to the following log files and when troubleshooting a problem or when contacting the Axis support web.

System Log - - Provides information about system events.

Access Log - - The Access Log may be used for various purposes:

• Security - Tracking all access to your camera.

addresses, users and networking protocols used to access the camera.

• Simple web attraction tracker.

• System analysis and trouble

to Setup > System Options > Support Overview. The server report

em Options > Logs & Reports. The Log file records events

provide a valid Server Report with your

reports that may prove useful

The access log lists the IP

shooting.

Server Report - - Provides information about the server status and

included when requesting support.

Parameter List - - Shows the unit's parameters and th

Connection List - - Lists all clients that are currently accessing video and

also used for system analysis and trouble shooting.

eir current settings.

should always be

audio. It is

AXIS 282/AXIS 282A - Troubleshooting

Symptoms, Possible Causes and Remedial Actions

Problems setting the IP address

Using ARP/Ping - the IP address must be set within two minutes after power has been applied to the Video Server

The Video Server is located on a different subnet.

The IP address is being used by another device

The AXIS 282/AXIS 282A cannot be accessed from a Web browser

Cannot log in If the AXIS 282/AXIS 282A has been configured to use HTTPS, check that the protocol in the

The IP address has been changed by DHCP

Other networking problems Test the network cable by connecting it to another network device, then Ping that device from

Cannot send notifications, uploads, alarms, etc, to a destination outside the local network

Firewall protection The Video Server can be configured to use a SOCKS server to reach networks on the other side

Your AXIS 282/AXIS 282A is accessible locally, but not externally

Firewall protection Check the Internet firewall with your system administrator. Default routers required Check if you need to configure the default router settings. The Internet site is too heavily

loaded

The Power indicator is not constantly lit

Faulty power supply Verify that you are using the correct power supply.

The Status and network indicators are flashing red

Hardware failure Contact your Axis dealer.

The Status indicator is flashing red and the server is inaccessible

A firmware upgrade has been interrupted or the firmware has been damaged in some other way.

Restart the server and try again. Ensure also the ping length is set to 408. See or ARP and Ping in Windows on p

If the IP address intended for the AXIS 282/AXIS 282A and the IP address of your computer are located on different subnets, you will not be able to set the IP address. Contact your network administrator for an IP address on the same subnet as the computer you are performing the installation from.

Disconnect power from the AXIS 282/AXIS 282A. Run the Ping command (in a Command/DOS window, type pi

If you receive: Reply from address may already be in use by another device on your network. You must obtain a new IP address and reinstall the unit.

If you receive: Request timed out - this means that the IP address is available for use with your Video Server. In this case, check all cabling and reinstall the unit.

URL used to access the unit is correct. You may need to type this in manually (i.e. http or https) in the browser’s address field.

1) Move the AXIS 282/AXIS 282A to an isolated network or to one with no DHCP or BOOTP server. Set the IP address again, using the ARP Ping command.

2) Access the unit and disable BOOTP and DHCP in th main network. The unit now has a fixed IP address that will not change.

3) As an alternative to 2), if dynamic IP address via DHCP or BOOTP is required, select the required service and then configure IP address change notification from the network settings. Return the unit to the main network. The unit will now have a dynamic IP address, but will notify you if the address changes.

your workstation. See instructions above.

of a firewall/proxy server

Use a script on your web server to relay images from the AXIS 282/AXIS 282A to the Internet.

A rescue firmware is running in the product. First, set the IP address using AXIS IP utility or ARP and Ping, see page 10. Then, using a browser, access the unit and to the product, see Upgrading the Firmware, o

age 12, or ARP and Ping in UNIX/Linux on page 13.

<IP address>: bytes = 32; time = 10 ms..... - this means that the IP

ng <IP address of unit>

e TCP/IP settings. Return the unit to the

download the latest firmware

n page 59.

AXIS 282/AXIS 282A - Troubleshooting

No images displayed in the Web interface

Problem with AMC (Internet Explorer only)

Installation of additional ActiveX component restricted or prohibited

Video Image Problems

Black borders around the video image

Problems uploading own files There is only limited space available for the upload of your own files. Try deleting one or more

Missing images in uploads This can occur when trying to use a larger image buffer than is actually available. Try lowering

Slow image update Configuring e.g. pre-buffers, motion detection, high resolution images, high frame rates, etc.,

Slow performance Slow performance may be caused by e.g. heavy network traffic, multiple users accessing the

Bad snapshot images

Display incorrectly configured on your workstation

Problems with the MPEG-4 format

Lower frame rate than expected. Check with the administrator that there is enough bandwidth available. Check also the settings

No MPEG-4 displayed in the client.

No multicast MPEG-4 displayed in the client.

Multicast MPEG-4 only accessible by local clients.

Poor rendering of MPEG-4 images.

Color saturation is different in MPEG-4 and Motion JPEG.

No audio

To enable the updating of images in Microsoft Internet Explorer, set your Web browser to allow ActiveX controls. Also, make sure that AXIS Media Control (AMC) component is installed on your workstation.

Configure your AXIS 282/AXIS 282A to use a Java applet for updating the images under Live View Config > Layout > Default Viewer for Internet Explorer. See the online help for more information.

Adjust the X and/or Y offset, in the Video Source Settings. See the online help for information.

existing files, to free up space

the frame rate or the upload period.

will reduce the performance of the Video Server.

unit, low performance clients, use of features such as Motion Detection, Event handling, Image rotation.

In Display Properties, configure your display to show at least 65000 colors, i.e. at least 16-bit.

Using only 16 or 256 colors on your display will produce dithering artifacts in the image.

for bit rate control, in the Video & Image > Advanced > MPEG-4 settings. Using an inappropriate video object type can also affect the frame rate. tion.

Check in the AMC control panel applet (MPEG-4 tab) that only I frames.

Lower the image resolution.

Reduce the number of applications running on the client computer. Check that the correct network interface is selected in the AMC control panel applet (network

tab).

Check that the relevant MPEG-4 connection methods are enabled in the AMC control panel applet (network tab).

In the AMC control applet, select the MPEG-4 tab and click the button Set to default MPEG-4 decoder.

Check with your network administrator that the multicast addresses used by the AXIS 282/AXIS 282A are valid for your network.

Check with your network administrator to see if there is a firewall preventing viewing. Check if your router supports multicasting, or if the router settings between the client and the

server need to be configured. The TTL (Time To Live) value may need to be increased. Color depth set incorrectly on clients. Set to 16-bit or 32-bit color. If text overlays are blurred, or if there are other rendering problems, you may need to enable

Advanced Video Rendering. This is done on the MPEG-4 tab in the AMC control panel applet. Ensure that your graphics card is using the latest device driver. The latest drivers can usually be

downloaded from the manufacturer's web site. Modify the settings for your graphics adapter. Please see the adapter's documentation for more

information.

See the online help for more informa-

video processing is not set to Decode

AXIS 282/AXIS 282A - Troubleshooting

Incorrect setup. Check that the sound card in the PC and the connections to the speaker and microphone are

Post Content Length in proxy server.

Full duplex not supported. Sound card does not support full-duplex. For information on how to check if your sound card

Firewall or router settings. AXIS 282/AXIS 282A works locally, but not externally. Check the Internet firewall settings with

DC power not enabled for microphone.

Audio volume too low/high (AXIS 282A only)

Volume settings incorrect. The volume of the microphone or speaker connected to the AXIS 282A is either too high or too

Input and output gain set incorrectly.

Poor audio quality (AXIS 282A only)

Too many users. Too many users/clients listening to audio from the AXIS 282A may adversely affect the sound

User too close to microphone. Enable the speech filter in Audio > Advanced Settings. Feedback from speaker. Enable the echo cancellation filter in Audio > Advanced Settings. Background noise. Adjust the noise cancellation threshold and attenuation to reduce background noise levels in

CPU overloaded. Reduce the number of listeners and viewers and decrease the image resolution and compres-

working. Ensure that the mute button is not pressed and the volume settings are correct. Ensure that full-duplex is selected if you want to have two way audio communication.

The Post Content Length set in the proxy server is too low. Set the value of the Post Content Length in your proxy server to 1MB or more. You may need to contact your system administrator to do this.

supports full-duplex, please visit http://support.microsoft.com

your system administrator or reconfigure the default router settings. If the microphone has a built-in amplifier then the DC power must be enabled on the Audio

Settings page.

low. Change the volume for the speaker or microphone in the Live View page. Change the input gain for the microphone and the output gain for the speaker to adjust the

audio levels on the Audio Settings page.

quality.

Audio > Advanced Settings.

sion.

For additional assistance, please contact your reseller or check the product’s support pages on the Axis Website at www.axis.com/techsup

AXIS 282/AXIS 282A - Technical Specifications

Technical Specifications

Item Specification Models • AXIS AXIS 282: 1-channel bare board video server

• AXIS AXIS 282A: 1-channel bare board video server with two-way audio

Video compression • Motion-JPEG

• MPEG-4 Part2 (ISO/IEC 14496-2), Profiles: ASP and SP

Resolutions • 4CIF, 2CIF Expanded, 2CIF, CIF, QCIF

• Maximum 704x480 (NTSC) 768x576 (PAL)

• Minimum 160x120 (NTSC) 176x144 (PAL)

Frame rates (NTSC/PAL)

Video streaming • Simultaneous Motion JPEG and MPEG-4

Image settings • Compression levels: 11 (Motion JPEG), 23 (MPEG-4)

Audio features AXIS 282A only

Security • Multiple user levels with password protection

Alarm and event

nagement

Pan/Tilt/Zoom • A wide range of analog PTZ dome cameras are supported, free drivers available

• Motion JPEG: Up to 30/25 fps at 4CIF

• MPEG-4: Up to 30/25 fps at 2CIF

• MPEG-4: Up to 20/17 fps at 4CIF

• Controllable frame rate and total bandwidth

• Constant and variable bit rate (MPEG-4)

• Rotation: 90

• Aspect ratio correction

• Color and black/white

• Overlay capabilities: time, date, text

• Deinterlacing filter

• Mirroring

• G.711 PCM 64kbit/s

• G.726 ADPCM 32 or 24 kbit/s

• full duplex

• half duplex

• simplex or audio off

• IP address filtering

• HTTPS encryption

• IEEE 802.1X authentication

• Digest authentication

• Events triggered by built-in motion detection, external inputs or according to a schedule

• Image upload over FTP, email and HTTP

• Notification over TCP, email, HTTP and external outputs

• Pre- and post alarm buffer of 9 MB (approx. 4 min of CIF resolution video at 4 mes per second)

fra

at www.axis.com

• 20 presets

• Guard tour

• PTZ control queue for all supported PTZ units available

, 180o, 270

, image or privacy mask

from www.axis.com

AXIS 282/AXIS 282A - Technical Specifications

Item Specification Connectors • One 34-pin I/O header

- 1 analog composite or Y/C video input (NTSC/PAL autosensing)

- RS-485 or RS-232 port

- 1 alarm input, 1 alarm output

- Power connection (input and output)

- LED outputs

- Audio input (282A): Microphone (54 mVpp) or Line in (8.0 Vpp), mono

- Audio output (282A): Line out (2.6 Vpp), mono

• Terminal block:

- 1 alarm input, 1 alarm output

- Alternative power connection

- Ethernet 10BaseT/100BaseTX, RJ-45connector

Processors and memory • CPU: ETRAX-100 LX 32-bit

• Video processing and compression: ARTPEC-2 chip

• RAM AXIS 282 - 32MB

• RAM AXIS 282A - 32MB

• Flash memory - 8 MB

Power • Via pin 3 of the Terminal Block: 8 - 20V DC, max 8W

• Via pins 32 - 34 of the 34-pin header: 8 -20V DC, max 8W

Operating conditions

Installation, management and maintenance

Video access from Web browser

Minimum requirements • Pentium III 500 MHz or higher or equivalent AMD

System integration support

Supported protocols HTTP, HTTPS, SSL/TLS*, TCP, SNMPv1/v2cv/v3 (MIB-II), RTSP, RTP, UDP, IGMP, RTCP,

• Temperature: 5

• Humidity: 20-80% RH (non-condensing)

• User’s manual and installation tool configuration

• Configuration backup and restore

• Firmware upgrades over HTTP or FTP, firmwar

• Camera live view

• Sequence tour capability for up to 20 PTZ presets or other Axis video sources

• Customizable HTML pages

• 128 MB RAM

• AGP graphics card, DirectDraw, 32 MB video RAM

• Windows 2000 or later

• DirectX 9.0 or later

• Internet Explorer 5.x or later. For other oper www.axis.com/techsup

• Powerful API for software integration available at www.axis.com, including HTTP API, AXIS Media Control SDK

• Event trigger data in video stream

• Embedded scripting and access to serial

• Watchdog secures continuous operation, and can be monitored by other systems via event notification

• Embedded operating system: Linux 2.4

SMTP, FTP, DHCP, UPnP, ARP, DNS, DynDNS, SOCKS. More information on protocol usage available at www.axis.com

C (41oF) to 50oC (122oF)

available at www.axis.comWeb-based

e available at www.axis.com

ating systems and browsers, see

port peripherals over HTTP/TCP

*This product includes software developed by the Open SSL Project for use in the Open SSL Toolkit.

AXIS 282/AXIS 282A - Technical Specifications

Item Specification Applications

(not included)

Included Accessories • Pentium MPEG-4 licenses (1 encoder, 1 decoder)

Accessories (not included)

Approvals • AXIS 282/AXIS 282A is delivered as a component for the sole purpose of being

Dimensions • HxWxD = 19 x 79 x 82mm (3/4” x 3 1/8” x 3 1/4”)

• API AXIS Camera Station - Surveillance application for viewing, recording and

archiving up to 25 cameras

• AXIS Camera Management – Efficient install

network video products

• AXIS Camera Explorer – Basic software

• See www.axis.com/partner/adp_partners.htm for more software applications via

partners

• MPEG-4 decoder (Windows)

• AXIS 292 Network Video Decoder

• AXIS MPEG-4 Decoder 10 user license pack

integ

rated into a product or system. The foregoing implies an obligation on behalf of the integrator to obtain any approvals from authorities or governmental bodies that may be required for the lawful use of the finished product or system, which includes the AXIS 282/AXIS 282A as a component.Resale and use of the AXIS 282/AXIS 282A on a stand-alone basis is not allowed.

• Weight: 60g (2 1/8oz)

ation and management tool for Axis

for viewing and manual recording

AXIS 282/AXIS 282A - Technical Specifications

General performance considerations

When setting up your system, it is important to consider how various settings and situations will affect performance. Some factors affect the amount of bandwidth (the bit rate) required, others can affect the frame rate, and some will affect both. If the load on the CPU reaches its maximum, this will also affect the frame rate.

The following factors are among the most important to consider:

• High image resolutions and/or lower compression Bandwidth affected.

• Access by large numbers of Motion JPEG an width affected.

• Simultaneous viewing of different streams (resolution, ferent clients. Frame rate

• Accessing both Motion JPEG and MPEG-4 video streams rate and bandwidth affected.

• Heavy usage of event settings affects the CPU load. Frame rate affected.

• Enabled motion detection. Frame rate and bandwidth affected.

• Heavy network utilization due to poor infrastructure.

• Viewing on poorly performing client PC lowers perceived performance. Frame r

ate affected.

• Access by large number of audio clients using affected.

and bandwidth affected.

levels result in larger images.

d/or unicast MPEG-4 clients. Band-

compression, etc.) by dif-

simultaneously. Frame

Bandwidth affected

full-duplex mode. Bandwidth

Optimizing your system

To see the bandwidth and frame rate currently required by the video stream, the AXIS 282/AXIS 282A provides a tool that can be used to display these values directly in the video image.

To do this, special format strings of a text overlay. Simply add #r (average frame rate in fps) and/or #b (average bandwidth in Kbps) bandwidth in Kbps) to the overlay.

For detailed instructions, please see the online help for Vi

deo & Image > Overlay Settings, and the

help for File Naming & Date/Time Formats.

are added as part

AXIS 282/AXIS 282A - Technical Specifications

Important!

•The figures displayed here are the values as delivered by the server. If other restrictions are currently in force, (e.g. bandwidth limitation) these values might not correspond to those actually received by the client.

•For Motion JPEG, these values will only be accurate as long as no frame rate limit has been specified.

Frame rates - Motion JPEG

The following test results show the frame rates in frames/second (fps) for Motion JPEG streams from the AXIS 282/AXIS 282A, using a compression level of 50%. Note that these values are guidelines only - actual values may vary.

fps (PAL/NTSC)

1 channel

4CIF 25/30

2CIF expanded 25/30

2CIF 25/30

CIF 25/30

QCIF 25/30

Frame rates - MPEG-4

The following test results show the frame rates in frames/second (fps) for MPEG-4 streams from the AXIS 282/AXIS 282A. Note that these values are guidelines only - actual values may vary.

The MPEG-4 test conditions:

• Compression level = 50% Video Object Type = Advanced Simple

•

• GOV structure = IP*

fps (PAL/NTSC)

1 channel

4CIF 17/21

2CIF expanded 17/21

2CIF 25/30

CIF 25/30

QCIF 25/30

*Note that setting the GOV structure to use “I-frames only” will increase the frame rate.

AXIS 282/AXIS 282A - Technical Specifications

Bandwidth

As there are many factors affecting bandwidth, it is very difficult to predict the required amounts. The settings that affect bandwidth are:

• the image resolution

• the image compression

•the frame rate

• the MPEG-4 object type

• the MPEG-4 GOV structure

• the analog cameras connected to the Vi

• the audio settings

There are also factors in the monitored scene that

• the amount of motion

• the image’s complexity

• the lighting conditions.

For MPEG-4, if there is only limited bandwidth available, and if than the image quality, using a constant bit rate (CBR) is recommended. Use a variable bit rate (VBR) if the image quality needs to be maintained at a higher level. If supported on the network, consider also using MPEG-4 multicasting, as the bandwidth consumption will be much lower.

deo Server

will affect the bandwidth. These are:

this is more important

AXIS 282/AXIS 282A - Glossary

Glossary

Active Speaker - a speaker with a built-in power amplifier.

ActiveX - A control (or set of rules) used by a browser. ActiveX controls are often downloaded and installed automatically as required.

AMC - AXIS Media Control. The control required for viewing video images in Internet Explorer. Installs automatically on first use.

API - Application Programming Interface. The Axis API can be used for integrating Axis products into other applications.

ARP - Address Resolution Protocol. Used to associate an IP address to a hardware MAC address. A request is broadcast on the local network to find out what the MAC address is for the IP address.

ARTPEC - Axis Real Time Picture Encoder - used for image compression.

BOOTP - A protocol that can automatically configure a network device (give it an IP address).

CGI - Common Gateway Interface. A set of rules (or a program) that allows a Web Server to communicate with other programs.

Client/Server - Describes the network relationship between two computer programs, in which one, the client, makes a service request from another - the server.

DC-Iris - This special type of iris is electrically controlled by the Axis camera, to automatically regulate the amount of light allowed to enter.

dB (Decibels) - A unit to measure sound level changes. A 3dB change is the smallest level change we can hear. A 3dB change is actually twice or half the audio power level. A gain of 0dB will leave the signal level unchanged.

De-interlacing - De-interlacing is the process taking a stream of interlaced frames and converting it to a stream of progressive frames.

DSL - Digital Subscriber Line. A means of transferring data via standard phone lines.

Ethernet - A widely used networking standard.

ETRAX - Axis' own microprocessor.

Firewall - A virtual barrier between a LAN (Local Area

Network) and other networks, e.g. the Internet.

FTP - File Transfe of files to and from an FTP-server.

Full-duplex directions simultaneously.

G.711 - G.7 telephone audio on 64 kbps channel. It is a pulse code

r Protocol. Used for the simple transfer

Transmission of data, e.g. audio, in two

11 is the international standard for encoding

modulation (PCM) scheme operating at 8 kHz sample rate.

G.726 - Frequently telecommunications due to its high perceived speech quality and low resource requirements.

Half-duplex- A half-duplex link direction at a time only, much like a walkie-talkie. Two way communication is possible, but not simultaneously.

HTTP - H exchanging files (text, images, sound, video, and other files) on the World Wide Web.

HTTP-S (HTTPS)- An extension to the HTTP protocol to support sending data securely over the World Wide Web.

Intranet - A private network limited to an organization or corporation. Usually closed to external traffic.

IP - Internet Protocol. See TCP/IP.

IP address - A unique number used by a computer on the

network to allow it to be identified and found.

ISMA - Internet Streaming Media Alliance.

JPEG - A standard image format, used widely for

photographs. Also known as JPG.

LAN - A local area network (LAN) is a group of computers and associated devices that typically share common resources within a limited geographical area.

Linux - A popular operating system that is “open source” and practically free of charge.

Lux - A standard unit for light measurement.

Mbit/s - Megabits per second. A unit for measuring

speeds in networks. A LAN might run at 10 or 100 Mbit/s.

MPEG-4 - A video compression standard that makes good use of bandwidth, and which can provide DVD-quality video streams at less than 1 Mbit/s.

Multicast - A bandwidth-conserving technology that reduces bandwidth usage by simultaneously delivering a single stream of information to multiple network recipients.

PEM - Privacy Enhanced Mail. An early standard for securing electronic mail. The PEM-format is often used for representing an HTTPS certificate or certificate request.

Ping - A small utility used for sending data packets to network resources to check that they are working and that the network is intact.

Pre/post alarm image - The images from immediately before and after an alarm.

Protocol - A special set of rules governing how two entities will communicate. Protocols are found at many levels of communication, and there are hardware protocols and software protocols.

Router - A device that determines the next network point

ypertext Transfer Protocol. The set of rules for

used speech-compression algorithm in

communicates in one

AXIS 282/AXIS 282A - Glossary

to which a packet should be forwarded on its way to its final destination. A router is often included as part of a network switch (see below).

RTP- Real-Time Transfer Protocol. A transfer protocol designed for the delivery of live content, e.g. MPEG-4.

Simplex communications channel can only send information in one direction; it's a “one-way street”.

SMTP to send e-mail across the Internet. SMTP authentication is a way of allowing people outside of a domain to use an SMTP server when sending e-mail.

SNMP - Simple Network Management Protocol. An application layer protocol that facilitates the exchange of management information between network devices. It is part of the Transmission Control Protocol/Internet Protocol (TCP/IP) protocol suite.

Subnet Mask - An IP address consists of two components: the network address and the host address. “Subnetting’ enables a network administrator to further divide the host part of the address into two or more subnets. The subnet mask identifies the subnet to which an IP address belongs.

Switch - Whilst a simple hub transmits all data to all devices connected to it, a switch only transmits the data to the device it is specifically intended for.

TCP/IP - Transmission Control Protocol/Internet Protocol. A suite of network protocols that determine how data is transmitted. TCP/IP is used on many networks, including the Internet. TCP keeps track of the individual packets of information and IP contains the rules for how the packets are actually sent and received.

UDP - The User Datagram Protocol is a communications protocol that offers a limited amount of service when messages are exchanged between computers in a network that uses the Internet Protocol (IP). UDP is an alternative to the Transmission Control Protocol (TCP) and, together with IP, is also known as UDP/IP.

Unicast - Communication between a single sender and a single receiver over a network. A new connection is established for each new user.

URL - Uniform Resource Locator. An “address" on the network.

Varifocal - A varifocal lens provides a wide range of focal lengths, as opposed to a lens with a fixed focal length, which only provides one.

WAN - Wide-Area-Network. Similar to a LAN, but on a larger geographical scale.

Web server - A program on a computer that delivers the resources (usually web pages) requested by the web user (the client).

In simplex operation, a network cable or

Simple Mail Transfer Protocol is the protocol used

AXIS 282/AXIS 282A - Index

Index

Action buttons 11, 29 Active/Inactive 11 Administrators 18, 44 Advanced TCP/IP settings 49 Alarm 31, 35 AMC 15 Anonymous viewers 44 Audio input 25 Audio output 26 Audio transmission 16 AXIS Internet Dynamic DNS Service 48

Backup 53 Bandwidth 13, 70 Basic TCP/IP settings 48 Buffers 33

CGI links 29, 40 Click-in-image 40 Constant bit rate 13 Control button 8, 55 Customize 27

Factory default settings 55 Frame rates 20, 69 FTP server 31 Full duplex 24

Half duplex 24 Host name 49 HTML examples 30 HTTP API 29, 40 HTTP port number 50 HTTP server 31 HTTP-API 17 HTTPS 45

I/O Ports 53 I/O terminal connector 8 Include windows 35 Installing PTZ devices 37 Internal video sources 11 IP address filtering 44

Live view config 27 Live View page 18 Logs & Reports 54

Date & Time 47 DIP switch 8 DNS configuration 49

Email server 52 Emergency recovery 60 Event servers 31 Event types 31 External video 30 External video sources 11

Maximum bandwidth 50 Motion detection 35 Motion JPEG 13, 16 MPEG-4 13, 16 MPEG-4 clients 16 MPEG-4 protocols 14 MPEG-4 settings 52 Multicasting 14

Network settings 48 Network traffic 50 Notification of IP address change 48

AXIS 282/AXIS 282A - Index

Operators 45 Output buttons 11 Overlays 20, 24 Own home page 28 Own web files 28

Pan/Tilt/Zoom 39 Port status 36 Ports & Devices 52 Post-trigger buffer 33 Preset positions 41 Pre-trigger buffer 33 PTZ commands 29, 40 PTZ control queue 43 Pulse 11

Quad stream 21

Recovery 60 Referrals 45 Relative and absolute PTZ drivers 39 Restart 53 Restore 53 RTP 14, 52 RTSP 14, 50

TCP server 31 TCP/IP settings 48 Troubleshooting 59

UDP 14 Unicasting 14 Upgrade Server 53 UPnP 52 User defined links 29 Users 44

Variable bit rate 13 Video output 8 Video source 11, 20 Video streams 13, 16, 20 View size 10

Security 44 Sequence mode 11, 30 Services 48 Simplex 24 SMTP settings 52 Snapshot 11 SOCKS server 51 Specifications 65 Streaming MPEG-4 15 Support 53 Synchronization 17 System options 44

AXIS 282, 282A User Guide

Specifications and Main Features

Frequently Asked Questions

User Manual

Product Description

Integration of the AXIS 282/282A into end products or systems

Installation

Installation Methods

AXIS IP Utility

UPnP™

ARP and Ping in Windows

ARP and Ping in UNIX/Linux

Using the Video Server

Accessing the Video Server

Setting the root password

The Live View page

Video and Audio Streams

Video Stream Types

Audio Stream Types

MPEG-4 protocols and communication methods

How to stream MPEG-4

The AXIS Media Control

Other methods of accessing the video stream

Other MPEG-4 clients

Accessing the Audio Streams

Configuring the Video Server

Video & Image Settings

Image Settings

Video Source Settings

Advanced

Overlay/Mask Settings

Audio - AXIS 282A only

Live View Config

Layout

HTML Examples

External Video

Sequence Mode

Pan Tilt Zoom

Installing PTZ Devices

PTZ Configuration

Event Configuration

Event Servers

Event Types

Camera Tampering

Port Status

System Options

Security

Date & Time

Network - Advanced TCP/IP Settings

SOCKS

QoS (Quality of Service)

SMTP (email)

SNMP

UPnP™

RTP/MPEG-4

Bonjour

Ports & Devices

Maintenance

Support

Advanced

Resetting to the Factory Default Settings

Unit Connectors

The Terminal I/O Connector

Schematic Diagram - Terminal I/O Connector

The 34-Pin Header

Schematic Diagram - 34 I/O Pins

Troubleshooting

Checking the Firmware

Upgrading the Firmware

Technical Specifications

General performance considerations

Optimizing your system

Frame rates - Motion JPEG

Frame rates - MPEG-4

Bandwidth

Glossary

Index
