Aviosys IP Video 9100B User Manual

IP Video 9100

User Guide

IP VIDEO 9100 USER MANUAL

User Guide

IP Video 9100

Manual version: 2.1

Date: June. 30, 2004

VER. 2.10,

- 1 -

Caution: Any changes or modifications not approved by the party
responsible for compliance could void the user’s authority to operate the
equipment.

Note: This equipment has been tested and found to comply with the limits
for FCC and CE. These limits are designed to provide reasonable
protection against harmful interference when the equipment is operated in
commercial environment.

Important Notice

1. IP Video 9100 is for indoor use only.

2. IP Video 9100 is not waterproof. Therefore we will not hold any
damage responsibility if IP Video is used under raining condition.

3. Be sure to use the DC adapter that is provided by your dealer. We will
not hold any responsibly if wrong DC adapter is in use.

4. Be caution in handling IP Video 9100 for physical shocks may
occur serious damage.

5. If IP Video 9100 does not operate properly, please contact your local

dealer for after sale service. In all cases, you are prohibited to
disassemble the product. If so, we do not hold any responsibility for
mal-function nor service warranty.

- 2 -

IP VIDEO 9100 USER MANUAL

Table of Contents

1. PRODUCT OVERVIEW............................................................................................... 4

FEATURES ......................................................................................................

2. PHYSICAL DESCRIPTION ......................................................................................... 5

SPECIFICATION ..................................................................................................................

SYSTEM MINIMUM REQUIRNMENT .......................................................................................

3. PANEL DESCRIPTION…………………………………………………………………6

FRONT PANEL………………………………………………………………………………
BACK PANEL………………………………………………………………………………..

4. INSTALLATION………………………………………………………………………..7

PREPERATION....................................................................................................................

HARDWARE INSTALLATION .................................................................................................

SOFTWARE INSTALLATION ...............................................................................................

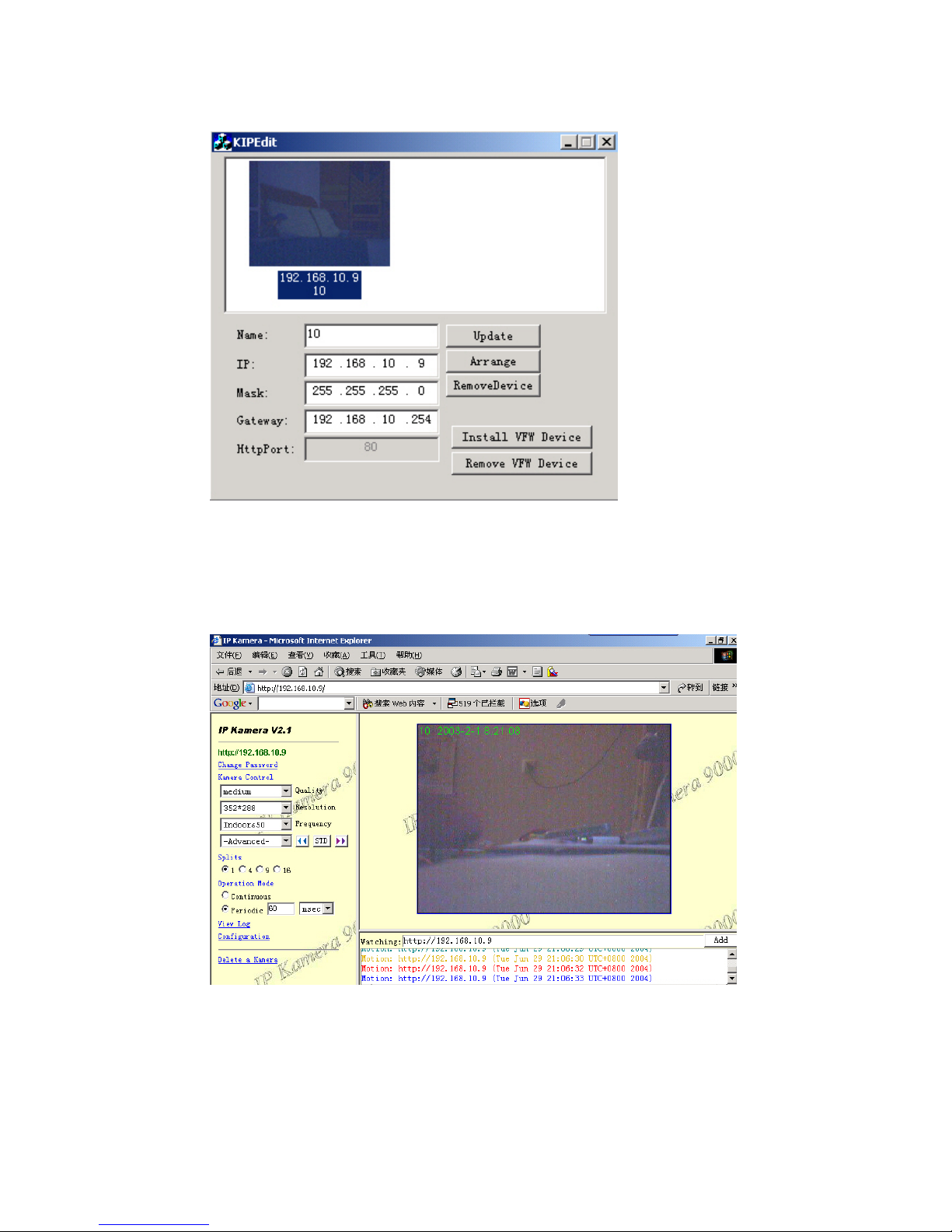

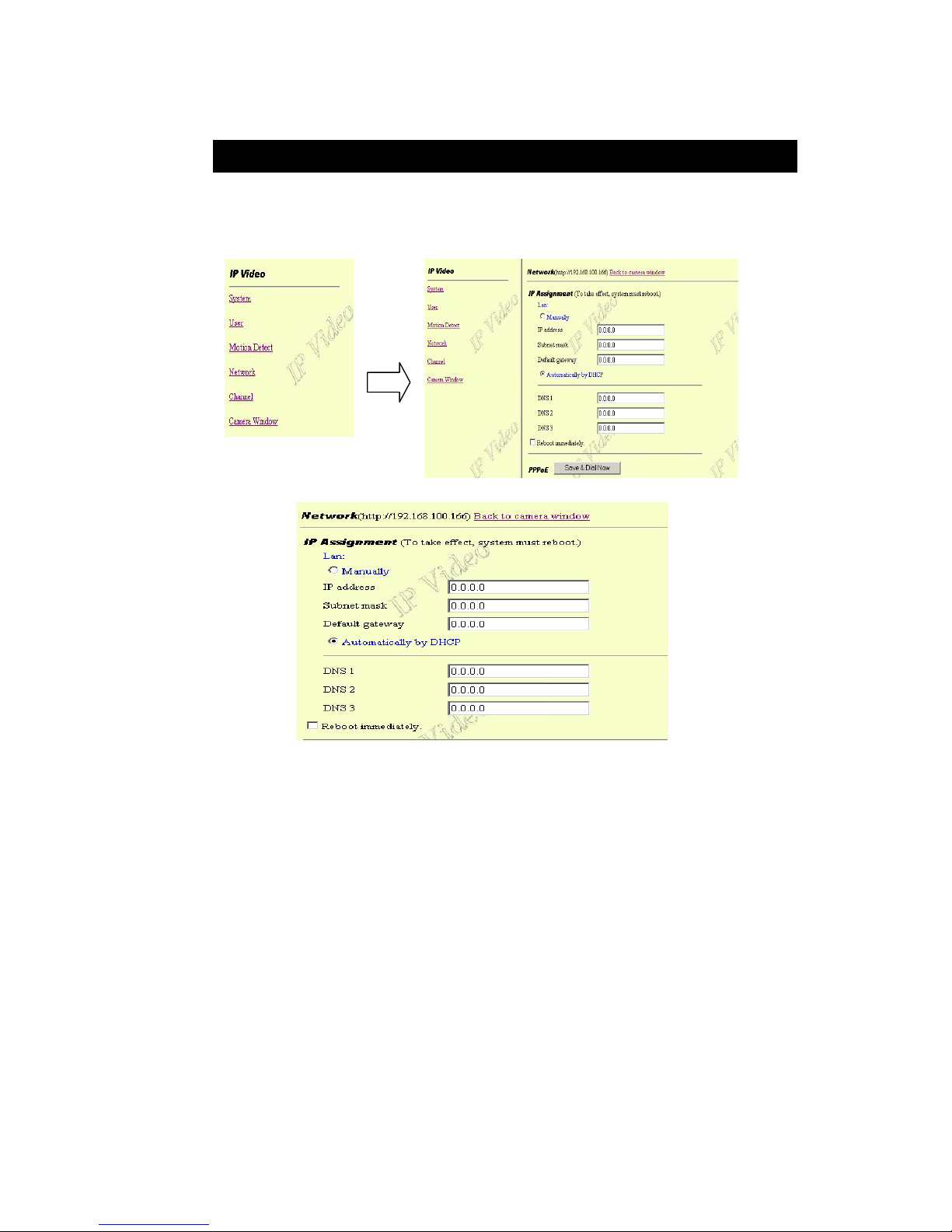

5. INTERNET SET UP ................................................................................................... 14

LAN SET UP........................................................................................................................

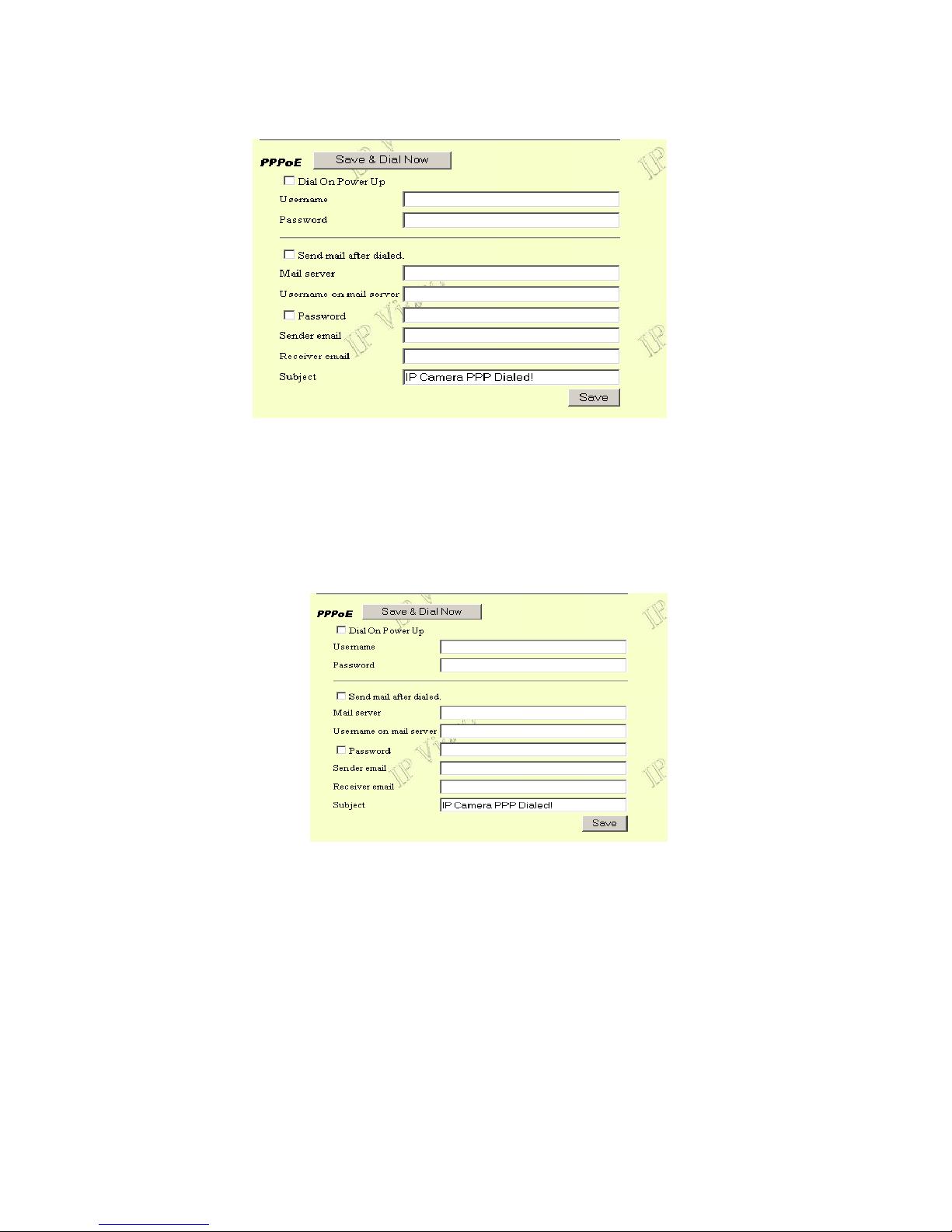

INTERNET SET UP...............................................................................................................

6. FUNCTION…………………………………………………………………………….16

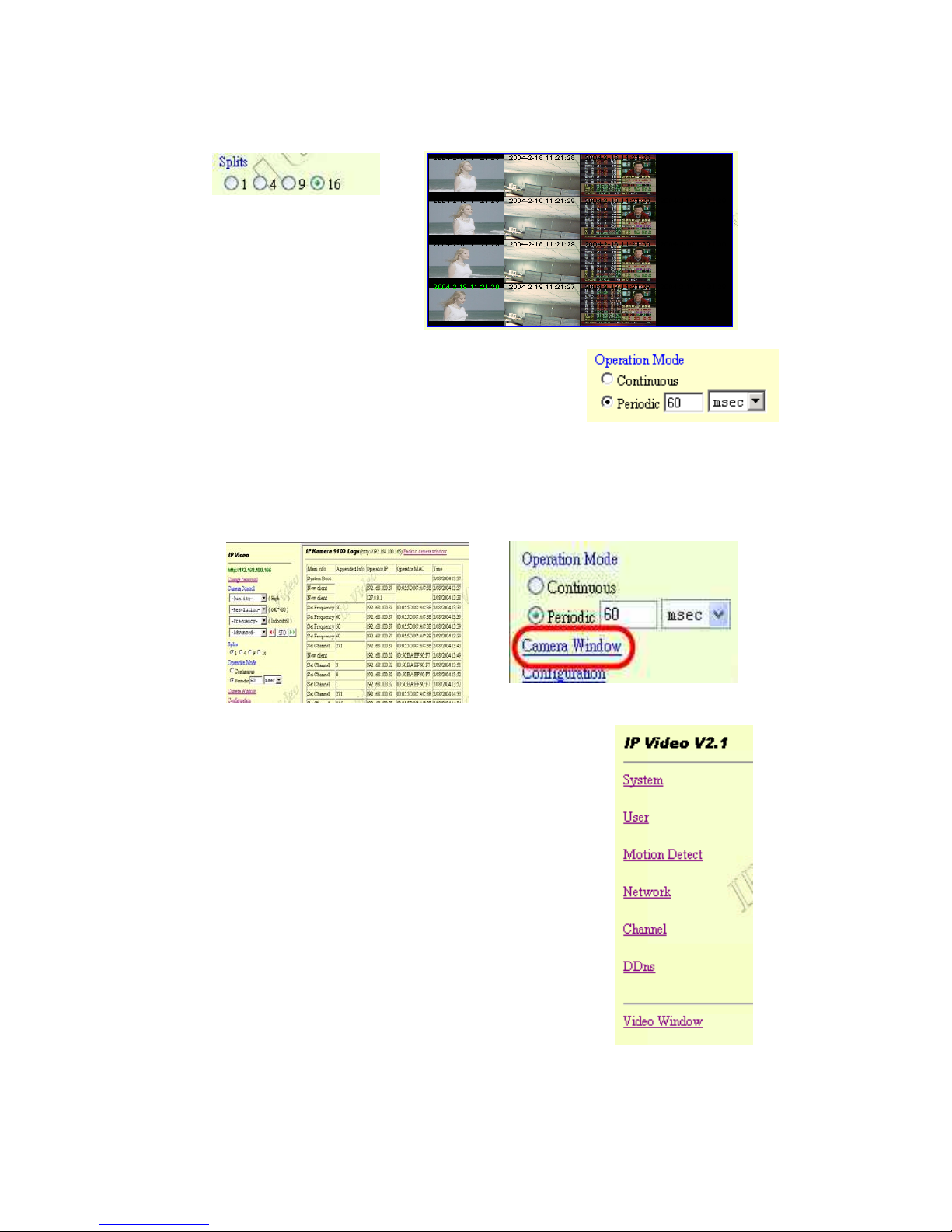

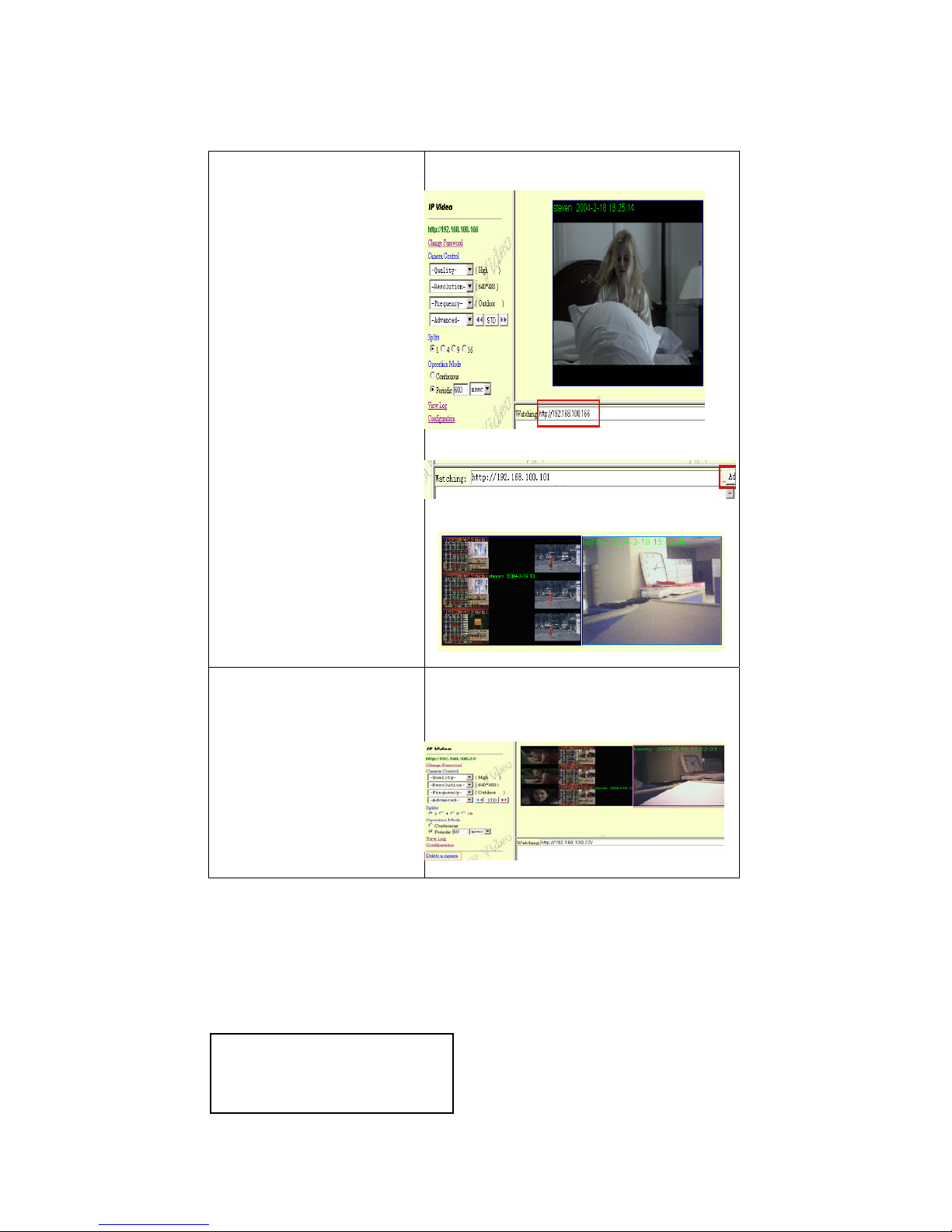

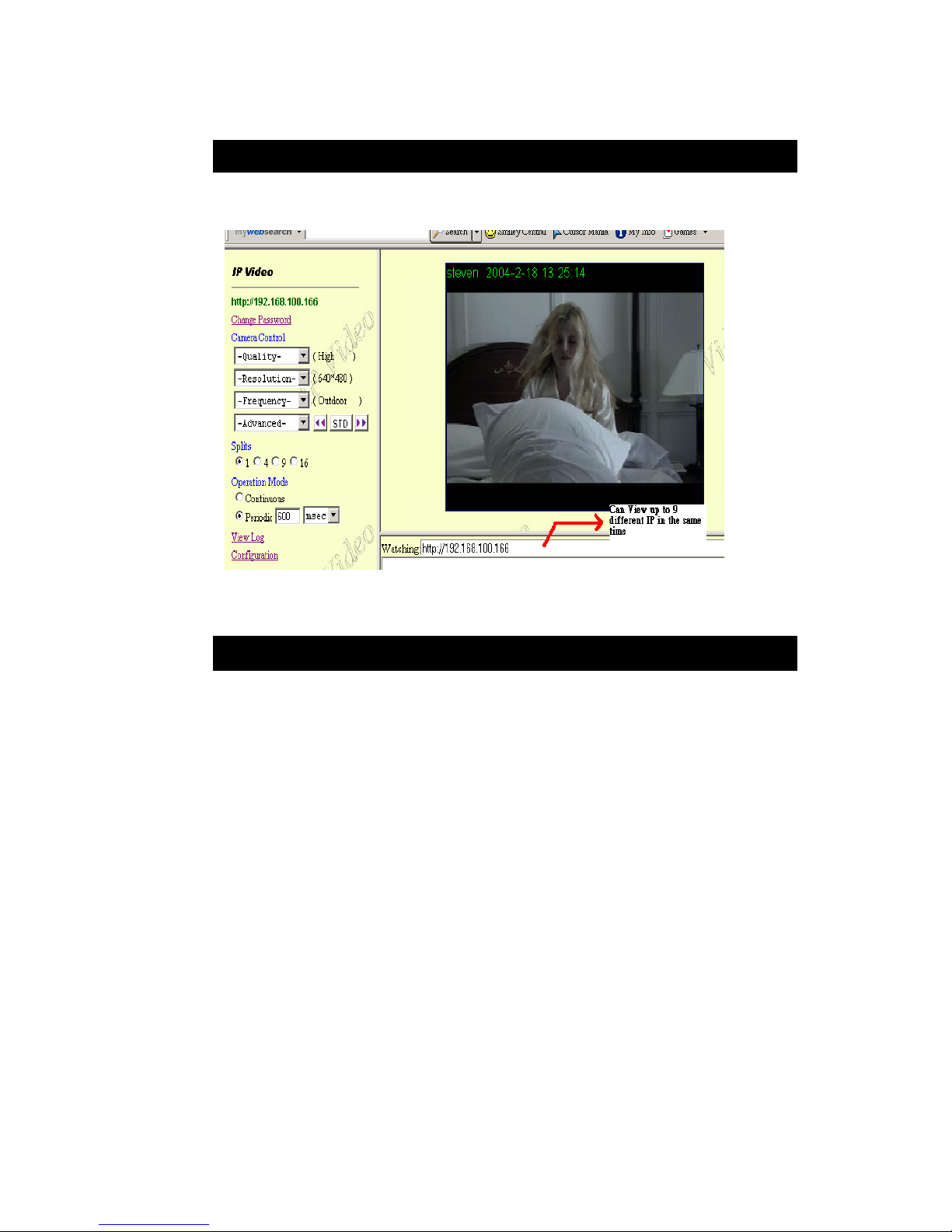

SIMPLE FUNCTION .............................................................................................................

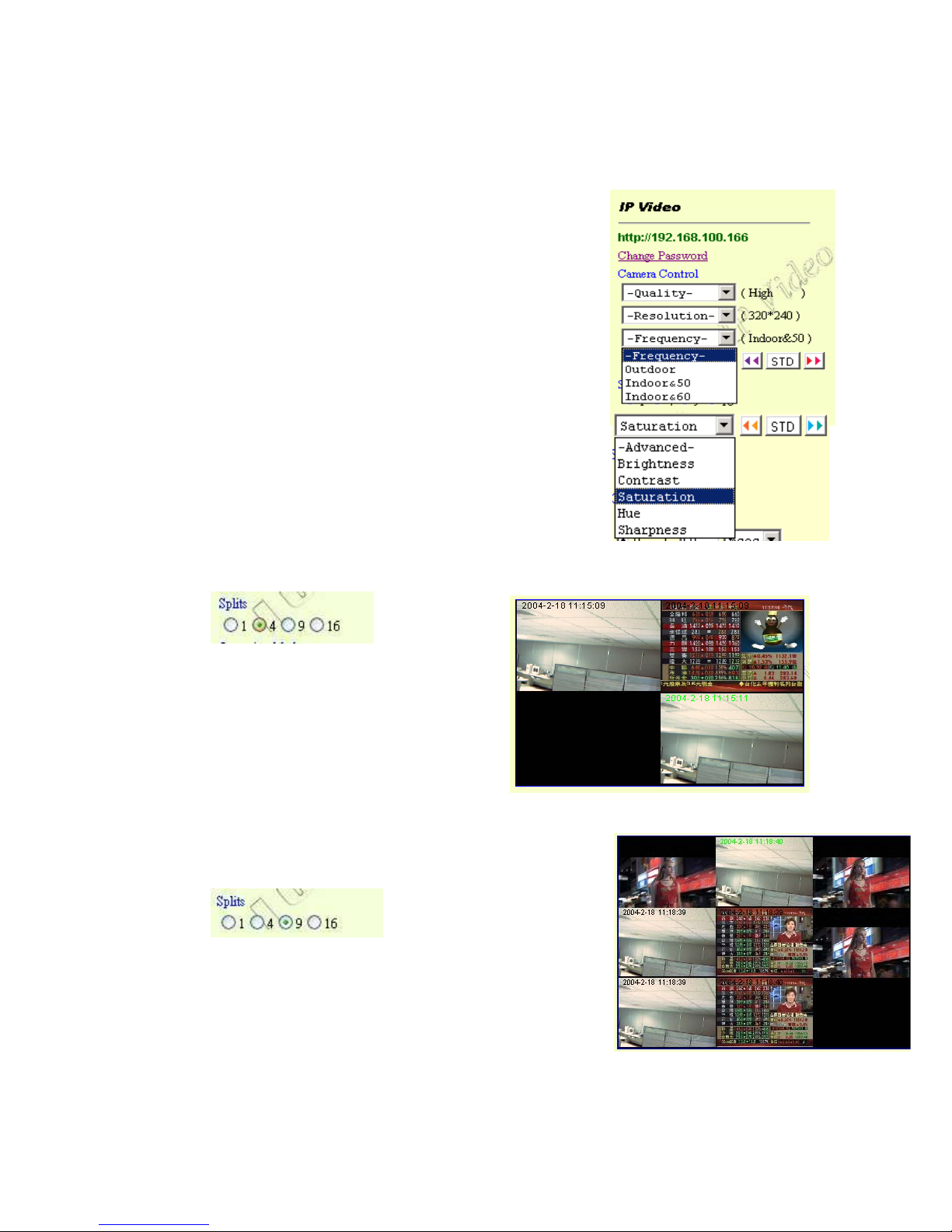

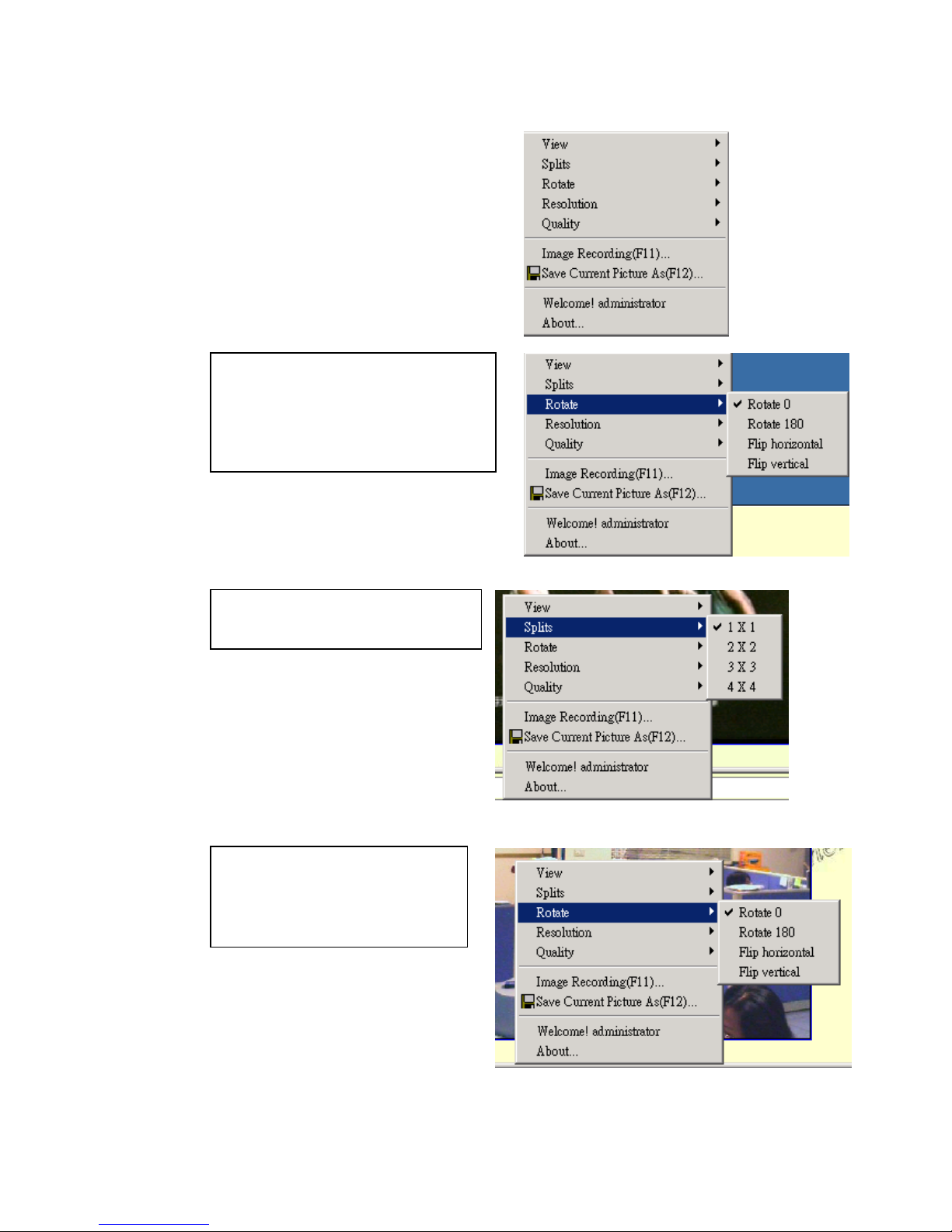

VIDEO ADJUSTMENT………………………………………………………………………..

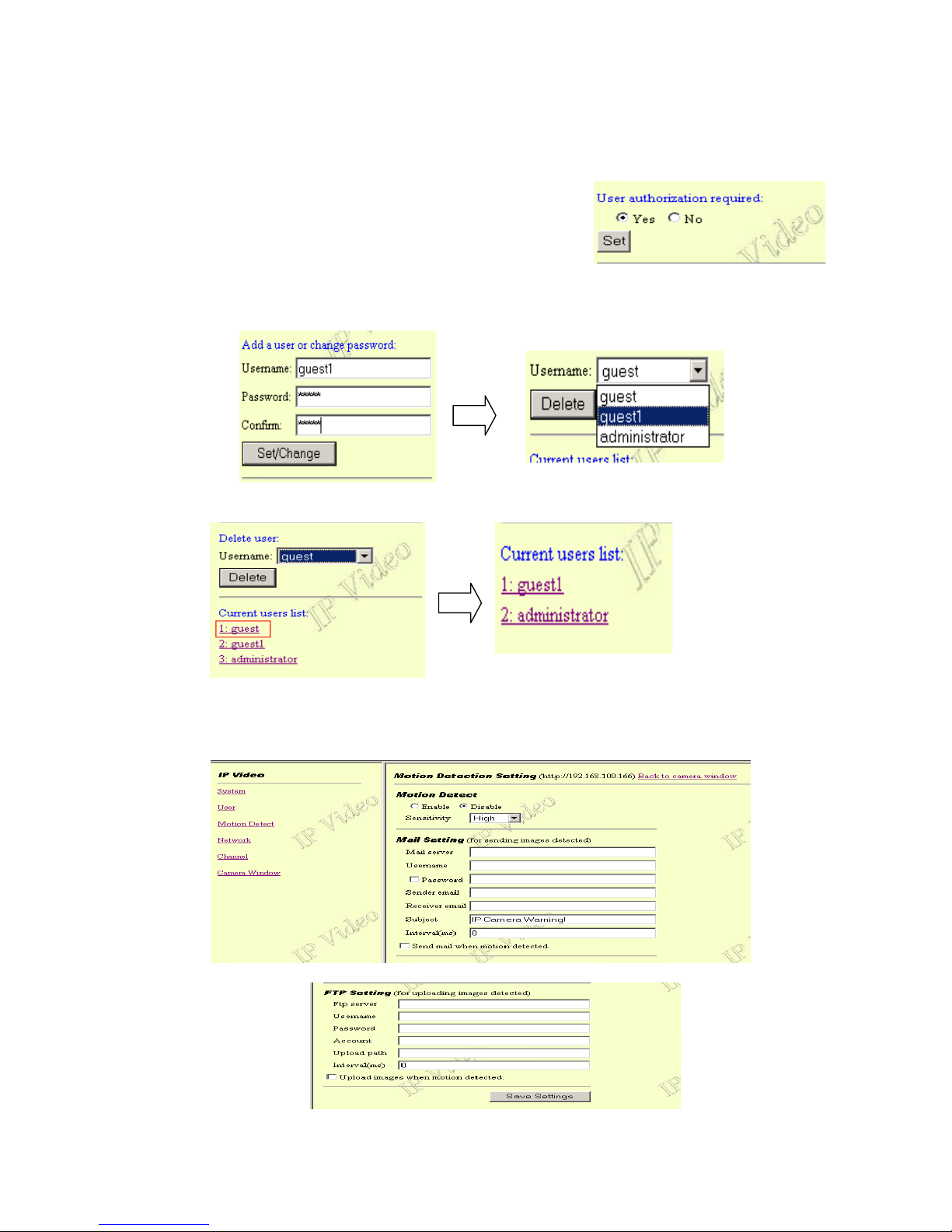

SECURITY SETTING ............................................................................................................

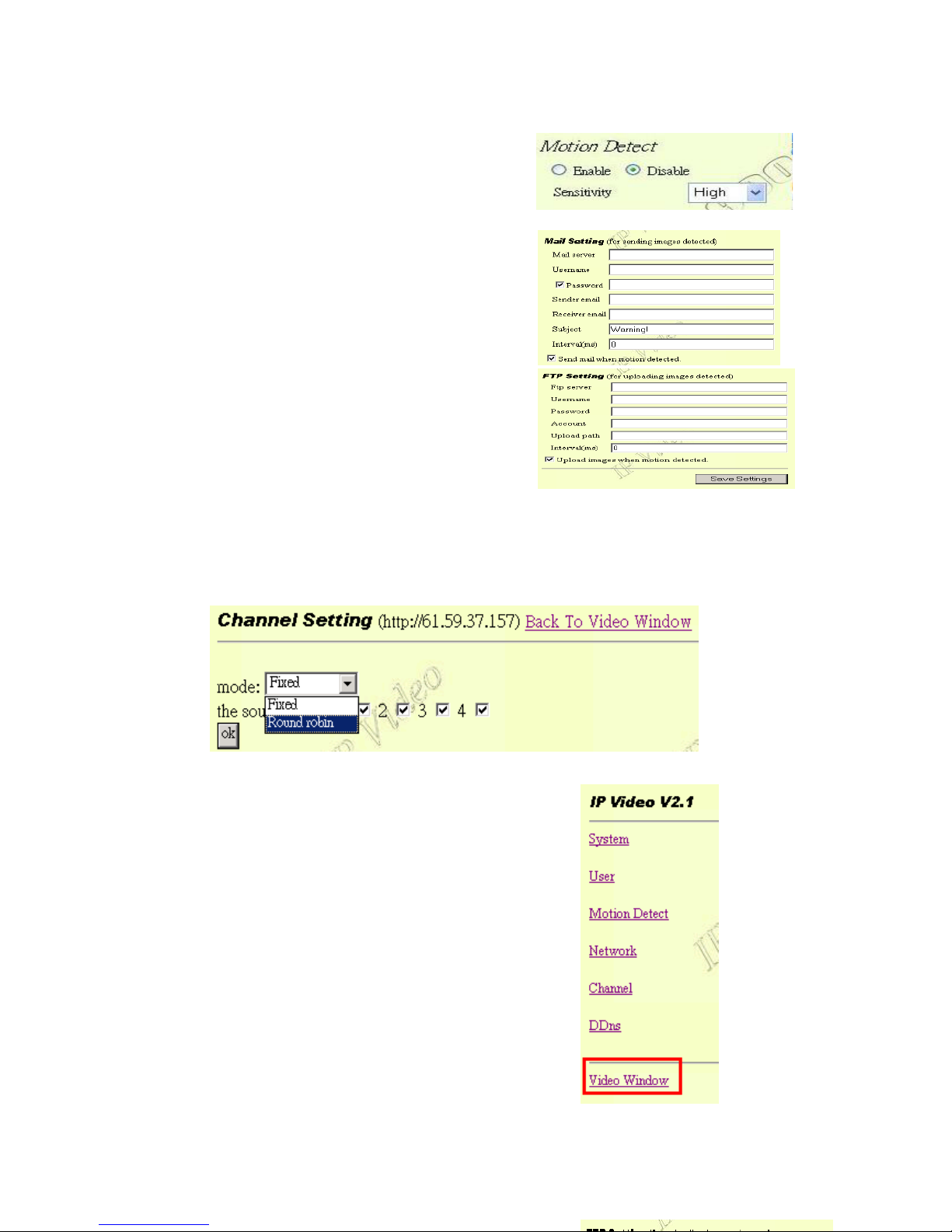

MOTION DETECTION FUNCTION...........................................................................................

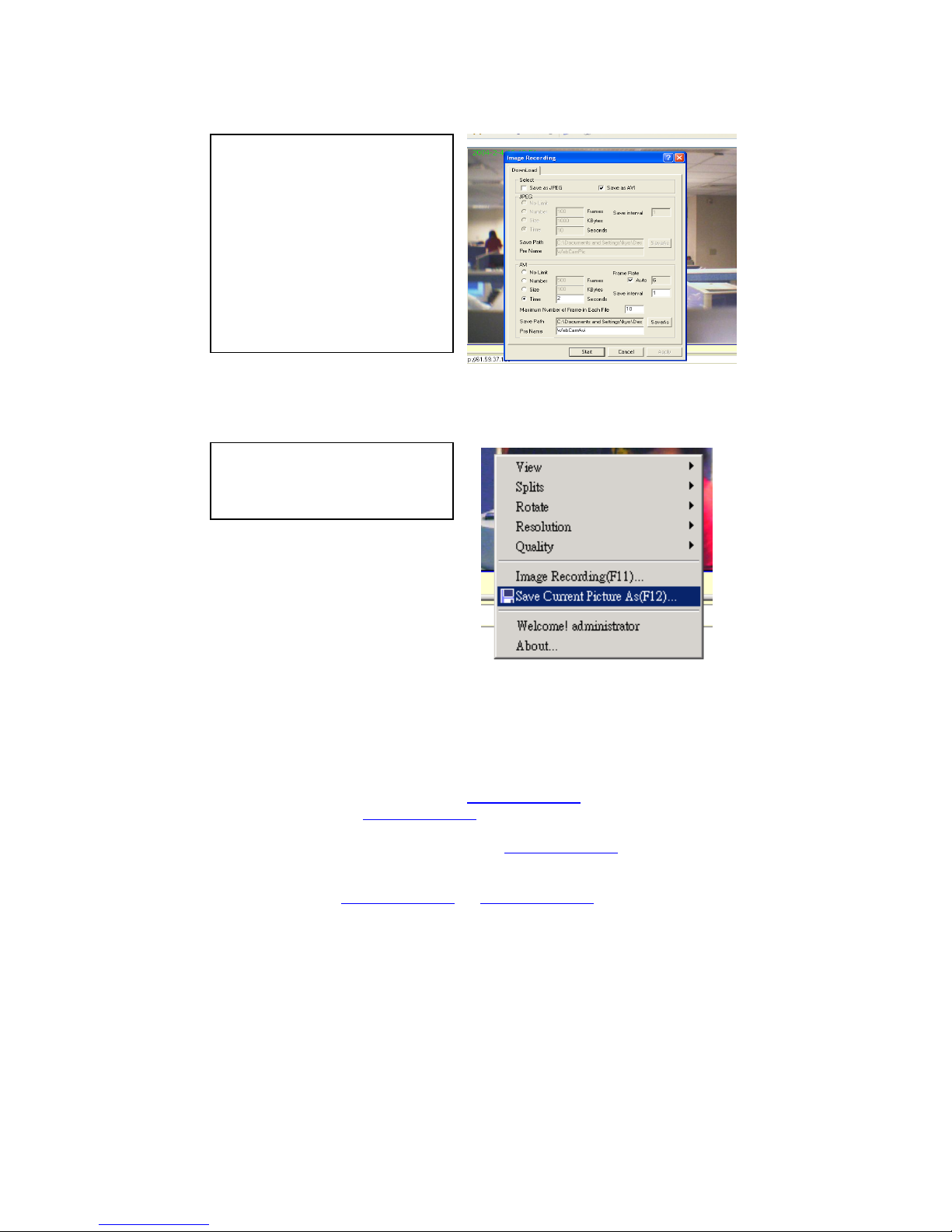

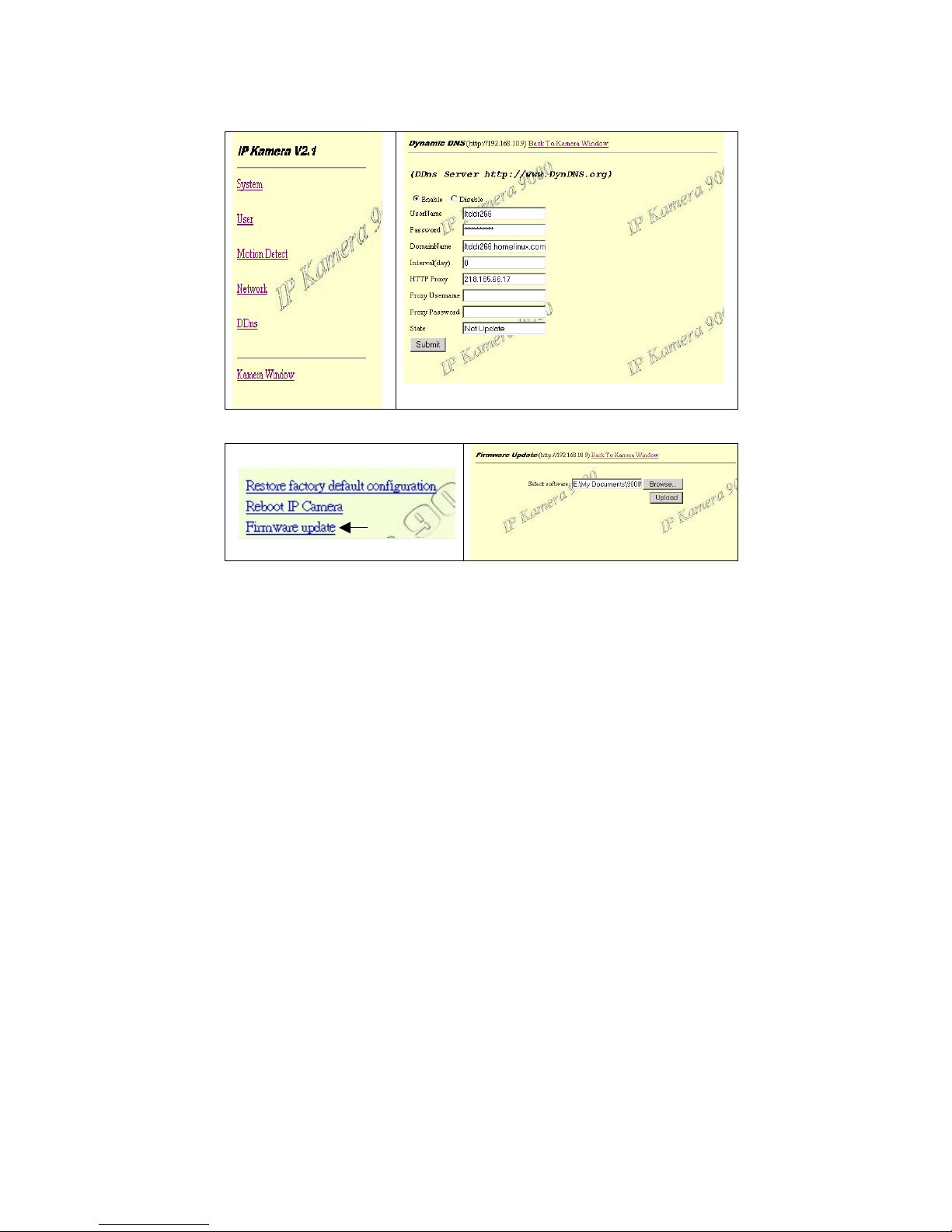

7. OTHER FUNCTIONS………………………………………………………………….26

8. AOUTHORITY………………………………………………………………………….26

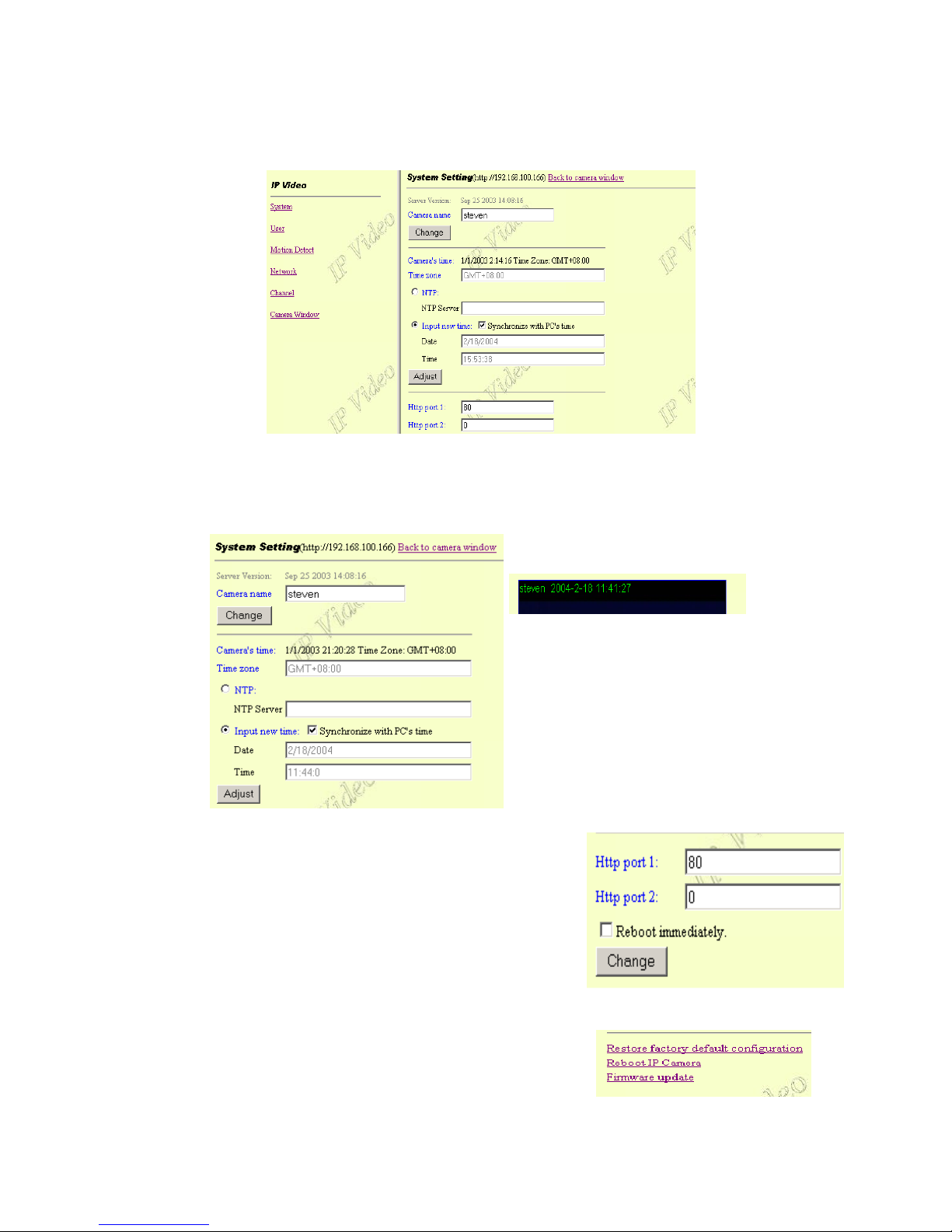

ADMINISTRATOR ................................................................................................................

NORMAL USER ...................................................................................................................

9. CAUTION.................................................................................................................... 29

ADDITIONAL INFORMATION : FAQ ......................................................................................

VER. 2.10,

- 3 -

1. Product Overview

IP video 9100 has an IP digital web server inside. With this great gadget you can

put up 4 different sources with only one set of IP, for example (live security
observing, online education, TV shows, video games and etc) make remote
locations immediately accessible through standard web browsers. IP video 9100
is equipped with cutting edge technology, includes 4 video in, 1 video out, a web
server, and physical Ethernet connection. Therefore it does not need to plug in
front of computer, you can simply just plug into an internet line and start observing
or broadcasting from any where in the world.

FEATURES

IP Video 9100 features：

1. Embedded Web Server

2. Pass image to Displays - TV, PDP, HDTV. LCD TV

3. Support MSN & YAHOO Messenger

4. Can input 4 different sources.

5. Multi – video or video source from different area.

6. Layout 1x1, 2x2, 3x3, 4x4

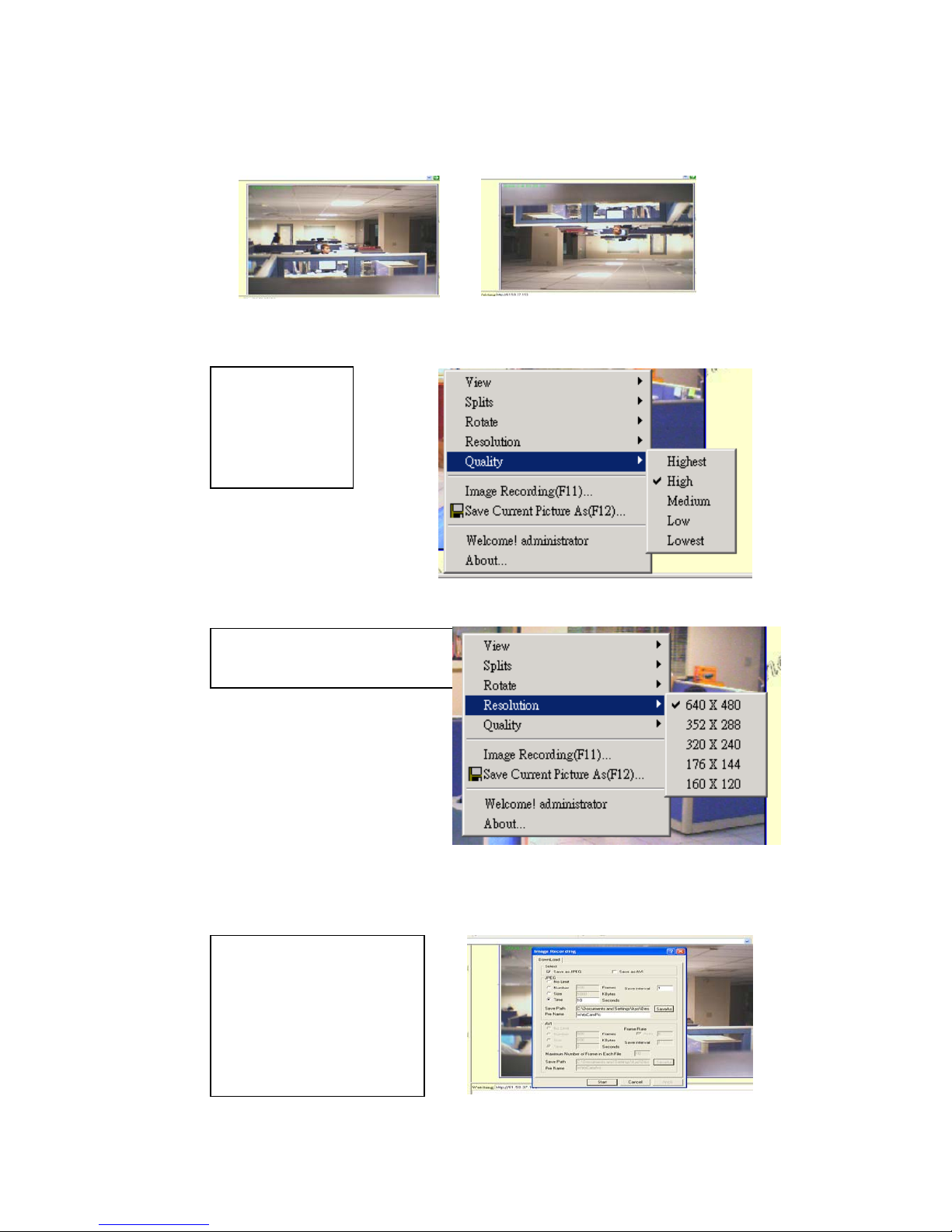

7. Resolution - True 640x480, 352x288, 320x240, 176x144,

- & 704 * 576, 160 *120

8. Video Quality - Low, High

9. Color adjustment: Brightness, Contrast, Hue, and Saturation

10. Motion Detection - Three-Sensitivity Level.

11.E-mail the Detected Images to preset e-Mail address.

12. FTP the Detected Images to preset FTP server.

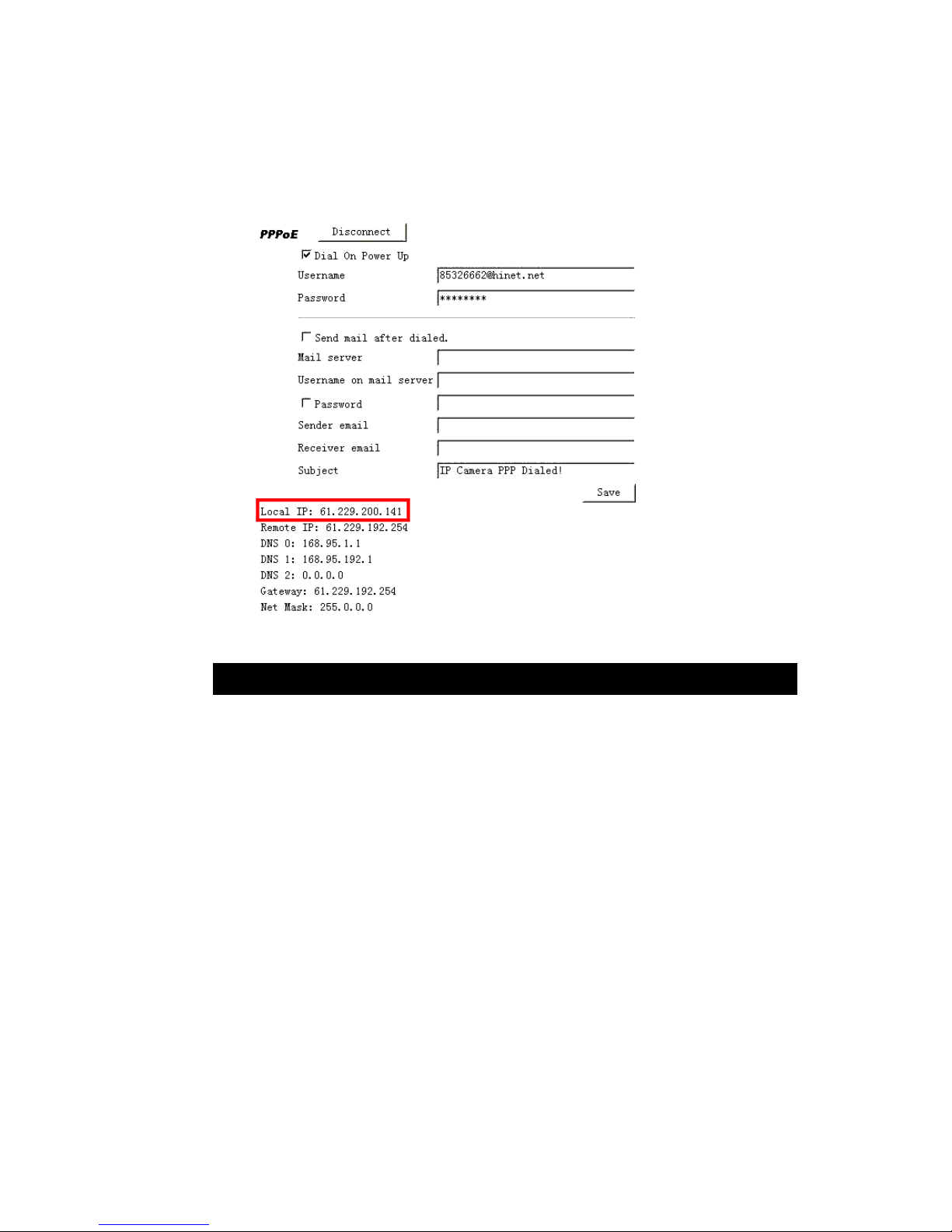

13. Support Network - Fixed IP, DHCP, PPPoE and DDNS.

13. Default HTTP Port supported-

14. Changed to fit different network.

15. Browser by Internet - IE (Internet Explore)

16. Support Java Applet support and Active X control.

17. A Linux based server

•10/100BT LAN supported

•Built in JPEG Decoder

•Motion detection

•User may setup his email address in the system, let the system

notice the user when an event occur

•Provide some GPIOs for different application

19. Support GlobalSign – no need to lower security level.

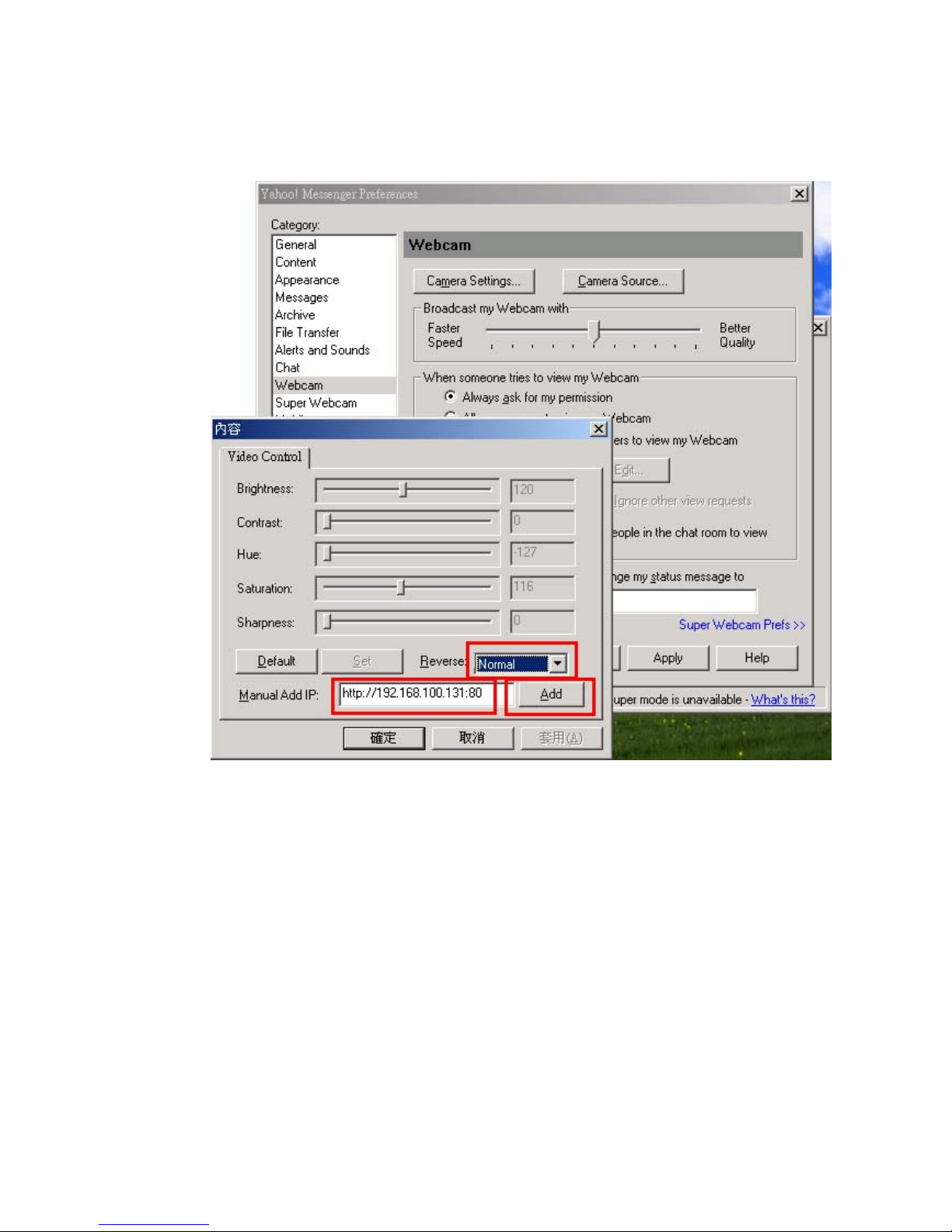

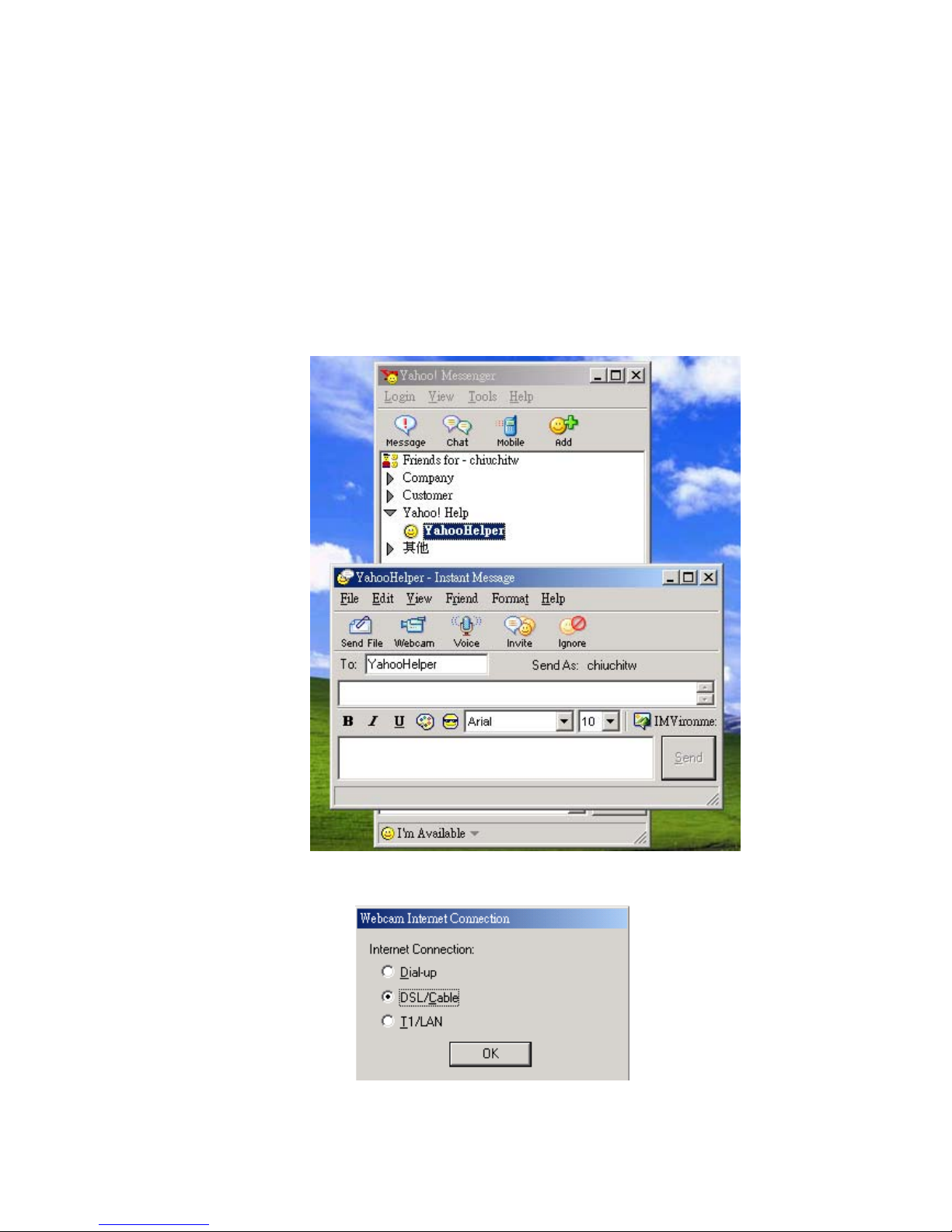

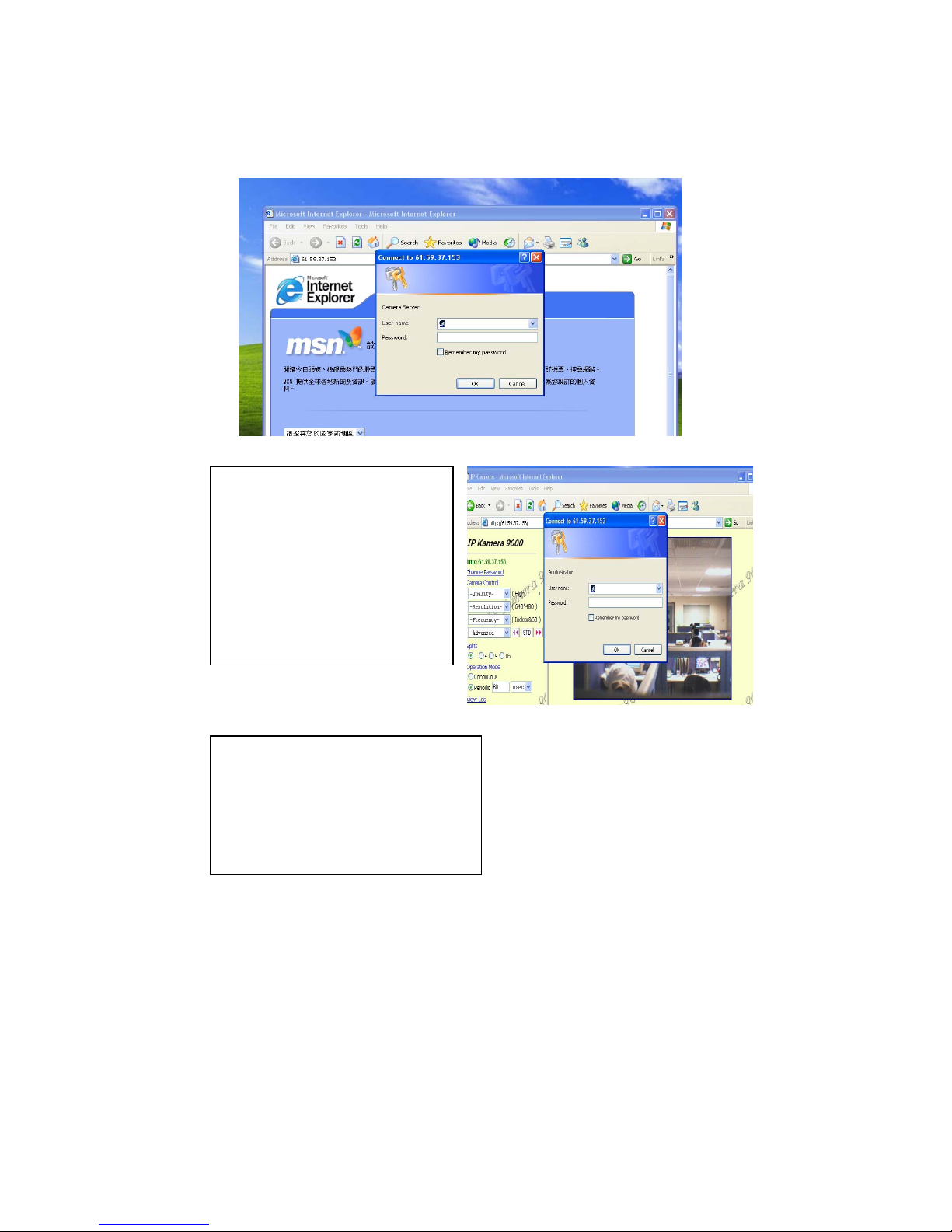

20. Work with MSN& Yahoo Messenger, AMCAP, and WMCAP &

VIDCAP program

- 4 -

IP VIDEO 9100 USER MANUAL

2. Physical Description

BOX CONTENT

IP Video 9100 package content：

! 1 x IP Video 9100

! 1 x RJ 45 internet line

! 1 x DC Power adopter (5V, 110~220V)

! 2 x Composite Cable (RCA jacks)

! 1 x CD (a. IP Editor program b. User Manual book)

! 1 x Quick Installation Guide

Minimum Requirement

 ≥300MHz Intel Pentium II and above

 Windows 98 / SE / 2000 / ME / XP, or LINUX, MAC system

 ≥64MB memory

 VGA Card：support Hi - Colors and above and direct draw

 Internet card - RJ 45 (CAT 5)

 Internet Hub / Router

 Internet : one set of IP provided by your ISP

EX: xxx.xxx.xxx.xxx

VER. 2.10,

- 5 -

3. Panel Description

Side Panel: 4 Video Input

Back Panel: from left to right:

1. Reset Button

2. DC Power - 5V, 110 ~ 240.

3. Power On / Off

4. Network - RJ 45

5. Video Out

- 6 -

IP VIDEO 9100 USER MANUAL

4. Installation

Before using IP Video 9100, follow bellow:

Before installation:

 Reconfirm your package content

 Prepare a Hub for Internet monitor

 Electricity 110 ~ 240 V

Hardware installation

1. Plug in IP Video 9100 Power 2. Plug in RJ 45 line to a HUB

3. Connect the HUB to Internet modem (ADSL/XDSL modem)

4. Connect Video source for IP Video box.

5. Turn you computer on

VER. 2.10,

- 7 -

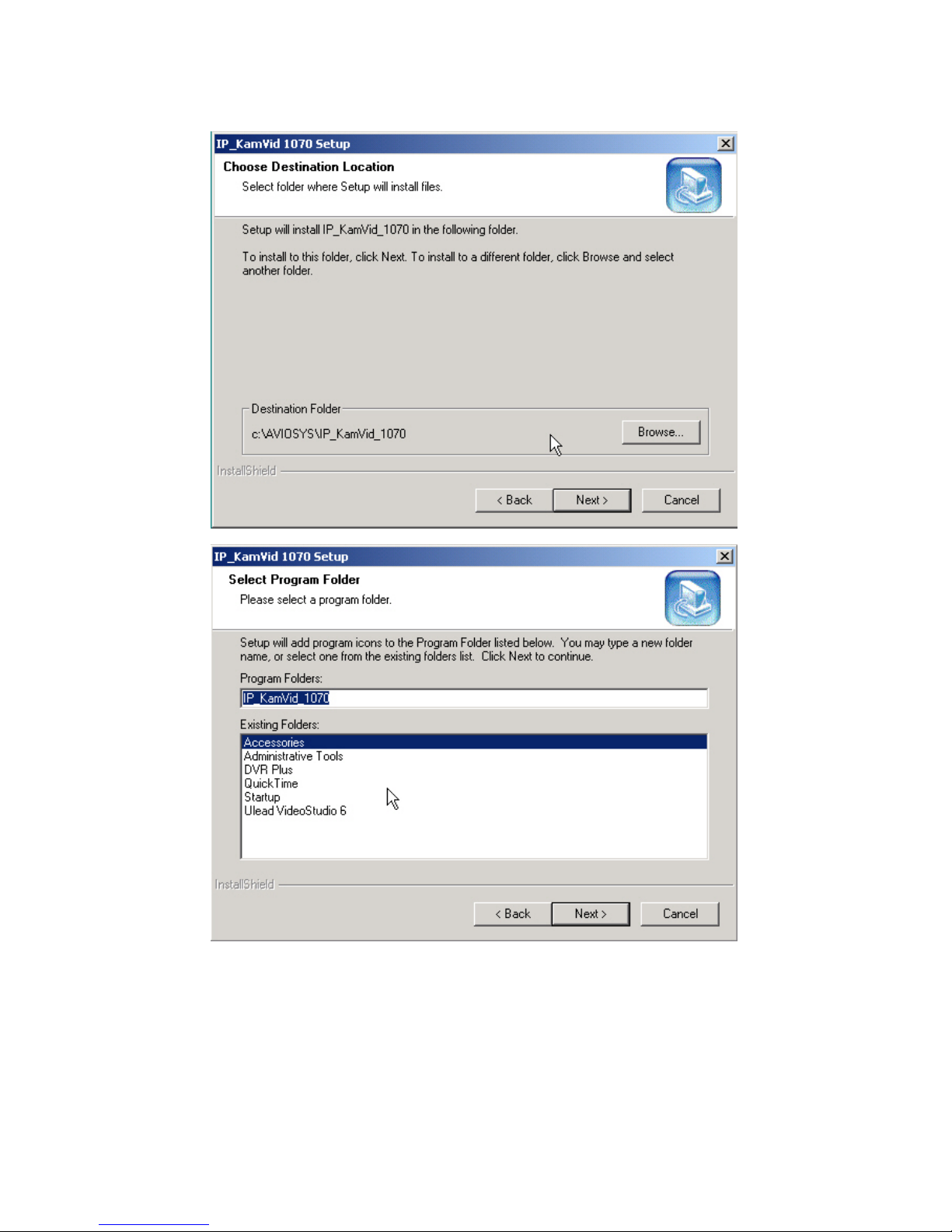

SOFTWARE INSTALLER

After connecting the power and RJ 45 line, following the steps below to install the
software.

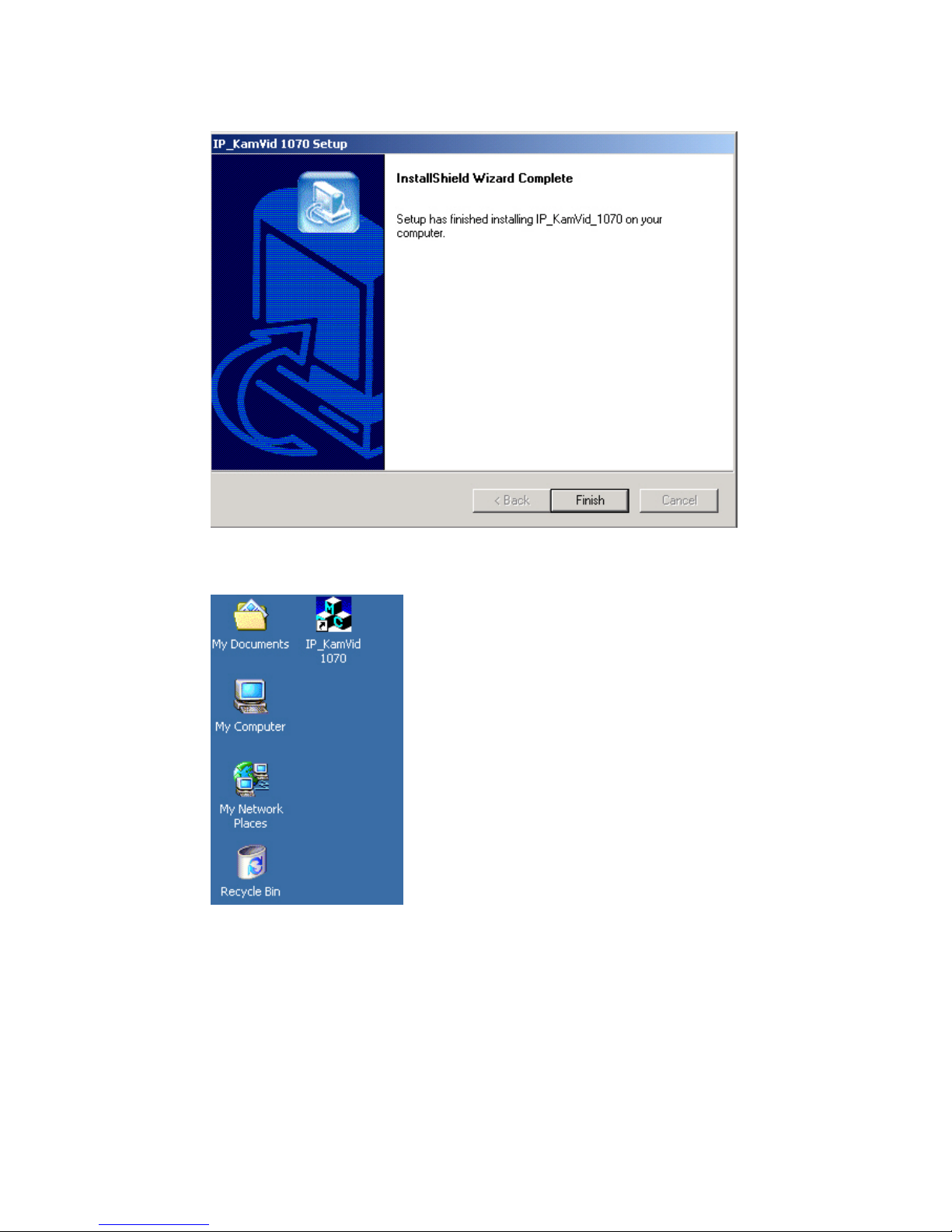

Step 1: Install IP KAM by executes Setup.exe in the CD; choose setup language and
the install shield Wizard will help finish the program.
