USER MANUAL
IP POWER 9222
Version: V1.00
Oct. 21,2008
2
Warning: any changes to this equipment without permission may cause damages to your equipment!
This equipment has been proved to can be prevented from the influence of harmful electronic jamming
in normal business use condition.
IMPORTANT NOTICE
1. IP Power 9222 is deigned to be used in-door, we have no responsibility for the possible damage in
out-door use especially in the rain.。.
2. Please use the power adaptor provided by the dealer, we have no responsibility for the possible
damage in using other adaptors.
4. Do not use IP Power 9222 in strong shaking condition
5. Please contact the dealer If IP Power 9222 works improperly.
Copyright © 2006 All rights reserved. No part of this publication may be reproduced, stored in a
retrieval system, or transmitted in any form or by any means, electronic, mechanical, photocopying,
recording or otherwise, without the prior written consent of us.
3
Table of Contents
1. Introduction.......................................................................................................................................... 5
1.1 Features:.......................................................................................................................................... 5
2. Before You Start.................................................................................................................................. 6
2.1 Package Contents:.............................................................................................................................. 6
2.2 Minimum System Requirements:....................................................................................................... 6
3. Interface Description .......................................................................................................................... 7
4. Hardware & Software Installation..................................................................................................... 8
4.1 Hardware Installation: (Plug RJ45 first before Power Jack!): ........................................................... 9
4.2 9211 Digital Input Hardware: .............................................................................................................. 9
4.3 Connecting to the Internet:................................................................................................................ 13
4.4 Software Setup:................................................................................................................................. 14
5. Connecting to the Device................................................................................................................. 15
5.1 Initial Setup using IPEDIT................................................................................................................. 15
6. Control and settings through the Webpage................................................................................. 18
Logging In ................................................................................................................................................ 18
6.1 Control of IP Power 9211: Read IO.................................................................................................. 19
Name each Input of IP Sensor 9211 : Define I/O Name....................................................................... 19
6.3 System Configuration........................................................................................................................ 20
6.3.1 IP address Settings: Ethernet (LAN) and Internet (WAN)....................................................... 21
6.4 Change Password............................................................................................................................. 22
6.5 Advance Setup.................................................................................................................................. 22
6.6 DDNS Settings .................................................................................................................................. 29

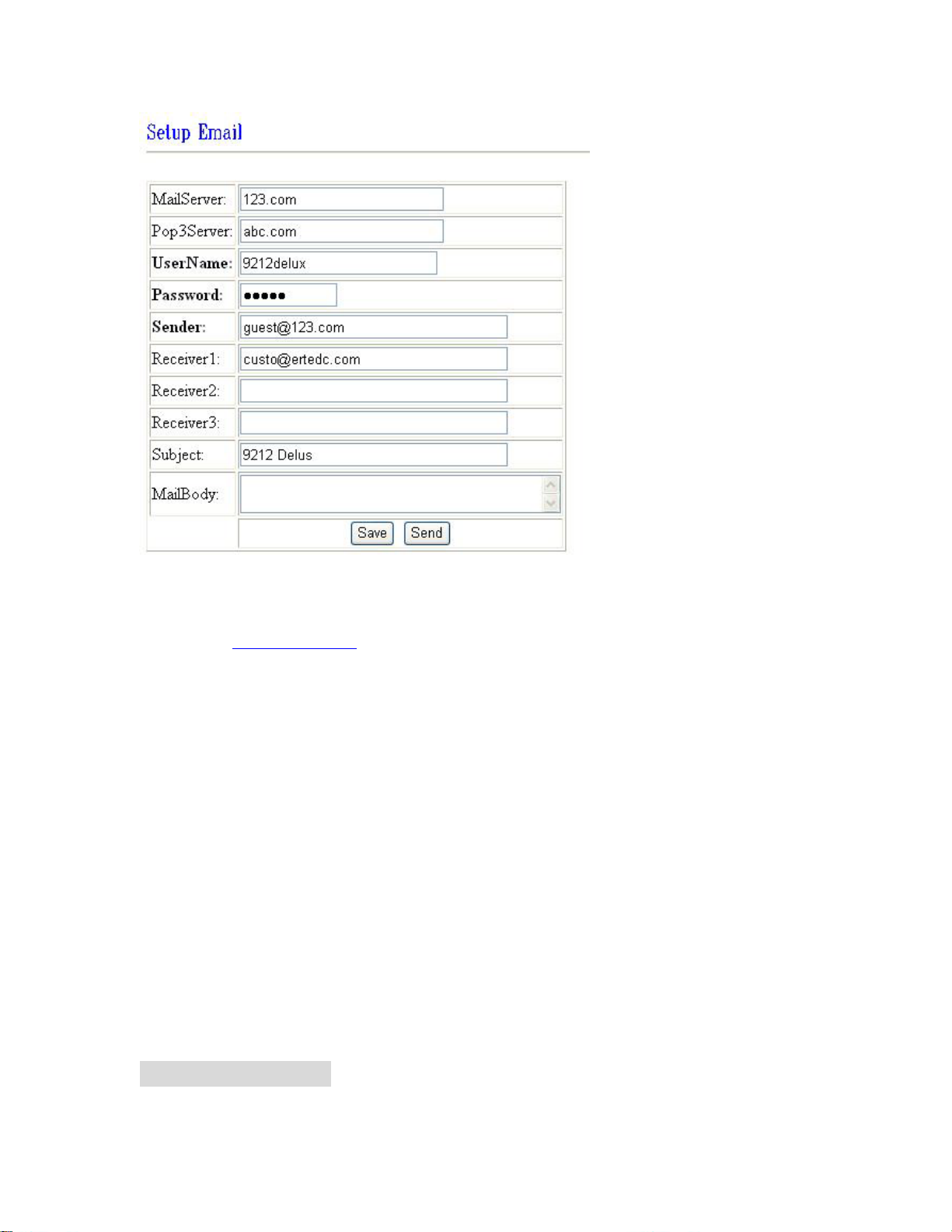

6.7 Email Setup ....................................................................................................................................... 30
6.7 Time Scheduler ................................................................................................................................. 31
6.8 Clock Settings & NTP (Network Time Protocol).............................................................................. 32
6.9 Network Wakeup............................................................................................................................... 33
6.10 Firmware Update............................................................................................................................. 34
7. Associated with other IP network product.................................................................................... 35
8. CNT (Cross Network Technlogy).................................................................................................... 36
8.1 What is CNT? .................................................................................................................................... 36
8.2 IOTracker Software........................................................................................................................... 37
8.2.1 Setting up Master Control IOTracker ........................................................................................ 37
8.2.3 Setting up Slave in IOTracker.................................................................................................... 38
9. Customization & Integration............................................................................................................ 40
9.1 SNMP Setup...................................................................................................................................... 40
9.2 Http Commands ................................................................................................................................40
9.3 Webpage Customization .................................................................................................................. 42
10. FAQ (Frequently Asked Question s)................................................................................................. 46
4
1. Introduction
The IP Power 9222 is a Network Controller with 8 DO ( digital Output) . A specific PC or software is not
needed; you can easily control devices remotely and check the device status via the Internet anywhere
in the world.
Using a Browser such as Internet Explore Netscape, you can securely access the unit. It includes 8
Digital Relay Outputs and works like an controlled Server. You can integrate it with Home / Office
security, Personal entertainment, and Industrial field applications.
The API program is supported to help the integrator to easy program any software to integrate with
existing application systems in local computers. The IP POWER 9222 can be flexibly applied to Home
entertainment & industry security & systems with integrated management.
1.1 Features:
1. Embedded web server – no need to connect to a PC – Use Ethernet or Internet (LAN / WAN)
2. Accessible with popular web browsers- IE (Internet Explore) or Netscape – DO NOT need specific
S/W.
3. Comes with 8DO: Direct control relay output .
8 Set Controllers – Default 4 Set NO - Normal Open & 4 Sets NC - Normal Close
4. Network protocols supported: HTTP,
5. Support RS232 to control .
6. Security code identification and Hardware reset function.
7. Individual LED indicates switch-working status.
8. Safe, durable, non-electric leakage and anti-farmable design.
9. Polar protection – will even connect contrary port.
10. Digital inputs provide de-bouncing function.
11. Update firmware by the TCP/IP network.
12. Embedded “ WATCH DOG “ for own 9222 anti-freeze.
13. Auto Controlled by our 9211 ( DI ) or the DI of our 9222Delux .
14. Timer Schedule -- pre-set the time schedule to turn power on / off thru Internet / Ethernet
15. Support NTP (Network Time Protocol) - synchronize the time of 9258 to the Internet web
16.
Setup up own outlet default: set DO status as regain power.
17 Provide SDK (VB & VC) for own Software develop and application
18 Supply Exclusive IP Service for easily find on Internet by name.
Specification: 1. DC 5V (AC90-240 input) 2. D-SUB In & out port. 3. RJ45
Application field: can be associated with any kind of electrical equipments, no matter household
appliances or security equipment. It can manage the power supply through the web page; make it be
safer for the security equipment and more convenience for digital control at the far end.
Industrial application field: bank, financial security system, jewels, casino, cash register in
supermarket, park, traffic control, military equipment and airport.
DDNS, DHCP, Virtual and Dynamic IP.
5
2. Before You Start
2.1 Package Contents:
One set of IP SENSOR 9211
One network wire with RJ45 port
One 5V 1A, for 110~220V adaptor
One install CD
One rapid install manual
2.2 Minimum System Requirements:
* Minimum Intel Pentium II 300MHz/compatible AMD processor
* WINDOWS operating system (IE5.0+SP1)
* Minimum 64MB RAM
* VGA Card: with capability of displaying full-Colors and DirectDraw support
* Network card with RJ45 port
* Ethernet Hub / Router
* Internet network (Ethernet, xDSL with router)
6
3. Interface Description
* Front - Up : Left to right – Power LED, 8 set DO LED , RS-232 * Down : 8 set jacks
ps : Light sequence : from left to right : 1~8
DI input sequence : from left to right : 8~1
Left side ; * Up side : 8 Digital Inputs * Down side: 5V 1A Power INPUT
Right side ; * Up -Switch : 8pcs switch
* Down - Button: Reset button for power reboot / default setting
One click Press for power reboot.. Press more than 10seconds for change
back to default setting
7
Back side; * RJ-45 for network
Top ; * 8pcs buttons for test purpose.
4. Hardware & Software Installation
Before you star using the IP Power 9222, please follow the steps below:
Check the package to make sure the contents are complete.
Prepare one Ethernet HUB, or Router
Check the voltage of the power supply to make sure it is AC 110-240 volt
8
4.1 Hardware Installation: (Plug RJ45 first before Power Jack!):
0
1. Connect the 9200 to HUB through RJ 45 netting cable.
2. Connect the 9200 ( IN-BLACK ) to 9201( BLACK port) &
9200 ( OUT- BLUE ) to 9202 Output ( BLUE) through D-SUB cable.
3. Connect the HUB to the Internet (May through ADSL/XDSL modem).
4. Connect the power adapter to the 9200.
Power on your computer and power adapter of IP POWER 9222.
4.2 9211 Digital Input Hardware:
1. Connect the 9200 to HUB through RJ 45 netting cable.
2. Connect the 9200 ( IN-BLACK ) to 9201( BLACK port) & 9200 ( OUT- BLUE ) to 92
Output ( BLUE) through D-SUB cable.
3. Connect the HUB to the Internet (May through ADSL/XDSL modem).
4. Connect the power adapter to the 9200.
5. Power on your computer and power adapter of IP POWER 9222.
Dry & Wet Setting
In 9211, the DRY or WET contact of each input ( in 9211) can be switched.
To setup the Dry or Wet contact of each input signal , please adjust the two Switches.
9
There are two switches in 9211. Please arrange all the setup to ON in the Right Switch.
Then user can setup the Dry/Wet contact in LEFT switch :
As no contact with the Input ,
Switch set as ON : LED light ON & means the input is Dry contact ,
Switch set as OFF : LED light is OFF which means the input is Wet contact
For example: the left switch setup input 1~4 is OFF & 5-8 is ON.
So the input 1- 4 is DRY contact and LED light OFF
the input 5- 8 is WET contact and LED light ON
4-2 . Connection Illustration:
10
For different request of normal state of electric equipment, 9211 offers four sets of voltage signal IN1-
IN4 and four sets of shortcut circuit signals IN5-IN8.
9211 Pro provide 4set Source mode - Voltage Input – Out 1 ~ Out 4
ON : 4V~24V
OFF : 0V ~ 3V
4 set Sink mode - Resistance input – Out 5 ~ Out 8.
ON : 200 ohm~ 0 ohm
OFF : 500 ohm ~ ∞
1. The polarity: Right - Positive & Left – Negative .
NOTE: Because of the polarity protective function, it won’t damage the product if user reverse the
polarity in installation. But it will cause the product cannot work properly
2. Source mode ( Voltage signal ) -- IN1 & IN4: can be connected to voltage signal detectors such as
smoke detector, light detector and gas detector.
11
3. Sink mode ( Resistance signal ) —IN5 & IN8: can be connected to magnetic reed switch as the
follow figures
It can be installed in the entrance guard or security equipment such as doors, windows, drawers and
safe case..
Source mode ( Voltage input) :
If the voltage difference between the two contacts in one set within 0V~3V, 9211 shows ON. It the
voltage difference within 4V~24V, 9211 shows OFF. So user can detect the change of equipment.
Such as smoke detector, light detector and gas detector.
NOTE:
1. The data in this figure is the average measure
value. To ensure the correct detection, we suggest
user set the voltage lower than 3V when it shows OFF
and higher than 4V when it shows ON
2. The maximum measure voltage is 24V.
.
Sink mode (Resistance Input ) :
12
If the resistance between the two contacts in one set within 0Ω~200Ω, 9211 shows ON. If the
resistance within 500Ω~
the magnetic reed switch or other kind of reactive sensors.
PS: magnetic reed switch: using the magnetic field of the magnet to produce a signal when there is a
movement happened in switch. Low cost and easy to use is the chief characteristic of magnetic reed
switch. Most of them are used in security equipment, living product and automatic mechanism.
∞, 9211 shows OFF. So user can detect the movement of equipment through
NOTE:
1. The data in this figure is the average measure
value. To ensure the correct detection, we suggest
user set the voltage lower than 200Ω when it shows
ON and higher than 500Ω when it shows OFF.
2. When measure the resistance of web contacts, the
maximum voltage is 5V and the maximum currency is
no more than 10Am.
4.3 Connecting to the Internet:
After the Ethernet and router have been set correctly, you can access the IP Power 9222 from the
Internet. It will provide all kinds of convenience.
To correctly setup the device:
1.) Assign the right IP addresses and make sure that you can connect to your 9222 via local network.
2.) If a router/firewall is used, the router must be port mapped or port forwarded to the port of the
9222. Please refer to your routers manual in the port forwarding section.
After these steps have been correctly setup, you should be able to access the device through the
internet without any problems.
Below is a picture of what the setting may look like.
13
4.4 Software Setup:
Please follow the steps below to install the software.
1. Insert the CD that came in the package and windows will auto-run. If not please browse for the
Autorun.html file in CD.
.
2. Click IP KamVid 1070 in driver of CD and click OPEN top install the driver procedure.
14
Loading...
