1. Product Overview

IP Kamera 9000A is an IP camera that has a digital web server in camera. This camera
can put up live image on-line and make remote locations immediately accessible
through standard web browsers.
IP Kamera 9000A is equipped with cutting edge technology, includes a digital camera,
web server, and optimized hardware for image compression, and physical Ethernet
connection. Therefore it does not need to plug in front of computer, users can simply
just plug into an internet line and start oberserving from any where in the world.

FEATURES

IP Kamera 9000A features：

1. Embedded Web Server - No need PC for camera.

2. Pass image to Displays - TV, PDP, HDTV. LCD TV

3. Support MSN & YAHOO Messenger

4. Multiple Cameras Supported

5. Multi - video from different area.

6. Layout 1x1, 2x2, 3x3, 4x4

7. Resolution - True 640x480, 352x288, 320x240, 176x144,

8. Video Quality - Low, High

9. Color adjustment: Brightness, Contrast, Hue, and Saturation

10. Motion Detection - Three-Sensitivity Level.

11.E-mail the Detected Images to preset e-Mail address.

12. FTP the Detected Images to preset FTP server.

13. Support Network - Fixed IP, DHCP, PPPoE & DDNS.

14. Default HTTP Port supported-

15. Changed to fit different network.

16. Browser by Internet - IE (internet Explore) , NETSCAPE,

Mozilla Firefox ( LINUX ).

17. Support Java Applet support and Active X control.

18. A Linux based server

•10/100BT LAN supported

•Built in JPEG Decoder

•Motion detection

•User able to monitor any place if select this Web Cam by using

any of Internet Browser.

•User may setup his email address in the system, let the system

notice the user when an event occur

•Provide some GPIOs for different application

19. Support GlobalSign – no need to lower security level.

20. Work with MSN& Yahoo Messenger, AMCAP, and WMCAP &

VIDCAP program

- 4 -

IP KAMERA 9000A PLUS USER MANUAL

2. Physical Description

BOX CONTENT

IP Kamera package content：

! 1 x IP Kamera 9000A

! 1 x Tripot

! 1 x RJ 45 internet line

! 1 x DC Power adopter 5V, 110 ~ 240.

! 1 x CD (a. IP KAMVID program b. User Manual book)

! 1 x Quick Installation Guide

Minimum Requirement

 ≥300MHz Intel Pentium II and above

 Windows 98 / SE / 2000 / ME / XP, or LINUX, MAC system

 ≥64MB memory

 VGA Card：support Hi - Colors and above and direct draw

 Internet card - RJ 45 (CAT 5)

 Internet Hub

 Internet : one set of IP provided by your ISP

EX: xxx.xxx.xxx.xxx

VER. 2.32,

- 5 -

3. Panel Description

Front Panel:

1. Power indicator (blue LED)

2. Lens (CMOS)

Back Panel: from left to right:

1. Reset Button

2. DC Power - 5V

3. On / Off

4. RJ 45

5. Microphone In

Note: The Microphone Input support only audio from microphone. If input audio from

other audio device, the audio volume would be noise or over volume.

- 6 -

IP KAMERA 9000A PLUS USER MANUAL

4. Installation

Before using IP Kamera 9000A, follow bellow:

Before installation:

 Reconfirm your package content

 A Hub

 Electricity 110 ~ 240 V

Hardware installation

1. Plug in IP Kamera 9000A (Power) 2. Plug in RJ 45 line to a HUB

3. Connect the other way to the computer

4. Connect your Hub into your modem 5. Turn you computer on

VER. 2.32,

- 7 -

SOFTWARE INSTALLER

1. IP_ KAM VID_ 1070

After connecting the power and RJ 45 line, following the steps below to install the
software.

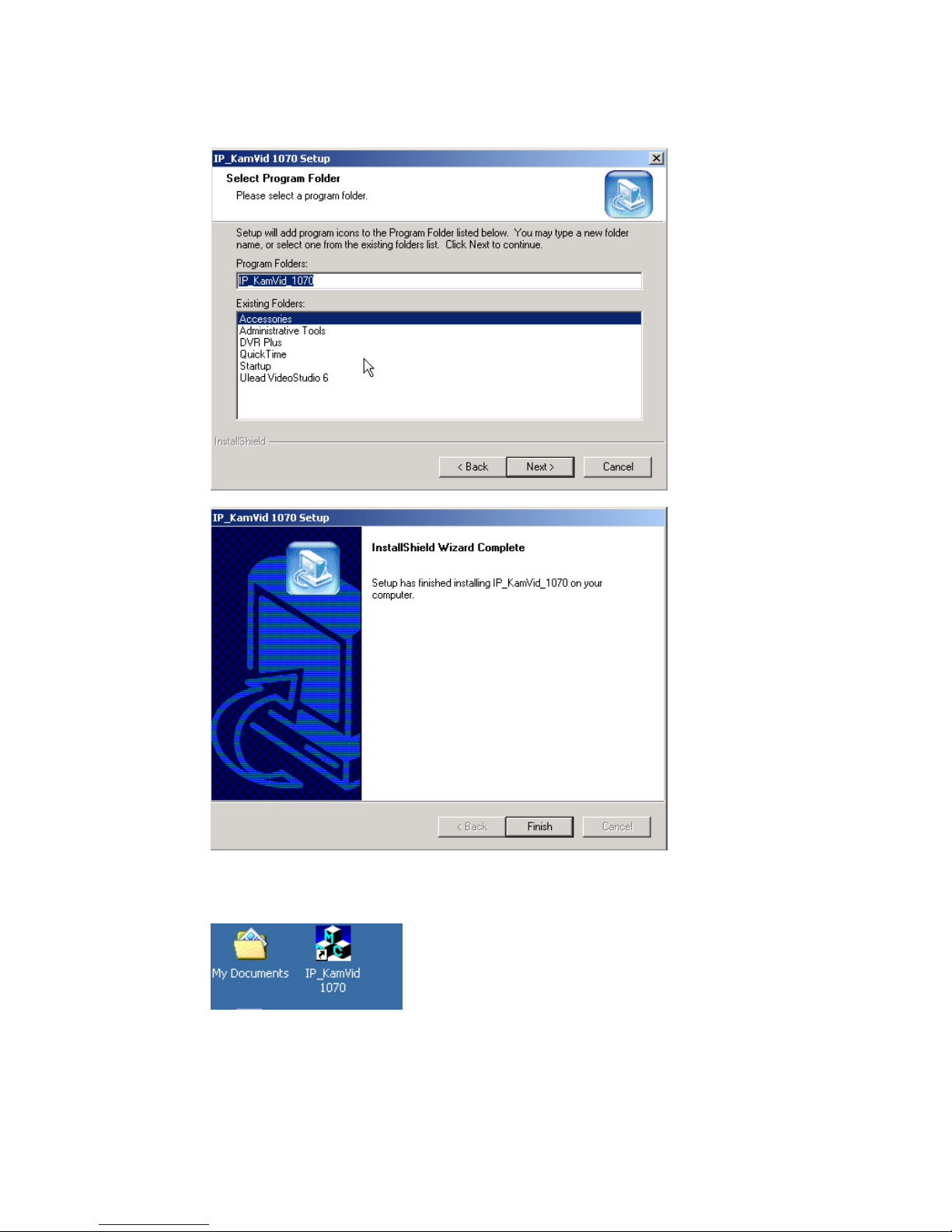

Step 1: Install IP KAM by executes Setup.exe in the CD; choose setup language and
the install shield Wizard will help finish the program.

- 8 -

IP KAMERA 9000A PLUS USER MANUAL

Step 2: Then you can see shortcut icon “IP KamVid 1070 “on desktop, click this icon.
Note: Be sure that the power is turn on and the RJ45 line is properly connected.

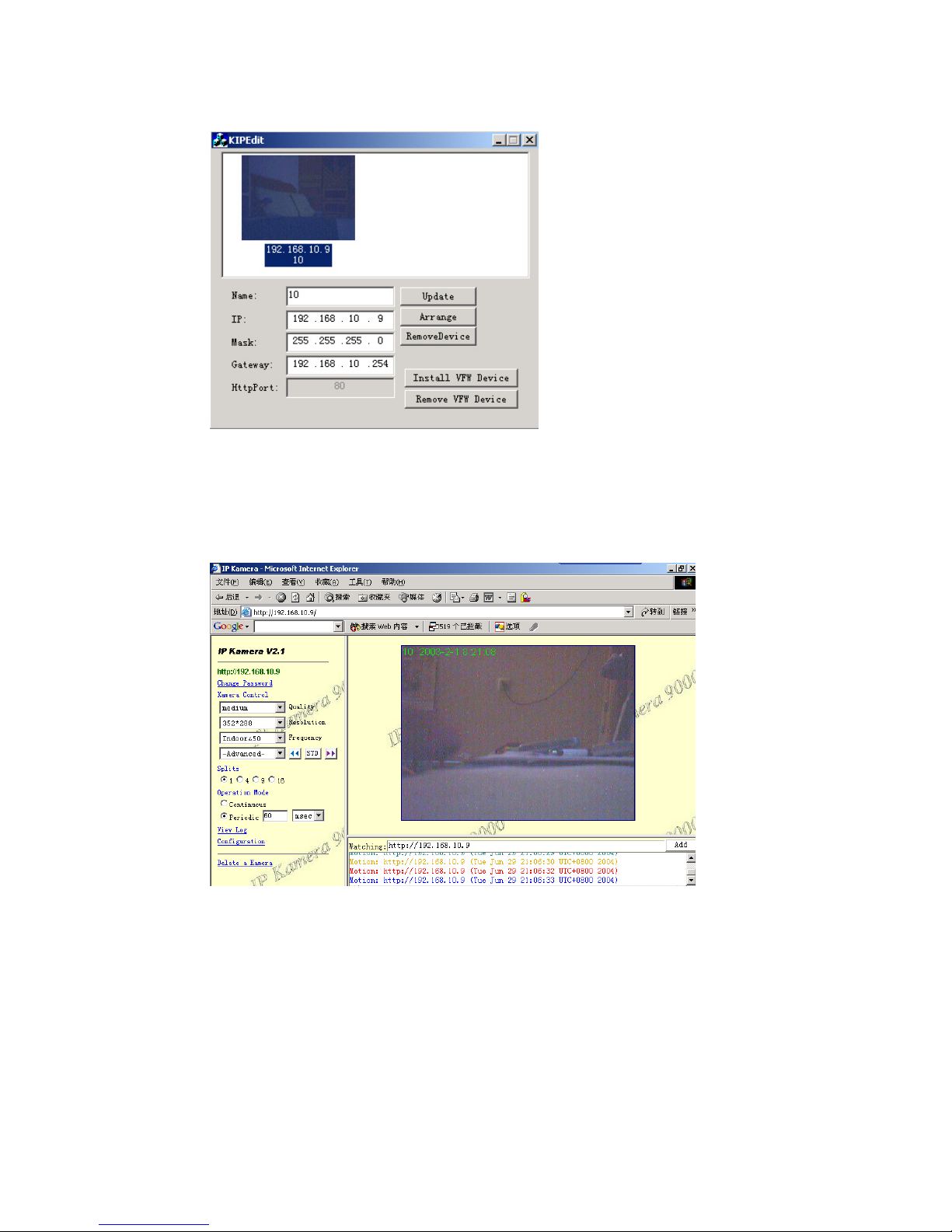

Step 3: The KIPEDIT program will detect all the active IP9000s or IP9100s in the same

local Ethernet, and display the findings in the window.

VER. 2.32,

- 9 -

Step 4: Click the one you want to set, its name, IP will be displayed below. You can
change its name (please use numbers or letter) or IP (please set in the same subnet as
your PC) in the text windows. Then click Update. After about 20 seconds, the new
setting will work.

Step 5: Double click the picture in the window of KIPEdit or type the IP address in the
IE browser, you can open the web page of IP9000A. If you cannot open the web page
of IP9000A, be sure that you have installed IE 6.0 with SP1 or later version.

NOTE:

1. After you have installed IP 9000A on your PC, the IP 9000A was registered in

DirectX. IP 9000A can be used as local camera by any software that supported
DirectX, such as MSN, Amcap, Media encoder, Yahoo Messenger as long as you not
change the directory path of ipcam’s driver.

2. For those software that only supported old VFM driver, such as Vidcap and net
meeting, please click install VFM device, then you can get the captured images from
IP9000A (you should be the administrator at the first install process)

- 10 -

IP KAMERA 9000A PLUS USER MANUAL

3. For those not totally compatible with VFM, such as QQ and POPO, you should click
remove device button first, then click install VFM device, then you can get the

captured images from IP9000A.

Work with Yahoo /MSN Messenger

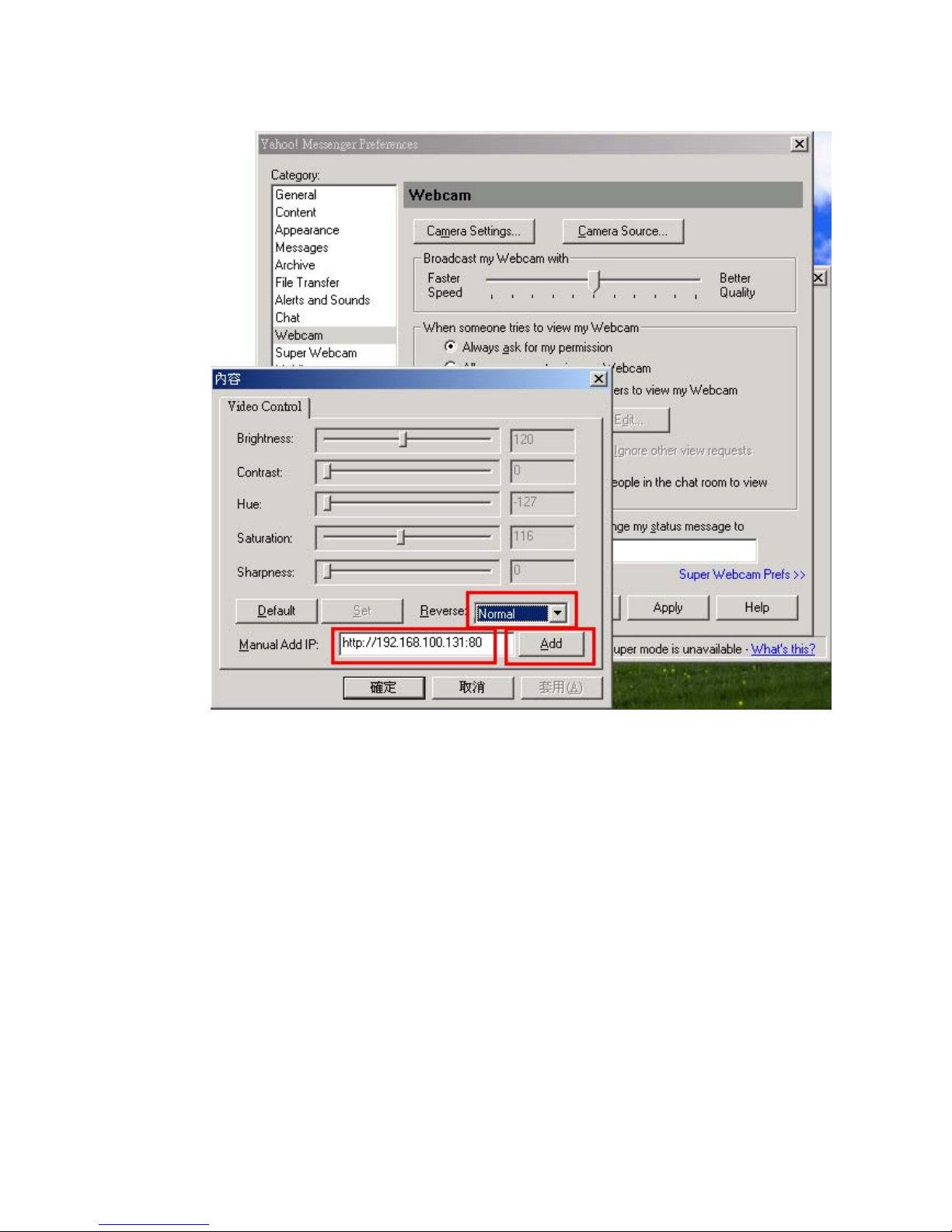

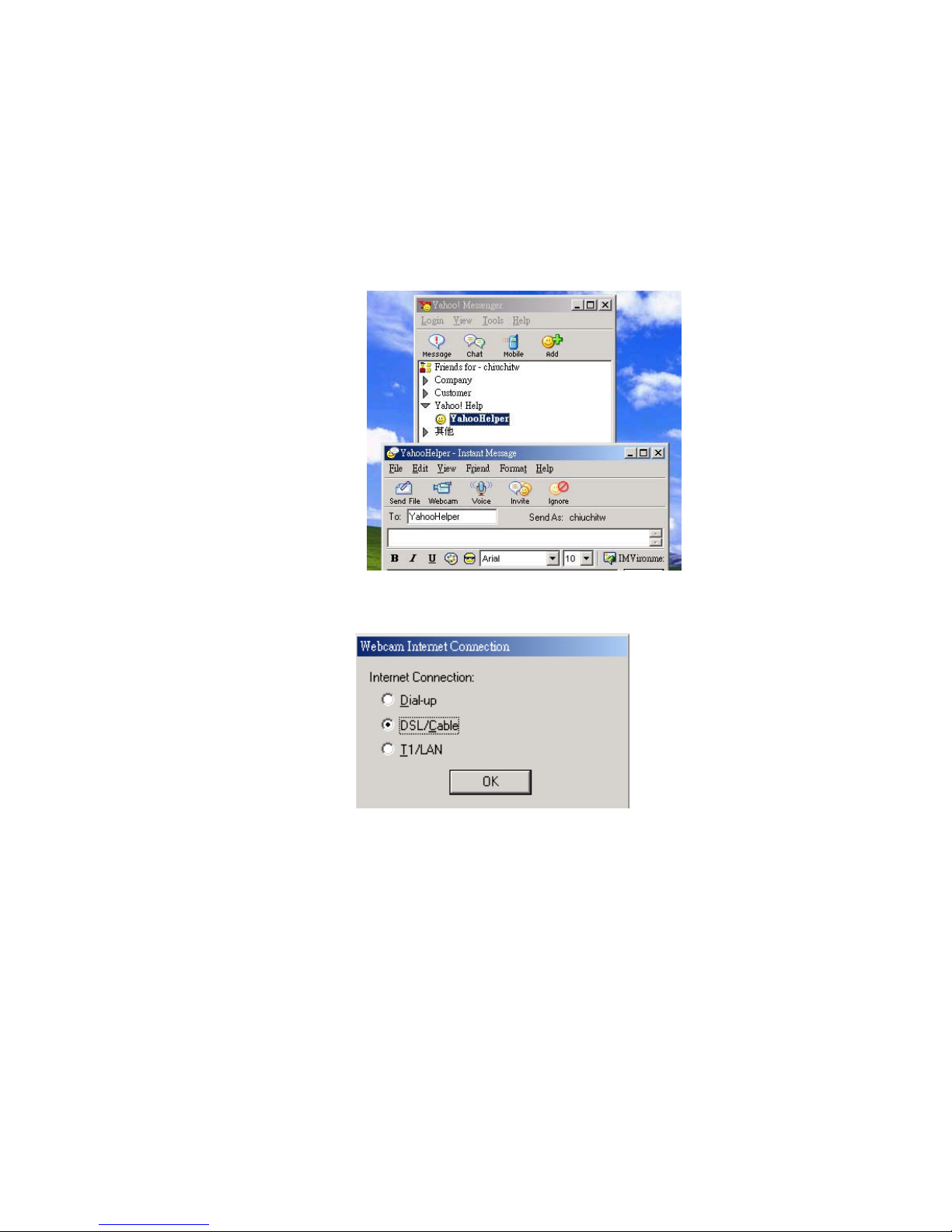

1. Work with Yahoo /MSN Messenger: We use Yahoo for instance. Select the friend
you would like to send your video. For instance, we pick up YahooHelper.

2. Choose Webcam then system will ask your Internet connecting speed.

3. Then My WEBCAM will jump up. Please go to “file “  “Preference”  “Camera
Setting” to select your prefer video to transfer.

VER. 2.32,

- 11 -

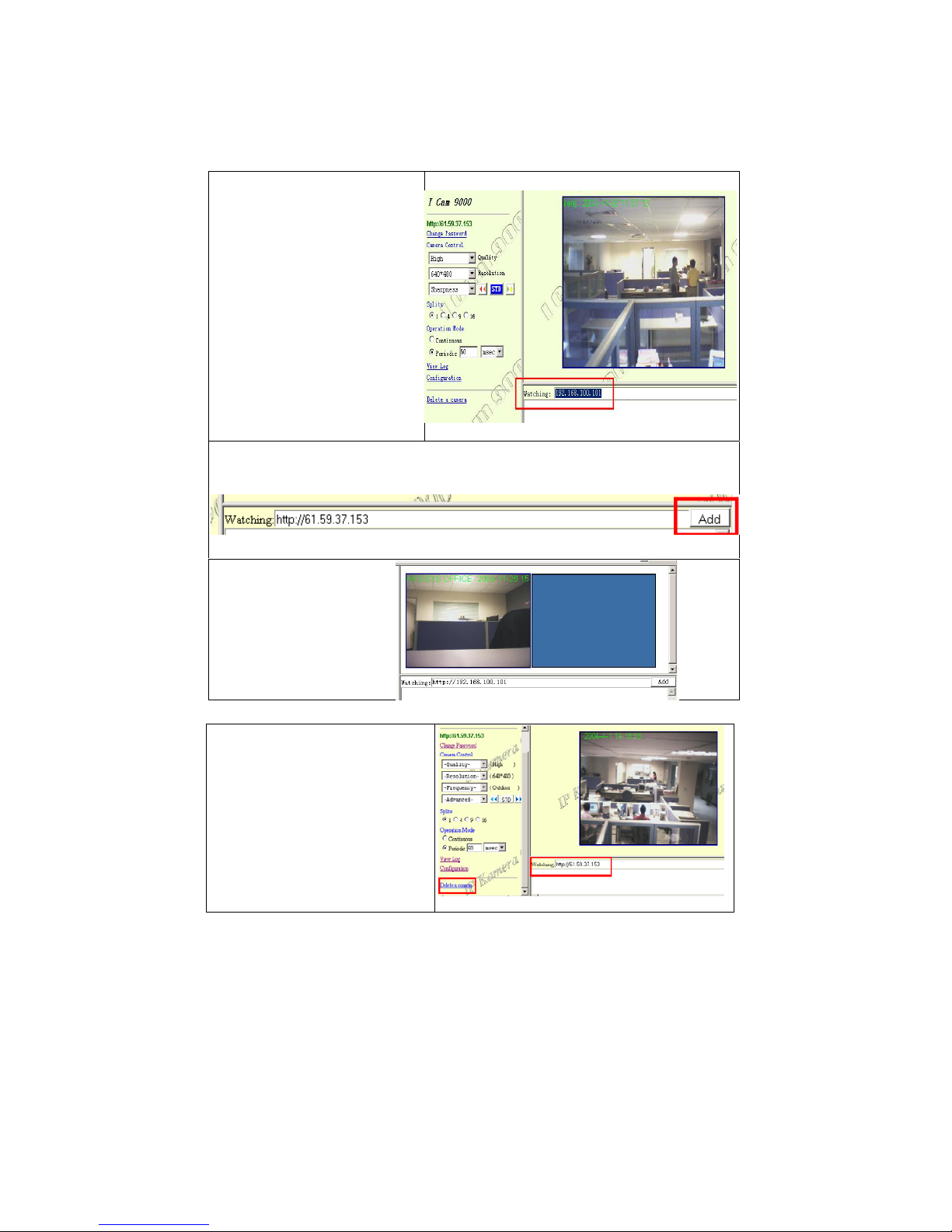

4. You can type in appointed IP address (No matter Real IP or Dynamic IP) and confirm
by click “Add” and choose if reverse the out streaming video.

We support
A. Normal B. Flip Vertical C. Flip Horizontal D. Rotate 180

If the video is upside down, you can choose D to get rotate video.
And also adjust the video color ; Brightness, contrast, Hue, Saturation, Sharpness

Note

1 : for safety issue , as transfer video by Yahoo /MSN, only Administrator can do the
video streaming. You have to type the username and password.
2 : Work with Yahoo/ MSN , the streaming speed is depend on Yahoo .MSN server.

2. INFINITELY CAM : Please refer in readme file.

- 12 -

IP KAMERA 9000A PLUS USER MANUAL

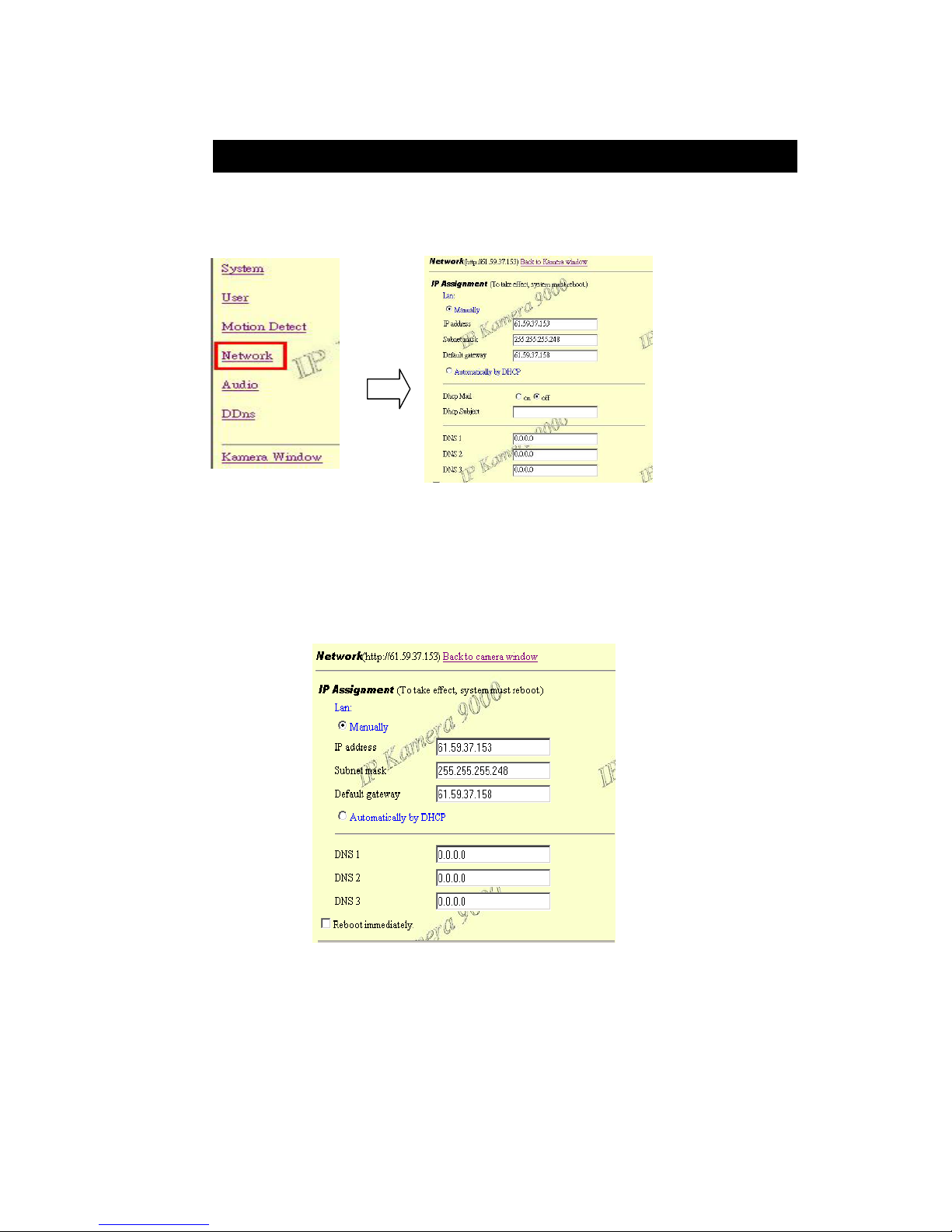

5. Network Set up

From our Network set up, users can view live video from any where in the world, with
just a computer.
Click on Network set up: this area is authorized by administrator only.

1. Still IP: Provided by ISP, with this IP you can connect this address from any
where in the world.

VER. 2.32,

- 13 -

1-1 : Using Still IP: list your still IP address
1-2 : Choose “Reboot immediately”. Please close your browser and reboot again and

type in your IP address once again.

If using DHCP, please choose‘ Automatically by DHCP”

*And please use KIPEdit program (Find users exact IP) that’s included in the CD
ROM

2. DHCP setup- ADSL / xDSL: ISP will provide your exact IP address, please enter
your Username and password for your provider.

2-1 Enter your user name, password, mail server, mail name (pass word), sender

e-mail, and receiver e-mail.

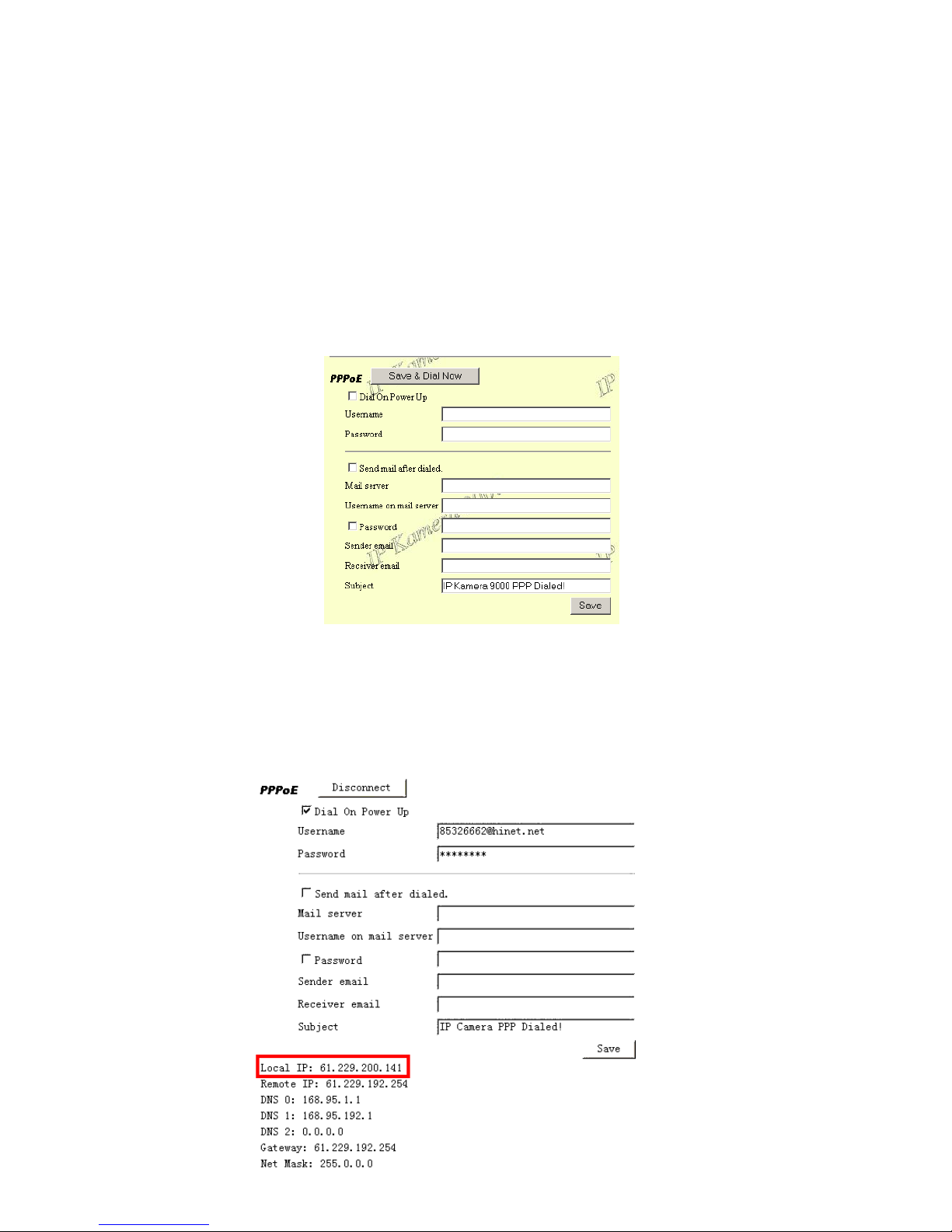

2-2 Choose Save & Dial Now, by using PPPoE it can automatically dial to your ISP,

and ISP will provide exact IP address in your mail.

2-3 turn off your browser of IP Kamera 9000A and restart

- 14 -

IP KAMERA 9000A PLUS USER MANUAL

6. Functions

Please refer to all the function on the left side of IP Kamera 9000A AP; most of its
configuration can only be use by Administrator.

Functions:

1.IP address: Show select IP address.

2. Change Password.

3. Kamera Control:

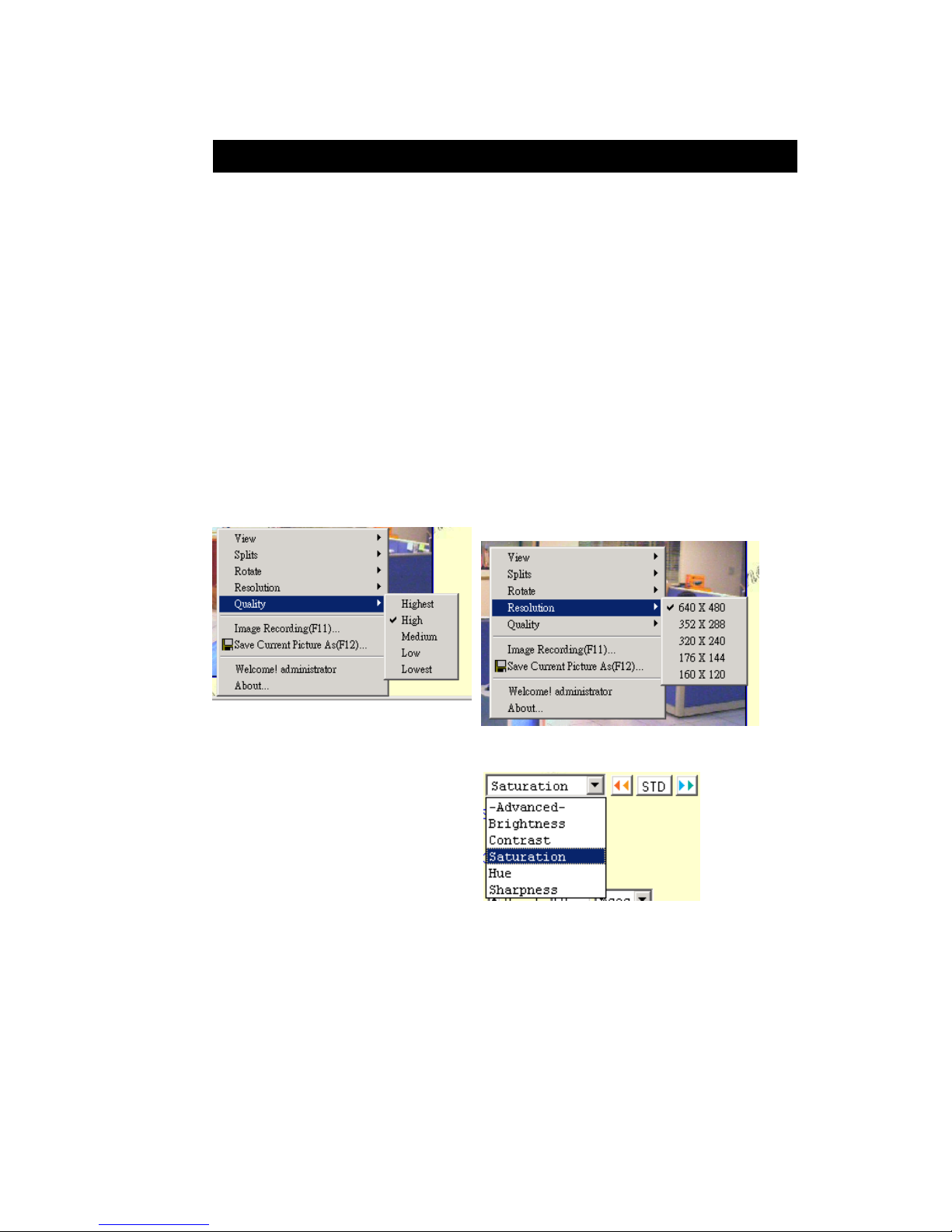

Picture Quality - Low, High, Medium, Clarity& Motion

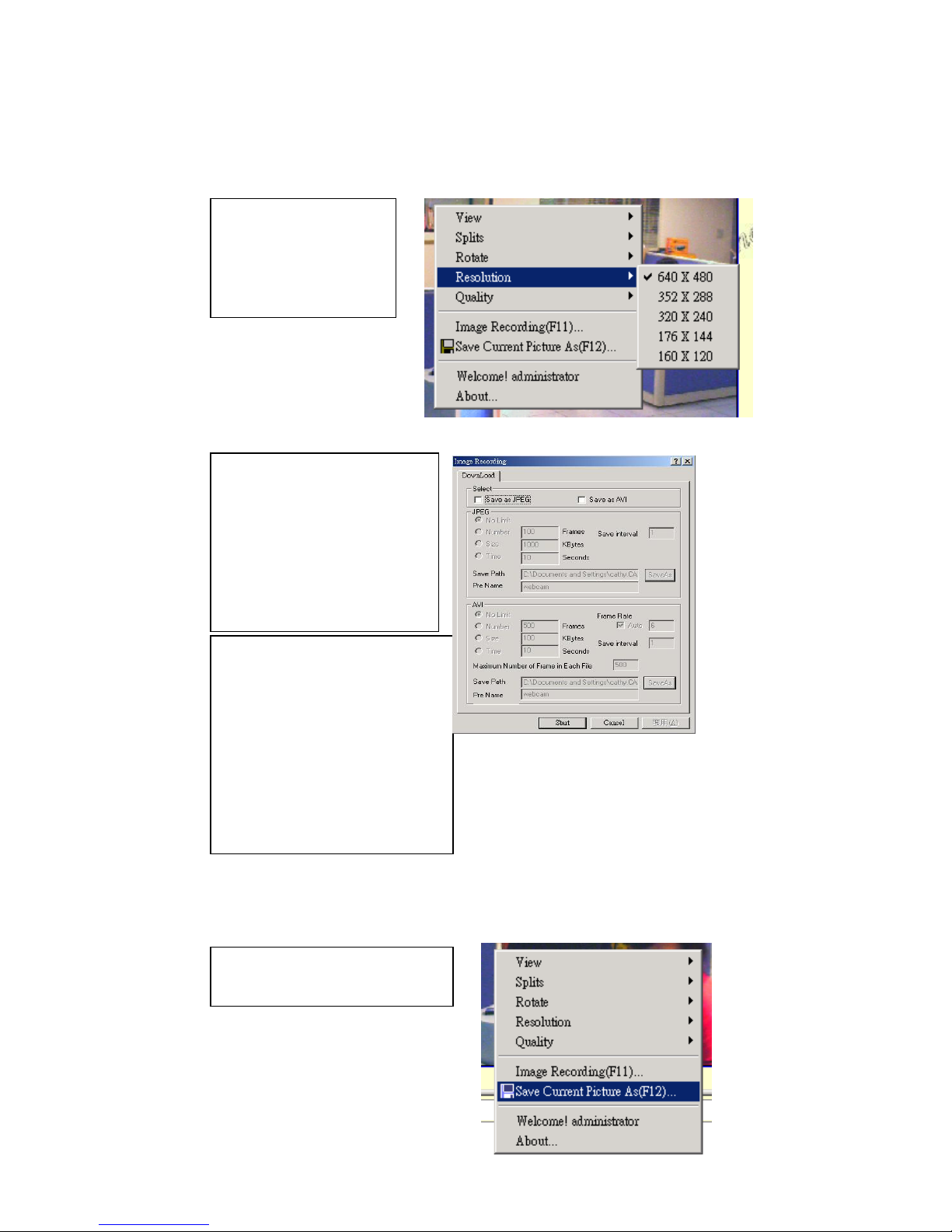

(Resolution) - 640*480,352*288,320*240,176*144,162*120

Frequency – Indoor 50, Indoor 60 & Outdoor

3-1.Picture Quality: 3-2.Resolution set up

3-3: Color Adjust :

Brightness Contrast, Saturation,

Hue, Sharpness

STD is Default color

VER. 2.32,

- 15 -

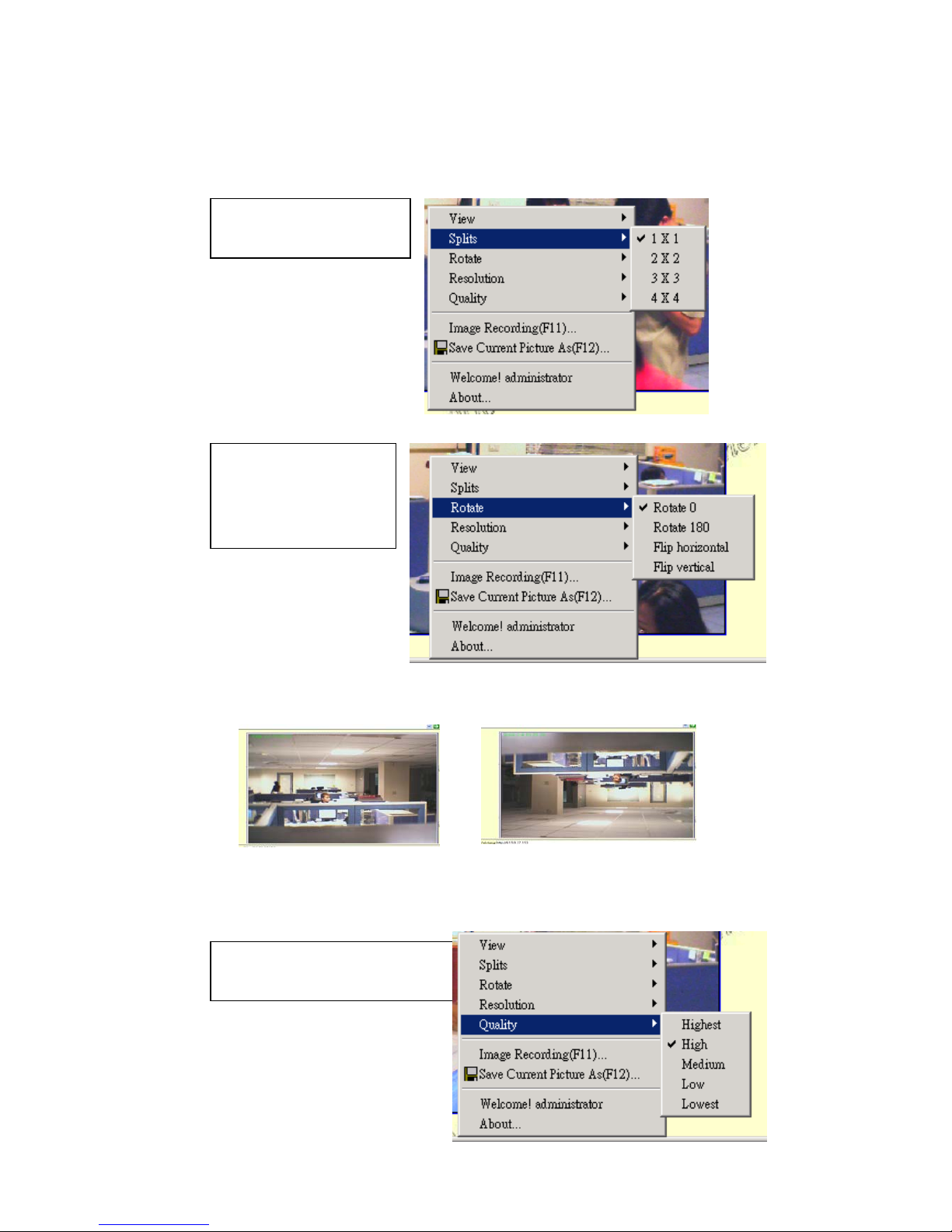

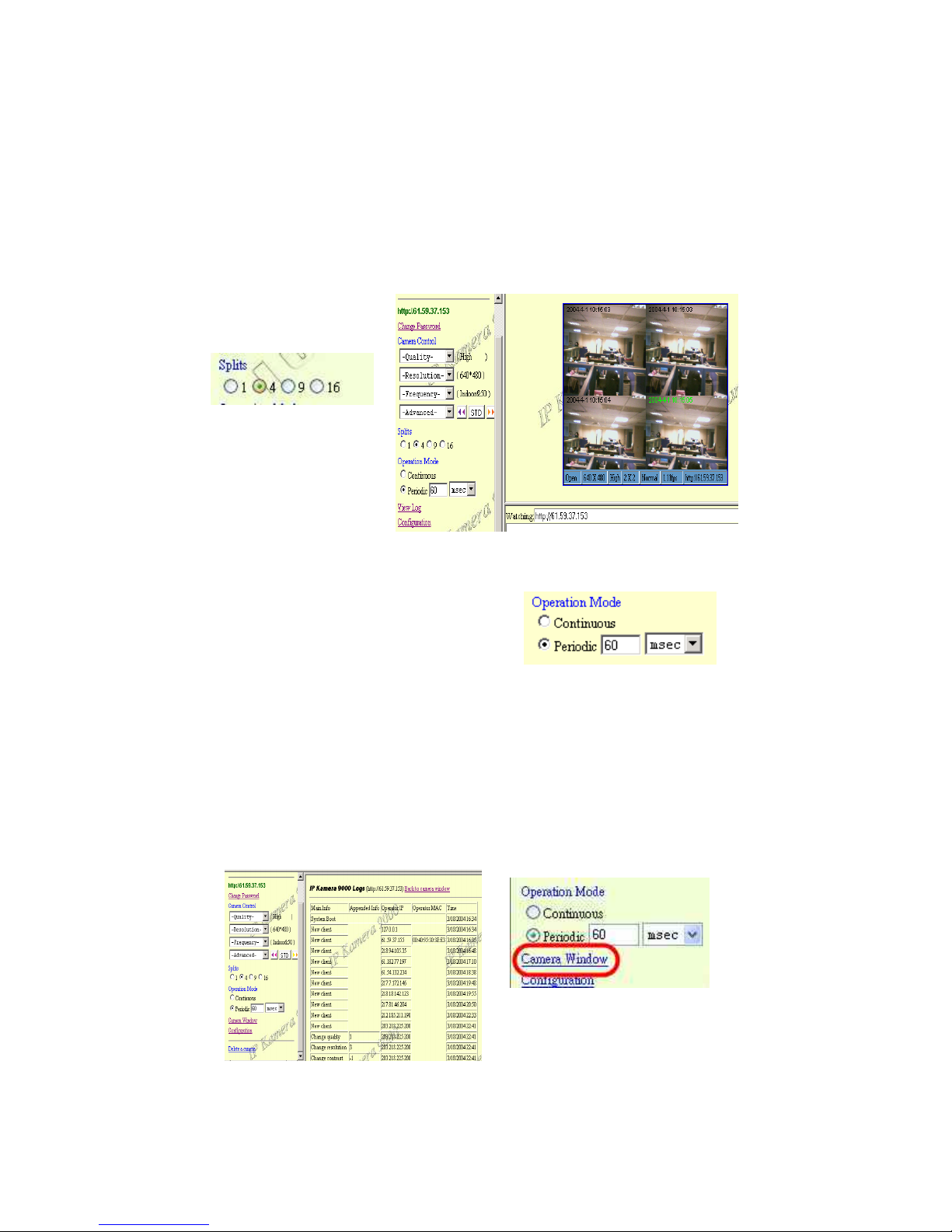

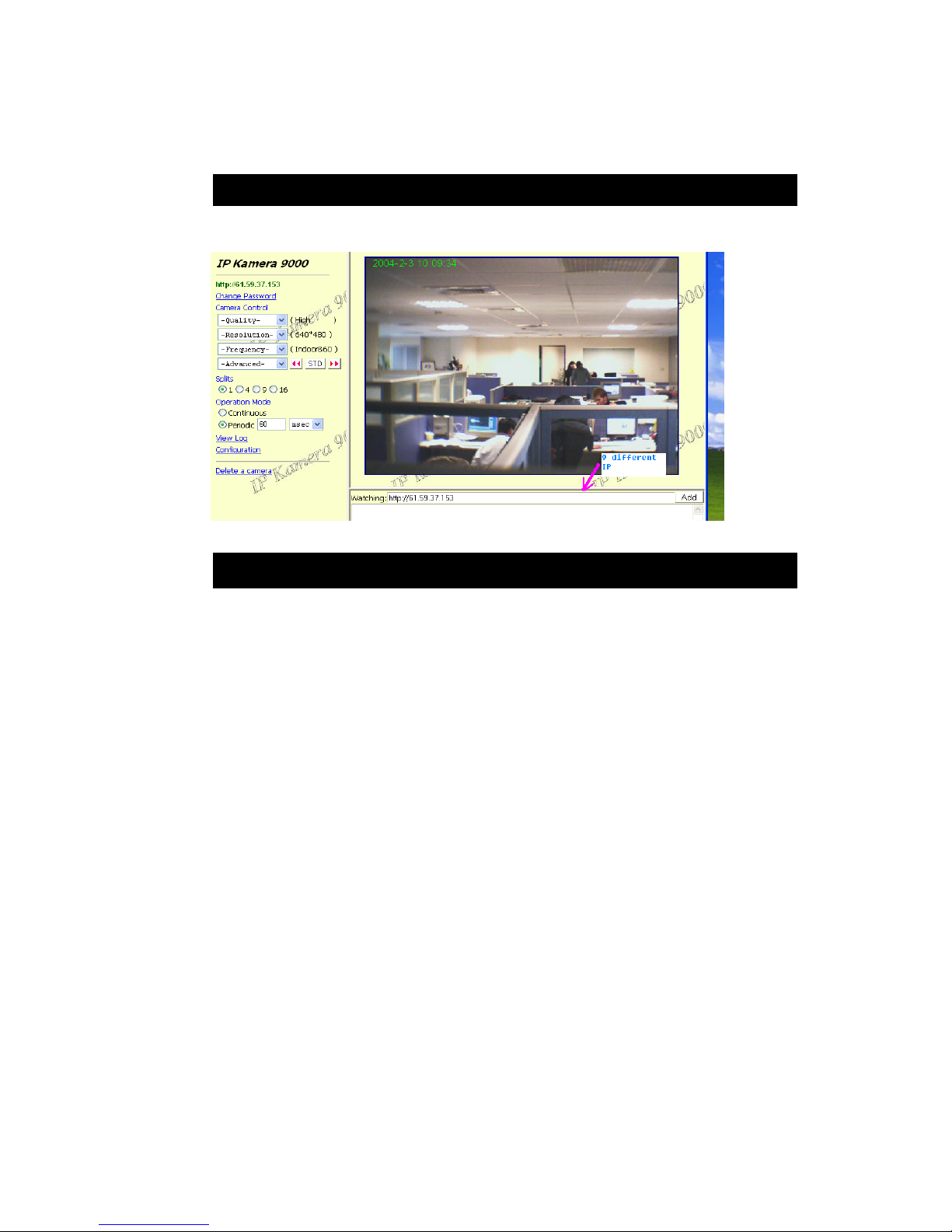

4. Image (Split) - 1x1, 2x2, 3x3, and 4x4.

Splits – Show same video in multiscreen – 1*1, 2*2, 3*3, 4*4

Note – split image are focus into a single image.

4 Video

5. Operation Mode:

Continues mode: Video will display

continues

Period – Video will refresh 1 - 60 per

millisecond or per second

6. View Log: Check on visitors IP and status

View which IP has been visiting your Live image

Note: View/Log / Camera Window is switch

- 16 -

IP KAMERA 9000A PLUS USER MANUAL

7. Configuration:

System

User

Motion Detection

Network

Audio

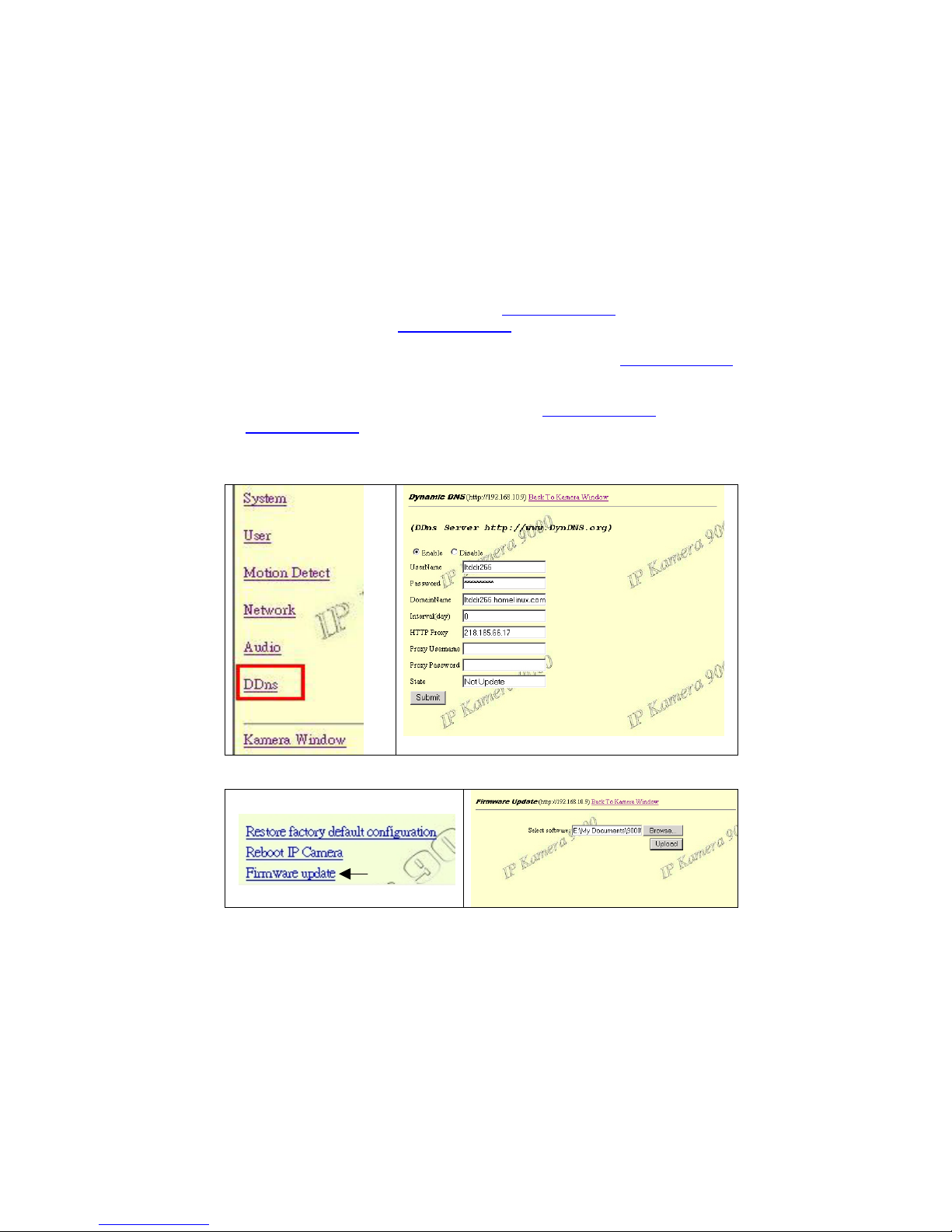

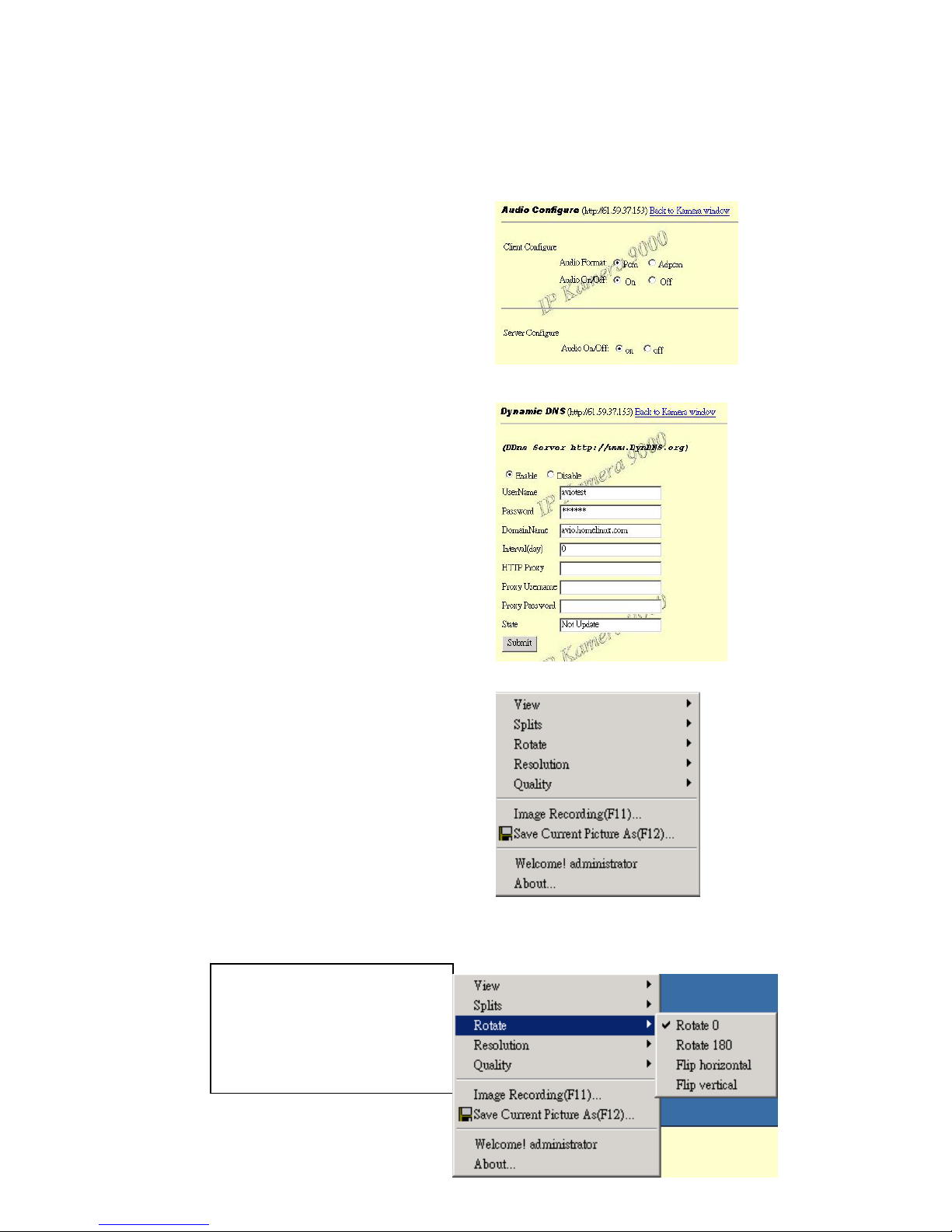

DDNS

7-1 System Set up

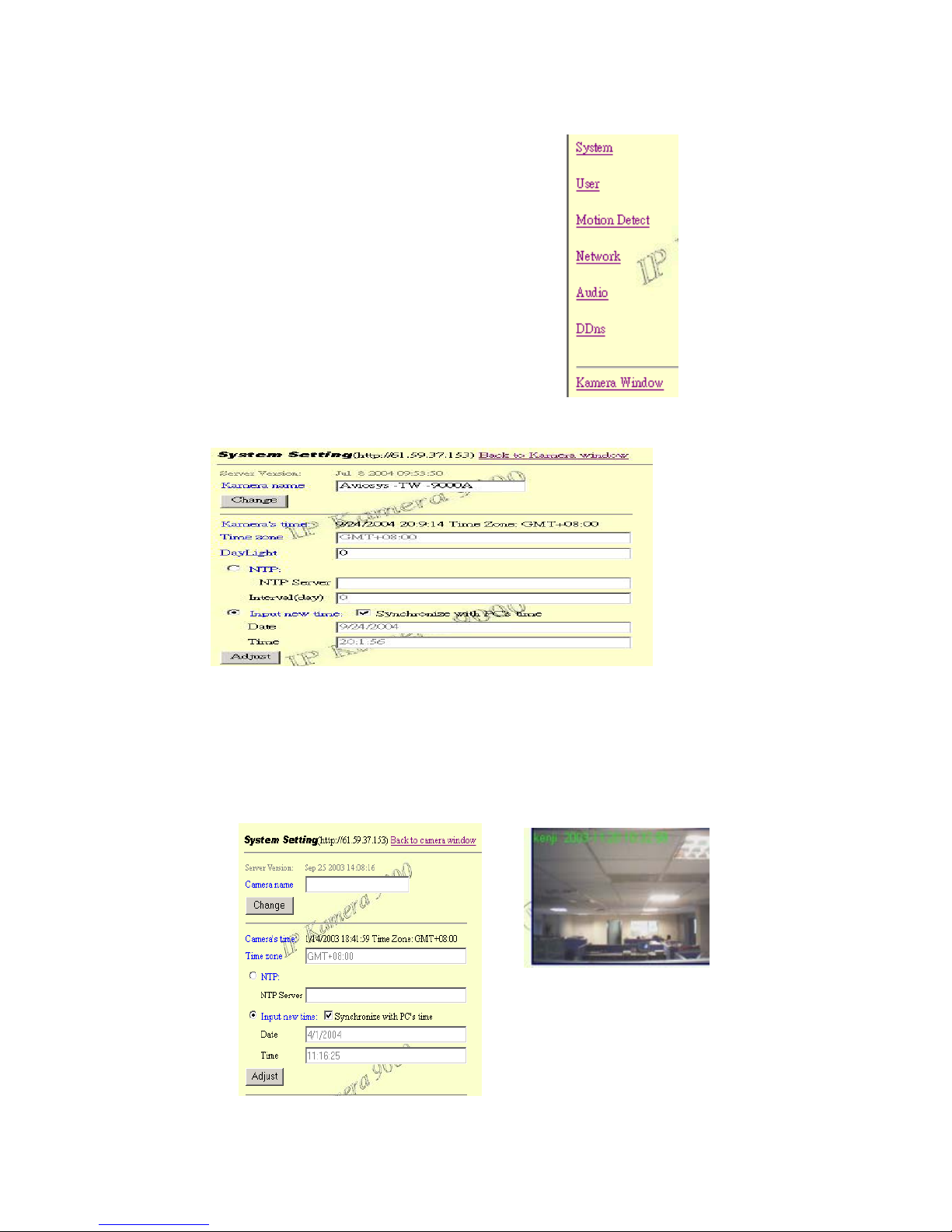

7-1-1 : Camera name, time and date setup

Note: maximum 18 English characyters

VER. 2.32,

- 17 -

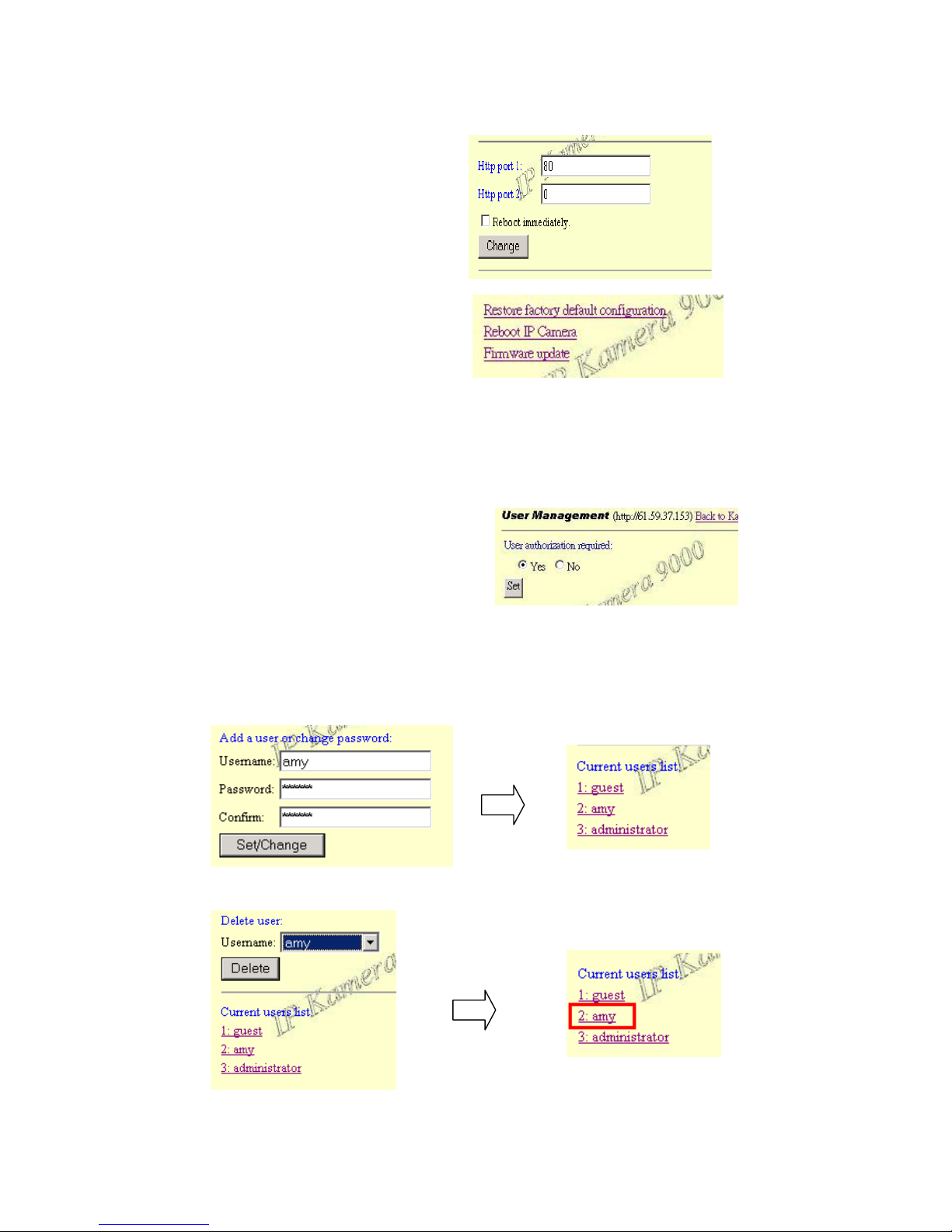

7-1—2 : Setup Http port

7-1-3 : Reset:
7-1-4 : Restart IP Kamera 9000A
7-1-5 : Renew its position

7-2 User Management: Can choose user authorization require optional

Choose if viewers need a password or not.

Yes - Viewers needs a password

No - Open to all viewer who logs in to users IP

7-2-2: Add user by adding a username and a password and you can add a current users

list.

7-2-3: You can also delete a user by selecting its name and press delete.

- 18 -

IP KAMERA 9000A PLUS USER MANUAL

7-3: Motion detection: when motion detection is triggered, it will automatically send video

or image to user E-mail or FTP site.

7-3-1: Choose motion detection:

Disable : No motion detection

Enable: choose – low / mid / high

7-3-1-1: Motion Detection Setup:

Fill in sender mail and receiver mail.

7-3-1-2: When send to FTP, please fill in its

FTP server address, user name,

password, account and upload path,

and click on Upload images when

motion detected.

]

7-3-1-3 :Note setting : Future support

VER. 2.32,

- 19 -

7-4 Network setting : Please refer in page 13

7-5 . Audio : You can control audio on /off at

Server or Client .

7-6 DDNS : Please refer in Page ?

8. Right click function:

When right click mouse, it can also use:

- View

- Splits

- Rotate

- Resolution

- Image Recording

- Save picture

- 20 -

8-1 View

- Resizable: adjust screen size.

- Actual size: default to original

size.

- Status Bar: show ip address,
and screen size.

IP KAMERA 9000A PLUS USER MANUAL

8-2 Split

- 1x1, 2x2, 3x3, 4x4

8-3 Rotate

- Rotate 0

- Rotate 180

- Flip Horizontal

- Flip Vertical

Rotate 0 Rotate 180

8-4 Resolution

- 640x480, 320X240, 352X288,

176X144, 160*120

VER. 2.32,

- 21 -

8-5 Quality :
Low
High

Medium
Clarity
Motion

8-6 Image Recording

- Record images to JPEG and
AVI file. Both files can be
recorded in the same time.

JPEG: can select how many
pictures taken and time frame.

8-6-1 Recording AVI

- Select save as AVI, and then
select the maximum number of
frame in each file.

Note: If select No limit, it will
continue recording until it used up all
memory space.

8-7 Save current picture as

- Take a snap shot on current

ima

g

es showed on IP Kamera AP.

- 22 -

IP KAMERA 9000A PLUS USER MANUAL

9. Dynamic DNS (DDNS)

When the IP9000A dial up to the Internet network, your IP provided by your ISP is
random. So the user may difficult to find your IP9000A because the ip is changing
at every time it dial up.

The Dynamic DNS service is provided by www.DynDNS.org

for free.
First, user can logon the www.DynDNS.org to apply a domain name for each
IP9000A, then fill in the follow textbox with proper user name, password, domain
name, proxy server (because some where can not logon the www.DynDNS.org
directly, user may find a proxy server first, such as 210.0.212.98). Click Submit to
confirm the settings. Then, every time the IP9000A dial up to the internet network,
it will send a data package including its IP to the www.DynDNS.org, so

www.DynDNS.org will set the domain name your have applied before for this

IP9000A pointing to this IP.So, user can type the domain name in the IE browser
to find the IP9000A without knowing its exact IP.

10. Firmware update

User can update the firmware.
First, click Firmware update and it will pop up Firmware Update window.
Then, click Browser to select the new firmware.
At last, click Upload to update the firmware.

VER. 2.32,

- 23 -

7. Other Functions

1. IP Kamera 9000A can view 9 different IP at the same time.

８. Authorization

In IP Kamera 9000A factory set up: factory setting

Username: administrator

Password: 1234

*Is recommended to change its factory setting password and user name

1. Administrator:

Change Password:

Camera Control:

(Quality) - Low, High, Medium, Clarity, Motion

(Resolution) - 640*480, 352*288, 320*240, 176*144, 160*120

(Frequency) Outdoor, Indoor &50, Indoor&60

(Split) - 1x1, 2x2, 3x3 and 4x4.

(Operation Mode):

Continues

Period: 1-60 sec.

View Log: view visitor IP

Configuration:

System, User, Motion detection, Network & DDNS

- 24 -

IP KAMERA 9000A PLUS USER MANUAL

.基1-1 Adding camera

Please add in a different IP in

“ Watching and press enter”

Note1: please type in http://

before your IP.

Note2: when selecting different

views, it will show

different IP addresses in

Watching.

A. Add in another IP address

B. Press “ADD” to increase other IP address. The maximum quantities of IP are

depending on your PC system. If use P3 system, the maximum is 9pcs IP.

C. Another view open up

1-3 : When decrease camera, please

select the camera you want to

delete and select “Delete

Camera”

2. Visitor Authorization:

Change your own password

View log: check other visitors IP address

Add ／ delete camera

VER. 2.32,

- 25 -

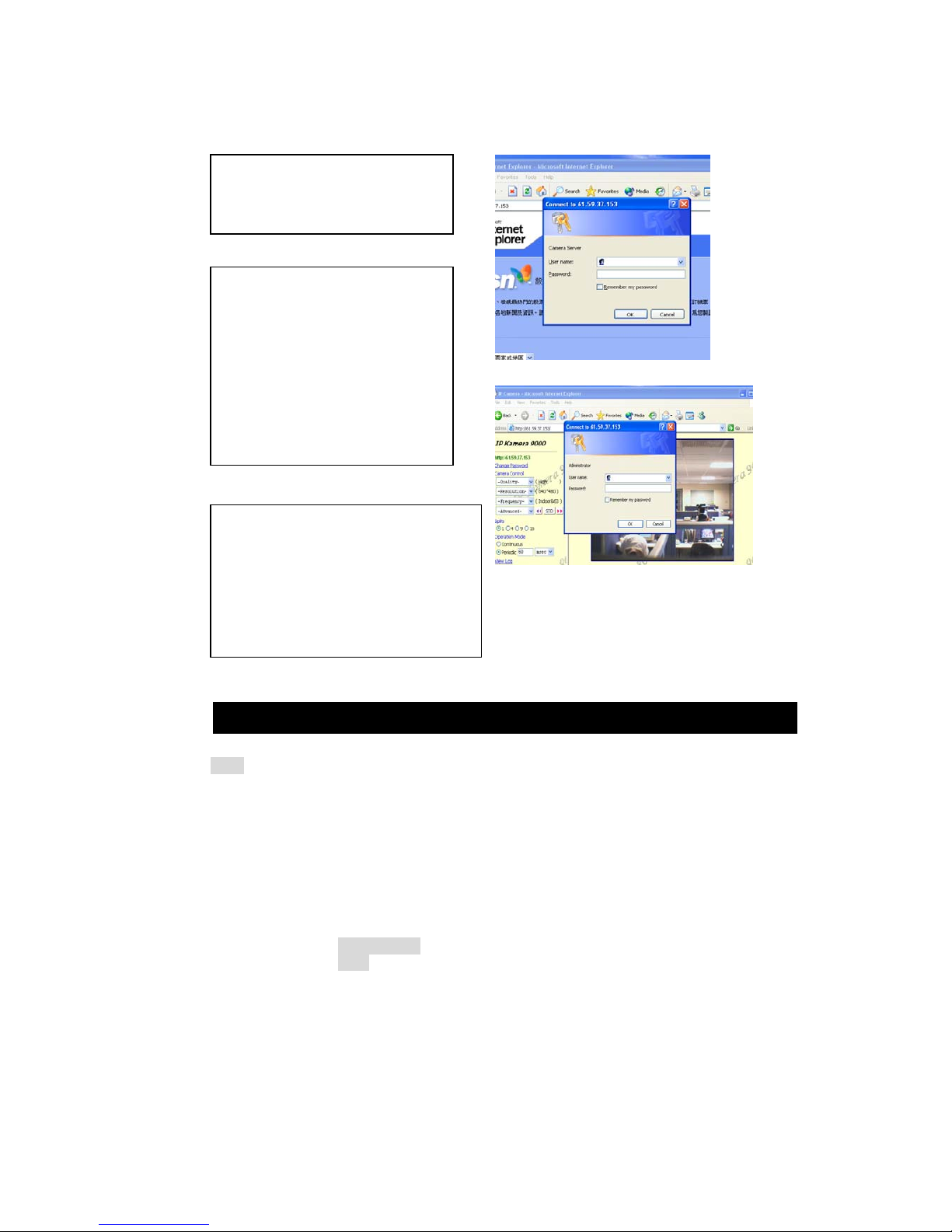

2-1 USER:

- When non-administrator entered ip
addresses to view its AP, it will ask
for a user ID and PASSWORD.

2-2

- Users entered IP Kamera

9000’s AP, it will automatically
request for Administrator’s
Password. If user or other
visitors don’t have the rights to
use Administrator authorization
password, press, “CANCEL” to
ignore the inquiry.

#

Note: IP Kamera AP confirming

A

dministrator

2-3

- Non-administrator enter “system,
user, motion detect, and net work”
which are under configuration mode,
are require to enter administrator
name and password to adjust these
functions.

9. Caution

FAQ

Q 1: I forgot the ID and password for the administrator account, so I cannot log
into the Administration Page.

A1: Make sure IP Kamera 9000A is powered on and press the “reset” button behind

IP Kamera 9000A for at least 10 seconds, to help default camera setting to factory
setting.

*Note: Factory Administrator ID and Password

ID: Administrator

Password: 1234

Q 2: The Web Kamera does not launch?

A2: Upgrade Internet Explorer to 5.0 or higher version.

Sometimes the web camera base cannot bring 'index.html' from the web
Camera when the Internet Explorer version is under 4.0. And remember to adjust
Internet default level to low when launching IP Camera’s AP for the first time.

- 26 -

IP KAMERA 9000A PLUS USER MANUAL

VER. 2.32,

- 27 -

Q 3: The Image recording cannot stop immediately?

A 3: If your IP is virtual IP, than it will not be happened. If your IP is true IP (EX:

PPPoE or FIX IP….), than it might be happened. You need to wait for a second
and it will be return to normal.
