AVerMedia LX5000 User’s Manual
AVerMedia LX5000
Digital Video Recorder &
Remote Surveillance System
300AAABX / V3.0 / 0612
FCC NOTICE
This device has been tested and found to comply with the limits for a Class a digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a commercial, industrial or business environment. This equipment can generate, use and radiate radio frequency energy and, if not installed and used in accordance with the instruction, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for
help.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
CAUTION ON MODIFICATIONS
To comply with the limits for the Class A digital device, pursuant to Part 15 of the FCC Rules, this device must be installed in computer equipment certified to comply with the Class A limits. All cables used to connect the computer and peripherals must be shielded and grounded. Operation with non-certified computers or non-shielded cables may result in interference to radio or television reception.
Any changes or modifications not expressly approved by the grantee of this device could void the user's authority to operate the equipment.
CE NOTICE
This is a Class A product.
ENG 01
2
Page 2
AVerMedia LX5000 User’s Manual
AVerMedia LX5000 User’s Manual
DISCLAIMER
No warranty or representation, either expressed or implied, is made with respect to the contents of this documentation, its quality, performance, merchantability, or fitness for a particular purpose. Information presented in this documentation has been carefully checked for reliability; however, no responsibility is assumed for inaccuracies. The information contained in this documentation is subject to change without notice.
In no event will AVerMedia be liable for direct, indirect, special, incidental, or consequential damages arising out of the use or inability to use this product or documentation, even if advised of the possibility of such damages.
TRADEMARKS
AVerMedia is a trademark of AVerMedia TECHNOLOGY, Inc.
IBM PC is a registered trademark of International Business Machines Corporation. Microsoft is a registered trademark and Windows is a trademark of Microsoft Corporation. All other products or corporate names mentioned in this documentation are for identification and explanation purposes only, and may be trademarks or registered trademarks of their respective owners.
COPYRIGHT
© 2002-2003 by AVerMedia TECHNOLOGY, Inc. All rights reserved. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language in any form by any means without the written permission of AVerMedi a TECHNOLOGY, Inc.
TABLE OF CONTENTS
CHAPTER 1 INTRODUCTION.......................................................................6
1.1 AVERMEDIA LX5000 HIGHLIGHTS ............................................................................ 6
1.2 PACKAGE CONTENTS..................................................................................................7
1.3 MANUAL CONVENTIONS ............................................................................................7
CHAPTER 2 HARDWARE INSTALLATION................................................8
2.1 HARDWARE RECOMMENDATIONS...............................................................................8
2.2 INSTALLING THE AVERMEDIA LX5000 VIDEO CARDS ............................................. 11
2.3 ATTACHING CAMERAS.............................................................................................. 12
2.4 CONNECTING EXTERNAL INPUTS/OUTPUTS CONTROL DEVICES .............................. 13
CHAPTER 3 SOFTWARE INSTALLATION ...............................................17
3.1 INSTALLING FROM THE SOFTWARE CD....................................................................17
CHAPTER 4 SYSTEM CONFIGURA TION AND OPERATION...............19
4.1 ENTERING THE SYSTEM ........................................................................................... 19
4.2 SYSTEM CONFIGURATION ........................................................................................21
4.3.1 Start / Stop Recording..........................................................................57
4.3.2 Playback.............................................................................................. 58
4.3.3 Show / Hide E-MAP............................................................................ 70
CHAPTER 5 USING THE WEBCAM...........................................................78
5.1 ENABLE WEBCAM ................................................................................................... 78
5.2 USE THE WEBCAM................................................................................................... 80
CHAPTER 6 REMOTEMANAGER..............................................................83
6.1 ACCESSING REMOTEMANAGER ............................................................................... 83
6.2 SETUP.......................................................................................................... 86
6.3 OPERATING REMOTEMANAGER ............................................................................... 93
3
4
Page 3
AVerMedia LX5000 User’s Manual
AVerMedia LX5000 User’s Manual
6.4 START RECORDING .................................................................................... 100
6.5 EXIT REMOTEMANAGER ...........................................................................100
CHAPTER 7 AVERMEDIA FAQS...............................................................102
APPENDIX A REGISTERING DOMAIN NAME ON DDNS SERVER...104
APPENDIX B IMAGE VERIFICATION....................................................106
APPENDIX C REMOTE LOGIN WITH AN MODEM-TO-MODEM
CONNECTION..............................................................................................112
A. WINDOWS 98SE / WINDOWS ME............................................................................. 112
B. WINDOWS 2000....................................................................................................... 113
C. WINDOWS XP.......................................................................................................... 116
LIMITED WARRANTY................................................................................ 119
Chapter 1 Introduction
1.1 AVerMedia LX5000 Highlights
The AVerMedia LX5000 is the first remote digital surveillance system
that operates under the Linux environment. It integrates the latest in
image processing, digital management, and communication technology.
The AVerMedia LX5000 also employs an auto-integrated interface with
remote control software and uses Intelligent Digital Recording to
produce ultra-high quality images. Advanced motion detection
technology enables the system to use sensing devices to detect motion,
which triggers video recording and external alarm devices.
The AVerMedia LX5000 is adaptable and flexible allowing the
administrator to customize the system based on various trigger events.
These events trigger a variety of action responses necessary to record
information and notify the responsible personnel. The AVerMedia
LX5000 employs a user-friendly operating interface and requires
minimal maintenance. Intelligent programming reduces the need for
manual operation and therefore minimizes the human error factor.
The AVerMedia LX5000 system has been especially designed to allow for
future enhancements in addition to maintaining interfaces necessary to
integrate with legacy surveillance equipment. Taking advantage of
today’s sophisticated communication technology, the AVerMedia LX5000
puts you in control of all of your surveillance activities from anywhere in
the world.
5
6
Page 4
AVerMedia LX5000 User’s Manual
g
p
g
(
AVerMedia LX5000 User’s Manual
1.2 Package Contents
AVerMedia LX5000
LX5000: 1/2 x AVerMedia Video Capture Card
1 x LAN Card (REALTEK RTL8139)
1 x CD (includes LX5000 software, Linux Operating System,
RemoteManager S/W, and User’s Manual)
Optional: I/O Box, and I/O Cable
1.3 Manual Conventions
The following conventions are used throughout this manual.
Type Stands for Example
[paren.] Keys on the keyboard [Enter]
“Quotes” Words to be typed in “AVerMedia”
Italic User in each authorization level Administrator
Name of a dialo
Bold
Underlined Table columns Time
Sections/O
box/Field names/Buttons
Caution Message: These messages are to advise you to
proceed carefully. Failure to pay attention could result in
tion title in the dialo
box,
Operation
Chapter 2 Hardware Installation
2.1 Hardware Recommendati ons
CPU Intel Celeron 800
is recommended)
(AMD K6, K7 tempor ar il y not supported)
Operating System Linux RedHat, included with the AVerMedia
LX5000 CD
VGA Card
Motherboard Intel Chipset with 6 PCI slots recommended
Hard Disk Space 80GB or higher
System RAM 128 MB (more recommended)
Capable of 1024 x 768 resolution or greater
1. nVidia GeForce 2 / 3 MX series
2. nVidia GeForce 4 Ti4200 / 4600 / 4800 series
3. Ati Radeon 8500 / 9000 / 9700 Pro
List of motherboards tested:
ASUS P4B533
ASUS P4B533E
MSI 854E MAX2
ABIT-SA6R (PIII/Celeron)
Pentium III 800 MHz or above
damage to the system and may put personnel and environment at risk.
Informational Message: These messages are intended to
provide additional information for the purpose of clarification.
7
Video Frame Size 320 x 240, 640 x 480
Video NTSC or PAL
Video Input Standard analog video signal
8
Page 5
AVerMedia LX5000 User’s Manual
(
y
AVerMedia LX5000 User’s Manual
Modem List of modems supported:
Lucent Venus Serial Voice Modem
Rockwell (Connexant) chipset Voice Modem
Topic chipset Voice Modem
Zyxel Omni56K Voice Modem
if a modem is to be used with in the AVerMedia LX5000 serv er, it needs to be an external modem)
SCSI Card AHA
Monitor 1024 x 768 (or higher) with horizontal frequenc
of 60 Hz
Mouse 3-button mouse
PTZ Camera List of PTZ cameras tested:
Lilin PIH-717/7000/7600
Dynacolor D7700
Kampro KC-7720
Pelco SD5TAC Series
Most PTZ cameras use RS-485 as the communications protocol
but most motherboards use RS-232 serial ports. If this is the
case, you need to purchase an RS-232 to RS-485 converter.
If you purchase the AVerMedia LX5000 kit, and you run out of
external COM ports for the speed dome camera, you can use a
10-pin to DB-9 ribbon cable (included with package) with the internal
COM header on the motherboard. First, plug the 10-pin connector into
the internal COM header. Then screw the DB-9 connector into the I/O
bracket (also included in the packaging). Finally use the screws to
attach the I/O bracket to your chassis. You can now connect your
speed dome cameras. See the following figure.
If you want to add an additional hard disk, please first partition
it manually following the rule of LINUX system operation. On
the other hand, note that only the CD-R with IDE interface can be
connected to IDE 1 slave.
9
10
Page 6
AVerMedia LX5000 User’s Manual
AVerMedia LX5000 User’s Manual
2.2 Installing the AVerMedia LX5000 Video Cards
The following instructions are for installing video cards into the
AVerMedia LX5000.
Before installing the video card, turn off the computer’s power,
unplug the power cable and disconnect all other cables
attached to the back of the computer.
Video card
PCI Slot
NOTE: Orient the red mark
upward.
Connecting the AVerMedia LX5000 Video Cards
Up to four cameras can be connected to each LX5000 video card - one
camera per BNC terminal.
Senso
r
Inputs
Infrared Sensor
Proximity Sensor
Smoke Detector
Camera 1
D-type 15-pin
Connector
Cable
Relay
Output
s
Reed Switch
Relay Control
Burglar Alarm
Access Control
Camera 2
Camera 3
Camera 4
Coaxial Cable
(Not
2.3 Attaching Cameras
Cameras must be attached to the
BNC connectors of the server
Remove the computer cover.
Remove the I/O brackets for the four PCI expansion slots. Save the
screws.
Insert the AVerMedia video cards into the available PCI expansion slots.
Replace the computer cover and reconnect all cables.
11
video cards in a specific order to
avoid transmission problems.
Depending on whether you have
the LX5000 will determine how to
1
5
9
13
2
6
10
3
7
4
8
14
11
15
12
16
LX5000
install your cameras. Video cards are stacked vertically into the chassis.
If all four video cards are installed, the rear panel of the server will
appear as shown in the diagrams below.
12
Page 7
AVerMedia LX5000 User’s Manual
AVerMedia LX5000 User’s Manual
Cameras need to be installed according to the numerical order displayed on the diagrams above for each model. With the LX5000, cameras
will be installed from top to bottom beginning with the left-most column.
2.4 Connecting External Inputs/Outputs Control Devices
Each system and kit comes with four External I/O Boxes and D-type 15-
pin connector cables enabling you to connect sensor inputs and relay
outputs. The pin signals and specifications for the external I/O Box and
the D-type 15-pin connectors are described below.
IN 1
IN 2 IN 3 IN 4
Video Card
D-type 15-pin Connector Cable
External I/O Box
Sensor Input Specification
Relay Output Specification
Surge strength: 1500 VAC
Nominal power: 200mw ~ 360mw
Operating power: 110mw ~ 200mw
D-type 15-pin connector
Sensor Input 2
Sensor Input 1
Sensor Input 3
Relay Output 1
External I/O Box
Sensor Input 4
Relay Outputs 3
13
COIL RATINGS (at 20
Coil Nominal
Voltage
(VDC)
o
C )
Coil
Resistance
( 10% )
5 125 3.75 0.5 40
* Max Continuous Voltage at 20
14
Pick-up Voltage
(VDC)
o
C : 110% of Coil Nominal Voltage
Drop-Out
Voltage
(VDC)
Nominal
Current
(mA)
Page 8
AVerMedia LX5000 User’s Manual
AVerMedia LX5000 User’s Manual
CONTACT RATINGS
Contact Arrangement 1 Form C (SPDT)
max. Switch Power
max. Switch voltage
125VA 60W
125VAC 30VDC
max. Switch current
Contact Resistance 100m
1A/125VAC
Resistive Load
2A/30VDC
Contact Material AgNi10
External I/O Box pin signals
Pin # Definition
1 INPUT SIGNAL 1+
2 INPUT SIGNAL 2+
3 INPUT SIGNAL 3+
4 INPUT SIGNAL 4+
5 OUTPUT 3 – Normally Closed
6 INPUT SIGNAL 1-(GND)
2A
12 OUTPUT 1 – Common
13 OUTPUT 2 – Normally Open
14 OUTPUT 2 – Common
15 OUTPUT 3 – Normally Open
Sensor Inputs
External sensors such as infrared sensors, smoke detectors, proximity
sensors, door sensors, etc., can be attached to the AVerMedia LX5000’s
input-signal connectors on the External I/O Box. These devices trigger
the system to respond with a predefined action (e.g. record video) Relay Outputs The AVerMedia LX5000’s output connectors (relay output) can be
attached to external output control devices such as alarms. The system
can be configured to activate or deactivate these devices. Each
AVerMedia video card supports three relay outputs. Two of them are
normally open relays with one being a toggle switch.
7 INPUT SIGNAL 2-(GND)
8 INPUT SIGNAL 3-(GND)
9 INPUT SIGNAL 4-(GND)
10 OUTPUT 3 – Common
11 OUTPUT 1 – Normally Open
15
16
Page 9
AVerMedia LX5000 User’s Manual
AVerMedia LX5000 User’s Manual
Chapter 3 Software Installation
3.1 Installing From the Software CD
This section describes the instructions for installing the OS and system
software from the AVerMedia LX5000 system CD.
Before you starting to install the system, please confirm that
the time in the system is met to the current time.
1. Go into the BIOS Setup and configure the First Boot Device to be
the CD-ROM in order to boot from the AVerMedia LX5000 system CD.
Note that when you use this CD to boot the system, the CD-ROM
drive can either be the master or slave of any IDE channel.
2. After boot-up, you will need to choose one of the options from the
menu below.
************** Option Menu ***************
(1) Make Hard Disk and Install. . (0) Exit & Shutdown.
Which you want:
The system will display a warning message to remind you to install
the hard disk as IDE 0 master:
(0) Exit & Shutdown: This option exits the setup mode and then
proceeds to shutdown.
3. Reboot the computer to run the system.
(1) Make Hard Disk and Install : This option installs the Linux OS and
AVerMedia LX5000 software onto the hard disk. Before running this
option, make sure that you have installed the hard disk as IDE 0
master.
17
18
Page 10
AVerMedia LX5000 User’s Manual
Chapter 4 System Configuration and Operation
4.1 Entering the System
Before you start running LX5000 system, the system will perform a
routine hardware check-up and scan all hard disks. In general, the hard
disk scan takes only a few seconds. But if the hard disk was abnormally
shutdown or had been damaged, the system will do a complete scan.
AVerMedia LX5000 User’s Manual
The scan time is dependent on the hard disk size. (with a complete scan,
it takes about 1 minute to scan 30GB).
If you re-installed your LX5000 system and forgot your
previous password, you can choose to remove the previous
password setting when the first time you enter the system after the re-
installation.
Remove password setting (y/n)?
After the hardware check-up is finished, a dialogue box will display prompting you to set some basic configurations. You only have 15
seconds to finish all the selections on this screen.
19
For Select Language, you can select from
English, Traditional Chinese, Simplified
Chinese, Japanese, German, French, Polish,
and Czech.
After your selection, a pop-up window
besides will allow you to utilize the system
application.
Enter user serial number in Serial Number field to further use
AVerMedia LX5000
20
Page 11
AVerMedia LX5000 User’s Manual
ersio
p
AVerMedia LX5000 User’s Manual
4.2 System Configuration

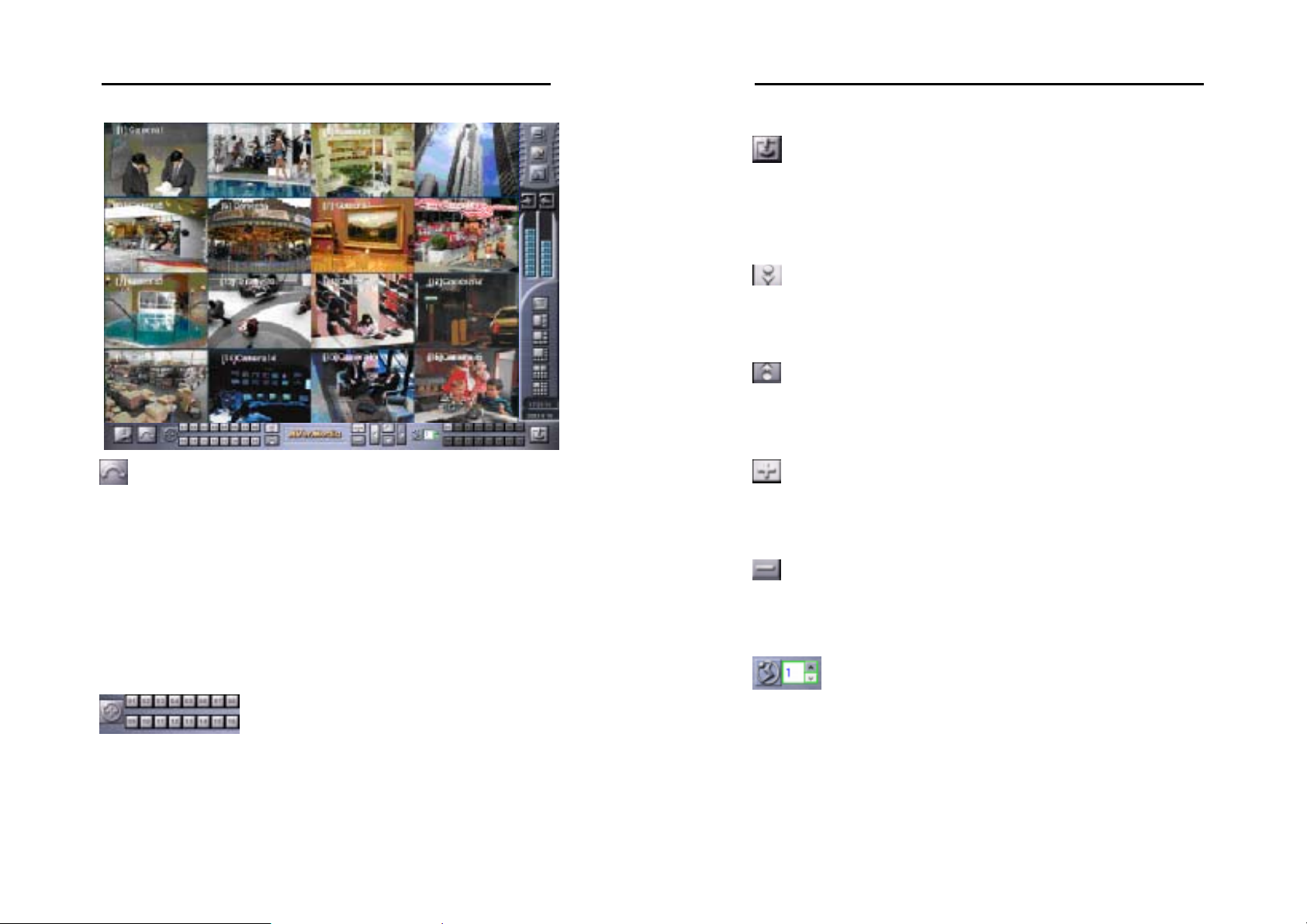

Main Screen
Display Mode
Full Screen
Auto Scan
Show E-Map
Start Network Service
PTZ Control
Playback
Setup
Start / Stop Monitor
Exit
Network Status
Click this button to show the
current network status where you
can see every client connecting to
the server. Click 'clear all' to
delete the record; click 'save to disk' to save the record.
Sna
Shot
Select Camera
Network Status Alarm Status Slow Log
Monitoring Status
Enlarged Display
Time / Date
n
V Hard Disk Status
Alarm Report
The image will turn into red and be
flashing once an alarm is triggered.
An alarm message with the detailed
alarm status will be seen after you
click on it. It will help you control
the situation of surveillance. Click
'clear all' to delete the record; click
'save to disk' to save the record.

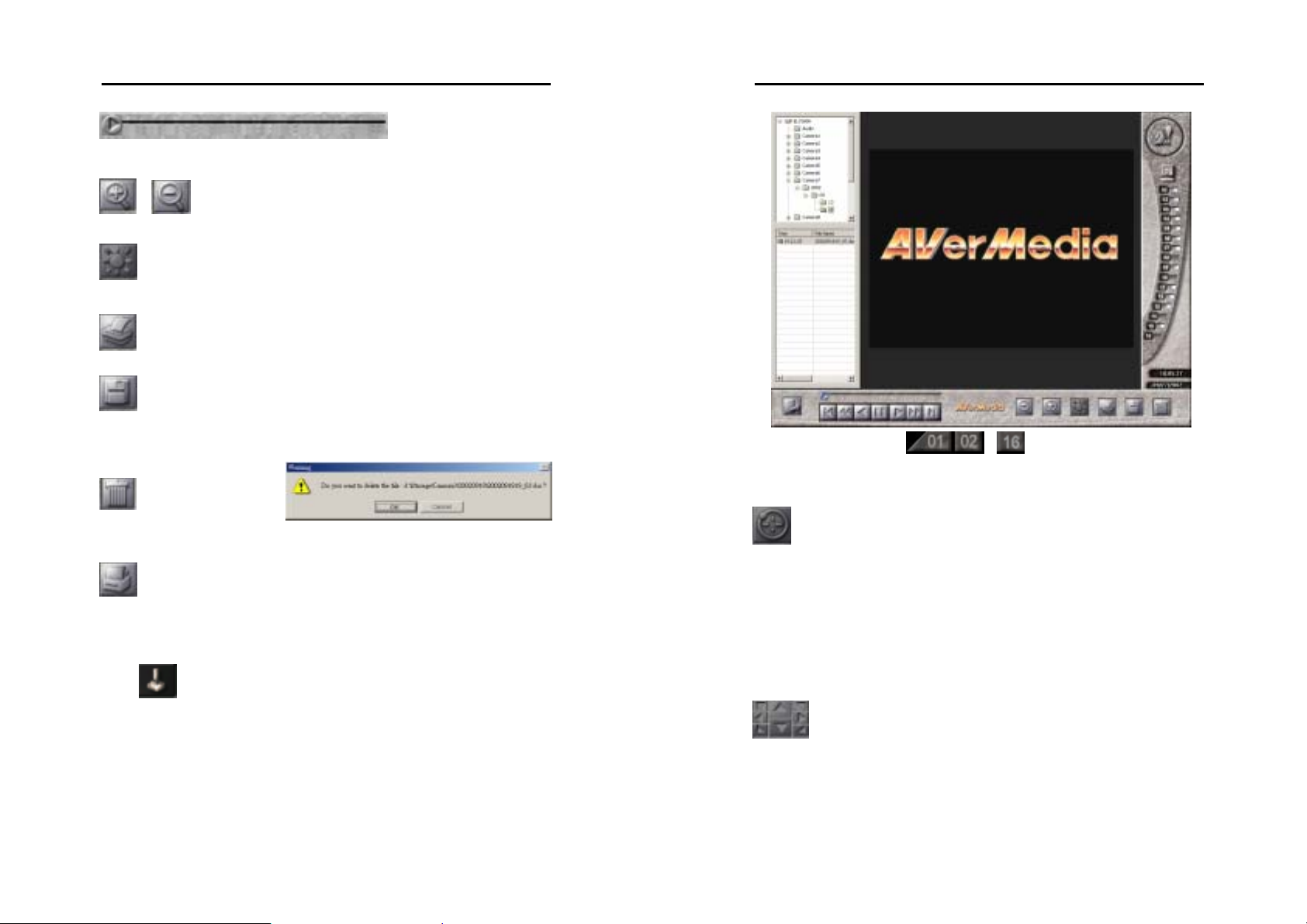

Show Log
To display record, click this button
so that you can replay the record
and save for further process.

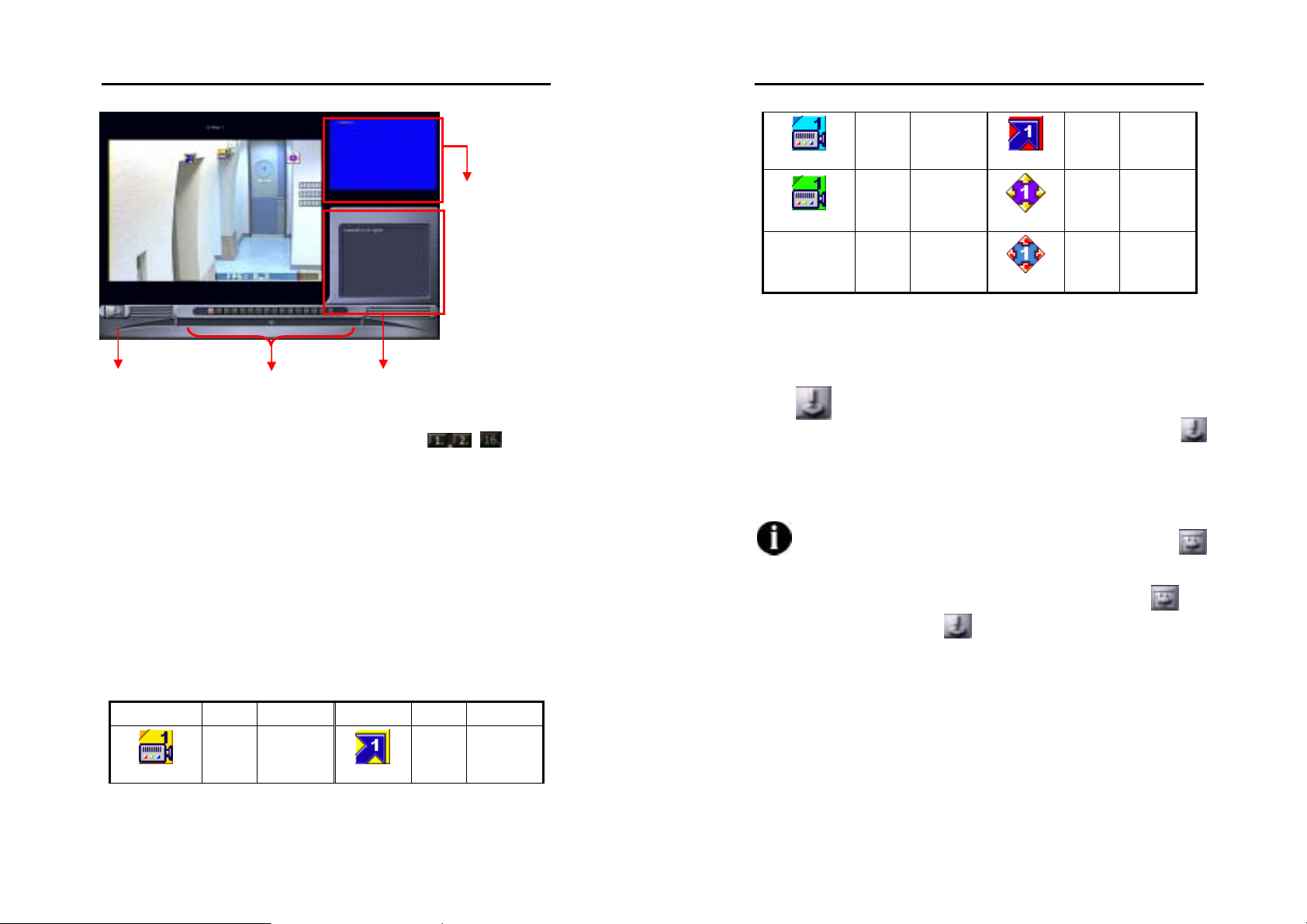

Monitoring Status
Sensor / Relay Status
The panel provides the real time monitoring control
on the sensor and relay surveillance system. The
numbers of the grids on the status bar present as
follow as the rule of 4 sensor inputs and 3 relay
outputs supported by each video card. Once a relay is triggered, one of
21
22
Page 12
AVerMedia LX5000 User’s Manual
AVerMedia LX5000 User’s Manual
the grids will turn yellow on which the further information will be shown. With the information go to System setup Alarm setup Relay →→ alarm to find out the generated sensor.
Time/Date
This field contains the
current time (hour:minute:second)
and date (year/month/date). You can
double-click here to reset the time
and date in the displayed dialog box
besides.
Software Version
It displays the software version of the AVerMedia LX5000 system
Hard Disk Status
Since that one image was enlarged the total number of remaining
images will be reduced. In the example below, the 16-image display
(figure 1) is reduced to a 13-image display after one of the images was
enlarged. You can repeat this process until you are left with 7 images
(3 large and 4 small – figure 8). If you further click on any image, the
screen will remain as 7-camera display placing the last double-clicked
image in the upper left corner. You can also do this with the 9-Camera
Display mode, but the initial double-click will turn the 9-screen display
into a 16-screen display.
Figure 2 Figure 3 Figure 1 Figure 4
This information shows the total disk capacity and available disk space
of all the hard disks in the system.
Enlarging Display
Click “1-Camera Display” this button to view image from a single
camera and switch any camera into a specific camera. Double clicking
on any of the images will enlarge that image and move it into a corner.
23
Display mode
The following grid shows how camera images are positioned on the
monitor when in the different split screen modes. The numbers in the
squares correspond to the camera numbers.
1
24
Page 13
AVerMedia LX5000 User’s Manual
AVerMedia LX5000 User’s Manual
4-Camera Display
The first click of this button displays cameras 1 through 4 on
the screen. Continue to click to view cameras 5 through 8, 9 through
12, 13 through 16, and finally returning to cameras 1 through 4. The
cycle goes on as illustrated in Figures 5 through 4. Double-clicking any
camera image under the 4-Camera display will take you to the full-
screen display and begin the Auto Scan function
Figure 5
9-Camera Display
Clicking this button displays cameras 1 through 9
concurrently.
Figure 6
Figure 7
Figure 8
Full Screen
Click this button displays, you can switch the current audit mode to full
screen. If you witch to switch back to audit mode, right click on mouse
button so that you can exit full screen mode.

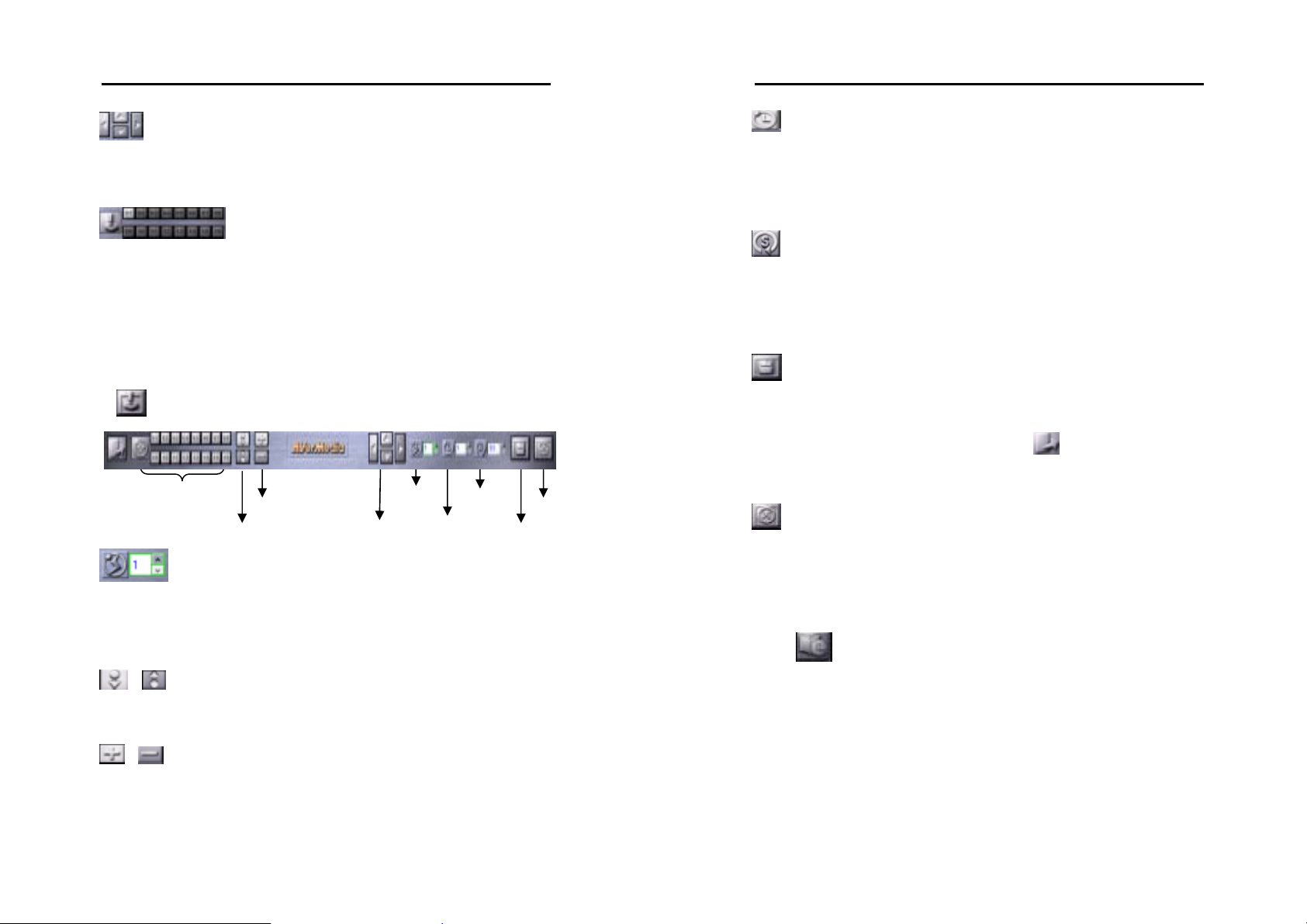

Auto Screen
In screen splitting mode, click this button to enable auto scanning
function. It will enable camera to repeat scanning according to camera
setting. Click on this button again will stop scanning function.
Camera option button
During scanning, click option button to select one camera from
the list, and screen will switch for designated camera, then go
back to original loop to continue scanning function; click drop
down menu
and disable the selected camera.
16-Camera Displa y
Clicking this button displays all sixteen cameras
concurrently.
25
Screen capture
Click this button to save the current auditing screen to a jpg file, and
the saved time will be used as the file name. During the file saving, click
on the button and its color would change to red color. After
file saving is done and its color will go back to normal.
26
Page 14
AVerMedia LX5000 User’s Manual
AVerMedia LX5000 User’s Manual
4.2.1 System Setup
System configuration
Enter system setting screen, user can do the following: system setting,
change password, camera setting, record setting, e-map setting,
network setting, alarm setting, schedule setting and printer setting
System Setup
1. Video signal warning:
If it is selected, system will beep warning when system detect
camera has video loss.
27
28
Page 15
AVerMedia LX5000 User’s Manual
AVerMedia LX5000 User’s Manual
2. Date format:
System provide two different date format:
yy/mm/dd(year/month/day) and mm/dd/yy (month/day/yar)
3. Repeating scanning interval:
After selecting the camera, enter the number of seconds for all
cameras staying during repeat scanning.
4. Video format:
Please setup your camera video format: NTSC,PAL,SECAM
5. Screen resolution 640x480
System default resolution is 320x240. For those who wish to use
640x480 resolutions, you can switch the setting in this dialog box. If
the resolution is higher, you need more hard drive space as well. And
if you select more than one camera, the system performance would
be degraded.
Product Camera Sets
LX5004
1234
screen resolution for one camera, the other camera in the same team
will have the identical setting.
7. Display recording frame number
According to audit environment, you can set camera display frame
number and record frame number. Frame number setting has five
different levels. Higher level will cause faster display and record, but it
requires more hard drive space.

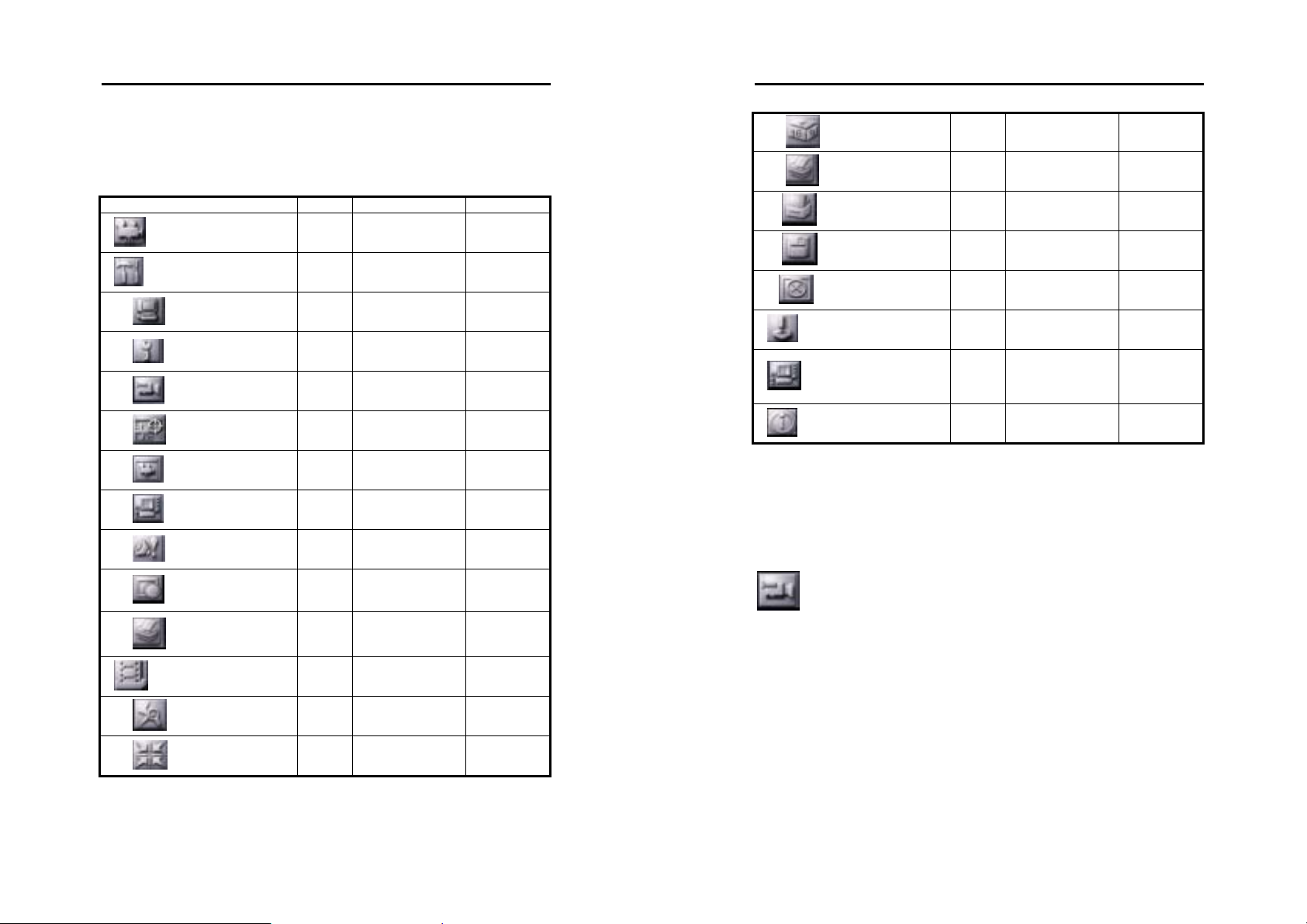

Password Setup
Password Setup enables/disables
the three user levels and sets the
password for each level.
LX5000 provides three users Levels: root, administrator, and operator.
Obtaining Authorization
Click Password Setup,
LX5008
LX5016
6. For 16 splitting screen setting, system will distribute the resource
for two cameras as one team. Therefore, if you set frame number or
12345678
(19) (210) (311) (412) (513) (614) (715) (816)
29
Which will display a dialog box as
shown in the figure below to login:
The system will ask for User ID and
Password before accessing certain
configuration screens when either administrator and or operator
authorization has enabled.
30
Page 16
AVerMedia LX5000 User’s Manual
AVerMedia LX5000 User’s Manual
Key in”123456” (default root password) the on password field for the initial login from root. Click OK to bring the next dialog as follows to
change password:
In the Change password field of the root’s configuring area, type the
new password and retype it to confirm the password. Follow the same
steps to change administrator’s and operator’s passwords. After initial configurations you can enable administrator and operator authorization levels by clicking the enable administrator and enable operator buttons. Click OK to save the setup or Cancel to back to the menu of
System setup without saving.
If you do not set the passwords and enable the administrator and operator, there is no password security and users will have unrestricted access to system configurations. However, it is
recommended to do it only after the initial configurations. This is done
to avoid having to always enter passwords when entering and exiting
configuration screens.
See tables below for more clarification about the authorization.
1. When both the enable administrator and the enable operator
buttons are activated, access to the following configurations are
restricted as follows.
Functional Item Root Administrator Operator
Start/stop record
Setup
System setup
Password Setup
Camera Setup
Recording Setup
Setup E-Map
Network Setup
Higher-level users can set/change passwords for lower level
users. For example, the root can set/change the passwords for the administrator and operator, and the administrator can set/change the password for the operator. The authorization order is root > administrator > operator.
31
32
Alarm Setup
Schedule Setup
Printer Setup
Playback
Event search
Page 17
AVerMedia LX5000 User’s Manual
AVerMedia LX5000 User’s Manual
Intelligent search
Change split
Printer Setup
Backup
Save to floppy
Show E-Map
PTZ Control
Start Network Service
Exit
: No password needed
: Needs password : Not authorize
2. When only the enable administrator button is activated, accesses
to the following configurations are restricted as follows.
Functional Item Root Administrator Operator
Start/stop record
setup
System setup
Password Setup
Camera Setup
Recording Setup
E-Map Setup
Network Setup
Alarm Setup
Schedule Setup
Printer Setup
Playback
Event search
Intelligent search
Change split
Printer
Backup
Save to floppy
Show E-Map
33
34
Page 18
AVerMedia LX5000 User’s Manual
AVerMedia LX5000 User’s Manual
PTZ Control
Start Network Service
Exit
√ : No password needed
◎ : Needs password ╳ : Not authorize
3. When only the en able operator button is activated, accesses to the
following configurations are restricted as follows.
Functional Item Root Administrator Operator
Start/stop record
Setup
System Setup
Password Setup
Camera Setup
E-Map Setup
Recording Setup
Network Setup
Alarm Setup
Schedule Setup
Printer Setup
Playback
Event search
Intelligent search
Change split
Printer
Backup
Save to floppy
Show E-Map
PTZ Control
Start Network Service
Exit
: No password needed
◎ : Needs password ╳ : Not authorized
35
36
Page 19
AVerMedia LX5000 User’s Manual
AVerMedia LX5000 User’s Manual
4. When neither the enabl e admi nist rato r nor the enable opera tor
buttons are activated, restrictions are as follows.
Functional Item Root Administrator Operator
Start/stop record
setup
System setup
Password Setup
Camera Setup
E-Map Setup
Recording Setup
Network Setup
Alarm Setup
Schedule Setup
Change split
Printer
Backup
Save to floppy
Show E-Map
PTZ Control
Start Network Service
Exit
: No password needed
◎ : Needs password ╳ : Not authorized.
Camera Setup
Printer Setup
This section provides you to place the arguments of camera setting.
Playback
Event search
Intelligent search
37
38
Page 20
AVerMedia LX5000 User’s Manual
AVerMedia LX5000 User’s Manual
Click Camera Setup. It will show a window like the following:
You can select the Camera based on
the serial number, and do the proper
adjustment for each camera: The
adjustment includes turning off the
camera signal, display the camera,
camera name, picture adjustment,
and PTZ camera setting.
1. Camera no
Click on the desired camera button to configure the further setup. Check Disable to disable the camera if it isn’t desired to be shown on
the screen or has no signal.
2. Camera name Name a specified camera in Camera name field
3. Disable camera
Turn off Signal: To decide you want to monitor the camera or not is
fully depended on this camera is selected or not. Because the system
will set all the cameras at the display status automatically. Therefore,
when you did not use the entire camera, please turn off those un-
used cameras. This can avoid the picture quality to be affected. This
can also reduce the numbers of display and recording. After you
select it, the camera will show gray level condition in the monitor
screen.
4. Display Check this item to allow camera screen to work.
5. Image Properties
You may set the following properties for the image of this camera:
brightness, saturation, hue, contrast
Settings for the image properties are configured for the designated
card, which may also connect to other cameras. That means, the
settings you make for this camera will apply to other cameras that
connect to the same card.
The adjustment of image properties will result in inefficiency
as the video format is set to be PAL for the unsupported
hardware temporarily
39
40
Page 21
AVerMedia LX5000 User’s Manual
6. PTZ camera
After you finish PTZ camera installation, enter manufacture name,
COM port and address for PTZ camera setting in camera option, and
click save button to finalize the system and camera communication
setting.
If you haven't done setting in PTZ camera, the button
won't be used.
default setting restore the manufacture default setting Restore reload the previous setting Save save all the changes Quit exit the setting dialog box.
Recording Setup
This section allows you to setup the recording arguments.
AVerMedia LX5000 User’s Manual
Camera no Click on the desired camera button to configure the further setup. Recording Type
1. Cont. recording:
The system records images from the selected cameras 24 hours a day.
2. Motion detection recording:
The system will start recording while any movement is detected.
Sensitivity
Select the camera’s sensitivity (default 70%) to motion detection by
dragging the scroll bar. Larger values represent higher sensitivity
3. Display only: The system only monitors and does not record.
Recording Pre-recording frame number:
This value is the number of frames to be recorded before the system
commence recording. These pre-recording frames are buffered in the system.
41
42
Page 22
AVerMedia LX5000 User’s Manual
AVerMedia LX5000 User’s Manual
Quality
Adjust the recording quality by dragging the scroll bar. Keep in mind
that the more precise the recording quality, the more space is taken up
on the hard disk.
High speed recording
The compressed ratio is lower, and recording speed is higher. But the
recording files need bigger memory space.
High pressure recording
The compressed ratio is higher, but the recording file needs smaller
memory space. It can save the memory space.
Mask/ Shield
Mask a specific area to leave the rest area for the motion detection. And, to enable Shield that provides you to protect some private areas
from the entire surveillance control into a black shield, ex: a fitting
room in a department store.
To set Mask /shield
1. To add any Mask/Shield areas, simply click Add, and then draw the
area you want to add to the Mask/Shield area. On the camera’s
image, click and hold the middle button of the mouse and drag the area you want to mask. To clear all masked areas by clicking Clear.
2. Check Mask/ Shield to enable this function.
default setting restore the manufacture default setting Restore reload the previous setting Save Save all changes. Exit Exit the setup screen. Note that this does not save
your changes.
43
E-Map (Electronics Map) Setup: Push this bottom, and get
into the manual of electronics map setting. You can get the information
of those electronics map which has been set (electronics map serial
number, name, and instruction). Further more, you can add, delete or
modify the setting of the electronics map:
Press the "Add", “Delete", " Renew" bottom to get into the setting
Interface of electronics map. Then, you can add, delete, or modify the
information of electronics map.
44
Page 23
AVerMedia LX5000 User’s Manual
AVerMedia LX5000 User’s Manual
Please follow the following steps to set the electronics map:
1. Input the background map: Press “Edit" button and get into BMP,
JPEG edit program to modify and edit the background map. Or press
the “input" button to input the existing map directly.
2. Camera, sensor, transformer: Depends on the install condition to
click and pull out the camera, input sensor and output transformer
from each column to the background map. If you want to delete them,
you can just simply pull them back to the original columns directly.
3. Instruction: You can input the related exploitation and information
of electronics map from the instruction column. The map name and
instruction the status rows of electronics map
Default Value: Set the camera at the default value. Refresh: Set all the values back to the previous values. Save: Save the modified values and parameters. Quit: Quit the recording setting screen.
Network Setup
Network Service
You can start the Remote Management and Web Cam, then set the
TCP/IP server port (Default value is 9090), and HTTP server port
(default value is80) information. Please select the camera that you want
to open the connection.
IP Configuration:
Enable DHCP
Please select this column, then you can get the dynamic IP address.
If your LSS digital monitor system is at the dynamic IP condition,
you can log on ddns.avers.com.tw to use the DDNS registration web
page to register your domain name and password. Then, you can
input your domain name and password from this column.
Regarding the registration of DDNS domain registration, please refer
to the attached file 1.
Input the IP address, net mask, gateway, and hostname.
Dynamic DNS
In case a dynamic server is severed, please register a domain name
with the IP address: ddn.avers.com.tw
on line. Refer to Appendix B for
45
46
Page 24
AVerMedia LX5000 User’s Manual
AVerMedia LX5000 User’s Manual
the further information.
Domain Name & Password
Enter the domain name and password given in the process of registering a domain name or obtain them by asking network administrator.
Modem Connecting Port: Please swat the modem connecting port in
this column.
When you install the fire wall, please enable the fire wall NAT
function (network address translation) for the connection of
image transmission. On the server side, the server port must be set as
default value: 9090(can be changed), and the server port of image
transmission must be set as 9191; For the Client side, the server port of
image transmission must be set as default value 9190.
When you set the LX5000 server in the LAN, if you want to
connect to the server through the internet, please specify the
server port (between 150 and 1023) at the HTTP server port.
Enter Save the modified values and parameters. Cancel Quit the recording setting screen.
Alarm Setup
This button allows you to configure alarm setup in the following window.
47
48
Page 25
AVerMedia LX5000 User’s Manual
AVerMedia LX5000 User’s Manual
Click Add to create an alarm and the detailed configuration window will
pop up:
This window contains Condition and Action configurations. Actions will
be performed according to the setup of conditions.
To add an alarm following the steps below:
1. Identify alarm name and alarm description.
2. Configure Condition
Sensor
Select the cameras for the trigger according to sensor device, high
electricity input (high to low), and ex: a light is being turned off, and
low electricity input (low to high), ex: a door is being opened, camera
motion detection, and camera video loss.
Motion Detection
Select the cameras for the trigger according to motion detection configuration in Recording Setup.
Video Loss
Select the camera number whose video is lost during monitoring.
Configure Action Recording
Select the cameras to behave recording once any of the conditions is
triggered.
Post-alarm frame number
Set the frame number according to which the system will last recording
once any of the conditions is triggered.
Relay
Select the cameras to act relay while any of the conditions is met.
Full Screen on Motion
During surveillance, you can have the system to instantly pop up the
image (1-camera display mode) that has motion detected for a user-
defined length of time.
Relay and Full Screen on Motion retrieve
After an input is triggered, the output of relay and full screen on motion
will revert to normal status after the time you set.
Email alarm
You can email alarm messages once an alarm is triggered. Follow the
instructions below. A. Check Email setting to enable this function. B. Click
to bring up the dialog box below to set up the
email information.
49
50
Page 26
AVerMedia LX5000 User’s Manual
Provide information for each field.
SMTP Server: The domain name of your mail server or IP address.
(eg. AVerMedia.com.tw)
From: The sender’s email address.
To: The receiver’s email address. Use “;” (semicolon) to separate
each email address.
Cc: The email address to which you want to send a copy.
Subject: The subject of this alarm message.
Attach images: Select cameras to attach the first image of which once
the alarm is triggered.
Alarm Message: The content of this email message. C. You can click
Email settings or click
to clear all the inputs. Click to save the
to exit the dialog box without saving.
AVerMedia LX5000 User’s Manual
Phone Alarm
You have to Key in two sets of phone numbers for the system to dial
when the alarm goes off. If the first number is busy or invalid, the
system will switch to the second number.
Load voice file from floppy
You can record your voice message as a sound file on a floppy disk then
download it from the floppy. This voice message will be sent to the
phone numbers you entered. Voice modem type
First, select the chipset your modem uses and then load the sound file
by clicking
. The dialog box, besides will display. Browse, to the
alarm message file you want to install and click the OK button.
Sound, call out and email will be activated
The output ways you designate after an alarm is generated offer you to
decide the deferment once an alarm is triggered. Click OK to save the settings, or Cancel to quit this window without
saving.
51
52
Page 27
AVerMedia LX5000 User’s Manual
Schedule Recording Setup
To setup a recording session click the Schedule Recording button and then click Schedule Setup. Use the diagram below and follow the
instructions to set up a recording session.
Click Add to create an alarm and the detailed configuration window will pop up:
1. Identify alarm name and alarm description.
2. Schedule Task
Here you can select the tasks you’re scheduling for.
AVerMedia LX5000 User’s Manual
Schedule Monitoring
If you select Schedule Monitoring, the system will activate this button
on the main menu when the scheduled time is due. The system
will act according to the recording mode set in the
Recording
Setup. Schedule Recording
If you select Schedule Recording as the task, the system will have the
chosen cameras to start full recording at the scheduled time. The task
you set here enjoys higher priority than the recording mode you set for each camera in Recording Setup.
Schedule Alarm
If Alarm box is checked, the Alarm will execute according to the Alarm
53
54
Page 28
AVerMedia LX5000 User’s Manual
AVerMedia LX5000 User’s Manual
section you plan as long as the Time is due. To exercise the prior privilege of Scheduler, the Alarm will perform by the scheduled time even though it is not enabled in Alarm section of System Configuration.
Schedule Backup Check Schedule Backup to start “Backup” while the set time is due. Condition Camera
Choose the camera you would like to execute the task. The selected
cameras turn from gray to red.
Backup Time
Here allow you to arrange schedule time to backup.
Select one of two scheduling types to arrange the time to start
“Backup”:
Record by date You can key in the date directly in the By Date field or click the down arrow button to choose a date from a drop-down calendar menu and
then click
to add that date to the date box on the right. Make
sure that you click the diamond next to the label Record by date.
Record by weekday
Click on the weekday button you would like to record. Make sure that you click the diamond next to the label Record by weekday.
Start time
Set the backup time in which you would like to start recording.
Furthermore, the backup time will end according to the length of the
schedule period.
Schedule period
Put a date number in days before backup date field to determine which days’ files you desire to backup. Set Start time and End time to
perform the scheduled task on the period. Click Ok to add a new schedule or Cancel to exit the window without
saving. Consequently, the schedule status will list on the schedule
status window.
Printer Setup
Click Printer Setup button to establish the connection between the
printer and the system.
55
56
Page 29
AVerMedia LX5000 User’s Manual
AVerMedia LX5000 User’s Manual
4.3 System Operation
4.3.1
Start / Stop Recordin g
You must click the Start/Stop Recording button after you
finish configuring the LX5000 system to activate surveillance.
The system is inactive until you click this button.
4.3.2
Click Playback button to reveal the following window:
Playback
Clicking the Start/Stop Recording button in the main menu will
activate surveillance according to the configurations in the
Recording Setup page and
Recording Setup
indicate surveillance is activated and turns white when deactivated. Click this button again to halt surveillance activity. Note that while
the surveillance is active, you cannot concurrently configure any of the cameras. You are, however, permitted to adjust the controls of the PTZ cameras.
page. The center of this button will turn red to
Alarm Setup and Schedule
57
58
Intelligent sear ch
Exit
Event search
control buttons
Start search
print
Change split
Copy jpeg files floppy
Backup
Page 30
AVerMedia LX5000 User’s Manual
AVerMedia LX5000 User’s Manual
1. Use the searching chart, follow the hard disk-> year, month, day -
>camera-> display all the file names of the saved recorded files
based on hour, minute, and second time period. Press “Enter" to quit
the searching chart, and prepare to play the recorded file. Or press
the "Cancel" bottom to select the recorded file which you want to play
by using the two quick searching method that provided by the system. Event Search: Based on the conditions of alarm activation and the
alarm actions: Dynamic detection, signal interrupt, transformer
output, sensor activation, sound detection, telephone alarm or all of
the above events happened as the condition to search the recorded
files that matched the conditions required to do the search during the
specific period of time. Intelligent search: use the covered area, searching period as the
searching conditions. Use dynamic detecting technology to do the
comparison between some specific periods of time to find out the time
of recording file which has the change within the covered area.
2. Select the file that you want to play. Please wait until the prepared
recording file showed up. Then, press the "Play" button to play to the
recorded file.
The playback control buttons are defined as follows:
Start
Pause
End
Backward Playback Backward Single frame
Single frame Playback
Playback
There are 7 levels 8, 4, 2, 1, 1/2, 1/4, 1/8 to select the speed while
playing files. The default value is 1 for the normal speed; 2, 4, 8 for the
double speed-up increasingly; and 1/2, 1/4, 1/8 for the double
deceleration decreasingly. Simply click the button to pick out one speed
for display.
3. Press
the "Start" button. You can call and display the previous
searching results.
Event Search
Click this button to bring up the Event Search dialogue box. You will
be able to view log files that meet specific time and event criteria.
“Play” Button. During the file playing process, you can use the
following functional button.
59
60
Page 31
AVerMedia LX5000 User’s Manual
To enable this function, complete the following tasks:
1. Select event
First pick out one event from Motion detection, Video loss,
Recording, Relay output, Sensor input, Phone alarm, Alarm, and All.
2. Set the search begi n/e nd date and
time Click Select to define the specific time for the files you want to display in Start time/ End time field in beside the
window.
3. Search
After you finish entering in the above criteria, click
button to list
all files that satisfy your requirements in the following window. This
Event list displays the results of your search.
AVerMedia LX5000 User’s Manual
4. Search List
There are seven columns of information: file time, alarm operation,
number of relay/recording, trigger/clear alarm, alarm condition,
sensor/camera number and hard disk number. Clicking on the
column headers will sort the rows in the order of the column
information, alternating between ascending and descending with
every click.
5. Then highlight the desired frame to playback and click OK to confirm
the choosing or Cancel to quit the window without saving.
6. Playback
You can click “OK” button to back to playback main menu. Use
playback control panel to display the file that will start at the time of
the chosen frame in search list.
61
62
Page 32
AVerMedia LX5000 User’s Manual
AVerMedia LX5000 User’s Manual
7. Search Result
Click Search Result
to recall the previously searched list if
you have exited Video search list.
8. Exit
Simply click Exit
to back to Playback main menu.
Intelligent Search
The Intelligent Search button will bring up a dialogue box that will assist
you in searching for any motion detection in the specified area of a
camera’s log files. Whenever the search finds files with motion
detection in the specified masked area, it lists them in the table.
1. Search interval
During searching, the system will search the files with the period of
the time value (sec.) you set whenever a movement is detected.
2. Search Detection Sensitivity
You can move this scroll bar to adjust the search sensitivity. Less
search detection sensitivity decreases the number of files found.
3. Setting the Mask
Setting a mask refers to identifying an area on a screen used to detect movement. First click Show and then press and hold down
the middle button of the mouse and drag in a downward diagonal
motion. This will create a motion detection grid on the screen.
Show Mask
The system defaults to show mask. You may choose to show or hide the mask by clicking the Show Mask button.
Show Change Only
By clicking this button, the system only shows the image files that have
motion detected in the mask area.
4. Set the search begin/end date and time
Click Select to define the specific time for the files you want to display in Start time/ End time field in the beside window.
5.
Search
After you finish entering in the above criteria, click this button to list
all files that satisfy your requirements in the following window. This
Event list displays the results of your search.
6. Search List
There are seven columns of information: file time, alarm operation,
63
64
Page 33
AVerMedia LX5000 User’s Manual
AVerMedia LX5000 User’s Manual
number of relay/recording, trigger/clear alarm, alarm condition,
sensor/camera number and hard disk number. Clicking on the
column headers will sort the rows in the order of the column
information, alternating between ascending and descending with
every click.
7. Then highlight the desired frame to playback and click OK to confirm
the choosing or Cancel to quit the window without saving.
8. Playback
Clicking “OK” button to back to playback main menu. Use playback
control panel to display the file that will start at the time of the
chosen frame in search list.
9. Search Result
Click Search Result to recall the previously searched list if you have exited Video search list.
10. Exit
Change Split
This button allows you to change the number of camera displays (max.
16). Continuously clicking the Change Split button, will reduce the
number of camera images from 16 to 9 to 4 and finally to 1 screen after
which it will return to 16 images.
Print
Before you use the print function, please switch the divided mode to
only one divided view. Then select the camera that you want and get
into the print screen. Set the numbers of page you want to print. Then,
press the "Print" button and start to print.
Backup
In case a backup is needed, click Backup
to save the particular
files in the configuring window.
Simply click Exit
to back to Playback main menu.
65
66
Page 34
AVerMedia LX5000 User’s Manual
AVerMedia LX5000 User’s Manual
Backup files
There are hard disk, type, size (KB), use%, total (KB) lists to view all of the files in every hard disk.
a. Determine working type of hard disk by clicking Change mode. It is allowed to have the hard disk run either recording or backup.
b. Highlight the wanted files to backup and decide the Backup device from hard disk or CD-R. If CD-R backup device is chosen, it will appear the following window to configure a CD-R device.
Note that only the CD-R with IDE interface can be connected to IDE 1 slave.
If CD-R backup device is chosen, it will appear the following window to configure a CD-R device after clicking Backup button.
67
Click Create CD to configure the CD-R program.
Click Master Tracks button, selecting Di rectory A, and clicking Add. Click OK in the consequently shown dialog. The Session View dialog will show the information about directory A.
68
Page 35
AVerMedia LX5000 User’s Manual
Click the page Creation session/image to view the working and free space. Eventually, burn the CD by clicking Master and write on-the­fly.
a. Click Statistics to calculate the free space of backup device
according to the backup setting you build up previously. It is observed that the space sizes of backup device shown in Backup to hard disk/ CD-R field, which will assist you to arrange your backup stuff.
b. Execute backup by clicking Backup.
6. Delete
If you would like to remove any files, highlight the file in Backup
files field and click Delete. Note that the deleted files will never to be recovered.
These backup files can be playbacked with playback program in the CD-R under Windows OS and also can be playbacked with LX5000 playback program under Linux OS.
AVerMedia LX5000 User’s Manual
Copy jpeg file to floppy
The system will detect the numbers of divided view in the screen to the
soft disk. For example, if the screen was divided into 9 views, when you
press this button the system will copy the screen view of camera 1 to
camera 9 and save to the soft disk. When you press this button, please
select the format of the file as *.jpg or *.bmp. Then, the system will
name the files based on the recording time automatically.
AVerMedia digital monitor system provides the WaterMark
function. When you use the save function to save the .bmp file,
you can use the Image Verification program which provided by the
system(Please refer to the attached file 2) to judge the file is real or
fake. It can also verify the saved bmp file was modified or faked or not.
4.3.3
After the configuring in the
Show / Hide E-MAP
E-Map section of System Configuration,
click this button to view the e-maps.
69
70
Page 36
AVerMedia LX5000 User’s Manual
AVerMedia LX5000 User’s Manual
Show Cameras
E-Map Chose
1. Chose a map to view by clicking the map button
2. Check out Cameras, Sensors, Rel ays on the map
Focus on the desired event by clicking on the event button on the map.
3. Moni toring Cameras, Sensors, and Relays
If any event is focused, the relative information will present in the
information field; otherwise, you can monitor the status of the
camera in the right upper window. The different colors of the icons
on the map window will turn to different flashing colors accounting
for as follows:
Cameras, Sensors, Relays State
.
Camera
Camera
Blue Video Loss
Green
Motion
Detection
Sensor
Relay
Relay
Red Activated
Yellow Normal
Red Activated
4. Click Exit to leave for main menu.
4.3.4
After the PTZ cameras are connected to the system, you may click to access the following interface to configure the PTZ camera.
1. PTZ Camera Menu
Recording Setup page, and then click Save button to update the
information. If you haven’t configured the PTZ camera in the Recording Setup page, the
PTZ control (Pan-Tilt-Zoom Camera)
After you install the PTZ camera, remember to enter the Vendor and Address (Decimal) of the PTZ camera in the
button cannot be used.
Icon Color Status Icon Color Status
Camera
Yellow Normal
Sensor
Yellow Normal
71
72
Page 37
AVerMedia LX5000 User’s Manual
AVerMedia LX5000 User’s Manual
Setup
Click this button to enter the PTZ Setup Menu to set the desired preset positions. The PTZ Setup Menu dialog box is explained towards the
end of this section.
Focus in
Use this button during surveillance to decrease the focal length for a
clearer picture.
Focus out
Use this button during surveillance to increase the focal length for a
clearer image.
Auto Pan
Click this button to instruct the PTZ camera to begin AutoPan based on the AutoPan configurations: preset positions, speed, and time to stay. Preset positions are the different views that the camera will pan
to. Speed is the speed that the camera moves between preset positions (e.g. 30°/ second). Finally, time to stay is the amount of time the
camera stays fixed before or after, depending on your PTZ model,
moving to the next preset position.
Preset Positions
Once Preset Positions are configured (see Setup below) you can, at any
time during surveillance turn the camera to any of the preset positions
by clicking on buttons 1~16.
73
Zoom in
Use this button during surveillance to zoom in and enlarge the size of
the image.
Zoom out
Use this button during surveillance to zoom out and reduce the size of
the image.
Select one of the 16 preset positions from the Preset
Position Number buttons, then select the speed from one of the 4 Speed buttons (the higher the level, the faster the speed), and then
use the Up/Down/Left/Right buttons to adjust the position of the camera.
74
Page 38
AVerMedia LX5000 User’s Manual
AVerMedia LX5000 User’s Manual
Direction buttons
Use these buttons to navigate the camera’s directional focus during
surveillance.
PTZ Camera Number
You may view the status of each PTZ camera by clicking on the corresponding PTZ Camera Number buttons. Highlighted cameras
indicate that the PTZ cameras are connected. The gray (disabled)
squares indicate that no PTZ cameras are operational or no cameras are
installed.
2.
PTZ Setup Menu
Preset Position Number
Zoom in / Zoom out
Focus in / Focus out
Up / Down / Left / Right
Move Speed
Stay Time
Rotation Speed
Clear
Save
Select one of the 16 preset positions from the Preset
Position Number buttons, then select the speed from one of the 4 Speed buttons (the higher the level, the faster the speed), and then
use the Up/Down/Left/Right buttons to adjust the position of the camera.
/ Focus in / Focus out: Click these buttons to adjust the
image focus.
/ Zoom in / Zoom out: Click these buttons to zoom in and
zoom out, enlarging and reducing the image respectively.
Stay Time: Use this setting to configure the stay-time in
seconds (1~8 seconds), which defines the time the camera stays fixed
at its previous or next preset position, depending on your PTZ model,
during Auto Pan.
Rotation Speed: This parameter defines the speed the camera
rotates from the current position to its next preset position. The rotation speed (degree/second) ranges from 30°per second to 240°per second in increments of 30°per second.
Save: After completing the steps above, click this button to save
the current preset position settings. Choose the next preset position
and follow the same steps until all desired positions are set. If you
want to continue with another camera, click
to go back to the main
menu of the PTZ Camera and select the new camera.
Clear: Click this button to clear the previous settings for all
preset positions for the current PTZ camera. If you only want to delete
some of the preset positions, you need to click into each preset position, delete and/or reset new parameters before you click the Save button.
4.3.5
Start Network Service
Press this button: start or stop the internet service. Then, it can
accept the Client to do the remote management through the web viewer
and remote management program. When you press the button one
more time, you can stop the internet faction. The system will ask you to
input the password when you log on or log off. When the system
75
76
Page 39
AVerMedia LX5000 User’s Manual
AVerMedia LX5000 User’s Manual
confirms the password is valid,
then you can start or stop the
internet function. Internet Setting Function:
Please get into the system
setting, and do the setting in
the internet setting. Please pay
attention, you have to select"
Remote Manager (through
TCP/IP)" or " WebCam), then it
can start to do the Remote
Manager.
4.3.6. Quit System Press this button: then you can quit the AVerMedia LX5000 digital
monitor system.
Chapter 5 Using the WebC am
You can monitor images from the AVerMedia LX5000 server using
Internet browsers (Internet Explorer). The AVerMedia LX5000 system
has built in HTTP protocol and web server services.
Note that WebCam function must be running in Internet
Explorer with version 5.5 or above.
5.1 Enable WebCam
Before you start monitoring from the remote browser, verify that the
AVerMedia LX5000 server has finished the following settings.
IE setting: Access Internet Options setting from Control Panel as the following dialog.
77
78
Page 40
AVerMedia LX5000 User’s Manual
AVerMedia LX5000 User’s Manual
Select Security page to configure Internet and Local internet sectors respectively.
Click Custom Level button to pup up the following dialog. Check Enable or Prompt radio button both in Download signed ActiveX controls and Download unsigned
ActiveX controls.
Before you start monitoring from the remote browser, verify that the AVerMedia LX5000 server has finished the following settings.
Enable Web Cam (see
Network Status)
Check Enable WebCam.
Select cameras to
perform remote transmission.
Verify IP address.
Click the OK button and
exit the dialog box.
5.2 Use the WebCam
You can browse the home page of WebCam with Microsoft Internet Explorer.
When you enter the home page, you can see the system defaults to 1­Camera display. You can click these buttons to change different numbers of split display:
1-Camera Display (640x480)
4-Camera Display (320x240)
6-Camera Display (320x240)
8-Camera Display (Enlarged: 480x360, Small: 160x120)
9-Camera Display (320x240)
10-Camera Display (Enlarged: 320x240, Small: 160x120)
16-Camera Display (160x120)
79
80
Page 41
AVerMedia LX5000 User’s Manual
g
g
g
g
g
AVerMedia LX5000 User’s Manual
When the remote transmitting cameras are more than the split display
number, you can click
to switch the screen to display the following
cameras. For example, the server has assigned camera 1, 2, 3, 5, 7, 10,
13, and 16, in total 8 cameras for remote transmission.
If you select 4-Camera Dis p la y,
1
3
2
Downloadin
Images…
Click
5
7
Downloadin Images…
Downloadin
Images…
Click
Downloading Images…
Downloading Images…
10
Downloadin
Images…
Click
13
Downloading Images…
Downloadin Images…
16
If you select 6-Camera Dis p la y,
You can also change the display sequence by assigning different
cameras to different channels. Select a channel from the drop-down
menu
to assign to the channel you just selected. Finally click
, and from select a camera you want
to confirm
the setting. You can also assign the same cameras to different channels.
If the selected cameras are not remote viewable, then the image on the
screen will not change.
1 2 3
Downloading
Images…
5
Downloading
Images…
Click
7
10
Downloading
Images…
Downloading
Images…
Downloading
Images…
Downloading
Images…
Click
13
Downloading
Images…
Downloading
Images…
16 1 2
81
82
Page 42
AVerMedia LX5000 User’s Manual
g
Chapter 6 RemoteManager
6.1 Accessing RemoteManager
You need to install the remote surveillance program RemoteManager from the CD-ROM (See Chapter 3 - Software Installation.)
The RemoteManager program allows you to manage the server from a workstation almost as if you were working from the server console. This will allow you to be able to configure the server from a remote location.
Alarm Report
Channel Status
AVerMedia LX5000 User’s Manual
Login
Once you first start the program by clicking the shortcut of Remote Manager on your desktop, a Login dialog right side will prompt you to enter the user ID and password to access to the program. Note that only “root” is the acceptable user ID for the initial access. And a User Management window for permitting the beginning into the system will be seen. To set the setting of the permission, refer to the 6.3.1 Center Management for the detailed description.
Alarm Report
The image will turn into red and be flashing once an alarm is triggered. An alarm message with the detailed alarm status will be seen after you click on it. It will help you control the situation of surveillance.
Time
Date
Rest / Total HDD Space
Channel Status
An area where the status of all the channels will be shown as the following description and is with a tip of channel’s, server’s, camera’s names while your cursor points the button:
Dark Gray All Disabled
Flashing Pale Gray Video loss
Exit RemoteMana
er
Start Recording
Setup
Playback
PTZ Control
Center Management
Screen Split
Azure Normal and the image is displayed on the screen
Dull Blue Normal but the image had been disabled to display
Pink Red Recording and the image is displayed on the screen
Dark Red Recording but the image had been disabled to display
83
84
Page 43
AVerMedia LX5000 User’s Manual
g
p
g
AVerMedia LX5000 User’s Manual
If a camera is not enabled, the image from this camera will show as the ima
e above (gray scale) on the
screen.
If a camera is disconnected to the server or the si
nal from the server is disconnected to the local camera, the image will show as above on the screen. The signal will be interval of one minute until it is
icked up at an
Display Mode
Select a display mode to arrange the presentation of the screen.
Full Screen 1 Channel
4 Channels 9 Channels 16 Channels
No matter what channel mode you choose, you can assemble the channels as you wish by clicking Channel Status
amount of the mode. For example, if you choose 4 channels mode, you
can click 4 channels (1,4, 8, 13), (3, 5, 7, 8), or other groups of the
channels to meet the quantity of 4 channels mode.
to meet the
6.2 Setup
6.2.1
User Management provides the easy management to safeguard the
system from the unidentified users. Only the root is authorized to
configure this section.
To achieve the setting, complete the following steps:
User Management
85
86
Page 44
AVerMedia LX5000 User’s Manual
AVerMedia LX5000 User’s Manual
1. Click User Management. The following window will appear:
2. Use Add/Delete/Rename button to arrange User field.
3. Determine a password and make a confirmation.
4. Click Save to save the setup of password.
5. Click OK to save or Cancel to delete the previous arrangement.
6. Back to main menu by clicking exit.
6.2.2
Storage Configuration
Assign Recording Disks
First you need to assign the recording disks. Click
to browse for
the folder to save the recorded videos and click the Add button. You can click the Delete button to remove any of the recording disks, as
long as there is at least 1 disk left to save the recording data.
Minimum Space & Safe ty Q uo t a
Next you need to provide the minimum space and safety quota for hard
disk recycling. During hard disk recycling, the newly recorded files will
overwrite the old ones. This way the system will not run out of hard
disk space to save the recorded videos. Minimum Space:
The system will start hard disk recycling when the hard disk free space
is less than a user-defined number. The user-defined number has to be greater than 450MB, the system defaults to 450MB. Safety Quota:
Once the hard disk starts recycling, the system won’t stop until the hard
disk free space becomes more than a user-defined number, say 6000MB (default value). Safety quota should be at least 5550MB more
than the minimum sp ac e you ass igned.
6.2.3
Camera Setup
The setting is placed according to the privilege of every server for the
cameras corresponding to the 16 channels respectively.
Follow the tasks below to finish this section:
1. Click Camera Setup. It will show a window like the following:
87
88
Page 45
AVerMedia LX5000 User’s Manual
2. Change channel’s names by directly click on .
3. Arrow down the list to select the Server’s and Camera’s names for
each channel.
4. Check Display to show the images on the screen and Recording to
enable the recording function for each channel.
5. Click OK to save or Cancel to delete the previous arrangement.
The listed servers and cameras in the pull-down menu are decided by the settings of the each of the servers.
6.2.4
Schedule Recording
The function allows you to plan the recording schedule by date or weekday for all the channels.
Do the steps following:
1. Click Schedule
Recording to get the window below:
89
AVerMedia LX5000 User’s Manual
2.Check the recording by date or by
weekday and choose the time by
clicking the arrow of the
box
. The following
window will show as:
3.Click on the yy/mm position directly and use the upper left and upper
right arrows and the red circle in the bottom left corner window to
specify a date to be an operating time.
4.Click
to confirm the time setting. A settled time will appear on
the right blank box. Click Delete to delete the previous time setting.
5.Set the Start and End time by the up and down arrows
in Time
field.
6.Check the desired cameras to be involved into the schedule in Camera field.
7.Mentioned comment is allowed by using Add/ Delete/ Update/ Restore buttons for the further information while recording.
8.Click Ok to save or Cancel to delete the previous arrangement.
Once the recording has been generated as the schedule, the recording status is observed in Channel Status field.
6.2.5
Network Setup
If you want to transmit images for remote surveillance via TCP/IP, first click this button to pop up the following dialogue.
90
Page 46
AVerMedia LX5000 User’s Manual
1. First determine a UDP port (Default 9190) to receive the images
from server.
2. Select TCP port connecting to server via Auto assignment or
specify at least 32 ports at a range from 1025 to 65535 for
transferring image and receiving commands.
3. Click OK to save the setting or Cancel to quit the dialogue without
saving.
Make sure leave a free port (9091 recommended) in server for
connecting. Besides, establish another fixed UDP port (9191)
for transmitting images from server to client. In addition, a firewall NAT
function should be configured to enable the mutual transmission.
The following is the detailed illustration to configure the connection:
AVerMedia LX5000 User’s Manual
6.2.6 Sensor Status
The sensor status is viewed on the consequent window by clicking this button.
6.2.7
Relay Status
The relay status is viewed on the consequent window by clicking this button. Otherwise, you can set the duration of the relay output after a relay triggered. Note that the duration value”0” denotes the incessant relay output.
6.2.8
Alarm Control
It is available to choose the server and decide to enable or disable the corresponding alarms.
1. Click Alarm Control to see the
window for alarm status.
2. To enable an alarm, simply click on
in the Status column and
change the status to
.
Click the OK button to save the setting.
6.2.9
Back to the main menu be clicking this button.
Back to Main Menu
91
92
Page 47
AVerMedia LX5000 User’s Manual
AVerMedia LX5000 User’s Manual
6.3 Operating RemoteManage r
6.3.1
Center Management
Users can take advantage of this section to manage the connectable
servers’ detailed information.
The setting should be placed before you commence configuring the
system at the first time. There are two ways to connect server:
Connection via Modem to Modem (refer to Appendix A for the
connection):
First you should connect to the server manually via modem before accessing Remote Manager. Then, it is allowed to add a new server
as a dial-up server is installed by server and a dial-up networking
established by client.
Connection via TCP/IP
Once the function “Enable Remote View server via TCP/IP” in the setting of Networking section has been checked, you are allowed to
add a new server via TCP/IP.
To offer the complete information, finish the steps below:
1. Click Center Manager button and the following window appears.
2. Click Add to include an available server into server list. The Add
Server window will show as follows or click Delete or Update to
modify the setting.
3. Enter the IP Address of the desired
server and the same port number as
the setting in Networking section of the server (default 9090). Click OK to start connecting or Cancel to quit the
setting.
4. The pop-up window of Add
Server will show the Server Name automatically if the IP
Address is correct and has been
connected. Finish the user’s
information given by the specified server. Click OK to
save to add the new server in center management or Cancel to quit the setting.
93
94
Page 48
AVerMedia LX5000 User’s Manual
AVerMedia LX5000 User’s Manual
If the port number has
been changed in server
end, please delete the
server and set a new one.
5. You will be prompted to click OK in the following window to into the Camera Setup window once one of the users of server has been deleted. About the instruction of the Camera Setup, please refer to
6.2.3 Camera Setup section.
6. Repeat the steps above to add a new server. The maximum numbers
of server are limited in 16 for the 16 channels.
Consequently, the files ranged within the selected time will be listed in time sequence in the file directory.
The files are located on the local computer so that only the enabled cameras by local user will be found in the file list.
3. Highlight the file you want to review and use the buttons below to
control the video playback.
Playback
6.3.2
Playback
Once in the playback mode, users can view log files recorded in the local hard disks to show the following windows:
1. Click Playback to display the screen below.
2. From the cameras’ list shown in time diagram, choose the desired
camera folder first and the time folder by yy/mm/dd then.
95
Click this button to playback the selected file.
Reverse Playback.
Pause
Move to Start Move to End
Previous Frame Next Frame
96
Page 49
AVerMedia LX5000 User’s Manual
Slide Bar
You can drag the slide bar directly to the frame you want to play.
/ Zoom In/Out
Click the buttons to zoom in or out the images.
Image Quality
You can adjust the brightness, contrast, hue and saturation.
Print
Click the button to print the current image.
Save
Use the playback panel to choose a desired frame and then click Save button.
Delete
AVerMedia LX5000 User’s Manual
2. Designate a channel ... connected with PTZ camera for the further setting.
Click the button to delete the current file and make sure by clicking Ok button on the pop-up window.
Backup
When you review the log files, you can click this button to save the files onto your local disk.
6.3.3
PTZ Control
Once you have installed a PTZ camera, the functional utility will help you to exert the control on the surveillance. To enable the function, follow with the steps below:
1. Click PTZ Control to show the following window:
97
Preset Position Setup
Each PTZ camera can set 16 preset positions. You can move the camera to a desired preset position simply by clicking on the number of the preset position. To set a preset position, first select the number of the preset position and set the direction speed. Then configure the camera’s position with the directional control buttons, focus in/focus out buttons, and zoom in/zoom out buttons. Finally set the stay time, rotation speed, and click the Save button.
Direction Control
Adjust the camera’s direction with the following eight buttons; Up / Down / Left / Right / Upper Left / Bottom Left / Upper Right / Bottom Right.
98
Page 50
AVerMedia LX5000 User’s Manual
AVerMedia LX5000 User’s Manual
Direction Speed
There are four speeds to decide the moving speed of the PTZ camera during adjusting Direction Control
Focus in
Decrease the focal length of the camera to focus on the image.
Focus out
Increase the focal length of the camera to focus on the image.
Zoom in
Zoom in to enlarge the image of the object.
Zoom out
Zoom out to reduce the image of the object.
Dwell (Sec)
During AutoPan, this button determines the time for the camera to stay (1~60 seconds) at one position before rotating to the next position.
Rotation Speed (deg/s)
You can set the speed (5~255 deg/s) by the left and right arrows at which the camera rotates from its current position to the next preset position.
Group
Each PTZ camera has 4 groups to comply with the position sequences as follows: Group 1: 1~4 positions Group 2: 5~8 positions Group 3: 9~12 positions Group 4:13~16 positions
AutoPan
Choose a group number first, and click this button to enable this function.
Back to Main Menu
Click here to back to main menu.
6.4 Start Recording
Manually enable the recording setting arranged in the Schedule Recording section by clicking this button. Meanwhile, the recording
status is visible in the Channel Status field and Start Recording button will turn into transparent red.
Save
After you finish setting a preset position, you need to click this button to save it and go on to set the next preset position.
Clear
Click this button to clear the setting for the current preset position.
99
6.5 Exit RemoteManager
Click this button to exit RemoteManager. First a password control window will prompt you to enter the password to make sure your authorization. Then a window below will appear to confirm your quit. Click OK to exit or Cancel to back to the system
100
Page 51
AVerMedia LX5000 User’s Manual
AVerMedia LX5000 User’s Manual
Chapter 7 AVerMedia FAQs
1. Q: What is the limit for the length of the camera cable that is used
to connect the camera to the LX5000 system?
A: The maximum length is 150m for 5C coaxial cables. If a longer
cable is needed, a repeater is required.
2. Q: What is the file size for each recorded image?
A: The LX5000 system takes advantage of the most recent JPEG
compression technology that reduces the size of a 320x240 image to 6~16K, depending on the image quality.
101
3. Q: What should I do when the hard disk runs out of space?
A: LX5000 system uses auto-recycle processing which allows the
system to continue in the event of a full disk by overwriting the older data.
4. Q: Can I use B/W cameras and color cameras together?
A: Yes, you are allowed to concurrently use both on the LX5000
system as long as they are NTSC or PAL compliant.
5. Q: Apart from recording, what else can the LX5000 system do
when an unauthorized person enters an office after hours? How can I take immediate action?
A: The LX5000 system can be configured to call you via the phone
system sending you pre-recorded voice messages. If you want to investigate the premises, you can easily remotely log into the LX5000 system through the Internet and retrieve synchronous images from the LX5000 system. You will be asked to identify yourself with your ID and password.
6. Q: What is the display rate when remotely viewing images?
A: It really depends on the bandwidth of your Internet connection.
Normally the frame rate is 1~5 fps with a LAN, 1~3 fps with ADSL, and less than 1 fps with a modem.
102
Page 52
AVerMedia LX5000 User’s Manual
7. Q: Why can’t I add a new mask?
A: You cannot add a new mask when previous masks are hidden.
AVerMedia LX5000 User’s Manual
Appendix A Registering Domain Name on
8. Q: Do you offer a development kit for the LX5000 system?
A: We will provide Center SDK in the near future.
9. Q: Does LX5000 system record audio?
A: Not for the moment, but the audio functionality is in
development.
10. Q: How can I back up files?
A: You can mount the backup hard disk or RAID disk array through
Adaptec’s SCSI card.
11. Q: Why it does it always record when I use a B/W camera
configured with motion detection mode?
A: The motion detection sensitivity in the Recording Setup page
defaults to a color camera. You need to change the camera type to be a B/W camera.
12. Q: Why does the camera name disappear from the screen?
A: Simply click on the camera name (upper left corner) again and it
will show up.
13. Q: Are there any special considerations when using RAID to back
up my files?
A: Remember to terminate the SCSI chain with a terminator. Also
when you change the number of the hard disks, or when you swap them, you need to reset the system configuration or format the hard disk.
DDNS Server
DDNS (Dynamic Domain Name Service), a data query service chiefly used on Internet for translating domain names into Internet addresses. It is allowed the remote clients intelligently search dynamic servers without any previous enquiring for servers’ Internet addresses.
In order to take advantage of the intelligent service, please first register your domain name on the website: ddns.avers.com.tw
1. Us er Login
Browse the website ddns.avers.com.tw Netscape Navigator to access the following dialogue.
First input the serial number of your product and select the product name. Then click OK to login or Reset to clear the previous input.
2. Password
set a password to secure your identification.
with Microsoft IE or
103
104
Page 53
AVerMedia LX5000 User’s Manual
3. User Information
Please provide the following user information, Host Name, Password, E-mail, Company, and Country to complete the registration procedures.
Note that Host Name and Domain Name (AVerMedia.avers.com.tw) are the replacement for Internet address while a remote client tends to search a dynamic server.
AVerMedia LX5000 User’s Manual
Appendix B Image Verification
System already includes ImageVerify program in the system CD. After installation or copying ImageVerify program file. follow these steps to
install and run ImageVerify program:
1. Open the “tools” folder in Digital video surveillance system CD.
2. Copy ImageVerify.tar.gz to hard drive.
3. Un-zip the file.
4. Execute the ImageVerify program.
Using Image Verification program for Linux
Follow the steps to verify image file
a. setup/start program
b. Load the image file. Click “open” button to star t ve rif ying file
105
106
Page 54
AVerMedia LX5000 User’s Manual
AVerMedia LX5000 User’s Manual
D. result
(1) If file is not modified, same picture will show in the right side
result picture box
This program can only verify un-compressed bmp image file
C. verify image file. Click 'verify' button to begin the process
(2) If the file is modified, it will display
a warning dialog box. In result box,
it will highlight the area which is
been changed.
107
108
Page 55
AVerMedia LX5000 User’s Manual
Using ImageVerify program in Window 98SE / ME / 2000 Pro / XP Pro
environment
If you are using Windows 98SE / Me / 2000 Pro / XP Pro system, please
open 'tools' folder in Digital video surveillance system CD and execute
'ImageVerification.exe' to start the program.
a. setup/start program
Installation / Run After install digital video surveillance system in
Windows 98SE / ME / 2000 Pro / XP Pro, click start->program files->
digital video surveillance system ->Image Verification to execute the
program.
After the installation, you can open installed folder, copy this file
'ImageVerification.exe' and run on other computer.
b. Load the image file to start verifying file
AVerMedia LX5000 User’s Manual
This program can only verify un-compressed bmp image file
C. verify image file. Click 'verify' button to begin the process
D. result
(1) If file is not modified, same picture will show in the right side
result picture box
109
110

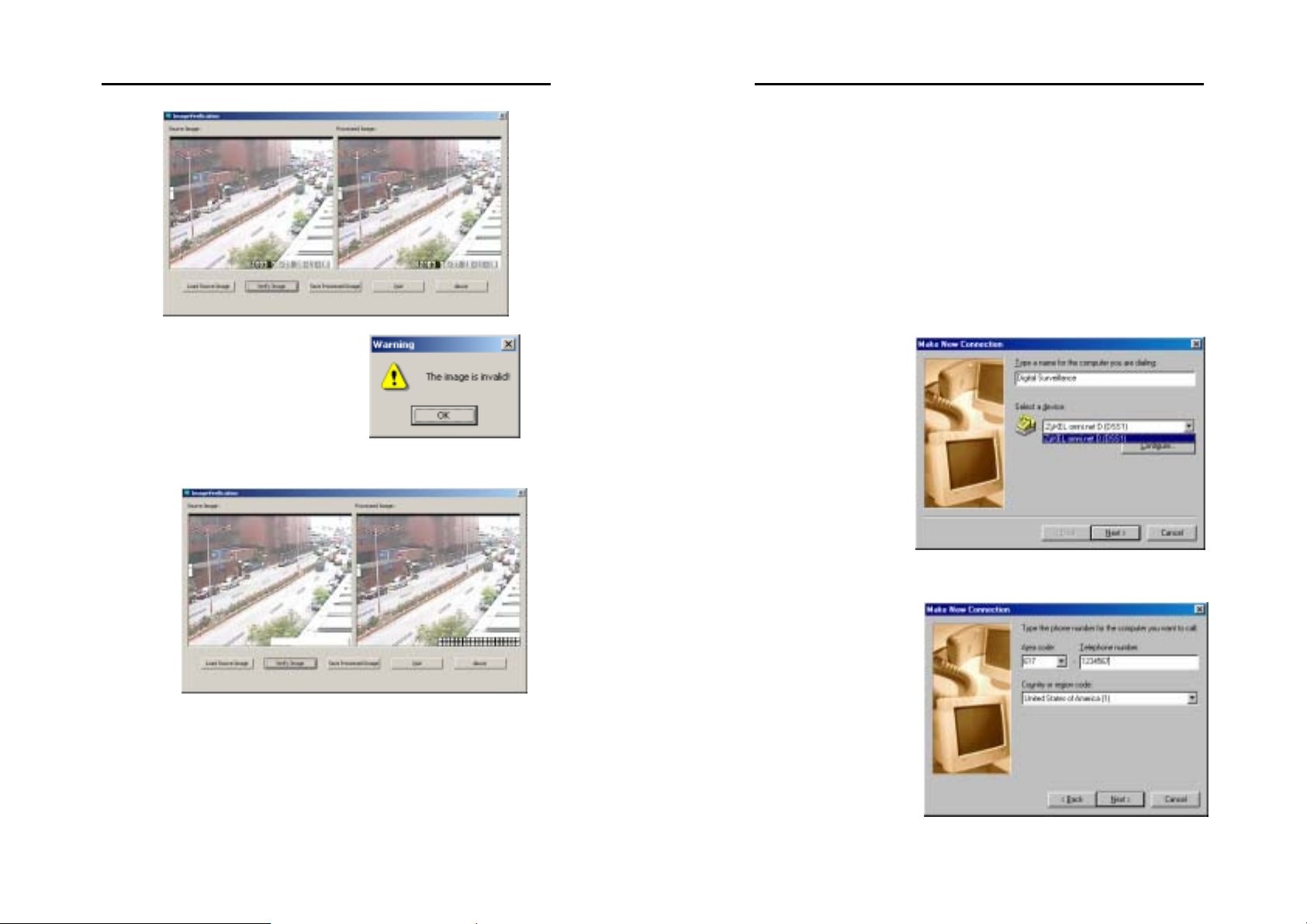

Page 56
AVerMedia LX5000 User’s Manual
(2) If the file is modified, it will
display a warning dialog box. In
result box, it will highlight the
area which is been changed.
AVerMedia LX5000 User’s Manual
Appendix C Remote Login with an Modem­to-Modem Connection
To run RemoteManager over a direct Modem-to-Modem connection between the Linux server and the remote client, follow the instructions in the section of the operating system you are using.
A. Windows 98SE / Windows Me
1. Go to Start Æ
Programs Æ Accessories Æ Communications and click Dial-up Networking. Double-click Make New Connection
to bring up the
Make New Connection
wizard. Enter the server’s name and select the ISDN device you are using. Click the Next button to continue.
2. Provide the server’s
telephone number, including the area code, and click the Next button to finish creating the new connection.
111
112
Page 57
AVerMedia LX5000 User’s Manual
AVerMedia LX5000 User’s Manual
3. Go back to the Dial-
up Networking
window and double­click the connection you just created. In the Connect to dialog box, enter any User name and the Password set in step F of the server’s ISDN setup procedure.
Click
to
start connecting to the LX5000 server.
4. After you get connected, access Start Æ Programs Æ Dig i tal
Video Surveillance System Æ RemoteManager to launch RemoteManager. Refer to Chapter 6 RemoteManager to login. (Default IP address: 192.168.55.1)
B. Windows 2000
1. Go to Start Æ
Programs Æ Accessories Æ Communications
and click
Network and Dial-up Connections. In the Network and Dial-up Connections
window, double­click Make New Connection to bring up the Network Connection Wizard. Click the Next button.
2. Select Dial-up to
private network and click the Next button.
3. Provide the server’s
telephone number, including the area code, and click the Next button.
4. Select For all users
and click the Next button.
113
114
Page 58
AVerMedia LX5000 User’s Manual
AVerMedia LX5000 User’s Manual
5. Click the Finish
button to complete the connection setup.
6. Go back to the Network and Dial-
up Connections window and double-click the connection you just created. In the dialog box, enter any User name and the Password set in step E of the server’s ISDN setup procedure.
Click
to start
connecting to the LX5000 server.
7. After you get connected, access Start Æ Programs Æ Digital Video
Surveillance System Æ RemoteManager to launch RemoteManager. Refer to Chapter 6 RemoteManager to login.
C. Windows XP
1. Go to Start Æ Programs
Æ Accessories Æ
Communications and click New Connection Wizard. Click the Next button.
2. Select Connect to the
Internet and click the Next button.
3. Select Set up my
connection manually and click the Next button.
115
116
Page 59
AVerMedia LX5000 User’s Manual
AVerMedia LX5000 User’s Manual
4. Select Connect using a
dial-up modem and click the Next button.
5. Enter the name of this
connection and click the Next button.
6. Provide the server’s
telephone number, including the area code, and click the Next button.
7. Enter any User name and the
Password set in step F of the server’s ISDN setup procedure. Click the Next button to continue.
8. Click the Finish button to
complete the connection setup.
9. Go to Start Æ Programs Æ
Accessories Æ Communications and click Network Connections. Double-click the connection you just created. In the dialog box, enter any User name and the Password set in step F of the server’s ISDN setup procedure.
Click
to start connecting
to the LX5000 server.
After you get connected, access Start Æ Programs Æ Digital Video Surveillance System Æ RemoteManager to launch RemoteManager. Refer to Chapter 6 RemoteManager to l
117
118
Page 60
AVerMedia LX5000 User’s Manual
Limited Warranty
AVerMedia TECHNOLOGY, Inc. warrants that this product to be
free of defects resulting from faulty manufacturing or components under the following terms:
WARRANTY LENGTH
Labor is warranted for 15 months from the date of purchase. Replacement products will be warranted for the remainder of the 15-month warranty period or 30 days, whichever is longer.
WHO IS PROTECTED
This warranty is enforceable only by the first consumer purchaser.
WHAT IS AND IS NOT COVERED
Except as specified below, this warranty covers all defects resulting from faulty manufacturing of this product. The following are not covered by the warranty.
1. Any product on which the serial number has been defaced,
modified,
2. Damage, deterioration, or malfunction resulting from: A. Accident, abuse, misuse, neglect, fire, water, lightning, or
B. Misapplication of service by someone other than the C. Any shipment damages. (Claims must be made with D. Any other cause that does not relate to a product defect.
3. Cartons, cases, batteries, cabinets, tapes, or accessories used
with the product.
4. AVerMedia TECHNOLOGY, Inc. does not warrant that this
product will meet your requirements; it is your responsibility to determine the suitability of this product for your purpose.
WHAT WE WILL AND WILL NOT PAY FOR
We will pay labor and material expenses for covered items. However, we will not pay for the following:
1. Removal or installation charges.
2. Shipping charges.
3. Any incidental charges.
EXCLUSION OF DAMAGE S
THE MANUFACTURER’S SOLE OBLIGATION AND LIABILITY UNDER THIS WARRANTY IS LIMITED TO THE REPAIR OR REPLACEMENT OF A
or removed.
other acts of nature, commercial or industrial use, unauthorized product modification, or failure to follow instructions included with the product.
manufacturer’s representative.
carriers.)
119
AVerMedia LX5000 User’s Manual
DEFECTIVE PRODUCT AT OUR OPTION. THE MANUFACTURER SHALL NOT, IN ANY EVENT, BE LIABLE TO THE PURCHASER OR ANY THIRD PARTY FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGE (INCLUDING, BUT NOT LIMITED TO, DAMAGES RESULTING FROM INTERRUPTION OF SERVICE AND LOSS OF BUSINESS) OR LIABILITY LIMITATIONS OF IMPLIED WARRANTIES.
There are no other oral or written warranties, expressed or implied, including but not limited to those of merchantability or fitness for a particular purpose. Any implied warranties are limited in duration to 15 months from the date of purchase.
STATE LAW A ND Y OUR WAR RANTY
This warranty gives you specific legal rights, and you may also have other rights granted under state law. These rights vary from state to state.
CONTACT INFORMATION
Taiwan & International No. 135, Jian Yi Rd., Chung Ho, Taipei, Taiwan, R.O.C. Tel: 886-2-22263630 Fax: 886-2-32344842 Web Site: www.AVerMedia.com.tw
120
Loading...
