AVer 300AFHD User Manual

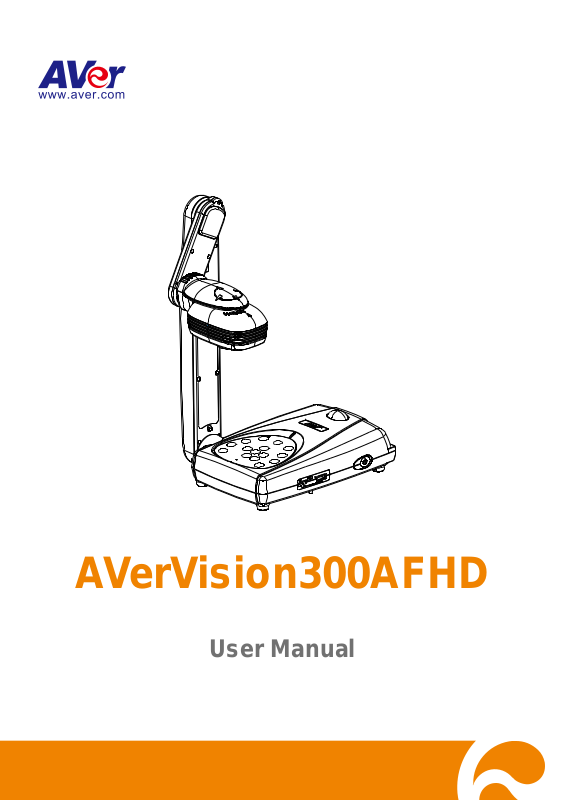

AVerVision300AFHD
User Manual
THE MARK OF CROSSED-OUT WHEELED BIN INDICATES THAT THIS PRODUCT MUST NOT BE DISPOSED OF WITH YOUR OTHER HOUSEHOLD WASTE. INSTEAD, YOU NEED TO DISPOSE OF THE WASTE EQUIPMENT BY HANDING IT OVER TO A DESIGNATED COLLECTION POINT FOR THE RECYCLING OF WASTE ELECTRICAL AND ELECTRONIC EQUIPMENT. FOR MORE INFORMATION ABOUT WHERE TO DROP OFF YOUR WASTE EQUIPMENT FOR RECYCLING, PLEASE CONTACT YOUR HOUSEHOLD WASTE DISPOSAL SERVICE OR THE SHOP WHERE YOU PURCHASED THE PRODUCT.
Federal Communications Commission Statement (Class A)
installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by tuning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
Class A ITE
Class A ITE is a category of all other ITE which satisfies the class A ITE limits but not the class B ITE limits. Such equipment should not be restricted in its sale but the following warning shall be included in the instructions for use: Warning - This is a class A product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures.
COPYRIGHT
© 2014 AVer Information Inc. All rights reserved. All rights of this object belong to AVer Information Inc. Reproduced or transmitted in any form or by any means without the prior written permission of AVer Information Inc. is prohibited. All information or specifications are subject to change without prior notice.
TRADEMARKS
“AVer” is a trademark owned by AVer Information Inc. Other trademarks used herein for description
purpose only belong to each of their companies.
NOTICE
SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT PRIOR NOTICE. THE INFORMATION CONTAINED HEREIN IS TO BE CONSIDERED FOR REFERENCE ONLY.
WARNING
TO REDUCE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. WARRANTY VOID FOR ANY UNAUTHORIZED PRODUCT MODIFICATION.
This equipment generates uses and can radiate radio frequency energy and, if not
Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
Consult the dealer or an experienced radio/television technician for help.
Remote Control Battery Safety Information
- Store batteries in any cool & dry place.
- Do not dispose used batteries in domestic waste. Dispose batteries at special collection points or return to stores if applies.
- Remove the batteries if they are not in use for long period of time. Battery leakage and corrosion can damage the remote control, dispose batteries safely.
- Do not mix and use old and new batteries.
- Do not mix and use different types of batteries: alkaline, standard (carbon-zinc) or rechargeable (nickel-cadmium).
- Do not dispose batteries in a fire.
- Do not attempt to short circuit the battery terminals.
TTaabbllee ooff CCoonntteennttss
IInnsseerrtt aann SSDD CCaarrd
d
IInnsseerrtt aa UUSSBB FFllaasshh DDrriivve
e
Package Contents .................................................................................................... 1
Optional Accessories ............................................................................................... 1
Get Familiar with the AVerVision300AFHD ................................................................ 2
Right Panel ............................................................................................................... 2
Rear Panel ............................................................................................................... 3
Left Panel ................................................................................................................. 3
Control Panel ........................................................................................................... 4
Remote Control ........................................................................................................ 5
Making the Connections ........................................................................................... 8
Set the TV-RGB Switch Setting ................................................................................ 8
Connect to a Monitor or LCD/DLP Projector ............................................................ 8
Connect to a Monitor or LCD/DLP Projector with HDMI interface ............................ 9
Connect to a TV ....................................................................................................... 9
Connecting the Power ............................................................................................ 10
Connect to a Computer .......................................................................................... 10
Connect to a Computer via USB .............................................................................11
Connect an External Microphone ............................................................................11
Connect an Amplified Speaker ............................................................................... 12
Connect to a Microscope........................................................................................ 12
Setting Up AVerVision300AFHD .............................................................................. 14
Camera Head ......................................................................................................... 14
Mechanical Arm ...................................................................................................... 15
Infrared Sensor ...................................................................................................... 15
Mounting the V300AFHD on a Flat Surface ............................................................. 16
Anti-glare Sheet ..................................................................................................... 16
External Memory Storage ....................................................................................... 17
OSD MENU ............................................................................................................. 18
Navigate the Menu and Submenu .......................................................................... 19
Image ..................................................................................................................... 19
Brightness ................................................................................................... 19
Contrast ...................................................................................................... 19
Mode ........................................................................................................... 20
Effect ........................................................................................................... 20
Mirror .......................................................................................................... 20
Advanced .................................................................................................... 20
Auto Image.................................................................................................. 21
Exposure ..................................................................................................... 21
....................................................................................... 17
............................................................................. 17
White Balance ............................................................................................. 21
Focus .......................................................................................................... 21
Presentation ........................................................................................................... 22
Spotlight ...................................................................................................... 22
Visor ............................................................................................................ 22
PIP .............................................................................................................. 23
Split Screen ................................................................................................. 23
Timer ........................................................................................................... 24
Setting .................................................................................................................... 24
Capture ....................................................................................................... 24
Resolution ................................................................................................... 24
Quality ......................................................................................................... 24
Type ............................................................................................................ 25
Interval ........................................................................................................ 25
Recording.................................................................................................... 25
Storage ....................................................................................................... 25
Format ........................................................................................................ 25
USB to PC................................................................................................... 26
Flicker ......................................................................................................... 26
System ................................................................................................................... 26
Language .................................................................................................... 26
Output Display ............................................................................................ 26
Backup ........................................................................................................ 27
Save Setting ................................................................................................ 27
Recall Setting .............................................................................................. 27
Information .................................................................................................. 27
Default ........................................................................................................ 27
Playback ................................................................................................................. 28
Slide Show .................................................................................................. 28
Interval ........................................................................................................ 28
Slide Show Effect ........................................................................................ 28
Current Storage ........................................................................................... 28
Delete All ..................................................................................................... 28
Annotation .............................................................................................................. 29
Using the Annotation Control Panel ............................................................ 29
Transfer Captured Images/Videos to a computer ............................................................ 30
Technical Specifications ........................................................................................ 30
Image .......................................................................................................... 30
Optics .......................................................................................................... 30
Power .......................................................................................................... 30
Lighting ....................................................................................................... 31
Input/Output ................................................................................................ 31
Dimension ................................................................................................... 31
External Storage ......................................................................................... 31
RS-232 Diagram Connection .................................................................................. 31
RS-232 Cable Specifications .................................................................................. 32
RS-232 Transmission Specifications ...................................................................... 32
RS-232 Communication Format ............................................................................. 32
RS-232 Send Command Table ............................................................................... 33
RS-232 Get Command Table ................................................................................. 38
Troubleshooting ..................................................................................................... 39
Limited Warranty .................................................................................................... 41
Limitations of Warranty .......................................................................................... 41
Disclaimer of Warranty ........................................................................................... 41
Limitation of Liability .............................................................................................. 42
Governing Law and Your Rights ............................................................................. 42
ENGLISH
PPaacckkaaggee CCoonntteennttss
AVerVision300AFHD
RS-232/CVBS Cable
USB Cable
RGB Cable
Power Adapter (12V, 2A)
* The power adapter will vary
depending on the standard power outlet of the country
where it is sold.
Remote Control
(batteries included)
Software & Manual CD
OOppttiioonnaall AAcccceessssoorriieess
Light Box
34mm Microscope Adapter
Carrying Bag
28mm Microscope Adapter
Anti-glare Sheet
Microscope Coupler
Make sure the following items are included in the package.
1
GGeett FFaammiilliiaarr wwiitthh tthhee AAVVeerrVViissiioonn330000AAFFHHDD
(8)
(5)
(7)
(6)
(1)
(2)
(3) (4)
(9)
Name
Function
(1) Camera head
Contain the camera sensor.
(2) Camera lens
Focus the image in the camera.
(3) Control panel
Easy access to various functions.
(4) Built-in MIC
Record audio when recording video clip. The recorded sound will be in monophonic.
(5) Arm
Extendable for viewing coverage.
(6) Left panel
Connections for LCD monitor using HDMI cable, microphone, speaker, computer, SD card, and TV-RGB display output switch.
(7) IR sensor
Receive remote control commands.
(8) Rear panel
Connections for power, computer for RGB input display and LCD monitor using RGB cable.
(9) Right panel
On/off switch for USB flash drive port and power button.
(3)
(2)
(1)
Name
Function
(1) USB PC - USB Flash
Drive switch
Switch to right (►) for audio video recording directly to a USB flash drive and left (◄) when connecting AVerVision300AFHD to a computer using a USB cable.
(2) USB Thumb Drive port
Insert a USB flash drive for audio video recording storage.
(3) Power button
Turn the unit on/standby mode.
(fig. 1.1)

Right Panel

2
(fig. 1.2)
(4)
(1)
(2) (3)
Name
Function
(1) Antitheft Slot
Attach a Kensington compatible security lock or antitheft device.
(2) DC12V port
Connect the power adapter into this port.
(3) RGB INPUT port
Input the signal from a computer or other sources and pass it through to the RGB OUT port only. Connect this port to the RGB/VGA output port of a computer.
(4) RGB OUTPUT port
Connect the AVerVision300AFHD to any display device with RGB cable
(1)
(7)
(5)
(6)
(4)
(3)
(2)
Name
Function
(1) Mini USB port
Connect to a USB port of a computer with a USB cable and use AVerVision300AFHD as a USB Camera or transfer the captured images/videos either from the memory source to computer.
(2) HDMI OUTPUT
Output the video signal from the main system on an LCD monitor with HDMI interface using HDMI cable.
(3) MIC port
Connect a 3.5mm plug microphone. The built-in mic will be disabled when an external MIC is connected to this port.
(4) Speaker port
Connect to an amplified speaker.
(5) RS-232/CVBS port
Connect the supplied RS-232/CVBS cable into this port. The RCA jack outputs the video signal from the camera to a TV or video equipment. The RS-232 jack is used to connect to computer serial port or to any control panel or for centralized control if desire.
(6) TV-RGB switch
TV switch to output display video from RS232/CVBS (via RCA connection), and RGB to RGB and HDMI OUTPUT ports.
(7) SD card slot
Insert the SD card with the label facing up.

Rear Panel

Left Panel

(fig. 1.3)
(fig. 1.4)
3
(1) (2)
(3)
(4)
(5)
(7)
(8) (9)
(10) (11)
(12) (13)
(6)
AVerVision300AFHD
Name
Function
(1) MENU
Open and exit the OSD menu.
(2) RECORDING
Start/Stop audio & video recording. Audio and video recording can be saved on a SD card or an USB Flash drive only. See HHUExternal
Memory StorageUHH.
(3) CAP/DEL
- Capture picture in Camera mode. In continuous capture mode, press this button again to stop.
- Delete the selected picture/video in Playback mode.
(4) PLAYBACK
View & playback captured still images and audio video files.
(5) FREEZE / STOP
- Pause or resume image display in Camera mode.
- Stop audio & video playback in Playback mode.
(6) Built-in MIC
Record audio automatically when recording video clip.
(7) CAMERA / PC
Switch between Camera and Computer.
(8) ▲,▼,◄, & ►
- Pan and zoom-in image (above digital zoom level) in both live and playback mode.
- Select options in OSD menu.
- Use ▲&▼ to increase and decrease the video playback volume.
- Use ◄&► to play the video backward and forward.
- Move the Spotlight frame and Visor screen cover.
(9) ZOOM IN
Increase the image magnification in camera and picture playback mode.
(10) ZOOM OUT
Decrease the image magnification in camera and picture playback mode.
(11) ENTER
- Make a selection in Playback mode and OSD menu.
- Start/Pause video playback.
(12) AUTO FOCUS
Adjust the focus automatically.
(13) LAMP
Turn the overhead light on/off.

Control Panel

(fig. 1.5)
4
Name
Function
(18)
(14)
(11)
(7)
(8)
(5)
(2)
(1)
(22)
(13)
(4)
(3)
(15)
(12)
(17)
(23)
(20)
(19)
(9)
(6)
(16)
(10)
(21)
(fig. 1.6)
(1) POWER
Turn the unit on/standby.
(2) CAMERA
Camera mode displays the video signal from the built-in camera.
(3) RECORD
Start/Stop audio & video recording. Video recording can only be saved either in a SD memory card or a USB flash drive.
(4) CAPTURE
Capture still image in Camera mode. In continuous capture mode, press this button again to stop.
(5) VISOR
Call the Visor submenu. Visor covers part of the presentation screen and allow presenter to reveal the material as desire. In the Visor submenu, the following options are available.
ON/OFF – select to run/cancel the Visor. Press to move to the next selection.
Shade – set the opacity level of the covered area. The shaded area will completely turns black when it is set to
level 100. Press to move to the next selection. OK – press for the setting to take effect. If you select ON, upper part of
the presentation screen is slightly exposed. Use the ▲,▼,◄, & ► buttons to reveal more of the covered area; and OFF will close the submenu.
To turn off Visor, press again.
(6) ROTATE
Rotate the image by 90° in Camera mode and Playback mode.
(7) MENU
Open and exit the OSD menu.

Remote Control

The remote control requires two (2) “AAA” size batteries (supplied), make sure batteries are installed properly before use. You can access all the features of AVerVision300AFHD with the remote.
5
Name
Function
(18)
(14)
(11)
(7)
(8)
(5)
(2)
(1)
(22)
(13)
(4)
(3)
(15)
(12)
(17)
(23)
(20)
(19)
(9)
(6)
(16)
(10)
(21)
(fig. 1.6)
(8) ▲,▼,◄, & ►
- Pan and zoom-in image (above digital zoom level) in both live and playback mode.
- Select options in OSD menu.
- Use ▲&▼ to increase and decrease the video playback volume.
- Use ◄&► to play the video backward and forward.
- Move the Spotlight frame and Visor
screen cover.
(9) AUTO FOCUS
Adjust the focus automatically.
(10) ZOOM +/-
Increase/decrease the image magnification in camera and picture playback mode.
(11) ZOOM RESET
Reset zoom level to 100%.
(12) PLAYBACK
View the captured picture/video from the memory in 16-thumbnail images.
(13) PC 1/2
PC mode displays the video signal from the RGB INPUT port of V300AFHD.
(14) FREEZE /
STOP
- Freeze live images.
- Stop video playback.
(15) SPOTLIGHT
Call the Spotlight submenu. Spotlight overlays a box frame on the presentation screen. You can adjust the box size and move it around. In the Spotlight submenu, the following options are available.
ON/OFF – select to run/cancel the Spotlight. Press to move to the next selection.
Shade – set the opacity level of the area outside the box. The shaded area will completely turns black when it is set to
level 100. Press to move to the next selection.
6
Name
Function
(18)
(14)
(11)
(7)
(8)
(5)
(2)
(1)
(22)
(13)
(4)
(3)
(15)
(12)
(17)
(23)
(20)
(19)
(9)
(6)
(16)
(10)
(21)
(fig. 1.6)
(15) SPOTLIGHT
Color – select the Spotlight frame color. Press to move to the next selection. OK – press for the setting to take effect. If you select ON, the frame will
appear and blink, use the ▲,▼,◄, & ► buttons to adjust the frame size and
press to set the desired size; and OFF will close the submenu.
To turn off Spotlight, press again.
(16) SPLIT
SCREEN
Divide the screen into two. One side displays the live image from the built-in camera and the other side displays 8­thumbnail size picture/video from the memory.
(17) MODE
Select from 4 type of modes: Sharp - adjust the contrast along the
edges making text appear more visible. Graphics - adjust the gradient of
image. Motion - increase frame rate. Sufficient
lighting is required when using this mode.
Microscope - automatically adjust optical zoom for microscopic viewing.
(18) TIMER
Call the Timer submenu. Select to Start/Pause/Stop the timer countdown and set the timer duration.
(19)
- Make a selection in Playback mode and OSD menu.
- Play/Pause video playback.
(20) LAMP
Turn the overhead light on/off.
(21) BRIGHTNESS
+/-
Adjust the brightness. (22) DEFAULT
Reset to factory default setting.
(23) DEL
Delete the selected picture/video in Playback mode.
7
MMaakkiinngg tthhee CCoonnnneeccttiioonnss
SSeett tthhee TTVV--RRGGBB SSwwiittcchh SSeettttiinngg
Switch
AVerVision Port
Display Device Port
RGB
RGB OUTPUT
To
RGB INPUT
HDMI OUTPUT
HDMI INPUT
TV
RS232/CVBS
(use RS-232/CVBS cable)
VIDEO IN
CCoonnnneecctt ttoo aa MMoonniittoorr oorr LLCCDD//DDLLPP PPrroojjeeccttoorr
Make sure the TV/RGB switch is set to RGB.
Before making the connection, make sure the power of all devices are turned off. If you are not sure on where to connect, simply follow the illustrated connections below and also refer to the user manual of the device you are connecting the AVerVision300AFHD with.
The TV-RGB switch determines the display output selection. Switch it to RGB (right) to output signal using RGB/HDMI connection and TV (left) to output signal using RCA connection. (see fig. 1.4 # 6)
Locate the RGB (VGA) input port of the graphics display device and connect it to RGB OUTPUT port of AVerVision300AFHD.
8
CCoonnnneecctt ttoo aa MMoonniittoorr oorr LLCCDD//DDLLPP PPrroojjeeccttoorr wwiitthh HHDDMMII iinntteerrffaaccee
Make sure the TV/RGB switch is set to RGB.
HDMI monitor
HDMI cable
LCD/DLP projector
CCoonnnneecctt ttoo aa TTVV
Locate the HDMI input port of the display device and connect it to HDMI output port of AVerVision300AFHD.
Locate the VIDEO or SCART RGB (if applicable) input port of the TV or Video equipment (i.e., VCR) to record your presentation and connect it to RCA jack of RS-232/CVBS cable.
9
Loading...
+ 33 hidden pages
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
