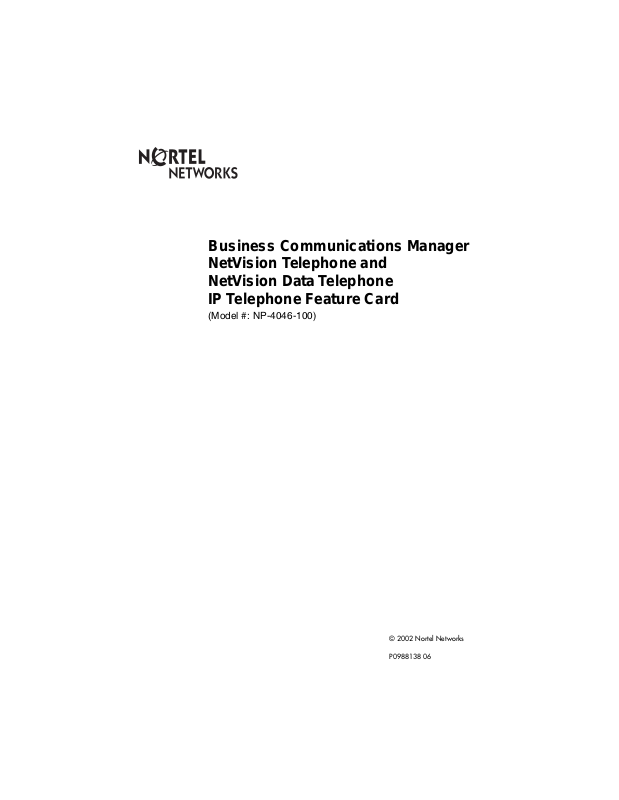

Business Communications Manager NetVision Telephone and NetVision Data Te lephone IP Telephone Feature Card

(Model #: NP-4046-100)

P0988138 06

Trademarks

NORTEL NETWORKS and Busin ess Communications Manager are trademarks of Nortel Networks.

Symbol, Spe ctrum24, and Net Vision are trademarks of Symbol Technologies, Inc.

NetVision qui ck start cal l basi cs

A handset user guide is supplied with each Symbol® NetVision handset which describes, in detail, how to use the buttons on the handset, including any data-related buttons found on the NetVision Data phone. Note: The buttons described here are not located in the same place on all models.

Logging into and out of the network

Logging in: Logging out:

END

SND

Press to turn the handset on.

SND

Enter your PIN number, and press .

SND

Press and hold to turn the handset off.

END

Quick start hints

You must be logged into the network:

SND

END

SND

If you pressed to silence a ringing call, to

retrieve the call, press or

choose Off-hook, if it is programmed into

FCT

the menu. Note: This sequence also produces a dial tone on an idle telephone.

Make call: Enter number and press . Answer Call: Press .

END

End call or feature: Press .

END

To Hold or Unhold a call, or to toggle

HOLD

between two calls:Press .

HOLD

To Hold the call and drop the link so someone

HOLD

else can pick it up, press .

HOLD

END

SND

To recover a held call from a dropped link,

SND

HOLD

press: .

HOLD

Active handse t display

The handset display shown below is from the NetVision handset. If you have a NetVision data telephone or a new version of the handset, the shape of the display may have a different appearance, however, the icons on all handsets indicate the same thing:

Radio signal strength indicator

Active line indicator

Idle/alert icon

active call icon

NAME

XXX-XXXX

Call information

Battery strength indicator

Page 3
