1 Introduction
This document provides a configuration guide to assist Nortel Networks BCM50
administrators in connecting to AT&T IP Flexible Reach and AT&T IP Flexible
Reach with AT&T Business in a Box
This document does not describe procedures to configure the BCM50
for advanced functionality. For more information and procedures,
please refer to the Nortel technical documentation found on the Nortel
website.
1.1 Pre-IP PBX Configuration Activity
This guide assumes that the administrator is knowledgeable in IP PBX
programming and operations.
An important tool that the administrators should have at their disposal prior to
testing their IP PBX with AT&T IP Flexible Reach and AT&T IP Flexible Reach
with AT&T Business in a Box is the Wireshark network protocol analyzer. This
software can be used to run traces on problem calls so the information can be
shared with equipment and network engineers. This free software can be
obtained at
The customer may also use TCPDUMP which can be found on most UNIX and
Linux systems. The customer should have Wireshark or TCPDUMP loaded on a
server that is connected to a LAN switch or hub that can monitor both the
signaling and media packets on any calls between the customer PBX and the IP
Flexible Reach managed router.
1.2 Customer Questions
Section 4 of this guide provides screen shots and instructions for the
configuration of your IP PBX. Should you have questions regarding these
instructions, please contact Brian Stegemoller at +1 (972) 685-6629 ((972) 7455139 after 2/22/2010). When calling this number please have the following
information available:
http://www.wireshark.org/.
Company name
Company location
SM
via SIP trunks.
*Nortel, Nortel Networks, Nortel (Logo), the Globemark, CS1000 are trademarks of Nortel Networks.
Issue 1.5 Page 4 of 38
AT&T IP Flexible Reach and AT&T IP Flexible Reach with AT&T Business in a Box
Nortel BCM50 Release 3.0 SIP Configuration Guide
Administrator name and phone number
IP PBX name and software version
Customer Configuration Guide – Issue number and date
1.3 Trouble Reporting
Nortel and AT&T will make every effort to quickly resolve reported troubles. The
time required for trouble shooting can be reduced if the customer has the
necessary detailed information available when reporting a problem. Prior to
reporting a problem please provide a Wireshark or TCPDUMP trace of the failed
call.
1.4 Document Feedback
IP PBX administrators who would like to provide feedback on the contents of this
document should send it to Brian Stegemoller (
copy to Al Chee (
(
stevenchen@avaya.com).
alchee@avaya.com) and Steven Chen
brianstegemo@avaya.com) with a
1.5 Document Change History
Issue 0.0 October 12, 2007; draft
Issue 0.1 November 12, 2007; draft
Edited Section 3: removed softphone support, added fax
support, added new screenshot for software version,
added sub-sections for Section 1
Issue 0.2 November 20, 2007;
Edited screenshots in Section 3 w/ updated patch list
Issue 0.3 November 27, 2007;
Edited fax configuration procedures (ATA device
settings)
Issue 0.4 November 29, 2007;
Added Special Notes section (received from Jim Amster)
Issue 0.5 December 5, 2007;
Added “SIP” after “BCM50 Release 3.0”, added contact
info in Section 1, explanation for software release in 4.1
Issue 0.6 December 12, 2007;
Further explanation for software release in 4.1 and VoIP
trunk licenses in 4.2
Issue 0.7 August 10, 2008;
*Nortel, Nortel Networks, Nortel (Logo), the Globemark, CS1000 are trademarks of Nortel Networks.
Issue 1.5 Page 5 of 38
AT&T IP Flexible Reach and AT&T IP Flexible Reach with AT&T Business in a Box
Nortel BCM50 Release 3.0 SIP Configuration Guide
Added section for AT&T IP Flexible Reach with AT&T
Business in a Box (changed title of document), removed
calling number privacy limitation in Section 2, patches in
4.1, changed network diagram and removed verbiage in
Section 3
Issue 0.8 August 25, 2008;
Added special notes in Section 2, and added important
note in Section 4.1
Issue 0.9 September 4, 2008;
Replaced “AT&T IP Flexible Reach and AT&T IP Flexible
Reach with AT&T Business in a Box networks” with
“BVoIP network”
Issue 1.0 September 11, 2008;
Added phrases to distinguish between IP Flexible Reach
(Cisco router) and BIB (EdgeMarc router)
Changed title for T.38 fax issue in Special Notes
Attached patch file to document
Changed header, footer and disclaimer note (end of
document)
Issue 1.1 October 1, 2008;
Added Section 4.5, SIP URI explanation and screenshot
Issue 1.2 March 17, 2009;
Edits in Section 2 (T.38 fax support), patch list in 4.1
Issue 1.3 October 23, 2009;
Edit in Special Notes section
Issue 1.4 February 4, 2010
Changed Contact Information to Reflect AVAYA Details
Issue 1.5 September 15, 2010
Updated E911 Disclaimer
*Nortel, Nortel Networks, Nortel (Logo), the Globemark, CS1000 are trademarks of Nortel Networks.
Issue 1.5 Page 6 of 38
AT&T IP Flexible Reach and AT&T IP Flexible Reach with AT&T Business in a Box
Nortel BCM50 Release 3.0 SIP Configuration Guide
2 Special Notes
Emergency 911/E911 Services Limitations and Restrictions
Although AT&T provides 911/E911 calling capabilities, AT&T does not warrant or
represent that the equipment and software (e.g., IP PBX) reviewed in this
customer configuration guide will properly operate with AT&T IP Flexible Reach
to complete 911/E911 calls; therefore, it is Customer’s responsibility to ensure
proper operation with its equipment/software vendor.
While AT&T IP Flexible Reach services support E911/911 calling capabilities
under certain Calling Plans, there are circumstances when that E911/911 service
may not be available, as stated in the Service Guide for AT&T IP Flexible Reach
found at http://new.serviceguide.att.com. Such circumstances include, but are
not limited to, relocation of the end user’s CPE, use of a non-native or virtual
telephone number, failure in the broadband connection, loss of electrical power,
and delays that may occur in updating the Customer’s location in the automatic
location information database. Please review the AT&T IP Flexible Reach Service
Guide in detail to understand the limitations and restrictions.
BCM Soft Phones not currently supported
Nortel BCM soft phones are not currently supported with the AT&T IP Flexible
Reach and AT&T IP Flexible Reach with AT&T Business in a Box Services.
Ring back Issues with Unattended Transfers
An unattended transfer is one in which the party initiating the transfer hangs up
prior to answer by the party to whom the call is being transferred. When 2
phones are in an active call on the BCM50 and one of those phones performs an
unattended transfer to certain endpoints on the AT&T network, the BCM50
phone remaining on the call will not hear ring back prior to answer.
T.38 Fax must be used
Nortel recommends using T.38 as the means to transport fax on the BCM50.
No NAT Device between BCM50 and BIB Managed Router
Due to a limitation in the AT&T Managed Business In a Box (BIB) Router
software, the network configuration at Customer Premise CANNOT contain any
NAT device between BIB Router and BCM50 IP-PBX system. A network
configuration with a NAT device between BIB Router and BCM50 results into no
voice path for any direction calls.
*Nortel, Nortel Networks, Nortel (Logo), the Globemark, CS1000 are trademarks of Nortel Networks.
Issue 1.5 Page 7 of 38
AT&T IP Flexible Reach and AT&T IP Flexible Reach with AT&T Business in a Box
Nortel BCM50 Release 3.0 SIP Configuration Guide
*Nortel, Nortel Networks, Nortel (Logo), the Globemark, CS1000 are trademarks of Nortel Networks.
Issue 1.5 Page 8 of 38
AT&T IP Flexible Reach and AT&T IP Flexible Reach with AT&T Business in a Box
Nortel BCM50
Private Side
Public Side
FAX
Switch
AT&T
IP Border
AT&T
Nortel BCM50 Release 3.0 SIP Configuration Guide
3 Overview
This section provides a service overview of the Nortel Business Communication
Manager 50 (BCM50) IP PBX integration with AT&T IP Flexible Reach and AT&T
IP Flexible Reach with AT&T Business in a Box services.
Customer Premises
Phones and IP PBX Server
in Private Address space
AT&T Managed Router
Customer Sites connect to ATT
IP Border Element (IPBE)
Application
Servers,
Network
Gateways,
etc.
Customer Site
BVoIP
Network
Element
Managed
Router
Figure 1: AT&T BVoIP Network
The Nortel BCM50 customer premises site shall consist of the following
components.
• Nortel IP 200x, 11xx, 12xx phones* – These phones use the Nortel
proprietary UNIStim signaling protocol to communicate to the Nortel
BCM50 IP PBX for call feature and routing support. These phones can be
connected to a Nortel Ethernet switch (ES 470, ERS 5520, etc.) that
supplies in-line power (IEEE 802.3af) to the phones.
*Nortel, Nortel Networks, Nortel (Logo), the Globemark, CS1000 are trademarks of Nortel Networks.
Issue 1.5 Page 9 of 38
AT&T IP Flexible Reach and AT&T IP Flexible Reach with AT&T Business in a Box
Nortel BCM50 Release 3.0 SIP Configuration Guide
• The following interfaces are provided on all three variants of the BCM50
main module:
o 12 digital station ports supporting digital phones.
o 4 Analog Loop Supervised Trunks (NA networking standards).
o 4 Analog Station interfaces with message waiting and CLID
support.
o 3 port 10/100 Ethernet switch with auto sensing and auto polarity.
Two of these ports also support connection of optional expansion
units.
o 1 10/100 Ethernet port reserved for direct access management of
the system
o Integrated CallPilot voice mail system
* RFC2833 DTMF is currently not supported on the IP Softphone 2050; thus the
IP Softphone 2050 is not supported for AT&T IP Flexible Reach and AT&T IP
Flexible Reach with AT&T Business in a Box services. This will be fixed in the
next major release of the IP Softphone 2050 (release 3).
The following routing scenarios are supported by the Nortel BCM50 IP PBX and
DO NOT use the AT&T Call Control.
• Local Nortel BCM50 phone to other local Nortel BCM50 phone
The following routing scenarios are supported by the Nortel Networks BCM50 IP
PBX and DO use the AT&T Call Control. For voice calls, the G.729 codec shall be
used.
• Nortel BCM50 phones to PSTN (domestic US and international).
• Nortel BCM50 phones to legacy PBX site with Cisco gateway.
• Legacy PBX site with Cisco gateway to Nortel BCM50 phones.
• Nortel BCM50 phones at one Nortel BCM50 IP PBX site to Nortel BCM50
phones at another Nortel BCM50 IP PBX site
If the customer has subscribed to Calling Plans B and C (Local), then the
following routing scenarios are supported by the BCM50 IP PBX and DO use the
AT&T Call Control. For voice calls, the G.729 or G.711 codec may be used.
BCM50 selects G.729 as the highest priority codec.
• Inbound PSTN to BCM50 phone
• Outbound local PSTN calls from the BCM50 phones
• Outbound local N11 (i.e. 411, 911) calls from the BCM50 phones
*Nortel, Nortel Networks, Nortel (Logo), the Globemark, CS1000 are trademarks of Nortel Networks.
Issue 1.5 Page 10 of 38
AT&T IP Flexible Reach and AT&T IP Flexible Reach with AT&T Business in a Box
Nortel BCM50 Release 3.0 SIP Configuration Guide
Fax was tested and is supported on the BCM50 with the AT&T IP Flexible Reach
(T.38 and G.711) and AT&T IP Flexible Reach with AT&T Business in a Box (T.38
only) services to/from the following:
• PSTN
• Legacy PBX site with Cisco gateway
• Another BCM50 IP PBX site
*Nortel, Nortel Networks, Nortel (Logo), the Globemark, CS1000 are trademarks of Nortel Networks.
Issue 1.5 Page 11 of 38
AT&T IP Flexible Reach and AT&T IP Flexible Reach with AT&T Business in a Box
Nortel BCM50 Release 3.0 SIP Configuration Guide
4 Configuration Guide
This configuration guide specifies the Nortel BCM50 screens that must be
configured and updated to support the AT&T IP Flexible Reach and AT&T IP
Flexible Reach with AT&T Business in a Box services.
4.1 Nortel BCM50 Version and Feature Requirements
The Nortel Networks BCM50 must be running at least software version

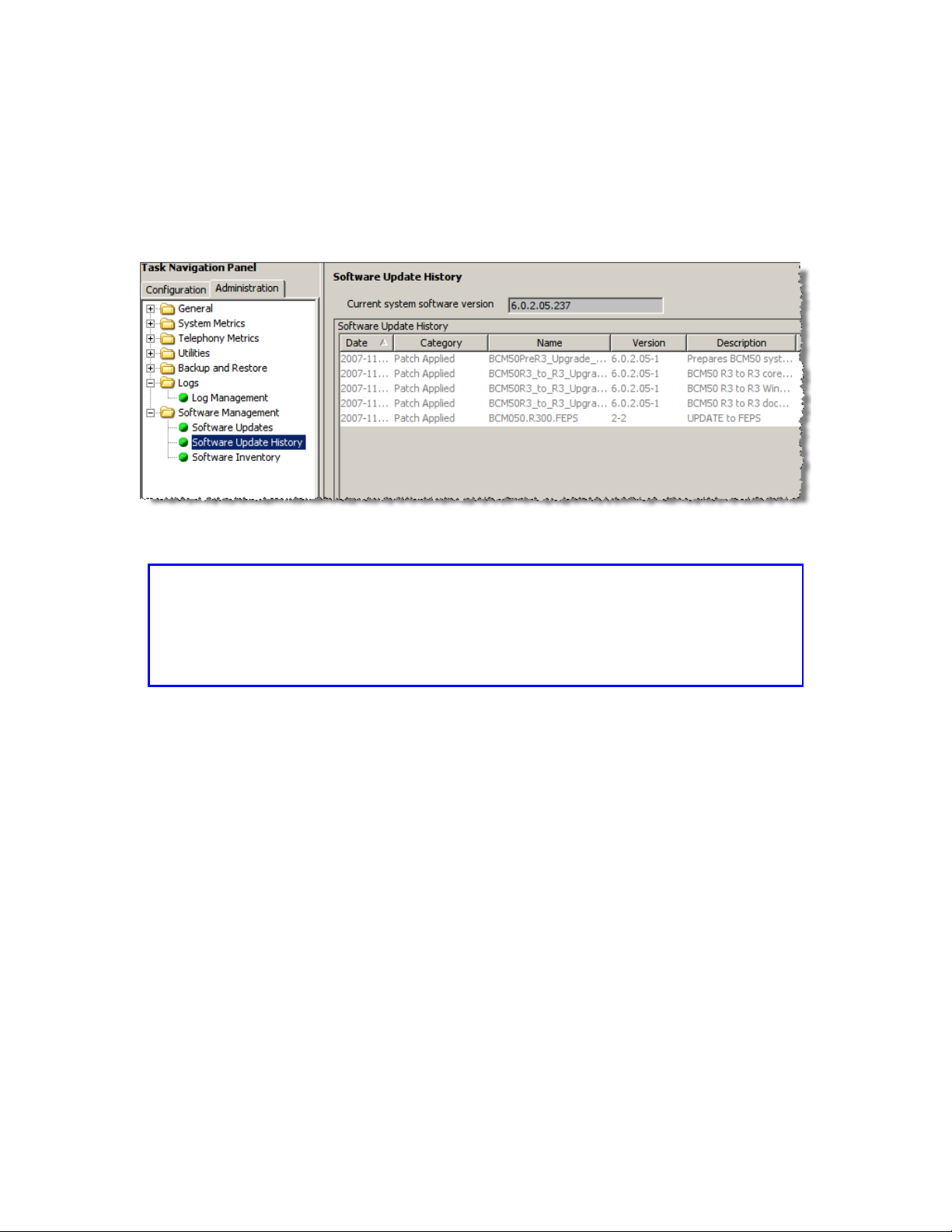

6.0.2.05.237. You can check the version of BCM50 by viewing the following
screen under
Update History
Administration Software Management Software
.
Figure 2: BCM50 Software Version Number
This is the supported base release that is required for AT&T IP Flexible Reach
and AT&T IP Flexible Reach with AT&T Business in a Box services. Any 6.0.x.x.x
software release greater than the aforementioned software version is acceptable.
This software release 6.0.x.x.x refers to BCM50 Release 3.0 SIP.
*Nortel, Nortel Networks, Nortel (Logo), the Globemark, CS1000 are trademarks of Nortel Networks.
Issue 1.5 Page 12 of 38
Loading...
