Avaya Nortel BCM450 Release 1.0 SIP Configuration Guide
AT&T IP Flexible Reach
Nortel BCM450 Release 1.0 SIP Configuration Guide
AT&T VoIP
Nortel BCM450 Release 1.0 SIP
Configuration Guide
For Use with AT&T IP Flexible Reach
Issue 0.4
09/15/2010
*Nortel, Nortel Networks, Nortel (Logo), the Globemark, CS1000 are trademarks of Nortel Networks.
Issue 0.4 Page 1 of 33
AT&T IP Flexible Reach
Nortel BCM450 Release 1.0 SIP Configuration Guide
TABLE OF CONTENTS
1 Introduction ................................................................................................................. 4
1.1 Pre-IP PBX Configuration Activity .................................................................... 4
1.2 Customer Questions ............................................................................................ 4
1.3 Trouble Reporting ............................................................................................... 5
1.4 Document Feedback............................................................................................ 5
1.5 Document Change History .................................................................................. 5
2 Special Notes............................................................................................................... 6
3 Overview ..................................................................................................................... 8
4 Configuration Guide.................................................................................................. 10
4.1 Nortel BCM450 Version and Feature Requirements ........................................ 10
4.2 IP Trunks ........................................................................................................... 12
4.3 SIP Proxy Parameters........................................................................................ 18
4.3.1 Failover to Secondary AT&T IP Border Element (IPBE) ........................ 19
4.4 Media Parameters.............................................................................................. 20
4.5 SIP URI Map..................................................................................................... 21
4.6 Port Ranges ....................................................................................................... 22
4.7 Configuring Outgoing Calls from a BCM450 DN to AT&T IP Flex Reach .... 23
4.8 Configuring Incoming Calls from AT&T IP Flex Reach to a BCM450 DN.... 24
5 Troubleshooting ........................................................................................................ 27
5.1 System Monitoring with BCM Monitor............................................................ 27
5.2 Real-time display of BCM450 Alarms.............................................................. 30
5.3 Log Management............................................................................................... 31
6 APPENDIX A: Configuring Destination Code with Wildcard................................. 32
*Nortel, Nortel Networks, Nortel (Logo), the Globemark, CS1000 are trademarks of Nortel Networks.
Issue 0.4 Page 2 of 33
AT&T IP Flexible Reach
Nortel BCM450 Release 1.0 SIP Configuration Guide
TABLE OF FIGURES
Figure 1: AT&T BVoIP Network ....................................................................................... 8
Figure 2: BCM450 Software Version Number and Patch List ......................................... 10
Figure 3: Available VoIP Trunks ...................................................................................... 13
Figure 4: Application Resource availability of SIP (or IP) Trunks................................... 13
Figure 5: Assigning Line Pool to IP Trunks ..................................................................... 14
Figure 6: Assigning DN to Line Pool ............................................................................... 14

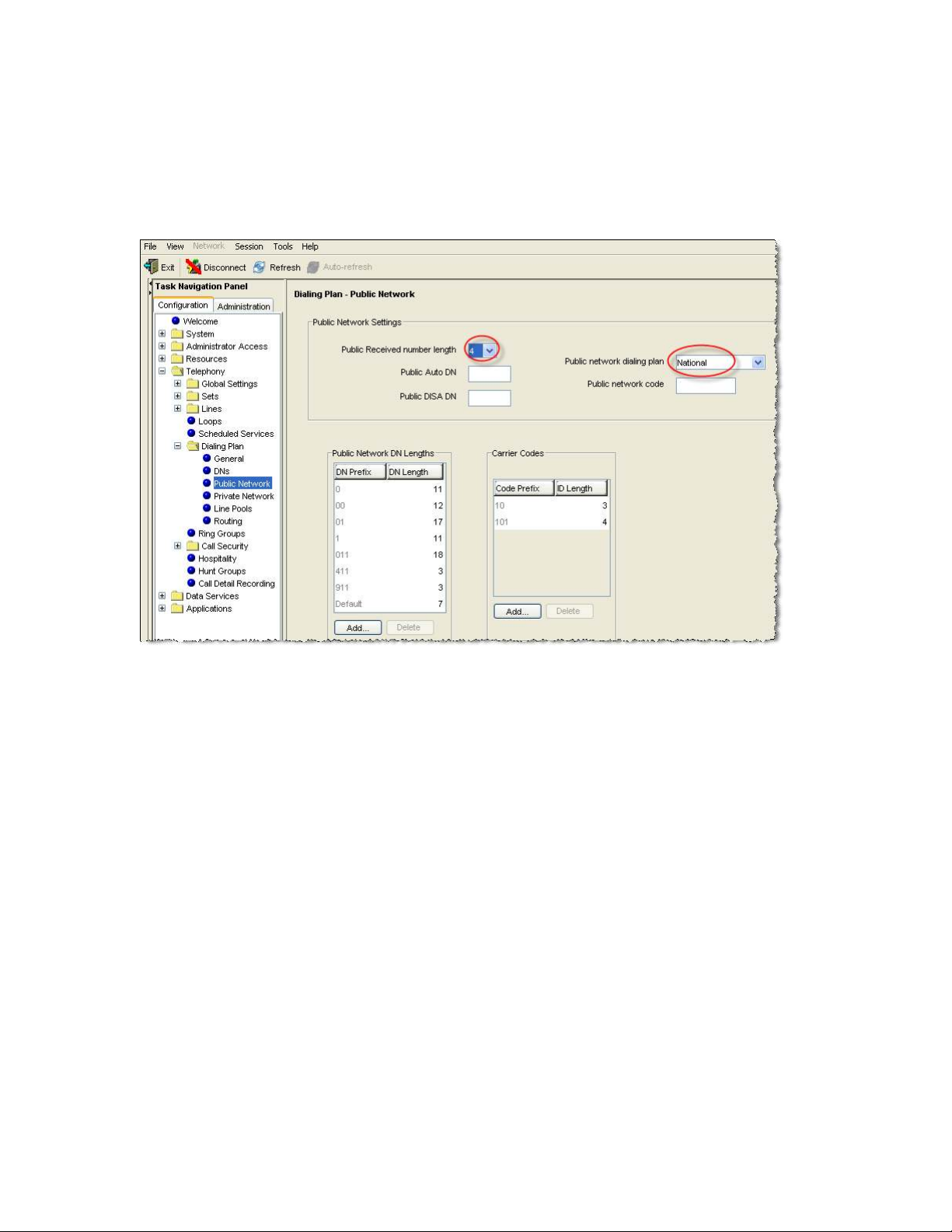

Figure 7: Configuring Public Received Number Length and Dialing Plan ......................15

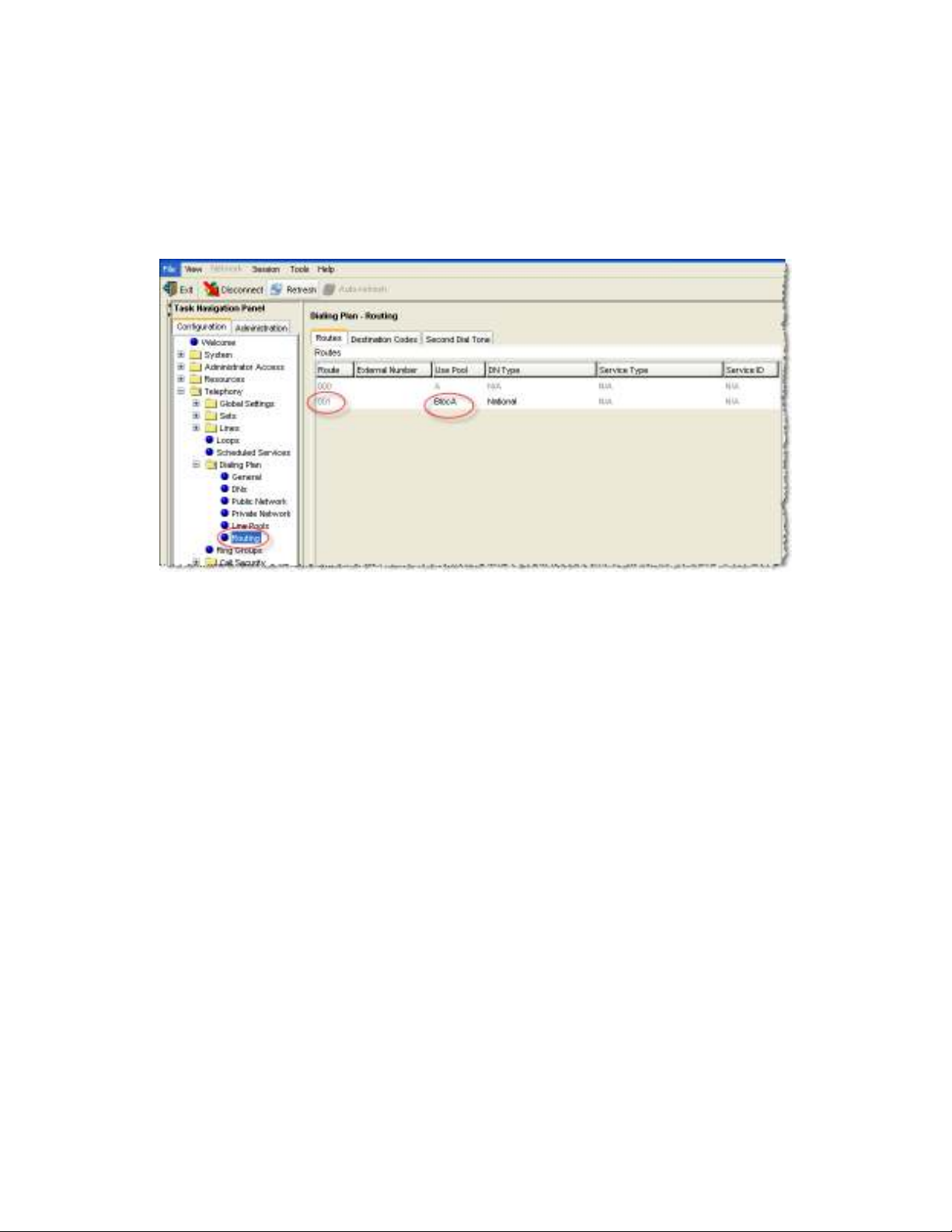

Figure 8: Assigning a Route for IP Trunks ....................................................................... 16

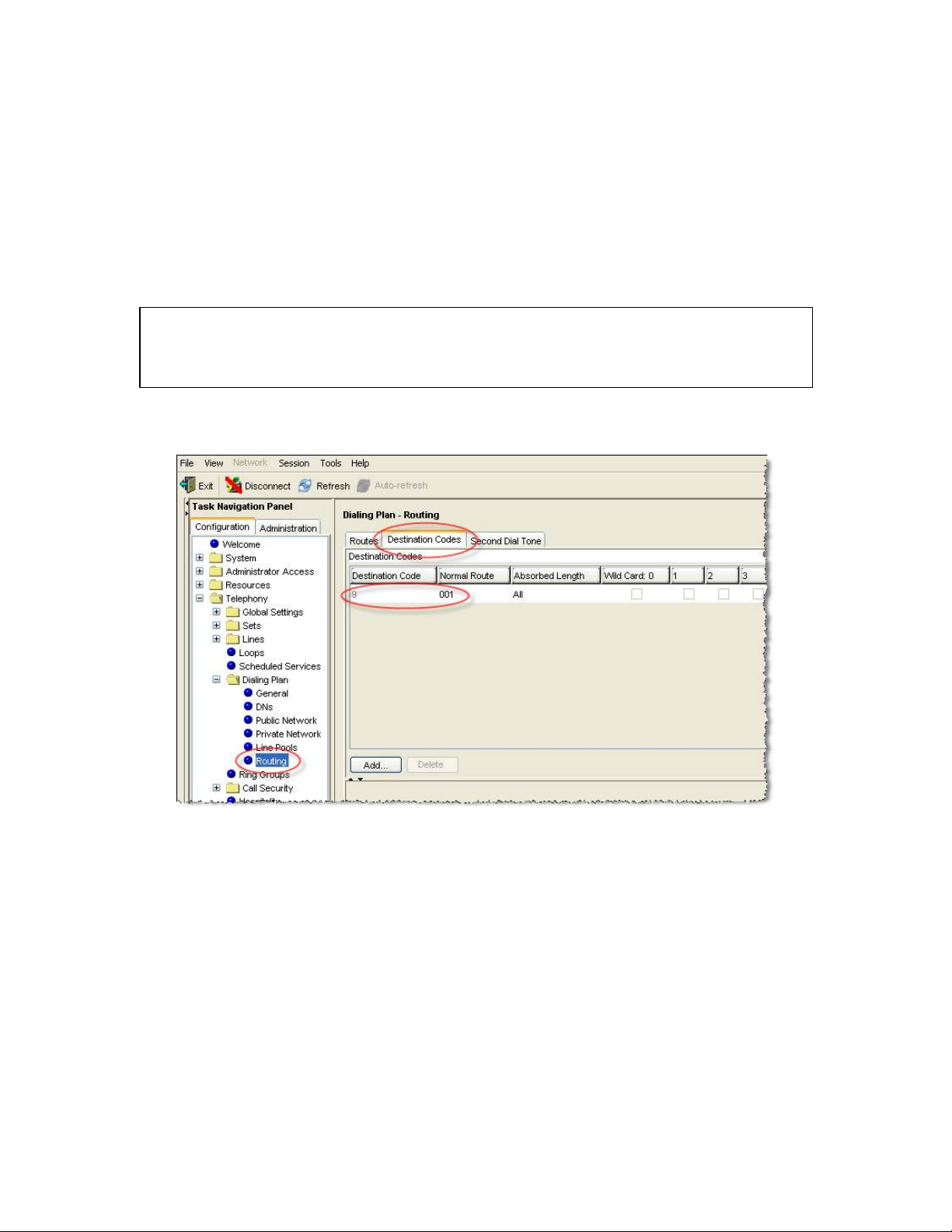

Figure 9: Assign Destination Code to Access IP Trunk Routes ....................................... 17

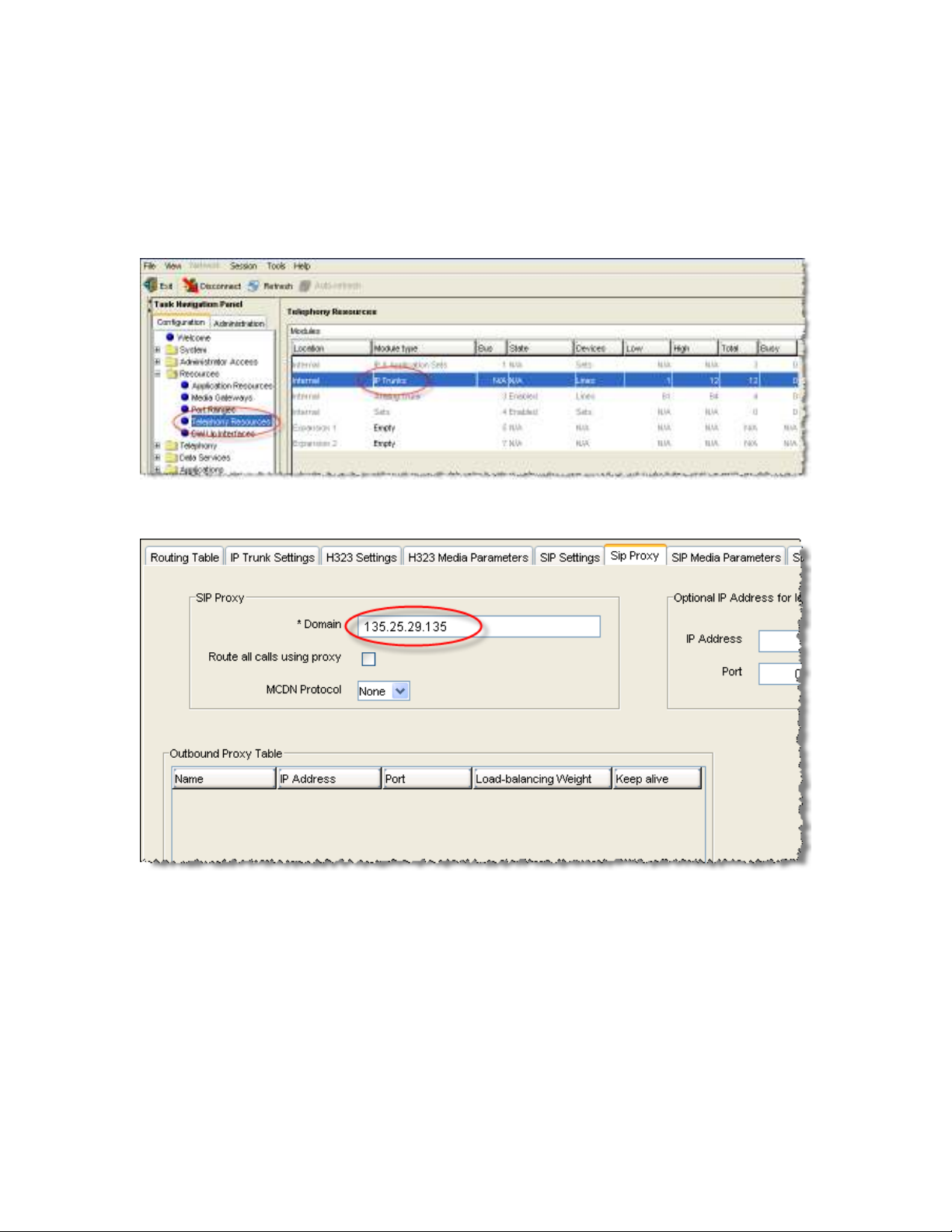

Figure 10: Selecting IP Trunk Module.............................................................................. 18
Figure 11: Sip Proxy Parameters....................................................................................... 18
Figure 12: Outbound Proxy Table for failover to secondary AT&T IPBEs ..................... 19

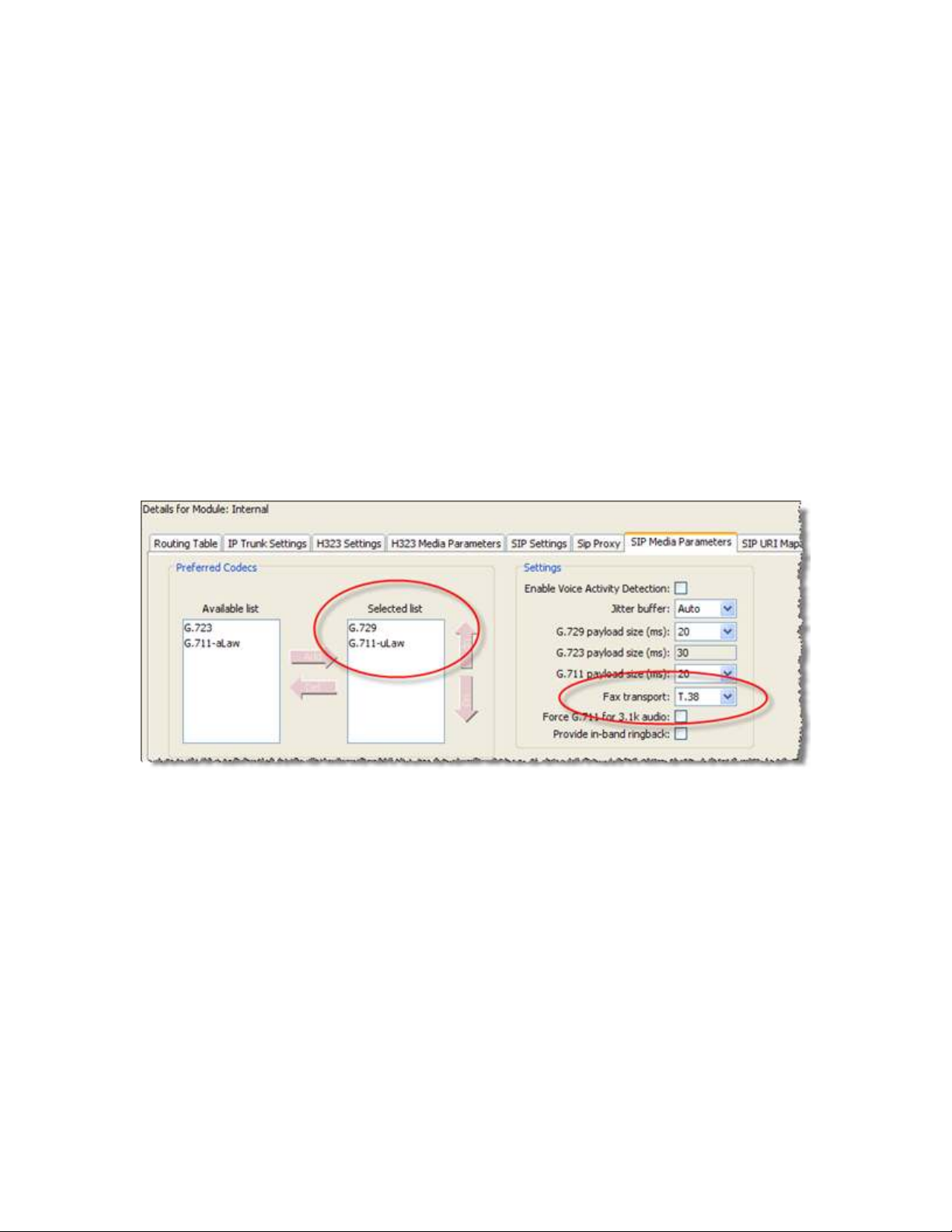

Figure 13: SIP Media Parameters...................................................................................... 20

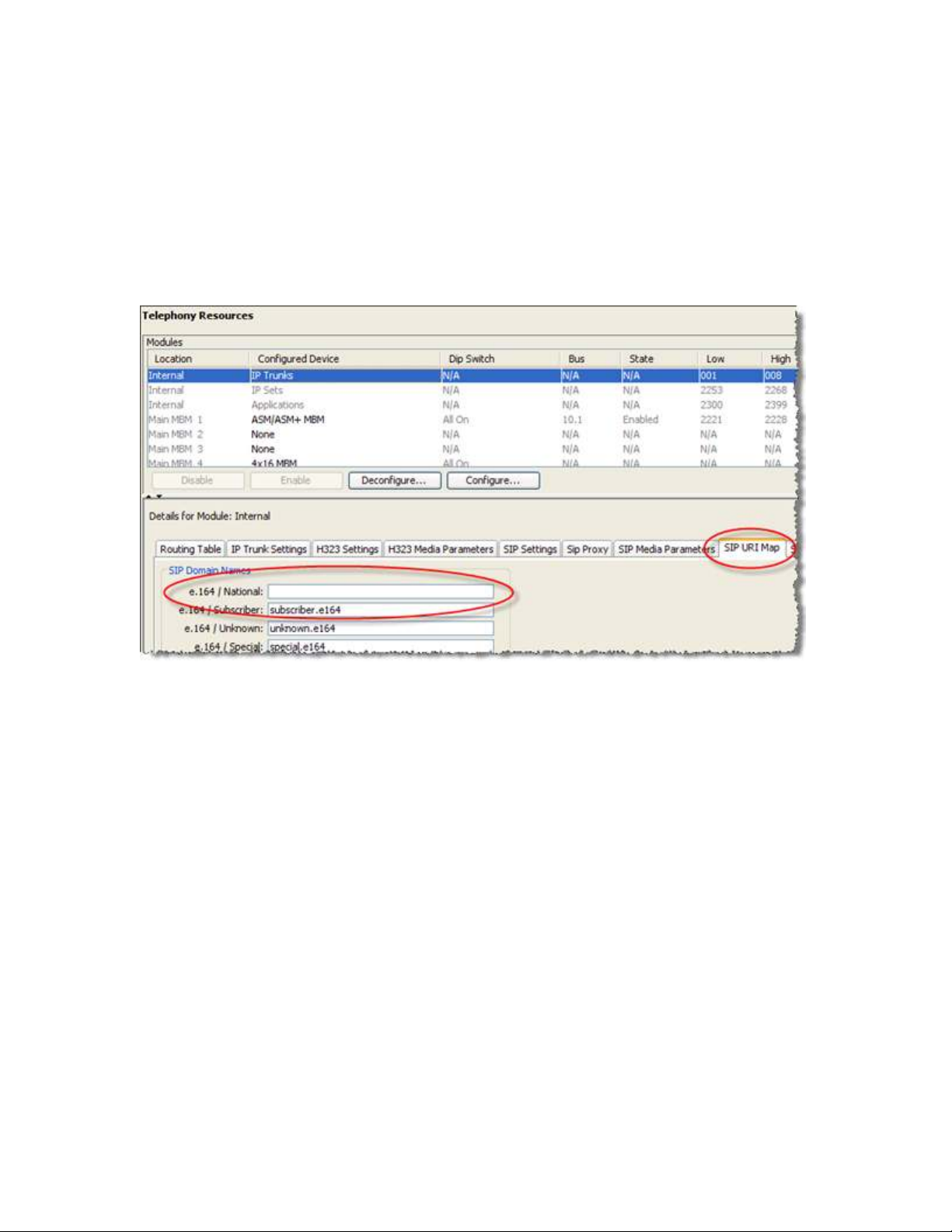

Figure 14: SIP URI Map ................................................................................................... 21

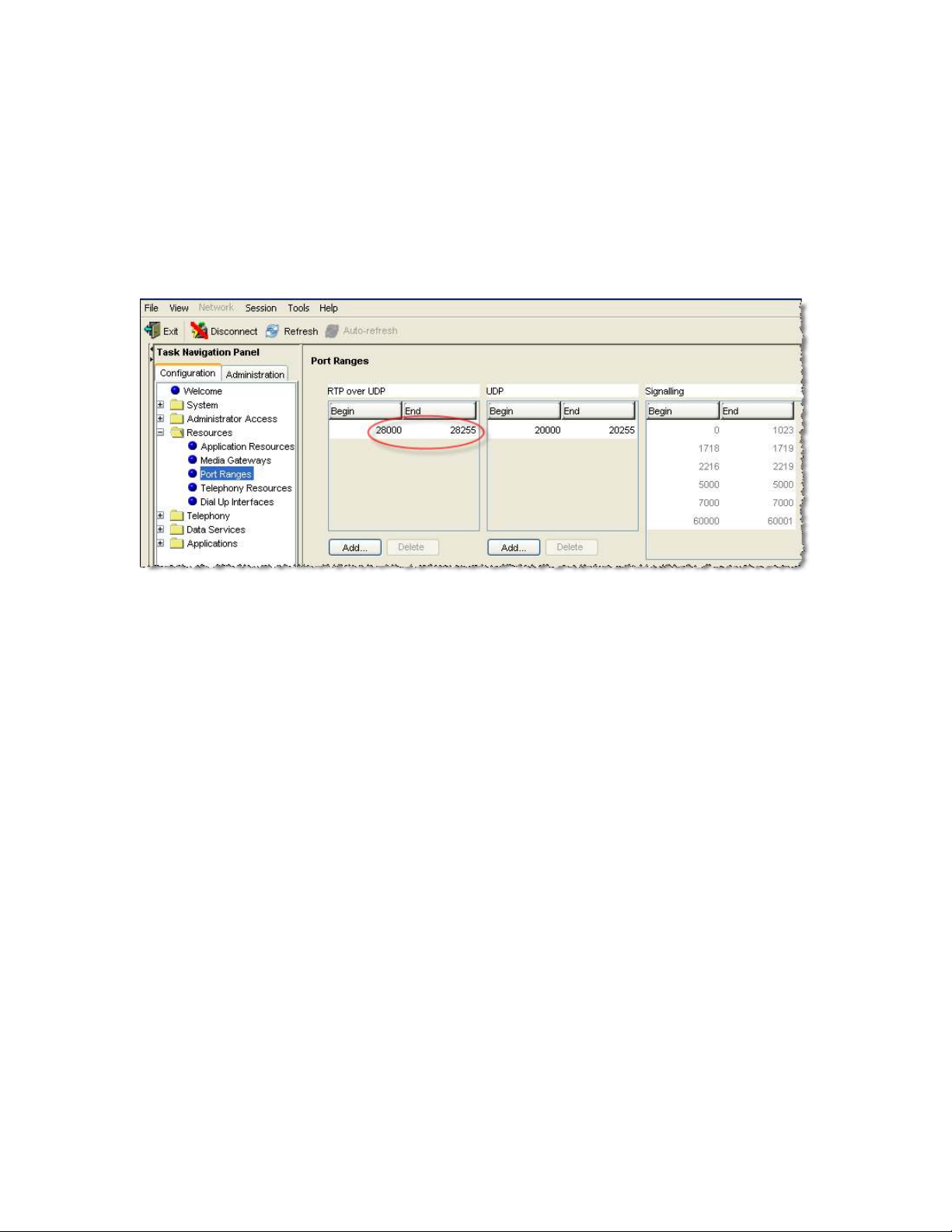

Figure 15: Media Gateway Port Ranges ........................................................................... 22

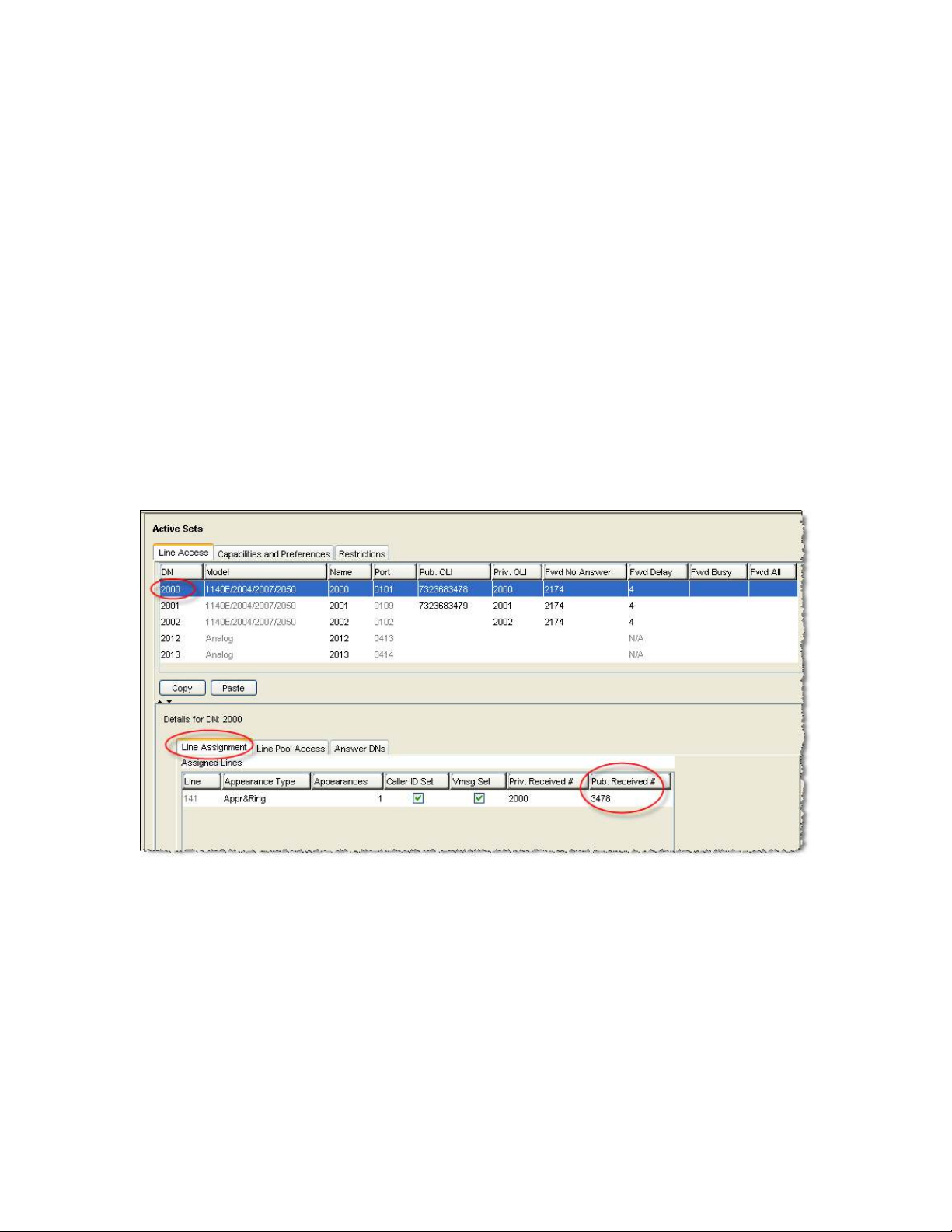

Figure 16: Configuring DID for Outgoing Calls............................................................... 23

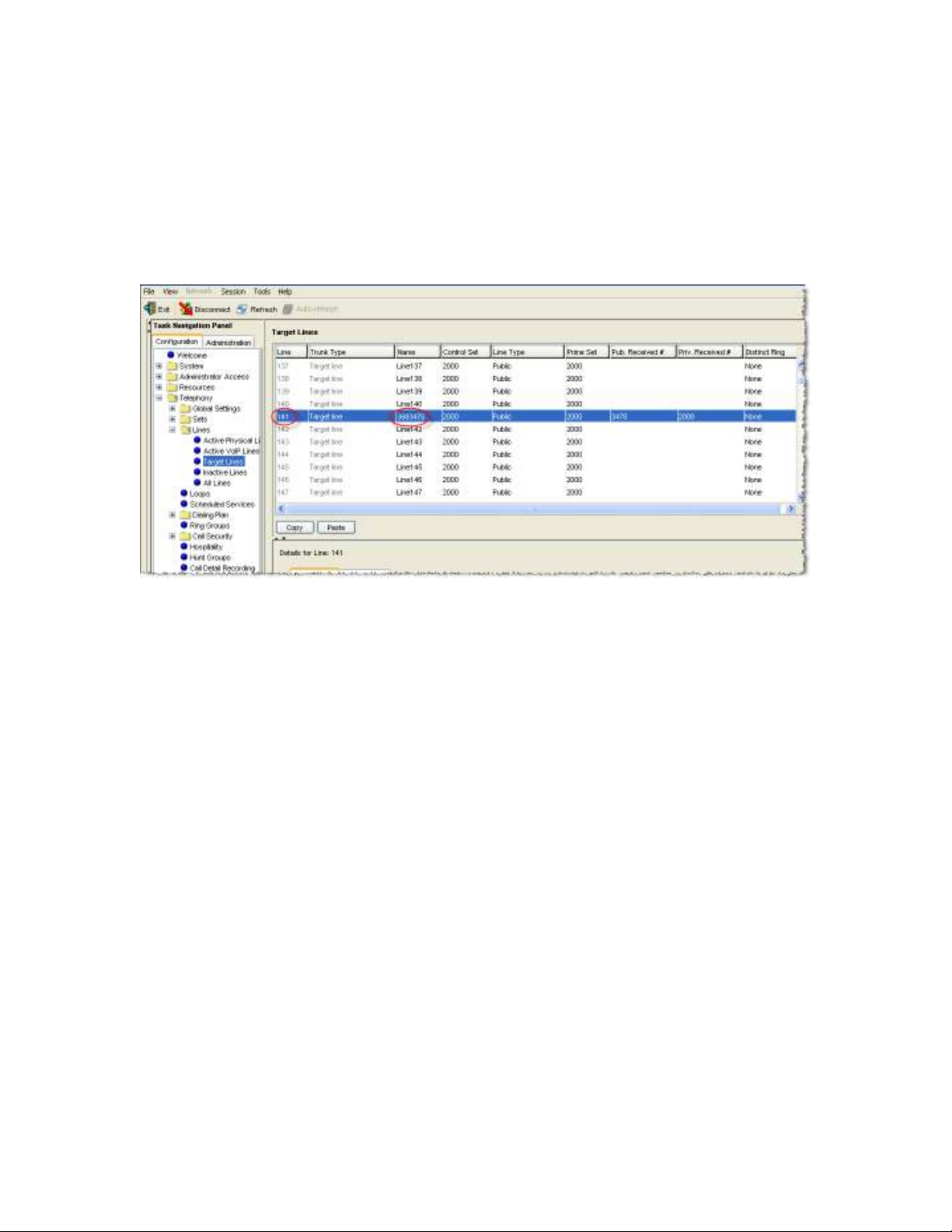

Figure 17: Configuring DID for Incoming Calls .............................................................. 24
Figure 18: Display DID on IP Set LCD ............................................................................ 25
Figure 19: Assign Line Pool to IP Sets ............................................................................. 26
Figure 20: System Monitoring Example ........................................................................... 27
Figure 21: IP Device Listing ............................................................................................. 28
Figure 22: RTP Session Information................................................................................. 28
Figure 23: Line Monitor Information................................................................................ 29
Figure 24: System Resources ............................................................................................ 29
Figure 25: BCM450 Alarms Page..................................................................................... 30
Figure 26: Log Management ............................................................................................. 31

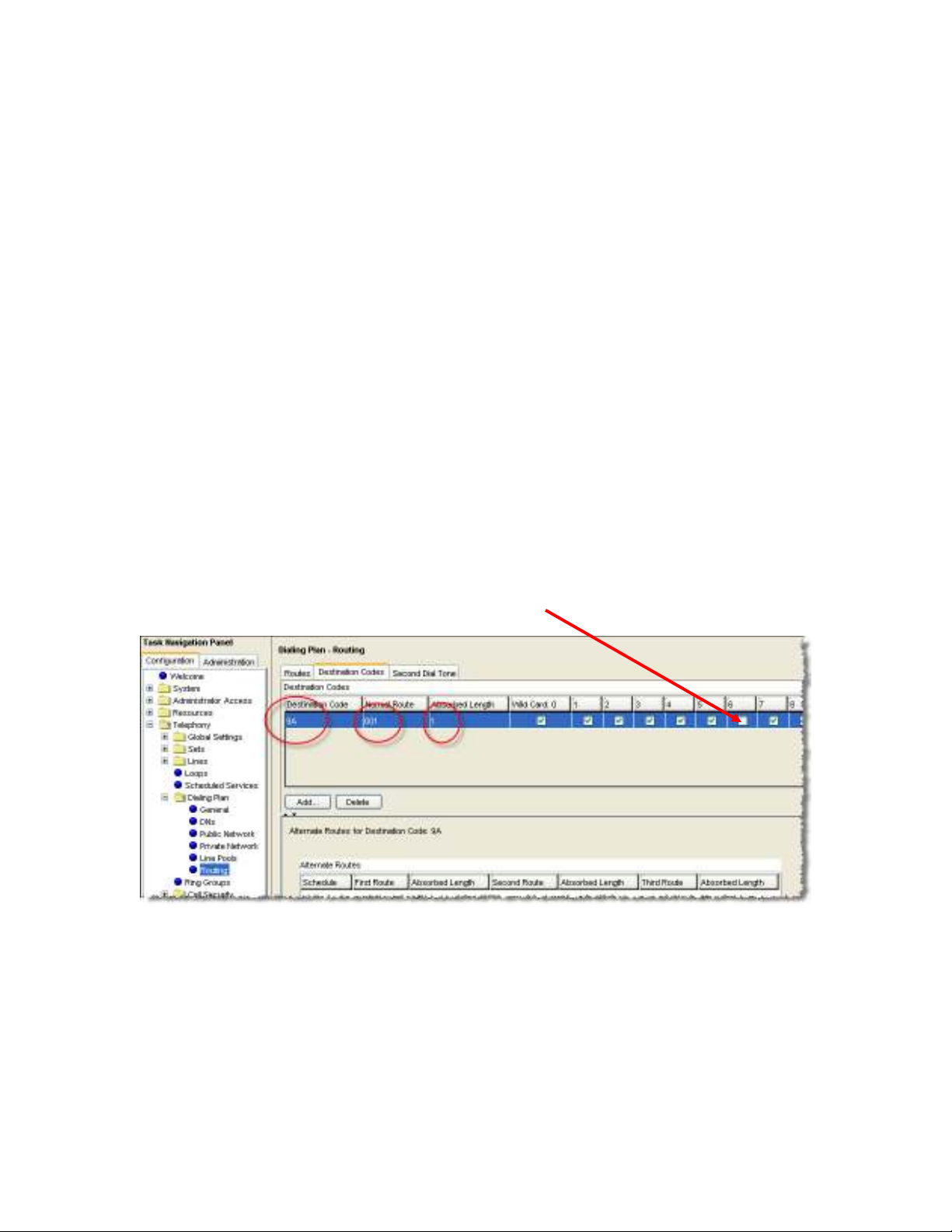

Figure 27: Configuring Destination Code with Wildcard ................................................. 32
*Nortel, Nortel Networks, Nortel (Logo), the Globemark, CS1000 are trademarks of Nortel Networks.
Issue 0.4 Page 3 of 33
AT&T IP Flexible Reach
Nortel BCM450 Release 1.0 SIP Configuration Guide
1 Introduction
This document provides a configuration guide to assist Nortel Networks BCM450
administrators in connecting to AT&T IP Flexible Reach via SIP trunks
This document does not describe procedures to configure the BCM450
for advanced functionality. For more information and procedures,
please refer to the Nortel technical documentation found on the Nortel
website.
1.1 Pre-IP PBX Configuration Activity
This guide assumes that the administrator is knowledgeable in IP PBX
programming and operations.
An important tool that the administrators should have at their disposal prior to
testing their IP PBX with AT&T IP Flexible Reach is the Wireshark network
protocol analyzer. This software can be used to run traces on problem calls so
the information can be shared with equipment and network engineers. This free
software can be obtained at
The customer may also use TCPDUMP which can be found on most UNIX and
Linux systems. The customer should have Wireshark or TCPDUMP loaded on a
server that is connected to a LAN switch or hub that can monitor both the
signaling and media packets on any calls between the customer PBX and the IP
Flexible Reach managed router.
1.2 Customer Questions
Section 4 of this guide provides screen shots and instructions for the
configuration of your IP PBX. Should you have questions regarding these
instructions, please contact Brian Stegemoller at +1 (972) 685-6629; ((972) 7455139 after 2/22/2010). When calling this number please have the following
information available:
Company name
Company location
Administrator name and phone number
IP PBX name and software version
http://www.wireshark.org/.
.
*Nortel, Nortel Networks, Nortel (Logo), the Globemark, CS1000 are trademarks of Nortel Networks.
Issue 0.4 Page 4 of 33
AT&T IP Flexible Reach
Nortel BCM450 Release 1.0 SIP Configuration Guide
Customer Configuration Guide – Issue number and date
1.3 Trouble Reporting
Nortel and AT&T will make every effort to quickly resolve reported troubles. The
time required for trouble shooting can be reduced if the customer has the
necessary detailed information available when reporting a problem. Prior to
reporting a problem please provide a Wireshark or TCPDUMP trace of the failed
call.
1.4 Document Feedback
IP PBX administrators who would like to provide feedback on the contents of this
document should send it to Brian Stegemoller (
copy to Al Chee (
(
stevenchen@avaya.com).
alchee@ avaya.com) and Steven Chen
brianstegem@avaya.com) with a
1.5 Document Change History
Issue 0.0 October 1, 2008; Draft
Issue 0.1 October 8, 2008;
Changes in wording on Special Notes,
Added URL to download patches (pg 10)
Issue 0.2 February 4, 2009;
Added patch information for disconnect issue on page
10.
Issue 0.3 February 4, 2010
Updated Contact Information to Reflect AVAYA Merger
Issue 0.4 September 15, 2010
Updated E911 Disclaimer
*Nortel, Nortel Networks, Nortel (Logo), the Globemark, CS1000 are trademarks of Nortel Networks.
Issue 0.4 Page 5 of 33
AT&T IP Flexible Reach
Nortel BCM450 Release 1.0 SIP Configuration Guide
2 Special Notes
Emergency 911/E911 Services Limitations and Restrictions
Although AT&T provides 911/E911 calling capabilities, AT&T does not warrant or
represent that the equipment and software (e.g., IP PBX) reviewed in this
customer configuration guide will properly operate with AT&T IP Flexible Reach
to complete 911/E911 calls; therefore, it is Customer’s responsibility to ensure
proper operation with its equipment/software vendor.
While AT&T IP Flexible Reach services support E911/911 calling capabilities
under certain Calling Plans, there are circumstances when that E911/911 service
may not be available, as stated in the Service Guide for AT&T IP Flexible Reach
found at http://new.serviceguide.att.com. Such circumstances include, but are
not limited to, relocation of the end user’s CPE, use of a non-native or virtual
telephone number, failure in the broadband connection, loss of electrical power,
and delays that may occur in updating the Customer’s location in the automatic
location information database. Please review the AT&T IP Flexible Reach Service
Guide in detail to understand the limitations and restrictions.
BCM Soft Phones not currently supported
Nortel BCM soft phones are not currently supported with the AT&T IP Flexible
Reach and AT&T IP Flexible Reach with AT&T Business in a Box Services.
BCM Soft Phones not currently supported
Nortel BCM soft phones are not currently supported with the AT&T IP Flexible
Reach Services.
Ring back Issues with Unattended Transfers
An unattended transfer is one in which the party initiating the transfer hangs up
prior to answer by the party to whom the call is being transferred. When 2
phones are in an active call on the BCM450 and one of those phones performs
an unattended transfer to certain endpoints on the AT&T network, the BCM450
phone remaining on the call will not hear ring back prior to answer.
T.38 Fax must be used
T.38 fax should be configured on the BCM450 with AT&T IP Flexible Reach
service. Fax via G.711 transport should not be used on the BCM450.
Fax Issues with the AT&T HIPCS Platform
*Nortel, Nortel Networks, Nortel (Logo), the Globemark, CS1000 are trademarks of Nortel Networks.
Issue 0.4 Page 6 of 33
AT&T IP Flexible Reach
Nortel BCM450 Release 1.0 SIP Configuration Guide
Fax calls from the BCM450 to AT&T’s HIPCS PSTN Hop-off platform where the
destination is a super G3 fax machine is not supported.
*Nortel, Nortel Networks, Nortel (Logo), the Globemark, CS1000 are trademarks of Nortel Networks.
Issue 0.4 Page 7 of 33
AT&T IP Flexible Reach
Nortel BCM450
Private Side
Public Side
FAX
Switch
AT&T
IP Borde
r
AT&T
PSTN
Nortel BCM450 Release 1.0 SIP Configuration Guide
3 Overview
This section provides a service overview of the Nortel Business Communication
Manager 450 (BCM450) IP PBX integration with AT&T IP Flexible Reach services.
Customer Premises
Phones and IP PBX Server
in Private Address space
AT&T Managed Router
Customer Sites connect to ATT
IP Border Element (IPBE)
Customer Site
Application
Servers,
Network
Gateways,
etc.
BVoIP
Network
Element
Managed
Router
Figure 1: AT&T BVoIP Network
The Nortel BCM450 customer premises site shall consist of the following
components.
• Nortel IP 200x, 11xx, 12xx phones* – These phones use the Nortel
proprietary UNIStim signaling protocol to communicate to the Nortel
BCM450 IP PBX for call feature and routing support. These phones can be
connected to a Nortel Ethernet switch (ES 470, ERS 5520, etc.) that
supplies in-line power (IEEE 802.3af) to the phones.
• The following interfaces and applications can also be used on the
BCM450. They include (but are not limited to):
*Nortel, Nortel Networks, Nortel (Logo), the Globemark, CS1000 are trademarks of Nortel Networks.
Issue 0.4 Page 8 of 33
AT&T IP Flexible Reach
Nortel BCM450 Release 1.0 SIP Configuration Guide
o Digital station ports supporting digital phones
o Analog station interfaces with message waiting and CLID support
o Integrated CallPilot voice mail system, auto attendant, and meet-
me conferencing
o Analog trunk module for analog/POTS lines to PSTN
o Digital trunk module for PRI/T1 connection to PSTN
* RFC2833 DTMF is currently not supported on the IP Softphone 2050; thus the
IP Softphone 2050 is not supported for AT&T IP Flexible Reach services.
The following routing scenarios are supported by the Nortel BCM450 IP PBX and
DO NOT use the AT&T Call Control.
• Local Nortel BCM450 phone to other local Nortel BCM450 phone
The following routing scenarios are supported by the Nortel Networks BCM450 IP
PBX and DO use the AT&T Call Control. For voice calls, the G.729 codec shall be
used.
• Nortel BCM450 phones to PSTN (domestic US and international).
• Nortel BCM450 phones to legacy PBX site with Cisco gateway.
• Legacy PBX site with Cisco gateway to Nortel BCM450 phones.
• Nortel BCM450 phones at one Nortel BCM450 IP PBX site to Nortel
BCM450 phones at another Nortel BCM450 IP PBX site
If the customer has subscribed to Calling Plans B and C (Local), then the
following routing scenarios are supported by the BCM450 IP PBX and DO use the
AT&T Call Control. For voice calls, the G.729 or G.711 codec may be used.
BCM450 selects G.729 as the highest priority codec.
• Inbound PSTN to BCM450 phone
• Outbound local PSTN calls from the BCM450 phones
• Outbound local N11 (i.e. 411, 911) calls from the BCM450 phones
T.38 Fax was tested and is supported on the BCM450 with the AT&T IP Flexible
Reach services to/from the following:
• PSTN
• Legacy PBX site with Cisco gateway
• Another BCM450 IP PBX site
*Nortel, Nortel Networks, Nortel (Logo), the Globemark, CS1000 are trademarks of Nortel Networks.
Issue 0.4 Page 9 of 33
AT&T IP Flexible Reach
Nortel BCM450 Release 1.0 SIP Configuration Guide
4 Configuration Guide
This configuration guide specifies the Nortel BCM450 screens that must be
configured and updated to support the AT&T IP Flexible Reach services.
4.1 Nortel BCM450 Version and Feature Requirements
The Nortel Networks BCM450 must be running at least software version
8.0.1.05.329. You can check the version of BCM450 by viewing the following
screen under
Update History
This is the supported base release that is required for AT&T IP Flexible Reach
services. Any 8.0.x.x.x software release greater than the aforementioned
software version is acceptable.
This software release 8.0.x.x.x refers to BCM450 Release 1.0 SIP.
Administration Software Management Software
.
Figure 2: BCM450 Software Version Number and Patch List
The following BCM450 patches must be applied. To verify any installed patches
on the system: under
Software Update History
*Nortel, Nortel Networks, Nortel (Logo), the Globemark, CS1000 are trademarks of Nortel Networks.
Administration Software Management
.
Issue 0.4 Page 10 of 33
Loading...
