Avaya Message Networking BCM User Manual

BCM Rls 6.0

Message Networking

Task Based Guide

Message Networking

Notices

While reasonable efforts have been made to ensure that the information in this document is complete and accurate at the time of printing, Avaya assumes no liability for any errors. Avaya reserves the right to make changes and corrections to the information in this document without the obligation to notify any person or organization of such changes.

Documentation disclaimer

Avaya shall not be responsible for any modifications, additions, or deletions to the original published version of this documentation unless such modifications, additions, or deletions were performed by Avaya. End User agree to indemnify and hold harmless Avaya, Avaya’s agents, servants and employees against all claims, lawsuits, demands and judgments arising out of, or in connection with, subsequent modifications, additions or deletions to this documentation, to the extent made by End User.

Link disclaimer

Avaya is not responsible for the contents or reliability of any linked Web sites referenced within this site or documentation(s) provided by Avaya. Avaya is not responsible for the accuracy of any information, statement or content provided on these sites and does not necessarily endorse the products, services, or information described or offered within them. Avaya does not guarantee that these links will work all the time and has no control over the availability of the linked pages.

Warranty

Avaya provides a limited warranty on this product. Refer to your sales agreement to establish the terms of the

limited warranty. In addition, Avaya’s standard warranty language, as well as information regarding support for

this product, while under warranty, is available to Avaya customers and other parties through the Avaya Support Web site: http://www.avaya.com/support

Please note that if you acquired the product from an authorized reseller, the warranty is provided to you by said reseller and not by Avaya.

Licenses

THE SOFTWARE LICENSE TERMS AVAILABLE ON THE AVAYA WEBSITE,

HTTP://SUPPORT.AVAYA.COM/LICENSEINFO/ ARE APPLICABLE TO ANYONE WHO DOWNLOADS,

USES AND/OR INSTALLS AVAYA SOFTWARE, PURCHASED FROM AVAYA INC., ANY AVAYA AFFILIATE, OR AN AUTHORIZED AVAYA RESELLER (AS APPLICABLE) UNDER A COMMERCIAL AGREEMENT WITH AVAYA OR AN AUTHORIZED AVAYA RESELLER. UNLESS OTHERWISE AGREED TO BY AVAYA IN WRITING, AVAYA DOES NOT EXTEND THIS LICENSE IF THE SOFTWARE WAS OBTAINED FROM ANYONE OTHER THAN AVAYA, AN AVAYA AFFILIATE OR AN AVAYA AUTHORIZED RESELLER, AND AVAYA RESERVES THE RIGHT TO TAKE LEGAL ACTION AGAINST YOU AND ANYONE ELSE USING OR SELLING THE SOFTWARE WITHOUT A LICENSE. BY INSTALLING, DOWNLOADING OR USING THE SOFTWARE, OR AUTHORIZING OTHERS TO DO SO, YOU, ON BEHALF OF YOURSELF AND THE ENTITY FOR WHOM YOU ARE INSTALLING, DOWNLOADING OR USING THE SOFTWARE (HEREINAFTER REFERRED TO INTERCHANGEABLY AS "YOU" AND "END USER"), AGREE TO THESE TERMS AND CONDITIONS AND CREATE A BINDING CONTRACT BETWEEN YOU AND AVAYA INC. OR THE APPLICABLE AVAYA AFFILIATE ("AVAYA").

Except where expressly stated otherwise, no use should be made of the Documentation(s) and Product(s) provided by Avaya. All content in this documentation(s) and the product(s) provided by Avaya including the selection, arrangement and design of the content is owned either by Avaya or its licensors and is protected by copyright and other intellectual property laws including the sui generis rights relating to the protection of databases. You may not modify, copy, reproduce, republish, upload, post, transmit or distribute in any way any content, in whole or in part, including any code and software. Unauthorized reproduction, transmission, dissemination, storage, and or use without the express written consent of Avaya can be a criminal, as well as a civil offense under the applicable law.

Third Party Components

Certain software programs or portions thereof included in the Product may contain software distributed under third party agreements ("Third Party Components"), which may contain terms that expand or limit rights to use certain portions of the Product ("Third Party Terms"). Information regarding distributed Linux OS source code (for those Products that have distributed the Linux OS source code), and identifying the copyright holders of the Third Party Components and the Third Party Terms that apply to them is available on the Avaya Support Web site:

http://support.avaya.com/Copyright.

Trademarks

The trademarks, logos and service marks ("Marks") displayed in this site, the documentation(s) and product(s) provided by Avaya are the registered or unregistered Marks of Avaya, its affiliates, or other third parties. Users are not permitted to use such Marks without prior written consent from Avaya or such third party which may own the Mark. Nothing contained in this site, the documentation(s) and product(s) should be construed as granting, by implication, estoppel, or otherwise, any license or right in and to the Marks without the express written permission of Avaya or the applicable third party. Avaya is a registered trademark of Avaya Inc. All non-Avaya trademarks

are the property of their respective owners.

2 NN40011-021 Issue 1.2 BCM Rls 6.0

Message Networking

Downloading documents

For the most current versions of documentation, see the Avaya Support. Web site: http://www.avaya.com/support

Contact Avaya Support

Avaya provides a telephone number for you to use to report problems or to ask questions about your product. The support telephone number is 1-800-242-2121 in the United States. For additional support telephone numbers, see the Avaya Web site: http://www.avaya.com/support

be reproduced in any form without the prior written permission of a duly authorised representative of ITEL.

NN40011-021 Issue 1.2 BCM Rls 6.0 3

Message Networking

Table of Contents

Message Networking ........................................................ 5

Overview .......................................................................................... 5

Required Information ....................................................................... 5

Flow Chart ....................................................................................... 6

Accessing CallPilot Manager ........................................................... 7

Accessing CallPilot Manager from Element Manager ....................................... 7

Accessing CallPilot Manager from Internet Explorer ....................................... 11

General Properties ......................................................................... 13

Configuring General Properties ....................................................................... 13

General Networking Properties Settings ....................................................... 14

Digital Networking Configuration .................................................... 15

Digital Networking Properties .......................................................................... 16

Digital Networking Properties Settings .......................................................... 17

Digital Networking Sites ................................................................................... 18

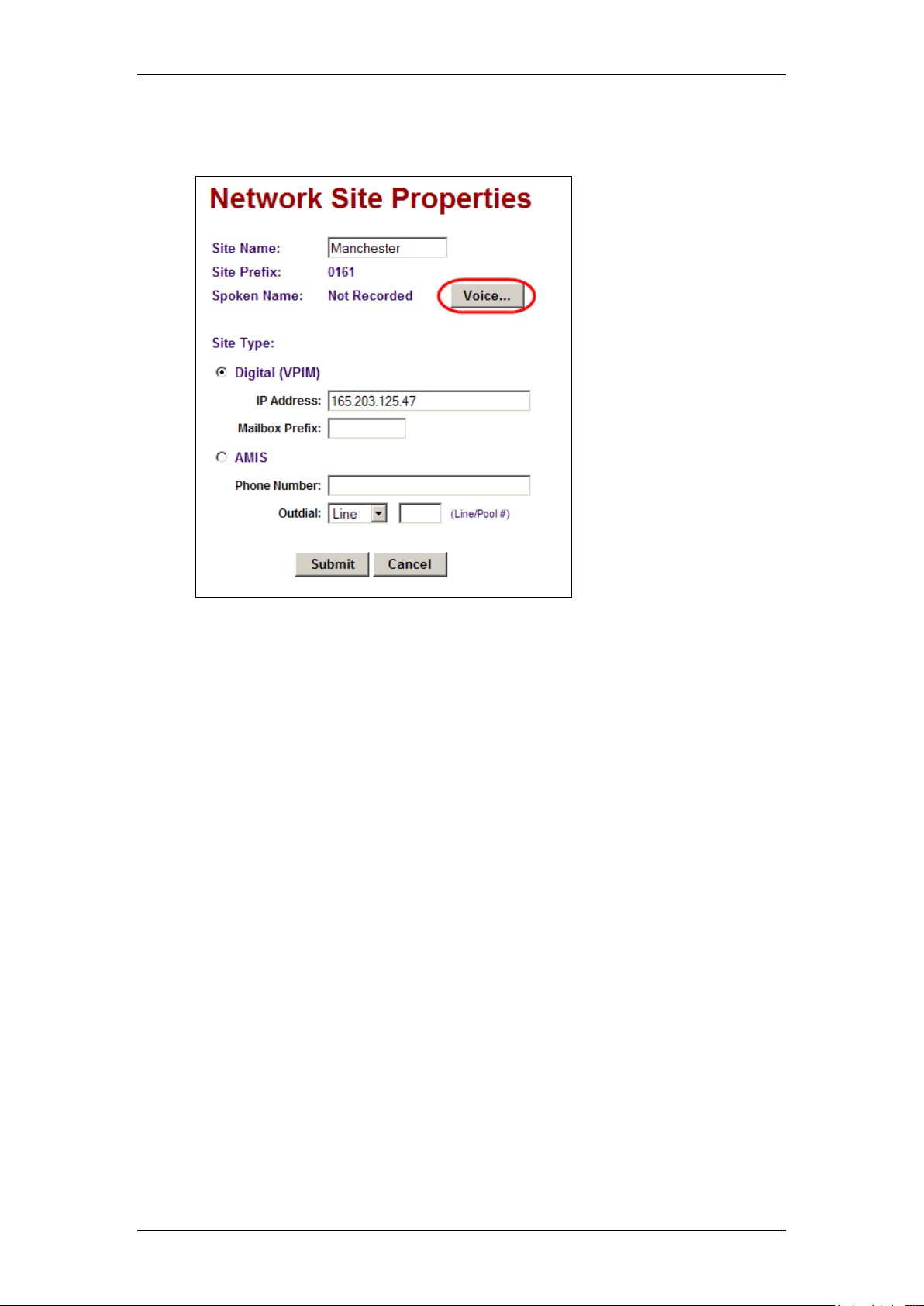

Network Site Properties Settings ................................................................... 19

Recording the Site Name ............................................................................... 19

Recording Prompts .......................................................................................... 21

Network (Site) Mailboxes ................................................................................. 22

Recording a Network (Site) Mailbox Name ..................................................... 24

AMIS Configuration ........................................................................ 25

AMIS Networking Properties ............................................................................ 25

AMIS Networking Properties Settings ........................................................... 25

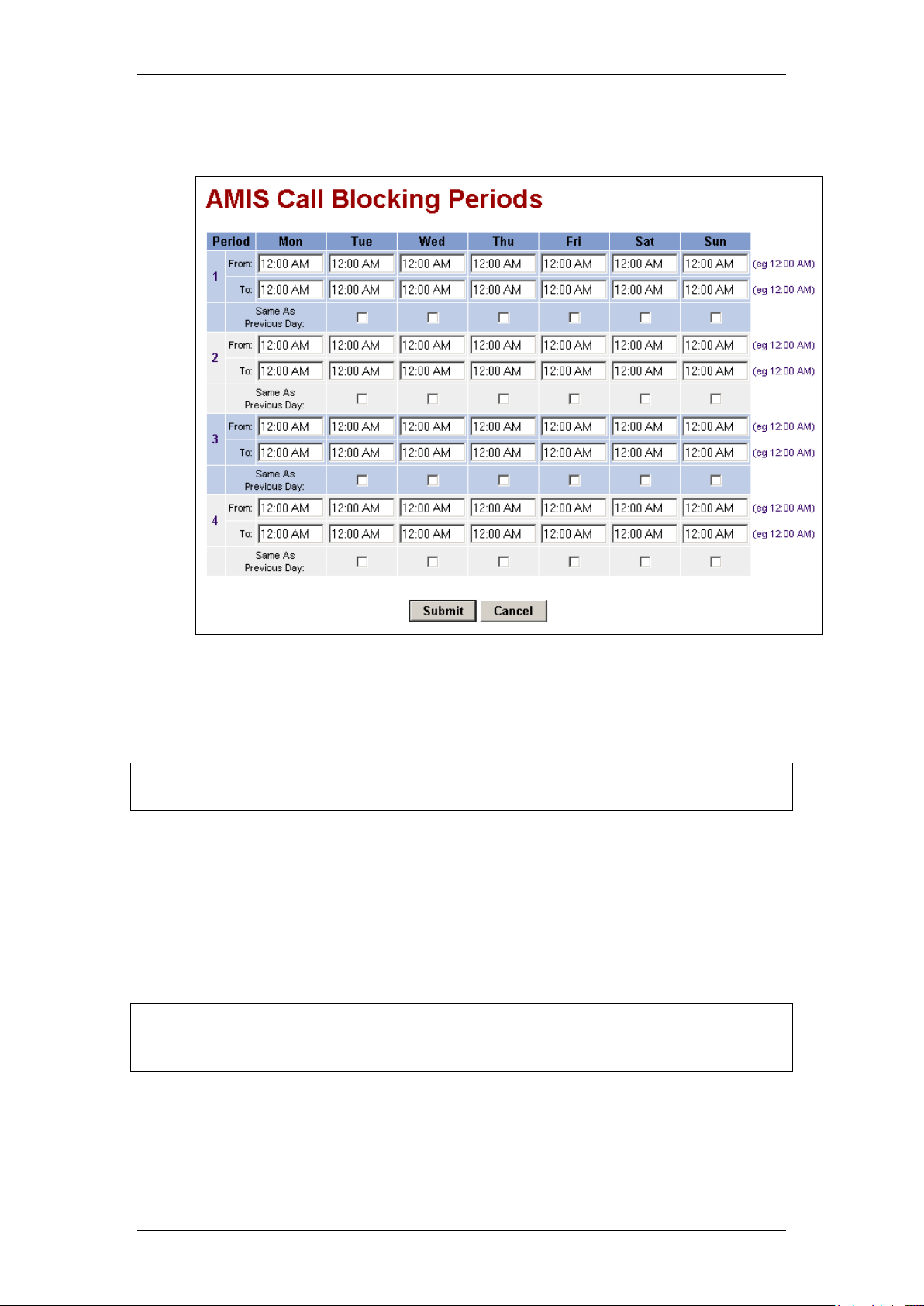

AMIS Call Blocking Periods ............................................................................. 26

AMIS Sites ....................................................................................................... 28

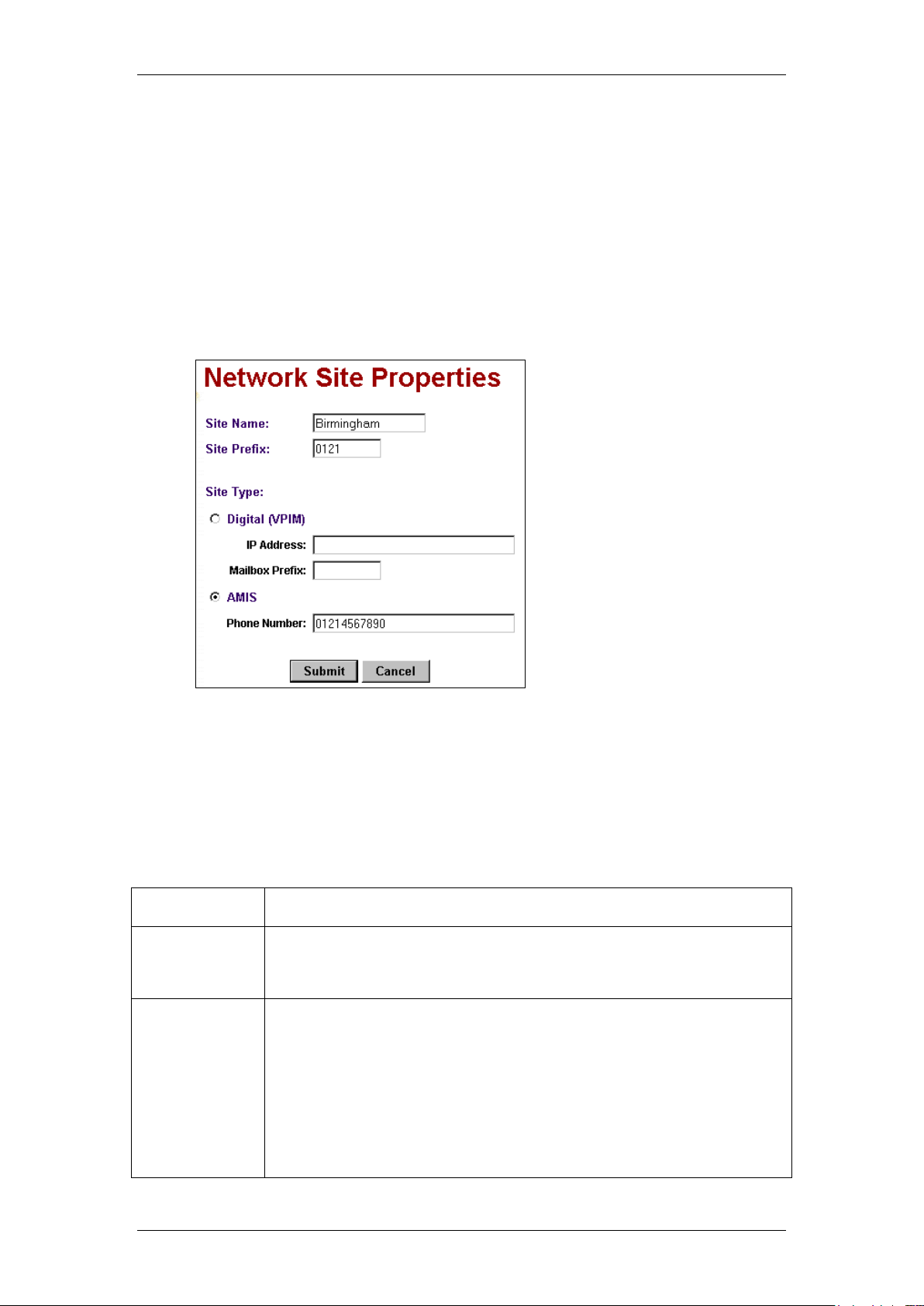

AMIS Site Properties Settings ....................................................................... 28

Network (AMIS) Mailboxes .............................................................................. 29

Recording a Network (AMIS) Mailbox Name ................................................... 31

Sending Messages ........................................................................ 31

Sending a Message Using a Network Delivery Mailbox .................................. 31

Norstar Voice Mail Interface (NVM) ............................................................... 31

CallPilot Interface (CP) .................................................................................. 32

Sending a Message Using Site-Based Addressing ......................................... 32

Norstar Voice Mail Interface (NVM) ............................................................... 32

CallPilot Interface (CP) .................................................................................. 33

Sending a Message Using Direct Addressing ................................................. 34

Norstar Voice Mail Interface (NVM) ............................................................... 34

CallPilot Interface (CP) .................................................................................. 35

Avaya Documentation Links .......................................... 36

4 NN40011-021 Issue 1.2 BCM Rls 6.0

Message Networking

Overview

Message Networking links CallPilot or other voicemail systems at different locations. Message Networking uses Digital Networking and/or Audio Message Interchange Specification (AMIS) to let subscribers exchange messages with subscribers at other locations.

Note: You must apply the Message Networking Software Authorisation Code before your system can receive or send network messages. This applies to all networked sites.

Using Message Networking, local subscribers can send messages to mailbox owners at remote sites as if they were on the local site. Message Networking also has the facility to allow subscribers to reply to messages sent from remote sites.

Note: Before commencing Digital Networking configuration, you should ensure that your system has been configured with the correct networking settings (e.g. DNS settings, Gateways etc.) as required.

Required Information

Before commencing with Message Networking configuration, it would be useful to obtain/plan the following information:

 AMIS

o Remote site Auto-Attendant number o Local site telephone number o Logical site prefixes for all sites to be networked o Mailbox numbers on all remote sites

 Digital Networking

o Fully Qualified Domain Name OR IP Address of each site o Remote site prefix (this should be the same as the remote site

mailbox prefix)

o Local SMTP Proxy (if relevant) o Local site prefix o Mailbox numbers on all remote sites

NN40011-021 Issue 1.2 BCM Rls 6.0 5

Message Networking

Configure the Digital Networking Properties: refer to the Digital Networking Properties section of this guide.

Configure the Networking General Properties: refer to the General Properties section of this guide.

Digital Networking

Which method of Networking do you want to configure?

Configure the Network Sites: refer to the Digital Networking Sites section of this guide.

AMIS

Configure the Network (Site) Mailboxes: refer to the Network (Site) Mailboxes section of this guide.

Configure the AMIS Networking Properties: refer to the AMIS Networking Properties section of this guide.

Configure the AMIS Call Blocking Periods: refer to the AMIS Call Blocking Periods section of this guide.

Configure Dialling Translation for the Reply feature: refer to the Dialling

Translation section of the CallPilot Manager & Mailboxes guide.

Configure the AMIS Sites: refer to the AMIS Sites section of this guide.

Configure the Network (AMIS) Mailboxes: refer to the Network (AMIS) Mailboxes section of this guide.

Flow Chart

Use the flow chart below to determine which sections of the guide to use.

6 NN40011-021 Issue 1.2 BCM Rls 6.0

Message Networking

Accessing CallPilot Manager

CallPilot Manager is used to configure Message Networking, and can be accessed using various methods.

Accessing CallPilot Manager from Element Manager

1. To access the Business Element Manager application from the Start Menu, navigate to Start, Programs, Avaya, Business Communications Manager, Business Element Manager.

2. Alternatively, double-click on the Business Element Manager desktop icon.

NN40011-021 Issue 1.2 BCM Rls 6.0 7

Message Networking

3. You will be presented with the Element Manager interface.

4. Open the Network Elements folder and select the IP Address of the BCM.

5. Enter the User Name of the BCM in the User Name field, by default this is nnadmin. Then enter the Password in the Password field, by default the password is PlsChgMe!. Click the Connect button.

8 NN40011-021 Issue 1.2 BCM Rls 6.0

6. A warning screen will appear, read the warning and click OK.

Message Networking

7. You will be presented with the Element Manager interface.

NN40011-021 Issue 1.2 BCM Rls 6.0 9

Message Networking

8. To access CallPilot Manager: Select the Configuration tab, open the Applications folder, select the Voice Messaging / Contact Center link, and then click to Launch CallPilot Manager.

9. You will be presented with a Security Alert Screen. Read the alert and click Continue to this website to continue.

10 NN40011-021 Issue 1.2 BCM Rls 6.0

10. The Main Menu of CallPilot Manager will be launched.

Message Networking

Accessing CallPilot Manager from Internet Explorer

CallPilot Manager can also be accessed directly from Internet Explorer. This method of access is an alternative if you cannot gain access via Element Manager.

1. Open Internet Explorer. In the address bar enter http://<IP Address of BCM>/CallPilotManager.

2. If you are presented with the Certificate Error window, click Continue to this website (not recommended).

NN40011-021 Issue 1.2 BCM Rls 6.0 11
