Page 1
Part No. 302403-H
October 2001
4401 Great America Parkway
Santa Clara, CA 95054
Installing Media
Dependent Adapters
(MDAs)
*302403-H*
Page 2
Copyright © 2001 Nortel Networks
All rights reserved. October 2001.
The information in this document is subject to change without notice. The
statements, configurations, technical data, and recommendations in this document
are believed to be accurate and reliable, but are presented without express or
implied warranty. Users must take full responsibility for their applications of any
products specified in this document. The informa tion in this docu me nt is
proprietary to Nortel Networks Inc.
Trademarks
Nortel Networks, the Nortel Networks logo, Passport, BayStack, Business Policy
Switch 2000, and the Globemark and are trademarks of Nortel Networks.
Adobe and Acrobat Reader are trademarks of Adobe Systems Incorporated.
Statement of conditions
In the interest of improving internal design, operational function, and/or reliability,
Nortel Networks Inc. reserves the right to make changes to the products described
in this document without notice.
Nortel Networks Inc. does not assume any liability that may occur due to the use or
application of the product(s) or circuit layout(s) described herein.
EMI Compliance
Meets requirements of:
FCC Part 15, Subparts A and B, Class A
EN55022: 1998/CISPR22:1997), Class A
General License VDE 0871, Class B
(AmtsblVfg No. 243/1991, Vfg 46/1992) VCCI Class A ITE
EN55024:1998/CISPR24:1997
Caution: Use of co ntrols o r adjustme nts, or pe rforman ce
of procedures other than those specified herei n may
result in hazardous radiation exposure.
Page 3
Caution: Only qualified technicians should install this
equipment.
Place all printed circuit boards on an antistatic mat until
you are ready to install them. If you do not ha ve an
antistatic mat, wear a discharge leash to free yourself of
static before touching any of the printed circuit boards, or
free yourself of static by touching a grounded meta l
object before handling a printed ci rcu it bo ard.
Product Safety
Meets requirements of:
CSA 22.2 No. 950-M95/UL1950, 3rd ed.
EN60950: 1992 /A1:1993 /A2:1993 /A3:1995 /A4:
199721CFR, Chapter I
EN60825-1:1994 /A11:1996
Warning: Fiber optic equipment can emit laser or
infrared light that can injure your eyes . Never look into
an optical fiber or connector port. Always assume that
fiber optic cables are connecte d to a light source.
Warning: Vorsicht: Glasfaserkomponenten können
Laserlicht bzw. Infrarotlicht abstrahlen, wodurch Ihre
Augen geschäd i gt w erd e n kö nnen. Schauen Sie
niemals in einen Glasfaser-LWL oder ein Anschlußteil.
Gehen Sie stets davon aus, daß das Glasfaserk abel an
eine Lichtquelle angeschlossen ist.
1
Page 4
Warning: Avertissement: L’équipement à fibre
optique peut émettre des rayons laser ou infrarouges
qui risquent d’entraîner des lésions oculaires. Ne
jamais regarder dans le port d’un connecteur ou d’un
câble à fibre optique. Toujours supposer que les câbles
à fibre optique sont raccordés à une source lumineuse.
Warning: Advertencia: Los equipos de fibra óptica
pueden emitir radiaciones de láser o infrarrojas que
pueden dañar los ojos. No mire nunca en el interior de
una fibra óptica ni de un puerto de conexión. Suponga
siempre que los cables de fibra óptica están conectados
a una fuente luminosa.
Warning: Avvertenza: Le apparecchiature a fibre
ottiche emettono raggi laser o infrarossi che possono
risultare dannosi per gli occhi. Non guardare mai
direttamente le fibre ottiche o le porte di collegamento.
Tenere in considerazione il fat to che i cavi a fibre
ottiche sono collegati a una sorgen te lumin osa.
2
Page 5
Introduction
This guide describes and provides installation instructions for
Nortel Networks* media dependent adapters (MDAs). It contains
the following topics:
• “Supported interfaces and products,” next
• “MDA description s” on pag e5
• “Installing an MDA” on page 31
• “Replacing an installed MDA” on page 33
• “Installing a GBIC in an MDA” on page 34
• “Removing an Installed GBIC from an MDA” on page35
• “Installing a Small Form Factor Pluggab le (SFP) GBIC” on
page 36
• “Removing a Small Form Factor (SFP) GBIC” on page 38
• “1000BASE-LX Multimode Applicati ons” on page 40
Caution: MDAs are not hot-swappable. To avoid
damage to the switch or MDA, power down the switch o r
unplug the switch module from the switch backplane
before installing or removing an MDA.
3
Page 6
Supported interfaces and products
Table 1 shows the interface types used with the MDAs described
in this guide.
T able 1 MDAs and interface types
MDA Interface Type
•400-4TX MDA
• 8100-4TX MDA
• BPS2000-4TX MDA
•400-2FX MDA
• 8100-2FX MDA
• BPS2000-2FX MDA
•400-4FX MDA
• 8100-4FX MDA
• BPS2000-4FX MDA
• 450-1SR MDA
• 450-1SX MDA
•450-1LR MDA
•450-1LX MDA
• 450-1GBIC MDA Gigabit Interface Converter (GBIC) 23
• BPS2000-2GE MDA Small Form Factor Pluggable (SFP)
• BPS2000-1GT MDA
• BPS2000-2GT MDA
10BASE-T/100BASE-TX (UTP) 5
100BASE-FX (Fiber) 9
1000BASE-SX
(Shortwave gigabit fiber )
1000BASE-LX
(Longwave gigabit fiber)
GBIC
1000BASE-SX (LC Type)
1000BASE-SX (MT-RJ Type)
1000BASE-LX (LC type)
1000Base-T 27
4
See
page
17
20
26
29
Page 7
MDA descriptions
This section describes the following MDAs:
• “10BASE-T/100BASE-TX MDAs” on page 5
• “100BASE-FX MDAs” on page 9
• “1000BASE-X MDAs” on page 17
• “GBIC MDA” on page 23
• “BPS2000-2GE MDA” on page 26
• “BPS2000-1GT MDA” on page 27
• “BPS2000-2GT MDA” on page 29
10BASE-T/100BASE-TX MDAs
The 10BASE-T/100BASE-TX MDAs use four RJ-45 (8-pin
modular) connectors, configu r ed as media dependent interfacecrossover (MDI-X) connectors. These ports connect over straight
cables to the network interface cont roller (NIC) card in a node or
server, similar to a conventional Ethernet repeater hub.
If you connect to another Ethernet hub or Ethernet switch, you
need a crossover cable unless an MDI connection exists on the
associated port of the attached device.
The following are the 10BASE-T/100BASE-TX MDAs.
• 400-4TX MDA, page 6
• 8100-4TX MDA, page 6
• BPS2000-4TX MDA, page 8
5
Page 8
For a complete list of MDAs, see Table 1 on page 4. For
installation instructions, see “Installing an MDA” on page 31.
Figure 1 shows the front panels of the 4 00-4TX MDA and the
8100-4TX MDA.
Figure 1 400-4TX and 8100- 4TX MDA front panels
1
2
400-4TX MDA
100
10
F Dx
Activity
400-4TX MDA
45 3
1
2
8100-4TX MDA
100
10
F Dx
Activity
8100-4TX MDA
45 3
BS45042B
6
Page 9
The 10BASE-T/100BASE-TX MDA ports can operate at either
10 Mb/s or 100 Mb/s. The port speed is determined through
autonegotiation with its connecting device.
Table 2 describes the 400-4TX and 8100-4TX MDA front- panel.
T able 2 400-4TX and 8100- 4TX MDA front panel
Item Label Description
1 100 100BASE-TX port statu s LEDs (green):
On: The corresponding port is set to operate at
100 Mb/s.
Off: The link connection is bad or there is no
connection to this port.
Blinking: The corresponding port is management
disabled.
2 10 10BASE-T port status LEDs (green):
On: The corresponding port is set to operate at
10 Mb/s.
Off: The link connection is bad or there is no
connection to this port.
Blinking: The corresponding port is management
disabled.
3 F Dx Full-duplex port status LEDs (green):
On: The c orresp ondi ng port is in fu ll-du plex m ode.
Off: The corresponding port is in half-duplex
mode.
4 Activity Port activity LEDs (green):
Blinking: Indicates the network activity level for the
corresponding port. A high level of network activity
can cause LEDs to appear to be on continuously.
7
Page 10
Table 2 400-4TX and 81 00-4TX MDA front panel (continued)
Item Label Description
5 10BASE-T/100BASE-TX RJ-45 (8-pin modular) port
connectors.
Figure 2 shows the front panel of the BPS2000-4TX MDA.
Figure 2 BPS2000-4TX MDA front panel
1
BPS2000-4TX MDA
3
9792EA
Table 3 de scribe s the BPS2000-4TX MDA front-panel
components.
T able 3 BPS2000-4TX MDA description
Item Label Description
1 10/100 10BASE-T/100BASE-TX port status LEDs :
On (green): The corresponding port is set to
operate at 100 Mb/s.
On (yellow): The corresponding port is set to
operate at 10 Mb/s.
8
2
Page 11
T able 3 BPS2000-4TX MDA description (continue d)
Item Label Description
Off: The link connection is bad or there is no
connection to this port.
2 Activity Port activity LEDs (green):
Blinking (green): Indicates the network activity
level for t he corresponding port. A high level of
network activity can cause LEDs to appear to be
on continuously.
Off: No traffic to this port.
3 10BASE-T/100BASE-TX RJ-45
(8-pin modular) port connectors.
100BASE-FX MDAs
The 100BASE-FX MDAs conform to the IEEE 802.3u
100BASE-FX standard a nd can attach fiber-based 10 0 Mb/s
connections to Fast Ethernet devices. The 100BASE-FX MDAs
do not support single - m od e fi b er ca b le . The fo llow i ng ar e the
100BASE-FX
MDAs.
• 400-2FX MDA (dual-p or t), page 11
• 400-4FX MDA (quad-por t), page 14
• 8100-2FX MDA (dual-port), page 11
• 8100-4FX MDA (quad-port), page 14
• BPS2000-2FX MDA (dual-port), page 13
• BPS2000-4FX MDA (quad-port), page 16
9
Page 12
For a complete list of MDAs, see Table 1 on page 4. For
installation instructions, see “Installing an MDA” on page 31.
Dual-port 100BASE-FX MDAs
The dual-port 100BASE-FX MDAs use two longwave 1300 nm
LC connectors to attach devices over 62.5/125 micron
multimode fiber optic cable.
Figure 3 shows the front panels of t he 400-2FX MDA and the
8100-2FX MDA.
10
Page 13
Figure 3 400-2FX and 8100- 2FX MDA front panels
400-2FX MDA
100BASE-FX
RXTX
100BASE-FX
Link
F Dx
RXTX
Activity
400-2FX MDA
21
8100-2FX MDA
100BASE-FX
4
3
21
100BASE-FX
RXTX
RXTX
4
11
Link
F Dx
Activity
8100-2FX MDA
BS45071A
3
Page 14
Table 4 describes the dual-port 400-2FX MDA and the 8100-
2FX MDA front-panel componen ts.
T able 4 400-2FX MDA and 8100-2FX MDA description
Item Label Description
1 Link Communications link LEDs (green):
On: Valid communications link.
Off: Invalid communications link or no
connection to this port.
Blinking: The corresponding port is
management disabled.
2 F Dx Full-duplex port status LEDs (green):
On: The corresponding port is in full-duplex
mode.
Off: The corresponding port is in half-duplex
mode.
3 Activity Port activity LEDs (green):
Blinking: Indicates the network activity level for
the corresponding port. A high level of network
activity can cause LEDs to appear to be on
continuously.
4 100BASE-FX port connectors:
Models 400-2FX and 8100-2 FX use LC conne cto rs.
Figure 4 shows the front panel of the dual-port BPS2000-2FX
MDA.
12
Page 15
Figure 4 BPS2000-2FX MDA front panel
BPS2000-2FX MDA
1
BPS2000-2FX MDA
2
3
BPS20001A
Table 5 describes the dual-por t BPS2000-2FX MDA front-panel
components.
T able 5 BPS2000-2FX MDA description
Item Label Description
1 Link Link status LEDs (green):
On (green): Valid 100 Mb/s communications
link.
Off: No link activity.
2 Activity Port activity LEDs (green):
On: Indicates the network activity level for the
corresponding port. A high level of network
activity can cause LEDs to appear to be on
continuously.
Off: No activity.
3 100BASE-FX port connectors:
The BPS2000-2FX MDA uses LC connectors.
13
Page 16
Quad-port 100BASE-FX MDAs
The quad-port 100B AS E-FX M DAs use fou r long wav e 13 00 nm
MT-RJ connectors to attach devices o ver 62.5/125 micron
multimode fiber optic cable.
Figure 5 shows the front panels of t he 400-4FX MDA and the
8100-4FX MDA.
Figure 5 400-4FX and 8100- 4FX MDA front panels
1
400-4FX MDA
Link
F Dx
Activity
400-4FX MDA
2
8100-4FX MDA
4
3
1
Link
F Dx
Activity
8100-4FX MDA
4
14
2
3
BS45072A
Page 17
Table 6 describes the 400-4FX MDA and the 8100-4FX MDA
front-panel components.
T able 6 400-4FX MDA / 8100-4FX MDA description
Item Label Description
1 Link Communications link LEDs (green):
On: Valid communications link.
Off: Invalid communications link or no connection
to this port.
Blinking: The corresponding port is management
disabled.
2 F Dx Full-duplex port status LEDs (green):
On: The c orresp ondi ng port is in fu ll-du plex m ode.
Off: The corresponding port is in half-duplex
mode.
3 Activity Port activity LEDs (green):
Blinking: Indicates the network activity level for the
corresponding port. A high level of network activity
can cause LEDs to appear to be on continuously.
4 100BASE-FX port connectors:
Models 400-4FX and 8100-4FX use MT-RJ connectors.
Figure 6 shows the front panel of the BPS2000-4FX MDA.
15
Page 18
Figure 6 BPS2000-4FX MDA front panel
BPS2000-4FX MDA
1
BPS2000-4FX MDA
3
BPS20002A
Table 7 de scribe s the BPS2000-4FX MDA front-panel
components.
T able 7 BPS2000-4FX MDA description
Item Label Description
1 Link Link status LEDs (green):
On (green): Valid 100 Mb/s communications link.
Off: No link activity.
2 Activity Port activity LEDs (green):
On: Indicat e s th e network ac t i v i ty l e ve l fo r
the corresponding port. A high level of
network activity can cause LEDs to appear
to be on continuously.
Off: No activity.
3 100BASE-FX port connectors:
The BPS2000-4FX MDA uses MT-RJ connectors.
16
2
Page 19
1000BASE-X MDAs
The following are the 1000BASE-FX MDAs.
T able 8 1000BASE-FX MDAs
Shortwave gigabit
Longwave gigabit
• 450-1SR MDA, page 18
• 450-1SX MDA, page 18
• 450-1LR MDA, page 21
• 450-1LX MDA, page 21
For a complete list of MDAs, see Table 1 on page 4. For
installation instructions, see “Installing an MDA” on page 31.
Shortwave Gigabit MDAs
The following 1000BASE-SX MDAs conform to the IEEE
802.3z 1000BASE-SX standard and use shortwav e 850 nm fiber
optic connectors to co nnect device s over multimod e (550 m/1805
ft.) fiber optic cable.
• 450-1SR MDA -- singl e MAC MDA with a separate
redundant Phy (backup Phy port). Only one Phy port can be
active at any time. If the active Phy port fails, the redundant
Phy port automatically becomes the active port.
• 450-1SX MDA -- single PHY MDA.
Figure 7 shows the 450-1SR MDA and the 450-1SX MDA front
panels.
17
Page 20
Figure 7 450-1SR and 450-1S X M D A front panels
450-1SR MDA
(1-port redundant)
1000BASE-SX
TX
1000BASE-SX
TXRX
Link
Phy Select
RX
Activity
450-1SR MDA
21
450-1SX MDA
(single port)
4
1000BASE-SX
TX RX
4
3
21
Link
Phy
Activity
450-1SX MDA
3
BS45044A
18
Page 21
Table 9 describes the 450-1SR MDA and the 450-1SX MDA
front panel components.
T able 9 450-1SR / 450-1SX MDA des cr ip t ion
Item Label Description
1 Link Communication link LEDs (gr ee n):
On: Valid communications link.
Off: The communications link connection is
bad or there is no connection to this port.
Blinking: The corresponding port is
management disabled.
2Phy
(or)
Phy Select
3 Activity Port activity LEDs (green):
4 1000BASE-X LC port connectors.
Phy status LEDs (green):
On: The corresponding Phy port is active.
Off: The corresponding Phy port is in backup
mode or there is no connection to this port.
Blinking: Indicates network activity level for
the corresponding port. A high level of
network activity can cause LEDs to appear to
be on continuously.
19
Page 22
Longwave Gigabit MDAs
The following 1000 BASE-LX MDAs confor m to the IEEE
802.3z 1000BASE-LX standard and use longwave 1300 nm fiber
optic connec tor s to co nn e ct devices over single mod e (5 km/3 .1
mi) or multimode (550 m/1805 ft) fiber optic cable.
• 450-1LR MDA -- single MAC M DA w ith a separate
redundant Phy (backup Phy port). Only one Phy port can be
active at any time. If the active Phy port fails, the redundant
Phy port automatically becomes the active port.
• 450-1LX MDA -- single Phy MDA.
Note: The optical performance of this transceiver
cannot be guaranteed when connected to a multimode
fiber plant without the use of the special offset
SMF/MMF mode conditioning patch cor d. For more
information, see “1000BASE-LX Multimode
Applications” on page 40.
Figure 8 shows the 450-1LR MDA and the 450-1LX MDA fr on t
panels.
20
Page 23
Figure 8 450-1LR and 450-1 LX M DA f ro nt pan el s
450-1LR MDA
(1-port redundant)
1000BASE-LX
TX
1000BASE-LX
TXRX
Link
Phy Select
RX
Activity
450-1LR MDA
21
450-1LX MDA
(single port)
4
1000BASE-LX
TX RX
4
3
21
Link
Phy
Activity
450-1LX MDA
3
BS45045A
21
Page 24
Table 10 describes the 450-1LR MDA and the 450-1LX MDA
front-panel components.
T able 10 450-1LR and 450-1LX MDA description
Item Label Description
1 Link Communication link LEDs (gr ee n):
On: Valid communications link.
Off: The communications link connection is
bad or there is no connection to this port.
Blinking: The corresponding port is
management disabled.
2PHY
(or)
Phy Select
3 Activity Port activity LEDs (green):
4 1000BASE-X LC port connectors (see
Phy status LEDs (green):
On: The corresponding Phy port is active.
Off: The corresponding Phy port is in backup
mode or there is no connection to this port.
Blinking: Indicates network activity level for
the corresponding port. A high level of
network activity can cause LEDs to appear to
be on continuously.
“1000BASE-LX Multimode Applications” on
page 40 for special requirements).
22
Page 25
GBIC MDA
The 450-1GBIC MDA (Figure 9) has a single Host port for
Gigabit Interface Converters (GBICs). GBICs are hot-swappable
input/output enhance ment com ponen ts that li nk Gigab it Etherne t
ports with fiber optic networks.
For more information about GBICs, see the publication
Installing Gigabit Interface Converters (GBICs), part number
312865-A.
For instructions on installing the 450-1GBIC MDA in a network
device, see “Installing an MDA” on page31.
For instructions on installing a GBIC in a 45 0-1GBIC MDA, see
“Installing a GBIC in an MDA” on page 34.
Figure 9 shows the 450-1GBIC MDA front panel and GBICs.
23
Page 26
Figure 9 450-1GBIC MDA Front Panel
450-1GBIC MDA
GBIC
Link
Phy
Activity
450-1GBIC MDA
21
GBIC model with
extractor tabs
GBIC model with
extractor handle
4
3
SC connector
BS450102A
24
Page 27
Table 11 describes the 450-1GBIC MDA front-panel
components.
Table 11 450-1GBIC MD A description
Item Label Description
1 Link Communication link LEDs (gr ee n):
On: Valid communications link.
Off: The communications link connection is
bad or there is no connection to this port.
Blinking: The corresponding port is
management disabled.
2 Phy Phy status LEDs (green):
On: The corresponding Phy port is active.
Off: The corresponding Phy port is in backup
mode or there is no connection to this port.
3 Activity Port activity LEDs (green):
Blinking: Indicates network activity level for
the corresponding port. A high level of
network activity can cause LEDs to appear to
be on continuously.
4 GBIC Host port (see “MDA descriptions” on
page 5).
25
Page 28
BPS2000-2GE MDA
The BPS2000-2GE MDA ( Figure 10) has two Host ports for
Small Form Factor Pluggable (SFP) Gigabit Interface Converters
(GBICs). SFP GBICs are hot-swappable input/output
enhancement components th at link Gigabit Ethernet ports with
fiber optic networ ks.
Figure 10 BPS2000-2GE SFP GBIC MDA Front Panel
BPS2000-GE MDA
132
Link
Act
BPS2000-GE MDA
10519EA
26
Page 29
Table 12 describes the BPS2000-2GE MDA front-panel
components.
T able 12 BPS2000-2GE MDA front panel
Item Label Description
1 Link Communication link LEDs (gr ee n):
On: Valid communications link.
Off: The communications link connection is
bad or there is no connection to this port.
2 Activity Port activity LEDs (green):
Blinking indicates network activity for the
port.
Off: No activity.
BPS2000-1GT MDA
The BPS2000-1GT MDA ( Figure 11) has one 1000 BASE-T
gigabit ethernet port.
27
Page 30

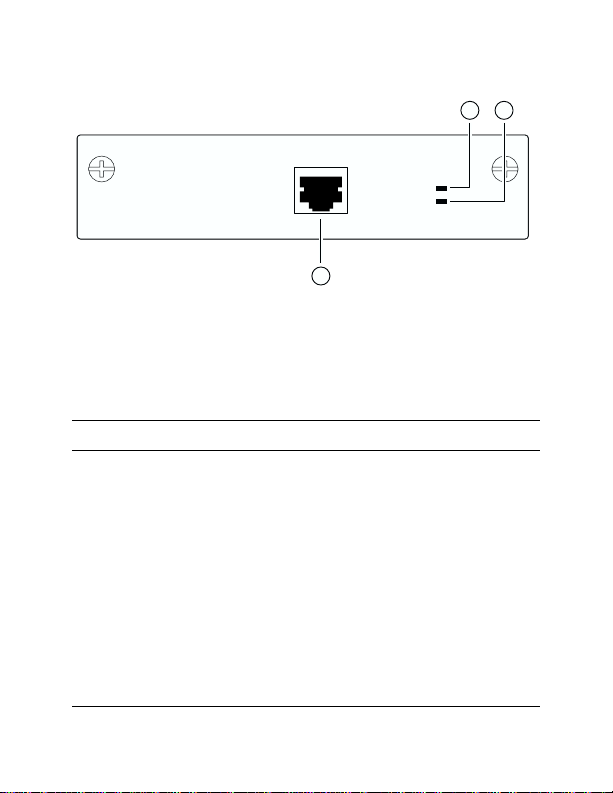

Figure 11 BPS2000-1GT MDA Front Panel
BPS2000-1GT MDA
Link
Act
BPS2000-1GT MDA
Table 13 describes the BPS2000-1GT MDA front-panel
components.
T able 13 BPS2000-1GT MDA front panel
Item Label Description
1 Link Communication link LEDs (gr ee n):
On: Valid communications link.
Off: The communications link connection is
bad or there is no connection to this port.
2 Activity Port activity LEDs (green):
Blinking: Indicates network activity level for
the corresponding port.
Off: No activity.
132
10522EA
28
Page 31
BPS2000-2GT MDA
The BPS2000-2GT MDA ( Figure 12) has tw o 1000 BASE-T
gigabit ethernet ports.
Figure 12 BPS2000-2GT SFP GBIC MDA Front Panel
BPS2000-2GT MDA
Link
Act
BPS2000-2GT MDA
3
1 2
10523EA
Table 14 describes the BPS2000-2GT MDA front-panel
components.
T able 14 BPS2000-2GT MDA front panel
Item Label Description
1 Link Communication link LEDs (gr ee n):
On: Valid communications link.
Off: The communications link connection is
bad or there is no connection to this port.
2 Activity Port activity LEDs (green):
29
Page 32
T able 14 BPS2000-2GT MDA front panel (continued)
Item Label Description
Blinking: Indicates network activity level for
the corresponding port.
Off: No activity.
30
Page 33
Installing an MDA
Before you begin installing an MDA, see “MDA descriptions”
on page 5 for specific informa ti on about your MDA.
The Uplink/Expansion Module slot on supported switches
accommodates a single MDA using the following co nnectors.
T able 15 MDA cable connectors
MDA
10/100BASE-TX,
page 5
100BASE-FX, page9
1000BASE-SX, page 17
1000BASE-LX, page 17
GBIC MDA, page 23 X
BPS2000 2GE MDA,
page 26
BPS2000-1GT page 26
BPS2000-2GTpage 29
UTP
RJ45
LC
fiber
X
MT-RJ
fiber
XX
XX
Caution: MDAs are not hot-swappable. To avoid
damage to the switch or MDA, power down the switch o r
disconnect the switch mo dule fro m th e switch backplane
before installing or removing an MDA.
T o install an MDA:
31
RJ45
STP
X
Page 34
1 Unplug the AC power cord from the back of the switch, or
unplug the switch module from the switch backplane.
2 Loosen the thumb screws and remove the filler panel (or
previously installed MDA) from the Uplink/Expansion
Module slot.
3 Insert the MDA into the Uplink/Expansion Module card
guides (Figure 13).
Make sure the MDA slides in on the card guides. Failure to
align the MDA to the card guides could damage the pins.
Figure 13 Installing an MDA
1
1 = Card guides
2 = Uplink module slot
2
Uplink/Expansion Module
2826 2725
400-4TX MDA
32
100
10
F Dx
Activity
BS45059C
Page 35
4 Press the MDA firmly into the Uplink/Expansion Module
slot.
Be sure that the MDA is fully seated into the mating
connector.
5 Secure the MDA by tightening the thumb screws on the
MDA front panel.
6 Plug the AC power cord into the back of the switch, or plug
the switch module into the switch backplane.
7 Attach devices to the MDA ports.
For instructions on attaching devices to the MDA ports, refer
to the publication for your switch. After connecting the port
cables, follow the instructions to conn ect power and verify
the installation.
Note: The IEEE 802.3u specification requires that all
ports operating at 100 Mb/s use only Category 5
unshielded twisted pair (UTP) cabling.
Replacing an installed MDA
T o replac e an installed MDA:
1 Unplug the AC power cord from the back of the switch, or
unplug the switch module from the switch backplane.
2 Remove the installed MDA.
Loosen the two thumbscrews on the MDA front panel to
remove the MDA.
3 Install the replacement MDA.
33
Page 36
Be sure to firmly tighten the two thumbscrews on the MDA
front panel.
4 Plug the AC power cord into the back of the switch, or plug
the switch module into the switch backplane.
5 Attach devices to the MDA ports.
For instructions on attaching devices to the MDA ports, refer
to the publication for your switch.
Installing a G B IC in a n MDA
Before installing a GBIC, see “GBIC MDA” on page 23 for
specific information about your M DA.
The 450-1GBIC MDA Host port is covered with a spring-loaded
filler panel that rotates out of th e way as you push th e GBIC int o
place. You can install or replace a GBIC in an operat ing 4501GBIC MDA without turning off power to the switch.
Caution: Although GBICs are hot-swappable, MDAs
are not. To avoid damage to the switch or MDA, power
down the switch or unplug the switch module before
installing or removing an MDA.
For more information about GBICs, see the publication
Installing Gigabit Interface Converters (GBICs), part number
312865-A.
T o install a GBIC in an MDA:
1 Remove the GBIC from its protective packaging.
2 Insert the GBIC into the MDA Host port (Figure 14).
34
Page 37
GBICs are keyed to prevent improper insertion. If the GBIC
resists pressure, do not force it. Remove it, turn it over, and
reinsert it.
Figure 14 Installing a GBIC
Press on the front of the GBIC until it snaps into place.
3
4 Remove the rubber plug to connect cables.
Removing an Installed GBIC from an MDA
For a description of the GBIC MDA, see “GBIC MDA” on
page 23.
T o remove an installed GBIC:
Do one of the following :
• If the GBIC has spring tabs (Figure 9 on page 2 4), press in
on the tabs on each side of the GBIC as you pull th e GBIC
out of the MDA’s Host port (Figure 15).
35
Page 38
Figure 15 Removing a GBIC with spring tabs
• If the GBIC has an extractor handle (Figure 9 on page 24),
grasp the handle and pull firmly to remove the GBIC from
the MDA’s Host port.
Installing a Small Form Factor Pluggable (SFP) GBIC
This section lists the steps to install a SFP GBIC.
T o install a SFP GBIC:
1 Remove the SFP GBIC from its protective packaging.
2 Verify that the SFP GBIC is the correct model for your
network configur ation ().
3 Remove the dust cover from the SFP GBIC’s optical bores.
4 Grasp the SFP GBIC between your thumb and forefinger.
5 Insert the SFP GBIC into the slot on the front panel of the
Gigabit Ethernet swi tching module .
36
Page 39
Figure 16 Installing the LC GBIC into an MDA
Link
Act
BPS2000-2GE MDA
Figure 17 Installing the MT-RJ SFP GBIC into an MDA
Link
Act
BPS2000-2GE MDA
10517FA
37
Page 40
Note: SFP GBICs are keyed to prevent incorrect
insertion.
Removing a Small Form Factor (SFP) GBIC
This section lists the steps for removing a GBIC.
To remove a GBIC:
1 Disconnect the network fiber cable from the SF P GBIC
connector.
2 Depending on your SFP GBIC model, either pull the LC
extraction tab located in the front of the SFP GBIC (below
right) with your thu m b and forefinger, or press the button on
the bottom of the MT-RJ SFP GBIC (below left).
Figure 18 Removing a SFP GBIC (Bottom view)
10518FA
38
Page 41
3 Slide th e SFP GBIC ou t of th e Gigabit Ethernet module slot.
4 If the SFP GBIC does not slide easily from the module slot,
use a gentle side-to-side rock ing motio n while firmly pu lling
the SFP GBIC from the slot.
5 Dispose of the SFP GBIC according to all national laws and
regulations.
Note: If you are storing a SFP GBIC, remember to place
a dust cover over the fiber optic bores.
39
Page 42
1000BASE-LX Multimode Applications
For 1000BASE-LX multimode app lications, the longwave
gigabit transce ivers must be mode cond itioned externally via a
special offset SMF/MM F p atch c ord. With the offset SMF/MMF
patch cord, you can use the same transceiver for both multimode
and single-mode fiber. For more information about the SMF/
MMF patch cord, see your Nortel Networks sales representative.
The 1000BASE-LX transceiver is des ig ned to mechanically
accommodate the single -mode ferrules used on one end of the
special offset SMF/MMF patch cord. Multimode ferrules must
not be used because they can bind and cause dam a ge to the
transceiver. Do not connect multimode cables directly into the
1000BASE-LX MDA transceiver. Instead, connect a speci al
offset SMF/MMF patch cord into the transceiver, and then
connect the multimode cable into the SMF/MMF patch cord.
40
Loading...
