Avaya Backup and Restore BCM Rls 6.0 User Manual

BCM Rls 6.0

Backup & Restore

Task Based Guide

Backup & Restore

Notices

While reasonable efforts have been made to ensure that the information in this document is complete and accurate at the time of printing, Avaya assumes no liability for any errors. Avaya reserves the right to make changes and corrections to the information in this document without the obligation to notify any person or organization of such changes.

Documentation disclaimer

Avaya shall not be responsible for any modifications, additions, or deletions to the original published version of this documentation unless such modifications, additions, or deletions were performed by Avaya. End User agree to indemnify and hold harmless Avaya, Avaya’s agents, servants and employees against all claims, lawsuits, demands and judgments arising out of, or in connection with, subsequent modifications, additions or deletions to this documentation, to the extent made by End User.

Link disclaimer

Avaya is not responsible for the contents or reliability of any linked Web sites referenced within this site or documentation(s) provided by Avaya. Avaya is not responsible for the accuracy of any information, statement or content provided on these sites and does not necessarily endorse the products, services, or information described or offered within them. Avaya does not guarantee that these links will work all the time and has no control over the availability of the linked pages.

Warranty

Avaya provides a limited warranty on this product. Refer to your sales agreement to establish the terms of the

limited warranty. In addition, Avaya’s standard warranty language, as well as information regarding support for

this product, while under warranty, is available to Avaya customers and other parties through the Avaya Support Web site: http://www.avaya.com/support

Please note that if you acquired the product from an authorized reseller, the warranty is provided to you by said reseller and not by Avaya.

Licenses

THE SOFTWARE LICENSE TERMS AVAILABLE ON THE AVAYA WEBSITE,

HTTP://SUPPORT.AVAYA.COM/LICENSEINFO/ ARE APPLICABLE TO ANYONE WHO DOWNLOADS,

USES AND/OR INSTALLS AVAYA SOFTWARE, PURCHASED FROM AVAYA INC., ANY AVAYA AFFILIATE, OR AN AUTHORIZED AVAYA RESELLER (AS APPLICABLE) UNDER A COMMERCIAL AGREEMENT WITH AVAYA OR AN AUTHORIZED AVAYA RESELLER. UNLESS OTHERWISE AGREED TO BY AVAYA IN WRITING, AVAYA DOES NOT EXTEND THIS LICENSE IF THE SOFTWARE WAS OBTAINED FROM ANYONE OTHER THAN AVAYA, AN AVAYA AFFILIATE OR AN AVAYA AUTHORIZED RESELLER, AND AVAYA RESERVES THE RIGHT TO TAKE LEGAL ACTION AGAINST YOU AND ANYONE ELSE USING OR SELLING THE SOFTWARE WITHOUT A LICENSE. BY INSTALLING, DOWNLOADING OR USING THE SOFTWARE, OR AUTHORIZING OTHERS TO DO SO, YOU, ON BEHALF OF YOURSELF AND THE ENTITY FOR WHOM YOU ARE INSTALLING, DOWNLOADING OR USING THE SOFTWARE (HEREINAFTER REFERRED TO INTERCHANGEABLY AS "YOU" AND "END USER"), AGREE TO THESE TERMS AND CONDITIONS AND CREATE A BINDING CONTRACT BETWEEN YOU AND AVAYA INC. OR THE APPLICABLE AVAYA AFFILIATE ("AVAYA").

Except where expressly stated otherwise, no use should be made of the Documentation(s) and Product(s) provided by Avaya. All content in this documentation(s) and the product(s) provided by Avaya including the selection, arrangement and design of the content is owned either by Avaya or its licensors and is protected by copyright and other intellectual property laws including the sui generis rights relating to the protection of databases. You may not modify, copy, reproduce, republish, upload, post, transmit or distribute in any way any content, in whole or in part, including any code and software. Unauthorized reproduction, transmission, dissemination, storage, and or use without the express written consent of Avaya can be a criminal, as well as a civil offense under the applicable law.

Third Party Components

Certain software programs or portions thereof included in the Product may contain software distributed under third party agreements ("Third Party Components"), which may contain terms that expand or limit rights to use certain portions of the Product ("Third Party Terms"). Information regarding distributed Linux OS source code (for those Products that have distributed the Linux OS source code), and identifying the copyright holders of the Third Party Components and the Third Party Terms that apply to them is available on the Avaya Support Web site:

http://support.avaya.com/Copyright.

Trademarks

The trademarks, logos and service marks ("Marks") displayed in this site, the documentation(s) and product(s) provided by Avaya are the registered or unregistered Marks of Avaya, its affiliates, or other third parties. Users are not permitted to use such Marks without prior written consent from Avaya or such third party which may own the Mark. Nothing contained in this site, the documentation(s) and product(s) should be construed as granting, by implication, estoppel, or otherwise, any license or right in and to the Marks without the express written permission of Avaya or the applicable third party. Avaya is a registered trademark of Avaya Inc. All non-Avaya trademarks

are the property of their respective owners.

2 NN40011-029 Issue 1.2 BCM Rls 6.0

Backup & Restore

Downloading documents

For the most current versions of documentation, see the Avaya Support. Web site: http://www.avaya.com/support

Contact Avaya Support

Avaya provides a telephone number for you to use to report problems or to ask questions about your product. The support telephone number is 1-800-242-2121 in the United States. For additional support telephone numbers, see

the Avaya Web site: http://www.avaya.com/support

be reproduced in any form without the prior written permission of a duly authorised representative of ITEL.

NN40011-029 Issue 1.2 BCM Rls 6.0 3

Backup & Restore

Table of Contents

Backup & Restore ............................................................. 5

Overview .................................................................................................. 5

About Backups ......................................................................................... 5

Optional Component Description ....................................................................... 6

Backup File Size ................................................................................................ 6

Backup Locations............................................................................................... 6

Flow Chart ................................................................................................ 8

Performing Immediate Backups ................................................................ 9

Accessing Backup & Restore in Element Manager ........................................... 9

Backup to the BCM .......................................................................................... 12

Backup to Personal Computer ......................................................................... 14

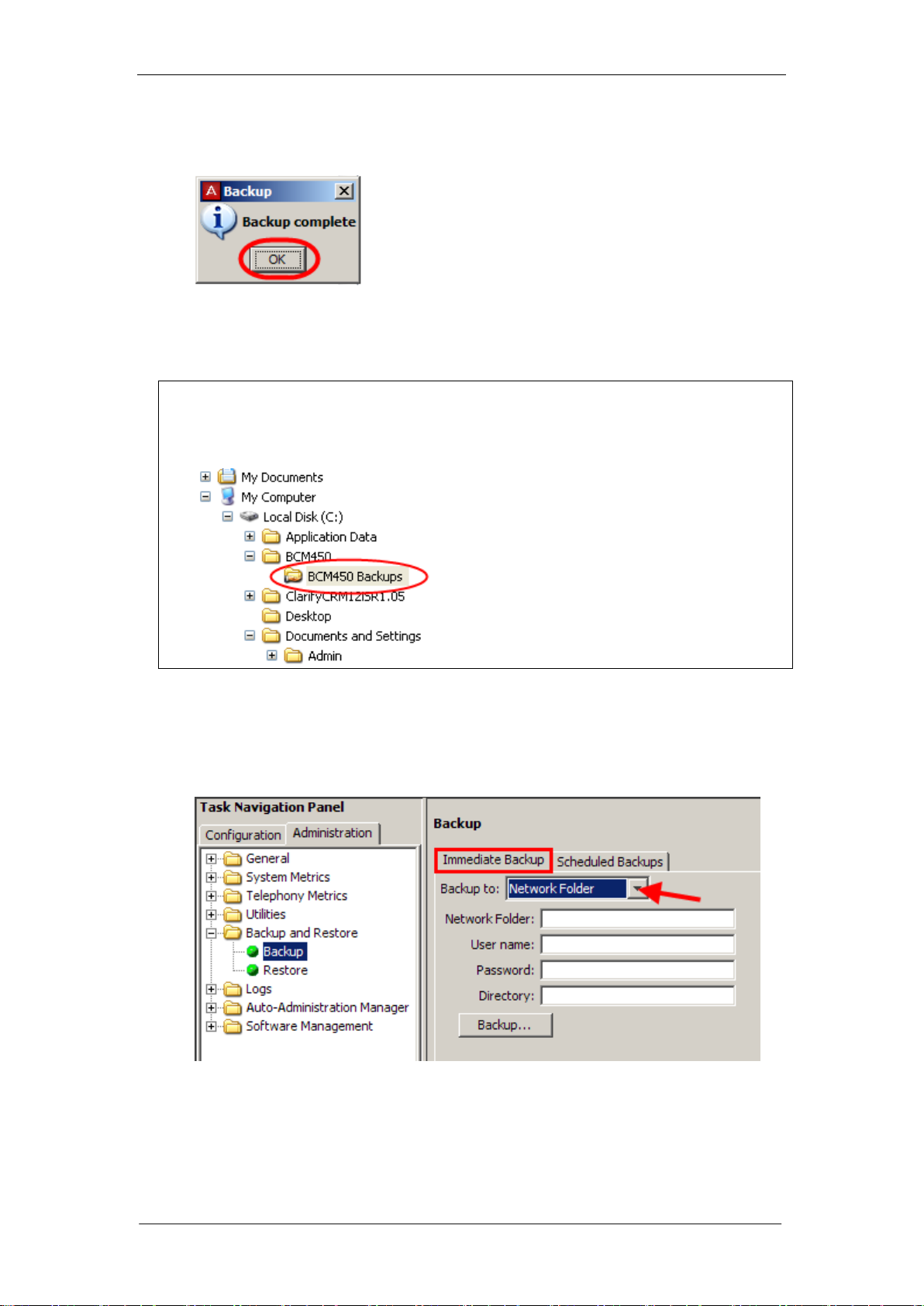

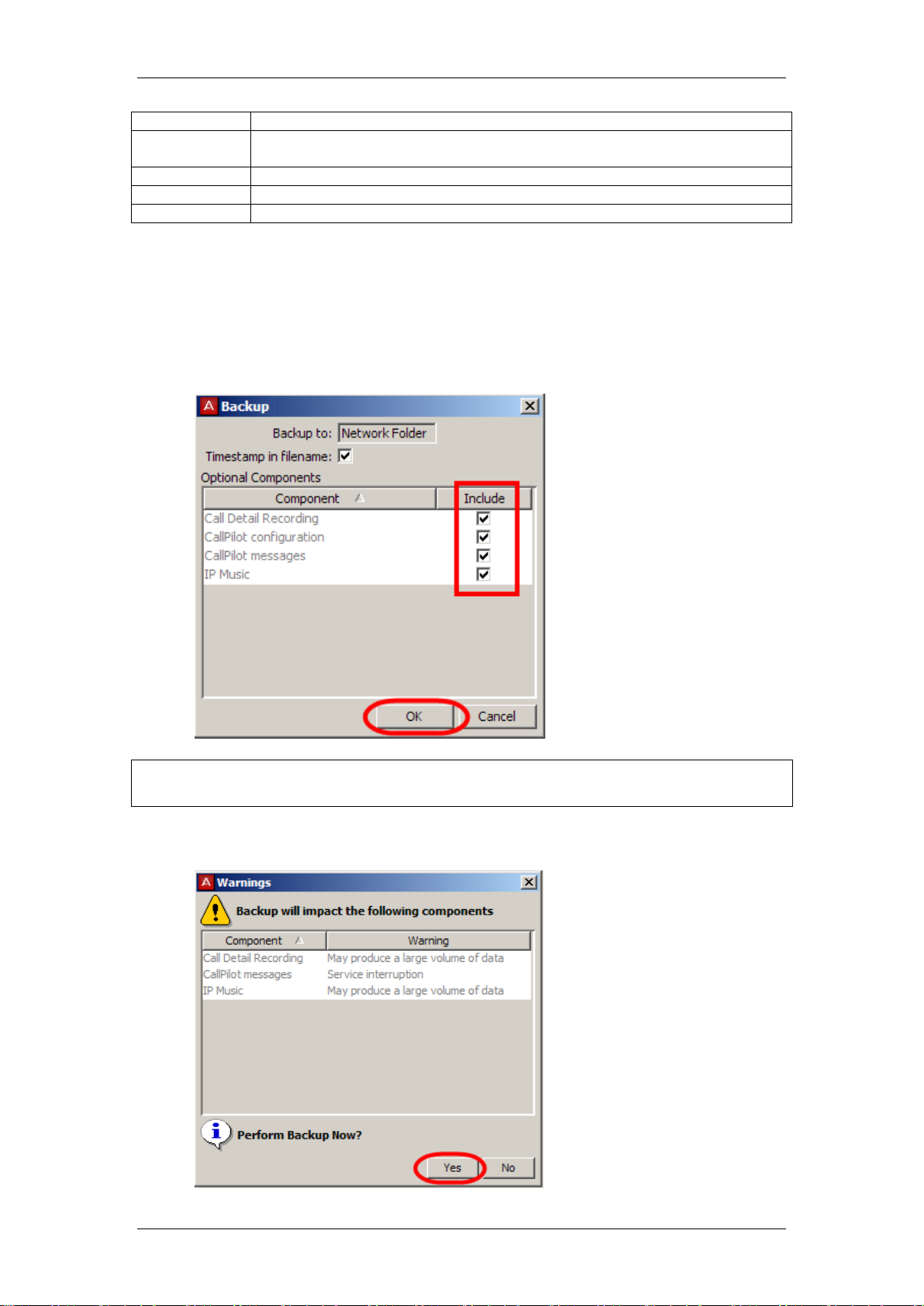

Backup to Network Folder ............................................................................... 17

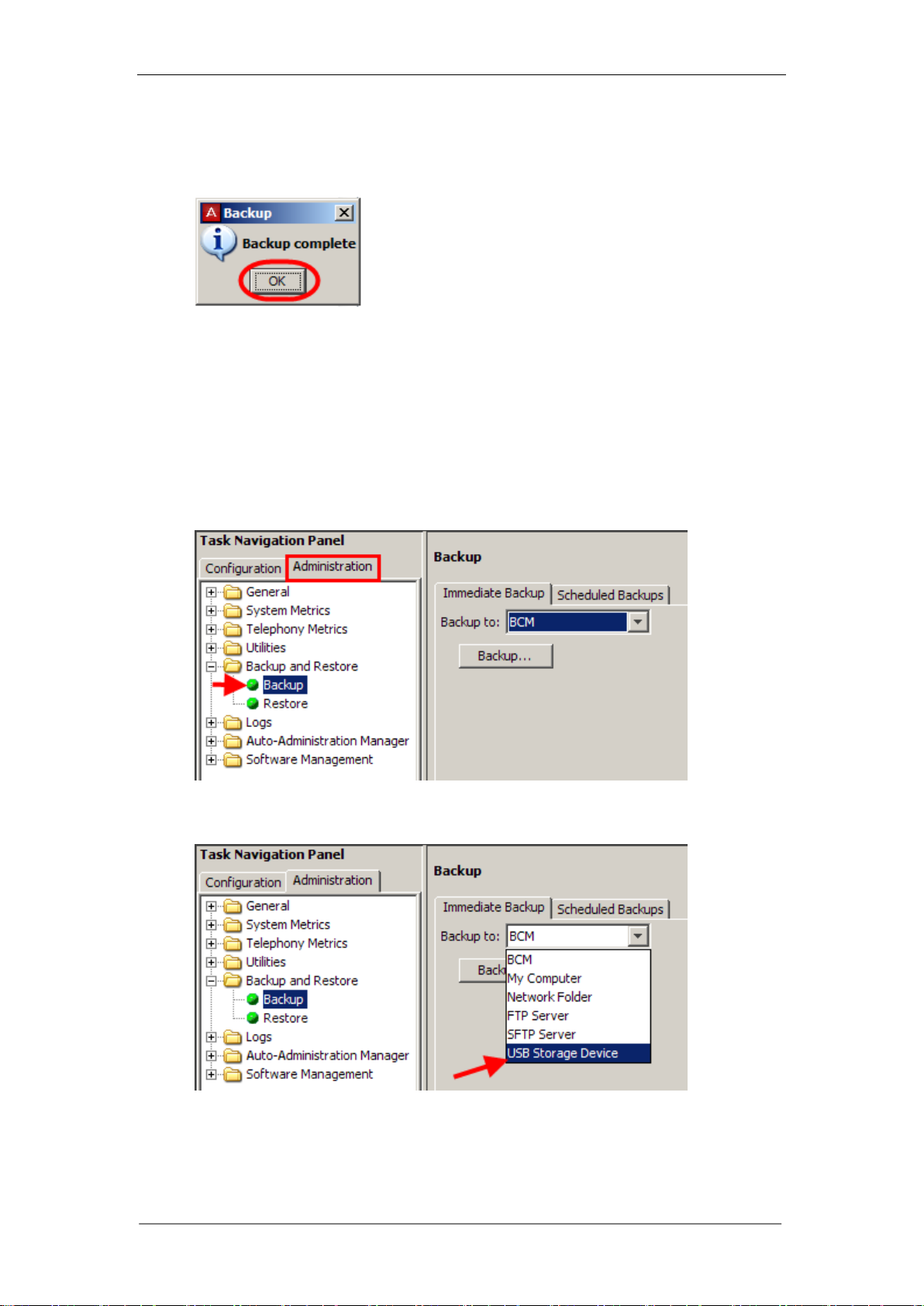

Backup to a USB Storage Device .................................................................... 19

Backup to FTP Server ..................................................................................... 21

Backup to SFTP Server ................................................................................... 23

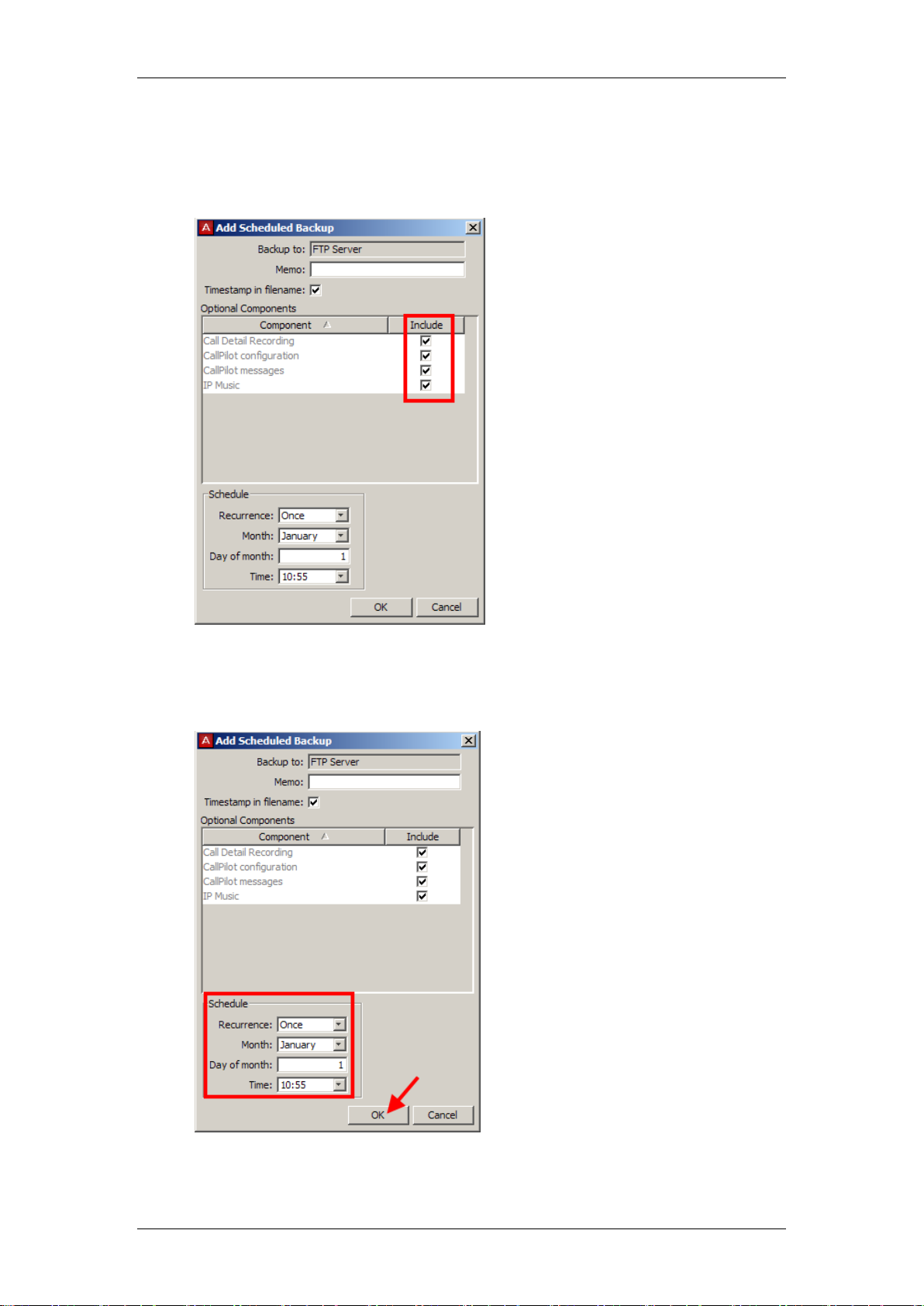

Scheduled Backups ................................................................................ 26

Performing a Scheduled Backup ..................................................................... 27

Timestamp Backup Files ........................................................................ 29

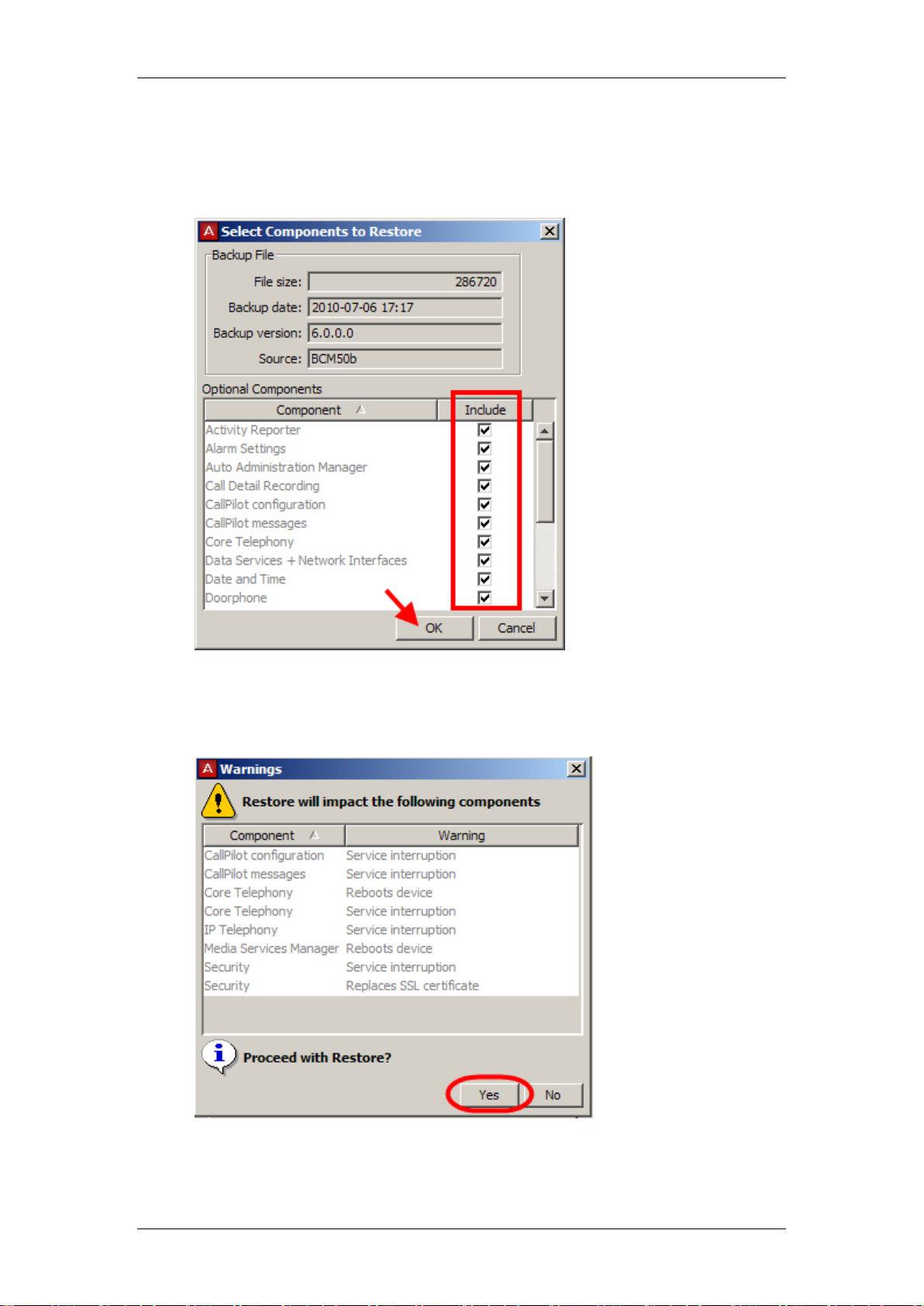

Restore ................................................................................................... 30

Restore Options ............................................................................................... 31

Performing a Restore ....................................................................................... 32

To Restore the Factory Configuration ..................................................... 34

Avaya Documentation Links .......................................... 38

4 NN40011-029 Issue 1.2 BCM Rls 6.0

Backup & Restore

Overview

The BCM programming can be backed up and restored on an immediate or scheduled basis. You can view the backup schedule and change it as required. The restore operation can be performed on a demand only basis.

You can back up data to different locations, including:

 The BCM hard drive.  Remote resources.  A USB storage device.

Note: Whichever destination you choose, a copy of the most recent backup always remains on the BCM. You can use this to restore your BCM without transferring a backup from an external device or server.

About Backups

Backups collect the configuration settings and the data generated during the normal operation of the BCM system.

Examples of configuration settings include:

 IP configuration details.  Telephony programming.  SNMP settings.  Call Detail Recording settings.  BCM schedules (for example, the backup schedule, and the log

retrieval schedule).

 Greetings.  Prompts.

Examples of data generated during normal operations include:

 Voicemail messages.  Call Detail Records.  Faxes.  Envelope information.

NN40011-029 Issue 1.2 BCM Rls 6.0 5

Backup & Restore

Attribute

Description

Call Detail Recording

Includes CDR logs containing call information.

CallPilot Configuration

Includes Voicemail and Contact Centre information.

CallPilot Messages

Includes Voicemail and Contact Centre configuration, and Voicemail and Contact Centre messages.

IP Music

Includes files used for Music on Hold played via the onboard Music Manager.

Optional Component Description

When performing a backup, there are various options that can be selected or de-selected. If the backup file and backup operation time are a consideration, these options can be omitted during the backup to save time and space.

 Backups can take some time if there are lots of VoiceMail messages to

be included within the backup process.

 The backups can be stored at various locations.

Note: It is recommended that you back up BCM data, on a regular basis. In particular, you should perform a backup of the BCM before you undertake major configuration changes and before you apply a software update or upgrade.

You can restore data to the same system or to a different system, at the same software release level.

The BCM checks the software release level of the destination system and will provide a warning if an incompatible software release is detected.

Backup and restore operations are performed by only one operator at a time to avoid conflicts with other operations. All passwords and database records included with your backup file are encrypted.

You can schedule backup operations to occur at specified times, and save a record of the backup schedule that you set.

Backup File Size

Backups can vary in time and size. A basic set up could produce a backup file of 4MB or more. For example, a system with 50 hours of voicemail may take 30 minutes to save to the BCM and produce a file of at least 1 GB.

Backup Locations

The BCM can be backed up to the locations outlined in the following table. The table lists the destinations to which you can back up configuration and application data. Each backup operation, regardless of destination, replaces the BCM’s own copy of the backup.

6 NN40011-029 Issue 1.2 BCM Rls 6.0

Backup & Restore

Destination

Description

BCM

For an immediate backup, saves data to the hard drive of the BCM, You cannot specify a path. Each backup rewrites any pre-existing backup of the same type.

My Computer

For an immediate backup, saves data to any accessible location on the client PC on which the BCM Element Manager is installed. You can specify a name for the backup, so that the pre-existing backup is not automatically overwritten.

Network Folder

Saves data to a shared network folder. The remote server must provide a Microsoft Windows-like shared file resource and a user account with rights to create and write files in the destination location. You cannot browse the network directories to select the best destination folder, but you can specify a directory by identifying the path.

USB Storage Device

Saves backup files to a USB storage device. The files will be written to the top directory level. You cannot specify a path to a different directory on the storage device. Each backup overwrites any pre-existing backup of the same type. A USB storage device must be formatted as FAT32.

FTP Server

Saves backup data to a File Transfer Protocol server. Credentials and backup data are sent without encryption. The remote server must provide an FTP server application and a user account with rights to allow the BCM to create and write files in the destination location. You cannot browse the FTP server to select the best destination folder, but you can specify a directory by identifying the path.

SFTP Server

Saves backup data to an SFTP server. This method sends encrypted login credentials and backup data. You must set up the remote SFTP server to allow the BCM to communicate with the SFTP server. The BCM system can generate a public SSH key, which you must install on the remote SFTP server. For information about SSH keys, see the chapter BCM Security.

Note: Before you back up BCM data, make sure that the BCM has appropriate access to the shared resource on which you will store the data. You must set full access permissions on the shared resource.

NN40011-029 Issue 1.2 BCM Rls 6.0 7

Backup & Restore

Which operation do you wish to perform?

Will the Backup be Immediate or

Scheduled?

Refer to the Performing

Immediate Backups section

of this guide.

Refer to the Restore section of this

guide.

Refer to the Scheduled Backups section of this

guide.

Restore

Backup

Scheduled

Immediate

Flow Chart

Use the flow chart below to determine which sections of the guide to use.

8 NN40011-029 Issue 1.2 BCM Rls 6.0

Backup & Restore

Performing Immediate Backups

Immediate backups can be sent to the following storage locations:

 The BCM itself.  The Client PC running Element Manager.  Network folder.  A USB storage device inserted into the USB port of the BCM.  An FTP server.  A SFTP sever.

Note: A backup operation will interrupt CallPilot services if CallPilot Components are included in the backup. You can exclude these components from the backup if you want to perform a backup that does not affect the system, or include them and perform a backup at a time when the system is typically not in use.

Accessing Backup & Restore in Element Manager

1. To access the Business Element Manager application from the Start Menu, navigate to Start, Programs, Avaya, Business Communications Manager, Business Element Manager.

NN40011-029 Issue 1.2 BCM Rls 6.0 9

Backup & Restore

2. Alternatively, double-click on the Business Element Manager desktop icon.

3. You will be presented with the Element Manager interface.

4. Open the Network Elements folder and select the IP Address of the BCM.

5. Enter the User Name of the BCM in the User Name field, by default this is nnadmin. Then enter the Password in the Password field, by default the password is PlsChgMe!. Click the Connect button.

10 NN40011-029 Issue 1.2 BCM Rls 6.0

6. A warning screen will appear, read the warning and click OK.

Backup & Restore

7. You will be presented with the Element Manager interface.

NN40011-029 Issue 1.2 BCM Rls 6.0 11

Backup & Restore

8. Select the Administration tab, open the Backup and Restore folder, and then click Backup.

9. The Backup panel opens and displays the Immediate Backup tab.

Backup to the BCM

Note: This is the least safe location to store a backup, should the BCM hard drive become corrupt; your backup will be lost.

1. In the Backup To selection field, choose BCM.

12 NN40011-029 Issue 1.2 BCM Rls 6.0
