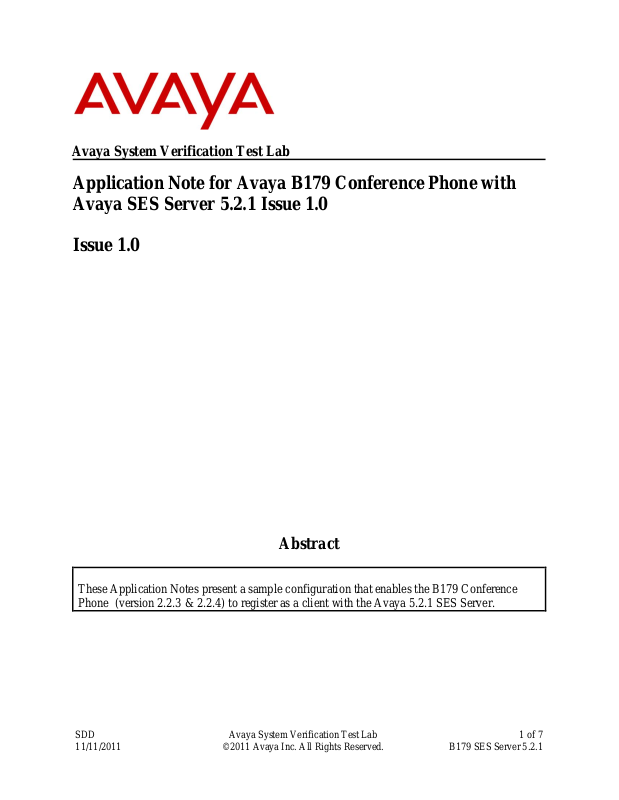

These Application Notes present a sample configuration that enables the B179 Conference
Phone (version 2.2.3 & 2.2.4) to register as a client with the Avaya 5.2.1 SES Server.
Avaya System Verification Test Lab
Application Note for Avaya B179 Conference Phone with
Avaya SES Server 5.2.1 Issue 1.0
Issue 1.0
Abstract
Page 2
SDD
11/11/2011
Avaya System Verification Test Lab
©2011 Avaya Inc. All Rights Reserved.
2 of 7
B179 SES Server 5.2.1
1. Introduction
Equipment
Software
Avaya B179 SIP Conference Phone
2.2.3 & 2.2.4
Communication Manager
CM-s8810-015-02.1.016.4
SES Server
SES-5.2.1.0-016.4
96x1/H.323
96x1-IPT-H.323-R6_0_5-091911
96XX SIP/H323
2.6.6.102/S3.103S
With the introduction of the Avaya B179 SIP Conference phone to the terminals portfolio the
interoperability with the SES server is being requested by customers. With this terminal having
a long term roadmap within the Avaya solution -- customers know they can purchase this set
today with it being protected in the Avaya Aura environment they deploy in the future.
The Avaya B179 is a flexible SIP-based conference phone, perfect for companies that use IP
voice services. It’s clear, natural sound comes from OmniSound 2.0, Avaya’s patented wideband
audio technology. The stylishly designed Avaya B179 is packed with intelligent features for
more efficient conference calls. Use the conference guide to call pre-programmed groups with
just a few simple pushes of a button. Conveniently import and export contact details via the Web
interface. Create your own phone book with the personal user profile feature. The Avaya B179 is
also ideal for larger conferences since it can accommodate expansion microphones, an external
wireless headset and a PA system. With the Avaya B179 your company will have a conference
phone that combines all the benefits of IP voice service with innovative new features.
Figure 1: B179 SIP Conference Phone
.
2. Equipment and Software Validated
The following equipment and software were used for the sample configuration provided:
Tables are recommended:
Page 3
SDD
11/11/2011
Avaya System Verification Test Lab
©2011 Avaya Inc. All Rights Reserved.
3 of 7
B179 SES Server 5.2.1
96X1 SIP
96X1-IPT-SIP-R6_1_3-051711
B179 Conference Phone
2.2.3 & 2.2.4
Page 4
SDD
11/11/2011
Avaya System Verification Test Lab
©2011 Avaya Inc. All Rights Reserved.
4 of 7
B179 SES Server 5.2.1
3. Configure the Avaya B179 SIP Conference Phone
The setup of the B179 phone is straightforward and no custom settings are required to
interoperate with the SES Server.
Reference 16-603915 Avaya B179 Administration Guide for details on setup. The following
screen captures of the web management interface on the B179 Conference Phone show the
settings used during testing of the set.
The following diagram shows the fields to register the phone with the call server.
Figure 2: B179 SIP Conference Phone – SIP Configuration screen
Page 5
SDD
11/11/2011
Avaya System Verification Test Lab
©2011 Avaya Inc. All Rights Reserved.
5 of 7
B179 SES Server 5.2.1
Document
Title
16-603915
Avaya B179 Administration Guide
NN10399110
Communication Server 2000 –
Adaptive Application Engine
Configuration
4. Configure terminal profile in the
SES server.
1. Login to the SES server.
2. Click on SIP enablement services
3. Choose “users”
4. Choose “add user” from the user administration
section.
5. All fields with an * must be completed.
6. User handle and user id can be identical if
desired.
7. Enter a password.
8. First and last names are required.
9. Check/enable the “Add Communication
Manager Extension” box.
10. Press “Add”.
5. Verification Steps
Once completed the phone should register with the
SES server.
If the phone has successfully registered, then verify
calling capabilities as defined by the class of service
which the user account has been created under.
6. Conclusion
If all recommended administration of CM and SES is
completed and the recommended software is used –
registration of endpoints with dialtone should result.
7. Additional References
8. Change History
Page 6
SDD
11/11/2011
Avaya System Verification Test Lab
©2011 Avaya Inc. All Rights Reserved.
6 of 7
B179 SES Server 5.2.1
Issue
Date
Reason
1.0
11/11/2011
Initial issue
Page 7
SDD
11/11/2011
Avaya System Verification Test Lab
©2011 Avaya Inc. All Rights Reserved.
7 of 7
B179 SES Server 5.2.1
©2011 Avaya Inc. All Rights Reserved.
Avaya and the Avaya Logo are trademarks of Avaya Inc. All trademarks identified by ® and ™
are registered trademarks or trademarks, respectively, of Avaya Inc. All other trademarks are the
property of their respective owners. The information provided in these Application Notes is
subject to change without notice. The configurations, technical data, and recommendations
provided in these Application Notes are believed to be accurate and dependable, but are
presented without express or implied warranty. Users are responsible for their application of any
products specified in these Application Notes.
