Avanti G20AW, DG20CSS User Manual

Specifications and Main Features

  • Model Numbers: G20AW, DG20CW, DG20CSS, DG20CSS
  • Dimensions:
  • Width: 120 cm
  • Depth: 60 cm
  • Height: 80 cm
  • Electrical Requirements: Minimum 15 Amp, 120 Volt, 60 Hz
  • Features:
  • Number of surface burners:
  • 1 Rapid burner (Front Right Side)
  • 2 Semi Rapide burners (Back site)
  • 1 Simmer Burner (Front Left Side)
  • Fully automatic electric ignition system
  • Flame failure device for oven burner
  • Single position Broiler burner (Full on)
  • Oven light (fitted in DG20CW model)
  • Leg levelers adjustable
  • Provided with anti-tip bracket for safety
  • Easily removable oven door for cleaning purposes
  • Steel cooking supports with enamel coating
  • Cooking Capacity - 36 lbs on oven shelf

Frequently Asked Questions

Q: What should I do to light burners of my gas range?

A: You should push control knob in, TURN it to the ON position until the burner lights and then adjust the flame as desired.

Q: During blackout can I light the oven burner using match?

A: Yes, at the time of blackout, you can light the oven burner using a match by holding it near the hole of the burner element and pressing down the oven burner knob.

Q: Why Is It That My Surface Burners Don't Seem To Light?

A: Make Sure That Surface Control Is Fully Switched To The ON Position, Look For Burner Ports Blockages And Confirm Correct Positioning Of The Burners.

Q: What's Does One Need To Do In Order To Clean The Steel Cooking Supports Which Have An Enamel Coat On Them?

A: They May Be Washed With Detergent Or Soap Filled Scouring Pads In The Sink Or Even Put In The Dishwasher.

Q: How Much Of An Allowed Maximum Weight Is There For The Oven Shelf?

A: The Oven Shelf Maximum Weight Supplied Should Not Be More Than 36 Pounds.

Q: Am I Permitted To Use Aluminium Foil While Cooking In The Oven?

A; You are only permitted to use aluminium foil for the purpose it is described within the manual's instructions. Failure to adhere to this instruction may pose a fire threat, or risk damaging the range.

Q: Who Should Be Contacted To Carry Out The Installation Of My Gas Range?

A: In Order To Make Sure That It Works Safely With The Local Codes, It Is Best That A Trained Installer Is The One To Fit The Gas Range.

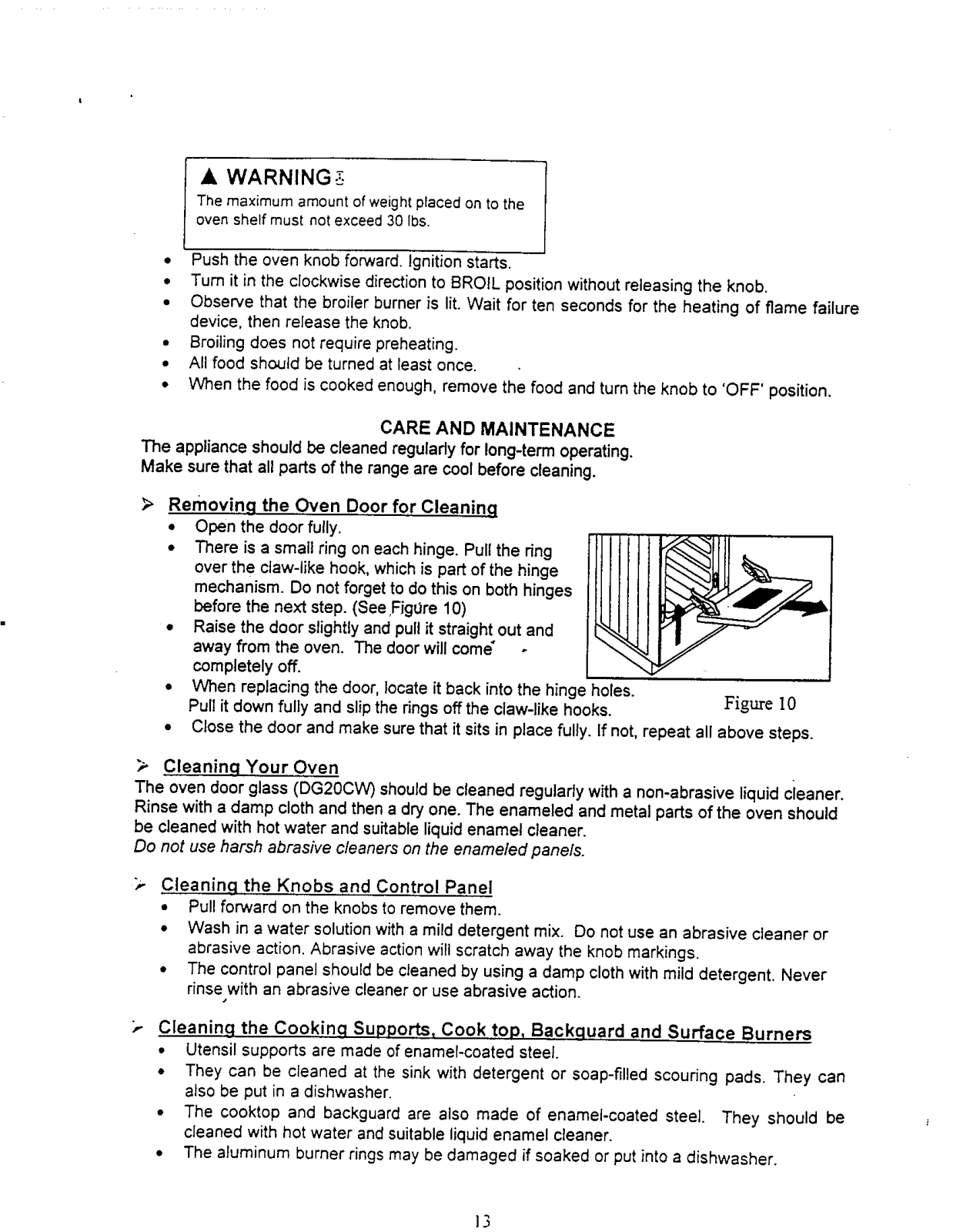

User Manual
