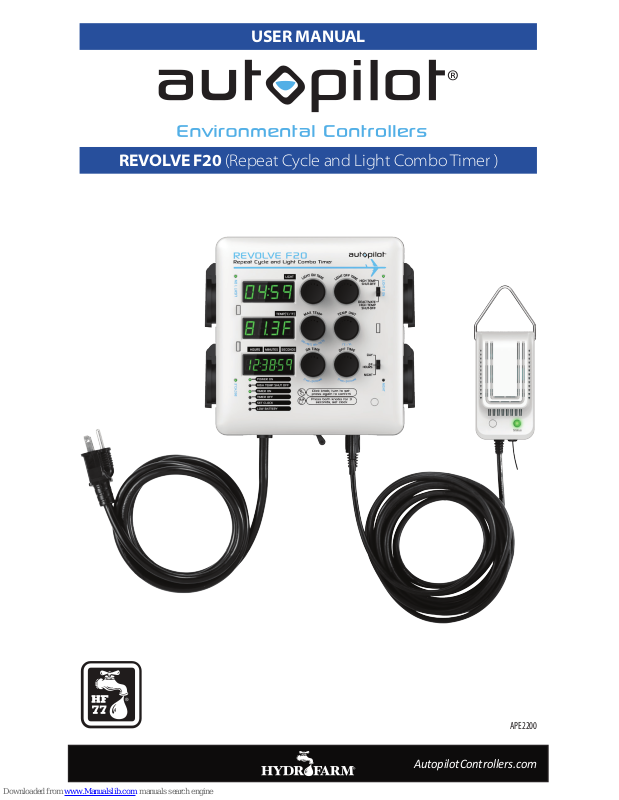

Autopilot REVOLVE F20 User Manual

APE2200

USER MANUAL

REVOLVE F20 (Repeat Cycle and Light Combo Timer )

AutopilotControllers.com

AutopilotControllers.com

2

TABLE OF CONTENTS

OVERVIEW 4

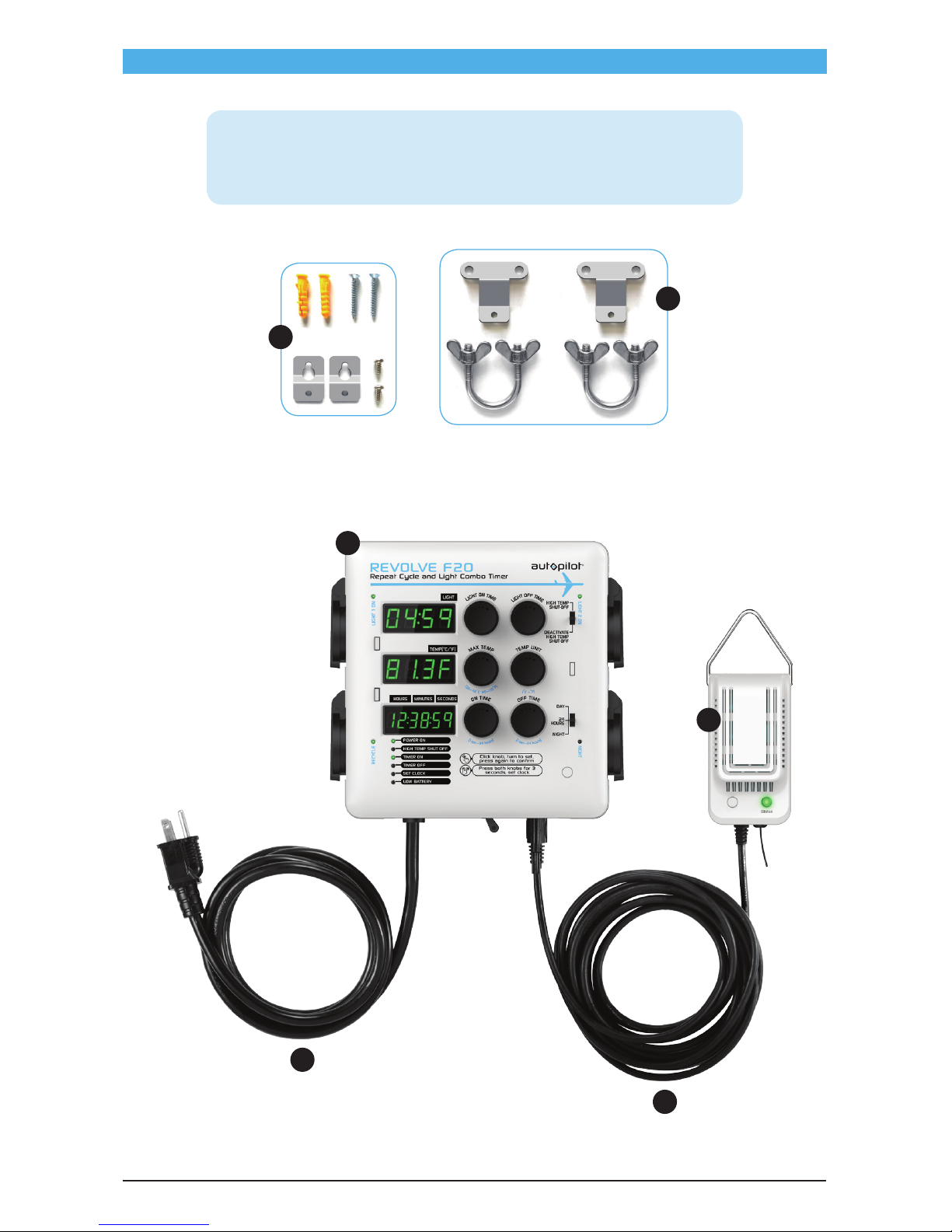

PARTS LIST  WHAT’S IN THE BOX 5

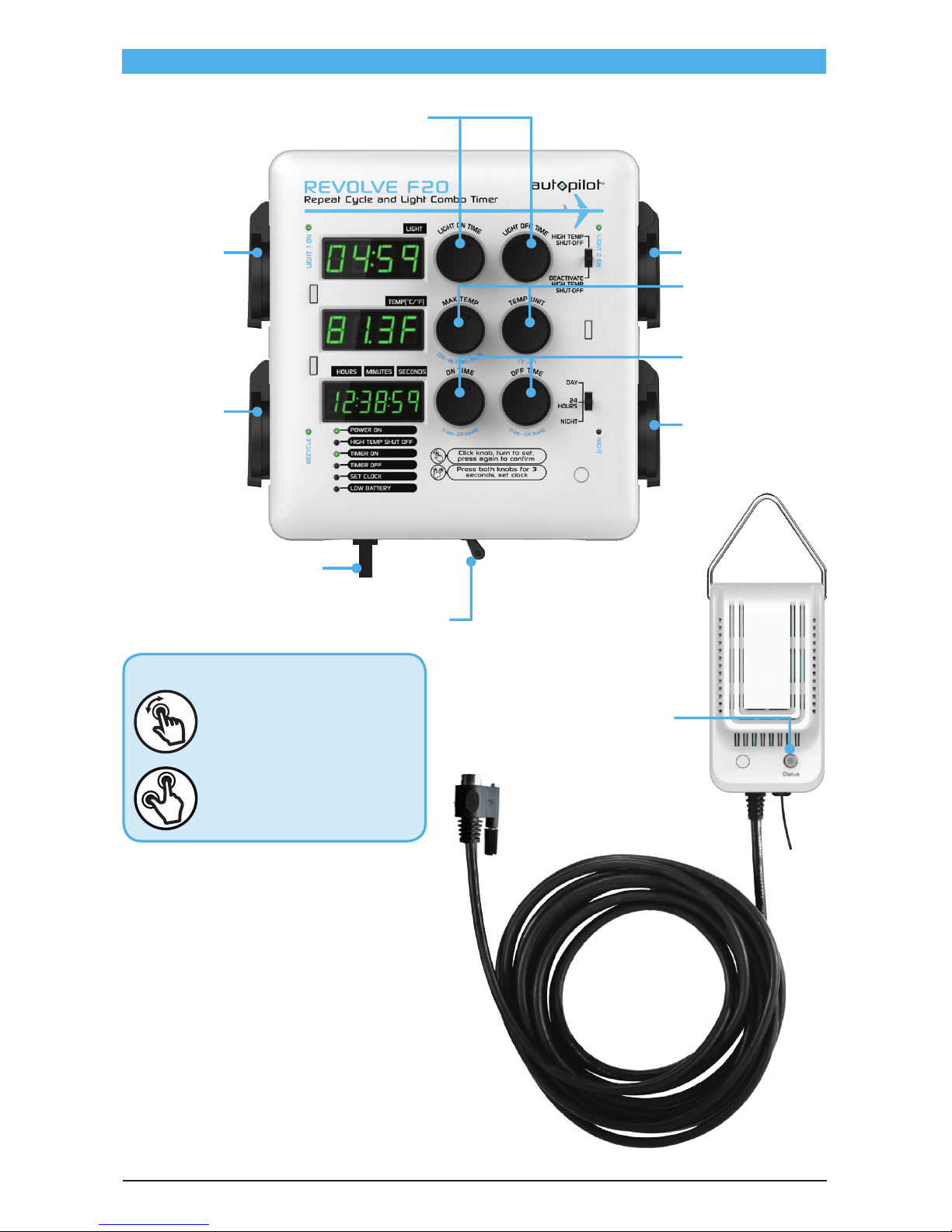

LED DISPLAY & CONTROL SURFACE 6

OPERATING INSTRUCTIONS 7

LIGHT ON/OFF SETTING 7

RECYCLE TIMER SETTING 7

MAXIMUM TEMPERATURE SETTING 7

RECYCLE OUTPUT 7

NIGHT OUTPUT 7

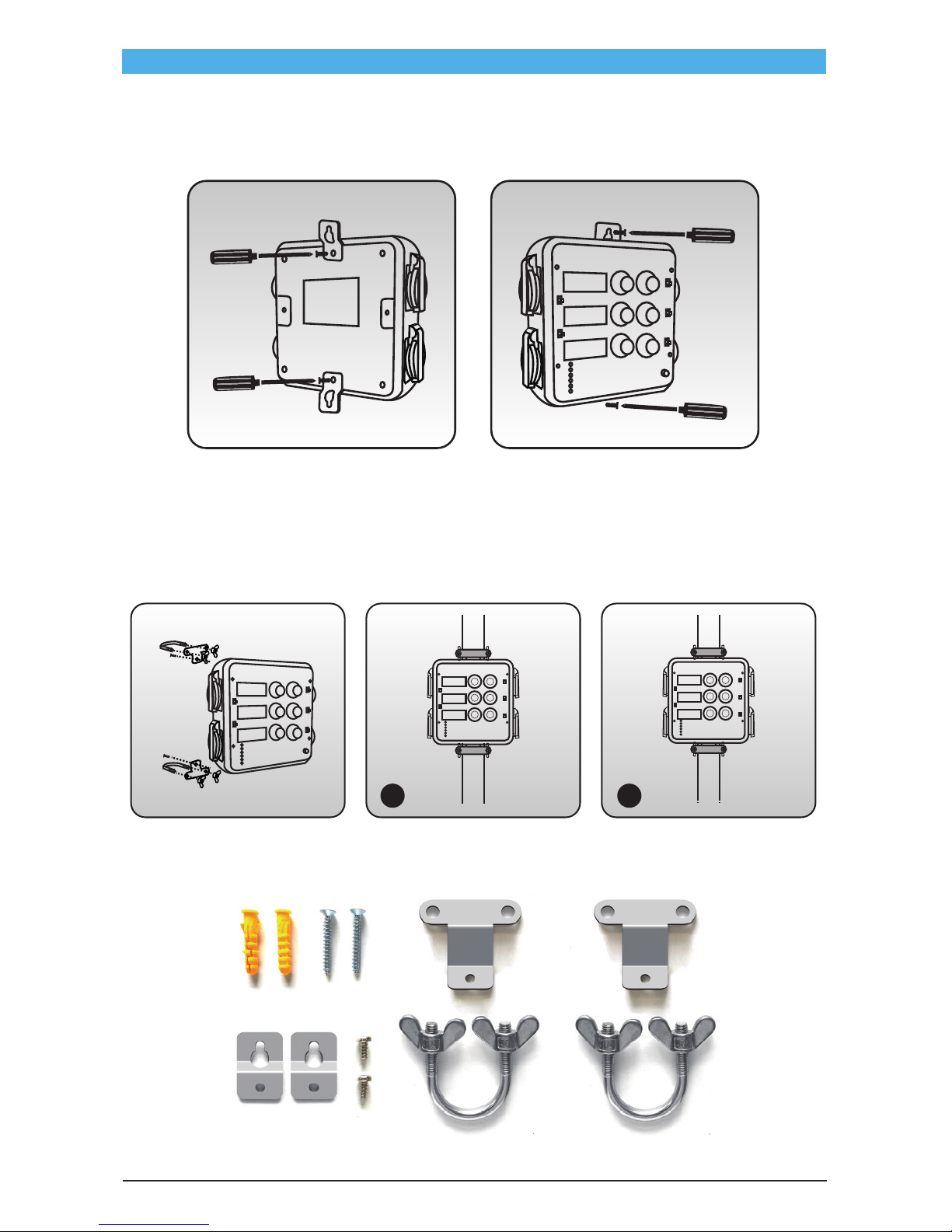

MOUNTING INSTRUCTIONS 8

SECURE UNIT TO A WALL 8

SECURE UNIT TO A GROW TENT 8

GENERAL WARNINGS 9

SPECIFICATIONS 10

WARRANTY 12

3

OVERVIEW

Thank you for purchasing the Autopilot REVOLVE F20 (APE2200) Repeat Cycle and Light Combo
Timer. It controls lighting schedules and timed cycling functions in your grow area day and night
with highly-reliable digital accuracy. The REVOLVE F20 has simultaneous dual timer functions, a 24­hour time clock for lighting, and a precise cycle timer for pumps, CO2 injection, exhaust fans, intake
fans, etc. that allows you to dial in programming down to the second.

REVOLVE F20 has four outlets. One outlet is equipped with a cycle timer designed to control a pump
or any other cycling device; two outlets control daytime devices such as lights and light movers;
and one outlet controls a nighttime device such as a heater, dehumidifier, or exhaust fan. These
outlets feature heavy protective covers that prevent atmospheric moisture from entering the device
through any unused outlets.

The controller also features a high temperature shutdown function that detects unsafe high
temperatures in the grow room and turns off the HID lights in the event of a ventilation failure.
Additionally, the REVOLVE F20 has hot-start prevention to ensure proper cool down of lights before
the device attempts to re-fire your valuable lamps. It also comes equipped with rubber feet on the
back of the unit for added protection when mounted and optional U-brackets for tent mounting.

NOTE: After turning on the power to the unit, it can take up to 5 minutes for the sensor to calibrate.

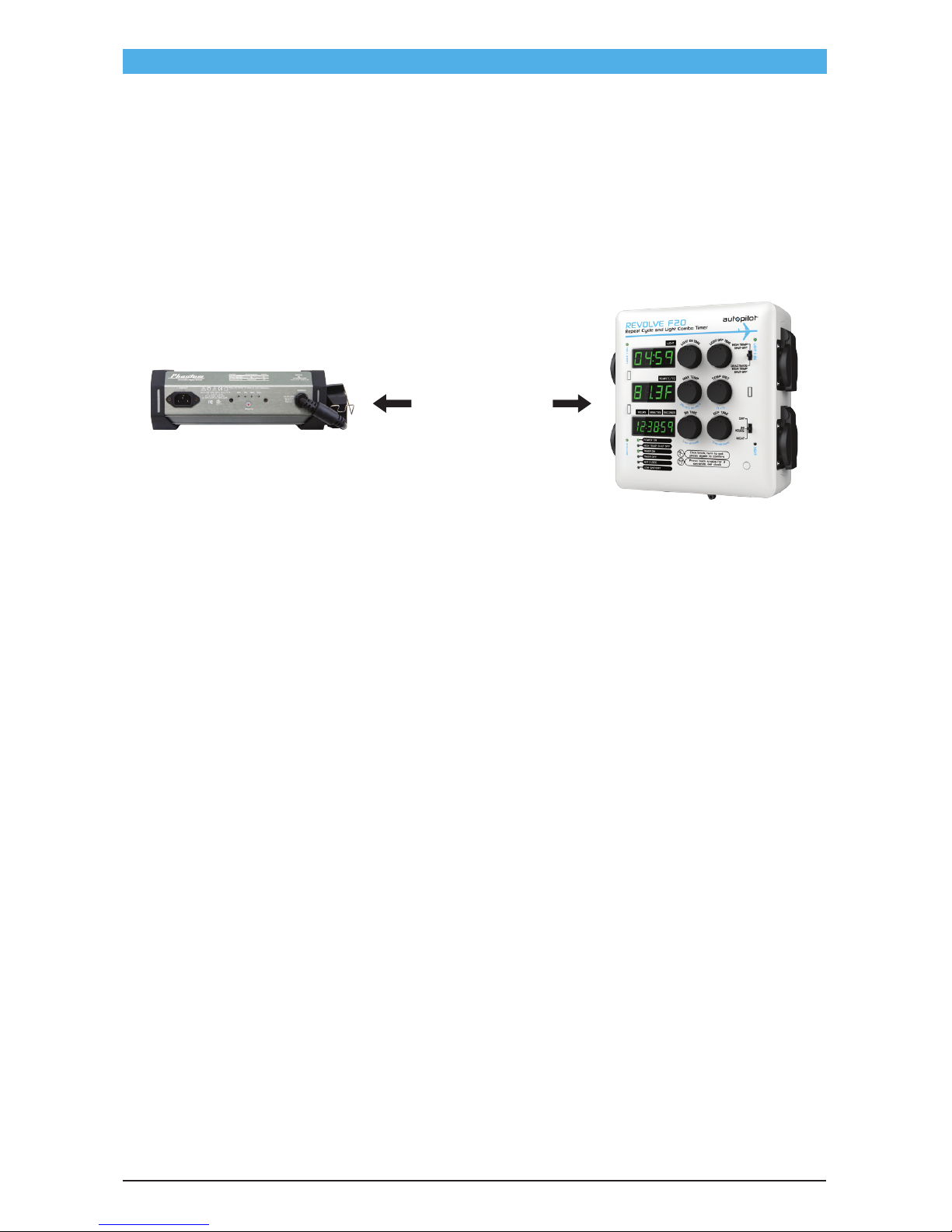

NOTE: This controller has a 14.5A maximum load. For higher amperage devices such as A/C units, it is

recommended to use a power expander.

TOOLS NEEDED (FOR OPTIONAL MOUNTING)

Phillips

Screwdriver

8' (2.5 m)

minimum

4
