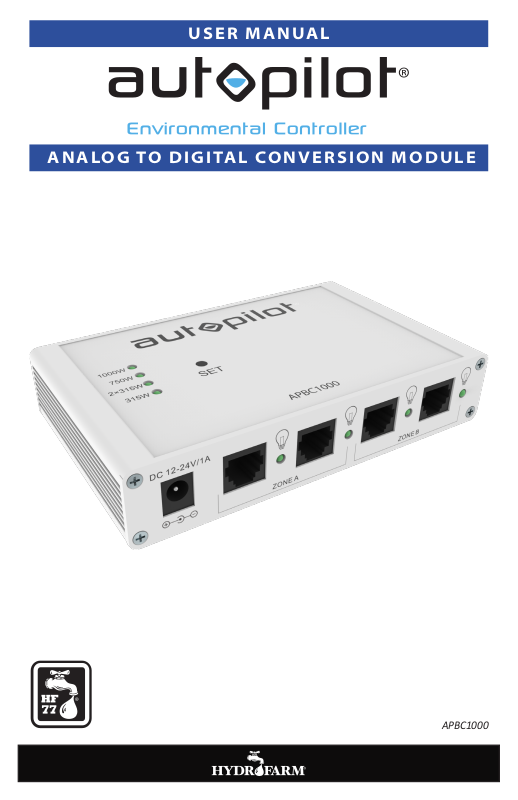

Page 1
USER MANUAL
ANALOG TO DIGITAL CONVERSION MODULE
APBC1000
Page 2
APBC1000 - USER MANUAL
OVERVIEW
Autopilot has designed an intermediary box that will take the analog 0-10V signal input from
commercial environmental controllers and will convert into the digital RS-485 Phantom brand lighng
signal. The APBC1000 signal converter allows Phantom brand lighng products to adjust the light
intensity based on what readings the quantum sensor is communicang back to the commercial
environmental controller (greenhouse producon facility). Alternately, if the grow is relying solely on
arcial lighng, the signal converter can operate without the quantum sensor, allowing the grower to
manually control lighng intensity (indoor producon facility).
PACKAGE CONTENTS
1 – Autopilot converter module
4 – 15’ RJ-RJ cable
1 – 120-240v power adaptor
4 – RJ splier
2 – 0-10v terminal connector
POWER ADAPTER SPECIFICATIONS
Main Voltage: 120-240V
Operang Voltage Range: 110-265V
Max Input Power: 2 was
Input Power Frequency: 50/60Hz
COMPATIBLE PHANTOM BALLAST PRODUCTS
* Applicable to Phantom models with USB data interface only.
1000W (40 and 50 series) DE HPS
750W (50 series) DE HPS
315W Dual CMH
315W CMH
2
Page 3
OPERATING INSTRUCTIONS
Includes two 0-10v (-/+) terminal block connectors.
Each 0-10v (-/+) input will control two digital RS-485 outputs.
Signal
Voltage
Phantom
1000W
Phantom
750W
315W
Dual
<6V ≥6V ≥7V ≥8V ≥9V ≥10V
Standby
Standby
Standby
315W Standby
60%
(600W)
53%
(400W)
60%
(378W)
60%
(189W)
75%
(750W)
66%
(500W)
3
80%
(825W)
80%
(600W)
80%
(536W)
85%
(268W)
100%
(1000W)
100%
(750W)
100%
(630W)
100%
(315W)
115%
(1150W)
115%
(825W)
105%
(660W)
105%
(330W)
Page 4
WARRANTY
LIMITED WARRANTY
Hydrofarm warrants the APBC1000 to be free from defects in materials and workmanship. The
warranty term is for 1 year beginning on the date of purchase. Misuse, abuse, or failure to follow
instrucons is not covered under this warranty. Hydrofarm’s warranty liability extends only to the
replacement cost of the product. Hydrofarm will not be liable for any consequenal, indirect, or
incidental damages of any kind, including lost revenues, lost prots, or other losses in connecon
with the product. Some states do not allow limitaon on how long an implied warranty lasts or the
exclusion of incidental or consequenal damages, so the above limitaons or exclusions may not apply
to you. Hydrofarm will, at our discreon, repair or replace the APBC1000 covered under this warranty
if it is returned to the original place of purchase. To request warranty service, please return the
APBC1000, with original sales receipt and original packaging, to your place of purchase. The purchase
date is based on your original sales receipt.
precise climate control
precise climate control
Get Connected with the Hydrofarm Community:
Like us on Facebook, follow us on Twier,
and check out Hydrofarmtv on YouTube and Instagram!
APBC1000 Instrucons -October 10, 2018 11:04 AM
