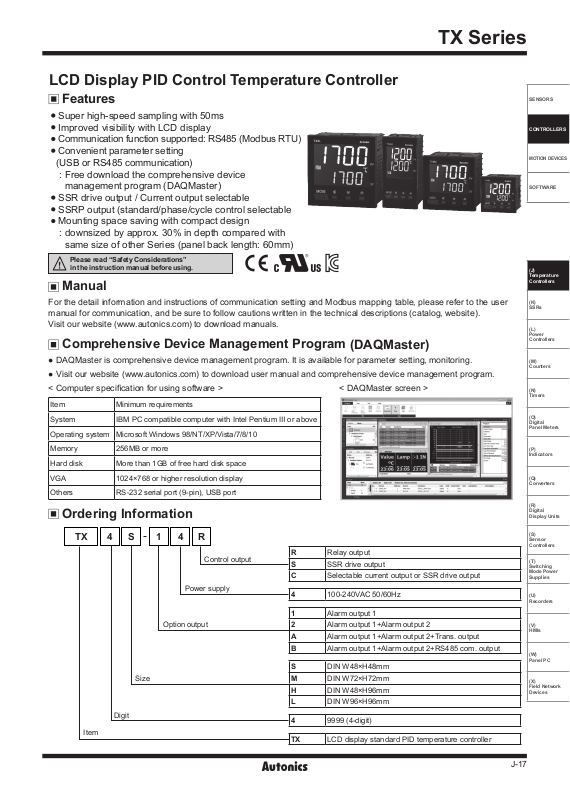

Autonics TX Series Catalog Page

TX Series

LCD Display PID Control Temperature Controller

Features

Super high-speed sampling with 50ms
Improved visibility with LCD display
Communication function supported: RS485 (Modbus RTU)
Convenient parameter setting

(USB or RS485 communication)

: Free download the comprehensive device

management program (DAQMaster)
SSR drive output / Current output selectable
SSRP output (standard/phase/cycle control selectable
Mounting space saving with compact design

: downsized by approx. 30% in depth compared with

same size of other Series (panel back length: 60mm)

Please read “Safety Considerations”
in the instruction manual before using.

Manual

For the detail information and instructions of communication setting and Modbus mapping table, please refer to the user
manual for communication, and be sure to follow cautions written in the technical descriptions (catalog, website).
Visit our website (www.autonics.com) to download manuals.

Comprehensive Device Management Program

● DAQMaster is comprehensive device management program. It is available for parameter setting, monitoring.

● Visit our website (www.autonics.com) to download user manual and comprehensive device management program.

Item Minimum requirements

System IBM PC compatible computer with Intel Pentium Ⅲ or above

Operating system Microsoft Windows 98/NT/XP/Vista/7/8/10

Memory 256MB or more

Hard disk More than 1GB of free hard disk space

VGA 1024×768 or higher resolution display

Others RS-232 serial port (9-pin), USB port

Ordering Information

TX 4 S 1 4 R

Size

Digit

Item

Power supply

Option output

Control output

R

S

C

4

1

2

A

B

S

M

H

L

4

TX

(DAQMaster)

< DAQMaster screen >< Computer specication for using software >

Relay output

SSR drive output

Selectable current output or SSR drive output

100-240VAC 50/60Hz

Alarm output 1

Alarm output 1+Alarm output 2

Alarm output 1+Alarm output 2+Trans. output

Alarm output 1+Alarm output 2+RS485 com. output

DIN W48×H48mm

DIN W72×H72mm

DIN W48×H96mm

DIN W96×H96mm

9999 (4-digit)

LCD display standard PID temperature controller

SENSORS

CONTROLLERS

MOTION DEVICES

SOFTWARE

(J)
Temperature
Controllers

(K)
SSRs

(L)
Power
Controllers

(M)
Counters

(N)
Timers

(O)
Digital
Panel Meters

(P)
Indicators

(Q)
Converters

(R)
Digital
Display Units

(S)
Sensor
Controllers

(T)
Switching
Mode Power
Supplies

(U)
Recorders

(V)
HMIs

(W)
Panel PC

(X)
Field Network
Devices

J-17

TX Series

Specifications

Series

Power supply 100-240VACᜠ 50/60Hz

Allowable voltage range 90 to 110% of rated voltage

Power consumption Max. 8VA

Display method 11-segment (PV: white, SV: green), other display (yellow) with LCD method

Character
size

Input type

Display
accuracy

Control
output

Option output

Control method ON/OFF control, P, PI, PD, PID control

Hysteresis 1 to 100℃/℉ (0.1 to 50.0℃/℉) variable

Proportional band(P) 0.1 to 999.9℃/

Integral time(I) 0 to 9999 sec

Derivative time(D) 0 to 9999 sec

Control period(T) 0.5 to 120.0 sec

Manual reset 0.0 to 100.0%

Sampling period 50ms

Dielectric strength 3,000VAC 50/60Hz for 1 min (between all terminals and case)

Vibration 0.75mm amplitude at frequency 5 to 55Hz (for 1 min) in each X, Y, Z direction for 2 hours

Relay
life cycle

Insulation resistance Over 100MΩ (at 500VDC megger)

Noise immunity Square shaped noise by noise simulator (pulse width 1㎲) ±2kV R-phase, S-phase

Memory retention Approx. 10 years (non-volatile semiconductor memory type)

Environ­ment

Protection structure IP50 (front panel, IEC standards)

Insulation type

Approval

Weight

※

1: When using the unit at low temperature (below 0

Control output operates normally.

※

2: At room temperature(23℃±5℃)

TC R(PR), S(PR) , below 200℃: (PV ±0.5% or ±3℃, select the higher one) ±1-digit

TC L(IC), RTD Cu50Ω: (PV ±0.5% or ±2℃, select the higher one) ±1-digit
Out of room temperature range
TC R(PR), S(PR): (PV ±1.0% or ±5℃, select the higher one) ±1-digit
TC L(IC), RTD Cu50Ω: (PV ±0.5% or ±3℃, select the higher one) ±1-digit

※

3: The weight includes packaging. The weight in parenthesis is for unit only.

※

Environment resistance is rated at no freezing or condensation.

PV(W×H) 7.2×14mm 10.7×17.3mm 7.2×15.8mm 16×26.8mm

SV(W×H) 3.9×7.6mm 6.8×11mm 6.2×13.7mm 10.7×17.8mm

RTD DPt100Ω, Cu50Ω (permissible line resistance max. 5Ω)

TC K(CA), J(IC), L(IC), T(CC), R(PR), S(PR)

RTD

※

2

TC

Relay 250VACᜠ 3A, 30VDCᜡ 3A, 1a

SSR Max. 12VDCᜡ ±2V 20mA Max. 13VDCᜡ ± 3V 20mA

Current DC4-20mA or DC0-20mA (load resistance max. 500Ω)

Alarm output AL1, AL2 Relay: 250VACᜠ 3A 1a

Trans. output DC4-20mA (load resistance max. 500Ω, output accuracy: ±0.3%F.S.)

Com. output RS485 Communication output (Modbus RTU method)

Mechanical OUT, AL1/2: min. 5,000,000 operations

Electrical OUT, AL1/2: min. 200,000 (250VAC 3A resistance load)

Ambient temp. -10 to 50℃, storage: -20 to 60

Ambient humi. 35 to 85%RH, storage: 35 to 85%RH

※

3

TX4S TX4M TX4H TX4L

●At room temperature (23℃±5℃): (PV ±0.3% or ±1℃, select the higher one) ±1-digit

Out of room temperature: (PV ±0.5% or ±2℃, select the higher one) ±1-digit

●

℉

℃

Double insulation or reinforced insulation
(mark: , dielectric strength between primary circuit and secondary circuit: 3kV)

Approx. 146.1g
(approx. 86.7g)

, over 200℃: (PV ±0.5% or ±2℃, select the higher one) ±1-digit

Approx. 233g
(approx. 143g)

℃), display cycle is slow.

Approx. 214g
(approx. 133g)

※

1

Approx. 290g
(approx. 206g)

J-18

Dimensions

TX4S

□48 6 45

LCD Display PID Control

(unit: mm)

TX4M

51

72

44.8

51

6

45

67.5

SENSORS

CONTROLLERS

MOTION DEVICES

SOFTWARE

TX4H

48 456

Bracket

TX4S Series

ᆞ

44.9

48.6
45

55

56

51

96

30.5

20

5

91.5

TX4M/H/L Series

ᆞ

96

TX4L

51

45

6

4 3.5

36

16

46

8.5

15

21

33

11.9

23.9

91.5

(J)
Temperature
Controllers

(K)
SSRs

(L)
Power
Controllers

(M)
Counters

(N)
Timers

(O)
Digital
Panel Meters

(P)
Indicators

(Q)
Converters

(R)
Digital
Display Units

(S)
Sensor
Controllers

(T)
Switching
Mode Power
Supplies

(U)
Recorders

(V)
HMIs

Panel cut-out

A

D

(W)
Panel PC

(unit: mm)

Size

Model
TX4S Min. 65 Min. 65 45

B

TX4M Min. 90 Min. 90 68
TX4H Min. 115 Min. 65 45

C

TX4L Min. 115 Min. 115 92

A B C D

+ 0.6

0

+ 0.7

0

+ 0.6

0

+ 0.8

0

+ 0.6

45

0

+ 0.7

68

0

+ 0.8

92

0

+ 0.8

92

0

(X)
Field Network
Devices

J-19

TX Series

Terminal cover (sold separately)

RSA-COVER(48×48mm)

ᆞ

3 48.4 13

18

RHA-COVER(48×96mm)

ᆞ

3.8 47.2

91.5

91.5

(unit: mm)

64

10

86

RMA-COVER(72×72mm)

ᆞ

22

45

41

22

ᆞ

9

86

4 1070

68.5

13

RLA-COVER(96×96mm)

3.8 94

13

Product Mounting

TX4S(48×48mm) series

(-) driver

※

Mount the unit on the panel. Push the bracket with tools to fix the unit as the figure.

Other series

J-20

13

Connections

※

Shaded terminals are standard model.

※

Use teminals of size specied below.

LCD Display PID Control

SENSORS

a

a

<Round>

<Forked>

a Min. 3.0mm Min. 3.0mm
b Max. 5.8mm Max. 5.8mm

TX4S series

OUT
SSR

12VDC±2V 20mA Max.

Current
DC0/4-20mA

Load 500ΩMax.

Relay
250VAC 3A 1a
30VDC 3A 1a
RESISTIVE LOAD

+

-

SOURCE
100-240VAC
50/60Hz 8VA

1

2

3

+

mA

-

4

5

6

+

mA

-

Communication Output
Transfer Output
DC4-20mA

TX4M series

1 1019

2 1120

3 1221

OUT
Current
DC4-20mA
Load

500ΩMax.

+

mA

-

OUT
SSR
13VDC±3V

20mA Max.

+

-

OUT

4 1322

Relay
250VAC 3A 1a
30VDC 3A 1a

5 1423

RESISTIVE LOAD

6 1524

7 1625

8 1726

SOURCE
100-240VAC
50/60Hz 8VA

9 1827

TX4H, L series

1 13

2 14

3 15

4 16

5 17

6 18

OUT
Current
DC4-20mA
Load

500ΩMax.

+

mA

-

SOURCE
100-240VAC
50/60Hz 8VA

OUT
SSR
13VDC±3V

20mA Max.

+

-

OUT

7

Relay
250VAC 3A 1a
30VDC 3A 1a

8

RESISTIVE LOAD

9 21

10

11

12 24

a

a

RS485(A+)

RS485(B-)

19

20

22

23

13

14

15

16

17

18

Communication Output
Transfer Output
DC4-20mA

RS485(A+)

RS485(B-)

A

B

B'

SENSOR

Communication Output
Transfer Output
DC4-20mA

RS485(A+)

RS485(B-)

AL1 OUT:
250VAC 3A 1a
RESISTIVE LOAD
AL2 OUT:
250VAC 3A 1a
RESISTIVE LOAD

A

B

+

B'

-

TCRTD

SENSOR

AL1 OUT:

7

250VAC 3A 1a
RESISTIVE LOAD

8

AL2 OUT:
250VAC 3A 1a
RESISTIVE LOAD

9

A

10

B

11

B'

12

SENSOR

AL1 OUT:
250VAC 3A 1a
RESISTIVE LOAD
AL2 OUT:
250VAC 3A 1a
RESISTIVE LOAD

+

-

TCRTD

+

mA

-

CONTROLLERS

MOTION DEVICES

SOFTWARE

(J)
Temperature
Controllers

+

-

TCRTD

+

mA

-

(K)
SSRs

(L)
Power
Controllers

(M)
Counters

(N)
Timers

(O)
Digital
Panel Meters

(P)
Indicators

(Q)
Converters

(R)
Digital
Display Units

(S)
Sensor
Controllers

(T)
Switching
Mode Power
Supplies

(U)
Recorders

(V)
HMIs

(W)
Panel PC

(X)
Field Network
Devices

J-21
