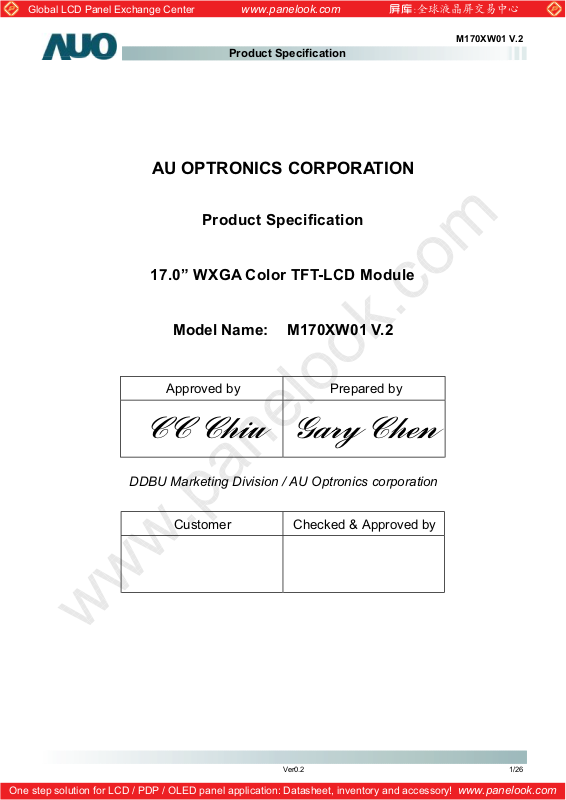

Page 1
Global LCD Panel Exchange Center
www.panelook.com
M170XW01 V.2
Product Specification
AU OPTRONICS CORPORATION
Product Specification
17.0” WXGA Color TFT-LCD Module
Model Name: M170XW01 V.2
Approved by Prepared by
CC Chiu
Gary Chen
DDBU Marketing Division / AU Optronics corporation
Customer Checked & Approved by
Ver0.2 1/26
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 2
Global LCD Panel Exchange Center
www.panelook.com
M170XW01 V.2
Product Specification
Product Specification
17.0” WXGA Color TFT-LCD Module
Model Name: M170XW01
V.2
() Preliminary Specifications
( ) Final Specifications
Note: This Specification is subject to change without notice.
Ver0.2 4/26
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 3
Global LCD Panel Exchange Center
www.panelook.com
M170XW01 V.2
Product Specification
Contents
1.0 Handling Precautions .............................................................6
2.0 General Description ...............................................................7
2.1 Display Characteristics............................................................................................................... 7
2.2 Optical Characteristics ...............................................................................................................8

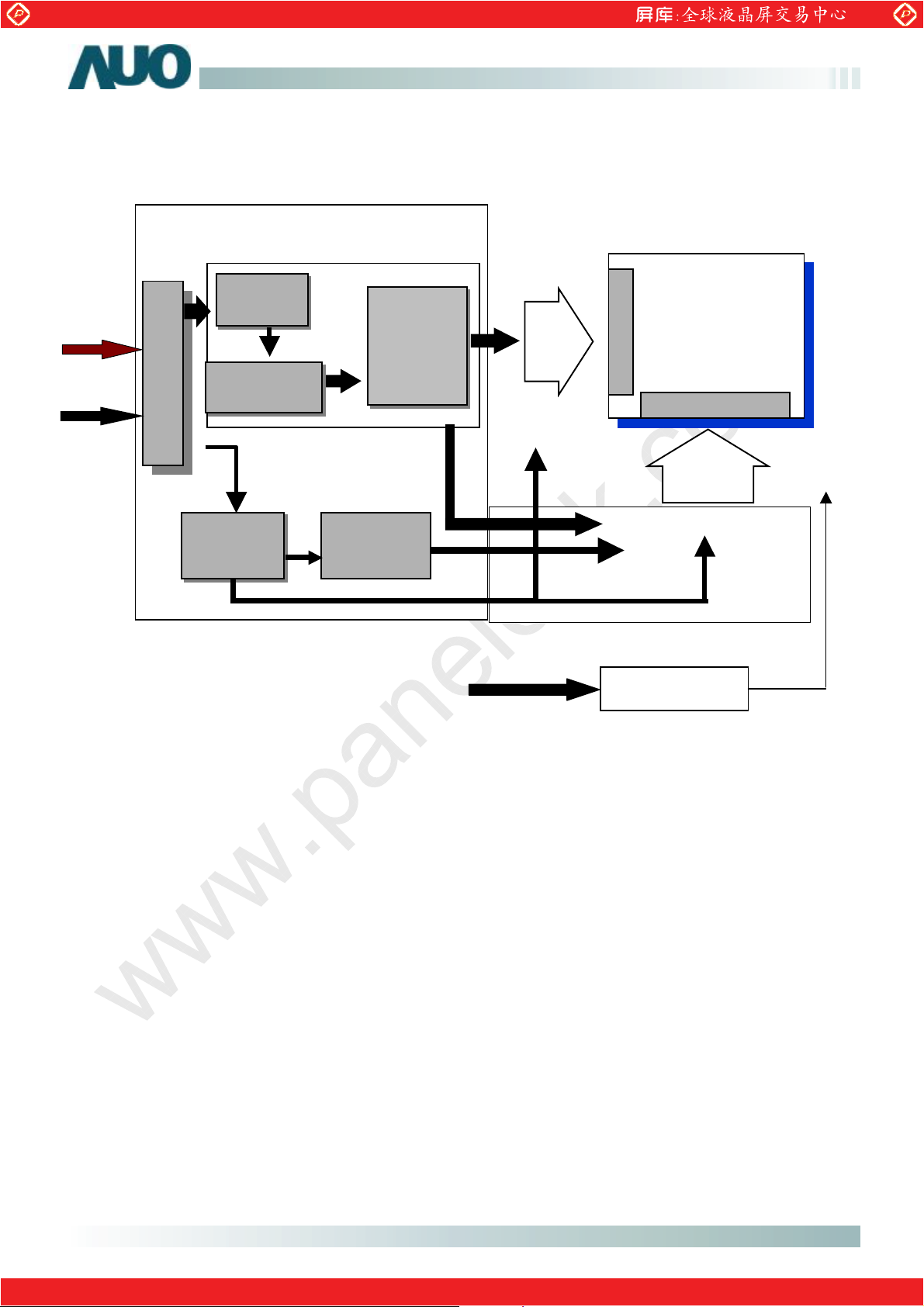

3.0 Functional Block Diagram.....................................................11
4.0 Absolute Maximum Ratings ..................................................12
5.0 Electrical characteristics ......................................................13
5.1 TFT LCD Module....................................................................................................................... 13
5.1.1 Power Specification............................................................................................... 13
5.1.2 Signal Electrical Characteristics.............................................................................. 14
5.2 Backlight Unit ............................................................................................................................15
6.0 Signal Characteristic ............................................................16

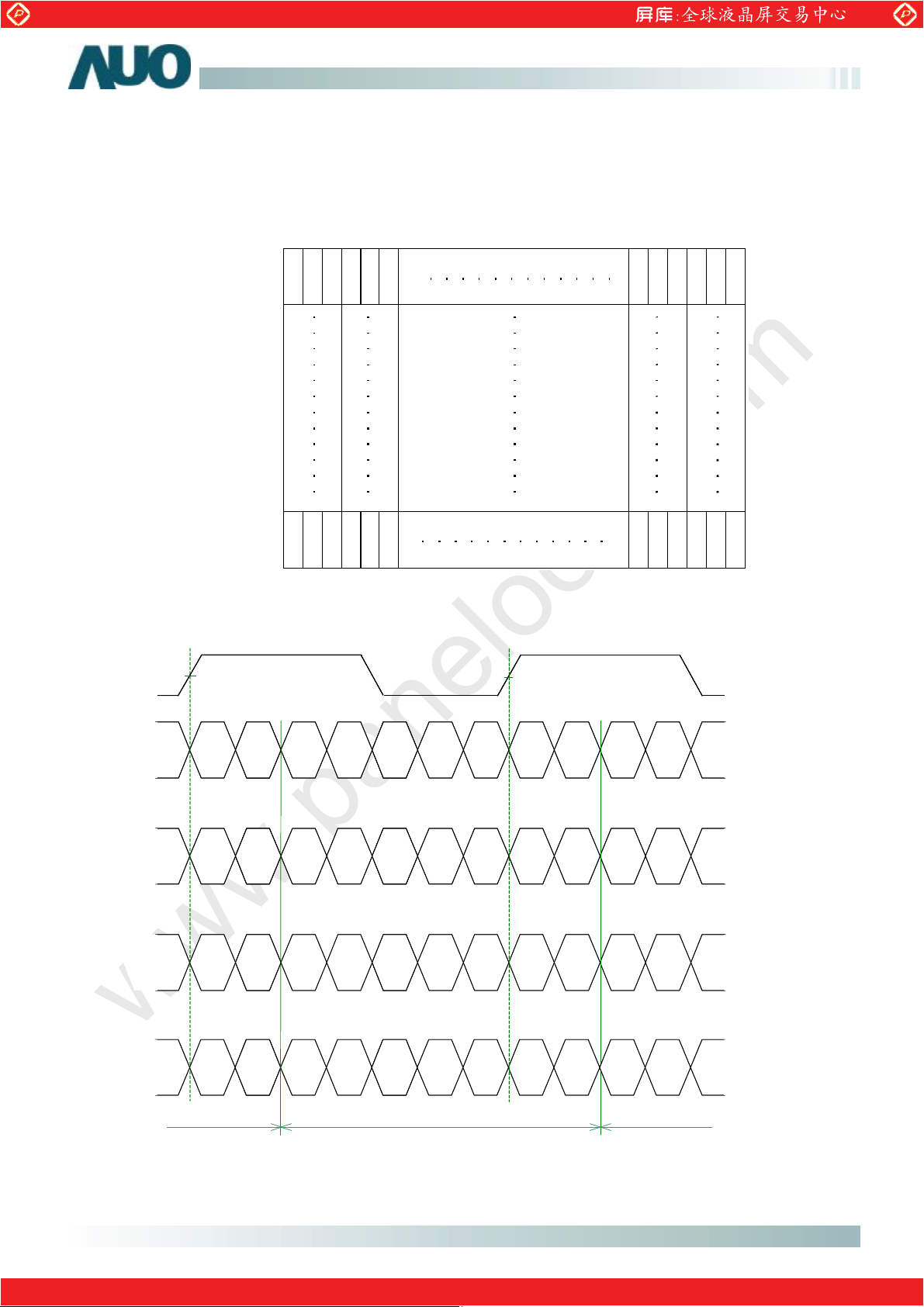

6.1 Pixel Format Image...................................................................................................................16
6.2 The input data format ...............................................................................................................16
6.3 Signal Description..................................................................................................................... 17
6.4 Interface Timings....................................................................................................................... 18
6.4.1 Timing Characteristics........................................................................................... 18

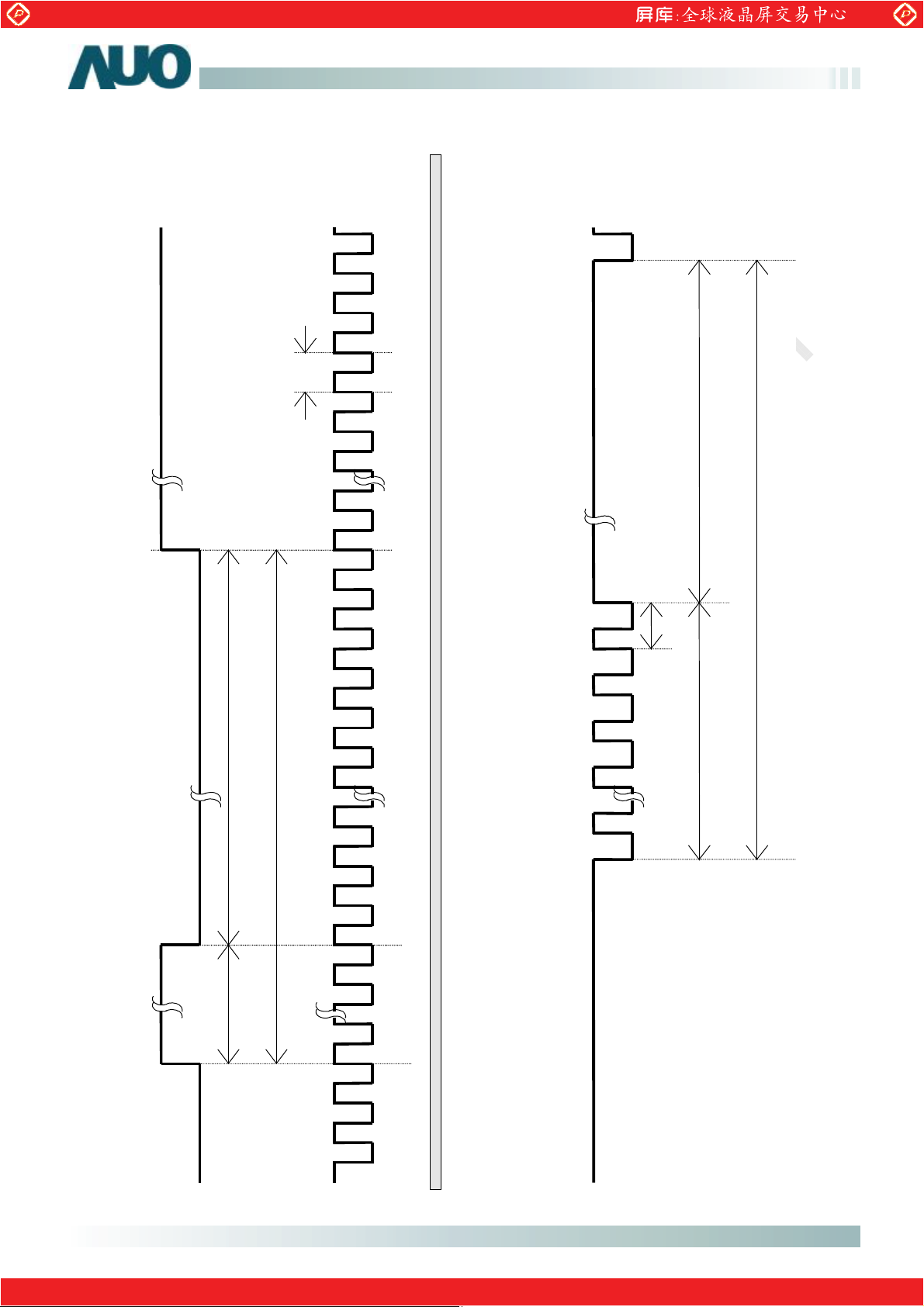

6.4.2 Timing diagram .................................................................................................... 19

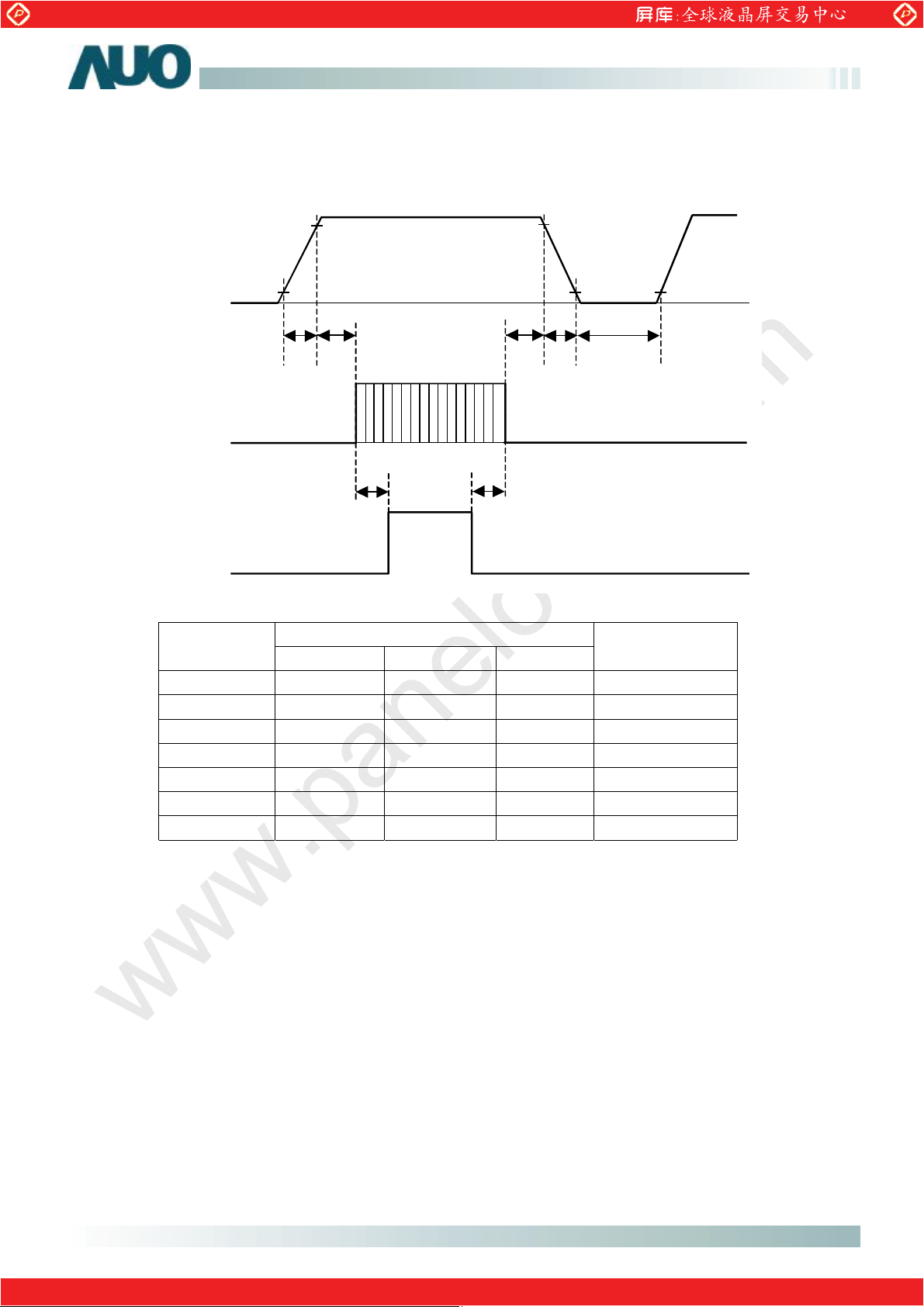

6.5 Power ON/OFF Sequence ....................................................................................................... 20
7.0 Connector & Pin Assignment ................................................21
7.1 TFT LCD Module....................................................................................................................... 21
7.2 Backlight Unit ............................................................................................................................21
8.0 Vibration, Shock, and Drop...................................................22
8.1 Vibration & Shock .....................................................................................................................22
8.2 Drop test ....................................................................................................................................22
9.0 Environment ........................................................................22
9.1 Temperature and Humidity ....................................................................................................... 22
9.1.1 Operating Conditions ............................................................................................ 22
9.1.2 Shipping Conditions.............................................................................................. 22
9.2 Atmospheric Pressure .............................................................................................................. 23
9.3Thermal Shock ...........................................................................................................................23
10.0 Reliability...........................................................................23
10.1 Failure Criteria ........................................................................................................................23
10.2 Failure Rate ............................................................................................................................. 23
10.2.1 Usage................................................................................................................ 23
Ver0.2 5/26
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 4
Global LCD Panel Exchange Center
www.panelook.com
M170XW01 V.2
Product Specification
11.0 Safety ................................................................................23
11.1 Sharp Edge Requirements..................................................................................................... 23
11.2 Materials .................................................................................................................................. 24
11.2.1 Toxicity ............................................................................................................. 24
11.2.2 Flammability ...................................................................................................... 24
11.3 Capacitors................................................................................................................................ 24
12.0 Other requirement .............................................................24
12.1 National Test Lab Requirement ............................................................................................. 24
12.2 Label ........................................................................................................................................24
13.0 Mechanical Characteristics .................................................25
Ver0.2 6/26
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 5
Global LCD Panel Exchange Center
www.panelook.com
M170XW01 V.2
Product Specification
Record of Revision
Version and Date Page Old description New Description Remark
0.1 2004/03/26 All First Edition for Customer All
0.2 2004/05/24 13 IDD (Typ= TBD, Max= TBD) IDD (Typ= 950, Max= 1200 mA) Update
13 Irush= (Max= TBD) Irush= (Max= 3.0 A) Update
13 PDD (Typ= TBD, Max= TBD) PDD (Typ= 4.75, Max= 6.6 W) Update
Data CLK(Min= 35, Max= 83MHz)
18
20
H-Period (Min= 1320 Tclk)
V-Period (Max= 823 Th)
Frame Rate (Max= 80Hz)
Power ON/OFF Sequence
T1 (Min= NA) ; T6 (Min= NA)
Data CLK(Min= 45, Max= 81MHz)
H-Period (Min= 1330 Tclk)
V-Period (Max= 860 Th)
Frame Rate (Max= 75Hz)
Power ON/OFF Sequence
T1 (Min= 0.5 ms) ; T6 (Min= 0.5
ms)
Update
Update
Ver0.2 7/26
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 6
Global LCD Panel Exchange Center
www.panelook.com
M170XW01 V.2
Product Specification
1.0 Handling Precautions
1) Since front polarizer is easily damaged, pay attention not to scratch it.
2) Be sure to turn off power supply when inserting or disconnecting from input connector.
3) Wipe off water drop immediately. Long contact with water may cause discoloration or spots.
4) When the panel surface is soiled, wipe it with absorbent cotton or other soft cloth.
5) Since the panel is made of glass, it may break or crack if dropped or bumped on hard surface.
6) Since CMOS LSI is used in this module, take care of static electricity and insure human earth when
handling.
7) Do not open nor modify the Module Assembly.
8) Do not press the reflector sheet at the back of the module to any directions.
9) In case if a module has to be put back into the packing container slot after once it was taken out from
the container, do not press the center of the CCFL reflector edge. Instead, press at the far ends of the
CCFL reflector edge softly. Otherwise the TFT module may be damaged.
10) At the insertion or removal of the Signal Interface Connector, be sure not to rotate nor tilt the Interface
Connector of the TFT module.
11) After installation of the TFT module into an enclosure (Desktop monitor Bezel, for example), do not
twist nor bend the TFT Module even momentary. At designing the enclosure, it should be taken into
consideration that no bending/twisting forces are applied to the TFT module from outside. Otherwise
the TFT module may be damaged.
Ver0.2 6/26
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 7
Global LCD Panel Exchange Center
www.panelook.com
M170XW01 V.2
Product Specification
2.0 General Description
This specification applies to the 17.0 inch Color TFT/LCD Module M170XW01 V.2. This module is designed for a
display unit of personal computer. The display supports the WXGA (1280(H) x 768(V)) screen format and 16.2M
colors (RGB 6-bits + FRC data). All input signals are 1 Channel LVDS interface compatible. This module does
not contain an inverter card for backlight.
2.1 Display Characteristics
The following items are characteristics summary on the table under 25 condition:
ITEMS Unit SPECIFICATIONS
Screen Diagonal [mm] 432(17.0" Wide)
Active Area [mm] 370.56 (H) x 222.34(V)
Pixels H x V 1280(x3) x 768
Pixel Pitch [mm] 0.2895 (per one triad) x 0.2895
Pixel Arrangement R.G.B. Vertical Stripe
Display Mode Normally Black
White Luminance [cd/m2] 450 (Typ, Center @ Lamp= 11.0mA)
Contrast Ratio 800 : 1
Optical Response Time
(Gray to Gray)
Color Saturation 72% NTSC
Nominal Input Voltage VDD [Volt] +5.0 V
Power Consumption
(VDD line + CCFL line)
Weight [Grams] 2000 (Typ)
Physical Size [mm]
Electrical Interface 1 Channel LVDS
Support Color 16.2M colors (RGB 6-bit + FRC data)
Temperature Range
Operating
Storage (Shipping)
[msec] 16 (Typ)
[Watt] TBD W(Typ)
(PDD=TBD W, PCFL=TBD W @Lamp=11.0mA)
Min. Typ. Max.
Horizatal(H) 403.5 404.0 404.5
Vertical(V) 248.0 248.5 249.0
Depth(D) 16.8 17.3 17.8
o
[
C]
o
C]
[
0 to +50
-20 to +60
Ver0.2 7/26
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 8
Global LCD Panel Exchange Center
www.panelook.com
M170XW01 V.2
Product Specification
2.2 Optical Characteristics
The optical characteristics are measured under stable conditions at 25:
Item Unit Conditions Min. Typ. Max. Note
Horizontal (Right)
Viewing Angle [degree]
CR = 10 (Left)
Vertical (Up)
CR = 10 (Down)
Contrast ratio Normal Direction 600 800 -
Rasing Time - 15 25
Response Time
[msec]
Falling Time - 10 15
Raising + Falling - 25 40
Gray to Gray - 16 -
Red x 0.61 0.64 0.67
Red y 0.31 0.34 0.37
Color / Chromaticity
Coordinates (CIE)
Green x 0.26 0.29 0.32
Green y 0.58 0.61 0.64
Blue x 0.11 0.14 0.17
Blue y 0.04 0.07 0.10
White x 0.28 0.31 0.34 Color Coordinates (CIE)
White
White Luminance @ CCFL
11.0mA (Center)
White y 0.30 0.33 0.36
2
] 400 450 -
[cd/m
Luminance Uniformity [%] 75 80 Note 2
Crosstalk (in 75Hz) [%] - - 1.5 Note 3
Flicker dB - - -20 Note 4
75
75
75
75
85
85
85
85
-
-
-
-
Note 1
Equipment: Pattern Generator, Power Supply, Digital Voltmeter, Luminance meter
(PR 880, BM-5A / BM7)
Aperture 1with 100cm VD or 2with 50cm viewing distance
Test Point Center (VESA point 9)
Environment < 1 lux
LCD Module
PR-880 /
BM5A /
BM7
measuring distance
Module Drivi ng Equipment
Ver0.2 8/26
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 9
Global LCD Panel Exchange Center

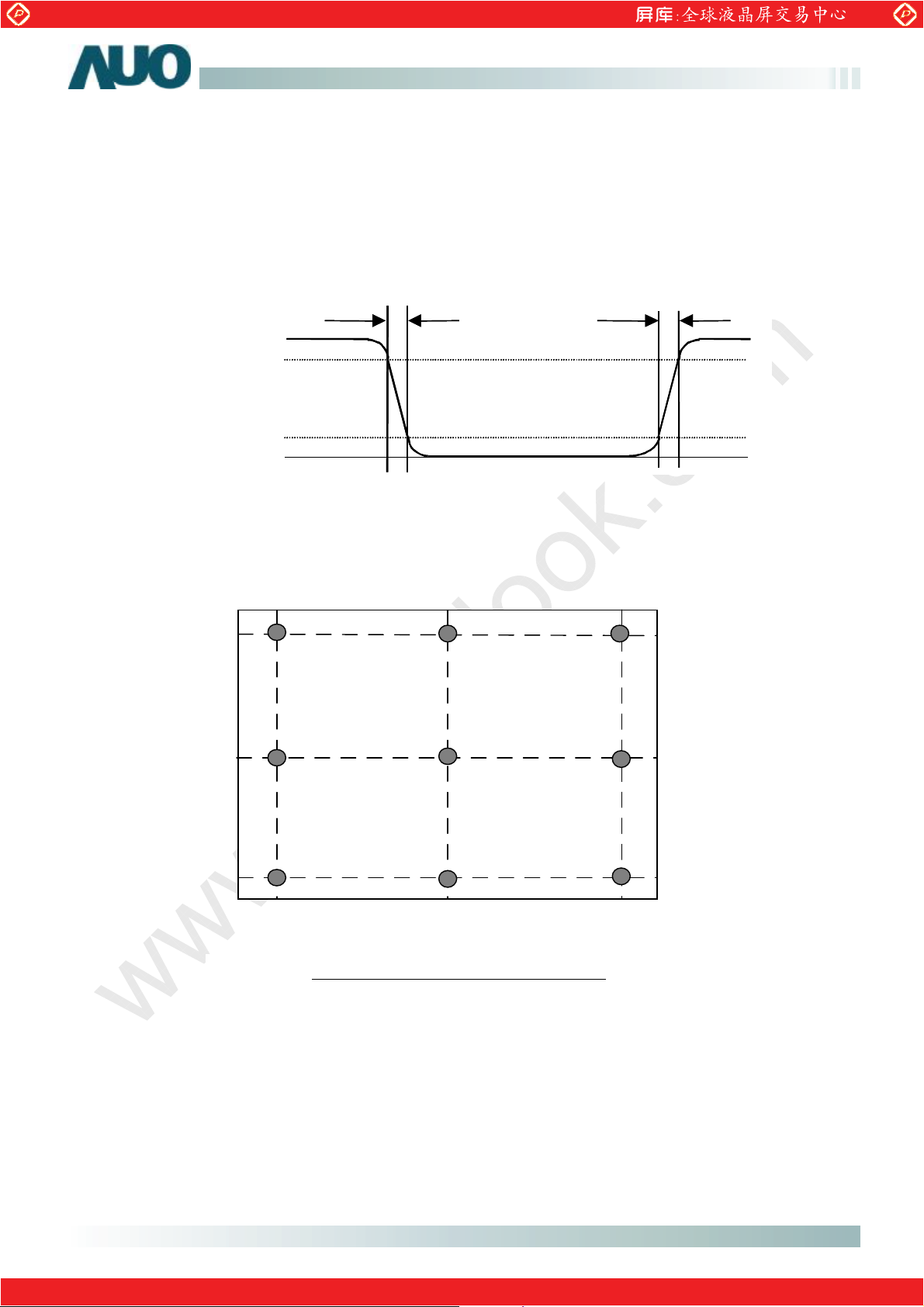

Note 1: The Definition of Response time
The output signals of photodetector are measured when the input signals are changed from “Black” to “White”
(rising time), and from “White” to “Black ”(falling time), respectively. The response time is interval between the
10% and 90% of amplitudes.
www.panelook.com
M170XW01 V.2
Product Specification
Optical
Optical
response
response
Note 2: Brightness uniformity of these 9 points is defined as below
100
100
90
90
10
10
%
%
White
White
0
0
Tr
Tr
F
F
Black
Black
90 %
50 %
10 %
Tr
Tr
R
R
10 %
White
White
50 %
90 %
Uniformity =
9)-(1 points 9in Luminance Minimum
9)-(1 Points 9in Luminance Maximum
Ver0.2 9/26
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 10
Global LCD Panel Exchange Center
l
A
A

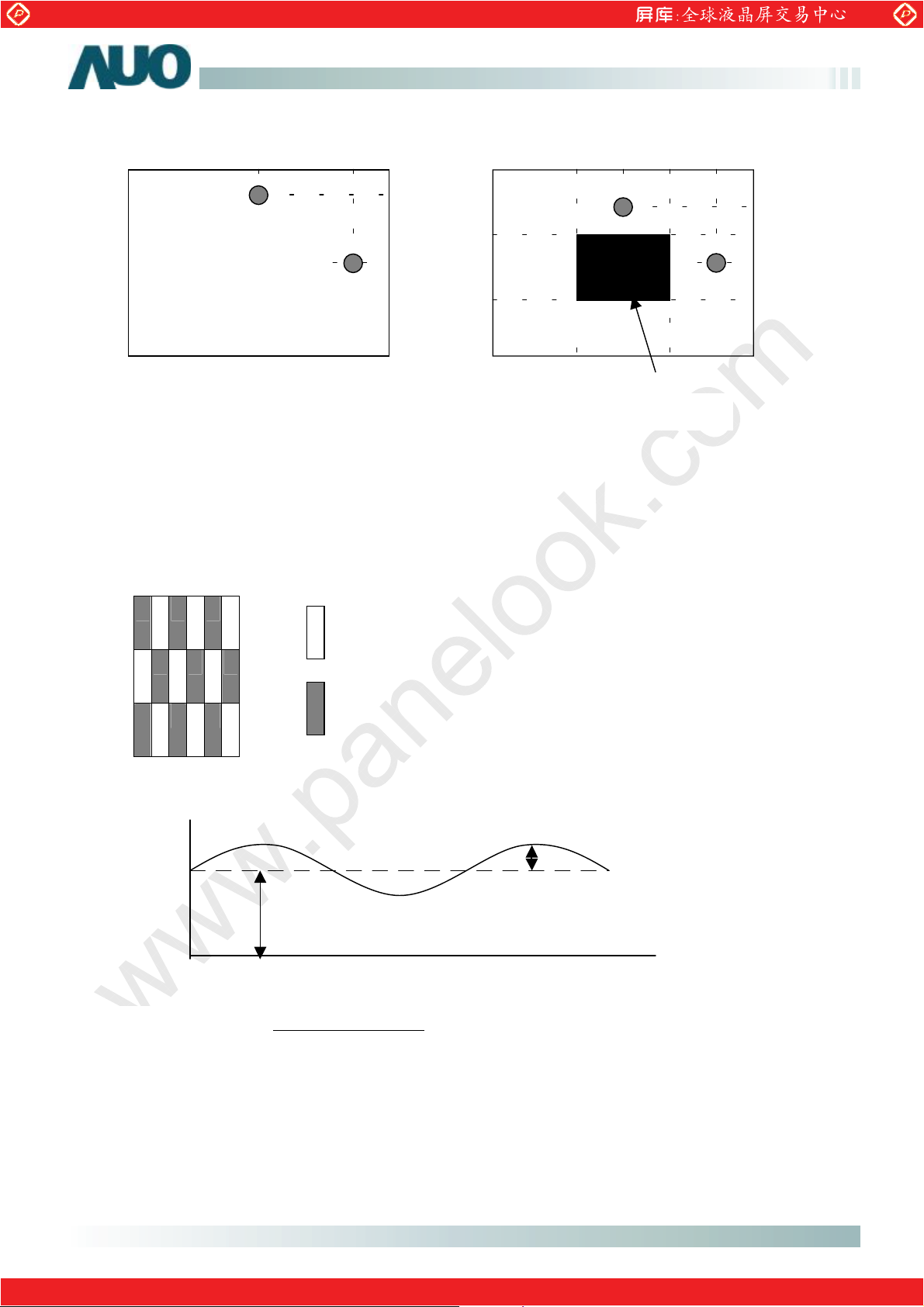

Note 3: The Definition of Crosstalk
www.panelook.com
M170XW01 V.2
Product Specification
l L
l L
Note4: The Definition of Flicker
Test Paterm: Subchecker Pattern
184 gray level 184 gray level
Unit: percentage of dimension of display area
l / LA x 100%= 1.5% max., LA and LB are brightness at location A and B
A-LA’
l / LB x 100%= 1.5% max., LA’ and LB’ are brightness at location A’ and B’
B-LB’
R G B R G B
1/2
1/6
1/6
1/2
B
Gray Level = L127
2/3 1/3
1/2
’
0 gray level
1/6
1/6
1/3
1/2
B’
2/3
R G B R G B
R G B R G B
Method: Record dBV & DC value with (WESTAR)TRD-100
Amplitude
DC
log20(dB)Flicker =
Gray Level = L0
Hz) 30Level(at AC
Leve
DC
AC
Time
Ver0.2 10/26
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 11
Global LCD Panel Exchange Center
A
V
www.panelook.com
Product Specification
3.0 Functional Block Diagram
The following diagram shows the functional block of the 17.0 inches wide Color TFT/LCD Module:
LVDS
+ 5
Connector
LVDS
Receiver
Over-Driver
DC/DC
Converter
UO ASIC
Gamma
Correction
Timing
Controller
DC POWER
G768
-
TFT-LCD
1280*(3)*768
Pixels
-Driv
D1 D3840
Inverter
M170XW01 V.2
r I
FI-XB30SRL-HF11 / MDF76LBRW-30S-1H JST-BHSR-02VS-1
Mating Type: JAE FI-X30C2L / HRS MDF76G-30P-1SD SM02(4.0)B-BHS-1-TB
Ver0.2 11/26
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 12
Global LCD Panel Exchange Center
p

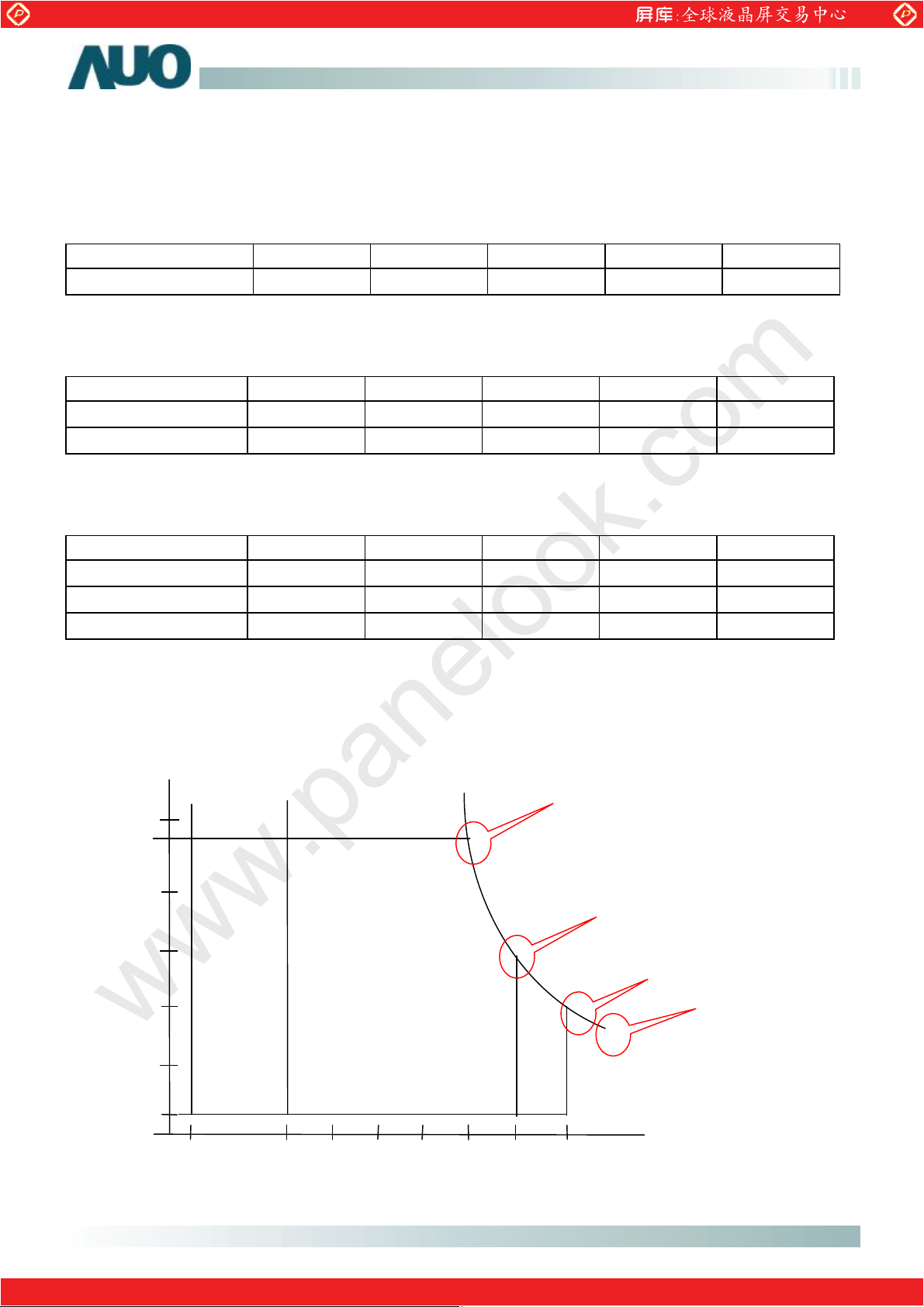

4.0 Absolute Maximum Ratings
Absolute maximum ratings of the module is as following:
TFT LCD Module
Item Symbol Min Max Unit Conditions
Logic/LCD Drive
Backlight Unit
Item Symbol Min Max Unit Conditions
CCFL Current ICFL - 12.0 [mA] rms Note 1,2
CCFL Frequency FCFL 40 80 [Hz] Note 1,2
VIN -0.3 +5.5 [Volt] Note 1,2
www.panelook.com
M170XW01 V.2
Product Specification
Absolute Ratings of Environment
Item Symbol Min Max Unit Conditions
Operating Humidity HOP 8 95 [%RH]
Storage Temperature TST -20 +60 [oC]
Storage Humidity HST 8 95 [%RH]
Note 1: With in Ta (25 )
Note 2: Permanent damage to the device may occur if exceed maximum values
Relative Humidity %
100
95
80
60
40
Storage
range
Operation range
20
5
0
-20
0 60 50
Tem
erature
Twb=39
T=40,H=95%
T=50,H=55%
T=60,H=39%
T=65,H=29%
Storage
range
Ver0.2 12/26
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 13
Global LCD Panel Exchange Center
www.panelook.com
Product Specification

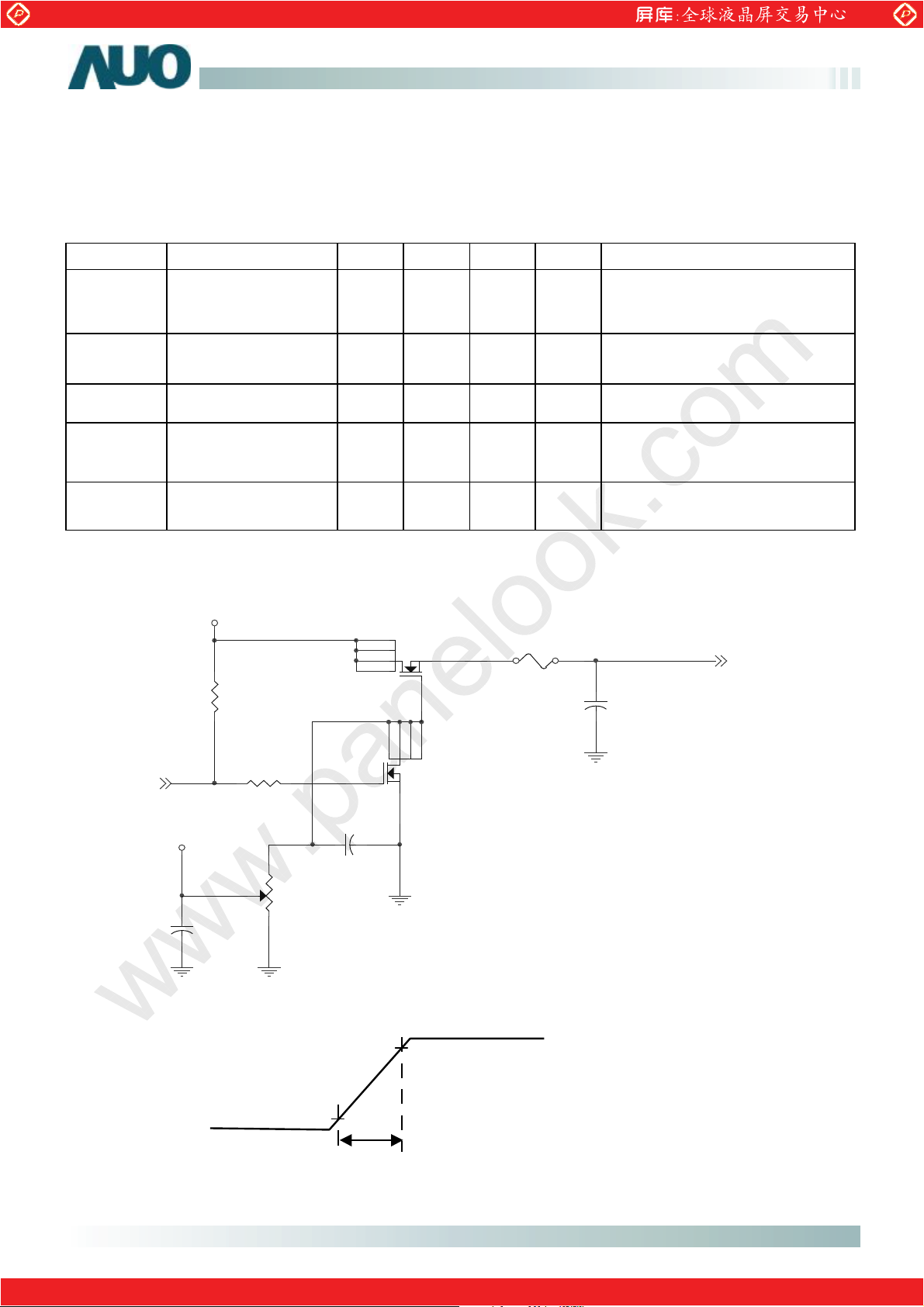

5.0 Electrical characteristics
5.1 TFT LCD Module
5.1.1 Power Specification
Input power specifications are as follows;
Symbol Parameter Min Typ Max Units Condition
M170XW01 V.2
VDD
Logic/LCD Drive
Voltage
4.5 5 5.5 [Volt] 10%
IDD VDD current - 950 1200 [mA]
Irush LCD Inrush Current - - 3.0 [A] Note
PDD VDD Power - 4.75 6.6 [Watt]
VDDrp
Allowable Logic/LCD
Drive Ripple Voltage
100
[mV]
p-p
Note: Measurement conditions:
(High to Low)
Control Signal
SW
+12.0V
+5.0V
R1
47K
R2
1K
Q3
AO6402
D6
D5
D2 S
D1
G
C3
D2SD1D5
G
D6
Q3
AO6402
F1
Vin=5V , All White Pattern,
+30%, at 75Hz
Vin=5V , All White Pattern,
+30%, at 75Hz
VCC
(LCD Module Input)
C1
1uF/16V
C2
1uF/25V
VR1
47K
0.01uF/25V
5.0V
0V
470 us
Vin rising time
Ver0.2 13/26
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 14
Global LCD Panel Exchange Center
www.panelook.com
Product Specification

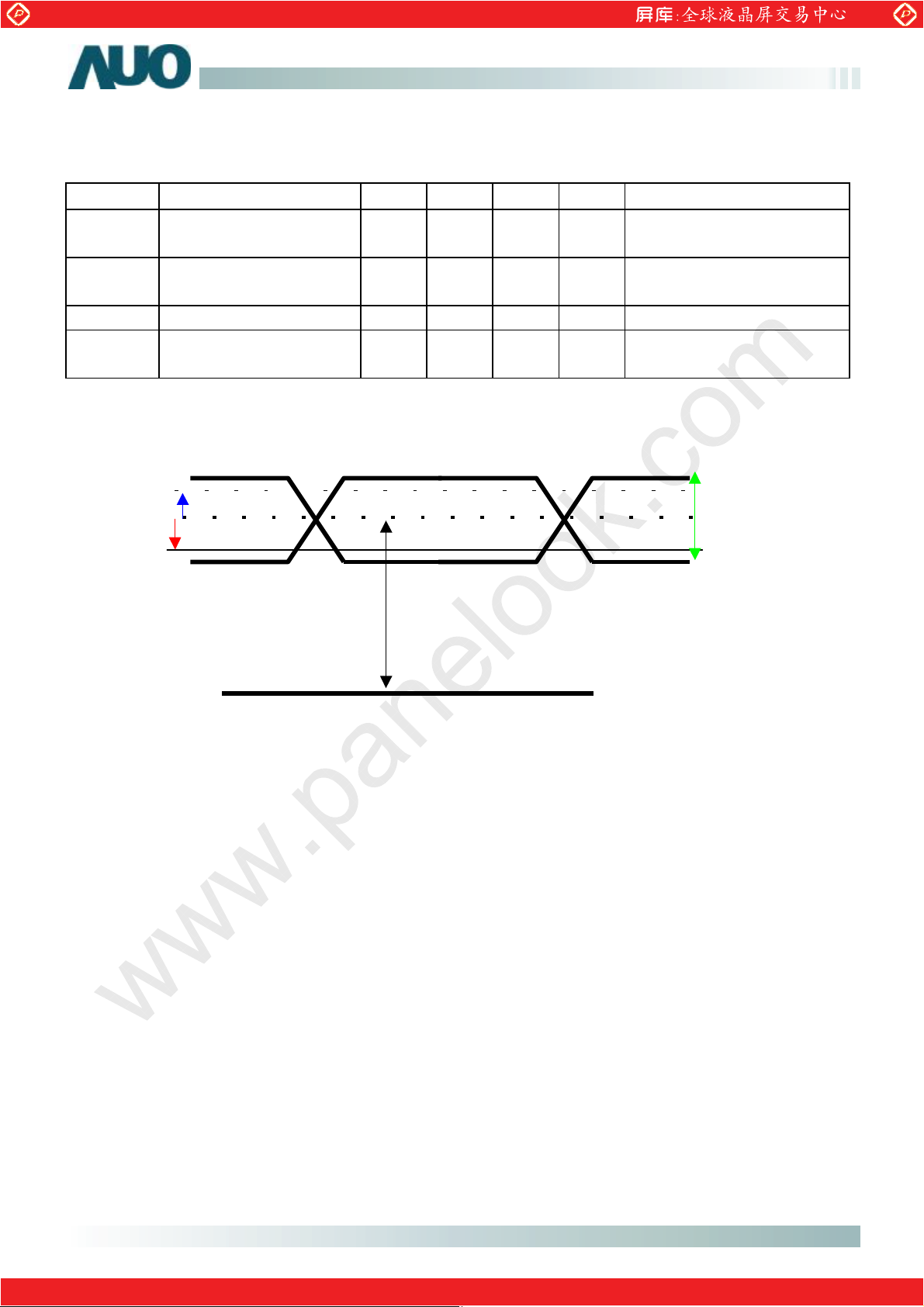

5.1.2 Signal Electrical Characteristics
Each signal characteristics are as follows;
Symbol Parameter Min Typ Max Units Condition
VTH
VTL
VID Input Differential Voltage 100 400 600 [mV] Note
VICM
Note: LVDS Signal Waveform
Differential Input High
Threshold
Differential Input Low
Threshold
Differential Input Common
Mode Voltage
- - +100 [mV]
-100 - - [mV]
1.1 - 1.45 [V]
VICM = 1.2V
Note
VICM = 1.2V
Note
VTH/VTL = 100MV
Note
M170XW01 V.2
VTH
VTL
VID
VICM
VSS
Ver0.2 14/26
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 15
Global LCD Panel Exchange Center
www.panelook.com
M170XW01 V.2
Product Specification
5.2 Backlight Unit
Parameter guideline for CCFL Inverter
Symbol Parameter Min. Typ. Max. Unit Condition
ISCFL CCFL standard current 10.5 11.0 11.5
IRCFL CCFL operation range 5.5 11.0 12.0
FCFL CCFL Frequency 40 60 80 [KHz] (Ta=25oC) Note 2
ViCFL
o
(0
C)
ViCF
o
(25
C)
VCFL CCFL Operation Voltage -
PCFL
CCFL Ignition Voltage
(End of the lamp wire connector)
CCFL Ignition Voltage
(End of the lamp wire connector)
CCFL Power consumption
(for reference)
1650 - -
1250 - -
560
@11.0mA
680
@5.5mA
- 24.6 28 [Watt] (Ta=25oC) Note 4
[mA]
rms
[mA]
rms
[Volt]
rms
[Volt]
rms
[Volt]
rms
(Ta=25oC) Note 1
(Ta=25oC)
o
C)
(Ta=0
o
(Ta=25
C)
(Ta=25oC) Note 3
LTCFL CCFL life Time 30,000 - - [Hour] (Ta=25oC) Note 5
Note 1: CCFL standard current is measured at 252. The variance of the current is 10%.
Note 2: CCFL Frequency should be carefully determined to avoid interference between inverter and TFT LCD
Note 3: CCFL operation voltage is measured at 252.
Note 4: The variance of CCFL power consumption is 10%. Calculator value for reference
(ICFL×VCFL×4=PCFL).
Note 5: CCFL life time is determined as the time at which brightness of lamp is 50%.The typical life time of
CCFL is on the condition at 11.0mA lamp current.
Ver0.2 15/26
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 16
Global LCD Panel Exchange Center
y
y
www.panelook.com
Product Specification
6.0 Signal Characteristic
6.1 Pixel Format Image
Following figure shows the relationship of the input signals and LCD pixel format.
M170XW01 V.2
1st Line
768 Line
6.2 The input data format
Vdiff=0V
RxClkIN
RxClkIN
Vdiff=0V
1
2
R G B R G B
R G B R G B
1279 1280
R G B R G B
R G B R G B
RxIN0
RxIN0
RxIN1
RxIN1
RxIN2
RxIN2
RxIN3
RxIN3
Previous Data for current Clk
Previous Data for current Clk
G0 R5 R4 R3 R2 R1 R0
G0 R5 R4 R3 R2 R1 R0G0 R5 R4 R3 R2 R1 R0
B1 B0 G5 G4 G3 G2 G1
B1 B0 G5 G4 G3 G2 G1B1 B0 G5 G4 G3 G2 G1
DE VS HS B5 B4 B3 B2
DE VS HS B5 B4 B3 B2DE VS HS B5 B4 B3 B2
RSVB7B6G7G6R7R6
RSVB7B6G7G6R7R6RSVB7B6G7G6R7R6
R/G/B data 7: MSB, R/G/B data 0: LSB
Next
Next
c
c
cle
cle
Ver0.2 16/26
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 17
Global LCD Panel Exchange Center
www.panelook.com
M170XW01 V.2
Product Specification
6.3 Signal Description
The module using one LVDS receiver SN75LVDS82(Texas Instruments) or compatible. LVDS is a
differential signal technology for LCD interface and high speed data transfer device. Transmitter shall be
SN75LVDS83(negative edge sampling) or compatible.
PIN No. SIGNAL NAME DESCRIPTION
1 VCC +5.0V Power Supply
2 VCC +5.0V Power Supply
3 VSS Power Ground
4 VSS Power Ground
5 RxIN0- Negative LVDS differential data input
6 RxIN0+ Positive LVDS differential data input
7 VSS Power Ground
8 RxIN1- Negative LVDS differential data input
9 RxIN1+ Positive LVDS differential data input
10 VSS Power Ground
11 RxIN2- Negative LVDS differential data input
12 RxIN2+ Positive LVDS differential data input
13 VSS Power Ground
14 RxCLKIN- Negative LVDS differential clock input
15 RxCLKIN+ Positive LVDS differential clock input
16 VSS Power Ground
17 RxIN3- Negative LVDS differential data input
18 RxIN3+ Positive LVDS differential data input
19 VSS Power Ground
20 NC No Connection (For AUO Test)
Note 1: All GND (ground) pins should be connected together and to VSS which should also be connected to
the LCD’s metal frame.
Note 2: All VCC (power input) pins should be connected together.
Ver0.2 17/26
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 18
Global LCD Panel Exchange Center

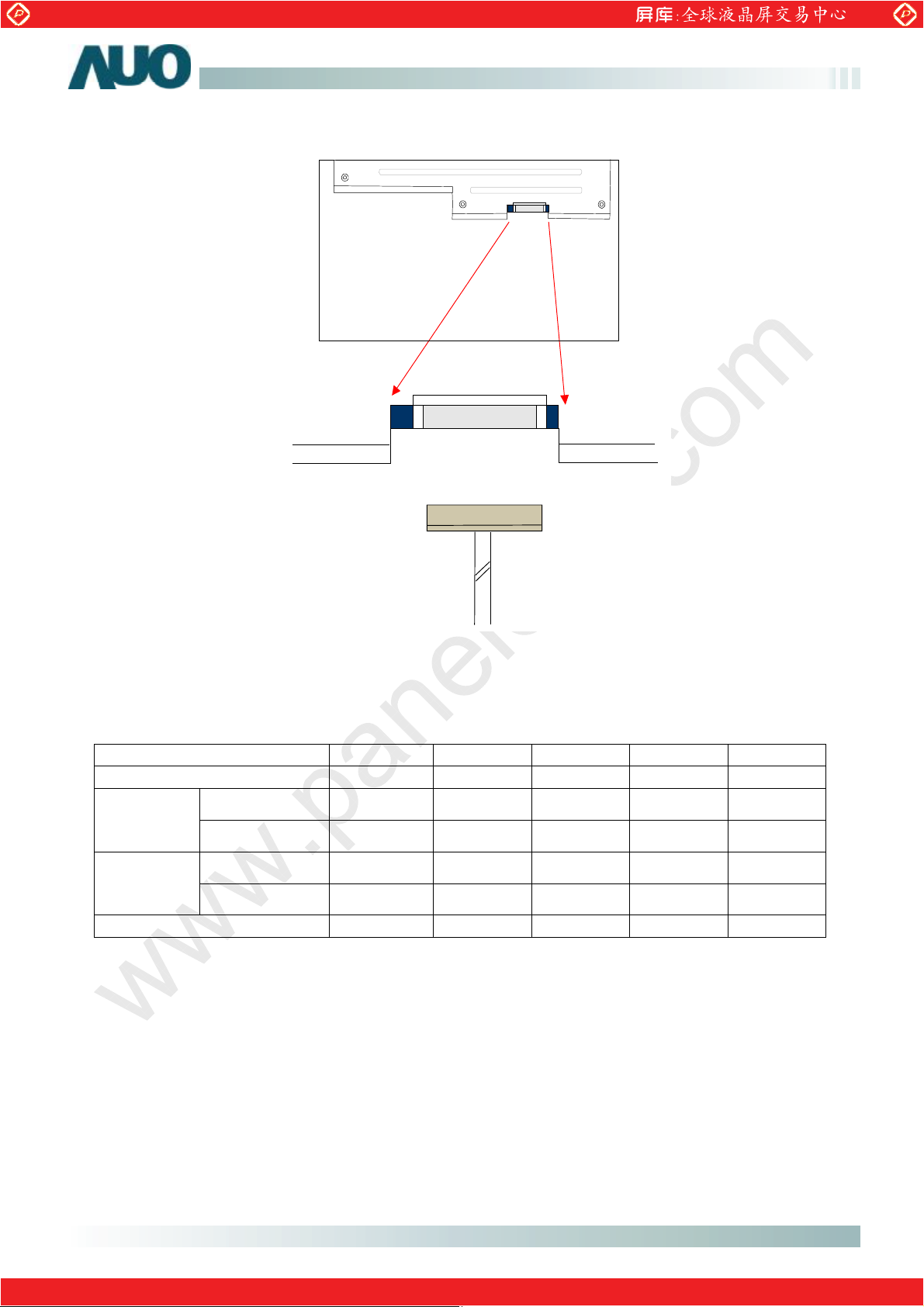

Note 3: The drawing of connector.
www.panelook.com
M170XW01 V.2
Product Specification
20 1
6.4 Interface Timings
6.4.1 Timing Characteristics
Item Symbol Min Typ Max Unit
Data CLK Tclk 45 64 81 MHz
Period Th
H-section
V-section
Note: DE mode only.
Display Area Tdisp(h)
Period Tv
Display Area Tdisp(v)
Frame Rate F 47 60 75 Hz
1330 1350 1440
1280 1280 1280
777 790 860
768 768 768
Tc lk
Tc lk
Th
Th
Ver0.2 18/26
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 19
Global LCD Panel Exchange Center
6.4.2 Timing diagram
DE
Tcl k
www.panelook.com
Product Specification
CLK
DE
M170XW01 V.2
Tblk(v)
Tdisp(h) Th
Tblk(h)
Th
Tv
Tdisp(v)
Ver0.2 19/26
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 20
Global LCD Panel Exchange Center
p
www.panelook.com
M170XW01 V.2
Product Specification
6.5 Power ON/OFF Sequence
Vin and lamp power on/off sequence are as follows. The timing parameters of interface signal are shown in the
table below.
Vin
0V
Signal
0V
Lam
0V
Symbol
T1 0.5 - 10 ms
T2 0.5 25 50 ms
T3 200 - - ms
T4 200 - - ms
T5 0.5 16 50 ms
T6 0.5 - 10 ms
T7 1000 - - ms
90% 90%
10%
T2 T5 T6 T7
T1
T3
Values
Min. Typ. Max.
10%
10%
T4
Unit
Ver0.2 20/26
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 21
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
7.0 Connector & Pin Assignment
Physical interface is described as for the connector on module.
These connectors are capable of accommodating the following signals and will be following components.
7.1 TFT LCD Module
Connector Name / Designation Interface Connector / Interface card
Manufacturer HIROSE or compatible
Type Part Number DF14H-20P-1.25H
Mating Housing Part Number DF14-20S-1.25C
M170XW01 V.2
Pin No.
Signal Name
Pin No.
Signal Name
1 VCC, +5.0V 11 RxIN22 VCC, +5.0V 12 RxIN2+
3 VSS 13 VSS
4 VSS 14 RxCLKIN5 RxIN0- 15 RxCLKIN+
6 RxIN0+ 16 VSS
7 VSS 17 RxIN38 RxIN1- 18 RxIN3+
9 RxIN1+ 19 VSS
10 VSS 20 NC (FOR AUO TEST)
7.2 Backlight Unit
Connector Name / Designation Lamp Connector / Backlight lamp
Manufacturer JST
Type Part Number BHSR-02VS-1
Mating Type Part Number SM02B-BHSS-1-TB
Upper
Lower
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Pin No. Input Color Function
1 Hot1 Pink High Voltage
2 Cold1 White Low Voltage
3 Hot2 Blue High Voltage
4 Cold2 Black Low Voltage
1 Hot1 Pink High Voltage
2 Cold1 White Low Voltage
3 Hot2 Blue High Voltage
4 Cold2 Black Low Voltage
Ver0.2 21/26
www.panelook.com
Page 22
Global LCD Panel Exchange Center
8.0 Vibration, Shock, and Drop
8.1 Vibration & Shock
Vibration Test Spec:
Frequency: 10 - 200Hz
Sweep: 30 Minutes each Axis (X, Y, Z)
Acceleration: 1.5G(10~200Hz P- P)
Test method:
Acceleration (G) 1.5
Frequency (Hz) 10~200~10
Active time (min) 30
Shock Test Spec:
www.panelook.com
M170XW01 V.2
Product Specification
Acceleration (G) –a 50
Active time -b 20 ms
Wave form Half-sin
Times 1
Direction: X , Y, Z
8.2 Drop test
Package test: The drop height is 60cm.
9.0 Environment
The display module will meet the provision of this specification during operating condition or after storage
or shipment condition specified below. Operation at 10% beyond the specified range will not cause
physical damage to the unit.
9.1 Temperature and Humidity
9.1.1 Operating Conditions
The display module operates error free, when operated under the following conditions;
Temperature 0
Relative Humidity 8% to 95%
Wet Bulb Temperature 39.0
0
C to 50 0C
0
C
9.1.2 Shipping Conditions
The display module operates error free, after the following conditions;
Temperature -20
Relative Humidity 5% to l00%
Wet Bulb Temperature 39.0
0
C to 60 0C
0
C
Ver0.2 22/26
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 23
Global LCD Panel Exchange Center
9.2 Atmospheric Pressure
The display assembly is capable of being operated without affecting its operations over the
pressure range as following specified;
Pressure Note
Maximum Pressure 1040hPa (sea level)
Minimum Pressure 674hPa (3048m)
9.3 Thermal Shock
The display module will not sustain damage after being subjected to 100 cycles of rapid
temperature change. A cycle of rapid temperature change consists of varying the temperature
from -20
Thermal shock cycle -20
60
Power is not applied during the test. After temperature cycling, the unit is placed in normal
room ambient for at least 4 hours before powering on.
0
C to 600C, and back again.
www.panelook.com
Product Specification
0
C for 30min
0
C for 30min
M170XW01 V.2
10.0 Reliability
This display module and the packaging of that will comply following standards.
10.1 Failure Criteria
The display assembly will be considered as failing unit when it no longer meets any of the
requirements stated in this specification. Only as for maximum white luminance, following
criteria is applicable.
Maximum white Luminance shall be 150cd/m
10.2 Failure Rate
The average failure rate of the display module (from first power-on cycle till 1,000 hours later) will not
exceed 1.0%. The average failure rate of the display module from 1,000 hours until 16,000 hours will not
exceed 0.7% per 1000 hours.
10.2.1 Usage
The assumed usage for the above criteria is:
220 power-on hours per month
500 power on/off cycles per month
Maximum brightness setting
Operation to be within office environment (25
2
or more.
0
C typical)
11.0 Safety
11.1 Sharp Edge Requirements
There will be no sharp edges or comers on the display assembly that could cause injury.
Ver0.2 23/26
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 24
Global LCD Panel Exchange Center
11.2 Materials
11.2.1 Toxicity
There will be no carcinogenic materials used anywhere in the display module. If toxic
materials are used, they will be reviewed and approved by the responsible ADT
Toxicologist.
11.2.2 Flammability
All components including electrical components that do not meet the flammability grade
UL94-V1 in the module will complete the flammability rating exception approval process.
The printed circuit board will be made from material rated 94-V1 or better. The actual UL
flammability rating will be printed on the printed circuit board.
www.panelook.com
M170XW01 V.2
Product Specification
11.3 Capacitors
If any polarized capacitors are used in the display assembly, provisions will be made to keep
them from being inserted backwards.
12.0 Other requirement
12.1 National Test Lab Requirement
The display module will satisfy all requirements for compliance to
UL 1950, First Edition U.S.A. Information Technology Equipment
CSA C22.2 No.950-M89 Canada, Information Technology Equipment
EEC 950 International, Information Technology Equipment
EN 60 950 International, Information Processing Equipment
(European Norm for IEC950)
12.2 Label
The label is on the panel as shown below:
Ver0.2 24/26
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 25
www.panelook.com
www.panelook.com
Global LCD Panel Exchange Center
Ver0.2 25/26
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
13.0 Mechanical Characteristics
Page 26
www.panelook.com
www.panelook.com
Global LCD Panel Exchange Center
Ver0.2 26/26
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Loading...
