Product Specification
AU OPTRONICS CORPORATION
G190EAN01.0
1. Handling Precautions
1) Since front polarizer is easily damaged, pay attention not to scratch it.
2) Be sure to turn off power supply when inserting or disconnecting from input connector.
3) Wipe off water drop immediately. Long contact with water may cause discoloration or spots.
4) When the panel surface is soiled, wipe it with absorbent cotton or other soft cloth.
5) Since the panel is made of glass, it may break or crack if dropped or bumped on hard surface.
6) Since CMOS LSI is used in this module, take care of static electricity and insure human earth when
handling.
7) Do not open or modify the Module Assembly.
8) Do not press the reflector sheet at the back of the module to any directions.
9) In case if a Module has to be put back into the packing container slot after once it was taken out
from the container, do not press the center of LED light bar edge. Instead, press at the far ends of
LED light bar edge softly. Otherwise the TFT Module may be damaged.
10) At the insertion or removal of the Signal Interface Connector, be sure not to rotate nor tilt the
Interface Connector of the TFT Module.
11) After installation of the TFT Module into an enclosure, do not twist nor bend the TFT Module even
momentary. At designing the enclosure, it should be taken into consideration that no
bending/twisting forces are applied to the TFT Module from outside. Otherwise the TFT Module
may be damaged.
12) Small amount of materials having no flammability grade is used in the LCD module. The LCD module
should be supplied by power complied with requirements of Limited Power Source (IEC60950 or
UL1950), or be applied exemption.
document version 0.1 4/28
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 5
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
G190EAN01.0
2. General Description
G190EAN01.0 is a Color Active Matrix Liquid Crystal Display composed of a TFT-LCD panel, a driver circuit,
and a backlight system. The screen format is intended to support the SXGA (1280(H) x 1024(V)) screen and
16.7M colors. All input signals are 2-channel LVDS interface compatible.
2.1 Display Characteristics
The following items are characteristics summary on the table under 25 oC condition:
Items Unit Specifications
Screen Diagonal [mm] 482.6 (19.0" )
Active Area [mm] 376.32 (H) x 301.06 (V)
Pixels H x V 1280(x3) x 1024
Pixel Pitch [mm] 0.294 (per one triad) x 0.294
Pixel Arrangement R.G.B. Vertical Stripe
Display Mode Normally Black
White Luminance [cd/m2] 300 (center, Typ) @ 80mA
Contrast Ratio 1000 : 1 (Typ)
Optical ResponseTime [msec] TBD (Typ, on/off)
Nominal Input Voltage VDD [Volt] +5.0 V
Power Consumption [Watt] LED: 17.28 (W) + LVDS: 4.7 (W)
Weight [Grams] 1600 (TYP)
Physical Size (H x V x D) [mm] 396 (H) x 324 (V) x 17.0 (D) (Typ)
Electrical Interface Dual channel LVDS
Surface Treatment Anti-Glare treatment
Support Color 16.7M colors
Temperature Range
Operating
Storage (Non-Operating)
o
[
C]
o
[
C]
0 to +50
-20 to +60
RoHS Compliance RoHS Compliance
document version 0.1 5/28
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 6
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
G190EAN01.0
2.2 Optical Characteristics
The optical characteristics are measured under stable conditions at 25к (Room Temperature):
Item Unit Conditions Min.Typ. Max. Note
Horizontal (Right)
CR = 10 (Left)
Viewing Angle [degree]
Vertical (Up)
CR = 10 (Down)
Luminance Uniformity [%] 9 Points 75 80 - 2, 3
Rising - TBD TBD
Optical Response Time [msec]
Falling - TBD TBD
75
75
75
75
89
89
89
89
-
1
-
4, 6
Rising + Falling - TBD TBD
Red x TBD TBD TBD
Red y TBD TBD TBD
Green x TBD TBD TBD
Color / Chromaticity
Coordinates
(CIE)
Green y TBD TBD TBD
4
Blue x TBD TBD TBD
Blue y TBD TBD TBD
White x TBD 0.313TBD
White y TBD 0.329TBD
White Luminance
(At LED= 80mA)
[cd/m2 ]
240 300 - 4
Contrast Ratio 800 1000 - 4
Cross Talk (At 60Hz) [%] - - 1.5 5
Flicker [dB] - - -20
7
document version 0.1 6/28
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 7
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION

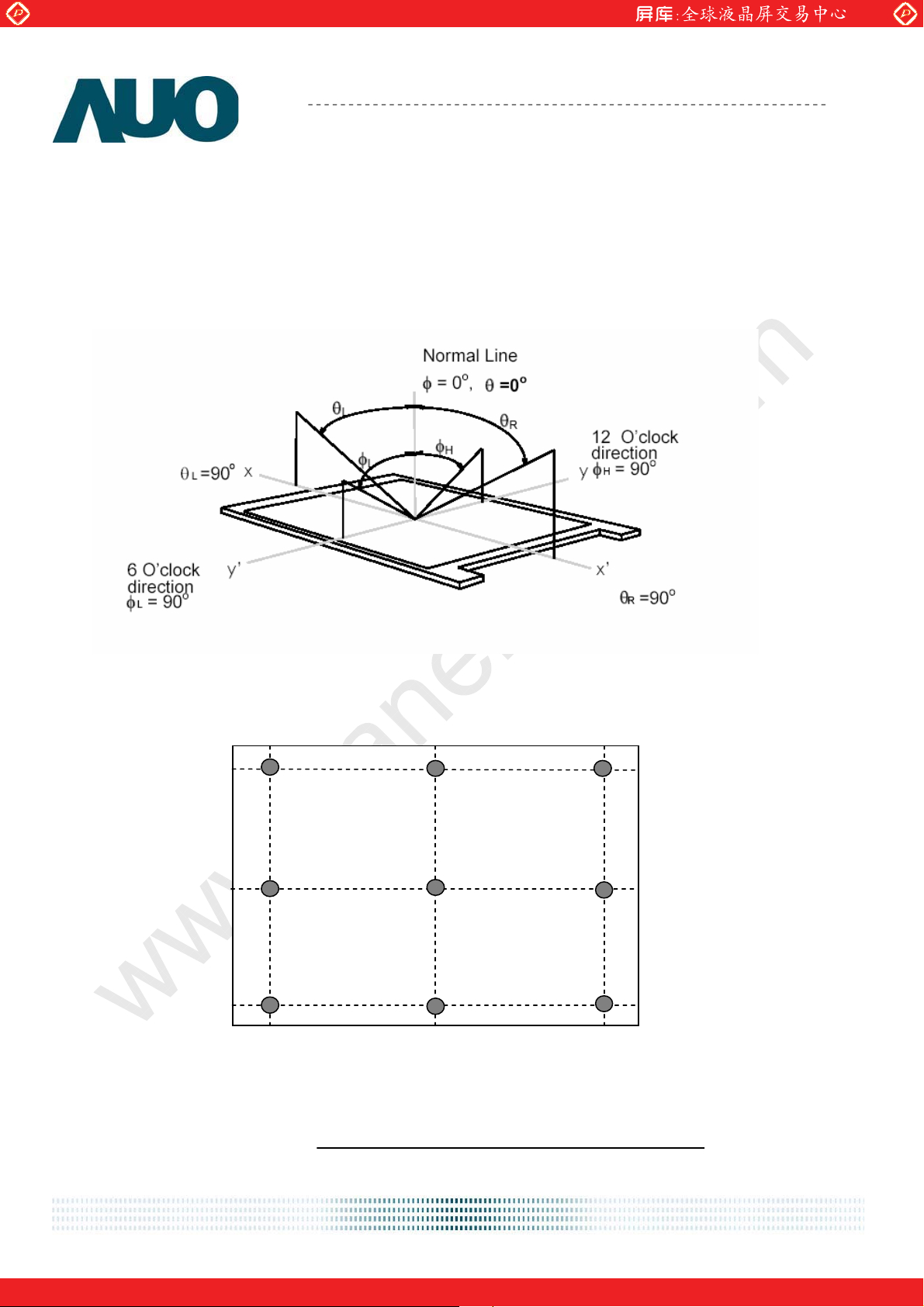

Note 1: Definition of viewing angle, measured by ELDIM (EZContrast 88)
Viewing angle is the measurement of contrast ratioЊ10, or Њ5, at the screen center, over a 180° horizontal
and 180° vertical range (off-normal viewing angles). The 180° viewing angle range is broken down as
follows; 90° (Ӱ) horizontal left and right and 90° (ӥ) vertical, high (up) and low (down). The measurement
direction is typically perpendicular to the display surface with the screen rotated about its center to develop
the desired measurement viewing angle.
G190EAN01.0
Note 2: 9 points position
90 %
50 %
10 %
10 %
50 %
90 %
Note 3: The luminance uniformity of 9 points is defined by dividing the maximum luminance values by the
minimum test point luminance. And measured by TOPCON SR-3
document version 0.1 7/28
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Ӭ
W9
Minimum Luminance of 9 points
=
Maximum Luminance of 9 points
www.panelook.com
Page 8
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION

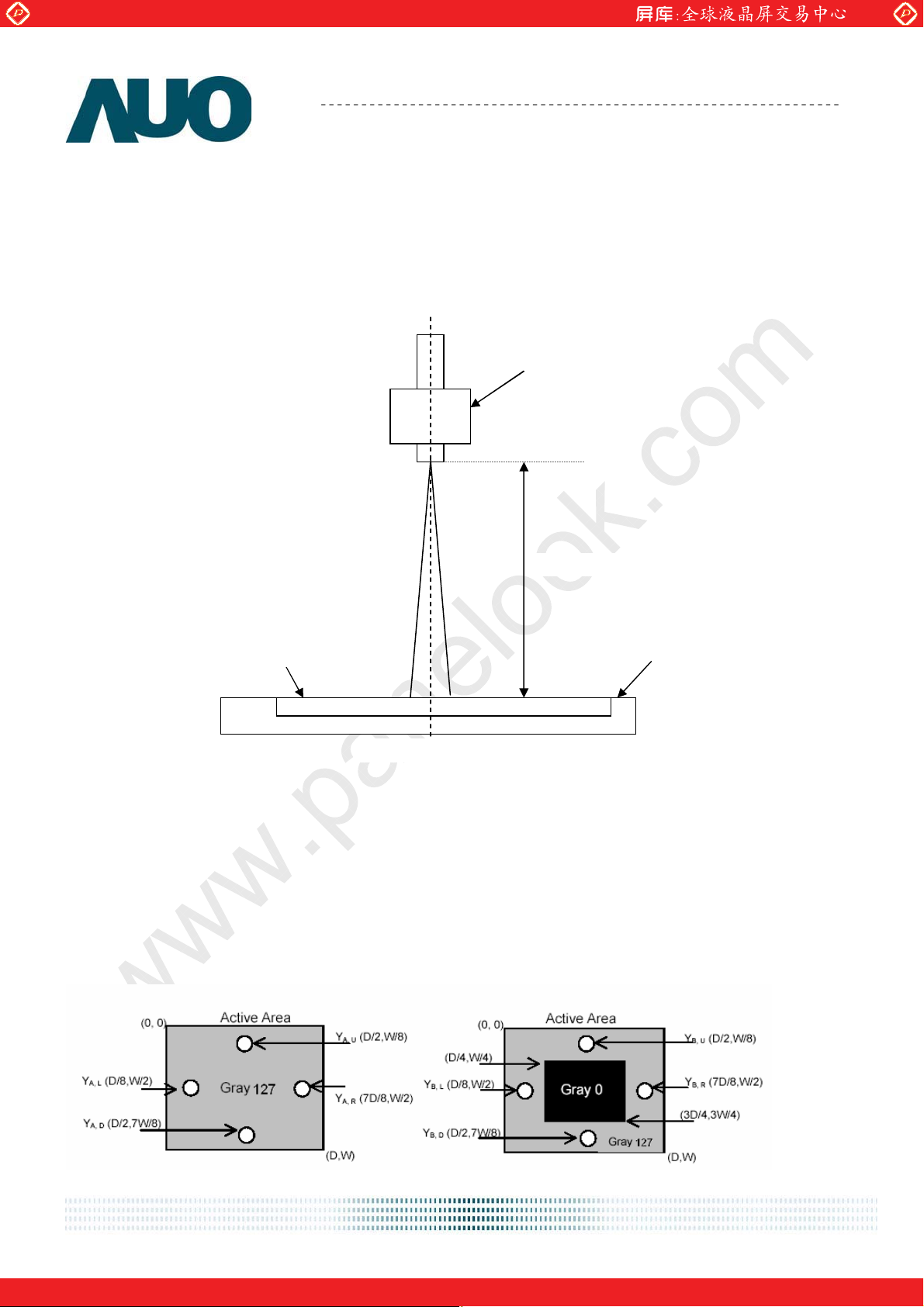

Note 4: Measurement method
The LCD module should be stabilized at given temperature for 30 minutes to avoid abrupt temperature
change during measuring. In order to stabilize the luminance, the measurement should be executed after
lighting Backlight for 30 minutes in a stable, windless and dark room. ʳ
G190EAN01.0
Photo detector
Field=2
50 cm
Note 5: Definition of Cross Talk (CT) and measured by TOPCON SR-3
CT = | YB – YA | / YA 100 (%)
Where
YA = Luminance of measured location without gray level 0 pattern (cd/m2)
YB = Luminance of measured location with gray level 0 pattern (cd/m2)
LCD Panel
Center of the screen
TFT-LCD Module
document version 0.1 8/28
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 9
Global LCD Panel Exchange Center
L
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
G190EAN01.0

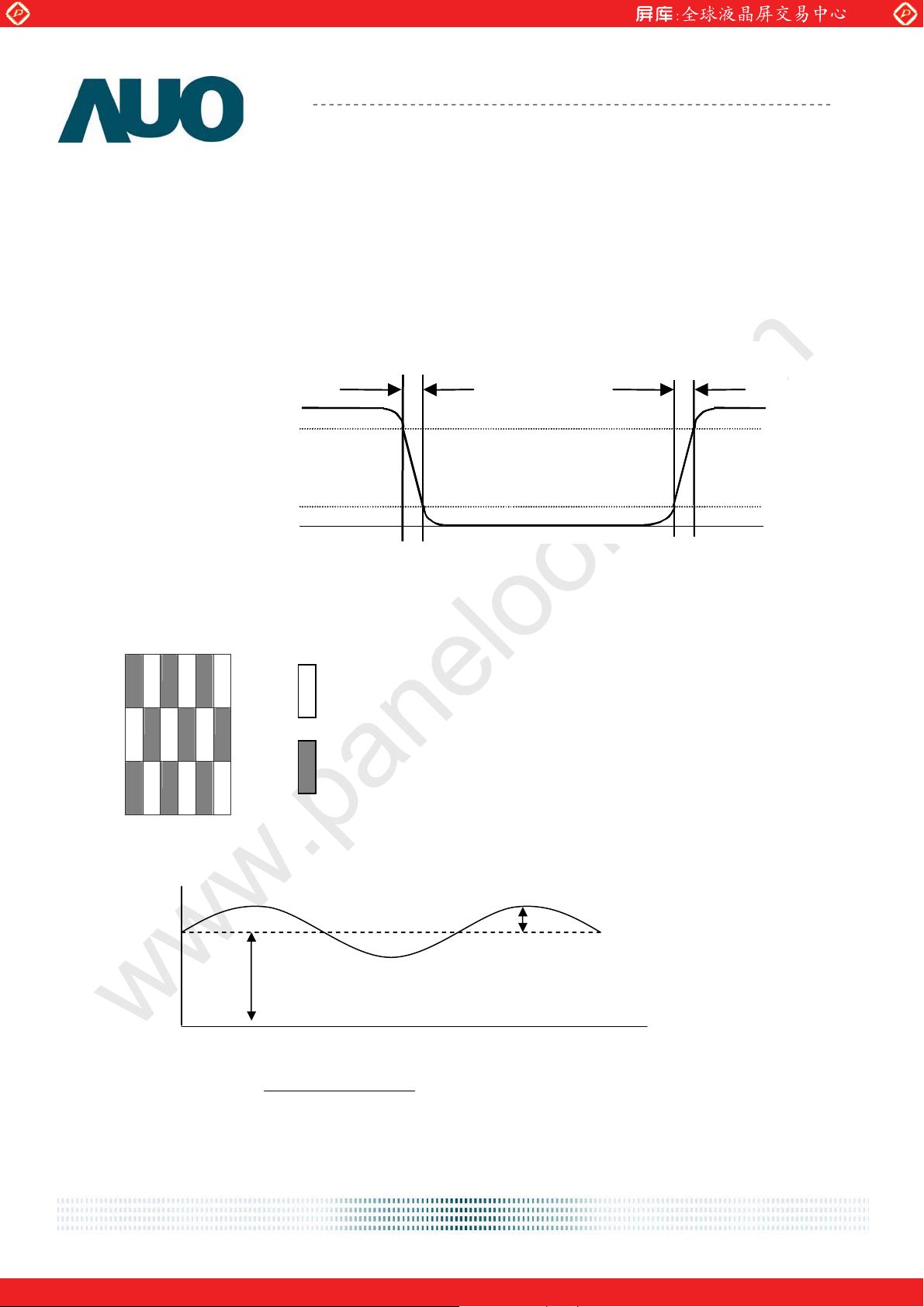

Note 6: Definition of response time, measured by WESTAR TRD-100A
The output signals of photo detector are measured when the input signals are changed from “Full Black” to
“Full White” (rising time), and from “Full White” to “Full Black” (falling time), respectively. The response time
is interval between the 10% and 90% of amplitudes. Please refer to the figure as below.
Optical
Optical
response
response
100
100
90
90
10
10
%
%
WhiteBlackWhite
WhiteBlackWhite
0
0
Tr
Tr
Tr
F
F
Tr
R
R
Note 7: Subchecker Pattern
RGBRGB
Gray Level = L127
R GBRGB
RGBRGB
Method: Record dBV & DC value with (WESTAR)TRD-100
Amplitude
DC
Gray Level = L0
Time
log20(dB)Flicker =
Hz) 30Level(at AC
evel DC
document version 0.1 9/28
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 10
Global LCD Panel Exchange Center
)
www.panelook.com
Product Specification
G190EAN01.0
AU OPTRONICS CORPORATION

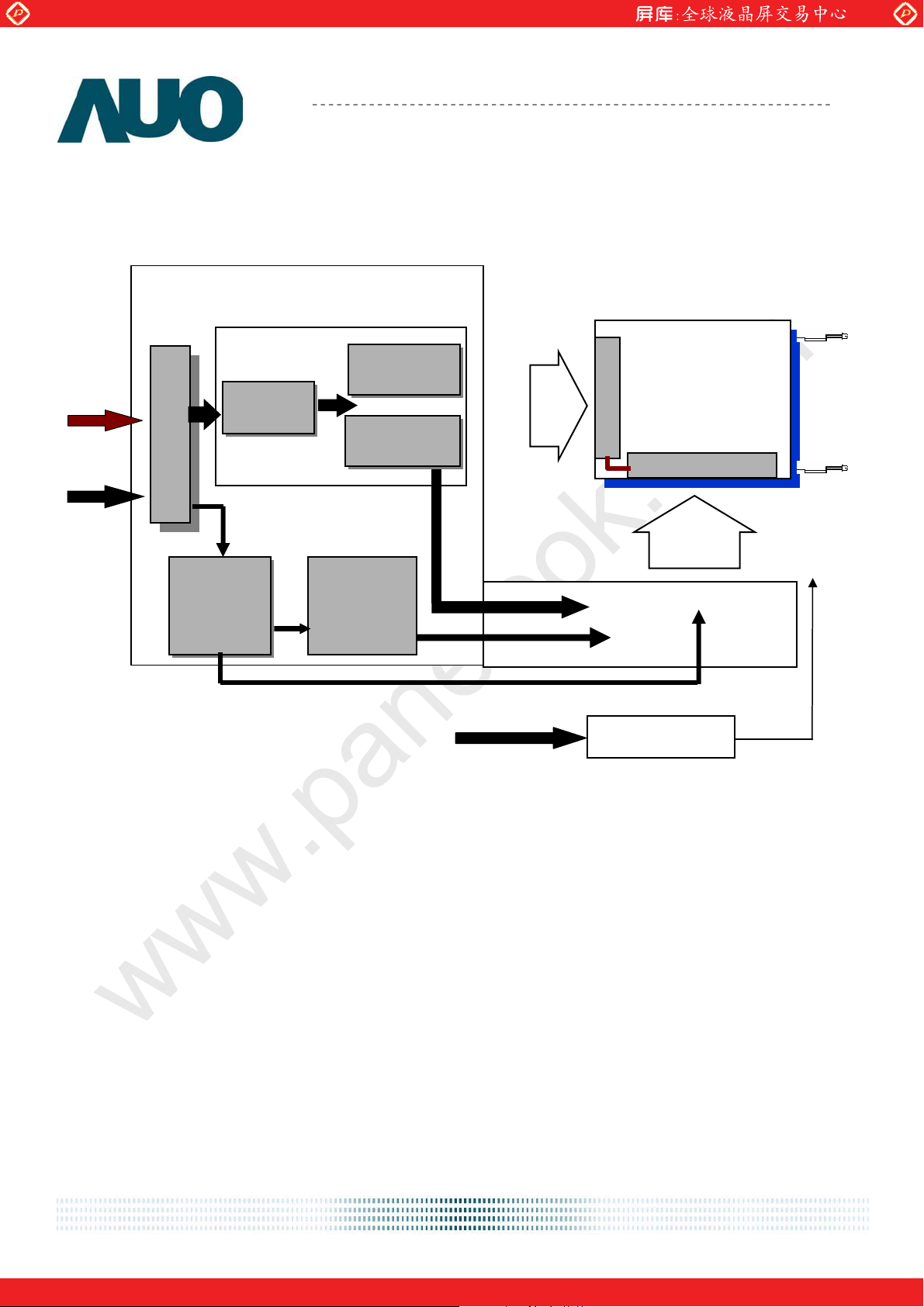

3. Functional Block Diagram
The following diagram shows the functional block of the 19.0 inches Color TFT-LCD Module:
LVDS
+ 5V
Connector
DC/DC
Converter
(Integrate
level shift
I/F PCB Interface:
ASIC
Timing
Controller
LVDS
Receiver
RSDS
Transmitter
Gamma
Correction
DC POWER
G1024
G1
TFT-LCD
1280*(3)*1024
Pixels
-
D1D3840
LED driver
LED B/L
F
I-XB30SSL-HF15 / MSBKT2407P30HB
Mating Type:
FI-X30HL (Locked Type)
FI-X30H (Unlocked Type)
document version 0.1 10/28
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 11
Global LCD Panel Exchange Center
V
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
4. Absolute Maximum Ratings
Absolute maximum ratings of the module are as following:
4.1 Absolute Ratings of TFT LCD Module
Item Symbol Min. Max. Unit Conditions
Logic/LCD Drive
oltage
4.2 Absolute Ratings of Backlight Unit
Item Symbol Min. Max. Unit Conditions
VDD -0.3 +5.5 [Volt] Note 1, 2
G190EAN01.0
LED Power Current Iled - 1.7 [A] rms Note 1, 2
4.3 Absolute Ratings of Environment
Item Symbol Min. Max. Unit Conditions

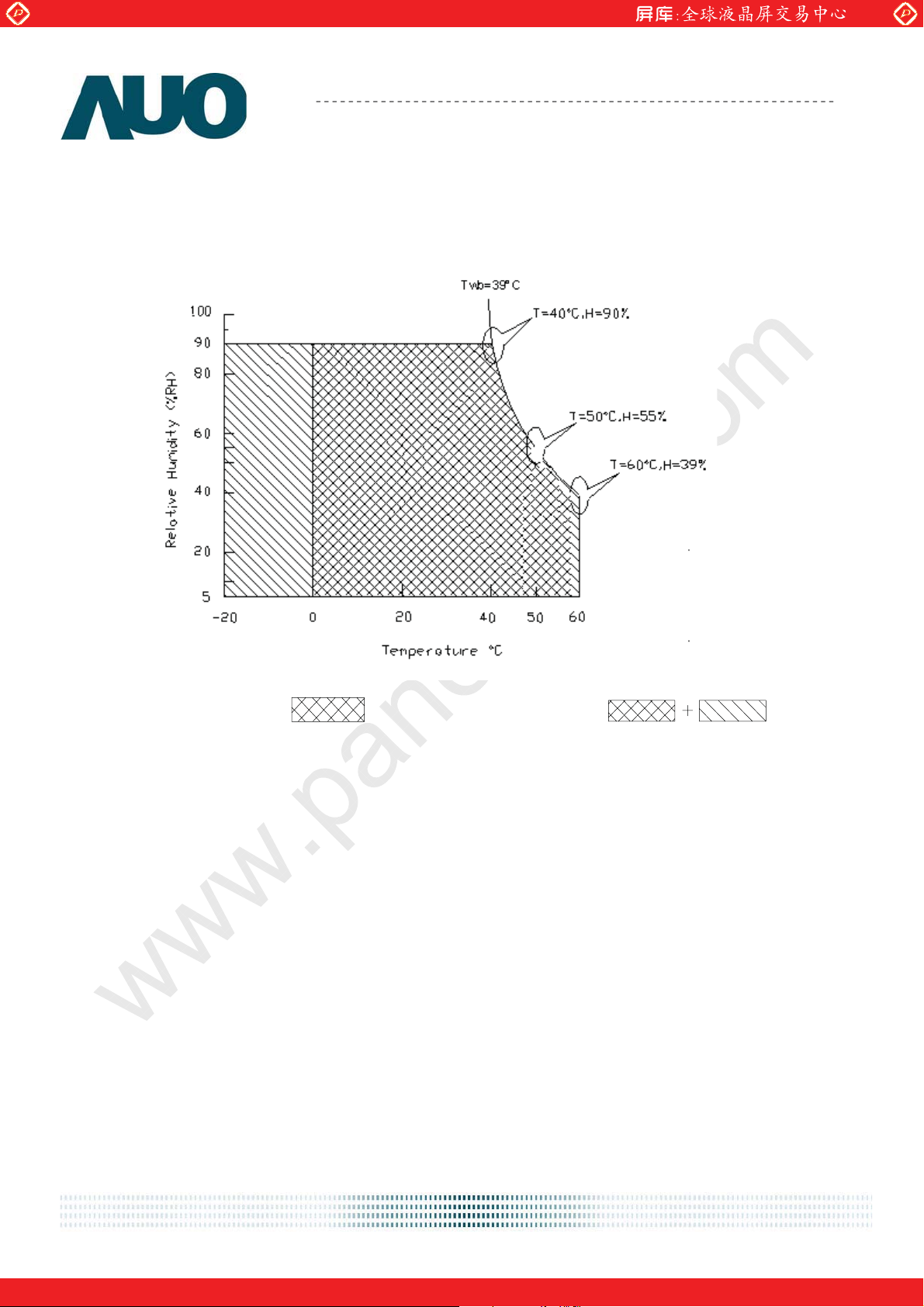

Operating TemperatureTOP 0 +50 [oC]
Operation Humidity HOP 5 90 [%RH]
Storage Temperature TST -20 +60 [oC]
Storage Humidity HST
5 90
[%RH]
Note 3 & 4
document version 0.1 11/28
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 12
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
Note 1: With in Ta= 25к
Note 2: Permanent damage to the device may occur if exceed maximum values
Note 3: For quality performance, please refer to AUO IIS (Incoming Inspection Standard).
G190EAN01.0
Operating Range Storage Range
Note 4: Operation Temperature + 60°C is defined as panel surface termperature.
document version 0.1 12/28
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 13
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
G190EAN01.0
5. Electrical characteristics
5.1 TFT LCD Module
5.1.1 Power Specification
Input power specifications are as follows:
Symble Parameter Min. Typ. Max. Unit Condition
VCC Logic/LCD Drive Voltage 4.5 5.0 5.5 [Volt] f10%
ICC Input Current - 0.94 1.1 [A]
IRush Inrush Current - 2.1 2.5 [A] Note 2
PCC VCCPower - 4.7 5.5 [Watt]
Vin=5V , All Black Pattern,
at 60Hz
Vin=5V , All Black Pattern,
at 60Hz
VCCrp
Allowable Logic/LCD Drive
Ripple Voltage
- 300
Note 1: The H-Stripe pattern is defined as below :
[mV]
p-p
With panel loading
document version 0.1 13/28
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 14
Global LCD Panel Exchange Center
V
V
V
www.panelook.com

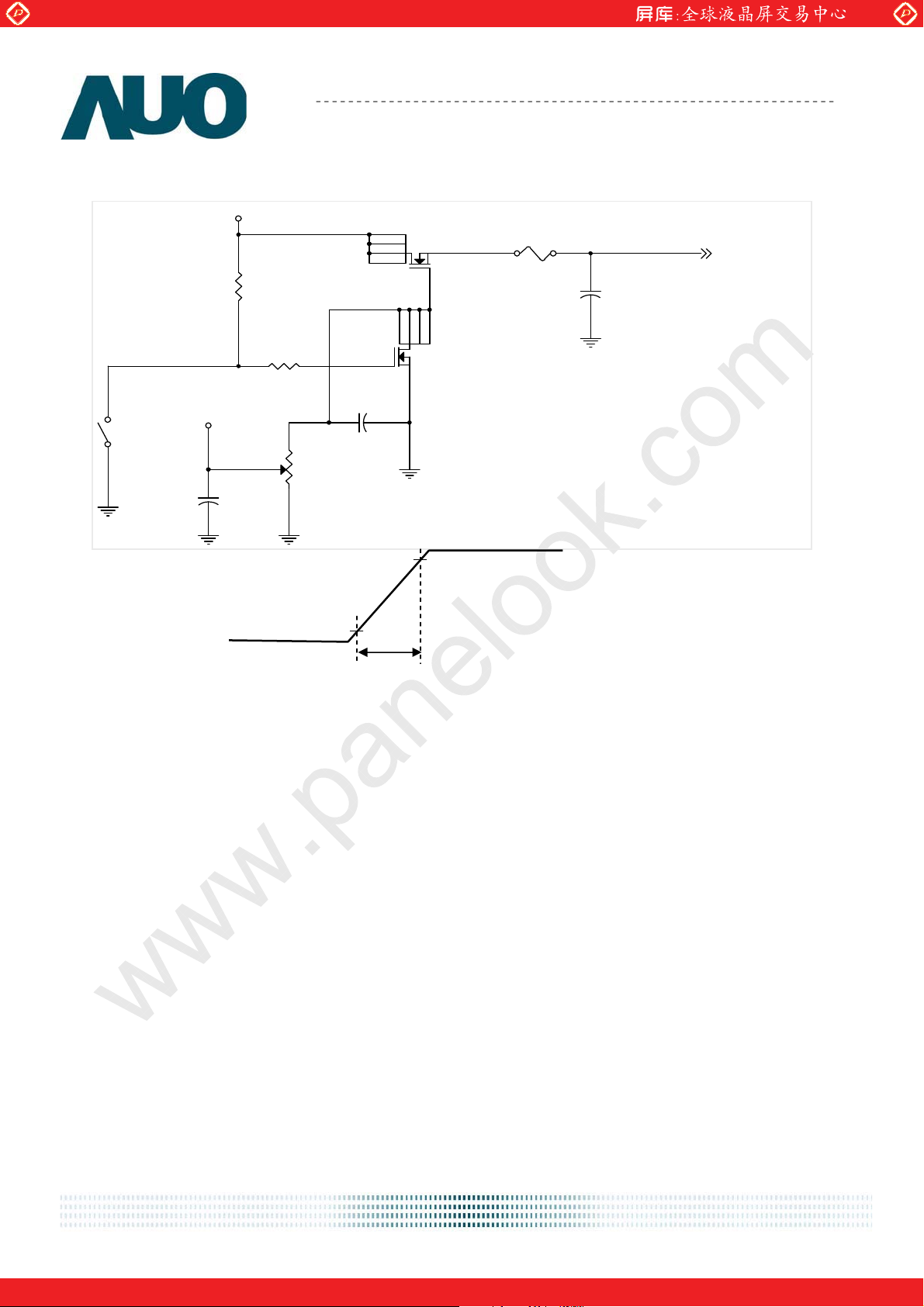

Note 2: Measurement conditions:
+5.0V
R1
47K
(High to Low)
Control
Signal
SW1
SW MAG-SPST
12
+12.0V
C2
1uF/25V
R2
1K
Product Specification
AU OPTRONICS CORPORATION
Q3
VR1
47K
D6
D5
D2S
D1
G
C3
0.01uF/25V
AO6402
D2SD1D5
G
D6
Q3
AO6402
F1
C1
1uF/16V
G190EAN01.0
VCC
(LCD Module Input)
5.0
0
470 us
DD rising time
document version 0.1 14/28
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 15
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
5.2 Backlight Unit
Following characteristics are measured under a stable condition at 25
Symbol Parameter Min. Typ.Max. Unit Remark
VCC Input Voltage 12
I
Input Current 1.44 1.70
VCC
P
VCC
Irush LEDInrush Current - TBDTBD
F
PWM
Swing Voltage 3 3.3 5
Dimming Duty Cycle10 - 100
IF LED Forward Current80 mA Ta = 25oC
Power Consumption17.2820.4
Dimming Frequency0.2 20
o
C
(Room Temperature):
[Volt]
[A] 100% PWM Duty
[Watt]100% PWM Duty
[A] at rising time=470us
[kHz]
V
%
G190EAN01.0
- - - Volt
VF LED Forward Voltage
- 3.2 3.6 Volt IF =80 mA, Ta = 25oC
- - -
P
LED
LED
Lifetime
LED Power
Consumption
- 13.8 15.6 Watt
50,000
Hrs IF=80 mA, Ta= 25oC
=80 mA, Ta = 25oC
I
F
Note 1: Ta means ambient temperature of TFT-LCD module.
Note 2: VCC, Ivcc, P
Note 3: I
, VF , P
F
LED
Irush LED are defined for LED B/L.(100% duty of PWM dimming)
VCC ,
are defined for LED Light Bar.
Note 4: If G190EAN01.0 module is driven by high current or at high ambient temperature & humidity condition. The
operating life will be reduced.
Note 5: LED life means brightness goes down to 50% initial brightness.
document version 0.1 15/28
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 16
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
6. Signal Characteristic
6.1 Pixel Format Image

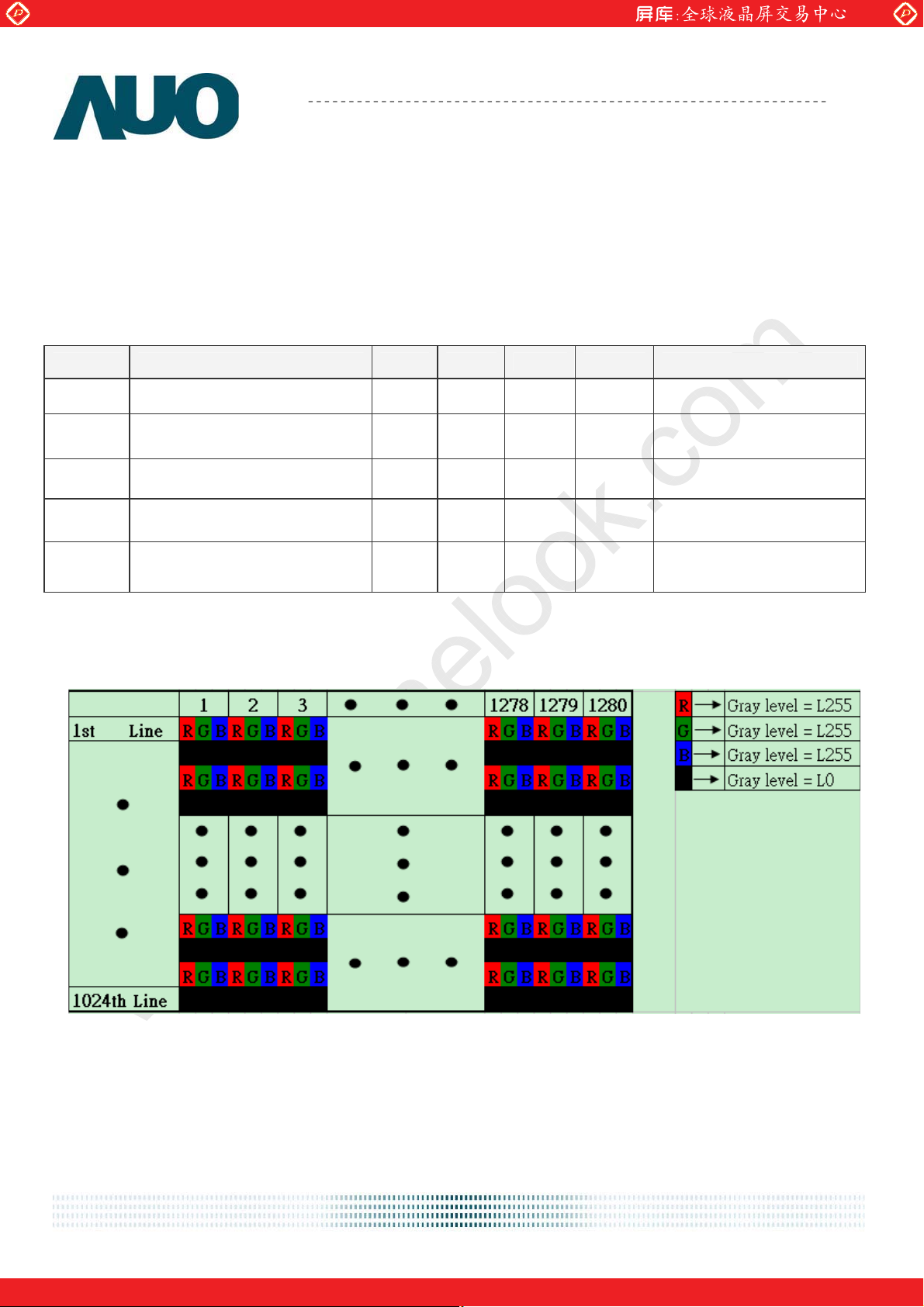

Following figure shows the relationship of the input signals and LCD pixel format.
1st Line
1 2 1279 1280
R G B R GB
G190EAN01.0
R G B R G B
1024th Line
R G B R GB
R G B R G B
document version 0.1 16/28
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 17
Global LCD Panel Exchange Center
www.panelook.com

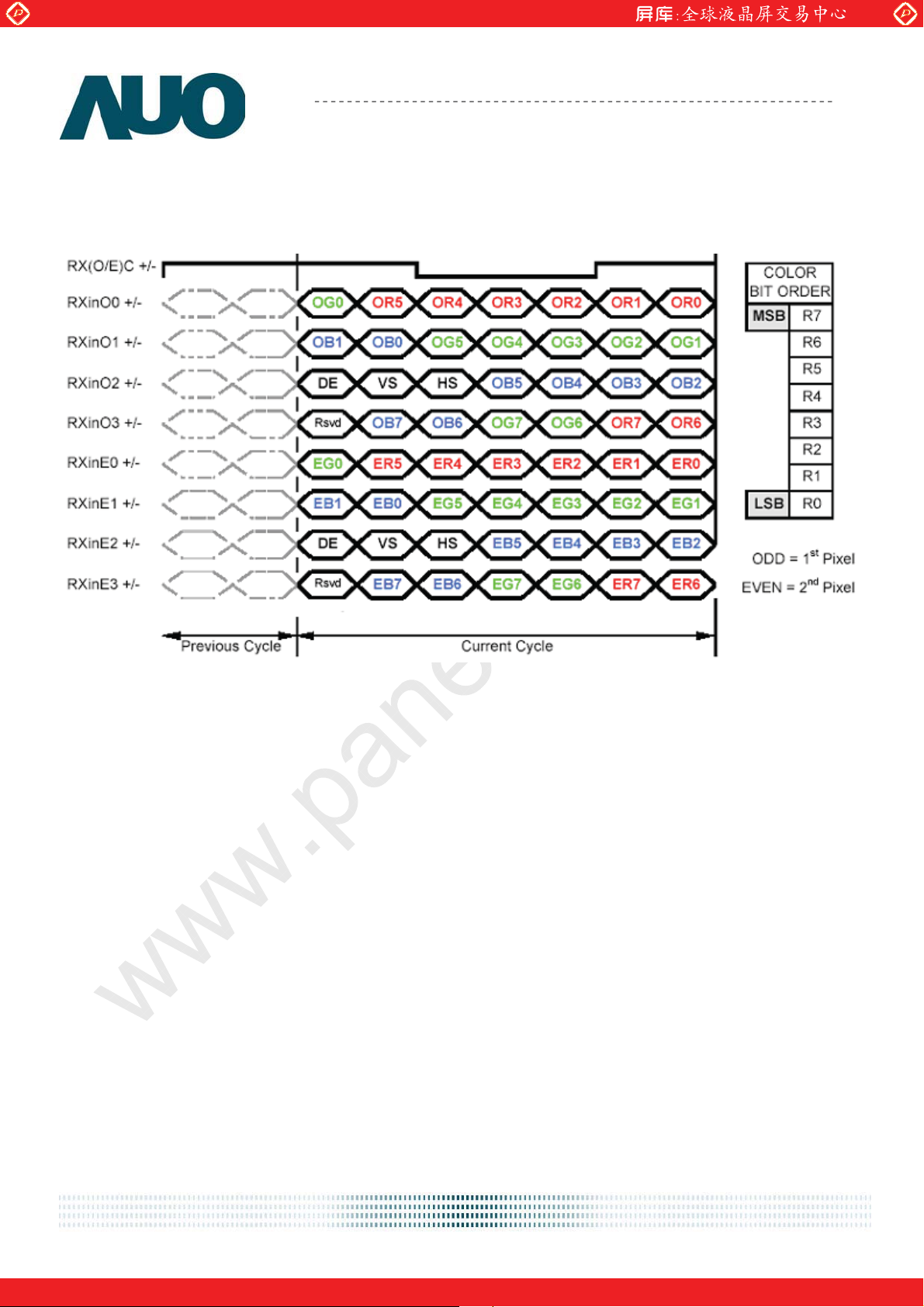

6.2 The Input Data Format
Product Specification
AU OPTRONICS CORPORATION
G190EAN01.0
Note1: Normally DE mode only. VS and HS on EVEN channel are not used.
Note2: Please follow
VESA.
Note3: 8-bit in
document version 0.1 17/28
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 18
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
G190EAN01.0
6.3 Signal Description
The module using a pair of LVDS receiver SN75LVDS82(Texas Instruments) or compatible. LVDS is a
differential signal technology for LCD interface and high speed data transfer device. Transmitter shall be
SN75LVDS83(negative edge sampling) or compatible. The first LVDS port(RxOxxx) transmits odd pixels
while the second LVDS port(RxExxx) transmits even pixels.
PIN # SIGNAL NAMEDESCRIPTION
1 RxOIN0- Negative LVDS differential data input (Odd data)
2 RxOIN0+ Positive LVDS differential data input (Odd data)
3 RxOIN1- Negative LVDS differential data input (Odd data)
4 RxOIN1+ Positive LVDS differential data input (Odd data)
5 RxOIN2- Negative LVDS differential data input (Odd data, H-Sync,V-Sync,DSPTMG)
6 RxOIN2+ Positive LVDS differential data input (Odd data, H-Sync,V-Sync,DSPTMG)
