Product Specifications

17.0” SXGA Color TFT-LCD Smart Integration Module

Model Name: M170ES04

V.1

( ) Preliminary Specifications



) Final Specifications

(

(C) Copyright AU Optronics Corporation

August, 2001 All Rights Reserved. M170ES04 Ver 0.3

No Reproduction and Redistribution Allowed.

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

1/24

www.panelook.com

Global LCD Panel Exchange Center

i Contents

1.0 Handling Precautions

2.0 General Description

2.1 Display Characteristics

2.2 Functional Block Diagram

2.3 Optical Characteristics

2.4 Pixel format image

3.0 Electrical characteristics

3.1 Absolute Maximum Ratings

3.2 Connectors

3.3 Signal Pin

3.4 Signal Description

3.5 Signal Electrical Characteristics

3.6 Interface Timing

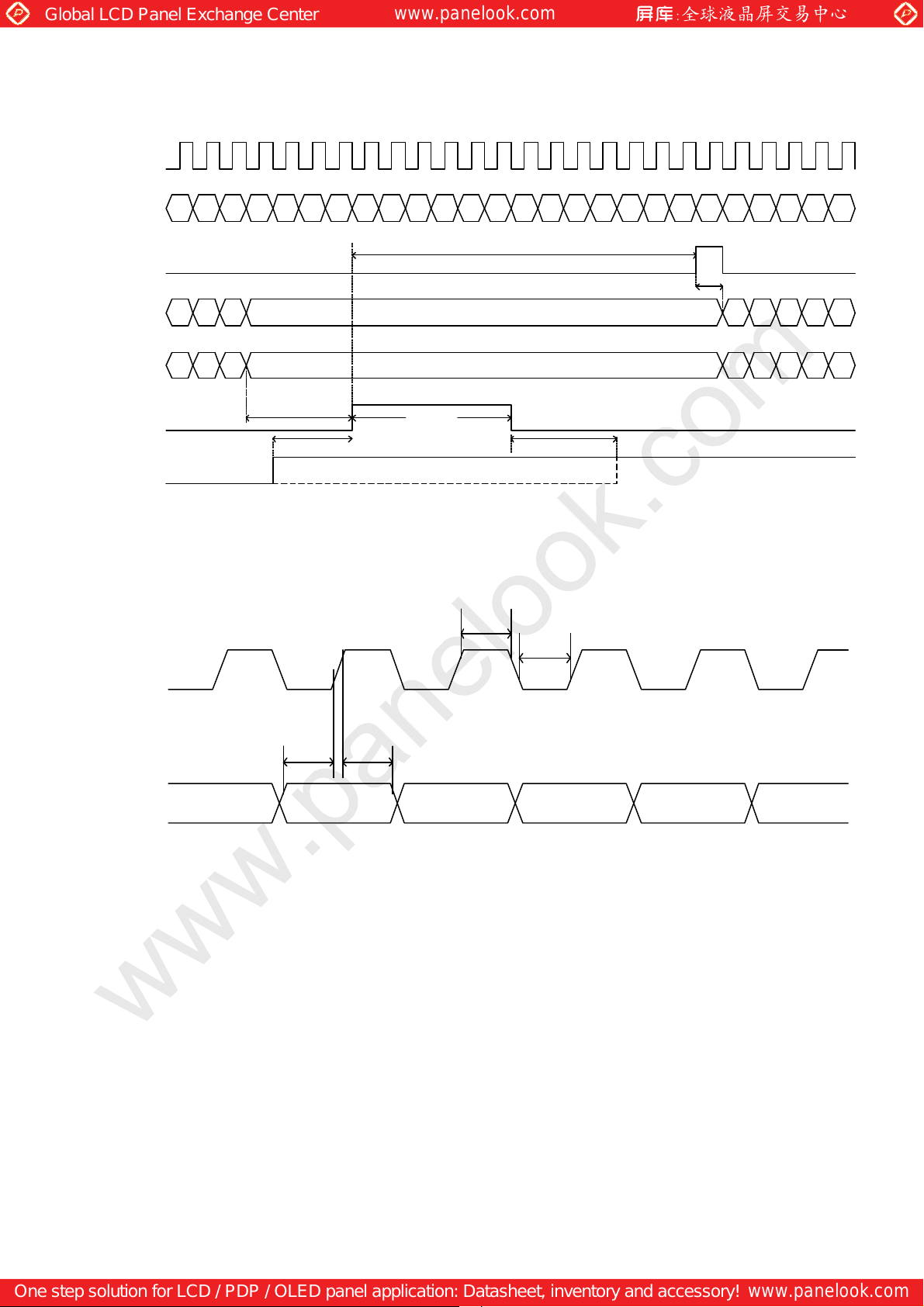

3.6.1 Timing Characteristics

3.6.2 Source and Gate Driver Timing Requirement

3.7 Power Consumption

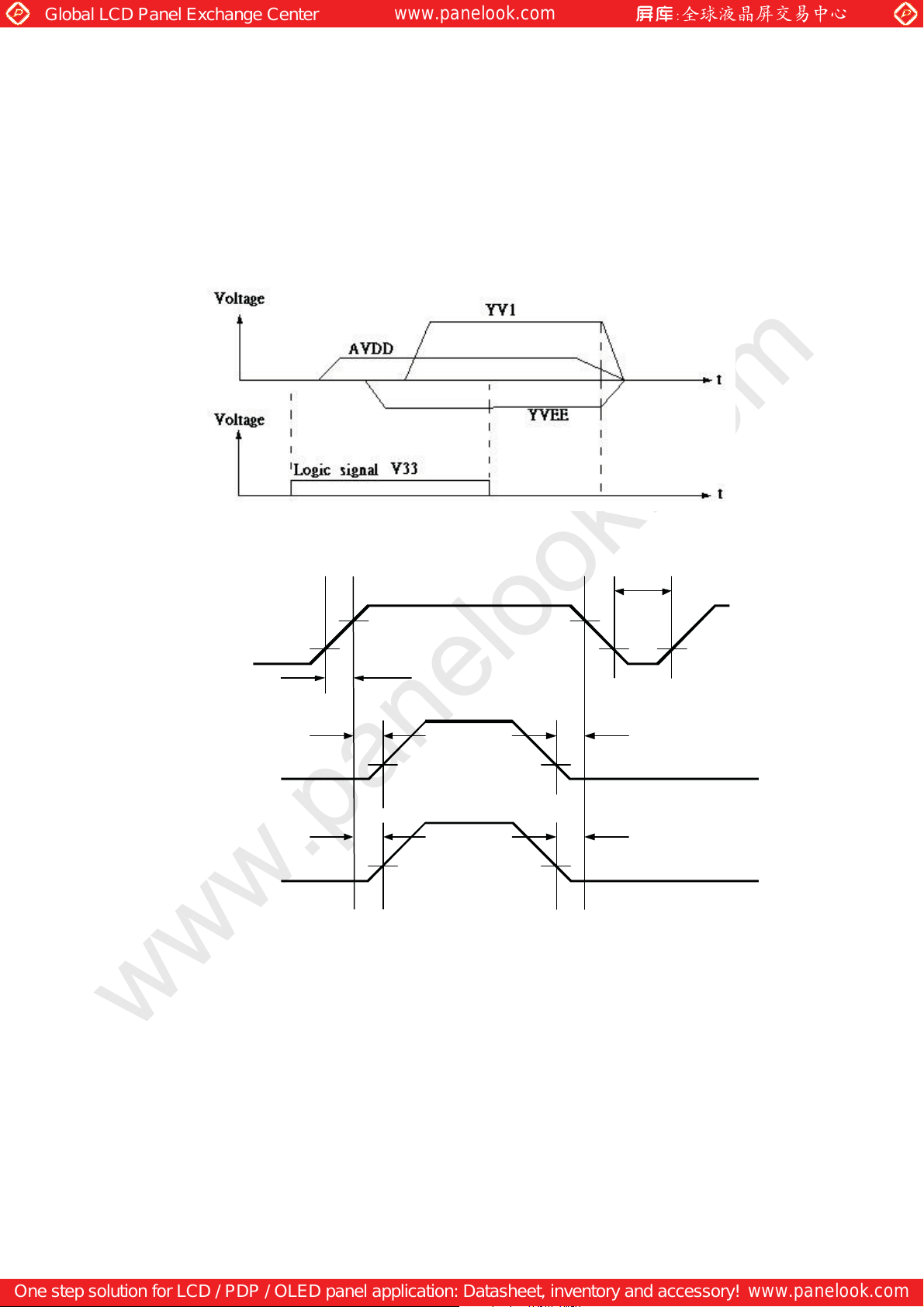

3.8 Power ON/OFF Sequence

4.0 Backlight Characteristics

4.1 Signal for Lamp connector

4.2 Parameter guideline for CCFL Inverter

5.0 Vibration, shock and drop

5.1 Vibration and shock

5.2 Shock test

5.3 Drop test

6.0 Environment

6.1 Temperature and humidity

6.1.1 Operating conditions

6.1.2 Shipping conditions

6.2 Atmospheric pressure

6.3 Thermal shock

7.0 Reliability

7.1 Failure criteria

7.2 Failure rate

7.2.1 Usage

7.2.2 Components de-rating

7.3 CCFL life

7.4 ON/OFF cycle

8.0 Safety

8.1 Sharp edge requirement

8.2 Material

8.2.1 Toxicity

8.2.2 Flammability

8.3 Capacitors

8.4 Hazardous voltage

9.0 Other requirements

9.1 Smoke free design

9.2 National test lab requirement

10.0 Mechanical Characteristics

www.panelook.com

(C) Copyright AU Optronics Corporation

August, 2001 All Rights Reserved. M170ES04 Ver 0.3

No Reproduction and Redistribution Allowed.

2/24

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

ii Record of Revision

Version and Date Page Old description New Description Remark

0.1. 2001/10/04 All First Edition for Customer All

0.2. 2002/01/21 5,8

0.3 2002/01/21 22 n.a Product label Add

0.4 2002/01/30 4 n.a. Weight: 2000 g Add

Interface connector:

JAE or compatible

Interface connector:

Hirose or compatible

Change

1.0 Handling Precautions

1) Since front polarizer is easily damaged, pay attention not to scratch it.

2) Be sure to turn off power supply when inserting or disconnecting from input connector.

3) Wipe off water drop immediately. Long contact with water may cause discoloration or spots.

4) When the panel surface is soiled, wipe it with absorbent cotton or other soft cloth.

5) Since the panel is made of glass, it may break or crack if dropped or bumped on hard surface.

6) Since CMOS LSI is used in this module, take care of static electricity and insure human earth when
handling.

7) Do not open nor modify the Module Assembly.

8) Do not press the reflector sheet at the back of the module to any directions.

9) At the insertion or removal of the Signal Interface Connector, be sure not to rotate nor tilt the Interface
Connector of the TFT-LCD module.

10) After installation of the TFT-LCD module into an enclosure (LCD monitor housing, for example), do not
twist nor bend the TFT -LCD module even momentary. At designing the enclosure, it should be taken
into consideration that no bending/twisting forces are applied to the TFT -LCD module from outside.
Otherwise the TFT -LCD module may be damaged.

(C) Copyright AU Optronics Corporation

August, 2001 All Rights Reserved. M170ES04 Ver 0.3

3/24

No Reproduction and Redistribution Allowed.

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

2.0 General Description

This specification applies to the 17.0 inch Color TFT-LCD Integration Module M170ES04.

The display supports the SXGA (1280(H) x 1024(V)) screen format and 16.7M colors (RGB 8-bits data).

All input signals are TTL interface compatible.

This module does not contain an inverter card for backlight.

2.1 Display Characteristics

The following items are characteristics summary on the table under 25 ℃ condition:

ITEMS Unit SPECIFICATIONS

Screen Diagonal [mm] 432(17.0")
Active Area [mm] 337.920 (H) x 270.336(V)
Pixels H x V 1280(x3) x 1024
Pixel Pitch [mm] 0.264 (per one triad) x 0.264
Pixel Arrangement R.G.B. Vertical Stripe
Display Mode Normally White
White Luminance [cd/m2] 250 (Typ)
Contrast Ratio 400 : 1 (Typ)
Optical Response Time [msec] 40 (Typ)
Physical Size [mm] 383.5(W) x 306(H) x 20.0(D) (Typ)
Weight [g] 2000 (Typ)
Electrical Interface Even-Even R/G/B data (8bits)

Even-Odd R/G/B data (8bits)
Odd-Even R/G/B data (8bits)
Odd-Odd R/G/B data (8bits),
15 timing control signal input
4 DC power input

Support Color 16.7M colors (RGB 8-bit data)
Temperature Range
Operating
Storage (Shipping)

o

C]

[

o

C]

[

0 to +50

-20 to +60

(C) Copyright AU Optronics Corporation

August, 2001 All Rights Reserved. M170ES04 Ver 0.3

No Reproduction and Redistribution Allowed.

4/24

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

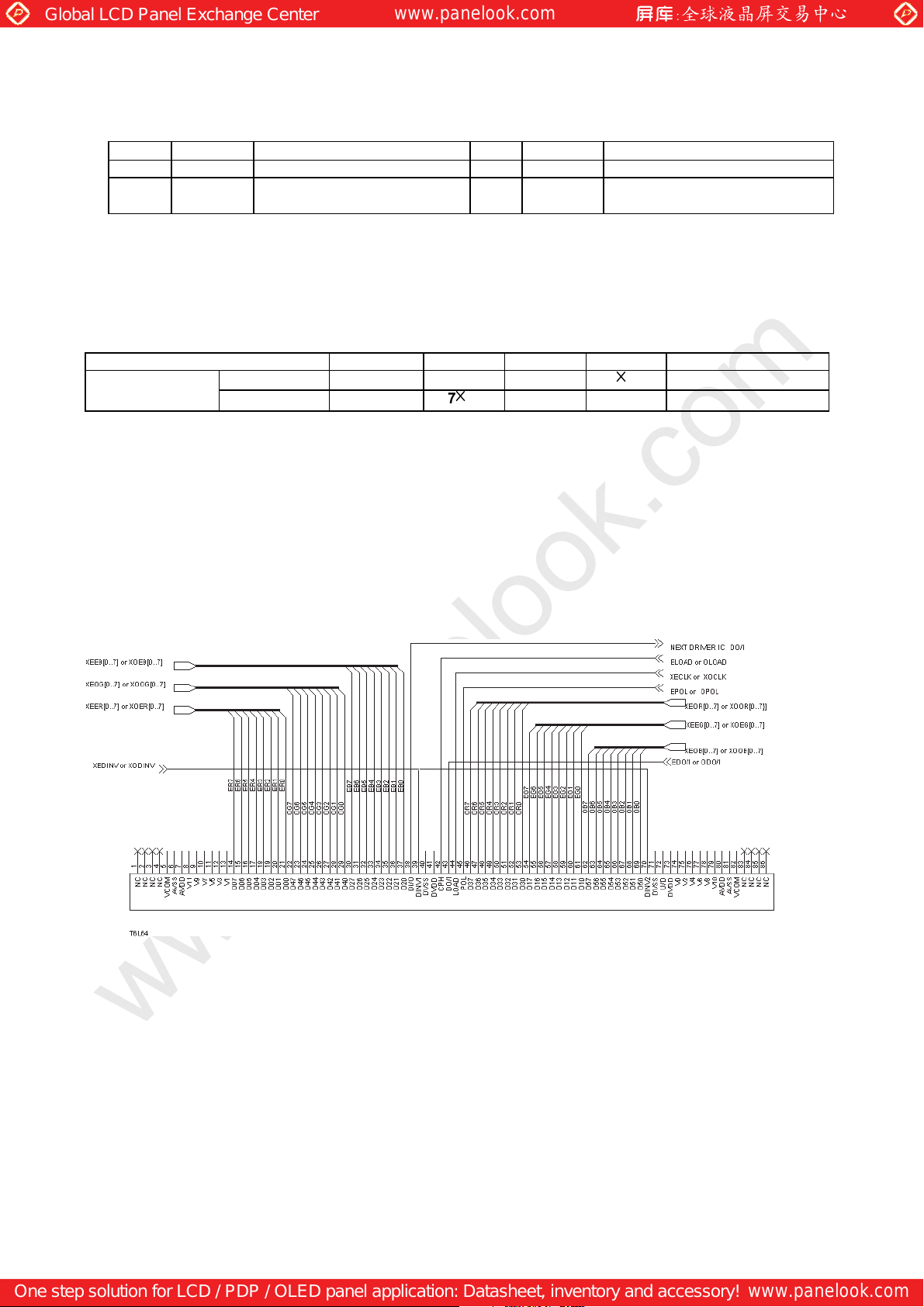

2.2 Functional Block Dia gram

The following diagram shows the functional block of the 17.0 inches Color TFT-LCD Smart Module:

X PCB
Hirose FH12-30S JST BHR-04VS-1
Hirose FH12-50S Mating Type SM04 (4.0) B-BHS -1-TB

2.3 Optical Characteristics

The optical characteristics are measured under stable conditions at 25℃ (Room Temperature):

Item Unit Conditions Min. Typ. Max.

Viewing Angle

[degree]

[degree]

[degree]

[degree]

[degree]

[degree]

[degree]

[degree]

Contrast ratio

Response Time [msec] Raising Time - 25 35-

[msec] Falling Time - 15 25­[msec] Raising + Falling - 40 -

Color / Chromaticity Red x 0.59 0.62 0.65
Coordinates (CIE) Red y 0.3 0.33 0.36

Horizontal (Right)
CR = 10 (Left)

Vertical (Up)
CR = 10 (Down)

Horizontal (Right)
CR = 5 (Left)

Vertical (Up)
CR = 5 (Down)

Normal Direction

Green x 0.27 0 .30 0.33
Green y 0.57 0. 60 0.63

Blue x

60/60

-

50
55

70

-

70

-

250 400

70/70

60
65

80

80

0.12 0.15 0.18

-

-

-

-

-

-

-

-

-

(C) Copyright AU Optronics Corporation

August, 2001 All Rights Reserved. M170ES04 Ver 0.3

No Reproduction and Redistribution Allowed.

5/24

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

Blue y

Color Coordinates

White x

(CIE) White

White y

Luminance Uniformity
(Note 1)
White Luminance at
CCFL 6.0mA(center
point)
Crosstalk ( in 75Hz)

Note 1 Measure points & Diagram

[%] 80 85 -

[cd/m2] 200 250 -

[%] 1.5

Display Length distance
x = ——————————————

10

Display Width distance

y = ——————————————

10

Minimum Lum inance in 5 Points (1-5)

Uniformity = ———————————————————

Maximum Luminance in 5 Points (1-5)

0.07 0.10 0.13

0.28 0.31

0.34

0.3 0.33 0.36

This panel is compatible with TCO99 approbation in luminance uniformity <1.7, luminance contrast >0.5

LCD Display area = 337.9 x 270.4 mm

W/10

1

2

W/10

5

3

W/10

L/10

4

W/10

L/10

(C) Copyright AU Optronics Corporation

August, 2001 All Rights Reserved. M170ES04 Ver 0.3

No Reproduction and Redistribution Allowed.

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

6/24

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

2.4 Pixel format image

Following figure shows the relationship of the input signals and LCD pixel format.

1 2 1279 1280

1st Line

1024th

R G B R G B

R G B R G B

R G B R G B

R G B R G B

(C) Copyright AU Optronics Corporation

August, 2001 All Rights Reserved. M170ES04 Ver 0.3

No Reproduction and Redistribution Allowed.

7/24

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

3.0 Electrical characteristics

3.1 Absolute Maximum Ratings (GND=0V)

Absolute maximum ratings of the module is as following:

Item Symbol Min Max Unit Conditions

Supply Voltage (1) V33 -0.3 4.6 [Volt]

Supply Voltage (2) AVDD -0.3 15 [Volt]

Supply Voltage (3) YV1 -0.3 42 [Volt]

Supply Voltage (4) YVEE -16 0.3 [Volt]

YV1-YVEE -0.3 42 [Volt]

CCFL Inrush current ICFLL - 38 [mA] Note 1

CCFL Current ICFL - 7 .6 [mA ] rms

Operating Temperature TOP 0 +50 [oC] Note 2

Operating Humidity HOP 8 95 [%RH] Note 2

Storage Temperature TST -20 +60 [oC] Note 2

www.panelook.com

Storage Humidity HST 8 95 [%RH] Note 2

Note 1 : Duration=50 msec.

Ċ

Note 2 : Maximum Wet-Bulb should be 39
Note3 : Source -Driver IC : T6L64 , Gate-Driver IC : TMS57606

and No condensation.

3.2 Connectors

Physical interface is described as for the connector on module.
These connectors are capable of accommodating the following signals and will be will be following components.

J5

Connector Name / Designation Interface Connector / X-PCB card
Manufacture Hirose or compatible
Type Part Number FH12-30S

J6,J7

Connector Name / Designation Interface Connector / X-PCB card
Manufacture Hirose or compatible
Type Part Number FH12-50S

3.3 Signal Pin

J5 CONNECTOR

Pin# Signal Name Pin# Signal Name

1 XOEG6 2 XOEG5
3 XOEG4 4 XOEG3
5 XOEG2 6 XOEG1
7 XOEG0 8 GND
9 XOEB7 10 XOEB6

11 XOEB5 12 XOEB4
13 XOEB3 14 XOEB2

15 XOEB1 16 XOEB0

(C) Copyright AU Optronics Corporation

August, 2001 All Rights Reserved. M170ES04 Ver 0.3

No Reproduction and Redistribution Allowed.

8/24

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

17 V33 18 V33
19 V33 20 AVDD
21 AVDD 22 AVDD
23 YV1 24 YVEE
25 GND 26 GATE-ON
27 YOE 28 YCLK
29 YDIO2 30 YDIO1

J6 CONNECTOR

Pin# Signal Name Pin# Signal Name

1 EPOL 2 ELOAD
3 EDO/I 4 GND
5 XECLK 6 GND
7 XEDINV 8 GND
9 XOOR7 10 XOOR6

11 XOOR5 12 XOOR4
13 XOOR3 14 XOOR2
15 XOOR1 16 XOOR0
17 XOOG7 18 XOOG6
19 XOOG5 20 XOOG4
21 XOOG3 22 XOOG2

23 XOOG1 24 XOOG0
25 GND 26 XOOB7
27 XOOB6 28 XOOB5
29 XOOB4 30 XOOB3
31 XOOB2 32 XOOB1
33 XOOB0 34 OPOL

35 OLOAD 36 ODO/I
37 GND 38 XOCLK
39 GND 40 XODINV
41 GND 42 XOER7
43 XOER6 44 XOER5
45 XOER4 46 XOER3

47 XOER2 48 XOER1
49 XOER0 50 XOEG7

www.panelook.com

J7 CONNECTOR

Pin# Signal Name Pin# Signal Name

1 XEOR7 2 XEOR6
3 XEOR5 4 XEOR4
5 XEOR3 6 XEOR2
7 XEOR1 8 XEOR0

9 XEOG7 10 XEOG6
11 XEOG5 12 XEOG4
13 XEOG3 14 XEOG2
15 XEOG1 16 XEOG0
17 GND 18 XEOB7
19 XEOB6 20 XEOB5
21 XEOB4 22 XEOB3
23 XEOB2 24 XEOB1
25 XEOB0 26 XEER7

(C) Copyright AU Optronics Corporation

August, 2001 All Rights Reserved. M170ES04 Ver 0.3

No Reproduction and Redistribution Allowed.

9/24

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

27 XEER6 28 XEER5
29 XEER4 30 XEER3
31 XEER2 32 XEER1
33 XEER0 34 GND
35 XEEG7 36 XEEG6
37 XEEG5 38 XEEG4
39 XEEG3 40 XEEG2
41 XEEG1 42 XEEG0
43 XEEB7 44 XEEB6
45 XEEB5 46 XEEB4
47 XEEB3 48 XEEB2
49 XEEB1 50 XEEB0

3.4 Signal Description

www.panelook.com

J7 CONNECTOR

Pin
No.

11 XEOG5 Green Data bit 5 (Even-Odd) 12 XEOG4 Green Data bit 4 (Even-Odd)
13 XEOG3 Green Data bit 3 (Even-Odd) 14 XEOG2 Green Data bit 2 (Even-Odd)

15 XEOG1 Green Data bit 1 (Even-Odd) 16 XEOG0 Green Data bit 0 (Even-Odd)
17 GND Ground 18 XEOB7 Blue Data bit 7 (Even-Odd)
19 XEOB6 Blue Data bit 6 (Even-Odd) 20 XEOB5 Blue Data bit 5 (Even -Odd)
21 XEOB 4 Blue Data bit 4 (Even-Odd) 22 XEOB3 Blue Data bit 3 (Even -Odd)
23 XEOB2 Blue Data bit 2 (Even-Odd) 24 XEOB1 Blue Data bit 1 (Even -Odd)
25 XEOB0 Blue Data bit 0 (Even-Odd) 26 XEER7 Red Data bit 7 (Even-Even)
27 XEER6 Red Data bit 6 (Even-Even) 28 XEER5 Red Data bit 5 (Even-Even)
29 XEER4 Red Data bit 4 (Even-Even) 30 XEER3 Red Data bit 3 (Even-Even)
31 XEER2 Red Data bit 2 (Even-Even) 32 XEER1 Red Data bit 1 (Even-Even)
33 XEER0 Red Data bit 0 (Even-Even) 34 GND Ground
35 XEEG7 Green Data bit 7 (Eve n-Even) 36 XEEG6 Green Data bit 6 (Even-Even)
37 XEEG5 Green Data bit 5 (Even-Even) 38 XEEG4 Green Data bit 4 (Even-Even)
39 XEEG3 Green Data bit 3 (Even-Even) 40 XEEG2 Green Data bit 2 (Even-Even)
41 XEEG1 Green Data bit 1 (Even-Even) 42 XEEG0 Green Data bit 0 (Even-Even)
43 XEEB7 Blue Data bit 7 (Even -Even) 44 XEEB6 Blue Data bit 6 (Even-Even)
45 XEEB5 Blue Data bit 5 (Even -Even) 46 XEEB4 Blue Data bit 4 (Even-Even)
47 XEEB3 Blue Data bit 3 (Even -Even) 48 XEEB2 Blue Data bit 2 (Even-Even)
49 XEEB1 Blue Data bit 1 (Even -Even) 50 XEEB0 Blue Data bit 0 (Even-Even)

Symbol Description Pin

No.

1 XEOR7 Red Data bit 7 (Even-Odd) 2 XEOR6 Red Data bit 6 (Even-Odd)
3 XEOR5 Red Data bit 5 (Even-Odd) 4 XEOR4 Red Data bit 4 (Even-Odd)
5 XEOR3 Red Data bit 3 (Even-Odd) 6 XEOR2 Red Data bit 2 (Even-Odd)
7 XEOR1 Red Data bit 1 (Even-Odd) 8 XEOR0 Red Data bit 0 (Even-Odd)
9 XEOG7 Green Data bit 7 (Even-Odd) 10 XEOG6 Green Data bit 6 (Even-Odd)

Symbol Description

J6 CONNECTOR

Pin
No.

(C) Copyright AU Optronics Corporation

August, 2001 All Rights Reserved. M170ES04 Ver 0.3

No Reproduction and Redistribution Allowed.

Symbol Description Pin

1 EPOL Source driver output

polarity control (Even)

Symbol Description

No.

2 ELOAD Source driver latch pulse

(Even)

10/24

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

3 EDO/I Horizontal Start Pulse (Even) 4 GND Ground
5 XECLK Pixel Clock Input (Even) 6 GND Ground
7 XEDINV Data Reverse

Control Signal (Even)

9 XOOR7 Red Data bit 7 (Odd-Odd) 10 XOOR6 Red Data bit 6 (Odd-Odd)
11 XOOR5 Red Data bit 5 (Odd-Odd) 12 XOOR4 Red Data bit 4 (Odd-Odd)
13 XOOR3 Red Data bit 3 (Odd-Odd) 14 XOOR2 Red Data bit 2 (Odd-Odd)
15 XOOR1 Red Data bit 1 (Odd-Odd) 16 XOOR0 Red Data bit 0 (Odd-Odd)
17 XOOG7 Green Data bit 7 (Odd-Odd) 18 XOOG6 Green Data bit 6 (Odd-Odd)
19 XOOG5 Green Data bit 5 (Odd-Odd) 20 XOOG4 Green Data bit 4 (Odd-Odd)
21 XOOG3 Green Data bit 3 (Odd-Odd) 22 XOOG2 Green Data bit 2 (Odd-Odd)
23 XOOG1 Green Data bit 1 (Odd-Odd) 24 XOOG0 Green Data bit 0 (Odd-Odd)
25 GND Ground 26 XOOB7 Blue Data bit 7 (Odd-Odd)
27 XOOB6 Blue Data bit 6 (Odd-Odd) 28 XOOB5 Blue Data bit 5 (Odd-Odd)
29 XOOB4 Blue Data bit 4 (Odd-Odd) 30 XOOB3 Blue Data bit 3 (Odd-Odd)
31 XOOB2 Blue Data bit 2 (Odd-Odd) 32 XOOB1 Blue Data bit 1 (Odd-Odd)
33 XOOB0 Blue Data bit 0 (Odd-Odd) 34 OPOL Source driver output

35 OLOAD Source driver latch pulse

(Odd)

37 GND Ground 38 XOCLK Pixel Clock Input (Odd)
39 GND Ground 40 XODINV Data Reverse

41 GND Ground 42 XOER7 Red Data bit 7 (Odd-Even)
43 XOER6 Red Data bit 6 (Odd-Even) 44 XOER5 Red Data bit 5 (Odd-Even)
45 XOER4 Red Data bit 4 (Odd-Even) 46 XOER3 Red Data bit 3 (Odd-Even)
47 XOER2 Red Data bit 2 (Odd-Even) 48 XOER1 Red Data bit 1 (Odd-Even)
49 XOER0 Red Data bit 0 (Odd-Even) 50 XOEG7 Green Data bit 7(Odd-Even)

www.panelook.com

8 GND Ground

polarity control (Odd)

36 ODO/I Horizontal Start Pulse (Odd)

Control Signal (Odd)

J5 CONNECTOR

Pin
No.

11 XOEB5 Blue Data bit 5 (Odd-Even) 12 XOEB4 Blue Data bit 4 (Odd-Even)
13 XOEB3 Blue Data bit 3 (Odd-Even) 14 XOEB2 Blue Data bit 2 (Odd-Even)
15 XOEB1 Blue Data bit 1 (Odd-Even) 16 XOEB0 Blue Data bit 0 (Odd-Even)
17 V33 Digital Power Input

19 V33 Digital Power Input

21 AVDD Analog Power Input

23 YV1 Gate Driver High Voltage

25 GND Ground 26

27 YOE Gate Driver output 28 YCLK Gate Driver Pixel Clock Input

(C) Copyright AU Optronics Corporation

August, 2001 All Rights Reserved. M170ES04 Ver 0.3

Symbol Description Pin

No.

1 XOEG6 Green Data bit 6 (Odd-Even) 2 XOEG5 Green Data bit 5 (Odd-Even)

3 XOEG4 Green Data bit 4 (Odd-Even) 4 XOEG3 Green Data bit 3 (Odd-Even)

5 XOEG2 Green Data bit 2 (Odd-Even) 6 XOEG1 Green Data bit 1 (Odd-Even)

7 XOEG0 Green Data bit 0 (Odd-Even) 8 GND Ground

9 XOEB7 Blue Data bit 7 (Odd-Even) 10 XOEB6 Blue Data bit 6 (Odd-Even)

(DC +3.3V)

(DC +3.3V)

(DC +12.5V)

Input (DC +26.5V)

Symbol Description

18 V33 Digital Power Input

(DC +3.3V)

20 AVDD Analog Power Input

(DC +12.5V)

22 AVDD Analog Power Input

(DC +12.5V)

24 YVEE Gate Driver Low Voltage Input

GATE- ON

(DC -6V)
Gate Driver Output
Enable Signal

11/24

No Reproduction and Redistribution Allowed.

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

Enable Signal
29 YDIO2 Vertical Start Pulse 2 30 YDIO1 Vertical Start Pulse 1
25 GND Ground 26

www.panelook.com

GATE-ON

Gate Driver Output
Enable Signal

3.5 Signal Electrical Characteristic

It is recommended to refer the specifications of source driver(Toshiba:T6L64) and gate driver(TI:TMS57606)
in detail.

Characteristics SYMBOL MIN TYP. MAX UNIT

Low Level VIL 0 0.3
High Level V

IH

0.7ÒV33 V33 Volt

Ò

V33

VoltInput Voltage

3.6 Interface Timing

3.6-1 Timing Characteristics

Make sure the setup and hold time of each source driver input signal fit the following specification.
The electrical diagram below is TAB pin assignment.

(C) Copyright AU Optronics Corporation

August, 2001 All Rights Reserved. M170ES04 Ver 0.3

No Reproduction and Redistribution Allowed.

12/24

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

3.6-2 Source and Gate Driver Timing Requirement

This following data describes the source and gate drivers timing requirement for 17” XGA (1280

×1024) Panel. The control timing is defined based on VESA SXGA at frame rate 75 Hz(non- interlaced).
The symbols and timing requirement are defined in Table 1 and Table 2. And, the timing diagrams for the

source and gate drivers are shown in Figure 1 and Figure 2 respectively.

Table 1. Timing requirement for Source Driver

Parameter Symbol Condition Min. TYP. MAX. Unit

Cloc k Width(H) T
Clock Width(L) T
Clock and Data Setup Time T
Clock and Data Hold Time T
XDIO Position T

CWH

CWL

Setup

Hold

XDIO

XSTB Pulse Width PW

Last Data Timing T
POL-XSTB Time T
XSTB-XPOL Time T
XSTB- XDIO Time T

LDT

POL-STB

STB-POL

STB-XDIO

VIH to V
VIL to V

IH

IL

4ns
4ns
4ns
0ns

XDIO↑→ First Data 1 1 1 CLK

STB

2 CLK

1.0 μs

Last Data → XSTB↑ 2 CLK
POL↑or↓→XSTB↑ 4ns
XSTB↓→POL↑or↓ 0ns
XSTB↑→ XDIO↑ 2 CLK

Parameter Symbol Condition Min. TYP. MAX. Unit

Clock Pulse Width (High) T
Clock Pulse Width (Low) T
YOE Pulse Width (Low) T
YCLK rising to XSTB rising T
YCLK falling to XSTB falling T
YCLK rising to YOE falling T

YCLK falling to YOE rising T
Gate On to Source Out T
YDIO start time

Table 2. Timing requirement for Gate Driver

CLKH

CLKL

YOEL

1

2

3

4

YOE-STB

T

YDIO-DE

YOE↑→XSTB↓ -1.2 us
YDIO↑→first line(DE) 3 Line

12.6 μs
4 μs

2.6 μs

1.7 μs
100 ns
240 ns

240 ns

(C) Copyright AU Optronics Corporation

August, 2001 All Rights Reserved. M170ES04 Ver 0.3

No Reproduction and Redistribution Allowed.

13/24

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

d

L

p

E/OCLK

www.panelook.com

HCOUNTER 3843

XDIO

ERGB

ORGB

XSTB

E/OPOL

Note1 : HCOUNTER is reference signal

Note2 : For SXGA@75Hz Htotal = 1688 pixels

638 639 640 840 841 842 0 1 2 4 5

1274

1276

1275

1277

1278

1279

T

LDT

STBPOLT−

PW

Invalid Data

Invalid Data

STB

839

XDIOSTBT−

POLSTBT−

Source Driver Timing

Figure 1

T

CWH

T

CW

T

XDIO

012345678

9

DCLK

Data

T

Setu

T

Hol

pixel N pixel N+1 pixel N+2 pixel N+3 pixel N+4pixel N-1

Source Driver Timing

Figure1(cont.)

(C) Copyright AU Optronics Corporation

14/24

August, 2001 All Rights Reserved. M170ES04 Ver 0.3

No Reproduction and Redistribution Allowed.

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

DE

VCounter

T

1

XSTB

YCLK

YOE

YDIO1

YDIO2

Note1 : DE and VCounter are reference signals

Note2 : For SXGA@75Hz Vtotal= 1066 lines

T

CLKH

DEYDIOT_

01VTotal-1VTotal-2VTotal-3VTotal-4

T

2

T

T

3

T

YOEL

4

T

STBYOE

−

Gate Driver Timing

Figure 2

3.7 Power Consumption
Recommend Operating Condition (GND=0V)

Item Symbol Min Typ Max Unit Conditions

Supply Voltage (1) V33 3 3.3 3.6 [Volt] *Ripple<80mV

Supply Voltage (2) AVDD 9.1 9.6 10.1 [Volt] *Ripple<200mV

Supply Voltage (3) YV1 23.8 25.09 26.3 [Volt] *Ripple<80mV

Supply Voltage (4) YVEE -4.7 -4.95 -5.2 [Volt] *Ripple<80mV

V33 Current IV33 - 35 70 [mA] rms V33=3.3V

AVDD Current IAVDD - 320 640 [mA] rms AVDD=9.6V

YV1 Current I

YVEE Current IYVEE - -5 10 [mA] rms YVEE=-4.95V

*Ripple amplitude is tested under the worst case.

YV1

- 5 10 [mA] rms YV1=25.09V

(C) Copyright AU Optronics Corporation

15/24

August, 2001 All Rights Reserved. M170ES04 Ver 0.3

No Reproduction and Redistribution Allowed.

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

3.8 Power ON/OFF Sequence

Vin power and lamp on/off sequence is as follows. Interface signals are also shown in the chart.



When the device is power on, the sequence should be: logic signal(V33)

AVDDYVEEYV1

Vin

Signal

Lamp
On

10%

170ms

min.

90% 90%

30 max, 1ms min.

10%

10%

10%

10%

50ms

min.

10%

10%

0 min.0 min.

0 min.

(C) Copyright AU Optronics Corporation

August, 2001 All Rights Reserved. M170ES04 Ver 0.3

No Reproduction and Redistribution Allowed.

16/24

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

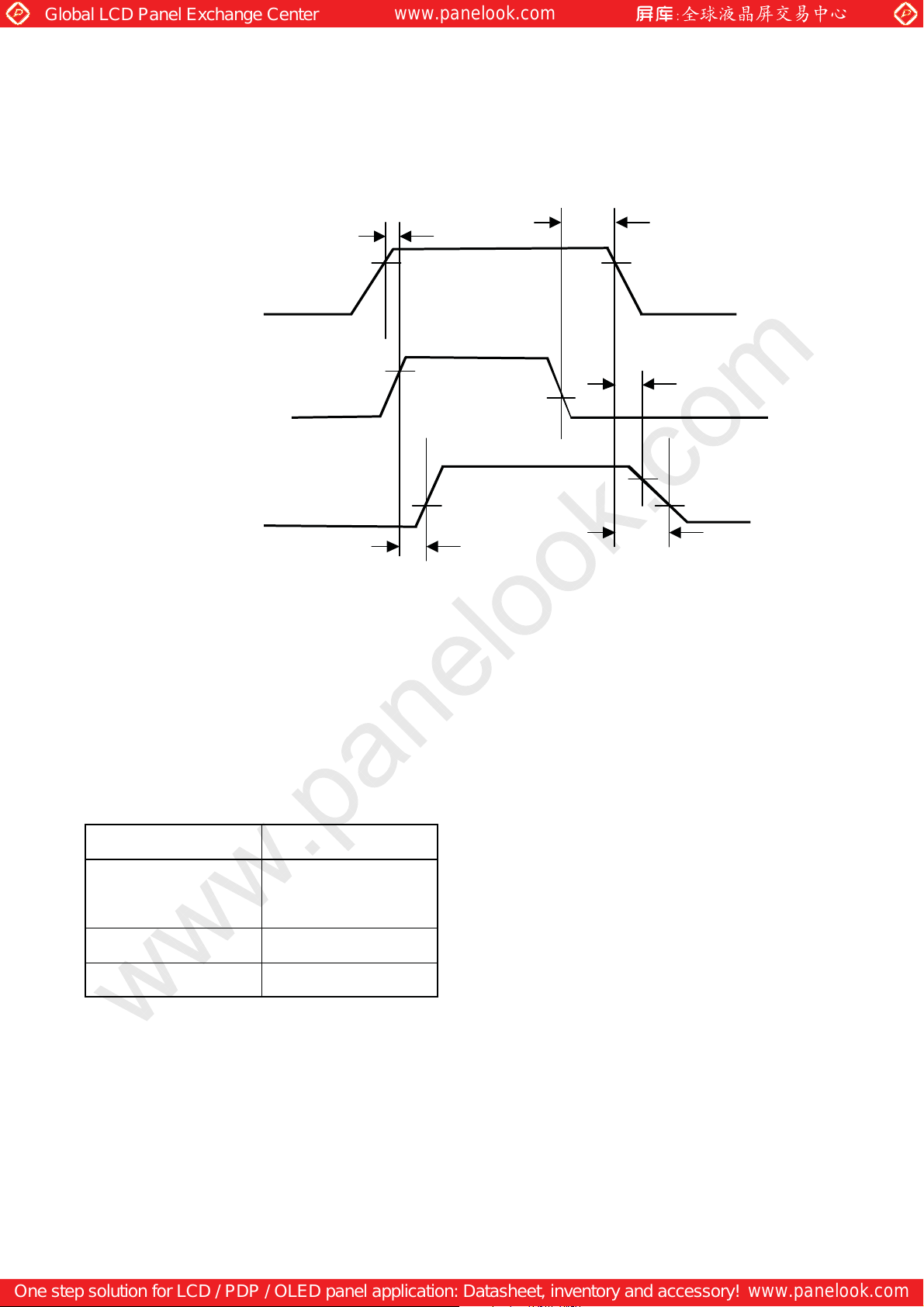

3.9 Gate ON & YV1 Timing

www.panelook.com

VCC

0 V

Gate ON

0 V

YV1

0 V

Max 30ms

90%

1

Min 5us,Max 5ms

90%

Min 0ms

70%

30%

90%

20%

Max 50ms

Min 10ms

4.0 Backlight Characteristics

4.1 Signal for Lamp connector

Pin # Signal Name

1 Lamp High Voltage

2

3

4

(C) Copyright AU Optronics Corporation

August, 2001 All Rights Reserved. M170ES04 Ver 0.3

Lamp High Voltage

No Connection

Ground

17/24

No Reproduction and Redistribution Allowed.

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

4.2 Parameter guide line for CFL Inverter

Symbol Parameter Min Typ Max Units Condition

(L255) White Luminance 200 250 - [cd/m2] (Ta=25oC)

www.panelook.com

ISCFL CCFL standard current 5.5 6.0 6.5 [mA]

rms

IRCFL CCFL operation range 3.0 6.0 7. 0 [mA]

rms

ICFL CCFL Inrush current - 26 34 [mA] Note 1

fCFL CCFL Frequency 40 50 80 [KHz] (Ta=25oC)

ViCFL

o

C)

(0
ViCFL

o

C)

(25
VCFL CCFL Discharge Voltage

PCFL CCFL Power consumption 17.3

Note 1: Duration=50 [msec]
Note 2: CCFL Frequency should be carefully determined to avoid interference between inverter and TFT LCD

Note 3: Calculator value for reference (ICFL×VCFL=PCFL)
Note 4: CCFL inverter should be able to give out a power that has a generating capacity of over 1700 voltage.
Lamp units need 1700 voltage minimum for ignition

CCFL Ignition Voltage 1700 [Volt]

rms

CCFL Ignition Voltage 1200 [Volt]

rms

(Reference)

720

863

19.0

[Volt]

rms

[Watt] (Ta=25oC)

(Ta=25oC)

(Ta=25oC)

Note 2

o

(Ta=0

C)

Note 4

o

(Ta=25
Note 4
(Ta=25oC)
Note 3

Note 3

C)

5.0 Vibration, Shock, and Drop

5.1 Vibration & Shock

Frequency: 10 - 200Hz
Sweep: 30 Minutes each Axis (X, Y, Z)
Acceleration: 1.5G(10~200Hz P- P)
Test method:

Acceleration (G)

Frequency (Hz)

Active time(min)

(C) Copyright AU Optronics Corporation

August, 2001 All Rights Reserved. M170ES04 Ver 0.3

No Reproduction and Redistribution Allowed.

1.5

10~200~10

30

18/24

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

5.2 Shock Test Spec:

Direction: ±X , ±Y, ±Z

5.3 Drop test

Package test: The drop height is 60 cm.

www.panelook.com

Acceleration (G) –a

Active time -b
Wave form

Times

50
20

half-sin

1

6.0 Environment

The display module will meet the provision of this specification during operating condition or after storage or

shipment condition specified below. Operation at 10% beyond the specified range will not cause physical

damage to the unit.

6.1 Temperature and Humidity

6.1.1 Operating Conditions

The display module operates error free, when operated under the following conditions;
Temperature 0
Relative Humidity 8% to 95%
Wet Bulb Temperature 39.0

6.1.2 Shipping Conditions

The display module operates error free, after the following conditions;
Temperature -20
Relative Humidity 8% to 95%
Wet Bulb Temperature 39.0

6.2 Atmospheric Pressure

The display assembly is capable of being operated without affecting its operations over the pressure range
as following specified;

0

C to 50 0C

0

C to 60 0C

0

C

0

C

Pressure Note

Maximum Pressure 1040hPa 0m = sea level

Minimum Pressure 674hPa 3048m = 10.000 feet

Note : Non-operation attitude limit of this display module = 30,000 feet. = 9145 m.

(C) Copyright AU Optronics Corporation

August, 2001 All Rights Reserved. M170ES04 Ver 0.3

No Reproduction and Redistribution Allowed.

19/24

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

6.3 Thermal Shock

The display module will not sustain damage after being subjected to 100 cycles of rapid temperature
change. A cycle of rapid temperature change consists of varying the temperature from -20
back again.

Thermal shock cycle -20

Power is not applied during the test. After temperature cycling, the unit is placed in normal room ambient
for at least 4 hours before powering on.

0

C for 30min

60

0

C for 30min

www.panelook.com

0

C to 600C, and

7.0 Reliability

This display module and the packaging of that will comply following standards.

7.1 Failure Criteria

The display assembly will be considered as failing unit when it no longer meets any of the requirements
stated in this specification. Only as for maximum white luminance, following criteria is applicable.

2

Note : Maximum white Luminance shall be 125 cd/m

7.2 Failure Rate

The average failure rate of the display module (from first power-on cycle till 1,000 hours later)
will not exceed 1.0%.

The average failure rate of the display module from 1,000 hours until 16,000 hours will not
exceed 0.7%

per 1000 hours.

7.2.1 Usage

The assumed usage for the above criteria is:

220 power-on hours per month
500 power on/off cycles per month
Maximum brightness setting
Operation to be within office environment (25

or more.

0

C typical)

7.2.2 Component De-rating

All the components used in this device will be checked the load condition to meet the failure rate criteria.

7.3 CCFL Life

The assumed CCFL Life will be longer than 30,000 hours, typical value is 50,000 hours under stable condition at 25

o

C;

± 5
Standard current at 6.0 ± 0.5mA.
Definition of life: brightness becomes 50% or less than the minimum luminance value of CCFL.

(C) Copyright AU Optronics Corporation

August, 2001 All Rights Reserved. M170ES04 Ver 0.3

No Reproduction and Redistribution Allowed.

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

20/24

www.panelook.com

Global LCD Panel Exchange Center

7.4 ON/OFF Cycle

The display module will be capable of being operated over the following ON/OFF Cycles.

ON/OFF Value Cycles

+Vin and CCFL power 30,000 10 seconds on / 10 seconds off

8.0 Safety

8.1 Sharp Edge Requirements

There will be no sharp edges or comers on the display assembly that could cause injury.

www.panelook.com

8.2 Materials

8.2.1 Toxicity

There will be no carcinogenic materials used anywhere in the display module. If toxic materials are used,

they will be reviewed and approved by the responsible ADT Toxicologist.

8.2.2 Flammability

All components including electrical components that do not meet the flammability grade

UL94-V1 in the module will complete the flammability rating exception approval process. The

printed circuit board will be made from material rated 94-V1 or better. The actual UL

flammability rating will be print ed on the printed circuit board.

8.3 Capacitors

If any polarized capacitors are used in the display assembly, provisions will be made to keep them from

being inserted backwards.

8.4 Hazardous Voltages

Any point exceeding 42.4 volts meets the requireme nt of the limited current circuit. The current through a 2K Ω
resistance is less than 0.7 x f (kHz) mA.

(C) Copyright AU Optronics Corporation

August, 2001 All Rights Reserved. M170ES04 Ver 0.3

No Reproduction and Redistribution Allowed.

21/24

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

9.0 Other requirements

9.1 National Test Lab Requirement

The display module will satisfy all requirements for compliance to

UL 1950, First Edition U.S.A. Information Technology Equipment

CSA C22.2 No. 950-M89 Canada, Information Technology Equipment

EEC 950 International, Information Technology Equipment

EN 60 950 International, Information Processing Equipment

9.2 Label

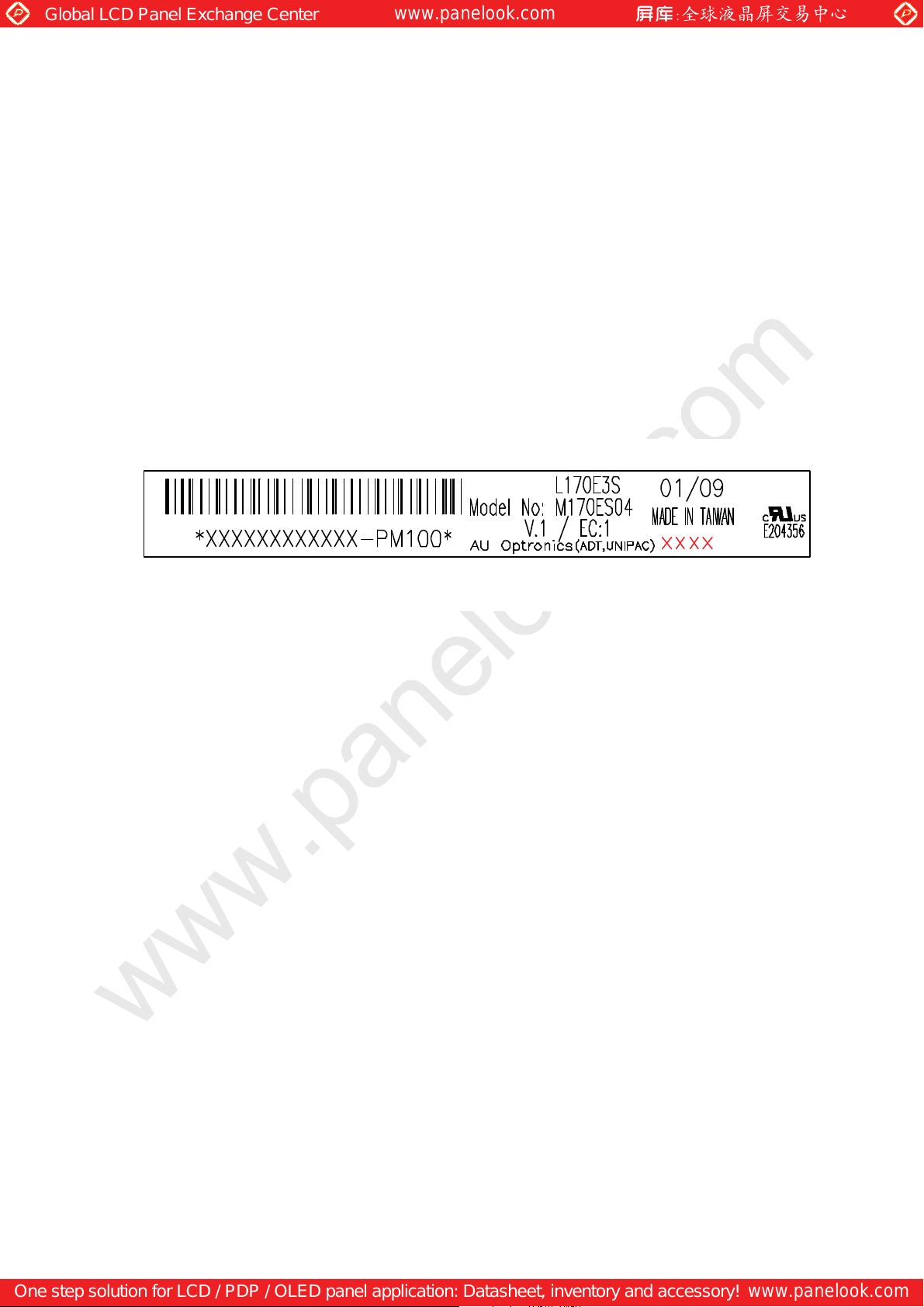

9.2.1 Product label

www.panelook.com

(European Norm for IEC950)

(C) Copyright AU Optronics Corporation

August, 2001 All Rights Reserved. M170ES04 Ver 0.3

No Reproduction and Redistribution Allowed.

22/24

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

23/24

23

10.0 Mechanical Characteristics

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

(C) Copyright Acer Display Technology, Inc.

February, 2000 All Rights Reserved. M170ES04 Ver0.2

No Reproduction and Redistribution Allowed.

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

24/24

24

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

(C) Copyright Acer Display Technology, Inc.

February, 2000 All Rights Reserved. M170ES04 Ver0.2

No Reproduction and Redistribution Allowed.

www.panelook.com
