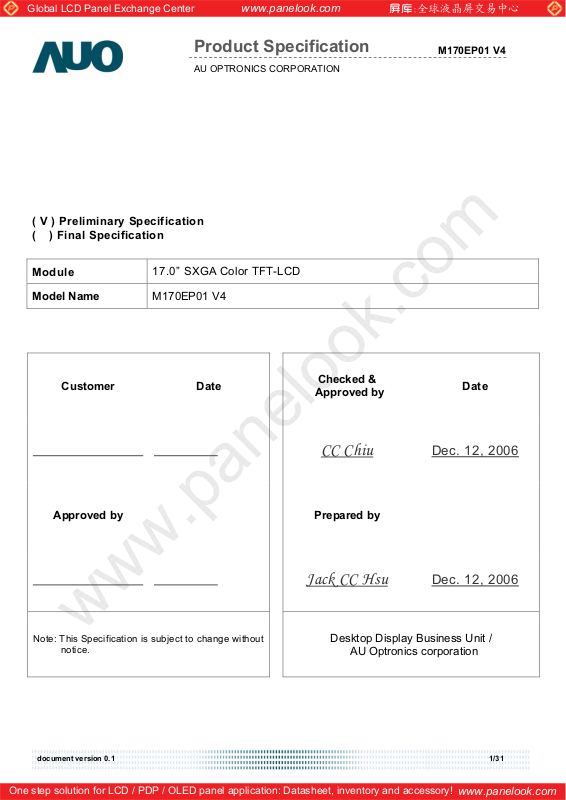

Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
M170EP01 V4
( V ) Preliminary Specification
( ) Final Specification
Module
Model Name
17.0” SXGA Color TFT-LCD
M170EP01 V4
Customer Date
Approved by
Checked &
Approved by
CC Chiu
Prepared by
Jack CC Hsu
Date
Dec. 12, 2006
Dec. 12, 2006
Note: This Specification is subject to change without
notice.
document version 0.1 1/31
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Desktop Display Business Unit /
AU Optronics corporation
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
M170EP01 V4
Contents
1. Handling Precautions.............................................................................................................. 4
2. General Description ................................................................................................................ 5
2.1 Display Characteristics .......................................................................................................................5
3. Functional Block Diagram .................................................................................................... 10
4. Absolute Maximum Ratings.................................................................................................. 11
4.1 Absolute Ratings of TFT LCD Module ............................................................................................ 11
4.2 Absolute Ratings of Backlight Unit.................................................................................................. 11

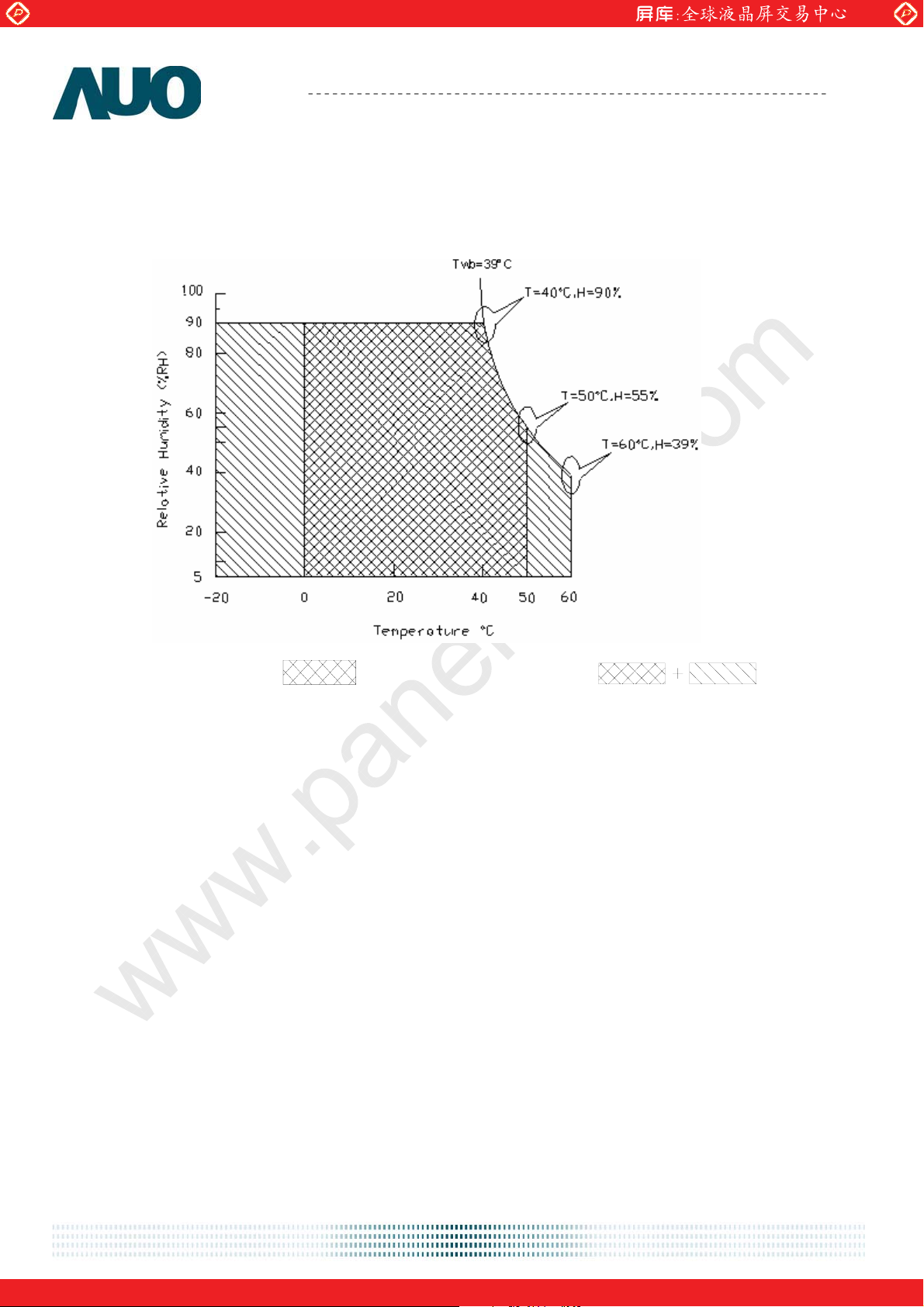

4.3 Absolute Ratings of Environment..................................................................................................... 11
5. Electrical characteristics ...................................................................................................... 13
5.1 TFT LCD Module ............................................................................................................................. 13
5.2 Backlight Unit................................................................................................................................... 14
6. Signal Characteristic............................................................................................................. 15
6.1 Pixel Format Image........................................................................................................................... 15
6.2 Signal Description............................................................................................................................. 16
6.3 The input data format........................................................................................................................ 18
6.4 Signal Electrical Characteristics ....................................................................................................... 20
6.5 Interface Timings .............................................................................................................................. 23

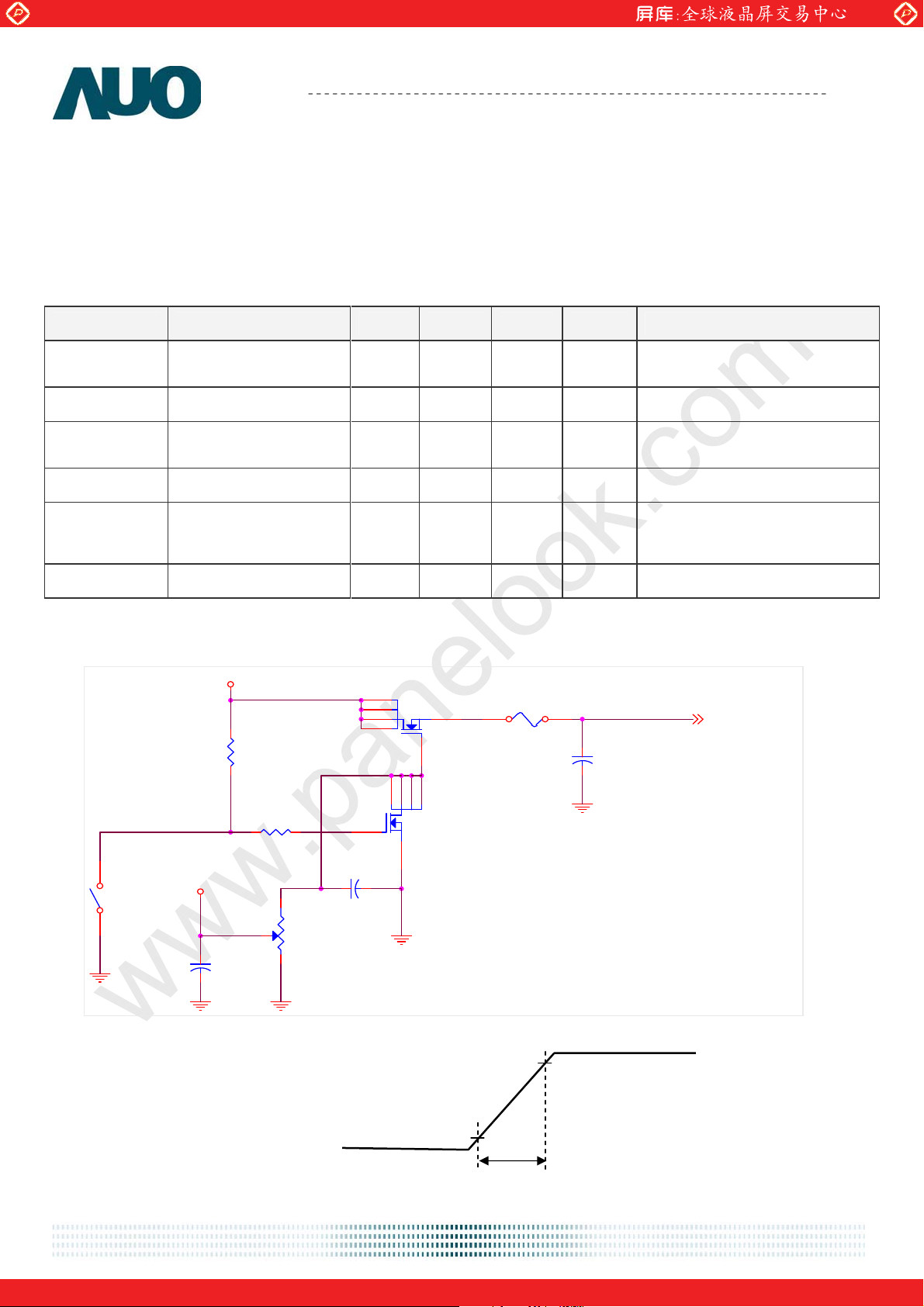

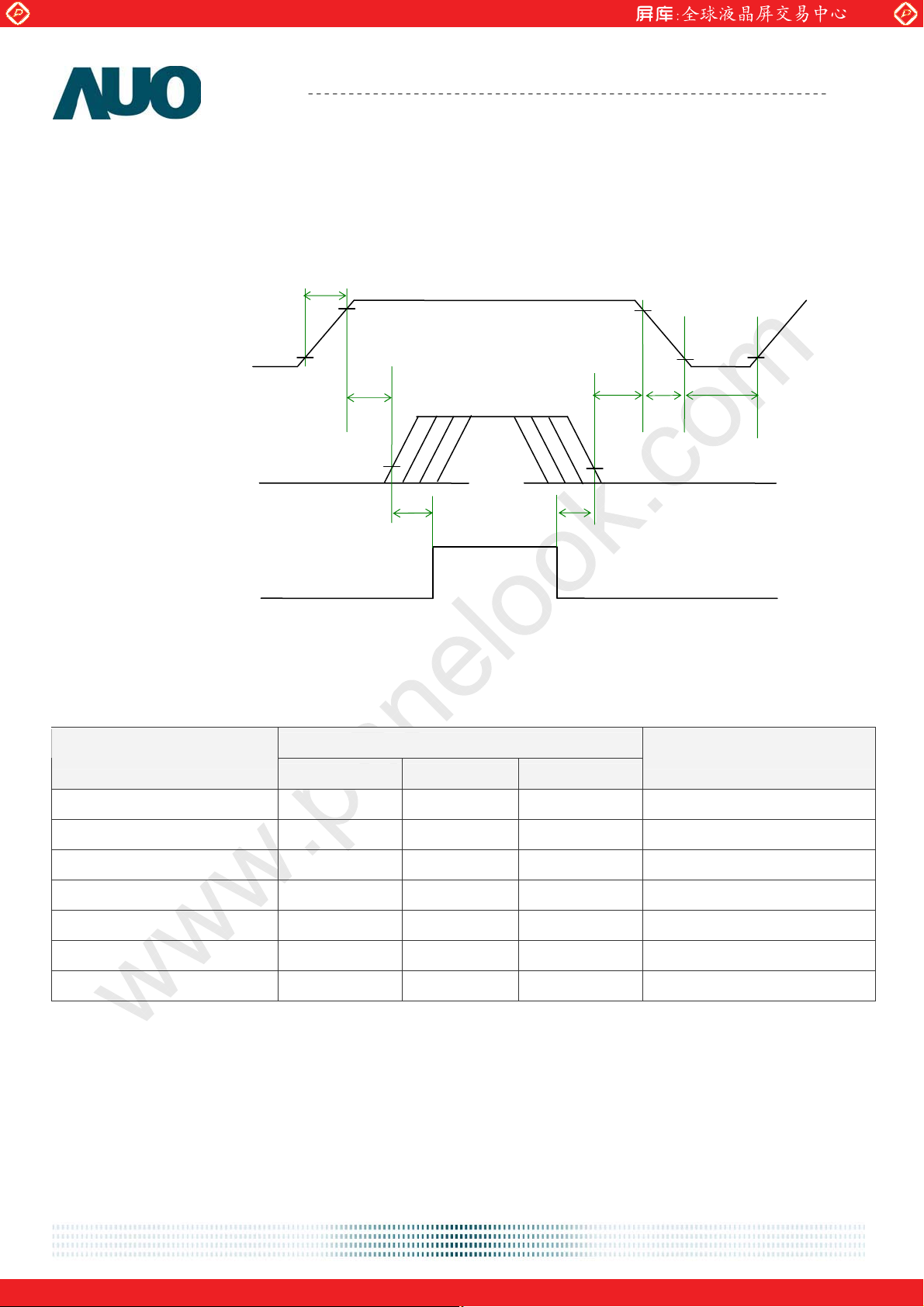

6.6 Power ON/OFF Sequence................................................................................................................. 25
7. Connector & Pin Assignment ............................................................................................... 26
7.1 TFT LCD Module ............................................................................................................................. 26
7.2 Backlight Unit................................................................................................................................... 28
8. Reliability Test ....................................................................................................................... 29

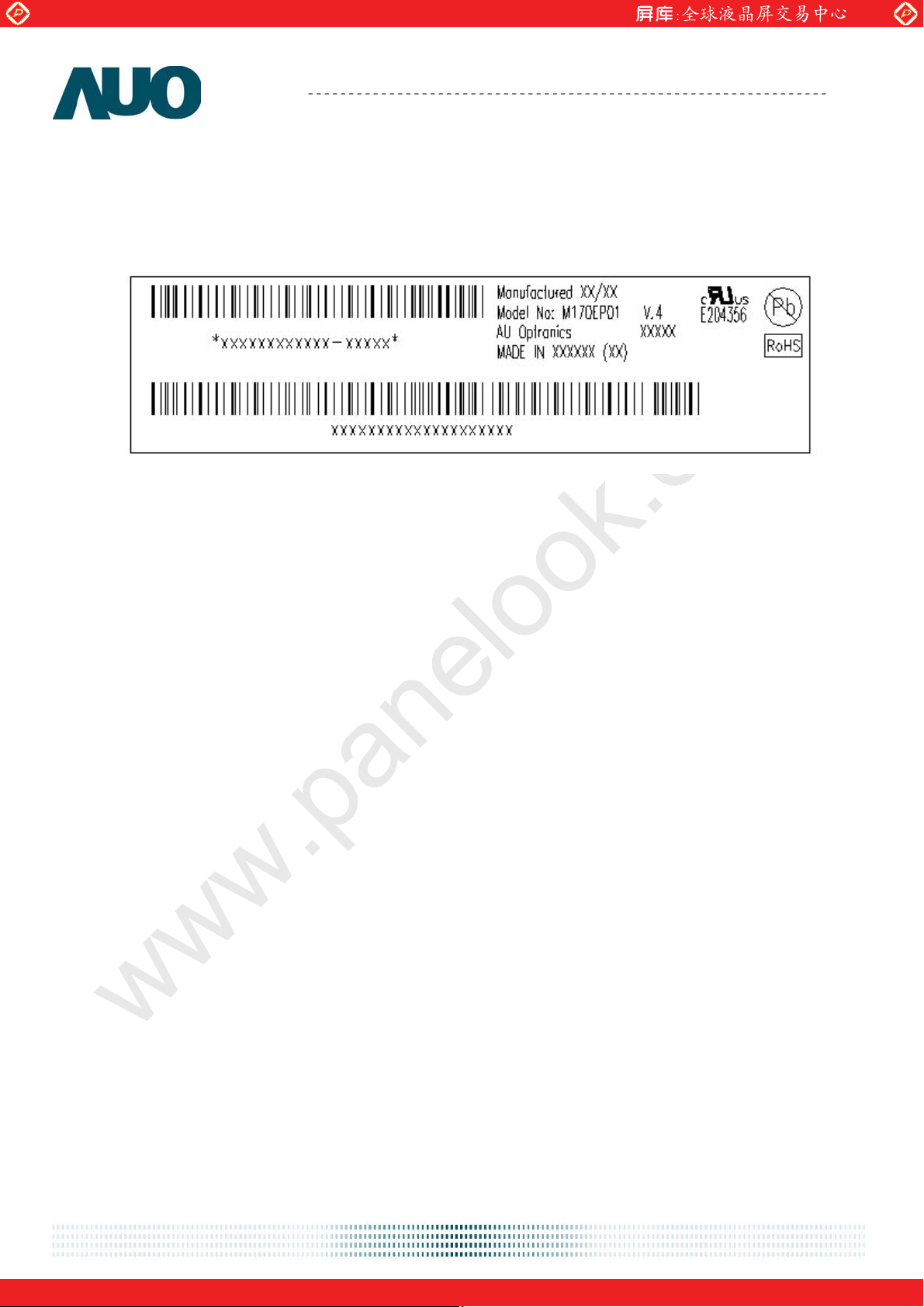

9. Shipping Label....................................................................................................................... 30

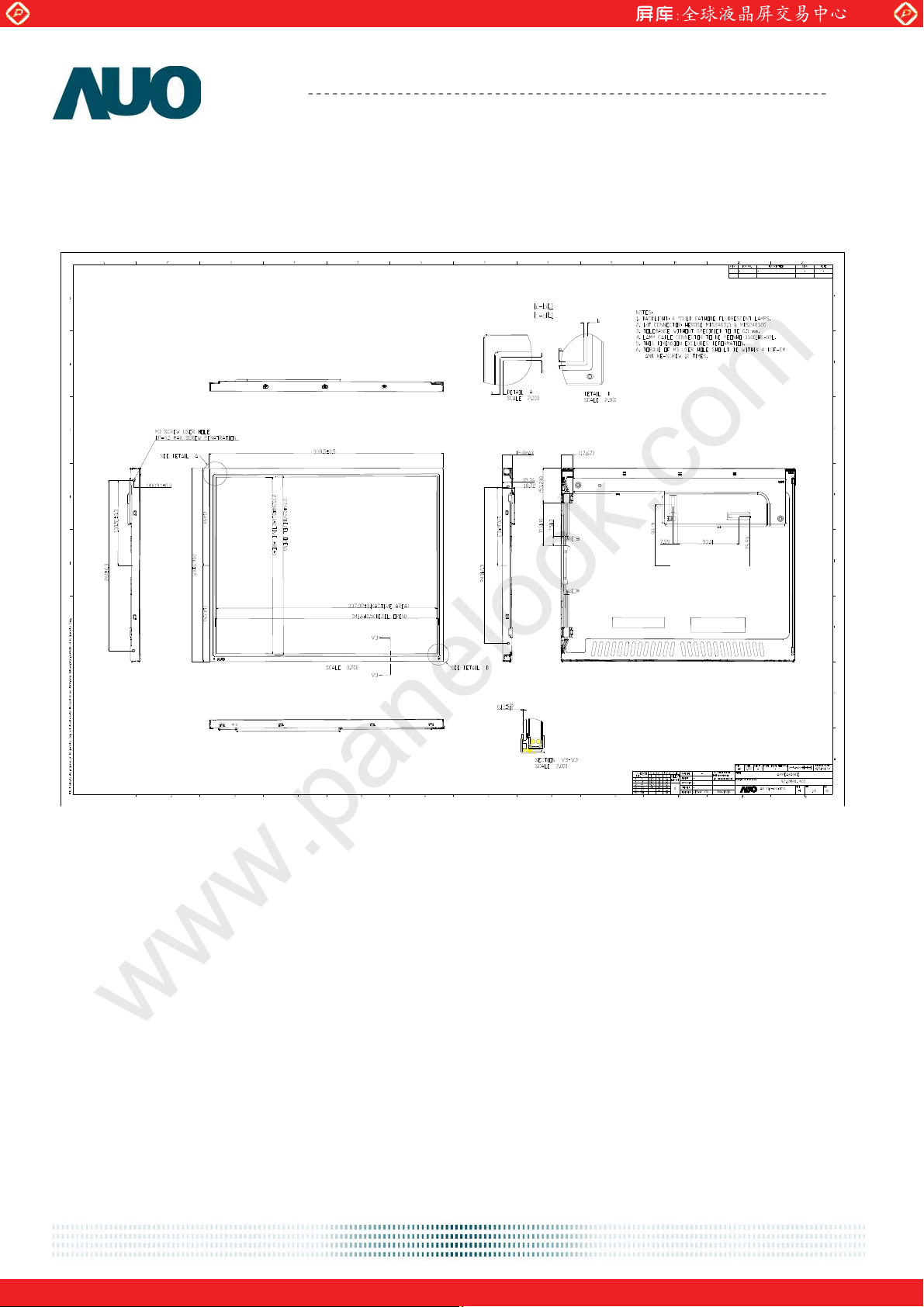

10. Mechanical Characteristics ................................................................................................ 31
document version 0.1 2/31
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
M170EP01 V4
Record of Revision
Version & Date Page Old Description New Description Remark
0.1 2006/12/12 All First Edition for Customer -
document version 0.1 3/31
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
M170EP01 V4
1. Handling Precautions
1) Since front polarizer is easily damaged, pay attention not to scratch it.
2) Be sure to turn off power supply when inserting or disconnecting from input connector.
3) Wipe off water drop immediately. Long contact with water may cause discoloration or spots.
4) When the panel surface is soiled, wipe it with absorbent cotton or other soft cloth.
5) Since the panel is made of glass, it may break or crack if dropped or bumped on hard surface.
6) Since CMOS LSI is used in this module, take care of static electricity and insure human earth
when handling.
7) Do not open or modify the Module Assembly.
8) Do not press the reflector sheet at the back of the module to any directions.
9) In case if a Module has to be put back into the packing container slot after once it was taken out
from the container, do not press the center of the CCFL reflector edge. Instead, press at the far
ends of the CCFL Reflector edge softly. Otherwise the TFT Module may be damaged.
10) At the insertion or removal of the Signal Interface Connector, be sure not to rotate nor tilt the
Interface Connector of the TFT Module.
11) After installation of the TFT Module into an enclosure, do not twist nor bend the TFT Module even
momentary. At designing the enclosure, it should be taken into consideration that no
bending/twisting forces are applied to the TFT Module from outside. Otherwise the TFT Module
may be damaged.
12) Cold cathode fluorescent lamp in LCD contains a small amount of mercury. Please follow local
ordinances or regulations for disposal.
13) Small amount of materials having no flammability grade is used in the LCD module.
should be supplied by power complied with requirements of Limited Power Source (IEC60950 or
UL1950), or be applied exemption.
14) The LCD module is designed so that the CCFL in it is supplied by Limited Current Circuit (IEC60950 or
UL1950). Do not connect the CCFL in Hazardous Voltage Circuit.
The LCD module
document version 0.1 4/31
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
M170EP01 V4
2. General Description
M170EP01 is a Color Active Matrix Liquid Crystal Display composed of a TFT-LCD panel, a driver circuit,
and backlight system. The screen format is intended to support the SXGA (1280(H) x 1024(V)) screen and
16.2M colors (RGB 6-bits + FRC data). The input signal is analog RGB interface compatible.This module
does not contain an inverter card for backlight.
2.1 Display Characteristics
The following items are characteristics summary on the table under 25 к condition:
Items Unit Specifications
Screen Diagonal [mm] 432 (17.0”)
Active Area [mm] 337.920(H) × 270.336(V)
Pixels H x V 1280 × 3(RGB) × 1024
Pixel Pitch [mm] 0.264(per one triad) × 0.264
Pixel Arrangement R.G.B. Vertical Stripe
Display Mode Normally White
White Luminance [cd/m2] 250 (Typ) 1
Contrast Ratio 1000 : 1 (Typ)
Optical ResponseTime [msec] 5ms(Typ)
Nominal Input Voltage VCC [Volt] +5.0 (Typ)
Power Consumption [Watt] 25 W (Typ) ; 0.5 W (Stand by)
Weight [Grams] 1687 (Typ)
Physical Size (H x V x D) [mm] 358.5(H) x 296.5(V) x 20.0(D) (Typ)
Electrical Interface VESA standard Analog RGB
Surface Treatment Anti-glare type, Harness 3H
Support Color 16.2M colors (RGB 6-bits + FRC data)
Plug & Play VESA DDC1/2B/2Bi/2B+/CI
2
Compability PC/MAC
Max. Firmware Code Size [bit] 96K
Max. Pixel Clock [MHz] 135.09 MHz
6500K White Point (CIE x,y) (0.313,0.329) +/-0.03
Auto Adjustment Auto Color, Size & Phase
2
2
Temperature Range
Operating
Storage (Non-Operating)
o
[
C]
o
[
C]
0 to +50
-20 to +60
RoHS Compliance RoHS Compliance
TCO ‘03 Compliance TCO ‘03 Compliance
1
At CCFL= 7.5 mA
2
With AUO standard firmware
3
With AUO standard power module & firmware
document version 0.1 5/31
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
3
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
M170EP01 V4
2.2 Optical Characteristics
The optical characteristics are measured under stable conditions at 25к (Room Temperature):
Item Unit Conditions Min. Typ. Max. Note
Horizontal (R+L)
CR = 10
Viewing Angle [degree]
Vertical (U+D)
CR = 10
Luminance Uniformity [%] 9 Points 70 80 - 2, 3
Rising - 4.5 7
Optical Response Time [msec]
Falling - 1.5 2
Rising + Falling - 6 9
120 140 -
1
110 130 -
4, 6
Red x 0.61 0.64 0.67
Red y 0.31 0.34 0.37
Green x 0.26 0.29 0.32
Color / Chromaticity
Coordinates
(CIE 1931)
Green y 0.58 0.61 0.64
4
Blue x 0.11 0.14 0.17
Blue y 0.04 0.07 0.10
White x 0.28 0.31 0.34
White y 0.30 0.33 0.36
White Luminance
(At CCFL= 7.5mA)
[cd/m2 ]
200 250 - 4
Contrast Ratio 800 1000 - 4
Cross Talk (At 75Hz) [%] - - 1.5 5
Flicker [dB] - - -20
7
Optical Equipment: BM-5A, BM-7, PR880, or equivalent
document version 0.1 6/31
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
Note 1: Definition of viewing angle
Viewing angle is the measurement of contrast ratio Њ10, at the screen center, over a 180° horizontal and
180° vertical range (off-normal viewing angles). The 180° viewing angle range is broken down as follows;
90° (Ӱ) horizontal left and right and 90° (ӥ) vertical, high (up) and low (down). The measurement
direction is typically perpendicular to the display surface with the screen rotated about its center to
develop the desired
measurement viewing angle.
M170EP01 V4
Note 2: 9 points position
90 %
50 %
10 %
10 %
50 %
90 %
Note 3: The luminance uniformity of 9 points is defined by dividing the maximum luminance values by the
minimum test point luminance
document version 0.1 7/31
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Ӭ
W9
Minimum Luminance of 9 points
=
Maximum Luminance of 9 points
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
Note 4: Measurement method
The LCD module should be stabilized at given temperature for 30 minutes to avoid abrupt temperature
change during measuring. In order to stabilize the luminance, the measurement should be executed after
lighting Backlight for 30 minutes in a stable, windless and dark room. ʳ
M170EP01 V4
Photo detector
Field=2
50 cm
Note 5: Definition of Cross Talk (CT)
CT = | YB – YA | / YA Ø 100
Where
YA = Luminance of measured location without gray level 0 pattern (cd/m2)
YB = Luminance of measured location with gray level 0 pattern (cd/m2)
LCD Panel
Center of the screen
(%)
TFT-LCD Module
document version 0.1 8/31
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
M170EP01 V4
Note 6: Definition of response time:
The output signals of photo detector are measured when the input signals are changed from “Full Black” to
“Full White” (rising time), and from “Full White” to “Full Black ”(falling time), respectively. The response time
is interval between the 10% and 90% of amplitudes. Please refer to the figure as below.
%
Optical
Optical
response
response
100
100
90
90
10
10
%
White Black White
White Black White
0
0
Tr
Tr
Tr
Tr
R
F
F
R
Note 7: Subchecker Pattern
R G B R G B
Gray Level = L127
R G B R G B
R G B R G B
Gray Level = L0
Method: Record dBV & DC value with (WESTAR)TRD-100
Amplitude
AC
DC
Time
log20(dB)Flicker
Hz) 30Level(at AC
Level DC
document version 0.1 9/31
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
M170EP01 V4
3. Functional Block Diagram
The following diagram shows the functional block of the 17.0 inches Color TFT-LCD Module:
Connector Connector Connector
D-Sub Key pad
D-Sub Key pad
Connector Connector Connector
PCBA
PCBA
RSDS
RSDS
Scaler
Scaler
RDT-2546N
RDT-2546N
MCU
MCU
Gamma
Gamma
Driver IC
Driver IC
WOA
WOA
1280(3) x 1024
1280(3) x 1024
Driver IC
Driver IC
DC 5V
DC 5V
AC
AC
DC to DC
DC to DC
Power module (with Inverter)
Power module (with Inverter)
Lamp connector
Lamp connector
document version 0.1 10/31
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
g
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
M170EP01 V4
4. Absolute Maximum Ratings
Absolute maximum ratings of the module is as following:
4.1 Absolute Ratings of TFT LCD Module
Item Symbol Min. Max. Unit Conditions
Logic/LCD Drive
Volta
e
VCC -0.3 +5.25 [Volt] Note 1, 2
4.2 Absolute Ratings of Backlight Unit
Item Symbol Min. Max. Unit Conditions
CCFL Current ICFL 0 8.5 [mA] rms Note 1, 2
4.3 Absolute Ratings of Environment
Item Symbol Min. Max. Unit Conditions
Operating Temperature TOP 0 +50 [oC]
Operation Humidity HOP 5 90 [%RH]
Storage Temperature TST -20 +60 [oC]
Storage Humidity HST
5 90
[%RH]
Note 3
document version 0.1 11/31
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
M170EP01 V4
Note 1: With in Ta= 25к
Note 2: Permanent damage to the device may occur if exceed maximum values
Note 3: For quality performance, please refer to AUO IIS (Incoming Inspection Standard).
Operating Range Storage Range
document version 0.1 12/31
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
M170EP01 V4
AU OPTRONICS CORPORATION
5. Electrical characteristics
5.1 TFT LCD Module
5.1.1 Power Specification
Input power specifications are as follows:
Symble Parameter Min. Typ. Max. Unit Condition
VCC
ICC Input Current - 1.8 1.81 [A] VCC= 5.0V, All Black Pattern
PCC VCC Power - 9 9.5 [Watt]
IRush Inrush Current - - 3.0 [A] Note 2
VCCrp
Logic/LCD Drive
Voltage
Allowable
Logic/LCD Drive
Ripple Voltage
4.75 5.0 5.25 [Volt] Load Capacitance 20uF
Note 1,
VCC= 5.0V, All Black Pattern
- - 100
[mV]
p-p
PS Power Saving - 0.4 0.5 [Watt] VCC= 5.0V
Note 1: The variance of VCC power consumption is ±10%.
Note 2: Measurement conditions:
+5.0V
R1
47K
(High to Low)
Control
Signal
SW1
SW MAG-SPST
1 2
+12.0V
C2
1uF/25V
R2
1K
VR1
47K
D6
D5
D2 S
D1
G
C3
0.01uF/25V
Q3
AO6402
D2SD1D5
G
D6
Q3
AO6402
F1
90%
C1
1uF/16V
VCC
(LCD Module Input)
5.0V
VCC rising time
0V
10%
0.5ms
document version 0.1 13/31
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
M170EP01 V4
5.2 Backlight Unit
Parameter guideline for CCFL Inverter is under stable conditions at 25 (Room Temperature):к
Parameter Min. Typ. Max. Unit Condition
CCFL Standard Current(ISCFL) 7.0 7.5 8.0 [mA] rms Note 2
CCFL Operation Current(IRCFL) 2.5 7.5 8.0 [mA] rms Note 2
CCFL Frequency(FCFL) 40 60 80 [KHz] Note 3,4
CCFL Ignition Voltage(ViCFL, Ta= 0 )к 1560 - - [Volt] rms
Note 5
CCFL Ignition Voltage(ViCF, Ta= 25 )к 1200 - - [Volt] rms
CCFL Operation Voltage (VCFL)
695
(@ 8.0mA)
720
(@ 7.5mA)
845
(@ 2.5mA)
[Volt] rms Note 6
CCFL Power Consumption(PCFL) - 21.60 23.76 [Watt] Note 6
CCFL Life Time(LTCFL) 40,000 50,000 - [Hour]
Note 1: Typ. are AUO recommended design points.
*1 All of characteristics listed are measured under the condition using the AUO test inverter.
*2 In case of using an inverter other than listed, it is recommended to check the inverter carefully.
Sometimes, interfering noise stripes appear on the screen, and substandard luminance or flicker
at low power may happen.
*3 In designing an inverter, it is suggested to check safety circuit very carefully. Impedance of
CCFL, for instance, becomes more than 1 [M ohm] when CCFL is damaged.
*4 Generally, CCFL has some amount of delay time after applying kick-off voltage. It is
recommended to keep on applying kick-off voltage for 1 [Sec] until discharge.
*5 Reducing CCFL current increases CCFL discharge voltage and generally increases CCFL
discharge frequency. So all the parameters of an inverter should be carefully designed so as not
to produce too much leakage current from high-voltage output of the inverter.
Note 2: It should be employed the inverter which has “Duty Dimming”, if IRCFL is less than 4mA.
Note 3: CCFL discharge frequency should be carefully determined to avoid interference between inverter
and TFT LCD.
Note 4: The frequency range will not affect to lamp life and reliability characteristics.
Note 5: CCFL inverter should be able to give out a power that has a generating capacity of over 1,500
voltage. Lamp units need 1,500 voltage minimum for ignition.
Note 6: The variance of CCFL power consumption is ±10%. Calculator value for reference (ISCFL × VCFL ×
4 = PCFL)
document version 0.1 14/31
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
6. Signal Characteristic
6.1 Pixel Format Image
Following figure shows the relationship of the input signals and LCD pixel format.
1 2 1279 1280
1st Line
R G B R G B
M170EP01 V4
R G B R G B
1024th Line
R G B R G B
R G B R G B
document version 0.1 15/31
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
M170EP01 V4
6.2 Signal Description
The LVDS receiver equipped in this LCD module is compatible with SN75LVDS86 standard. LVDS is a
differential signal technology for LCD interface and high speed data transfer device. Transmitter shall be
SN75LVDS84 (negative edge sampling) or compatible.
¾ Power Connector (J1)
PIN# Signal Name Description
1 VCC DC 5V
2 VCC DC 5V
3 GND Ground
4 GND Ground
5 NC NC
6 GND Ground
7 BKLT_ADJ Light adjust for the DC/AC inverter(PWM)
8 BKLT_EN Enable for the DC/AC inverter
9 AUDIO _EN Enable audio power control signal
10 MUTE Mute audio
11 VOLUME Adjust audio volume(PWM)
12 GND Ground
document version 0.1 16/31
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
¾ VGA Connector (J2)
PIN# Signal Name Description
1 GND Ground
2 VS Vsync input from VGA host
3 HS Hsync input from VGA host
4 GNDB Ground for the video blue signal
5 BIN Video blue signal
6 GNDG Ground for the video green signal
7 GIN Video green signal
8 GNDR Ground for the video red signal
9 RIN Video red signal
10 GND Ground
M170EP01 V4
11 SDA Data signal for the DDC2B
12 SCL Clock signal for the DDC2B
13 PC5V DC 5V from the PC host
14 VGA_CON Video cable connected detect signal(host connect this pin to ground)
¾ OSD Connector (J4)
PIN# Signal Name Description
1 GND Ground
2 SOURCE OSD item source function.
3 SELECT OSD item select function.
4 LED_G LED Green for the full mode.
5 LED_A LED Amber for the sleep mode.
6 UP OSD up selection function.
7 DOWN OSD down selection function.
8 MINUS OSD minus selection function.
9 PLUS OSD plus selection function.
10 MENU OSD menu on/off function.
11 Power Power on/off function.
12 NC ʳ
13 GND Ground
document version 0.1 17/31
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
M170EP01 V4
6.3 The input data format
The input data format is followed the VESA Vedio Signal Standard. In each RGB termination is described as
following table.
Values
Max Luminance Voltage Input Data = (FFh) 0.700 Volts +0.070 /-0.035 volts
Min Luminance voltage Input Data = (00h) 0.000 Volts
Video Channel Rise/Fall Time Max 25% of minimum pixel clock period
Maximum Settling Time after
overshoot/undershoot
Monotonic Yes
Resolution 1 LSB
Integral Linearity Error
Differential Linearity Errorʳ
30% of minimum pixel clock period averaged over 100
waveforms to 5% final full-scale value.
1
LSB
1
LSB
Video Channel to Video Channel Mismatch 6% of any video output voltage over the full voltage range
Video Noise injection ratio
2.5 % of Max Luminance Voltage
Video Channel to Video Channel Output Skew 50% of minimum pixel clock period
Overshoot/Undershoot
12% of step function voltage level over the full voltage
range
document version 0.1 18/31
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
M170EP01 V4

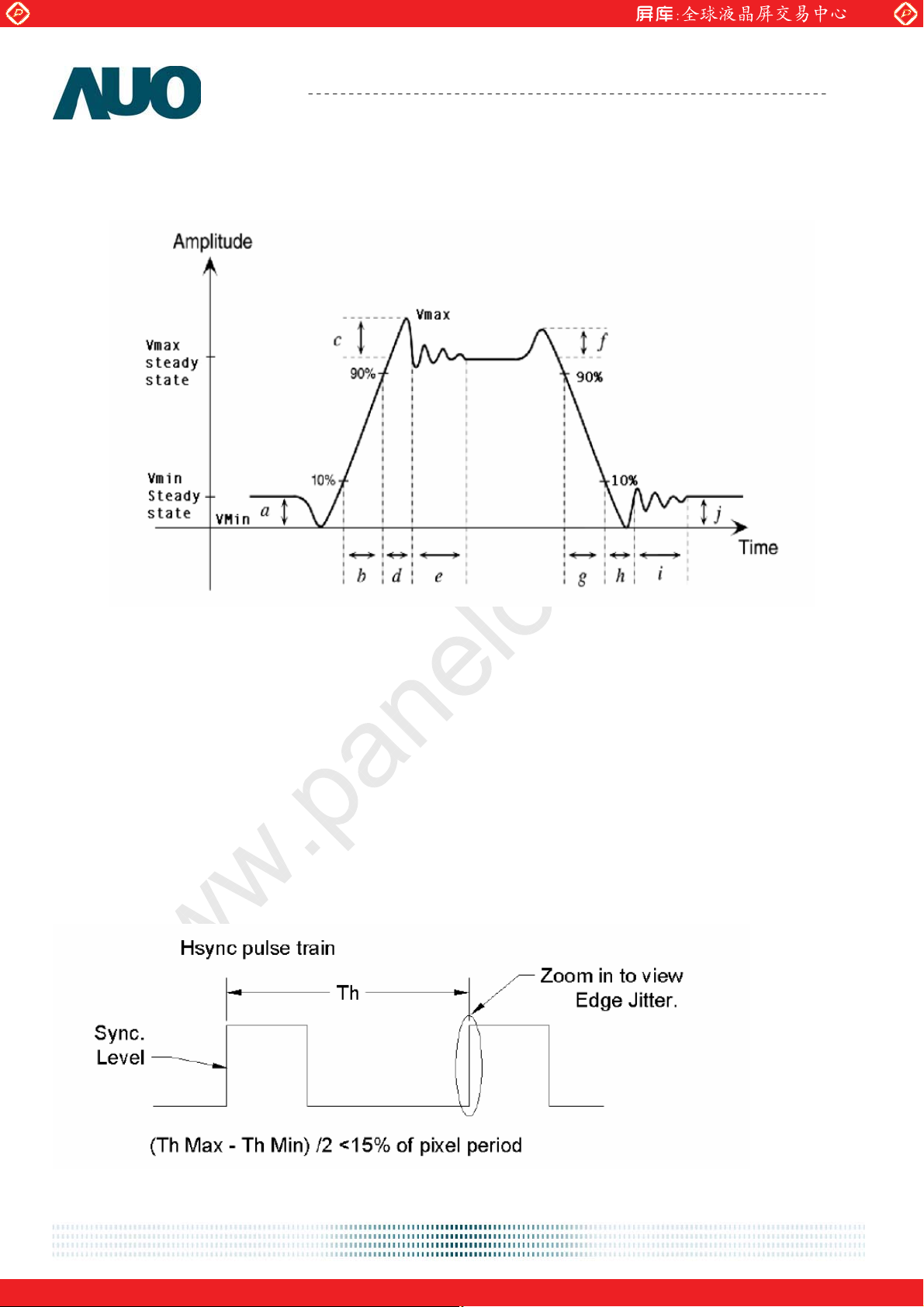

The Synchronization (Hsync and Vsync) Signal format is described as following table.
Min. Max.
Driver Logic Level “1” 2.4 Volts 5.5 Volts
Driver Logic Level “0” 0.0 Volts 0.5 Vots
Driver High Level Output Current 8mA
Driver Low Level Output Current 8mA
Receiver Logic Level “1” 2.0 Volts
Receiver Logic Level “0” 0.8 Volts
Fall Time Max 80% of minimum pixel clock period
Rise Time Max 80% of minimum pixel clock period
Monotonic Rise/Fall Voltage range 0.5-2.4 Volts
Overshoot/Undershoot
30% of high level signal voltage range No signal
excursions allowed in the 0.5-2.4 volt voltage range
Over the frequency spectrum: One half of the
difference between the maximum and minimum
Jitter
(Measured between Hsync pulses)
interval between Hsync pulses measured over
100,000 intervals shall be less than 15% of the pixel
clock, 0Hz to max. horizontal refresh rate at all image
formats, worst-case screen patterns.
LSB : Least Significant Bit
Monotonic
1. The property of either never increasing or never decreasing in reference to the slope of a
transient response.
2. A constant slope value containing no inflection points.
Sync: Synchronization Signals
For more details, please refer to VESA (Video Electronics Standards Association) Video Signal
Standard.
document version 0.1 19/31
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
M170EP01 V4
6.4 Signal Electrical Characteristics
¾ Power interface
Pin# Name Type Min. Typ. Max. Unit Remark
1 VCC 4.75 5.0 5.25 V
2 VCC 4.75 5.0 5.25 V
3 GND
4 GND
5 NC
6 GND
7 BKLT_ADJ
High (Max.) VCC V Internal serial 3.2K Ohm
Low (Min.) 0.3 V Internal serial 2.2K Ohm
8 BKLT_EN
High (On) VCC V Internal serial 10K Ohm
Low (Off) 0.3 V
9 AUDIO_EN
High (On) 2.65 3.3 V -4mA
Low (Off) GND 0.45 V 5mA
10 MUTE
High (On) 2.65 3.3 V -4mA
Low (Off) GND 0.45 V 5mA
11 VOLUME
High (Max.) 3.2 V
Low (Min.) 0.1 V 4mA
12 GND
1.5A
document version 0.1 20/31
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
M170EP01 V4
¾ VGA interface
Pin# Name Type Min. Typ. Max. Unit
1 GND
2 VS
3 HS
4 GNDB
5 BIN 700 mV
6 GNDG
7 GIN 700 mV
8 GNDR
9 RIN 700 mV
10 GND
11 SDA
12 SCL
13 PC5V
14 VGA_CON
High 2 5.5 V
Low GND 0.8
High 2 5.5 V
Low GND 0.8
High 2 5.0 V
Low GND 0.8 V
High 2 5.0 V
Low GND 0.8 V
document version 0.1 21/31
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
M170EP01 V4
¾ OSD interface
Pin# Name Type Min. Typ. Max. Unit Remark
1 GND
2 SOURCE
High (Max.) 2 3.6 V
Low (Min.) -0.3 1 V
3 SELECT
High (Max.) 2 3.6 V
Low (Min.) -0.3 1 V
4 LED_G
5 LED_A
6 UP
LED Amber for
the sleep mode
LED Green for
the full mode
3.1 Internal serial 75 Ohm
3.1 Internal serial 75 Ohm
High (Max.) 3.3 V
Low (Min.) GND V
7 DOWN
High (Max.) 3.3 V
Low (Min.) GND V
8 MINUS
High (Max.) 3.3 V
Low (Min.) GND V
9 PLUS
High (Max.) 3.3 V
Low (Min.) GND V
10 MENU
High (Max.) 3.3 V
Low (Min.) GND V
11 Power
High (Max.) 3.3 V
Low (Min.) GND V
12 NC
13 GND
document version 0.1 22/31
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
M170EP01 V4
6.5 Interface Timings
The signal interface of the TFT-LCD module is analog RGB compatible.
6.5.1 Timing Characteristics
The timings are supported by the signal interface of M190EP02 are listed as following table.
Horizontal
Resolution
Frequency
(KHz)
640x350 31.47(P) 70.08(N) 25.17 1280x943 DOS
720x400 31.47(N) 70.08(P) 28.32 1280x1024 DOS
640x480 31.47(N) 60.00(N) 25.18 1280x1024 DOS
640x480 35.00(N) 67.00(N) 30.24 1280x1024 Macintosh
640x480 37.86(N) 72.80(N) 31.5 1280x1024 VESA
640x480 37.50(N) 75.00(N) 31.5 1280x1024 VESA
800x600 37.88(P) 60.32(P) 40 1280x1024 VESA
800x600 48.08(P) 72.19(P) 50 1280x1024 VESA
800x600 46.86(P) 75.00(P) 49.5 1280x1024 VESA
832X624 49.72(N) 74.55(N) 57.29 1280x1024 Macintosh
1024x768 48.36(N) 60.00(N) 65 1280x1024 VESA
1024x768 56.48(N) 70.10(N) 75 1280x1024 VESA
1024x768 60.02(P) 75.00(P) 78.75 1280x1024 VESA
1024X768 60.24(N) 74.93(N) 80 1280x1024 Macintosh
1152x864 67.50(P) 75.00(P) 108 1280x1024 VESA
1152x870 68.68(N) 75.06(N) 100 1280x1024 Macintosh
1152x900 61.80(N) 66.00(N) 94.5 1280x1024 SUN 66
1152x900 71.81(N) 76.14(N) 108 1280x1024 SUN
1280x1024 64.00(P) 60.00(P) 108 1280x1024 VESA
1280x1024 75.83(N) 71.53(N) 128 1280x1024 IBM1
1280x1024 80.00(P) 75.00(P) 135 1280x1024 VESA
1280x1024 81.18(N) 76.16(N) 135.09 1280x1024 SPARC2
Vertical
Frequency
(Hz)
Dot Clock
(MHz)
Actually Display
Resolution
Remark
Note-1: Dependard on firmware setting. It can support other resolution when Dot Clock <165MHZ
Note-2: “P”, “N” stands for “Positive”, “Negative” polarity of incoming H-sync/V-sync (input timing)
document version 0.1 23/31
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
6.5.2 Definition of terms
¾ Video Signal Definition
Product Specification
AU OPTRONICS CORPORATION
M170EP01 V4
a) Vmin steady state Amplitude before transition
b) Video Rise Time Delta (t), (measured from the 10% to 90% points of Vmin Steady State to Vmax Steady
State)
c) Overshoot Amplitude
d) Undefined
e) Settling Time - Measured from the end of the overshoot to the point where the amplitude of the video
ringing is down to
5% of the final steady state value
f) Undefined
g) Video Fall Time Delta (t), (measured from the 90% to 10% points of Vmax Steady State to Vmin Steady
State)
h) Undefined here, Note: Undershoot is within this period and with an Amplitude of (j)
i) Settling Time - Measured from the end of the undershoot to the point where the amplitude of the video
ringing is down to
5% of the final steady state value
j) Vmin steady state Amplitude after transition
¾ Synchronization Signal Definition
document version 0.1 24/31
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
M170EP01 V4
6.6 Power ON/OFF Sequence
VCC power and lamp on/off sequence is as follows. Interface signals are also shown in the chart. Signals
from any system shall be Hi-Z state or low level when VCC is off.
Power Supply VCC
Input Signal
Backlight On
10%
T1
90%
T2
T3
Power Sequence Timing
VALID
DATA
T4
90%
T5
T6
10%
T7
Parameter
Unit
Min. Typ. Max.
T1 - - 10 [ms]
10 50 - 10 [ms]
T3 200 - - [ms]
T4 100 - - [ms]
T5 0 16 50 [ms]
T6 - - 50 [ms]
T7 1000 - - [ms]
Value
document version 0.1 25/31
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
M170EP01 V4
7. Connector & Pin Assignment
Physical interface is described as for the connector on module.These connectors are capable of
accommodating the following signals and will be following components
.
7.1 TFT LCD Module
7.1.1 Connector
Connector Name / Designation Power Connector / J1
Manufacturer STM or compatiable
Type / Part Number STM MS242612R
Mating Housing / Part Number STM P242612
Connector Name / Designation VGA Connector / J2
Manufacturer STM or compatiable
Type / Part Number STM MS242614R
Mating Housing / Part Number STM P242614R
Connector Name / Designation OSD Connector / J4
Manufacturer STM or compatiable
Type / Part Number STM MS242613R
Mating Housing / Part Number STM PS242613
document version 0.1 26/31
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
M170EP01 V4
7.1.2 Pin Assignment
¾ Power Connector (J1)
Pin# Signal Name Pin# Signal Name
1 VCC 2 VCC
3 GND 4 GND
5 NC 6 GND
7 BKLT_ADJ 8 BKLT_EN
9 AUDIO _EN 10 MUTE
1
11 VOLUME 12 GND
Ϥ1
Share with OSD source key
¾ VGA Connector (J2)
Pin# Signal Name Pin# Signal Name
1 GND 2 VS
3 HS 4 GNDB
5 BIN 6 GNDG
7 GIN 8 GNDR
9 RIN 10 GND
11 SDA 12 SCL
13 PC5V 14 VGA_CON
¾ OSD Connector (J4)
Pin# Signal Name Pin# Signal Name
1 GND 2 SOURCE
3 SELECT 4 LED_G
5 LED_A 6 UP
7 DOWN 8 MINUS
9 PLUS 10 MENU
11 Power 12 NC
13 GND
document version 0.1 27/31
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
M170EP01 V4
7.2 Backlight Unit
Physical interface is described as for the connector on module. These connectors are capable of
accommodating the following signals and will be following components.
Connector Name / Designation Lamp Connector / Backlight Lamp
Manufacturer JST
Type / Part Number BHSR-02VS-1
Mating Type / Part Number SM02(4.0)B-BHS-1-TB
7.2.1 Signal for Lamp connector
Pin # Cable color Signal Name
1 Pink High Voltage
2 White Low Voltage
Upper
3 Pink High Voltage
4 White Low Voltage
Pin # Cable color Signal Name
1 Pink High Voltage
2 White Low Voltage
Lower
3 Pink High Voltage
4 White Low Voltage
document version 0.1 28/31
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
8. Reliability Test
Environment test conditions are listed as following table.
Items Required Condition
Temperature Humidity Bias (THB) Ta= 50 , к 80%RH, 300hours
High Temperature Operation (HTO) Ta= 50 , к 50%RH, 300hours
Low Temperature Operation (LTO) Ta= 0 , 300hoursк
High Temperature Storage (HTS) Ta= 60 , 300hoursк
Low Temperature Storage (LTS) Ta= -20 , 300hoursк
Acceleration: 1.5 G
Vibration Test
(Non-operation)
Shock Test
(Non-operation)
Wave: Random
Frequency: 10 - 200 - 10 Hz
Sweep: 30 Minutes each Axis (X, Y, Z)
Acceleration: 50 G
Wave: Half-sine
Active Time: 20 ms
Direction: X,ʳY,ʳZ (one time for each Axis)
M170EP01 V4
Note
Drop Test Height: 60 cm, package test
Thermal Shock Test (TST) -20к/30min, 60к/30min, 100 cycles
On/Off Test On/10sec, Off/10sec, 30,000 cycles
Contact Discharge: ± 8KV, 150pF(330 ) 1sec,
8 points, 25 times/ point.
ESD (ElectroStatic Discharge)
Air Discharge: ± 15KV, 150pF(330
8 points, 25 times/ point.
Altitude Test
Note 1: The TFT-LCD module will not sustain damage after being subjected to 100 cycles of rapid
temperature change. A cycle of rapid temperature change consists of varying the temperature from
-2˃к to 6˃к, and back again. Power is not applied during the test. After temperature cycling, the
unit is placed in normal room ambient for at least 4 hours before power on.
Note 2: According to EN61000-4-2 , ESD class B: Some performance degradation allowed. No data lost.
Self-recoverable. No hardware failures.
Operation:10,000 ft
Non-Operation:30,000 ft
) 1sec
1
2
document version 0.1 29/31
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
9. Shipping Label
The shipping label format is shown as below.
M170EP01 V4
document version 0.1 30/31
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
10. Mechanical Characteristics
M170EP01 V4
document version 0.1 31/31
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Loading...
