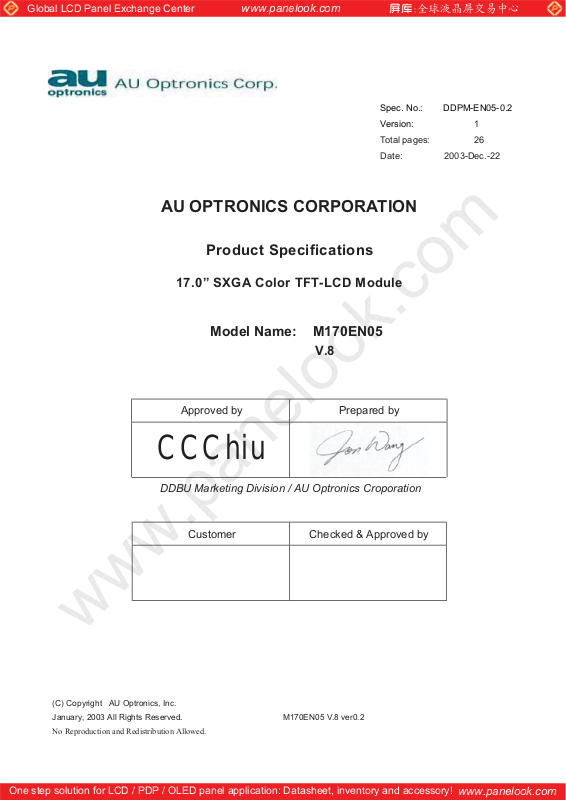

AUO M170EN05 V8 Specification
Global LCD Panel Exchange Center
AU OPTRONICS CORPORATION
17.0” SXGA Color TFT-LCD Module
www.panelook.com
Spec. No.: DDPM-EN05-0.2
Version: 1
Total pages: 26
Date: 2003-Dec.-22
Product Specifications
Model Name: M170EN05
V.8
Approved by Prepared by
CCChiu
DDBU Marketing Division / AU Optronics Croporation
Customer Checked & Approved by
(C) Copyright AU Optronics, Inc.
January, 2003 All Rights Reserved. M170EN05 V.8 ver0.2
No Reproduction and Redistribution Allowed.
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
Product Specifications
17.0” SXGA Color TFT-LCD Module
Model Name: M170EN05
V.8
(• ) Preliminary Specifications
( ) Final Specifications
Note: This Specification is subject to change without notice.
(C) Copyright AU Optronics, Inc.
January, 2003 All Rights Reserved. M170EN05 V.8 ver0.2
No Reproduction and Redistribution Allowed.
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
1/26
www.panelook.com
Global LCD Panel Exchange Center
i Contents
ii Record of Revision
1.0 Handling Precautions
2.0 General Description
2.1 Display Characteristics
2.2 Functional Block Diagram
2.3 Optical Characteristics
2.4 Pixel format image
3.0 Electrical characteristics
3.1 Absolute Maximum Ratings
3.2 Connectors
3.3 Signal Pin
3.4 Signal Description
3.5 Signal Electrical Characteristics
3.6 Interface Timing
3.6.1 Timing Characteristics
3.6.2 Timing Definition
3.7 Power Consumption
3.8 Power ON/OFF Sequence
www.panelook.com
4.0 Backlight Characteristics
4.1 Signal for Lamp connector
4.2 Parameter guide line for CCFL Inverter
5.0 Vibration, shock and drop
5.1 Vibration and shock
5.2 Drop test
6.0 Environment
6.1 Temperature and humidity
6.1.1 Operating conditions
6.1.2 Shipping conditions
6.2 Atmospheric pressure
6.3 Thermal shock
7.0 Reliability
7.1 Failure criteria
7.2 Failure rate
7.2.1 Usage
7.2.2 Components de-rating
7.3 CCFL life
7.4 ON/OFF cycle
(C) Copyright AU Optronics, Inc.
January, 2003 All Rights Reserved. M170EN05 V.8 ver0.2
No Reproduction and Redistribution Allowed.
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
2/26
www.panelook.com
Global LCD Panel Exchange Center
8.0 Safety
8.1 Sharp edge requirement
8.2 Material
8.2.1 Toxicity
8.2.2 Flammability
8.3 Capacitors
9.0 Other requirements
9.1 Smoke free design
9.2 National test lab requirement
10.0 Mechanical Characteristics
www.panelook.com
(C) Copyright AU Optronics, Inc.
January, 2003 All Rights Reserved. M170EN05 V.8 ver0.2
No Reproduction and Redistribution Allowed.
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
3/26
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
ii Record of Revision
Version and Date Page Old description New Description Remark
0.1 2003/10/08 All First Edition for Customer All
0.2 8 2.3 Optical characteristics
L63 Luminance
20
24 8.4 Hazardous Voltages NA Removed
Minimum: 200
Typical: 260
To define each value for optical
performance
L63 Luminance
Minimum: 250
Typical: 300
Added
Modified
(C) Copyright AU Optronics, Inc.
January, 2003 All Rights Reserved. M170EN05 V.8 ver0.2
No Reproduction and Redistribution Allowed.
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
4/26
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
1.0 Handling Precautions
1) Since front polarizer is easily damaged, pay attention not to scratch it.
2) Be sure to turn off power supply when inserting or disconnecting from input connector.
3) Wipe off water drop immediately. Long contact with water may cause discoloration or spots.
4) When the panel surface is soiled, wipe it with absorbent cotton or other soft cloth.
5) Since the panel is made of glass, it may break or crack if dropped or bumped on hard surface.
6) Since CMOS LSI is used in this module, take care of static electricity and insure human earth when
handling.
7) Do not open nor modify the Module Assembly.
8) Do not press the reflector sheet at the back of the module to any directions.
9) At the insertion or removal of the Signal Interface Connector, be sure not to rotate nor tilt the Interface
Connector of the TFT-LCD module.
10) After installation of the TFT-LCD module into an enclosure (LCD monitor housing, for example), do not
twist nor bend the TFT -LCD module even momentary. At designing the enclosure, it should be taken into
consideration that no bending/twisting forces are applied to the TFT -LCD module from outside.
Otherwise the TFT -LCD module may be damaged.
(C) Copyright AU Optronics, Inc.
January, 2003 All Rights Reserved. M170EN05 V.8 ver0.2
No Reproduction and Redistribution Allowed.
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
5/26
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
General Description
This specification applies to the 17.0 inch Color TFT-LCD Module M170EN05 V8.
The display supports the SXGA (1280(H) x 1024(V)) screen format and 262k colors (RGB 6-bits data).
All input signals are 2 Channel LVDS interface compatible.
This module does not contain an inverter for backlight.
2.1 Display Characteristics
The following items are characteristics of the panel under 25 condition:
ITEMS Unit SPECIFICATIONS
Screen Diagonal [mm] 432(17.0")
Active Area [mm] 337.920 (H) x 270.336(V)
Pixels H x V 1280(x3) x 1024
Pixel Pitch [mm] 0.264 (per one triad) x 0.264
Pixel Arrangement R.G.B. Vertical Stripe
Display Mode Normally White
White Luminance [cd/m2] 300 (center) @ 7mA
Contrast Ratio 450 : 1 (Typ)
Optical Response Time [msec] 12 (Typ)
Color Saturation 72% NTSC
Nominal Input Voltage VDD [Volt] +5.0 V
Power Consumption
(VDD line + CCFL line)
Weight [Grams] 2000 (Typ)
Physical Size [mm] 358.5(W) x 296.5(H) x 19.0(D)
Electrical Interface Even/Odd R/G/B data, 3 sync signal,
Support Color 262k colors (RGB 6-bit data )
Temperature Range
Operating
Storage (Shipping)
[Watt] 25W (typ)
(w/o Inverter, All black pattern)
Clock
o
C]
[
o
C]
[
0 to +50
-20 to +60
(C) Copyright AU Optronics, Inc.
January, 2003 All Rights Reserved. M170EN05 V.8 ver0.2
No Reproduction and Redistribution Allowed.
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
6/26
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
2.2 Functional Block Diagram
The following diagram shows the functional block of the 17.0 inches Color TFT-LCD Module:
AU ASIC
G1
LVDS
+ 5V
Connector
DC/DC
Converter
Timing
Controller
LVDS
Receiver
RSDS
Transmitter
G1024
Gamma
Correction
DC POWER
-
TFT-LCD
1280*(3)*1024
Pixels
D1 D3840
Inverter
JAE FI-X30S-HF JST BHR-04VS-1
Mating Type: JAE FI-X30S-H Mating Type: SM04(4.0)B-BHS-1-TB
-
4 CCFL
(C) Copyright AU Optronics, Inc.
January, 2003 All Rights Reserved. M170EN05 V.8 ver0.2
No Reproduction and Redistribution Allowed.
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
7/26
www.panelook.com
Global LCD Panel Exchange Center
2.3 Optical Characteristics
The optical characteristics are measured under stable conditions at 25 (Room Temperature) :
Item Unit Conditions Min. Typ. Max.
Viewing Angle [degree]
Contrast ratio Normal Direction 300 500 -

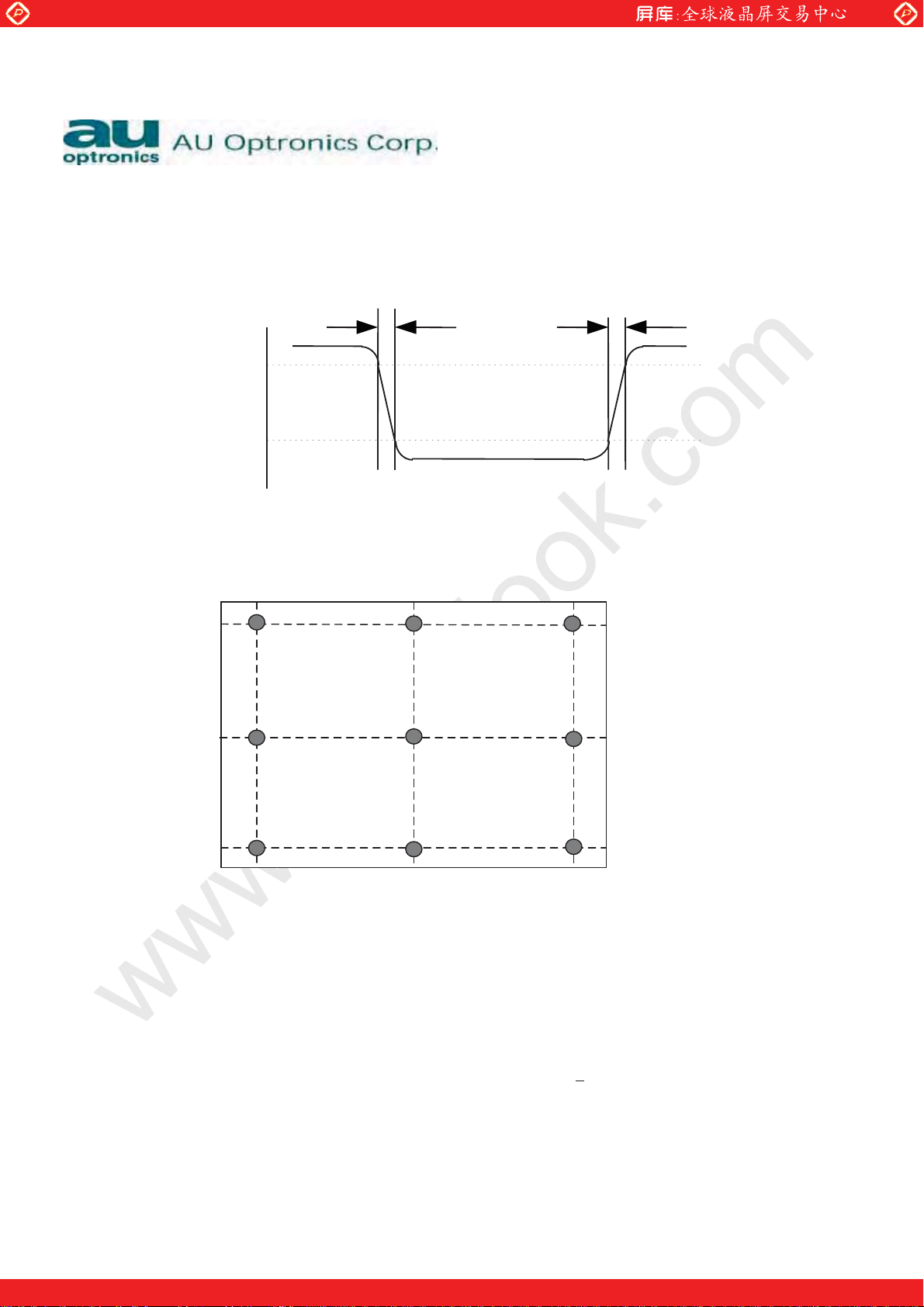

Response Time (Note 1) [msec]
Color / Chromaticity
Coordinates (CIE)
Color Coordinates (CIE) White
White Luminance @ CCFL 7.0mA
(center)
Luminance Uniformity (Note 2) [%] 75 80 TCO99 1.5.2B luminance uniformity
(Note 3)
Crosstalk (in 75Hz) (Note 4) [%] 1.5
www.panelook.com
Horizontal (Right)
CR = 10 (Left)
Vertical (Up)
CR = 10 (Down)
Horizontal (Right)
CR = 5 (Left)
Vertical (Up)
CR = 5 (Down)
Rising Time - 3 4
Falling Time - 9 16
Rising + Falling - 12 20
Red x 0.61 0.64 0.67
Red y 0.31 0.34 0.37
Green x 0.26 0.29 0.32
Green y 0.58 0.61 0.64
Blue x 0.11 0.14 0.17
Blue y 0.04 0.07 0.10
White x 0.28 0.31 0.34
White y 0.30 0.33 0.36
[cd/m2]
60
60
60
60
70
70
70
70
70
70
70
70
80
80
80
80
250 300 -
1.7
-
-
-
-
-
-
Equipment Pattern Generator, Power Supply, Digital Voltmeter, Luminance meter (PR 880, BM-5A,
BM-7)
Aperture 1with 100cm VD or 2with 50cm viewing distance
Test Point Center (ISO point 22)
Environment < 1 lux
LCD Module
PR-880 /
BM5A /
BM7
measuring distance
Module Driving Equipment
(C) Copyright AU Optronics, Inc.
January, 2003 All Rights Reserved. M170EN05 V.8 ver0.2
No Reproduction and Redistribution Allowed.
8/26
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
