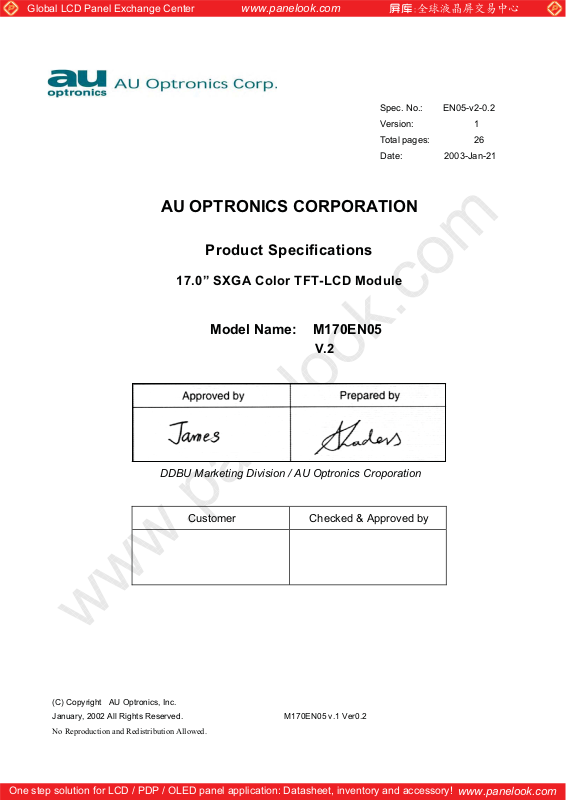

AUO M170EN05 V2 Specification

Global LCD Panel Exchange Center

www.panelook.com

Spec. No.: EN05-v2-0.2

Version: 1

Total pages: 26

Date: 2003-Jan-21

AU OPTRONICS CORPORATION

Product Specifications

17.0” SXGA Color TFT-LCD Module

Model Name: M170EN05

V.2

DDBU Marketing Division / AU Optronics Croporation

Customer Checked & Approved by

(C) Copyright AU Optronics, Inc.

January, 2002 All Rights Reserved. M170EN05 v.1 Ver0.2

No Reproduction and Redistribution Allowed.

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center



www.panelook.com

Product Specifications

17.0” SXGA Color TFT-LCD Module
Model Name: M170EN05

V.2

( ) Preliminary Specifications

) Final Specifications

(

Note: This Specification is subject to change without notice.

(C) Copyright AU Optronics, Inc.

January, 2002 All Rights Reserved. M170EN05 v.2 Ver0.2

No Reproduction and Redistribution Allowed.

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

1/26

www.panelook.com

Global LCD Panel Exchange Center

i Contents

ii Record of Revision

1.0 Handling Precautions

2.0 General Description

2.1 Display Characteristics

2.2 Functional Block Diagram

2.3 Optical Characteristics

2.4 Pixel format image

3.0 Electrical characteristics

3.1 Absolute Maximum Ratings

3.2 Connectors

3.3 Signal Pin

3.4 Signal Description

3.5 Signal Electrical Characteristics

3.6 Interface Timing

3.6.1 Timing Characteristics

3.6.2 Timing Definition

3.7 Power Consumption

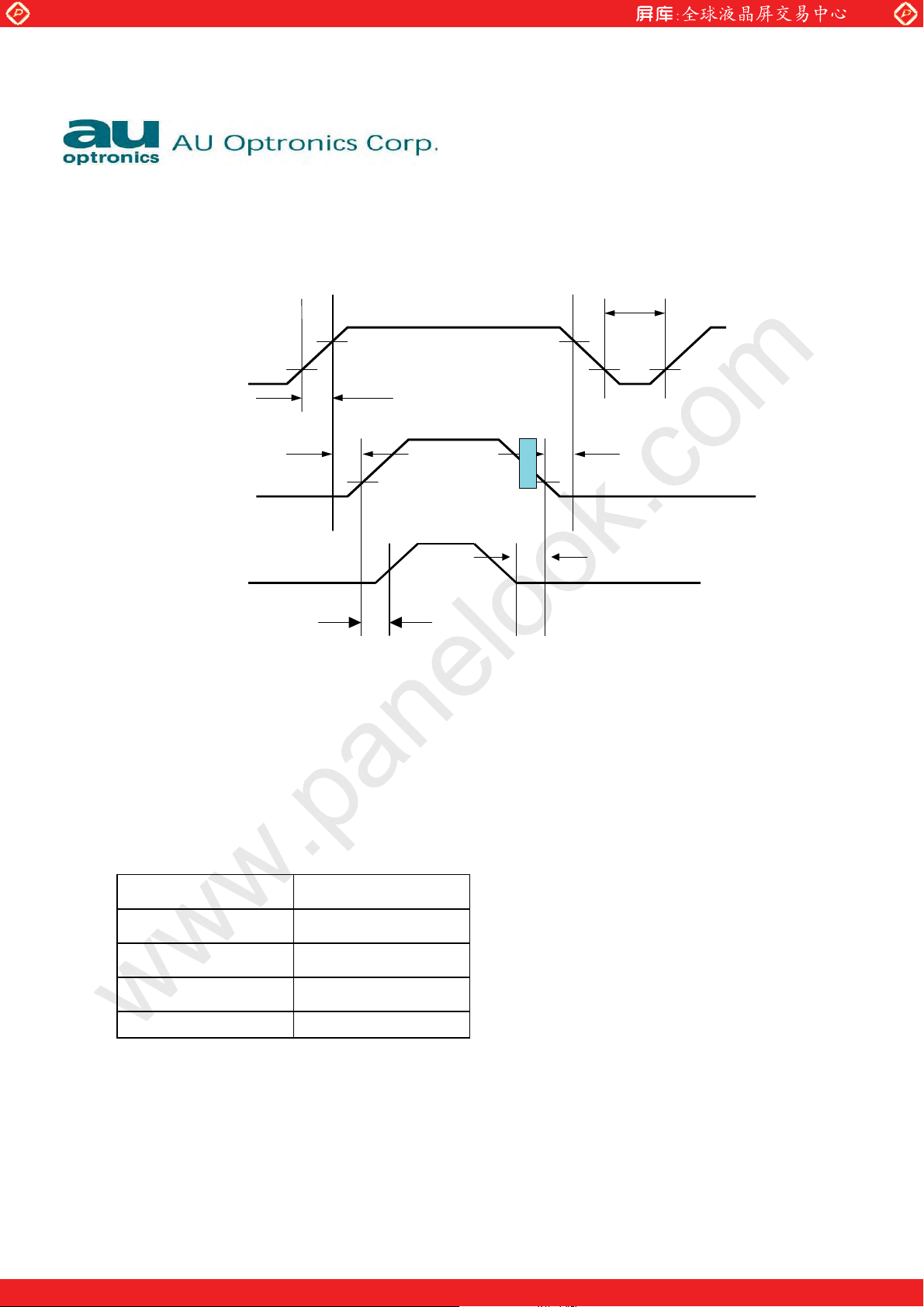

3.8 Power ON/OFF Sequence

4.0 Backlight Characteristics

4.1 Signal for Lamp connector

4.2 Parameter guide line for CCFL Inverter

5.0 Vibration, shock and drop

5.1 Vibration and shock

5.2 Drop test

6.0 Environment

6.1 Temperature and humidity

6.1.1 Operating conditions

6.1.2 Shipping conditions

6.2 Atmospheric pressure

6.3 Thermal shock

www.panelook.com

(C) Copyright AU Optronics, Inc.

January, 2002 All Rights Reserved. M170EN05 v.2 Ver0.2

No Reproduction and Redistribution Allowed.

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

2/26

www.panelook.com

Global LCD Panel Exchange Center

7.0 Reliability

7.1 Failure criteria

7.2 Failure rate

7.2.1 Usage

7.2.2 Components de-rating

7.3 CCFL life

7.4 ON/OFF cycle

8.0 Safety

8.1 Sharp edge requirement

8.2 Material

8.2.1 Toxicity

8.2.2 Flammability

8.3 Capacitors

8.4 Hazardous voltage

9.0 Other requirements

9.1 Smoke free design

9.2 National test lab requirement

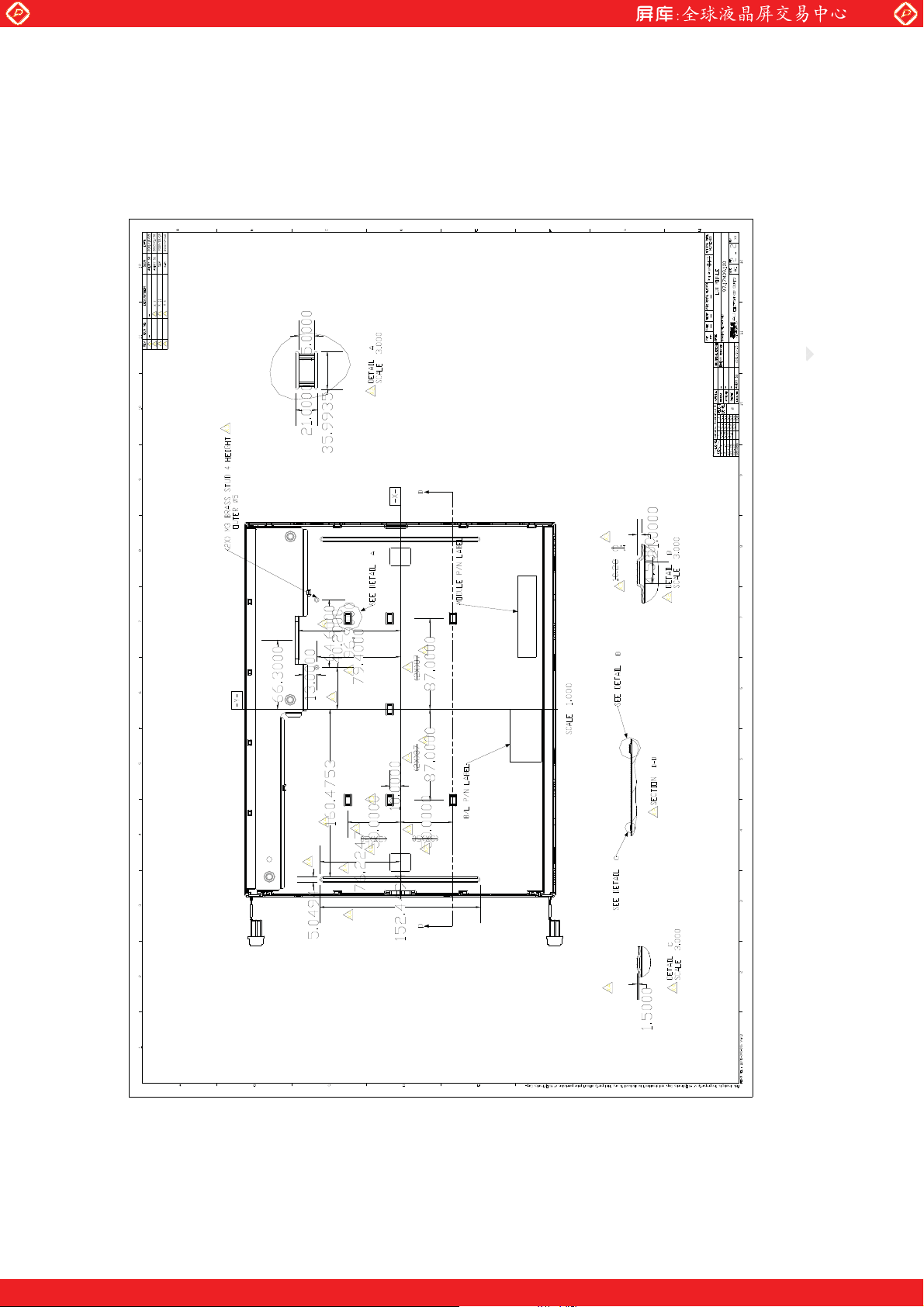

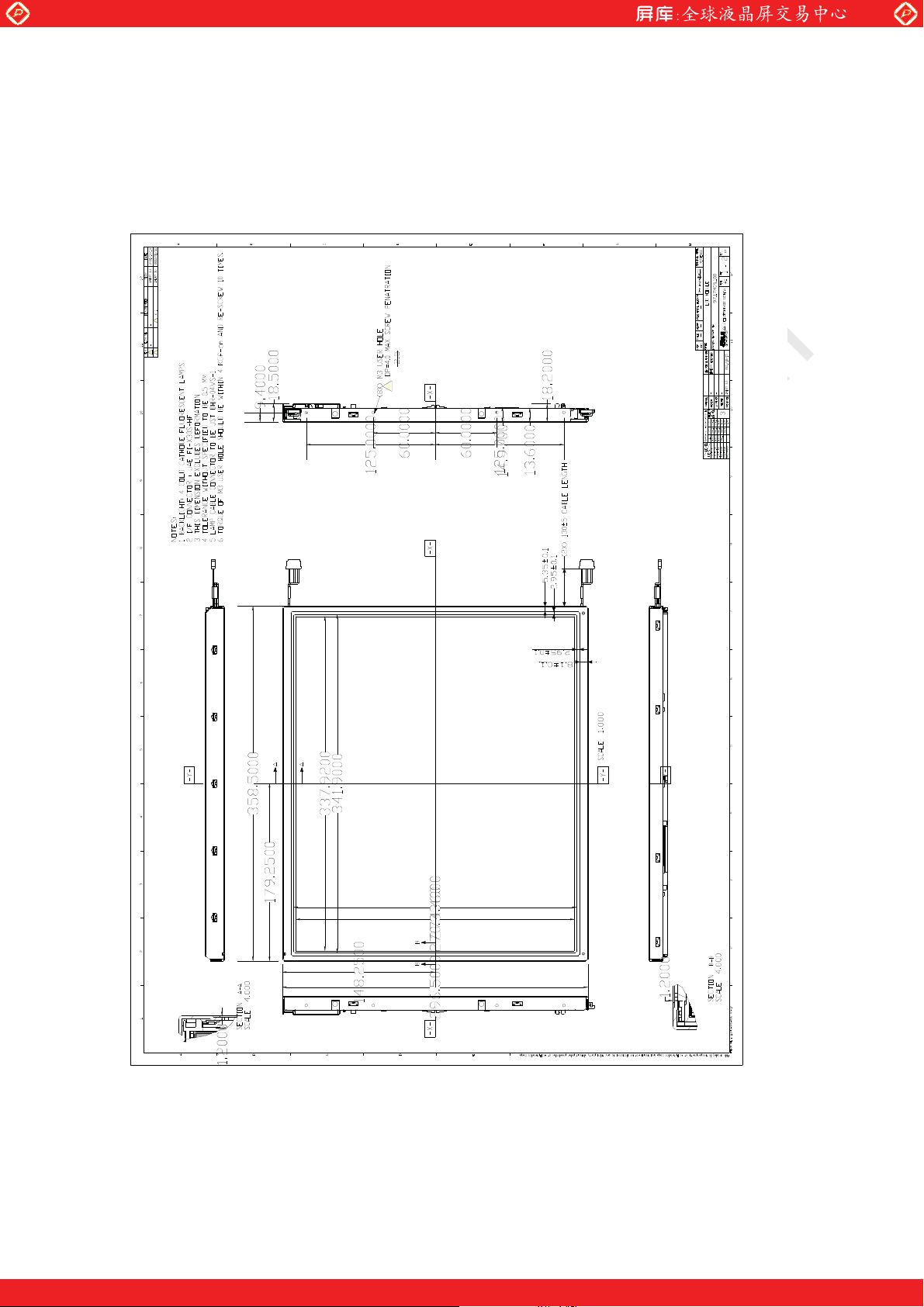

10.0 Mechanical Characteristics

www.panelook.com

(C) Copyright AU Optronics, Inc.

January, 2002 All Rights Reserved. M170EN05 v.2 Ver0.2

No Reproduction and Redistribution Allowed.

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

3/26

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

ii Record of Revision

Version and Date Page Old description New Description Remark

0.1 2002/09/18 All First Edition for Customer All

0.2 2003/01/21 19 Power sequence Power sequence Update

(C) Copyright AU Optronics, Inc.

January, 2002 All Rights Reserved. M170EN05 v.2 Ver0.2

No Reproduction and Redistribution Allowed.

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

4/26

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

1.0 Handling Precautions

1) Since front polarizer is easily damaged, pay attention not to scratch it.

2) Be sure to turn off power supply when inserting or disconnecting from input connector.

3) Wipe off water drop immediately. Long contact with water may cause discoloration or spots.

4) When the panel surface is soiled, wipe it with absorbent cotton or other soft cloth.

5) Since the panel is made of glass, it may break or crack if dropped or bumped on hard surface.

6) Since CMOS LSI is used in this module, take care of static electricity and insure human earth when
handling.

7) Do not open nor modify the Module Assembly.

8) Do not press the reflector sheet at the back of the module to any directions.

9) At the insertion or removal of the Signal Interface Connector, be sure not to rotate nor tilt the Interface
Connector of the TFT-LCD module.

10) After installation of the TFT-LCD module into an enclosure (LCD monitor housing, for example), do not
twist nor bend the TFT -LCD module even momentary. At designing the enclosure, it should be taken
into consideration that no bending/twisting forces are applied to the TFT -LCD module from outside.
Otherwise the TFT -LCD module may be damaged.

(C) Copyright AU Optronics, Inc.

January, 2002 All Rights Reserved. M170EN05 v.2 Ver0.2

No Reproduction and Redistribution Allowed.

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

5/26

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

General Description

This specification applies to the 17.0 inch Color TFT-LCD Module M170EN05.

The display supports the SXGA (1280(H) x 1024(V)) screen format and 262k colors (RGB 6-bits data).

All input signals are 2 Channel LVDS interface compatible.

This module does not contain an inverter card for backlight.

2.1 Display Characteristics

The following items are characteristics summary on the table under 25 к condition:

ITEMS Unit SPECIFICATIONS

Screen Diagonal [mm] 432(17.0")
Active Area [mm] 337.920 (H) x 270.336(V)
Pixels H x V 1280(x3) x 1024
Pixel Pitch [mm] 0.264 (per one triad) x 0.264
Pixel Arrangement R.G.B. Vertical Stripe
Display Mode Normally White
White Luminance [cd/m2] 260 (center) @ 7mA
Contrast Ratio 450 : 1 (Typ)
Optical Response Time [msec] 16 (Typ)
Color Saturation 72% NTSC
Nominal Input Voltage VDD [Volt] +5.0 V
Power Consumption
(VDD line + CCFL line)
Weight [Grams] 2000 (Typ)
Physical Size [mm] 358.5(W) x 296.5(H) x 19.0(D)
Electrical Interface Even/Odd R/G/B data, 3 sync signal,

Support Color 262k colors (RGB 6-bit data )
Temperature Range
Operating
Storage (Shipping)

[Watt] 25W (typ)

(w/o Inverter, All black pattern)

Clock

o

C]

[

o

C]

[

0 to +50

-20 to +60

(C) Copyright AU Optronics, Inc.

January, 2002 All Rights Reserved. M170EN05 v.2 Ver0.2

No Reproduction and Redistribution Allowed.

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

6/26

www.panelook.com

Global LCD Panel Exchange Center

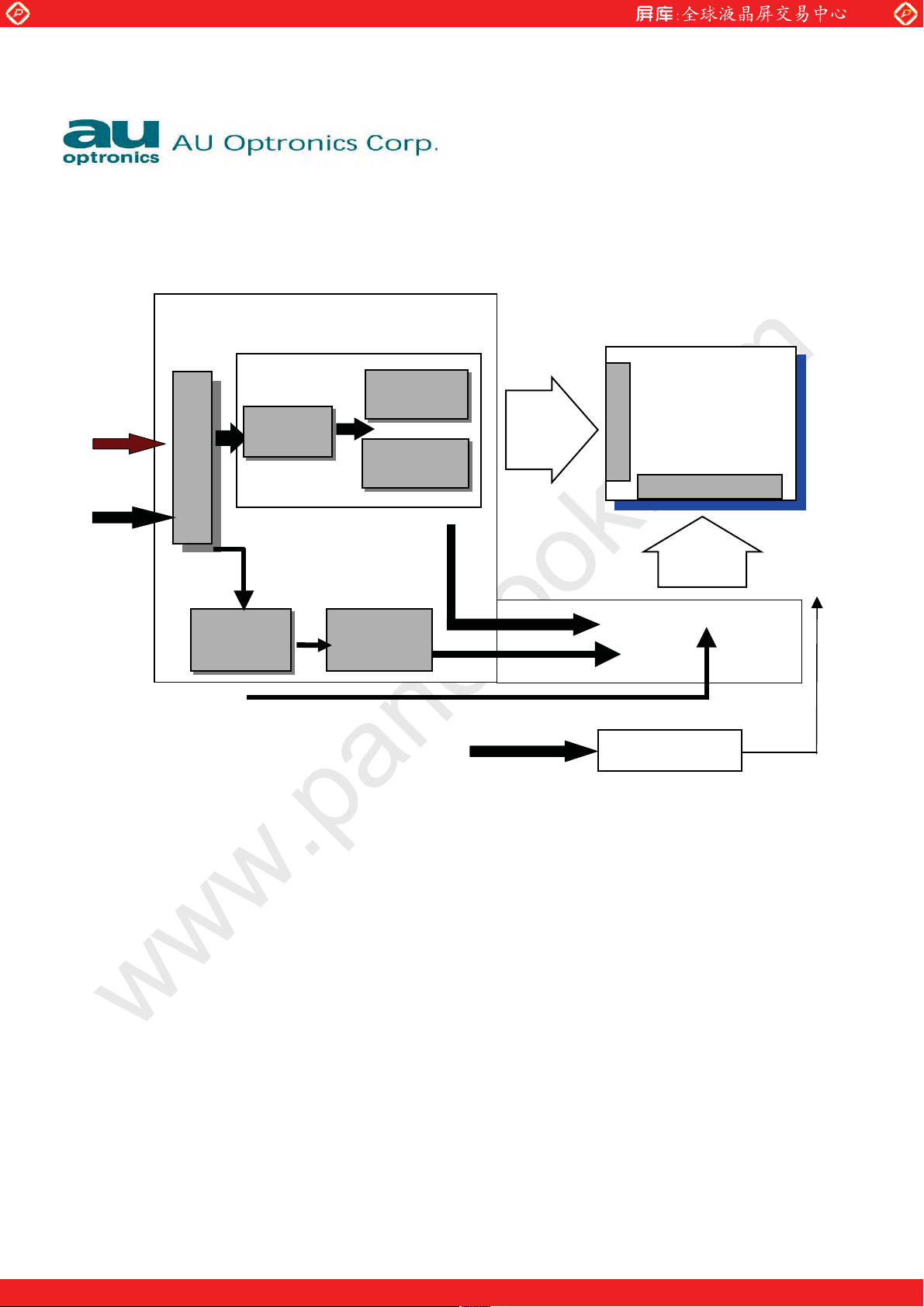

2.2

Functional Block Diagram

www.panelook.com

The following diagram shows the functional block of the 17.0 inches Color TFT-LCD Module:

LVDS

+ 5V

Connector

Receiver

DC/DC

Converter

LVDS

AU ASIC

Gamma

Correction

Timing

Controller

RSDS

Transmitte

DC POWER

G1

-

G1024

D1 D3840

Inverter

JAE FI-X30S-HF JST BHR-04VS-1
Mating Type: JAE FI-X30S-H Mating Type: SM04(4.0)B-BHS-1-TB

TFT-LCD

1280*(3)*1024

Pixels

-

4 CCFL

(C) Copyright AU Optronics, Inc.

January, 2002 All Rights Reserved. M170EN05 v.2 Ver0.2

No Reproduction and Redistribution Allowed.

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

7/26

www.panelook.com

Global LCD Panel Exchange Center

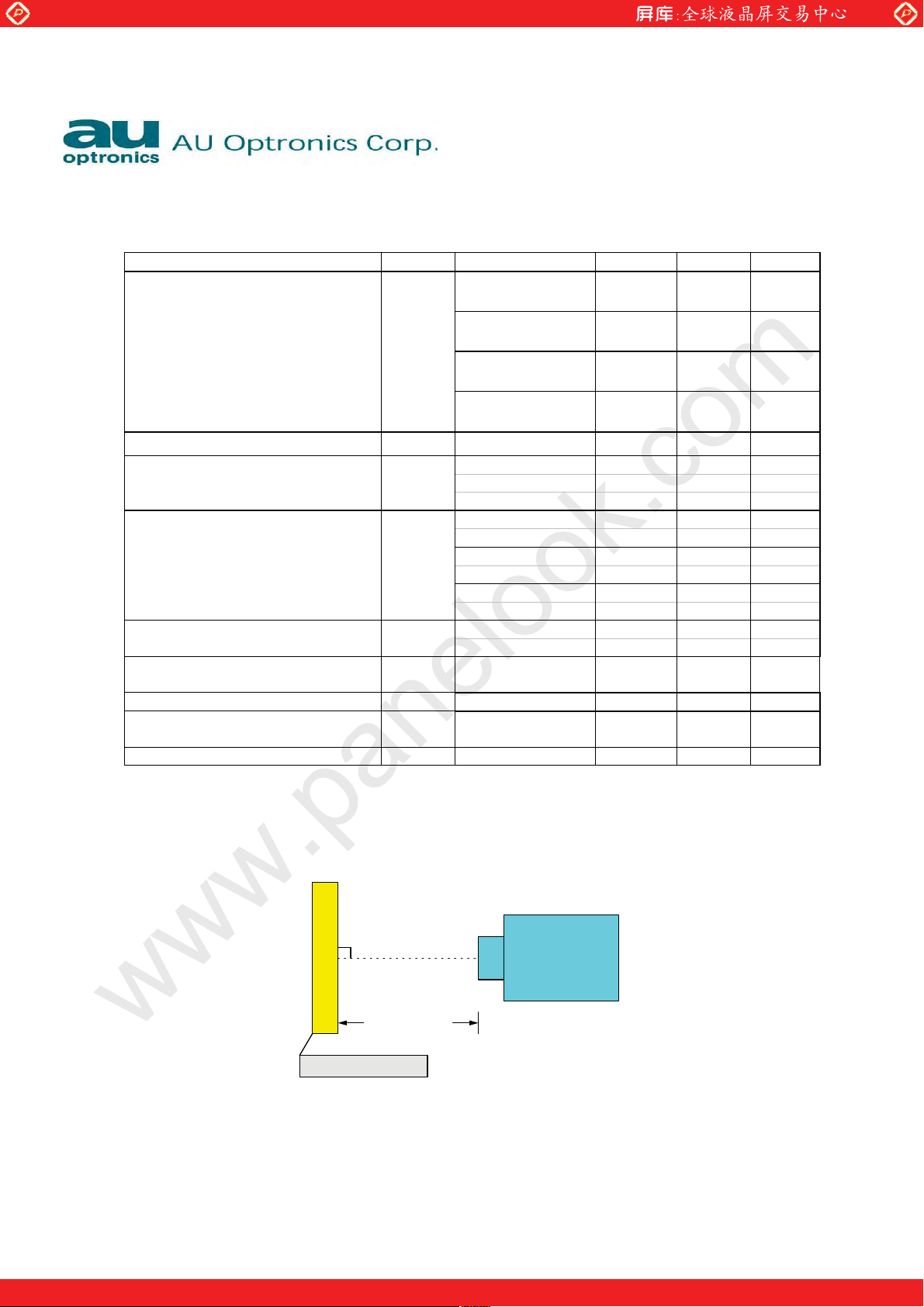

2.3 Optical Characteristics

The optical characteristics are measured under stable conditions at 25к (Room Temperature) :

Item Unit Conditions Min. Typ. Max.

Viewing Angle [degree]

Contrast ratio Normal Direction 250 450 -

Response Time (Note 1)

Color / Chromaticity
Coordinates (CIE)

Color Coordinates (CIE) White

White Luminance @ CCFL 7.0mA
(center)
Luminance Uniformity (Note 2) [%] 75 80 ­TCO99 1.5.2B luminance uniformity
(Note 3)
Crosstalk (in 75Hz) (Note 4) [%] 1.5

Equipment Pattern Generator, Power Supply, Digital Voltmeter, Luminance meter (PR 880, BM-5A)
Aperture 1шwith 100cm VD or 2шwith 50cm viewing distance

Test Point Center (ISO point 22)

Environment < 1 lux

www.panelook.com

Horizontal (Right)
CR = 10 (Left)

Vertical (Up)
CR = 10 (Down)

Horizontal (Right)
CR = 5 (Left)

Vertical (Up)
CR = 5 (Down)

[msec]

Raising Time - 4 5
Falling Time - 12 20
Raising + Falling - 16 25
Red x 0.61 0.64 0.67
Red y 0.31 0.34 0.37
Green x 0.26 0.29 0.32
Green y 0.58 0.61 0.64
Blue x 0.11 0.14 0.17
Blue y 0.04 0.07 0.10
White x 0.28 0.31 0.34
White y 0.30 0.33 0.36

[cd/m2]

200 260 -

1.7

60
60

60
60

70
70

70
70

70
70

70
70

80
80

80
80

-

-

-

-

-

-

LCD Module

PR-880 /

BM5A /

BM7

measuring distance

Module Driving Equipment

(C) Copyright AU Optronics, Inc.

January, 2002 All Rights Reserved. M170EN05 v.2 Ver0.2

No Reproduction and Redistribution Allowed.

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

8/26

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

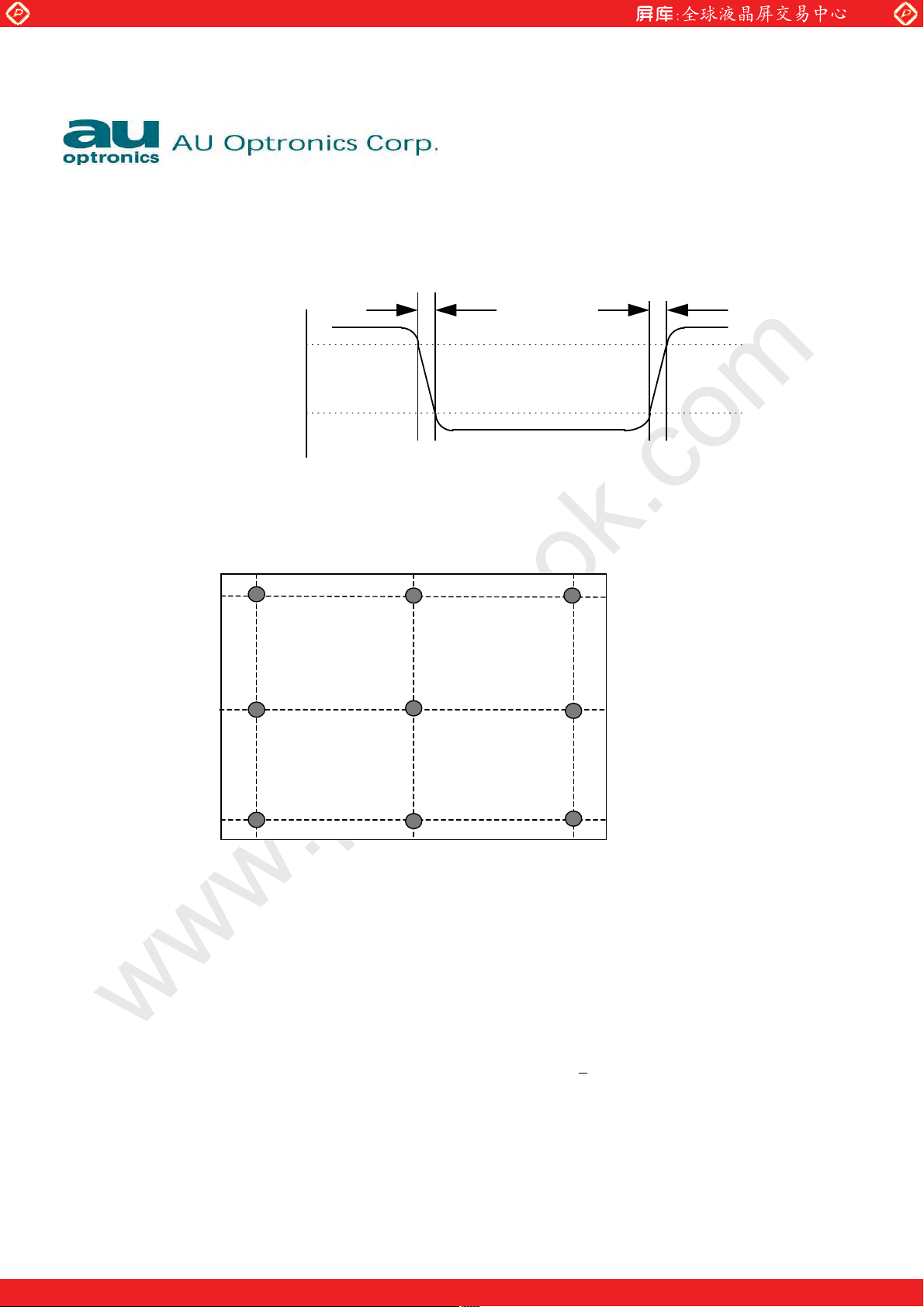

Note 1: Definition of Response time:

The output signals of photodetector are measured when the input signals are changed from “ Black” to “ White”
(falling time), and from “White” to “ Black” (rising time), respectively. The response time is interval between the 10%
and 90% of amplitudes.

ڪۋۏۄھڼۇ
ڭۀێۋۊۉێۀ

ٻ100

90

ٻ

R

Tr

ڀ

ٻ

TrD

10

ےۃۄۏۀ

0

ڽۇڼھۆ

ےۃۄۏۀ

Note 2: Brightness uniformity of these 9 points is defined as below:

90 %

50 %

10 %

10 %

50 %

90 %

Minimum Luminance in 9 Points (1-9)
Uniformity = ————————————————————
Maximum Luminance in 9 Points (1-9)

Note 3: TCO ’99 Certification Requirements and test methods for environmental labeling of Display Report No. 2
defines Luminance uniformity as below:

((Lmax,+30deg. / Lmin,+30deg.) + (Lmax,-30deg. / Lmin,-30deg.)) / 2

This panel is compatible with TCO99 approbation in luminance uniformity <

(C) Copyright AU Optronics, Inc.

January, 2002 All Rights Reserved. M170EN05 v.2 Ver0.2

No Reproduction and Redistribution Allowed.

1.7, luminance contrast >0.5

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

9/26

www.panelook.com

Global LCD Panel Exchange Center

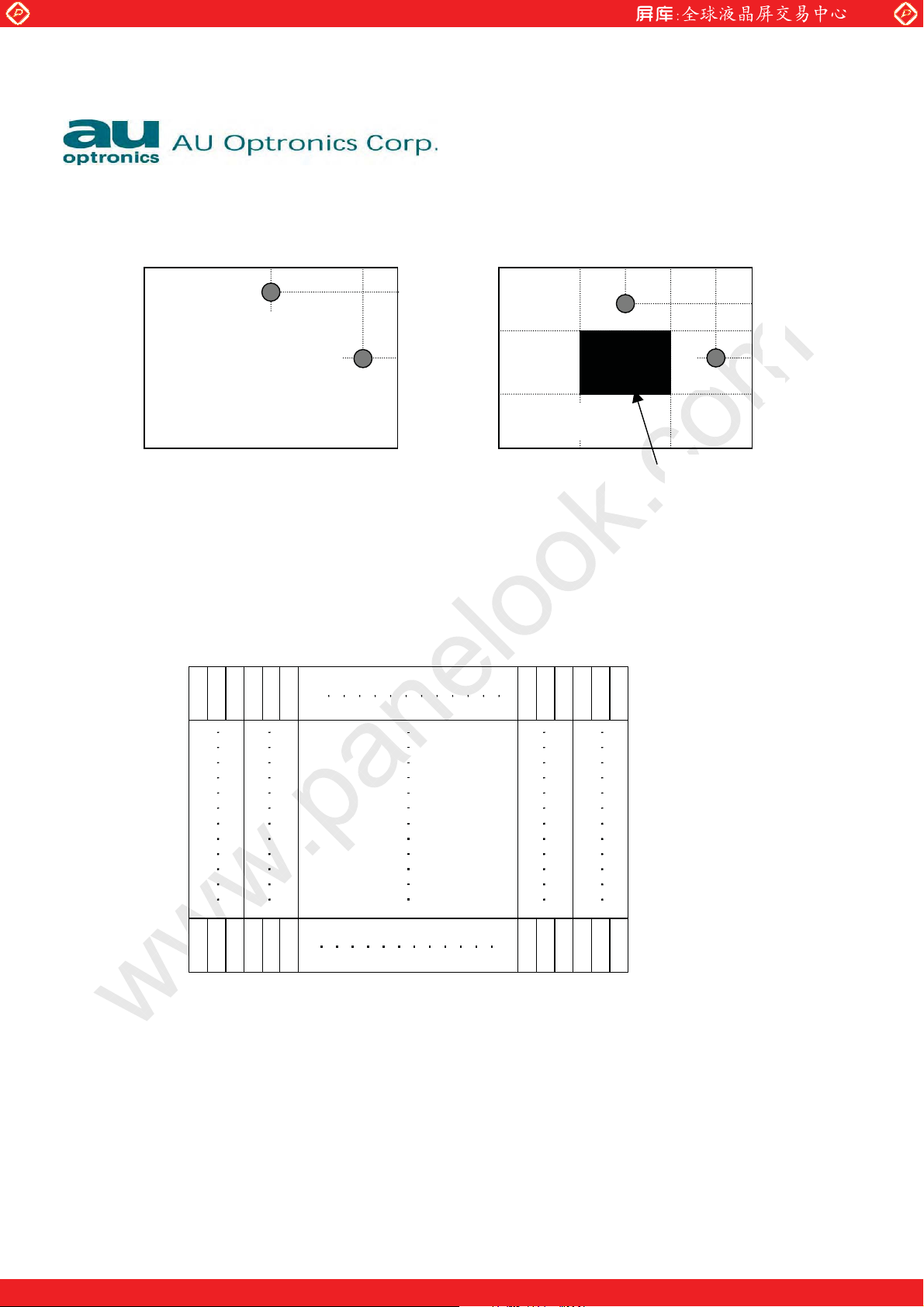

Note 4:

Unit: percentage of dimension of display area

1/2

A

B

www.panelook.com

1/6

1/6

1/2

1/3 2/3

1/2

A’

184 gray level 184 gray level

1/6

B’

0 gray level

1/6

1/3

1/2

2/3

l L

l L

l / LA x 100%= 1.5% max., LA and LB are brightness at location A and B

A-LA’

l / LB x 100%= 1.5% max., LA’ and LB’ are brightness at location A’ and B’

B-LB’

2.4: Pixel format image

Following figure shows the relationship of the input signals and LCD pixel format.

1st Line

1024th

1

2

R G B R G B

R G B R G B

1279 1280

R G B R G B

R G B R G B

(C) Copyright AU Optronics, Inc.

January, 2002 All Rights Reserved. M170EN05 v.2 Ver0.2

No Reproduction and Redistribution Allowed.

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

10/26

www.panelook.com

Global LCD Panel Exchange Center

к

p

3.0 Electrical characteristics

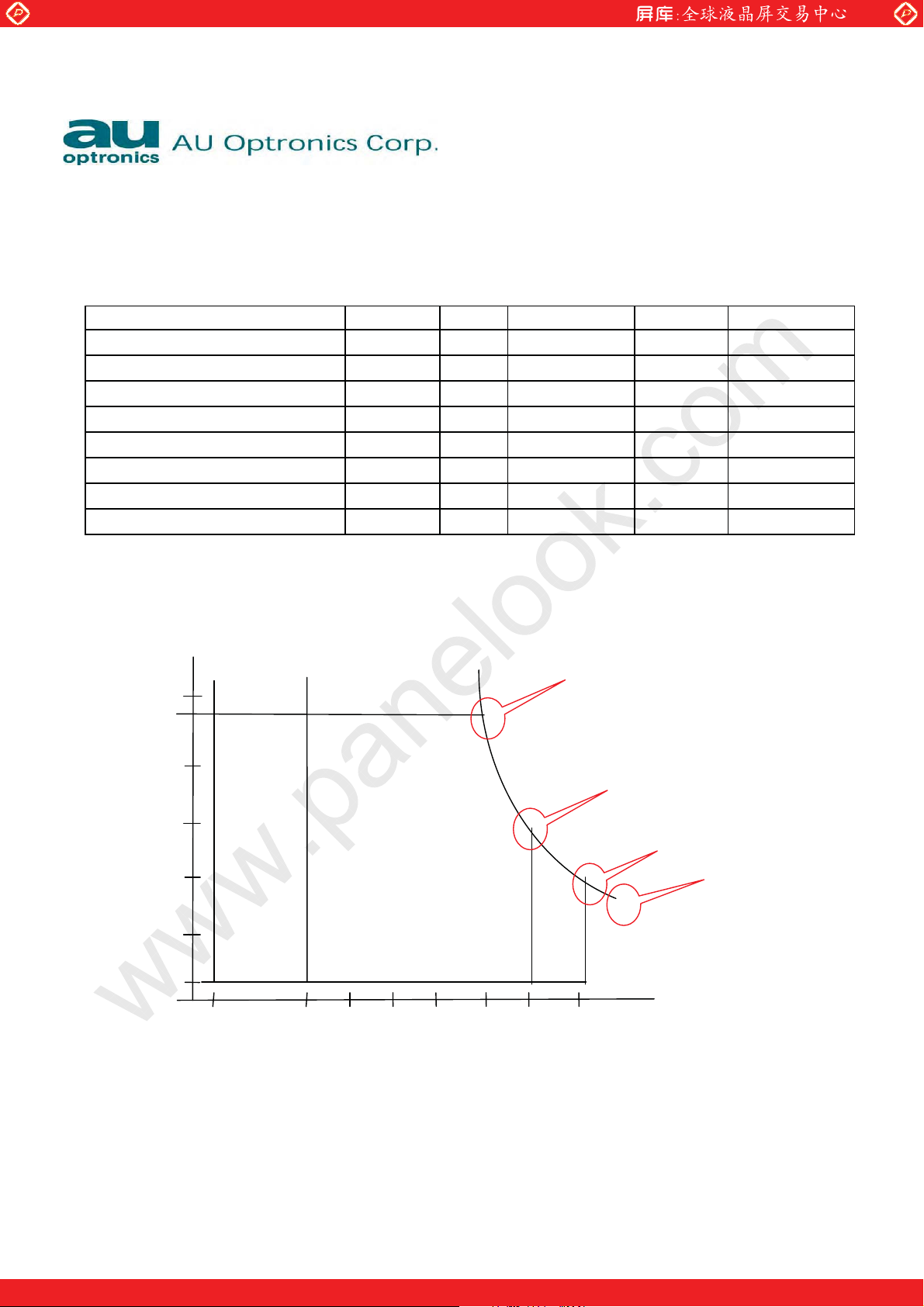

3.1 Absolute Maximum Ratings

Absolute maximum ratings of the module is as following:

Item Symbol Min Max Unit Conditions

Logic/LCD Drive Voltage VIN -0.3 +5.5 [Volt]

Select LVDS data order SELLVDS NC NC [Volt]

CCFL Inrush current ICFLL - 38 [mA]

CCFL Current ICFL - 7.6 [mA] rms

Operating Temperature TOP 0 +50 [oC] Note 1

Operating Humidity HOP 8 95 [%RH] Note 1

Storage Temperature TST -20 +60 [oC] Note 1

Storage Humidity HST 8 95 [%RH] Note 1

www.panelook.com

Note 1 : Maximum Wet-Bulb should be 39к

Relative Humidity %

100

95

80

60

40

20

Storage

range

Operation range

5

0

-20

0 50 60

Tem

and No condensation.

Twb=39к

T=40к,H=95%

T=50к,H=55%

T=60к,H=39%

T=65к,H=29%

Storage

range

erature oC

(C) Copyright AU Optronics, Inc.

January, 2002 All Rights Reserved. M170EN05 v.2 Ver0.2

No Reproduction and Redistribution Allowed.

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

11/26

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

3.2 Connectors

Physical interface is described as for the connector on module.

These connectors are capable of accommodating the following signals and will be following components.

Connector Name / Designation

Interface Connector / Interface card

Manufacturer

Type Part Number

Mating Housing Part Number

Connector Name / Designation

Manufacturer

Type Part Number

Mating Type Part Number

3.3 Signal Pin

Pin# Signal Name Pin# Signal Name

1 RxO0- 2 RxO0+
3 RxO1- 4 RxO1+
5 RxO2- 6 RxO2+
7 GND 8 RxOC-

9 RxOC+ 10 RxO3­11 RxO3+ 12 RxE0­13 RxE0+ 14 GND
15 RxE1- 16 RxE1+
17 GND 18 RxE2­19 RxE2+ 20 RxEC­21 RxEC+ 22 RxE3­23 RxE3+ 24 GND
25 NC 26 NC
27 NC 28 Power
29 Power 30 Power

JAE or compatible

FI-X30S-HF

FI-X30S-H

Lamp Connector / Backlight lamp

JST

BHR-04VS-1

SM04(4.0)B-BHS-1-TB

(C) Copyright AU Optronics, Inc.

January, 2002 All Rights Reserved. M170EN05 v.2 Ver0.2

No Reproduction and Redistribution Allowed.

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

12/26

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

3.4 Signal Description

The module using a pair of LVDS receiver SN75LVDS82 (Texas Instruments) or compatible. LVDS is a
differential signal technology for LCD interface and high speed data transfer device. Transmitter shall be
SN75LVDS83(negative edge sampling) or compatible. The first LVDS port(RxOxxx) transmits odd pixels
while the second LVDS port(RxExxx) transmits even pixels.

PIN # SIGNAL NAME DESCRIPTION

1 RxO0- Negative LVDS differential data input (Odd data)

2 RxO0+ Positive LVDS differential data input (Odd data)

3 RxO1- Negative LVDS differential data input (Odd data)

4 RxO1+

5 RxO2- Negative LVDS differential data input (Odd data, H-Sync,V-Sync,DSPTMG)
6 RxO2+ Positive LVDS differential data input (Odd data, H-Sync,V-Sync,DSPTMG)
7 GND Power Ground
8 RxOC- Negative LVDS differential clock input (Odd clock)

9 RxOC+ Positive LVDS differential clock input (Odd clock)
10 RxO3- Negative LVDS differential data input (Odd data)

11 RxO3+ Positive LVDS differential data input (Odd data)
12 RxE0- Negative LVDS differential data input (Even clock)
13 RxE0+ Positive LVDS differential data input (Even data)
14 GND Power Ground
15 RxE1- Positive LVDS differential data input (Even data)
16 RxE1+ Negative LVDS differential data input (Even data)
17 GND Power Ground
18 RxE2- Negative LVDS differential data input (Even data)
19 RxE2+ Positive LVDS differential data input (Even data)
20 RxEC- Negative LVDS differential clock input (Even clock)
21 RxEC+ Positive LVDS differential clock input (Even clock)
22 RxE3- Negative LVDS differential data input (Even data)
23 RxE3+ Positive LVDS differential data input (Even data)
24 GND Power Ground
25 NC ­26 NC ­27 NC ­28 POWER Power
29 POWER Power
30 POWER Power

Note: Input signals of odd and even clock shall be the same timing.

Positive LVDS differential data input (Odd data)

LVDS DATA Name Description

DSP Display Timing: When the signal is high, the pixel data shall be valid to be displayed
V-S Vertical Sync: Both Positive and Negative polarity are acceptable
H-S Horizontal Sync: Both Positive and Negative polarity are acceptable

(C) Copyright AU Optronics, Inc.

January, 2002 All Rights Reserved. M170EN05 v.2 Ver0.2

No Reproduction and Redistribution Allowed.

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

13/26

www.panelook.com

Global LCD Panel Exchange Center

TI LVDS X’mitter

SN75LVDS83

Signal Name Low(open)

D0 Red0
D1 Red1
D2 Red2
D3 Red3
D4 Red4
D5 Red7
D6 Red5
D7 Green0
D8 Green1

D9 Green2
D10 Green6
D11 Green7
D12 Green3
D13 Green4
D14 Green5
D15 Blue0
D16 Blue6
D17 Blue7
D18 Blue1
D19 Blue2
D20 Blue3
D21 Blue4
D22 Blue5
D23 NA
D24 H Sync
D25 V Sync
D26 Display Timing
D27 Red6

www.panelook.com

Module LVDS signal

(interface connector pin7)

(C) Copyright AU Optronics, Inc.

January, 2002 All Rights Reserved. M170EN05 v.2 Ver0.2

No Reproduction and Redistribution Allowed.

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

14/26

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

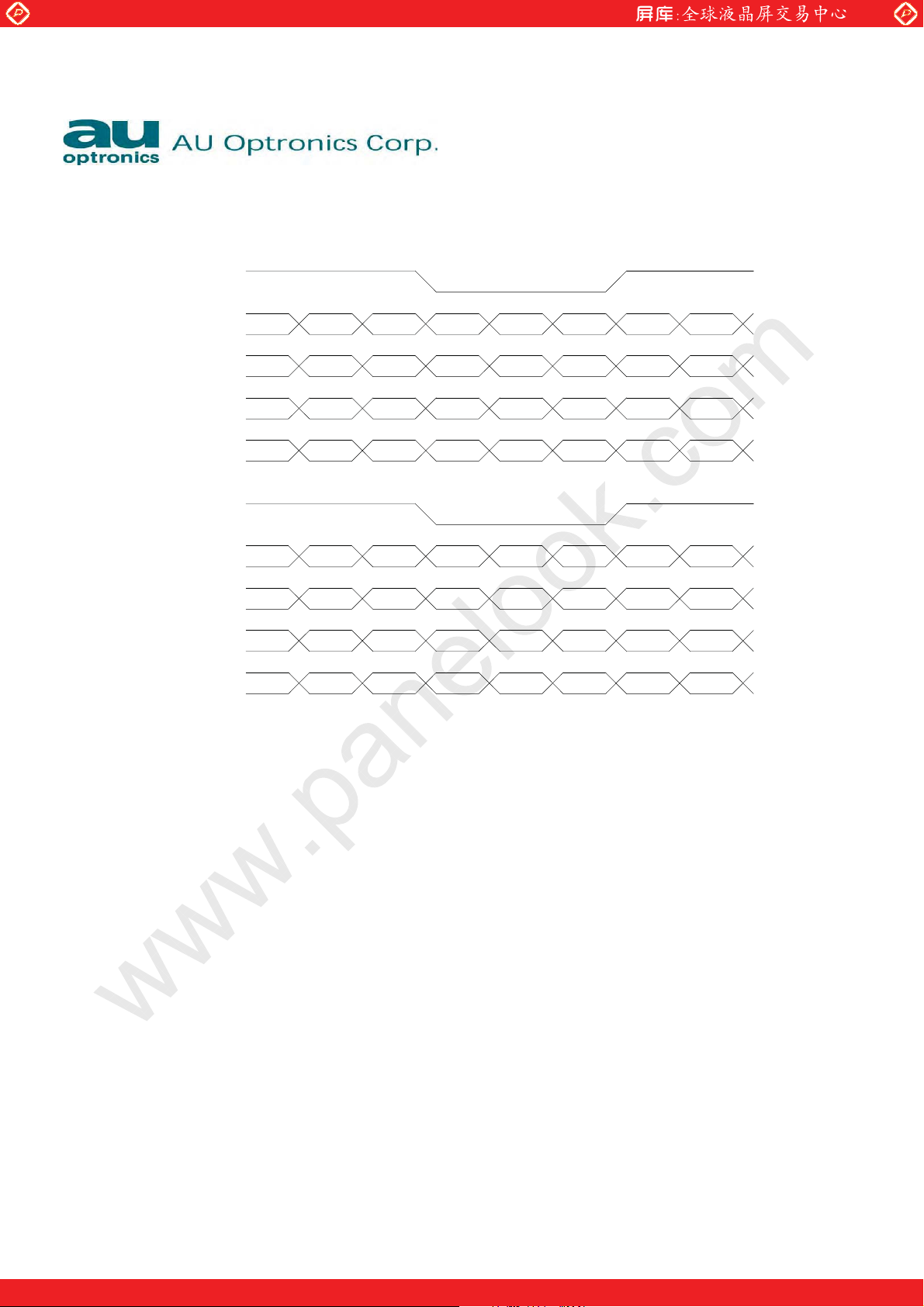

8bits input: M170EN05 only catch bit 2 to bit 7 for 6 bit display
6bits input data format marked with ( ).

˥˖˟˞ˣ˄

Note:

˥˔ˣ˄

˥˕ˣ˄

˥˖ˣ˄

˥˗ˣ˄

˚˃ʻ˃ʼ ˥ˈʻ˥ˆʼ ˥ˇʻ˥˅ʼ ˥ˆʻ˥˄ʼ ˥˅ʻ˥˃ʼ ʳ˥˄ʻ˃ʼ ˥˃ʻ˃ʼ

˕˄ʻ˃ʼ ˕˃ʻ˃ʼ ˚ˈʻ˚ˆʼ ˚ˇʻ˚˅ʼ ˚ˆʻ˚˄ʼ ʳ˚˅ʻ˚˃ʼ ˚˄ʻ˃ʼ

˗˘ ˩˦ ˛˦

˥˦˩

˕ˊʻ˕ˈʼ ˕ˉʻ˕ˇʼ ˚ˊʻ˚ˈʼ ˚ˉʻ˚ˇʼ ʳ˥ˊʻ˥ˈʼ ˥ˉʻ˥ˇʼ

˥˖˟˞ˣ˅

˥˔ˣ˅

˥˕ˣ˅

˚˃ʻ˃ʼ ˥ˈʻ˥ˆʼ ˥ˇʻ˥˅ʼ ˥ˆʻ˥˄ʼ ˥˅ʻ˥˃ʼ ʳ˥˄ʻ˃ʼ ˥˃ʻ˃ʼ

˕˄ʻ˃ʼ ˕˃ʻ˃ʼ ˚ˈʻ˚ˆʼ ˚ˇʻ˚˅ʼ ˚ˆʻ˚˄ʼ ʳ˚˅ʻ˚˃ʼ ˚˄ʻ˃ʼ

˥˖ˣ˅

˥˗ˣ˅

R/G/B data 7:MSB, R/G/B data 0:LSB

O = “First Pixel Data”

E = “Second Pixel Data”

˥˦˩

˕ˊʻ˕ˈʼ ˕ˉʻ˕ˇʼ ˚ˊʻ˚ˈʼ ˚ˉʻ˚ˇʼ ʳ˥ˊʻ˥ˈʼ ˥ˉʻ˥ˇʼ

˕ˈʻ˕ˆʼ ˕ˇʻ˕˅ʼ ʳ˕ˆʻ˕˄ʼ ˕˅ʻ˕˃ʼ

˕ˈʻ˕ˆʼ ˕ˇʻ˕˅ʼ ʳ˕ˆʻ˕˄ʼ ˕˅ʻ˕˃ʼ

(C) Copyright AU Optronics, Inc.

January, 2002 All Rights Reserved. M170EN05 v.2 Ver0.2

No Reproduction and Redistribution Allowed.

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

15/26

www.panelook.com

Global LCD Panel Exchange Center

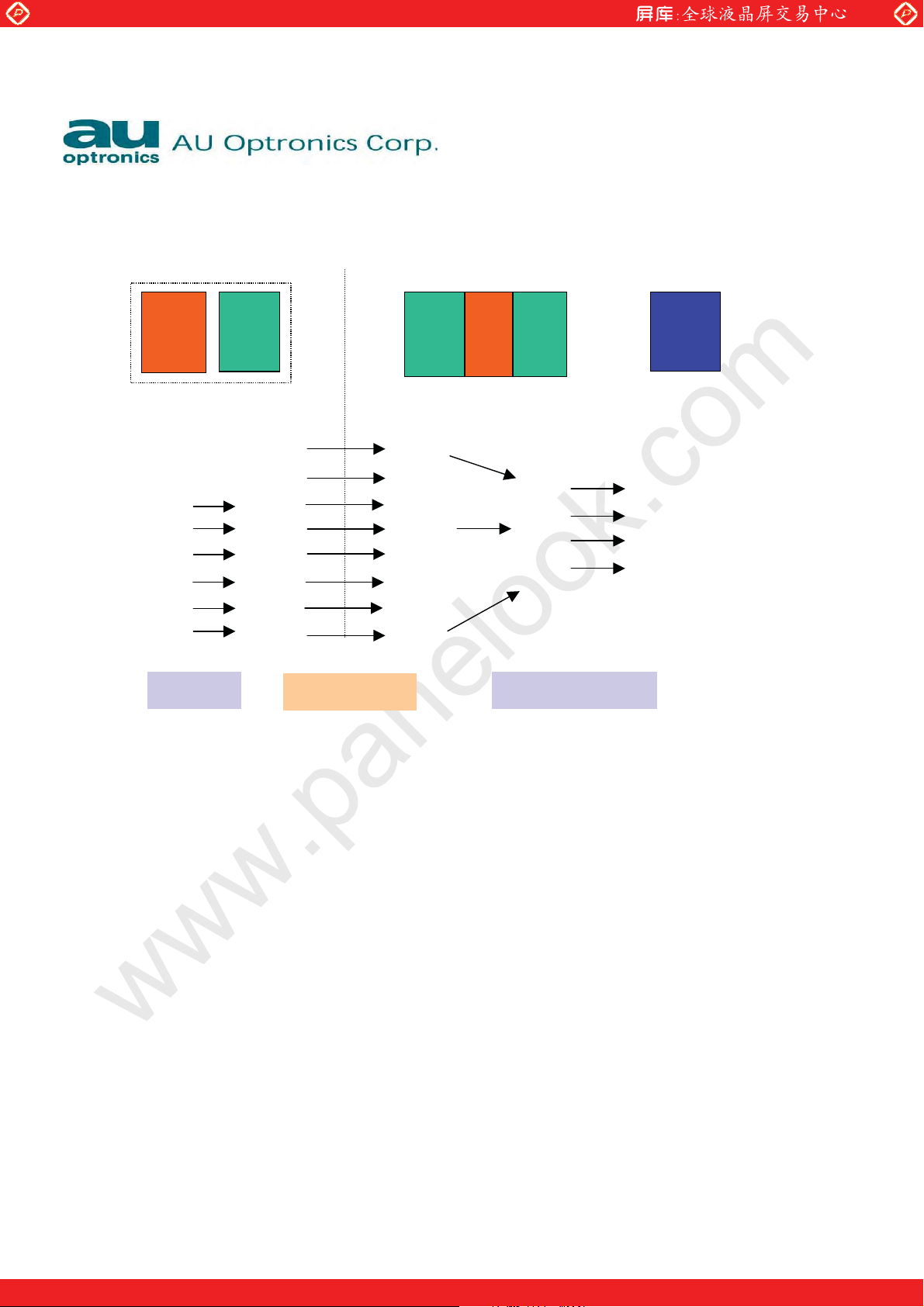

Scaling IC

6 bits+FRC

8 bits LVDS
transmitter

0

1

2

3

4

5

0

1

2

3

4

5

6

7

System

LVDS interface

www.panelook.com

Controller IC

8 bits LVDS
Receiver

0

1

2

3

4

5

6

7

8 bits RSDS
transmitter

M170EN05 module

01

23

45

67

Driver IC

6 bits RSDS
receiver driver IC

open

01

23

45

(C) Copyright AU Optronics, Inc.

January, 2002 All Rights Reserved. M170EN05 v.2 Ver0.2

No Reproduction and Redistribution Allowed.

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

16/26

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

3.5 Signal Electrical Characteristics

Input signals shall be low or Hi-Z state when Vin is off
It is recommended to refer the specifications of SN75LVDS82DGG (Texas Instruments) in detail.

Each signal characteristics are as follows;

Parameter Condition Min Max Unit

Vth

Vtl

Differential InputHigh
Voltage(Vcm=+1.2V)

Differential Input Low
Voltage(Vcm=+1.2V)

-100

100

3.6 Interface Timings

Basically, interface timings described here is not actual input timing of LCD module but output timing of
SN75LVDS82DGG (Texas Instruments) or equivalent.

3.6.1 Timing Characteristics

Signal Item Symbol MIN TYP MAX Unit
DTCLK Freq. Fdck 50 67.5 70 MHz
DTCLK Cycle Tck 14.2 14.8 20 ns
+V-Sync Frame Rate 1/Tv 56.25 75 77 Hz
+V-Sync Cycle Tv 13 13.33 17.78 ms
+V-Sync Cycle Tv 1035 1066 2047 lines
+V-Sync Active level Tva 3 3 lines
+V-Sync V-back porch Tvb 7 38 63 lines
+V-Sync V-front porch Tvf 1 1 lines
+DSPTMG V-Line m - 1024 - lines
+H-Sync Scan rate 1/Th - 80.06 - KHz
+H-Sync Cycle Th 800 844 1023 Tck
+H-Sync Active level Tha (*1) 4 56 Tck
+H-Sync Back porch Thb (*1) 4 124 Tck
+H-Sync Front porch Thf 4 24 Tck
+DSPTMG Display Pixels n - 640 - Tck

Note: Typical value refer to VESA STANDARD (*1) Tha+Thb should be less than 1024 Tck.

[mV]

[mV]

(C) Copyright AU Optronics, Inc.

January, 2002 All Rights Reserved. M170EN05 v.2 Ver0.2

No Reproduction and Redistribution Allowed.

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

17/26

www.panelook.com

Global LCD Panel Exchange Center

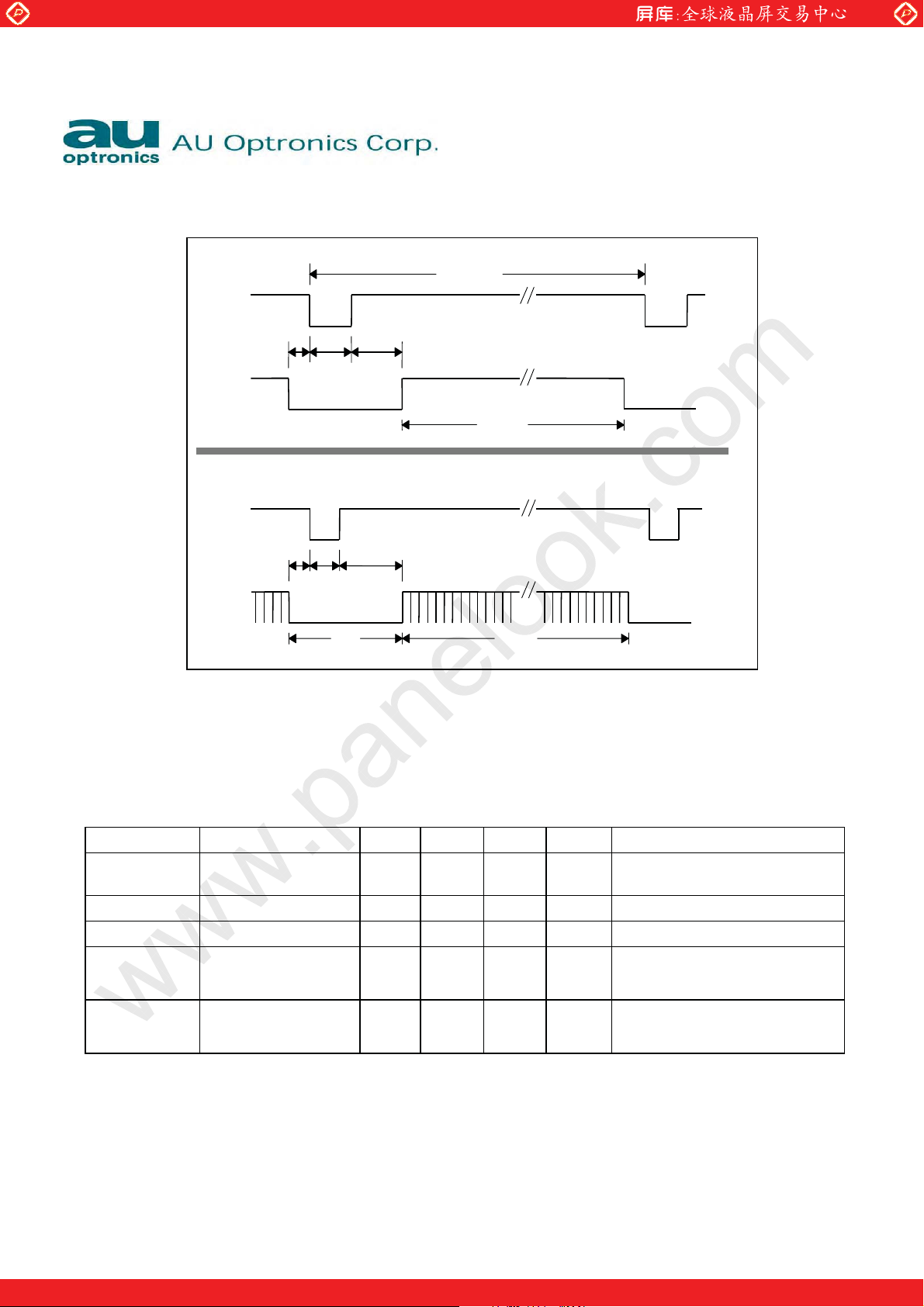

3.6.2 Timing Definition

www.panelook.com

1688dot

H-S ync

248dot48dot

112dot

DSPTMG

1280dot

V-Sy nc

1H

38H

3H

DSPTMG

3.7 Power Consumption

Input power specifications are as follows;

Symbol Parameter Min Typ Max Units Condition

VDD Logic/LCD Drive

Voltage

IDD VDD current

PDD VDD Power

VDDrp Allowable

Logic/LCD Drive
Ripple Voltage

VDDns Allowable

Logic/LCD Drive
Ripple Noise

4.5 5 5.5 [Volt]

950 1200 [mA]

4.75 6.6 [Watt] Vin=5V, All Black Pattern

100 [mV]

p-p

100 [mV]

p-p

(C) Copyright AU Optronics, Inc.

January, 2002 All Rights Reserved. M170EN05 v.2 Ver0.2

No Reproduction and Redistribution Allowed.

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

18/26

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

3.8 Power ON/OFF Sequence

Vin power and lamp on/off sequence is as follows. Interface signals are also shown in the chart. Signals from any
system shall be Hi-Z state or low level when Vin is off.

Vin

10%

90% 90%

1sec

min.

0 V

15ms max.

50~100ms

10%

10%

Signal

0 V

0 min.

0 min.

10% 10%

Lamp
On

0 min.

0 V

250ms

Add white data (the lowest voltage data) at the end data portion while B/L turn-off.
The purpose is to discharge panel residual charges. The white pattern time period is near about 50~100ms
(About 3~6 frame time).

4.0 Backlight Characteristics

4.1 Signal for Lamp connector

Pin # Signal Name

1 Lamp High Voltage

2

3

4

(C) Copyright AU Optronics, Inc.

January, 2002 All Rights Reserved. M170EN05 v.2 Ver0.2

No Reproduction and Redistribution Allowed.

Lamp High Voltage

No Connection

Ground

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

19/26

www.panelook.com

Global LCD Panel Exchange Center

4.2 Parameter guideline for CFL Inverter

Symbol Parameter Min Typ Max Units Condition

(L63) White Luminance 200 260 -

www.panelook.com

[cd/m

2

]

(Ta=25

o

C)

ISCFL CCFL standard current 6.5 7.0 7.5

IRCFL CCFL operation range 3.0 7.0 7.5

[mA]

rms

[mA]

rms

(Ta=25

(Ta=25

o

o

C)

C)

ICFL CCFL Inrush current - 26 34 [mA] Note 1

fCFL CCFL Frequency 40 50 80 [KHz]

ViCFL

o

C)

(0

ViCFL

o

C)

(25

CCFL Ignition Voltage 1700

CCFL Ignition Voltage 1200

[Volt]

rms

[Volt]

rms

(Ta=25

(Ta=25

Note 2

(Ta=0

Note 3

Note 3

o

o

C)

C)

o

C)

TCFL CCFL Dark start time 1.0 sec (Ta=25oC)

o

Note 4

o

Note 4

C)

C)

VCFL

CCFL Discharge Voltage

(Reference)

700 860

[Volt]

rms

PCFL CCFL Power consumption 19.6 25.8 [Watt]

(Ta=25

(Ta=25

Note 1: Duration=50 [msec]
Note 2: CCFL Frequency should be carefully determined to avoid interference between inverter and TFT LCD
Note 3: CCFL inverter should be able to give out a power that has a generating capacity of over 1700 voltage.
Lamp units need 1700 voltage minimum for ignition
Note 4: Calculator value for reference (ICFL×VCFL=PCFL)
Note 5: Lamp soldering method is required to use “Hook Soldering”.

(C) Copyright AU Optronics, Inc.

January, 2002 All Rights Reserved. M170EN05 v.2 Ver0.2

No Reproduction and Redistribution Allowed.

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

20/26

www.panelook.com

Global LCD Panel Exchange Center

5.0 Vibration, Shock, and Drop

5.1 Vibration & Shock

Frequency: 10 - 200Hz
Sweep: 30 Minutes each Axis (X, Y, Z)
Acceleration: 1.5G(10~200Hz P- P)
Test method:

5.2 Shock Test Spec:

www.panelook.com

Acceleration (G)

Frequency (Hz)

Active time(min)

Acceleration (G)
Active time
Wave form
Times

Direction: X , Y, Z

1.5

10~200~10

30

50
20

half-sin

1

5.3 Drop test

Package test: The drop height is 60 cm.

6.0 Environment

The display module will meet the provision of this specification during operating condition or after storage

or shipment condition specified below. Operation at 10% beyond the specified range will not cause physical

damage to the unit.

6.1 Temperature and Humidity

6.1.1 Operating Conditions

The display module operates error free, when operated under the following conditions;
Temperature 0
Relative Humidity 8% to 95%
Wet Bulb Temperature 39.0

0

C to 50 0C

0

C

(C) Copyright AU Optronics, Inc.

January, 2002 All Rights Reserved. M170EN05 v.2 Ver0.2

No Reproduction and Redistribution Allowed.

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

21/26

www.panelook.com

Global LCD Panel Exchange Center

6.1.2 Shipping Conditions

The display module operates error free, after the following conditions;
Temperature -20
Relative Humidity 8% to 95%
Wet Bulb Temperature 39.0

6.2 Atmospheric Pressure

The display assembly is capable of being operated without affecting its operations over the pressure range
as following specified;

Pressure Note

Maximum Pressure 1040hPa 0m = sea level

Minimum Pressure 674hPa 3048m = 10.000 feet

Note : Non-operation attitude limit of this display module = 30,000 feet. = 9145 m.

6.3 Thermal Shock

The display module will not sustain damage after being subjected to 100 cycles of rapid temperature
change. A cycle of rapid temperature change consists of varying the temperature from -20
back again.

Thermal shock cycle -20
60

Power is not applied during the test. After temperature cycling, the unit is placed in normal room ambient
for at least 4 hours before powering on.

7.0 Reliability

This display module and the packaging of that will comply following standards.

0

0

C for 30min

0

C for 30min

www.panelook.com

C to 60 0C

0

C

0

C to 600C, and

7.1 Failure Criteria

The display assembly will be considered as failing unit when it no longer meets any of the requirements
stated in this specification. Only as for maximum white luminance, following criteria is applicable.

Note : Maximum white Luminance shall be 115 cd/m

2

or more.

7.2 Failure Rate

The average failure rate of the display module (from first power-on cycle till 1,000 hours later) will not exceed 1.0%.
The average failure rate of the display module from 1,000 hours until 16,000 hours will not exceed 0.7%
per 1000 hours.

(C) Copyright AU Optronics, Inc.

January, 2002 All Rights Reserved. M170EN05 v.2 Ver0.2

No Reproduction and Redistribution Allowed.

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

22/26

www.panelook.com

Global LCD Panel Exchange Center

7.2.1 Usage

The assumed usage for the above criteria is:

220 power-on hours per month
500 power on/off cycles per month
Maximum brightness setting
Operation to be within office environment (25

7.2.2 Component De-rating

All the components used in this device will be checked the load condition to meet the failure rate criteria.

7.3 CCFL Life

The assumed CCFL Life will be longer than 30,000 hours, typical value is 40,000 hours under stable condition at

o

25 ± 5
Standard current at 7.0 ± 0.5mA.
Definition of life: brightness becomes 50% or less than the minimum luminance value of CCFL.

C;

7.4 ON/OFF Cycle

The display module will be capable of being operated over the following ON/OFF Cycles.

www.panelook.com

0

C typical)

ON/OFF Value Cycles

+Vin and CCFL power 30,000 10 seconds on / 10 seconds off

8.0 Safety

8.1 Sharp Edge Requirements

There will be no sharp edges or comers on the display assembly that could cause injury.

8.2 Materials

8.2.1 Toxicity

There will be no carcinogenic materials used anywhere in the display module. If toxic materials are used,

they will be reviewed and approved by the responsible AU Toxicologist.

8.2.2 Flammability

All components including electrical components that do not meet the flammability grade UL94-V1 in the
module will complete the flammability rating exception approval process. The printed circuit board will be
made from material rated 94-V1 or better. The actual UL flammability rating will be printed on the printed
circuit board.

(C) Copyright AU Optronics, Inc.

January, 2002 All Rights Reserved. M170EN05 v.2 Ver0.2

No Reproduction and Redistribution Allowed.

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

23/26

www.panelook.com

Global LCD Panel Exchange Center

8.3 Capacitors

If any polarized capacitors are used in the display assembly, provisions will be made to keep them from

being inserted backwards.

8.4 Hazardous Voltages

Any point exceeding 42.4 volts meets the requirement of the limited current circuit. The current through a 2KӨ
resistance is less than 0.7 x f (kHz) mA.

9.0 Other requirements

9.1 National Test Lab Requirement

The display module will satisfy all requirements for compliance to

UL 1950, First Edition U.S.A. Information Technology Equipment

CSA C22.2 No.950-M89 Canada, Information Technology Equipment

EEC 950 International, Information Technology Equipment

EN 60 950 International, Information Processing Equipment

9.2 Label

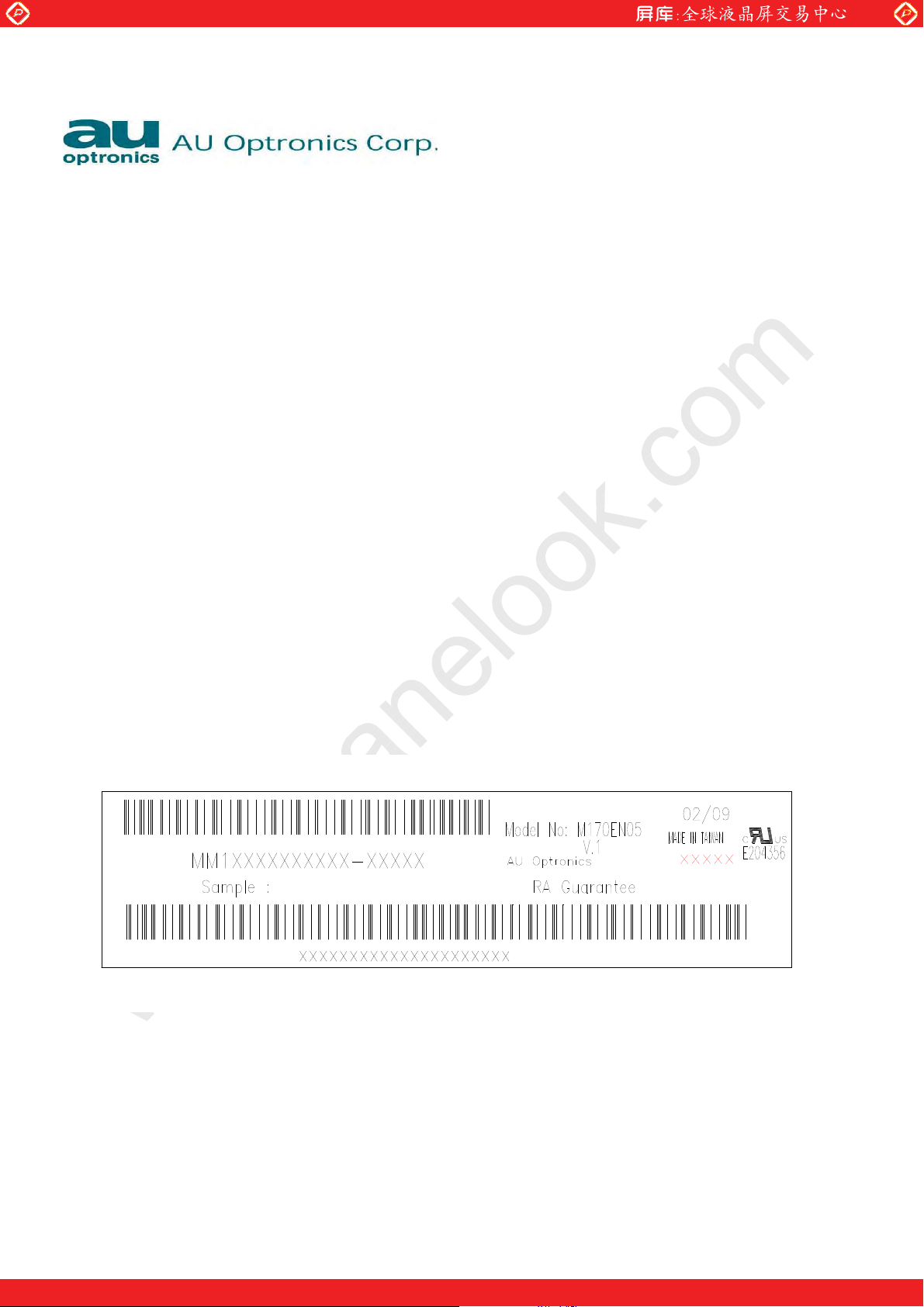

9.2.1 Product label

www.panelook.com

(European Norm for IEC950)

(C) Copyright AU Optronics, Inc.

January, 2002 All Rights Reserved. M170EN05 v.2 Ver0.2

No Reproduction and Redistribution Allowed.

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

24/26

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

25/26

10.0 Mechanical Characteristics

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

(C) Copyright AU Optronics, Inc.

January, 2002 All Rights Reserved. M170EN05 v.2 Ver0.2

No Reproduction and Redistribution Allowed.

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

26/26

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

(C) Copyright AU Optronics, Inc.

January, 2002 All Rights Reserved. M170EN05 v.2 Ver0.2

No Reproduction and Redistribution Allowed.

www.panelook.com
