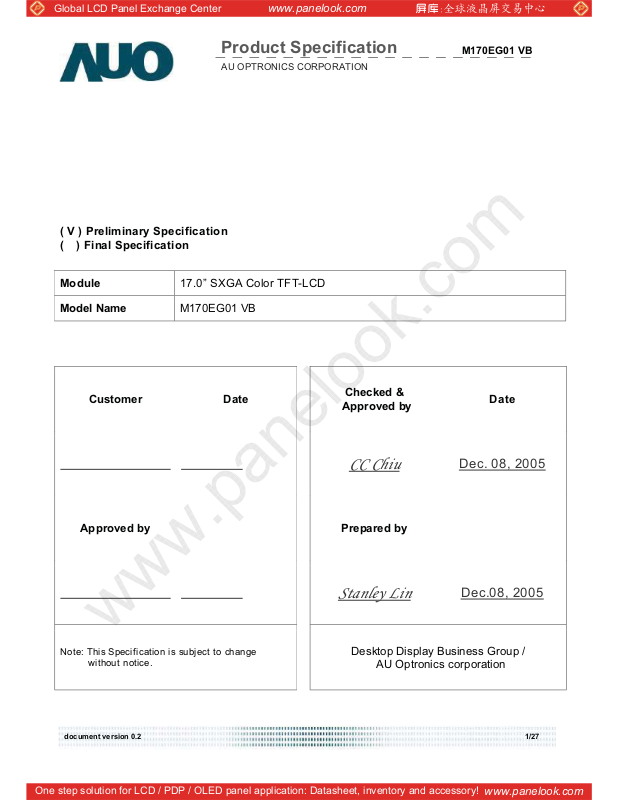

Page 1
Global LCD Panel Exchange Center
www.panelook.com
( V ) Preliminary Specification
( ) Final Specification
Module
Model Name
17.0” SXGA Color TFT-LCD
M170EG01 VB
Product Specification
AU OPTRONICS CORPORATION
M170EG01 VB
Customer Date
Approved by
Note: This Specification is subject to change
without notice.
Checked &
Approved by
CC Chiu
Prepared by
Dec. 08, 2005
Stanley Lin
Desktop Display Business Group /
AU Optronics corporation
Date
Dec.08, 2005
document version 0.2 1/27
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 2
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
M170EG01 VB
Contents
1. Handling Precautions .............................................................................................................. 4
2. General Description................................................................................................................. 5
2.1 Display Characteristics................................................................................................................... 6
3. Functional Block Diagram .................................................................................................... 11
4. Absolute Maximum Ratings.................................................................................................. 12
4.1 Absolute Ratings of TFT LCD Module ........................................................................................ 12
4.2 Absolute Ratings of Backlight Unit .............................................................................................. 12
4.3 Absolute Ratings of Environment................................................................................................. 12
5. Electrical characteristics ...................................................................................................... 14
5.1 TFT LCD Module ....................................................................................................................... 14
5.2 Backlight Unit.............................................................................................................................. 15
6. Signal Characteristic ............................................................................................................. 16
6.1 Pixel Format Image...................................................................................................................... 16
6.2 The Input Data Format................................................................................................................. 17
6.4 Interface Timing........................................................................................................................... 19
6.5 Power ON/OFF Sequence............................................................................................................ 21
7. Connector & Pin Assignment ............................................................................................... 22
7.1 TFT LCD Module ....................................................................................................................... 22
7.2 Backlight Unit.............................................................................................................................. 23
8. Reliability Test ....................................................................................................................... 24
9. Shipping Label....................................................................................................................... 25
10. Mechanical Characteristics ................................................................................................ 26
document version 0.2 2/27
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 3
Global LCD Panel Exchange Center
A
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
M170EG01 VB
Record of Revision
Version & Date Page Old Description New Description Remark
0.1 2005/10/05 All First Edition for Customer
0.2 2005/12/08
25
26,27
Shipping label without Lead free
and RoHS diagram
2D back view drawing not clear
enough
dding Lead free and RoHS
diagram under Shpping label.
Interchange the clear drawing
document version 0.2 3/27
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 4
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
M170EG01 VB
1. Handling Precautions
1) Since front polarizer is easily damaged, pay attention not to scratch it.
2) Be sure to turn off power supply when inserting or disconnecting from input connector.
3) Wipe off water drop immediately. Long contact with water may cause discoloration or spots.
4) When the panel surface is soiled, wipe it with absorbent cotton or other soft cloth.
5) Since the panel is made of glass, it may break or crack if dropped or bumped on hard surface.
6) Since CMOS LSI is used in this module, take care of static electricity and insure human earth
when handling.
7) Do not open or modify the Module Assembly.
8) Do not press the reflector sheet at the back of the module to any directions.
9) In case if a Module has to be put back into the packing container slot after once it was taken out
from the container, do not press the center of the CCFL reflector edge. Instead, press at the far
ends of the CCFL Reflector edge softly. Otherwise the TFT Module may be damaged.
10) At the insertion or removal of the Signal Interface Connector, be sure not to rotate nor tilt the
Interface Connector of the TFT Module.
11) After installation of the TFT Module into an enclosure, do not twist nor bend the TFT Module
even momentary. At designing the enclosure, it should be taken into consideration that no
bending/twisting forces are applied to the TFT Module from outside. Otherwise the TFT Module
may be damaged.
12) Cold cathode fluorescent lamp in LCD contains a small amount of mercury. Please follow local
ordinances or regulations for disposal.
13) Small amount of materials having no flammability grade is used in the LCD module. The LCD module
should be supplied by power complied with requirements of Limited Power Source (IEC60950 or
UL1950), or be applied exemption.
14) The LCD module is designed so that the CCFL in it is supplied by Limited Current Circuit (IEC60950 or
UL1950). Do not connect the CCFL in Hazardous Voltage Circuit.
document version 0.2 4/27
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 5
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
M170EG01 VB
2. General Description
M170EG01 VB is a Color Active Matrix Liquid Crystal Display composed of a TFT-LCD panel, a driver
circuit, and backlight system. The screen format is intended to support the SXGA (1280(H) x 1024(V))
screen and 16.2M colors (RGB 6-bits + FRC data). All input signals are LVDS interface compatible.
Inverter card of backlight is not included. M170EG01 VB is designed for a display unit of personal
computer.
document version 0.2 5/27
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 6
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
M170EG01 VB
2.1 Display Characteristics
The following items are characteristics summary on the table under 25
Items Unit Specifications
Screen Diagonal [mm] 432 (17.0”)
Active Area [mm] 337.920(H) × 270.336(V)
Pixels H x V 1280 × 3(RGB) × 1024
Pixel Pitch [mm] 0.264(per one triad) × 0.264
Pixel Arrangement R.G.B. Vertical Stripe
Display Mode Normally White
White Luminance [cd/m2] 300 (center,Typ)@7.5 mA
Contrast Ratio 500 : 1 (Typ)
Optical ResponseTime [msec] 8 (Typ)
Nominal Input Voltage VDD [Volt] +5.0 (Typ)
condition:
Power Consumption [Watt]
Weight [Grams] 1900 (Typ)
Physical Size (H x V x D) [mm] 358.5(H) x 296.5(V) x 17.0(D) (Typ)
Electrical Interface Dual Channel LVDS
Surface Treatment Anti-glare type, Hardness 3H
Support Color 16.2M colors (RGB 6-bits + FRC data)
Temperature Range
Operating
Storage (Non-Operating)
RoHS Compliance RoHS Compliance
o
[
C]
o
[
C]
25.8 W (Typ)
(PDD=6W, PCFL=19.8W @Lamp=7.5mA)
0 to +50
-20 to +60
document version 0.2 6/27
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 7
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
M170EG01 VB
2.2 Optical Characteristics
The optical characteristics are measured under stable conditions at 25 (Room Temperature):
Item Unit Conditions Min. Typ. Max. Note
Horizontal (Right)
CR = 10 (Left)
Viewing Angle [degree]
Vertical (Up)
CR = 10 (Down)
Luminance Uniformity [%] 9 Points 75 80 - 2, 3
Rising - 6 9
Optical Response Time [msec]
Falling - 2 4
Rising + Falling - 8 13
60
60
60
50
70
70
70
60
-
1
-
4, 6
Red x 0.61 0.64 0.67
Red y 0.31 0.34 0.37
Green x 0.26 0.29 0.32
Color / Chromaticity
Coordinates
(CIE 1931)
White Luminance
(At CCFL= 7.5mA)
Contrast Ratio 300 500 - 4
Cross Talk (At 75Hz) [%] - - 1.5 5
Flicker [dB] - - -20
Optical Equipment: BM-5A, BM-7, PR880, or equivalent
[cd/m2]
Green y 0.58 0.61 0.64
Blue x 0.11 0.14 0.17
Blue y 0.04 0.07 0.10
White x 0.28 0.31 0.34
White y 0.30 0.33 0.36
240 300 - 4
4
7
document version 0.2 7/27
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 8
Global LCD Panel Exchange Center
f
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
M170EG01 VB
Note 1: Definition of viewing angle
Viewing angle is the measurement of contrast ratio10, at the screen center, over a 180° horizontal and
180° vertical range (off-normal viewing angles). The 180° viewing angle range is broken down as follows;
90° () horizontal left and right and 90° () vertical, high (up) and low (down). The measurement direction
is typically perpendicular to the display surface with the screen rotated about its center to develop the
desired measurement viewing angle.
Note 2: 9 points position
90 %
50 %
10 %
10 %
50 %
90 %
Note 3: The luminance uniformity of 9 points is defined by dividing the maximum luminance values by the
minimum test point luminance
9 points
W9
=
Minimum Luminance o
Maximum Luminance of 9 points
document version 0.2 8/27
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 9
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
M170EG01 VB
Note 4: Measurement method
The LCD module should be stabilized at given temperature for 30 minutes to avoid abrupt temperature
change during measuring. In order to stabilize the luminance, the measurement should be executed after
lighting Backlight for 30 minutes in a stable, windless and dark room.
Photo detector
Field=2
50 cm
LCD Panel
Center of the screen
Note 5: Definition of Cross Talk (CT)
CT = | YB – YA | / YA 100 (%)
Where
YA = Luminance of measured location without gray level 0 pattern (cd/m2)
YB = Luminance of measured location with gray level 0 pattern (cd/m2)
TFT-LCD
document version 0.2 9/27
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 10
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
M170EG01 VB

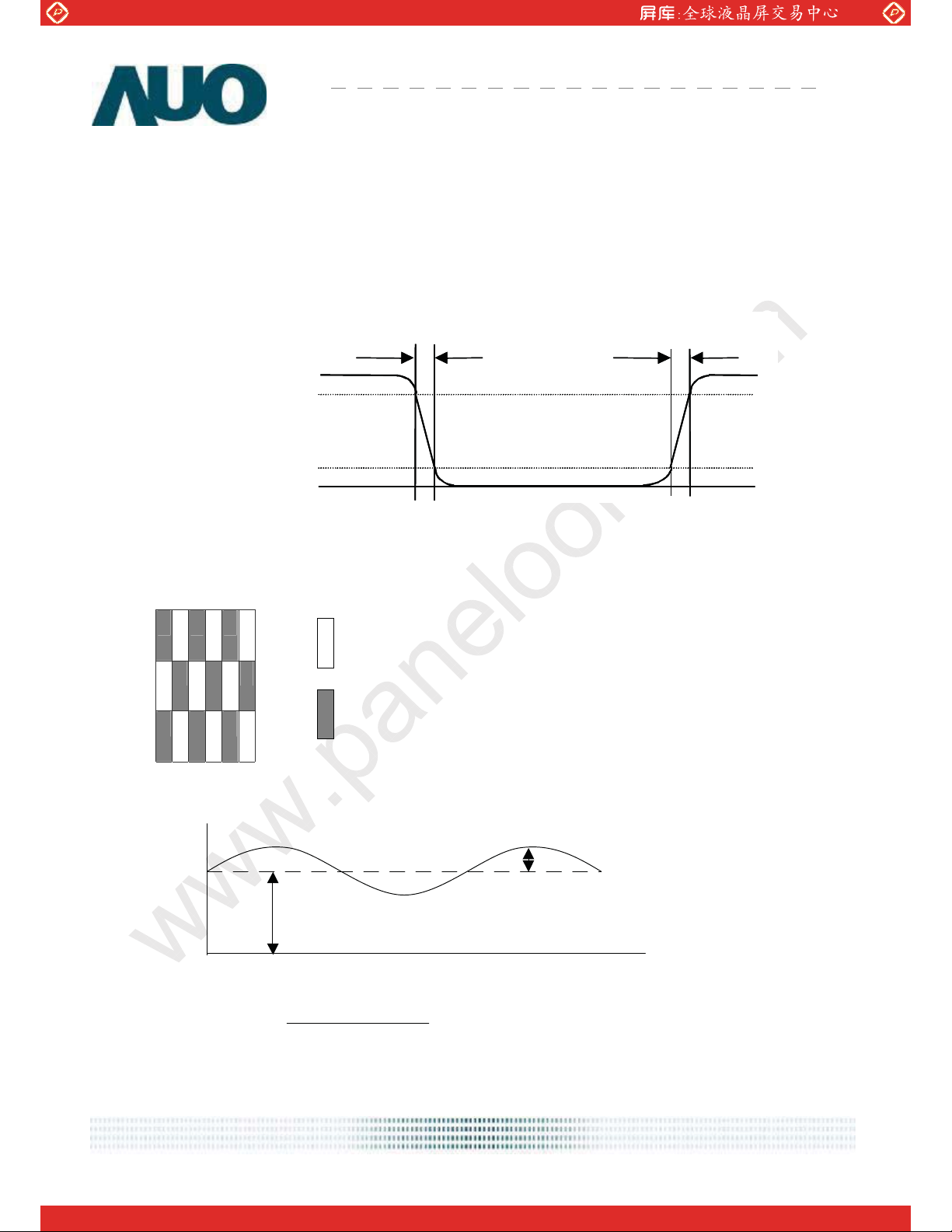

Note 6: Definition of response time:
The output signals of photo detector are measured when the input signals are changed from “Full Black” to
“Full White” (rising time), and from “Full White” to “Full Black ”(falling time), respectively. The response
time is interval between the 10% and 90% of amplitudes. Please refer to the figure as below.
%
Optical
Optical
response
response
100
100
90
90
10
10
%
White Black White
White Black White
0
0
Tr
Tr
Tr
F
F
Tr
R
R
Note 7: Subchecker Pattern
R G B R G B
Gray Level = L127
R G B R G B
R G B R G B
Gray Level = L0
Method: Record dBV & DC value with (WESTAR)TRD-100
Amplitude
DC
log20(dB)Flicker =
Hz) 30Level(atAC
LevelDC
AC
Time
document version 0.2 10/27
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 11
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
M170EG01 VB

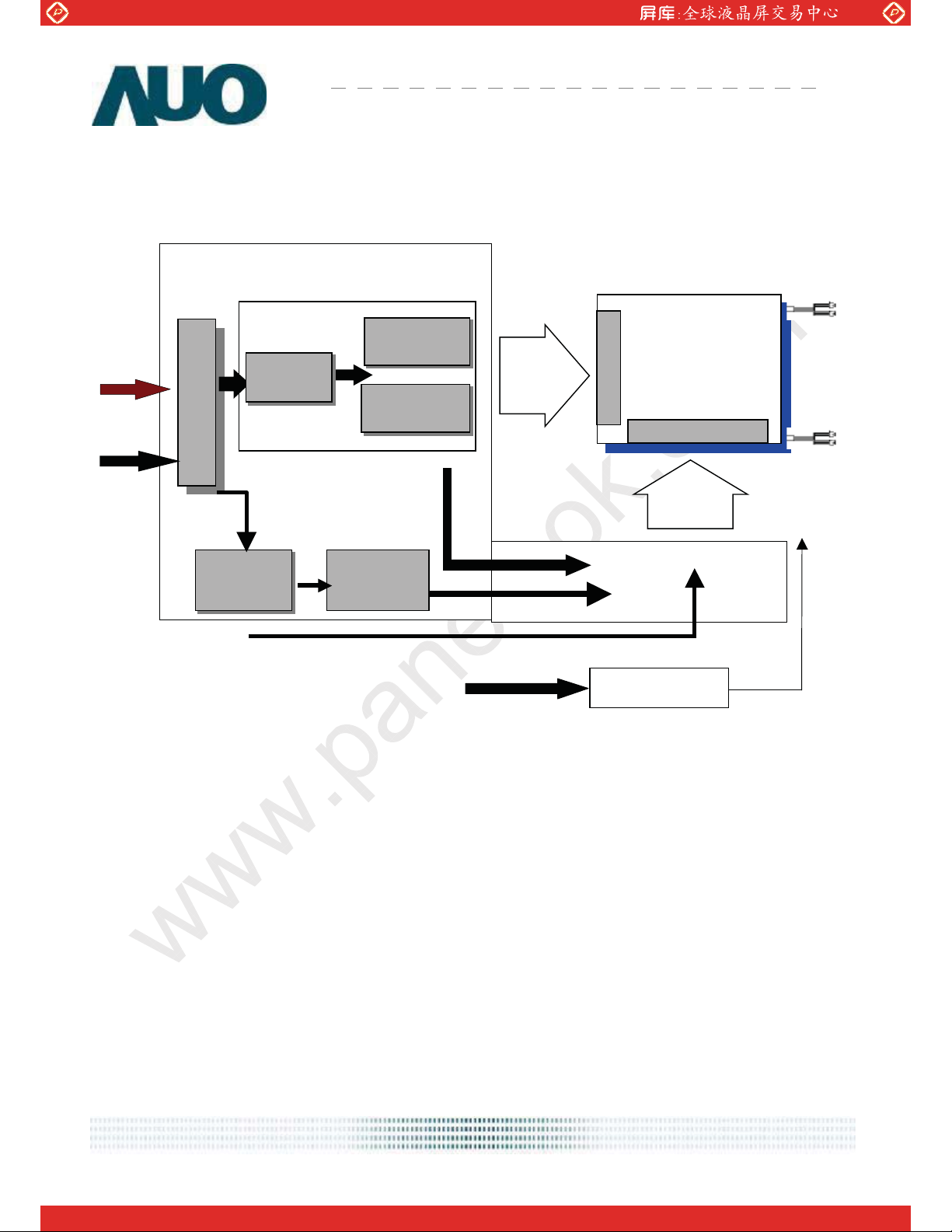

3. Functional Block Diagram
The following diagram shows the functional block of the 17.0 inches Color TFT-LCD Module:
LVDS
+ 5V
Connector
AU ASIC
Timing
Controller
LVDS
RSDS
G1
TFT-LCD
1280*(3)*1024
Pixels
G1024
D1 D3840
4 CCFL
DC/DC
Converter
Gamma
Correction
DC POWER
Inverter
document version 0.2 11/27
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 12
Global LCD Panel Exchange Center
g
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
M170EG01 VB
4. Absolute Maximum Ratings
Absolute maximum ratings of the module is as following:
4.1 Absolute Ratings of TFT LCD Module
Item Symbol Min. Max. Unit Conditions
Logic/LCD Drive
Volta
e
VDD -0.3 +6 [Volt] Note 1, 2
4.2 Absolute Ratings of Backlight Unit
Item Symbol Min. Max. Unit Conditions
CCFL Current ICFL - 8.5 [mA] rms Note 1, 2
4.3 Absolute Ratings of Environment
Item Symbol Min. Max. Unit Conditions
Operating Temperature TOP 0 +50 [oC]
Operation Humidity HOP 5 90 [%RH]
Storage Temperature TST -20 +60 [oC]
Storage Humidity HST
590
[%RH]
Note 3
document version 0.2 12/27
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 13
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
Note1:Within Ta=25
Note 2: Permanent damage to the device may occur if exceed maximum values
Note 3: For quality performance, please refer to AUO IIS (Incoming Inspection Standard).
M170EG01 VB

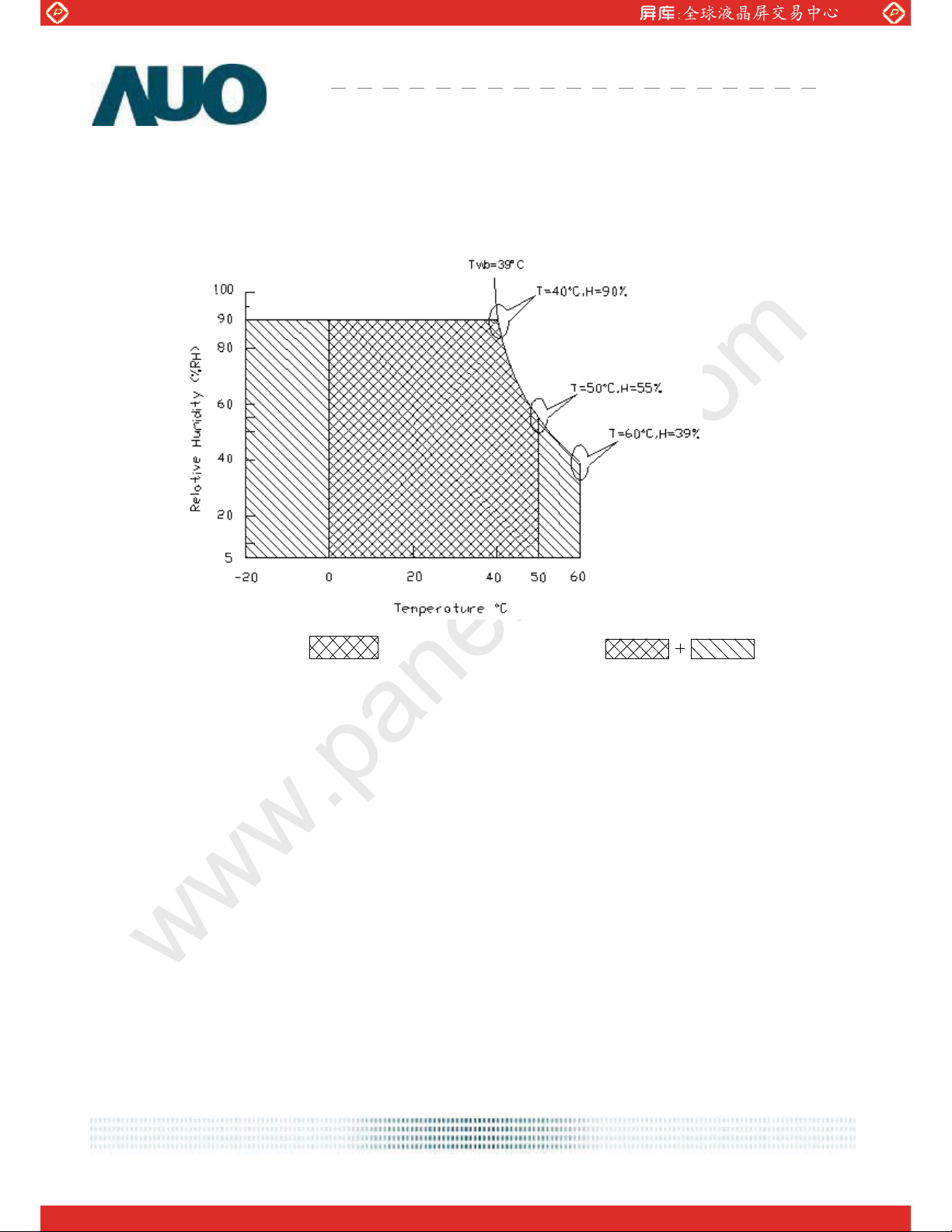

Operating Range Storage Range
document version 0.2 13/27
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 14
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
M170EG01 VB
AU OPTRONICS CORPORATION

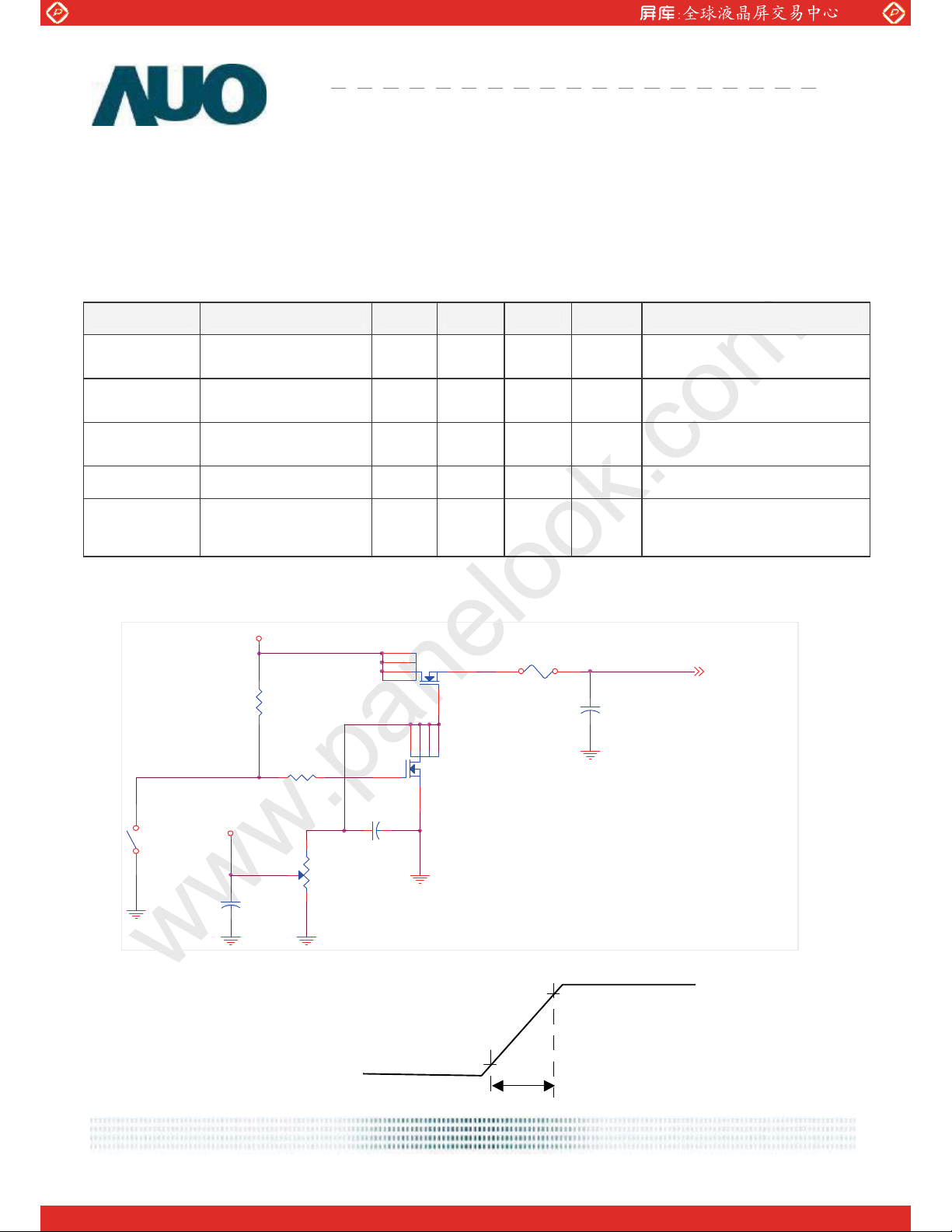

5. Electrical characteristics
5.1 TFT LCD Module
5.1.1 Power Specification
Input power specifications are as follows:
Symble Parameter Min. Typ. Max. Unit Condition
VDD
IDD Input Current - 1.2 1.56 [A]
PDD VDD Power - 6 7.8 [Watt]
IRush Inrush Current - - 3.0 [A] Note 2
VDDrp
Logic/LCD Drive
Voltage
Allowable
Logic/LCD Drive
Ripple Voltage
4.5 5.0 5.5 [Volt] Load Capacitance 20uF
VDD= 5.0V, All Black Pattern
At 75Hz
VDD= 5.0V, All Black Pattern
At 75Hz , Note 1
- - 100
[mV]
p-p
VDD= 5.0V, All Black Pattern
At 75Hz
Note 1: The variance of VDD power consumption is ±10%.
Note 2: Measurement conditions:
(High to Low)
Control
Signal
SW1
SW MAG-SPST
1 2
+12.0V
+5.0V
C2
1uF/25V
R1
47K
R2
1K
VR1
47K
D6
D5
D2 S
D1
G
C3
0.01uF/25V
Q3
AO6402
D2SD1D5
G
D6
Q3
AO6402
F1
90%
C1
1uF/16V
VCC
(LCD Module Input)
5.0V
10%
VDD rising time
0V
0.5ms
document version 0.2 14/27
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 15
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
M170EG01 VB
5.2 Backlight Unit
Parameter guideline for CCFL Inverter is under stable conditions at 25 (Room Temperature):
Parameter Min. Typ. Max. Unit Condition
CCFL Standard Current(ISCFL) 7.0 7.5 8.0 [mA] rms Note 2
CCFL Operation Current(IRCFL) 3.0 7.5 8.0 [mA] rms Note 2
CCFL Frequency(FCFL) 40 60 80 [KHz] Note 3,4
CCFL Ignition Voltage(ViCFL, Ta= 0 ) 1500 - - [Volt] rms
Note 5
CCFL Ignition Voltage(ViCF, Ta= 25 ) 1150 - - [Volt] rms
CCFL Operation Voltage (VCFL) -
CCFL Power Consumption(PCFL) - 19.8 21.8 [W att] Note 6
660
(@ 7.5mA)
700
(@ 3.0mA)
[Volt] rms Note 6
CCFL Life Time(LTCFL) 40,000 50,000 - [Hour]
Note 1: Typ. are AUO recommended design points.
*1 All of characteristics listed are measured under the condition using the AUO test inverter.
*2 In case of using an inverter other than listed, it is recommended to check the inverter carefully.
Sometimes, interfering noise stripes appear on the screen, and substandard luminance or flicker
at low power may happen.
*3 In designing an inverter, it is suggested to check safety circuit very carefully. Impedance of
CCFL, for instance, becomes more than 1 [M ohm] when CCFL is damaged.
*4 Generally, CCFL has some amount of delay time after applying kick-off voltage. It is
recommended to keep on applying kick-off voltage for 1 [Sec] until discharge.
*5 Reducing CCFL current increases CCFL discharge voltage and generally increases CCFL
discharge frequency. So all the parameters of an inverter should be carefully designed so as
not to produce too much leakage current from high-voltage output of the inverter.
Note 2: It should be employed the inverter which has “Duty Dimming”, if IRCFL is less than 4mA.
Note 3: CCFL discharge frequency should be carefully determined to avoid interference between inverter
and TFT LCD.
Note 4: The frequency range will not affect to lamp life and reliability characteristics.
Note 5: CCFL inverter should be able to give out a power that has a generating capacity of over 1,500
voltage. Lamp units need 1,500 voltage minimum for ignition.
Note 6: The variance of CCFL power consumption is ±10%. Calculator value for reference (ISCFL × VCFL
× 4 = PCFL)
document version 0.2 15/27
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 16
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
6. Signal Characteristic
6.1 Pixel Format Image
Following figure shows the relationship of the input signals and LCD pixel format.
1 2 1279 1280
1st Line
R G B R G B
M170EG01 VB
R G B R G B
1024th Line
R G B R G B
R G B R G B
document version 0.2 16/27
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 17
Global LCD Panel Exchange Center
www.panelook.com

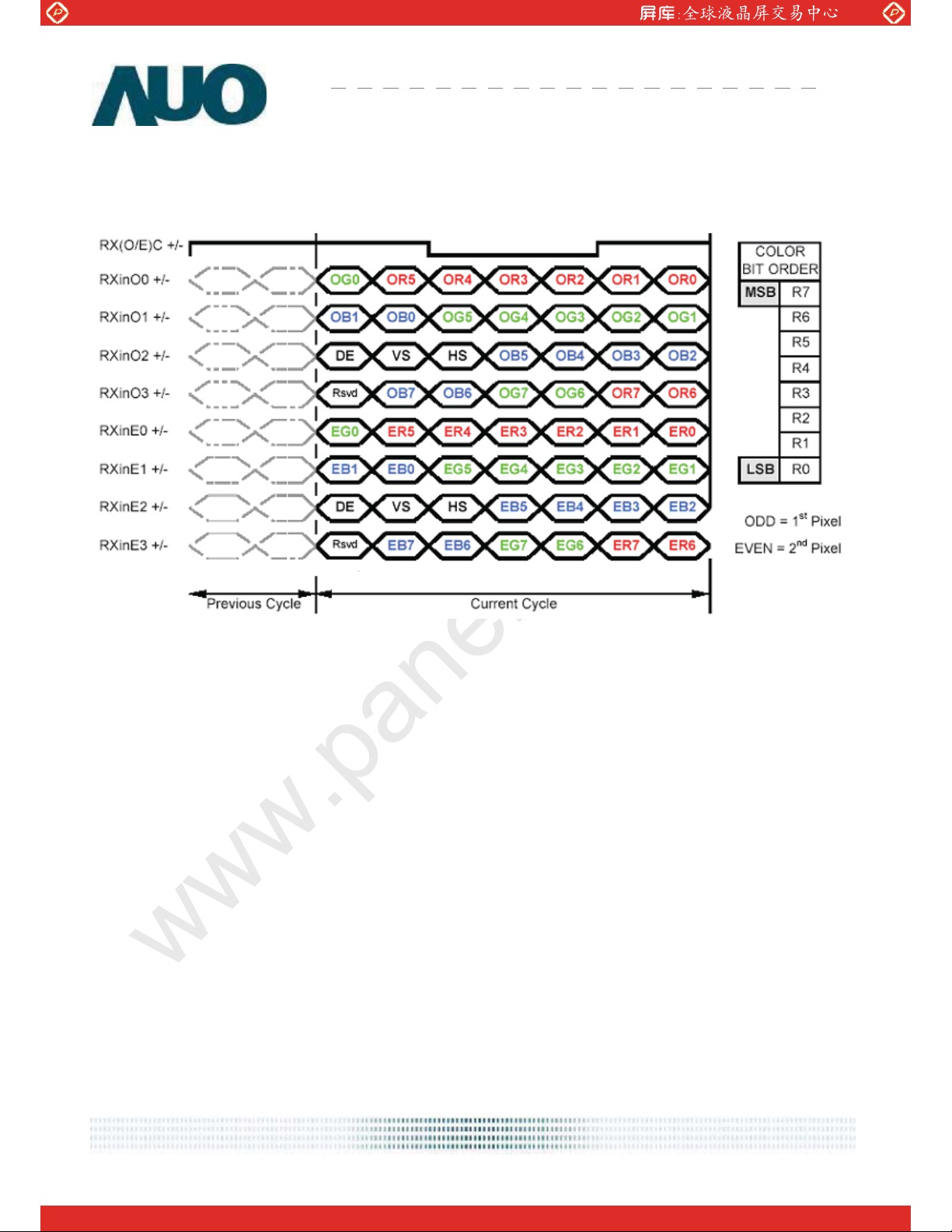

6.2 The Input Data Format
Product Specification
AU OPTRONICS CORPORATION
M170EG01 VB
Note1: Normally, DE, VS, HS on EVEN channel are not used.
Note2: Please follow PSWG.
Note3: 8-bit in
document version 0.2 17/27
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 18
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
M170EG01 VB
6.3 Signal Description
The module using a pair of LVDS receiver SN75LVDS82(Texas Instruments) or compatible. LVDS is a
differential signal technology for LCD interface and high speed data transfer device. Transmitter shall be
SN75LVDS83(negative edge sampling) or compatible. The first LVDS port(RxOxxx) transmits odd pixels
while the second LVDS port(RxExxx) transmits even pixels.
PIN # SIGNAL NAME DESCRIPTION
1 RxOIN0- Negative LVDS differential data input (Odd data)
2 RxOIN0+ Positive LVDS differential data input (Odd data)
3 RxOIN1- Negative LVDS differential data input (Odd data)
4 RxOIN1+ Positive LVDS differential data input (Odd data)
5 RxOIN2- Negative LVDS differential data input (Odd data, H-Sync,V-Sync,DSPTMG)
6 RxOIN2+ Positive LVDS differential data input (Odd data, H-Sync,V-Sync,DSPTMG)
7 VSS Power Ground
8 RxOCLKIN- Negative LVDS differential clock input (Odd clock)
9 RxOCLKIN+ Positive LVDS differential clock input (Odd clock)
10 RxOIN3- Negative LVDS diff erential data input (Odd data)
11 RxOIN3+ Positive LVDS differential data input (Odd data)
12 RxEIN0- Negative LVDS differential data input (Even data)
13 RxEIN0+ Positive LVDS differential data input (Even data)
14 VSS Power Ground
15 RxEIN1- Positive LVDS differential data input (Ev en data)
16 RxEIN1+ Negative LVDS differential data input (Even data)
17 VSS Power Ground
18 RxEIN2- Negative LVDS differential data input (Even data)
19 RxEIN2+ Positive LVDS differential data input (Even data)
20 RxECLKIN- Negativ e LVDS differential clock input (Even clock)
21 RxECLKIN+ Positive LVDS differential clock input (Even clock)
22 RxEIN3- Negative LVDS differential data input (Even data)
23 RxEIN3+ Positive LVDS differential data input (Even data)
24 VSS Power Ground
25 VSS Power Ground
26 NC No Connection ( for AUO test)
27 VSS Power Ground
28 VCC +5.0V Power Supply
29 VCC +5.0V Power Supply
30 VCC +5.0V Power Supply
document version 0.2 18/27
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 19
Global LCD Panel Exchange Center
www.panelook.com

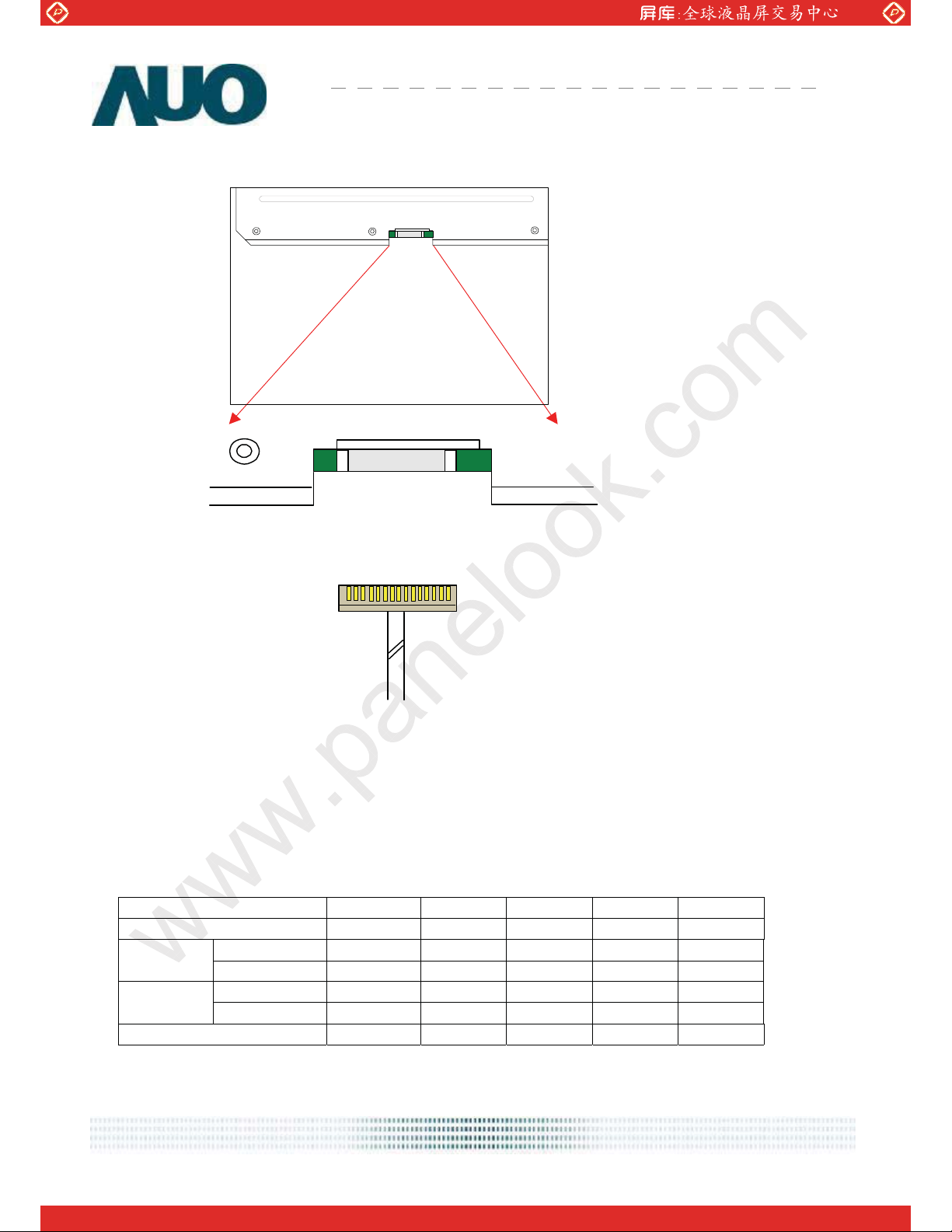

Note1: Start from left side
Product Specification
AU OPTRONICS CORPORATION
Connector
1
RxOIN0-
30
VCC
M170EG01 VB
Note2: Input signals of odd and even clock shall be the same timing.
Note3: Please follow PSWG.
6.4 Interface Timing
6.4.1 Timing Characteristics
Basically, interface timings described here is not actual input timing of LCD module but output timing of
SN75LVDS82DGG (Texas Instruments) or equivalent.
Item Symbol Min Typ Max Unit
Data CLK Tclk 40 54 70 MHz
H-section
V-section
Frame Rate F 49 60 76 Hz
Note : DE mode only
document version 0.2 19/27
Period Th 685 844 1024 Tclk
Display Area Tdisp(h) 640 640 640 Tclk
Period Tv 1036 1066 2048 Th
Display Area Tdisp(v) 1024 1024 1024 Th
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 20
Global LCD Panel Exchange Center
www.panelook.com

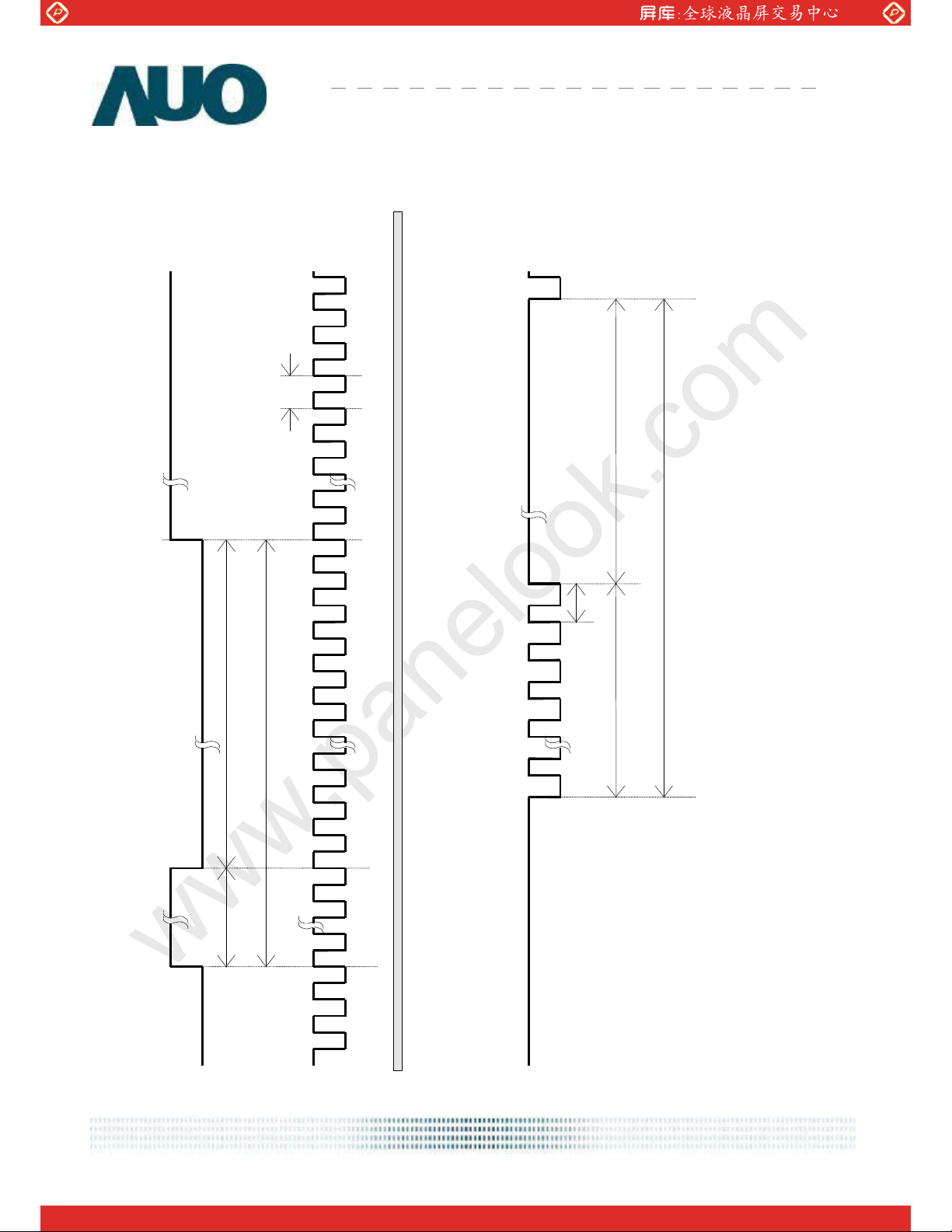

6.4.2 Timing Digram
DE
Tclk
Product Specification
AU OPTRONICS CORPORATION
CLK
DE
M170EG01 VB
Tblk(v)
Tdisp(h)
Tblk(h)
Th
Th
Tdisp(v)
Tv
document version 0.2 20/27
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 21
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
M170EG01 VB

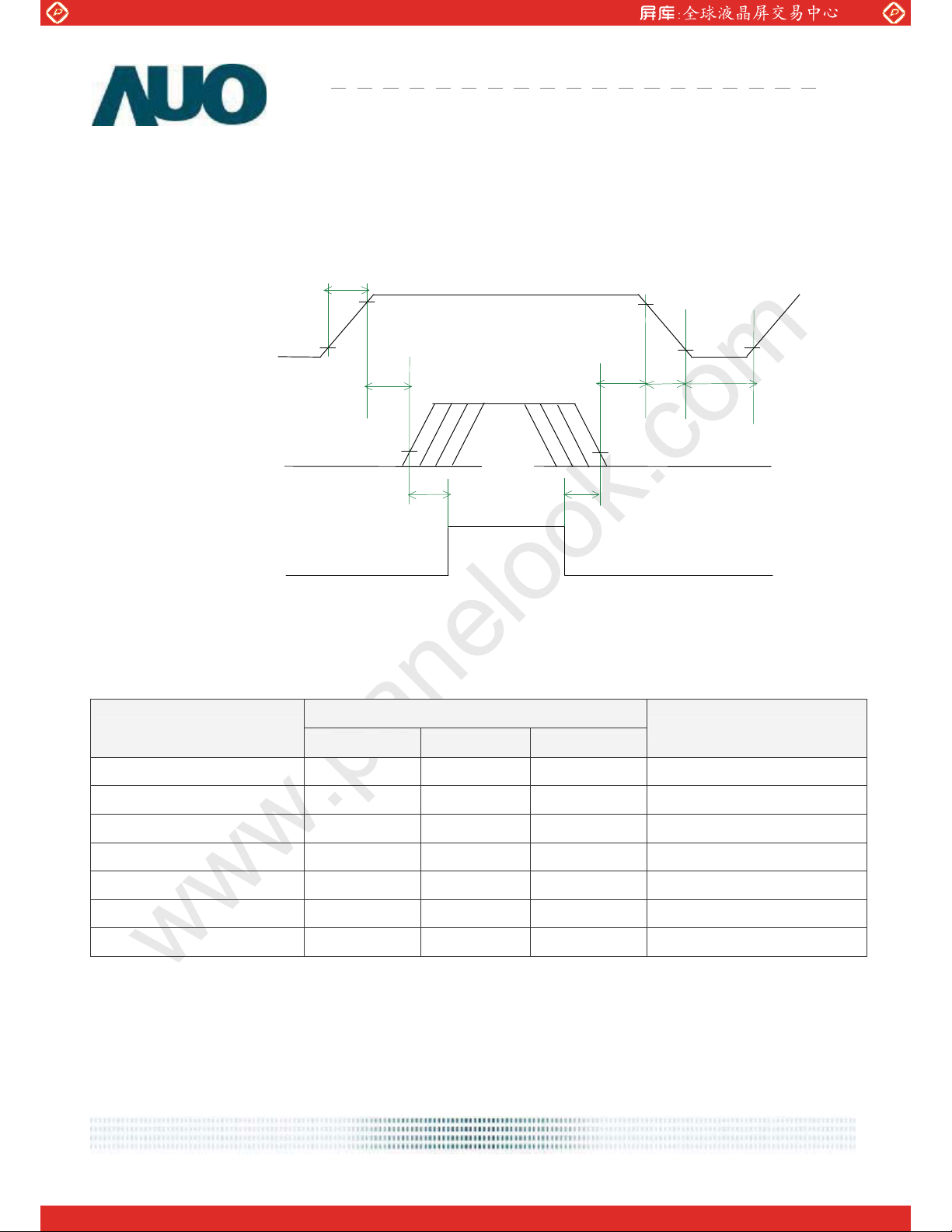

6.5 Power ON/OFF Sequence
VDD power and lamp on/off sequence is as follows. Interface signals are also shown in the chart. Signals
from any system shall be Hi-Z state or low level when VDD is off.
T1
Power Supply VDD
LVDS Signal
90%
10%
T2
VALID
DATA
T3
T4
90%
T5
T6
10%
T7
Backlight On
Power Sequence Timing
Parameter
Min. Typ. Max.
T1 0.5 - 10 [ms]
T2 0 - 10 [ms]
T3 200 - - [ms]
T4 100 - - [ms]
T5 0 16 50 [ms]
T6 - - 10 [ms]
T7 1000 - - [ms]
Note: The values of the table are follow PSWG.
Value
Unit
document version 0.2 21/27
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 22
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
M170EG01 VB
7. Connector & Pin Assignment
Physical interface is described as for the connector on module.These connectors are capable of
accommodating the following signals and will be following components
.
7.1 TFT LCD Module
7.1.1 Connector
Connector Name / Designation Interface Connector / Interface card
Manufacturer P2 / JAE or compatible
Type Part Number
Mating Housing Part Number JAE FI-X30HL
AL2307-A0G1D-P/FI-XB30SSRL-HF16
7.1.2 Pin Assignment
Pin# Signal Name Pin# Signal Name
1 RxOIN0- 2 RxOIN0+
3 RxOIN1- 4 RxOIN1+
5 RxOIN2- 6 RxOIN2+
7 VSS 8 RxOCLKIN-
9 RxOCLKIN+ 10 RxOIN3-
11 RxOIN3+ 12 RxEIN0-
13 RxEIN0+ 14 VSS
15 RxEIN1- 16 RxEIN1+
17 VSS 18 RxEIN2-
19 RxEIN2+ 20 RxECLKIN-
21 RxECLKIN+ 22 RxEIN3-
23 RxEIN3+ 24 VSS
25 VSS 26 NC
27 VSS 28 VCC
29 VCC 30 VCC
document version 0.2 22/27
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 23
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
M170EG01 VB
7.2 Backlight Unit
Physical interface is described as for the connector on module. These connectors are capable of
accommodating the following signals and will be following components.
Connector Name / Designation Lamp Connector / Backlight lamp
Manufacturer JST
Type Part Number BHSR-02VS-1
Mating Type Part Number
7.2.1 Signal for Lamp connector
SM02B-BHSS-1-TB
Upper
Lower
Connector No. Pin No. Input Color Function
CN1
CN2
Connector No. Pin No. Input Color Function
CN3
CN4
1 Hot1 Pink High Voltage
2 Cold1 White Low Voltage
1 Hot2 Blue High Voltage
2 Cold2 Black Low Voltage
1 Hot1 Pink High Voltage
2
1 Hot2 Blue
2 Cold2
Cold1
White Low Voltage
High Voltage
Black
Low Voltage
document version 0.2 23/27
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 24
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
8. Reliability Test
Environment test conditions are listed as following table.
Items Required Condition
Temperature Humidity Bias (THB) Ta= 50 , 80%RH, 300hours
High Temperature Operation (HTO) Ta= 50 , 50%RH, 300hours
Low Temperature Operation (LTO) Ta= 0 , 300hours
High Temperature Storage (HTS) Ta= 60 , 300hours
Low Temperature Storage (LTS) Ta= -20 , 300hours
Acceleration: 1.5 G
Vibration Test
(Non-operation)
Shock Test
(Non-operation)
Wave: Random
Frequency: 10 - 200 - 10 Hz
Sweep: 30 Minutes each Axis (X, Y, Z)
Acceleration: 50 G
Wave: Half-sine
Active Time: 20 ms
Direction:X,Y,Z (one time for each Axis)
M170EG01 VB
Note
Drop Test Height: 60 cm, package test
Thermal Shock Test (TST) -20/30min, 60/30min, 100 cycles
On/Off Test On/10sec, Off/10sec, 30,000 cycles
Contact Discharge: ± 8KV, 150pF(330Ω ) 1sec,
8 points, 25 times/ point.
ESD (ElectroStatic Discharge)
Air Discharge: ± 15KV, 150pF(330Ω ) 1sec
8 points, 25 times/ point.
Altitude Test
Note 1: The TFT-LCD module will not sustain damage after being subjected to 100 cycles of rapid
temperature change. A cycle of rapid temperature change consists of varying the temperature from
0
-2
to 60, and back again. Power is not applied during the test. After temperature cycling, the
unit is placed in normal room ambient for at least 4 hours before power on.
Note 2: According to EN61000-4-2 , ESD class B: Some performance degradation allowed. No data lost.
Self-recoverable. No hardware failures.
Operation:10,000 ft
Non-Operation:30,000 ft
1
2
document version 0.2 24/27
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 25
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION

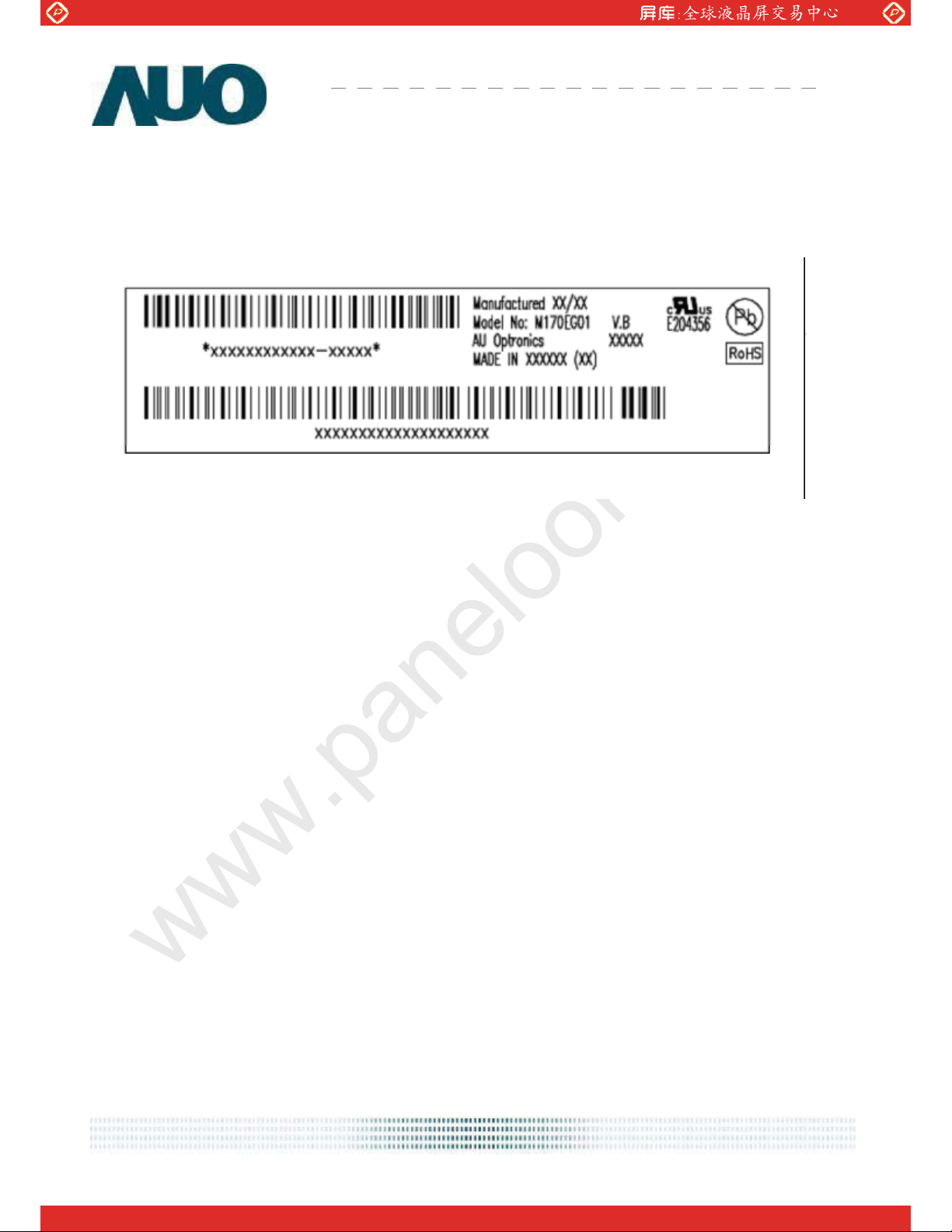

9. Shipping Label
The shipping label format is shown as below.
M170EG01 VB
document version 0.2 25/27
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 26
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION

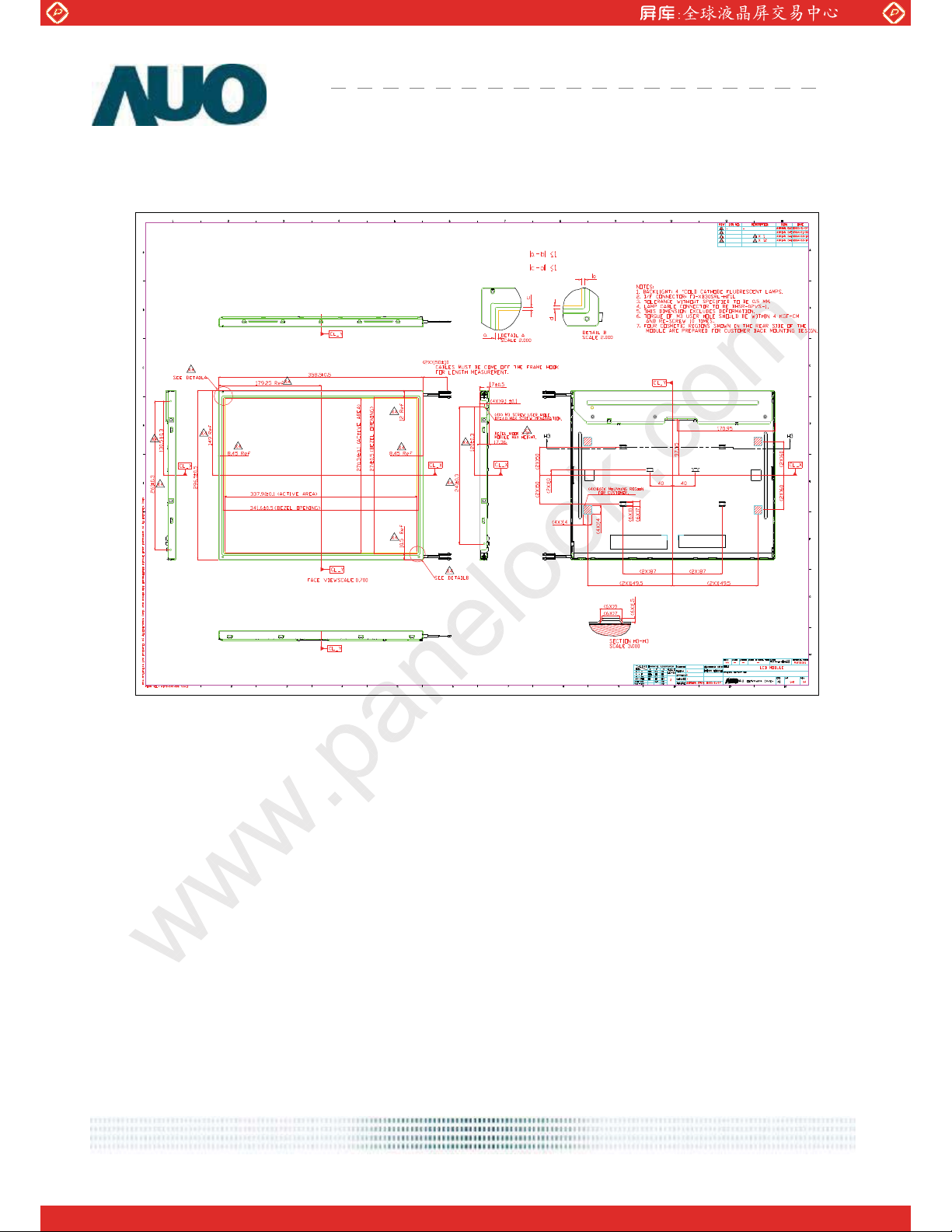

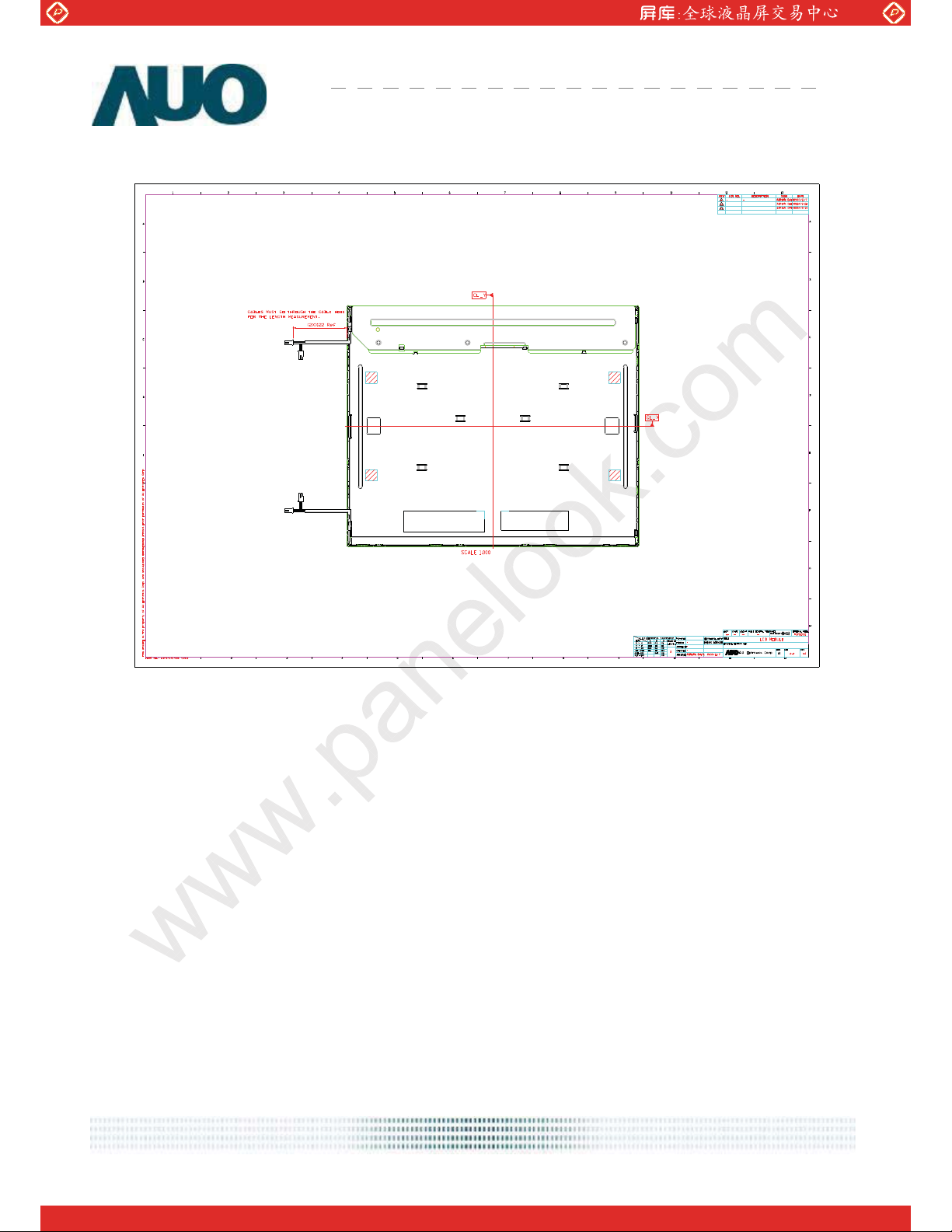

10. Mechanical Characteristics
M170EG01 VB
document version 0.2 26/27
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 27
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
M170EG01 VB
document version 0.2 27/27
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Loading...
