M170EG01 V.2
Product Specification
AU OPTRONICS CORPORATION
Product Specification
17.0” SXGA Color TFT-LCD Module
Model Name: M170EG01 V.2
Approved by Prepared by
CC Chiu
Regina Tsou
DDBU Marketing Division / AU Optronics corporation
Customer Checked & Approved by
ver 0.2 1/25
M170EG01 V.2
Product Specification
Product Specification
17.0” SXGA Color TFT-LCD Module
Model Name: M170EG01
() Preliminary Specifications
( ) Final Specifications
V.2
Note: This Specification is subject to change without notice.
ver 0.2 2/25
M170EG01 V.2
Product Specification
Contents
1.0 Handling Precautions.............................................................5
2.0 General Description ...............................................................6
2.1 Display Characteristics ...................................................................................................................6
2.2 Optical Characteristics ....................................................................................................................7
3.0 Functional Block Diagram ....................................................10
4.0 Absolute Maximum Ratings..................................................11
4.1 TFT LCD Module............................................................................................................................11
4.2 Backlight Unit..................................................................................................................................11
4.3 Absolute Ratings of Environment................................................................................................11
5.0 Electrical characteristics......................................................12
5.1 TFT LCD Module............................................................................................................................12
5.1.1 Power Specification .................................................................................................................................. 12
5.1.2 Signal Electrical Characteristics ...............................................................................................................13
5.2 Backlight Unit..................................................................................................................................14
6.0 Signal Characteristic............................................................15
6.1 Pixel Format Image .......................................................................................................................15
6.2 The input data format....................................................................................................................15
6.3 Signal Description..........................................................................................................................16
6.4 Interface Timing..............................................................................................................................17
6.4.1 Timing Characteristics .............................................................................................................................. 17
6.4.2 Timing diagram ......................................................................................................................................... 18
6.5 Power ON/OFF Sequence ...........................................................................................................19
7.0 Connector & Pin Assignment................................................20
7.1 TFT LCD Module............................................................................................................................20
7.2 Backlight Unit..................................................................................................................................21
7.3 Signal for Lamp connector ...........................................................................................................21
8.0 Reliability.............................................................................22
9.0 Safety ..................................................................................23
9.1 Sharp Edge Requirements...........................................................................................................23
9.2 Materials..........................................................................................................................................23
9.2.1 Toxicity...................................................................................................................................................... 23
9.2.2 Flammability.............................................................................................................................................. 23
9.3 Capacitors.......................................................................................................................................23
10.0 Other requirement .............................................................23
10.1 National Test Lab Requirement .................................................................................................23

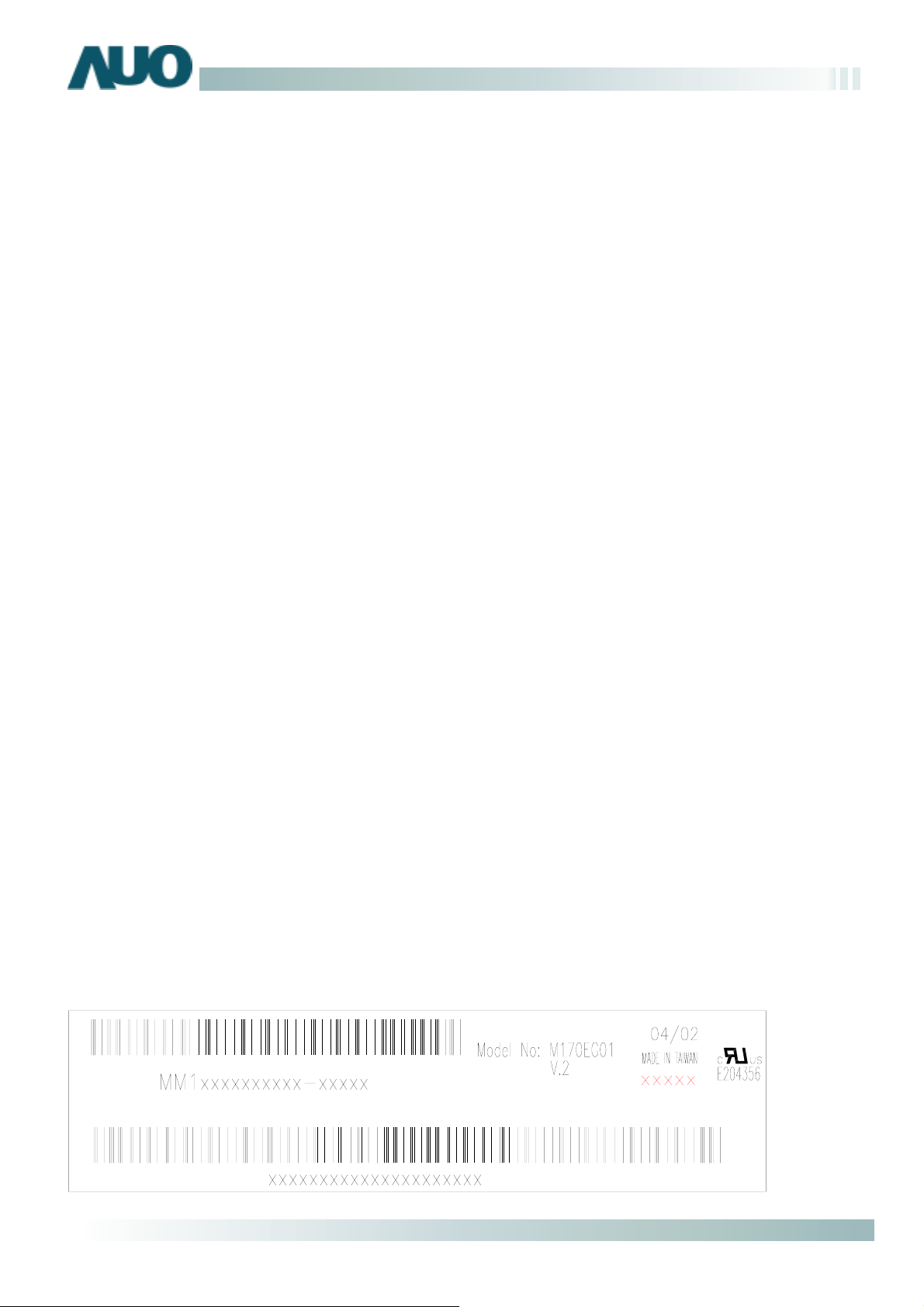

10.2 Label ..............................................................................................................................................23
11.0 Mechanical Characteristics.................................................24
ver 0.2 3/25
M170EG01 V.2
Product Specification
Record of Revision
Version and Date Page Old description New Description Remark
0.1 2004/08/11 All First Edition for Customer
0.2 2004/09/06 6 No description Surface Treatment Added
0.2 2004/09/06 7 Max. Response Time=TBD Max. Response Time
Rising + Falling =13
Rising Time =9 , Falling Time =4
Modified
ver 0.2 4/25
M170EG01 V.2
Product Specification
1.0 Handling Precautions
1) Since front polarizer is easily damaged, pay attention not to scratch it.
2) Be sure to turn off power supply when inserting or disconnecting from input connector.
3) Wipe off water drop immediately. Long contact with water may cause discoloration or spots.
4) When the panel surface is soiled, wipe it with absorbent cotton or other soft cloth.
5) Since the panel is made of glass, it may break or crack if dropped or bumped on hard surface.
6) Since CMOS LSI is used in this module, take care of static electricity and insure human earth when
handling.
7) Do not open nor modify the Module Assembly.
8) Do not press or pat the panel surface by fingers,hand or tooling.
9) Do not press the reflector sheet at the back of the module to any directions.
10) In case if a module has to be put back into the packing container slot after once it was taken out from the
container, do not press the center of the CCFL reflector edge. Instead, press at the far ends of the CCFL
reflector edge softly. Otherwise the TFT module may be damaged.
11) At the insertion or removal of the Signal Interface Connector, be sure not to rotate nor tilt the Interface
Connector of the TFT module.
12) After installation of the TFT module into an enclosure (Desktop monitor Bezel, for example), do not twist
nor bend the TFT Module even momentary. At designing the enclosure, it should be taken into
consideration that no bending/twisting forces are applied to the TFT module from outside. Otherwise the
TFT module may be damaged.
ver 0.2 5/25
M170EG01 V.2
Product Specification
2.0 General Description
This specification applies to the 17.0 inch Color TFT/LCD Module M170EG01 V2.
This module is designed for a display unit of personal computer.
The display supports the SXGA (1280(H) x 1024(V)) screen format and 16.2M colors (RGB 6-bits + FRC data).
All input signals are 2 Channel LVDS interface compatible.
This module does not contain an inverter card for backlight.
2.1 Display Characteristics
The following items are characteristics summary on the table under 25 ℃ condition:
ITEMS Unit SPECIFICATIONS
Screen Diagonal [mm] 432(17.0")
Active Area [mm] 337.920 (H) x 270.336(V)
Pixels H x V 1280(x3) x 1024
Pixel Pitch [mm] 0.264 (per one triad) x 0.264
Pixel Arrangement R.G.B. Vertical Stripe
Display Mode Normally White
White Luminance [cd/m2] 300 (Typ)
Contrast Ratio 500 : 1 (Typ)
Optical Rise Time/Fall Time [msec] 8 (Typ)
Color Saturation 72% NTSC
Nominal Input Voltage VDD [Volt] +5.0 V
Power Consumption
(VDD line + CCFL line)
Weight [Grams] 1900 (Typ)
Physical Size [mm]
Electrical Interface Dual Channel LVDS
Support Color 16.2M colors (RGB 6-bit + FRC data)
Temperature Range
Operating
Storage (Shipping)
TC0-03 Compliance TC0-03 Compliance
Surface Treatment Hard-coating (3H), Anti-Glare treatment
Note :Tuning the brightness and contrast function in OSD let the luminance to 125 cd/m
brightness to 125cd/m
2
, the function on OSD should not restrict our V-T curve. In other word, the higher
contrast, the range of panel’s V-T curve will be more extensive to get the better performance. If it is not
possible to achieve the test luminance by this procedure it is suitable to tune contrast higher and
brightness lower.
[Watt]
o
[
C]
o
[
C]
25.8 W(Typ)
(PDD=6 W, PCFL=19.8 W @Lamp=7.5mA)
Min. Typ. Max.
Horizatal(H) 358 358.5 359.0
Vertical(V) 296 296.5 297
Depth(D) 16.5 17.0 17.5
0 to +50
-20 to +60
(Note)
2
. When tuning the
ver 0.2 6/25
Product Specification
2.2 Optical Characteristics
The optical characteristics are measured under stable conditions at 25℃ (Room Temperature):
Item Unit Conditions Min. Typ. Max. Note
Horizontal (Right)
CR = 10 (Left)
Vertical (Up)
Viewing Angle [degree]
CR = 10 (Down)
Horizontal (Right)
CR = 5 (Left)
Vertical (Up)
CR = 5 (Down)
Contrast ratio Normal Direction 300 500
Rising Time
Falling Time
Rising + Falling
Response Time
[msec]
Red x
Red y
Color / Chromaticity
Coordinates (CIE)
Green x
Green y
Blue x
Blue y
Color Coordinates (CIE)
White
White Luminance @ CCFL
7.5mA (center)
Luminance Uniformity
Crosstalk (in 75Hz)
Flicker
[cd/m
[%] 75 80
[%] 1.5
dB -20
White x
White y
2
]
250 300
60
60
60
50
70
70
70
70
-
70
70
70
60
80
80
80
80
6 9
- 2 4
- 8 13
0.61 0.64 0.67
0.31 0.34 0.37
0.26 0.29 0.32
0.58 0.61 0.64
0.11 0.14 0.17
0.04 0.07 0.10
0.28 0.31 0.34
0.30 0.33 0.36
M170EG01 V.2
-
-
-
Note 1
-
Note 2
Note 3
Note 4
Equipment Pattern Generator, Power Supply, Digital Voltmeter, Luminance meter (PR 880, BM-5A ,
BM 7 ,CS-1000, & EZContrast* )
Aperture 1°with 100cm VD or 2°with 50cm viewing distance
Test Point Center (VESA point 9)
Environment < 1 lux
LCD Module
PR-880 /
BM5A /
BM7
measuring distance
Module Driving Equipment
*’ EZ Contrast is different measurement tool with very close viewing distance.
ver 0.2 7/25
M170EG01 V.2
Note 1: Definition of Response time
The output signals of photodetector are measured when the input signals are changed from “Black” to “White”
(rising time), and from “White” to “Black ”(falling time), respectively. The response time is interval between the
10% and 90% of amplitudes.
Product Specification
Optical
Optical
response
response
Note 2: Brightness uniformity of these 9 points is defined as below
100
100
90
90
10
10
%
%
White
White
0
0
Tr
Tr
F
F
Black White
Black White
90 %
50 %
10 %
Tr
Tr
R
R
10 %
50 %
90 %
Uniformity =
9)-(1 points 9in Luminance Minimum
9)-(1 Points 9in Luminance Maximum
ver 0.2 8/25
A
A
Note 3: Crosstalk is defined as below :
Product Specification
M170EG01 V.2
1/2
184 gray level 184 gray level
Unit: percentage of dimension of display area
l L
l L
l / LA x 100%= 1.5% max., LA and LB are brightness at location A and B
A-LA’
l / LB x 100%= 1.5% max., LA’ and LB’ are brightness at location A’ and B’
B-LB’
Note 4: Test Paterm: Subchecker Pattern
R G B R G B
1/6
1/6
1/2
B
Gray Level = L127
2/3 1/3
1/2
’
0 gray level
1/6
1/6
1/3
1/2
B’
2/3
R G B R G B
R G B R G B
Gray Level = L0
Method: Record dBV & DC value with (WESTAR)TRD-100
Amplitude
DC
Hz) 30Level(at AC
log20(dB)Flicker =
Level DC
AC
Time
ver 0.2 9/25
M170EG01 V.2
V
Product Specification
3.0 Functional Block Diagram
The following diagram shows the functional block of the 19.0 inches wide Color TFT/LCD Module:
LVDS
+ 5
Connector
DC/DC
Converter
AU ASIC
LVDS
Timing
Controller
RSDS
Gamma
Correction
DC POWER
G1
TFT-LCD
1280*(3)*1024
Pixels
G1024
Inverter
D3840
4 CCFL
FI-XB30SRL-HF11 / MDF76LBRW-30S-1H JST-BHSR-02VS-1 ( 2pin × 2 )
Mating Type: JAE FI-X30C2L / HRS MDF76G-30P-1SD SM02B-BHSS-1-TB
ver 0.2 10/25
M170EG01 V.2
p
Product Specification
4.0 Absolute Maximum Ratings
Absolute maximum ratings of the module is as following:
4.1 TFT LCD Module
Item Symbol Min Max Unit Conditions
Logic/LCD Drive Voltage VIN -0.3 +6 [Volt] Note 1,2
4.2 Backlight Unit
Item Symbol Min Max Unit Conditions
CCFL Current ICFL - 8.5 [mA] rms Note 1,2
4.3 Absolute Ratings of Environment
Item Symbol Min Max Unit Conditions
Operating Temperature TOP 0 +50 [
Operating Humidity HOP 8 95 [%RH] Note 3
Storage Temperature TST -20 +60 [
Storage Humidity HST 8 95 [%RH] Note 3
o
C] Note 3
o
C] Note 3
Note 1: With in Ta (25℃ )
Note 2: Permanent damage to the device may occur if exceed maximum values
Note 3:
For quality perfermance, please refer to AUO IIS(Incoming Inspection Standard).
Relative Humidity %
Twb=39℃
100
95
80
60
40
Storage
range
Operation range
T=40℃,H=95%
T=50℃,H=55%
20
Storage
range
5
0
-20
0 6050
erature ℃
Tem
T=60℃,H=39%
T=65℃,H=29%
ver 0.2 11/25
M170EG01 V.2
V
Product Specification
5.0 Electrical characteristics
5.1 TFT LCD Module
5.1.1 Power Specification
Input power specifications are as follows;
Symbol Parameter Min Typ Max Units Condition
VDD Logic/LCD Drive
Voltage
IDD VDD current - 1200 1560 [mA] Vin=5V , All Black Pattern,
Irush LCD Inrush Current - - 2.5 [A] Note
PDD VDD Power
VDDrp Allowable
Logic/LCD Drive
Ripple Voltage
Note: Measurement conditions:
4.5 5 5.5 [Volt]
±10%
at 75Hz
6
7.8 [Watt] Vin=5V , All Black Pattern,
at 75Hz
100 [mV]
p-p
Vin=5V , All Black Pattern,
at 75Hz
(High to Low)
Control Signal
SW
+12.0V
+5.0V
C2
1uF/25V
R1
47K
Q3
AO6402
D6
D5
D2 S
D1
G
D2SD1D5
D6
R2
1K
VR1
47K
G
C3
0.01uF/25V
Q3
AO6402
F1
VCC
(LCD Module Input)
C1
1uF/16V
5.0V
0V
470 us
in rising time
ver 0.2 12/25
V
Product Specification
5.1.2 Signal Electrical Characteristics
Input signals shall be low or Hi-Z state when Vin is off
It is recommended to refer the specifications of SN75LVDS82DGG (Texas Instruments) in detail.
M170EG01 V.2
Each signal characteristics are as follows;
Symbol Parameter Min Typ Max Units Condition
VTH
VTL
│VID│
VICM
Note: LVDS Signal Waveform
VTH
VTL
Differential Input
High Threshold
Differential Input
Low Threshold
Input Differential
Voltage
Differential Input
Common Mode
Voltage
SS
- -
-100 -
100 400 600 [mV]
1.1 - 1.45 [V]
VICM
100 [mV]
- [mV]
VICM = 1.2V Note
VICM = 1.2V Note
Note
VTH/VTL = ± 100mV Note
│VID│
ver 0.2 13/25
M170EG01 V.2
Product Specification
5.2 Backlight Unit
Parameter guideline for CCFL Inverter
Symbol Parameter Min. Typ. Max. Unit Condition
ISCFL CCFL standard current
7.0 7.5 8.0
[mA]
(Ta=25
rms
IRCFL CCFL operation range
3.0 7.5 8.0
[mA]
(Ta=25oC)
rms
FCFL CCFL Frequency
ViCFL
o
(0
C)
ViCF
o
(25
C)
CCFL Ignition Voltage
(End of the lamp wire connector)
CCFL Ignition Voltage
(End of the lamp wire connector)
CCFL Operation Voltage
VCFL
40 60 80
1500 - -
1150 - -
660
700
@7.5mA
@3.0mA
[KHz] (Ta=25
[Volt]
(Ta=0oC)
rms
[Volt]
(Ta=25
rms
[Volt]
(Ta=25
rms
CCFL Power consumption (for
PCFL
- 19.8 21.8 [Watt] (Ta=25
reference)
LTCFL CCFL life Time 30,000 50,000 - [Hour] (Ta=25
Note 1: CCFL standard current is measured at 25±2℃.
o
C) Note 1
o
C) Note 2
o
C)
o
C) Note 1
o
C) Note 3
o
C) Note 4
Note 2: CCFL Frequency should be carefully determined to avoid interference between inverter and TFT LCD
Note 3: The variance of CCFL power consumption is ±10%. Calculator value for reference
(ICFL×VCFL×4=PCFL).
Note 4: CCFL life time is determined as the time at which brightness of lamp is 50%. The typical life time of CCFL
is on the condition at 7.5 mA lamp current.
ver 0.2 14/25
Product Specification
6.0 Signal Characteristic
6.1 Pixel Format Image
Following figure shows the relationship of the input signals and LCD pixel format.
M170EG01 V.2
1 ST
1024 TH
ODD ODD ODD EVEN EVEN EVEN
RGBRGBRGB RGBRGBRGB
RGBRGBRGB RGBRGBRGB
6.2 The input data format
Note1: Normally, DE, VS, HS on EVEN channel are not used.
Note2: Please follow PSWG.
Note3: 8-bit in
ver 0.2 15/25
M170EG01 V.2
Product Specification
6.3 Signal Description
The module using a pair of LVDS receiver SN75LVDS82(Texas Instruments) or compatible. LVDS is a differential
signal technology for LCD interface and high speed data transfer device. Transmitter shall be SN75LVDS83(negative
edge sampling) or compatible. The first LVDS port(RxOxxx) transmits odd pixels while the second LVDS port(RxExxx)
transmits even pixels.
PIN # SIGNAL NAME DESCRIPTION
1 RxOIN0- Negative LVDS differential data input (Odd data)
2 RxOIN0+ Positive LVDS differential data input (Odd data)
3 RxOIN1- Negative LVDS differential data input (Odd data)
4 RxOIN1+ Positive LVDS differential data input (Odd data)
5 RxOIN2- Negative LVDS differential data input (Odd data, H-Sync,V-Sync,DSPTMG)
6 RxOIN2+ Positive LVDS differential data input (Odd data, H-Sync,V-Sync,DSPTMG)
7 VSS Power Ground
8 RxOCLKIN- Negative LVDS differential clock input (Odd clock)
9 RxOCLKIN+ Positive LVDS differential clock input (Odd clock)
10 RxOIN3- Negative LVDS differential data input (Odd data)
11 RxOIN3+ Positive LVDS differential data input (Odd data)
12 RxEIN0- Negative LVDS differential data input (Even data)
13 RxEIN0+ Positive LVDS differential data input (Even data)
14 VSS Power Ground
15 RxEIN1- Positive LVDS differential data input (Even data)
16 RxEIN1+ Negative LVDS differential data input (Even data)
17 VSS Power Ground
18 RxEIN2- Negative LVDS differential data input (Even data)
19 RxEIN2+ Positive LVDS differential data input (Even data)
20 RxECLKIN- Negative LVDS differential clock input (Even clock)
21 RxECLKIN+ Positive LVDS differential clock input (Even clock)
22 RxEIN3- Negative LVDS differential data input (Even data)
23 RxEIN3+ Positive LVDS differential data input (Even data)
24 VSS Power Ground
25 VSS Power Ground
26 NC No Connection ( for AUO test)
27 VSS Power Ground
28 VCC +5.0V Power Supply
29 VCC +5.0V Power Supply
30 VCC +5.0V Power Supply
ver 0.2 16/25
M170EG01 V.2
RxO
IN
0
VCC
Product Specification
Note1: Start from left side
Connector
30
-
Note2: Input signals of odd and even clock shall be the same timing.
Note3: Please follow PSWG.
6.4 Interface Timing
6.4.1 Timing Characteristics
Basically, interface timings described here is not actual input timing of LCD module but output timing of
SN75LVDS82DGG (Texas Instruments) or equivalent.
Item Symbol Min Typ Max Unit
Data CLK Tclk 40 54 70 MHz
H-section
V-section
Frame Rate F 49 60 76 Hz
Note : DE mode only
Period Th 685 844 Tclk 1024
Display Area Tdisp(h) 640 640 Tclk 640
Period Tv 1036 1066 Th 2048
Display Area Tdisp(v) 1024 1024 Th 1024
ver 0.2 17/25
6.4.2 Timing diagram
DE
Tclk
CLK
Product Specification
DE
Tblk(v)
M170EG01 V.2
Tdisp(h)
Tblk(h)
Th
Th
Tdisp(v)
Tv
ver 0.2 18/25
M170EG01 V.2
Product Specification
6.5 Power ON/OFF Sequence
Vin power and lamp on/off sequence is as follows. Interface signals are also shown in the chart. Signals from
any system shall be Hi-Z state or low level when Vin is off.
90% 90%
90% 90%
90% 90%
10%
10%
Vin 10%
Vin 10%
Vin 10%
0V
0V
0V
Signal
Signal
Signal
0V
0V
0V
10%
T2 T5 T6 T7
T2 T5 T6 T7
T2 T5 T6 T7
T1
T1
T1
T4
T4
T3
T3
T3
T4
10%
10%
10%
Lamp
Lamp
Lamp
0V
0V
0V
Symbol
T1
T2 0 - 10
T3 200
T4 100
T5
T6
T7 1000
Note: The values of the table are follow PSWG.
Min. Typ. Max.
0.5 -
0 16
- -
Values
10 ms
- -
- -
50
10
- -
Unit
ms
ms
ms
ms
ms
ms
ver 0.2 19/25
M170EG01 V.2
Product Specification
7.0 Connector & Pin Assignment
Physical interface is described as for the connector on module.
These connectors are capable of accommodating the following signals and will be following components.
7.1 TFT LCD Module
Connector Name / Designation
Manufacturer
Type Part Number
Mating Housing Part Number
Interface Connector / Interface card
JAE or compatible
FI-XB30SRL-HF11 / MDF76LBRW-30S-1H
JAE FI-X30C2L / HRS MDF76G-30P-1SD
Pin# Signal Name Pin# Signal Name
1 RxOIN0- 2 RxOIN0+
3 RxOIN1- 4 RxOIN1+
5 RxOIN2- 6 RxOIN2+
7 VSS 8 RxOCLKIN-
9 RxOCLKIN+ 10 RxOIN3-
11 RxOIN3+ 12 RxEIN0-
13 RxEIN0+ 14 VSS
15 RxEIN1- 16 RxEIN1+
17 VSS 18 RxEIN2-
19 RxEIN2+ 20 RxECLKIN-
21 RxECLKIN+ 22 RxEIN3-
23 RxEIN3+ 24 VSS
25 VSS 26 NC
27 VSS 28 VCC
29 VCC 30 VCC
ver 0.2 20/25
7.2 Backlight Unit
Product Specification
M170EG01 V.2
Connector Name / Designation
Manufacturer
Type Part Number
Mating Type Part Number
7.3 Signal for Lamp connector
Connector No. Pin No. Input Color Function
CN1
Upper
CN2
CN3
Lower
CN4
1 Hot1 Pink High Voltage
2 Cold1 White Low Voltage
1 Hot2 Blue High Voltage
2 Cold2 Black Low Voltage
1 Hot1 Pink High Voltage
2 Cold1 White Low Voltage
1 Hot2 Blue High Voltage
2 Cold2 Black Low Voltage
Lamp Connector / Backlight lamp
JST
BHSR-02VS-1
SM02B-BHSS-1-TB
ver 0.2 21/25
Product Specification
8.0 Reliability
Reliability test condition
No Test Item Test Condition
M170EG01 V.2
1 Temperature Humidity Bias (THB)
2 High Temperature Operation (HTO)
3 Low Temperature Operation (LTO)
4 High Temperature Storage (HTS)
5 Low Temperature Storage (LTS)
6 Thermal Shock Test (TST)
50℃, 80%, 300hours
50℃, 300hours
0℃, 300hours
60℃, 300hours
-20℃, 300hours
-20℃/30min, 60℃/30min, 100 cycles
7 On/Off Test On/10sec, Off/10sec, 30,000 cycles
8 Shock Test (Non-Operating) 50G, 20ms, Half-sine wave (+ X, +Y, +Z)
9 Vibration Test (Non-Operating) 1.5G(10~200Hz P- P), 30 Minutes each Axis (X, Y, Z)
10 ESD (ElectroStatic Discharge) Contact Discharge: ± 8KV, 150pF(330Ω ) 1sec, 8 points, 25 times/ point
Air Discharge: ± 15KV, 150pF(330Ω ) 1sec, 8 points, 25 times/ point
11 Altitude Test Operation:10,000 ft
Non-Operation:30,000 ft
ver 0.2 22/25
9.0 Safety
9.1 Sharp Edge Requirements
There will be no sharp edges or comers on the display assembly that could cause injury.
9.2 Materials
9.2.1 Toxicity
There will be no carcinogenic materials used anywhere in the display module. If toxic materials
are used, they will be reviewed and approved by the responsible AUO Toxicologist.
9.2.2 Flammability
All components including electrical components that do not meet the flammability grade UL94-V1
in the module will complete the flammability rating exception approval process.
The printed circuit board will be made from material rated 94-V1 or better. The actual UL
Product Specification
M170EG01 V.2
flammability rating will be printed on the printed circuit board.
9.3 Capacitors
If any polarized capacitors are used in the display assembly, provisions will be made to keep
them from being inserted backwards.
10.0 Other requirement
10.1 National Test Lab Requirement
The display module will satisfy all requirements for compliance to
UL 1950, First Edition U.S.A. Information Technology Equipment
CSA C22.2 No.950-M89 Canada, Information Technology Equipment
EEC 950 International, Information Technology Equipment
EN 60 950 International, Information Processing Equipment
(European Norm for IEC950)
10.2 Label
The label is on the panel as shown below:
ver 0.2 23/25
11.0 Mechanical Characteristics
Ver0.2 24/25
Ver0.2 25/25
Loading...
