Page 1
Product Specification
M170EG01 V.1
AU OPTRONICS CORPORATION
Product Specification
17.0” SXGA Color TFT-LCD Module
Model Name: M170EG01 V.1
Approved by Prepared by
CC Chiu
Regina Tsou
DDBU Marketing Division / AU Optronics corporation
Customer Checked & Approved by
Ver1.0 1/29
Page 2
M170EG01 V.1
Product Specification
Product Specification
17.0” SXGA Color TFT-LCD Module
Model Name: M170EG01
V.1
(…) Preliminary Specifications
() Final Specifications
Note: This Specification is subject to change without notice.
Ver1.0 2/29
Page 3
Contents
1.0 Handling Precautions ............................................................7
2.0 General Description...............................................................8
2.1 Display Characteristics.....................................................................................................8
2.2 Functional Block Diagram..................................................................................................9
2.3 Optical Characteristics....................................................................................................10
2.4 Pixel format image ........................................................................................................13
3.0 Electrical characteristics......................................................14
3.1 Absolute Maximum Ratings..............................................................................................14

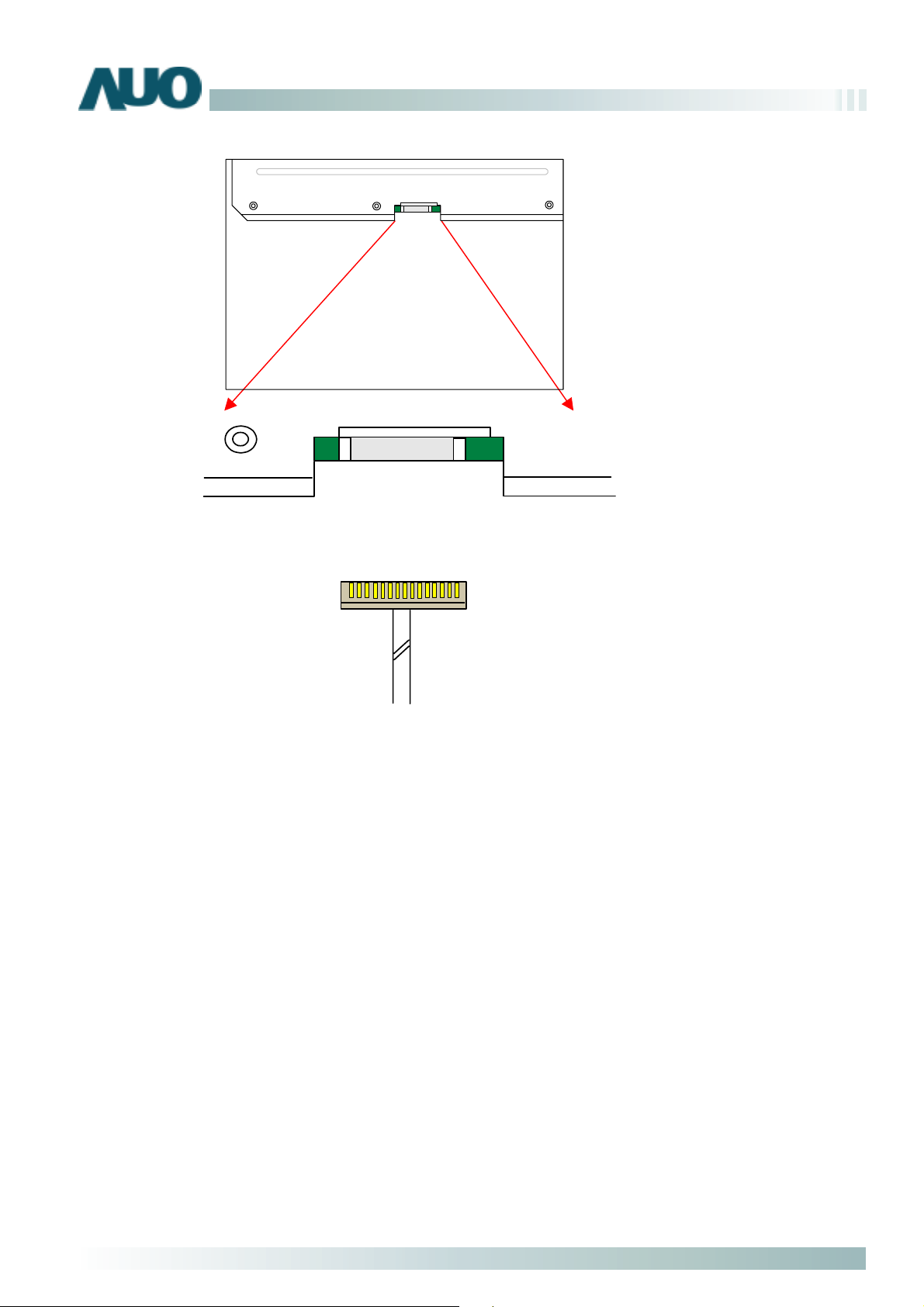

3.2 Connectors.................................................................................................................15
3.3 Signal Pin...................................................................................................................15
3.4 Signal Description.........................................................................................................16
3.5 Signal Electrical Characteristics.........................................................................................19
3.6 Interface Timings..........................................................................................................19
3.6.1 Timing Characteristics..........................................................................................19

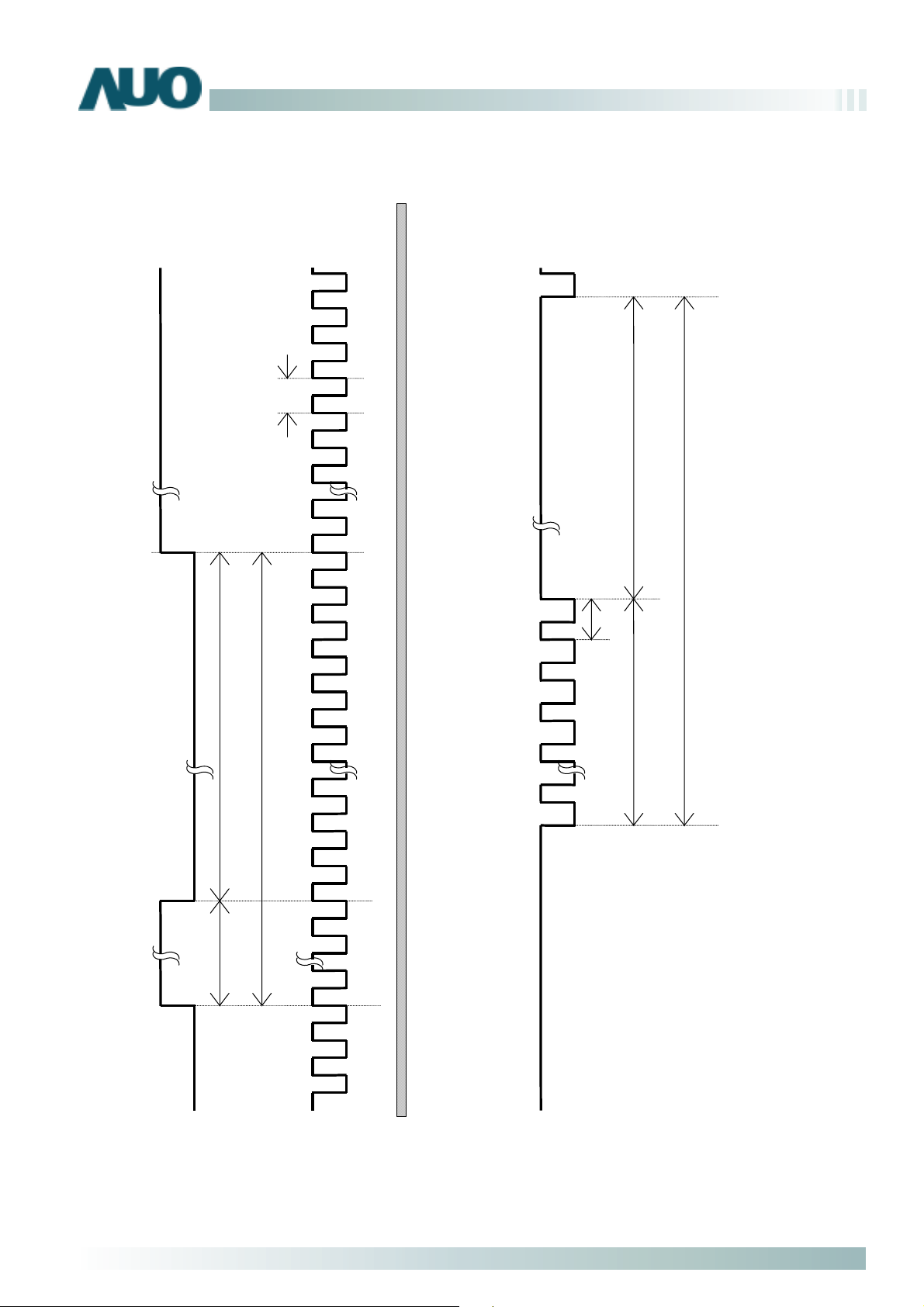

3.6.2 Timing Definition .................................................................................................20
3.8 Power ON/OFF Sequence...............................................................................................22
4.0 Backlight Characteristics.....................................................23
4.1 Signal for Lamp connector...............................................................................................23
4.2 Parameter guideline for CCFL Inverter.................................................................................23
5.0 Vibration, Shock, and Drop..................................................24
5.1 Vibration & Shock .........................................................................................................24
5.2 Drop test....................................................................................................................24
6.0 Environment........................................................................24
6.1 Temperature and Humidity...............................................................................................24
6.1.1 Operating Conditions............................................................................................24
6.1.2 Shipping Conditions .............................................................................................24
6.2 Atmospheric Pressure....................................................................................................25
6.3 Thermal Shock.............................................................................................................25
7.0 Reliability ............................................................................ 25
7.1 Failure Criteria.............................................................................................................25
7.2 Failure Rate................................................................................................................25
7.2.1 Usage ................................................................................................................25
8.0 Safety..................................................................................26
8.1 Sharp Edge Requirements...............................................................................................26
8.2 Materials....................................................................................................................26
8.2.1 Toxicity..............................................................................................................26
8.2.2 Flammability.......................................................................................................26
8.3 Capacitors..................................................................................................................26
9.0 Other requirement............................................................... 27
Ver0.5 3/26
Page 4
M170EG01 V.1
Product Specification
9.1 National Test Lab Requirement.........................................................................................27

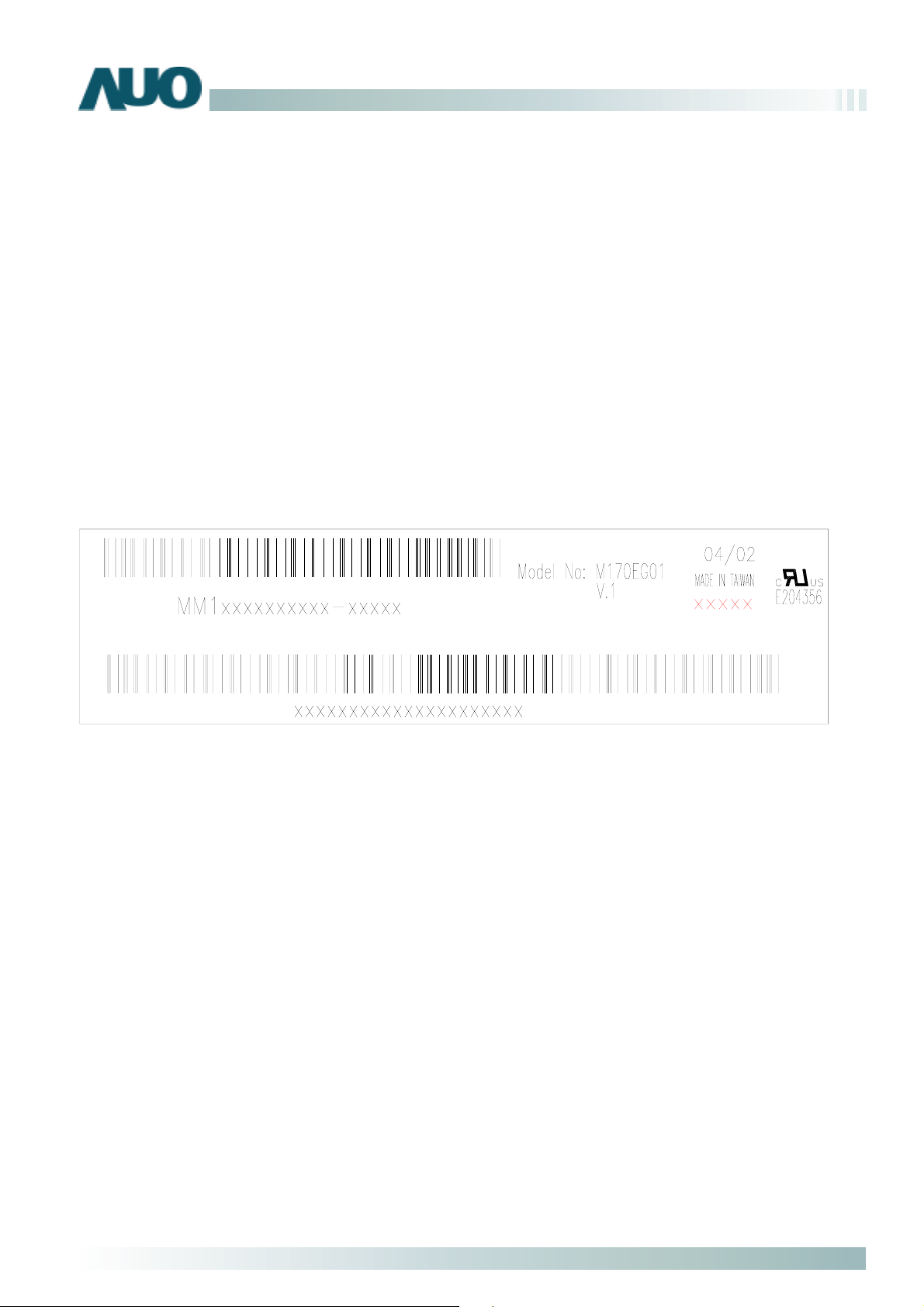

9.2 Label ........................................................................................................................27

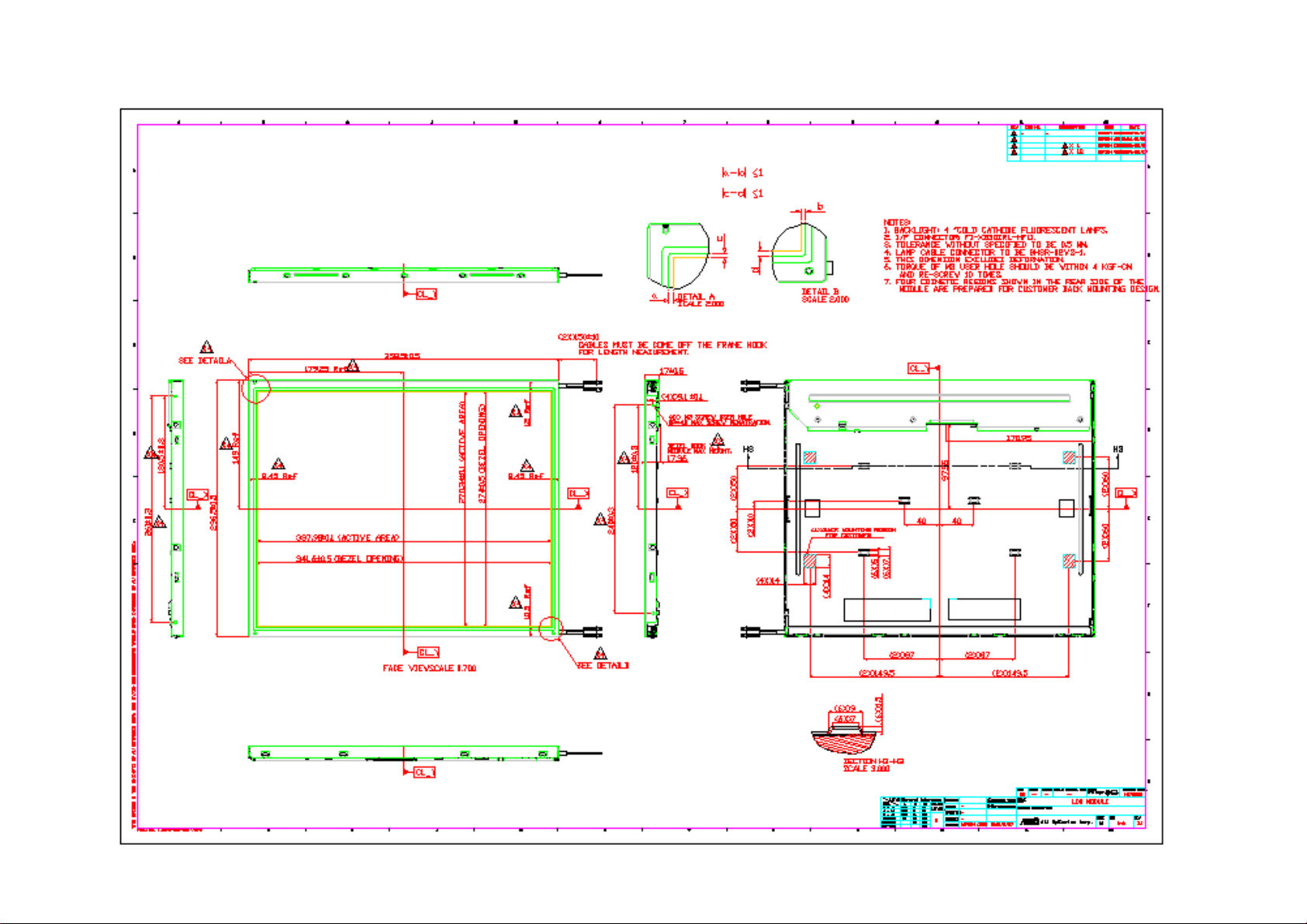

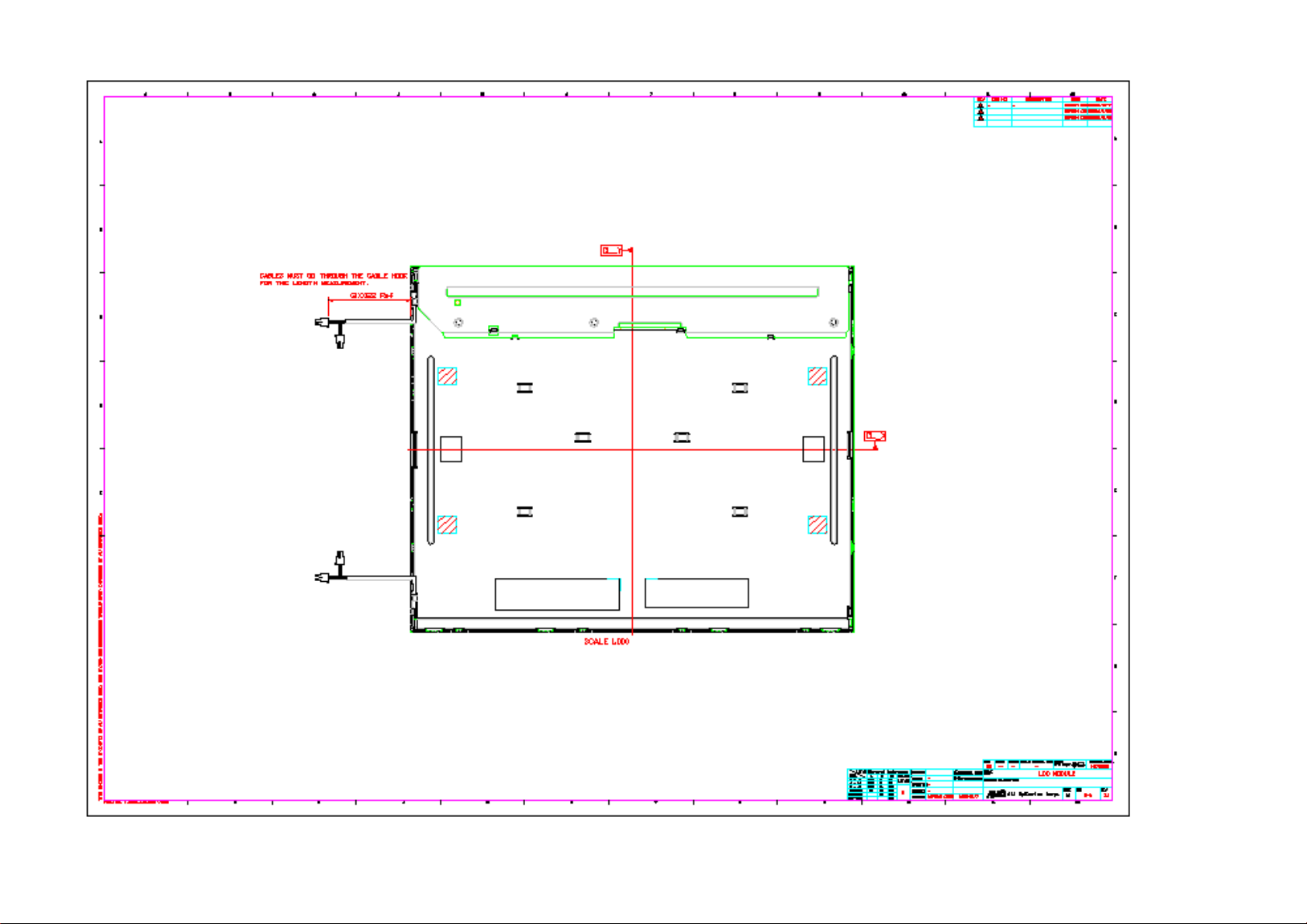

10.0 Mechanical Characteristics ................................................28
Ver1.0 4/29
Page 5
M170EG01 V.1
Product Specification
Record of Revision
Version and Date Page Old description New Description Remark
0.1 2004/2/17 All First Edition for Customer All
0.2 2004/2/27 8,14
Type P/N FI-XB30SRL-HF11 Type P/N FI-XB30SRL-HF11/
Modified
MDF76LBRW-30S1H
Mating Housing
P/N
10 Response time:
Rising Time Typ = TBD
Falling Time Typ = TBD
13 3.1 Absolute Maximum Ratings
Vin Min=+4.5 , Max=+5.5
16 3.4 Signal Description
No note
17 3.4 Signal Description
HRS
MDF76LBRW-30S1H (HIROSE)
Mating Housing
P/N
JAE
FI-X30C2L /HRS
MDF76G-30P-1SD
Response time:
Modified
Rising Time Typ = 12ms
Falling Time Typ = 4ms
3.1 Absolute Maximum Ratings
Modified
Vin Min=-0.3 , Max=+6
Note1:Start from left side
Added
Note3: Please follow PSWG.
Follow PSWG Modified
Picture format
20 LCD Inrush Current : TBD LCD Inrush Current : 2.5 A Modified
9,11 No define Flicker Added
18 3.5 Signal Electrical Characteristics New definition Modified
18 Frame Rate Min = no definition Frame Rate Min = 50Hz Added
20 VDD Current
Typ=1100mA
Max=1210mA
20 VDD Power
Typ=5.5W
Max=6.05W
0.3 2004/4/1 9 2.2 Functional Block Diagram
VDD Current
Typ=1200mA
Max=1560mA
VDD Power
Typ=6W
Max=7.8W
CCFL connector 2pin × 2
Modified
Modified
Added
14 3.1 Absolute Maximum Ratings CCFL max. current = 8.5mA Modified
19 3.6.1 Timing Characteristics DE mode only Added
23 4.2 Parameter guideline for CCFL
Inverter
23 4.2 Parameter guideline for CCFL
Note 1: The variance of the current is
±10%
CCFL Ignition Voltage
Deleted
Added
Inverter
Ver1.0 5/29
(End of the lamp wire connector)
Page 6
Product Specification
23 4.2 Parameter guideline for CCFL
M170EG01 V.1
The minimum lifetime of CCFL is on the
Added
Inverter
condition at 7.5mA lamp current.
Note4
0.3 2004/4/6 10 2.3 Optical Characteristics
Response Time Max. = TBD
10 2.3 Optical Characteristics
Rising Time Max. = 20
Falling Time Max. = 5
Rising + Falling Max. = 25
White Luminance Min. = 210 Modified
Modified
White Luminance Min. = TBD
9 2.2 Functional Block Diagram Adding CCFL connector diagram Added
8 Contrast Ratio = TBD Contrast Ratio = 450 : 1 Modified
10 Contrast ratio Min. = TBD
Contrast ratio Typ. = TBD
0.3 2004/4/8 10,12 TC0-03 Compliance
Contrast ratio Min. = 250
Modified
Contrast ratio Typ. = 450
Note 5 Added
No defined
9,15 3.2 Mating Type Part Number
SM02(4.0)B-BHS-1-TB
Modified to SM02B-BHSS-1-TB
Modified
0.4 2004/5/25 23 4.1 Signal for Lamp connector 4.1 Signal for Lamp connector Modified
10 Viewing Angle
Cr=10, Down Typ.=70
Down Min.=60

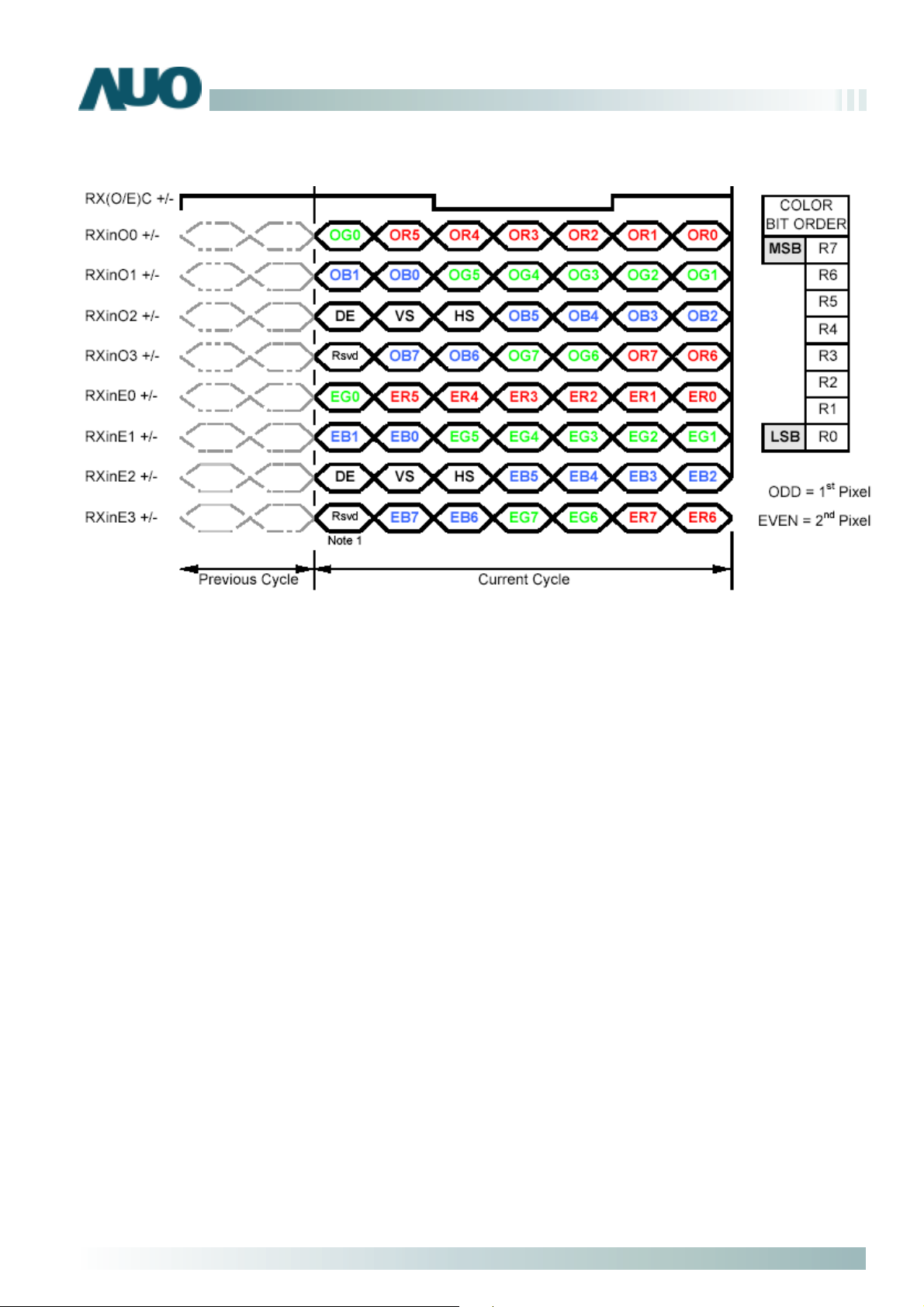

18 The input data format
Viewing Angle
Cr=10, Down Typ.=60
Down Min.=50
Note 3:8-bit in Added
No defined
19 3.6.1 Timing Characteristics
Data CLK Min.=45
Frame Rate Min.=50
23 CCFL life Time
3.6.1 Timing Characteristics
Data CLK Min.=40
Frame Rate Min.=49
CCFL life Time
Min.=30,000 hours
Typ.=50,000 hours
0.5 2004/6/1 10 Viewing Angle
CR = 10
19 3.6.1 Timing Characteristics
Frame Rate Max = 75 Hz
Viewing Angle
CR = 10 & CR = 5
3.6.1 Timing Characteristics
Frame Rate Max = 76 Hz
1.0 2004/7/20 28 10.0Mechanical Characteristics 10.0Mechanical Characteristics
Black Strip Definition
Modified
Modified
Modified
Added
Modified
Added
Ver1.0 6/29
Page 7
M170EG01 V.1
Product Specification
1.0 Handling Precautions
1) Since front polarizer is easily damaged, pay attention not to scratch it.
2) Be sure to turn off power supply when inserting or disconnecting from input connector.
3) Wipe off water drop immediately. Long contact with water may cause discoloration or spots.
4) When the panel surface is soiled, wipe it with absorbent cotton or other soft cloth.
5) Since the panel is made of glass, it may break or crack if dropped or bumped on hard surface.
6) Since CMOS LSI is used in this module, take care of static electricity and insure human earth when
handling.
7) Do not open nor modify the Module Assembly.
8) Do not press the reflector sheet at the back of the module to any directions.
9) In case if a module has to be put back into the packing container slot after once it was taken out from the
container, do not press the center of the CCFL reflector edge. Instead, press at the far ends of the CCFL
reflector edge softly. Otherwise the TFT module may be damaged.
10) At the insertion or removal of the Signal Interface Connector, be sure not to rotate nor tilt the Interface
Connector of the TFT module.
11) After installation of the TFT module into an enclosure (Desktop monitor Bezel, for example), do not twist
nor bend the TFT Module even momentary. At designing the enclosure, it should be taken into
consideration that no bending/twisting forces are applied to the TFT module from outside. Otherwise the
TFT module may be damaged.
Ver1.0 7/29
Page 8
M170EG01 V.1
Product Specification
2.0 General Description
This specification applies to the 17.0 inch Color TFT/LCD Module M170EG01 V1.
This module is designed for a display unit of personal computer.
The display supports the SXGA (1280(H) x 1024(V)) screen format and 16.2M colors (RGB 6-bits + FRC data).
All input signals are 2 Channel LVDS interface compatible.
This module does not contain an inverter card for backlight.
2.1 Display Characteristics
The following items are characteristics summary on the table under 25 ℃ condition:
ITEMS Unit SPECIFICATIONS
Screen Diagonal [mm] 432(17.0")
Active Area [mm] 337.920 (H) x 270.336(V)
Pixels H x V 1280(x3) x 1024
Pixel Pitch [mm] 0.264 (per one triad) x 0.264
Pixel Arrangement R.G.B. Vertical Stripe
Display Mode Normally White
White Luminance [cd/m2] 260 (Typ)
Contrast Ratio 450 : 1 (Typ)
Optical Rise Time/Fall Time [msec] 16 (Typ)
Color Saturation 72% NTSC
Nominal Input Voltage VDD [Volt] +5.0 V
Power Consumption
(VDD line + CCFL line)
Weight [Grams] 1900 (Typ)
Physical Size [mm]
Electrical Interface Dual Channel LVDS
Support Color 16.2M colors (RGB 6-bit + FRC data)
Temperature Range
Operating
Storage (Shipping)
TC0-03 Compliance TC0-03 Compliance
Note :Tuning the brightness and contrast function in OSD let the luminance to 125 cd/m2. When tuning the
2
brightness to 125cd/m
, the function on OSD should not restrict our V-T curve. In other word, the higher
contrast, the range of panel’s V-T curve will be more extensive to get the better performance. If it is not
possible to achieve the test luminance by this procedure it is suitable to tune contrast higher and
brightness lower.
[Watt]
o
[
C]
o
C]
[
25.8 W(Typ)
(PDD=6 W, PCFL=19.8 W @Lamp=7.5mA)
Min. Typ. Max.
Horizatal(H) 358 358.5 359.0
Vertical(V) 296 296.5 297
Depth(D) 16.5 17.0 17.5
0 to +50
-20 to +60
(Note)
Ver1.0 8/29
Page 9
Product Specification
V
2.2 Functional Block Diagram
The following diagram shows the functional block of the 17.0 inches Color TFT/LCD Module:
LVDS
+ 5
Connector
DC/DC
Converter
AU ASIC
LVDS
Timing
Controller
RSDS
Gamma
Correction
DC POWER
G1
TFT-LCD
1280*(3)*1024
Pixels
G1024
Inverter
M170EG01 V.1
D3840
4 CCFL
FI-XB30SRL-HF11 / MDF76LBRW-30S-1H JST-BHSR-02VS-1 ( 2pin × 2 )
Mating Type: JAE FI-X30C2L / HRS MDF76G-30P-1SD SM02B-BHSS-1-TB
Ver1.0 9/29
Page 10
Product Specification

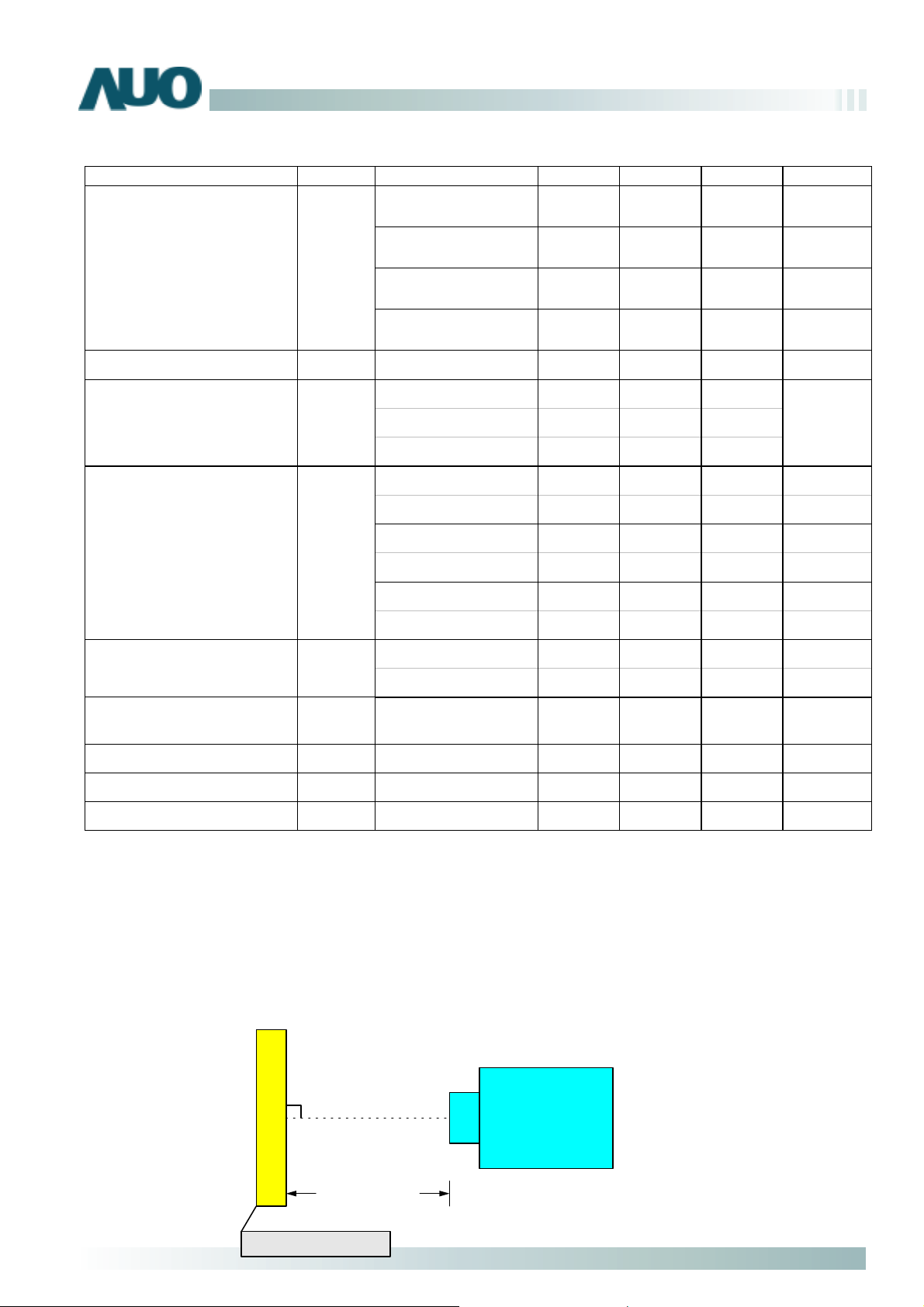

2.3 Optical Characteristics
The optical characteristics are measured under stable conditions at 25℃ (Room Temperature):
Item Unit Conditions Min. Typ. Max. Note
Horizontal (Right)
CR = 10 (Left)
Vertical (Up)
Viewing Angle [degree]
CR = 10 (Down)
Horizontal (Right)
CR = 5 (Left)
Vertical (Up)
CR = 5 (Down)
Contrast ratio Normal Direction 250 450
Rising Time
Falling Time
Rising + Falling
Response Time
[msec]
Red x
Red y
Color / Chromaticity
Coordinates (CIE)
Green x
Green y
Blue x
Blue y
Color Coordinates (CIE)
White
White Luminance @ CCFL
7.5mA (center)
Luminance Uniformity
Crosstalk (in 75Hz)
Flicker
[cd/m
[%] 75 80
[%] 1.5
dB -20
White x
White y
2
]
210 260
60
60
60
50
70
70
70
70
-
70
70
70
60
80
80
80
80
12 20
- 4 5
- 16 25
0.61 0.64 0.67 -
0.31 0.34 0.37 -
0.26 0.29 0.32 -
0.58 0.61 0.64 -
0.11 0.14 0.17 -
0.04 0.07 0.10 -
0.28 0.31 0.34 -
0.30 0.33 0.36 -
M170EG01 V.1
-
-
-
-
- -
Note 1
-
Note 2
Note 3
Note 4
Equipment: Pattern Generator, Power Supply, Digital Voltmeter, Luminance meter
(PR 880, BM-5A / BM7)
Aperture 1°with 100cm VD or 2°with 50cm viewing distance
Test Point Center (VESA point 9)
Environment < 1 lux
LCD Module
PR-880 /
BM5A /
BM7
measuring distance
Module Driving Equipment
Ver1.0 10/29
Page 11
M170EG01 V.1
Product Specification

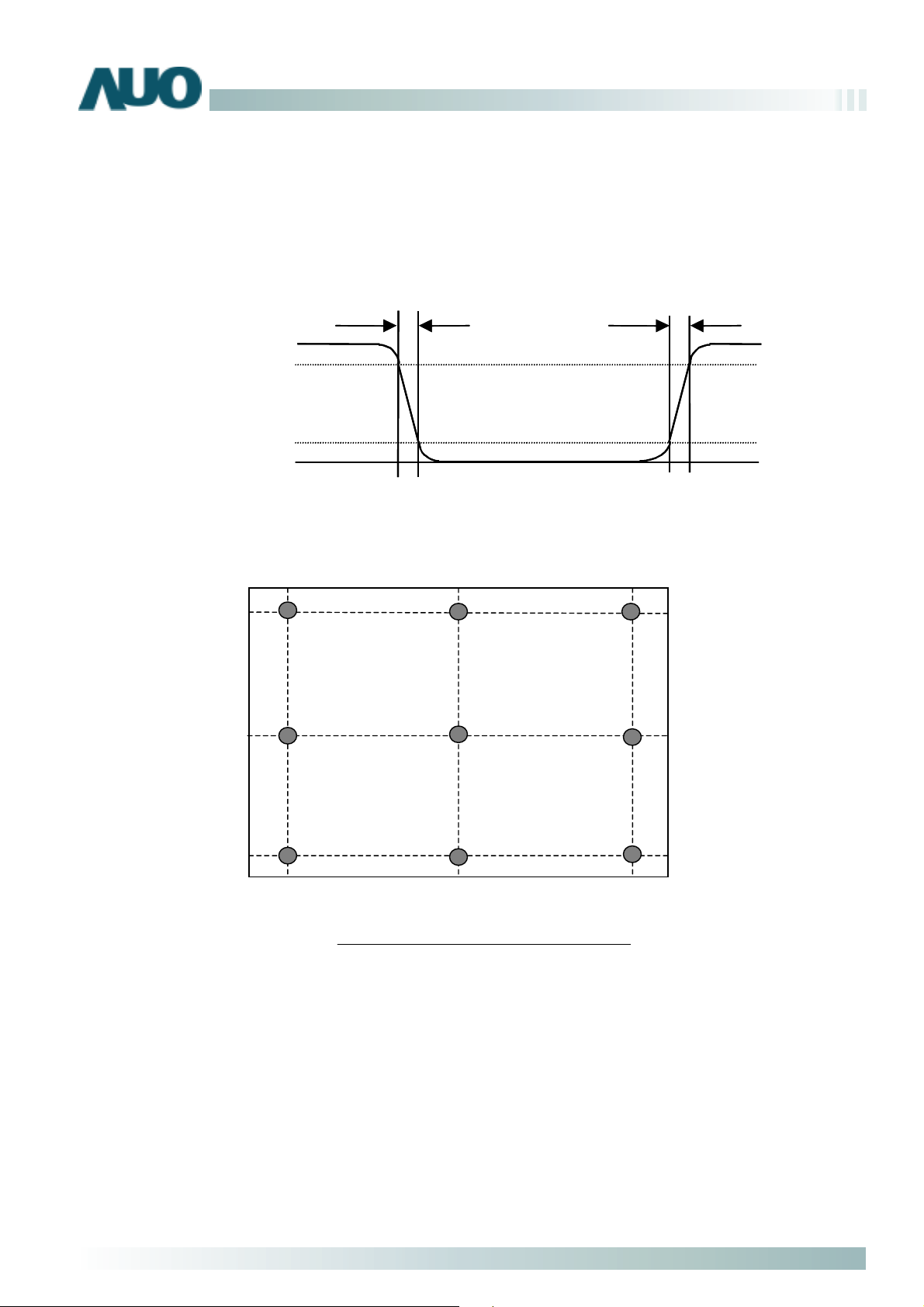

Note 1: Definition of Response time
The output signals of photodetector are measured when the input signals are changed from “Black” to “White”
(rising time), and from “White” to “Black ”(falling time), respectively. The response time is interval between the
10% and 90% of amplitudes.
Optical
Optical
response
response
Note 2: Brightness uniformity of these 9 points is defined as below
100
100
90
90
10
10
%
%
White
White
0
0
Tr
Tr
F
F
Black White
Black White
90 %
50 %
10 %
Tr
Tr
R
R
10 %
50 %
90 %
Uniformity =
9)-(1 points 9in Luminance Minimum
9)-(1 Points 9in Luminance Maximum
Ver1.0 11/29
Page 12

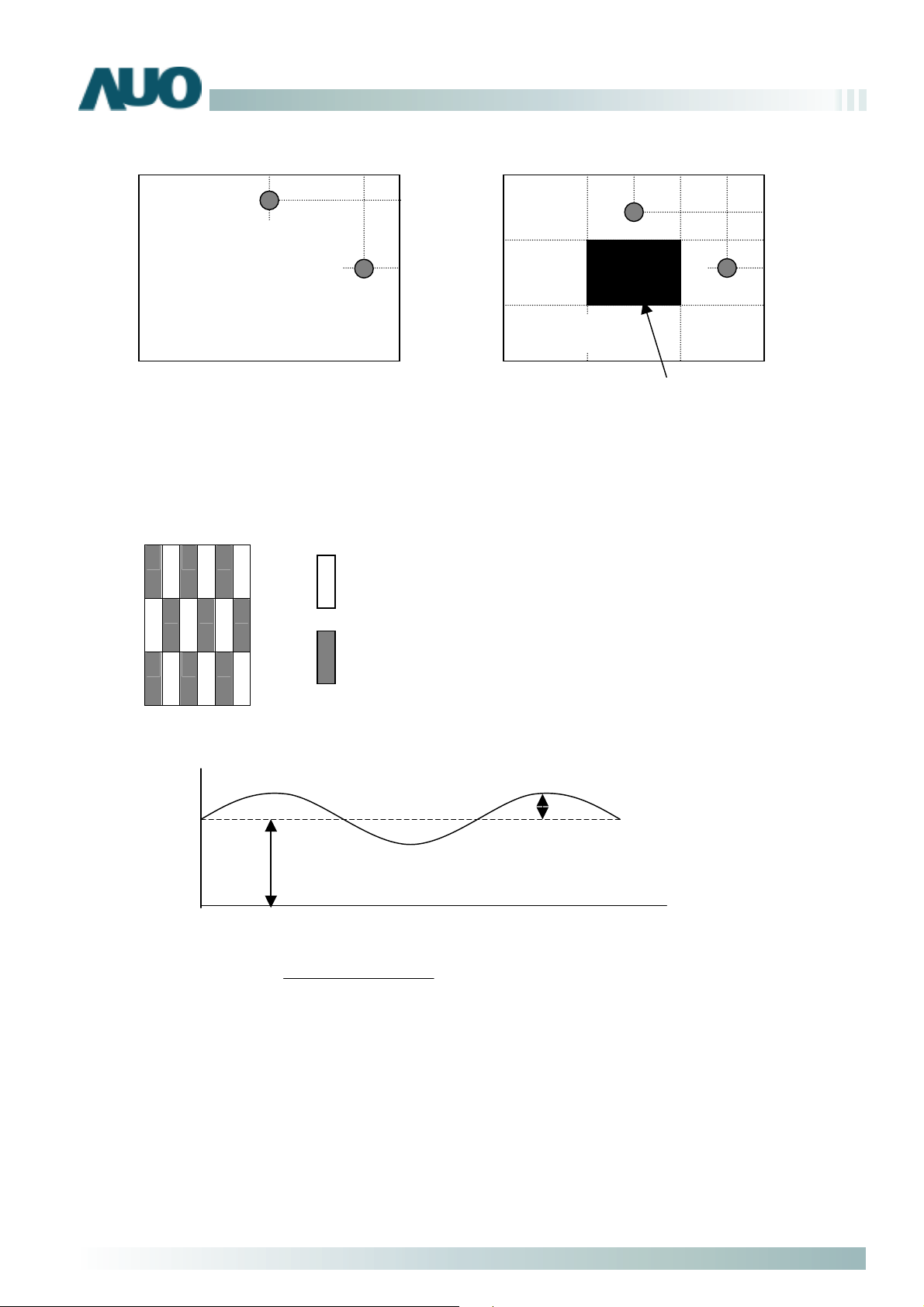

Note 3:
A
A
Product Specification
M170EG01 V.1
1/2
184 gray level 184 gray level
B
Unit: percentage of dimension of display area
l L
l L
l / LA x 100%= 1.5% max., LA and LB are brightness at location A and B
A-LA’
l / LB x 100%= 1.5% max., LA’ and LB’ are brightness at location A’ and B’
B-LB’
Note4:
Test Paterm : Subchecker Pattern
R G B R G B
1/6
1/6
1/2
Gray Level = L127
1/2
2/3 1/3
’
0 gray level
1/6
1/6
1/3
1/2
B’
2/3
R G B R G B
R G B R G B
Gray Level = L0
Method : Record dBV & DC value with (WESTAR)TRD-100
Amplitude
DC
log20(dB)Flicker =
Hz) 30Level(at AC
Level DC
AC
Time
Ver1.0 12/29
Page 13
Product Specification
2.4 Pixel format image
Following figure shows the relationship of the input signals and LCD pixel format.
1 ST
1024 TH
ODD ODD ODD EVEN EVEN EVEN
RGBRGBRGB RGBRGBRGB
RGBRGBRGB RGBRGBRGB
M170EG01 V.1
Ver1.0 13/29
Page 14
Product Specification
p
3.0 Electrical characteristics

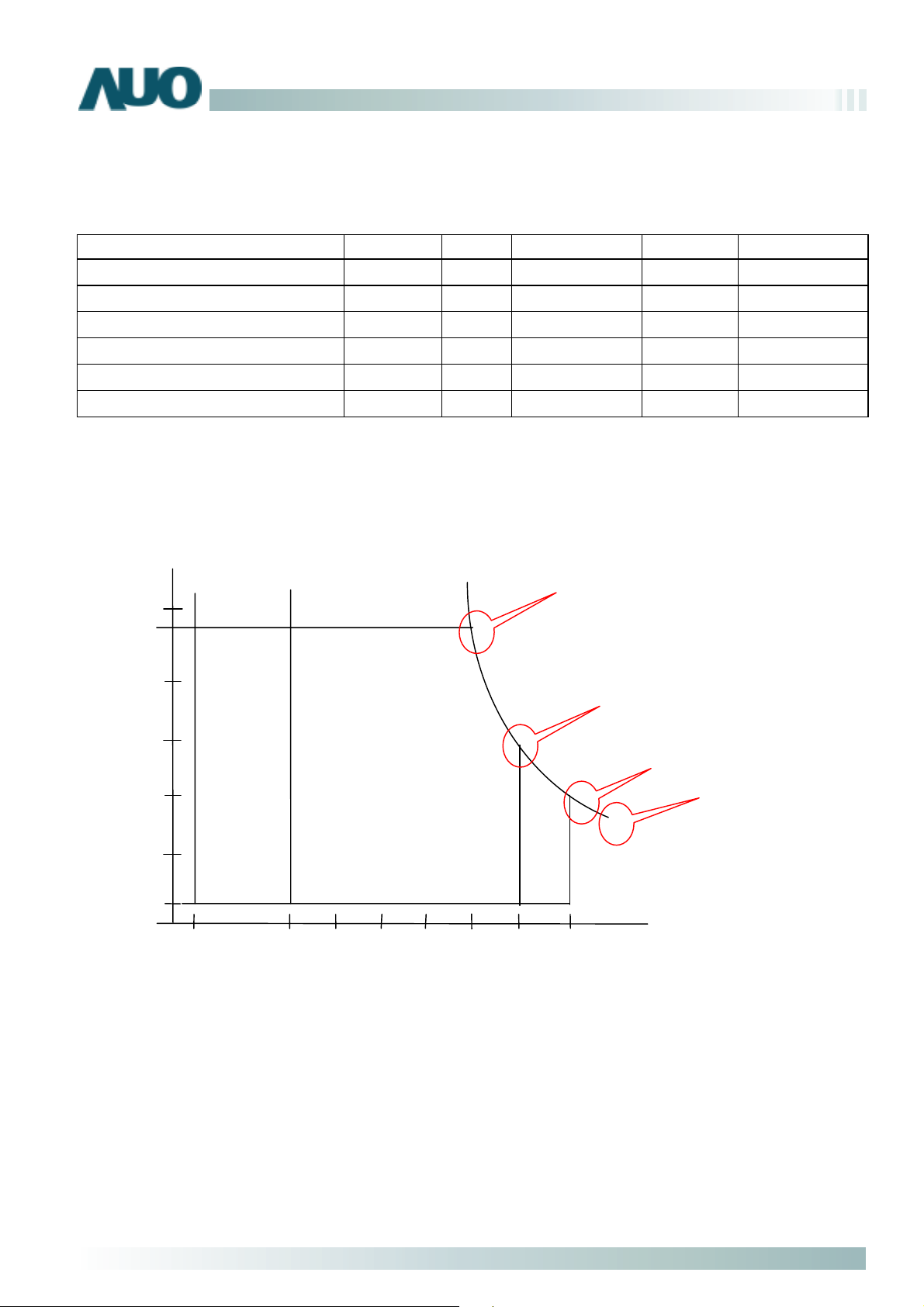

3.1 Absolute Maximum Ratings
Absolute maximum ratings of the module is as following:
Item Symbol Min Max Unit Conditions
Logic/LCD Drive Voltage VIN -0.3 6 [Volt]
CCFL Current ICFL - 8.5 [mA] rms
Operating Temperature TOP 0 +50 [oC]
Operating Humidity HOP 8 95 [%RH]
Storage Temperature TST -20 +60 [oC]
Storage Humidity HST 8 95 [%RH]
Note : Maximum Wet-Bulb should be 39℃ and No condensation.
M170EG01 V.1
Note
Note
Note
Note
Relative Humidity %
100
95
80
60
40
20
5
0
-20
Storage
range
Twb=39℃
Operation range
0 6050
erature ℃
Tem
T=40℃,H=95%
T=50℃,H=55%
T=60℃,H=39%
T=65℃,H=29%
Storage
range
Ver1.0 14/29
Page 15
M170EG01 V.1
Product Specification
3.2 Connectors
Physical interface is described as for the connector on module.
These connectors are capable of accommodating the following signals and will be following components.
Connector Name / Designation
Manufacturer
Type Part Number
Mating Housing Part Number
Connector Name / Designation
Manufacturer
Type Part Number
Mating Type Part Number
3.3 Signal Pin
Pin# Signal Name Pin# Signal Name
1 RxOIN0- 2 RxOIN0+
3 RxOIN1- 4 RxOIN1+
5 RxOIN2- 6 RxOIN2+
7 VSS 8 RxOCLKIN-
9 RxOCLKIN+ 10 RxOIN311 RxOIN3+ 12 RxEIN013 RxEIN0+ 14 VSS
15 RxEIN1- 16 RxEIN1+
17 VSS 18 RxEIN219 RxEIN2+ 20 RxECLKIN21 RxECLKIN+ 22 RxEIN323 RxEIN3+ 24 VSS
25 VSS 26 NC
27 VSS 28 VCC
29 VCC 30 VCC
Interface Connector / Interface card
JAE or compatible
FI-XB30SRL-HF11 / MDF76LBRW-30S-1H
JAE FI-X30C2L / HRS MDF76G-30P-1SD
Lamp Connector / Backlight lamp
JST
BHSR-02VS-1
SM02B-BHSS-1-TB
Ver1.0 15/29
Page 16
M170EG01 V.1
Product Specification
3.4 Signal Description
The module using a pair of LVDS receiver SN75LVDS82(Texas Instruments) or compatible. LVDS is a
differential signal technology for LCD interface and high speed data transfer device. Transmitter shall be
SN75LVDS83(negative edge sampling) or compatible. The first LVDS port(RxOxxx) transmits odd pixels
while the second LVDS port(RxExxx) transmits even pixels.
PIN # SIGNAL NAME DESCRIPTION
1 RxOIN0- Negative LVDS differential data input (Odd data)
2 RxOIN0+ Positive LVDS differential data input (Odd data)
3 RxOIN1- Negative LVDS differential data input (Odd data)
4 RxOIN1+ Positive LVDS differential data input (Odd data)
5 RxOIN2- Negative LVDS differential data input (Odd data,H-Sync,V-Sync,DSPTMG)
6 RxOIN2+ Positive LVDS differential dat a input (Odd data, H-Sync,V-Sync,DSPTMG)
7 VSS Power Ground
8 RxOCLKIN- Negative LVDS differential clock input (Odd clock)
9 RxOCLKIN+ Positive LVDS differential clock input (Odd clock)
10 RxOIN3- Negative LVDS differential data input (Odd data)
11 RxOIN3+ Positive LVDS differential data input (Odd data)
12 RxEIN0- Negative LVDS differential data input (Even data)
13 RxEIN0+ Positive LVDS differential data input (Even data)
14 VSS Power Ground
15 RxEIN1- Positive LVDS differential data input (Even data)
16 RxEIN1+ Negative LVDS differential data input (Even data)
17 VSS Power Ground
18 RxEIN2- Negative LVDS differential data input (Even data)
19 RxEIN2+ Positive LVDS differential data input (Even data)
20 RxECLKIN- Negative LVDS differential clock input (Even clock)
21 RxECLKIN+ Positive LVDS differential clock input (Even clock)
22 RxEIN3- Negative LVDS differential data input (Even data)
23 RxEIN3+ Positive LVDS differential data input (Even data)
24 VSS Power Ground
25 VSS Power Ground
26 NC No Connection ( for AUO test)
27 VSS Power Ground
28 VCC +5.0V Power Supply
29 VCC +5.0V Power Supply
30 VCC +5.0V Power Supply
Ver1.0 16/29
Page 17
M170EG01 V.1
RxO
IN
0
VCC
Product Specification
Note1: Start from left side
Connector
30
-
Note2: Input signals of odd and even clock shall be the same timing.
Note3: Please follow PSWG.
Ver1.0 17/29
Page 18
The input data format:
Product Specification
M170EG01 V.1
Note1: Normally, DE, VS, HS on EVEN channel are not used.
Note2: Please follow PSWG.
Note3: 8-bit in
Ver1.0 18/29
Page 19
Product Specification
V

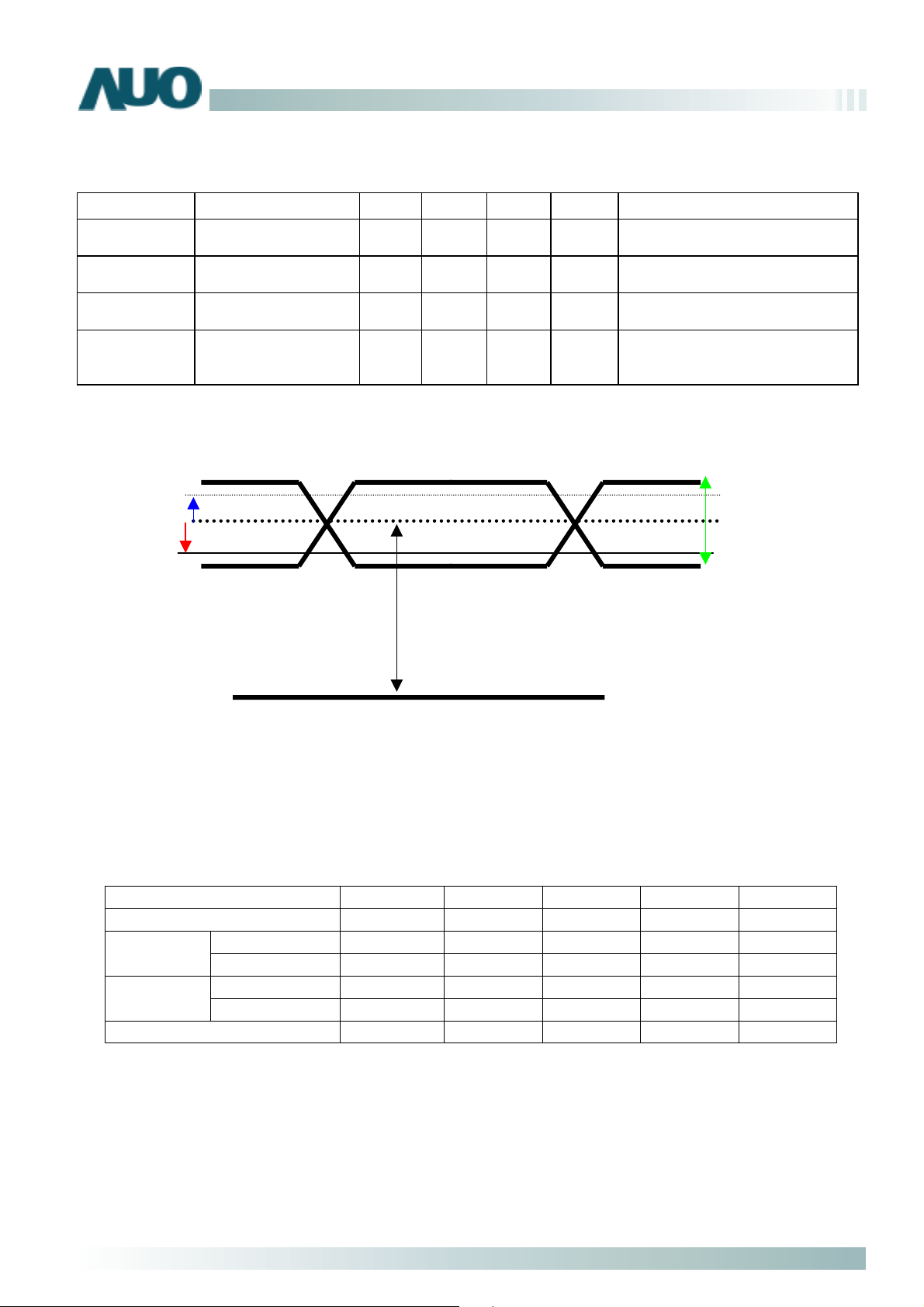

3.5 Signal Electrical Characteristics
Each signal characteristics are as follows;
Symbol Parameter Min Typ Max Units Condition
VTH
VTL
│VID│
VICM
Note
LVDS Signal Waveform
VTH
VTL
Differential Input
High Threshold
Differential Input
Low Threshold
Input Differential
Voltage
Differential Input
Common Mode
Voltage
SS
- -
-100 100 400 600 [mV]
1.1 - 1.45 [V]
VICM
100 [mV]
- [mV]
VICM = 1.2V Note
VICM = 1.2V Note
Note
VTH/VTL = ± 100Mv Note
M170EG01 V.1
│VID│
3.6 Interface Timings
3.6.1 Timing Characteristics
Item Symbol Min Typ Max Unit
Data CLK Tclk 40 54 70 MHz
H-section
V-section
Frame Rate F 49 60 76 Hz
Note: DE mode only
Period Th 685 844 1024 Tclk
Display Area Tdisp(h) 640 640 640 Tclk
Period Tv 1036 1066 2048 Th
Display Area Tdisp(v) 1024 1024 1024 Th
Ver1.0 19/29
Page 20
3.6.2 Timing Definition
DE
Tclk
M170EG01 V.1
Product Specification
CLK
DE
Tblk(v)
Tdisp(h)
Tblk(h)
Th
Th
Tdisp(v)
Tv
Ver1.0 20/29
Page 21
M170EG01 V.1
V
Product Specification

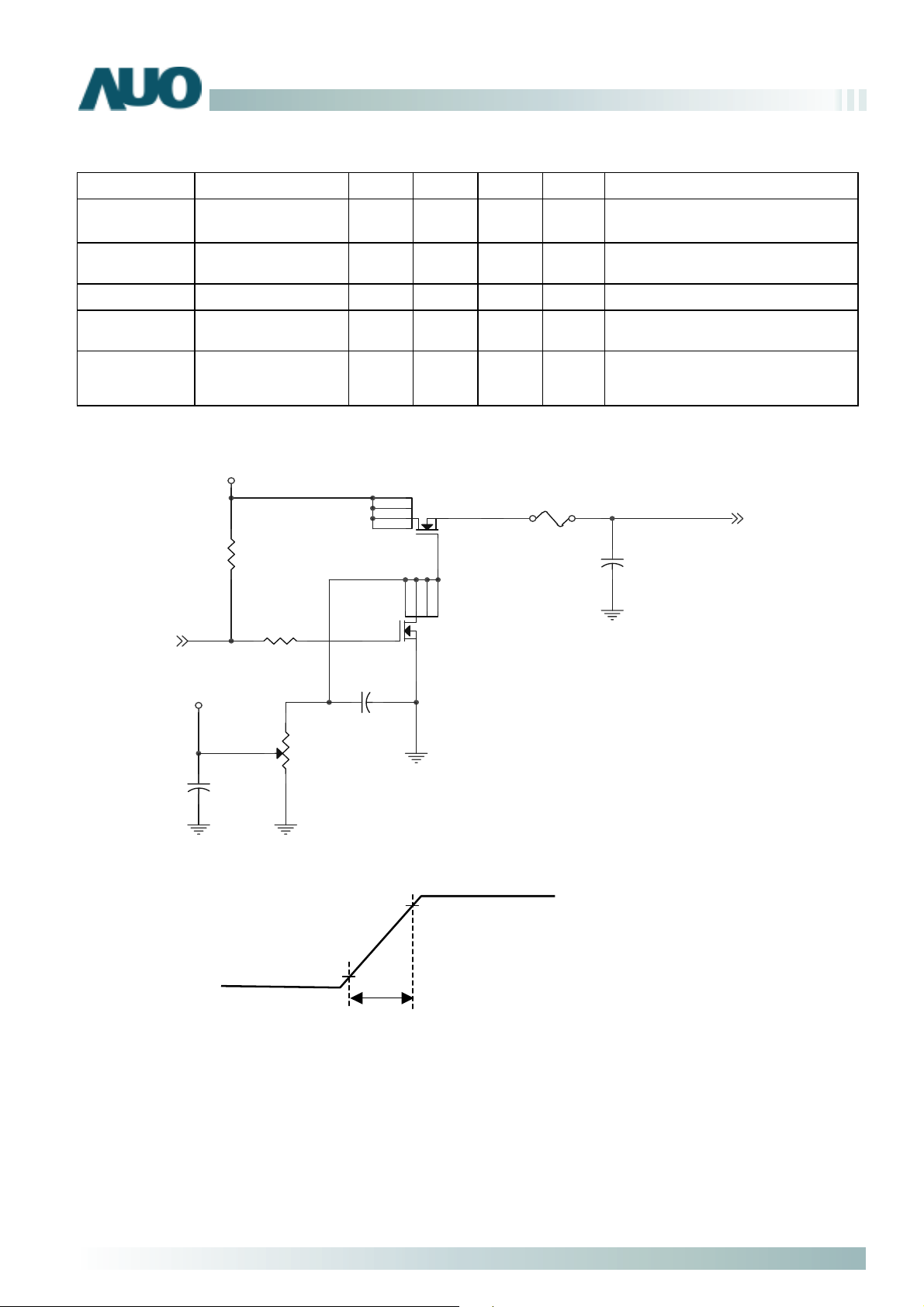

3.7 Power Consumption
Input power specifications are as follows;
Symbol Parameter Min Typ Max Units Condition
VDD Logic/LCD Drive
Voltage
IDD VDD current - 1200 1560 [mA] Vin=5V , All Black Pattern,
Irush LCD Inrush Current - - 2.5 [A] Note
PDD VDD Power
VDDrp Allowable
Logic/LCD Drive
Ripple Voltage
Note: Measurement conditions:
+5.0V
R1
47K
4.5 5 5.5 [Volt]
±10%
at 75Hz
6
Q3
AO6402
D6
D5
D2 S
D1
G
7.8 [Watt] Vin=5V , All Black Pattern,
at 75Hz
100 [mV]
p-p
F1
Vin=5V , All Black Pattern,
at 75Hz
C1
1uF/16V
VCC
(LCD Module Input)
(High to Low)
Control Signal
SW
+12.0V
0V
C2
1uF/25V
D2SD1D5
D6
R2
1K
VR1
47K
G
C3
0.01uF/25V
Q3
AO6402
5.0V
470 us
in rising time
Ver1.0 21/29
Page 22
M170EG01 V.1
p
g
Product Specification

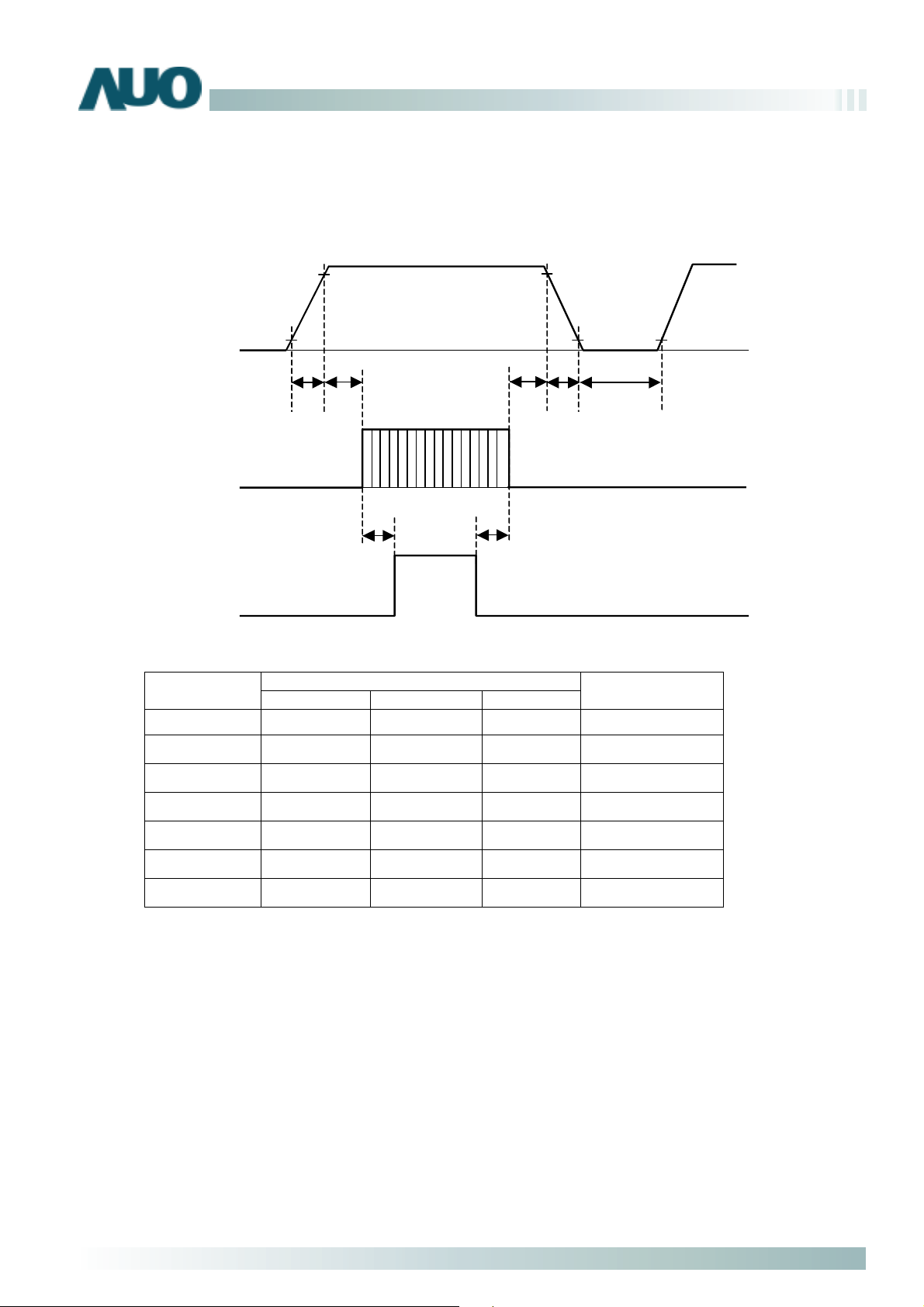

3.8 Power ON/OFF Sequence
Vin and lamp power on/off sequence are as follows. The timing parameters of interface signal are shown in
the table below. The signal please reference “3.4 Signal Description”.
Vin
0V
Si
nal
0V
Lam
0V
Symbol
T1
T2 0 - 10
T3 200
T4 100
T5
T6
T7 1000
Note: The values of the table are follow PSWG.
90% 90%
10%
T2 T5 T6 T7
T1
T3
Values
Min. Typ. Max.
0.5 -
- -
- -
0 16
- -
- -
10%
10%
T4
Unit
10 ms
ms
ms
ms
50
10
ms
ms
ms
Ver1.0 22/29
Page 23
Product Specification
4.0 Backlight Characteristics
4.1 Signal for Lamp connector
Connector No. Pin No. Input Color Function
CN1
Upper
CN2
CN3
Lower
CN4
4.2 Parameter guideline for CCFL Inverter
1 Hot1 Pink High Voltage
2 Cold1 White Low Voltage
1 Hot2 Blue High Voltage
2 Cold2 Black Low Voltage
1 Hot1 Pink High Voltage
2 Cold1 White Low Voltage
1 Hot2 Blue High Voltage
2 Cold2 Black Low Voltage
M170EG01 V.1
Symbol Parameter Min. Typ. Max. Unit Condition
ISCFL CCFL standard current
7.0 7.5 8.0
[mA]
(Ta=25oC) Note 1
rms
IRCFL CCFL operation range
3.0 7.5 8.0
[mA]
(Ta=25oC)
rms
FCFL CCFL Frequency
ViCFL
o
(0
C)
ViCF
o
(25
C)
CCFL Ignition Voltage
(End of the lamp wire connector)
CCFL Ignition Voltage
(End of the lamp wire connector)
CCFL Operation Voltage
VCFL
40 60 80
1500 - -
1150 - -
660
700
@7.5mA
@3.0mA
[KHz] (Ta=25oC) Note 2
[Volt]
(Ta=0oC)
rms
[Volt]
(Ta=25
o
C)
rms
[Volt]
(Ta=25oC) Note 1
rms
CCFL Power consumption (for
PCFL
- 19.8 21.8 [Watt] (Ta=25oC) Note 3
reference)
LTCFL CCFL life Time 30,000 50,000 - [Hour] (Ta=25oC) Note 4
Note 1: CCFL standard current is measured at 25±2℃.
Note 2: CCFL Frequency should be carefully determined to avoid interference between inverter and TFT LCD
Note 3: The variance of CCFL power consumption is ±10%. Calculator value for reference
(ICFL×VCFL×4=PCFL).
Note 4: CCFL life time is determined as the time at which brightness of lamp is 50%. The typical life time of
CCFL is on the condition at 7.5 mA lamp current.
Ver1.0 23/29
Page 24
Product Specification
5.0 Vibration, Shock, and Drop
5.1 Vibration & Shock
Vibration Test Spec:
M170EG01 V.1
Shock Test Spec:
Direction: ±X , ±Y, ±Z
Frequency: 10 - 200Hz
Sweep: 30 Minutes each Axis (X, Y, Z)
Acceleration: 1.5G(10~200Hz P- P)
Test method:
Acceleration (G)
Frequency (Hz)
Active time (min)
Acceleration (G) –a
Active time -b
Wave form
Times
1.5
10~200~10
30
50
20 ms
Half-sin
1
5.2 Drop test
Package test: The drop height is 60cm.
6.0 Environment
The display module will meet the provision of this specification during operating condition or after storage or
shipment condition specified below. Operation at 10% beyond the specified range will not cause physical
damage to the unit.
6.1 Temperature and Humidity
6.1.1 Operating Conditions
The display module operates error free, when operated under the following conditions;
Temperature 0
Relative Humidity 8% to 95%
Wet Bulb Temperature 39.0
6.1.2 Shipping Conditions
The display module operates error free, after the following conditions;
Temperature -20
Relative Humidity 5% to l00%
Wet Bulb Temperature 39.0
0
C to 50 0C
0
C
0
C to 60 0C
0
C
Ver1.0 24/29
Page 25
6.2 Atmospheric Pressure
The display assembly is capable of being operated without affecting its operations over the
pressure range as following specified;
Pressure Note
Maximum Pressure 1040hPa (sea level)
Minimum Pressure 674hPa (3048m)
6.3 Thermal Shock
The display module will not sustain damage after being subjected to 100 cycles of rapid
temperature change. A cycle of rapid temperature change consists of varying the temperature
from -20
Thermal shock cycle -20
60
Power is not applied during the test. After temperature cycling, the unit is placed in normal room
ambient for at least 4 hours before powering on.
0
C to 600C, and back again.
Product Specification
0
C for 30min
0
C for 30min
M170EG01 V.1
7.0 Reliability
This display module and the packaging of that will comply following standards.
7.1 Failure Criteria
The display assembly will be considered as failing unit when it no longer meets any of the
requirements stated in this specification. Only as for maximum white luminance, following criteria is
applicable.
Maximum white Luminance shall be 150cd/m
7.2 Failure Rate
The average failure rate of the display module (from first power-on cycle till 1,000 hours later) will not exceed
1.0%. The average failure rate of the display module from 1,000 hours until 16,000 hours will not exceed 0.7%
per 1000 hours.
7.2.1 Usage
The assumed usage for the above criteria is:
220 power-on hours per month
500 power on/off cycles per month
Maximum brightness setting
Operation to be within office environment (25
2
or more.
0
C typical)
Ver1.0 25/29
Page 26
8.0 Safety
8.1 Sharp Edge Requirements
There will be no sharp edges or comers on the display assembly that could cause injury.
8.2 Materials
8.2.1 Toxicity
There will be no carcinogenic materials used anywhere in the display module. If toxic
materials are used, they will be reviewed and approved by the responsible ADT
Toxicologist.
8.2.2 Flammability
All components including electrical components that do not meet the flammability grade
UL94-V1 in the module will complete the flammability rating exception approval process.
Product Specification
M170EG01 V.1
The printed circuit board will be made from material rated 94-V1 or better. The actual UL
flammability rating will be printed on the printed circuit board.
8.3 Capacitors
If any polarized capacitors are used in the display assembly, provisions will be made to keep
them from being inserted backwards.
Ver1.0 26/29
Page 27
9.0 Other requirement
9.1 National Test Lab Requirement
The display module will satisfy all requirements for compliance to
UL 1950, First Edition U.S.A. Information Technology Equipment
CSA C22.2 No.950-M89 Canada, Information Technology Equipment
EEC 950 International, Information Technology Equipment
EN 60 950 International, Information Processing Equipment
(European Norm for IEC950)
9.2 Label
The label is on the panel as shown below:
Product Specification
M170EG01 V.1
Ver1.0 27/29
Page 28
10.0 Mechanical Characteristics
Ver1.0 28/29
Page 29
Ver1.0 29/29
Loading...
