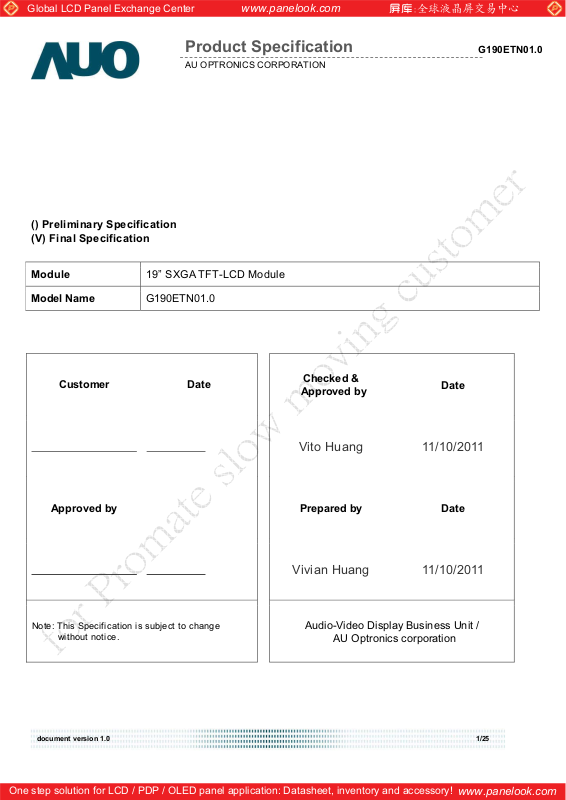

Page 1
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
ʳ
ʳ
() Preliminary Specification
(V) Final Specification
Module
Model Name
19” SXGA TFT-LCD Module
G190ETN01.0
G190ETN01.0
Customer Date
Approved by
Note: This Specification is subject to change
without notice.
Checked &
Approved by
Vito Huang
Prepared by Date
Date
11/10/20 11
Vivian Huang 11/10/2011
Audio-Video Display Business Unit /
AU Optronics corporation
document version 1.0 1/25
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 2
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
G190ETN01.0
Contents
1. Handling Precautions...............................................................................................................4
2. General Description .................................................................................................................5
2.1 Display Characteristics.......................................................................................................5
3. Functional Block Diagram .......................................................................................................9
4. Absolute Maximum Ratings...................................................................................................10
4.1 TFT LCD Module..............................................................................................................10
4.2 Absolute Ratings of Environment .....................................................................................10
5. Electrical characteristics .......................................................................................................11
5.1 TFT LCD Module..............................................................................................................11
6. Signal Characteristic ..............................................................................................................14
6.1 Pixel Format Image...........................................................................................................14

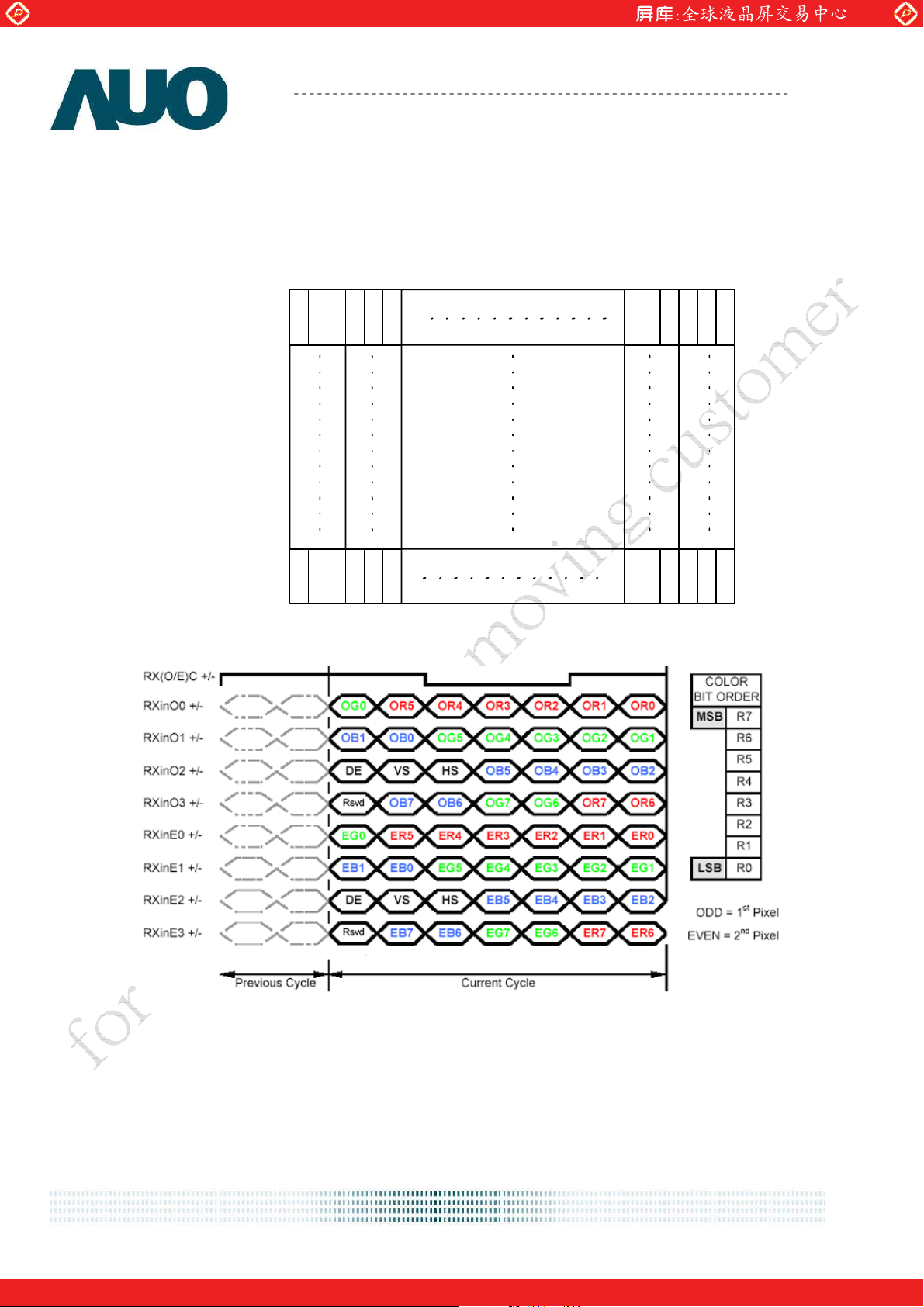

6.2 The Input Data Format......................................................................................................14
6.3 Signal Description ............................................................................................................15
6.4 Interface Timing ................................................................................................................17
6.5 Power ON/OFF Sequence................................................................................................19
7. Connector & Pin Assignment ................................................................................................20
7.1 TFT LCD Module..............................................................................................................20
7.2 Backlight Unit ...................................................................................................................21
8. Reliability Test ........................................................................................................................22
9. Label and Packing ..................................................................................................................23

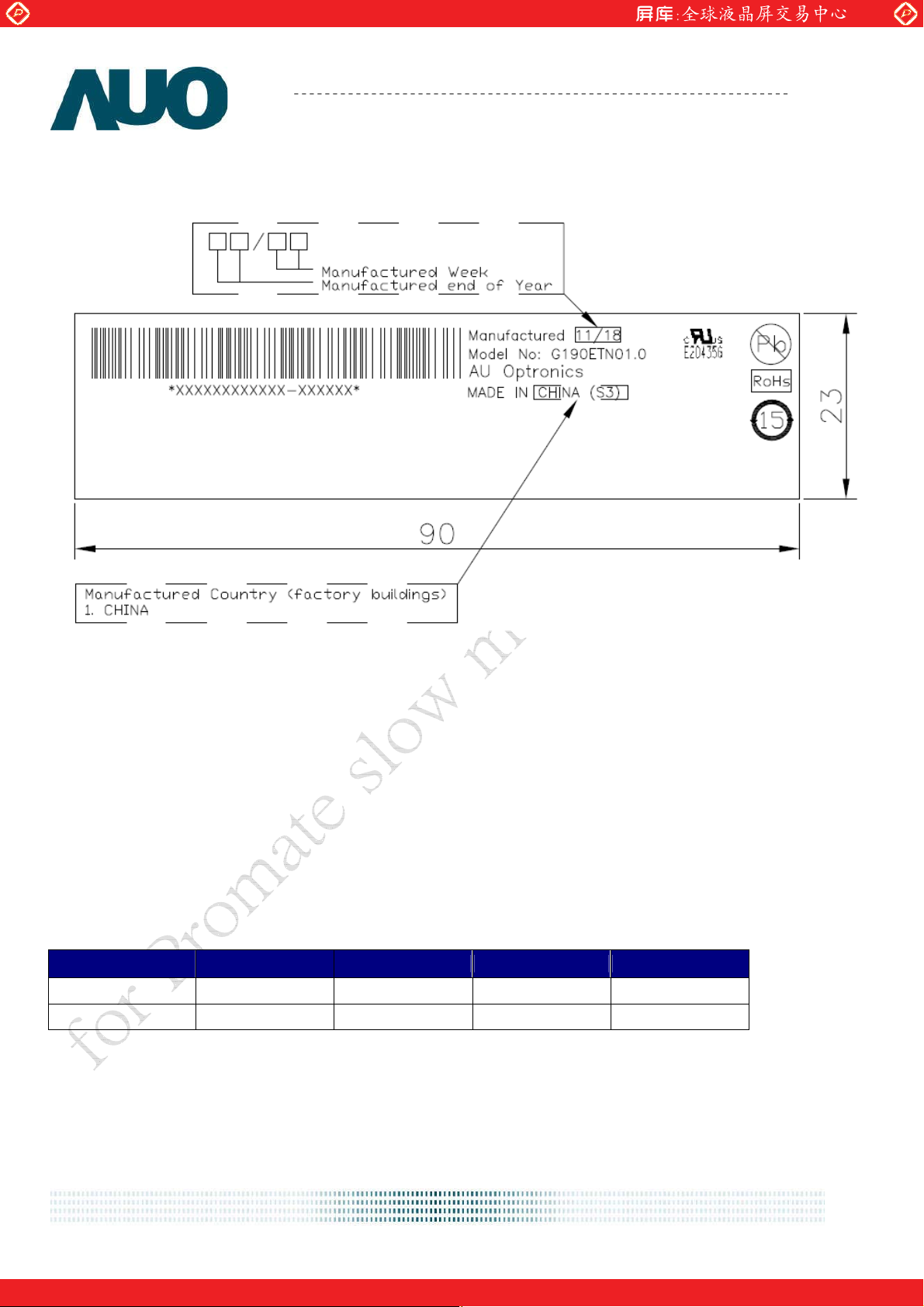

9.1. Shipping Label ...............................................................................................................23
9.2 Packing Form ..................................................................................................................23
9.3 Palletizing sequence .......................................................................................................23

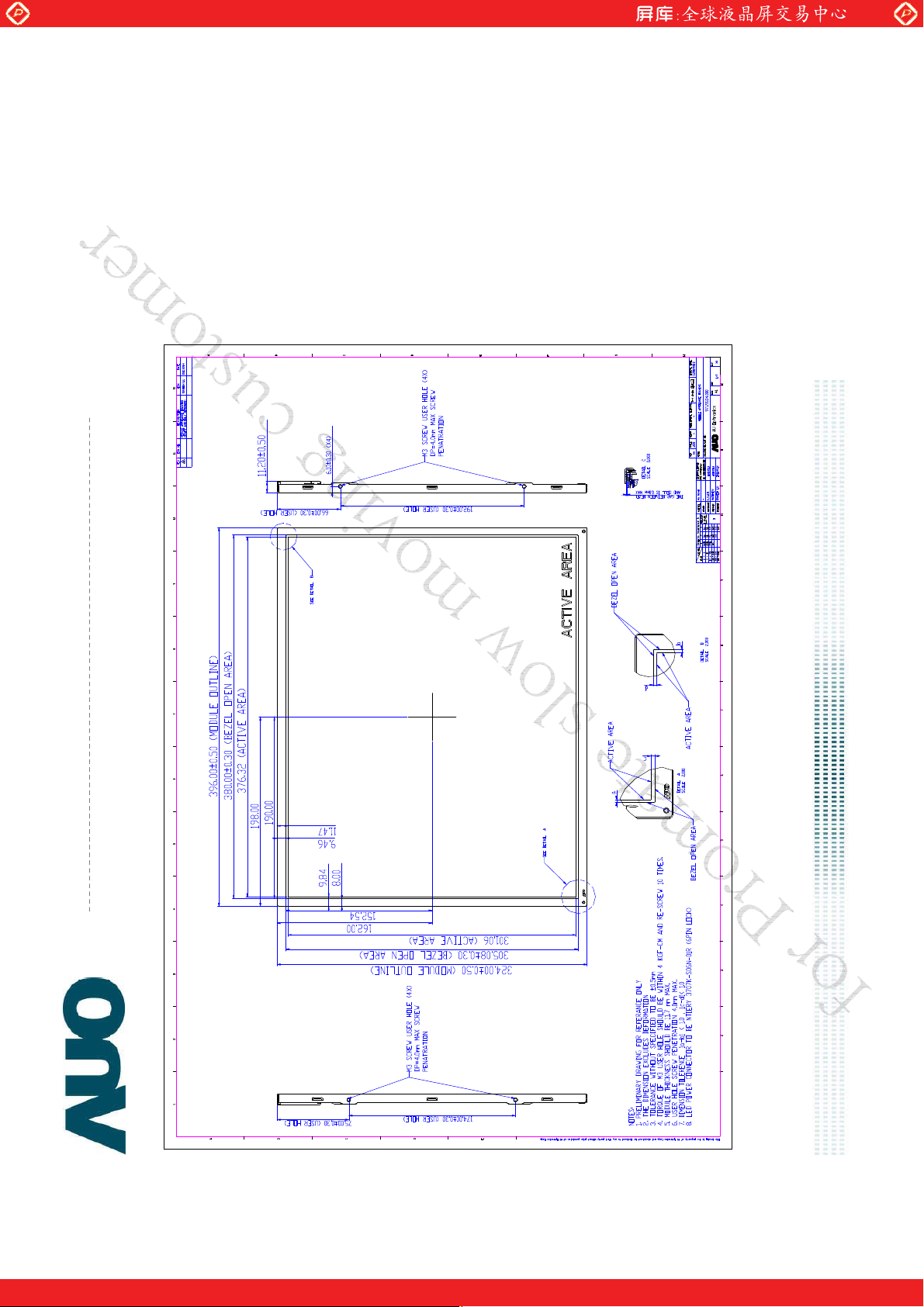

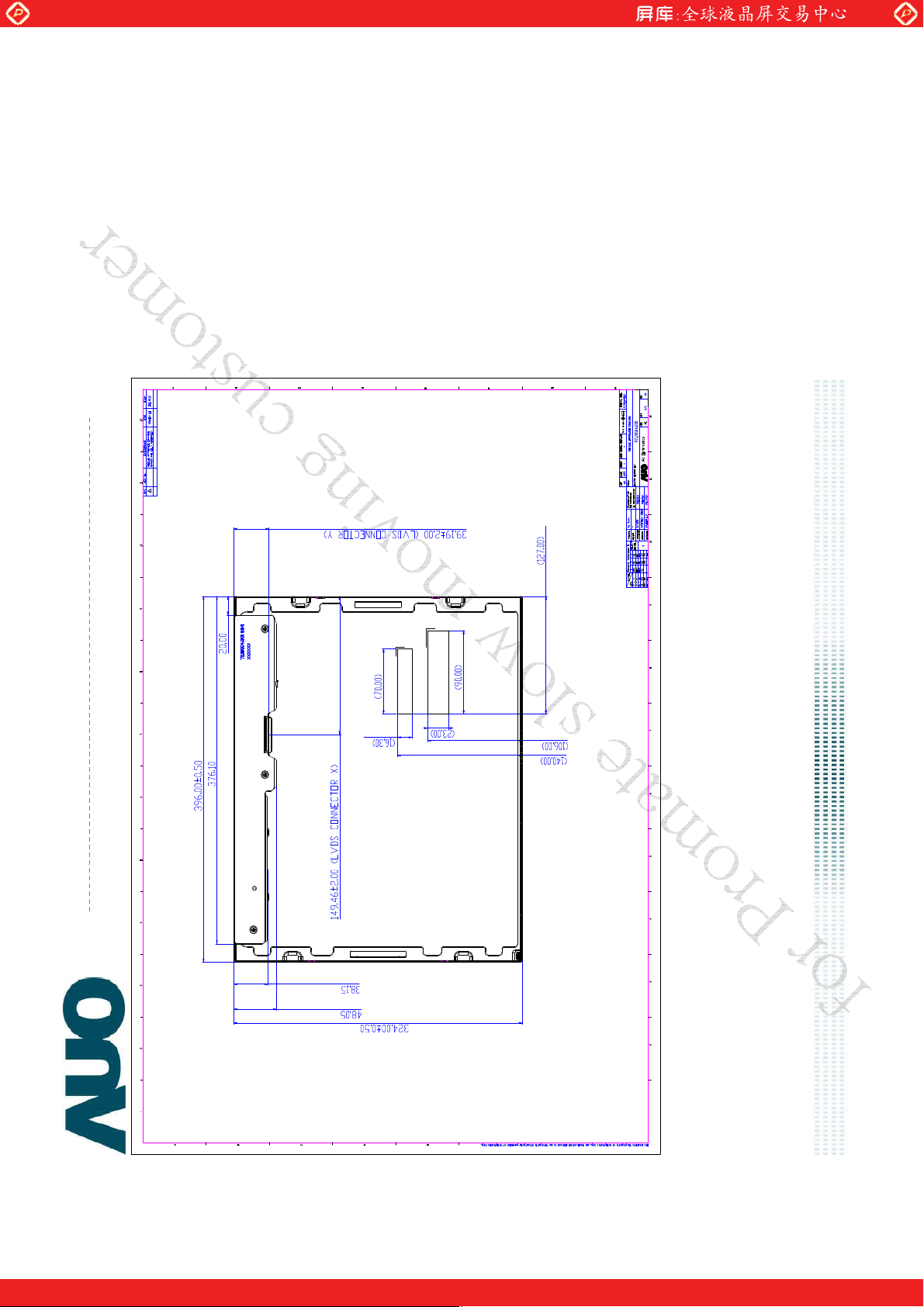

10. Outline Drawing ....................................................................................................................24
document version 1.0 2/25
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 3
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
G190ETN01.0
Record of Revision
Version & Date Page Old Description New Description Remark
0.0 2011/09/13 All Frist Draft
1.0 2011/11/10 23
Update Label and Packing
document version 1.0 3/25
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 4
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
G190ETN01.0
1. Handling Precautions
1) Since front polarizer is easily damaged, please be cautious and not to scratch it.
2) Be sure to turn off power supply when inserting or disconnecting from input connector.
3) Wipe off water drop immediately. Long contact with water may cause discoloration or spots.
4) When the panel surface is soiled, wipe it with absorbent cotton or soft cloth.
5) Since the panel is made of glass, it may be broken or cracked if dropped or bumped on hard
surface.
6) To avoid ESD (Electro Static Discharde) damage, be sure to ground yourself before handling
TFT-LCD Module.
7) Do not open nor modify the module assembly.
8) Do not press the reflector sheet at the back of the module to any direction.
9) In case if a module has to be put back into the packing container slot after it was taken out
from the container, do not press the center of the LED light bar edge. Instead, press at the far
ends of the LED light bar edge softly. Otherwise the TFT Module may be damaged.
10) At the insertion or removal of the Signal Interface Connector, be sure not to rotate nor tilt the
Interface Connector of the TFT Module.
11) TFT-LCD Module is not allowed to be twisted & bent even force is added on module in a very short
time. Please design your display product well to avoid external force applying to module by
end-user directly.
12) Small amount of materials without flammability grade are used in the TFT-LCD module. The
TFT-LCD module should be supplied by power complied with requirements of Limited Power Source
(IEC60950 or UL1950), or be applied exemption.
13) Severe temperature condition may result in different luminance, response time and lamp ignition
voltage.
14) Continuous operating TFT-LCD display under low temperature environment may accelerate lamp
exhaustion and reduce luminance dramatically.
15) The data on this specification sheet is applicable when LCD module is placed in landscape position.
16) Continuous displaying fixed pattern may induce image sticking. It’s recommended to use screen
saver or shuffle content periodically if fixed pattern is displayed on the screen.
document version 1.0 4/25
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 5
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
G190ETN01.0
2. General Description
G190ETN01.0 is a Color Active Matrix Liquid Crystal Display composed of a TFT-LCD panel, a driver circuit, and
a backlight system. The screen format is intended to support the SXGA (1280(H) x 1024(V)) screen and 16.7M
colors (RGB 6-bits + HiFRC data). All input signals are 2-channel LVDS interface.
2.1 Display Characteristics
The following items are characteristics summary on the table under 25 к condition:
Items Unit Specifications
Screen Diagonal [mm] 482.6 (19.0")
Active Area [mm] 376.32 (H) x 301.06 (V)
Pixels H x V 1280(x3) x 1024
Pixel Pitch [mm] 0.294 (per one triad) x 0.294
Pixel Arrangement R.G.B. Vertical Stripe
Display Mode Normally W hite
White Luminance [cd/m2] 350 (center, Typ) @60.0mA
Contrast Ratio 1000 : 1 (Typ)
Optical ResponseTime [msec] 5 ms(Typ, on/off)
Nominal Input Voltage VDD [Volt] +5.0 V
Power Consumption [Watt] 14.5 W (Typ) (PDD= 4.7 W, PLED=9.8 W )
Weight [Grams] 1800 (Typ)
Physical Size (H x V x D) [mm] 396 (H) x 324 (V) x 11.2(D) (Typ)
Electrical Interface Dual channel LVDS
Surface Treatment Hard-coating (3H), Non-Glare treatment
Support Color 16.7M colors (RGB 6-bit + Hi_FRC)
Temperature Range
Operating
Storage (Non-Operating)
RoHS Compliance RoHS Compliance
document version 1.0 5/25
o
C]
[
o
C]
[
0 to +50
-20 to +60
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 6
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
G190ETN01.0
2.2 Optical Characteristics
The optical characteristics are measured under stable conditions at 25 (Room Temperature)к .
Item Unit Conditions Min. Typ. Max. Note
Horizontal (Right)
CR = 10 (Left)
Viewing Angle [degree]
Vertical (Up)
CR = 10 (Down)
Contrast Ratio Normal Direction 600 1000 - 3
Raising Time (TrR)
Optical Response Time [msec]
Falling Time (TrF)
Rising + Falling - 5 8
Red x 0.589 0.639 0.689
75
75
70
70
- 3.6 5.7
- 1.4 2.3
85
85
80
80
-
-
2
4
Red y 0.296 0.346 0.396
Green x 0.274 0.324 0.374
Color / Chromaticity
Coordinates
(CIE)
Central Luminance
Luminance Uniformity [%] 9 Points 75 80 - 7
NTSC [%] 72
[cd/m
2
Green y 0.577 0.627 0.677
Blue x 0.104 0.154 0.204
Blue y 0.004 0.054 0.104
White x 0.263 0.313 0.363
White y 0.279 0.329 0.379
] 280 350 - 6
Optical Equipment: BM-5A, BM-7, PR880, or equivalent
5
document version 1.0 6/25
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 7
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION

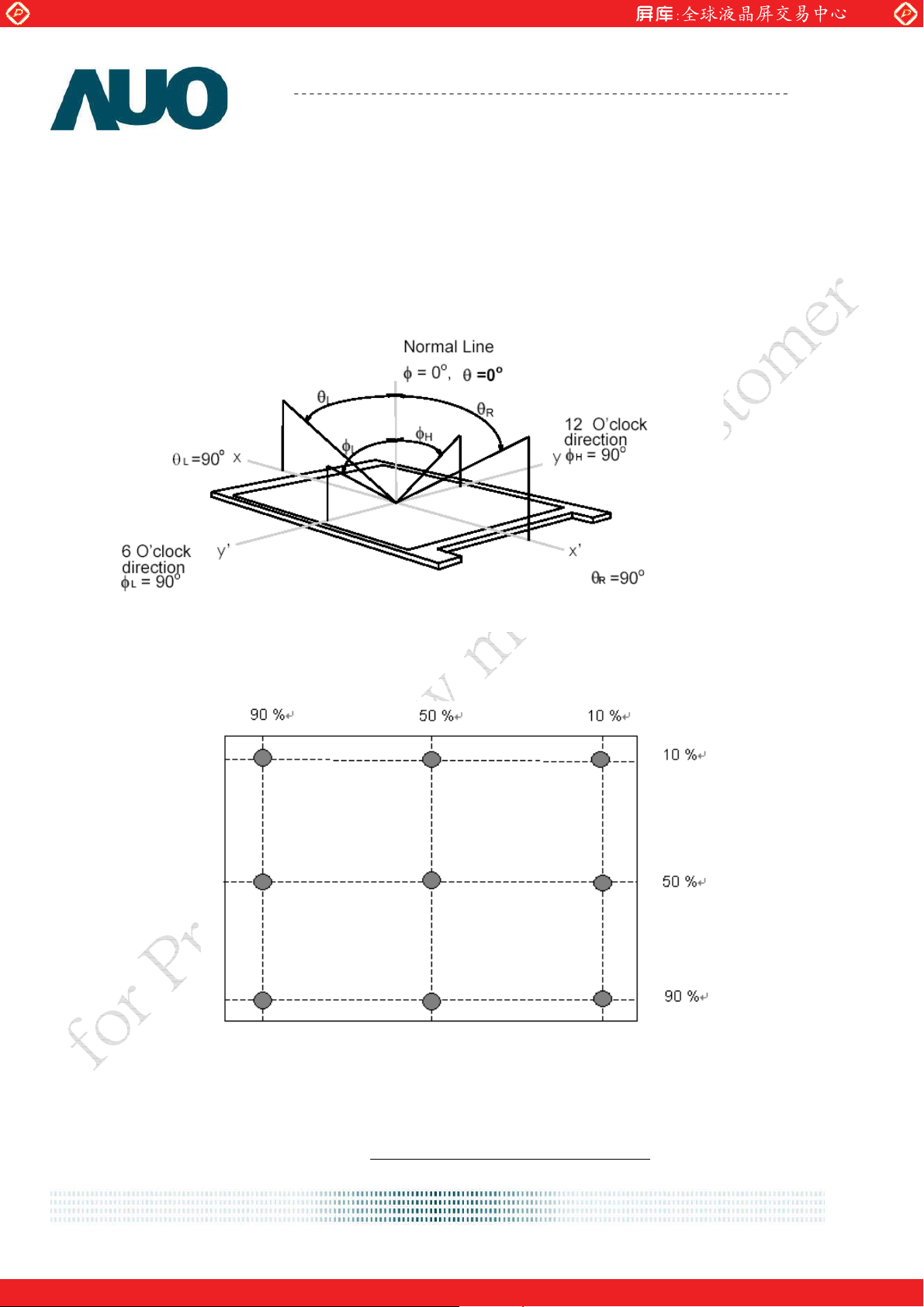

Note 1: Definition of viewing angle
Viewing angle is the measurement of contrast ratioЊ10, or Њ5, at the screen center, over a 180 horizontal and
180 vertical range (off-normal viewing angles). The 180 viewing angle range is broken down as follows; 90 (Ӱ)
horizontal left and right and 90 (ӥ) vertical, high (up) and low (down). The measurement direction is typically
perpendicular to the display surface with the screen rotated about its center to develop the desired measurement
viewing angle.
G190ETN01.0
Note 2: 9 points position
Note 3:
Uniformity =
9)-(1 points 9in LuminanceMinimum
9)-(1 Points 9in LuminanceMaximum
document version 1.0 7/25
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 8
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
G190ETN01.0

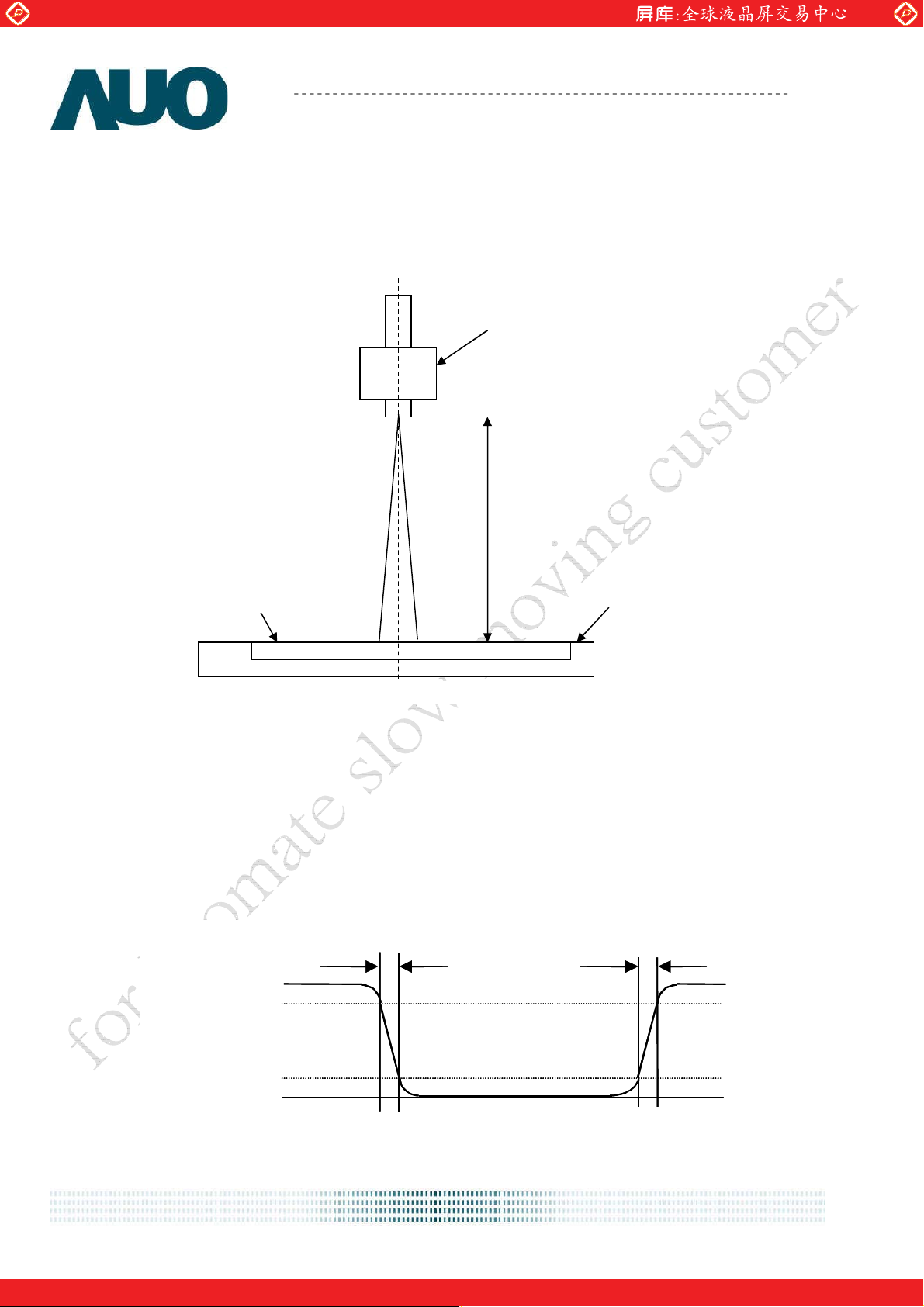

Note 4: Measurement method
The LCD module should be stabilized at given temperature for 30 minutes to avoid abrupt temperature change
during measuring. In order to stabilize the luminance, the measurement should be executed after lighting
Backlight for 30 minutes in a stable, windless and dark room. ʳ
Photo detector
Field=1
50 cm
LCD Panel
Center of the screen
TFT-LCD
Note 5: Definition of response time:
The output signals of photo detector are measured when the input signals are changed from “Full Black” to “Full
White” (rising time), and from “Full W hite” to “Full Black” (falling time), respectively. The response time is interval
between the 10% and 90% of amplitudes. Please refer to the figure as below.
%
Optical
Optical
response
response
100
100
90
90
10
10
%
White Black White
White Black White
0
0
Tr
Tr
Tr
F
F
Tr
R
R
document version 1.0 8/25
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 9
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
G190ETN01.0

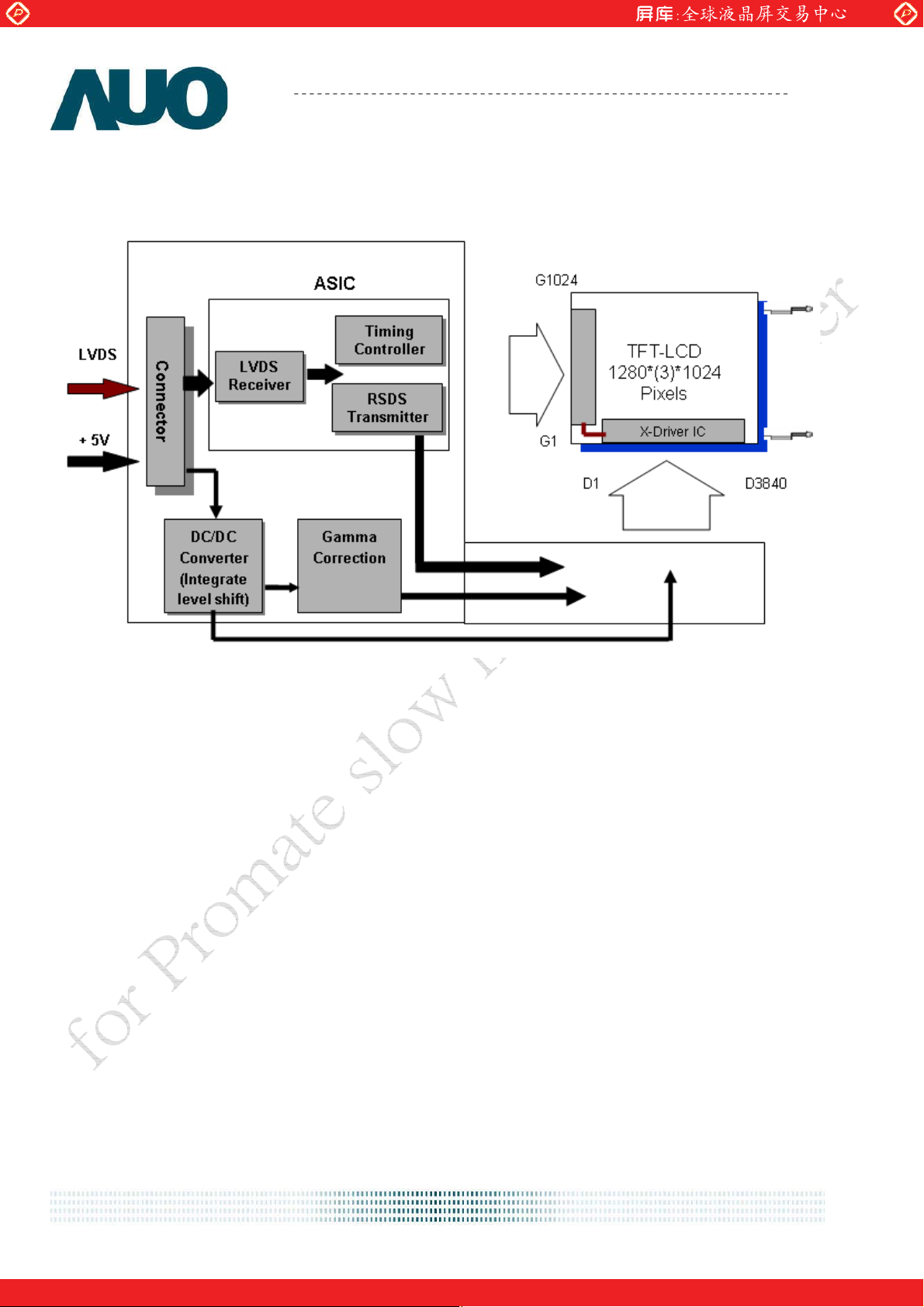

3. Functional Block Diagram
The following diagram shows the functional block of the 19.0 inches wide Color TFT-LCD Module:
document version 1.0 9/25
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 10
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
G190ETN01.0
4. Absolute Maximum Ratings
Absolute maximum ratings of the module are as following:
4.1 TFT LCD Module
Item Symbol Min Max Unit Conditions
Logic/LCD Drive
Voltage
4.2 Absolute Ratings of Environment
Item Symbol Min. Max. Unit Conditions
Operating Temperature TOP 0 +50 [oC] Note 3
Glass surface temperature
(operation)
VDD -0.3 +6.0 [Volt] Note 1,2
TGS 0 +65 [
o
C] Note 3, Note 4
Operation Humidity HOP 5 90 [%RH]
Storage Temperature TST -20 +60 [oC]
Storage Humidity HST
Note 1: With in Ta (25к)
Note 2: Permanent damage to the dev ice may occur if exceeding maximum values

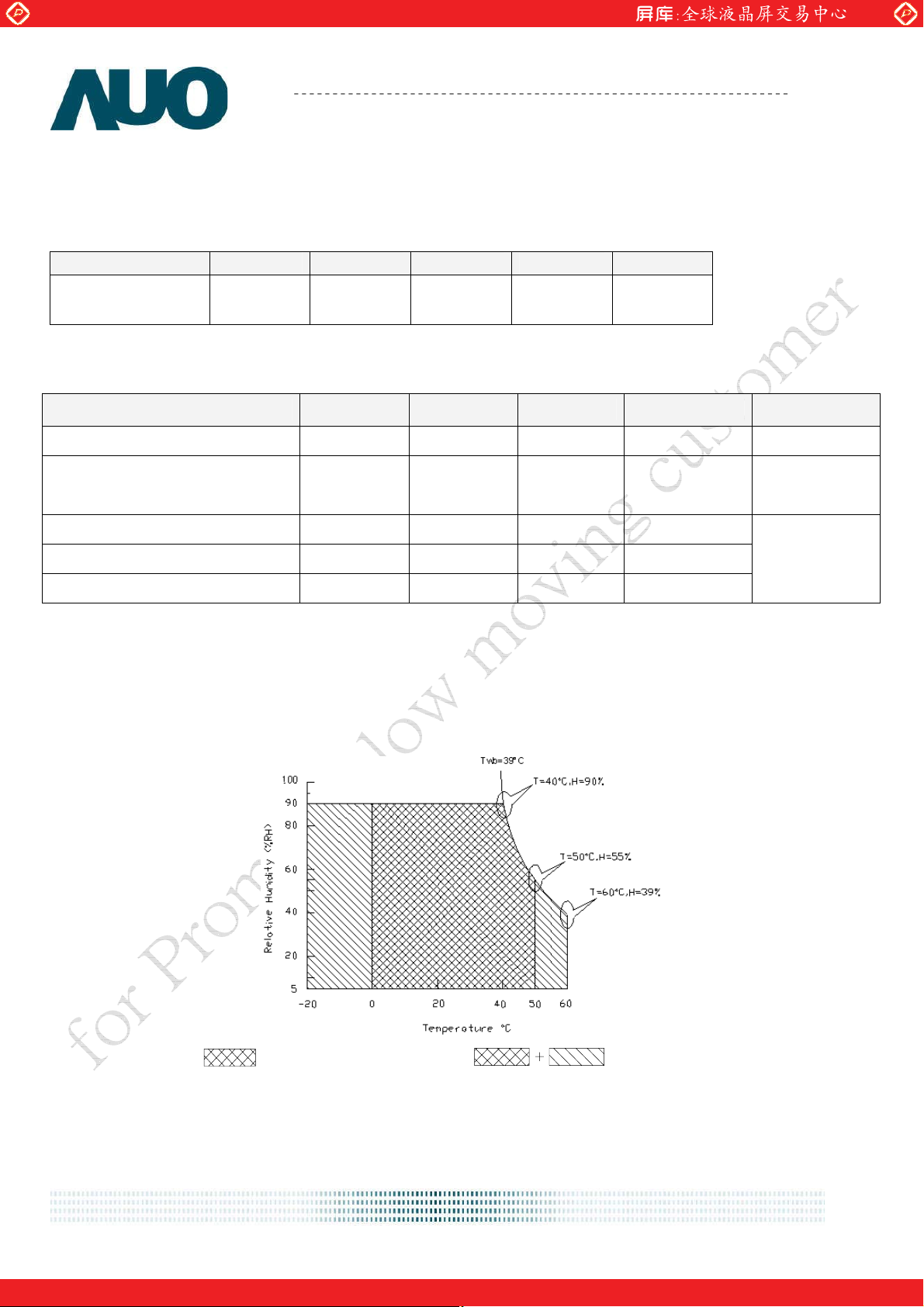

Note 3: Temperature and relative humidity range are shown as the below figure.
1. 90% RH Max ( Ta Љ39к)
2. Max wet-bulb temperature at 39к or less. ( Ta Љ39к)
3. No condensation
Note 4: Function Judged only
5 90
[%RH]
Note 3
Operating Range Storage Range
document version 1.0 10/25
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 11
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
5. Electrical characteristics
5.1 TFT LCD Module

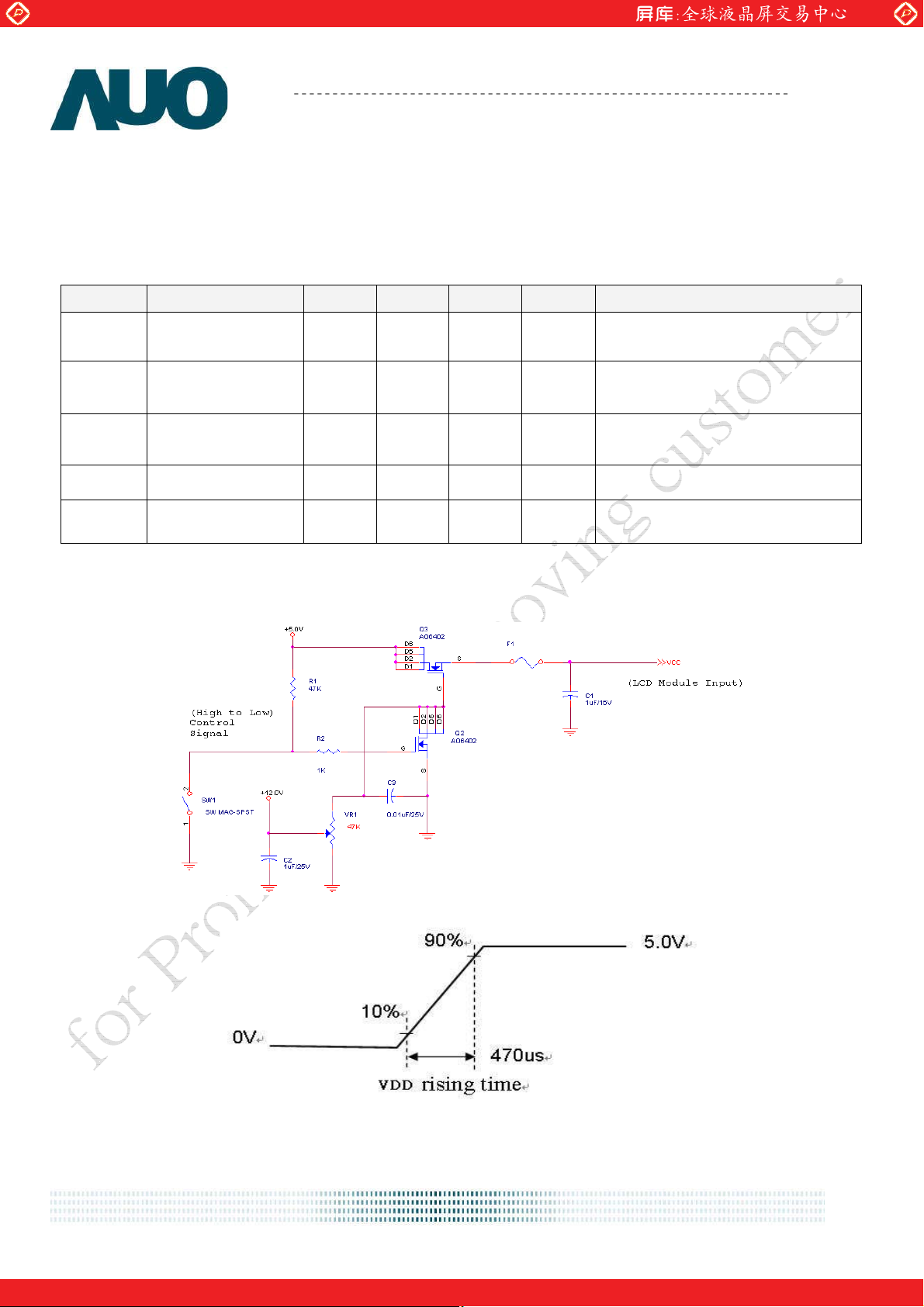

5.1.1 Power Specification
Input power specifications are as follows:
Symbol Parameter Min Typ Max Unit Conditions
VDD
IDD Input Current
PDD VDD Power
IRush Inrush Current
VDDrp
Logic/LCD Drive
Voltage
Allowable Logic/LCD
Drive Ripple Voltage
4.5
-
-
-
-
5.0
0.94
4.7 5.5 [Watt] VDD= 5.0V, All Black Pattern At 60Hz
- 3.0 [A] Note 1
- 100 [mV] p-p VDD= 5.0V, All Black Pattern At 75Hz
5.5
1.1
[Volt] +/-10%
[A] VDD= 5.0V, All Black Pattern At 60Hz,
G190ETN01.0
Note 1: Measurement conditions:
The duration of rising time of power input is 470us.
document version 1.0 11/25
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 12
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
G190ETN01.0

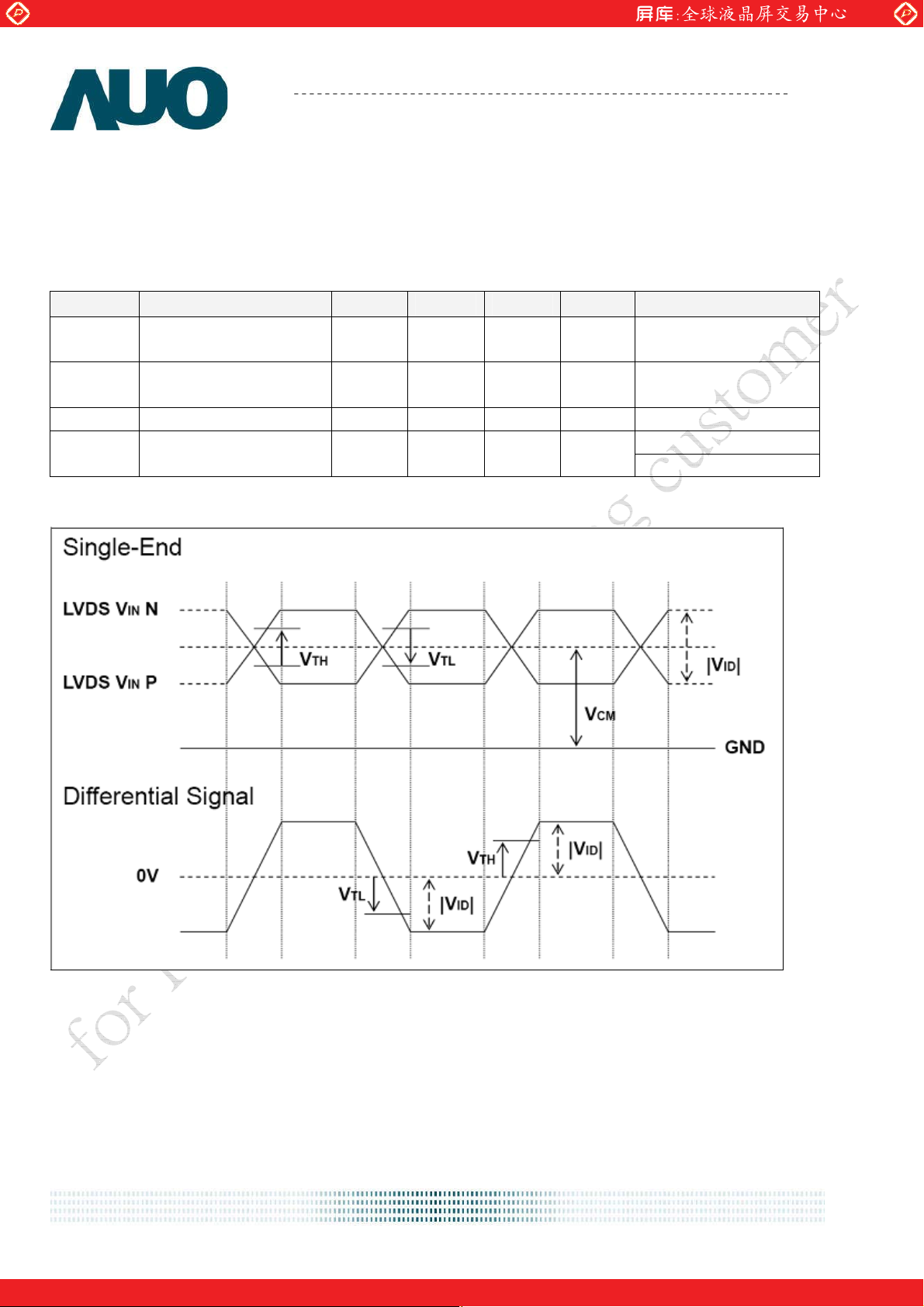

5.1.2 Signal Electrical Characteristics
Input signals shall be low or Hi-Z state when VDD is off. Please refer to specifications of SN75LVDS82DGG
(Texas Instruments) in detail.
Each signal characteristics are as follows;
Symbol Parameter Min Typ Max Units Condition
V
TH
V
TL
֥VID֥ Input Differential Voltage 100 400 600 [mV] Note 1
V
CM
Note1: LVDS Signal Waveform
Differential Input High
Threshold
Differential Input Low
Threshold
Differential Input Common
Mode Voltage
- - +100 [mV]
-100 - - [mV]
+1.0 +1.2 +1.5
[V]
= 1.2V
V
CM
Note 1
V
= 1.2V
CM
Note 1
VTH-VTL = 200mV (max)
Note 1
document version 1.0 12/25
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 13
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
G190ETN01.0
AU OPTRONICS CORPORATION
5.1.3 Backlight unit
Parameter guideline for LED driving is under stable conditions at 25к (Room Temperature):
Symbol Parameter Min. Typ. Max. Unit Note
IR
LED Operation Current - 60
LED
V
LB
P
BLU Power consumption (for ref erence)
BLU
LT
LED life Time (Typical)
LED
Light Bar Operation Voltage
(for reference)
- 41 43.2
- 9.8 - [Watt]
25,000 30,000 -
-
Note 1 :The specified current is input LED chip 100% duty current.
Note 2 : The value showed in the table is one light bar’s operation voltage.
Note 3 : Definition of life time : brightness becomes 50% of its original value. The minimum life time of LED unit is on the
condition of IR
= 60mA and 25±2к(Room temperature).
LED
Note 4: Each LED light bar consists of 48 pcs LED package ( 4 strings x 12 pcs / string ).
[mA]
Note 1
[Volt]
Note 2
[Hour]
Note 3
Operating with fixed
driving current
document version 1.0 13/25
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 14
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
6. Signal Characteristic
6.1 Pixel Format Image
Following figure shows the relationship of the input signals and LCD pixel format.
1 2 1279 1280
1st Line
R G B R G B
R G B R G B
G190ETN01.0
1024th Line
R G B R G B
6.2 The Input Data Format
Note1: Normally, DE, VS, HS on EVEN channel are not used.
Note2: Please follow PSWG.
Note3: 8-bit in
R G B R G B
document version 1.0 14/25
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 15
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
G190ETN01.0
6.3 Signal Description
The module using one LVDS receiver SN75LVDS82(Texas Instruments). LVDS is a differential signal
technology for LCD interface and high speed data transfer device. LVDS transmitters shall be
SN75LVDS83(negative edge sampling). The first LVDS port(RxOxxx) transmits odd pixels while the
second LVDS port(RxExxx) transmits even pixels.
PIN # SIGNAL NAME DESCRIPTION
1
2
3
4
5
6
7
8
RxOIN0-
RxOIN0+
RxOIN1-
RxOIN1+
RxOIN2-
RxOIN2+
GND
RxOCLKIN-
ʳ
ʳ
ʳ
ʳ
ʳ
ʳ
ʳ
Negative LVDS differential data input (Odd data)
Positive LVDS differential data input (Odd data)
Negative LVDS differential data input (Odd data)
Positive LVDS differential data input (Odd data)
Negative LVDS differential data input (Odd data, DSPTMG)
Positive LVDS differential data input (Odd data, DSPTMG)
Power Ground
Negative LVDS differential clock input (Odd clock)
ʳ
9
RxOCLKIN+
10
RxOIN3-
11
RxOIN3+
12
RxEIN0-
13
RxEIN0+
14
15
16
17
18
19
20
21
22
23 RxEIN3+
24
25
ʳ
GND
RxEIN1-
RxEIN1+
ʳ
GND
RxEIN2-
RxEIN2+
RxECLKIN-
RxECLKIN+
RxEIN3-
ʳ
GND
ʳ
GND
Positive LVDS differential clock input (Odd clock)
ʳ
ʳ
ʳ
ʳ
ʳ
ʳ
ʳ
ʳ
ʳ
ʳ
ʳ
Negative LVDS differential data input (Odd data)
Positive LVDS differential data input (Odd data)
Negative LVDS differential data input (Even data)
Positive LVDS differential data input (Even data)
Power Ground
Positive LVDS differential data input (Even data)
Negative LVDS differential data input (Even data)
Power Ground
Negative LVDS differential data input (Even data)
Positive LVDS differential data input (Even data)
Negative LVDS differential clock input (Even clock)
ʳ
Positive LVDS differential clock input (Even clock)
ʳ
Negative LVDS differential data input (Even data)
Positive LVDS differential data input (Even data)
Power Ground
Power Ground
26
27
28 POWER
29
30
document version 1.0 15/25
ʳ
NC
ʳ
NC
POWER
POWER
ʳ
ʳ
ʳ
No connection (for AUO test)
No connection (for AUO test)
Power +5V
Power +5V
Power +5V
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 16
Global LCD Panel Exchange Center
www.panelook.com

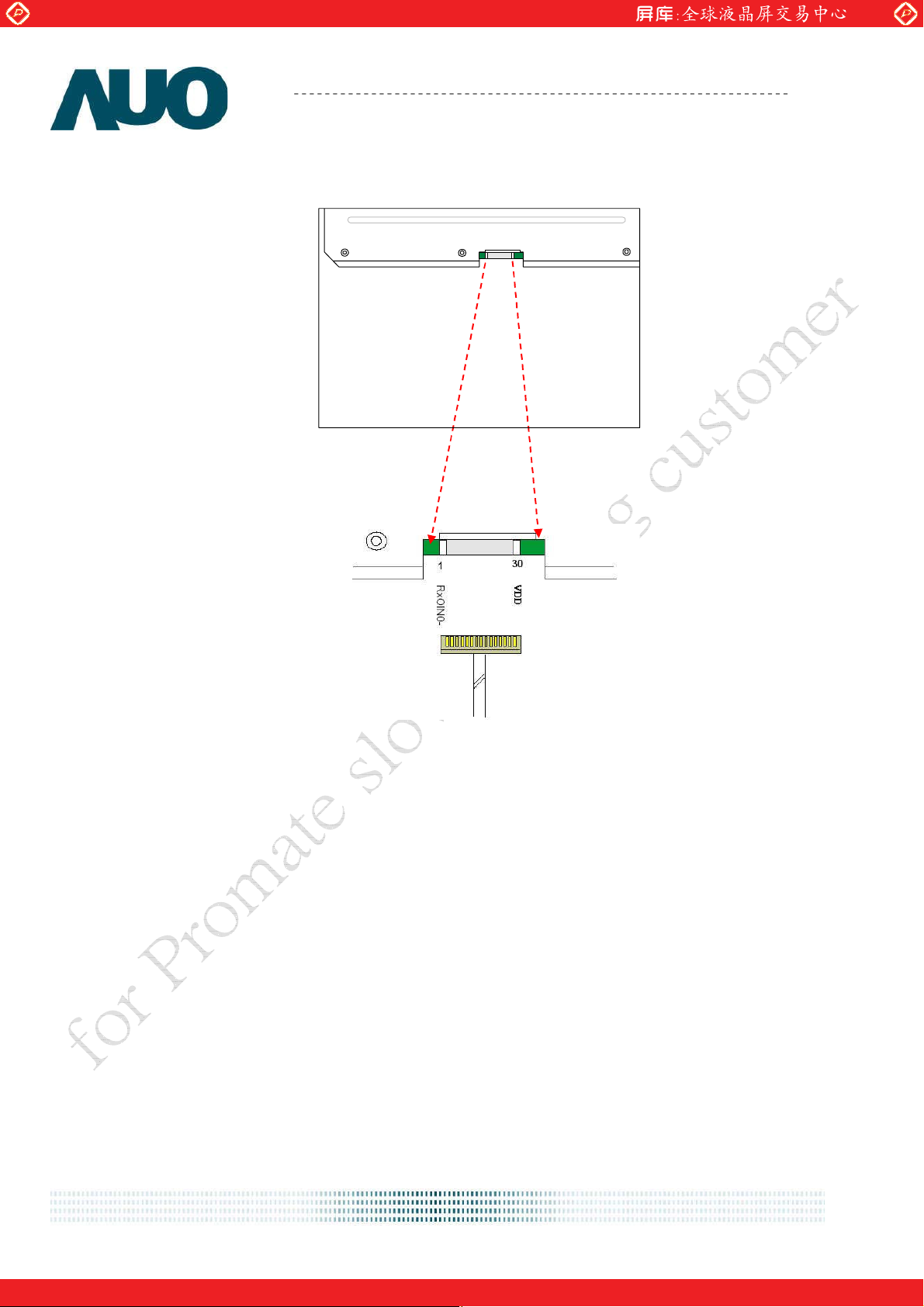

Note1: Start from left side
Product Specification
AU OPTRONICS CORPORATION
G190ETN01.0
Note2: Input signals of odd and even clock shall be the same timing.
document version 1.0 16/25
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 17
Global LCD Panel Exchange Center
www.panelook.com
6.4 Interface Timing
6.4.1 Timing Characteristics
Signal Item Symbol Min Typ Max Unit
Period Tv
Vertical
Active Tdisp(v) 1024 1024 1024 Th
Section
Blanking Tbp(v )+Tfp(v)+PWvs 8 42 126 Th
Period Th 780 844 2047 Tclk
Horizontal
Active Tdisp(h) 640 640 640 Tclk
Section
Blanking Tbp(h)+Tfp(h)+PWhs 140 204 - Tclk
Period Tclk 22.2 18.52 14.81 ns
Clock
Frequency Freq. 45 54 67.5 MHz
Frame Rate Frequency 1/Tv 50 60 75 Hz
Product Specification
AU OPTRONICS CORPORATION
1032 1066 1150 Th
G190ETN01.0
Note: DE mode only
document version 1.0 17/25
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 18
Global LCD Panel Exchange Center
www.panelook.com
Invalid Data
Tfp(h)
Invalid Data
Invalid Data
document version 1.0 18/25
PixelPixel
Th
N1
43
Tdisp(v)
2
Tv
Tbp(v)
PixelPixelPixelPixel
Tdisp(h)
Pixel
Pixel
Pixel
M
M-2
M-5
M-4
11
12
10
8
7
Pixel Pixel Pixel Pixel Pixel Pixel
6
5M-3
4
39 M-1
Pixel Pixel
2
1
Pixel
Tbp(h)
Invalid Data
PWhs
DE
RGB Data
Vsync
PWvs
Hsync
Tfp(v)
DE
Invalid Data
N
Line Line Line Line Line Line
RGB Data
CLK
Tclk
Hsync
AU OPTRONICS CORPORATION
G190ETN01.0
Product Specification
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Invalid Data
RGB Data
(Even)
(Odd)
www.panelook.com
6.4.2 Timing Diagram
Page 19
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
G190ETN01.0

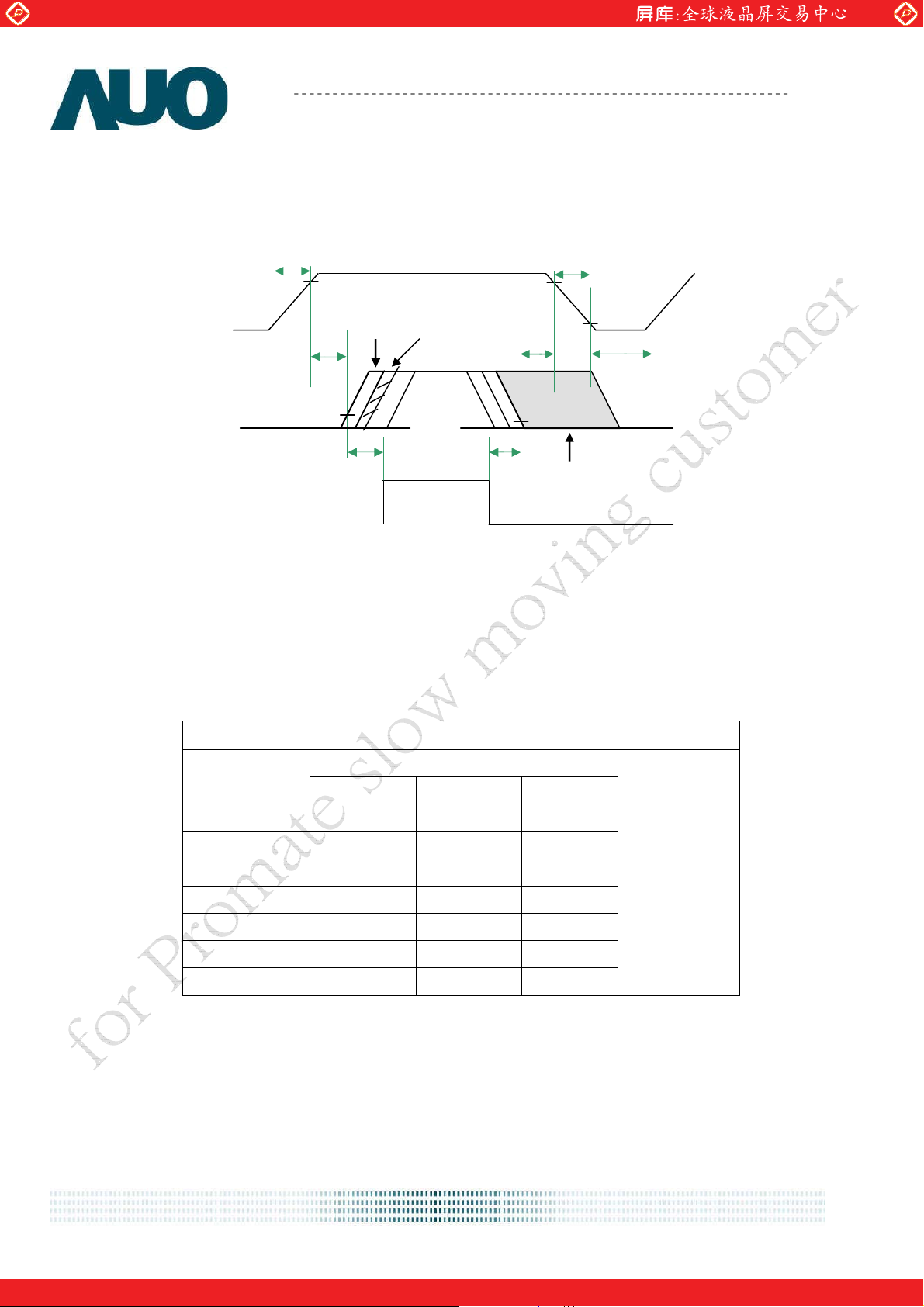

6.5 Power ON/OFF Sequence
VDD power and lamp on/off sequence are as follows. Interface signals are also shown in the chart. Signals from
any system shall be Hi-Z state or low level when VDD is off.
Power Supply VDD
0V
LVDS Signal
Backlight On
10%
90%
T2
Note 1
T3
Note 2
VALID
DATA
T4
90%
T5
10%
T7
Note 3
Note1: insert a white pattern 360ms
Note2: insert a black pattern
Note3 :insert a white pattern after valid data and last until VDD falls to 10%.
Note4 :when AC on/off, timing rule of logo power on/off is the same as above.
Power Sequence Timing
Parameter
T1
T2
T3
T4
T5
T6
T7
Min. Typ. Max.
0.5 - 10
0 40 50
500 - -
300 - -
40 1500 -
- - -
1000 - -
Value
Units
ms
document version 1.0 19/25
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 20
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
G190ETN01.0
7. Connector & Pin Assignment
Physical interface is described as for the connector on module.These connectors are capable of accommodating
the following signals and will be following components
.
7.1 TFT LCD Module
7.1.1 Connector
Connector Name / Designation Interface Connector / Interface card
Manufacturer P-TWO / JAE
Type Part Number 187034-30091 / FI-XB30SSLA-HF15
Mating Housing Part Number
7.1.2 Pin Assignment
Pin# Signal Name Pin# Signal Name
FI-X30HL
FI-X30H (Unlocked Type)
1
3
5
7
9
11
13
15
17
19
21
23
25
27
29
RxOIN0-
RxOIN1-
RxOIN2-
GND
RxOCLKIN+
RxOIN3+
RxEIN0+
RxEIN1-
GND
RxEIN2+
RxECLKIN+
RxEIN3+
GND
NC
POWER
2
4
6
8
10
12
14
16
18
20
22
24
26
28
30
RxOIN0+
RxOIN1+
RxOIN2+
RxOCLKIN-
RxOIN3-
RxEIN0-
GND
RxEIN1+
RxEIN2-
RxECLKIN-
RxEIN3-
GND
NC
POWER
POWER
document version 1.0 20/25
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 21
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
7.2 Backlight Unit
Physical interface is described as for the connector on module. These connectors are capable of
accommodating the following signals and will be following components.
7.2.1 Connector
Connector Name / Designation Light Bar Connector
Manufacturer ENTERY INDUSTRIAL CO., LTD
Type Part Number 3707K-S06N-01R
7.2.2 Pin Assignment
Pin no. Signal name
1 IRLED (current out)
2 IRLED (current out)
3 VLED (voltage in)
4 VLED (voltage in)
5 IRLED (current out)
6 IRLED (current out)
G190ETN01.0
document version 1.0 21/25
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 22
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
8. Reliability Test
Environment test conditions are listed as following table.
Items Required Condition
Temperature Humidity Bias (THB) Ta= 50 , к 80%RH, 300hours
High Temperature Operation (HTO) Ta= 50 , к 50%RH, 300hours
Low Temperature Operation (LTO) Ta= 0 , 300hoursк
High Temperature Storage (HTS) Ta= 60 , 300hoursк
Low Temperature Storage (LTS) Ta= -20 , 300hoursк
Acceleration: 1.5 G
Vibration Test
(Non-operation)
Shock Test
(Non-operation)
Wave: Random
Frequency: 10 - 200 - 10 Hz
Sweep: 30 Minutes each Axis (X, Y, Z)
Acceleration: 50 G
Wave: Half-sine
Active Time: 20 ms
Direction: X,ʳY,ʳZ (one time for each Axis)
G190ETN01.0
Note
Drop Test Height: 60 cm, package test
Thermal Shock Test (TST) -20 /к 30min, 60 /к 30min, 100 cycles
On/Off Test On/10sec, Off/10sec, 30,000 cycles
Contact Discharge: ± 8KV, 150pF(330Ω ) 1sec,
9 points, 25 times/ point.
ESD (Electro Static Discharge)
Air Discharge: ± 15KV, 150pF(330Ω ) 1sec
9 points, 25 times/ point.
Altitude Test
Note1: According to EN61000-4-2, ESD class B: Some performance degradation allowed. No data lost
Self-recoverable. No hardware failures.
Note2:ʳ
Water condensation is not allowed for each test items.
Each test is done by new TFT-LCD module. Don’t use the same TFT-LCD module repeatedly for reliability test.
The reliability test is performed only to examine the TFT-LCD module capability.
To inspect TFT-LCD module after reliability test, please store it at room temperature and room humidity for 24 hours at
Operation:10,000 ft
Non-Operation:30,000 ft
1
least in advance.
No function failure occurs.
document version 1.0 22/25
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 23
Global LCD Panel Exchange Center
www.panelook.com
9. Label and Packing
9.1. Shipping Label
Product Specification
AU OPTRONICS CORPORATION
G190ETN01.0
9.2 Packing Form
Max. capacity: 13 pieces TFT-LCD module per carton
Max. weight: 26.69 kg per carton
Outside dimension of carton: 409(L)mm* 367(W)mm* 475(H)mm
Pallet : 1140(L)mm*830 (W)mm* 1560(H)mm
9.3 Palletizing sequence
pcs / box box / layer layer / pallet pcs / pallet
Shipping by air 13 6 3 234
Shipping by sea 13 6 3 234
document version 1.0 23/25
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 24
Global LCD Panel Exchange Center
G190ETN01.0
www.panelook.com
AU OPTRONICS CORPORATION
Product Specification
10. Outline Drawing
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
document version 1.0 24/25
www.panelook.com
Page 25
Global LCD Panel Exchange Center
G190ETN01.0
www.panelook.com
AU OPTRONICS CORPORATION
Product Specification
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
document version 1.0 25/25
www.panelook.com
Loading...
