G190EG01 V2G190EG01 V2G190EG01 V2G190EG01 V2
( ) Preliminary Specification
(V ) Final Specification
Module 19.0” SXGA Color TFT-LCD
Model Name
G190EG01 V2
Customer Date
Approved by
Checked &
Approved by
Prepared by
Date
Note: This Specification is subject to change without
notice.
document version 1.0 1/29
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Desktop Display Business Group /
AU Optronics corporation
www.panelook.com
Global LCD Panel Exchange Center
Product Specification
AU OPTRONICS CORPORATION
www.panelook.com
G190EG01 V2G190EG01 V2G190EG01 V2G190EG01 V2
Contents
1. Handling Precautions ..................................................................................................................4
2. General Description..................................................................................................................... 5
2.1 Display Characteristics ........................................................................................................................ 6
3. Functional Block Diagram.........................................................................................................11
I/F PCB Interface:.................................................................................................................................... 11
Mating Type:............................................................................................................................................ 11
4. Absolute Maximum Ratings...................................................................................................... 12
4.1 Absolute Ratings of TFT LCD Module ............................................................................................. 12
4.2 Absolute Ratings of Backlight Unit ................................................................................................... 12

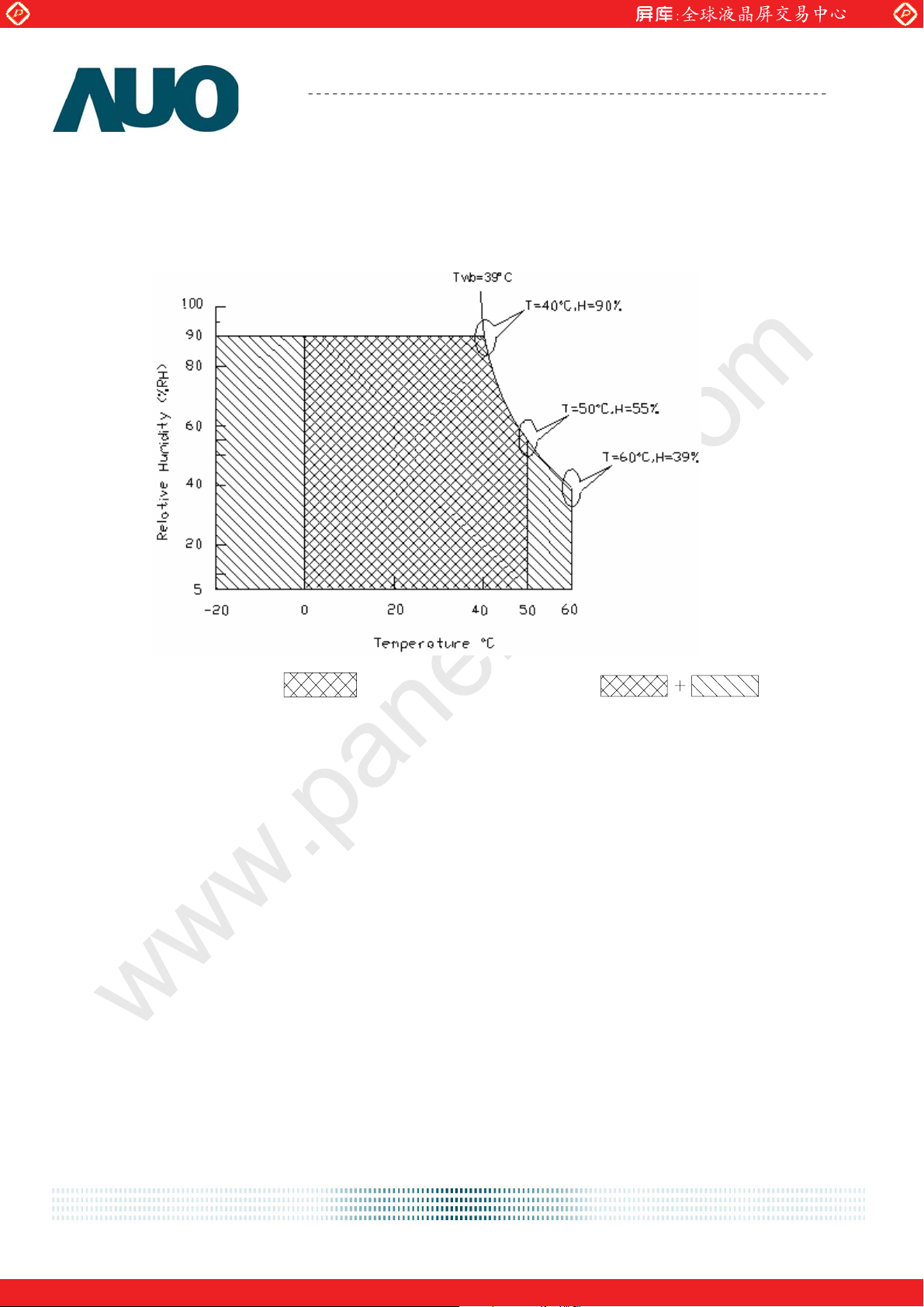

4.3 Absolute Ratings of Environment ...................................................................................................... 12
5. Electrical characteristics .......................................................................................................... 14
5.1 TFT LCD Module ............................................................................................................................. 14
5.2 Backlight Unit.................................................................................................................................... 16
6. Signal Characteristic .................................................................................................................17

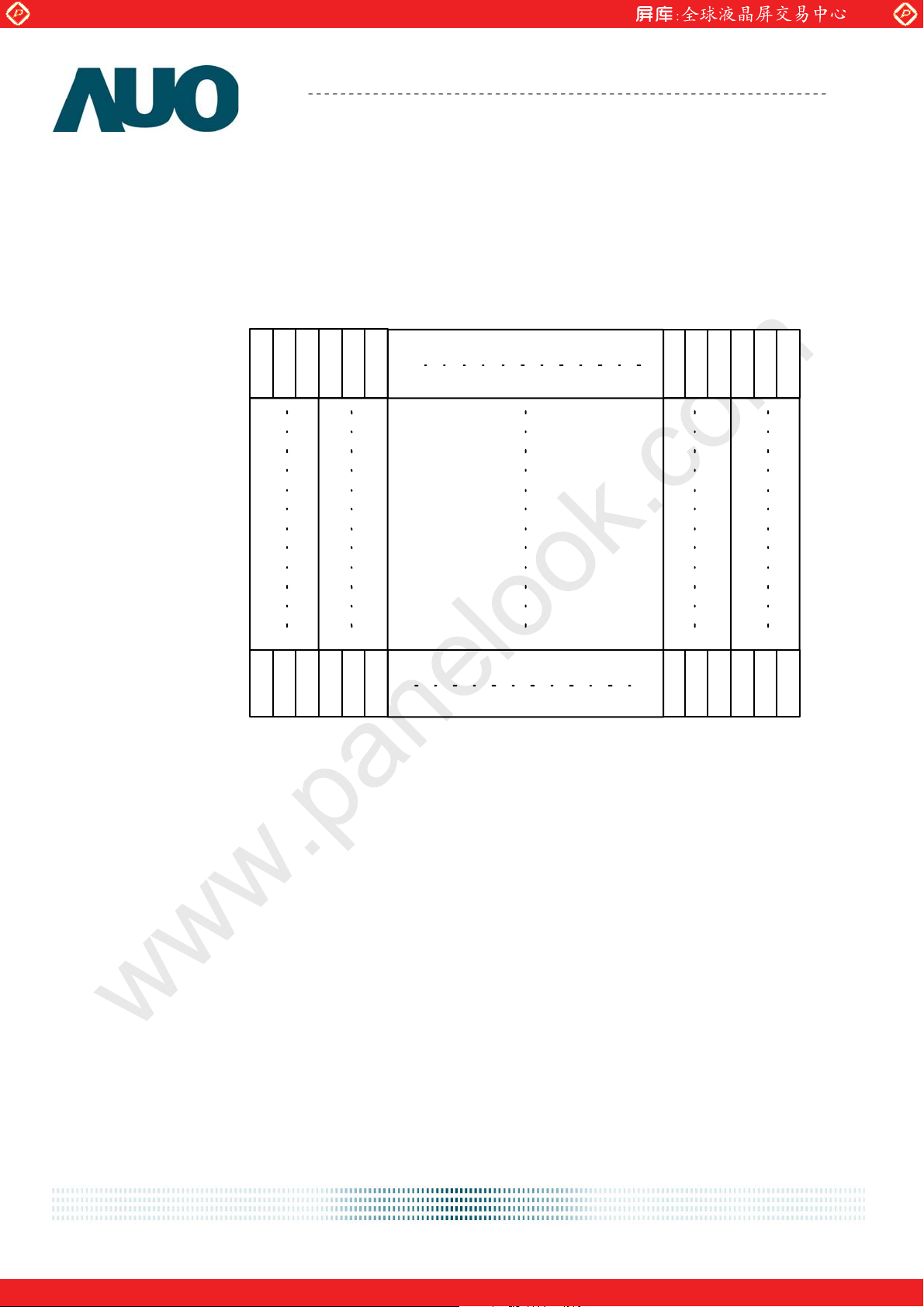

6.1 Pixel Format Image ........................................................................................................................... 17

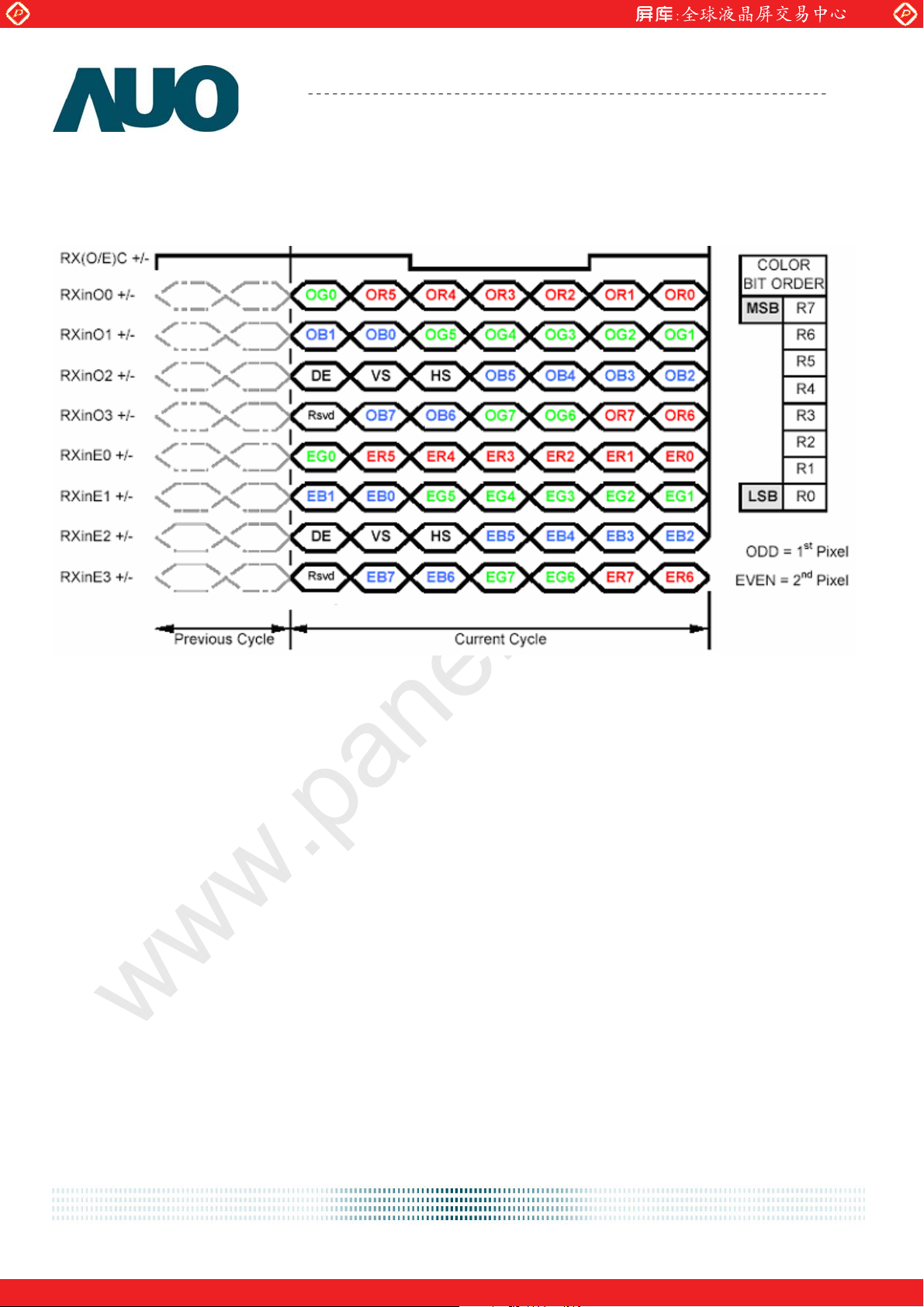

6.2 The Input Data Format ...................................................................................................................... 18

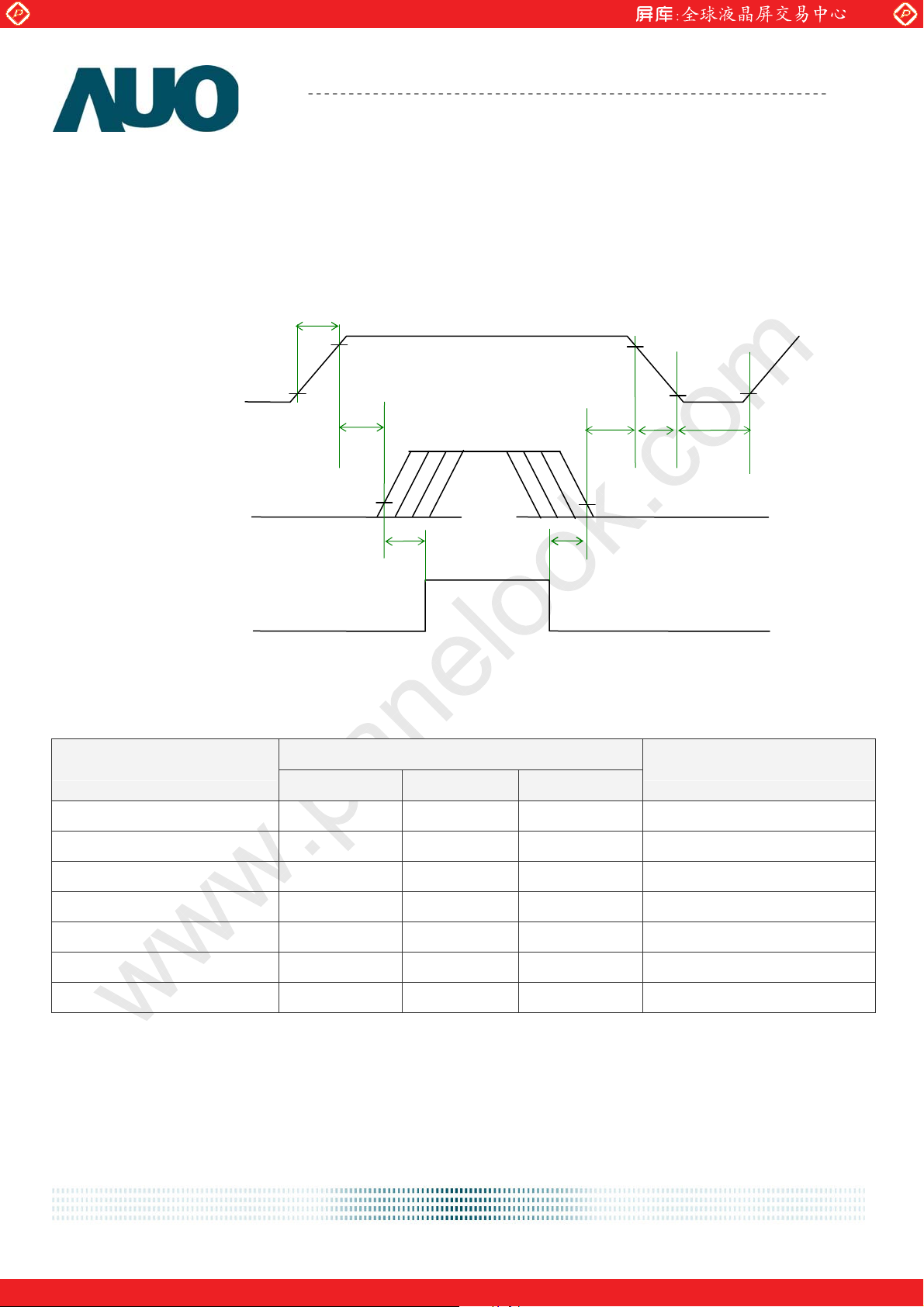

6.4 Interface Timing................................................................................................................................. 20
6.5 Power ON/OFF Sequence................................................................................................................. 23
7. Connector & Pin Assignment ...................................................................................................24
7.1 TFT LCD Module ............................................................................................................................. 24
7.2 Backlight Unit.................................................................................................................................... 25
8. Reliability Test............................................................................................................................ 26
10. Mechanical Characteristic ......................................................................................................28
document version 1.0 2/29
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
Product Specification
AU OPTRONICS CORPORATION
www.panelook.com
G190EG01 V2G190EG01 V2G190EG01 V2G190EG01 V2
Record of Revision
Version & Date Page Old Description New Description Remark
0.1 2009/10/07 All Frist Edition for Customer
1.0 2010/1/7 All Final version
document version 1.0 3/29
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
G190EG01 V2G190EG01 V2G190EG01 V2G190EG01 V2
1. Handling Precautions
1) Since front polarizer is easily damaged, pay attention not to scratch it.
2) Be sure to turn off power supply when inserting or disconnecting from input connector.
3) Wipe off water drop immediately. Long contact with water may cause discoloration or spots.
4) When the panel surface is soiled, wipe it with absorbent cotton or other soft cloth.
5) Since the panel is made of glass, it may break or crack if dropped or bumped on hard surface.
6) Since CMOS LSI is used in this module, take care of static electricity and insure human earth when
handling.
7) Do not open or modify the Module Assembly.
8) Do not press the reflector sheet at the back of the module to any directions.
9) In case if a Module has to be put back into the packing container slot after once it was taken out
from the container, do not press the center of the Cold Cathode Fluorescent Lamp (CCFL) reflector
edge. Instead, press at the far ends of the CCFL reflector edge softly. Otherwise the TFT Module
may be damaged.
10) At the insertion or removal of the Signal Interface Connector, be sure not to rotate nor tilt the
Interface Connector of the TFT Module.
11) After installation of the TFT Module into an enclosure, do not twist nor bend the TFT Module even
momentary. At designing the enclosure, it should be taken into consideration that no
bending/twisting forces are applied to the TFT Module from outside. Otherwise the TFT Module
may be damaged.
12) Cold Cathode Fluorescent Lamp (CCFL) in LCD contains a small amount of mercury. Please follow local
ordinances or regulations for disposal.
13) Small amount of materials having no flammability grade is used in the LCD module. The LCD module
should be supplied by power complied with requirements of Limited Power Source (IEC60950 or
UL1950), or be applied exemption.
14) The LCD module is designed so that the CCFL in it is supplied by Limited Current Circuit (IEC60950 or
UL1950). Do not connect the CCFL in Hazardous Voltage Circuit.
document version 1.0 4/29
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
2. General Description
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
G190EG01 V2G190EG01 V2G190EG01 V2G190EG01 V2
G190EG01 V2 is a Color Active Matrix Liquid Crystal Display composed of a TFT-LCD
panel, a driver circuit,
and a backlight system. The screen format is intended to support the SXGA (1280(H) x 1024(V)) screen and
16.7M colors (RGB 6-bits + HiFRC data). All input signals are 2-channel LVDS interface compatible.
Inverter card of backlight is not included.
document version 1.0 5/29
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
2.1 Display Characteristics
The following items are characteristics summary on the table under 25 к condition:
Items Unit Specifications
G190EG01 V2G190EG01 V2G190EG01 V2G190EG01 V2
Screen Diagonal [mm]
Active Area [mm]
Pixels H x V
Pixel Pitch [mm]
Pixel Arrangement
Display Mode
482.6 (19.0" )
376.32 (H) x 301.06 (V)
1280(x3) x 1024
0.294 (per one triad) x 0.294
R.G.B. Vertical Stripe
Normally White
White Luminance [cd/m2] 450 (center, Typ) @ 7.5mA
Contrast Ratio
Optical ResponseTime [msec]
Nominal Input Voltage VDD [Volt]
1000 : 1 (Typ)
5 ms(Typ, on/off)
+5.0 V
26.71 W (Typ)
Power Consumption [Watt]
Weight [Grams]
Physical Size (H x V x D) [mm]
Electrical Interface
(PDD= 5.5 W, @Lamp=7.5mA)
2400 (TYP)
396 (H) x 324 (V) x 18.5 (D) (Typ)
Dual channel LVDS
Surface Treatment Hard-coating (3H), Non-Glare treatment
Support Color
Temperature Range
Operating
Storage (Non-Operating)
RoHS Compliance
[oC]
o
C]
[
16.7M colors (RGB 6-bit data + HiFRC data)
0 to +50
-20 to +60
RoHS Compliance
document version 1.0 6/29
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
Product Specification
AU OPTRONICS CORPORATION
www.panelook.com
G190EG01 V2G190EG01 V2G190EG01 V2G190EG01 V2
2.2 Optical Characteristics
The optical characteristics are measured under stable conditions at 25к (Room Temperature):
Item Unit Conditions Min. Typ. Max. Note
Horizontal (Right)
CR = 10 (Left)
Vertical (Up)
CR = 10 (Down)
Viewing Angle [degree]
Horizontal (Up)
CR = 5 (Down)
Vertical (Up)
CR = 5 (Down)
75
75
70
70
75
75
75
75
85
85
80
80
85
85
85
85
-
-
1
-
-
Luminance Uniformity [%] 9 Points 75 80 - 2, 3
Rising - 3.6 5.7
Optical Response Time [msec]
Falling - 1.4 2.3
4, 6
Rising + Falling - 5 8
Red x 0.617 0.647 0.677
Red y 0.310 0.340 0.370
Green x 0.258 0.288 0.318
Color / Chromaticity
Coordinates
(CIE)
Green y 0.575 0.605 0.635
4
Blue x 0.115 0.145 0.175
Blue y 0.041 0.071 0.101
White x 0.283 0.313 0.343
White y 0.299 0.329 0.359
White Luminance
(At CCFL= 7.5mA)
[cd/m
2
360 450 - 4
]
Contrast Ratio 600 1000 - 4
Cross Talk (At 60Hz) [%] - - 1.5 5
Flicker [dB] - - -20
document version 1.0 7/29
7
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
Product Specification
AU OPTRONICS CORPORATION
Note 1: Definition of viewing angle, measured by ELDIM (EZContrast 88)
Viewing angle is the measurement of contrast ratioЊ10, or Њ5, at the screen center, over a 180° horizontal
and 180° vertical range (off-normal viewing angles). The 180° viewing angle range is broken down as
follows; 90° (Ӱ) horizontal left and right and 90° (ӥ) vertical, high (up) and low (down). The measurement
direction is typically perpendicular to the display surface with the screen rotated about its center to develop
the desired measurement viewing angle.
www.panelook.com
G190EG01 V2G190EG01 V2G190EG01 V2G190EG01 V2
Note 2: 9 points position
90 %
50 %
10 %
10 %
50 %
Note 3: The luminance uniformity of 9 points is defined by dividing the maximum luminance values by the
minimum test point luminance. And measured by TOPCON SR-3
document version 1.0 8/29
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Ӭ
W9
Minimum Luminance of 9 points
=
Maximum Luminance of 9 points
90 %
www.panelook.com
Global LCD Panel Exchange Center
Product Specification
AU OPTRONICS CORPORATION
www.panelook.com
G190EG01 V2G190EG01 V2G190EG01 V2G190EG01 V2
Note 4: Measurement method
The LCD module should be stabilized at given temperature for 30 minutes to avoid abrupt temperature
change during measuring. In order to stabilize the luminance, the measurement should be executed after
lighting Backlight for 30 minutes in a stable, windless and dark room. ʳ
Photo detector
Field=2
50 cm
Note 5: Definition of Cross Talk (CT) and measured by TOPCON SR-3
CT = | YB – YA | / YA Ø 100 (%)
Where
YA = Luminance of measured location without gray level 0 pattern (cd/m2)
LCD Panel
Center of the screen
TFT-LCD Module
YB = Luminance of measured location with gray level 0 pattern (cd/m2)
document version 1.0 9/29
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
G190EG01 V2G190EG01 V2G190EG01 V2G190EG01 V2

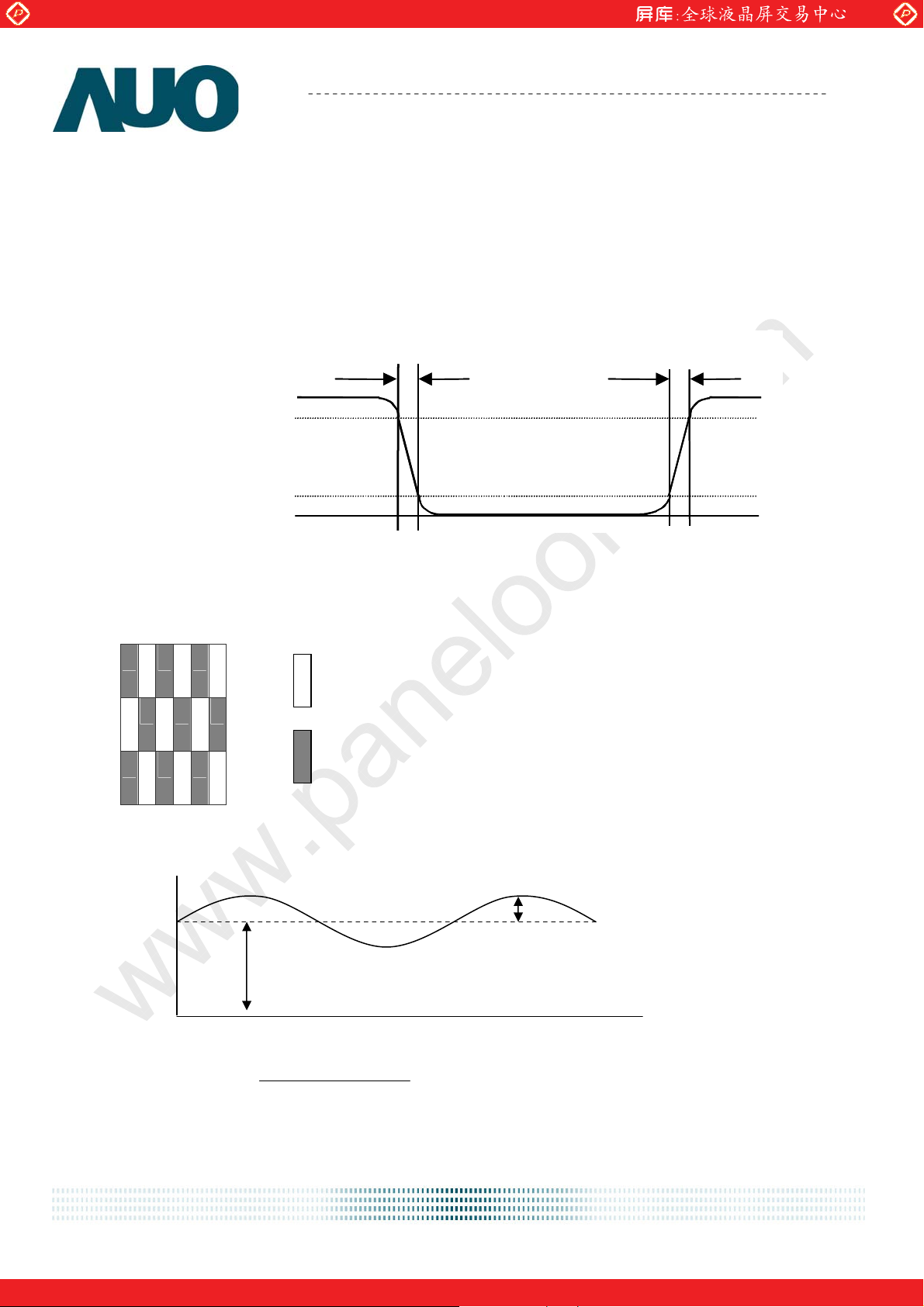

Note 6: Definition of response time, measured by WESTAR TRD-100A
The output signals of photo detector are measured when the input signals are changed from “Full Black” to
“Full White” (rising time), and from “Full White” to “Full Black” (falling time), respectively. The response time
is interval between the 10% and 90% of amplitudes. Please refer to the figure as below.
Optical
Optical
response
response
Note 7: Subchecker Pattern
R G B R G B
R G B R G B
R G B R G B
100
100
90
90
10
10
%
%
White
White
0
0
Tr
Tr
F
F
Gray Level = L127
Gray Level = L0
Black
Black
Tr
Tr
R
R
White
White
Method: Record dBV & DC value with (WESTAR)TRD-100
Amplitude
AC
DC
Time
Hz) 30Level(at AC
log20(dB)Flicker =
Level DC
document version 1.0 10/29
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
)
Product Specification
www.panelook.com
G190EG01 V2G190EG01 V2G190EG01 V2G190EG01 V2
AU OPTRONICS CORPORATION

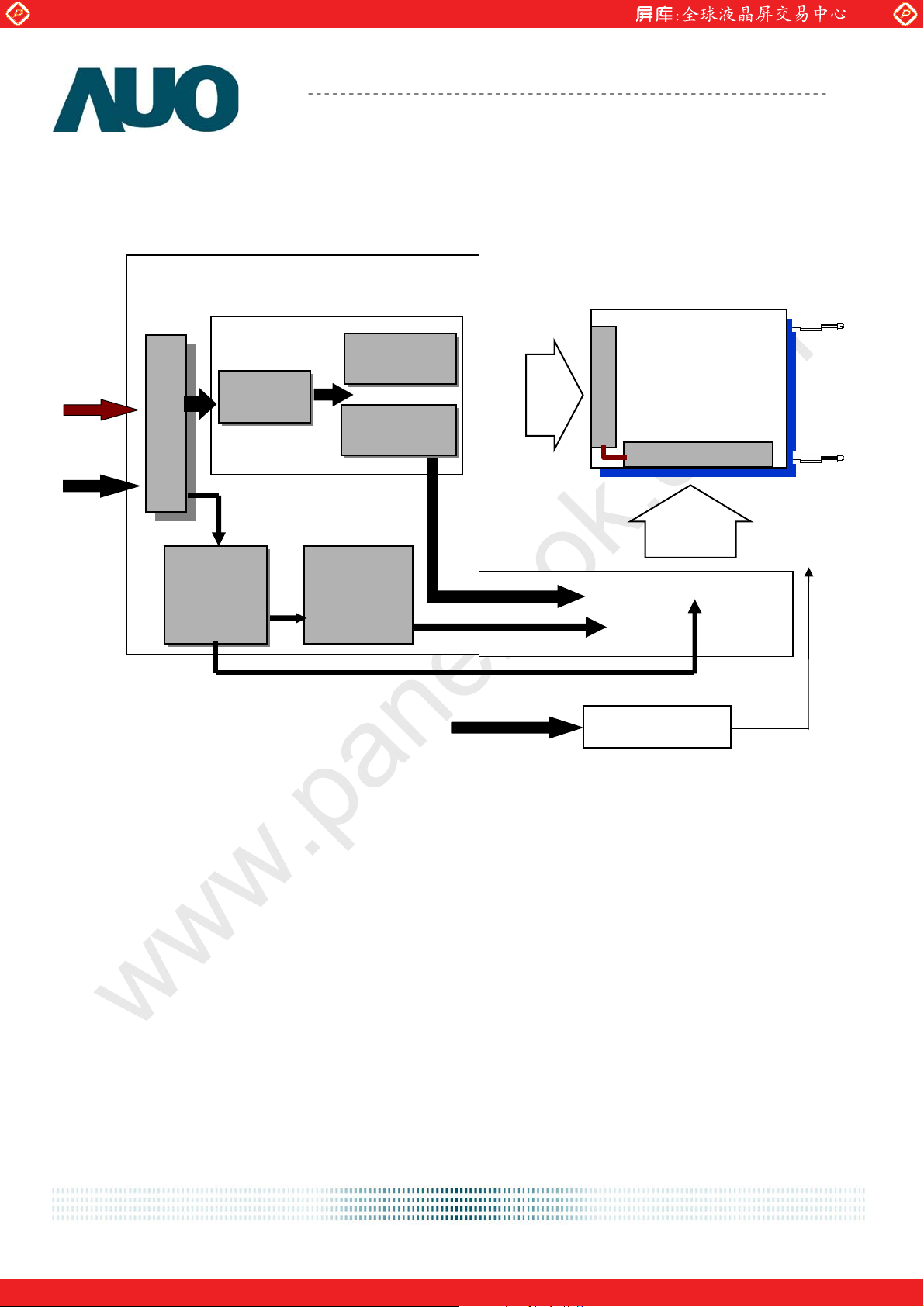

3. Functional Block Diagram
The following diagram shows the functional block of the 19.0 inches Color TFT-LCD Module:
LVDS
+ 5V
Connector
Receiver
DC/DC
Converter
(Integrate
level shift
ASIC
Timing
Controller
LVDS
RSDS
Transmitter
Gamma
Correction
DC POWER
G1024
G1
TFT-LCD
1280*(3)*1024
Pixels
-
D1 D3840
Inverter
4 CCFL
I/F PCB Interface:
FI-XB30SSL-HF15 / MSBKT2407P30HB
Mating Type:
FI-X30HL (Locked Type)
FI-X30H (Unlocked Type)
document version 1.0 11/29
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
V
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
4. Absolute Maximum Ratings
Absolute maximum ratings of the module are as following:
4.1 Absolute Ratings of TFT LCD Module
Item Symbol Min. Max. Unit Conditions
G190EG01 V2G190EG01 V2G190EG01 V2G190EG01 V2
Logic/LCD Drive
VDD -0.3 +6 [Volt] Note 1, 2
oltage
4.2 Absolute Ratings of Backlight Unit
Item Symbol Min. Max. Unit Conditions
CCFL Current ICFL - 8.0 [mA] rms Note 1, 2
4.3 Absolute Ratings of Environment
Item Symbol Min. Max. Unit Conditions
Operating Temperature TOP 0 +50 [oC]
Operation Humidity HOP 5 90 [%RH]
Storage Temperature TST -20 +60 [oC]
Storage Humidity HST
5 90
[%RH]
Note 3
document version 1.0 12/29
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
Note 1: With in Ta= 25к
Note 2: Permanent damage to the device may occur if exceed maximum values
Note 3: For quality performance, please refer to AUO IIS (Incoming Inspection Standard).
G190EG01 V2G190EG01 V2G190EG01 V2G190EG01 V2
Operating Range Storage Range
document version 1.0 13/29
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
V
V
V
Product Specification
AU OPTRONICS CORPORATION
www.panelook.com
G190EG01 V2G190EG01 V2G190EG01 V2G190EG01 V2
5. Electrical characteristics
5.1 TFT LCD Module
5.1.1 Power Specification
Input power specifications are as follows:
Symbol Parameter Min Typ Max Unit Condition
VDD
IDD Input Current - 1.10 1.31 [A]
IDD Input Current - 1.37 1.63 [A]
PDD VDD Power - 5.50 6.55 [Watt]
PDD VDD Power - 6.85 8.15 [Watt]
Logic/LCD Drive
Voltage
4.50 5.00 5.50 [Volt] ±10%
DD= 5.0V,All black Pattern,
At 60Hz
VDD= 5.0V,H-Stripe Pattern,
At 75Hz Note1
DD= 5.0V,All black Pattern,
At 60Hz
VDD= 5.0V,H-Stripe Pattern,
At 75Hz
IRush Inrush Current - - 2.5 [A] Note2
VDDrp
Allowable
Logic/LCD Drive
Ripple Voltage
- - 100
[mV]
p-p
DD= 5.0V,All black Pattern,
At 75Hz
Note 1: The H-Stripe pattern is defined as below :
document version 1.0 14/29
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
V

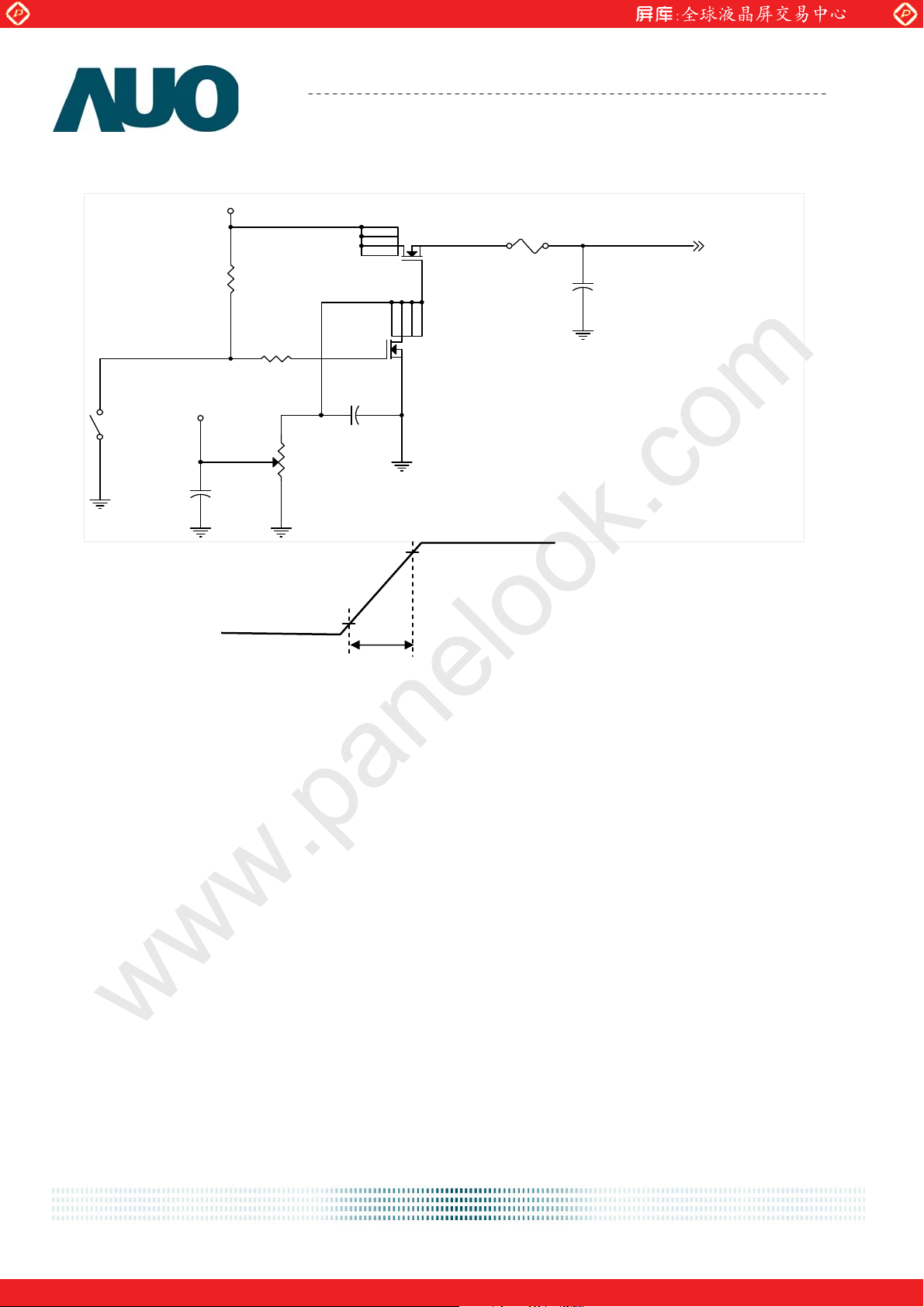

Note 2: Measurement conditions:
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
G190EG01 V2G190EG01 V2G190EG01 V2G190EG01 V2
(High to Low)
Control
Signal
SW1
SW MAG-SPST
1 2
+12.0V
+5.0V
C2
1uF/25V
R1
47K
R2
1K
VR1
47K
D6
D5
D2 S
D1
G
C3
0.01uF/25V
Q3
AO6402
D2SD1D5
G
D6
Q3
AO6402
F1
VCC
(LCD Module Input)
C1
1uF/16V
5.0
10%
0V
470 us
Vin rising time
document version 1.0 15/29
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
Product Specification
www.panelook.com
G190EG01 V2G190EG01 V2G190EG01 V2G190EG01 V2
AU OPTRONICS CORPORATION
5.2 Backlight Unit
Parameter guideline for CCFL Inverter is under stable conditions at 25
Parameter Min. Typ. Max. Unit Condition
CCFL Operation Current(IRCFL)
CCFL Frequency(FCFL) 40 60 80 [KHz] Note 3,4
CCFL Ignition Voltage(ViCFL,
CCFL Ignition Voltage(ViCF, Ta= 25
1200 1440 [Volt] rms
1000 1200 [Volt] rms
7.5 8.0 [mA] rms Note 2
Note 5
CCFL Operation Voltage (VCFL) -
707
(@ 7.5mA)
- [Volt] rms Note 6
CCFL Power Consumption(PCFL) - 21.21 - [Watt] Note 6
CCFL Life Time(LTCFL) 50,000 - - [Hour] Note 7
Note 1: Typ. are AUO recommended design points.
*1 All of characteristics listed are measured under the condition using the AUO test inverter.
*2 In case of using an inverter other than listed, it is recommended to check the inverter carefully.
Sometimes, interfering noise stripes appear on the screen, and substandard luminance or flicker
at low power may happen.
*3 In designing an inverter, it is suggested to check safety circuit very carefully. Impedance of CCFL,
for instance, becomes more than 1 [M ohm] when CCFL is damaged.
*4 Generally, CCFL has some amount of delay time after applying kick-off voltage. It is
recommended to keep on applying kick-off voltage for 1 [Sec] until discharge.
*5 Reducing CCFL current increases CCFL discharge voltage and generally increases CCFL
discharge frequency. So all the parameters of an inverter should be carefully designed so as not
to produce too much leakage current from high-voltage output of the inverter.
Note 2: CCFL standard current is measured at 252к.
Note 3: CCFL discharge frequency should be carefully determined to avoid interference between inverter and
TFT LCD.
Note 4: The frequency range will not affect to lamp life and reliability characteristics.
Note 5: CCFL inverter should be able to give out a power that has a generating capacity of over 1,200
voltage. Lamp units need 1,200 voltage minimum for ignition.
Note 6: The variance of CCFL power consumption is ±10%. Calculator value for reference (ISCFL × VCFL ×
4 = PCFL)
Note 7: Definition of life: brightness becomes 50%. The typical life time of CCFL is on the condition at 7.5 mA
lamp output current.
document version 1.0 16/29
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
6. Signal Characteristic

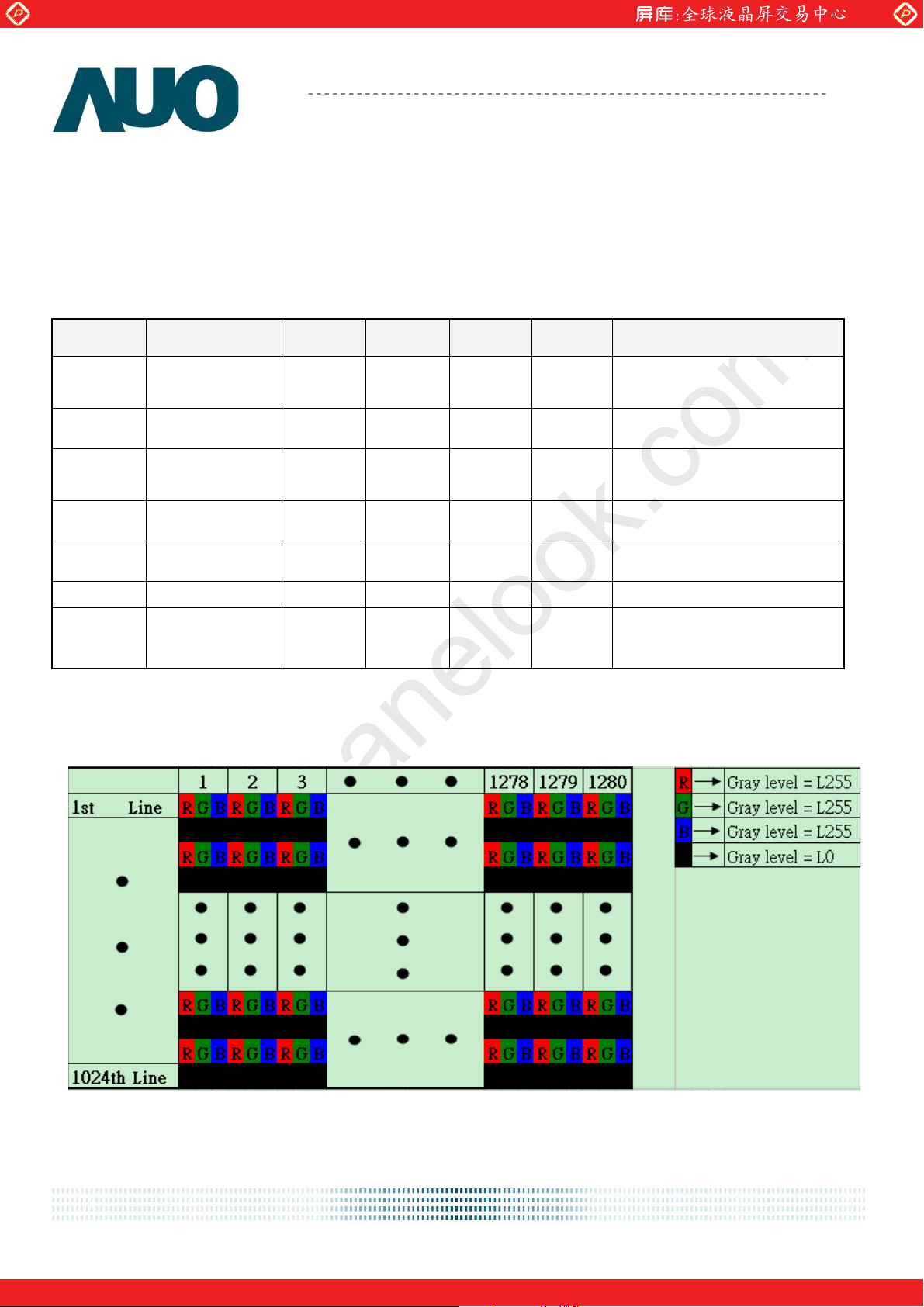

6.1 Pixel Format Image
Following figure shows the relationship of the input signals and LCD pixel format.
1 2 1279 1280
G190EG01 V2G190EG01 V2G190EG01 V2G190EG01 V2
1st Line
1024th Line
R G B R G B
R G B R G B
R G B R G B
R G B R G B
document version 1.0 17/29
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
6.2 The Input Data Format
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
G190EG01 V2G190EG01 V2G190EG01 V2G190EG01 V2
Note1: Normally DE mode only. VS and HS on EVEN channel are not used.
Note2: Please follow
VESA.
Note3: 8-bit in
document version 1.0 18/29
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
Product Specification
AU OPTRONICS CORPORATION
www.panelook.com
G190EG01 V2G190EG01 V2G190EG01 V2G190EG01 V2
6.3 Signal Description
The module using a pair of LVDS receiver SN75LVDS82(Texas Instruments) or compatible. LVDS is a
differential signal technology for LCD interface and high speed data transfer device. Transmitter shall be
SN75LVDS83(negative edge sampling) or compatible. The first LVDS port(RxOxxx) transmits odd pixels
while the second LVDS port(RxExxx) transmits even pixels.
PIN # SIGNAL NAME DESCRIPTION
1 RxOIN0- Negative LVDS differential data input (Odd data)
2 RxOIN0+ Positive LVDS differential data input (Odd data)
3 RxOIN1- Negative LVDS differential data input (Odd data)
4 RxOIN1+ Positive LVDS differential data input (Odd data)
5 RxOIN2- Negative LVDS differential data input (Odd data, H-Sync,V-Sync,DSPTMG)
6 RxOIN2+ Positive LVDS differential data input (Odd data, H-Sync,V-Sync,DSPTMG)
7 VSS Power Ground
8 RxOCLKIN- Negative LVDS differential clock input (Odd clock)
9 RxOCLKIN+ Positive LVDS differential clock input (Odd clock)
10 RxOIN3- Negative LVDS differential data input (Odd data)
11 RxOIN3+ Positive LVDS differential data input (Odd data)
12 RxEIN0- Negative LVDS differential data input (Even data)
13 RxEIN0+ Positive LVDS differential data input (Even data)
14 VSS Power Ground
15 RxEIN1- Negative LVDS differential data input (Even data)
16 RxEIN1+ Positive LVDS differential data input (Even data)
17 VSS Power Ground
18 RxEIN2- Negative LVDS differential data input (Even data)
19 RxEIN2+ Positive LVDS differential data input (Even data)
20 RxECLKIN- Negative LVDS differential clock input (Even clock)
21 RxECLKIN+ Positive LVDS differential clock input (Even clock)
22 RxEIN3- Negative LVDS differential data input (Even data)
23 RxEIN3+ Positive LVDS differential data input (Even data)
24 VSS Power Ground
25 VSS Power Ground
26 NC Do not connect ( for AUO test)
27 VSS Power Ground
28 VCC +5.0V Power Supply
29 VCC +5.0V Power Supply
30 VCC +5.0V Power Supply
document version 1.0 19/29
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
r
V

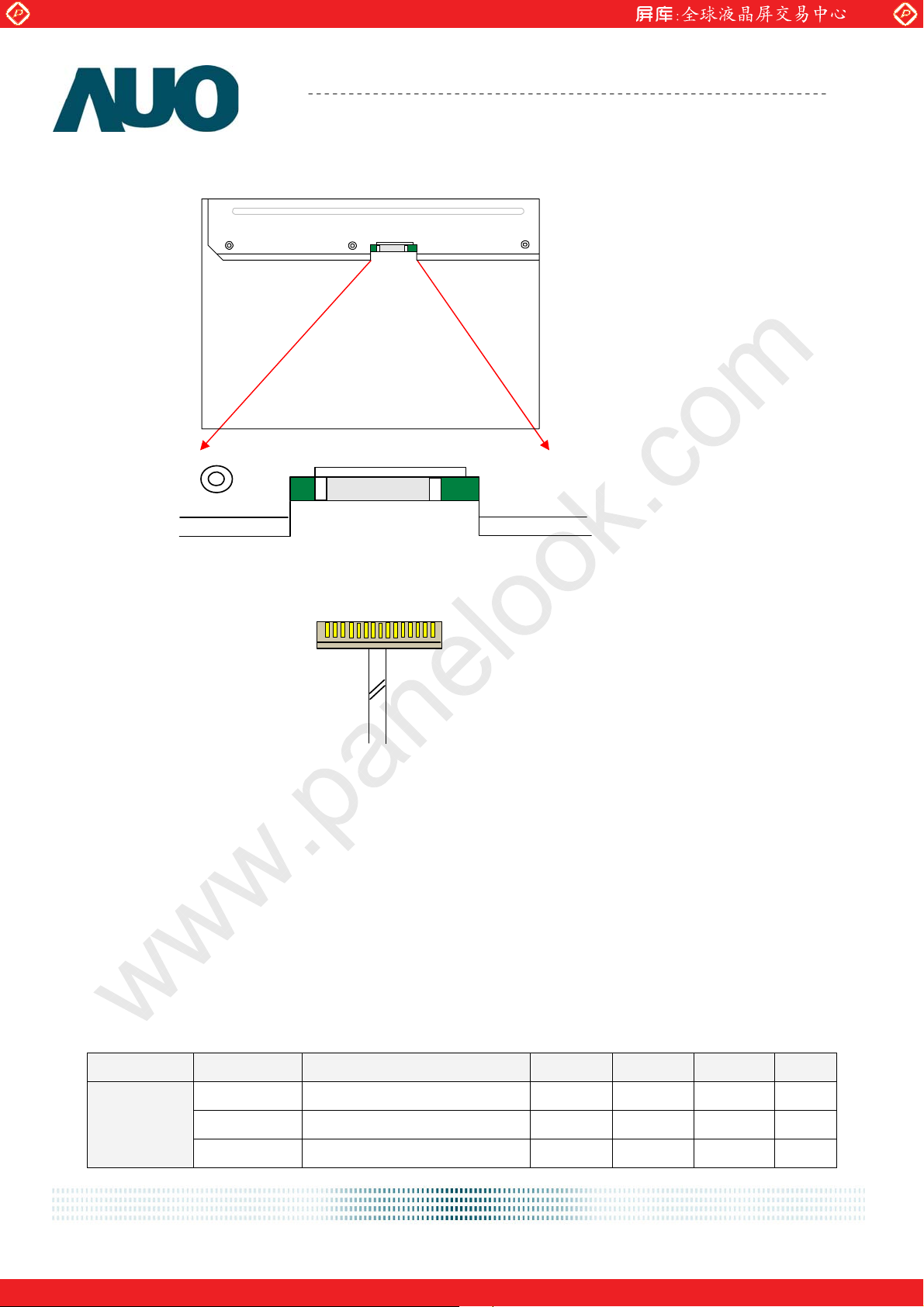

Note1: Start from left side
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
G190EG01 V2G190EG01 V2G190EG01 V2G190EG01 V2
Connecto
RxOIN0-
30
CC
Note2: Input signals of odd and even clock shall be the same timing.
Note3: Please follow VESA.
6.4 Interface Timing
6.4.1 Timing Characteristics
Signal Item Symbol Min Typ Max Unit
Period Tv
Vertical
Active Tdisp(v) 1024 1024 1024 Th
Section
Blanking Tbp(v)+Tfp(v)+PWvs 8 42 126 Th
document version 1.0 20/29
1032 1066 1150 Th
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
G190EG01 V2G190EG01 V2G190EG01 V2G190EG01 V2
Horizontal
Period Th 780 844 2047 Tclk
Active Tdisp(h) 640 640 640 Tclk
Section
Blanking Tbp(h)+Tfp(h)+PWhs 140 204 - Tclk
Period Tclk 22.2 18.52 14.81 ns
Clock
Frequency Freq. 45 54 67.5 MHz
Frame Rate Frequency 1/Tv 50 60 75 Hz
Note : DE mode only
document version 1.0 21/29
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
a
ata
h)
p(h)
www.panelook.com

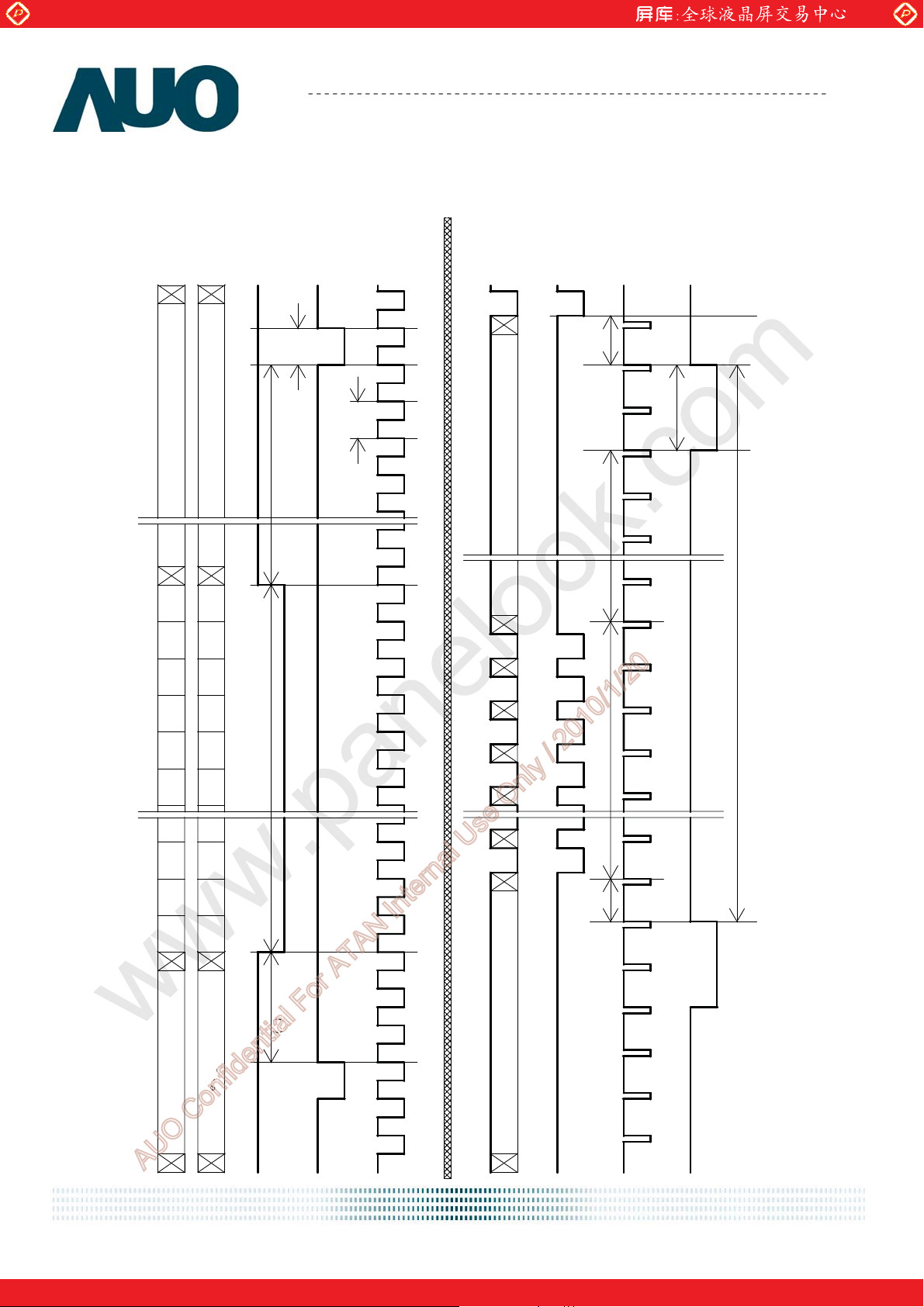

6.4.2 Timing Diagram
RGB Data
(Odd)
RGB Data
(Even)
Invalid Data
Invalid Data
DE
Tbp(h)
Product Specification
AU OPTRONICS CORPORATION
RGB Data
Line Line Line Line Line Line
N
Invalid Data
PWhs
Hsync
CLK
Tclk
DE
Tfp(v)
Tbp(v)
Hsync
G190EG01 V2G190EG01 V2G190EG01 V2G190EG01 V2
Vsync
PWvs
Pixel
Pixel
2
1
Pixel Pixel
Pixel
4
3 9 M-1
Pixel
6
5M-3
Pixel Pixel Pixel Pixel Pixel Pixel
7
8
10
12
11
M-5
M-4
M-2
M
Invalid Data
Tdisp(h)
PixelPixelPixelPixel
PixelPixel
Tfp(h)
Invalid Data
Tv
2
Tdisp(v)
43
N1
Th
Invalid Data
document version 1.0 22/29
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
Product Specification
AU OPTRONICS CORPORATION
www.panelook.com
G190EG01 V2G190EG01 V2G190EG01 V2G190EG01 V2
6.5 Power ON/OFF Sequence
VDD power and lamp on/off sequence is as follows. Interface signals are also shown in the chart. Signals
from any system shall be Hi-Z state or low level when VDD is off.
VALID
DATA
T4
90%
T5
T6
10%
T7
Power Supply VDD
LVDS Signal
Backlight On
T1
90%
10%
T2
T3
Power Sequence Timing
Parameter
Unit
Min. Typ. Max.
T1 0.5 - 10 [ms]
T2 0 40 50 [ms]
T3 300 - - [ms]
T4 300 - - [ms]
T5 0.5 16 50 [ms]
T6 - - - [ms]
T7 1000 - - [ms]
document version 1.0 23/29
Value
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
Product Specification
AU OPTRONICS CORPORATION
www.panelook.com
G190EG01 V2G190EG01 V2G190EG01 V2G190EG01 V2
7. Connector & Pin Assignment
Physical interface is described as for the connector on module.These connectors are capable of
accommodating the following signals and will be following components
.
7.1 TFT LCD Module
7.1.1 Connector
Connector Name / Designation Interface Connector / Interface card
Manufacturer JAE / STM
Type Part Number
Mating Housing Part Number FI-X30HL
7.1.2 Pin Assignment
Pin# Signal Name Pin# Signal Name
1 RxOIN0- 2 RxOIN0+
3 RxOIN1- 4 RxOIN1+
5 RxOIN2- 6 RxOIN2+
FI-XB30SSL-HF15 / MSBKT2407P30HB
7 VSS 8 RxOCLKIN-
9 RxOCLKIN+ 10 RxOIN3-
11 RxOIN3+ 12 RxEIN0-
13 RxEIN0+ 14 VSS
15 RxEIN1- 16 RxEIN1+
17 VSS 18 RxEIN2-
19 RxEIN2+ 20 RxECLKIN-
21 RxECLKIN+ 22 RxEIN3-
23 RxEIN3+ 24 VSS
25 VSS 26 NC
27 VSS 28 VCC
29 VCC 30 VCC
document version 1.0 24/29
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
Product Specification
AU OPTRONICS CORPORATION
www.panelook.com
G190EG01 V2G190EG01 V2G190EG01 V2G190EG01 V2
7.2 Backlight Unit
Physical interface is described as for the connector on module. These connectors are capable of
accommodating the following signals and will be following components.
Connector Name / Designation Lamp Connector / Backlight lamp
Manufacturer CVILUX / YEONHO
Type Part Number CP0502SL090/ 35001 HS-02L
Mating Type Part Number CP0502P1ML0/ 35001 WR-02L
7.2.1 Signal for Lamp connector
Connector No. Pin No. Input Color Function
1 Hot1 Pink High Voltage
Upper
CN1
CN2
2 Cold1 White Low Voltage
1 Hot2 blue High Voltage
2 Cold2 black Low Voltage
Connector No. Pin No. Input Color Function
1 Hot1 Pink High Voltage
Lower
CN3
CN4
2 Cold1 White Low Voltage
1 Hot2 blue High Voltage
2 Cold2 black Low Voltage
document version 1.0 25/29
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
8. Reliability Test
Environment test conditions are listed as following table.
Items Required Condition
Temperature Humidity Bias (THB) Ta= 5
High Temperature Operation (HTO) Ta= 5
Low Temperature Operation (LTO) Ta=
High Temperature Storage (HTS) Ta=
Low Temperature Storage (LTS) Ta= -
Vibration Test
(Non-operation)
80%RH, 300hours
50%RH, 300hours
Acceleration: 1.5 G
Wave: Random
Frequency: 10 - 200 - 10 Hz
Sweep: 30 Minutes each Axis (X, Y, Z)
G190EG01 V2G190EG01 V2G190EG01 V2G190EG01 V2
Note
Acceleration: 50 G
Shock Test
(Non-operation)
Wave: Half-sine
Active Time: 20 ms
Direction: X,ʳY,ʳZ (one time for each Axis)
Drop Test Height: 60 cm, package test
Thermal Shock Test (TST) -20/30min, 60/30min, 100 cycles
On/Off Test On/10sec, Off/10sec, 30,000 cycles
1
Contact Discharge: ± 8KV, 150pF(330Ω ) 1sec,
9 points, 25 times/ point.
ESD (ElectroStatic Discharge)
2
Air Discharge: ± 15KV, 150pF(330Ω ) 1sec
9 points, 25 times/ point.
Altitude Test
Operation:10,000 ft
Non-Operation:30,000 ft
Note 1: The TFT-LCD module will not sustain damage after being subjected to 100 cycles of rapid
temperature change. A cycle of rapid temperature change consists of varying the temperature from
-2˃к to 6˃к, and back again. Power is not applied during the test. After temperature cycling, the
unit is placed in normal room ambient for at least 4 hours before power on.
Note 2: According to EN61000-4-2 , ESD class B: Some performance degradation allowed. No data lost.
Self-recoverable. No hardware failures.
document version 1.0 26/29
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
9. Shipping Label

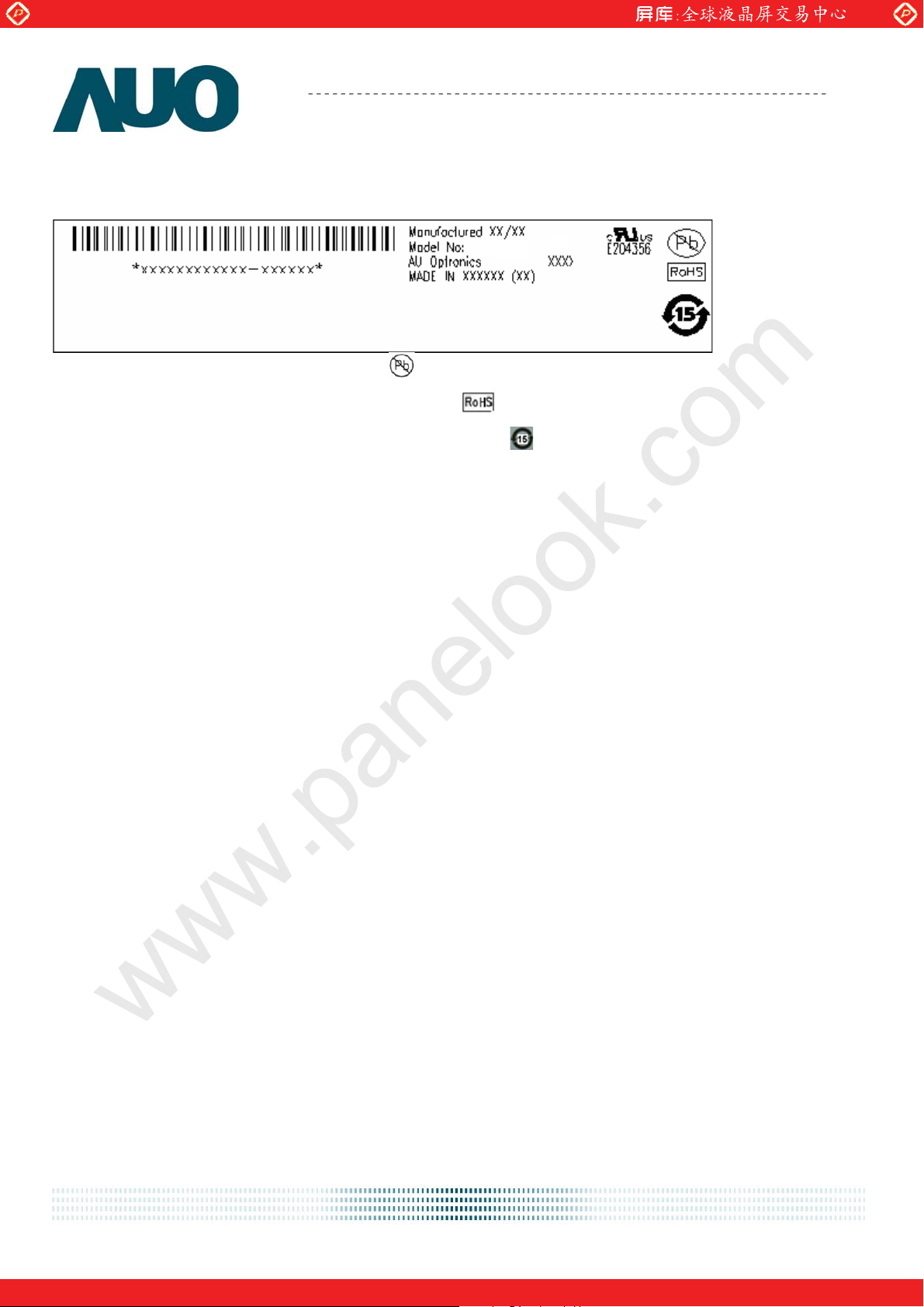

The label is on the panel as shown below:
Note 1: For Pb Free products, AUO will add for identification.
G190EG01 V2
G190EG01 V2G190EG01 V2G190EG01 V2G190EG01 V2
Note 2: For RoHS compatible products, AUO will add
Note 3: For China RoHS compatible products, AUO will add
for identification.
for identification.
Note 4: The Green Mark will be presented only when the green documents have been ready by AUO Internal
Green Team.
document version 1.0 27/29
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
G190EG01 V2G190EG01 V2G190EG01 V2G190EG01 V2
AU OPTRONICS CORPORATION
Product Specification
10. Mechanical Characteristic
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
document version 1.0 28/29
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
G190EG01 V2G190EG01 V2G190EG01 V2G190EG01 V2
AU OPTRONICS CORPORATION
Product Specification
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
document version 1.0 29/29
www.panelook.com
Loading...
