Product Specification
AU OPTRONICS CORPORATION

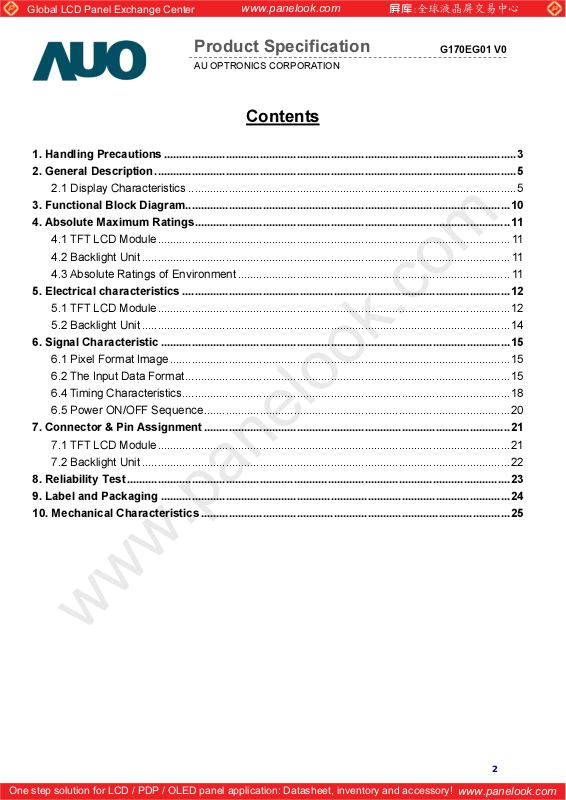

Contents
G170EG01 V0
1. Handling Precautions ..................................................................................................................3
2. General Description.....................................................................................................................5
2.1 Display Characteristics ..........................................................................................................5
3. Functional Block Diagram.........................................................................................................10
4. Absolute Maximum Ratings...................................................................................................... 11
4.1 TFT LCD Module.................................................................................................................. 11
4.2 Backlight Unit ....................................................................................................................... 11
4.3 Absolute Ratings of Environment ........................................................................................ 11
5. Electrical characteristics .......................................................................................................... 12
5.1 TFT LCD Module.................................................................................................................. 12
5.2 Backlight Unit ....................................................................................................................... 14
6. Signal Characteristic .................................................................................................................15
6.1 Pixel Format Image..............................................................................................................15
6.2 The Input Data Format.........................................................................................................15
6.4 Timing Characteristics..........................................................................................................18
6.5 Power ON/OFF Sequence...................................................................................................20
7. Connector & Pin Assignment ...................................................................................................21
7.1 TFT LCD Module.................................................................................................................. 21
7.2 Backlight Unit ....................................................................................................................... 22
8. Reliability Test............................................................................................................................23
9. Label and Packaging .................................................................................................................24
10. Mechanical Characteristics .................................................................................................... 25
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 2
Global LCD Panel Exchange Center
3
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
Record of Revision
G170EG01 V0
Version and Date Page Old description New Description Remark
0.1 2009/05/15 All First Edition for Customer All
1.0 2009/06/01 5 RGB 6-bits+Hi-RFC RGB 6-bits+Hi-FRC
5
14 Modified
25
26.5W (Typ.)
(without inverter, all black pattern)
2D drawing is not clear. Update it.
25.2W (Typ.)
(without inverter, all black pattern)
Modified
Modified
Modified
1.1 2009/06/15
1.2 2009/11/15
350 (center,Typ)@7.5 mA 380 (center,Typ)@7.5 mA
5
24
None
Modified
Modified
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 3
Global LCD Panel Exchange Center
4
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
G170EG01 V0
1. Handling Precautions
1) Since front polarizer is easily damaged, pay attention not to scratch it.
2) Be sure to turn off power supply when inserting or disconnecting from input connector.
3) Wipe off water drop immediately. Long contact with water may cause discoloration or spots.
4) When the panel surface is soiled, wipe it with absorbent cotton or other soft cloth.
5) Since the panel is made of glass, it may break or crack if dropped or bumped on hard surface.
6) Since CMOS LSI is used in this module, take care of static electricity and insure human earth when
handling.
7) Do not open or modify the Module Assembly.
8) Do not press the reflector sheet at the back of the module to any directions.
9) In case if a Module has to be put back into the packing container slot after once it was taken out
from the container, do not press the center of the CCFL reflector edge. Instead, press at the far
ends of the CCFL Reflector edge softly. Otherwise the TFT Module may be damaged.
10) At the insertion or removal of the Signal Interface Connector, be sure not to rotate nor tilt the
Interface Connector of the TFT Module.
11) After installation of the TFT Module into an enclosure, do not twist nor bend the TFT Module even
momentary. At designing the enclosure, it should be taken into consideration that no
bending/twisting forces are applied to the TFT Module from outside. Otherwise the TFT Module
may be damaged.
12) Cold cathode fluorescent lamp in LCD contains a small amount of mercury. Please follow local
ordinances or regulations for disposal.
13) Small amount of materials having no flammability grade is used in the LCD module. The LCD module
should be supplied by power complied with requirements of Limited Power Source (IEC60950 or
UL1950), or be applied exemption.
14) The LCD module is designed so that the CCFL in it is supplied by Limited Current Circuit (IEC60950 or
UL1950). Do not connect the CCFL in Hazardous Voltage Circuit.
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 4
Global LCD Panel Exchange Center
5
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
G170EG01 V0
2. General Description
This specification applies to the 17 inch Color TFT-LCD Module G170EG01 V0.
The display supports the SXGA+ (1280(H) x 1024(V)) screen format and 16.7M colors (RGB 6-bits+Hi-FRC
data).All input signals are 2 Channel LVDS interface compatible.
This module does not contain an inverter card for backlight.
2.1 Display Characteristics
The following items are characteristics summary on the table under 25
Items Unit Specifications
Screen Diagonal [mm] 432 (17.0”)
Active Area [mm] 337.920(H) × 270.336(V)
Pixels H x V 1280 × 3(RGB) × 1024
Pixel Pitch [mm] 0.264(per one triad) × 0.264
Pixel Arrangement R.G.B. Vertical Stripe
Display Mode Normally White
condition:
White Luminance [cd/m2] 380 (center,Typ)@7.5 mA
Contrast Ratio 1000 : 1 (Typ)
Optical ResponseTime [msec] 5 (Typ)
Nominal Input Voltage VDD [Volt] +5.0 (Typ)
Power Consumption
(VDD line + CCFL line)
[Watt]
25.2W (Typ.)
(without inverter, all black pattern)
Weight [Grams] 2000 Typ.
Physical Size (H x V x D) [mm] 358.5(H) x 296.5(V) Typ. x 15.8(D) Max.
Electrical Interface Dual Channel LVDS
Surface Treatment Anti-glare type, Hardness 3H
Support Color 16.7M colors (RGB 6-bits +Hi-FRC data)
Temperature Range
Operating
Storage (Non-Operating)
o
C]
[
o
C]
[
0 to +50
-20 to +60
RoHS Compliance RoHS Compliance
Digital Gamma turn on Compliance
TCO03 Compliance
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 5
Global LCD Panel Exchange Center
6
www.panelook.com
Product Specification
G170EG01 V0
AU OPTRONICS CORPORATION
2.2 Optical Characteristics
The optical characteristics are measured under stable conditions at 25
:
Item Unit Conditions Min. Typ. Max. Note
Horizontal (Right)
CR = 10 (Left)
Vertical (Up)
Viewing Angle [degree]
CR = 10 (Down)
Horizon (Right)
CR = 5 (Left)
Vertical (Up)
CR = 5 (Down)
Luminance Uniformity [%] 9 Points 75 80 - 2, 3
70
70
70
70
75
75
75
75
85
85
80
80
85
85
85
85
-
1
-
-
Rising - 3.5 6
Optical Response Time [msec]
Falling - 1.5 3
4, 6
Rising + Falling - 5 9
Red x 0.618 0.648 0.678
Red y 0.309 0.339 0.369
Green x 0.262 0.292 0.322
Color / Chromaticity
Coordinates
(CIE 1931)
Green y 0.573 0.603 0.633
4
Blue x 0.113 0.143 0.173
Blue y 0.040 0.070 0.100
White x 0.283 0.313 0.343
White y 0.299 0.329 0.359
White Luminance
(At CCFL= 7.5mA)
[cd/m2 ]
305 380 - 4
Contrast Ratio 600 1000 - 4
Cross Talk (At 75Hz) [%] - - 1.5 5
Flicker [dB] - - -20
Optical Equipment: BM-5A, BM-7, PR880, or equivalent
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
7
www.panelook.com
Page 6
Global LCD Panel Exchange Center
7
www.panelook.com
Product Specification
G170EG01 V0
AU OPTRONICS CORPORATION
Note 1: Definition of viewing angle
Viewing angle is the measurement of contrast ratio
!
180° vertical range (off-normal viewing angles). The 180° viewing angle range is broken down as follows;
90° (θ) horizontal left and right and 90° (Φ) vertical, high (up) and low (down). The measurement direction is
typically perpendicular to the display surface with the screen rotated about its center to develop the desired
measurement viewing angle.
Note 2: 9 points position
90 %
50 %
10 %
10 %
50 %
90 %
Note 3: The luminance uniformity of 9 points is defined by dividing the maximum luminance values by the
minimum test point luminance
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Ӭ
W9
Minimum Luminance of 9 points
=
Maximum Luminance of 9 points
www.panelook.com
Page 7
Global LCD Panel Exchange Center
8
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
Note 4: Measurement method
The LCD module should be stabilized at given temperature for 30 minutes to avoid abrupt temperature
change during measuring. In order to stabilize the luminance, the measurement should be executed after
lighting Backlight for 30 minutes in a stable, windless and dark room. ʳ
G170EG01 V0
Photo detector
Field=2
50 cm
Note 5: Definition of Cross Talk (CT)
CT = | YB – YA | / YA × 100 (%)
Where
YA = Luminance of measured location without gray level 0 pattern (cd/m2)
YB = Luminance of measured location with gray level 0 pattern (cd/m2)
LCD Panel
Center of the screen
TFT-LCD Module
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 8
Global LCD Panel Exchange Center
L
9
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
G170EG01 V0
Note 6: Definition of response time:
The output signals of photo detector are measured when the input signals are changed from “Full Black” to
“Full White” (rising time), and from “Full White” to “Full Black ”(falling time), respectively. The response time
is interval between the 10% and 90% of amplitudes. Please refer to the figure as below.
Optical
Optical
response
response
100
100
90
90
10
10
%
%
White Black White
White Black White
0
0
Tr
Tr
Tr
F
F
Tr
R
R
Note 7: Subchecker Pattern
RGBRGB
Gray Level = L127
R GBRGB
RGBRGB
Method: Record dBV & DC value with (WESTAR)TRD-100
Amplitude
DC
Gray Level = L0
AC
Time
log20(dB)Flicker =
Hz) 30Level(at AC
evel DC
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 9
Global LCD Panel Exchange Center
10
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
3. Functional Block Diagram
The following diagram shows the functional block of the 17.0 inches Color TFT-LCD Module:
LVDS
+ 5V
Connector
DC/DC
Converter
LVDS
AU ASIC
Gamma
Correction
Timing
Controller
RSDS
DC POWER
G1
TFT-LCD
1280*(3)*1024
Pixels
G1024
D1 D3840
Inverter
4 CCFL
PCBA Connector:
CCFL Connector:
JAE FI-XB30SSL-HF15 YENONHO 35001HS-02L
Or Compatible Or Compatible
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 10
Global LCD Panel Exchange Center
11
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
G170EG01 V0
4. Absolute Maximum Ratings
Absolute maximum ratings of the module is as following:
4.1 TFT LCD Module
Item Symbol Min Max Unit Conditions
Logic/LCD Drive Voltage VIN -0.3 6 [Volt] Note 1,2
4.2 Backlight Unit
Item Symbol
CCFL Current ICFL - 8
Min Max Unit
[mA] rms Note 1,2
Conditions
4.3 Absolute Ratings of Environment
Item Symbol Min Max Unit Conditions
Operating Humidity HOP 5 90 [%RH]
Storage Temperature TST -20 +60 [oC]
Storage Humidity HST 5 90 [%RH]
Note 3
Note 1: With in Ta (25" )
Note 2: Permanent damage to the device may occur if exceed maximum values
Note 3: For quality performance, please refer to AUO IIS (Incoming Inspection Standard).
Operating Range Storage Range
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 11
Global LCD Panel Exchange Center
12
www.panelook.com
Product Specification
G170EG01 V0
AU OPTRONICS CORPORATION
5. Electrical characteristics
5.1 TFT LCD Module
5.1.1 Power Specification
Input power specifications are as follows:
Symble Parameter Min. Typ. Max. Unit Condition
VCC
Logic/LCD Drive
Voltage
4.5 5.0 5.5 [Volt]
ICC Input Current - 1.05 1.16 [A]
IRush Inrush Current - - 3.0 [A] Note
PCC VCCPower - 5.25 5.8 [Watt]
±10%
Vin=5V , All Black Pattern,
at 75Hz
Vin=5V , All Black Pattern,
at 75Hz
VCCrp
Allowable Logic/LCD
Drive Ripple Voltage
Note: Measurement conditions:
+5.0V
R1
47K
(High to Low)
Control
Signal
SW1
SW MAG-SPST
1 2
+12.0V
C2
1uF/25V
R2
1K
VR1
47K
- - 200
Q3
D6
D5
D2 S
D1
G
C3
0.01uF/25V
AO6402
D2SD1D5
G
D6
Q3
AO6402
F1
[mV]
p-p
C1
1uF/16V
With panel loading
VCC
(LCD Module Input)
90%
VDD rising time
0V
10%
0.5ms
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
5.0V
www.panelook.com
Page 12
Global LCD Panel Exchange Center
V
13
www.panelook.com
Product Specification
G170EG01 V0
AU OPTRONICS CORPORATION
5.1.2 Signal Electrical Characteristics
Input signals shall be low or Hi-Z state when Vin is off
It is recommended to refer the specifications of SN75LVDS82DGG (Texas Instruments) in detail.
Each signal characteristics are as follows;
Symbol Parameter Min Typ Max Units Condition
VTH
VTL
Differential Input High
Threshold
Differential Input Low
Threshold
- - +100 [mV]
-100 - - [mV]
VICM = 1.2V
Note
VICM = 1.2V
Note
│VID│ Input Differential Voltage 100 400 600 [mV] Note
VICM
Differential Input Common
Mode Voltage
+1.0 +1.2 +1.5 [V]
VTH/VTL = ±100MV
Note
Note: LVDS Signal Waveform
V
T
ѨVIDѨ
VICM
SS
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 13
Global LCD Panel Exchange Center
14
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
G170EG01 V0
5.2 Backlight Unit
Parameter guideline for CCFL Inverter
Parameter Min. Typ. Max. Unit Condition
CCFL standard current(ISCFL) 7 7.5 8 [mA] rms (Ta=25oC) Note 2
CCFL Operation Current (IRCFL) 3 7.5 8 [mA] rms (Ta=25oC) Note 2
CCFL Frequency (FCFL) 40 60 80 [KHz] (Ta=25oC) Note 3,4
CCFL Ignition Voltage (ViCFL, Ta= 0к
CCFL Ignition Voltage (ViCF, Ta= 25к
CCFL Operation Voltage (VCFL) -
CCFL Power Consumption (PCFL) CCFL Life Time (LTCFL) 40,000 50,000 - [Hour] (Ta=25oC)
Note 1: Typ. are AUO recommended design points.
)
)
1350
1120 -
- ʳ [Volt] rms
640
@ 7.5mA
19.2
(Ta=0oC) Note 5
ʳ [Volt] rms (Ta=25oC) Note 5
- [Volt] rms
-
[Watt] (Ta=25oC) Note 6
(Ta=25
o
C) Note 6
*1 All of characteristics listed are measured under the condition using the AUO test inverter.
*2 In case of using an inverter other than listed, it is recommended to check the inverter carefully.
Sometimes, interfering noise stripes appear on the screen, and substandard luminance or flicker
at low power may happen.
*3 In designing an inverter, it is suggested to check safety circuit very carefully. Impedance of CCFL,
for instance, becomes more than 1 [M ohm] when CCFL is damaged.
*4 Generally, CCFL has some amount of delay time after applying kick-off voltage. It is
recommended to keep on applying kick-off voltage for 1 [Sec] until discharge.
*5 Reducing CCFL current increases CCFL discharge voltage and generally increases CCFL
discharge frequency. So all the parameters of an inverter should be carefully designed so as not
to produce too much leakage current from high-voltage output of the inverter.
Note 2: It should be employed the inverter which has “Duty Dimming”, if IRCFL is less than 3mA.
Note 3: CCFL discharge frequency should be carefully determined to avoid interference between inverter and
TFT LCD.
Note 4: The frequency range will not affect to lamp life and reliability characteristics.
Note 5: CCFL inverter should be able to give out a power that has a generating capacity of over 1,500
voltage. Lamp units need 1,500 voltage minimum for ignition.
Note 6: The variance of CCFL power consumption is ±10%. Calculator value for reference (ISCFL × VCFL ×
4= PCFL)
Note 7:Definition of Life time: Brightness becomes 50%. The typical life time CCFL in on the condition at 7.5
m A lamp current.
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 14
Global LCD Panel Exchange Center
15
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
G170EG01 V0
6. Signal Characteristic
6.1 Pixel Format Image
Following figure shows the relationship of the input signals and LCD pixel format.
1st Line
1 2 1279 1280
R G B R G B
R G B R G B
1024th Line
R G B R G B
6.2 The Input Data Format
R G B R G B
Note1: Normally, DE, VS, HS on EVEN channel are not used.
Note2: Please follow PSWG.
Note3: 8-bit in
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 15
Global LCD Panel Exchange Center
g
)
)
g
)
)
g
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
V
y
V
y
V
y
16
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
G170EG01 V0
6.3 Signal Description
The module using a pair of LVDS receiver SN75LVDS82(Texas Instruments) or compatible. LVDS is a
differential signal technology for LCD interface and high speed data transfer device. Transmitter shall be
SN75LVDS83(negative edge sampling) or compatible. The first LVDS port(RxOxxx) transmits odd pixels
while the second LVDS port(RxExxx) transmits even pixels.
PIN # SIGNAL NAME DESCRIPTION
1RxO0- Ne
2 RxO0+ Positive LVDS differential data input (Odd data
3RxO1- Ne
4 RxO1+ Positive LVDS differential data input (Odd data
5RxO2- Ne
6 RxO2+ Positive LVDS differential data input (Odd data, H-Sync,V-Sync,DSPTMG
7 GND Power Ground
ative LVDS differential data input (Odd data
ative LVDS differential data input (Odd data
ative LVDS differential data input (Odd data, H-Sync,V-Sync,DSPTMG
8 RxOC- Negative LVDS differential clock input (Odd clock
9 RxOC+ Positive LVDS differential clock input (Odd clock
10 RxO3- Negative LVDS differential data input (Odd data
11 RxO3+ Positive LVDS differential data input (Odd data
12 RxE0- Negative LVDS differential data input (Even data
13 RxE0+ Positive LVDS differential data input (Even data
14 GND Power Ground
15 RxE1- Negative LVDS differential data input (Even data
16 RxE1+ Positive LVDS differential data input (Even data
17 GND Power Ground
18 RxE2- Negative LVDS differential data input (Even data
19 RxE2+ Positive LVDS differential data input (Even data
20 RxEC- Negative LVDS differential clock input (Even clock
21 RxEC+ Positive LVDS differential clock input (Even clock
22 RxE3- Negative LVDS differential data input (Even data
23 RxE3+ Positive LVDS differential data input (Even data
24 GND Power Ground
25 GND Power Ground(For AUO test Aging+HVS mode
26 NC No contact
27 GND Power Ground
28
29
30
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
CC +5.0V Power Suppl
CC +5.0V Power Suppl
CC +5.0V Power Suppl
www.panelook.com
Page 16
Global LCD Panel Exchange Center
V
17
www.panelook.com
Note1: Start from left side
Product Specification
AU OPTRONICS CORPORATION
Connector
30
RxOIN0-
CC
G170EG01 V0
Note2: Input signals of odd and even clock shall be the same timing.
Note3: Please follow PSWG.
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 17
Global LCD Panel Exchange Center
18
www.panelook.com
Product Specification
G170EG01 V0
AU OPTRONICS CORPORATION
6.4 Timing Characteristics
6.4.1 Timing Characteristics
Basically, interface timings described here is not actual input timing of LCD module but output timing of
SN75LVDS82DGG (Texas Instruments) or equivalent.
Signal Item Symbol Min Typ Max Unit
Vertical
Section
Horizontal
Section
Clock
Period Tv
Active Tdisp(v) 1024 1024 1024 Th
Blanking
Tbp(v)+Tfp(v)+PWvs
Period Th 750
Active Tdisp(h) 640 640 640 Tclk
Blanking Tbp(h)+Tfp(h)+PWhs 110 204 1408 Tclk
Period Tclk 14.81 18.52 25 ns
Frequency Freq 40 54 70 MHz
1034 1066 2048 Th
10 42 1024 Th
844
2048 Tclk
Frame rate Frame rate F 49 60 76 Hz
Note : DE mode only
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 18
Global LCD Panel Exchange Center
19
www.panelook.com
6.4.2 Timing Digram
RGB Data
(Odd)
RGB Data
(Even)
Invalid Data
Invalid Data
DE
Tbp(h)
Product Specification
AU OPTRONICS CORPORATION
RGB Data
Line Line Line Line Line Line
N
Invalid Data
PWhs
Hsync
CLK
Tclk
DE
G170EG01 V0
Hsync
Tfp(v)
Tbp(v)
Vsync
PWvs
Pixel
Pixel
1
2
Pixel Pixel
Pixel
4
3 9 M-1
Pixel
6
5M-3
Pixel Pixel Pixel Pixel Pixel Pixel
7
8
10
11
12
M-5
M-4
M-2
M
Invalid Data
Tdisp(h)
PixelPixelPixelPixel
PixelPixel
Tfp(h)
Invalid Data
Tv
2
Tdisp(v)
43
N1
Th
Invalid Data
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 19
Global LCD Panel Exchange Center
20
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
G170EG01 V0
6.5 Power ON/OFF Sequence
VDD power and lamp on/off sequence is as follows. Interface signals are also shown in the chart. Signals
from any system shall be Hi-Z state or low level when VDD is off.
Power Supply VDD
LVDS Signal
Backlight On
10%
T1
90%
T2
T3
Power Sequence Timing
VALID
DATA
T4
90%
T5
T6
10%
T7
Parameter
Min. Typ. Max.
T1 0.5 - 10 [ms]
T2 0 - 50 [ms]
T3 300 - - [ms]
T4 100 - - [ms]
T5 0 16 50 [ms]
T6 - - - [ms]
T7 1000 - - [ms]
Note: The values of the table are follow PSWG.
Value
Unit
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 20
Global LCD Panel Exchange Center
21
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
G170EG01 V0
7. Connector & Pin Assignment
Physical interface is described as for the connector on module.These connectors are capable of
accommodating the following signals and will be following components
.
7.1 TFT LCD Module
7.1.1 Connector
Connector Name / Designation Interface Connector
Manufacturer JAE or Compatible
Type Part Number FI-XB30SSL-HF15 or Compatible
Mating Housing Part Number JAE FI-X30HL or Compatible
7.1.2 Pin Assignment
Pin# Signal Name Pin# Signal Name
1 RxOIN0- 2 RxOIN0+
3 RxOIN1- 4 RxOIN1+
5 RxOIN2- 6 RxOIN2+
7
9 RxOCLKIN+ 10 RxOIN3-
11 RxOIN3+ 12 RxEIN0-
13 RxEIN0+ 14
15 RxEIN1- 16 RxEIN1+
17
19 RxEIN2+ 20 RxECLKIN-
21 RxECLKIN+ 22 RxEIN3-
23 RxEIN3+ 24
25 GND (AGMODE+HVS) 26 NC
27 GND 28 VCC
29 VCC 30 VCC
GND
GND
8 RxOCLKIN-
GND
18 RxEIN2-
GND
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 21
Global LCD Panel Exchange Center
22
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
G170EG01 V0
7.2 Backlight Unit
Physical interface is described as for the connector on module. These connectors are capable of
accommodating the following signals and will be following components.
Connector Name / Designation Lamp Connector
Manufacturer YENONHO or Compatible
Type Part Number 35001HS-02L or Compatible
Mating Type Part Number
35001WR-00LS00 or Compatible
7.2.1 Signal for Lamp connector
Connector No. Pin No. Input Color Function
1 Hot1 Pink High Voltage (Lamp 1)
CN1
Upper
CN2
2 Cold1 White
1 Hot2 Blue High Voltage (Lamp 2)
2 Cold2 Black
Connector No. Pin No. Input Color Function
1 Hot1 Pink High Voltage (Lamp 3)
CN3
Lower
CN4
2 Cold1 White
1 Hot2 Blue High Voltage (Lamp 4)
2 Cold2 Black
Low Voltage (Lamp 1)
Low Voltage (Lamp 2)
Low Voltage (Lamp 3)
Low Voltage (Lamp 4)
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 22
Global LCD Panel Exchange Center
23
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
8. Reliability Test
Environment test conditions are listed as following table.
Items Required Condition
Temperature Humidity Bias (THB)
High Temperature Operation (HTO)
Low Temperature Operation (LTO)
High Temperature Storage (HTS)
Low Temperature Storage (LTS) Ta= -
Vibration Test
(Non-operation)
Shock Test
(Non-operation)
& '
* ' + , -). ' ' /
(
$
%
#
$
%
#
$
%
#
$
%
#
)
& '
& ' + , -). ' ' /
(
)
'
. ' ' /
(
)
4 '
. ' ' /
(
)
'
(
)
5
012 3
012 3
. ' ' /
Acceleration: 1.5 G
Wave: Random
Frequency: 10 - 200 - 10 Hz
Sweep: 30 Minutes each Axis (X, Y, Z)
Acceleration: 50 G
Wave: Half-sine
Active Time: 20 ms
Direction: ±X, ±Y, ±Z (one time for each Axis)
012 3
G170EG01 V0
Note
012 3
012 3
Drop Test Height: 60 cm, package test
Thermal Shock Test (TST) -20(/30min, 60(/30min, 100 cycles
On/Off Test On/10sec, Off/10sec, 30,000 cycles
1
Contact Discharge: ± 8KV, 150pF(330Ω ) 1sec,
8 points, 25 times/ point.
ESD (ElectroStatic Discharge)
2
Air Discharge: ± 15KV, 150pF(330Ω ) 1sec
8 points, 25 times/ point.
Altitude Test
Operation:10,000 ft
Non-Operation:30,000 ft
Note 1: The TFT-LCD module will not sustain damage after being subjected to 100 cycles of rapid
temperature change. A cycle of rapid temperature change consists of varying the temperature from
-20к to 60к, and back again. Power is not applied during the test. After temperature cycling, the
unit is placed in normal room ambient for at least 4 hours before power on.
Note 2: According to EN61000-4-2 , ESD class B: Some performance degradation allowed. No data lost.
Self-recoverable. No hardware failures.
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 23
Global LCD Panel Exchange Center
24
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
9. Label and Packaging
9.1 Shipping Label
The shipping label format is shown as below.
(on the rear side of TFT-LCD display)
G170EG01 V0
G170EG01 V.0
9.2 Carton Package
Max capacityΚ8 TFT-LCD module per carton ΰ8pcs.1 layersα
Max weight: 17.85 kg per carton
Outside dimension of carton:434(L)mm*278(W)mm*390(H)mm
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 24
Global LCD Panel Exchange Center
25
www.panelook.com
Product Specification
AU OPTRONICS CORPORATION
10. Mechanical Characteristics
G170EG01 V0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Loading...
