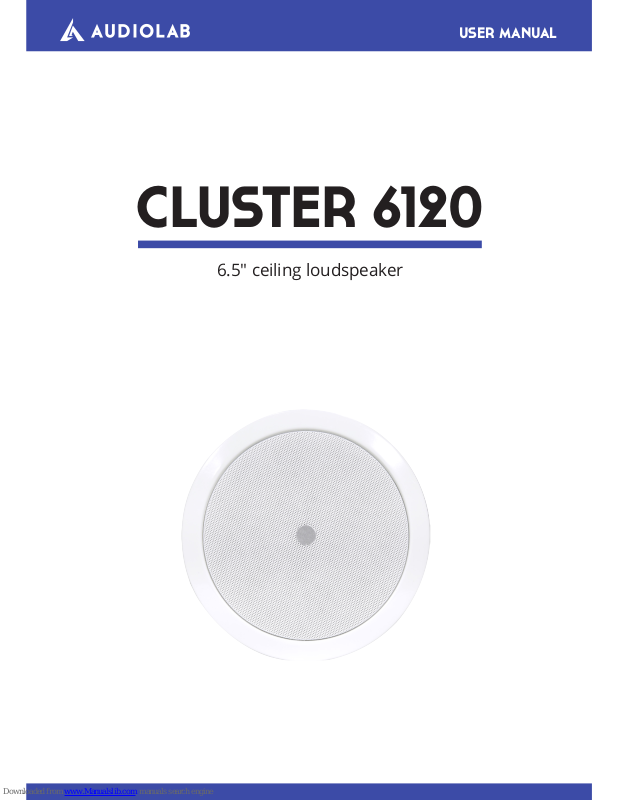

- AUDIOL AB Cluster 6120
CLUSTER 6120
6.5" ceiling loudspeaker
USER MANUAL
P. 2
CLUSTER 6120
6.5" ceiling loudspeaker
Cluster 6120 is a ceiling loudspeaker that sports a 6.5" speaker and has an impedance of 100V.The frequency response ranges from 95Hz to 20kHz,
providing a clear and dened sound, with a power
of 20W RMS and a MA X SPL of 98 dB @ 1 meter (3.3 feet). With a very careful aesthetics, and ideal
for a wide range of installations, Cluster 6120 is easy to x and install, is protected by a perforat-
ed metal grid and includes a cut-out template for easy mounting.
Specications
Components
6.5" Woofer
Features
Power output: 20W RMS
Frequency response: 95Hz-20KHz
Max SPL: 98dB @ 1M (3.3 ft.)
Input impedance: 2Kohms/1Kohms/500ohms
Output impedance: 5W/10W/20W
Input voltage: 100V
Physical
Dimensions: 199x63.7 mm. / 7.8x2.5 in.
Weight: 0.87 Kg. / 1.9 Lbs.
1. OVERVIEW
English version
P. 3
- AUDIOL AB Cluster 6120
English version
2. INSTALLATION NOTICE
1. Drill a round hole into the ceiling in accord-
ance with the ceiling-driling picture on the attached cove in the inner box.
2. Choose the required input voltage and output power for connection to facility. For further
details, please refer to the instruction on the
speaker and the following specications.
3. After connecting the speaker, pull the xing frame on speaker vertically, then push it into
the round hold on ceiling for xing.
The dimension for ceiling hoe
Choose the input of transformer to connect The speaker
Sheet speaker
Sheet speaker
Ceiling speaker
P. 4
CLUSTER 6120
Altavoz para montaje en techos de 6,5"
Cluster 6120 es un altavoz para montaje en techos que cuenta con un parlante de 6,5" y tiene una impedancia de 100V. Su respuesta en fre-
cuencia va de 95Hz a 20 kHz, brindando un sonido claro y denido, con una potencia de 20W RMS y 98dB de SPL máximo a 1 metro. Con una estéti­ca muy cuidada, e ideal para un gran abanico de instalaciones, Cluster 6120 es fácil de jar e insta-
lar, está protegido por una rejilla metálica perfora­da e incluye un molde para facilitar su montaje.
Especicaciones
Componentes
Altavoz de 6,5"
Características
Potencia nominal: 20W RMS
Respuesta de frecuencia: 95Hz-20KHz
SPL Máximo: 98dB @ 1M
Impedancia de entrada: 2Kohms/
1Kohms/500ohms
Impedancia de salida: 5W/10W/20W
Voltaje de entrada: 100V
Físico
Dimensiones: 199x63,7 mm. / 7,8x2,5 pulg.
Peso: 0,87 Kg. / 1,9 Lbs.
1. DESCRIPCIÓN
Versión Español
P. 5
- AUDIOL AB Cluster 6120
Versión Español
2. INSTALACIÓN
1. Taladre un oricio redondo en el techo según
la imagen de perforación en la cara interna de la tapa de la caja.
2. Seleccione el voltaje de entrada requerido y la
potencia de salida para la conexión. Para más
detalles, consulte las instrucciones del altavoz
y las siguientes especicaciones.
3. Una vez conectado el altavoz, acerque el mar-
co de jación verticalmente hacia el altavoz, luego empújelo dentro del oricio redondo del techo para jarlo.
Diámetro del oricio
Seleccione la entrada del transformador para conectar el altavoz
Altavoz
Altavoz
Altavoz de techo
P. 6
