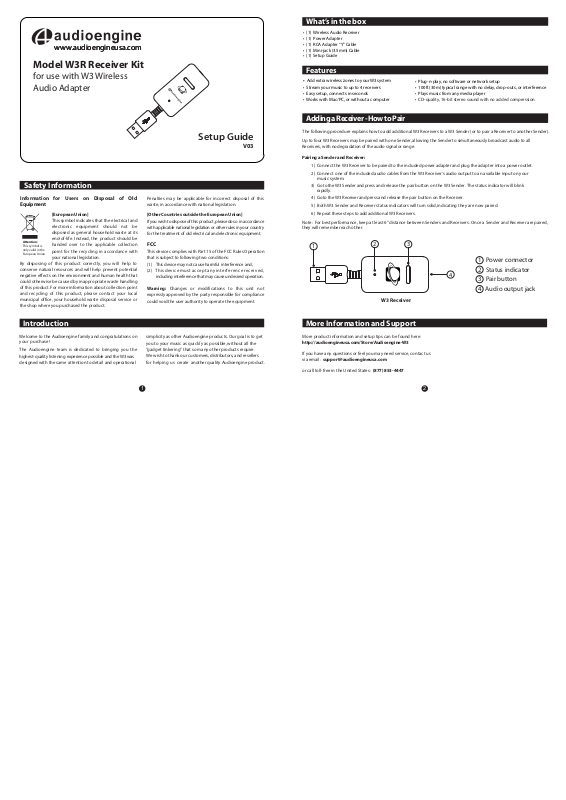

Audioengine W3RX User Manual

www.audioengineusa.com

www.audioengineusa.comwww.audioengineusa.comwww.audioengineusa.com

Model W3R Receiver Kit

for use with W3 Wireless
Audio Adapter

Safety Information

Information for Users on Disposal of Old
Equipment

[European Union]

This symbol indicates that the electrical and
electronic equipment should not be
disposed as general household waste at its

Attention:

This symbol is
only valid in the
European Union.

By disposing of this product correctly, you will help to
conserve natural resources and will help prevent potential
negative effects on the environment and human health that
could otherwise be caused by inappropriate waste handling
of this product. For more information about collection point
and recycling of this product, please contact your local
municipal office, your household waste disposal service or
the shop where you purchased the product.

end-of-life. Instead, the product should be
handed over to the applicable collection
point for the recycling in accordance with
your national legislation.

Setup Guide

V03

Penalties may be applicable for incorrect disposal of this
waste, in accordance with national legislation.

[Other Countries outside the European Union]

If you wish to dispose of this product, please do so in accordance
with applicable national legislation or other rules in your country
for the treatment of old electrical and electronic equipment.

FCC

This device complies with Part 15 of the FCC Rules Operation
that is subject to following two conditions:

(1) This device may not cause harmful interference and,
(2) This device mus t acc ept any interference received ,

including interference that may cause undesired operation.

Warning: Changes or modifications to this unit not
expressly approved by the party responsible for compliance
could void the user authority to operate the equipment.

What’s in the box

• (1) Wireless Audio Receiver

• (1) Power Adapter

• (1) RCA Adapter “Y” Cable

• (1) Mini-jack (3.5mm) Cable

• (1) Setup Guide

Features

• Add extra wireless zones to your W3 system

• Stream your music to up to 4 receivers

• Easy setup, connects in seconds

• Works with Mac/PC, or without a computer

• Plug-n-play, no software or network setup

• 100ft (30m) typical range with no delay, drop-outs, or interference

• Plays music from any media player

CD-quality, 16-bit stereo sound with no added compression

•

Adding a Receiver - How to Pair

The following procedure explains how to add additional W3 Receivers to a W3 Sender (or to pair a Receiver to another Sender).

Up to four W3 Receivers may be paired with one Sender, allowing the Sender to simultaneously broadcast audio to all
Receivers, with no degradation of the audio signal or range.

Pairing a Sender and Receiver:

1) Connect the W3 Receiver to be paired to the included power adapter and plug the adapter into a power outlet.

2) Connect one of the included audio cables from the W3 Receiver’s audio output to an available input on your
music system.

3) Go to the W3 Sender and press and release the pair button on the W3 Sender. The status indicator will blink
rapidly.

4) Go to the W3 Receiver and press and release the pair button on the Receiver.

5) Both W3 Sender and Receiver status indicators will turn solid, indicating they are now paired.

6) Repeat these steps to add additional W3 Receivers.

Note: For best performance, keep at least 6” distance between Senders and Receivers. Once a Sender and Receiver are paired,
they will remember each other.

1

2

W3 Receiver

3

1 Power connector

4

2 Status indicator
3 Pair button
4 Audio output jack

Introduction

Welcome to the Audioengine family and congratulations on
your purchase!

The Audioengine team is dedicated to bringing you the
highest-quality listening experience possible and the W3 was
designed with the same attention to detail and operational

simplicity as other Audioengine products. Our goal is to get
you to your music as quickly as possible, without all the
“gadget tinkering” that so many other products require.
We wish to thank our customers, distributors, and resellers
for helping us create another quality Audioengine product.

1

More Information and Support

More product information and setup tips can be found here:

http://audioengineusa.com/Store/Audioengine-W3

If you have any questions or feel you may need service, contact us
via email: [e-mail]

or call toll-free in the United States: [phone]

2
