AudioEngine D1 User Manual

Download

Page 1

Setup Guide

www.audioengineusa.com

Premium 24-bit DAC

Page 2

Contents

Introduction

Package Contents

Cleaning

Features

Overview

Quick Setup

Troubleshooting

Specications

About Audioengine

Page 3

Page 4

Page 6

Page 8

Page 9

Page 10

D1 setup guide

Page 3

Basic Safety Instructions

Introduction

• Read these instructions for all components before using this product.

• Keep these instructions for future reference.

• Heed all warnings on the product and in the owne r’s guide Follow all instructions.

• Do not use this apparatus near water or moisture. Do not use this product near a bathtub, washbowl, kitchen sink, laundry tub, in a wet basement, near a swimming pool, or anywhere els et hatwate ror moisture are present.

• Clean only with a dry cloth and as directed by the manufacturer. Unplug this product from the wall outle before cleaning.

• Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. To ensure reliable operation of the product and to protect it from overheating, put the product in a position and location that will not interfere with its proper ventilation. For example, do not place the product on a bed, sofa, or similar surface that may block the ventilation openings. Do not putit in a built-in system, such as a bookcase or a cabinet that may keep air from owing through it ’s ventilation openings.

• Do not install near any heat sources, such as radiators, heat registers, st oves or other apparatus that produce heat.

• Do not defeat the safety purpose of the polarized or grounding-type plug. A polarize d plug has two blades with one wider than the othe r. A grounding-type plug has two blades and a third grounding prong. The wider blade or third prong are provided for your saf ety. If the provided plug does not t in your outlet, consult and electrician for replacement of the obsolete outlet.

• Protect the power cord from being walked on or pinched, particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

• Only use attachments or accessories specied by the manufacturer.

• Use only with the cart, stand, tripod, bracket or table When a cart is used, use caution when moving the cart / apparatus

combination to avoid injury from tip-over.

• Unplug this apparatus during lightning storms or when unused for long periods of time to prevent damage to this product.

• Refer all servicing to qualied service personnel.

• Servicing is required when the apparatus has been damaged in any way such as power supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

• Do not attempt to service this product yourself. Opening or removing covers may expose you to dangerous voltages or other hazards. Please contact the manufacturer to be referred to an authorized service center near you.

• To prevent risk of re or electric shock, avoid over loading wall outlets, extension cord s, or integral convenience receptacles .

• Do not let objects or liquids enter the product as they may touch dangerous voltage points or shor tout par ts that could result in a re or electrical shock.

• See product enclosure bottom for safet y related markings.

• Use Proper Power Sources. Plug the product into a proper power source, as described in the operating instruc tions or as marked on the product.

• Avoid power lines– Us e extreme care when installing an outside antenna system to keep from touching power lines or circuits, as contact with them may be fatal. Do not install external antennas near overhead power lin es or other electric light or power circuits, nor where an antenna can fall into such circuits or power lines.

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: This device may not cause harmful interference and this device must accept any interference received, including interference that may cause undesired operatio.

Welcome to the Audioengine family and congratulations on your purchase of the Audioengine D1 Premium 24-bit DAC!

The Audioengine team is dedicated to bringing you the highest quality listening experience possible. The Audioengine D1 is designed with the same attention to detail and operational simplicity as all Audioengine products. Our goal is to get you to your music as simply as possible, without all the “gadget tinkering” that other products require.

As with our other past eorts, we thank all our customers and resellers for helping us create another great Audioengine product!

Package Contents

• Audioengine D1 DAC

• USB cable

• Setup Guide

Cleaning

Your D1 components are not water-resistant, so it’s important that they should be kept free of moisture. You should clean only with a dry cloth or tissue and no liquid cleaners or solvents should be used.

RISK OF ELECTRICAL SHOCK

DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,

DO NOT REMOVE COVER (OR BACK.) NO USER-SERVICABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED PERSONNEL

D1 setup guide

RISQUE DE CHOC ÉLECTRIQUE

NE PAS OUVRIR

ATTENTION: POUR RÉDUIRE LE RISQUE DE DÉCHARGE

ÉLECTIQUE, NE RETIREZ PAS LE COUVERCLE (OU

L’ARRIÈRE.) IL NE SE TROUVE ÀL’INTÉRIEURAUCUNE

PIÉCE POUVANT ÊTRE RÉPARÉE PAR L’USAGER.

S’ADRESSER ÀUN REÉPARATEUR COMÉTENT.

Page 4

Features

• Desktop or portable digital-to-analog convertor

• Mac or PC plug-and-play, no drivers to install

• High-performance headphone amp included

The D1 can process digital audio at any bit depth up to 24 bits, and any sample rate up to 192KHz. The D1 USB input can accept a USB audio stream from your computer or other USB source device. The D1 optical input can accept optical (PCM stereo) streams from any optical (TOSLINK) source, such as TVs, Apple TV®, DVD/BluRay players, CD players, etc.

• USB and optical inputs

• USB-powered

• Stream bit-perfect 24/96 HD audio with low jitter

• Based on high-performance AK4396 DAC

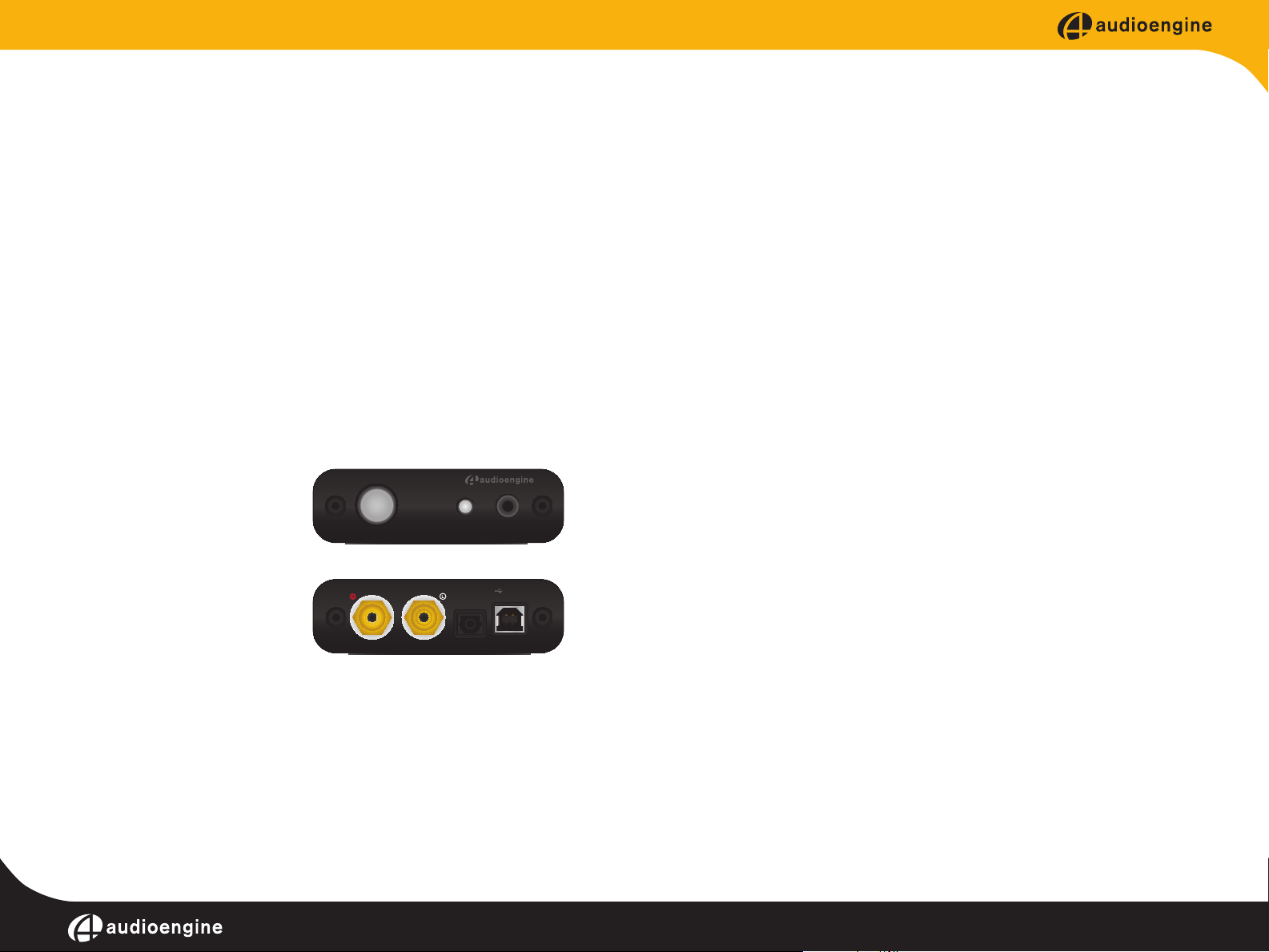

Overview

The D1 24-bit DAC is a simple yet powerful digital-to-analog converter, with performance and features usually found only in much more expensive DACs. It can accept USB or PCMstream optical inputs, and will automatically congure to match the inputs you deliver, with the optical input being dominant.

Output Level

Right

Analog Output

Left

Power Headphone

Optical Input

DAC/Headphone Amp

USB Input

Note: optical sources must be set to PCM Stereo.

The D1 output can be connected to any gear with an analog audio input, such as powered speakers, a boombox, stereo system, etc.

Power for the D1 is provided via the USB bus.

Note: when using the D1 with the optical output of your computer, the USB port on the computer can provide power. The D1 will sense that an optical input is present, and give that input priority.

USB power is “double regulated” to ensure that no USB bus power variations aect your output.

The D1 also contains a high-performance headphone amplier.

Note: When headphones are plugged in, the analog output will be muted.

D1 setup guide

Page 5

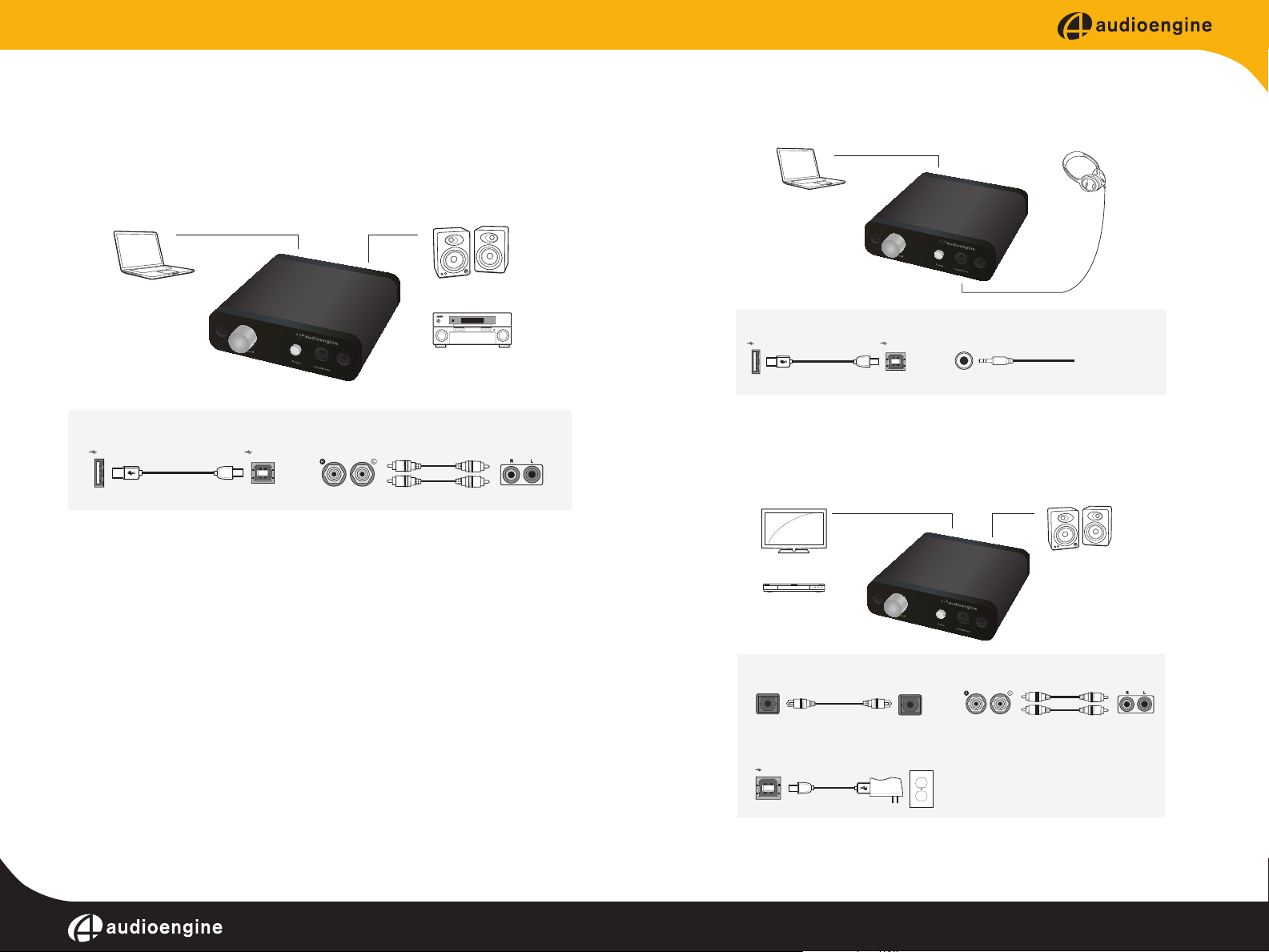

Quick Setup

➋

Headphones

The following diagrams show the most common congurations for D1 Setup.

Computer

USB Audio Input

➊

USB

Computer

➊ ➋

Analog Audio Output

➋

USB Input

D1 DAC

Analog Output Analog Input

D1 DAC

A5+ Powered Speakers

AV Receiver

A5+ or AV Receiver

Audioengine D1 - Cong A

USB from your computer

Step 1 -- connect the D1 to your computer USB port.

Computer

USB Audio Input

➊

USB

Computer

Optical Source

Blu-Ray/DVD/CD Player

➊

Headphones

➋

Headphone Output

➋

USB Input

D1 DAC

➊

Headphone

D1 DAC

Headphones

Audioengine D1 - Cong B

A5+ Powered Speakers

➋

➌

For PC, the D1 should be recognized automatically.

For Mac, under System Preferences/Sound, select “Audioengine D1”

Step 2 –- connect the analog output of your D1 to any audio input of your active speakers, stereo, etc.

For advanced setup tips visit: audioengineusa.com

D1 setup guide

Optical Audio Input

➊

Optical Output Optical Input

TV/Blu-Ray/DVD

External AC Power

➌

USB Input

D1 Input

Power Supply*

*USB AC power supply sold separately

D1 DAC

Analog Audio Output

➋

Analog Output

D1 DAC

Analog Input

A5+ or AV Receiver

Audioengine D1 - Cong C

Page 6

Troubleshooting

Specications

• I have connected my D1 as shown in the manual, but there is no music output.

1. Check to see that the power light is lit. If not, try another USB

output on your computer.

2. Ensure that D1 is selected as your output device under Control

Panel (PC) or System Preferences/Audio (Mac).

3. Try another USB cable.

• I have connected my D1 to my TV/DVD/BluRay, but there is no sound output.

1. Be sure that D1 is also connected to a USB power adapter, and

that the power light is lit.

2. Be sure that your TV/DVD/BluRay digital audio is set to “PCM

Stereo”.

• Only one channel plays through my D1.

1. Check the RCA cables between your D1 and your sound system.

2. Check your audio player to ensure that the balance is centered.

Electrical

Full Scale output 2.0V RMS Frequency Response 10 Hz - 25 kHz, +/- 0.5db S/N Ratio (DC to 20 kHz) >110 dB THD+N (1 kHz FS 96 kS/s) <0.0025%

Interface

Input Data Rate up to 192KS/s Input Bit Depth up to 24 bits USB type 1.1 or above Power Requirements 130 mA

For additional specications go to: audioengineusa.com

Break-In Period

Your DAC will sound great out of the box and will get better over time. However, give it 40 to 50 hours break-in time before doing any critical listening.

D1 setup guide

Page 7

Information for Users on Disposal of Old

If you have any questions or feel you may need service, contact the reseller where you purchased your product or feel free to email us directly at: [email protected] or call toll-free in the United States: (877) 853-4447

About Audioengine

Audioengine designs and builds innovative audio products with all your music in mind. Great sound, simple but elegant designs, highquality materials, and truly useful features are what Audioengine is about. We sincerely hope you get as much enjoyment from our products as we’ve had creating them! For information about our other products go to:

www.audioengineusa.com

Equipment [European Union]

This symbol indicates that the electrical and electronic equipment should not be disposed as general household waste at its end-of-life. Instead, the product should be

Attention:

This symbol is only valid in the European Union.

could otherwise be caused by inappropriate waste handling of this product. For more information about collection point and recycling of this product, please contact your your household waste disposal service or the shop where you purchased the product. Penalties may be applicable for incorrect disposal of this waste, in accordance with national legislation.

handed over to the applicable collection point for the recycling in accordance with your national legislation. By disposing of this product correctly, you will help to conserve the environment and human health that

[Other Countries outside the European Union]

If you wish to dispose of this product, please do so in accordance with applicable national legislation or other rules in your country for the treatment of old electrical and electronic equipment.

D1 setup guide

Page 8

Audioengine, Ltd.

[email protected]

www.audioengineusa.com

Audioengine and Audioengine D1 are trademarks of Audioengine Ltd.
