AudioCodes MP-20x FXS Quick Start Guide

MediaPack™ 20x FXS Telephone
Adapter

Quick Setup Guide

Welcome

Congratulations on purchasing your AudioCodes MediaPack 20x
Telephone Adapter (MP-20x), hereafter referred to as device!

This document provides basic setup instructions for cabling the
device and for connecting it to the Internet. Before you begin,
please read the Safety Precautions on page 10.

Pour consulter le guide rapide de l’équipement en français,
consultez le site web AudioCodes suivant :

https://www.audiocodes.com/library/technical­documents?productGroup=1693&docTypeGroup=Quick+Guides .

Package Contents

Make sure that the following items (in addition to any separate­orderable items that you may have purchased) are included with
your shipped device:

 1 x 12V AC power adapter

 1 x RJ-11 telephone cable

1 | Page

1

12VDC

AC power socket.

2

RST

Reset pinhole button for resetting the device or

3

USB

USB 2.0 port which can be used for connecting a
3G/4G LTE cellular modem (USB dongle) for

6 1 2

3 4 5

 1 x RJ-45 Ethernet cable

 Regulatory Information document

 This Quick Guide

Rear-Panel Description

[Number of FXS phone ports and presence of USB port depend on

MP-20x model]

restoring it to factory defaults.

 To reset: With a paper clip (or any other similar

pointed object), press the button for at least 1
second, but no more than 5 seconds.

 To restore to factory defaults: With a paper

clip (or any other similar pointed object), press
the button for at least 7 seconds, but no more
than 25 seconds.

2 | Page

primary or secondary (backup) WAN, a network

202R/2S/SIP/CER/R, and MP-204R/4S/SIP/CER/R.

4

WAN

WAN Ethernet port interface (RJ-45) for connecting

5

LAN/PC

LAN Ethernet port interface (RJ-45) for connecting

6

PHONE

Foreign Exchange Subscriber (FXS) ports for

printer for LAN users, or an external storage device.
Note: The USB port is available only on these MP­20x models: MP-204B/4S/SIP, MP-

to the WAN. Note: The Ethernet port speed
depends on the MP-20x model:

 Fast Ethernet (100Base-T): MP-202B/2S/SIP
 Gigabit Ethernet (10/100/1000Base-T): MP-

204B/4S/SIP, MP-202R/2S/SIP/CER/R, and MP­204R/4S/SIP/CER/R

to a LAN computer.
Note: The Ethernet port speed depends on the MP­20x model:

 Fast Ethernet (100Base-T): MP-202B/2S/SIP

 Gigabit Ethernet (10/100/1000Base-T):

MP-204B/4S/SIP, MP-202R/2S/SIP/CER/R
and MP-204R/4S/SIP/CER/R

connecting analog telephones.
Note: The number of FXS ports depends on the
MP-20x model:

 2: MP-202B/2S/SIP and MP-202R/2S/SIP/

CER/R

 4: MP-204B/4S/SIP and MP-204R/4S/SIP/

CER/R

3 | Page

1

PHONE

LED indicating FXS port (phone) status:

Green

 SIP user account for the

Green On

Phone is in off-hook state

Green

Fast-Flashing

Phone is ringing

Red On

SIP user account registration
failure for the analog line

Off

No SIP user account has been
configured for this analog line

1 2 3 4 5

6

Front-Panel Description

[Number of PHONE LEDs and presence of USB LED depend on MP-

20x model]

Slow-Flashing

4 | Page

analog line has been
successfully registered to a
proxy server

 Phone is in on-hook state

2 / 3 LAN /

WAN

LED indicating LAN and WAN status:

Green On

Ethernet link is connected:

Green

Ethernet link is active (data is

Yellow

Ethernet link is connected:

Yellow

Ethernet link is active (data is

Yellow

10-Mbps Ethernet link is active

204R/4S/SIP/CER/R)

Off

No Ethernet link

 100 Mbps: MP-202B/2S/SIP

 1000 Mbps: MP-204B/4S/SIP,

MP-202R/2S/SIP/CER/R, and
MP-204R/4S/SIP/CER/R

Flashing

On

Slow-Flashing

Fast-Flashing

5 | Page

received or transmitted):

 100 Mbps: MP-202B/2S/SIP

 1000 Mbps: MP-204B/4S/SIP,

MP-202R/2S/SIP/CER/R, and
MP-204R/4S/SIP/CER/R

 10 Mbps: MP-202B/2S/SIP
 100 Mbps: MP-204B/4S/SIP,

MP-202R/2S/SIP/CER/R, and
MP-204R/4S/SIP/CER/R

received or transmitted):

 10 Mbps: MP-202B/2S/SIP

 100 Mbps: MP-204B/4S/SIP,

MP-202R/2S/SIP/CER/R, and
MP-204R/4S/SIP/CER/R

(MP-204B/4S/SIP, MP­202R/2S/SIP/CER/R, and MP-

4 USB

LED indicating USB port status:

Green On

USB device connected to USB port

Off

No USB device connected

5 STATUS

LED indicating operating status:

Green On

Device bootup completed
successfully

Green

Firmware upgrade or

POWER LED)

Red On

Device booting up

6

POWER

LED indicating power status:

Green On

Power received by device

Off

No power

Flashing

configuration update in process
(all other LEDs also flash, except

6 | Page

Cabling the Device

1. Connect the device's Ethernet port labeled WAN to your

Internet router, using an RJ-45 Ethernet cable.

2. Connect the device's Ethernet port labeled LAN/PC to your

computer, using an RJ-45 Ethernet cable.

3. Connect the device's telephone ports labeled PHONE to your

analog telephones or faxes, using RJ-11 telephone cables.

4. (Optional) For primary or secondary (backup) WAN, connect a

3G/4G cellular modem dongle to the USB port labeled USB.

5. Connect the device to a standard 110/220 VAC electrical wall

outlet, using the supplied AC power adapter; the POWER LED
turns on (green) and when initialization completes (~ 1
minute), the STATUS LED changes from red to green.

7 | Page

Configuring Initial Network Settings

Once you have cabled the device, as explained in the previous
section, you can access the device's Web-based management tool
to configure your Internet connection type.

1. On the computer that you connected to the device, verify that

the Local Area Connection status is "Connected". If the status
is "Disconnected", then make sure that your computer is
configured to obtain an IP address automatically. (The device
has an embedded DHCP server which allocates a DHCP pool of
IP addresses in the 192.168.2.0/24 subnet.)

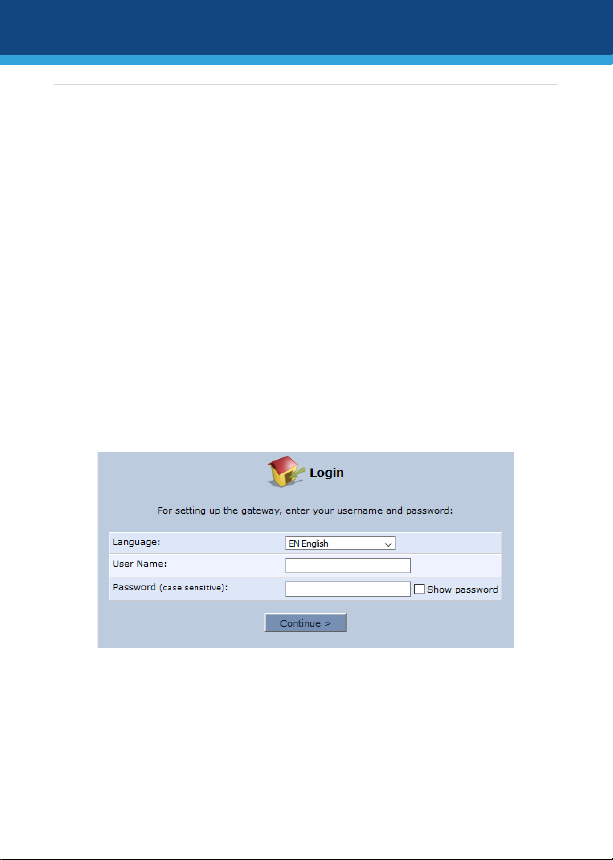

2. Open a standard Web browser on your computer, and then in

the URL field, enter the device's default IP address of

192.168.2.1; the Login screen appears:

3. Enter the default, case-sensitive username (admin) and

password (admin), and then click Continue; the Quick Setup
page appears:

8 | Page

4. From the 'Connection Type' drop-down list, select the Internet

connection method. Consult with your Service Provider for the
required connection type (e.g., DHCP, PPPoE or PPTP).

5. Click OK; the Map View page appears, displaying all the

network elements (such as phones, faxes, router, and Internet)
that are connected to your device. (If there is no Internet

connection, the icon is displayed on the "WAN Ethernet"
line.)

9 | Page

Obtaining Software and Documentation

If you have a maintenance and support agreement with AudioCodes
or with an authorized AudioCodes Service Partner, you can
download the device's latest software version from AudioCodes'
Services Portal at https://services.audiocodes.com (registered users
only).

To download the device's technical documentation such as the
User's Manual from AudioCodes website, go to

https://www.audiocodes.com/library/technical­documents?productGroup=1693.

Safety Precautions

 The device must be installed and serviced only by qualified

service personnel.

 This device is an indoor unit and therefore, must not be

installed outdoors.

 Ethernet cabling must be routed only indoors and must not

exit the building.

 Do not open or dismantle the device.

 Do not expose the device to water or moisture.

 Make sure the device is installed in a well-ventilated location

to avoid over heating of internal components and subsequent
damage.

 Do not place any object on top of the device and make sure

that sufficient clearance from the top and sides are maintained

10 | Page

to ensure proper airflow to avoid over heating of internal
components.

 Operate the device in an ambient temperature (Tma) that does

not exceed 40°C (104°F).

 Use only the supplied AC/DC power adapter for connection to

the power source. In case of a malfunction, do not attempt to
fix the power adapter and do not use any other type of power
adapter. Contact AudioCodes support for assistance.

 The device must be connected to an electrical socket-outlet

providing protective earthing.

 Operate the device only from the type of power source

indicated on the chassis.

 Installation of the device must be in accordance with national

electrical codes and conform to local regulations.

11 | Page
