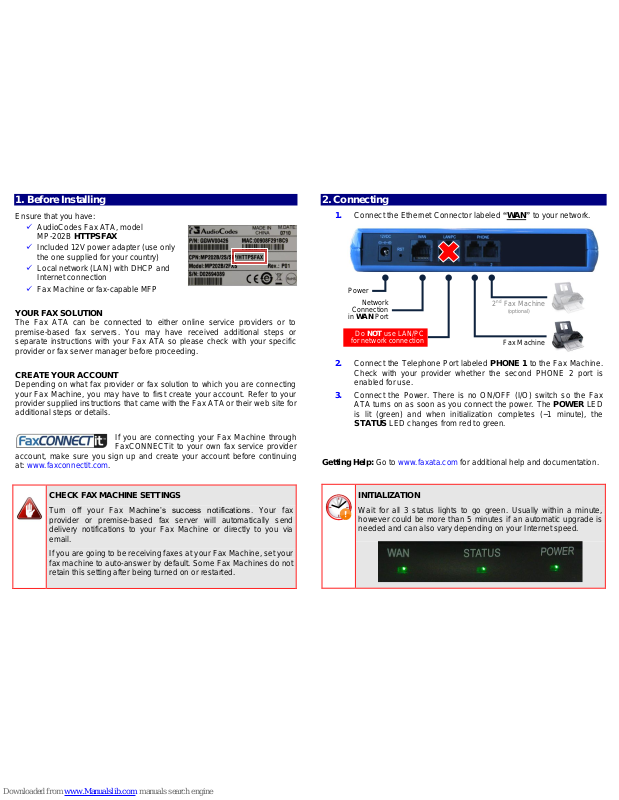

1. Before Installing
Ensure that you have:
AudioCodes Fax ATA, model
MP-202B HTTPSFAX
Included 12V power adapter (use only
the one supplied for your country)
Local network (LAN) with DHCP and
Internet connection
Fax Machine or fax-capable MFP
YOUR FAX SOLUTION
The Fax ATA can be connected to either online service providers or to
premise-based fax servers. You may have received additional steps or
separate instructions with your Fax ATA so please check with your specific
provider or fax server manager before proceeding.
CREATE YOUR ACCOUNT
Depending on what fax provider or fax solution to which you are connecting
your Fax Machine, you may have to first create your account. Refer to your
provider supplied instructions that came with the Fax ATA or their web site for
additional steps or details.
If you are connecting your Fax Machine through
FaxCONNECTit to your own fax service provider
account, make sure you sign up and create your account before continuing
at: www.faxconnectit.com.
CHECK FAX MACHINE SETTINGS
Turn off your Fax Machine’s success notifications. Your fax
provider or premise-based fax server will automatically send
delivery notifications to your Fax Machine or directly to you via
email.
If you are going to be receiving faxes at your Fax Machine, set your
fax machine to auto-answer by default. Some Fax Machines do not
retain this setting after being turned on or restarted.
2. Connecting
1. Connect the Ethernet Connector labeled “WAN” to your network.
Fax Machine
2nd Fax Machine
(optional)
Do NOT use LAN/PC
for network connection
Power
Network
Connection
in WAN Port
2. Connect the Telephone Port labeled PHONE 1 to the Fax Machine.
Check with your provider whether the second PHONE 2 port is
enabled for use.
3. Connect the Power. There is no ON/OFF (I/O) switch so the Fax
ATA turns on as soon as you connect the power. The POWER LED
is lit (green) and when initialization completes (~1 minute), the
STATUS LED changes from red to green.
Getting Help: Go to www.faxata.com for additional help and documentation.
INITIALIZATION
Wait for all 3 status lights to go green. Usually within a minute,
however could be more than 5 minutes if an automatic upgrade is
needed and can also vary depending on your Internet speed.
Page 2
3. Activating
Before you can send faxes, you will need to activate your Fax ATA.
Refer to specific instructions supplied by your provider or fax server
manager. Note: Connections to some service provider connections
and premise-based fax servers may not require activation.
To activate your Fax ATA, follow the steps below.
1. Make sure you have your PIN for activation. This is supplied by your
provider or fax server administrator.
2. You activate the Fax ATA from your Fax Machine or MFP.
3. Go off-hook and dial the following:
*1*<PIN># (for example, dial *1*1234#)
4. Press SEND or START if your Fax Machine requires this step to start
dialing.
5. You will hear an audio confirmation once the activation is complete.
4. Send a Fax
You can now send a fax from your Fax Machine.
Getting Help: Go to www.faxata.com for additional help and documentation.
Notice
This guide describes the installation of AudioCodes’ MP-202B HTTPSFAX Fax ATA
device. For other additional information on the MP-20x Telephone Adapter series,
including models MP-201B/1FXS, MP-202B/2FXS and MP-204B/4FXS which do not
support HTTPSFAX connections, refer to the downloads site listed below.
Information contained in this document is believed to be accurate and reliable at the
time of printing. However, due to ongoing product improvements and revisions,
AudioCodes cannot guarantee accuracy of printed material after the date published
nor can it accept responsibility for errors or omissions. Updates to this document can
be viewed by registered customers at: www.faxata.com.
© Copyright 2012 AudioCodes Ltd. All rights reserved.
This document is subject to change without notice. Refer to the current Release
Notes that may be included with your documentation or hardware delivery.
Date Published: February 27-2012
www.audiocodes.com
Fax ATA
MP-202B HTTPS Fax Adapter
Quick Installation Guide
LTRT-041-HTTPSFAX
