Audac M2DIS User Manual

M2DIS

User Manual

www.audac.eu

2

3

Index

Introduction 4
Caution servicing 4

User interface 5

Main screen 6

Output settings 8
Test signals 10

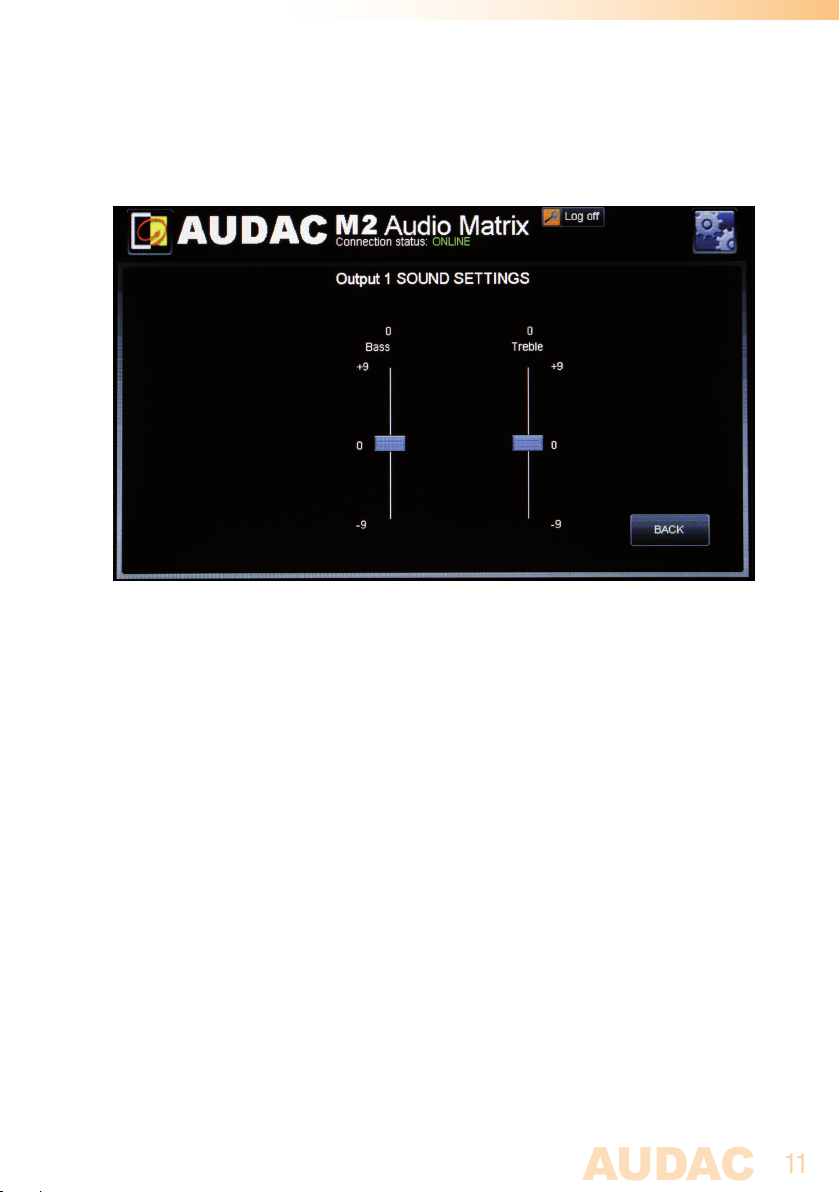

Sound settings 11

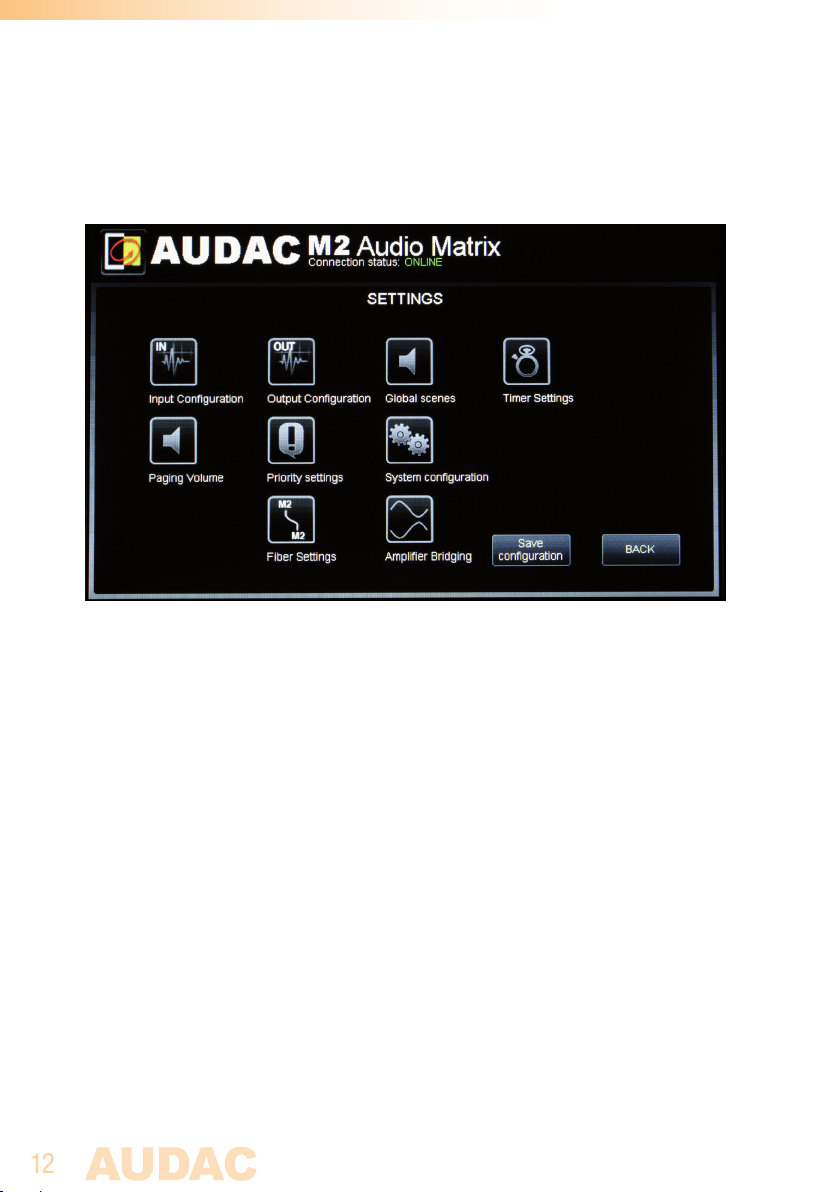

Settings screen 12

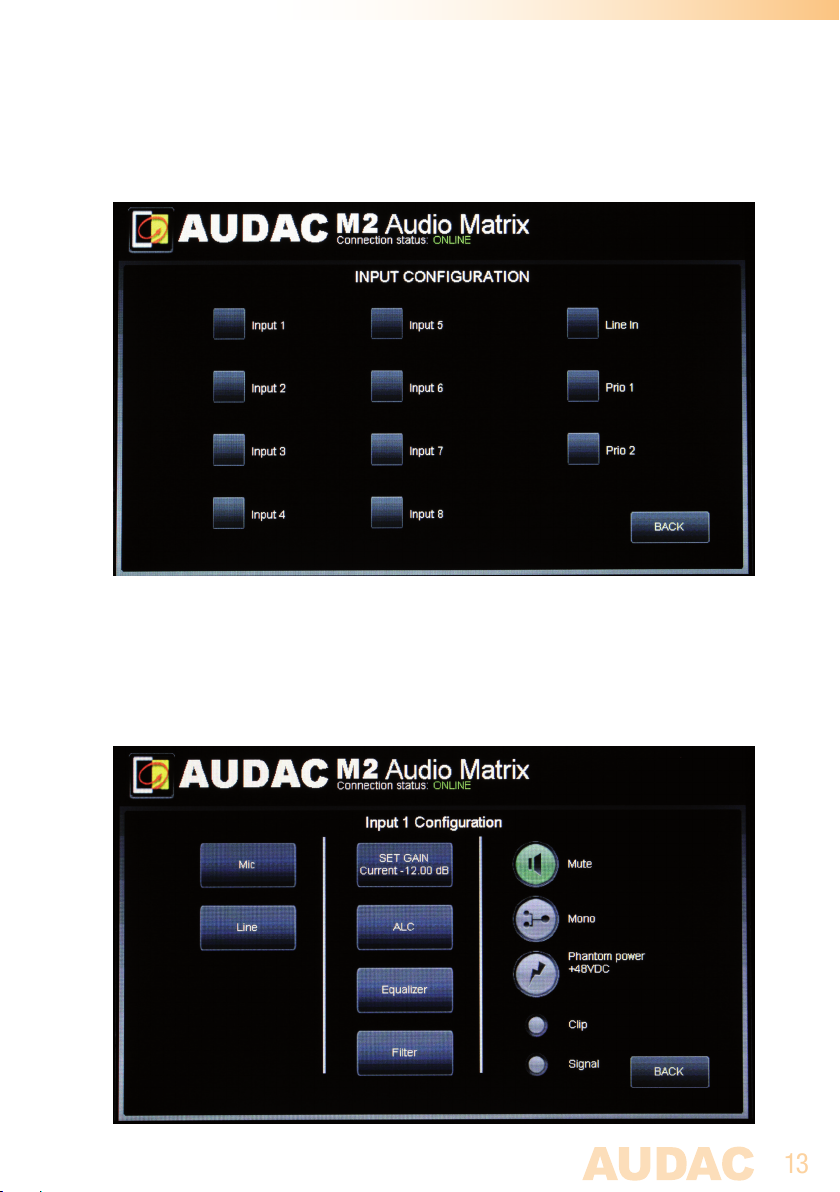

Input Configuration 13

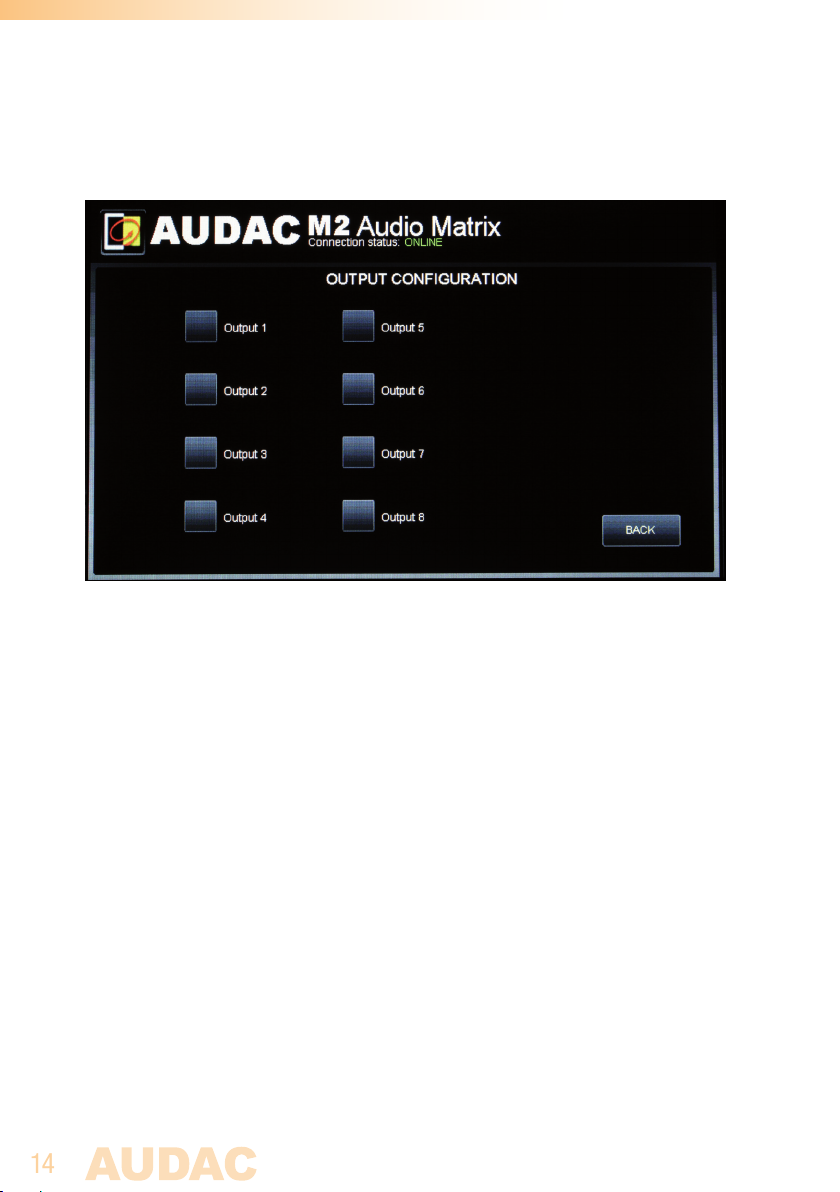

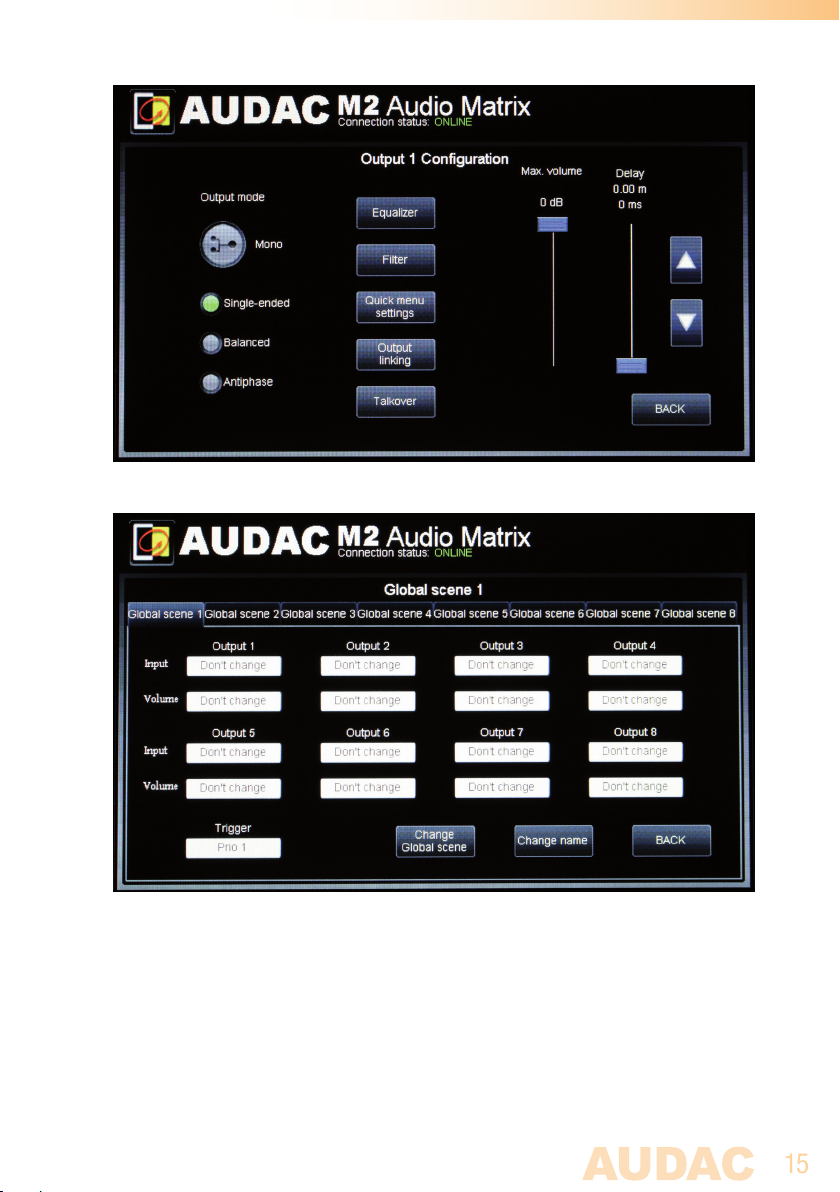

Output Configuration 14
Global scene 14

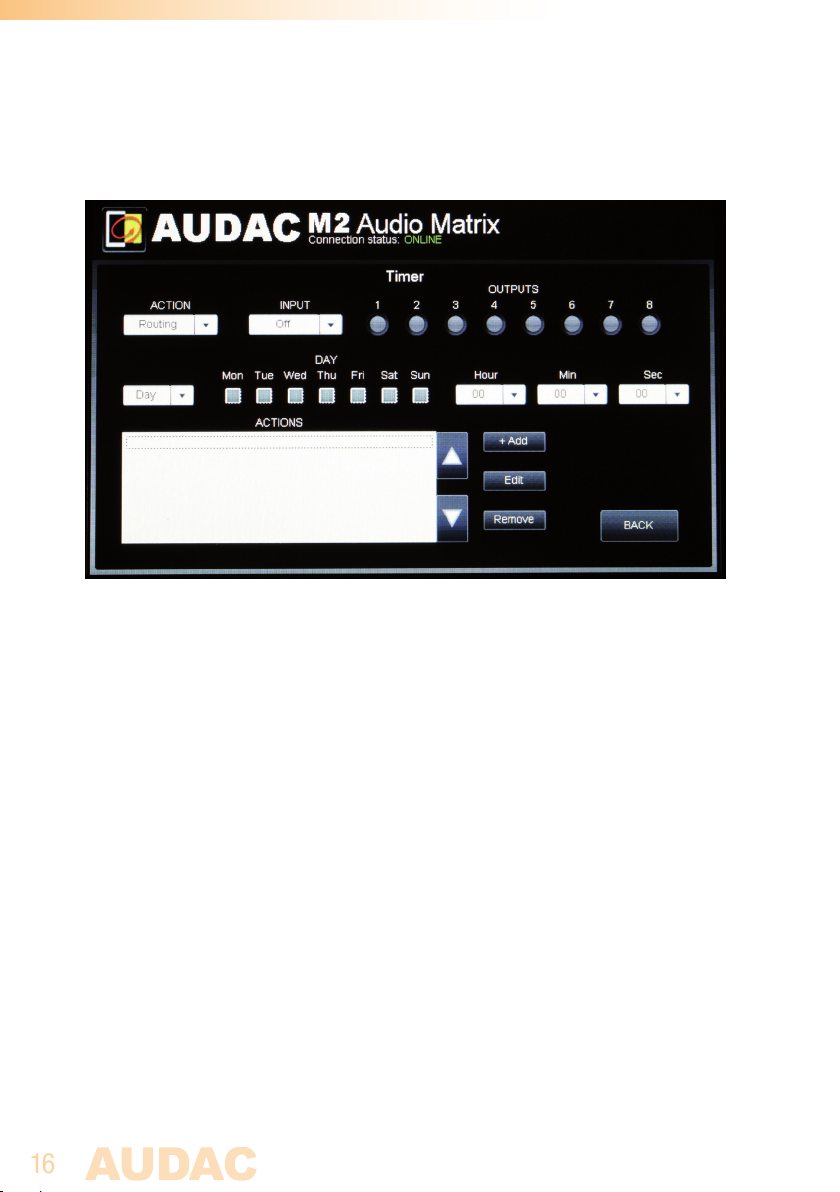

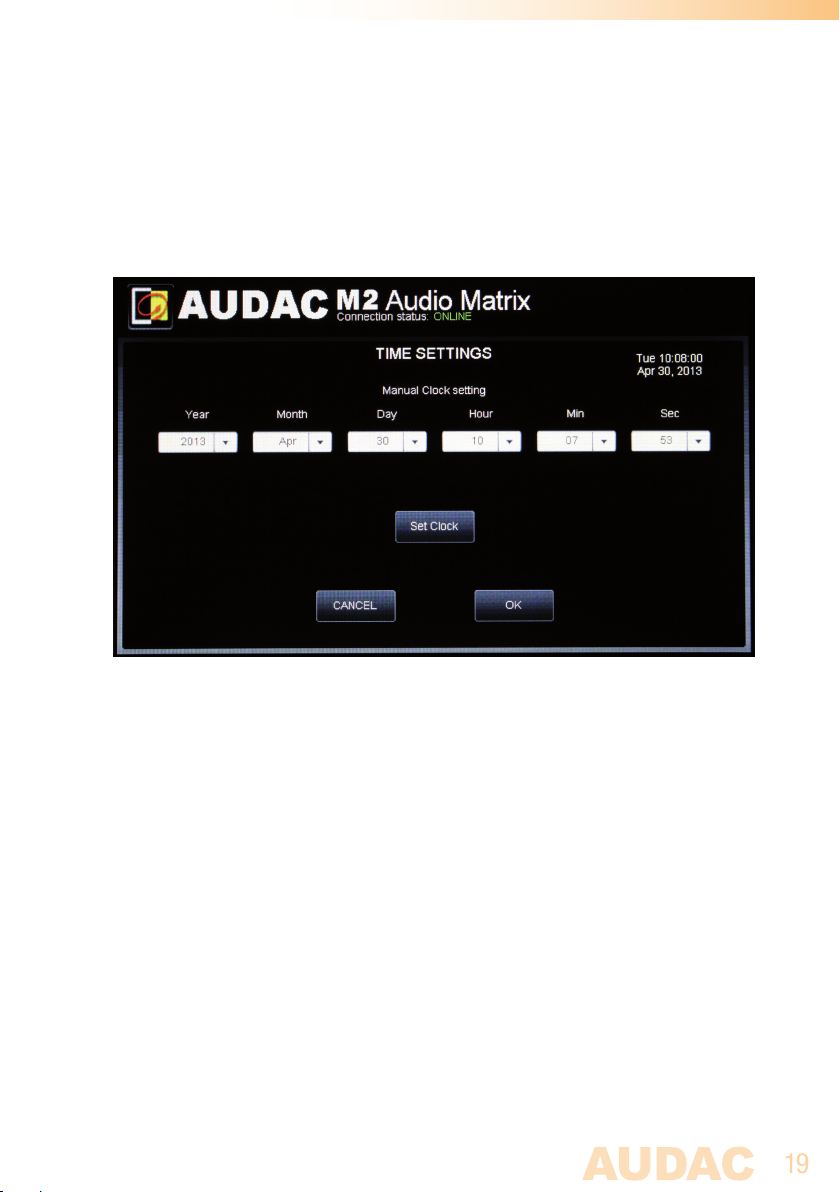

Timer settings 16

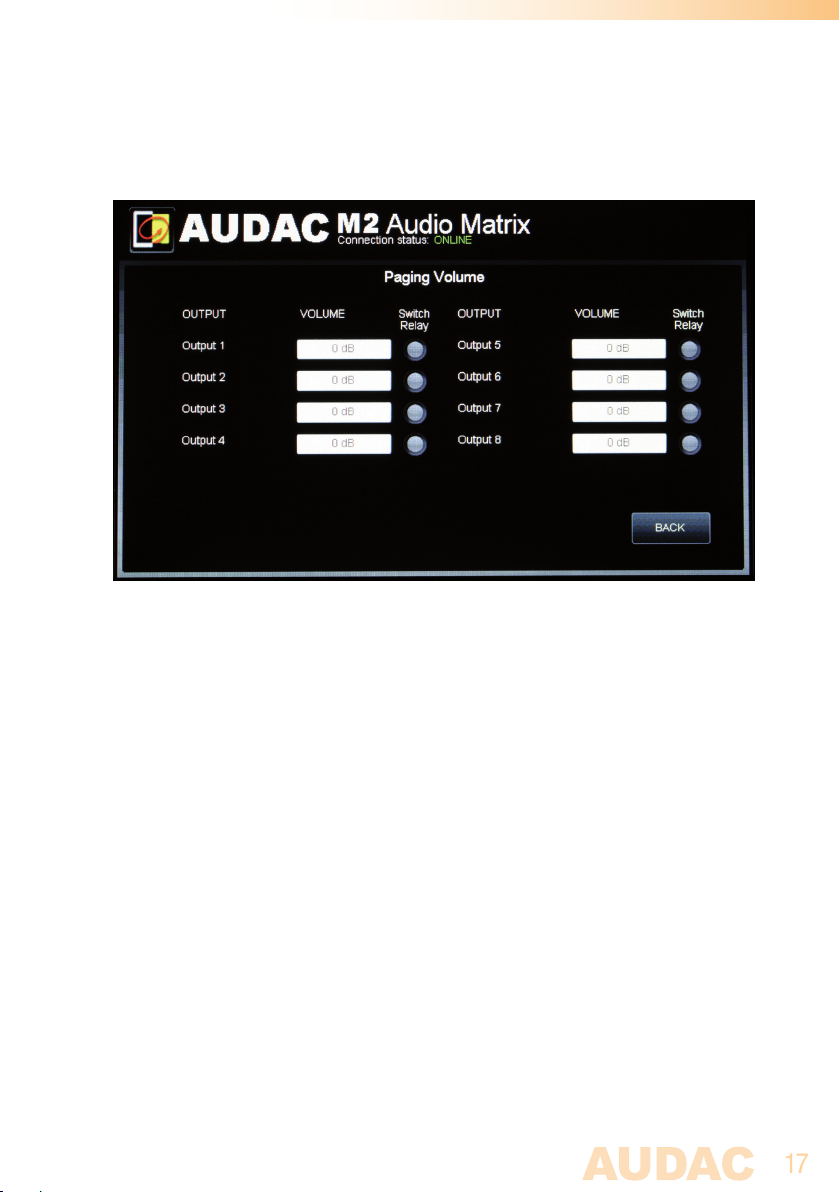

Paging Volume 17

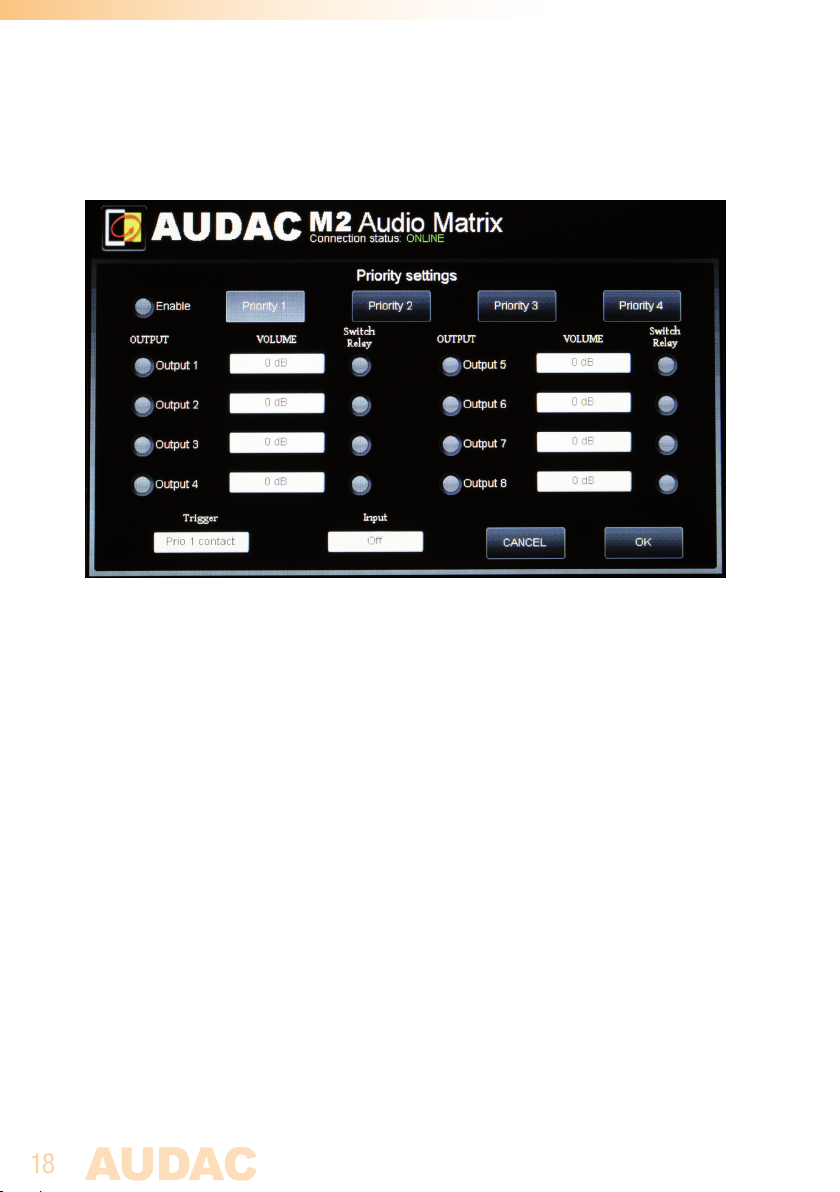

Priority settings 18

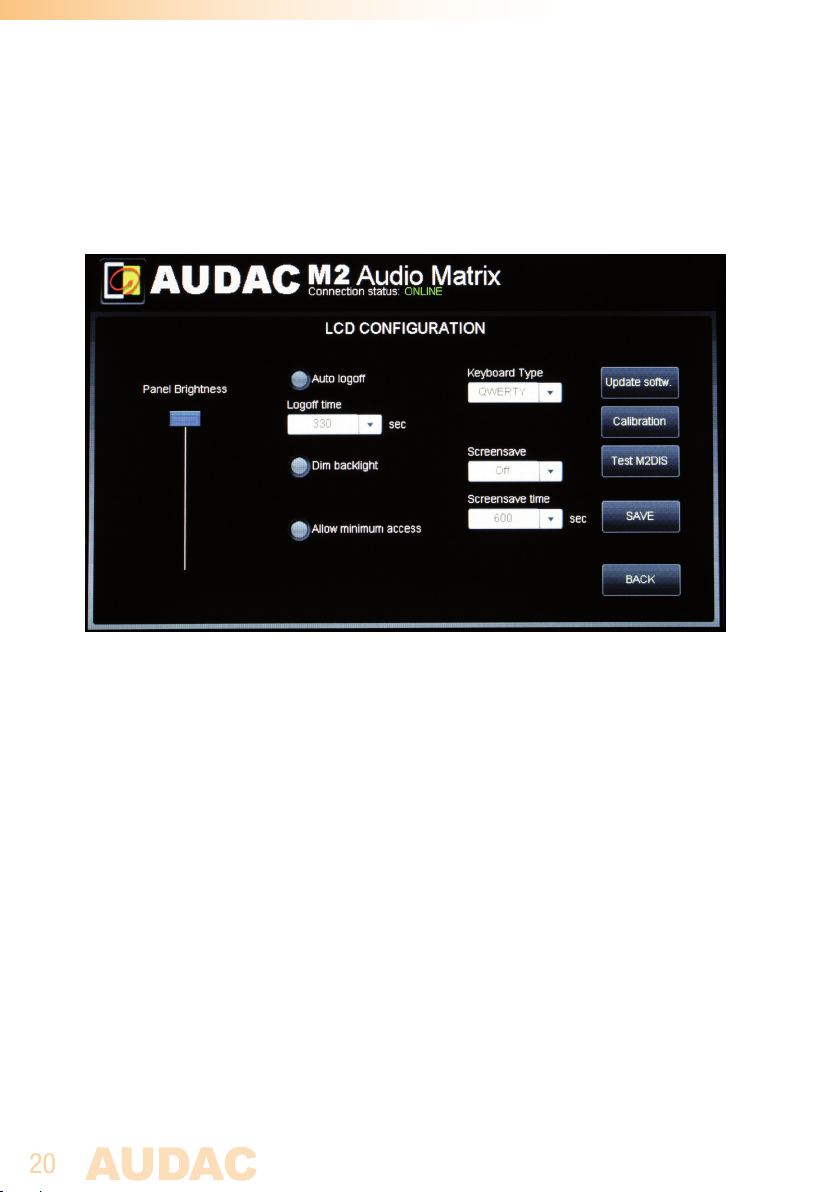

System configuration 19

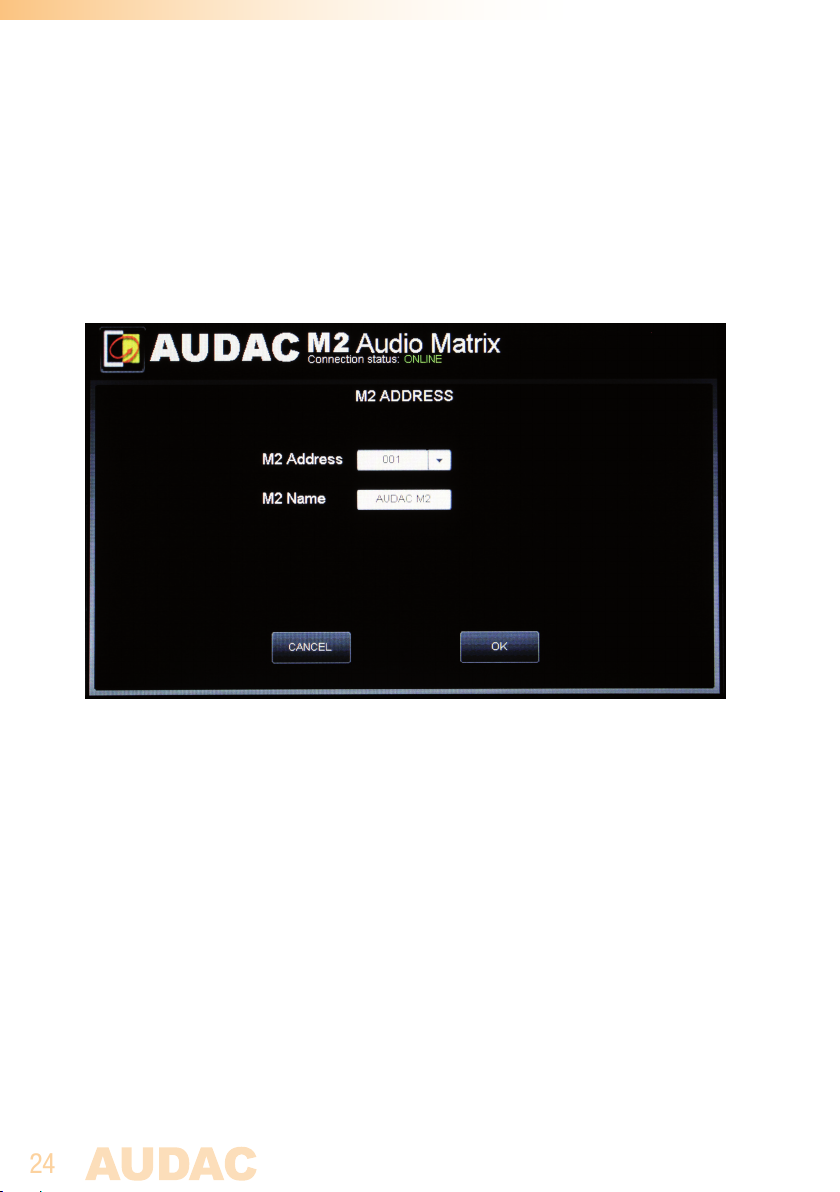

Address settings 24
Password settings 25

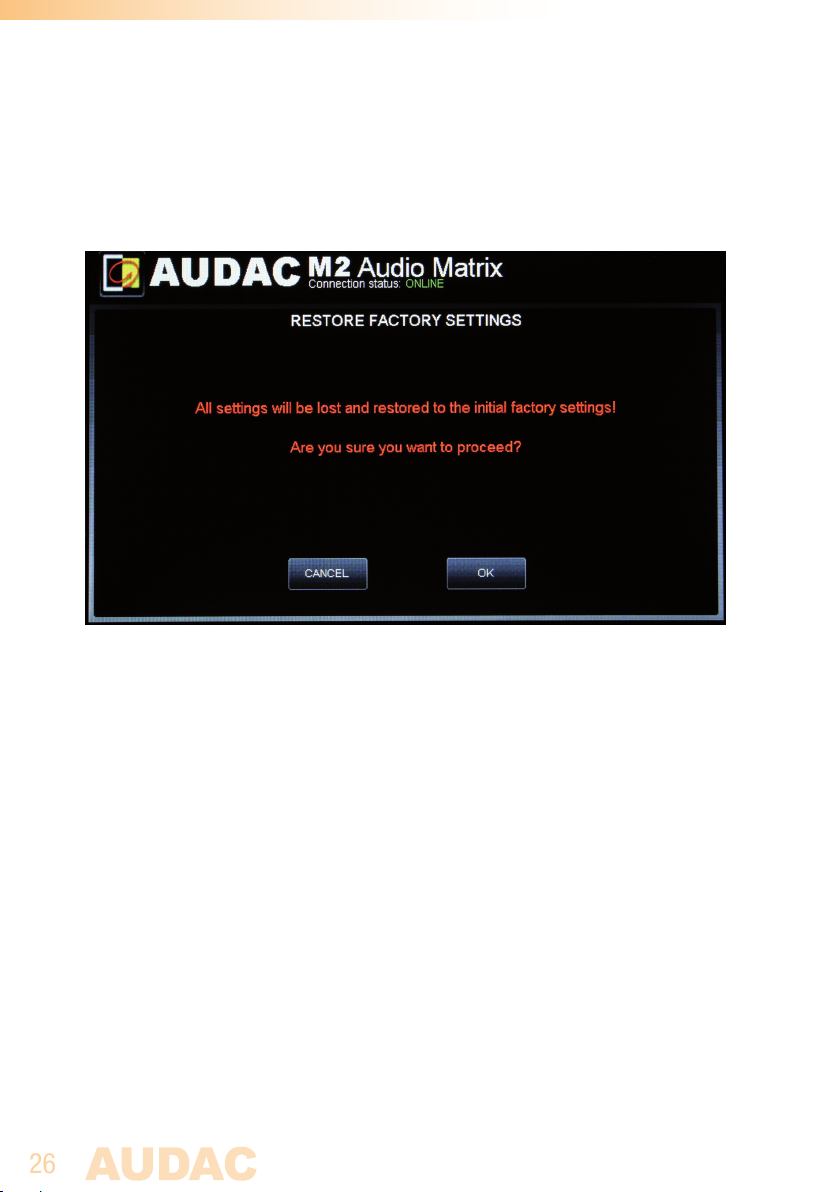

Factory settings 26

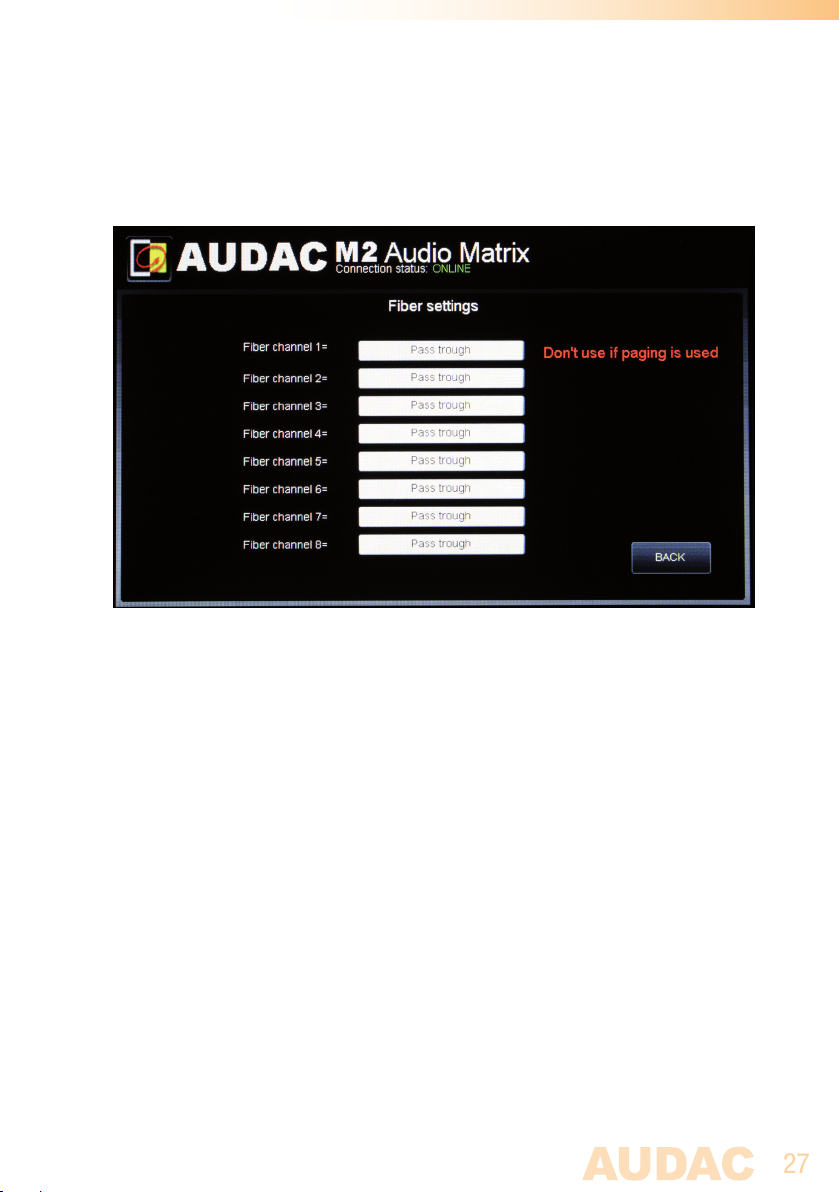

Fiber settings 27

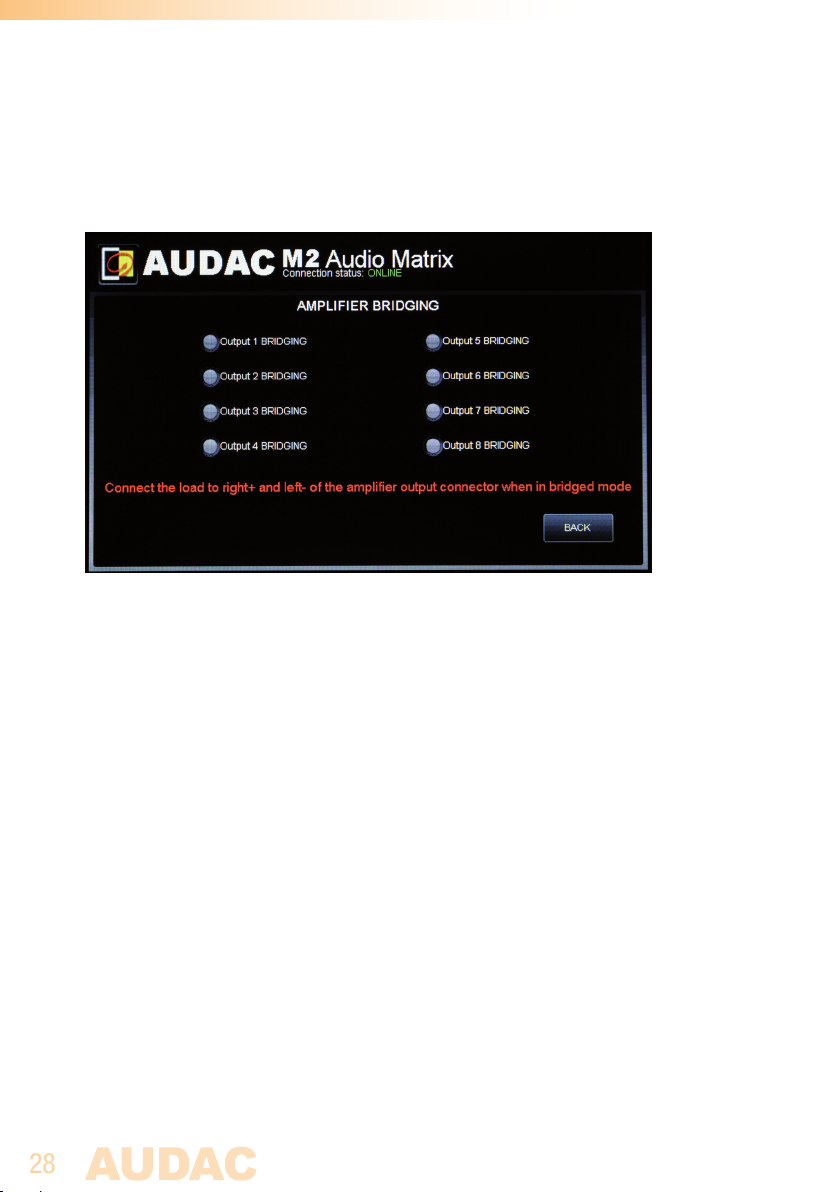

Amplifier Bridging 28

Login screen 5

Notes 29

4

Introduction

7” Touchscreen display kit M2

The M2DIS is an optional display unit with touchscreen which can be installed internally
in the front panel of the M2 Multi-Media Digital audio mixer. This unit consists of a
7” TFT display panel with a resolution of 800 x 480 px that is fitted with a resistive
touchscreen panel. It is controlled by a powerful 32 bit processor which communicates
directly with the DSP processor.

This unit allows the user to operate the control and configuration functions of the matrix
system without any external equipment. This can be useful for direct access, when the
system is installed in a technical room where no external control devices are within
reach or in case the system is not connected to a LAN network due to security reasons.

Touchscreen precautions

• Tap the touchscreen gently. Never use force.

• Don’t use any sharp object to tap the touchscreen. Don’t use a pen, but only
use your fingertips or stylus especially meant for use with touchscreens.

• Keep the touchscreen dry and clean. Don’t use any abrasives or cleaning
solutions to clean it. Only clean it with a soft damp cloth.

5

User interface

Login screen

A password should be entered to get access to the M2 amplifier.
There are two different access levels, administrator level and user level.

If you login with the administrator password, you get access to all functions and
configuration options. (The factory default password for administrator access is
“M2”).

When logging in with the user password, you only get access to the basic functions of
the main screen, such as changing the volume and changing the mixing / presets for a
particular output. (The factory default password for user access is “user”).

After pressing the text field, a keyboard screen will come up and the password can
be entered. After the password is entered, press the “OK” button, and you will be
redirected to the main screen of the M2 interface.

NOTE

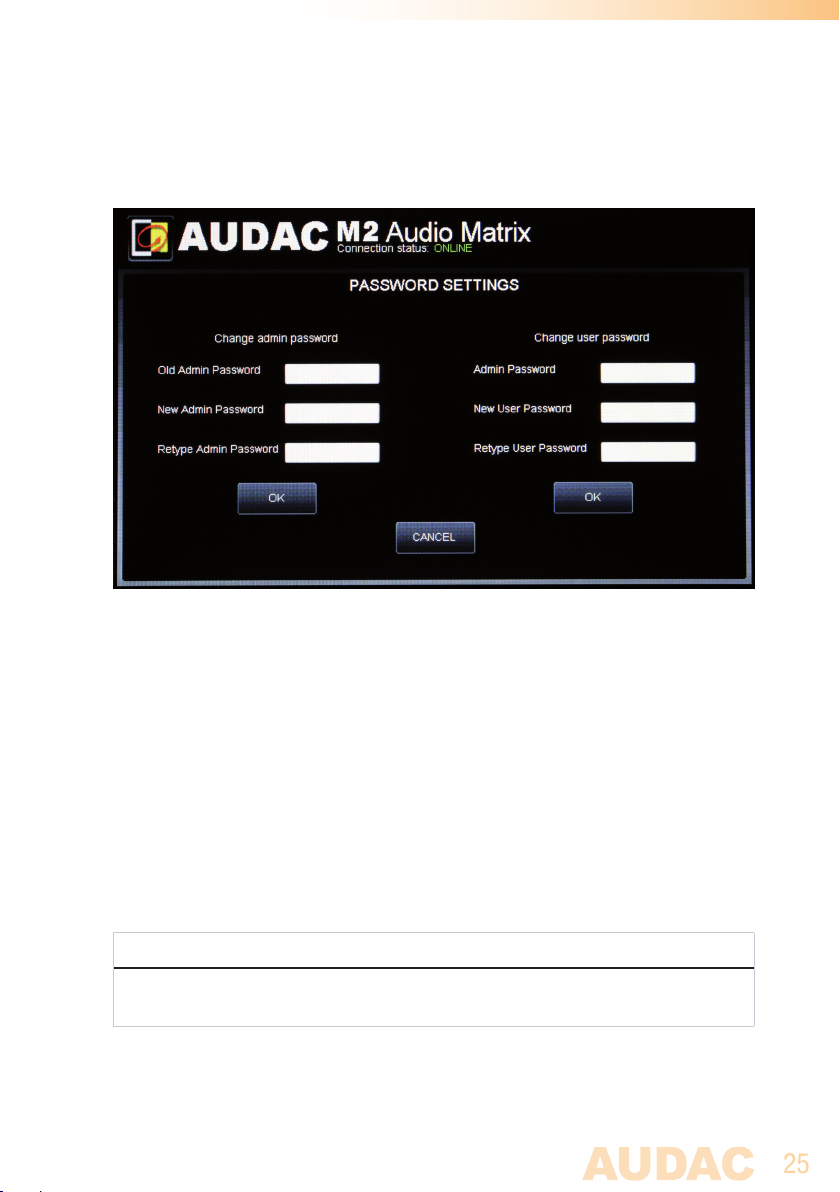

The passwords can be changed in the Settings >> Password settings menu
(Only administrator)

6

Main screen

The main screen displays all 8 outputs of the M2 with fader volume controls

Volume control:

The volume of each output can be changed by moving the fader.
At the bottom a “Mute” button is provided to mute the volume of the corresponding
output. If the output is muted, the mute button is Red. If the output is unmuted, the
mute button is Green. The mute can be toggled from muted to unmuted by pressing it.

Assign names to output:

This option is only available if logged in as “ADMINISTRATOR”.
For a better overview of all outputs, a name can be assigned to every output. The
names displayed are identical to the names entered in the web interface.

The name for the output can be changed by pressing and holding the name for 2
seconds. After 2 seconds a keyboard screen will come up whereby the name can be
changed. Simply press the delete (DEL) key to remove the existing name and enter the
new name.

After the name has been changed, press “OK”.

7

Press the “Save” button and confirm to save the zone settings to make sure that all
settings will be restored after system reboot.

Input channel selection:

This option is available if logged in as “ADMINISTRATOR” or “USER”.
The desired input signal for an output can be selected by pressing the button below
the output name. A dropdown list shows 8 audio input signals or presets, together
with the options “Off” and “Other”. If logged in as administrator, the list can be
changed in the “Quick menu settings” screen. This screen can be reached through
Settings screen followed by output configuration screen.

Output settings:

This option is only available if logged in as “ADMINISTRATOR”.
By pressing the “Settings” button, above a slider, the “Output Settings” screen
is displayed. In this window you can select all input channels to be mixed for the
selected output. You can also select filters.

This option is only available if logged in as “ADMINISTRATOR”.
By pressing this button you can save the settings.
To make sure the changed zone settings are still effective after shutdown and restart
of the M2, the “Save” button on the main screen of the M2 needs to be pressed. At
the same time, the volume and routing settings will be saved.

Save:

8

Settings:

This option is only available if logged in as “ADMINISTRATOR”.
In the top right corner is a “Setup” button displayed. After pressing this button, you
will be redirected to the configuration menu of the M2.

Info:

Pressing the AUDAC logo will show the info screen.

Output Settings

This option is only available if logged in as “ADMINISTRATOR”.
By pressing the “Settings” button, above a slider, the “Output Settings” screen is
displayed. In this window you can select an input channel for the selected zone.

Input channel selection:

The screen gives an overview of all input channels that can be patched to the output
zone. You can select “M2 inputs”, “Wall panel inputs” , “Fiber inputs” and “Line
inputs” .

9

• If no input is needed click the “All off” button

• The M2 inputs are shown as default. Here you can select the inputs you want to
mix.

• Click the “Wall panel inputs” button to select wall panel inputs

• Click the “Fiber inputs” button to select Fiber inputs

• Click the “Line inputs” button to select Line inputs

• To save click the “apply scene” or “save as scene” button

10

Output settings >> Test signals

The M2 has an internal digital signal generator which can generate white noise, pink
noise and sinusoidal signals with a selectable frequency.
Each of those signals can be patched to any output zone.

When one of the test signals is selected, “Other” will appear in the ‘Input Selection”
box on the main screen.

• Select “white noise” to route white noise to the output zone.

• Select “pink noise” to route pink noise to the output zone.

• Select “Sine Generator” to route a sine wave to the output zone.
The frequency of the sine wave can be changed by the up and down arrows.
