The unDNEMO and unDNEMO-BT are highly flexible Dante® network audio monitoring solutions that can be deployed in a wide
array of pro-AV applications. The unDNEMO and unDNEMO-BT are capable of monitoring one audio channel selected from up to
64 configured Dante® network audio channels that are available on the network from Dante®-enabled audio equipment from any
manufacturer. Audio selection is done with simple front panel controls. The unDNEMO and unDNEMO-BT utilize Attero Tech’s unIFY
Control Panel V3.1 or later software for simple setup and configuration.
In addition to the flexible Dante® audio monitoring functionality, the unDNEMO-BT is aimed at comprehensive audio monitoring
applications and supports the following features:
o User selectable reception of one of up to 64 Dante® audio channels(mono) or 32 channels (stereo)
o Internal monitoring speaker
o Internal microphone with optional external mic input, allowing for talkback communications or for soft-conferencing
applications in conjunction with the USB audio interface
o Bluetooth® headphone/headset connectivity with A2DP and HSP profiles (unDNEMO-BT only)
o Bluetooth® to Dante® auxiliary input (unDNEMO-BT only)
o Easy access front panel headset (headphone and mic connections) on 3.5mm connectors
o Volume, channel, mic mute, speaker mute, and source select buttons
o Easy-to-read OLED display for presentation of channel names, volume settings and configuration
o Full duplex USB audio for PC audio content and soft-conferencing applications
o PoE powered from compliant 802.3af PoE network switch or mid-span injector or, use an external +24VDC supply
o Dante® Daisy Chaining allows multiple unDNEMO/unDNEMO-BT devices, as well as other Attero Tech daisy chain enabled
1.1 – What’s in the Box?
The unDNEMO-BT comes supplied with the following
1.2 – Optional Extras
The following are available as options for the unDNEMO-BT and that may be ordered separately:
devices, to be connected over a single home-run to an Ethernet switch
o (1) unDNEMO or unDNEMO-BT device
o (1) USB Mini B to USB A 6ft cable
o 24V DC Power Supply -
P/N: 900-00175
Attero Tech LLC 2019 Page 4 614-00032
Page 6
unDNEMO/unDNEMO-BT
User Manual
1.3 – Product Features

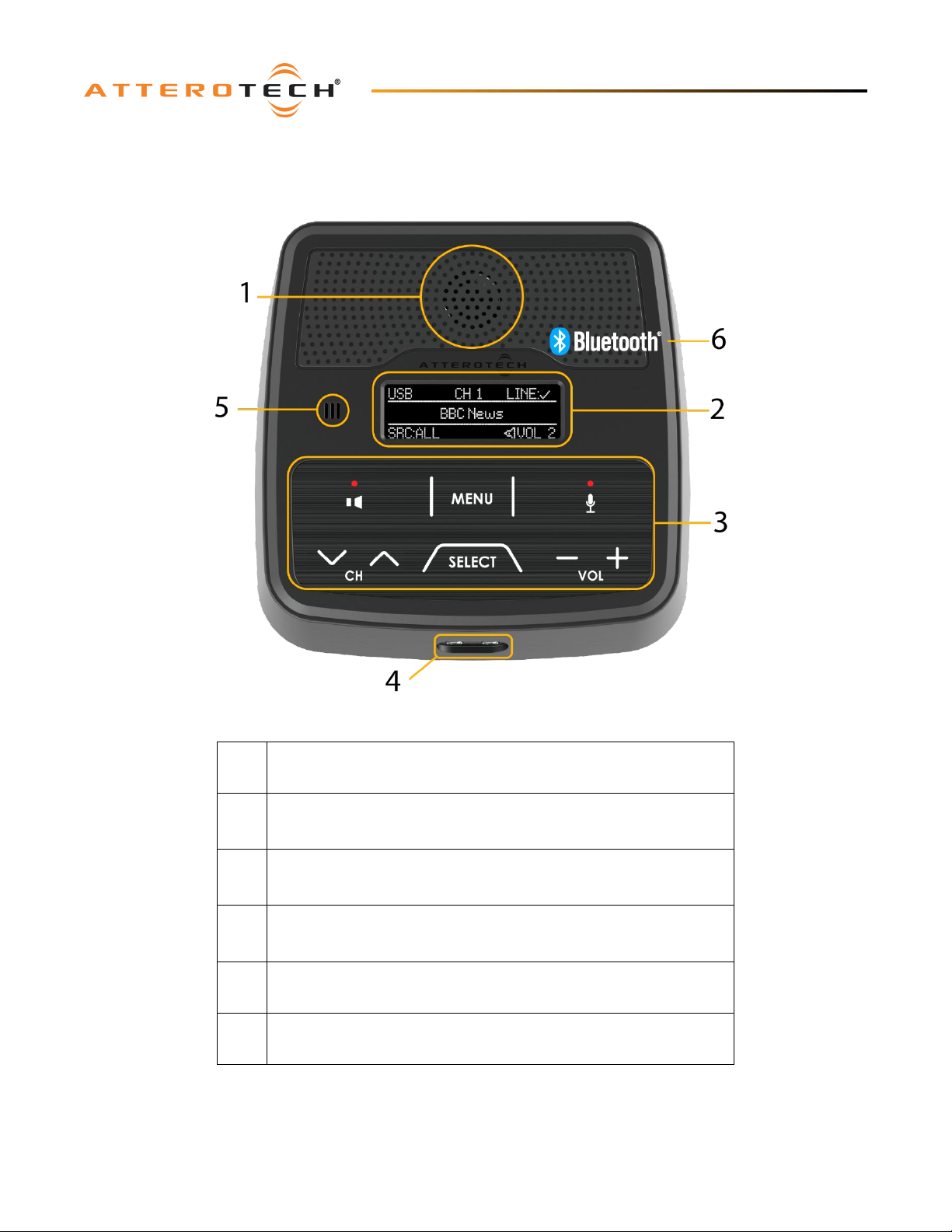

1 Internal speaker
2 OLED Display
3 Backlit Keypad with Mute state indication
4 3.5mm T-S Headset Mic (Left) and 3.5mm Stereo Headphone TRS (Right)

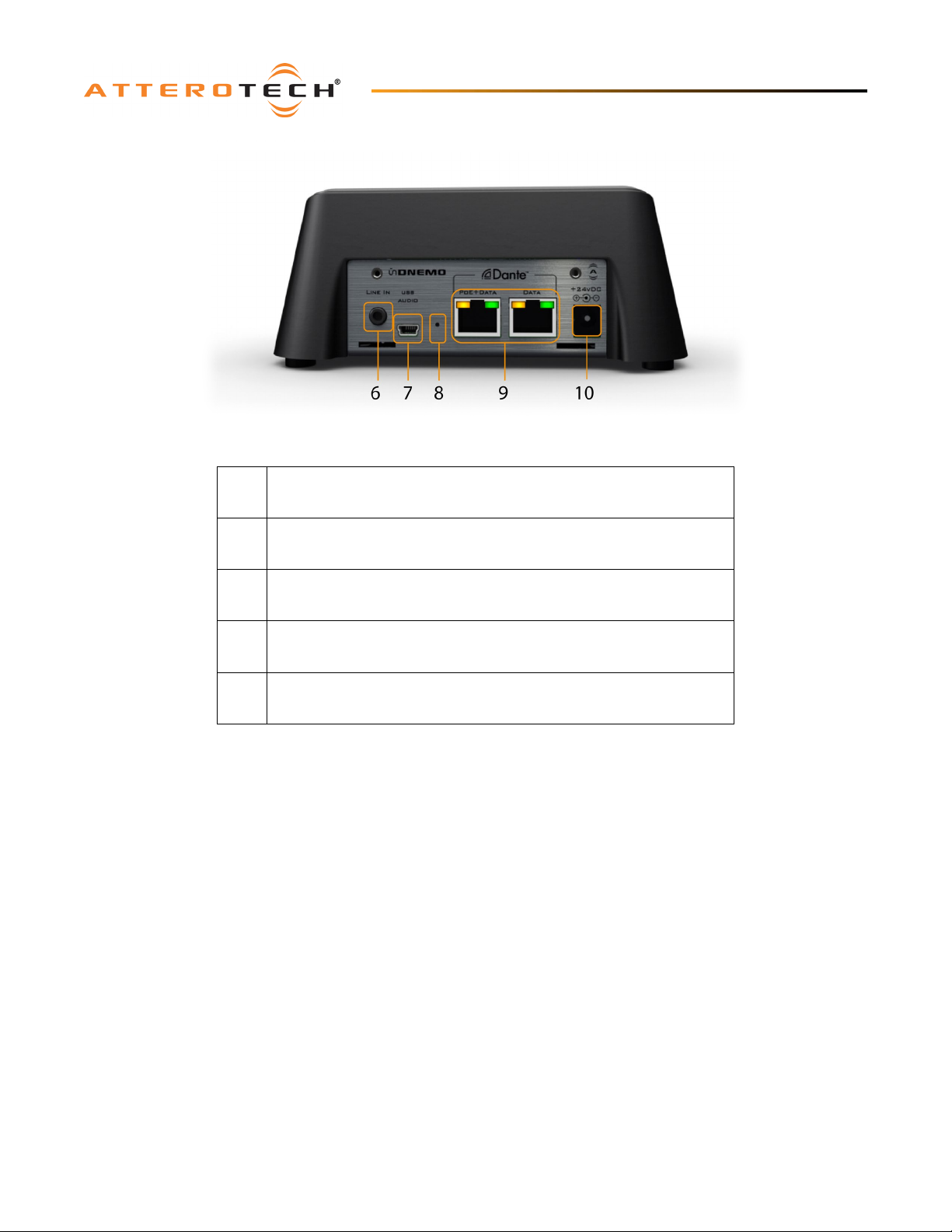

*Note: The unDNEMO and unDNEMO-BT have a label on the base of the unit that shows the devices MAC address. This is important
for initial device identification as the last six digits make up part of the devices default network name that is shown when the device
is detected by Dante® Controller.
Attero Tech LLC 2019 Page 6 614-00032
Page 8
unDNEMO/unDNEMO-BT
User Manual
2 – User Operation
Both the unDNEMO and unDNEMO-BT feature a number of different modes and capabilities. They support the following audio
modes:
• Net Mode
• USB Mode
• Aux Input Mode (unDNEMO-BT only)
• Line Input Mode (unDNEMO only)
• All Input Mode
*Note: The “Aux input mode” and “Line input mode” are essentially the same mode. The only difference is that the unDNEMO-BT
has the addition of the Bluetooth® as an input option.
All of these audio modes except the Net Mode can be enabled or disabled for the intended application using the unIFY Control

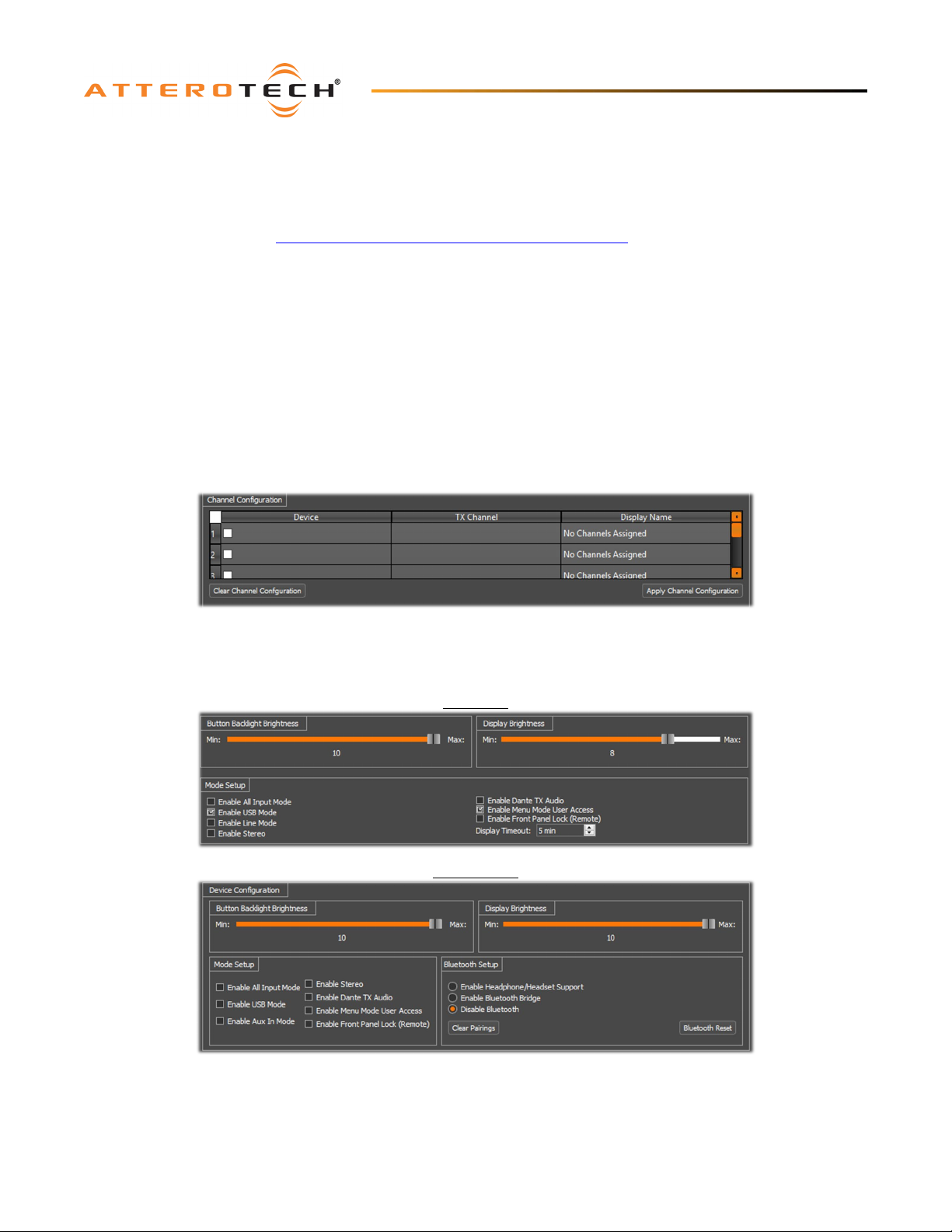

Panel software. For detailed software configuration instructions, consult with the integrated Help documentation included with the
software. unIFY Control Panel software can be downloaded from https://www.atterotech.com/resources/unifycontrol-panel
.
2.1 – User Interface Description
2.1.1 – Display Layout
.

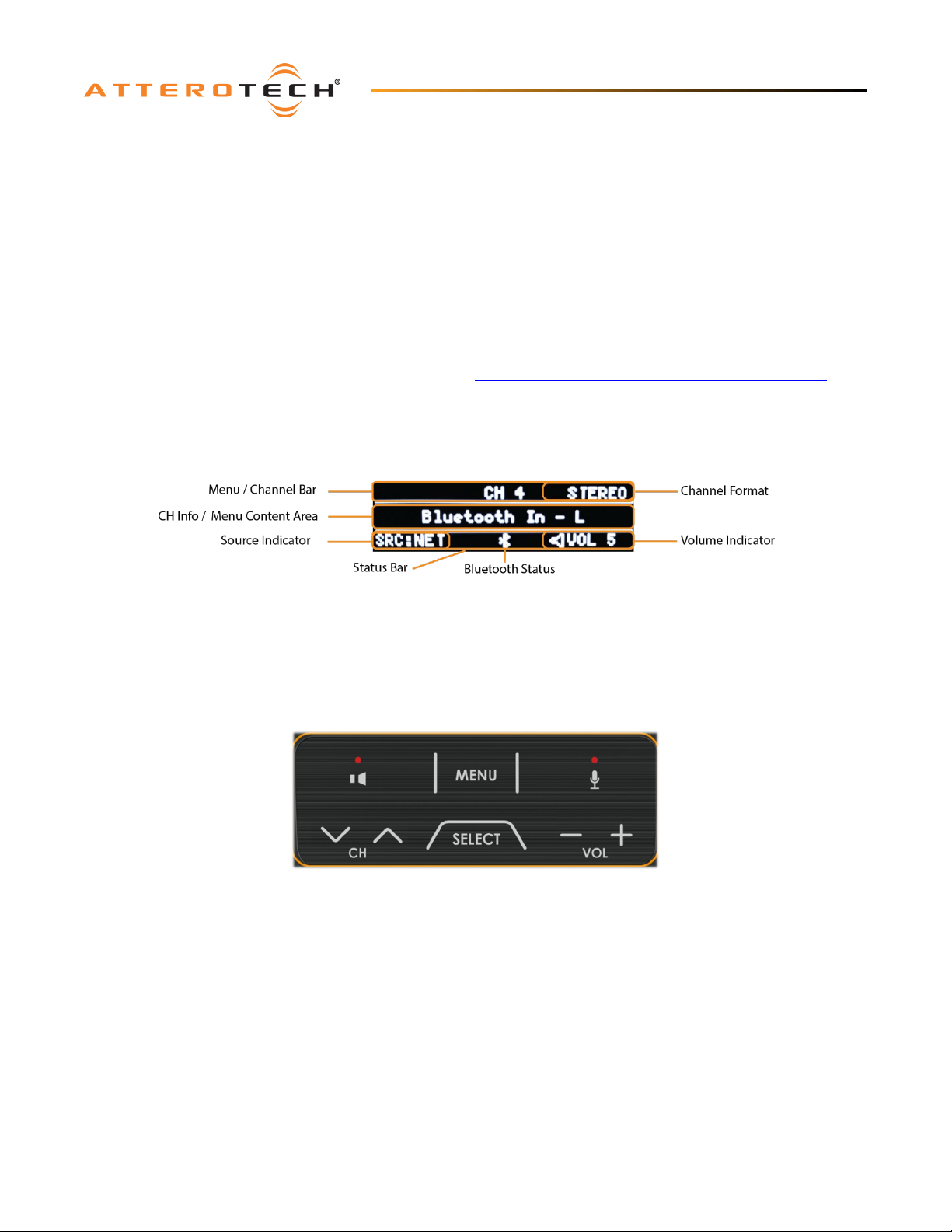

Figure 3 - Display Layout
The unDNEMO and unDNEMO-BT features a high visibility OLED display for high visibility in varying ambient light conditions. The
display screens are organized into a title bar, main active content area and a status bar. The status bar always indicates the active
audio source mode and the current volume settings. To save power, the unDNEMO display will turn itself off after 5 minutes of
inactivity. Pressing any button will activate the display. The duration to timeout can also be adjusted in the unify Control Panel.
The keypad will flash at 1 second intervals to indicate the device is asleep but still powered on. This will not affect audio output.
2.1.2 – Keypad Layout
Figure 4 – Keypad Layout
The keypad controls consist of the following buttons:
• Output Mute
• Menu
• Mic Mute
• Channel/Nav Down
• Channel/Nav Up
• Source Select
• Volume Down
• Volume Up
The mute buttons always function to mute their respective audio functions. Additionally, the “Menu” button is always used to toggle
between “Menu” and “Audio” modes.
The remaining buttons are multi-function based on the active mode and will be further explained in the detailed descriptions of
each audio and menu mode.
Attero Tech LLC 2019 Page 7 614-00032
Page 9
unDNEMO/unDNEMO-BT
User Manual
2.2 – Audio Modes
The user may cycle through the available audio modes by pressing the “Select” button to step through the available modes.
*Note:thatforalldiagramsthatshowBluetoothaudiosource/sinkconnectivity,thisfunctionalityisspecifictothe unDNEMO-BT
and is omittedontheunDNEMO.
*

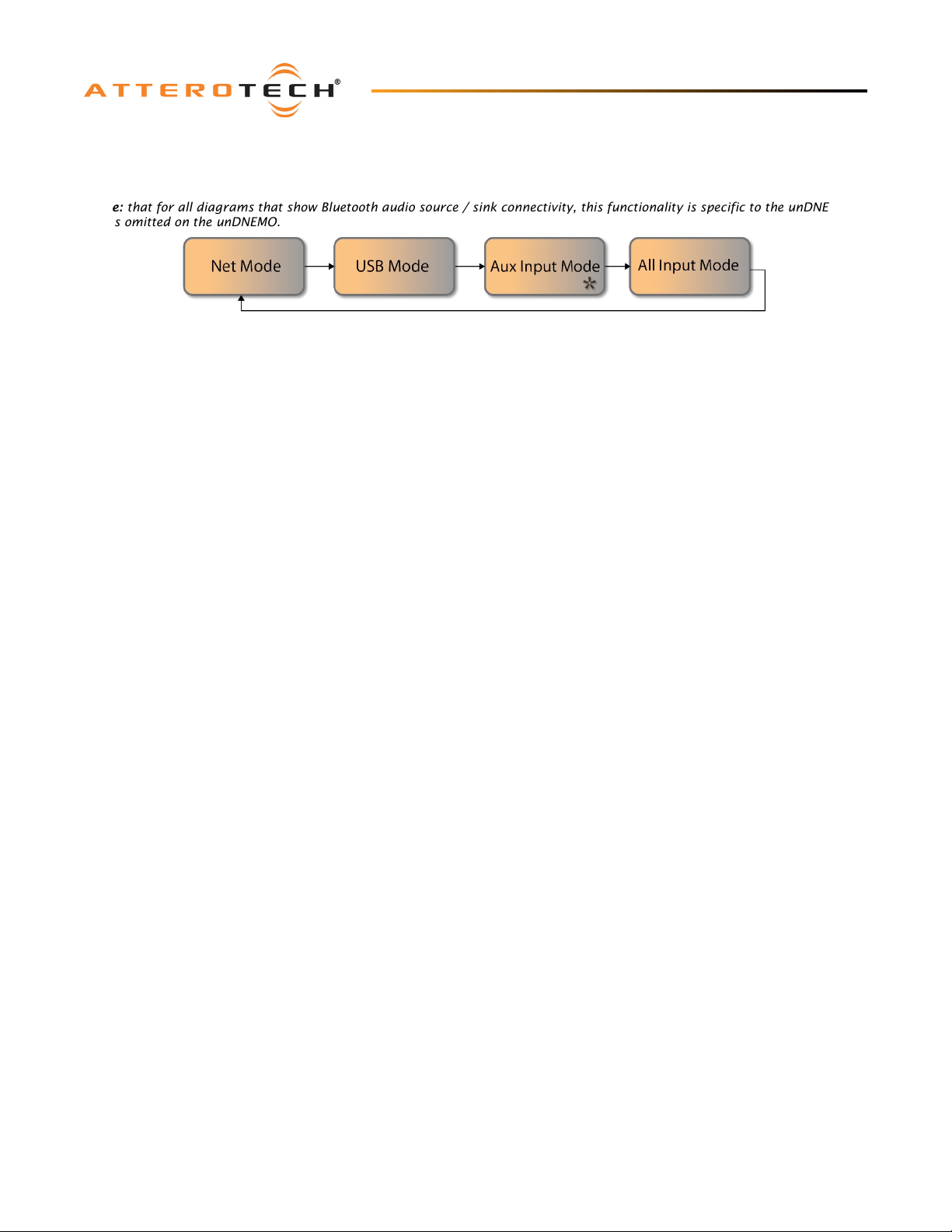

All audio modes are accessed based on the order shown in * The Aux Mode is replaced by a Line Input mode on the unDNEMO
Figure 5. If any of the configurable modes are disabled, those modes will simply be skipped when selecting the next mode.
*Note: By default, only the Net Mode is enabled, pressing the “Select” button when only Net mode is enabled will result in the
message “Unsupported Function” to be shown briefly on the display.
In the audio modes, the volume “+” and volume “-” buttons always adjust the speaker and headphone volume. The volume range
is 1 to 10. Additionally, the speaker mute button always operates as an audio mute function for the internal speaker and any
attached headphones. The mute buttons indicate mute state by lighting their associated red LED when mute is.
When headphones are plugged into the unDNEMO-BT, the internal speaker is automatically disabled until they are removed.
* The Aux Mode is replaced by a Line Input mode on the unDNEMO
Figure 5 - Audio Mode Screen Flow
Attero Tech LLC 2019 Page 8 614-00032
Page 10
unDNEMO/unDNEMO-BT
User Manual
2.3 – Bluetooth® Connectivity (unDNEMO-BT only)
2.3.1 – Pairing
The unDNEMO-BT can be paired with a Bluetooth® device for either wireless monitoring, or streaming audio from an enabled
device.
• Pairing Headphones/Headset monitor
• Pairing Bluetooth® audio equipped device
Further information in the Bluetooth® menu options is available in the Menu Mode Navigation section 2.9.3 and 2.9.4.
2.3.2 – Wireless Headphone / Headset Monitoring
The unDNEMO-BT supports high quality wireless audio monitoring utilizing the Bluetooth® A2DP profile which is a high fidelity but
higher latency one way audio connection to headphones, headsets and speakers.
The unDNEMO-BT also supports lower latency, full duplex connectivity to headsets that support the HSP profile. When a compatible
headset is connected, the Bluetooth® microphone is added to the microphone prioritization.
The following priority is applied to the internal, external and Bluetooth® microphone sources. The highest priority source will mute
the low priority mics when present.
1. External wired microphone (highest priority)
2. Bluetooth® Microphone
3. Internal Microphone
When a headphone or headset is paired and connected to the unDNEMO-BT, the local volume controls on the unDNEMO-BT operate
the volume to the headphone/headset. However, the speaker mute button only mutes and unmutes the local speaker. This allows
normal operation of the unDNEMO-BT locally when the headphone/headset is located remotely allowing local monitoring.
Details of the connection management for the Bluetooth® setup can be found in the menu navigation section.
2.3.3 – Wireless Audio Bridging

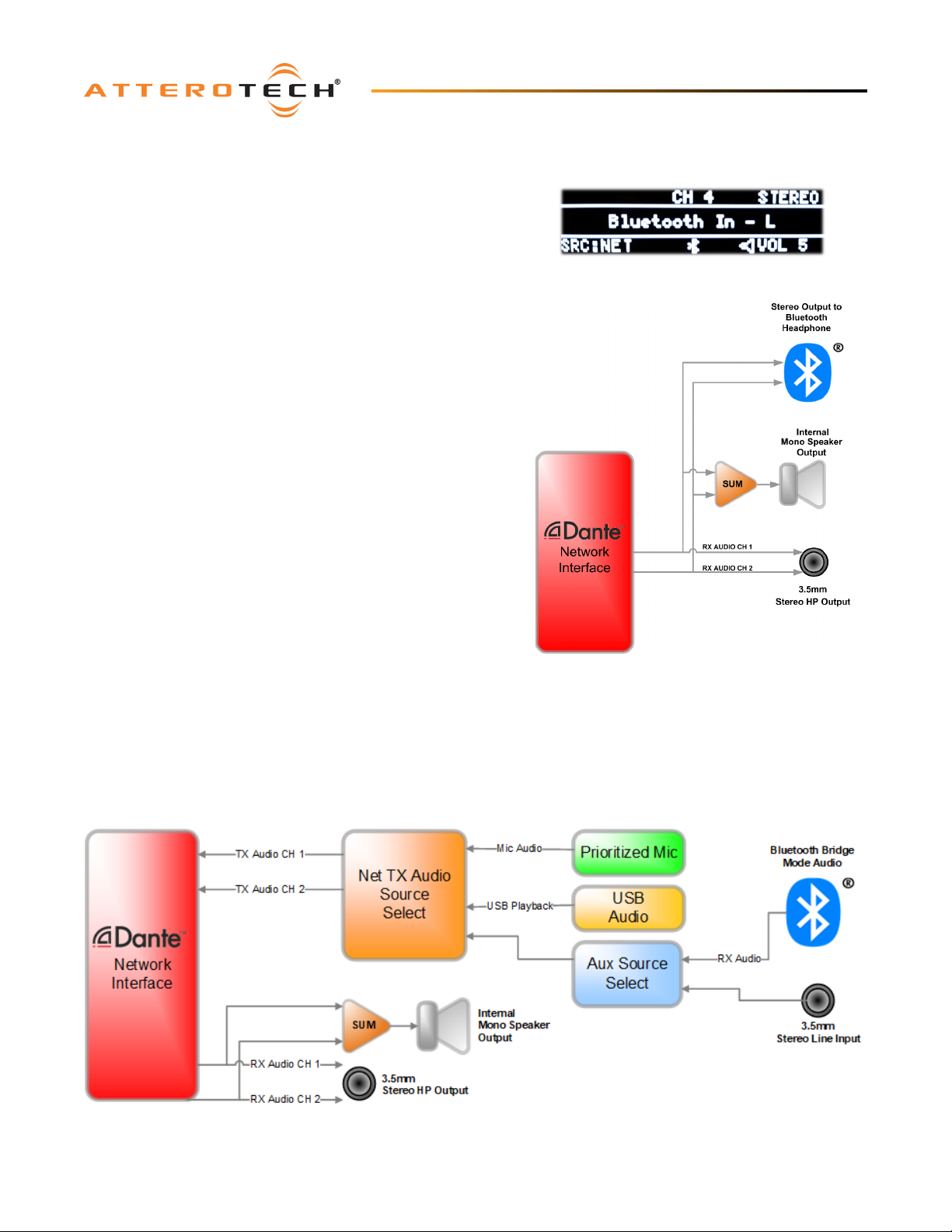

In addition to wireless monitoring, the unDNEMO-BT allows users to stream their Bluetooth® audio equipped device to the
unDNEMO-BT for local monitoring or remote bridging to the Dante® network.
*Note: The Bluetooth® streaming functionality is not supported while also monitoring wirelessly with Bluetooth®. The user or
installer must select either the wireless monitoring or wireless streaming using the unIFY Control Panel software.
*Note: Once paired/connected, the Bluetooth® friendly name is visible to other devices. However, while another device may be able
to pair and save to its Bluetooth® device list when in this state, breaking the connection of the currently active device will not be
possible.
2.3.4 – Disable Bluetooth
Bluetooth can also be disabled by selecting “Disable Bluetooth” in the Bluetooth Setup section of unIFY Control Panel.
o“Enable Menu Mode User Access” and “Enable Headphone/Headset support” MUST be selected in unIFY Control
Panel.
oPress “Menu” on the unDNEMO-BT, then “CH Up/Dwn” till Headset is selected. See Menu Mode Navigation section
for more details. “Scan” will be the automatically selected mode.
oPress “Select” to start scan. Make sure headphones/headset is in pairing mode. Once discovered,
headphone/headset device name will show on the unDNEMO-BT display.
o Press “Select to connect device.
o “Enable Bluetooth Bridge” MUST be selected in unIFY Control Panel.
o Go do audio device Bluetooth® settings to start pairing. The unDNEMO is always in discoverable mode.
o Complete pairing per audio device settings.
Attero Tech LLC 2019 Page 9 614-00032
Page 11
unDNEMO/unDNEMO-BT
User Manual
2.4 – Net Mode
The primary operating mode for Dante® audio monitoring applications
is the Net mode. In this mode, Dante® audio channels are selected by
the user from the front panel controls for simple and efficient audio
monitoring applications.
Both the unDNEMO and unDNEMO-BT support 64 audio channels that
can be configured for monitoring. Each channel can be allocated an
audio channel from the Dante® network. Additionally, the installer has
the option of configuring the Net mode to implement stereo
monitoring. If stereo monitoring is enabled, then the maximum number
of channels available to the end user is 32, as a single stereo channel
consists of two mono channels, each of which are allocated a Dante®
audio channel. The mono/stereo configuration is shown in the upper
right of the display accordingly.
Use the channel up/down buttons to cycle through the available
channels. Only channels that have had a Dante® channel assigned and
have been enabled within the unIFY Control Panel software will be
selectable. When selected, a subscription to the configured Dante®
audio channel will be made as quickly as possible and that audio should
then be heard through the internal speaker, connected headphones or
Bluetooth® output device (NEMO-BT only).
When an audio subscription is made, the selected mono channel will be
mapped to both the left and right headphone outputs, left and right
Bluetooth® outputs (unDNEMO-BT only), and to the internal speaker. If
the stereo monitoring mode is enabled, the left and right stereo signals
will be mapped respectively to the stereo headphones and Bluetooth®
outputs (unDNEMO-BT only) and a mono sum of the stereo signal will
be routed to the internal speaker.
For each channel, the display indicates the slot number that has been
assigned in the top area of the display and the associated channel name
in the central viewing area. If a configured Dante® channel is selected
but not available on the audio network for any reason, the screen will
toggle between the channel name and the warning message “Channel
Unavailable”.
*NOTE: By default, the unDNEMO and unDNEMO-BT are not configured with any channel assignments and these must be configured
before first use.
In this mode if the “Dante TX” is mode is enabled, audio is also available on the Dante® network from one of the unDNEMO or
unDNEMO-BT’s audio inputs. The transmit source is selected via in the Net TX menu (See Section 2.9.5 – Menu Mode: Net TX
Source). As notes
*NOTE: unDNEMO-BT Aux Input Mode must have either Line In or Bluetooth® selected. Both sources cannot be monitored simultaneously.
USB Audio
(to PC)
♦
♦
♦
♦
●●●●
**NOTE: When connected to Headphone/Headset Output, the Monitor Speaker will be disabled.
Monitor
Speaker
♦ Dante™ TX (only if enabled/selected)
Headphone/Headset
Output**
Headphone/Headset
Dante™ TX
Attero Tech LLC 2019 Page 11 614-00032
Page 13
unDNEMO/unDNEMO-BT
(unDNEMO-BT only)
(prioritized)
USB Audio
(from PC)
Line In
for unDNEMO-BT)*
Bluetooth Bridge
Aux Input)*
Net Ch 1-64 In
User Manual
2.5 – USB Mode
The USB mode allows the user to use the unDNEMO-BT as a USB soundcard when connected Mac or PC computer. In this mode, the
playback audio from the PC is routed to the internal speaker, headphones if connected, or Bluetooth® connected
headphones/headsets for the unDNEMO-BT. If the “Dante® TX” option is selected, the USB audio from the PC will also be available
for transmission over the Dante® network. Microphone audio is routed from the unDNEMO-BT to the USB audio path allowing you
to record to the connected PC. The audio playback features stereo audio capabilities when used in USB mode.
The device will detect the USB connection and show “Connected to Host” on the display if connected, and show “No Host Present”
if no USB connection is present.
Figure 9 - USB mode

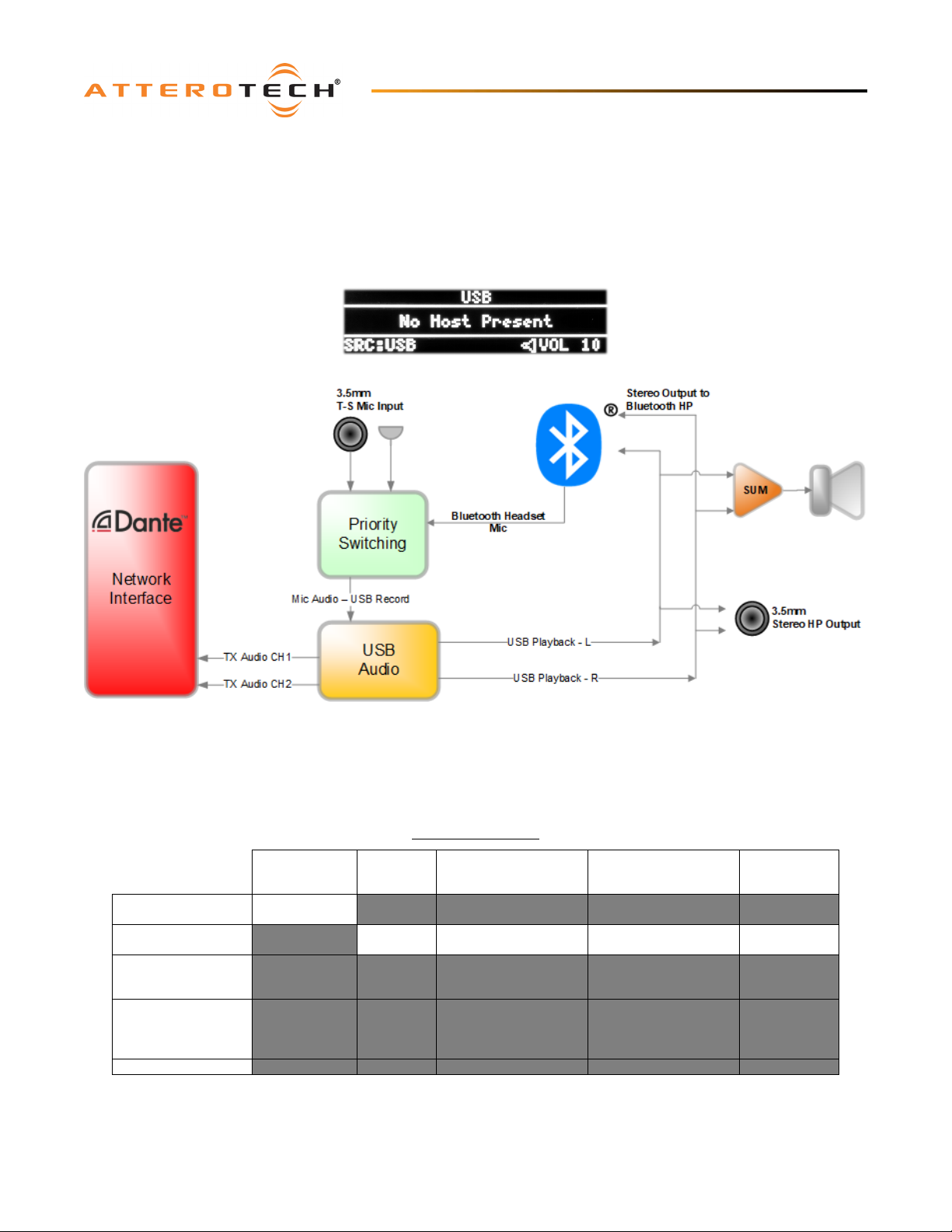

Figure 10 – USB Mode Internal Audio Flow
*NOTE: The PC/Mac soundcard volume control will override the internal unDNEMO-BT volume control. Prior to disconnecting the
USB connection, it is recommended that the volume be set to the maximum setting, such that the internal device volume is not
limited by the soundcard volume when the soundcard is not in use. Power cycling the unit will reset the internal volume back to
the soundcard volume defaults.
USB Mode Table
Mic Inp ut
USB Audio
(to PC)
●
Monitor
Speaker
Headphone/Headset
Bluetooth®
Headphone/Headset
Dante™ TX
*NOTE: unDNEMO-BT Aux Input Mode must have either Line In or Bluetooth® selected. Both sources cannot be monitored simultaneously.
**NOTE: When connected to Headphone/Headset Output, the Monitor Speaker will be disabled.
♦ Dante™ TX (only if enabled/selected)
Attero Tech LLC 2019 Page 12 614-00032
(Aux Input - Line In
Mode Audio
(only unDNEMO-BT
● ● ● ♦
Page 14
unDNEMO/unDNEMO-BT
USB Audio
(to PC)
Monitor
Speaker
Headphone/Headset
Output
Bluetooth®
Headphone/Headset
Mic Inp ut
(prioritized)
(from PC)
● ● ●
♦
Bluetooth Bridge
Mode Audio*
Net Ch 1-64 In
Figure 13 – Brightness Control
User Manual
2.6 – Aux Input Mode
(unDEMO-BT only)
The AUX input mode allows the user to
connect a line-level analog audio device to the
rear panel 3.5mm TRS stereo analog input as
an auxiliary audio source. Audio is routed
from the aux input as a mono mix to the
internal speaker or as a stereo source to
connected headphones.
In addition, if the user or installer has enabled
the Bluetooth® bridge functionality, the user
may select the Bluetooth® audio receiver as
the auxiliary source by pressing the channel
up or down button to select either the actively
paired Bluetooth® audio device or the line
input.
If audio is not streaming via Bluetooth when
switching sources, Line In will be muted. Press
the Output Mute button two times to restore
output.
If no Bluetooth® audio device is connected to
unDNEMO-BT, the display will show “BT: No
Connection”. If the Bluetooth® connection is
active then the name of the connected device
will be shown on the display and the Bluetooth® status indicator will be shown in the center of the status bar at the bottom of the
display.
If Dante® TX audio features are enabled within the unIFY Control Panel software for the unDNEMO-BT, the Aux input audio will also
be routed to the first and second Dante® audio transmit channels of the device for audio bridging applications. Dante® Controller
or another 3
rd
party application must be used to route the audio to the intended Dante® receive device.

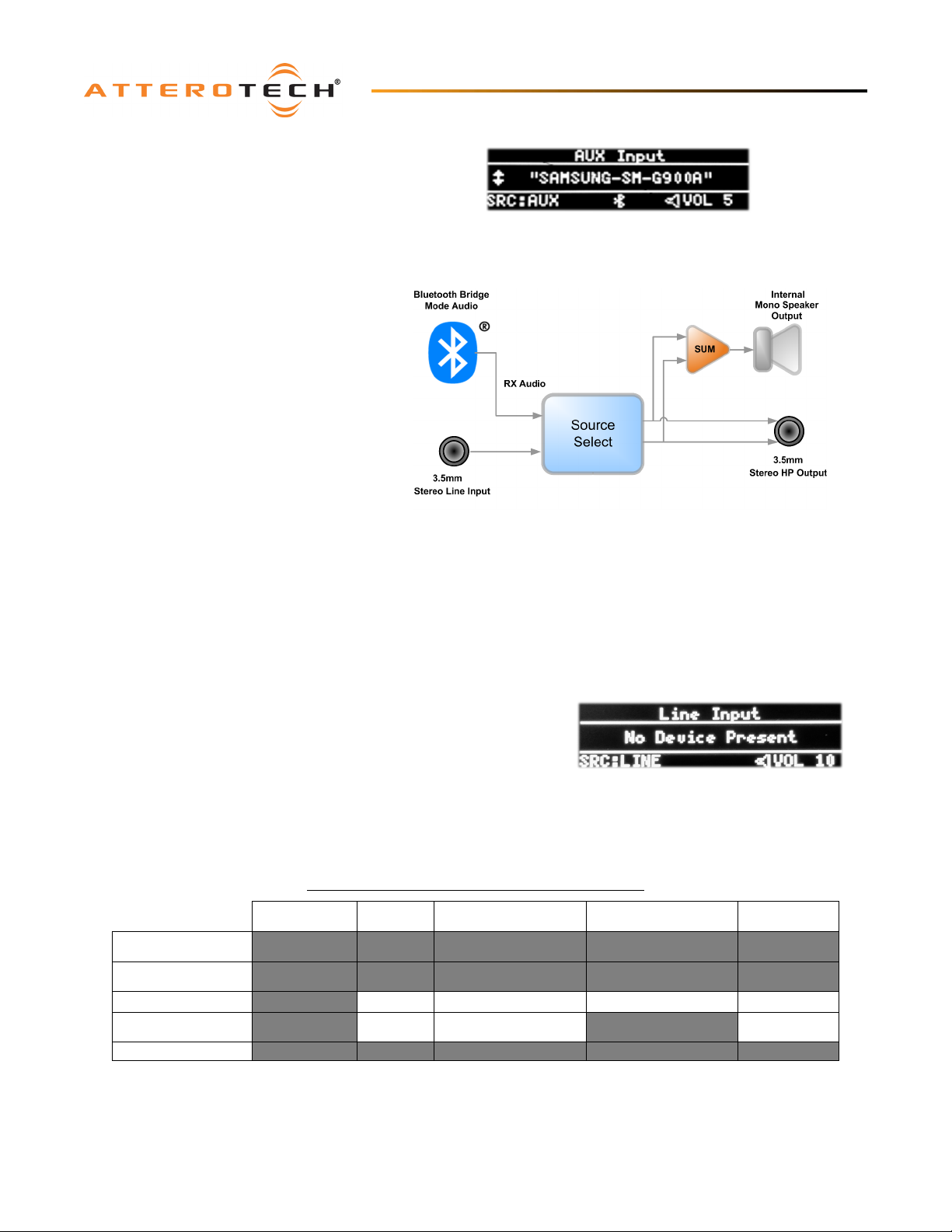

Figure 11 - AUX input mode
Figure 12 – Aux Input Mode Internal Audio Flow
2.7 – Line Input Mode (unDNEMO only)
The line input mode allows the user to connect a line-level analog audio
device to the rear panel 3.5mm TRS stereo analog input as an auxiliary audio
source.
Audio is routed from the line input as a mono mix to the internal speaker or
as a stereo source to connected headphones.
If Dante® TX audio features are enabled within the unIFY Control Panel software for the unDNEMO, the line input audio will also be
routed to the first and second Dante® audio transmit channels of the device for audio bridging applications. Dante® Controller or
another 3
rd
party application must be used to route the audio to the intended Dante® receive device.
Aux Input Mode Table (unDNEMO-BT only)
Attero Tech LLC 2019 Page 13 614-00032
USB Audio
Line In
*NOTE: unDNEMO-BT Aux Input Mode must have either Line In or Bluetooth® selected. Both sources cannot be monitored simultaneously.
**NOTE: When connected to Headphone/Headset Output, the Monitor Speaker will be disabled.
● ●
♦ Dante™ TX (only if enabled/selected)
Dante™ TX
♦
Page 15
unDNEMO/unDNEMO-BT
USB Audio
(to PC)
Headphone/Headset
Output
Mic Inp ut
(prioritized)
(from PC)
Bluetooth®
(unDNEMO-BT only)
Mic Inp ut
(prioritized)
USB Audio
(from PC)
for unDNEMO-BT)*
Bluetooth Bridge
Aux Input)*
User Manual
Line Input Mode Table (unDNEMO only)
USB Audio
Line In
Net Ch 1-64 In
**NOTE: When connected to Headphone/Headset Output, the Monitor Speaker will be disabled.
♦ Dante™ TX (only if enabled/selected)
● ● ♦
Monitor Speaker
Dante™ TX
2.8 – All Input Mode
The all input mode allows the user to simultaneously monitor a mix of the
audio from the selected Dante® network audio channel, the line level
analog input and the USB audio input. This is useful in applications that
require monitoring audio from multiple, independent sources
simultaneously.

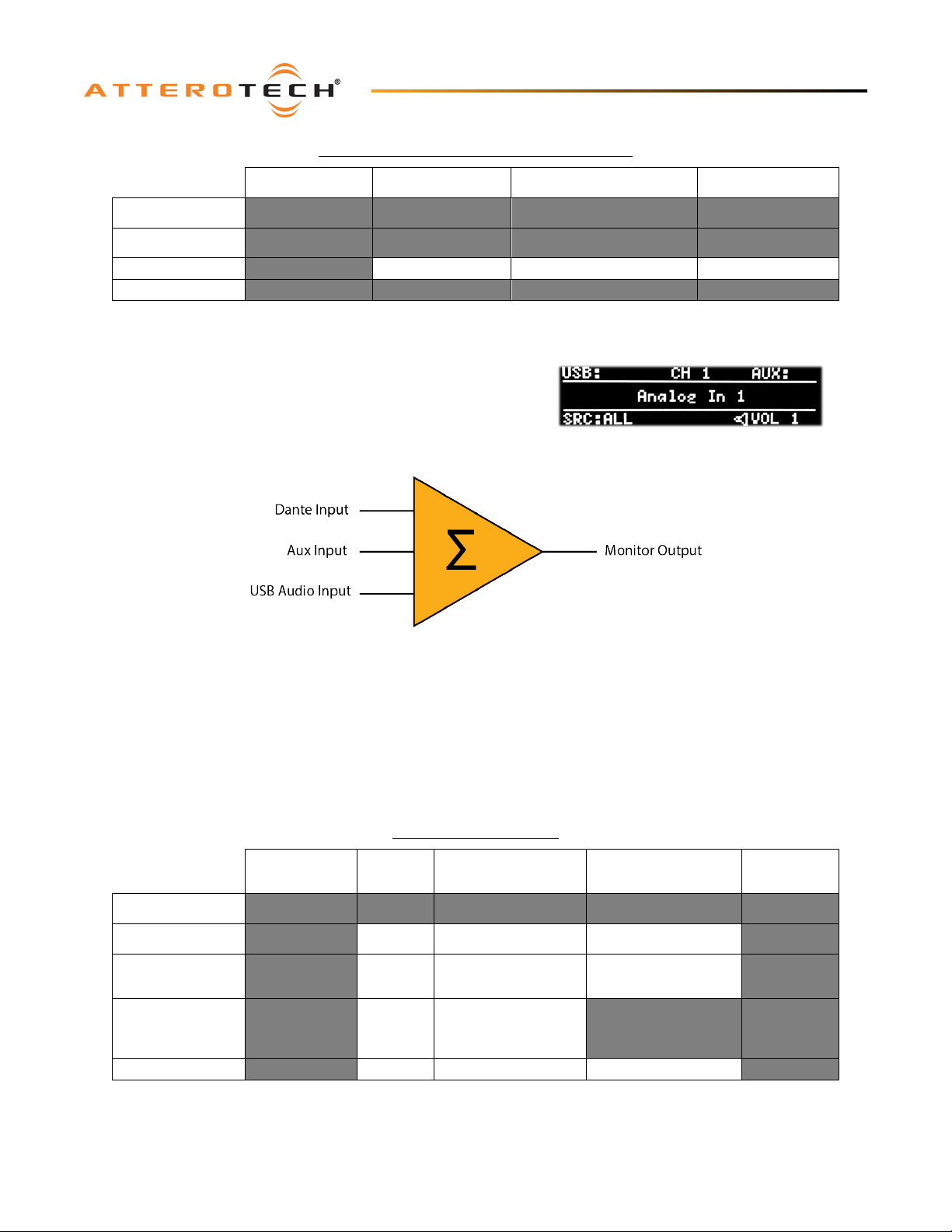

Figure 15 - All Input Mode Audio Routing
In the All input mode, the USB, and aux input sources are indicated with a checkmark on the title bar of the display when they are
connected.
The main content area of the screen shows the channel name of the network input audio, with the active channel number shown
in the center of the title bar.
The channel Up/Down buttons are used to navigate the network audio channel selection just as they operate in the Net Mode.
The All Input mode does not support any Dante® TX audio routing capabilities.
Figure 14 – All Input Mode
All Input Mode Table
*NOTE: unDNEMO-BT Aux Input Mode must have either Line In or Bluetooth® selected. Both sources cannot be monitored simultaneously.
**NOTE: When connected to Headphone/Headset Output, the Monitor Speaker will be disabled.
Attero Tech LLC 2019 Page 14 614-00032
Line In
(Aux Input - Line In
Mode Audio
(only unDNEMO-BT
Net Ch 1-64 In
USB Audio
(to PC)
● ● ●
● ● ●
● ●
● ● ●
Monitor
Speaker
Headphone/Headset
Output
Headphone/Headset
Dante™ TX
Page 16
unDNEMO/unDNEMO-BT
selected in Bluetooth Setup of unIFY Control Panel)
Setup of unIFY Control Panel)
User Manual
2.9 – Menu Mode Navigation
The unDNEMO and unDNEMO-BT feature a number of menu screens for showing status and basic device configuration. The menu
mode access is also a configurable option that can be disabled for applications where the end user may only require limited access
to the devices features. By default, the menu mode access is disabled and must first be enabled through unIFY. Once enabled, the
menu mode may be entered by pressing the “Menu” button. While in menu mode, the display will indicate MENU: in the upper left
of the screen. To exit menu mode, press the MENU button again.
The following diagram depicts the menu navigation. Use the Up and Down channel buttons to cycle between the “Display
Brightness” and “Device Info” menus.
Use the “+” and “-“ buttons to adjust the value or navigate the sub-menus for each menu mode screen.
(Must have Enable Headphone/Headset Suport
(Must have Enable Dante TX Audio selected in Mode

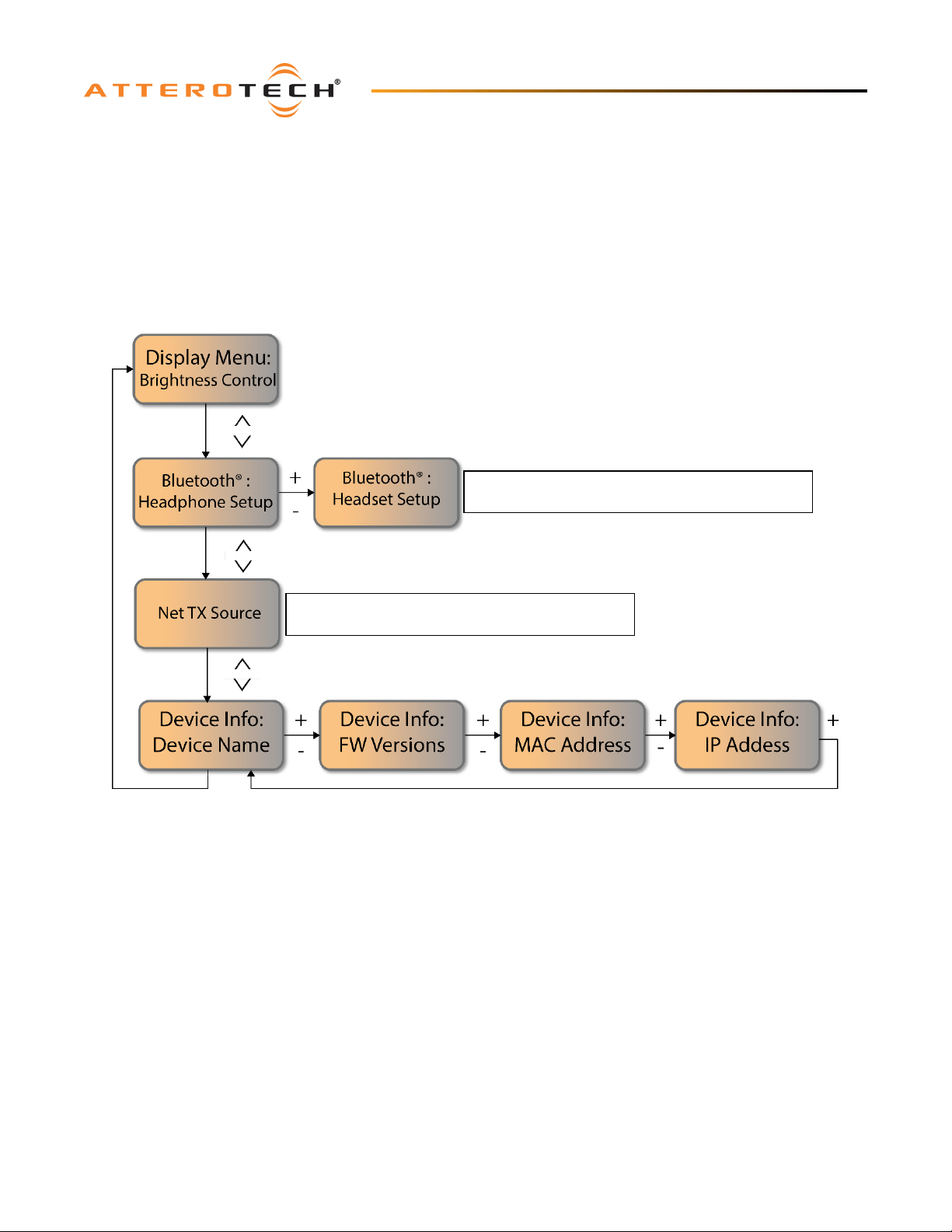

Figure 16 - Menu Mode Screen Navigation
Attero Tech LLC 2019 Page 15 614-00032
Page 17
unDNEMO/unDNEMO-BT
Figure 17 – Brightness Control
User Manual
2.9.1 – Menu Mode: Brightness Control
The brightness control menu allows the user to adjust the brightness level of
the display and the keypad LED backlight brightness. Use the “+” and “-“ button
to adjust the selected brightness.
2.9.2 – Menu Mode: Device Info

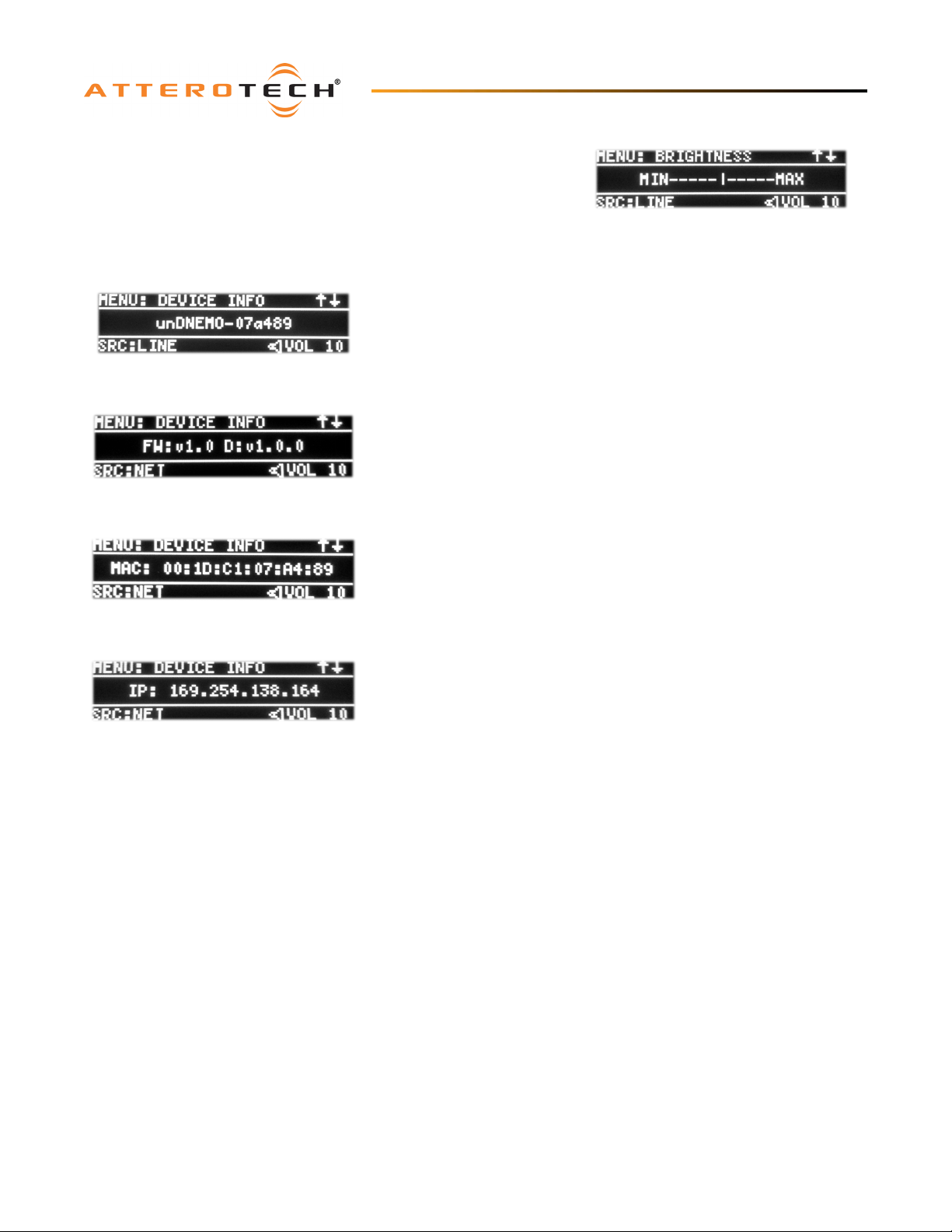

Figure 18 - Device Info: Name
Figure 19 - Device Info: FW Versions
The “Device Info” menus allow the user to view information about the device
including the Dante® device name that is advertised on the Dante® network, the
FW version information, the device MAC address and the current device IP
address.
To navigate between the Device Info menu screen content, use the “+” and “-”
buttons.
The “FW Versions” screen shows the version information for both the device
application processor (shown as “FW:”) and the Dante® product version (shown
as “D:”).
The MAC address screen shows the device MAC address. The MAC address is
also referenced on a label on the bottom of the unit.
The IP address screen shows the current IP address of the device. To change the
IP address settings, use Dante® Controller or other configuration software that
supports general networking configuration for Dante® devices.
Figure 20 - Device Info: MAC
Figure 21 - Device Info: IP
Attero Tech LLC 2019 Page 16 614-00032
Page 18
unDNEMO/unDNEMO-BT
User Manual

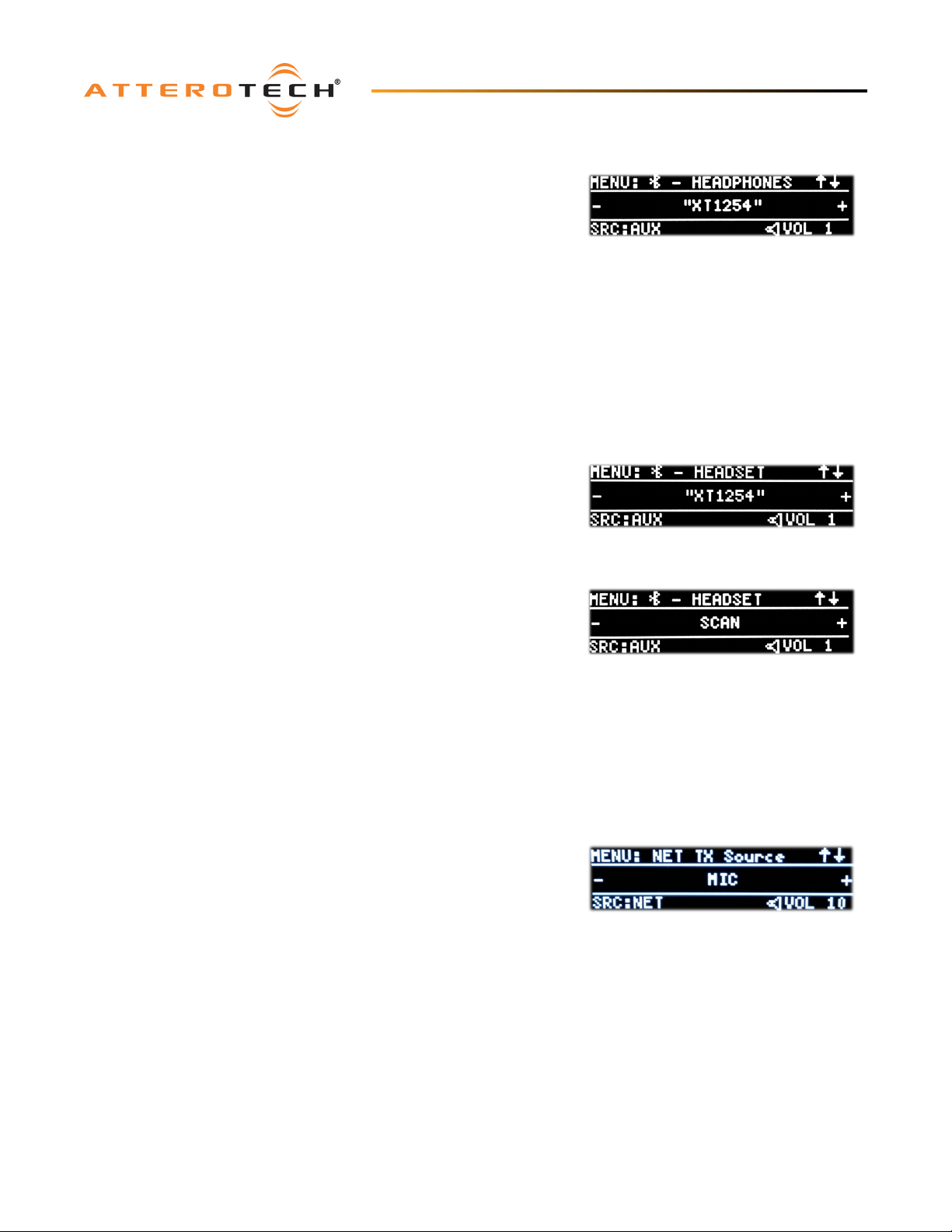

2.9.3 – Menu Mode: Bluetooth® Headphone Setup (unDNEMO-BT Only)
The Bluetooth® Headphone setup menu allows for pairing to headphones,
speakers and other Bluetooth® devices that support the A2DP profile for high
quality audio streaming. The unDNEMO-BT supports one active A2DP
monitoring connection.
The “Headphones” menu shows the lists the last ten devices that have been
paired with the unDNEMO-BT. If new devices are paired, or to find new devices
that have been put in their pairing mode, use the “+” and “-” buttons to navigate
to the menu entry that shows “SCAN” then press the “Select” button. This will
cause the unDNEMO-BT to search for nearby, compatible devices and display them in the setup menu. Use the “+” and “-” buttons
to navigate to the desired device in the list and press the “Select” button to connect.
If the device is successfully connected, the device will appear with an asterisk prefixed to the device name. Additionally, the
Bluetooth® status icon will be shown in the status bar.
To disconnect, navigate to the actively connected device and press the “Select” button. The Bluetooth® status icon should disappear
and the audio sent to the device should stop.
Figure 22 – Bluetooth® Headphone Setup
2.9.4 – Menu Mode: Bluetooth® Headset Setup (unDNEMO-BT Only)
The Bluetooth® headset setup menu allows for pairing and connection to
headphones headsets and other Bluetooth® devices that support the HSP profile
for low latency, bidirectional audio streaming. The unDNEMO-BT supports one
active HSP connection.
The “Headset” menu shows the lists the last ten devices that have been paired
with the unDNEMO-BT. If new devices are paired, or to find new devices that
have been put in their pairing mode, use the “+” and “-“ buttons to navigate to
the menu entry that shows “SCAN” then press the “Select” button. This will cause
the unDNEMO-BT to search for nearby, compatible devices and display them in
the setup menu. Use the “+” and “-” buttons to navigate to the desired device in
the list and press the Select button to connect.
If the device is successfully connected, then the device will appear with an
asterisk prefixed to the device name. Additionally, the Bluetooth® status icon
will be shown in the status bar.
The headset microphone takes priority over the internal microphone when a connection is active. However, a wired external
microphone remains the highest priority microphone source and will automatically take precedence over the Bluetooth®
microphone when connected.
To disconnect, navigate to the actively connected device and press the “Select” button. The Bluetooth® status icon should disappear
and the audio sent to the device should stop.
Figure 23 - – Bluetooth® Headset Setup
Figure 24 – Scan for Devices
2.9.5 – Menu Mode: Net TX Source
This option is only available if the “Dante® TX’ option is enabled. It allows the
user to configure which audio source is made available to the Dante® network
when the unDNEMO-BT is in the Net Mode.
The available sources for the Dante® TX Audio in the Net mode are:
• Prioritized Mic Input
• USB Playback
• Aux Input (Line or Bluetooth®)
Figure 25 - Net TX Source menu
Attero Tech LLC 2019 Page 17 614-00032
Page 19
unDNEMO/unDNEMO-BT
User Manual
3 – System Setup
*Note: All Attero Tech products are tested using UTP cabling and it is recommended that UTP cabling be used when installing
them. STP cabling can be used for installation though care must be taken not introduce grounding issues into the system by doing
so.
3.1 – Daisy Chain Deployment
The unDNEMO and unDNEMO-BT can be deployed in standard Ethernet networks with or without external switching hardware.
The first example below shows the Dante® port of an audio DSP connected to the Ethernet (Dante®) port of the
unDNEMO/unDNEMO-BT at supervisor station 1. Due to the integrated Gigabit Ethernet switch, other unDNEMO/unDNEMO-BT
devices can be daisy-chained together to eliminate the need for any external Ethernet switches.
*Note: Each unDNEMO/unDNEMO-BT would require a local 24V DC power supply connection. Daisy chaining of PoE is not possible.

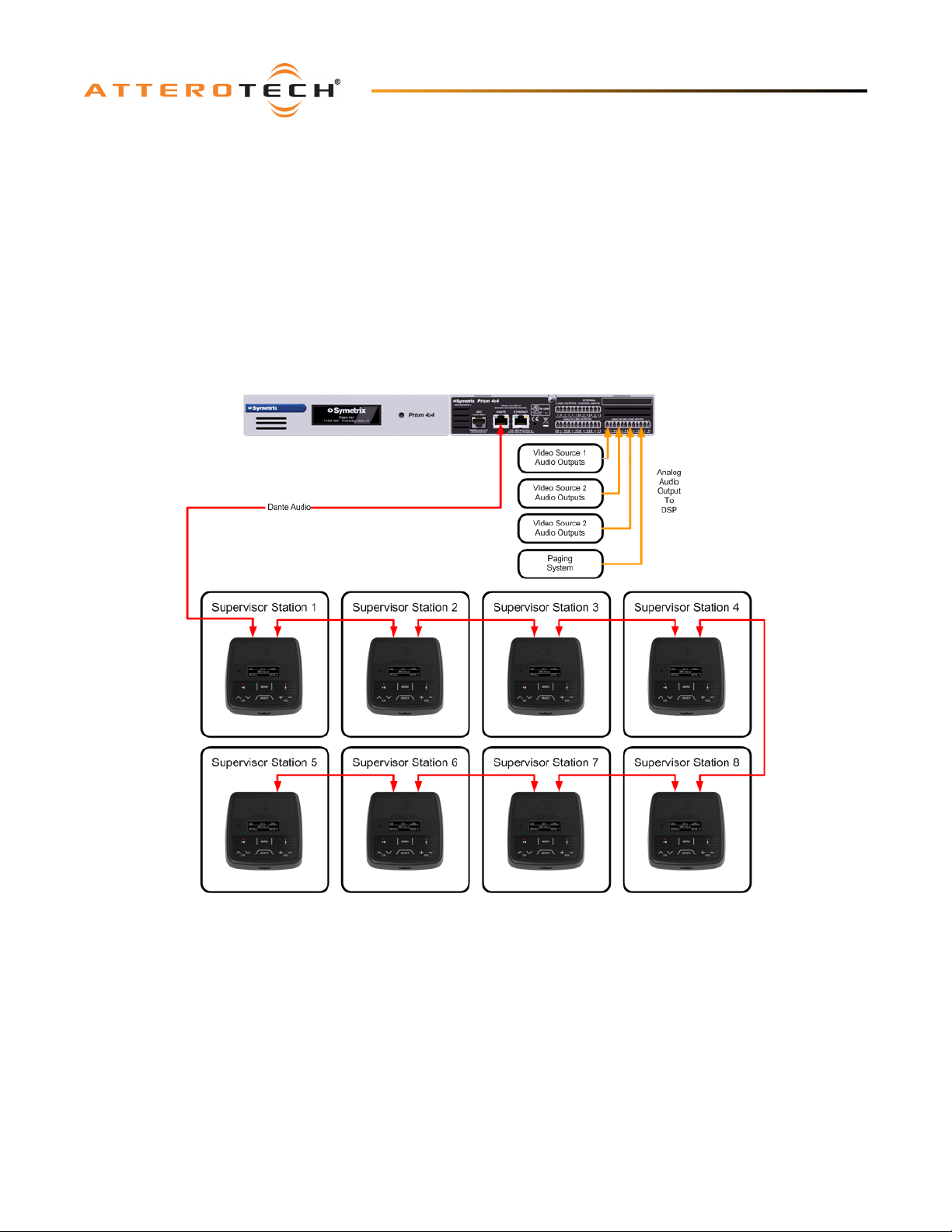

Figure 26 – Daisy Chain Deployment
*NOTE: It is not recommended to connect high channel count Dante® devices to the end of any daisy-chain segment. The daisy
chain feature is intended to ease deployment in situations where additional Ethernet switches may be obtrusive and difficult to
install. The daisy-chain feature is not intended to be use as a high bandwidth connection between two or more Ethernet switches
to bridge network segments.
Attero Tech LLC 2019 Page 18 614-00032
Page 20
unDNEMO/unDNEMO-BT
User Manual
3.2 – PoE Deployment
The unDNEMO and unDNEMO-BT support PoE 802.3af power on the left-most Ethernet port labeled “PoE+Data” on the rear panel
of the unit. To utilize PoE, connect CAT-5e or better cabling between the PoE port of the unDNEMO/unDNEMO-BT and an 802.3af
compliant PoE Ethernet switch or mid-span power injector.
In this configuration, PoE cannot be daisy-chained and each device requires a CAT-5 connection back to the Ethernet switch. The
following diagram shows the unDNEMO-BT devices used with an Ethernet switch providing both PoE and Dante® connections, with
audio sourced from an Attero Tech unD4I 4-channel analog input to Dante® interface.

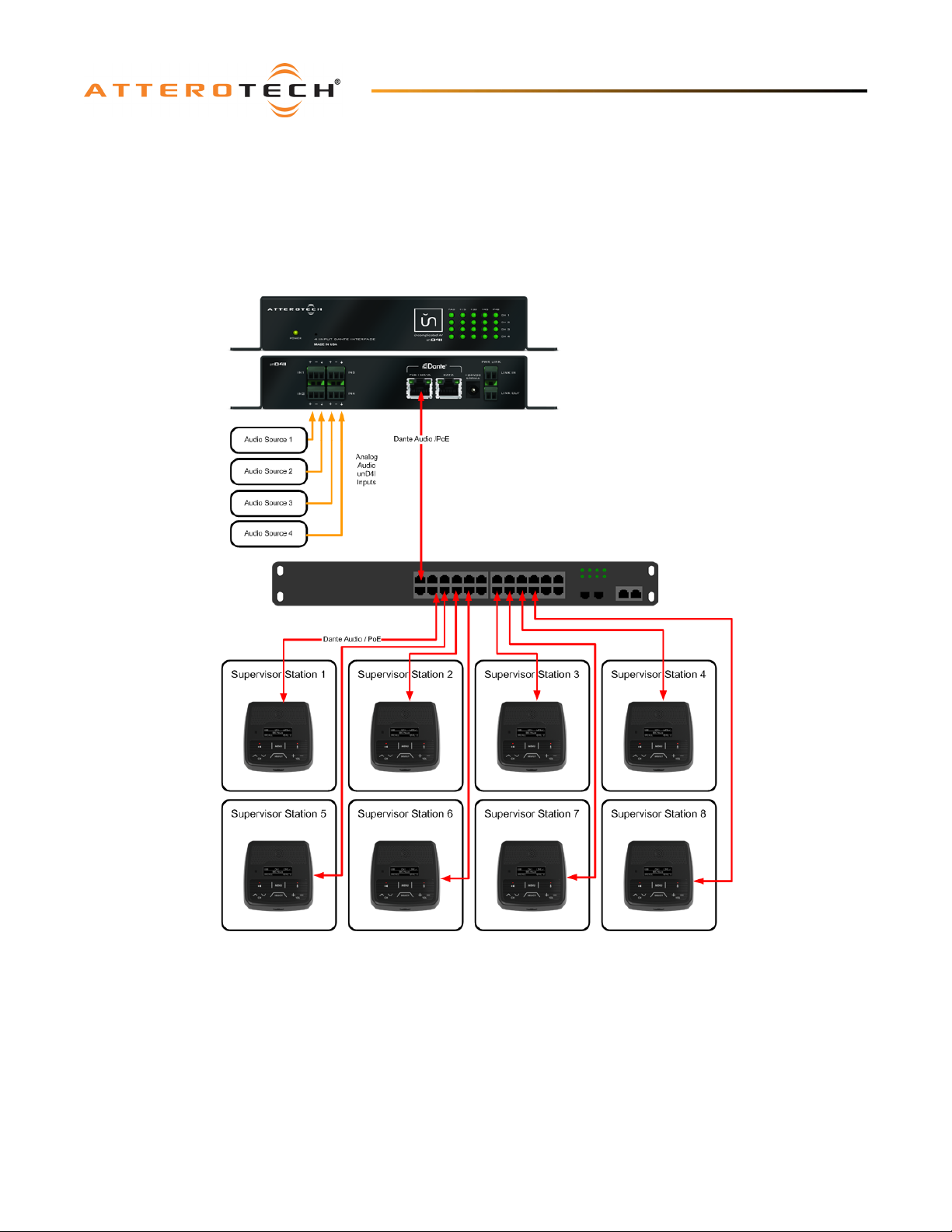

Figure 27 – PoE Deployment
Attero Tech LLC 2019 Page 19 614-00032
Page 21
unDNEMO/unDNEMO-BT
User Manual
3.3 – unIFY Control Panel Notes
The unIFY Control Panel software provides users with a simple tool to monitor and configure Attero Tech devices. It detects
connected devices on the configured network automatically showing them in a device list. Once a device is discovered, unIFY can
present further details about the device. For unDNEMO and unDNEMO-BT devices, unIFY is also used to configure the device settings
such as the audio mode and Bluetooth® settings (unDNEMO-BT) among others. The latest version of the unIFY Control Panel
software can be downloaded at https://www.atterotech.com/resources/unifycontrol-panel
The configuration software for the unDNEMO-BT is organized into the following key sections:
• Channel Configuration
• Device Configuration
*Note: The unDNEMO/unDNEMO-BT settings are volatile and parameter changes will be lost if the unit is reset or power cycled.
However, unIFY Control Panel can be used to save presets and change the power-on defaults to prevent loss of settings. This is a
manual process and is not automatic. This is done in our unIFY software by using the "Save Preset" button and clicking the "Save
to Device" button with the "Default" option selected.See the unIFY Control Panel manual for steps to save.
3.3.1 – Channel Configuration Section
All Net Channel naming and routing for unDNEMO/unDNEMO-BT should be set up in unIFY Control Panel. Unlike most Dante®
networked devices, the unDNEMO and unDNEMO-BT prioritize network routing via unIFY over Dante® Controller. This is due to the
ability to switch monitoring channels on the device itself, changing how Dante® Controller sees the hardware. This is further
explained in 3.4 – Dante® Configuration Notes and detailed setup steps are available in the unIFY Control Panel manual.
.
3.3.2 – Device Configuration Section
The Device Configuration Section allows adjustment to the hardware parameters from Button/Display Brightness and Display
Timeout timer (unDNEMO only) to selecting Audio Mode and Bluetooth® Settings (unDNEMO-BT only).
unDNEMO
unDNEMO-BT
Attero Tech LLC 2019 Page 20 614-00032
Page 22
unDNEMO/unDNEMO-BT
User Manual
3.4 – Dante® Configuration Notes
In general, there is little to no additional configuration required to successfully utilize the unDNEMO-BT devices in a Dante® network
other than the initial channel configuration and setup required using the unIFY Control Panel software.
However, if the unDNEMO or unDNEMO-BT are utilized in a Dante® network with audio transmit channels that are already configured
to transmit to one or more Dante® receive devices, the potential exists that the unDNEMO/unDNEMO-BT will not be able to
subscribe to the Dante® transmitter as the number of unicast receivers assigned to transmitting device and channel may be
exceeded.
To mitigate this issue, the desired audio channels may be placed in multicast flows such that there is no limit on the number of
Dante® receive devices. In systems where a large number of unDNEMO/unDNEMO-BT devices are utilized, this is the recommended
practice to mitigate these channel subscription limitations that exist when only using unicast Dante® audio transmission. However,
care should always be taken to understand how much multicast bandwidth exists on the Dante® network, and utilize the tools
within Dante® Controller to identify any networking and Dante® configuration issues that may arise as a result.
3.5 – Factory Reset
The unDNEMO and unDNEMO-BT have a factory reset option. Using it will reset all the devices parameters back to their factory
defaults including all the Dante® settings such as device name, channel names as well as the device settings such as input select.
The devices IP address mode is also reset back to getting a dynamic IP.
Access to the factory reset button is through a small circular hole on the rear of the unit between the USB and PoE Ethernet
connector.
To use the factory reset, insert a small screwdriver or paperclip into the hole to activate the factory reset switch. There should be
a noticeable “click” when it’s activated. Hold the switch in for approximately 10 seconds then release. If the factory reset was
successful, a few seconds after releasing the switch, the unit will reset itself.
Attero Tech LLC 2019 Page 21 614-00032
Page 23
unDNEMO/unDNEMO-BT
User Manual
4 – Mechanical Information

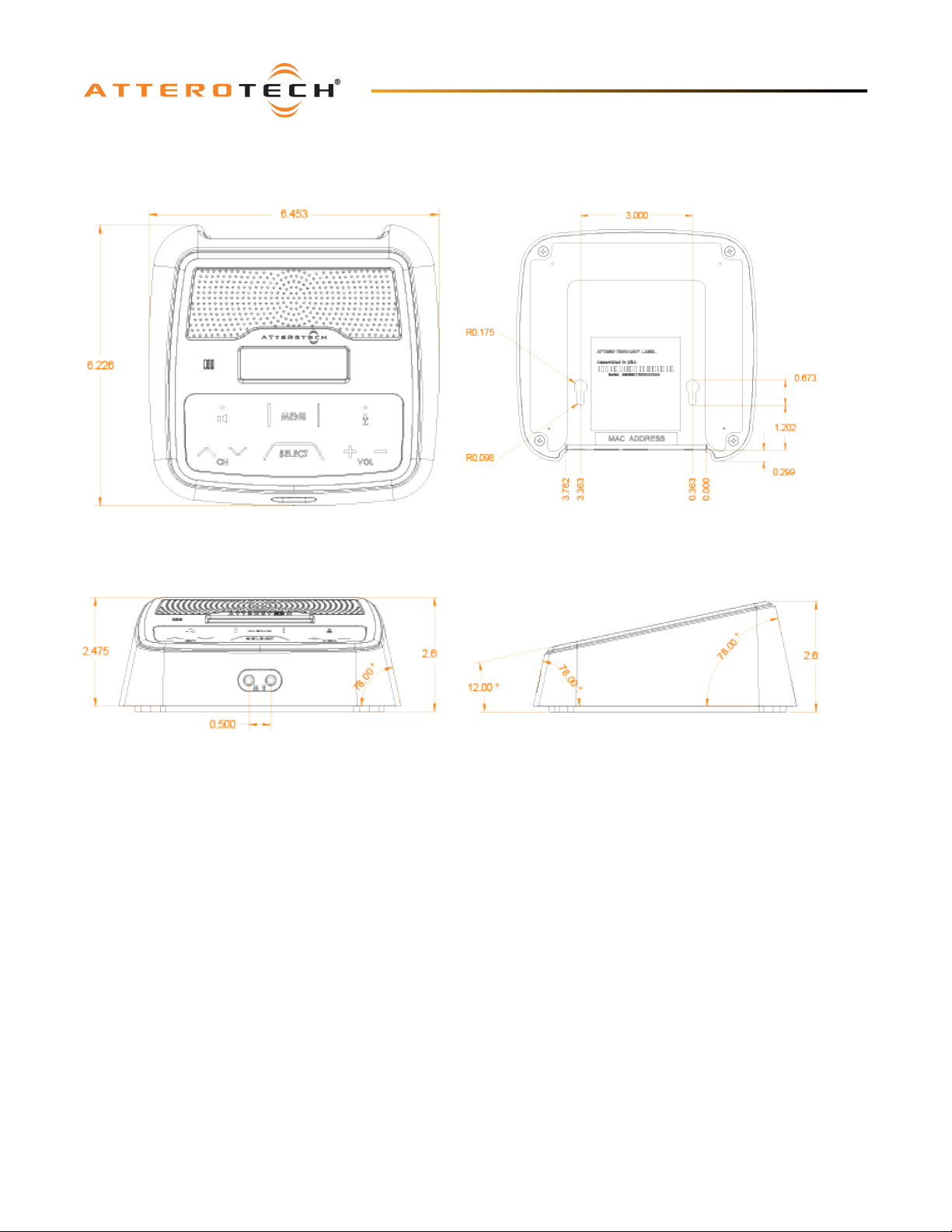

Figure 28 - Top View Dimensions
Figure 31 - Front View Dimensions
Figure 29 - Bottom View Dimensions
Figure 30 – Side View Dimensions
4.1 – Mounting Information
The unDNEMO and unDNEMO-BT is designed to be placed on a smooth surface and features a non-slip pad on the base of the unit.
For mounting on non-horizontal surfaces, the base of the unit features two keyhole openings for mounting that accept a #6 size
screw head. Care should be taken not to insert the screw head deeper than 6.00mm from the base of the unit.
Attero Tech LLC 2019 Page 22 614-00032
Page 24
unDNEMO/unDNEMO-BT
User Manual
5 – ARCHITECTS & ENGINEERS SPECIFICATION
5.1 – unDNEMO
The Dante® network monitor shall be able to monitor any one of up to 64 Dante® audio flows, and provide user selection of both
channel and volume. The unit shall include a speaker and a headphone jack for reproduction of the Dante® audio. The unit shall
provide bi-directional USB 1.1 audio connectivity, and install without additional drivers on both Windows and Mac PCs. The unit
shall provide one mic level and one line-level analog input, each on a 3.5mm connector. The unit shall be able to receive power
from either the rear panel Dante® interface over the Ethernet cable from a compliant 802.3af PoE network device or an external
+24VDC power supply. A second rear panel Dante
The Dante® interface shall be compliant with the RoHS, REACH and WEEE directives.
The Dante® interface unit shall be compliant with the EMI/EMC requirements for FCC (Part 15 Class A) and CE (EN 55022 Class) A.
The Dante® interface shall be the Attero Tech unDNEMO.
5.2– unDNEMO-BT
The Dante® network monitor shall be able to monitor any one of up to 64 Dante® audio flows, and provide user selection of both
channel and volume. The unit shall include a speaker, a headphone jack and Bluetooth® for reproduction of the Dante® audio. The
unit shall provide bi-directional USB 1.1 audio connectivity, and install without additional drivers on both Windows and Mac PCs.
The unit shall provide one mic level and one line-level analog input, each on a 3.5mm connector. The unit shall be able to receive
power from either the rear panel Dante® interface over the Ethernet cable from a compliant 802.3af PoE network device or an
external +24VDC power supply. A second rear panel Dante® interface shall provide for daisy chain of the Dante® network.
The Dante® interface shall be compliant with the RoHS, REACH and WEEE directives.
The Dante® interface unit shall be compliant with the EMI/EMC requirements for FCC (Part 15 Class A) and CE (EN 55022 Class) A.
The Dante® interface shall be the Attero Tech unDNEMO-BT.
® interface shall provide for daisy chain of the Dante® network.
Attero Tech LLC 2019 Page 23 614-00032
Page 25
unDNEMO/unDNEMO-BT
User Manual
5.3 – Device Specifications
Audio Inputs
Internal electret microphone
External electret headset
Input Types:
Input Impedance: Line Input: 10kOhm
Maximum Input Levels: Line Input: +12dBu
Mic Bias Voltage: 1.65V
Audio Input Performance
THD+N: Line Input: <0.02% @ 1kHz
Frequency Response:
Speaker Type: Internal 1” Driver
Attenuation Range
Headphone Output Stereo 3.5mm TRS
Maximum
Output Levels:
Audio Output Performance
THD+N:
Frequency Response
Bluetooth® Audio (unDNEMO-BT Only)
Supported Bluetooth®
Profiles
Bluetooth® range 10 meters typical
microphone connectivity with
internal bias (3.5mm T-S)
Line Input: 3.5mm TRS
Line Input: 20Hz – 20kHz,
+/- 1dB
Audio Outputs
Software controlled volume
(1 to 10(max), 6dB per step)
Speaker: 1W @ max volume
Headphone: 1Vrms into 32
Ohms (minimum load)
<0.01% @ 1kHz, input signal
3dB below maximum
Headphone: 20Hz – 20kHz
+/- 1dB
Bluetooth® v3.0
A2DP (Headphone and
bridging modes)
HSP (Headset mode)
Physical Level: Ethernet
Connector(s): Dual RJ-45
Cable Quality: CAT-5e or better
Transmission
Speed:
Supported
Sample Rates
Minimum Dante®
Network Latency
PoE 802.3af PoE PD compliant
External Power
Power
Consumption
Cable Quality: CAT-5e or better
FCC CFR 47 Parts 15B
ICES-003
CE (EN55022)
RoHS
REACH
Width 6.45”
Height 2.6”
Depth 6.23”
Weight 1.13 lbs
Operating
Temperature
Dante® Network
1000 Mbps
48kHz
1ms
Power Requirements
24V DC, center positive
barrel jack, 6.0mm OD /
2.0mm ID
< 6W Max
Product Compliance
Physical Dimensions
Environmental Specifications
0 to 40 C
Attero Tech LLC 2019 Page 24 614-00032
Loading...
+ hidden pages
You need points to download manuals.
1 point = 1 manual.
You can buy points or you can get point for every manual you upload.
