Page 1
Attero Tech by QSC
unDX2IO+
Dante/AES67 network audio
Wall Plate - 4x2 mic/line I/O
unDX2IO+
Features
• Dante Domain ManagerTM ready
• Small form factor allows for easy
co-location near analog sources or
sinks
• 802.3af compliant PoE powered
• Four input gains to accommodate
common line levels, dynamic and
phantom powered mics
• +48V phantom power per channel
• Analog output gain is software
adjustable between 0 dB and -60
dB plus mute to accommodate all
types of line input audio equipment
- both consumer and professional
levels
• Industry standard +20 dBu
maximum input levels (at 0 dB input
gain) and +20 dBu maximum output
levels
• Product accessory kit available
Applications: Hotel Ballrooms • Spas • Fitness Facilities
Convention Centers ∙ Education ∙ Conference Center
The unDX2IO+ is a cost-effective multi-IO DanteTM audio network wall plate. The unDX2IO+
features two balanced mic/line XLR inputs, two balanced XLR line outputs, and two
balanced line inputs on depluggable connectors on the side of the unit. All inputs and
outputs can be used simultaneously and all audio channels are available separately. The
unDX2IO+ is designed to fit into all dual-gang US junction boxes, mud rings, and old work
brackets. The unDX2IO+ is PoE enabled, so all connectivity (power, control, and data) is
provided by a single CAT-5/6 cable. The wall plate's size and I/O density make it easy to put
Dante connectivity wherever it’s needed.

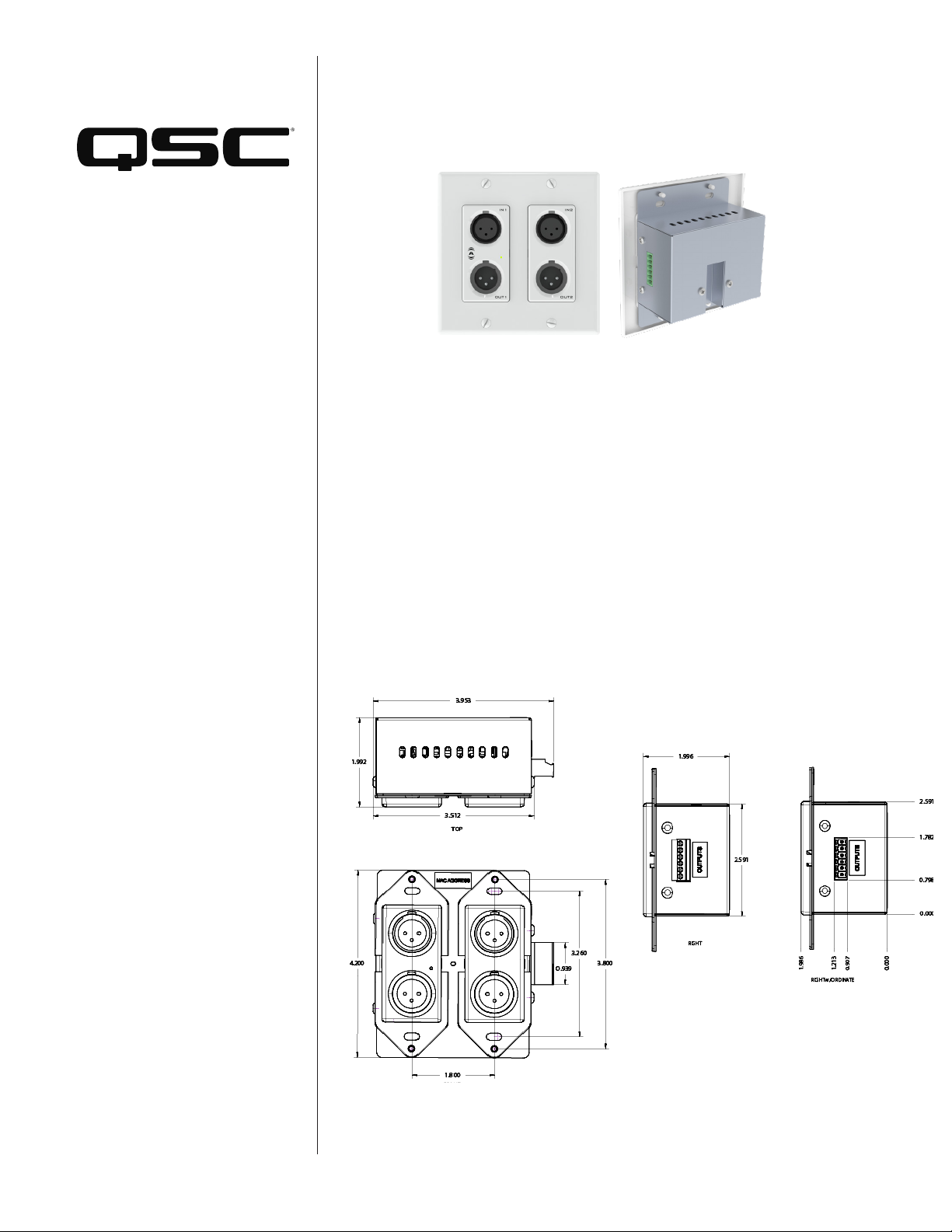

Dimensions:
Page 2
unDX2IO+ Details
Audio Inputs
Input types 3-pin XLR (balanced and RF filtered)
Gain
Input impedance >1.8 KΩ at any gain setting
Maximum input levels: 1 & 2
Maximum input levels: 3 & 4
Phantom power +48v, software selectable
-18 dB, -3dB, +25dB, +40dB, software
selectable
+20 dBu @ 0 dB w/ -15 dB Pad
+5 dBu @ 0 dB gain,
-22 dBu@ +25 dB gain,
-38 dBu @ +40 dB gain
+4 dBu Mode: +20 dBu
-10 dBV Mode: +12 dBu
Audio Outputs
Output type
Output gain 0 dB
Maximum output level +20 dBu
Balanced line level with automatic muting on
loss of Dante signal
Audio Performance
EIN -115 dBu (+40 dB gain)
Dante Network
Physical level Standard ethernet
Connector Single RJ-45
Cable quality CAT-5e or better
Transmisssion speed 100 Mbps
Supported sample rates 44.1 kHz, 48 kHz
Minimum Dante
network latency
1 ms
General
Dimensions (HWD)
Weight 0.6 lb (.27 kg)
Operating temperature 0 to 40° C
Regulatory compliance
4.2 x 3.5 x 2 in
(114.3 x 88.9 x 50.8 mm)
FCC CFR 47 Parts 15B Class A
ICES-003
CE (EN55022)
RoHS
REACH
THD+N < -85 dBu @ 0 dB gain
Frequency response
< 0.05% at any gain, input signal 3 dB
below maximum
Environmental
PoE 802.3af PoE PD compliant
Power consumption < 5 W max
1675 MacArthur Boulevard • Costa Mesa, CA 92626 • Ph: 800/854-4079 or 714/957-7100 • Fax: 714/754-6174
© 2019 QSC, LLC all rights reserved. QSC and the QSC logo are registered trademarks of QSC, LLC in the U.S. Patent and Trademark office and other
countries. All other trademarks are the property of their respective owners. Patents may apply or be pending.
unDX2IO+ Spec Sheet 12/13/2019
