1 – Overview

The unD4O Dante™/AES67 audio interface is a cost effective 4 channel analog break-out box and is designed in a small
flange-mount form factor for broad market application. Its size and I/O density make it easy to put Dante™ / AES67
connectivity wherever it’s needed – on a rack shelf, under a table or near the destination equipment – thereby eliminating
costly and interference prone analog wiring and power supplies.

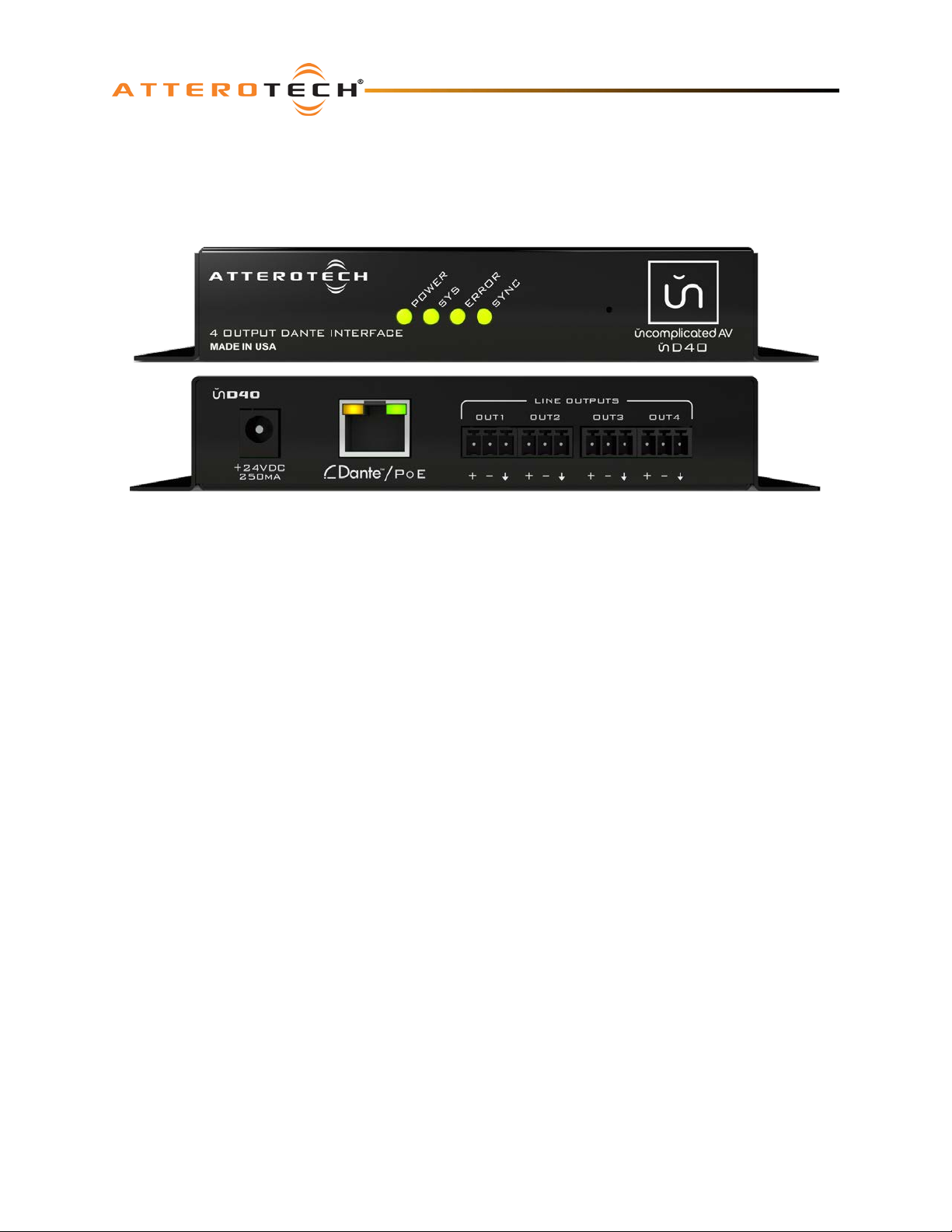

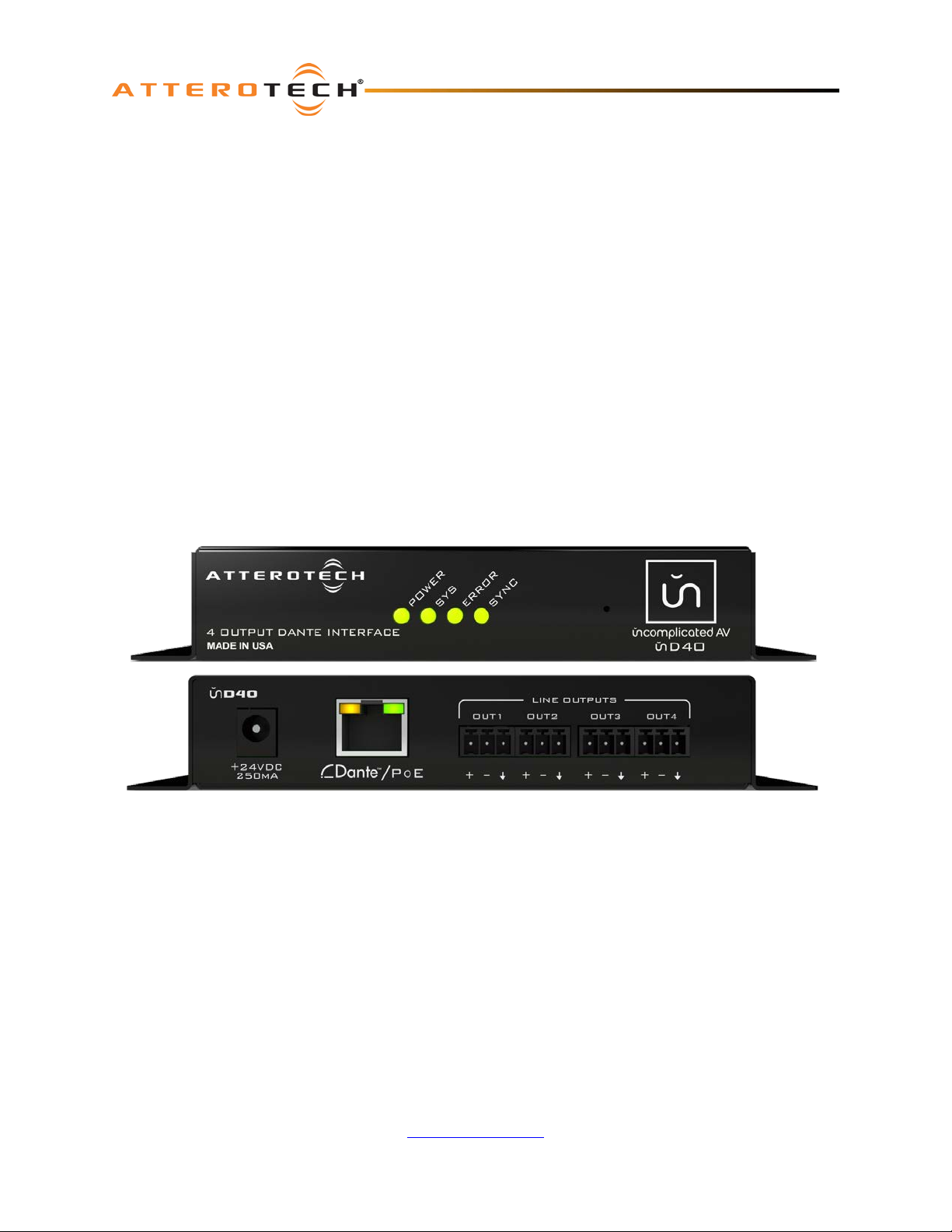

Figure 1 - unD4O Overview

The unD4O features four electronically balanced line-level outputs. All outputs can be used simultaneously and all audio
channels are available separately from the Dante network.

Connection to the Dante™/AES67 network is provided by a single Ethernet RJ45 connector on the back of the unit. The
unD4O is PoE-enabled which allows the unD4O to be powered over its network cable from a suitable PoE source (IEEE

802.3af) or from a locally connected 24V DC power supply (sold separately). This is particularly useful as the unD4O can
then be mounted in remote location where access to a mains outlet would be limited or indeed, non-existent.

Audinate’s Dante™ Controller or other 3rd party manufacturer's Dante™ routing software can be used to control the audio
routing configuration of the device along with enabling of AES67 streams.

1.1 – What’s in the Box

The device comes supplied with the following:

o (1) unD4O
o (4) 3-position Phoenix plug connectors

1.2 – Option al Extras

The following are available as options for the unD4O and that may be ordered separately:

o 24V DC Power Supply -

P/N: 900-00175

 Attero Tech LLC 2018 Page 4 614-00028 Rev 02_d

unD4O

User Manual

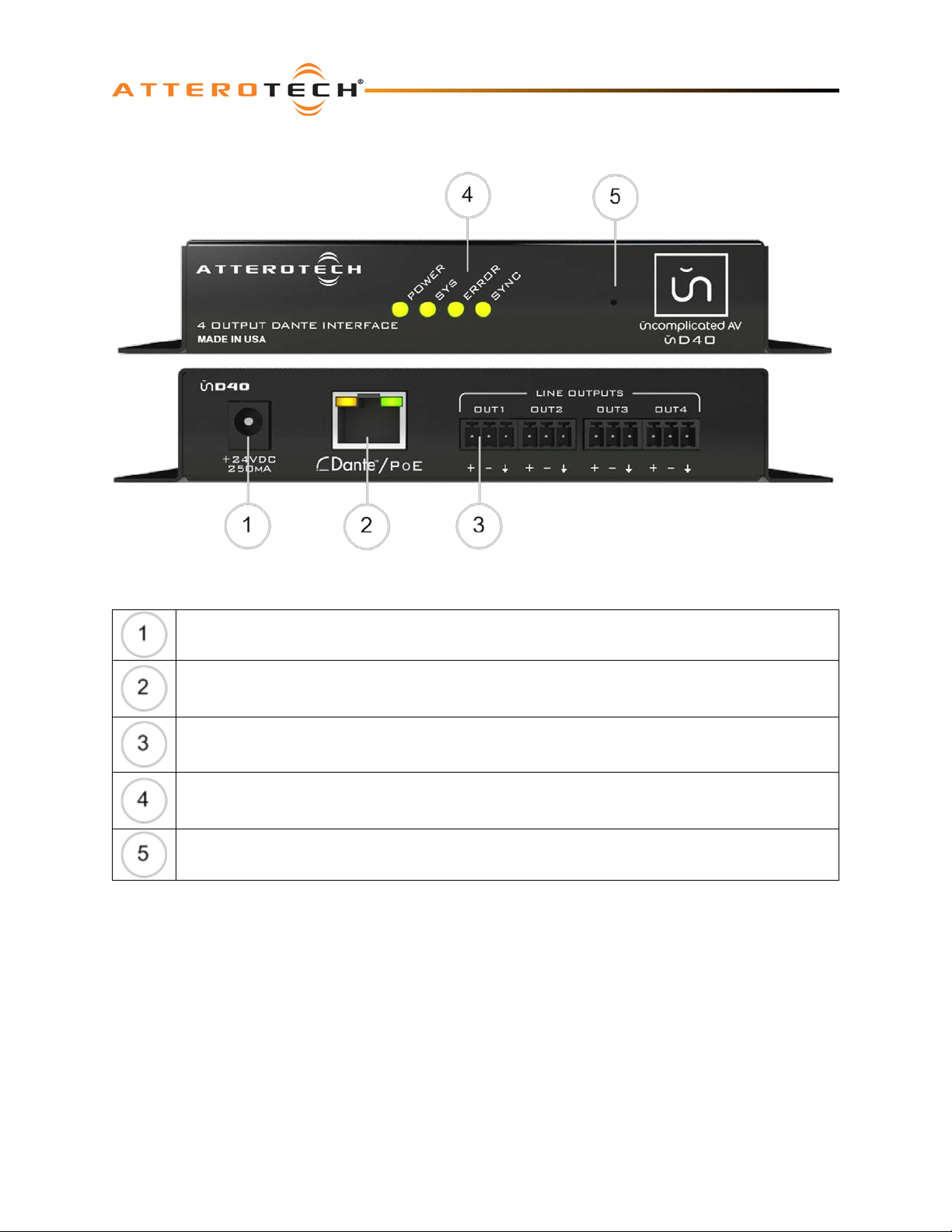

1.3 – Device Features

24V DC Power Input

Dante™/AES67 PoE Connector ( requires CAT-5e or better Ethernet cabling)

4 x Balanced audio outputs

Front Panel LED Status Indicators

Recovery reset switch

*Note: The unD4O has a label on the flange of the metal housing that shows the devices MAC address. This is important
for initial device identification as the last six digits make up part of the devices default network name that is shown when
the device is detected by Dante™ Controller. The full MAC address is also given on the back of the unit.

 Attero Tech LLC 2018 Page 5 614-00028 Rev 02_d

unD4O

User Manual

1.4 – Mounting and Installati on

It is recommended that the unit be secured to a flat surface with a screw through each mounting flange. Dimensions for
mounting are show in the Error! Reference source not found. below. Use a No. 6 screw of a type and size that is
applicable to the surface to which the device will be attached.

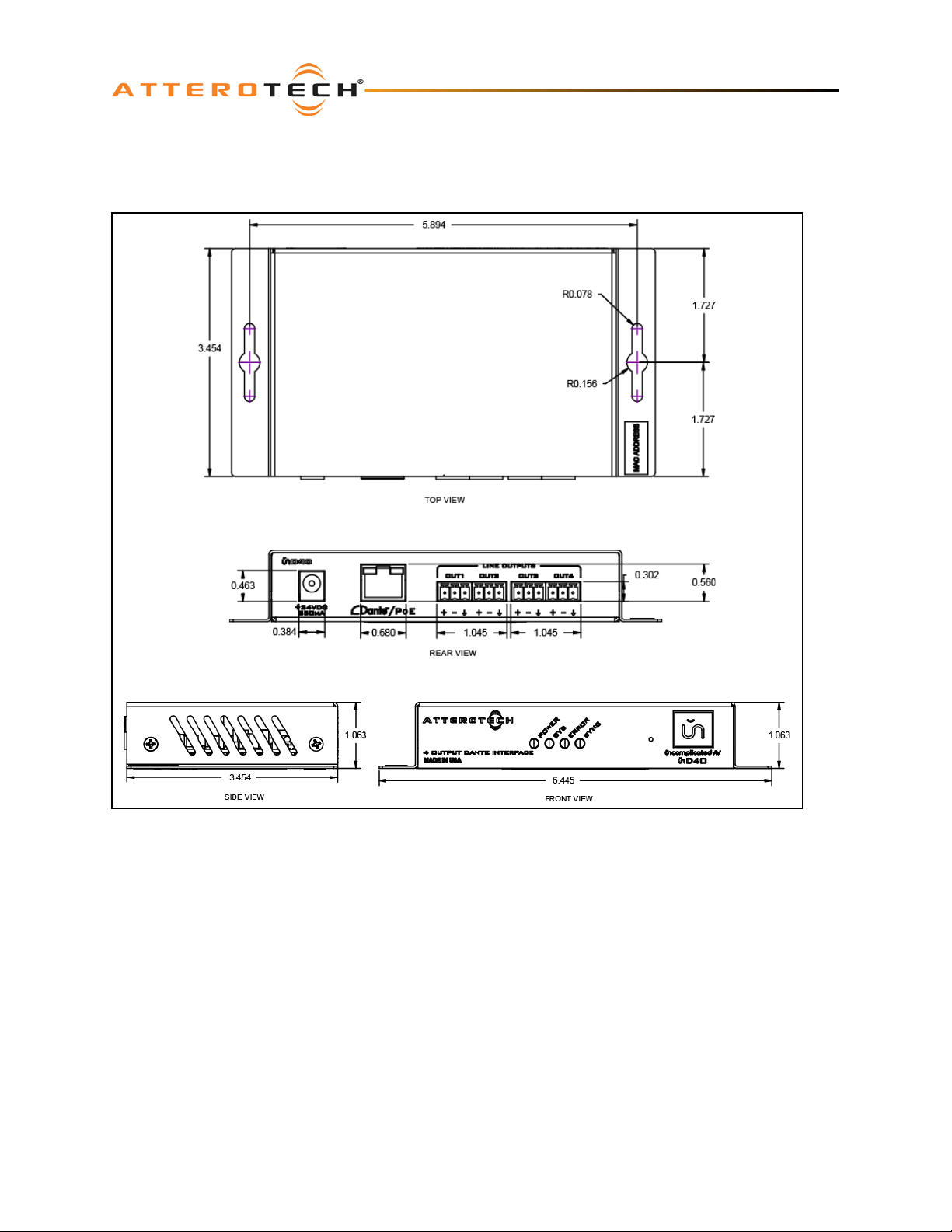

Figure 2 - Mounting Information

o Attach the PoE + Data Dante™/AES67 INTERFACE port to a spare PoE-enabled port on a PoE switch using a CAT-

5 cable. If a midspan injector is being used, connect a spare input port to the Dante network switch using a CAT­5 cable, and then connect the corresponding output port to the PoE + Data Dante INTERFACE of the unD4O.

o Attach any audio sources that will be used to the inputs. The inputs are balanced so be sure to check what

output type the source to be connected uses in order to find how to connect it correctly (see Hardware
Connections section).

If all steps are performed correctly, the power LED on the front should be lit. There may also be some activity on the
Dante™/AES67 INTERFACE LED indicators. With no Dante™/AES67 network, both LEDs will remain off. If an active
connection is made both LEDs will come on and if there is network activity, the yellow LED will then flash.

*Note: All Attero Tech products are tested using UTP cabling and it is recommended that UTP cabling be used when
installing them. STP cabling can be used for installation though care must be taken not introduce grounding issues into
the system by doing so.

 Attero Tech LLC 2018 Page 6 614-00028 Rev 02_d

unD4O

sync / PTP

(Activated through the Identify

User Manual

1.5 – Error Reporting

The unD4O is equipped with error reporting features.
Upon power up, the front panel power LED will briefly
light red and then change to green if the device boots
successfully. If the LED remains on solid red, this
indicates a device failure. Additionally, the unD4O has
three status indictor LEDs for showing various device
states. The following figures show these states and
associated descriptions.

1.6 – Status LEDs

The front panel LED’s show the Dante™/AES67
diagnostic status. If network or audio problems persist,
these LED’s may assist in identifying issues.

The LED’s are POWER, SYS, ERR and SYNC and the color
of each LED has different meanings. The tables below
show the combination and what each combination
means.

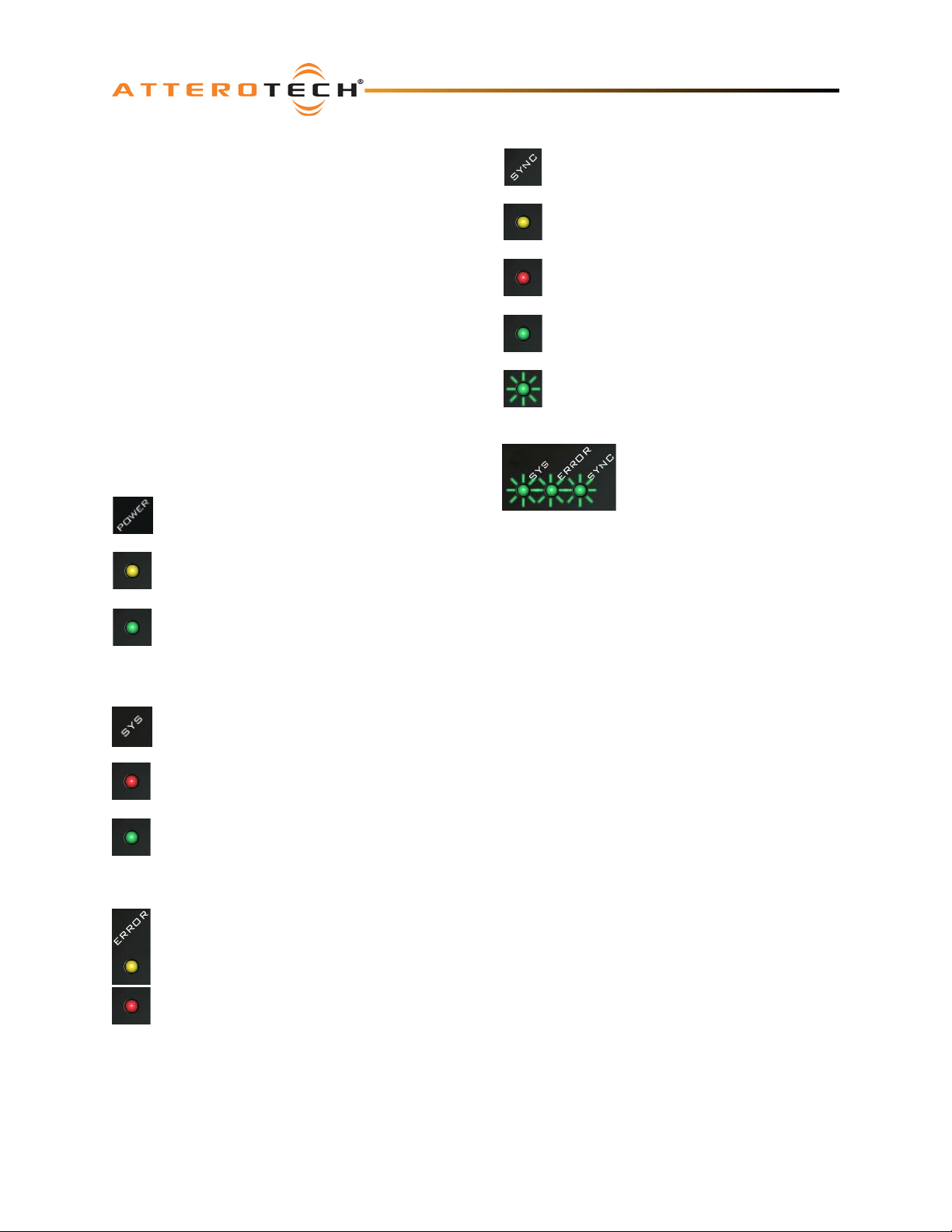

Color Description

Color Description

Amber PTP currently syncing

Red

Green PTP Slave, with PTP sync

Flashing

Green

PTP error / no PTP
disabled

PTP master / Identify*

Identify (SYS, SYNC and ERR LED’s
flashing)

function of Dante Controller)

Amber

Green Device Booted Successfully

Color Description

Red Dante™/AES67 Interface booting

Green Dante™/AES67 Interface ready

Color Description

Yellow Capability is corrupted

Red Memory stack overflow

Device Booting - If this LED stays
amber, contact support

 Attero Tech LLC 2018 Page 7 614-00028 Rev 02_d

unD4O

Balanced Output

Terminal Block Plug

2-Wire Cable

Sleeve

Tip

TS Plug

Balanced Output

Terminal Block Plug

+

-

2-Wire Cable

Sleeve

Tip

RCA Plug

GND

+

-

GND

User Manual

1.7 – Hardware Connections

The unD4O provides balanced audio outputs for connectivity to external analog audio equipment. Refer to the following
diagrams and instructions for connecting different types of audio devices to the outputs of the unD4O. Professional grade
audio cabling is recommended to achieve the best audio performance throughout the system.

1.7.1 – Balanced Output to an Unbalanced Input

Connect the positive terminal of the unD4O output to the signal input or “Tip” of the unbalanced analog input. Connect
the unD4O GND connection to the sleeve connection of the unbalanced input.

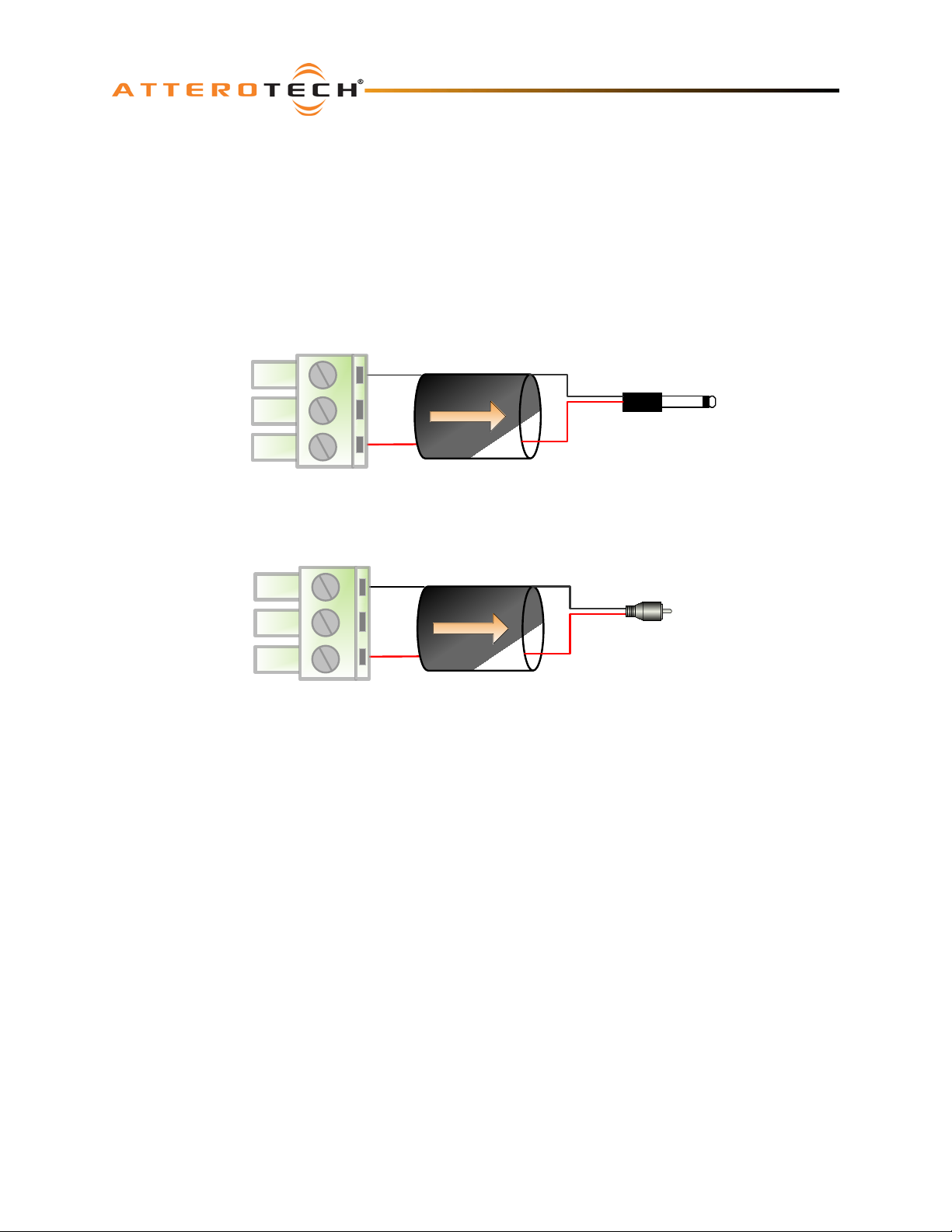

Figure 3 – Unbalanced Wiring Guide

 Attero Tech LLC 2016 Page 8 614-00028 Rev 02_d

unD4O

+

-

3-

Wire Cable

Pin

1

Pin 2

GND

Balanced Output

Terminal Block Plug

Pin

3

1

2

3

XLR

-M

+

-

3

-Wire Cable

Sleeve

Tip

GND

Ring

1

2

3

TRS Plug

Balanced Output

Terminal Block Plug

User Manual

1.7.2 – Balanced Output to a Balanced Input

To connect balanced sources to the unD4O, connect the positive output to positive input, negative output to negative
input, and connect the grounds together through the cable shield.

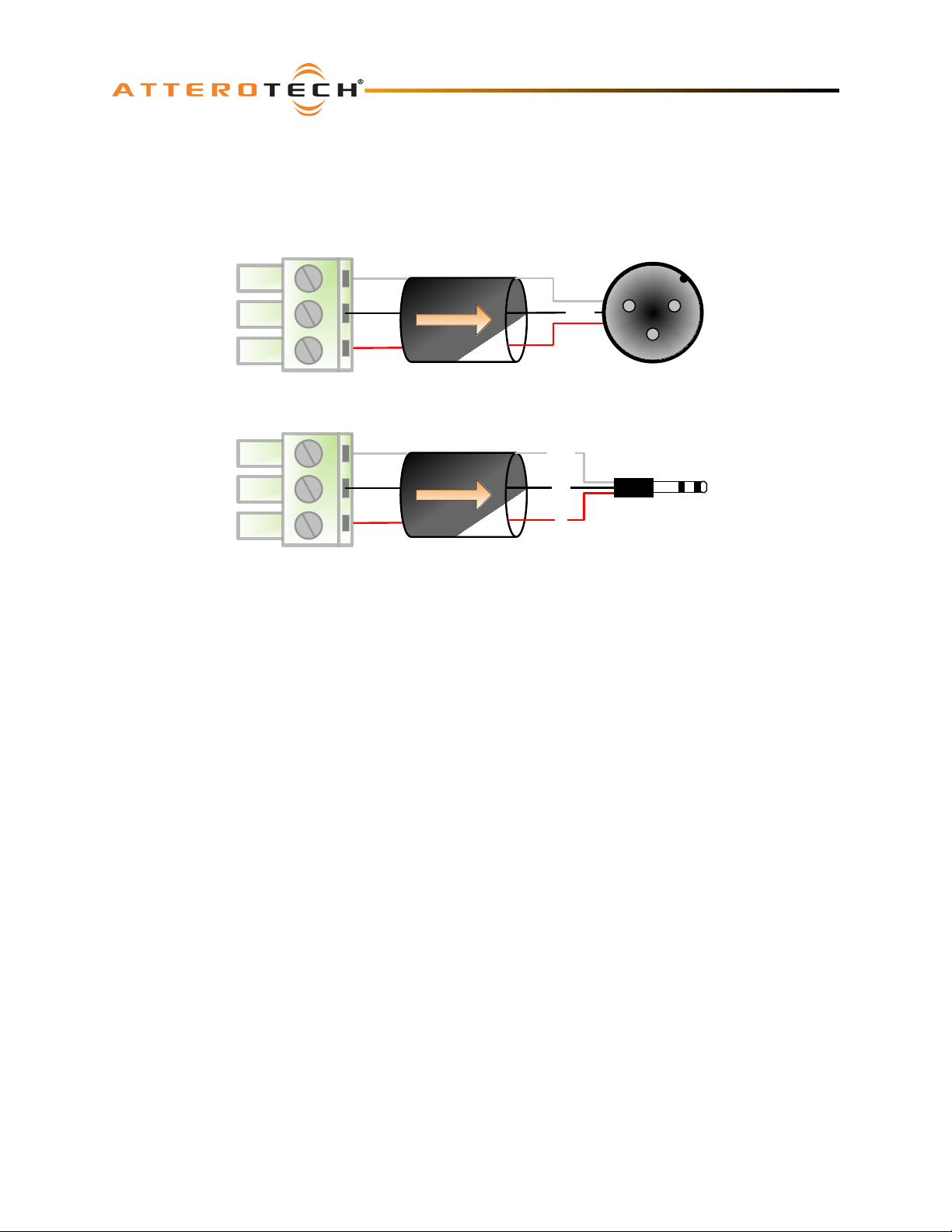

Figure 4 - Balanced Wiring Guide

 Attero Tech LLC 2016 Page 9 614-00028 Rev 02_d

unD4O

User Manual

2 – Device Configuration

The audio routing and enabling of Dante™/AES67 audio streams should be carried out using Audinate’s Dante™
Controller. This can be obtained from the Audinate website (www.Audiante.com
and about setting up routes on a Dante network can also be found on their website.

*Note: When using Dante™ Controller, the unD4O will be shown using a default device name of “unD4O-######” where
‘######’ is the last six characters of the devices MAC address.

2.1 – IP Address Setup

******************************************************** IMPORTANT ******************************************************

Failure to correctly configure IP addresses will not allow an unD4O device to show up correctly in Dante™ Controller. The
unD4O will appear but its device information won’t be visible. It’s output channels also won’t be visible and routing of
audio to the device will not be possible.

*****************************************************************************************************************************

In order to configure an unD4O, both to set up internal parameters and also setup audio routing, the PC will need to be
able to communicate with the devices over the network. While all Dante™ devices will be discovered regardless of the IP
address setup on the PC, communication can only occur if the PC and the device have compatible IP addresses.

By default, the unD4O is set to get a dynamic IP address. As with all Dante™/AES67 devices, if the unD4O does not find
a DHCP server to retrieve an IP address from, it will give itself an local link address sometimes also known as an automatic
private IP address (APIPA) instead. A local link IP address is always in the range 169.254.x.y.

To ensure communication, the PC can either be set to get a dynamic IP address, or be given a static IP address in the
range 169.254.x.y with a subnet mask of 255.255.0.0. The PC may require a restart if its IP address is changed for the
change of IP to take effect.

In some applications, IP addresses of devices may need to be set to something specific and that can be done once initial
communication has been established. The uD4O does support static IP addresses but bear in mind however that if a static
IP address is assigned to a device and that static IP address is in a different range to the IP it was previously using to
communicate with the PC, the PC will then lose communication with the device when it’s rebooted until such time as the
PC’s IP address is also changed to an IP in range of the devices now new IP address.

Further information on IP setup for an audio system using Dante™ can be found in the FAQ’s on the Audinate website
(https://www.audinate.com/resources/faqs

).

). Instructions on how to use this software

 Attero Tech LLC 2016 Page 10 614-00028 Rev 02_d

unD4O

User Manual

ARCHITECTS & ENGINEERING SPECIFICATIO N

The Dante™/AES67 interface unit shall provide four balanced analog outputs on the rear panel via 3-pin depluggable
connectors for digital to analog conversion of up to four Dante digital audio network channels.

The internal digital to analog signal conversion shall be performed at 24-bit resolution with a sampling frequency of

44.1kHz, 48kHz, 88.2 kHz or 96 kHz (configured by the system installer via software).

The Dante™/AES67 interface unit shall receive power over the Ethernet cable from an IEEE 802.3af PoE compliant network
switch, PoE midspan injector or a locally connected external 24V DC power supply.

The Dante™/AES67 interface shall be compliant with the RoHS, WEEE and REACH directives.

The Dante™/AES67 interface unit shall be Compliant with the EMI/EMC requirements for FCC and CE.

The Dante™/AES67 interface unit shall be the Attero Tech unD4O.

 Attero Tech LLC 2016 Page i 614-00028 Rev 02_d

unD4O

Dante™/AES67 Network

Power Requirements

Physical Dimensions

Product Compliance

Audio Outputs

balanced line level with

automatic muting on loss of

Audio Output Performance

User Manual

Device Specifications

Output Type: Four

Dante signal on 3-pin
Depluggable Phoenix

Output
Impedance

Maximum
Output Levels:

Dynamic Range: 100 dB

THD+N:

Frequency
Response

200 Ohms Balanced

+20dBu Balanced

<0.02% @ 1kHz, input signal
3dB below maximum

20Hz – 20kHz, +/- 1dB

Physical Level: Standard Ethernet

Connector: Single RJ-45

Cable Quality: CAT-5e or better

Transmission Speed: 100 Mbps

44.1kHz

Supported Sample Rates

Minimum Dante Network
Latency

PoE

Power Consumption 4 W Max.

Cable Quality: CAT-5e or better

48kHz

88.2 kHz
96 kHz

1ms

802.3af PoE PD
compliant

Class 0

Width 6.45"

Height 1.06"

Depth 3.45"

Weight 0.8 lbs

FCC CFR 47 Parts 15B
ICES-003
CE (EN55022)
RoHS
REACH

 Attero Tech LLC 2016 Page ii 614-00028 Rev 02_d
