Quick start guide
TL76108
5.8 GHz 2-line corded/cordless
telephone/answering system with
caller ID/call waiting
Installation preparation
You must install and
charge the battery before
using the telephone.
If you subscribe to high-speed Internet service (Digital Subscriber Line - DSL)
through your telephone lines, you must install a DSL filter between the
telephone base and the telephone wall jack (pages 2-4). The filter will prevent
noise and caller ID problems caused by DSL interference. Please contact your
DSL service provider for more information about DSL filters.
Your product may be shipped with a protective sticker covering the handset or
telephone base display - remove it before use.
For customer service or product information, visit our website at
STOP!
See page 5
for easy instructions.
www.telephones.att.com or call 1 (800) 222-3111. In Canada, dial
1 (866) 288-4268.
Avoid placing the telephone base too close to:
• Communication devices such as: television sets, VCRs, or other cordless
telephones.
• Excessive heat sources.
• Noise sources such as a window with traffic outside, motors, microwave ovens,
refrigerators, or fluorescent lighting.
• Excessive dust sources such as a workshop or garage.
• Excessive moisture.
• Extremely low temperature.
• Mechanical vibration or shock such as on top of the washing machine or work
bench.
1
Telephone base installation (2-line jack)
If you subscribe to high-speed Internet service (Digital Subscriber Line - DSL)
through your telephone lines, you must install a DSL filter between the
telephone base and the telephone wall jack. The filter will prevent noise
and caller ID problems caused by DSL interference. Please contact your DSL
service provider for more information about DSL filters.
The telephone line cord can be plugged into LINE 1/L1+L2 or LINE 2
telephone jack in the telephone base. However, it is suggested to plug the
telephone line cord with two telephone numbers into the LINE 1/L1+L2
telephone jack if you intend to connect the telephone to a fax machine or
modem through the DATA port.
If you have a 2-line wall jack, install the telephone base as shown below.
Telephone base installation
1. Plug the small end
of the telephone
base power adapter
into the power jack
at the bottom of the
telephone base.
2. Plug the telephone
base power adapter
into an electrical
outlet not controlled
by a wall switch.
Line 1+Line 2
Telephone
line cord
DSL filter (not included,
required for DSL users).
3. Plug one end of the
telephone line cord into the
LINE 1/L1+L2 telephone
jack at the bottom of the
telephone base.
4. Plug the other
end of the
telephone line
cord into a 2 line
telephone jack.
5. Plug the other
end of the coiled
handset cord into
the jack at the
bottom of the
telephone base
and route the cord
through the slots.
IMPORTANT INFORMATION
1. Use only the power adapters supplied with this product or equivalent. To order a replacement
power adapter, visit our website at www.telephones.att.com, or call
1 (800) 222-3111. In Canada, dial 1 (866) 288-4268.
2. These power adapters are intended to be correctly oriented in a vertical or floor mount position.
The prongs are not designed to hold the plug in place if it is plugged into a ceiling, under-thetable or cabinet outlet.
2
Telephone base installation (1-line jack)
If you subscribe to high-speed Internet service (Digital Subscriber Line - DSL)
through your telephone lines, you must install a DSL filter between the
telephone base and the telephone wall jack. The filter will prevent noise
and caller ID problems caused by DSL interference. Please contact your DSL
service provider for more information about DSL filters.
The telephone line cord can be plugged into either LINE 1/L1+L2 or LINE 2
telephone jack. However, you have to plug the telephone line cord into
LINE 2 jack if you need to connect to a fax machine or modem through DATA
port. All data will only be transmitted through LINE 2 jack.
If you have 1-line wall jack, install the telephone base as shown below.
Telephone base installation
1. Plug the small end
of the telephone
base power adapter
into the power jack
at the bottom of the
telephone base.
2. Plug the telephone
base power adapter
into an electrical
outlet not controlled
by a wall switch.
Telephone
line cord
DSL filter (not included,
required for DSL users).
3. Plug one end of the
telephone line cord into the
LINE 1/L1+L2 or LINE 2
telephone jack at the bottom
of the telephone base.
4. Plug the other end
of the telephone
line cord into a
telephone jack.
5. Plug the other
end of the coiled
handset cord into
the jack at the
bottom of the
telephone base
and route the cord
through the slots.
IMPORTANT INFORMATION
1. Use only the power adapters supplied with this product or equivalent. To order a replacement
power adapter, visit our website at www.telephones.att.com, or call
1 (800) 222-3111. In Canada, dial 1 (866) 288-4268.
2. These power adapters are intended to be correctly oriented in a vertical or floor mount position.
The prongs are not designed to hold the plug in place if it is plugged into a ceiling, under-thetable or cabinet outlet.
3
Telephone base installation (separate line jack)
If you subscribe to high-speed Internet service (Digital Subscriber Line - DSL)
through your telephone lines, you must install a DSL filter between the
telephone base and the telephone wall jack. The filter will prevent noise
and caller ID problems caused by DSL interference. Please contact your DSL
service provider for more information about DSL filters.
Each of the telephone line cord can be plugged into LINE 1/L1+L2 or LINE 2
telephone jack. Telephone line cord plugged into LINE 2 jack will be used for
data transmission.
If you have separate wall jacks for each line, install the telephone base as
shown below.
Telephone base installation
1. Plug the small end
of the telephone
base power adapter
into the power jack
at the bottom of the
telephone base.
2. Plug the telephone
base power adapter
into an electrical
outlet not controlled
by a wall switch.
Line 1 Line 2
3. Plug one end of the telephone
DSL filter (not included,
required for DSL users).
Telephone line cord
line cord into the LINE 1/L1+L2
telephone jack and plug one end of
the other telephone line cord into
the LINE 2 telephone jack at the
bottom of the telephone base.
4. Plug the other end
of the telephone
line cords into the
line 1 and line 2
telephone jacks
respectively.
5. Plug the other end
of the coiled handset
cord into the jack at
the bottom of the
telephone base and
route the cord through
the slots.
IMPORTANT INFORMATION
1. Use only the power adapters supplied with this product or equivalent. To order a replacement
power adapter, visit our website at www.telephones.att.com, or call
1 (800) 222-3111. In Canada, dial 1 (866) 288-4268.
2. These power adapters are intended to be correctly oriented in a vertical or floor mount position.
The prongs are not designed to hold the plug in place if it is plugged into a ceiling, under-thetable or cabinet outlet.
4
Handset battery installation & charging
BATTERY PACK
89-1324-00-00
MODEL 102
BATTERY PACK
89-1324-00-00
MODEL 102
Install the battery as shown below. After installing the battery, you can make
and receive short calls, but replace the handset in the charger when the
handset is not being used. For optimal performance, charge the handset
battery for at least 16 hours before use. When fully charged, the handset
battery provides up to approximately eight hours of talk time or four days of
standby time.
Step 1
Press the tab and
slide the battery
compartment cover
downwards.
Step 2
Insert the supplied
battery as indicated.
Insert the top (on
contacts and tab) in first,
then push downwards on
Step 3
Align the cover flat
against the battery
compartment, then
slide it upwards until
it clicks into place.
the lower portion of the
battery.
Step 4
Charge the handset by placing it facing the
front in the charger. The CHARGE light will be
on when the handset is charging.
IMPORTANT INFORMATION
Use only the battery supplied with this product. To order a replacement or spare
battery (AT&T model 102, part number 89-1324-00-00) or equivalent, visit our website
at www.telephones.att.com, or call 1 (800) 222-3111. In Canada, dial
1 (866) 288-4268.
5

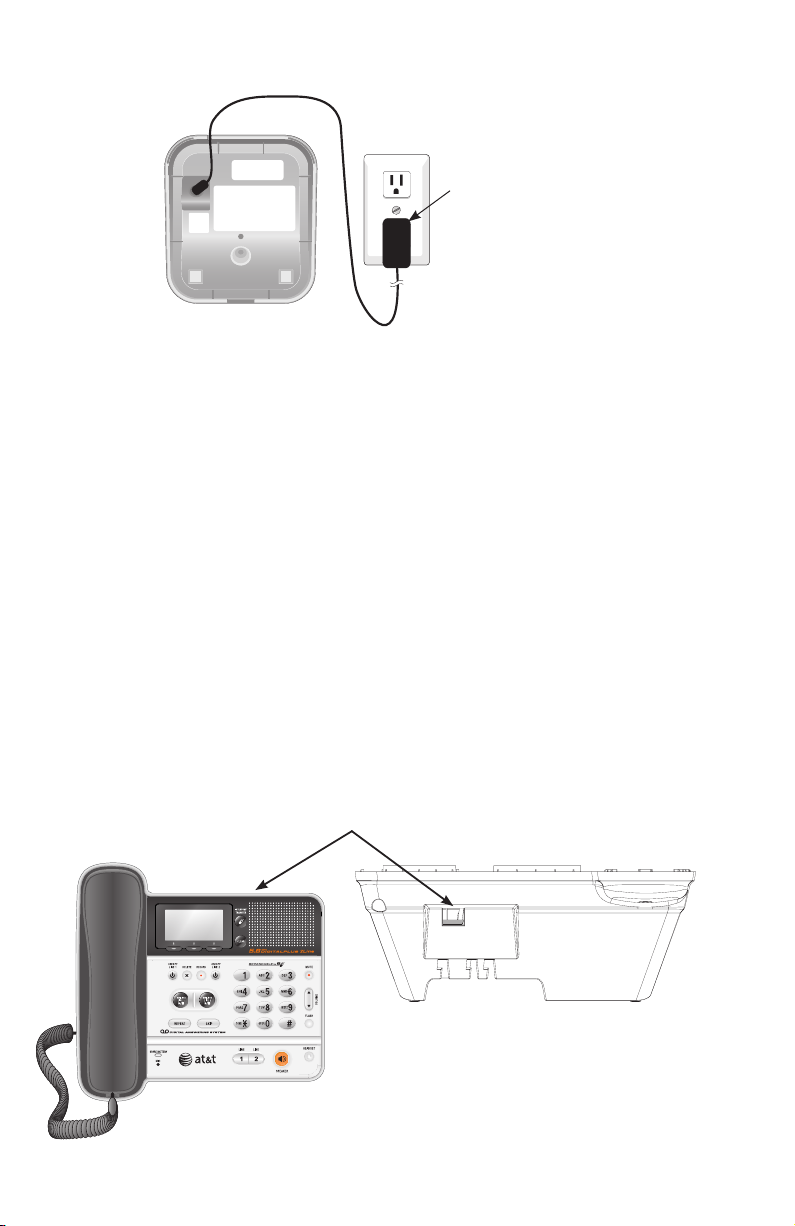

Charger installation & data port use
Plug the handset
charger power adapter
into a power outlet not
controlled by a wall
switch.
IMPORTANT INFORMATION
1. Use only the power adapters supplied with this product or equivalent. To order a replacement
power adapter, visit our website at www.telephones.att.com, or call
1 (800) 222-3111. In Canada, dial 1 (866) 288-4268.
2. These power adapters are intended to be correctly oriented in a vertical or floor mount position.
The prongs are not designed to hold the plug in place if it is plugged into a ceiling, under-thetable or cabinet outlet.
You may connect a fax machine or modem through the DATA port located at
the back of the telephone base (as shown below).
For installation with 2-line jack, telephone line should be plugged into LINE
1/L1+L2 jack (page 2); for installation with 1-line jack, telephone line jack
should be plugged into LINE 2 jack (page 3); for installation with separate
line, data will be transmitted through LINE 2 jack (page 4).
Use DATA port at the back of
the telephone to connect to
the fax or modem if desired.
DATA
6
Quick reference guide - handset
New message indicator
Flashes when there is a new
message in the answering
system.
Softkeys
Press to select an item
displayed above the key.
LINE1/FLASH,
LINE2/FLASH
Press LINE1/FLASH to make or
answer a call on line 1. During
a call, press to receive an
incoming call on line 1 if you
subscribe to call waiting.
Press LINE2/FLASH to make or
answer a call on line 2. During
a call, press to receive an
incoming call on line 2 if you
subscribe to call waiting.
SPEAKER
Press to turn on the handset
speakerphone. Press again to
resume normal handset use.
OFF/CLEAR
During a call, press to hang up.
While using menus, press to
cancel an operation, back up to
the previous menu, or exit the
menu display.
While predialing, press to delete
digit.
/X-FER/INTERCOM
Press to begin an intercom
conversation or to transfer a
call.
/VOLUME
Press to adjust listening volume
when on a call.
Feature menu
HANDSET I
MENU CID
RDL
Caller ID
Feature menu
DIRECTORY
MAILBOXES
SETUP HANDSET
REGISTER
Redial
SETUP HANDSET
RINGERS
LOW BATT TONE
KEYPAD TONE
CONTRAST
RENAME
7
Quick reference guide - telephone base
Softkeys
Press to select the item
displayed just above the
key.
RECORD
Press to record a memo,
a telephone conversation,
or an outgoing
announcement.
DELETE
Press to delete the
message currently playing.
When no messages are
playing, press to delete all
messages.
ON/OFF LINE 1,
ON/OFF LINE 2
Press to turn the
answering machine for
line 1 or line 2 on or off.
MAILBOX LINE 1 ,
MAILBOX LINE 2
Press to start or stop
message playback in the
mailbox line 1 or line 2.
SPARE BATTERY
indicator
On while the spare battery
is installed and charging.
REPEAT
Press to repeat the
message currently playing.
Press twice to play the
previous message.
SKIP
Press to skip the message
currently playing.
INTERCOM/TRANSFER
Press to begin an intercom
conversation or to transfer
a call.
CLEAR
While using menus, press to
cancel an operation, back up
to the previous menu, or exit
the menu display.
MUTE
Press to turn off the
microphone; press
again to resume your
conversation.
VOLUME
Press to adjust the
speakerphone volume
(if speakerphone is on),
message playback volume
(during playback), or
corded handset volume
(when on a call).
FLASH
During a call, press to
receive an incoming call
if you subscribe to call
waiting.
HEADSET
Press to activate headset.
SPEAKER
Press to turn the base
speakerphone on or off.
LINE 1, LINE 2
Press and then lift the
handset to make or
answer a call on line 1 or
line 2.
For complete instructions, please refer to
the user’s manual. If you are unable to find
your manual, please visit
www.telephones.att.com to read
and/or download the manual.
8
www.telephones.att.com
© 2008-2009 Advanced American Telephones. All Rights Reserved.
AT&T and the AT&T logo are trademarks of AT&T Intellectual Property licensed to
Advanced American Telephones, San Antonio, TX 78219.
Printed in China. Issue 3 AT&T 09/09.
Loading...
