AT&T TL 7610 User Manual
User’s manual
TL7610
DECT 6.0 cordless headset
Congratulations
on your purchase of this AT&T product. Before using this AT&T
product, please read the Important safety information on pages
45-48 of this manual. Please thoroughly read this user’s manual
for all the feature operations and troubleshooting information
necessary to install and operate your new AT&T product. You can
also visit our website at www.telephones.att.com or call
1 (800) 222-3111. In Canada, dial 1 (866) 288-4268
Model number: TL7610 (Headset and headset base)
Type: DECT 6.0 cordless headset
Serial number:
Purchase date:
Place of purchase:
Both the model and serial numbers of your AT&T product can be
found on the bottom of the headset base.
Save your sales receipt and original packaging in case it is
necessary to return your product for warranty service.
.
© 2008-2012 Advanced American Telephones. All Rights Reserved. AT&T and
the AT&T logo are trademarks of AT&T Intellectual Property licensed to
Advanced American Telephones, San Antonio, TX 78219. Printed in China.
Parts checklist
Check to make sure the package includes the following items.
Save your sales receipt and original packaging in the event
warranty service is necessary.
User’s manual
TL7610
DECT 6.0 cordless headset
User's manual
Headset base
Quick start guide
TL7610
DECT 6.0 cordless headset
Quick start guide
Battery
compartment
cover
Cordless
headset
Battery for
headset
Over the ear hook
Telephone line cords
(4-conductor and
2-conductor)
Headset
base power
adapter
Behind the neck
band
Over the head
band
Line
splitter
Colored
label
(light blue)
Optional accessories
The following optional accessories are compatible with your
headset and headset base:
The TL7100 is a handset lifter with an optional external ring
•
detector.
The TL7600 is an expansion headset (up to two headsets can
•
be used with the same headset base).
TL7600TL7100
Visit our website www.telephones.att.com for more information
about these products or to download the user's manuals.
User’s manual
TL7610
DECT 6.0 cordless headset
Table of contents
Optional accessories ................. 5
Getting started
Quick reference guide -
headset ......................................... 1
Headset indicator lights ........... 1
Alert tones ...................................... 3
Headset alert tones ................ 3
Quick reference guide -
headset base ............................. 4
Headset base indicator
lights .............................................. 6
Installation ...................................... 7
Battery installation ..................... 8
Installation preparation ........ 9
Battery charging .........................10
No lifter mode or
lifter mode .................................11
Cord labels .................................12
Digital subscriber line
(DSL) ..............................................12
Installation options ................ 13
Option 1: Headset base with
corded or cordless phone
installation .................................14
Option 2: Headset base
stand-alone installation ...... 15
Option 3: Headset base
with corded phone for
multiple line system or
digital business system
installation .................................16
Adjust the lifter audio .......... 17
Adding and registering a
headset ........................................18
Adding and registering a
headset to the headset
base ...............................................19
To register a headset to the
headset base ............................ 19
Adding and registering a
headset to an AT&T DECT

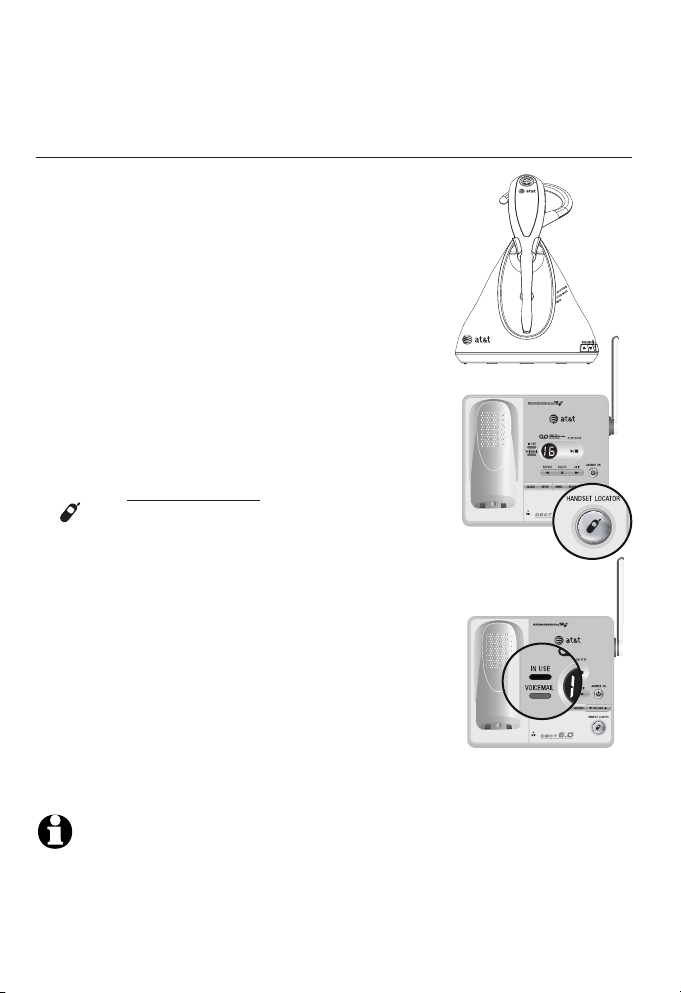

cordless telephone ................ 20
To register a headset to
an AT&T DECT cordless
telephone base........................20
Replacing a headset ................21
To deregister all headsets ... 21
Headset attachments ............... 22

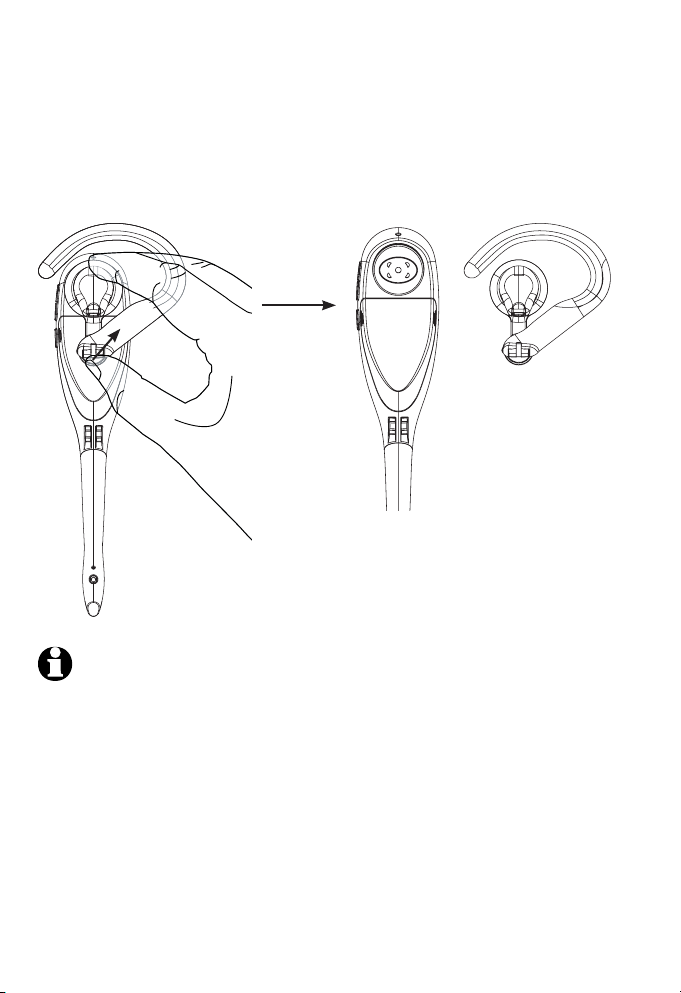

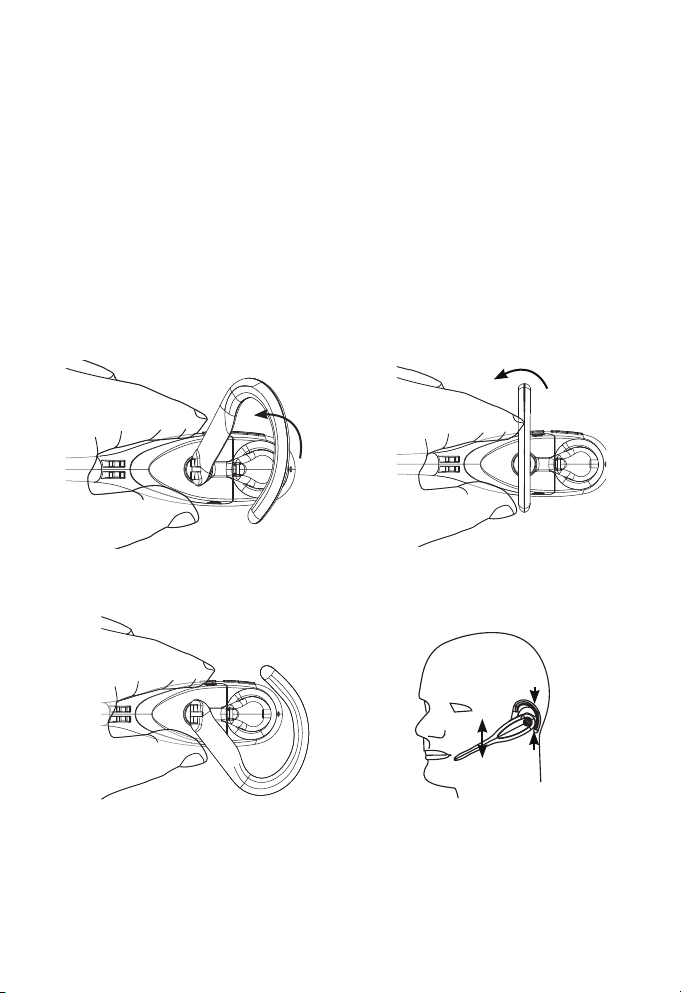

Over the ear hook ..................22

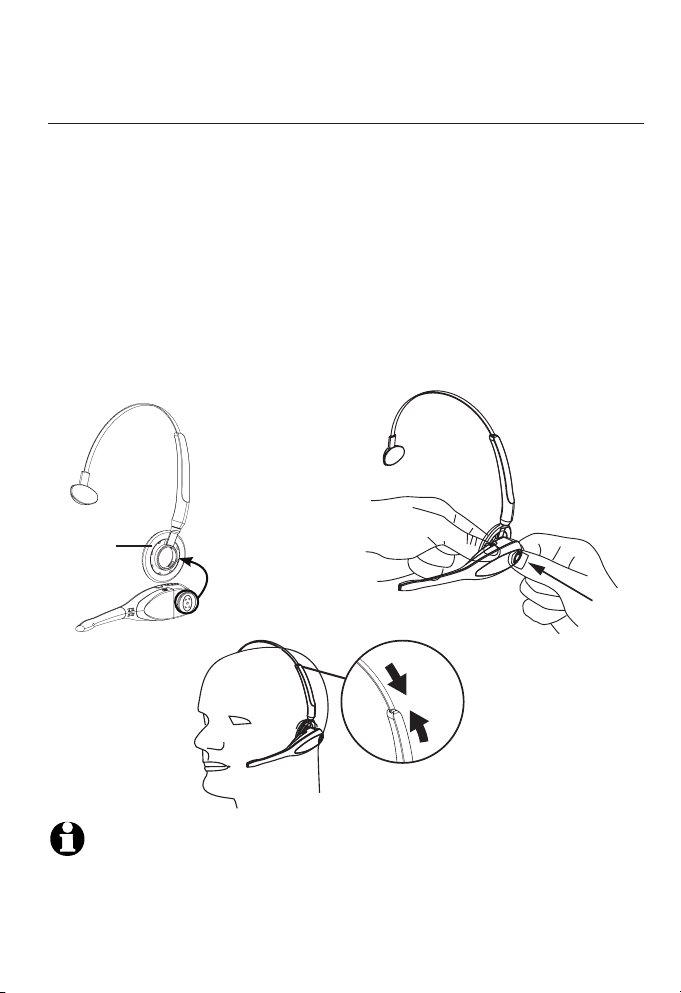

Over the head band .............. 25
Behind the neck band ..........27
Operation
Headset operation ..................... 29
Making a call.............................29
Answering a call on the
headset ........................................30
Ending a call on the
headset ........................................31
Auto off .......................................31
Temporary ring tone
silencing ...................................... 31
Options while on calls ............. 32
Volume control ........................32
Call waiting ................................32
Switch a call between a
handset and headset ............33
Multiple headset/handset
use ................................................. 34
Intercom calls and
transfers ...................................... 34
Mute .............................................. 35
Appendix
Troubleshooting ..........................36
Important safety
information ................................45
Safety information..................45
Especially about cordless
headsets ..................................... 46
Precautions for users
of implanted cardiac
pacemakers ...............................48
Pacemaker patients ...............48
Maintenance..................................49
FCC Part 68 and ACTA.............50
FCC Part 15 ................................... 53
Limited warranty .........................55
Technical specifications .......... 59
Operating range ...................... 59
Extended range and
clarity ........................................... 59
Index
Index ................................................. 60
Getting started
Quick reference guide - headset
ON/OFF
Press to make, answer, or end
a call.
Headset indicator lights
ON/OFF light status
On Headset is charging in the headset base.
Flashing Flashes slowly when an incorrect type of battery
•
Headset is trying to register to the headset base.
•
Headset is searching for the headset base.
•
•
is installed.
Flashes three times, followed by a pause. This cycle
•
then repeats three more times and then shuts down
to indicate the battery is very low.
Flashes twice every five seconds to indicate the
•
headset is not registered.
Flashes every 20 seconds to indicate the battery is
•
low and needs to be charged in the headset base.
Flashes every three seconds to indicate the
•
headset is in use.
Flashes quickly when there is an incoming call.
•
1
Getting started
Quick reference guide - headset
VOLUME /
Press the volume keys on the
side of the headset to adjust the
listening volume when on a call
(page 32).
MUTE/FLASH
Press to mute the microphone
during a call (page 35).
Press and hold to answer a call
waiting call while on a call
(page 32).
Press to mute the ring tone in
the earpiece when there is an
incoming call.
Battery compartment cover
Remove to install or replace
the battery (page 8).
+
-
Earpiece
Microphone
2
Getting started
Alert tones
Headset alert tones
Three quick beeps
One short beep
every 20 seconds
One short beep
every 15 seconds
One long beep
(repeated)
One short beep The headset ON/OFF key is pressed to
A VOLUME /+ - key is pressed when
•
the volume is already at its highest or
lowest setting.
The headset is not registered and the
•
headset ON/OFF button is pressed.
The headset is out of range from the
•
headset base during a call.
Low battery warning.
The call is muted.
Call waiting alert tone.
go on hook or off hook.
3
Getting started
Quick reference guide - headset base
Charging cradle
Insert the headset here for charging
(page 10)
PAIR
Press and hold to begin headset
registration (pages 18-20) or
deregistration (page 21).
NO LIFTER MODE light
On when NO LIFTER MODE is
selected.
Flashes while on a call, or another
telephone is in use on the same
line.
Flashes quickly when there is an
incoming call.
LIFTER MODE light
On when LIFTER MODE is selected.
Flashes while on a call.
Flashes quickly when there is an
incoming call.
.
MUTE light
On when a call is muted.
4
Getting started
Quick reference guide - headset base
LIFTER AUDIO ADJUST
Switch to choose the best headset
audio quality when using LIFTER
MODE. See page 17 of this manual or
the handset lifter user's manual for
more information. You can download
the manual at
www.telephones.att.com.
VOLUME /
Press the volume keys on the side
of the headset base to adjust the
speaking volume while on a call
(page 32).
MODE
Press to choose between
NO LIFTER MODE or LIFTER MODE
when the headset is not in use. The
corresponding light turns on (page 11).
5
Getting started
Indicator lights
Headset base indicator lights
NO LIFTER MODE
LIFTER MODE
MUTE
NO LIFTER MODE On when NO LIFTER MODE is selected
LIFTER MODE On when LIFTER MODE is selected.
MUTE On when a call is muted.
•
(default mode).
Flashes quickly when there is an
•
incoming call.
Flashes when the headset is in use or
•
another telephone on the same line is
in use.
•
Flashes quickly when there is anquickly when there is an
•
incoming call.
Flashes when the headset is in use.
•
•
On when you are registering a headset.
•
Flashes when you are deregistering the
•
headset(s) from the headset base.
6
Getting started
Installation
You must install and
charge the battery before
using the headset.
If you subscribe to high-speed Internet service (DSL - digital
subscriber line) through your telephone line, you must install a
DSL filter between the telephone line cord and the telephone wall
jack. The filter prevents noise and caller ID problems caused by
DSL interference. Please contact your DSL service provider for more
information about DSL filters.
For customer service or product information, visit our website at
STOP!
See pages 8-10
for instructions.
www.telephones.att.com or call 1 (800) 222-3111.
In Canada, dial 1 (866) 288-4268.
Avoid placing the headset base too close to:
• Communication devices such as television sets, VCRs or other
cordless telephones.
• Excessive heat sources.
• Noise sources such as a window with traffic outside, motors,
microwave ovens, refrigerators or fluorescent lighting.
• Excessive dust sources such as a workshop or garage.
• Excessive moisture.
• Extremely low temperature.
• Mechanical vibration or shock such as on top of a washing
machine or work bench.
7
Getting started
Battery installation
Install the battery as shown below. After installing the battery,
you may be able to make and receive short calls. For optimal
performance, charge the headset battery for at least 6 hours
before use. When the headset is not in use, recharge the
headset by returning it to the headset base.
If the battery compartment cover is
1.
attached, press on both sides of the
cover and lift it up and off.
Insert the battery into the battery
2.
compartment with the label
THIS SIDE UP facing up.
Push the battery plug into the
3.
connector inside the compartment
according to the color-coded label
Place the wires neatly inside
the compartment.
1
2
3
Insert the tab on the bottom of the
4.
battery compartment cover into the
battery compartment.
Press down gently on the battery
5.
compartment cover until it snaps
into place.
NOTE: Remove the ear hook from the headset (see page 24) before
battery replacement.
8
4
Getting started
Headset base installation
Installation preparation
Before installing the headset base, remove the rear bottom piece
of the headset base by pushing it away from the base (as shown in
Figure 1).
Figure 1
Install the headset base as shown on the following pages.
After completing installation option 1, 2 or 3 (see page 13), slide
the rear bottom piece into the headset base until it clicks into
place (as shown in Figure 2).
Figure 2
9
Getting started
Battery charging
After installing the battery, charge the headset by placing it in
the headset base as shown below. The headset ON/OFF light is
on when the headset is charging.
Push
ON/OFF light
Insert
1. Insert the headset into
the charging cradle.
CAUTION:
There may be a risk of detonation if you use a wrong type
of battery. Use only the supplied rechargeable battery or
replacement battery (model BT191545 “BYD SL531732”). To
order, visit our website at www.telephones.att.com or call
2. Push the headset downward
until the ON/OFF light on
the headset turns on.
1 (800) 222-3111. In Canada, dial 1 (866) 288-4268.
10
Getting started
Headset base installation
No lifter mode or lifter mode
There are two answer modes available on the
headset base. The current mode is indicated
by the NO LIFTER MODE or LIFTER MODE lights
on the front of the headset base.
When plugging your headset base into the
•
telephone wall jack (installation option 1
or 2), make sure the headset base mode is set
to NO LIFTER MODE.
-OR-
When connecting your headset base to a multiple line corded
•
telephone (installation option 3), make sure the headset base mode
is set to LIFTER MODE and that the LIFTER AUDIO ADJUST is
switched for the best headset audio quality (see page 17).
To change the answer mode:
When the headset is not in use, press MODE on the headset
base to select NO LIFTER MODE or LIFTER MODE. The
corresponding light on the front of the headset base turns on to
indicate the current mode.
MODE
For complete instructions on installing and using the handset lifter,
see the TL7100 handset lifter user’s manual. You may also download
the manual at www.telephones.att.com/manuals.
NOTE: If you are using the handset lifter (TL7100 purchased separately), you
must use LIFTER MODE.
11
Getting started
Headset base installation
Cord labels
The cords provided with your headset are attached with colored
labels to help you plug them into the correct jacks on the
headset base. Each jack on the headset base is labeled and
marked with a colored dot, allowing you to plug in the correct
cords by matching the colors.
If you are using installation option 3, you can attach the
provided light blue colored label to the end of the curly handset
cord of your telephone that you plug into the headset base.
Digital subscriber line (DSL)
If you subscribe to high-speed Internet service (DSL - digital
subscriber line) through your telephone line, you must install a
DSL filter between the telephone base and the telephone wall
jack. The filter prevents noise and caller ID problems caused by
DSL interference. Please contact your DSL service provider for
more information about DSL filters.
12
Getting started
Headset base installation
Installation options
IMPORTANT: You have three installation options:
Option 1: Connect the headset to a corded or cordless telephone
(see page 14). You can use the provided line splitter to connect the
headset to a telephone.
Option 2: Connect the headset to a telephone wall jack (see page
15). This option enables you to use the headset with a single
telephone line with or without a telephone.
Option 3: Connect the headset base to the curly handset cord of a
corded telephone (See page 16).
For this option, you can use the headset with a multiple line corded
telephone (such as the AT&T 1080, 1070 or 1040) or a digital
business system (such as a proprietary PBX telephone system). This
option requires the TL7610 to be in LIFTER MODE to operate. You
may need to change the LIFTER AUDIO ADJUST setting on the base
for the best headset audio quality (see page 17).
13
Getting started
Headset base installation
Option 1: Headset base with corded or cordless phone installation
To use this installation option, make sure the headset base mode
is set to NO LIFTER MODE.
Plug the small end
•
of the headset
base power
adapter into the
POWER jack
(green dot) at
the back of the
headset base.
Plug the headset
•
base power adapter
into an electrical
outlet not controlled
by a wall switch.
Telephone
line cord
Cordless or corded
phone
Plug one end of the telephone
•
line cord into the TEL WALL
JACK (red dot) at the back of
the headset base.
Plug the other end of
•
the telephone line cord
into the line splitter.
Plug the line splitter
•
into the telephone wall
jack (or DSL filter if
Line splitter
•
you subscribe to DSL
Internet service).
A DSL filter
(not included) is
required if you have
DSL high-speed
Internet service.
The DSL filter must
be plugged into the
telephone wall jack.
Connect another
telephone line cord
between the telephone
and the line splitter.
14
Getting started
Headset base installation
Option 2: Headset base stand-alone installation
In order to make calls using thisusing this installation option, you need a, you need a
telephone plugged into the same telephone line. Make sure the
headset base mode is set to NO LIFTER MODE.
Plug the small end of
•
the headset base power
adapter into the POWER
jack (green dot) at the
back of the headset base.
Telephone
line cord
Plug one end of the
•
telephone line cord
into the TEL WALL
JACK (red dot) at
the back of the
headset base.
Plug the other end of
•
the telephone line cord
into a telephone jack.
Plug the headset
•
base power adapter
into an electrical
outlet not controlled
by a wall switch.
A DSL filter (not included)
is required if you have DSL
high-speed Internet service.
The DSL filter must be
plugged into the telephone
wall jack.
15
Loading...
