At&t EL50005 User Manual
User’s manual
EL50005
DECT 6.0 expansion handset
for use with AT&T models
EL52265/EL52365
Congratulations
on your purchase of this AT&T product. Before using this AT&T
product, please read the Important safety information section on
pages 21-23 of this manual. For complete instructions, please
refer to the manual provided with your EL52265/EL52365
telephone. You can also visit our website at
www.telephones.att.com or call 1 (800) 222-3111. In
Canada, dial 1 (866) 288-4268.
This telephone meets the California Energy Commission regulations
for energy consumption. Your telephone is set up to comply with the
energy-conserving standards right out of the box. No further action
is necessary.
Model number: EL50005
Type: DECT 6.0 expansion handset
Serial number:
Purchase date:
Place of purchase:
Both the model and serial numbers of your AT&T product can be
found on the bottom of the telephone base.
Save your sales receipt and original packaging in case it is
necessary to return your telephone for warranty service.
Telephones identified with this logo have reduced noise and
interference when used with most T-coil equipped hearing
aids and cochlear implants. The TIA-1083 Compliant Logo is a
trademark of the Telecommunications Industry Association. Used
under license.
© 2014 Advanced American Telephones. All Rights Reserved. AT&T and
the AT&T logo are trademarks of AT&T Intellectual Property licensed to
Advanced American Telephones, San Antonio, TX 78219. Printed in China.
THIS SIDE UP / CE CÔTÉ VERS LE HAUT
Battery Pack / Bloc-piles :
BT162342/BT262342 (2.4V 3 00mAh Ni-MH
)
WARNING / AVERTISSEMENT :
DO NOT BURN OR PUNCTURE BA
TTERIES.
NE PAS INCINÉRER OU PERCER LES PILES.
Made in China / Fabriqué en chine CR1423
Parts checklist
Your telephone package contains the following items. Save your
sales receipt and original packaging in the event warranty service
is necessary.
User’s manual
EL50005
DECT 6.0 expansion handset
for use with AT&T models
EL52265/EL52365
User’s manual
Battery for
cordless handset
Cordless handset
Battery
compartment
cover
Charger for cordless
handset with power
adapter installed
User’s manual
EL50005
DECT 6.0 expansion handset
for use with AT&T models
EL52265/EL52365
Table of contents
Getting started
Installation ...................................................................................................................1
Quick reference guide ..........................................................................................2
Charger installation .................................................................................................5
Battery installation and charging
Registration and deregistration
Adding and registering handsets .....................................................................9
Register a handset to your telephone base ..........................................9
Deregistering handsets ......................................................................................11
Deregister all handsets from your telephone base
Appendix
Troubleshooting .....................................................................................................12
Maintenance.............................................................................................................20
Important safety information
Safety information.............................................................................................21
Especially about cordless telephones .....................................................22
Precautions for users of implanted cardiac pacemakers
Pacemaker patients
ECO mode .............................................................................................................23
Especially about telephone answering systems
For C-UL compliance
Mesures de sécurité importantes
FCC Part 68 and ACTA........................................................................................27
FCC Part 15 ..............................................................................................................29
California Energy Commission battery charging testing
instructions
Limited warranty
Technical specifications .....................................................................................34
DECT 6.0 digital technology .........................................................................34
Telephone operating range
Simulated full-duplex handset speakerphone ....................................34
...........................................................................................................30
..........................................................................................23
...........................................................................................24
....................................................................................................31
.....................................................................6
.........................11
..........................................................................21
..............23
................................23
..............................................................24
..........................................................................34
Getting started
Installation
You must install and
charge the battery before
using the telephone.
Your product may be shipped with a protective sticker covering the
handset display - remove it before use.
For customer service or product information, visit our website at
STOP!
See pages 6-8
for easy instructions.
www.telephones.att.com or call 1 (800) 222-3111.
In Canada, dial 1 (866) 288-4268.

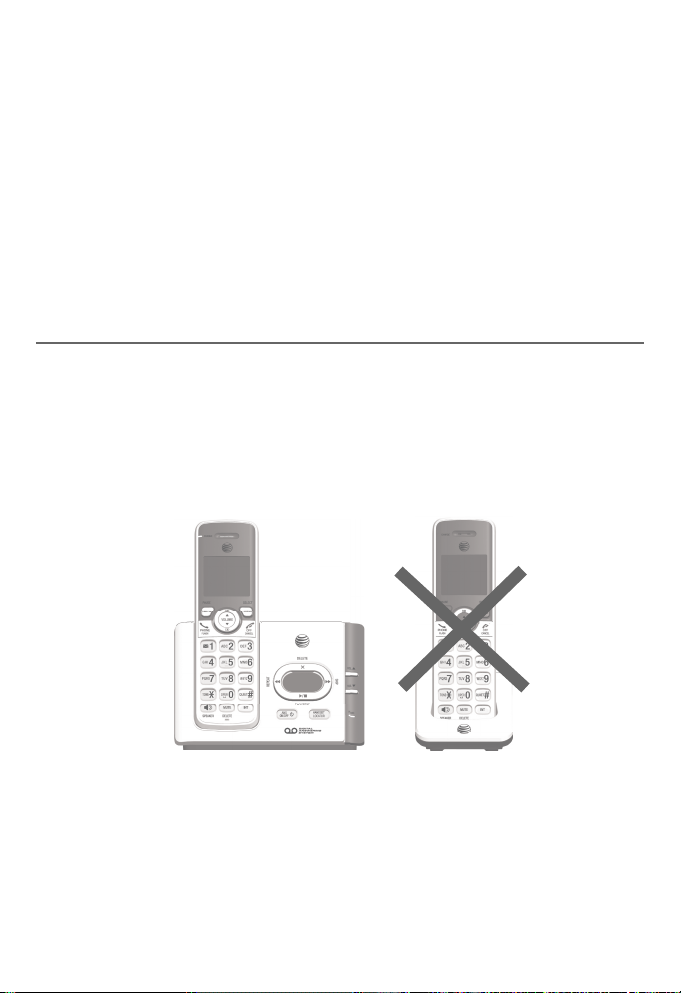

Avoid placing the charger too close to:
•
Communication devices such as television sets, VCRs, or other
cordless telephones.
•
Excessive heat sources.
•
Noise sources such as a window with traffic outside, motors,
microwave ovens, refrigerators, or fluorescent lighting.
•
Excessive dust sources such as a workshop or garage.
•
Excessive moisture.
•
Extremely low temperature.
•
Mechanical vibration or shock such as on top of a washing
machine or workbench.
1
Getting started
Quick reference guide
light
On when the handset is charging in the
telephone base or charger.
Press to scroll up while in menus.
•
Press to show directory entries when the
•
handset is not in use.
When entering names or numbers in the
•
directory, press to move the cursor to
the right.
Press to increase the listening volume
•
when on a call; or to increase the message
playback volume.
Press repeatedly to view the last ten
•
number dialed.
While entering numbers, press and hold to
•
insert a dialing pause.
Press to make or answer a call.
•
During a call, press to answer an incoming
•
call when you receive a call waiting alert.
While reviewing a caller ID log entry, press
•
repeatedly to add or remove 1 in front of
the telephone number before dialing or
saving it in the directory.
Press and hold to set or dial your
•
voicemail number.
Press to switch to tone dialing temporarily
during a call if you have pulse service.
Press to turn on the handset speakerphone,
press again to resume normal handset use.
2
Getting started
Quick reference guide
•
Press to scroll down while in menus.
•
Press to show the caller ID log when the
handset is not in use.
•
While entering names or numbers in the
directory, press to move the cursor to
the left.
•
Press to decrease the listening volume
when on a call; or to decrease the message
playback volume.
Press to display the menu.
•
Once in the menu, press to select an item
•
or save an entry or setting.
During a call, press to hang up.
•
While using menus, press to cancel an
•
operation, back up to the previous menu,
or exit the menu display; or press and hold
to exit to idle mode.
Press and hold while the handset is not in
•
use to erase the missed call indicator.
Press and hold to set and turn on the quiet
•
mode, or turn it off.
When reviewing a caller ID log entry, press
•
repeatedly to view other dialing options.
During a call, press to mute the microphone.
•
While predialing, press to erase digits.
•
While reviewing the redial list,directory,
•
speed dial list or caller ID log, press to
delete an individual entry.
Press to initiate an intercom conversation or
transfer a call.
3
Getting started
Quick reference guide
Main menu
Play messages
ECO
Main menu
Play messages
Answering sys
Directory
Caller ID log
Call block
Ringers
Set date/time
Settings
Using menus:
Press to show
•
the menu.
Press
•
through menu items.
•
Press
save changes to a highlighted
menu item.
•
Press
operation, back up to the previous
menu, or exit the menu display.
or
to scroll
to confirm or
to cancel an
For complete instructions, refer to the manual provided with your
EL52265/EL52365 telephone system. If you are unable to find your
manual, go to www.telephones.att.com/manuals to read
and/or download the manual.
4
Getting started
Charger installation
Install the charger, as shown below.
Plug the power adapter into an
electrical outlet not controlled by
a wall switch.
IMPORTANT INFORMATION
1. Use only the power adapter supplied with this product. To order a replacement
power adapter, visit our website at www.telephones.att.com or call
1 (800) 222-3111. In Canada, dial 1 (866) 288-4268.
2. The power adapter is intended to be correctly oriented in a vertical or floor
mount position. The prongs are not designed to hold the plug in place if it is
plugged into a ceiling, under-the-table or cabinet outlet.
5
Getting started
Battery installation and charging
Install the battery as shown on pages 7-8. Once you have installed
the battery, the screen indicates the battery status (see the
following table). If necessary, place the handset in the telephone
base or charger to charge the battery. For best performance, keep
the handset in the telephone base or charger when not in use. The
battery is fully charged after 16 hours of continuous charging. See
the table on page 34 for battery operating times.
If the screen shows Put in charger and
charge the handset without interruption for at least 30 minutes to
give the handset enough charge to use the telephone for a short
time. The following table summarizes the battery charge indicators
and actions to take.
Battery indicators Battery status Action
The screen is blank, or
shows Put in charger
and (flashing).
Battery has no or
very little charge. The
handset cannot be used.
flashes, you need to
Charge without interruption
(at least 30 minutes).
The screen shows
Low battery and
(flashing).
The screen shows
HANDSET X.
NOTE: If you are on a phone call in low battery mode, you hear four short
beeps every 50 seconds.
Battery has enough
charge to be used for a
short time.
Battery is charged. To keep the battery
6
Charge without interruption
(at least 30 minutes).
charged, place it in the
telephone base or charger
when not in use.
Getting started
THIS SIDE UP / CE CÔTÉ VERS LE HAUT
Battery Pack / Bloc-piles :
BT162342/BT262342 (2.4V 300mAh Ni-MH)
WARNING / AVERTISSEMENT :
DO NOT BURN OR PUNCTURE BATTERIES.
NE PAS INCINÉRER OU PERCER LES PILES.
Made in China / Fabriqué en chine CR1423
THIS SIDE UP
Battery Pack / Bloc-piles
BT162342/BT262342 (2.4V 4
WARNING / AVERTISSEMENT
DO NOT BURN OR PUNCTURE B
NE PAS INCINÉRER OU PERCER L
Made in China / Fabriqué en chine
CR1423
Battery installation and charging
1.
Plug the battery connector securely into the socket inside the
handset battery compartment. Insert the supplied battery with
the label THIS SIDE UP facing up, as indicated.
2.
Align the cover flat against the battery compartment, then slide it
upwards until it clicks into place.
3.
Charge the handset by placing it face up in the telephone base
or charger. The
CHARGE light is on when charging.
CHARGE light
7
Getting started
Battery installation and charging
After you install your telephone or power returns following a power
outage, the handset will prompt you to set the date and time. After
that, it will prompt if you want to set up the answering system via
voice guide (only for EL52265/EL52365 telephone system). Press
to start. For details, see the corresponding sections in
the telephone system’s user’s manual. To skip these settings, press
.
To replace the battery, press the tab and
slide the battery compartment cover
downwards. Lift out the old battery and
disconnect it from the handset. Follow
the instructions to install and charge a
new battery.
IMPORTANT INFORMATION
1. Use only the supplied rechargeable battery or replacement battery
(model BT162342/BT262342). To order, visit our website at
www.telephones.att.com or call 1 (800) 222-3111.
In Canada, dial 1 (866) 288-4268.
2. If you do not use the handset for a long time, disconnect and remove
the battery to prevent possible leakage.
8
Loading...
