DEFINITY

Enterprise Communication Server

Release 8. 2

Installation, Upgrades, and Additions for Compact Modular Cabinets

555-233-118 Comcode 108678657 Issue 1 April 2000

Notice

Every effort was made to ensu re that th e in for mation in this book was complete and accu ra te at the time o f printing. However , information is subject to change.

Your Responsibility for Your System’s Security

Toll fraud is the unauthorized use of you r te lecommunications system by an unauthorized party, for example, persons other than your com-

pany’s employees, agents, subcontractors, or persons working on your company’s behalf. Note that there may be a risk of toll fraud associated with your telecommunications system and, if toll fraud occurs, it can result in substantial additional charges for your telecommunications services.

You and your system manager are responsible for the security of your system, such as programming and configur ing your e qui pm ent to prevent unauthorized use. The system manager is also responsibl e for reading all installation, instruc tion, and system administration doc uments provided with this produc t i n orde r to fully understand the features that can introduce risk of toll fraud and the steps that can be taken to reduce that risk. Lucent Technologies does not warrant that this product is immune from or will prevent unauthorized use of common-carr ier telecommunication services or facilities accessed through or connected to it. Lucent Technologies will not be responsible for any charges that result from such unauthorized use.

Lucent Technologies Fraud In te rven tion

If you suspect that you are being victimized by toll fraud and you need technical support or assistan ce , c al l Technical Service Cen ter Toll Fraud Intervention Hotlin e at 1 800 643-2353 or contact your loca l Lucent repr esentative.

Federal Communications Commission Statement Part 15: Class A S t atement. This equipment has been tested and

found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate rad io- fre quency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference, in which case the user will be required to corre c t th e in te rference at his own expense.

Trademarks

See “About This Book.”

Ordering Info rm a tion Call: Lucent Technologies Publications Center

Voice 1 800 457-1235 International Voice 317 361-5353 Fax 1 800 457-1764 International Fax 317 361-5355

Write: Lucent Technologies Publications Center

P.O. Box 4100 Crawfordsville, IN 47933 USA

Order: Document No. 555-233-118

Comcode 10867865 7

Issue 1, April 2000 For additional documents, refer to the section in “About This Book” entitled “R elated Documents.”

Y ou can be placed on a standing order list for this and other documents you may need. Standing order will enable you to automatically receive updated versions of individual documents or doc um en t set s , billed to account information that you provide. For more information on standing orders, or to be put on a list to receive future issues of this do cument, contact the Lucent Technologies Publications Ce nt er.

European Union Declaration of Conformity

The “CE” mark affixed to the DEFINITY® equip ment described in this book indicates that the e quipment conforms to the foll owing European Union (EU) Directives:

• Electromagnetic Compatibilit y (89 /336/EEC)

• Low Voltage (73/23/EEC)

• Telecommunications T er m inal Equipment (TTE) i-CTR3 BRI and i-CTR4 PRI

For more information on standards compliance, contact your l oc al distributor.

Comments

T o co mmen t on this document, return the co mme nt card at the front of the document.

Acknowledgment

This document was prepared by Product Documentation Development, Lucent Technologies, Denver, CO USA.

Part 68: Network Registration Number. This equipment is registered with the FCC in accordan ce with Part 68 of th e FCC Rules. It is identified by FCC registration number AS593M-13283-MF-E. Refer to “Federal Communications Commission Statement” in “About This Book” for more infor ma tion regarding Part 68.

Canadian Department of Communications (DOC) Interference Inform at ion

This digital apparatus does not exceed the Class A limits for radio noise emissions set out in the radio inte rfe rence regulations of the Canadian Department of Communications.

Le Présent Appareil Nomérique n’émet pas de bruits radioélectriques dépassant les limites applicables aux appareils numériques de la class A préscrites dans le reglement sur le brouillage radioélectri que édicté par le ministére des Communi cations du Canada.

DEFINITY ECS Release 8.2 Installation, Upgrades, and Additions for Compact Modular Cabinets

555-233-118

Contents

Contents iii

What’s New in Release 8.2csi xi

Features xi Hardware xiii Tools xiv Commands, screens, and fields xv Procedures xv Upgrade tips xvi Cautions and warnings xvi Product names xvi

About This Book xvii

■ Conventions Used in This Book xvii

April 2000

iii

Issue 1

■ Related Documents xviii

■ How to Order Documentation xix

■ How to Comment on This Book xix

■ Where to Call for Technical Support xix

■ Security Issues xx

■ Trademarks xx

■ Standards Compliance xxi

■ Electromagnetic Compatibility Standards xxii

■ Antistatic Protection xxiii

■ Remove/Install Circuit Packs xxiii

■ Federal Communications Commission Statement xxiv

Part 68: Statement xxiv

1 Installing and Cabling the Cabinets 1-1

■ Check Customer’s Order 1-1

■ Correcting Shipping Errors 1-1

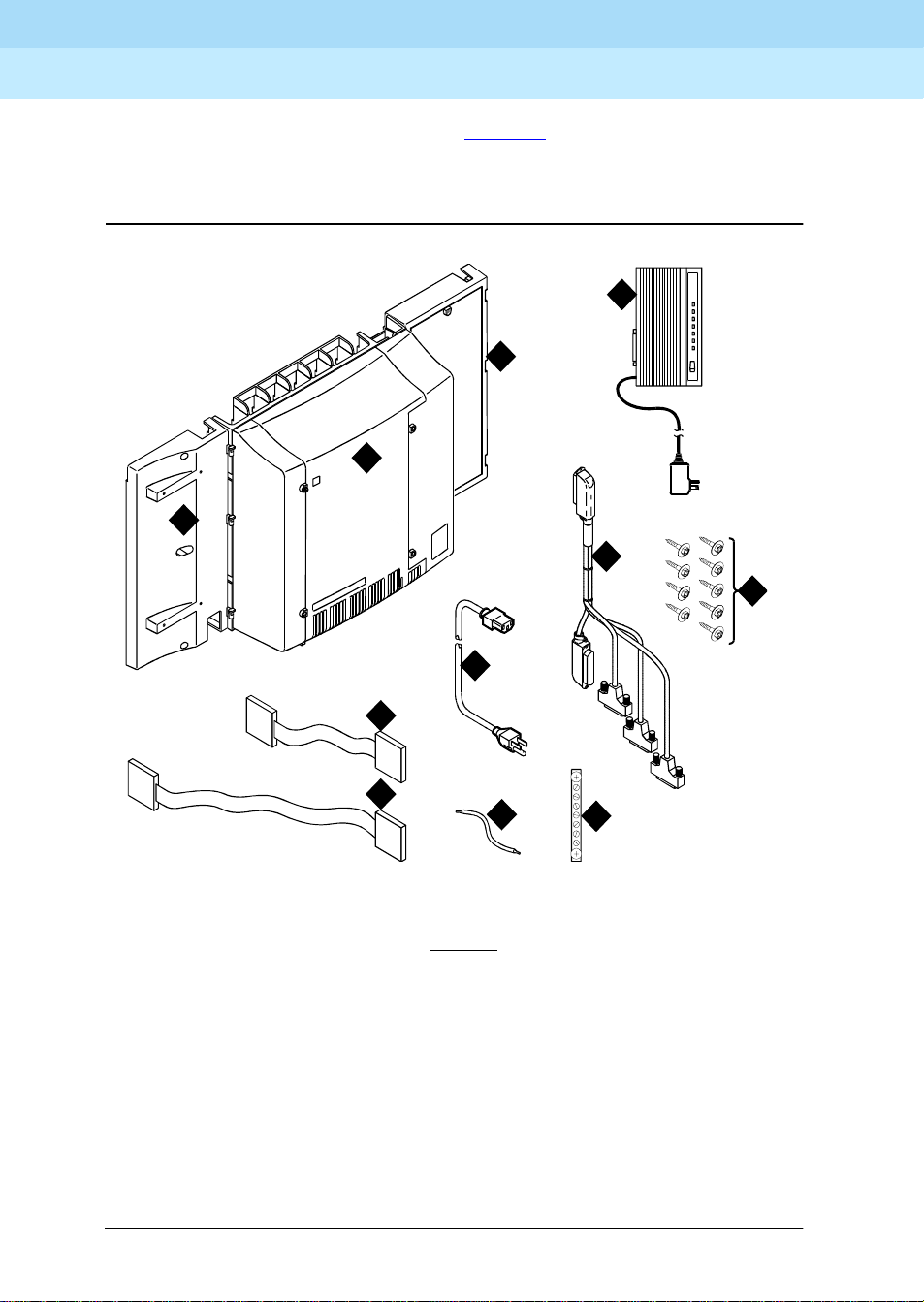

■ Unpack and Inspect 1-1

■ Comcodes for CMC 1-3

■ Install the System Cabinets 1-6

Set the Carrier Address ID — All Cabinets 1-6 Floor-Mount the Cabinet 1-7 Wall-Mount the Cabinets 1-8

DEFINITY ECS Release 8.2 Installation, Upgrades, and Additions for Compact Modular Cabinets

555-233-118

Contents

Install Cabinet A — Wall-Mount 1-9 Install Left and Right Panels — Wall-Mount 1-13

■ AC Power and Ground 1-14

Uninterruptible Power Supply 1-16 CMC Cabinet Power Switch 1-17 Connect Cabinet Grounds and Other Grounds 1-18 Install Coupled Bonding Conductor 1-20 Connect and Route Cabinet AC Power Cords 1-20

■ Cable the System 1-22

Install Processor Interface Cable — Cabinet A Only and TDM/LAN Bus Terminator 1-22

Cable the Multi-Cabinet System — Wall-Mount 1-23

■ Install Main Distribution Frame and External Modem 1-25

Install the MDF 1-25 Install the External Modem 1-30

April 2000

Issue 1

■ Install Equipment Room Hardware 1-31

Cross-Connect the Cabinets to the MDF 1-31 Allowable Circuit Packs for CMC 1-31 Circuit Pack Installation 1-33 Off-Premises Circuit Protection 1-38 Install Sneak Fuse Panels 1-39 Label the Main Distribution Frame 1-42

■ Set Up System Access 1-43

Installing and using DSA 1-43 Connecting a PC 1-46

■ Set Ringing Option 1-53

■ Activate and Administer the System 1-54

Power Up System 1-54 System Administration 1-54

■ Install and Wire Telephones and Other Equipment 1-64

Install Attendant Console — Optional 1-75 Install 26B1 Selector Console — Optional 1-75

■ Connect External Alarms and Auxiliary Connections 1-76

■ Telephone Pin Designations 1-77

■ CAMA/E911 Installation 1-78

Configuration 1-78

DEFINITY ECS Release 8.2 Installation, Upgrades, and Additions for Compact Modular Cabinets

555-233-118

Contents

Hardware Setup 1-78 Administration Setup 1-78

■ Install the BRI Terminating Resistor 1-86

Terminating Resistor Adapter 1-87 Closet Mounted (110RA1-12) 1-88

■ Install Multi-point Adapters 1-90

BR851-B Adapter (T-Adapter) 1-90 367A Adapter 1-91 Basic Multi-point Installation Distances 1-92

■ Install Off-Premises Station Wiring 1-93

■ Install Emergency Transfer Unit and

Associated Telepho nes 1-98

Install the Emergency Transfer Panel 1-99

■ Connect Modem to Telephone Network 1-106

External Modem Option Settings 1-107

April 2000

Issue 1

2 Completing Installation and Cable Pinouts 2-1

■ Perform System Administration 2-1

■ Set Neon Voltage — Ring Ping 2-3

■ Installation Completion 2-4

■ Power Supply LED Indications 2-4

■ TN760D Tie Trunk Option Settings 2-5

■ TN464E/F Option Settings 2-7

■ Connector and Cable Diagrams — Pinout Charts 2-9

Processor Interface Cable Pinout 2-11

3 Upgrading R6csi/R7csi to R8csi 3-1

■ Task Table 3-2

■ Read This First 3-2

■ Upgrade to Release 8 3-5

Check SPE 3-5 Check Link Status 3-5 Disable TTI 3-5 Disable Scheduled Maintenance and Alarm

Origination to INADS 3-5 Check TTI Status 3-6 Save Translations 3-6 Save Announcements (if necessary) 3-7

DEFINITY ECS Release 8.2 Installation, Upgrades, and Additions for Compact Modular Cabinets

Contents

555-233-118

Verify Software Version 3-7 Shut Down DEFINITY AUDIX System (if necessary)3-7 Install Circuit Pack (if necessary) 3-7 Upgrade Software 3-8 Complete Upgrade 3-8 Display Memory-Configuration 3-8 Administer the System 3-9 Enable TTI 3-12 Resolve Alarms 3-12 Check Link Status 3-12 Enable Scheduled Maintenance 3-12 Resolve Alarms 3-12 Enable Customer Options and Alarm Origination 3-13 Save Translations 3-13 Restore Announcements (if necessary) 3-13

April 2000

Issue 1

Power Up DEFINITY AUDIX System 3-13 Return Equipment 3-14

■ DEFINITY AUDIX Power Procedures 3-14

4 Adding or Removing Hardware 4-1

■ Add Circuit Packs 4-1

■ Add CO, FX, WATS, and PCOL 4-2

Requirements 4-2 Installation 4-2

■ Add DID Trunks 4-2

Requirements 4-2 Installation 4-2

■ Add Tie Trunks 4-3

Requirements 4-3 Installation 4-3

■ Add DS1 Tie and OPS 4-5

Service Interrupt ion 4-5

■ Add Speech Synthesis 4-5

■ Add Code Calling Access 4-5

■ Add Pooled Modem 4-6

Settings for Modem Connected to Data Module 4-6

DEFINITY ECS Release 8.2 Installation, Upgrades, and Additions for Compact Modular Cabinets

Contents

555-233-118

Settings for Modem Connected to the Data Terminal Equipment (DTE) 4-7

■ Add Multiple Integrated Recorded Announcement 4-7

Save and Restore Recorded Announcements 4-8

■ Add ISDN — PRI 4-10

North American 4-10 International 4-10 Add Packet Bus Support 4-10 Add Circuit Packs 4-10 Install Cables 4-11 Enter Added Translations 4-11 Resolve Alarms 4-11 Save Translations 4-11

■ Add Packet Bus Support 4-11

Disable Alarm Origination 4-11

Issue 1

April 2000

vii

Save Translations 4-11 Install Circuit Packs 4-12 Administer the Bus Bridge 4-1 2 Test the Packet Bus and C-LAN Circuit Pack 4-12 Resolve Alarms 4-12 Enable Customer Options and Alarm Origination 4-12

■ Add CallVisor ASAI 4-13

Enter Added Translations 4-13 Save Translations 4-13 Add Packet Bus Support 4-14 Add Circuit Packs 4-14 Install Cables 4-14 Enter Added Translations 4-14 Resolve Alarms 4-14 Save Translations 4-14

■ Add DCS Interface 4-15

Add Circuit Packs 4-15 Administer the Bus Bridge 4-1 5 Test the Packet Bus and Control-LAN Circuit Pack 4-16 Install Cables 4-16 Enter Added Translations 4-17

DEFINITY ECS Release 8.2 Installation, Upgrades, and Additions for Compact Modular Cabinets

Contents

555-233-118

Save Translations 4-17

■ Add ISDN—BRI 4-17

Add the Packet Bus Support 4-17 Add Circuit Packs 4-18 Install Cables 4-18 Enter Added Translations 4-18 Resolve Alarms 4-18 Save Translations 4-18

■ Add IP Interface Assembly 4-18

Installing in Media Processor Mode 4-19 Installing in IP Trunk Mode 4-30 Upgrading a TN802 V3 (or later) to a TN802B

(MedPro mode) 4-46

■ Add TTC Japanese 2-Mbit Trunks 4-51

Installing the trunk 4-51

April 2000

viii

Issue 1

■ Installing an Integrated Channel

Service Unit (ICSU) Module 4-51

Checking for required components 4-51 Installing the 120A CSU 4-52

■ Add NAA1 Fiber Optic Circuit Pack 4-55

Unpack and Inspect 4-55 Installation Instructions 4-56 Test the Installation of the ATM Circuit Pack 4-58

A Troubleshooting an Upgrade A-1

■ New for Release 8 A-2

Translation Copy Protection (TRANS-ID) A-2 Control LAN (C-LAN) A-2 System Links (SYS-LINK) A-3

■ Troubleshooting Guidelines A-3

■ Troubleshooting Release 8 Upgrades A-4

No Transla tion After Upgrade A-4 Translation Corruption Detected A-4 Re-install the ISDN-PRI Links (Only for Failed

Upgrades) A-5

B Translation Copy Protection B-1

■ Overview of Translation Copy Protection B-1

DEFINITY ECS Release 8.2 Installation, Upgrades, and Additions for Compact Modular Cabinets

Contents

■ Time Limit B-1

555-233-118

Restrictions During the Time Allotted B-1 Restrictions After the Time Allotted B-2

■ Alarm Resolution B-2

C Access Security Gateway C-1

■ Using the ASG Mobile C-1

GL Glossary and Abbreviations GL-1 IN Index IN-1

Issue 1

April 2000

DEFINITY ECS Release 8.2 Installation, Upgrades, and Additions for Compact Modular Cabinets

Contents

555-233-118

April 2000

Issue 1

DEFINITY ECS Release 8.2 Installation, Upgrades, and Additions for Compact Modular Cabinets

555-233-118

What’s New in Release 8.2csi

This is a short list of what changed from Release 7csi. For more detailed information, refer to DEFINITY ECS Release 8 What’s New in Release 8. The categories addressed are as follows:

■ Features

■ Hardware

■ Tools

Issue 1

April 2000

■ Commands, screens, and fields

■ Procedures

■ Upgrade tips

■ Cautions and warnings

■ Product names

Features

This list provides categorized features available with Release 8.2. For full descriptions, see DEFINITY Enterprise Communications Server Release 8, Issue

1.0 Change Description.

Phone features Networking — ISDN Public

64 bridged call appearances ATM circuit emulation service (CES) Abort transfer Feature plus — non-DID calling via UDP

Automatic exclusion Restricted Presentation Circular station hunting Multiple pubnet calling/connect

numbers/system

Coverage of calls redirected off-net Pass advice of charg e to BRI (basic rate

interface) endpoints Group call pick -up BellCore calling name ID Long hold recall - warning

Networking — QSIG

DEFINITY ECS Release 8.2 Installation, Upgrades, and Additions for Compact Modular Cabinets

What’s New in Release 8.2csi

Reset shift call Call-independent signaling connection (CISC)

Station self display VALU distinctive alerting

Call Center

Advocate related enhancements Transfer to Audix

555-233-118

enhancements

VALU call coverage

April 2000

Issue 1

xii

ASAI/computer telephony integration (CTI) enhancements

Increased Call Cen ter capacit ies (G3r) CAS Attendant display of COR Site stats for ATM connected remote EPNs CAS Attendant return c all CMS measurement of ATM trunks CAS Display enhancements CALLMASTER V (CC 6416D+) native support CAS Priority queue PASTE update CAS RLT emulation via PRI CentreVu comp uter Telephony on MAPD

DEFINITY Wireless Business Systems

Coverage interaction support

Green to Standard

13-digit authorization codes (red to std)

(DWBS)

X-station mobility

Hospitality

Auto digit rotation for direct inward dial Interworking with bandwidth constricted ATM

Crisis ale rt to pager ATM - Hybrid reliability Suite check-in via the hunt-to feature

International

Administrable loss plan Restart notification

Brazil and Hungary — E&M signali ng Reliabili ty options

Networking — Other

IP Solutions

networks

System availability/serviceability

Opt ical drive

China — special dial tone C-LAN serviceability tools China — time supervision & forced release Japan — Support for Japan National Private

Networking Japan — Transfer Call Back 6400 tip/ring module Brazil and Hungary — E&M signaling Fast analog modem sup port

Terminal support

IDS (6200) family of analog terminals native

support

Security Platform

DADMIN login 24-port analog line (TN793/TN2793B) with

Caller ID

Analog trunk & line board (TN797) without

busy tone detection

DEFINITY ECS Release 8.2 Installation, Upgrades, and Additions for Compact Modular Cabinets

What’s New in Release 8.2csi

555-233-118

Hardware

Minimum required hardware

You need the following minimum r equired hardware t o upgrade to Release 8. 2csi software.

Code

Equipment

Comcode Notes

Issue 1

April 2000

xiii

Basic processor cabinet J5889OT-1

—

AC Power unit 650A

107949364

R8.2csi hardware

The following upgrade equipment is new to Release 8.2csi.

Code

Equipment

R8csi Generic Program Card (orange)

2-Mbyte translation flashcard (white) 4-Mbyte translation flashcard

(white) 10-Mbyte translation flashcard

(white)

Comcode Notes

— 406805481

— 601817448 — 601817422 — 601817430

Contains the following circuit packs:

■ TN798B (processor)

■ TN2182B (tone clock)

Processor TN798B

if not already installed

108186255

1. Required for systems using recorded announcements.

2. Required for systems with a DEFINITY ECS Wireless Business System installed.

DEFINITY ECS Release 8.2 Installation, Upgrades, and Additions for Compact Modular Cabinets

What’s New in Release 8.2csi

555-233-118

Additional hardware available

The following equipment is port slot hardware introduced with Release 8.2csi.

Code

Equipment

Comcode Notes

Issue 1

April 2000

xiv

DS1 interface TN2313

108382607

Analog line TN793

103557468

Analog trunk/line combo TN797

103557500

Control-LAN (C-LAN) TN799B

108525528

IP interface assembly TN802B

108517996

Discontinued hardware

No equipment was discontinued with Release 8.2csi.

To ol s

No new tools became available with Release 8.2csi.

Cost reduction, no new features

24-port analog line with CID

Combines an analog trunk and line into one circuit pack.

Updates TN799; enables trace route command

Updates TN802; expansion of IP trunk; introduces two modes: Media Processor Mode and IP Trunk Mode

DEFINITY ECS Release 8.2 Installation, Upgrades, and Additions for Compact Modular Cabinets

What’s New in Release 8.2csi

555-233-118

Commands, screens, and fields

The following commands and screens are new to or affected by Release 8.2csi. The number of screens has changed, and some fields have moved to different screens.

Command/field Screen Notes

Issue 1

April 2000

reset translation-id

Procedures

The following procedures and steps changed or were added because of problems identified in the laboratory or during early introduction.

Many of the upgrade procedures were reordered and the steps within the procedure better defined. Check the task tables at the beginning of each upgrade chapter for the current order.

Also, to reduce redundancy in the book, there is no longer a separate upgrade process for high or critical reliability . The procedures and steps that apply to high or critical reliability are noted where they occur in the upgrade process.

System Parameters Security This command resets the

translation-ID on the translation card to match the processor; saves translations to the memory card; and restores use of the add, change, remove, and duplicate commands.

Needs init login to correct T RANS-ID alarm.

Procedure Steps Notes

Check SPE

1. Type status system 1 and press

Enter to check the

Becomes first step of upgrade procedure

health of the system.

Set Daylight Savings Rules

1. Ty p e

change

daylight-savings-rules

and press

Enter.

The default is 0, no daylight savings

DEFINITY ECS Release 8.2 Installation, Upgrades, and Additions for Compact Modular Cabinets

What’s New in Release 8.2csi

555-233-118

Upgrade tips

The following upgrade tips were generated from problems identified in the laboratory or during early introduction.

■ Add Pooled Modem

— The pooled modem requires a Lucent WP90110 L7 power supply.

Although integrated conversion can use either the L5 or L7, the combined only works with an L7.

Cautions and warnings

The following new cautions and warnings were generated from problems affecting possible data loss that were identified in the laboratory or during early introduction.

Procedure Caution or Warning

Issue 1

April 2000

xvi

Add Pooled Modem

Product names

The following products have been renamed.

Product name Old name

IP Interface Assembly (TN802B)

CAUTION:

The L5 and L7 power supplies look identical. Check the label to be sure you have the L7 before installing.

IP trunk (TN802)

DEFINITY ECS Release 8.2 Installation, Upgrades, and Additions for Compact Modular Cabinets

About This Book

555-233-118

About This Book

Issue 1

April 2000

xviiConventions Used in This Book

This document provides procedures to install, upgrade, or make additions to a DEFINITY

Enterprise Communications Server Release 8.2csi, using the

Compact Modular Cabinet. This document is intended for use by trained installation technicians.

Conventions Used in This Book

■ Information you type is shown as:

command you typed, press the keyboard, not the

■ Information displayed on the management terminal is shown as:

■ Keyboard keys are shown as: Enter.

■ Circuit pack codes (such as TN798B or TN2182B) are shown with the

minimum acceptable alphabetic suffix (like the ‘‘B” in TN2182B). Generally, an alphabetic suffix higher than that shown is also acceptable.

However, not every vintage of either the minimum suffix or a higher suffix code is necessarily accepta ble.

NOTE:

Refer to Technical Monthly: Reference Guide for Circuit Pack Vintages and Change Notices for current information about usable

vintages of specific circuit pack codes (including the suffix).

Enter/Return key in the letters section.

save translation

Enter key in the numbers section of the

. To submit the

DEFINITY ECS Release 8.2 Installation, Upgrades, and Additions for Compact Modular Cabinets

555-233-118

About This Book

The following conventions describe the systems referred to in this document.

■ The word system is a general term encompassing Release 8 and includes

references to the DEFINITY Enterprise Communications Server

■ Systems in this book are called Release 8, Release 8 CMC, and R8csi

■ Information in this book is applicable for Release 8 unless otherwise

specified

■ DEFINITY Enterprise Communications Server is abbreviated as DEFINITY

ECS

■ Physical dimensions in this book are in inches (in.) followed by metric

centimeters (cm) in parentheses. Wire gauge measurements are in AWG followed by the cross-sectional area in millimeters squared (mm parenthe se s

How to Order Documentation

A complete list of DEFINITY books is available in the Business Communications System Publications Catalog.

You can order this document and any other DEFINITY documentation directly from the Lucent Technologies Business Communications System Publications Fulfillment Center at 1-317-322-6791 or toll free within the United States at 1-800-457-1235.

How to Comment on This Book

Lucent Technologies welcomes your feedback. Please fill out the reader comment card at the front of this book and return it. Your comments are of great value and help us to improve our documentation.

If the reader comment card is missing, fax your comments to 1-303-538-1741 or

to your Lucent Technologies representative, and mention this document’s name and number, DEFINITY Enterprise Communication Server Release 8 Installation

and Test for Compact Modular Cabinets, 555-233-118.

Issue 1

April 2000

xixHow to Order Documentation

Where to Call for Technical Support

Tel ep ho ne N u m b e r

DEFINITY Helpline (feature administration and system applications)

Luc ent Tec hnologies Toll Fraud Intervention 1-800-643-2353 Lucent Technologies National Customer Care Center 1-800-242-2121 Lucent Technologies Corporate Security 1-800-822-9009 Streamlined Implementation (for missing equipment) 1-800-772-5409 USA/Canada Technical Service Center 1-800-248-1234 ITAC 1-303-804-3777 Luc ent Tec hnol ogies Centers of Exc elle nce

Asia/Pacific Regional Support Center 65-872-8686 Western Europe/Middle East/South Africa 44-1252-77-4800 Central/Eastern Europe 361-345-4334 Central/Latin America Caribbean 1-303-804-3778 Australia 61-2-9352-9090

1-800-225-7585

North America (INADS Database Administration) 1-800-248-1111

DEFINITY ECS Release 8.2 Installation, Upgrades, and Additions for Compact Modular Cabinets

555-233-118

About This Book

Security Issues

To ensure the greatest security possible for customers, Lucent Technologies offers services that can reduce toll-fraud liabilities. Contact your Lucent Technologies representative for more security information.

For Access Security Gateway (ASG), see Appendix C, ‘‘Access Security

Gateway’’.

Trademarks

This document contains references to the following Lucent Technologies trad em arke d prod ucts:

■ ACCUNET

■ AUDIX

■ Callmaster

■ CallVisor

■ CONVERSANT

■ DEFINITY

■ FORUM

■ MEGACOM

■ TRANST ALK

™

Issue 1

April 2000

xxSecurity Issues

The following products are trademarke d by their appropriate U.S. vendor:

■ LINX

■ Shockwatch

■ Styrofoam

■ Tiltwatch

™

is a trademark of Illinois Tool Works, Incorporated

is a registered trademark of Media Recovery, Incorporated

is a registered trademark of Styrofoam Corporation

is a registered trademark of Media Recovery, Incorporated

DEFINITY ECS Release 8.2 Installation, Upgrades, and Additions for Compact Modular Cabinets

555-233-118

About This Book

Standards Compliance

The equipment presented in this document complies with the following standards (as ap propriate):

■ ITU-T (Formerly CCITT)

■ ECMA

■ ETSI

■ IPNS

■ DPNSS

■ National ISDN-1

■ National ISDN-2

■ ISO-9000

■ ANSI

■ FCC Part 15 and Part 68

Issue 1

April 2000

xxiStandards Compliance

■ EN55022

■ EN50081

■ EN50082

■ CISPR22

■ Australia AS3548 (AS/NZ3548)

■ Australia AS3260

■ IEC 825

■ IEC 950

■ UL 1459

■ UL 1950

■ CSA C222 Number 225

■ TS001

Contact your Lucent Technologies representative for more information.

DEFINITY ECS Release 8.2 Installation, Upgrades, and Additions for Compact Modular Cabinets

555-233-118

About This Book

Electromagnetic Compatibility Standards

This product complies with and conforms to the following standards (as appropriate):

■ Limits and Methods of Measurements of Radio Interference

Characteristics of Information Technology Equipment, EN55022 (CISPR22), 1993

■ EN50082-1, European Generic Immunity Standard

■ FCC Part 15

■ Australia AS3548

NOTE:

The system conforms to Class A (industrial) equipment. Voice terminals meet Class B requirements.

■ Electrostatic Discharge (ESD) IEC 1000-4-2

Issue 1

April 2000

xxiiElectromagnetic Compatibility Standards

■ Radiated radio frequency field IEC 1000-4-3

■ Electrical Fast Transient IEC 1000-4-4

■ Lightning effects IEC 1000-4-5

■ Conducted radio frequency IEC 1000-4-6

■ Mains frequency magnetic field IEC 1000-4-8

■ Low frequency mains disturbance IEC 1000-4-11

DEFINITY ECS Release 8.2 Installation, Upgrades, and Additions for Compact Modular Cabinets

About This Book

555-233-118

European Union Standards

Lucent Technologies Business Communications Systems (BCS) declares that the

DEFINIT Y equipment specified in this document bearing the “CE” mark conforms to the European Union Electromagnetic Compatibility Directives.

The “CE” (Conformité Europeénne) mark indicates conformance to the European Union Electromagnetic Compatibility Directive (89/336/EEC), Low Voltage Directive (73/23/EEC), Telecommunication Terminal Equipment (TT E) Directive (91/263/EEC), i-CTR3 Basic Rate Interface (BRI), and i-CTR4 Primary Rate Interface (PRI) as applicable.

The “CE” mark is applied to the following Release 8 products:

■ Global AC-powered Multi-Carrier Cabinet (MCC)

■ DC-powered Multi-Carrier Cabinet (MCC) with 25 Hz ring generator

■ AC-powered Enhanced Single-Carrier Cabinet (ESCC) with 25 Hz ring

generator

■ AC-powered Compact Single-Carrier Cabinet (CSCC) with 25 Hz ring

generator

Issue 1

April 2000

xxiiiAntistatic Protection

■ Enhanced DC power system

■ AC-powered Compact Modular Cabinet (CMC) with 25 Hz ring generator

■ AC-powered Compact Modular Cabinet (CMC) with 50 Hz ring generator

for France

Antistatic Protection

CAUTION:

When handling circuit packs or any components of a DEFINITY System, always wear an antistatic wrist ground strap. Connect the strap to an approved ground such as an unpainted metal surface on the DEFINITY System.

Remove/Install Circuit Packs

CAUTION:

The control circuit packs with white labels cannot be removed or installed when the power is on. The port circuit packs with gray labels (older version circuit packs had purple labels) can be removed or installed when the power is on.

DEFINITY ECS Release 8.2 Installation, Upgrades, and Additions for Compact Modular Cabinets

About This Book

555-233-118

Federal Communications Commission Statement

Part 68: Statement

Part 68: Answer-Supervision S ignaling. Allowing this equipment to be operated in a manner that does not provide proper answer-supervision signaling is in violation of Part 68 rules. This equipment returns answer-supervision signals to the public switched network when:

■ Answered by the called station

■ Answered by the attendant

■ R outed to a recorded announcement that can be administered by the CPE

user

This equipment returns answer-supervision signals on all DID calls forwarded back to the public switched telephone network. Permissible exceptions are:

Issue 1

April 2000

xxivFederal Communications Commission Statement

■ A call is unanswered

■ A busy tone is received

■ A reorder tone is received

Lucent Technologies attests that this registered equipment is capable of providing users access to interstate providers of operator services through the use of access codes. Modification of this equipment by call aggregators to block access dialing codes is a violation of the Telephone Operator Consumers Act of

1990. This equipment complies with Part 68 of the FCC Rules. A label is provided on

this equipment that contains, among other information, the FCC registration number and ringer equivalence number (REN) for this equipment. If requested, this information must be provided to the telephone company.

The REN is used to determine the quantity of devices which may be connected to the telephone line. Excessive RE Ns on the telephone line may result in devices not ringing in response to an incoming call. In most, but not all areas, the sum of RENs should not exceed 5.0. To be certain of the number of devices that may be connected to a line, as determined by the total RENs, contact the local telephone company.

NOTE:

REN is not required for some types of analog or digital facilities.

DEFINITY ECS Release 8.2 Installation, Upgrades, and Additions for Compact Modular Cabinets

About This Book

555-233-118

Means of Connection

Connection of this equipment to the telephone network is shown in the following table.

Manufacturer’s Port Identifier FIC Code

Off/On Premises Station OL13C 9.0F RJ2GX, RJ21X,

DID Trunk 02RV2-T 0.0B RJ2GX, RJ21X CO Trunk 02GS2 0.3A RJ21X CO Trunk 02LS2 0.3A RJ21X Tie Trunk TL31M 9.0F RJ2GX

1.544 Digital Interface 04DU9-B,C 6.0P RJ48C, RJ48M

1.544 Digital Interface 04DU9-BN,KN 6.0P RJ48C, RJ48M 120A2 Channel Service Unit 04DU9-DN 6.0P RJ48C

Issue 1

April 2000

xxvFederal Communications Commission Statement

SOC/REN/ A.S. Code Network Jacks

RJ11C

If the terminal equipment (DEFINITY

System) causes harm to the telephone network, the telephone company will notify you in advance that temporary discontinuance of service may be required. But if advance notice is not practical, the telephone company will notify the customer as soon as possible. Also, you will be advised of your right to file a complaint with the FCC if you believe it is necessary.

The telephone company may make changes in its facilities, equipment, operations or procedures that could affect the operation of the equipment. If this happens, the telephone company will provide advance notice in order for you to make necessary modifications to maintain uninterrupted service.

If trouble is experienced with this equipment, for repair or warranty information, please contact the Technical Service Center at 1-800-242-2121. For assistance outside of the United States, refer to ‘‘Where to Call for Technical Support’’

. If the equipment is causing harm to the telephone network, the telephone company may request that you disconnect the equipment until the problem is resolved.

It is recommended that repairs be performed by Lucent Technologies certified technicians.

The equipment cannot be used on public coin phone service provided by the telephone company. Connection to party line service is subject to state tariffs. Contact the state public utility commission, public service commission or corporation commission for information.

This equipment, if it uses a telephone receiver, is hearing aid compatible.

DEFINITY ECS Release 8.2 Installation, Upgrades, and Additions for Compact Modular Cabinets

About This Book

555-233-118

Issue 1

April 2000

xxviFederal Communications Commission Statement

DEFINITY ECS Release 8.2 Installation, Upgrades, and Additions for Compact Modular Cabinets

Installing and Cabling the Cabinets

555-233-118

Installing and Cabling the Cabinets

Check Customer’s Order

Issue 1

April 2000

1-1Check Customer’s Order

Check the customer’s order and the shipping packing lists to confirm that all equipment is present. If any equipment is missing, report this to your Lucent Technologies representative. Check the system adjuncts for damage and report all damage according to local shipping instruct ions.

Correcting Shipping Errors

1. Red-tag all defective equi pment and over-shipped equipment and return according to the nearest Material Stocking Location (MSL) instructions. For international customers, contact your order service agent.

2. Direct all short-shipped reports to the nearest MSL. Contact the appropriate location for specific instructions. For Streamlined Implementation in the United States, call 1-800-772-5409.

Unpack and Inspect

READ THIS FIRST !

CAUTION:

A fully loaded system weighs 58 lbs (26.3 kg). Use lifting precautions. If the doors, power unit, and circuit packs are removed, the unit weighs only 29 lbs (13.1 kg).

1. Verify the equipment received. See in appearance and may ship in separate packages.

Figure 1-1

. Actual equipment may vary

DEFINITY ECS Release 8.2 Installation, Upgrades, and Additions for Compact Modular Cabinets

Installing and Cabling the Cabinets

555-233-118

2. Equipment comcodes are listed in Table 1-1.

3. Before mounting the cabinets, remove the cabinet doors by opening them and lifting them straight up and off of the hinge pins.

Issue 1

April 2000

1-2Unpack and Inspect

qrdmpart KLC 011598

Figure Notes

1. Left panel (also acts as a wall-mount template and as a floor mount pedestal)

2. Compact modular cabinet

3. Right panel

4. U.S. Robotics external modem (not shipped with all systems)

5. #12 x 1-inch shoulder screws

6. Pr ocessor interface cable (not shipped with all cabinets)

7. AC power cord (NEMA 5-15P or IEC 320)

8. Vertical TDM/LAN bus cable (not shipped with all systems)

9. Horizontal TDM/LAN bus cable (not shipped with all systems)

10. 14-in. (35.5 cm) 6 AWG (#40) (16 mm

) ground wire

11. Single-point ground block

Figure 1-1. Equipment Packed with the Compact Modular Cabinet

DEFINITY ECS Release 8.2 Installation, Upgrades, and Additions for Compact Modular Cabinets

Installing and Cabling the Cabinets

555-233-118

Comcodes for CMC

Table 1-1 lists the comcodes for equipment used with the CMC.

Table 1-1. Comcodes for Release 7.1 and Later

Comcode Description

847951662 Left Panel 847951670 Right Panel 847915238 Right Door 847915246 Left Door 847960002 Processor Interface Cable 108186255 TN798B Proces so r Circuit Pack

Issue 1

April 2000

1-3Comcodes for CMC

107784019 TN2182B Tone-Clock

—

T one Detector and Call Classifier Circuit Pack 407633999 U.S. Robotics Sportster Model USR 33.6 EXT External Modem 105631527 TDM/LAN Bus Terminator (AHF110) 407772870 Vertical TDM/LAN Bus Cable (WP-91716 List 8) 407772888 Horizontal TDM/LAN Bus Cable (WP-91716 List 9) 706827717 Single-Point Ground Block

H600-487 14-inch (35.5 cm) 6 AWG (#40) (16 mm

) Green Ground Wire 847987187 CMC 110 Cross-Connect Assembly (Main Distribution Frame) 407676691 120 VAC Power Distribution Unit (145D 6-AC) 107949364 650A Power Supply 848082715 Fan Assembly 407745009 Fan Air Filter 405362641 120 VAC Power Cord (U.S.) 407786623 120 VAC Power Cord (Europe) 407786599 120 VAC Power Cord (United Kingdom) 407786631 120 VAC Power Cord (Australia) 407790591 120 VAC Power Cord (India) 106278062 Apparatus Blank (Circuit Pack Blank) (158P) 601817448 2-Mbyte Mass-Storage Translation Card (White Card)

Continued on next page

DEFINITY ECS Release 8.2 Installation, Upgrades, and Additions for Compact Modular Cabinets

Installing and Cabling the Cabinets

555-233-118

Table 1-1. Comcodes for Release 7.1 and Later — Continued

Comcode Description

601817422 4-Mbyte Mass-Storage Translation Card (White Card) 601817430 10-Mbyte Mass-Storage Translation Card (White Card) 106606536 Integrated Channel Service Unit (ICSU) (120A2) 107988867 DS1 Loopback Jack (T1 Only) (700A) 107152969 75 Ohm DS1 Coaxial Adapter (888B) 403613003 157B Connecting Block 406948976 6SCP-110 Protector 107435091 507B Sneak Current Fuse Panel 407216316 220029 Sneak Current Fuse 403613003 157B Connecting Block 103970000 Main Distribution Frame Label (Code 220A)

Issue 1

April 2000

1-4Comcodes for CMC

104307327 C6C cable — 50-ft (15.2 m) shielded DS1 cable with 50-pin male to

15-pin male

104307376 C6D cable — 50-ft (15.2 m) shielded DS1 cable with 50-pin male on

each end

104307434 C6E cable — 100-ft (30.5 m) shielded DS1 cable with 50-pin male to

50-pin female

104307475 C6F cable — 50-ft (15.2 m) shielded DS1 cable with 50-pin male to 3 in.

(7.6 cm) stub 102381779 3B1A Carbon Block 104410147 3B1E-W Wide Gap Gas Tube 105514756 3C1S Solid State 102904893 4B1C Carbon Block with Heat Coil 104401856 4B1E-W Wide Gap Gas Tube with Heat Coil 104386545 4C1S Solid State with Heat Coil 406948976 SCP-110 Sneak Current Protector 407216316 220029 Fuse Sneak Current Protector 105581086 4C3S-75 Solid State with Heat Coil 406144907 ITW LINX Gas Tube, Avalanche Suppress 901007120 ITW Linx Ground Bar (used with above)

Continued on next page

DEFINITY ECS Release 8.2 Installation, Upgrades, and Additions for Compact Modular Cabinets

Installing and Cabling the Cabinets

555-233-118

Table 1-1. Comcodes for Release 7.1 and Later — Continued

Comcode Description

406304816 ITW Linx Repla cement Fuse 103972758 Data Link Protector (1 circuit) 103972733 Data Link Protector (8 circuits) 407063478 Electrostatic Discharge (ESD) Wrist Strap 107731853 Single-Mode Fiber Optic Transceiver (300A) 106455348 Multi-Mode Fiber Optic Transceiver (9823A) 106455363 Multi-Mode Fiber Optic Transceiver (9823B) 407439975 Multi-mode Fiber Interconnect Cable — 20 ft (6.1 m) 407598325 Single-mode Fiber Interconnect Cable — 20 ft (6.1 m) 105357727 Single-mode Fiber Optic Patch Cord — 2 ft (0.6 m) 106060718 Single-mode 5-dB Attenuator

Issue 1

April 2000

1-5Comcodes for CMC

106060734 Single-mode 10-dB Attenuator

Continued on next page

DEFINITY ECS Release 8.2 Installation, Upgrades, and Additions for Compact Modular Cabinets

Installing and Cabling the Cabinets

555-233-118

Install the System Cabinets

Set the Carrier Address ID — All Cabinets

Issue 1

April 2000

1-6Install the System Cabinets

swdmdip KLC 073198

Figure Notes

1. Carrier A switch settings

OFF

OPEN

123456

OPEN

123456

OPEN

123456

3. Carrier C switch settings

2. Carrier B switch settings

Figure 1-2. Setting Carrier Address ID (Right Side)

1. Pr oceed to either

‘‘Floor-Mount the Cabinet’’ on page 1-7

the Cabinets’’ on page 1-8.

‘‘Wall-Mount

or to

DEFINITY ECS Release 8.2 Installation, Upgrades, and Additions for Compact Modular Cabinets

Installing and Cabling the Cabinets

555-233-118

Floor-Mount the Cabinet

The cabinet dimensions (with floor pedestal) are 28.5 in. (72.4 cm) high, 24.5 in. (62.2 cm) wide, and 12 in. (30.5 cm) deep. Maintain a service clearance of 12 in. (30.5 cm) on the left, right, and front of the cabinet.

Issue 1

April 2000

1-7Install the System Cabinets

indmflor KLC 110397

Figure Notes

1. Left panel (floor-mount pedestal)

2. #12 x 1-in. (2.5 cm) shoulder screws

3. 12 in. (30.5 cm) minimum from nearest object (required to service the circuit packs)

Figure 1-3. Typical Floor Mount Installation

1. Proceed to

‘‘Cable the System’’ on page 1-22

DEFINITY ECS Release 8.2 Installation, Upgrades, and Additions for Compact Modular Cabinets

Installing and Cabling the Cabinets

555-233-118

Wall-Mount the Cabinets

CAUTION:

A fully loaded system weighs 58 lb (26.3 kg). Use lifting precautions. If the doors, power unit, and circuit packs are removed, the unit weighs only 29 lb (13.1 kg).

Install Plywood Backing onto Wall

The plywood and the hardware to mount the plywood are installer-provided.

NOTE:

The following plywood dimensions account for the extra space needed to install the panels on each side of the cabinet. The cabinet is 24 in. (0.6 m) wide and each panel is 12 in. (0.3 m) wide.

Single-Cabinet Installation

1. Install a 3/4-in. (2 cm) thick sheet of 2 x 4-ft (0.6 x 1.2 m) plywood horizontally onto the wall. See Figure 1-4

Issue 1

April 2000

1-8Install the System Cabinets

The top of the plywood must be at least 54 in. (137 cm) from the floor.

2 or 3 Vertically Mounted Cabinets

1. Install a 3/4-in. (2 cm) thick sheet of 4 x 8-ft (1.2 x 2.4 m) plywood vertically onto the wall. See Figure 1-6

2 Cabinets Vertically Mounted and 1 Cabinet Horizontally Mounted

1. Install a 3/4-in. (2 cm) thick sheet of 4 x 8-ft (1.2 x 2.4 m) plywood vertically onto the wall. See Figure 1-6

2. Install a 3/4-in. (2 cm) thick sheet of 2 x 4-ft (0.6 x 1.2 m) sheet of plywood horizontally onto the wall. Position the plywood to the right of the first sheet, across from Cabinet A.

DEFINITY ECS Release 8.2 Installation, Upgrades, and Additions for Compact Modular Cabinets

Installing and Cabling the Cabinets

555-233-118

Install Cabinet A — Wall-Mount

Issue 1

April 2000

1-9Install the System Cabinets

Figure 1-4. Left Panel Used as Mounting Template

1. Place the template on the wall ensuring that the top surface is level.

2. Mark two 1/8-in. (0.3 cm) pilot holes in the mounting hole locations.

3. Remove the template from the wall.

4. Drill the two pilot holes.

5. Thread two #12 x 1-in. shoulder screws partially into the holes.

6. Set the cabinet onto the wall and align the slots with the shoulder screws. See Figure 1-5

. Slide the cabinet to the left to hold it in place. Tighten the

screws securely.

DEFINITY ECS Release 8.2 Installation, Upgrades, and Additions for Compact Modular Cabinets

Installing and Cabling the Cabinets

555-233-118

Issue 1

April 2000

1-10Install the System Cabinets

FLOOR

indmins1 KLC 110397

Figure Notes

1. #12 x 1-in. shoulder screws 2. #12 x 1-inch safety screw

Figure 1-5. Typical Wall-Mount Installation

7. Drill two lower mounting holes using the cabinet as a template.

8. Thread the 2 lower screws and tighten.

CAUTION:

Be sure the right bottom safety screw is in place and tight.

DEFINITY ECS Release 8.2 Installation, Upgrades, and Additions for Compact Modular Cabinets

Installing and Cabling the Cabinets

555-233-118

Install 2 or 3 Vertically Mounted Cabinets

Issue 1

April 2000

1-11Install the System Cabinets

48" (122 cm)

5" (12.7 cm)

Floor

indmins7 LJK 102197

Figure Notes

1. #12 x 1-inch shoulder screws 2. #12 x 1-inch safety screw

Figure 1-6. Typical Vertical Multicabinet Installation

1. Securely tighten the shoulder screws and safety screws.

DEFINITY ECS Release 8.2 Installation, Upgrades, and Additions for Compact Modular Cabinets

Installing and Cabling the Cabinets

555-233-118

Install 2 Cabinets Vertically and 1 Cabinet Horizontally

Issue 1

April 2000

1-12Install the System Cabinets

96" (244 cm)

29 1 /2"

(75 cm)

(137 cm)

Figure Notes

1. #12 x 1-inch shoulder screws

2. #12 x 1-inch safety screw

54"

Floor

5" (12.7 cm)

indmins9 LJK 102197

3. Second sheet of plywood

Figure 1-7. Typical 3-Cabinet Installation

1. Securely tighten the shoulder screws and safety screws.

DEFINITY ECS Release 8.2 Installation, Upgrades, and Additions for Compact Modular Cabinets

Installing and Cabling the Cabinets

555-233-118

Install Left and Right Panels — Wall-Mount

Issue 1

April 2000

1-13Install the System Cabinets

indmins3 KLC 091197

Figure Notes

1. Left panel 2. Right panel

Figure 1-8. Left and Right Panel Installation

1. Align the cutouts in the panels with the cabinet hinges.

2. Drill a 1/8-inch (0.3 cm) pilot hole into the wall and secure the panels with the #12 x 1-inch shoulder screws.

DEFINITY ECS Release 8.2 Installation, Upgrades, and Additions for Compact Modular Cabinets

Installing and Cabling the Cabinets

555-233-118

AC Power and Ground

CAUTION:

The system requires a dedicated AC power circuit that is not shared with other equipment and is not controlled by a wall switch. The AC receptacle must not be located under the Main Distribution Frame and must be easily accessible.

CAUTION:

The latch only removes DC power from the cabinet. Unseating the power supply removes AC power from the power supply, but not from the cabinet. To remove AC power from the cabinet, pull the AC power cord from the AC appliance connector on the rear of the cabinet.

CAUTION:

System grounding must comply with the general rules for grounding provided in Article 250 of the National Electrical Code (NEC), National Fire Protection Agency (NFPA) 70, or the applicable electric code in the country of installation.

Issue 1

April 2000

1-14AC Power and Ground

CAUTION:

AC mains wiring and testing must be perfo rmed by a qualified electrician and must conform to Article 250 of the National Electrical Code (NEC), National Fire Protection Agency (NFPA) 70, or the applicable electric code in the country of installation.

Check AC Power

Each CMC uses an auto-ranging 85 to 264 VAC power supply, 47 to 63 Hz, 330 W, 4.5 amps (100-120 VAC) or 2.3 amps (200 to 240 VAC), at 500 VA. The AC power source can be 1 phase of 120 VAC with neutral (100 VAC for Japan) with 15 amp circuit breaker, or 1 phase of 220 or 240 VAC (200 VAC for Japan) with 10 amp circuit breaker. The AC cord uses a NEMA 5-15P plug or an IE C 320 plug.

Before powering up the system, check the AC power in the equipment room using a KS-20599 digital voltmeter (DVM) (or equivalent).

1. Measure the AC voltage between the hot and neutral side of the receptacle.

2. Depending on the AC power source, verify that the meter reads 90 to 132 VAC or 180 to 264 VAC. If not, have a qualified electrician correct the problem.

3. Measure the voltage between the neutral and ground side of the receptacle.

4. Verify that the meter reads 0 VAC. If not, have a qualified electrician correct the problem.

5. When finished, set the AC mains circuit breakers to

OFF

DEFINITY ECS Release 8.2 Installation, Upgrades, and Additions for Compact Modular Cabinets

Installing and Cabling the Cabinets

555-233-118

Approved Grounds

An approved ground is the closest acceptable medium for grounding the building entrance protector, entrance cable shield, or single-point ground of electronic telephony equipment. If more than 1 type of approved ground is available on the premises, the grounds must be bonded together as required in Section 250-81 of the National Electrical Code.

Issue 1

April 2000

1-15AC Power and Ground

Grounded Building Steel

— The metal frame of the building where it is

effectively grounded by 1 of the following grounds: acceptable metallic water pipe, concrete encased ground, or a ground ring.

Acceptable Water Pipe

— A metal underground water pipe, at least 1/2-in.

(1.3 cm) in diameter, in direct contact with the earth for at least 10 ft (3 m). The pipe must be electrically continuous (or made electrically continuous by bonding around insulated joints, plastic pipe, or plastic water meters) to the point where the protector ground wire connects. A metallic underground water pipe must be supplemented by the metal frame of the building, a concrete-encased ground, or a ground ring. If these grounds are not available, the water pipe ground can be supplemented by 1 of the following types of grounds:

■ Other local metal underground systems or structures — Local

underground structures such as tanks and piping systems

■ Rod and pipe electrodes — A 5/8-in. (1.6 cm) solid rod or 3/4-in. (2 cm)

conduit or pipe electrode driven to a minimum depth of 8 ft (2.4 m)

■ Plate electrodes — Must have a minimum of 2 ft

(0.185 m2) of metallic

surface exposed to the exterior soil

Concrete Encased Ground

— An electrode encased by at least 2 in. (5.1 cm)

of concrete and located within and near the bottom of a concrete foundation or footing in direct contact with the earth. The electrode must be at least 20 feet (6.1 m) of 1 or more steel reinforcing bars or rods 1/2-in. (1.3 cm) in diameter, or at least 20 ft (6.1 m) of bare, solid copper, 4 AWG (26 mm

) wire.

Ground Ring

— A buried ground that encircles a building or structure at a depth

of at least 2.5 ft (0.76 m) below the earth’s surface. The ground ring must be at least 20 ft (6.1 m) of 2 AWG (35 mm

), bare, copper wire.

DEFINITY ECS Release 8.2 Installation, Upgrades, and Additions for Compact Modular Cabinets

Installing and Cabling the Cabinets

555-233-118

APPROVED FLOOR GROUNDS

CAUTION:

If the approved ground is inside a dedicated equipment room, then these connections must be made by a qualified electrician.

Floor grounds are those grounds on each floor of a high-rise building that are suitable for connection to the ground terminal in the riser closet and to the cabinet single-point ground terminal. Approved floor grounds may include:

■ Building steel

■ The grounding conductor for the secondary side of the power transformer

feeding the floor

■ Metallic water pipes

■ Power-feed metallic conduit supplying panel boards on the floor

■ A grounding point specifically provided in the building for the purpose

Issue 1

April 2000

1-16AC Power and Ground

Uninterruptible Power Supply

An optional UPS (Uninterruptible Power Supply) may be used for power holdover. The type of UPS depends on the holdover requirements. Holdover times vary from less than 10 minutes to up to 8 hours. The UPS must provide surge protection for all connected cabinets.

1. Connect the UPS to an electrical outlet capable of handling the power requirements of all cabinets:

a. For 100 VAC, multiply 4.5 Amps times the number of cabinets. b. For 120 VAC, multiply 3.8 Amps times the number of cabinets. c. For 200 VAC, multiply 2.3 Amps times the number of cabinets. d. For 220-240 VAC, multiply 2.0 Amps times the number of cabinets.

2. Be sure that Cabinet A (control carrier) is connected to an “unswitched” or

“always on” electrical outlet on the UPS.

DEFINITY ECS Release 8.2 Installation, Upgrades,

and Additions for Compact Modular Cabinets

Installing and Cabling the Cabinets

555-233-118

CMC Cabinet Power Switch

CAUTION:

Issue 1

April 2000

1-17AC Power and Ground

Figure Notes

1. Latch

Figure 1-9. CMC Power Supply

psdmdc RPY 01199

DEFINITY ECS Release 8.2 Installation, Upgrades, and Additions for Compact Modular Cabinets

Installing and Cabling the Cabinets

555-233-118

Connect Cabinet Grounds and Other Grounds

The following additional grounding requirements must be met:

■ The approved ground wire must be green, 6 AWG (#40) (16 mm

copper, stranded wire (this is in addition to the ground wire in the AC power cord)

■ Bond all approved grounds at the single-point ground to form a single

grounding electrode system

Install the Ground Block

1. Mount the ground block as shown in Figure 1-10.

Issue 1

April 2000

1-18AC Power and Ground

2. Make the cable connections as shown in Figure 1-11

indmingb RPY 012398

Figure Notes

1. #12 x 1-inch sh oul der screws 2. Single-p oi nt ground bloc k

Figure 1-10. Ground Block Installation to Right Panel

DEFINITY ECS Release 8.2 Installation, Upgrades, and Additions for Compact Modular Cabinets

Installing and Cabling the Cabinets

555-233-118

Issue 1

April 2000

1-19AC Power and Ground

cadmgrd1 KLC 020698

Figure Notes

1. 6 AWG (#40) (16 mm

) cabinet ground

wire

2. 6 AWG (#40) (16 mm

) ground wire to

next cabinet

3. Single-p oi nt ground b lock

Figure 1-11. Typical Cabinet Grounding

4. AC load center single-point ground

5. 10 AWG (#25) (6 mm

) wire to coupled

bonding conductor (CBC)

6. 6 AWG (#40) (16 mm

) ground wire from single-point ground block to the AC load center single-point ground

DEFINITY ECS Release 8.2 Installation, Upgrades, and Additions for Compact Modular Cabinets

Installing and Cabling the Cabinets

555-233-118

Install Coupled Bonding Conductor

The Coupled Bonding Conductor (CBC) provides for mutual inductance coupling between the CBC and the telephone cables that are exposed to lightning. The conductor can be a 10 AWG (#25) (6 mm cables, a metal cable shield around the exposed cables, or 6 spare pairs from the exposed cable.

In a high rise building, connect the CBC to an approved building ground on each floor. To provide the coupled bonding protection:

1. Connect 1 end of the conductor to a telephone cable building entrance protector ground that is connected to an approved ground.

2. Route the rest of the conductor next to the exposed telephone cables being protected until they reach the cross-connect nearest to the telephone system.

3. Position the non-exposed telephone cables at least 12 inches (30.5 cm) away from exposed telephone cables whenever possible.

4. Terminate the other end to the single-point ground block provided for the telephone system.

April 2000

) wire tie wrapped to the e xposed

Issue 1

1-20AC Power and Ground

Connect and Route Cabinet AC Power Cords

CAUTION:

The AC power cords may connect to a properly rated power distribution unit, individual AC power receptacles, or to a UPS. See Figure 1-12

1. Be sure the circuit breakers at the AC load center are

2. Connect Cabinet A to an “unswitched” or “always on” electrical outlet.

OFF

DEFINITY ECS Release 8.2 Installation, Upgrades, and Additions for Compact Modular Cabinets

Installing and Cabling the Cabinets

555-233-118

Issue 1

April 2000

1-21AC Power and Ground

$/:$<621

32:(5 3527(&7,21

*5281'2.

/,1() $8/7

pcdm5cmc RPY 011998

Figure Notes

1. Cabinet AC power cord 2. Surge-protected AC power distribution unit (120 VAC systems) (optional)

Figure 1-12. Routing AC Power Cords to a Power Distribution Unit

DEFINITY ECS Release 8.2 Installation, Upgrades, and Additions for Compact Modular Cabinets

Installing and Cabling the Cabinets

555-233-118

Cable the System

Install Processor Interface Cable — Cabinet A Only and TDM/LAN Bus Terminator

Issue 1

April 2000

1-22Cable the System

cadm1mds LJK 060297

Figure Notes

1. TDM/LAN bus terminator 2. Processor interface cable (cabinet A only)

Figure 1-13. System Cable Connections

1. Connect the Processor Interface Cable to slot 1 of Cabinet A. See Figure

1-13.

2. Install the TDM/LAN bus terminators.

DEFINITY ECS Release 8.2 Installation, Upgrades, and Additions for Compact Modular Cabinets

Installing and Cabling the Cabinets

555-233-118

Cable the Multi-Cabinet System — Wall-Mount

Vertically Mounted System

1. Route the TDM/LAN bus cables through the cable trough. See Figure 1-14

Issue 1

April 2000

1-23Cable the System

cadmtrm3 KLC 011698

Figure Notes

1. TDM/LAN bus terminator (at

2. Vertical TDM/LAN bus cable (List 8)

each end of the TDM/LAN bus)

Figure 1-14. TDM/LAN Bus Cables and Terminators

DEFINITY ECS Release 8.2 Installation, Upgrades, and Additions for Compact Modular Cabinets

Installing and Cabling the Cabinets

555-233-118

Vertically and Horizontally Mounted System

Only 1 horizontal TDM/LAN Bus cable is allowed per system. See Figure 1-15.

1. Route the TDM/LAN bus cables through the cable trough.

Issue 1

April 2000

1-24Cable the System

indmin10 KLC 011698

Figure Notes

1. TDM/LAN bus terminator (at each end of the TDM/LAN bus)

2. Vertical TDM/LAN bus cable (List 8)

Figure 1-15. System Cable Connections

3. Horizontal TDM/LAN bus cable (List 9)

DEFINITY ECS Release 8.2 Installation, Upgrades, and Additions for Compact Modular Cabinets

Installing and Cabling the Cabinets

555-233-118

Install Main Distribution Frame and External Modem

Install the MDF

CAUTION:

The optional MDF is a special 110 cross-connect field and is smaller than standard 110 cross-connect hardware. Do not install standard 110 hardware inside the right panel.

NOTE:

The depth of any equipment installed inside the right panel must not exceed 2.5 inches (6.3 cm), otherwise the right cover panel cannot fit over the right panel.

The optional MDF represents the trunk/auxiliary field.

1. Mount the optional MDF to the right panel using one of the following:

Issue 1

April 2000

1-25Install Main Distribution Frame and External Modem

■ For bottom-mount MDFs, refer to

Modem’’ on page 1-25.

■ For top-mount MDFs (in cabinets other than cabinet A),

refer to

■ For dual-mount MDFs, refer to

‘‘Top-Mounted MDF’’ on page 1-27

Bottom-mounted MDF with Modem

1. On the rear of the MDF, cut the cable tie securing the top 5 cables to the MDF mounting frame.

2. Mount the MDF to the right panel. See

3. Secure all 10 cables to the bottom left bracket on the MDF with a cable tie.

‘‘Bottom-mounted MDF with

‘‘Dual MDFs’’ on page 1-28

Figure 1-16

DEFINITY ECS Release 8.2 Installation, Upgrades, and Additions for Compact Modular Cabinets

Installing and Cabling the Cabinets

10109988776

554433221

555-233-118

Issue 1

April 2000

1-26Install Main Distribution Frame and External Modem

cadmrpnl KLC 070698

Figure Notes

1. Main distribution frame (MDF)

2. External modem

3. Pr ocessor interface cable (connect P2 to modem, connect J1 to cable 1 on MDF)

4. #12 x 1-inch shoulder screw

Figure 1-16. Typical Bottom-Mount MDF and Modem Cable Routing

DEFINITY ECS Release 8.2 Installation, Upgrades, and Additions for Compact Modular Cabinets

Installing and Cabling the Cabinets

555-233-118

Top-Mounted MDF

Use this configuration when the cabinet is wall-mounted, and is near the floor. Do not use this configuration for cabinet A.

10109988776

Issue 1

April 2000

1-27Install Main Distribution Frame and External Modem

554433221

cadmmdf2 KLC 070698

Figure Notes

1. Main distribution frame (MDF)

3. #12 x 1-inch shoulder screw

2. Connect cable 1 to slot 1

Figure 1-17. Typical Top-Mount MDF Cable Routing

1. On the rear of the MDF, cut the cable tie securing the top 5 cables to the MDF mounting frame.

2. Mount the MDF to the right panel. See Figure 1-17

3. Secure all 10 cables to the bottom left bracket on the MDF with a cable tie.

DEFINITY ECS Release 8.2 Installation, Upgrades, and Additions for Compact Modular Cabinets

Installing and Cabling the Cabinets

555-233-118

Dual MDFs

Use this configuration when mounting two MDFs.

10109988776

Issue 1

April 2000

1-28Install Main Distribution Frame and External Modem

554433221

Figure Notes

1. Main distribution frame (MDF)

2. Connect cable 1 to slot 1

3. To external modem

cadmrpn2 KLC 070698

Figure 1-18. Preliminary Dual-Mount MDF Cable Routing

DEFINITY ECS Release 8.2 Installation, Upgrades, and Additions for Compact Modular Cabinets

Installing and Cabling the Cabinets

555-233-118

1. On the rear of the MDF, cut the cable tie securing the top 5 cables to the MDF mounting frame.

Issue 1

April 2000

1-29Install Main Distribution Frame and External Modem

2. Mount the MDF to the bottom position on the right panel. See Figure 1-18

3. Secure all 10 cables to the bottom left bracket on the MDF with a cable tie.

4. Mount the second MDF to the top position on the right panel. See

Figure 1-19

10109988776

554433221

cadmrpn3 LJK 050198

Figure Notes

1. Main distribution frame (MDF) 2. #12 x 1-inch shoulder screw

Figure 1-19. Typical Dual-Mount MDF Cable Routing

DEFINITY ECS Release 8.2 Installation, Upgrades, and Additions for Compact Modular Cabinets

Installing and Cabling the Cabinets

555-233-118

Install the External Modem

The U.S. Robotics Sportster Model USR 33.6 EXT external modem is the recommended external modem. Release 8 CMC systems operate with this modem set to the factory default settings.

NOTE:

You may use a locally obtained, type-approved external modem (33.6 kbps and V.34 protocol). Contact your Lucent Technologies representative for more information.

Issue 1

April 2000

1-30Install Main Distribution Frame and External Modem

1. Use installer-provided hardware to mount the modem. See Figure 1-16

. If top-mounting MDFs or dual-mounting MDFs, mount the external modem to the plywood in a location which allows the standard connection to the interconnect cable.

2. Route the MODEM cable (P2) from the Processor Interface Cable through the cable trough and to the modem.

3. Connect the cable to the modem. Refer to

‘‘Processor Interface Cable

Pinout’’ on page 2-11 for the pinout of the modem cable.

4. Plug the modem power cord into an electrical outlet and turn on the modem.

5. Modem setup and administration is performed in

‘‘External Modem Option

Settings’’ on page 1-107.

DEFINITY ECS Release 8.2 Installation, Upgrades, and Additions for Compact Modular Cabinets

Installing and Cabling the Cabinets

555-233-118

Install Equipment Room Hardware

Refer to DEFINITY Communications System Generic 1 and Generic 3 Main Distribution Field Design, 555-230-630, for more information.

Cross-Connect the Cabinets to the MDF

1. Cross-connect the ports on the trunk and line circuit packs to the MDF as required. See Figure 1-21 on page 1-37

Allowable Circuit Packs for CMC

Table 1-2 lists the circuit packs that can be used with Release 8.

Table 1-2. Circuit Packs and Circuit Modules

Apparatus Code Name

Issue 1

April 2000

1-31Install Equipment Room Hardware

ED-1E568

DEFINITY AUDIX R3 System (TN2169) (TN567)

ED-1E568

CallVisor ASAI over the DEFINITY (LAN) Gateway R1 (TN2170)

J58890M-1 (TN801)

CallVisor ASAI/Call Visor PC/LAN over the DEFINITY

LAN Gateway R2 NAA1 Fiber Optic Cable Adapter Circuit Pack TN429/B/C/D Analog Direct Inward/Outward Dialing (DIOD) Central

Offic e Trunk TN433 Voice Synthesizer TN436B Direct Inward Dialing Trunk TN439 Tie Trunk TN459B Direct Inward Dialing Trunk TN464F DS1 Interface - T1, 24 Channel - E1, 32 Channel TN465C Central Office Trunk TN497 Tie Trunk - Italy TN556B/C/D ISDN-BRI 4-Wire S/T-NT Interface TN568 Definity AUDIX Slim

Continued on next page

DEFINITY ECS Release 8.2 Installation, Upgrades, and Additions for Compact Modular Cabinets

Installing and Cabling the Cabinets

555-233-118

Table 1-2. Circuit Packs and Circuit Modules — Continued

Apparatus Code Name

TN570C Expansion Interface TN725B Speech Synthesizer TN726B Data Line TN744C/D Call Classifier - Detector TN746B Analog Line TN747/B Central Office Trunk TN750B/C Announcement TN753/B Direct Inward Dialing Trunk TN754/B/C Digital Line 4-Wire DCP TN758 Pooled Modem

Issue 1

April 2000

1-32Install Equipment Room Hardware

TN760B/C/D/E Tie Trunk TN762/B Hybrid Line TN763B/C/D Auxiliary Trunk TN767B/C/D/E DS1 Interface - T1, 24 Channel T N789 Radio Controller TN791 Analog Line TN793 Analog Line, 24-Port, 2-Wire TN797 Analog CO Trunk and Line Combo TN798B Processor TN799B Control LAN (C-LAN) TN801 LAN Gateway Interface TN802B IP Interface Assembly TN1654 DS1 Converter TN2135 Analog Line TN2140B Tie Trunk TN2146 Direct Inward Dialing Trunk TN2147C Central Office Trunk TN2181 Digital Line - 16 ports, 2-Wire DCP

Continued on next page

DEFINITY ECS Release 8.2 Installation, Upgrades, and Additions for Compact Modular Cabinets

Installing and Cabling the Cabinets

555-233-118

Table 1-2. Circuit Packs and Circuit Modules — Continued

Apparatus Code Name

TN2182/B Tone-Clock - Tone Detector and Call Classifier TN2183 Analog Line TN2184 DIOD Trunk TN2185/B ISDN-BRI 4-Wire S/T-TE Interface (Trunk Side) TN2198 IS DN-BRI 2-Wire U Interface TN2199 Central Office Trunk TN2214/B Digital Line, 24-Port, 2-Wire DCP - Category B TN2215 Analog Line, 16-Port 2-Wire - Category B TN2224/B Di gi t a l L i n e , 2 4 - Port , 2 - Wi r e DCP TN2305 ATM Interface (Multimode)

Issue 1

April 2000

1-33Install Equipment Room Hardware

TN2306 ATM Interface (Single-Mode) TN2313 DS1 Interface TN2464 DS1 Interface - T1, 24 Channel - E1, 32 Channel TN2793/B Analog Line 24-Port

Circuit Pack Installation

CAUTION:

When handling circuit packs or any components of a DEFINITY System, always wear an authorized wrist ground strap. Connect the strap to the ground connector provided on the system cabinet.

NOTE:

Unlike previous releases of DEFINITY, the circuit pack slots in the CMC are not purple or white. This is because all of the circuit pack slots in the CMC

are “universal slots.” That is, any slot can contain any type of port circuit pack.

Continued on next page

DEFINITY ECS Release 8.2 Installation, Upgrades, and Additions for Compact Modular Cabinets

Installing and Cabling the Cabinets

555-233-118

Circuit Pack Slot Loading

In general, load the circuit packs so that the number of packs in each cabinet is about equal and the trunks and lines are evenly distributed among the cabinets. See Figure 1-20

1. Install the TN798B Processor circuit pack in slot 1 of Cabinet A.

2. Install the TN2182B Tone-Clock circuit pack in slot 2 of Cabinet A.

Load all port circuit packs starting with Cabinet A first, Cabinet B next, and so forth. Return to Cabinet A and repeat.

3. A TN744D Call Classifier/Tone Detector circuit pack may be required in systems with heavy traffic. Install the TN744D into any port slot. Slot 1 of Cabi net B is preferred .

Issue 1

April 2000

1-34Install Equipment Room Hardware

4. See Table 1-3

for the recommended circuit pack layout for the control

carrier and the port carriers.

DEFINITY ECS Release 8.2 Installation, Upgrades, and Additions for Compact Modular Cabinets

Installing and Cabling the Cabinets

555-233-118

Issue 1

April 2000

1-35Install Equipment Room Hardware

MAJ

MIN

ON AUTO OFF

USE IN

CARD

AMBER

XFR EM

XFER ER EM

RED

scdmlft2 EWS 102798

Figure Notes

1. Line circuit pack slots 2. Trunk circuit pack slots

Figure 1-20. Control Carrier Slot Layout

Table 1-3. Circuit Pack Installation Order (Loading)

Function Apparatus Code Load From Notes

Processor TN798B Slot 1 in Cabinet

Tone Clock TN2182B Slot 2 in Cabinet

Call Classifier/ Tone Detector

TN744D Slot 1 of Cabinet BIf slot is not available, load in

first available slot from slot 1.

Continued on next page

DEFINITY ECS Release 8.2 Installation, Upgrades, and Additions for Compact Modular Cabinets

Installing and Cabling the Cabinets

555-233-118

April 2000

Table 1-3. Circuit Pack Installation Order (Loading) — Continued

Function Apparatus Code Load From Notes

DEFINITY AUDIX ED-1E5 46 (TN566/TN567) Slots 6-9 TN566 and TN567 require 4

slots with overlap into area to the left of slot 6. In any other position, 5 slots are required.

DEFINITY AUDIX Slim

Announc ement TN750C Lower Left Speech Synthesizer TN725B Lower Left DS1/E1, ISDN PRI TN464F, TN767E,

ISDN-BR I Trunk TN2185 Lower Left Maximum of 4 CO Trunk TN747B, TN465C,

DID Trunk TN753, TN2139, T N2146,

Tie Trunk TN760D, TN497, TN2140B Lower Left Auxiliary Trunk TN763B Lower Lef t Modem Pool TN758 Lower Left Data Line TN726 Upper Left Digita l Lin e TN754C, TN2181,

Analog Line TN746B, TN2183, TN2215,

Hybrid Line TN762B Upper Left MET Line TN735 Upper Lef t Radio Controller TN789 Upper Left ISDN-BRI 4-Wire

S/T-NT Line (A-Law)

TN568 Slot 6 TN568 requires 2 slots.

If there is a fiber-optic interface and slot 6 is occupied, use slots 7 and 8.

Lower Left Maximum of 8 ISDN-PRI. Total TN2242, TN2464 (Guestworks and BCS only)

Lower Left TN2199, TN2147C, TN2138, TN438B

Lower Left TN436B, TN459B

Upper Left TN2224/B, TN2214/B

Upper Left TN468B,TN791, TN2214

TN556C Upper Left

numb er of ISDN-PRI plus numb er of ISDN-BRI circuit packs must not exceed 8.

Issue 1

1-36Install Equipment Room Hardware

Continued on next page

1. Cross-connect the port circuit packs to the MDF. See Figure 1-21.

DEFINITY ECS Release 8.2 Installation, Upgrades, and Additions for Compact Modular Cabinets

Installing and Cabling the Cabinets

555-233-118

Issue 1

April 2000

1-37Install Equipment Room Hardware

233

22211

16 258

12 21

71625817

514233122161524918

110194132221120

w/ E&M Signaling

Port Tie Trunk

Port MET Line 4

4 Port Tie Trunk

Port Analog 8

Port CO

10 19

918

615

Port Data Line8

Port Digital8

Port DID8

Port Hybrid8

Port BRI12

Port Analog

Port Digital

Port Analog

Port Digital

DS1

widfccf2 EWS 102798

Figure 1-21. Example MDF Connections

DEFINITY ECS Release 8.2 Installation, Upgrades, and Additions for Compact Modular Cabinets

Installing and Cabling the Cabinets

555-233-118

Off-Premises Circuit Protection

Pr otection from hazardous voltages and currents is required for all off-premises (out of building) trunks, lines, and terminal installations. Both over-voltage protection (lightning, power induction, and so forth), and sneak current protection are required. Sneak current protectors must be either UL listed/CSA certified, or must comply with local safety standards.

Sneak current protectors must have a maximum rating of 350 mA, and a minimum voltage rating of 600V, or as required by local regulations. The following devices protect the system from over-voltages:

■ Analog trunks use the 507B sneak protector or equivalent. Over-voltage

protection is normally provided by the local telephone company.

■ Analog voice terminals use one of the following types of combined

over-voltage and sneak current protection, or equivalent:

— Carbon block with heat coil for UL code 4B1C — Gas tube with heat coil for UL code 4B1E-W

Issue 1

April 2000

1-38Install Equipment Room Hardware

— Solid state with heat coil for UL code 4C1S

■ DCP and ISDN-BRI terminals use the solid state 4C3S-75 with heat coil

protector, or equivalent

■ DS1/E1/T1 circuits require isolation from exposed facilities. This isolation

may be provided by a CSU (T1), LIU (E1), or other equipment that provides equivalent protection

DEFINITY ECS Release 8.2 Installation, Upgrades,

sneakCJL032096

and Additions for Compact Modular Cabinets

Installing and Cabling the Cabinets

555-233-118

Install Sneak Fuse Panels

Sneak current protection is required between the incoming RJ21X or RJ2GX network interface and the system for both trunk and off-premises circuit packs. The model 507B sneak current fuse panel, or equivalent, is recommended for sneak current protection. See Figure 1-22

Sneak

Current

Protector

507B

Issue 1

April 2000

1-39Install Equipment Room Hardware

Figure Notes

1. Sneak current protector (PEC 63210)

2. 25-pair male connector (In)

3. 25-pair female connector (Out)

4. 220029 fuses (inside panel). Use a small screwdriver to pry top cover off

Figure 1-22. Model 507B Sneak Fuse Panel

DEFINITY ECS Release 8.2 Installation, Upgrades, and Additions for Compact Modular Cabinets

Installing and Cabling the Cabinets

555-233-118

Approximately 8 inches (20 cm) of horizontal wall space is required for each column of sneak fuse panels. Connector cables connect the network interface to the sneak fuse panel. Also, use 157B connecting blocks equipped with SCP-110 protectors for sneak current protection.

NOTE:

Sneak current protectors with a rating of 350 mA at 600 Volts must be UL listed for United States installations and CSA certified for Canadian installations. The panel contains two 25-pair connectors, fuse removal tool, and fifty 220029 Sneak Fuses (and 2 spares). Use the SCP-110 protectors with 110-type hardware and on the 507B Sneak Fuse Panel. The SCP-110 Pr otectors can be ordered separately and installed on the 157B connecting block. Fifty protectors are required per block.

1. Install the 507B near the network interface or MDF with locally-obtained #12 x 3/4-inch screws (or equivalent).

Issue 1

April 2000

1-40Install Equipment Room Hardware

DEFINITY ECS Release 8.2 Installation, Upgrades, and Additions for Compact Modular Cabinets

Installing and Cabling the Cabinets

555-233-118

Table 1-4 is a pinout of the cable wiring and associated fuse numbers.

Table 1-4. Sneak Fuse Connector Pinout

Issue 1

April 2000

1-41Install Equipment Room Hardware

Connector Pin Numbers

Pair/Fuse Number

26/1 1 27/2 2 28/3 3 29/4 4 30/5 5 31/6 6 32/7 7 33/8 8 34/9 9 35/10 10 36/11 11 37/12 12 38/13 13 39/14 14 40/15 15 41/16 16 42/17 17 43/18 18 44/19 19 45/20 20 46/21 21 47/22 22 48/23 23 49/34 24 50/25 25

DEFINITY ECS Release 8.2 Installation, Upgrades, and Additions for Compact Modular Cabinets

Installing and Cabling the Cabinets

555-233-118

Label the Main Distribution Frame

Figure 1-23 shows the graphic symbols used on the supplied labels for the

system, cross-connections, information outlets, and cables.

1. Write the floor and building identification on each label as required.

2. Insert the labels into the plastic holders.

3. Snap the holders into the appropriate locations on the MDF.

Issue 1

April 2000

1-42Install Equipment Room Hardware

r758422i LJK 050996

Figure Notes

1. Floor and building identification

2. Cabinet

3. Carrier

4. Slot

6. Site/satellite closet

7. Tie circuit

8. Floor

9. Building

5. Information outlet

Figure 1-23. Label Graphic Symbols and Nomenclature

1. Label the cables as required using the supplied labels. Label code number 220A (comcode 103970000) contains all required labels.

DEFINITY ECS Release 8.2 Installation, Upgrades, and Additions for Compact Modular Cabinets

Installing and Cabling the Cabinets

555-233-118

Set Up System Access

To administer the DEFINITY ECS, you must be able to access the system. With Release 7 and later, the DEFINITY ECS no longer requires a dedicated management terminal, known as a system administration terminal, or SAT. Personal computers and technician laptops equipped with DEFINITY Site Administration (DSA) or DEF INIT Y Network Administration (DNA) software are the primary support access for system initialization, aftermarket additions, and ongoing maintenance. For information on DSA or DNA, go to

http://www.bcs.lucent.com/sales_market/definity. SAT is now an option. The following sections describe

■ Installing and using DSA

■ Connecting a PC

Installing and using DSA

Issue 1

April 2000

1-43Set Up System Access

To install DSA, your PC or laptop must meet the minimum requirements described in Table 1-5

NOTE:

For information on DNA, refer to DEFINITY Network Administration Release 2 Installation and Configuration.

Table 1-5. Minimum requirements to run DSA

Operating systems:

MS Windows 95 MS Windows 98 MS Windows NT 4.0 MS Windows 2000

Processor/RAM: 486SL/66/16 MB Pentium/32 MB Pentium/64 MB Pentium-class 300 MHz/64 MB

Graphics adapter SVGA with minimum screen resolution of 800 x

600 Floppy disk drive 3-1/2 in. 1.44-MB floppy disk drive CD-ROM CD-ROM drive (required to install DSA from

CD) Available hard disk space A minimum of 100-MB free hard disk space is

required. The requirement for disk space

depends on the size and number of

configuration data sets.

DEFINITY ECS Release 8.2 Installation, Upgrades, and Additions for Compact Modular Cabinets

Installing and Cabling the Cabinets

555-233-118

Table 1-5. Minimum requirements to run DSA

Printer port Standard PC or network printer port is required

for connecting to a printer to produce station

button labels. Network adapter May be required for network access to AUDIX

and other network-connected systems. Free serial ports One free serial port capable of 9600-bps

operation is required for a connection to each

serial device (ADU, modem, data module) or

direct connection to a DEFINITY ECS.

We recommend that PCs have at least a

16550A UART or 16550A UART simulator

(capable of 56 kbps DTE-speed connections).

USB and internal modems should emulate this

hardware.

A second serial port is required for

simultaneous connection to AUDIX through a

serial connection.

Issue 1

April 2000

1-44Set Up System Access

To install DSA on your computer, place the DSA CD in the CD-ROM drive and follow the installation instructions. To start DSA or DNA, click on

Programs > DEFINITY Site Administration

Start >

DSA supports SAT emulation, which is directly equivalent to using the SAT (see

Figure 1-24

graphically enhanced DEFINITY interface (GEDI) (see Figure 1-25

). DSA also supports a whole range of other features, including the

) and Data Import. For more information refer to the Help, Guided Tour, and Show Me accessed from the DSA Help menu.

DEFINITY ECS Release 8.2 Installation, Upgrades, and Additions for Compact Modular Cabinets

Installing and Cabling the Cabinets

555-233-118

Issue 1

April 2000

1-45Set Up System Access

Figure 1-24. Typical DSA screen in SAT emulation mode

Figure 1-25. Typical DSA screen in GEDI mode

DEFINITY ECS Release 8.2 Installation, Upgrades, and Additions for Compact Modular Cabinets

Installing and Cabling the Cabinets

555-233-118

Connecting a PC

You can connect your PC or laptop to the DEFINITY ECS R8si/R8csi/R8r either directly (50 ft [15 m] or less) or remotely through a data module or a modem.

Connecting directly to the DEFINITY ECS

You can connect directly from the PC if it is 50 ft (15 m) or less from the DEFINITY ECS.

Issue 1

April 2000

1-46Set Up System Access

1. Connect the equipment as shown in Figure 1-26

. See Table 1-6 for the

connections by platform.

CAUTION:

For a DC-powered system, install an EIA 116A Isolator (comcode

106005242) in series between the cable and the TERM, DOT, or Terminal Active connector.

cydfdr23 LJK 021800

Figure Notes

1. DEFINITY ECS (PPN on R8r)

2. 50-ft (15-m) M25A cable

3. 9-to-25 pin adapter if needed

4. Computer with DSA or DNA

(RS-232)

Figure 1-26. A typical direct connection

Table 1-6. PC connections by platform

Reliability R8r R8si R8csi

Standard Terminal Active TERM TERM High/Critical —DOT—

DEFINITY ECS Release 8.2 Installation, Upgrades, and Additions for Compact Modular Cabinets

Installing and Cabling the Cabinets

555-233-118

Connecting remotely to the DEFINITY ECS

To connect remotely to the system, you need one of the following pieces of hardware:

■ Connecting through a data module

■ Connecting by analog modem to INADS port

Connecting through a data module

If more than 50 ft (15 m) from the DEF INITY ECS , you can connect the PC thr ough a data module.

Issue 1

April 2000

1-47Set Up System Access

1. Connect the equipment as shown in Figure 1-27

cydfdr08 KLC021500

Figure Notes

1. DEFINITY ECS

8.Data module power supply

2. Digital line circuit pack

3. B25A 25-pair cable

4. Main distribution frame (MDF)

5. 103A or Lucent modular wall jack

6. 400B2 adapter

9. 7-ft (2-m) D8W modular cord

10. Data module (8400B+ [top] or 7400B+ [bottom])

11. 50-ft (15-m) M25A cable (RS-232)

12. Computer with DSA or DNA

7. D6AP power cord (8400B+ only)

Figure 1-27. A typical remote connection using an 8400B (top) or 7400B

(bottom) data module

DEFINITY ECS Release 8.2 Installation, Upgrades, and Additions for Compact Modular Cabinets

Installing and Cabling the Cabinets

555-233-118

NOTE:

With a 7400A or 7400B+ data module, use a 4-wire digital line circuit pack. With the 8400B+ data module, use a 2-wire digital line circuit pack.

In place of a 7400B+ data module, you can use a 7400A data module. If you do, set the 7400A to DCE Mode.

2. Wire the digital line circuit pack to the wall jack as follows:

■ For a 7400B+, wire to the second and third pair of the wall jack.

■ For an 8400B+, wire to the first pair of the wall jack.

Setting the Data Module to DCE Mode

1. Cycle the power to the data module. The unit performs a self test and displays its operating mode.

2. Observe the display.

a. If the display reads DCE mode, proceed to the next section.

Issue 1

April 2000

1-48Set Up System Access

b. If the display reads DTE mode, complete the following steps:

1. Remove the power cord from the unit.

2. Remove the cover from the top rear of the unit.

3. Remove the mode select circuit board and turn it around.

4. Replace the cover.

5. Connect the power cord.The unit performs a self test.

NOTE:

The power LED must be steady on. If the power LED is blinking, the data module is not communicating with the DEFINITY ECS. Check the wiring at the MDF, wall jacks, and data module.

Adding a Data Module to the Switch

1. Add t he data module to the s witch by ente ring

add data-module next

2. In the

3. In the

Type:

field, type

Port:

field, type the location of the digital line circuit pack

pdm

and press

connected to the data module (for example 01A1503).

4. If system access ports and hunt groups have not been set up, set them up. Refer to DEFINITY ECS Release 8 Administrator’s Guide.

add data-module

Enter.

number

DEFINITY ECS Release 8.2 Installation, Upgrades, and Additions for Compact Modular Cabinets

Installing and Cabling the Cabinets

555-233-118

Testing Hardware Connections

In the following table, find your data module and follow the instructions for testing and troubleshooting it.

Type o f Data Module How to Test and Troubleshoot

8400B+ The red LED should be steady on. If the red and green LEDs

are blinking, the unit is not communicating with the DEFINITY ECS. Check the wiring at the MDF, wall jack, and the 8400B+.

7400B+ The Power and TR LEDs should be steady on. If the Power

and Data LEDs are blinking, the unit is not communicating with the DEFINITY ECS. Check the wiring at the MDF, wall jack, and the 7400B+.

7400A Set the 7400A to DCE mode. The Power LED must be steady

on. The DTR, DSR, DCD, RTS, and CTS settings must be highlighted in the display. If the Power LED is blinking, the data module is not communicating with the DEFINITY E CS. Check the wiring at the MDF, wall jack, and 7400A.

Issue 1

April 2000

1-49Set Up System Access

Setting the Data Module Operating Mode

1. Connect an RS-232 cable from the DSA/DNA computer to the data module. If you are using an 8400B+, connect the DSA/DNA computer to the data module using the supplied adapter cable.

2. Using a terminal emulator, connect to the serial port to which the data module is connected, and set the emulation to vt100 mode.

3. Typ e AT at the prompt and press OK. If it does not, be sure that a standard RS-232 or EIA-232 cable is connected (not a null modem cable).

4. Set the operating mode as described in the following table.

Type o f Data Module How to set the operating mode

8400B+ Type

AT&F

Enter. T ype

mode into non-volatile RAM.

7400A 7400B+

AT&F

Type

Enter to save the operating mode into non-volatile RAM.

5. Disconnect the terminal from the data module and reconnect the data module to the system cabling.

Enter.The data module should return an

and press

AT&WØ

an d pr es s Enter to save the operating

and press

Enter. Type

ATS24=1

AT&WØ

and press

DEFINITY ECS Release 8.2 Installation, Upgrades, and Additions for Compact Modular Cabinets

Installing and Cabling the Cabinets

555-233-118

Setting the 7400B+ Options

1. Set the DIP switches for the 7400B+ using Table 1-7. The DIP switches are located inside the unit. To access them

a. Remove the power cord from the unit. b. Remove the cover from the top rear of the unit. c. Set the dip switches. d. Replace the cover. e. Connect the power cord.The unit performs a self test.

2. If any switches were set in step 1, cycle the power to the data module so that the firmware can read the new switch settings.

Table 1-7. DIP Switch Settings (7400B+)

Option DIP Switch Setting

No Telephone Connected 1 On Data Metering 5 Off Suppress Touch-tone/Dial Tone 6 Off Speakerphone Disable/Enable 7 Off Busyout on Local Loop 8 Off Unused DIP Switches 2, 3, and 4 Off

Issue 1

April 2000

1-50Set Up System Access

Connecting by analog modem to INADS port

You can connect a PC to the DEFINITY ECS through a modem.

DEFINITY ECS Release 8.2 Installation, Upgrades, and Additions for Compact Modular Cabinets

Installing and Cabling the Cabinets

555-233-118

1. Connect the equipment as shown in Figure 1-28.

Issue 1

April 2000

1-51Set Up System Access

cydr0031 LJK 021800

1010

Figure Notes

1. Computer with DSA or DNA

2. 50-ft (15-m) M25A cable (RS-232— 9-25 pin adapter if needed)

3. Analog modem

4. 7-ft (2-m) D2W modular cord

5. 103A or Lucent modular wall jack

6. Main distribution frame (MDF)

7. Analog line circuit pack

8. Analog trunk circuit pack Packet data line (R8r) Data line (R8r)

9. DEFINITY ECS

10. B25A cable

11. Analog line

Figure 1-28. A typical remote connection through a modem to access a remote

DEFINITY ECS

Follow these steps to connect to the DEFINITY ECS through a modem.

1. Connect the computer to the modem.

2. Connect an analog telephone line to the left most analog-line port on the modem.

3. Make sure that the modem’s DIP switches are set as shown in

Table 1-8

DEFINITY ECS Release 8.2 Installation, Upgrades, and Additions for Compact Modular Cabinets

Installing and Cabling the Cabinets

555-233-118

Table 1-8. U.S. Robotics Modem Dip Switch Settings

Dip Switch Setting Description

Issue 1

April 2000

1-52Set Up System Access

DOWN

DOWN UP

DOWN

Data Terminal R eady normal

Data Terminal Ready override

Verbal resu lt codes

Numeric result codes

Suppress result codes

Display result codes

Echo offline commands

No echo, offline commands Auto answer on first ring or higher if specified in

NVRAM

Auto answer off

DOWN

Carrier detect normal

Carrier detect override

Load NVRAM defaults

Load factory defaults

Dumb mode

Smart mode

4. Plug the modem into an AC power outlet.

5. Turn on the modem.

6. Set the following port settings:

Baud rate 9600 Data bits 8 Parity None Stop bits 1 Flow control hardware

DEFINITY ECS Release 8.2 Installation, Upgrades,

and Additions for Compact Modular Cabinets

Installing and Cabling the Cabinets

555-233-118

Set Ringing Option

Issue 1

April 2000

1-53Set Ringing Option

evdmring LJK 06249

Figure Notes

1. Ringing option switch

Figure 1-29. Ringing Option Selection

1. Check the ringing option for the country of installation (20 Hz, 25 Hz, or 50 Hz). See Figure 1-29

2. Set the slide switch to the proper setting. Refer to the label on the side of the power unit.

DEFINITY ECS Release 8.2 Installation, Upgrades, and Additions for Compact Modular Cabinets

Installing and Cabling the Cabinets

555-233-118

Activate and Administer the System

NOTE:

The Release 8 CMC is a PPN cabinet only. Cabinet A is the control carrier and Cabinets B and C are port carriers.

Power Up System

Single Cabinet Installations

1. Insert the translation card into the slot in the TN798B Processor circuit pack.

2. Fully seat the 650A Power Unit in the cabinet.

3. Set the circuit breaker at the AC load center to ON. This starts the system reboot process. In about 2 minutes, verify the screen displays:

Issue 1

April 2000

1-54Activate and Administer the System

Multi-Cabinet Installations

1. Insert the translation card into the slot in the TN798B Processor circuit pack.

NOTE:

Power up the port carriers first and the control carrier last.

2. Set the circuit breakers at the AC load center to ON.

3. Insert the power supplies into the port cabinets.

4. Insert the power supply into the control carrier. This starts the system reboot process. In about 2 minutes, verify the terminal screen displays:

System Administration

NOTE:

init

An CSA (Customer Software Associate) to assign the Offer Category option. Maintenance capabilities to initialize the system and access to either an internal or external modem are the only command options available until the Offer Category option is set.

1. To use Access Security Gateway (ASG), see

Security Gateway’’.

Appendix C, ‘‘Access

DEFINITY ECS Release 8.2 Installation, Upgrades, and Additions for Compact Modular Cabinets

Installing and Cabling the Cabinets

555-233-118

Log into the System

Issue 1

April 2000

1-55Activate and Administer the System

1. Verify the screen displays:

2. Typ e

3. Typ e

craft

crftpw

and press

The screen displays the system software version and the terminal types.

Terminal Type (513, 715, 4410, 4425, VT220): [513]

4. Enter the type of management terminal (such as 715) and press

Check System Status

The system status may suggest problem areas. Refer to DEFINITY Enterprise Communications Server Release 8 Maintenance for R8csi.

1. Typ e

status system all-cabinets

2. Verify the screen displays a service state of in for all appropriate areas.

Change Customer Options

Refer to DEFINITY Enterprise Communications Server Release 8 Administrator’s Guide to view a sample screen.

The following features are part of the basic software package and do not require activation. They default to y (yes) on the Optional Features form.

and press

Enter.

Enter. The pas swo rd does n ot dis play a s it is t yped.

Enter.

and press

Enter.

■ ARS/AAR Partitioning

■ Emergency Access to Attendant

■ Hospitali ty (B as ic)

■ Service Observing

NOTE:

init

CSA (Customer Softwar e Administrator) to perform this function.

1. Enter

change system-parameters customer-options

and press

Enter.

2. Using the customer order, enable the optional features purchased by the customer (as shown by PEC codes on the customer order).

3. Press

Enter when finished to submit the form.

4. Logoff and then log back in to affect the customer option changes.

DEFINITY ECS Release 8.2 Installation, Upgrades, and Additions for Compact Modular Cabinets

Installing and Cabling the Cabinets

555-233-118

Set Country Options

Some country options need to be set to turn off the red alarm LEDs.

Issue 1

April 2000

1-56Activate and Administer the System

1. Enter

change system-parameters country options

screen similar to Screen 1-1

Companding Mode

the

and press

Enter. A

displays on the terminal. The cursor is set on

field.

Screen 1-1. Typical System Parameters Country-Options Screen

2. The default (United States) companding mode is mu-Law. If the country uses A-Law companding, type A-Law. Press

Enter when finished.

NOTE:

Other items eventually need to be entered on this screen, but this is all that is needed to turn the red alarm LEDs off.

3. Set the country codes as needed in the following fields. Refer to Table 1-9 for the country codes. The United States country code (1) is shown in the example above.

■ Digital Loss Plan:

■ Analog Ringing Cadence:

■ Analog Line Transmission:

DEFINITY ECS Release 8.2 Installation, Upgrades, and Additions for Compact Modular Cabinets

Installing and Cabling the Cabinets

555-233-118

Table 1-9. Country Codes

Country Code Country Code

USA 1 France 12 Australia 2 Germany 13 Japan 3 Czechoslovakia 14 Italy 4 Russia 15 The Netherlands 5 Argentina 16 Singapore 6 Greece 17 Mexico 7 China 18 Belg i um 8 Hong Kong 19 Saudi Arabia 9 Thailand 20 United Kingdom 10 Macedonia 21

Issue 1

April 2000

1-57Activate and Administer the System

Spain 11

4. If all red LEDs remain on, reseat any port circuit packs displaying red LEDs.

5. If the red LEDs remain on, refer to DEFINITY Enterprise Communications Server Release 8 Maintenance for R8csi.

NOTE:

Ignore the red LED on any TN767 or TN464 DS1 circuit pack until after it is administered. Refer to

Chapter 2, ‘‘Completing Installation

and Cable Pinouts’’ to set the switches on these circuit packs.

NOTE:

Alarms appear in the Alarm Log when power is applied to the system before all equipment connecting to port circuit packs is installed. Some alarms are logged when power is applied, but resolve quickly. If no equipment is connected to the port circuit packs, alarms associated with these ports can take up to 4 hours to log, but clear automatically after all equipment is installed and operating correctly.

DEFINITY ECS Release 8.2 Installation, Upgrades, and Additions for Compact Modular Cabinets

Installing and Cabling the Cabinets

555-233-118

Change Craft Password

The password for the craft login must be changed by the installing technician to prevent unauthorized administration changes.

CAUTION:

After the pa ssw ord is chan ged, t he ne w pass wor d mu st be sa fegua rded s o no unauthorized administration changes can be made. This password MUST NOT BE REVEALED to the customer or to any unauthorized person.

Issue 1

April 2000

1-58Activate and Administer the System

1. Login as

craft

and enter

1-2. The cursor is positioned on

Change:

change password craft

Password for Login Making

. Press

Enter. See Screen

Screen 1-2. Typical Change Password Screen

2. Type the password for the craft login (assigned as crftpw when the system is shipped) and press

Enter.

3. Enter the new password (obtained from the regional CSA). Valid passwords consist of a combination of 4 to 11 alpha or numeric characters. Use at least 1 letter and 1 number.

4. In the

Reenter Login’s Password

and press

Enter.

: field, type the new password again

DEFINITY ECS Release 8.2 Installation, Upgrades, and Additions for Compact Modular Cabinets

Installing and Cabling the Cabinets

555-233-118

Set Daylight Savings Rules

You can set up to 15 customized daylight savings time rules. If you have switches in several different time zones, you can set up rules for each. A daylight savings time rule specifies the exact time when you want to transition to and from daylight savings time. It also specifies the increment at which to transition.

NOTE:

The default daylight savings rule is 0, no daylight savings.

Issue 1

April 2000

1-59Activate and Administer the System

1. Type

Rule Change Day Month___Date Time____Increment

0: No Daylight Savings

1: Start: first Sunday

2: Start: first ___ on or after ________ __ at _____

3: Start: first _________ on or after ________ __ at __:__

4: Start: first _________ on or after ________ __ at __:__

5: Start: first _________ on or after ________ __ at __:__

6: Start: first _________ on or after ________ __ at __:__

7: Start: first _________ on or after ________ __ at __:__

2. Type the appropriate start and stop information in the

change daylight-savings-rules

DAYLIGHT SAVINGS RULES

Stop: first Sunday___ on or after October_ 25 at _3:00

Stop: first

Stop: first _________ on or after ________ __ at __:

Stop: first _________ on or after ________ __ at __:__

___ on or after April___ 1 at _2:00 01:00

___ on or after _______ __ at _____

and press

Enter.

Change Day

Month, Date, Time

, and

Increment

(for example,

1:00

equals one hour)

fields for each rule.

3. Press

NOTE:

You can change any rule except rule 0 (zero). You cannot delete a daylight savings rule if it is in use on either the Locations or Date and Time screens.

Enter.

DEFINITY ECS Release 8.2 Installation, Upgrades, and Additions for Compact Modular Cabinets

Installing and Cabling the Cabinets

555-233-118

Set Date and Time

Issue 1

April 2000

1-60Activate and Administer the System

1. Enter

DATE AND TIME DATE

TIME

set time

Day of the Week: Tuesday Day of the Month: 8 Year: 2000

Hour: 20

and press Enter.

Month: February

Minute: 30 Second: XX Type: standard Daylight Savings Rule: 0

2. Type the day of the week in English (Sunday through Saturday). See

Table 1-10

for English day of the week names.

Table 1-10. English Day of the Week Names

Day Number Day Name

1Sunday 2 Monday 3Tuesday 4 Wednesday 5Thursday 6Friday 7Saturday

DEFINITY ECS Release 8.2 Installation, Upgrades, and Additions for Compact Modular Cabinets

Installing and Cabling the Cabinets

555-233-118

Issue 1

April 2000

1-61Activate and Administer the System

3. In the

Month:

field, type the current month in English (January through

December). See Table 1-11

for English month nam es.

Table 1-11. English Month Names

Month Number Month Name

1 January 2February 3March 4April 5May 6June 7July 8August 9 September 10 October 11 November 12 December

4. In the

5. In the

6. In the

7. In the be set.

8. Press

Month:

Year: Hour: Minute:

Enter when the information is correct.

field, type the day of month (1 through 31). field, type the current year. field, type the current hour for a 24-hour clock.

field, type current minute (0 through 59). Seconds cannot

DEFINITY ECS Release 8.2 Installation, Upgrades, and Additions for Compact Modular Cabinets

Installing and Cabling the Cabinets

555-233-118

Circuit Pack Administration

After the equipment is installed (including circuit packs), the circuit packs must be administered. Refer to DEFINIT Y Enterprise Communications Server R elease 8 Administrator’s Guide, for more information.

The following describes general administration information:

■ Use the Circuit Packs form to administer circuit packs to carrier slots. The

circuit packs must be installed (or assigned using the Circuit Packs form) before administering voice terminals, attendant consoles, or trunks .

■ Each page of the form represents 1 carrier in the cabinet shown on the

command line. For Release 8 CMC, all carriers and slots appear even if they are not included in the hardware.

■ It is not necessary to fill in the Circuit Packs form if the circuit packs are

installed at the time of administration.

■ Refer to DEFINITY Communications System Generic 3 Planning and

Configuration, 555-230-601, for more information about circuit pack

administration and port assignment records (the DS1 circuit pack and translations are covered in Chapter 2 and Chapter 3).

Issue 1

April 2000

1-62Activate and Administer the System

■ For initial installation, assign circuit packs to slots using the hardware

configuration layout record from the factory or Customer Services Organization. Do not arbitrarily assign circuit packs to slots.

■ When a circuit pack in a slot differs from what has been administered on

the form, a “#” displays between the “Sfx” and “Name” fields.

Set System Maintenance Parameters

CAUTION:

To prevent unnecessary trouble tickets, do not enable the system alarms (Alarm Origination feature) until all installation and administration procedures are completed.

1. Enter

2. Enter the alarm notification and scheduled maintenance information into

3. Enter the appropriate information on Page 2 of the form.

4. Press

change system-parameters maintenance

each field on Page 1 of the form.

Enter when finished.

and press

Enter.

DEFINITY ECS Release 8.2 Installation, Upgrades, and Additions for Compact Modular Cabinets

Installing and Cabling the Cabinets

555-233-118

Administer the Attendant Console

Issue 1

April 2000

1-63Activate and Administer the System

If no attendant console is installed, proceed to

1. Enter

Verify the system’s companding mode for its local stations (usually, A-Law for Europe and mu-Law for North America and Japan).

2. If necessary, enter the default system-level parameters and audio levels for these terminals.

3. Administer other forms listed under “Attendant Console” in DEFINITY Enterprise Communications Server Release 8 Administrator’s Guide.

Save Translations

1. Enter translations onto the translation card and takes about 10 minutes.

2. Remove the original translation card and replace with the backup card.

3. Repeat Step 1 for the backup translation card.

4. Remove the backup card and replace with the original translation card.

‘‘Save Translations’’

display system-paramete rs cou ntry- optio ns

change terminal-parameters 603/302B1

and press

to change

Enter.

NOTE:

For information about changing the default parameters and audio levels, refer to DEFINITY Application Notes available through the ITAC (International Technical Assistance Center).

save translation

and press Enter. This copies the current system

5. Label the backup card with the date and time of the backup and store in a secure place.

Add Translations

1. Refer to DEFINITY Enterprise Communications Server Release 8 Administrator’s Guide, to add new terminals.

DEFINITY ECS Release 8.2 Installation, Upgrades, and Additions for Compact Modular Cabinets

Installing and Cabling the Cabinets

555-233-118

Install and Wire Telephones and Other Equipment

NOTE:

Only 1 pair of wires is available for emergency transfer, and 1 pair of wires is available for attendant console power.

The wiring procedures are the same for most of the DEFINIT Y S ystem telephones and other equipment.

This chapter provides wiring examples of these similar installation procedures. These are examples only and actual wiring procedures may vary at each site.

The system can connect to all DTE terminals. The system can have RS-232 (or EIA-232) or DCP interfaces.

All wiring pinouts for port circuit packs are in the tables at the end of this chapter.

Issue 1

April 2000

1-64Install and Wire Telephones and Other Equipment

Refer to Figure 1-21 on page 1-37 packs. The figure shows the colors of the punch-downs and is best viewed from CD-ROM or on-line.

After installing the hardware, the data for the system and telephone features is administered. These procedures are provided in DEFINITY Enterprise Communications Server Release 8 Administrator’s Guide.

Telephone Connection Examples

The 302C1 Attendant Console describes a typical telephone connection. This information is typical of the 603E, 84xx (4-wire), and 94xx telephones. The attendant console always requires auxiliary (adjunct) power (-48 VDC). See

Figure 1-30

connector. The primary console should be powered from the system so it has the same power failure backup as the system.

The maximum cabling distance for the console powered from the cabinet is 350 feet (100 m) using 24 AWG (#5) (0.26 mm

The general steps to connect a telephone are:

1. Choose a device to connect such as a 302C1 Attendant Console.

2. Choose the port circuit pack and its carrier and slot number, such as

. Only 1 console can be powered by the system through the AUX

TN754B, Cabinet 1, Carrier A, Slot 06.

for punch-down information for common circuit

) wire.

3. Choose a port circuit on the port circuit pack, such as Port 05.

DEFINITY ECS Release 8.2 Installation, Upgrades,

302c

098

and Additions for Compact Modular Cabinets

Installing and Cabling the Cabinets

TXT

TXR

2 3

PXT

PXR

555-233-118

Figure Notes

TXT5

PXT5

PXR5

wireRPY012

Issue 1

April 2000

1-65Install and Wire Telephones and Other Equipment

TXR

1. 302C1 attendant console

2. 4-wire digital line circuit pack

3. -48 VDC from adjunct power

4. Ground from adjunct power

Figure 1-30. 302C1 to Digital Line Circuit Pack Wiring

4. Install cross-connect jumpers to wire the terminal to the port circuit pack. See Figure 1-30

. This pinout is for a 4-wire Digital Line circuit pack.

DEFINITY ECS Release 8.2 Installation, Upgrades,

and Additions for Compact Modular Cabinets

Installing and Cabling the Cabinets

555-233-118

Connect Adjunct Power

The 400B2 adapter is convenient for connecting local -48 VDC power to a modular plug. See Figure 1-31

Issue 1

April 2000

1-66Install and Wire Telephones and Other Equipment

r749428 RPY 01209

Figure Notes

1. Surface-mounted information outlet

2. To individual power unit (such as 1151A or 1151A2)

4. To telephone

5. Destination service access point (DSAP) power cord

3. 400B2 adapter

Figure 1-31. 400B2 Adapter Connecting to a Modular Plug

Adjunct power can be provided from the equipment room or equipment closet with 1145B power unit. The AUX connector (J1) on the processor interface cable can provide power for 1 attendant console. See Table 2-7 on page 2-11

Adjunct power can be provided locally at the telephone or console by the 1151A or 1151A2 Power Supply.

DEFINITY ECS Release 8.2 Installation, Upgrades, and Additions for Compact Modular Cabinets

Installing and Cabling the Cabinets

555-233-118

Analog Station or 2-Wire Digital Station Example

This example is typical of the 2-wire digital stations,2-wire analog stations, analog CO trunks, DID trunks, and external alarms. See Figure 1-32

Issue 1

April 2000

1-67Install and Wire Telephones and Other Equipment

2500wireRBP 040596

Figure Notes

1. 2500-type analog station 2. 2-wire analog line circuit pack

Figure 1-32. 2500-Type Analog Telephone Wiring

1. Choose a peripheral to connect (such as a 2-wire digital station).

2. Choose the port circuit pack to use and its carrier and slot number. For example, TN2183 Analog Line, Cabinet 1, Carrier C, Slot 1.

3. Choose a port circuit on the port circuit pack, for example port 3.

4. Install cross-connect jumpers to connect the pins from the 2-wire station to the appropriate pins on the port circuit pack.

5. Administer using DEFINITY Enterprise Communications Server Release 8 Administrator’s Guide.

DEFINITY ECS Release 8.2 Installation, Upgrades, and Additions for Compact Modular Cabinets

Installing and Cabling the Cabinets

555-233-118

Analog Tie Trunk Example

T11

R11

Figure Notes

1. External trunk or adapter 2. Tie trunk circuit pack

T12

R12

tie_wire RBP 040596

Issue 1

April 2000

1-68Install and Wire Telephones and Other Equipment

Figure 1-33. Analog Tie Trunk Wiring

1. Before installing the Tie Trunk circuit pack, set the option switches as described in

Chapter 2, ‘‘Completing Installation and Cable Pinouts’’

2. Install cross-connect jumpers to connect the pins from the Tie Trunk circuit pack to the appropriate leads on the external tie trunk. Names of the tie trunk leads must be determined from the manufacturer or supplier of the external trunk circuit. The example in

Figure 1-33

shows a DEFINITY

System tie trunk connected to a DEFINITY S ystem tie trunk.

3. Administer on the Trunk Group Screen. See DEFINITY Enterprise Communications Server Release 8 Administrator’s Guide.

DEFINITY ECS Release 8.2 Installation, Upgrades, and Additions for Compact Modular Cabinets

Installing and Cabling the Cabinets

555-233-118

Digital Tie Trunk Example

Figure Notes

Issue 1

April 2000

1-69Install and Wire Telephones and Other Equipment

1. External trunk

2. DS1 interface circuit pack, position 1C06

4. LO (Balanced output pair)

5. L

6. LI (Balanced input pair)

3. LO

Figure 1-34. Digital Tie Trunk Wiring

1. Before installing the DS1 Interface circuit pack, set the option switches according to

Chapter 2, ‘‘Completing Installation and Cable Pinouts’’

2. Install cross-connect jumpers to connect the pins from the digital trunk circuit pack to appropriate pins on the external digital trunk.

3. Administer the DS1 Interface circuit pack on the DS1 and Trunk Group Screens. See DEFINITY Enterprise Communications Server Release 8 Administrator’s Guide.

DEFINITY ECS Release 8.2 Installation, Upgrades, and Additions for Compact Modular Cabinets

Installing and Cabling the Cabinets

555-233-118

DS1 Tie Trunk Example

DS1 tie trunks provide a 1.544 Mbps (T1) or 2.048 Mbps (E1) digital data service between 2 collocated systems or between the system and a data network. The following cables can be used:

■ C6C connector cable — 50-foot (15.2 m) shielded cable with a 50-pin

male connector on 1 end and a 15-pin male connector on the other end. Use to connect a DS1 tie trunk circuit pack to a Channel Service Unit.

■ C6D connector cable — 50-foot (15.2 m) shielded cable with a 50-pin

male connector on each end. Use to connect a DS1 tie trunks in collocated cabinets.

■ C6E connector cable — 100-foot (30.5 m) shielded cable with a 50-pin

male connector on 1 end and a 50-pin female connector on the other end.

Use as an “extension” cable between the DS1 tie trunk circuit pack and other connector cables.

■ C6F connector cable — 50-foot (15.2 m) shielded cable with a 50-pin

male connector on 1 end and a 3 inch (7.62 cm) stub on the other end. Use to connect the DS1 tie trunk circuit pack to channel multiplexers requirin g hardwired connections. See Table 1-12

Issue 1

April 2000

1-70Install and Wire Telephones and Other Equipment

for a pinout.

Table 1-12. Pinout of C6F Cable

Wire Color Lead Designation

White/Green LI (High Side) 47 Green L White/Brown LO 48 Brown LO (High Side) 23 White/Slate LBACK2 49 Slate LBACK1 24

Collocated DS1 Tie Trunks

Two DS1 tie trunk circuit packs can be in collocated systems. A DS1 tie trunk circuit pack in 1 system can connect to a DS1 tie trunk in another system. Use a C6D cable if the distance is less than 50 feet (15.24 m). If the distance is greater than 50 feet (15.24 m), use a C6E cable.

NOTE:

The maximum distance between cabinets is 1310 feet (399.3 m).

Pin Number

DEFINITY ECS Release 8.2 Installation, Upgrades, and Additions for Compact Modular Cabinets

Installing and Cabling the Cabinets

555-233-118

DS1 Tie Trunks Using T1 Channel Service Unit

Figure 1-35 shows a DS1 tie trunk connected to an external T1 Channel Service

Unit (CSU). A 120A2 enhanced Integrated Channel Service Unit (ICSU) can be used in place of a T1 external CSU. The CSU or ICSU interfaces the DS1 tie trunks with the 1.544 Mbps digital facility. Contact your Lucent Technologies representative for maximum cabling distances.

Issue 1

April 2000

1-71Install and Wire Telephones and Other Equipment

Figure Notes

1. To DS1 tie trunk circuit pack

2. C6C cable (If distance is over 50 feet (15.24 m), use C6E cable.)

3. T1 external CSU or 120A2 ICSU

4. Tip (T)

5. Ring (R)

6. Tip 1(T1)

7. Ring1 (R1)

8. 1.544 Mbps T1 interface

9. To T1 carrier

Figure 1-35. Typical Connections to Channel Service Unit

DEFINITY ECS Release 8.2 Installation, Upgrades, and Additions for Compact Modular Cabinets

Installing and Cabling the Cabinets

555-233-118

3-Pair and 4-Pair Modularity

Figure 1-36 shows 3-pair and 4-pair modularity from the port circuit pack to the

voice or data terminal. Most terminals connect to an information outlet (modular jack) installed at the work location.

Issue 1

April 2000

1-72Install and Wire Telephones and Other Equipment

Figure Notes

1.Port circuit pack

2. 25-pair connector pins (3-pair modularity)

3. MDF pins (3-pair modularity)

4. Input to information outlet (4-pair modularity)

3 4

widf3pm RPY 012098

3 4

6 7

5. Output from information outlet (4-pair modularity)

6. Voice or data terminal pins

7. Adjunct power

Figure 1-36. 3-Pair and 4-Pair Modularity

DEFINITY ECS Release 8.2 Installation, Upgrades, and Additions for Compact Modular Cabinets

Installing and Cabling the Cabinets

555-233-118

Adjunct Power Connections

Figure 1-37 shows typical connection locations for adjunct power.

Issue 1

April 2000

1-73Install and Wire Telephones and Other Equipment

Figure Notes

1.Typical display telephone

2.Individual power supply (Such as 1151A) (Not used if item 14 is used)

3. 400B2 adapter

4. Information outlet (modular jack)

5. 4-pair D-Inside Wire (DIW) cable

6. Satellite site or adapter location

7. 25-pair D-Inside Wire (DIW) cable

cydmapwr EWS 052898

9. 100P6A patch cord or jumpers

10. System side of MDF

11. 25-pair cable to digital line circuit pack

12. Equipm ent room

13. Satellite location

14. Bulk power supply (Such as 1145B). Install at satellite location or equipment room (not both).

8. Station side of MDF

Figure 1-37. Example Adjunct Power Connections

DEFINITY ECS Release 8.2 Installation, Upgrades, and Additions for Compact Modular Cabinets

Installing and Cabling the Cabinets

555-233-118

Local and Phantom Power

An attendant console’s maximum distance from the system is limited.

Table 1-13

See

Table 1-13. Attendant Console Cabling Distances

Issue 1

April 2000

1-74Install and Wire Telephones and Other Equipment

Enhanced Attendant Console (302C1)

With Selector Console Phantom powered 800 244 500 152 Locally powered 5000 1524 3400 1037 Without Selector Console Phantom powered 1400 427 900 274 Locally powered 5000 1524 3400 1037

Auxiliary Power

The nonessential functions of an attendant console and its optional 26A1 or 24A1 selector console derive power from an auxiliary power source. Provide auxiliary power for an attendant console through this cable so the console remains fully operational during short power outages.

NOTE:

Only 1 console can derive auxiliary power from the system and through the auxiliary cable located in the trunk/auxiliary field.

24 AWG Wire (0.26 mm2) 26 AWG Wire (0.14 mm2)

Feet Meters Feet Meters

A console’s maximum distance from its auxiliary power source is:

■ 800 feet (244 m) for a 302A1

■ 350 feet (107 m) for a 301B1 and 302C1

An attendant console can also derive auxiliary power from:

■ Individual 1151A or 1151A2 power supply

■ MSP-1 power supply

■ 258A-type adapters

■ Bulk power supplies such as the 1145A1
