Please also read
Part 1 — Important
Product Information
USER’S MANUAL
Part 2
© 2002 Advanced American Telephones. All rights reserved.
AT&T and the Globe Design are trademarks of AT&T Corp. licensed to Advanced American Telephones.
2.4 GHz Expansion Handset 2300
© 2002 Advanced American Telephones.
All rights reserved.
AT&T and the Globe Design are
trademarks of AT&T Corp. licensed to
Advanced American Telephones.
Printed in China. Issue 1AT&T 07/02
Visit us at www.telephones.att.com
BEFORE YOU BEGIN . . . . . . 1
Parts List . . . . . . . . . . . . . . . 1
Compatiblity . . . . . . . . . . . . . 2
About Handset Registration . . 2
INSTALLATION . . . . . . . . . . 3
Charging Stand Installation . . . 3
Belt Clip . . . . . . . . . . . . . . . . 5
Headset . . . . . . . . . . . . . . . . 5
FEATURE SETUP
AND OPERATION . . . . . . . 6
DEFAULT SETTINGS . . . . . . . 7
TECHNICAL
SPECIFICATIONS . . . . . . . 8
CONTENTS
CONTENTS
CONTENTS
This User’s
Manual
NiCd
battery pack
Handset
Parts List
Your box should include:
Charging Stand
1
BEFORE YOU BEGIN
BEFORE YOU BEGIN
BEFORE YOU BEGIN
USER’S MANUAL
2.4 GHz Expansion Handset 2300
Please also read
Part 1 — Important
Product Information
© 2002 Advanced American Telephones.All r ights reserved.
AT&T and the Globe Design are trademarks of AT&T Corp.licensed to Advanced American Telephones.
Part 2
Compatibility
This AT&T 2300 expansion handset is compatible with the AT&T 2320,
2325, 2355 and 2365 telephones. You may add up to three expansion
handsets to your compatible telephone, for a total of four handsets.
If you try to install a fifth handset, registration will be blocked.
About Handset Registration
Each expansion handset must be individually registered with
your AT&T 2320,2325, 2355 or 2365 base. Registration happens
automatically when you place this handset fully charged into your
current base.
(See INSTALLATION beginning on page 3).
The original handset that came with the base is automatically registered
as Handset 1. Additional handsets will be assigned Handset 2, Handset 3
and Handset 4. You can rename the handsets by following the directions
under “Handset Name” in the FEATURE SETUP section of your base
telephone User’s Manual.
2
BEFORE YOU BEGIN
BEFORE YOU BEGIN
Charging Stand Installation
NOTE: Install the charging stand away from electronic
equipment, such as personal computers, television sets or
microwave ovens. Avoid excessive heat, cold, dust or moisture.

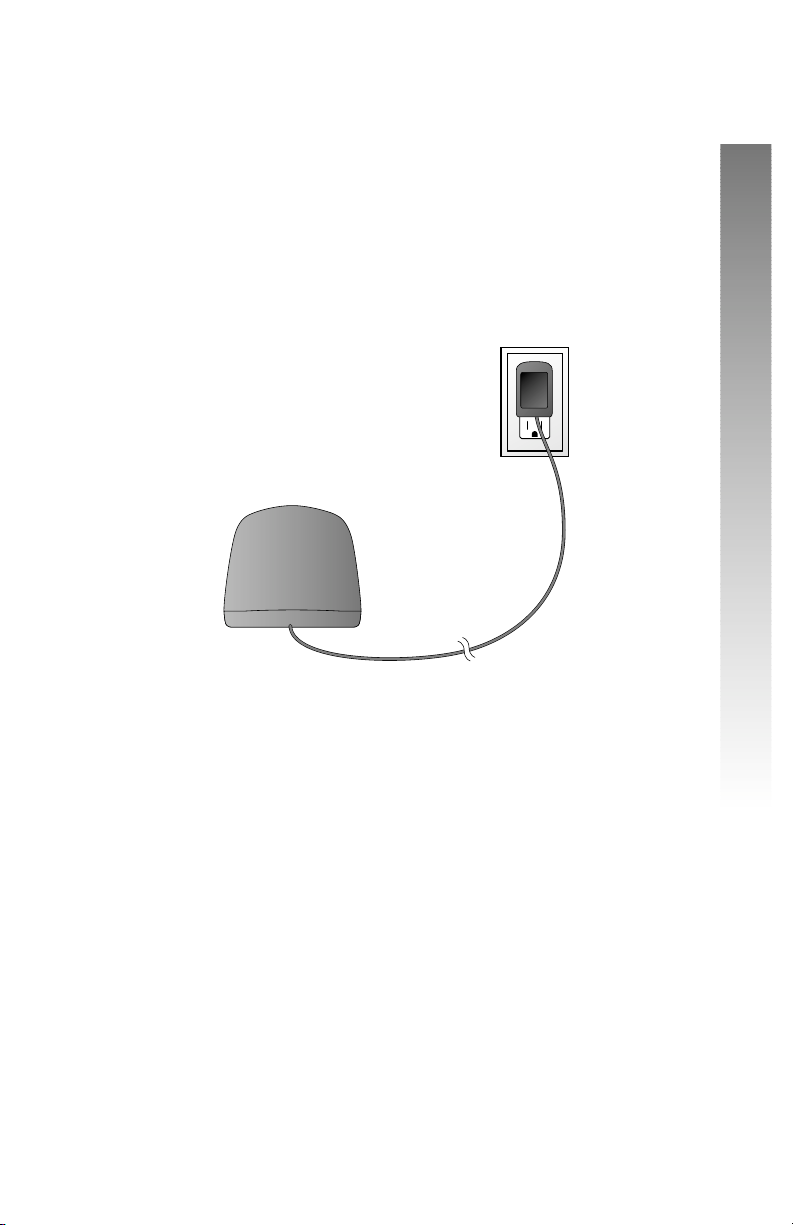

1 Connect the power cord to an electrical outlet not
controlled by a wall switch.
3
INSTALLATION
Standard
electrical
outlet
INSTALLATION
INSTALLATION
2 Install the handset battery.
Use only AT&T Battery 3301, SKU# 91076.
3 Charge the handset battery.
• Place the handset in the charging stand.
• Charge the battery at least 12 hours. After the first charge,
the battery will charge in eight hours.
4 Register your handset.
After handset is fully charged place it in the base of your
2320, 2325, 2355, or 2365 telephone, it will automatically be
registered and you will hear a single beep. If you try to register
a fifth handset, registration will be blocked.
5 Check for dial tone.
Lift the handset and press P; you should hear a dial tone.
4

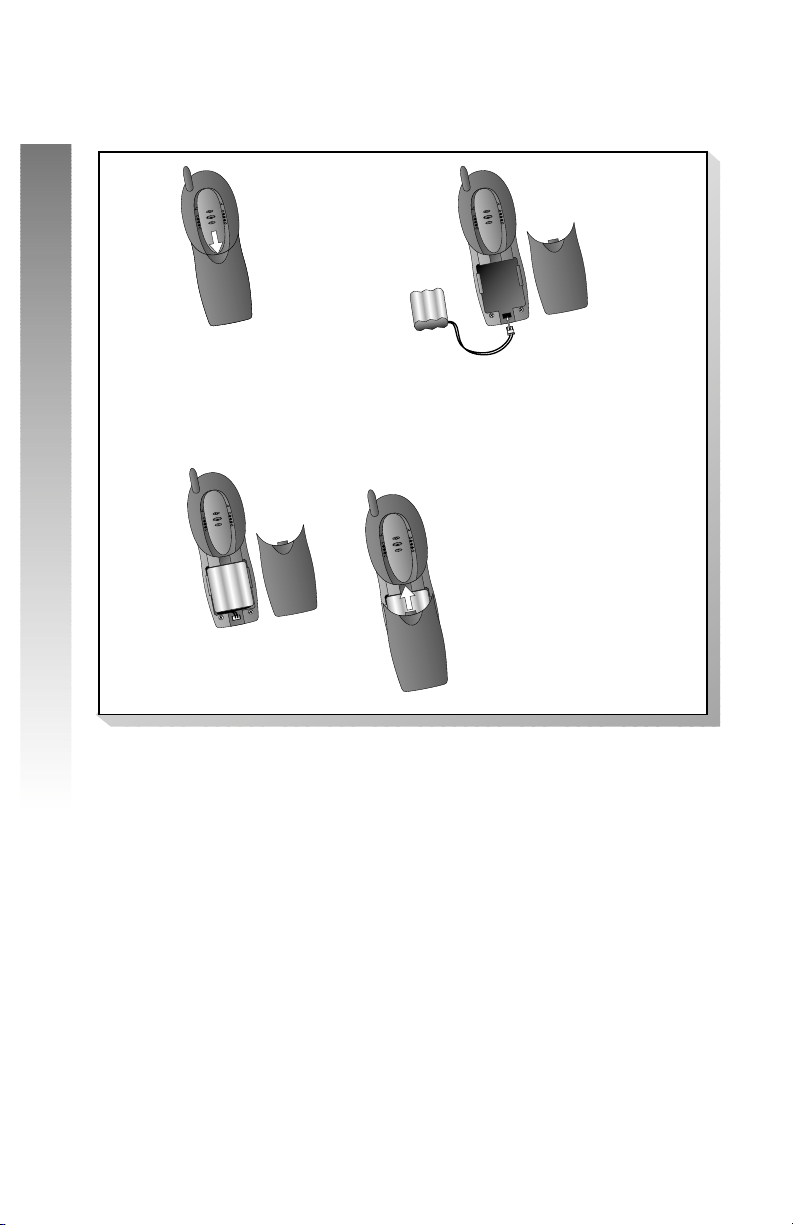

b) Plug the battery pack
connector into handset.
Place the battery pack and
wires in the compartment.
a) Remove battery
compartment cover by
pressing on indentation
and sliding downward.
c) Replace cover by
sliding it on its
track up over
battery case until
it snaps firmly
into place.
INSTALLATION
INSTALLATION
Belt Clip
You can remove
the belt clip
from the
handset.
Headset
You can use
this telephone
hands-free
when you install
any industry standard
2.5 mm headset
(purchased separately).
For best results use an
AT&T 2.5 mm headset.
Plug the headset into the
jack located on the right
side of the handset
(under the small rubber
flap). Do not force the
connection, but make
sure the plug fits
securely.
5
b) Press tabs
on belt clip
into slots
on back of
handset to
reattach.
a) Pull clip
away from
handset to
remove.
INSTALLATION
INSTALLATION
6
FEATURE SETUP AND OPERATION
FEATURE SETUP AND OPERATION
FEATURE SETUP AND OPERATION
FOR INSTRUCTIONS
TO SETUP AND OPERATE
THIS EXPANSION HANDSET,
REFER TO THE MANUAL
THAT CAME WITH YOUR
ORIGINAL BASE
TELEPHONE.
7
DEFAULT SETTING
DEFAULT SETTINGS
FUNCTION: DEFAULT SETTING:
Dial Method Tone
Handset Volume 2
Ring Volume 6
External Ring Pattern 0
Internal Ring Pattern 1
Key Click ON
DEFAULT SETTINGS
DEFAULT SETTINGS
8
TECHNICAL SPECIFICATIONS
TECHNICAL SPECIFICATIONS
Frequency Range 2400 MHz – 2483 MHz
Channels 95
Channel Spacing 864 kHz
Output Power 23 dBm
Sensitivity -92 dBm
Modulation GFSK
Operating Temperature 0°C – 40°C
Base Unit Voltage 96 – 144 Vrms
(AC Voltage, 60Hz)
Base Unit Voltage 9 Vdc
(AC Adapter Output)
Handset Voltage 3.6– 4.6 Vdc, 600mAh
TECHNICAL SPECIFICATIONS
TECHNICAL SPECIFICATIONS
