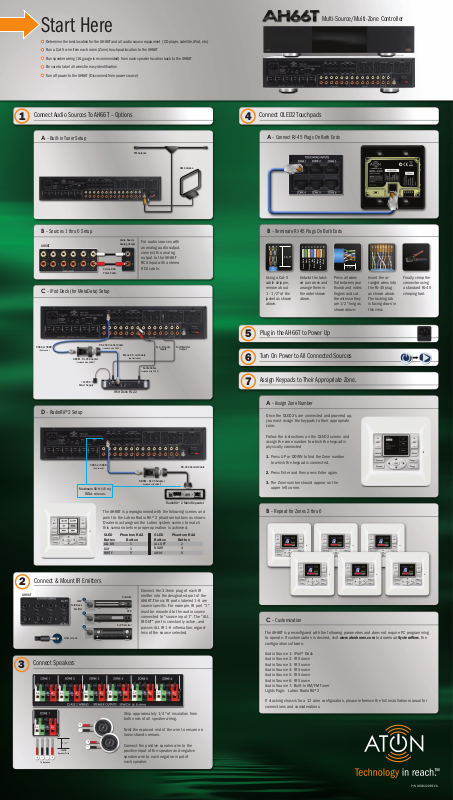

Start Here
Determine the best location for the AH66T and all audio source equipment (CD player, satellite, iPod, etc.)
Run a Cat-5 wire from each room (Zone) touchpad location to the AH66T
Run speaker wiring (16 gauge is recommended) from each speaker location back to the AH66T
Be sure to label all wires for easy identification
Turn off power to the AH66T (Disconnect from power source)
Multi-Source/Multi-Zone Controller
1
Connect Audio Sources To AH66T – Options
A – Built-in Tuner Setup
FM Antenna
AM Antenna
4
Connect OLED2 Touchpads
A – Connect RJ-45 Plugs On Both Ends
B – Sources 1 thru 6 Setup
AH66T
Stereo RCA
Patch Cable
C – iPod Dock (for MetaData) Setup
Audio Source
Analog Output
For audio sources with
an analog audio output,
connect the analog
output to the AH66T
RCA Input with a stereo
RCA cable.
5
B – Terminate RJ-45 Plugs On Both Ends
1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8
1 1/2"
Blue
Using a Cat-5
cable stripper,
remove about
1 - 1/2" of the
jacket as shown
above.
Green
Green/White
Orange/White
Untwist the twisted pair wires and
arrange them in
the order shown
above.
Orange
Blue/White
Brown/White
Brown
Plug in the AH66T to Power Up
1/2"
Press all wires
flat between your
thumb and index
fingers and cut
the wires so they
are 1/2" long as
shown above.
Insert the arranged wires into
the RJ-45 plug
as shown above.
The locking tab
is facing down in
this view.
Finally, crimp the
connector using
a standard RJ-45
crimping tool.
568A or 568B
(End to end)
D – RadioRA®2 Setup
DB9M - RJ-45 Adapter
(Included with AH66T)
+12VDC
Power Supply
RS-232 Control Cable
(Included with FS-22)
IPort Dock FS-22
Mono 3.5 mm Cable
(Not included)
Audio Cable
(Included with FS-22)
To L/R Audio
Inputs
To IR Emitter
Output
6
7
Turn On Power to All Connected Sources
Assign Keypads to Their Appropriate Zone.
A – Assign Zone Number
Once the OLED2's are connected and powered up,
you must assign the keypads to their appropriate
zone.
Follow the instructions on the OLED2 screen and
assign the zone number to which the keypad is
physically connected
568A or 568B
(End to end)
Maximum 50 ft (15 m)
TOTAL wire run.
The AH66T is preprogrammed with the following scenes and
point to the Lutron Radio RA® 2 phantom buttons as shown.
Dealer must program the Lutron system scenes to match
this scenario before proper operation is achieved.
OLED Phantom RA2
Button Button
ALL ON 1
DAY 3
PARTY 5
DB9M - RJ-45 Adapter
(Included with AH66T)
OLED Phantom RA2
Button Button
ALL OFF 2
NIGHT 4
AWAY 6
1. Press UP or DOWN to find the Zone number
to which the keypad is connected.
RS-232 Control Cable
2. Press Enter and then press Enter again.
3. The Zone number should appear on the
upper left corner.
RadioRA® 2 Main Repeater
B – Repeat for Zones 2 thru 6
2
3
Connect & Mount IR Emitters
AH66T
Connect Speakers
Talk-Back
3.5mm Jack
AIE2
Emitter
Satellite
DVD
A/V Receiver
Connect the 3.5mm plug of each IR
emitter into the designated port of the
AH66T. The six IR ports labeled 1-6 are
source specific. For example, IR port "1"
must be mounted to the audio source
connected to "source input 1". The "ALL
IR OUT" port is constantly active, and
passes ALL IR 1-6 information, regardless of the source selected.
C – Customization
The AH66T is preconfigured with the following parameters and does not require PC programming
to operate. If customization is desired, visit www.atonhome.com to download SystemWorx, the
configuration software.
Audio Source 1: iPort® Dock
Audio Source 2: IR Source
Audio Source 3: IR Source
Audio Source 4: IR Source
Audio Source 5: IR Source
Audio Source 6: IR Source
Audio Source 7: Built-In AM/FM Tuner
Lights Page: Lutron RadioRA®2
–
–
+ +
To Speakers
1/4"
16AWG
Speaker Wire
If stacking chassis for a 12 zone configuration, please reference the full installation manual for
connections and considerations.
Strip approximately 1/4" of insulation from
both ends of all speaker wiring.
+
–
+
–
Twist the exposed end of the wire to ensure no
loose strands remain.
Connect the positive speaker wire to the
positive input of the speaker and negative
speaker wire to each negative input of
each speaker.
