1601 JACK MCKAY BLVD. / ENNIS, TEXAS 75119 U.S.A.
TELEPHONE: (800) 876-3333 / FAX (800) 765-3435
AtlasSound.com
Specifications subject to change without notice
© 2002 Atlas Sound Printed in U.S.A. 000202 SL1-1192
One
STRATEGY SERIES
™
SURFACE MOUNT LOUDSPEAKERS
SM52T-B
SM52T-W
SM52T-B
SM52T-W
SPECIFICATIONS
MODEL: SM52T(-B)(-W)
POWER RATING (RMS): 100 W
(Transformer Limited)
FREQUENCY RESPONSE (± 3dB): 85Hz to 20kHz
SENSITIVITY (1W/1M): 90dB
WOOFER SIZE: 5
1
⁄
4"
CONE: Polypropylene
SURROUND: Rubber
MAGNET: 20 oz
TWEETER SIZE: 1" (25mm)
DIAPHRAM
MATERIAL: Mylar
MAGNET: 1.39 oz
CROSSOVER FREQUENCY: 5000 Hz
CROSSOVER TYPE: 1st Order Low Pass,
2nd Order High Pass
SELECTOR– 70.7 Volt Taps: .94, 1.9, 3.7, 7.5,
15, 30 Watts
DIMENSIONS: 10
3
⁄16"H x 67⁄8"W x 57⁄8"D
28.5cm x 17.5cm x 14.85cm
WEIGHT (WITH BRACKET): 8.4 lbs. (3.2kg)
Model SM52 (8 Ohm) Version also available, see SL1-1191
FEATURES:
• Compact, 2-way loudspeaker systems for exceptional performance
in music and sound reinforcement systems
• Weather-resistant construction for year-round indoor or outdoor use:
UV-resistant-talc-impregnated-polypropylene injection molded enclosure,
powder coated aluminum grilles and all brass hardware inserts
• Conforms to 100HR salt spray test per ASTM B117
• Color matched heavy-duty zinc chromate plated and powder coated
"C" bracket (included)
• Highly efficient 5
1
⁄4" polypropylene woofer
• 1" FerroFluid™ cooled dome tweeter
• Atlas Sound TRX WAVEGUIDE™– A constant directivity style
high frequency wave guide system provides accurate, even
high frequency coverage
• Atlas Sound POLYGUARD™ high frequency circuit diverts damaging
transient signals to protect the tweeter
• Screwdriver adjustable 30-Watt 70.7V/100V transformer for
distributed sound applications
• All
1
⁄4"-20 hardware inserts allow easy integration of "off-the-shelf"
security hardware
• OMNIMOUNT™ 25 series compatible
• Available in black or white
• Five-year warranty
APPLICATIONS:
Use surface-mount Atlas Sound SM52T Series loudspeaker systems
for commercial, professional and residential applications or where
high-fidelity sound and weather-resistance is desired. Full-range
frequency response makes these systems ideal for indoor and outdoor
installation, in monaural and stereo foreground or background music
systems, and for applications in boutiques/shops, restaurants/cafes,
leisure, recreation/sports centers and houses of worship. Multi-position,
C-shaped mounting bracket and rugged construction provide optimum
installation flexibility and assurance of long-term service.
GENERAL DESCRIPTION:
Environment-resistant SM Series loudspeaker systems offer quality
sound reproduction and contemporary styling in a compact enclosure.
System components consist of a highly efficient woofer section and
FerroFluid cooled, titanium dome high frequency device. Vocal and
musical clarity is optimized by the mathematically conceived,
advanced design of the Atlas Sound TRX Control WaveGuide high
frequency director. This design provides smooth, even sound coverage
(90˚H x 90˚V). The high frequency section is symmetrical, for equal
coverage in both vertical and horizontal cabinet mounting positions.
High frequency component protection is provided by the Atlas Sound
PolyGuard protection circuit. The SM52T includes an internally mounted
30 Watt 70.7V/100V line matching transformer with screwdriver adjustable
tap selection for use in distributed sound applications.
To withstand the harshest environments, the new Strategy Series
SM52T surface mount loudspeakers are constructed of weather
resistant materials: UV-resistant, talc impregnated, polypropylene
injection molded cabinets; polypropylene woofer cones; powder
coated aluminum grilles and all brass hardware. The Strategy Series
speaker systems include a versatile, yet simple, C-bracket designed to
provide easy vertical or horizontal installation on just about any surface.
2.5
Page 2
Specifications subject to change without notice
© 2002 Atlas Sound Printed in U.S.A. 000202 SL1-1192
1601 JACK MCKAY BLVD. / ENNIS, TEXAS 75119 U.S.A.
TELEPHONE: (800) 876-3333 / FAX (800) 765-3435
AtlasSound.com
SM52T Frequency Response
(Transformer Bypassed)
SM52T Harmonic DIstortion
FREQUENCY (Hz)
FREQUENCY (Hz)
SPL in dB
SPL in dB
FUNDAMENTAL
3
RD
HARMONIC
2
ND
HARMONIC
Care should be taken to ensure that the chosen fixing point is strong
enough to support the SM52T. Care should also be taken to ensure
that the SM52T is not exposed to direct precipitation. A
5
⁄8"-27 threaded
hole is provided on the C-bracket to allow the SM52T series speaker
to be mounted on any Atlas Sound microphone stand for near-field live
sound applications. 23⁄
8" OC brass inserts are also provided on the rear
of the SM52T to accommodate OMNIMOUNT™ 25 series brackets.
All inserts for mounting knobs are standard
1
⁄4"-20 to allow easy substi-
tution of off-the-shlelf vandal-proof torx head or "one-way" hardware.
Input connectors include a two pole barrier strip with wire capture
"caps" capable of accepting up to (2) #14AWG cable. .94, 1.9, 3.7,
7.5, 15, and 30 watt taps are screwdriver selectable via a sealed
switch located near the input section on the rear of the cabinet.
A tongue-in-groove cover with rubber wire exit grommet is provided to
protect the input connections and transformer switch assembly from
moisture. Systems are available in black or white and can be painted
to accommodate any architectural considerations.
ARCHITECT AND ENGINEER SPECIFICATIONS
The indoor/outdoor mini-loudspeaker system shall be Atlas Sound
Model __________ (SM52T-B or SM52T-W) or approved equal.
Assemblies shall consist of 2-way, woofer and tweeter, within
environment-resistant housings. Enclosure shall be constructed
of paintable UV-resistant, talc impregnated, polypropylene, injection
molded plastic finished in black (SM52T-B) or white (SM52T-W).
Each unit shall include a stamped, powder coated, aluminum grille
and removable C-shaped mounting bracket. All hardware inserts shall
be brass and threaded
1
⁄
4"-20. The 100-Watt RMS system shall have a
5
1
⁄4
" (133mm) woofer, constructed of reinforced polypropylene, and a
1" (25mm) FerroFluid tweeter. The dividing network crossover frequency
shall be 5000 Hz. The dividing network shall include protection circuits
for the high-frequency component. Each unit shall include an internally
mounted 30 watt 70.7V/100V line matching transformer for use in
distributed sound applications wattage taps shall be screwdriver selectable via a sealed switch located near the input section. Wattage taps
shall be .94, 1.9, 3.7, 7.5, 15, 30 @ 70.7V. The loudspeaker system
shall meet the following performance criteria: Power handling, 100 Watts
RMS (Transformer limited); Frequency response, ±3dB from 85 Hz to
20 kHz; Pressure sensitivity, 90dB SPLat one watt, 100 Hz to 10 kHz
measured at a distance of one meter on axis. Input connectors shall
include a two-pole barrier strip capable of accepting up to (2) #14AWG
cable. Atongue-in-groove cover with rubber wire exit grommet shall be
provided to protect the input connectors from corrosion. The unit shall
be 10
3
⁄16"(25.8cm) high, 67⁄8" (17.5cm) wide, 57⁄8" (14.85cm) deep.
Page 3
1601 JACK MCKAY BLVD. / ENNIS, TEXAS 75119 U.S.A.
TELEPHONE: (800) 876-3333 / FAX (800) 765-3435
AtlasSound.com
Specifications subject to change without notice
© 2002 Atlas Sound Printed in U.S.A. 000202 SL1-1192
One

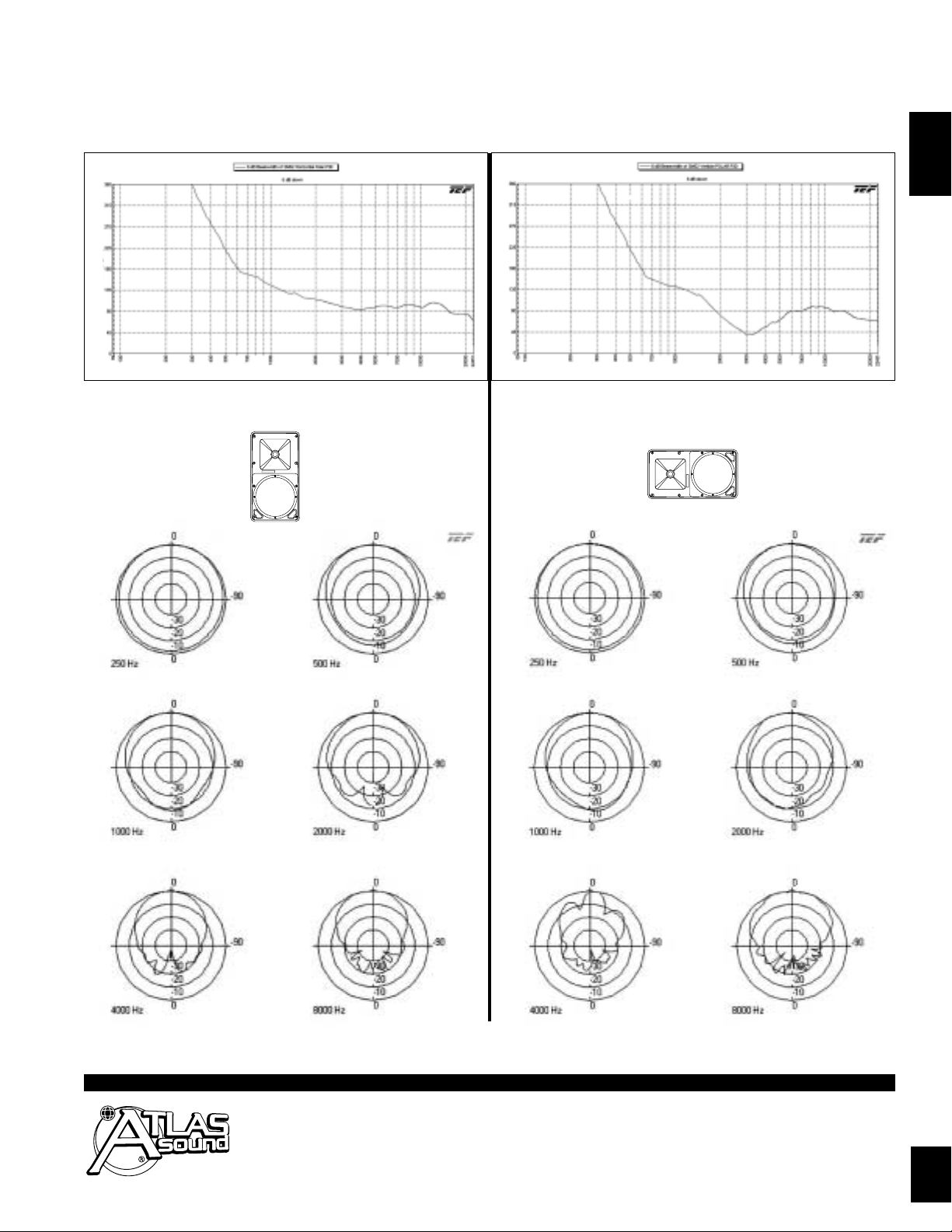

SM52T Horizontal Polar SM52T Vertical Polar
SM52T Horizontal Beamwidth vs. Frequency SM52T Vertical Beamwidth vs. Frequency
FREQUENCY (Hz)
Beamwidth (degrees)
FREQUENCY (Hz)
Beamwidth (degrees)
2.7
