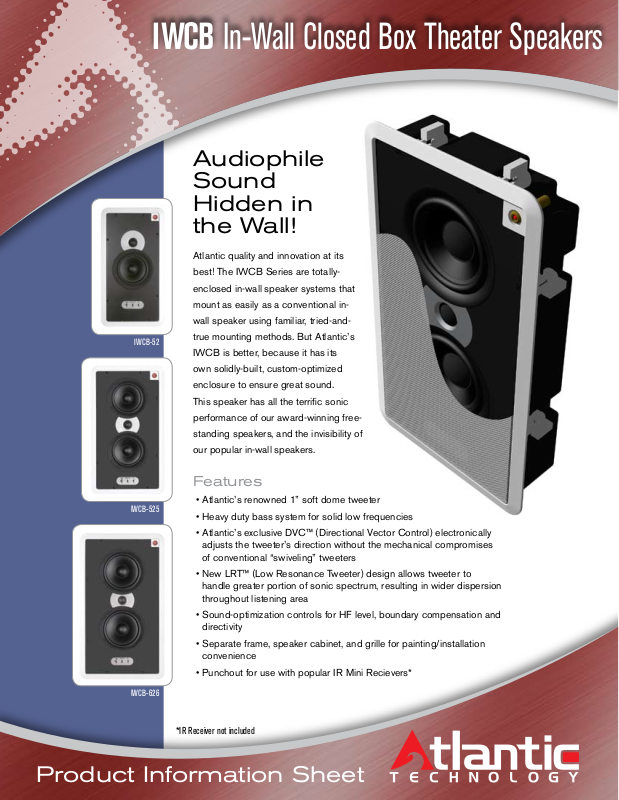

Atlantic Technology IWCB Brochure

IWCB In-Wall Closed Box Theater Speakers

Audiophile Sound Hidden in the Wall!

Atlantic quality and innovation at its

best! The IWCB Series are totally-

enclosed in-wall speaker systems that

mount as easily as a conventional in-

wall speaker using familiar, tried-and-

IWCB-52

true mounting methods. But Atlantic’s

IWCB is better, because it has its

own solidly-built, custom-optimized

enclosure to ensure great sound.

This speaker has all the terriﬁc sonic

performance of our award-winning free-

standing speakers, and the invisibility of

our popular in-wall speakers.

IWCB-525

IWCB-626

Features

• Atlantic’s renowned 1” soft dome tweeter

• Heavy duty bass system for solid low frequencies

• Atlantic’s exclusive DVC™ (Directional Vector Control) electronically adjusts the tweeter’s direction without the mechanical compromises of conventional “swiveling” tweeters

• New LRT™ (Low Resonance Tweeter) design allows tweeter to handle greater portion of sonic spectrum, resulting in wider dispersion throughout listening area

• Sound-optimization controls for HF level, boundary compensation and directivity

• Separate frame, speaker cabinet, and grille for painting/installation convenience

• Punchout for use with popular IR Mini Recievers*

*IR Receiver not included

Product Information Sheet

Punchout for use with IR Receivers*

IWCB In-Wall Closed Box Theater Speakers

Installation-friendly three piece system

Boundary Compensation, High Frequency

Energy and Directivity switches

Solid MDF construction

Paintable grille and frame

Speciﬁcations

IWCB-52 IWCB-52 5 IWCB-62 6 Type 2-way 2-way M-T-P array 2-way M-T-P array Drivers Woofer 5¼” (135mm) GLH§ 5¼” (135mm) GLH

Pressure Driver 5¼” (135mm) GLH§ 6½” (165mm) GLH§ Tweeter 1" (25mm) soft dome 1" (25mm) soft dome 1" (25mm) soft dome

Frequency Response 75Hz – 20kHz ±3dB 64Hz – 20kHz ±3dB 54Hz – 20kHz ±3dB Nominal Impedance 8 Ohms 8 Ohms 8 Ohms Crossover Frequency 2.5kHz, 3rd order 2.2kHz, 3rd order 2.1kHz, 3rd order Sensitivity 87dB 87dB 87dB Recommended Power 10 – 120 Watts RMS 10 – 140 Watts RMS 10 – 140 Watts RMS Magnetic Shielding Yes Yes Yes Dimensions 9¼ x 17¾ x 37⁄8" 10.8 x 19 x 37⁄8" 12¼ x 215⁄8 x 37⁄8"

(W x H x D) 236 x 449 x 100mm 274 x 484 x 100mm 312 x 547 x 100mm

Cutout Dimensions 8½ x 16¾” 10 x 18¼” 11½ x 20¾”

(W x H x D) (216 x 426mm) (254 x 464mm) (292 x 527mm)

Net Weight 9 lbs (4.1 kg) each 10 lbs (4.6 kg) each 12 lbs (5.6 kg) each

Graphite Loaded Homopolymer

*IR Receiver not included

6½” (165mm) GLH§

Atlantic’s renowned 1” soft dome tweeter

Atlantic Technology is a registered trademark of Atlantic Technology

International. Speciﬁcations subject to change without notice.

www.atlantictechnology.com 8.06
