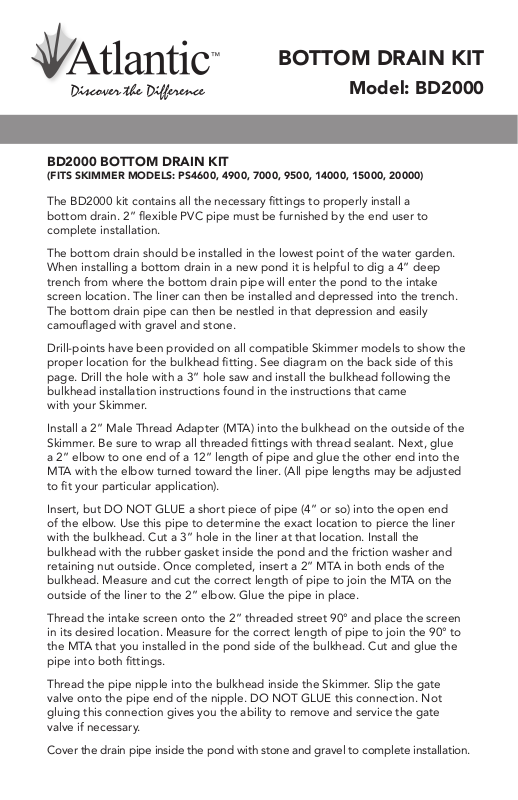

BOTTOM DRAIN KIT
Model: BD2000
BD2000 BOTTOM DRAIN KIT
(FITS SKIMMER MODELS: PS4600, 4900, 7000, 9500, 14000, 15000, 20000)
The BD2000 kit contains all the necessary ttings to properly install a
bottom drain. 2” exible PVC pipe must be furnished by the end user to
complete installation.
The bottom drain should be installed in the lowest point of the water garden.
When installing a bottom drain in a new pond it is helpful to dig a 4” deep
trench from where the bottom drain pipe will enter the pond to the intake
screen location. The liner can then be installed and depressed into the trench.
The bottom drain pipe can then be nestled in that depression and easily
camouaged with gravel and stone.
Drill-points have been provided on all compatible Skimmer models to show the
proper location for the bulkhead tting. See diagram on the back side of this
page. Drill the hole with a 3” hole saw and install the bulkhead following the
bulkhead installation instructions found in the instructions that came
with your Skimmer.
Install a 2” Male Thread Adapter (MTA) into the bulkhead on the outside of the
Skimmer. Be sure to wrap all threaded ttings with thread sealant. Next, glue
a 2” elbow to one end of a 12” length of pipe and glue the other end into the
MTA with the elbow turned toward the liner. (All pipe lengths may be adjusted
to t your particular application).
Insert, but DO NOT GLUE a short piece of pipe (4” or so) into the open end
of the elbow. Use this pipe to determine the exact location to pierce the liner
with the bulkhead. Cut a 3” hole in the liner at that location. Install the
bulkhead with the rubber gasket inside the pond and the friction washer and
retaining nut outside. Once completed, insert a 2” MTA in both ends of the
bulkhead. Measure and cut the correct length of pipe to join the MTA on the
outside of the liner to the 2” elbow. Glue the pipe in place.
Thread the intake screen onto the 2” threaded street 90° and place the screen
in its desired location. Measure for the correct length of pipe to join the 90° to
the MTA that you installed in the pond side of the bulkhead. Cut and glue the
pipe into both ttings.
Thread the pipe nipple into the bulkhead inside the Skimmer. Slip the gate
valve onto the pipe end of the nipple. DO NOT GLUE this connection. Not
gluing this connection gives you the ability to remove and service the gate
valve if necessary.
Cover the drain pipe inside the pond with stone and gravel to complete installation.
– 2” STRAINER
– 2” PIPE
– 2” 90° SLIP X MPT
– 2” KNIFE VALVE
– 2” NIPPLE
– 2” BULKHEAD
– RUBBER GASKET
– FRICTION WASHER
– 2” MTA
– RETAINING NUT
– 2” MTA
– 2” PIPE
– 2” 90°
– 2” PIPE
LINER
– RETAINING NUT
– FRICTION WASHER
– RUBBER GASKET
– 2” BHF
– 2” MTA
