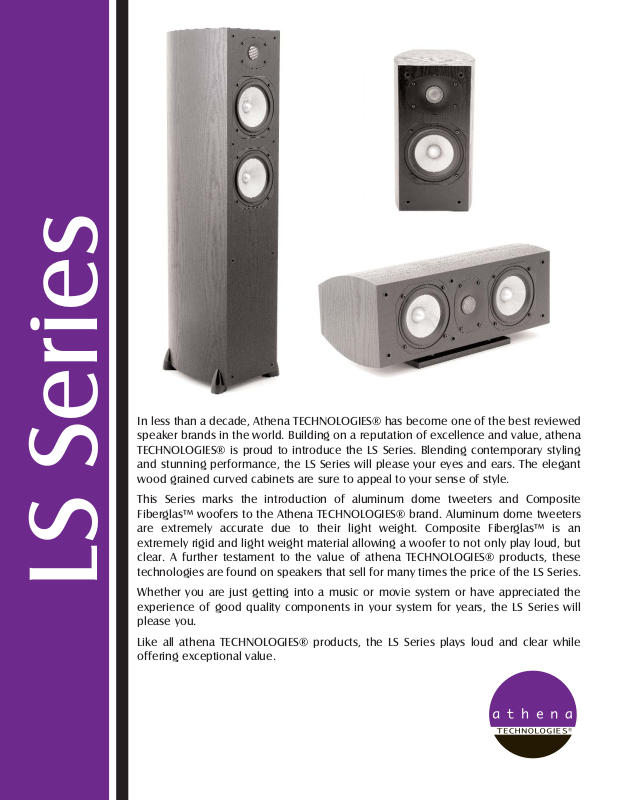

Athena Technologies LS-50B, LS-100B User Manual
LS Series
In less than a decade, Athena TECHNOLOGIES® has become one of the best reviewed
speaker brands in the world. Building on a reputation of excellence and value, athena
TECHNOLOGIES® is proud to introduce the LS Series. Blending contemporary styling
and stunning performance, the LS Series will please your eyes and ears. The elegant
wood grained curved cabinets are sure to appeal to your sense of style.
This Series marks the introduction of aluminum dome tweeters and Composite
Fiberglas™ woofers to the Athena TECHNOLOGIES® brand. Aluminum dome tweeters
are extremely accurate due to their light weight. Composite Fiberglas™ is an
extremely rigid and light weight material allowing a woofer to not only play loud, but
clear. A further testament to the value of athena TECHNOLOGIES® products, these
technologies are found on speakers that sell for many times the price of the LS Series.
Whether you are just getting into a music or movie system or have appreciated the
experience of good quality components in your system for years, the LS Series will
please you.
Like all athena TECHNOLOGIES® products, the LS Series plays loud and clear while
offering exceptional value.
www.athenaspeakers.com
3641 McNicoll Avenue, Toronto, Ontario Canada M1X 1G5 Telephone 416 321 1800
#3PAB018E Printed in Canada
Specifications Subject to Change Without Prior Notice.
LS-50B LS-100B
Design 3" Curved Cabinet 5 1/2" 2-Way Curved Cabinet
Shielded Satellite Speaker Shielded Bookshelf Speaker
Power Handling 120 Watt
Woofer 3" Cone 5 1/2" Composite Fiberglas™ Cone
Tweeter 3/4" Soft Dome 1" Aluminum Dome
Frequency Response 90Hz - 20kHz 55Hz - 20kHz
Typical Room Sensitivity 84dB 87dB
Dimension HxDxW (in.) 6.9 x 5.6 x 4.7 12.8 x 9.7 x 7
Dimension HxDxW (cm) 17 x 13.6 x 11.8 32.5 x 24.5 x 18
Weight n/a n/a
Finish Black Ash Black Ash
Accessories Keyhole Wall Bracket Included -
LS-300B LS-500B
Design 6 1/2" 2-Way Curved Cabinet Dual 6 1/2" 2-Way Curved Cabinet
Shielded Floorstanding Speaker Shielded Floorstanding Speaker
Power Handling 200 Watt 250 Watt
Woofer 6 1/2" Composite Fiberglas™ Cone 6 1/2" Composite Fiberglas™ Cone
Tweeter 1" Aluminum Dome 1" Aluminum Dome
Frequency Response 38Hz - 20kHz 30Hz - 20kHz
Typical Room Sensitivity 89dB 90dB
Dimension HxDxW (in.) 34.7 x 11 x 9.7 38.5 x 11.8 x 9.7
Dimension HxDxW (cm) 88 x 28 x 24.5 97.9 x 30 x 24.5
Weight n/a n/a
Finish Black Ash Black Ash
LS-C50B LS-C100B
Design Dual 3" 2-Way Curved Cabinet 5 1/2" 2-Way Curved Cabinet
Shielded Center Channel Speaker Shielded Bookshelf Speaker
Power Handling 100 Watt 125 Watt
Woofer Dual 3" Cone 5 1/2" Composite Fiberglas™ Cone
Tweeter 3/4" Soft Dome 1" Aluminum Dome
Frequency Response 85Hz - 20kHz 60Hz - 20kHz
Typical Room Sensitivity 84dB 87dB
Dimension HxDxW (in.) 4.7 x 5.6 x 13.8 6.9 x 7.9 x 18
Dimension HxDxW (cm) 11.8 x 13.6 x 35 17.5 x 20 x 45.7
Weight n/a n/a
Finish Black Ash Black Ash
Accessories Tabletop Mounting Included -
